User manual
![](/img.php?id=1799464&img=bg1.png)
NetCam
Wi-Fi® Camera with Night Vision
USER MANUAL
8820-01175
Rev. B00
F7D7601v1
Ok mk 8/22/12
TABLE OF CONTENTS
Getting Started
What’s in the Box
Initial Setup
Set Up Your Camera Wirelessly Through Your Mobile Devices
Getting to Know Your Wi-Fi Camera
Front Panel
Back Panel
Technical Details
Software Features and Specifications
Hardware Features and Specifications
System Requirements
Resetting the Camera
Troubleshooting, Support, and Warranty
Troubleshooting
Technical Support
Belkin International, Inc., Limited 2-Year Product Warranty
Regulatory Information
FCC Statement
Getting Started
Congratulations on buying a Belkin NetCam. This device will enable you to easily check in on your home and your loved ones when you are away.
What’s in the Box
NetCam
Power Supply
Quick Installation Guide
Mounting Kit
Initial Setup
To get started, you will need:
• Your wireless router, its network name (SSID), and password.
• An Android device (Version 2.2 or later) or an iPhone, iPad, or iPod touch (iOS Version 4.1 or later)
Set Up Your Camera Wirelessly Through Your Mobile Devices
1. Plug the NetCam into a power outlet
Add chart
2. Switch the NetCam to Setup Mode by flipping up the switch on the back of the camera
3. Download the NetCam App from the App Store or Google Play
Add app logo
4. Set Up on iPhone, iPad, or iPod touch
4.1 Connect your mobile device to NetCam Wi-Fi signal
Go to “Settings > Wi-Fi” on your iPhone/iPad/iPod touch and connect to the camera’s Wi-Fi signal.
<use image from QIG, Backside third image from left>
4.2 Launch the NetCam App
Once your device establishes a connection with the camera, launch the NetCam App. You should see a pop-up message like the one below. Click “Yes” to set
up your camera.
![](/img.php?id=1799464&img=bg2.png)
4.3 Camera Setup
Click “Continue” to begin setup.
4.4 Camera Preview
The camera will show you a preview after successfully connecting to your device.
Click “Connect Camera to Internet.”

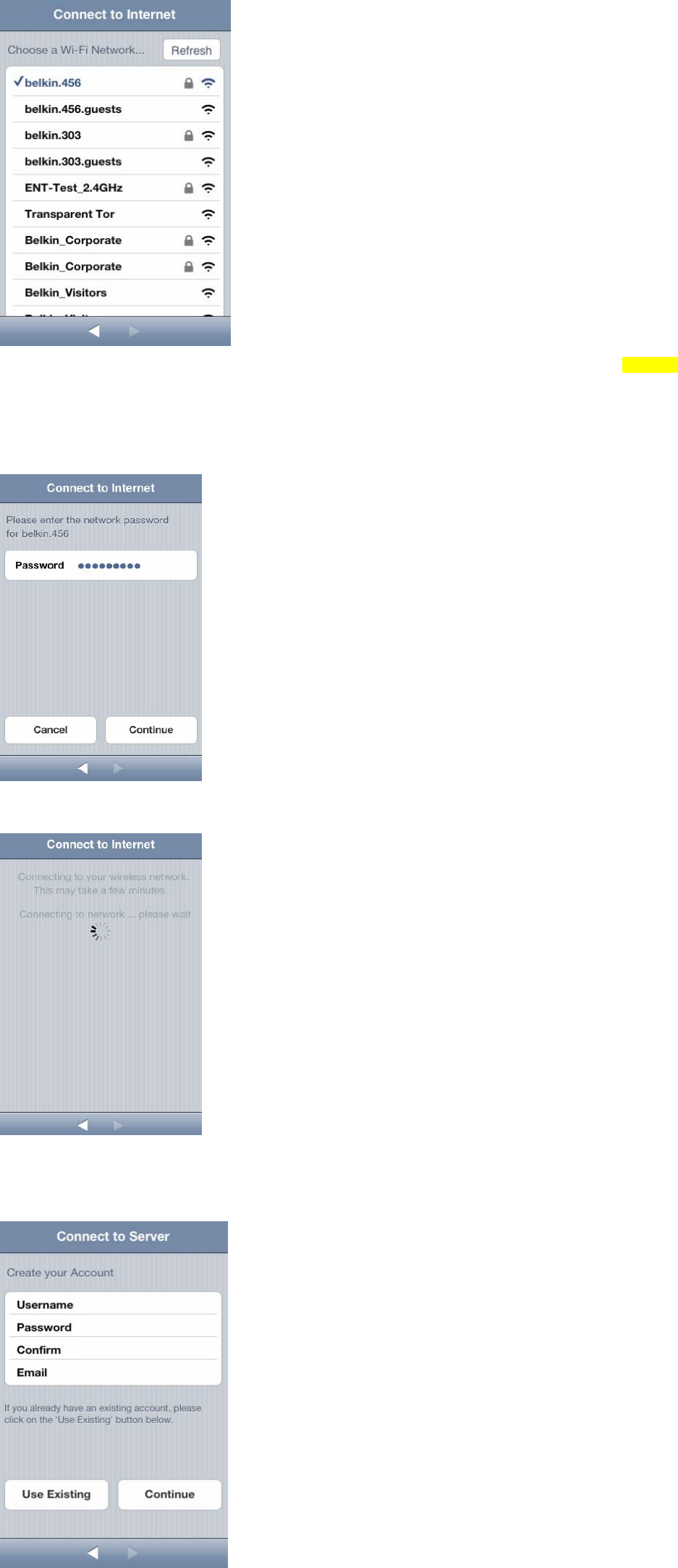

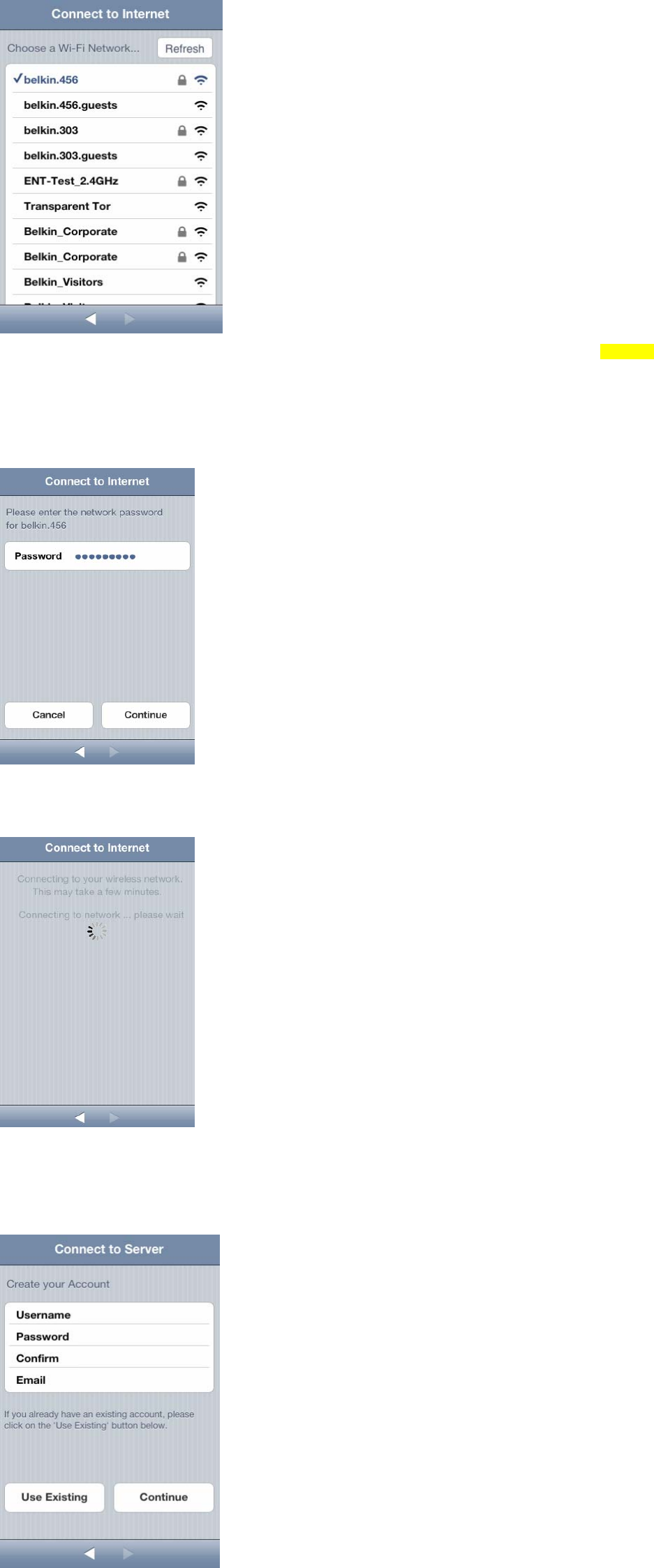

4.5 Connect to Internet
Choose your Wi-Fi network to connect to the Internet.
![](/img.php?id=1799464&img=bg3.png)
You may also choose to connect to your network via Ethernet cable (not included) by clicking “Ethernet.”
4.6 Connect to Internet
Enter your Wi-Fi password if you have a security-enabled network.
Please wait for the camera to establish connection with the Internet.

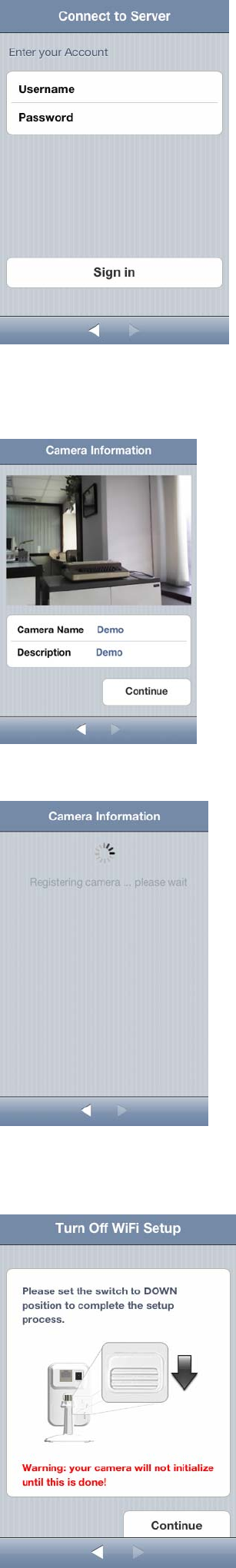

4.7 Create an Account
If this is your first time setting up your camera, you will need to create an account.
![](/img.php?id=1799464&img=bg4.png)

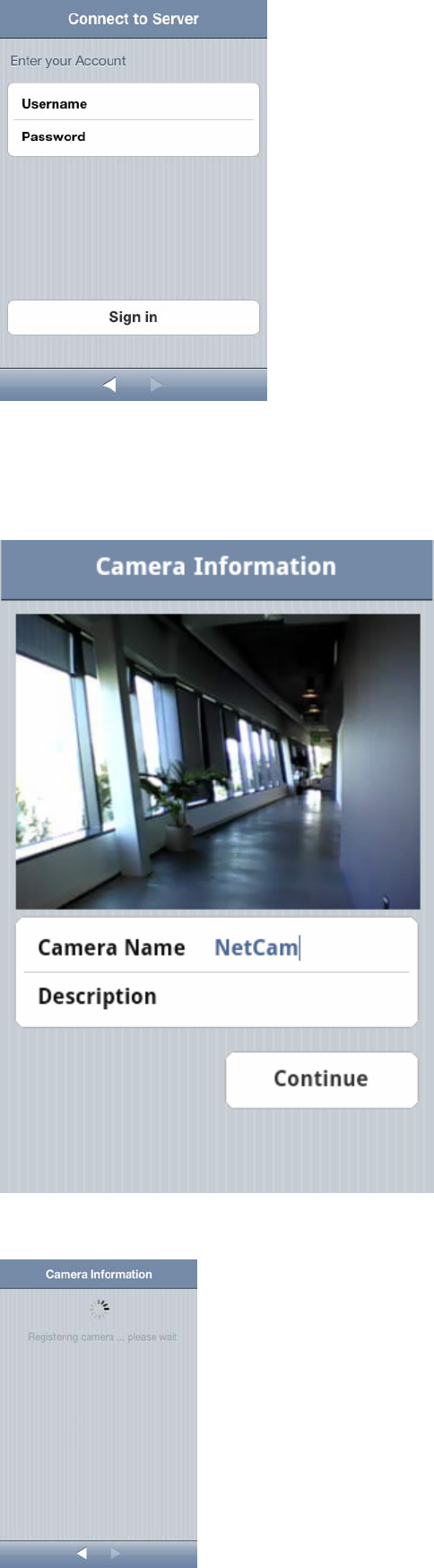

4.8 Use Existing Account
If you have an existing account, select “Use Existing” and then enter your account information. Click “Sign in.”
4.9 Set Up Camera Info
Create the camera name and its description.
Click “Continue.” It will take a few seconds to register the camera with the server.
4.10 Setup Complete
Please flip the setup switch down on the back of the NetCam. Click “Finish” to complete the setup.
Congratulations!
![](/img.php?id=1799464&img=bg5.png)

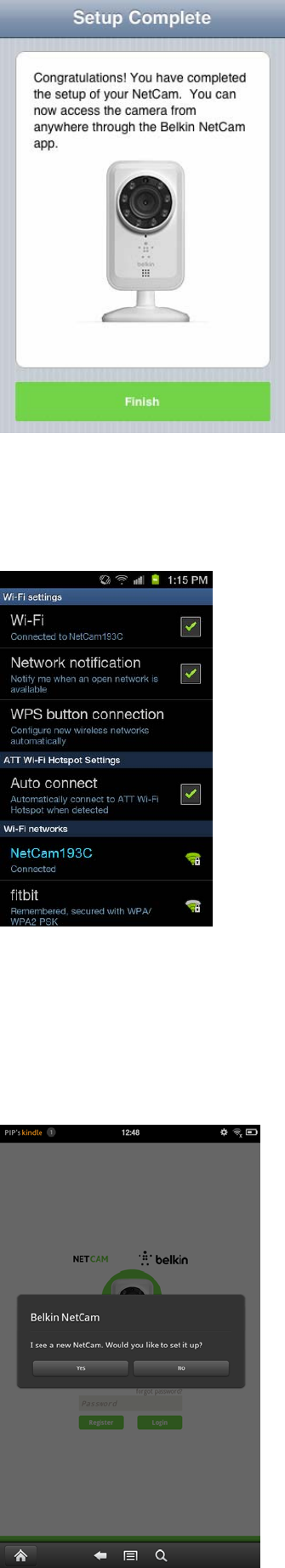

5. Set Up on Android Devices
5.1 Connect your device to NetCam Wi-Fi signal
Go to “Settings > Wireless” and “Network > Wi-Fi settings” and connect to the camera Wi-Fi signal.
5.2 Launch NetCam App
Once your device establishes a connection with the camera, launch the NetCam App. You should see a pop-up message like the one below. Click “Yes” to set
up your camera.

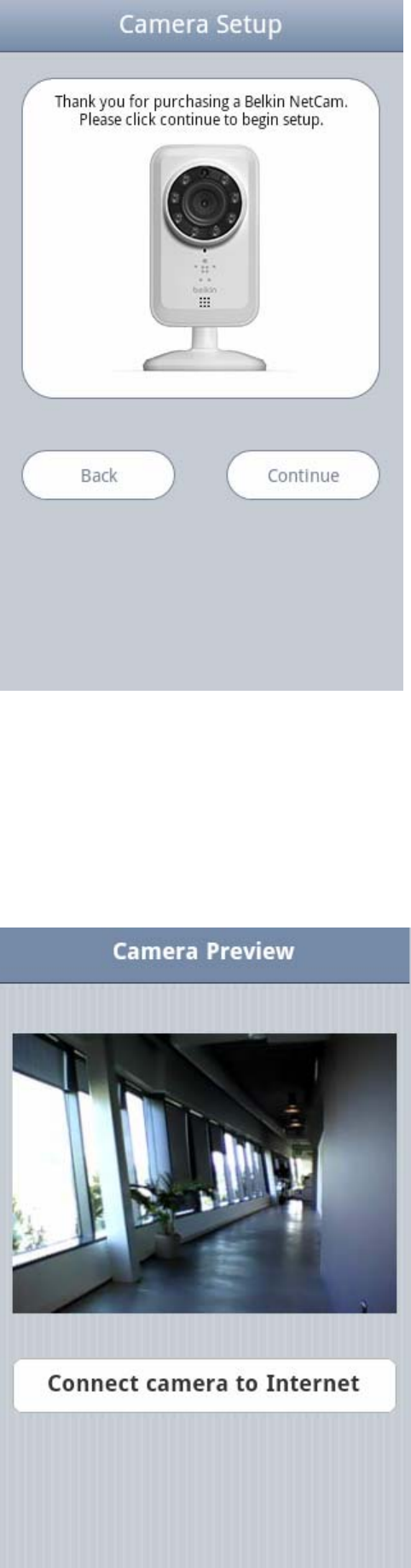

5.3 Camera Setup
Click “Continue” to begin setup.
![](/img.php?id=1799464&img=bg6.png)
5.4 Camera Preview
The camera will show you a preview after successfully connecting to your device. Click “Connect camera to Internet.”
5.5 Connect to the Internet
Choose your Wi-Fi network to connect to the Internet.
![](/img.php?id=1799464&img=bg7.png)
You may also choose to connect to your network via Ethernet cable (not included) by clicking “Ethernet.”
5.6 Connect to Internet
Enter your Wi-Fi password if you have a security-enabled network.
Please wait for the camera to establish an Internet connection.
5.7 Create an Account
If this is your first time setting up your camera, you will need to create an account.
5.8 Use Existing Account
If you have an existing account, select “Use Existing” and then enter your account information. Click “Sign in.”
![](/img.php?id=1799464&img=bg8.png)
5.9 Set Up Camera Info
Create the camera name and its description.
Click “Continue.” It will take a few seconds to register the camera with the server.

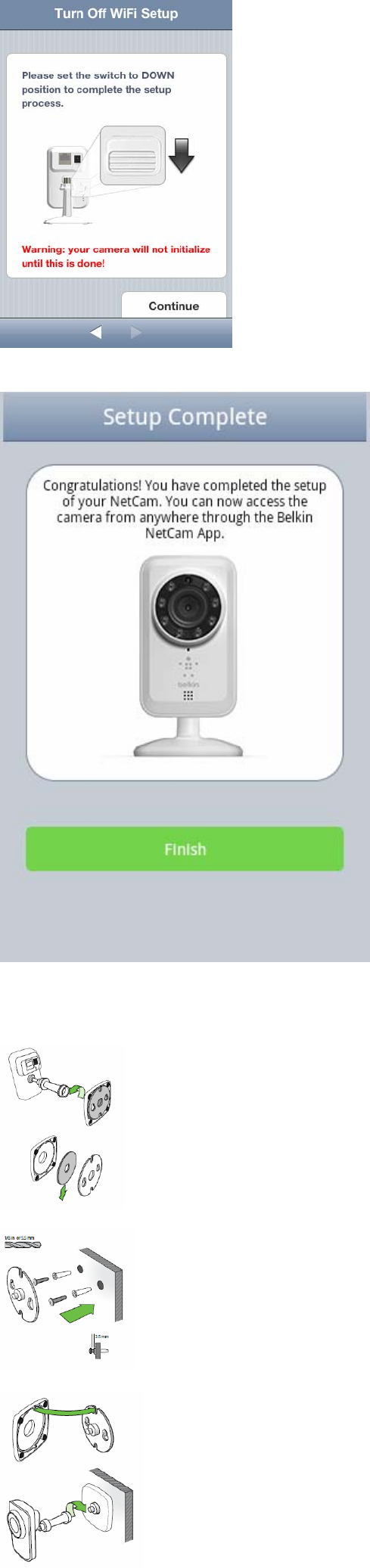

5.10 Setup Complete
Please flip the setup switch down on the back of the NetCam. Click “Finish” to complete the setup.
![](/img.php?id=1799464&img=bg9.png)
Congratulations!
6. Mounting Your Camera (optional)
Unscrew camera post from the base and remove weight.
Attach screws to wall and hang plate onto screws.
Align base with plate and screw on camera post.
Getting to Know Your Wi-Fi Camera

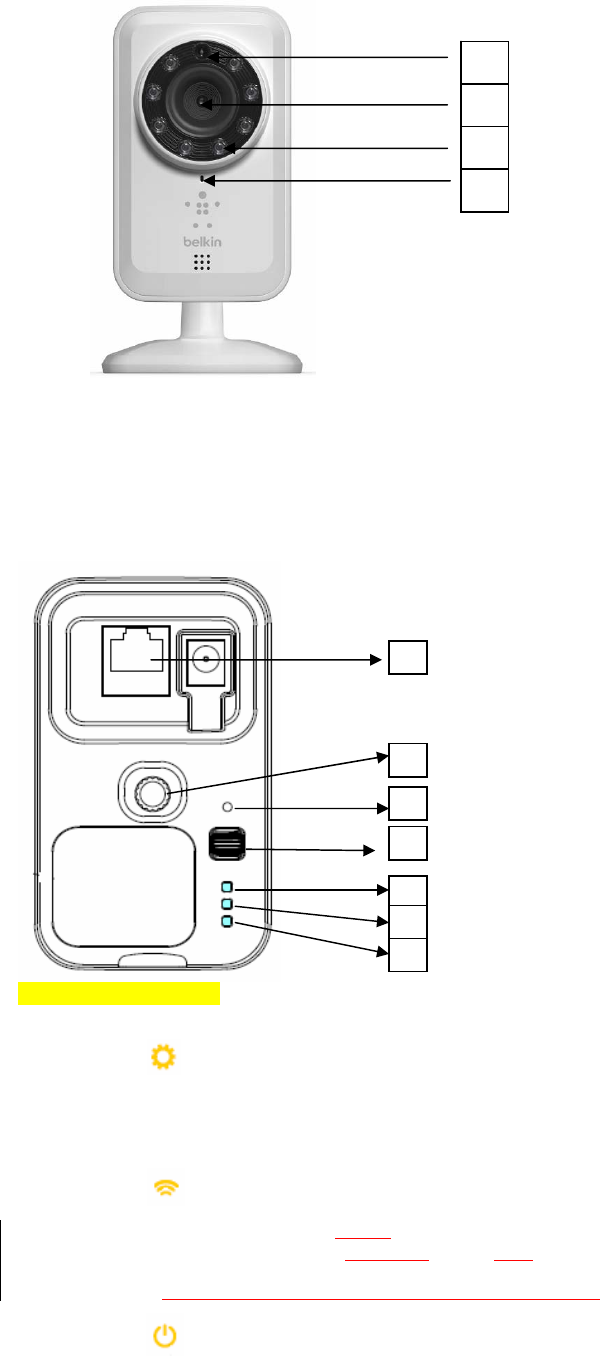

Front Panel
![](/img.php?id=1799464&img=bga.png)
A: Brightness sensor
B: Camera sensor
C: IR LED
D: Microphone
Back Panel
(add right picture here)<why are these out of order in the picture?>
o LED indicators
A: Setup
Green: Setup mode on
Orange: Setup mode initializing
Light Off: Setup mode off
B: Network
Green: Connected to server
Orange: Connected to local area network only
Flashing Orange: Not connected to any network
Flashing Green: Connected to network, ready to setup
C: Power
Green: Power On
D: RJ45 port
Can be used for wired setup and for a wired connection with the router while using the NetCam.
E: Camera holder
You can adjust the NetCam’s position by adjusting the holder.
F: Reset button
Reset System: Press and hold for 1 second to reset the system.
Factory Default: Press and hold for 20 seconds to restore factory default settings.
G: Setup switch
Flip up to switch to setup mode.
Flip down to switch to camera mode.
Technical Details
Software Features and Specifications
A
B
C
D
A
B
C
D
E
F
G
![](/img.php?id=1799464&img=bgb.png)
ApponiOSorAndroid
• Camerasetup
• Livecameraviewing
• Savesnapshotandvideofromthelivestream
• Liveone‐wayaudio
• Camerasettings
o Enable/disableemailalert
o Camerasharing
o Setcamerastatus(online,offline,private)
o Videostream(Framerate,videoresolution,quality)
• Generalsettings
o Resetpassword
o Signinautomatically
• Invitefriendstoviewyourcamera
WebApp
• Livecameraviewing
• LiveaudioonselectedPCwebbrowsers(InternetExplorer®,Firefox®,andGoogleChrome™)
• Camerasettings
• Camerafirmwareupgrade
• Deletecamera
• Invitefriendstoviewyourcamera
• Enable/disableemailalert
• Useraccountmanagement
• Createnewuseraccount
• Resetpassword

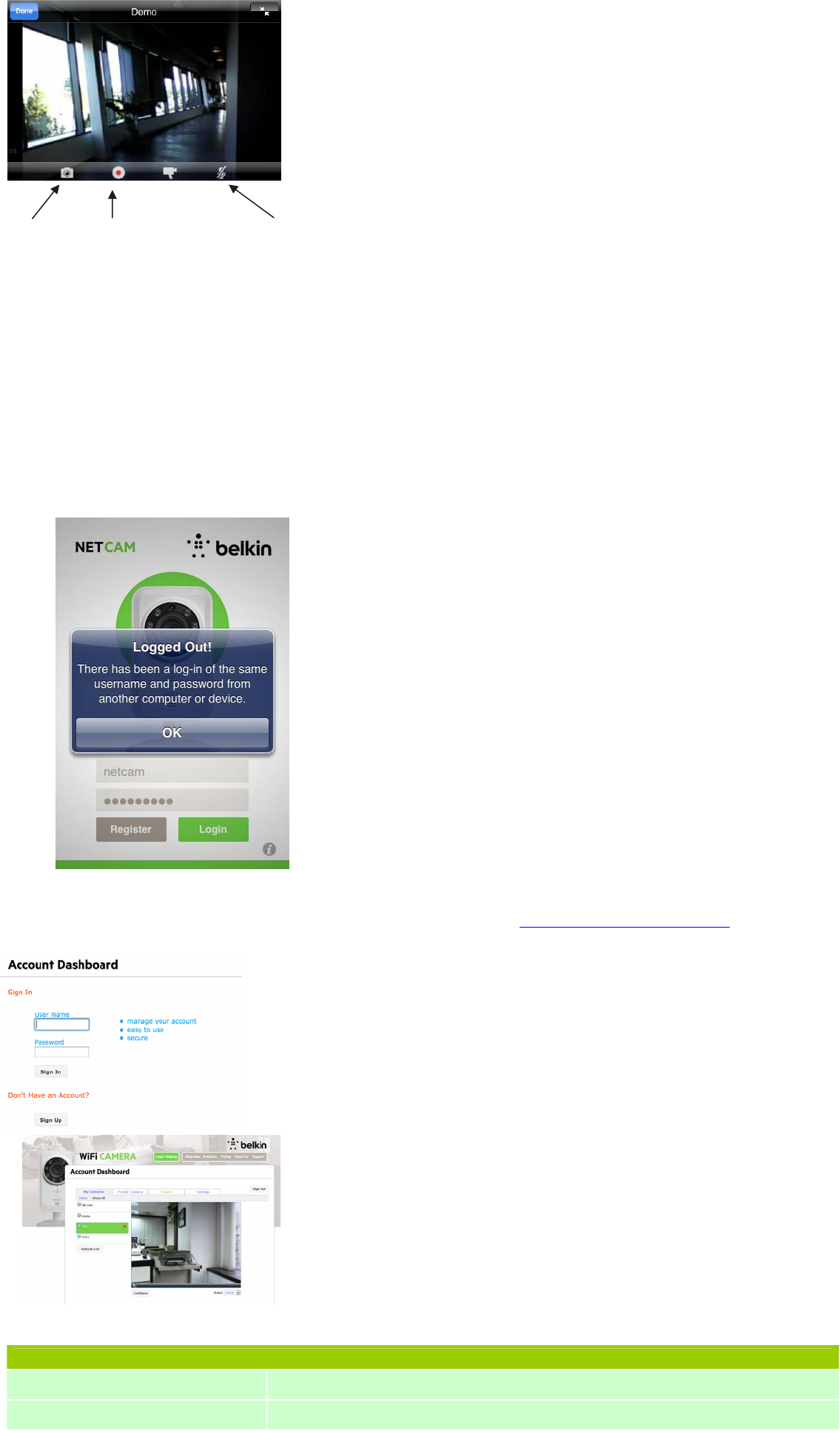

Main Window
Camera Configuration
• Name: Name of your camera
• Share/unshare: Make your camera public to your friends or not.
• Status: Change camera status to be online or disabled (Remove Private)
• Rotation: Select Normal or Flipped Vertically on the videos.
• IR: Select “Auto,” “On,” or “Off” of IR LEDs.
• Frame Rate: Up to 30fps
• Quality: 1-5 (Best = 5)
• Video Size: 160x120, 320x240, 640x480.
• Microphone > Enable/Disable Microphone
• E-Mail alert> Enable/Disable e-mail alert
Configure
Camera
![](/img.php?id=1799464&img=bgc.png)
Camera Viewer
Protection
To protect your security against a hacker, a pop-up message will alert you if someone else is logged into your account at the same time as you.
Web Browser
Access this link via Internet Explorer, Netscape, Firefox, or Google Chrome: http://www.belkin.com/netcam
Then you can view the camera via your PC.
Hardware Features and Specifications
Camera
ImageSensorVGA1/4inchCMOSsensor
LensFocallength:3.1mm,F2.6
Take a
Snapshot Record
Video Enable
Micro
p
hone
![](/img.php?id=1799464&img=bgd.png)
ViewAngle
Horizontal:64°
Vertical:48°
Diagonal:80°
IRLEDs8IRLEDs,850nm
8‐meterilluminationdistance
IRMode
Alwayson
Alwaysoff
Automode
●IRturnsonwhenluminancedecreasestoabout3lux
●IRturnsoffwhenluminanceincreasestoabout8lux
AmbientLightSensorRoHS‐compliant560nmluminancedetector
Video
CodecsMJPEG,JPEGforstillimages
Resolution160x120,320x240,640x480
FrameRateUpto30frames
StillImageCaptureSupportVGAand0.3MPresolutionJPEGstillcapture
VideoFeaturesAdjustimagesizeandquality
Flipandmirrorimage
Audio
AudioInBuilt‐inmicrophone,‐38dB±2dB
AudioCompressionG.711,PCM
Networking
NetworkInterface10/100Base‐TXFastEthernet
802.11b/g/nWLAN
WirelessConnectivity802.11b/g/nWirelesswithWEP/WPA/WPA2security
RadioSpecifications
RFband:ISMBand2.4GHz
Channels:Variesbycountry
RFPowerOutput
●802.11n:14±1dBmAverage
●802.11g:14±1dBmAverage
●802.11b:16±1dBmAverage
Antenna
Type:Chipantenna,SMD
Gain:1.3dBmpeak
Efficiency:above65%
General
System
Processor:RT5350
Speed:360MHz
DRAM:64MB
Flash:8MB
Button
ResetButton
●Resetsystem:Presslessthan1secondtoresetthesystem
●Factorydefault:Pressandhold20secondstorestorethefactorydefaultsettings
SwitchSetupmodeswitch:Turnsetupmodeonandoff
LEDs
SetupModeLED
●SolidGreen:SetupModeon
●Orange:InprogresstoswitchtoSetupMode
●Nolight:SetupModeoff
NetworkLED
●SolidOrange:Localnetworkok
●SolidGreen:ConnectiontoInternetok
●FlashingOrange:Nonetworkyet
●FlashingGreen:GlobalInternetok
SystemLED
●SolidGreen:Systemon
PowerExternalAC‐to‐DCswitchingpoweradapter
Input:100‐249VAC,50/60Hz,Output:5VDC,1A
![](/img.php?id=1799464&img=bge.png)
System Requirements
iPhone, iPad, or iPod touch with iOS 4.1 or above
or
Android smart devices Version 2.2 or above
PC OS: Windows® XP, Windows Vista®, or Windows 7, or Mac OS® X v10.6.8 Snow Leopard
PC browsers: Internet Explorer 8, Google Chrome 16, Firefox 11.1, Safari® 5.1
Using the latest Adobe Flash Player
Resetting the Camera

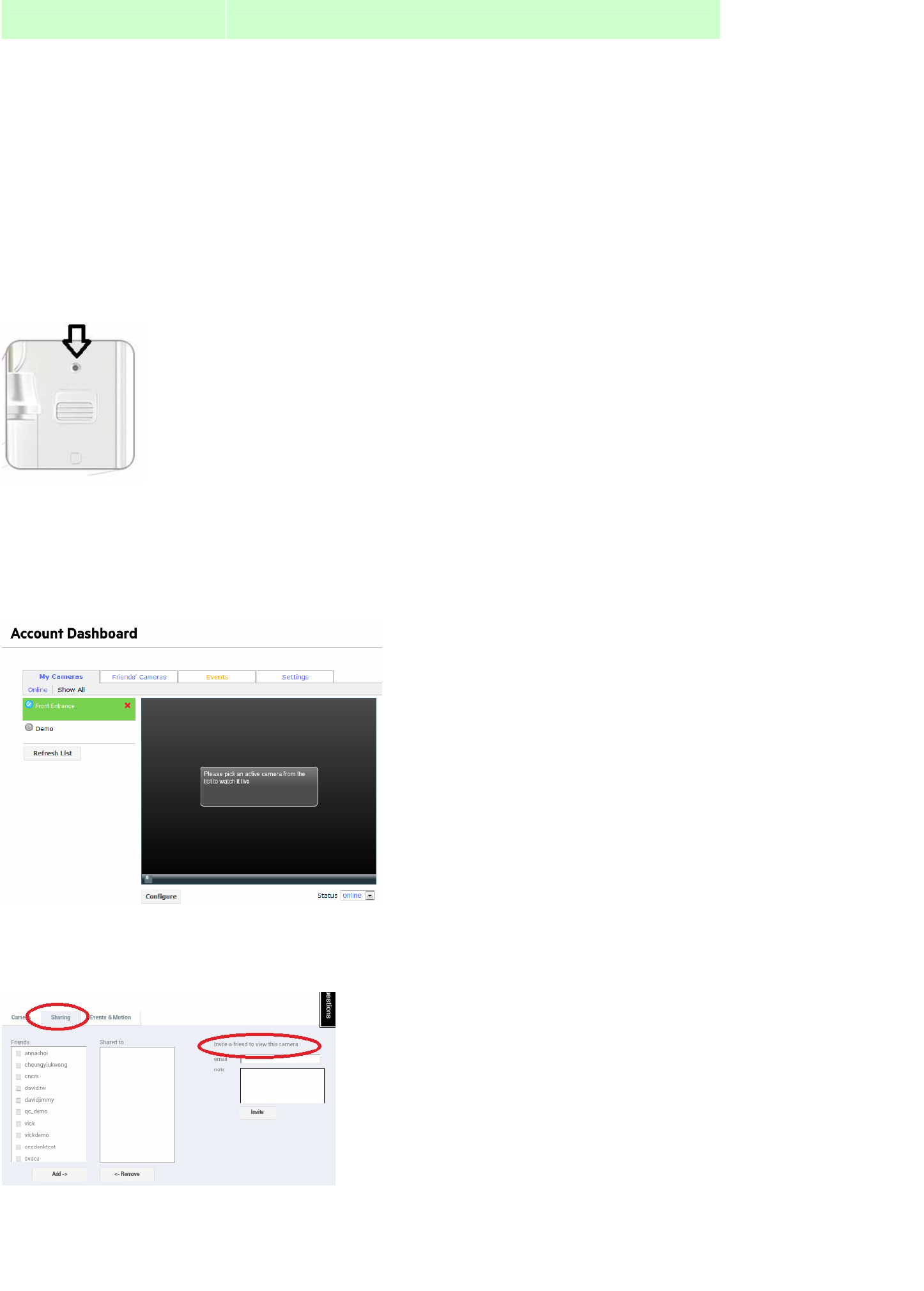

The “Reset” button is used in rare cases. In the unlikely event that your camera functions improperly, please use a pin to reset the camera. The Reset button is where the
arrow below points. Reset the camera when the switch is in “OFF” mode. After the reset, the camera will resume to the default setting.
●Resetsystem:Pressandholdfor1secondtoresetthesystem
●Resettofactorydefault:Pressandholdfor20secondstorestorethefactorydefaultsettings
Troubleshooting, Support, and Warranty
If I buy more cameras, could I use the same username to connect them?
Unlimited cameras can be added under your own account, but each one should have a different camera name. The figure below shows that you can have
different cameras under your account.
How can I share my cameras with my friends?
Log in to your account. Under the camera configuration, find the “Sharing” icon. Type in your friends’ email addresses to invite them to see your camera.

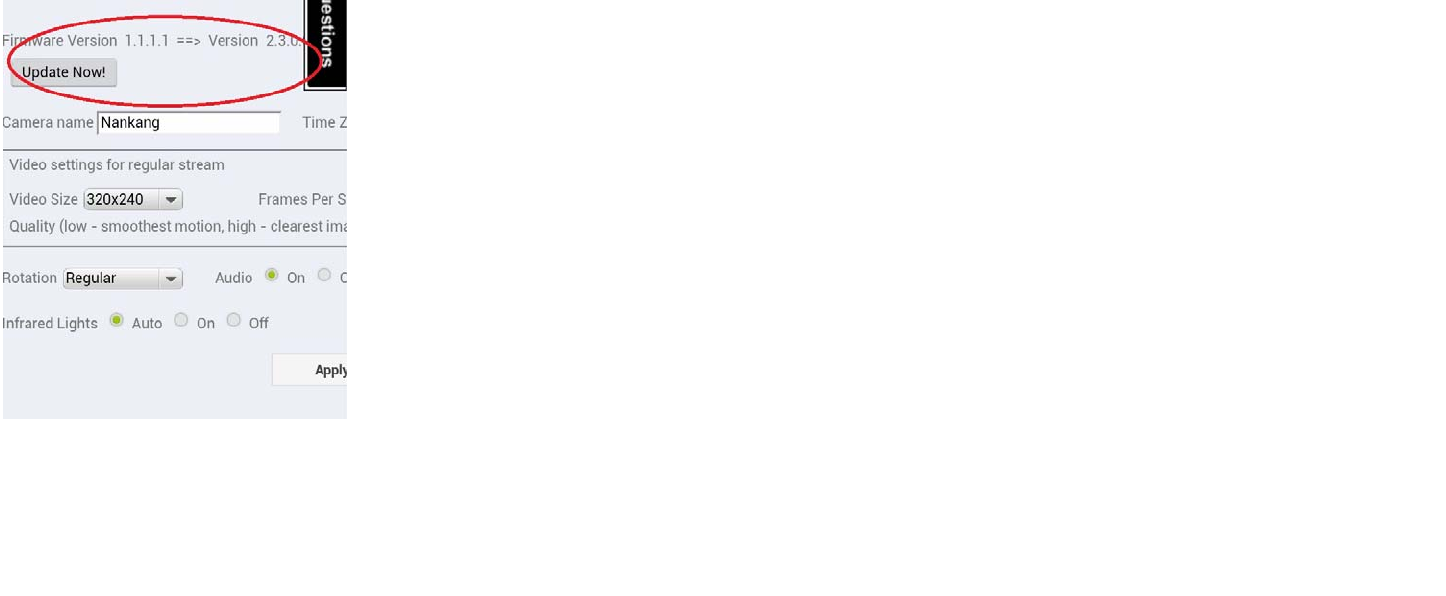

How can I upgrade the firmware?
Access your NetCam’s account from a web browser. Under the camera configuration, a screen will pop up like the one below. Click “Update Now.” It will take
about 5~10 minutes to upgrade the new firmware.
![](/img.php?id=1799464&img=bgf.png)
Can I change my username?
Your username is what identifies your account information, and once set, it cannot be changed. If you later do not like your username, the only recourse is to
create a new account. Please note that any subscription services registered in the old account (if applicable) cannot be transferred to the new account.
Forgot or lost your password?
The NetCam App login screen has a link labeled “Forgot your password?” that takes you to the account sign-in webpage. Type in your username and email
address, and then click the Reset button to begin the process of setting up a new password.
Technical Support
US
http://www.belkin.com/support
Belkin International, Inc., Limited 2-Year Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or
workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for two years.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). Belkin reserves the right to discontinue
any of its products without notice, and disclaims any limited warranty to repair or replace any such discontinued products. In the event that Belkin is unable to
repair or replace the product (for example, because it has been discontinued), Belkin will offer either a refund or a credit toward the purchase of another product
from Belkin.com in an amount equal to the purchase price of the product as evidenced on the original purchase receipt as discounted by its natural use.
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if
Belkin determines that the Belkin product has been improperly installed, altered in any way, or tampered with. The Belkin Product Warranty does not protect
against acts of God such as flood, lightning, earthquake, war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to
low voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa Vista, CA 90094, Attn: Customer Service, or call (800)-223-5546, within 15 days of
the Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt and Belkin product and how to proceed with your claim.
Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the
purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an
equipment repair facility to inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and
of such estimate shall be borne solely by the purchaser. Damaged equipment must remain available for inspection until the claim is finalized. Whenever claims are
settled, Belkin reserves the right to be subrogated under any existing insurance policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY
LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR
PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. Some states do not allow the exclusion or
limitation of incidental, consequential, or other damages, so the above limitations may not apply to you.
Regulatory Information
DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that
the device, F7D7601v1, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
![](/img.php?id=1799464&img=bg10.png)
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
***
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your body.
Back cover
© 2012 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows, Windows Vista, and
Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. iPad, iPhone, iPod touch,
Mac OS, and Safari are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered
trademark of the Wi-Fi Alliance. Android, Google Chrome, and Google Play are trademarks of Google Inc.
