F8E206-BLK-PS2 SPECIFICATION
1. Outline:
DimensionS: LxWxH=459x172x39mm
2.Scope:

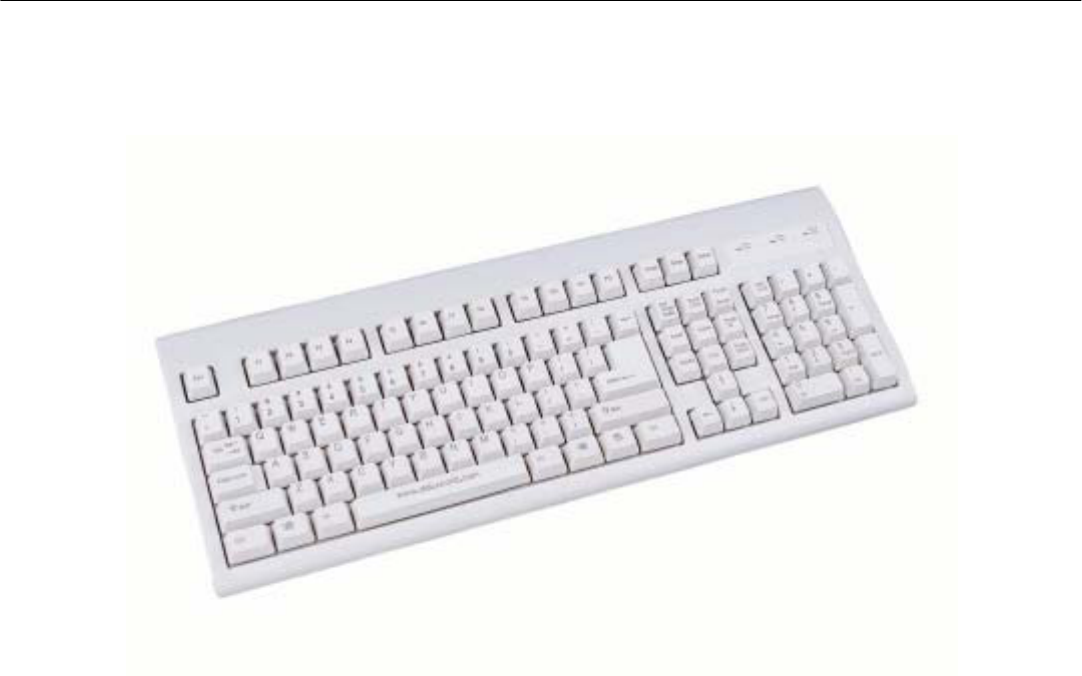

This keyboard F8E206-BLK-PS2 is 107/108 key, especially with new key support for
Microsoft Windows, also compatible with AT or PS/2 .
3.Features:
3.1.ACPI power management keys
3.2.107/108 Enhanced layout
3.3.Fully compatible with PS/2 and Microsoft Windows OS
3.4.Membrane key switch with tactile feedback
3.5.High quality membrane tactile key switch
3.6.Worldwide language layout supported
3.7.A target calculated Mean Time Between Failures(MTBF) is greater than 5,000 hour
4.Specifications:
4.1.Key Switch Actuation Switch Travel: 3.5±0.3mm
Switch Feeling: Silent tactile feedback
Working Voltage:5.0±0.25VDC
4.2.Electrical Specification Current Consumption:30mA Max
Power Consumption: 0.2 Watts Max
![](/img.php?id=317676&img=bg2.png)
FCC ID.:K7SF8E206PS2
4.3. Environmental data: Operating temperature:0℃ to 45℃
Storage temperature:-20℃ to 60℃
Humidity: -20% to 90%(non-condensing)
4.4. Connector

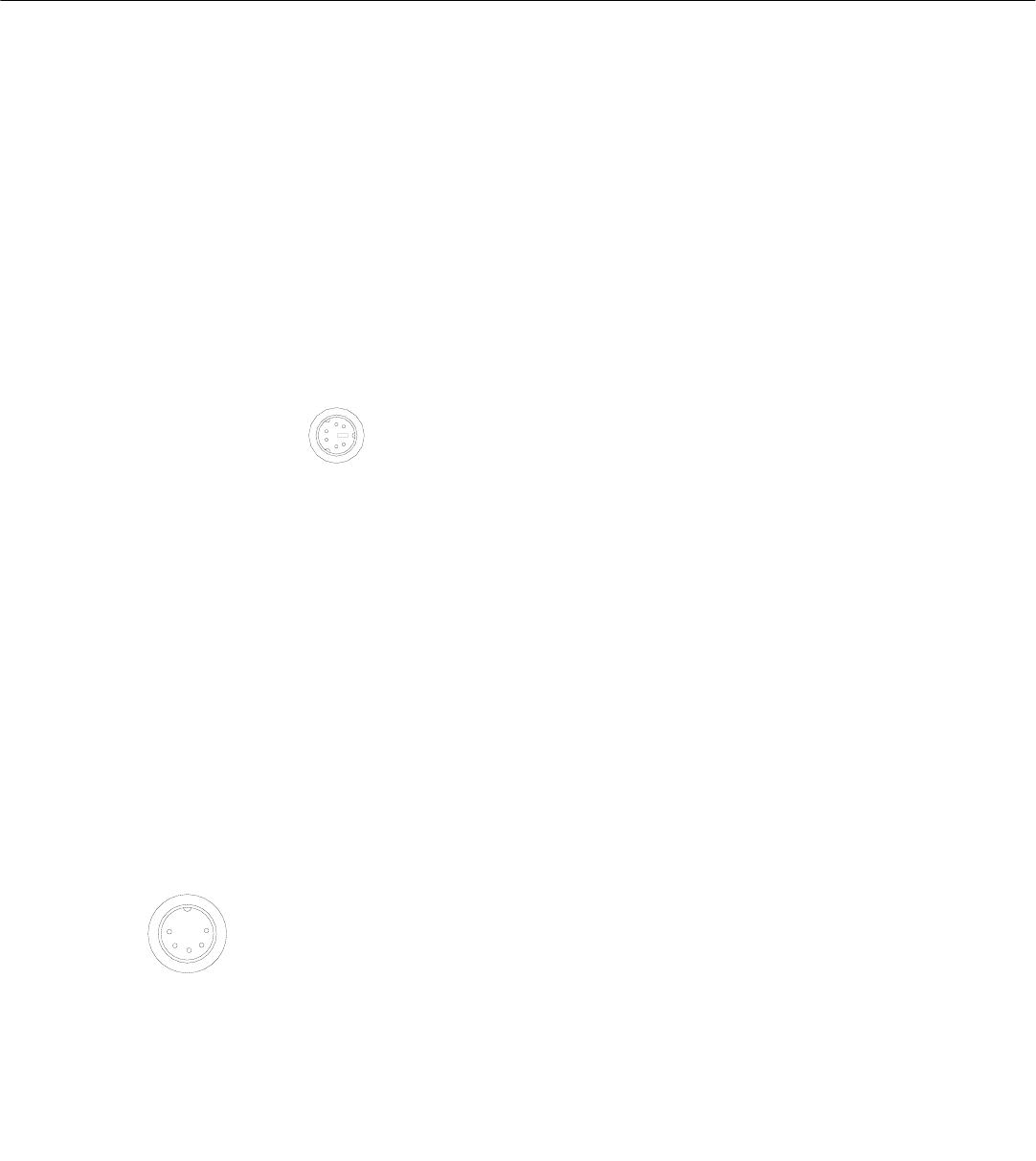

4.4.1. MINI DIN 6 pin connector pin assignment,See Figure 1
Figure 1
5. Reserve
Shield Frame Ground
PIN SIGNAL
2 Data
1 Ground
4. Clock
3 VCC
35
2
5
14
4.4.2. DIN standard 5 pin connector pin assignment,See Figure 2
2
3
1
5
44. Ground
3 Reserve
2 Data
Shield Frame Ground
5. VCC
PIN SIGNAL
1 Clock
Figure 2
![](/img.php?id=317676&img=bg3.png)
FCC ID.:K7SF8E206PS2
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation, if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on ,the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void
the user’s authority to operate the equipment.
