Introduction
User Manual
TuneCast® 3 Mobile FM Transmitter
![](/img.php?id=734949&img=bg2.png)
Introduction Operating Instructions
Operating Instructions
Congratulations and thank you for purchasing the TuneCast 3 Mobile FM Transmitter
from Belkin. This product is designed to play your portable audio device through your
car, home, or portable stereo. Please review this User Manual carefully so that you can be
sure to get the most from your TuneCast 3, virtually anywhere you go.
Introduction | 01 | 02
Stereo/Mono

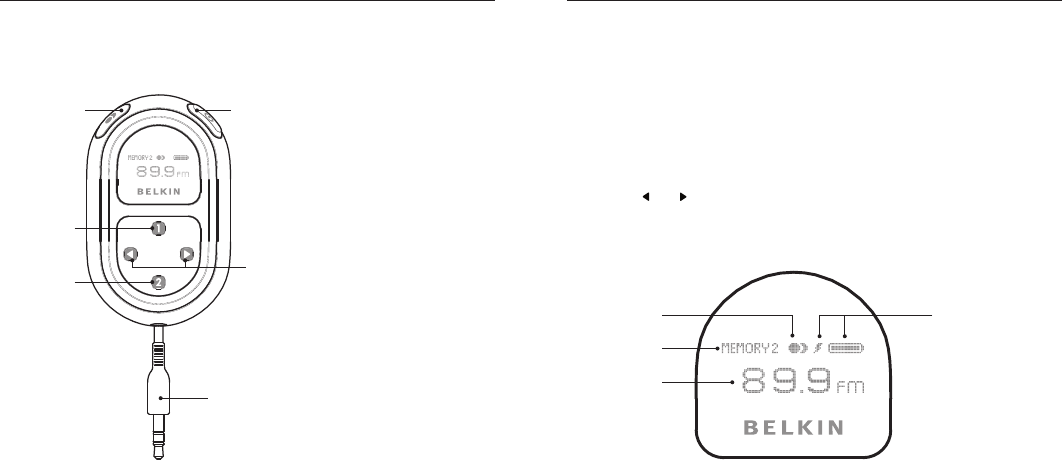

Using the TuneCast 3 Mobile FM Transmitter
1. Turn down your car stereo’s volume.
2. Tune your stereo frequency to a channel with a weak broadcast signal. The ideal channel
is one that is not broadcasting a radio program, or is doing so weakly.
3. Connect the TuneCast 3 to your portable audio device.
4. Connect the included Auto Power Cord to your cigarette-lighter outlet in your car and to
the bottom of your TuneCast 3 for optional powering in the car.
5. Press and hold the ON/OFF button for approximately two seconds. The display’s status
bar will indicate when the device is powered on.
6. Press the ” ” or “ ” button on the TuneCast 3 to match the frequency on the radio
chosen in step 2. Pressing and holding either button will provide faster tuning.
7. Adjust the volume on the audio device to about three-fourths of the maximum. Adjust
the volume of your FM radio to the desired listening level.
ON/OFF
Forward/
Back
3.5mm Cable
Preset 1
Preset 2
Memory
Preset
Frequency
Power Source
Battery or DC Power
Stereo/
Mono
![](/img.php?id=734949&img=bg3.png)
Operating Instructions
Operating Instructions | 03

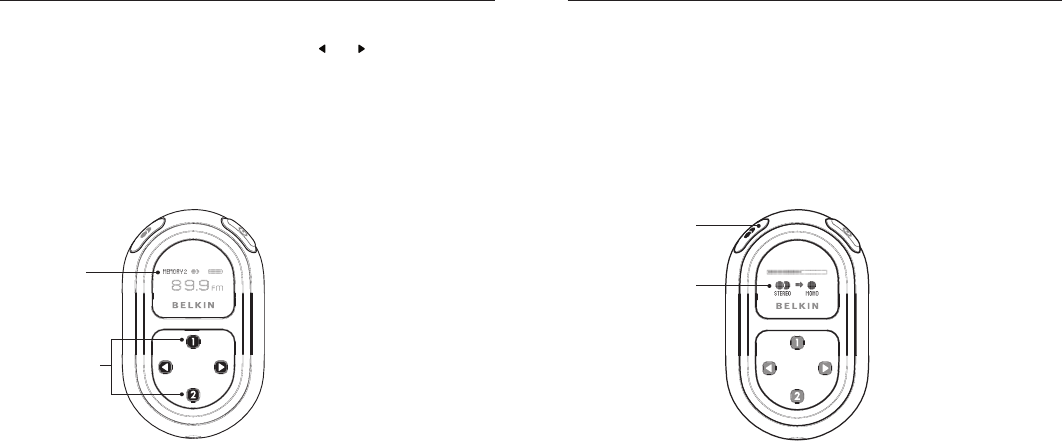

Storing and Using Presets
1. To store a preset, select the desired frequency using ” ” or “ ” buttons. Press and
hold the desired preset button (1 or 2) for two seconds (the status bar will give you
visible feedback). An audible beep sounds in the transmitted audio when the new
frequency is programmed. The TuneCast 3 display reflects the change when the
memory button is released by showing which memory button was pressed along
with the frequency saved in that memory position.
2. To select one of your preset frequencies, momentarily press “1” or “2”. This will
instantly tune the TuneCast 3 to the frequency stored in that preset.
NOTE: Storing a preset will memorize the frequency as well as the current mono/stereo setting.
Memory Presets
Stored Preset
Stereo/Mono Selection
Transmitting music in stereo generally gives you the highest-quality listening
experience. However, you may get better FM-signal reception by changing the
transmission to mono. The TuneCast 3 transmits in stereo mode by default. We suggest
that you switch from stereo to mono transmission only if your car stereo is NOT receiving
a clear signal from the TuneCast 3, or if you are listening to mono recordings such as
audio books.
Press and hold the “Mono/Stereo” button located on the upper-left corner of the
TuneCast 3. The status-bar indicator will transition from stereo to mono or vice versa.
The TuneCast 3 display will return to normal operation where the current frequency is
shown along with the current mono or stereo setting represented by:
Mono/Stereo Button
Mono/Stereo Display
Operating Instructions | 04
Operating Instructions
![](/img.php?id=734949&img=bg4.png)
Operating Instructions | 05 Operating Instructions
Operating Instructions
| 06

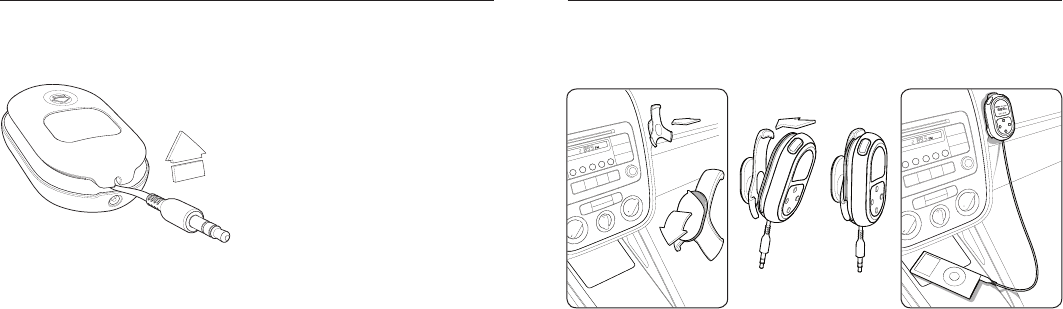

Adjusting and Locking the Cable
The cable length of the TuneCast 3 can be changed and locked for different applications.
Operating Instructions
Mounting
Use the cradle and mount with adhesive backing to attach your TuneCast 3
to any smooth surface.
![](/img.php?id=734949&img=bg5.png)
Operating Instructions | 07 Troubleshooting
TroubleshootingOperating Instructions
| 08

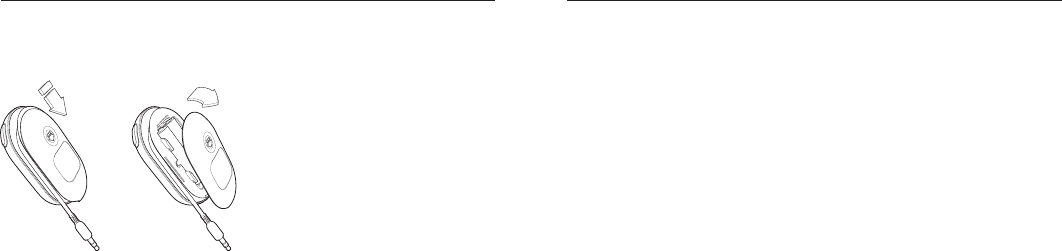

Changing the Batteries
Gently push the battery door on the back of the unit downward. Replace batteries.
Position cover on back by gently sliding it up until it locks in position.
Important TuneCast 3 Battery-Operation Details
TuneCast 3 automatically extends battery life and helps ensure safe operation in these ways:
1. TuneCast 3 turns off after approximately 10 minutes without audio detection. We
recommend that you manually turn off the TuneCast 3 when not using it, to limit
unnecessary battery use.
2. When plugged into your vehicle’s power outlet, TuneCast 3 automatically switches from
battery to DC power.
3. TuneCast 3 displays the battery-life status and turns itself off when the batteries no
longer contain enough power to operate. This prevents a potentially hazardous
over-discharge condition.
Issue
The audio is distorted.
Solution 1
Decrease the volume of your audio device until you no longer hear distortion. Keeping the
device’s volume level at or below three-fourths of the maximum should prevent audio distortion.
However, don’t turn it so low that the audio-detection circuit shuts down your TuneCast 3.
Solution 2
Tune your car stereo and the TuneCast 3 to a different frequency.
Issue
TuneCast 3 automatically turns off when I am playing music.
Solution
Turn up your music-player volume. If the audio-detection circuit does not detect audio for 10
minutes, it shuts down the unit to preserve the battery. Possible causes of this situation are having
the music-player volume too low or pausing the player for longer than 10 minutes.
Issue
The battery indicator does not seem to display the correct battery status.
Solution
Be sure to use non-rechargeable alkaline batteries. Other battery types can cause TuneCast 3 to
display incorrect battery life.
Issue
My TuneCast 3 automatically powers off when I turn off my vehicle or unplug the unit from my
car’s power outlet.
Solution
TuneCast 3 automatically turns off when external DC power is removed.
![](/img.php?id=734949&img=bg6.png)
Troubleshooting | 09 Information
InformationTroubleshooting
| 10
Issue
I am unable to get clear FM reception.
Solution 1
Tune your car stereo and the TuneCast 3 to a different frequency.
Solution 2
In some instances, lowering the car antenna (in cars where available) improves the clarity of the
TuneCast 3 signal.
Solution 3
Change the stereo/mono setting to mono mode. This may improve signal reception, but the
audio will be monaural instead of stereo.
Solution 4
If used indoors, attach or reposition the antennae on the stereo receiver.
Issue
TuneCast 3 does not appear to be saving my settings.
Solution
Be sure NOT to release the button until the audible beep occurs or the status bar indicator is
complete. Your settings are stored in memory when the TuneCast 3 display returns to
normal operation.
Storage Precautions
When storing the TuneCast 3 for extended periods of time, Belkin recommends
the following:
1) Remove the batteries.
2) Keep out of direct sunlight and fluorescent lamps.
3) Avoid low (below 0° C) and high (greater than 35° C) temperature environments.
4) Avoid high humidity environments.
Electrical/Environmental Specifications
• Power Requirement: 2x AAA batteries, or 5.5V, 75mA at CLA input
• Operating Temperature: 0° C to 45° C
• Expected Continuous Run Time: 20 hours on new, 1175mAh alkaline batteries
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that
the product:
F8M010
to which this declaration relates:
Has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
ICES
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme
á la norme NMB-003 du Canada.
