Belkin F8T017 Bluetooth (class I) User Manual QIG Vista BCM2046B1

Belkin International, Inc. Bluetooth (class I) QIG Vista BCM2046B1

Users Manual

Quick Installation Guide
BTW6.0 for Microsoft Windows® Vista
Bluetooth USB Adapter
Introduction
§ PC System Requirements
z one available USB port
z Windows® Vista
§ UHE Button Operation
Your Bluetooth USB adapter may have UHE button, this is applied in the condition
when computer system is without BTW driver installed but need to make
connection with Bluetooth enabled keyboard or mouse or any HID devices
(BroadcomTM chip designed-in is preferred).
To enable the connection, please make sure first that the Bluetooth mode is
disabled at the system’s device manager, then press the UHE button from USB
adapter to enable UHE mode to be ready for Bluetooth connection.
*Tip : keep keyboard or mouse in pairing mode before pressing UHE button would
make the connection be quicker and more smooth.
Bluetooth Setup
Step 1. Put the CD-Rom into the computer’s CD drive and click the button of
software installation for Windows Vista from the menu screen.
The [Bluetooth device not found] window may appear, now, plug the USB
Bluetooth adapter into the USB port,
Step 2. The software InstallShield wizard window appears and start setup
automatically.
Bluetooth Setup
Step 3. On the welcome screen, click [Next] to continue.
Step 4. Click [Next] to accept the default destination folder, click [Change] to browse
to a new destination folder for the Bluetooth software.
Bluetooth Setup

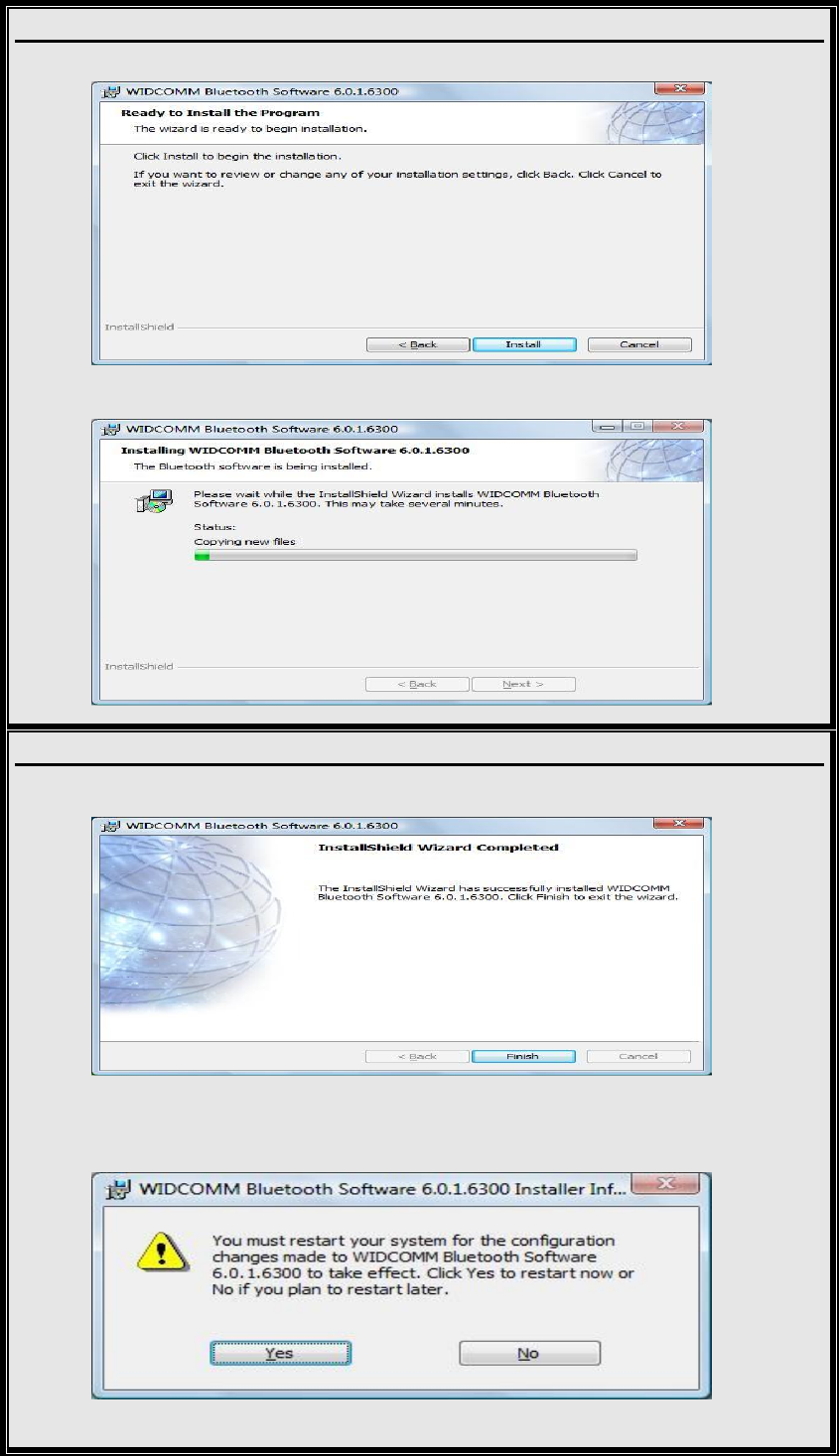

Step 5. Click [Install] to start program installation.
Step 6. Installation process is running.
Bluetooth Setup
Step 7. Click [Finish] to complete the Bluetooth software installation.
Step 8. The system restart request will appear to ensure the configuration change,
click [Yes] to restart now or [No] to restart the computer later.
After restarting the PC, please ensure the Bluetooth Icon resides in system tray.
Bluetooth Device Setup
Make sure the Bluetooth USB adapter is available on your computer and the system
is ready to add the Bluetooth device to pair it. Please follow below instructions to
complete the Bluetooth pairing :

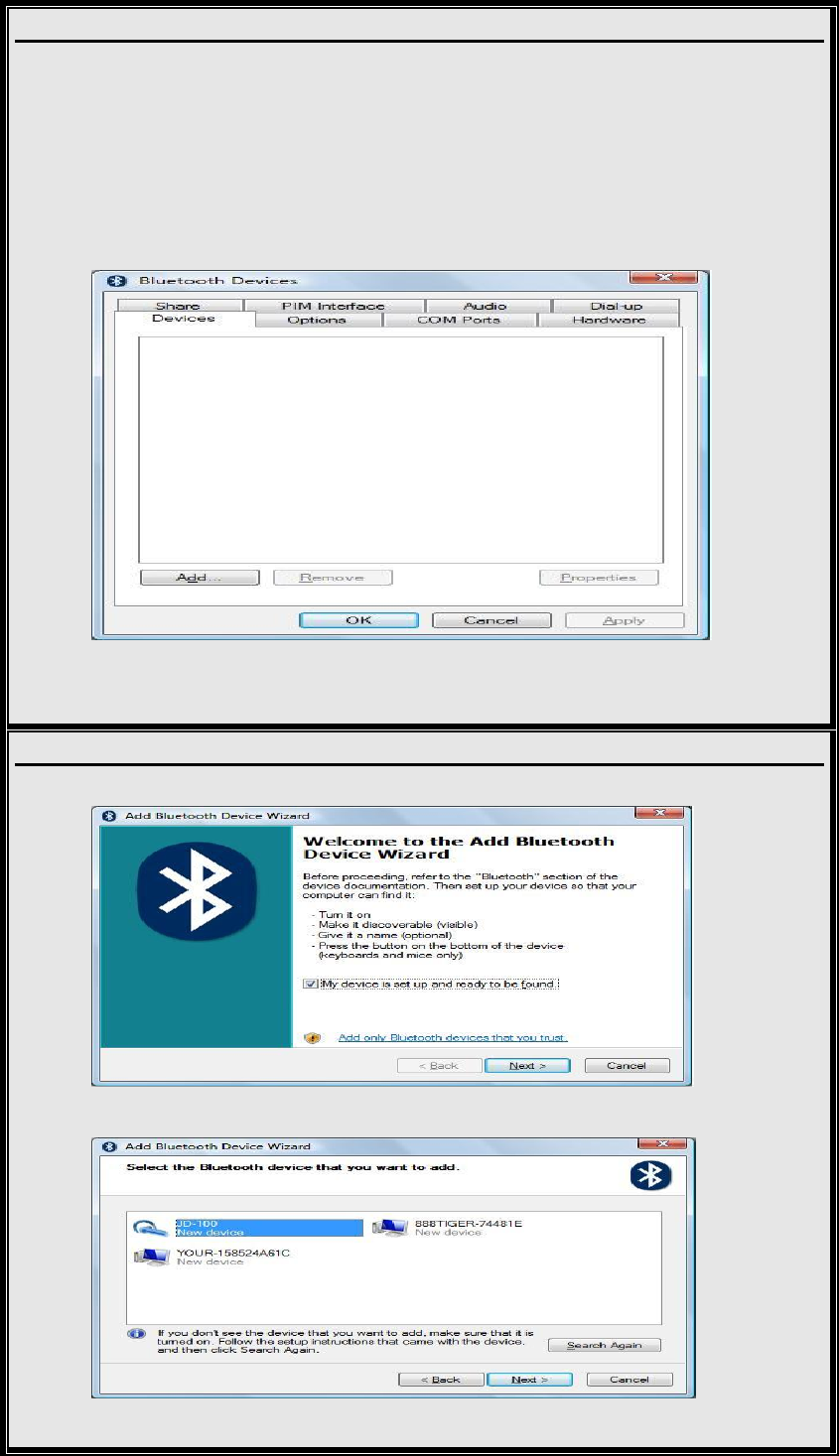

Step 1. Click the left button of Bluetooth Icon from your system tray to choose [Add a
Bluetooth Device] to the Add Bluetooth Device Wizard.
Bluetooth Device Setup
Step 2. Click [Next].
Step 3. Select the Bluetooth device that you want to add, then click [Next]
Bluetooth Device Setup

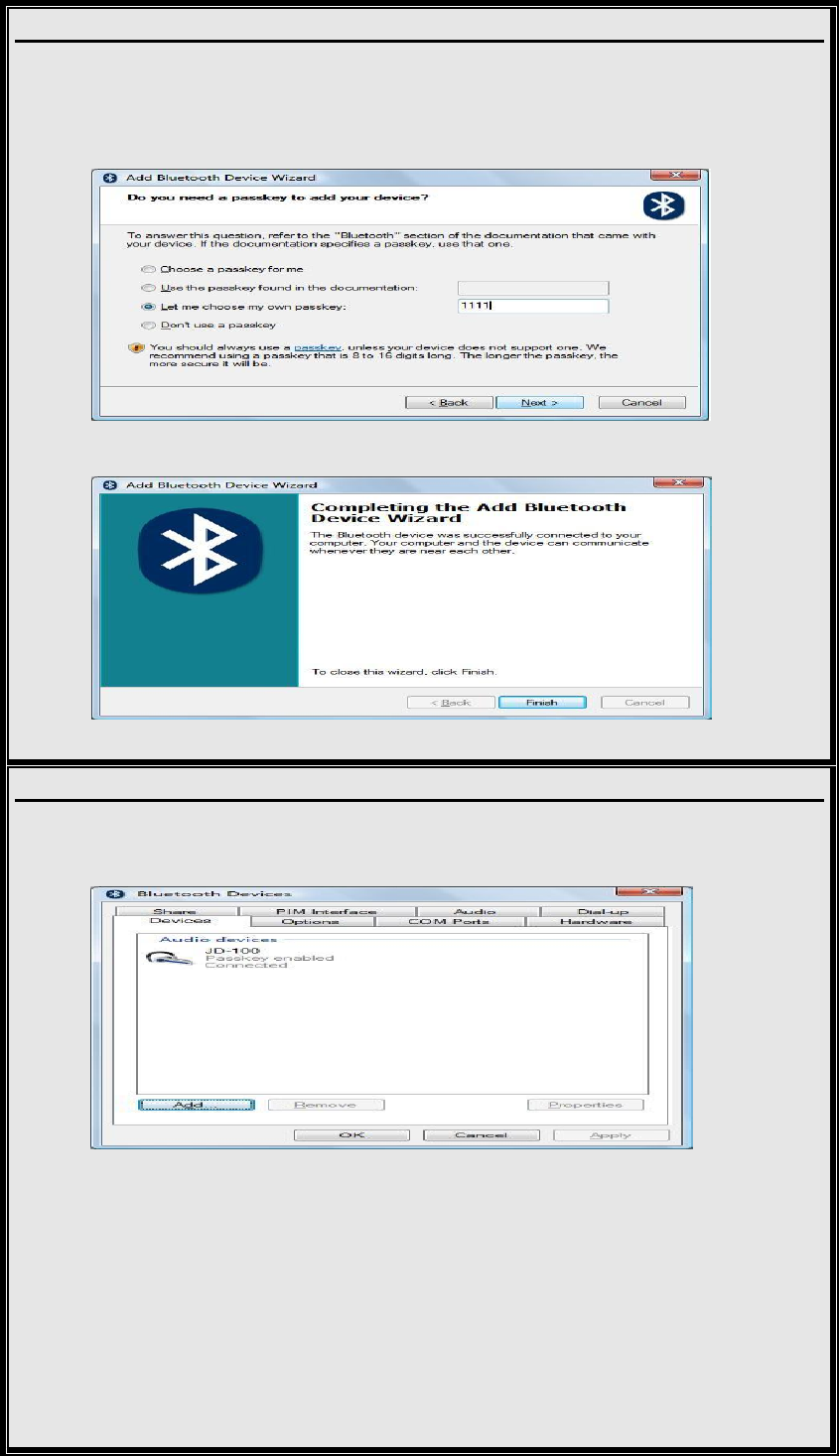

Step 4. You need to enter the Passkey. You can select whether you want Windows
to generate a Passkey for you, or use a specific Passkey contained in the
documentation of the Bluetooth device, or choose a passkey yourself.
Step 5. Complete the Bluetooth device installation.
Bluetooth Device Setup
Step 6. The Bluetooth device now is added, you can select it and click [OK] to make
connection.
Caution : changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules and RSS-210 of Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
0681
