Belkin F8T031 Wireless USB Printer Adapter User Manual P74376 F8T031 man
Belkin International, Inc. Wireless USB Printer Adapter P74376 F8T031 man
Belkin >
Users Manual
Bluetooth
™
USB
Printer Adapter
Print to your USB printers via
Bluetooth wireless technology
User Manual
F8T031
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Overview
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Supported Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1
2
INTRODUCTION
Congratulations and thank you for purchasing the Bluetooth USB Printer Adapter from
Belkin. This breakthrough Adapter adds Bluetooth technology to your existing USB
printer, allowing it to connect with all devices enabled with Bluetooth v1.1 technology.
Wirelessly print from your PDA, desktop, or laptop computer via Bluetooth technology.
Please be sure to review this User Manual carefully to ensure that you take advantage
of all the features and capabilities of your new Bluetooth USB Printer Adapter.
OVERVIEW
3
Product Features
The Bluetooth USB Printer Adapter is compliant with Bluetooth standard version 1.1
and provides:
• Compliance with Bluetooth specification v1.1 devices
• Support of USB 1.1-compliant printers*
• Operating distance of up to 100 meters
• Compact design
• Support for data rates up to 721Kbps
• Hardcopy Cable Replacement and Serial Port Profiles
*Multifunctional printers will not operate when used with this Adapter
System Requirements
• PDA or PC enabled with Bluetooth technology
• Serial Port or Hardcopy Cable Replacement Profile support
• USB v1.1-compliant printer
Package Contents
• Bluetooth USB Printer Adapter
• User Manual
• Quick Installation Guide
• Registration Card
OVERVIEW
4
OVERVIEW
5
Supported Profiles
The services supported by your Bluetooth USB Printer Adapter are defined as “Profiles”.
Available Profiles include:
• Generic Access
• Service Discovery
• Serial Port
• Hardcopy Cable Replacement
OVERVIEW
6
Specifications
Bluetooth Compliance Version 1.1
Compatible to Bluetooth
SPP and HCRP Profile
Physical Interface: USB v1.1-compliant,
A-type
Operating Frequency: 2.4 to 2.4835GHz
Output Power: Class I (0-20 dBm) RF
Data Rate: 723/56Kbps
Operation Range: 100m (333 ft.) radius
indoors
Antenna: Integrated
LED: Bluetooth Activity,
USB Status
Dimensions: 81 (W) x 81 (L) x 26mm (H)
Weight: 108g
Operating Temp: 0 to 50 degrees Celsius
Storage Temp: 10 to 70 degrees Celsius
Humidity: 5~90% non-condensing
Supported Profiles: GAP, SDP, HCRP, Serial
Specifications subject to change without notice.
OVERVIEW
7

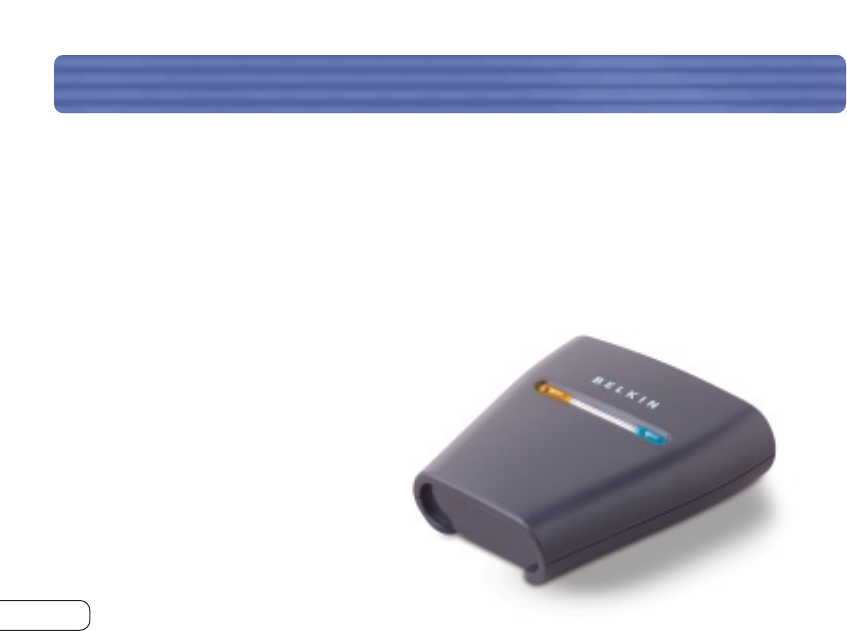

LEDs
Bluetooth LED (Blue)
On/Blinking: Bluetooth device is connected to the Adapter
Off: No Bluetooth devices are connected to the Adapter
USB LED (Amber)
Fast Blinking: No printer detected
Slow Blinking: Printer detected
LED:
USB
LED:
Bluetooth
8
HARDWARE INSTALLATION
Installing the USB Printer
Please do not connect any devices other than a USB printer directly to the USB port of
the Adapter.
1. With the printer powered off, connect one end of a standard USB cable to the USB
B-type connector of your USB printer and connect the other end to the USB type A
printer connector on the Adapter.
Note: You must have the printer driver installed in each computer you wish to print from
prior to use. Go to the Control Panel in Windows and open the “Printers” folder. Select
“Add a Printer” and choose a “Local Printer” (not network printer or USB printer). Then
select the “Bluetooth Port” as its’ port.
2. Connect the included power adapter into an available power outlet. Attach the barrel
plug into the power jack of the Adapter. You should see the Bluetooth and USB LED
blink rapidly for three seconds and then the USB (Amber) LED will remain blinking.
3. Power on the connected USB printer.
Your Bluetooth USB Printer Adapter is now installed and ready for use.
9
HARDWARE INSTALLATION
Connecting Via Serial Port Profile
The method of connecting to the printer described below is for use of the Serial Port
Profile. For example, using the Bluetooth PC Card (part number F8T002), or the
Bluetooth USB Adapter (part number F8T001 or F8T003) from Belkin on Windows or
devices that use WIDCOMM BTW software.

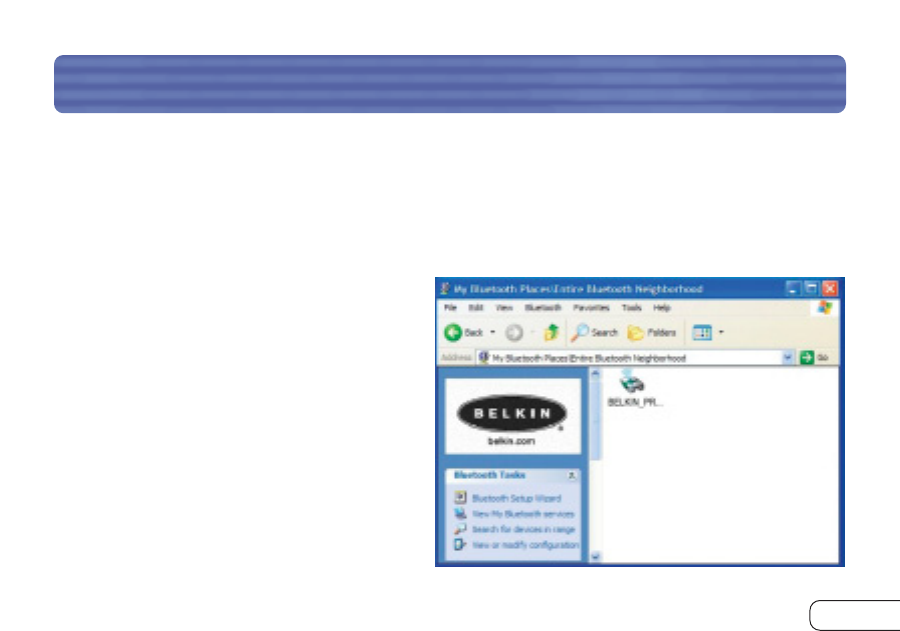

1. Double-click on the Bluetooth icon on
your desktop.
2. Choose Bluetooth from the menu bar.
Click “Search for devices”. The “Belkin
USB Printer” icon should appear.
3. Double-click on the icon. You should
see “Discovering Services”. Icons will
appear symbolizing the services your
device offers.
10
HARDWARE INSTALLATION

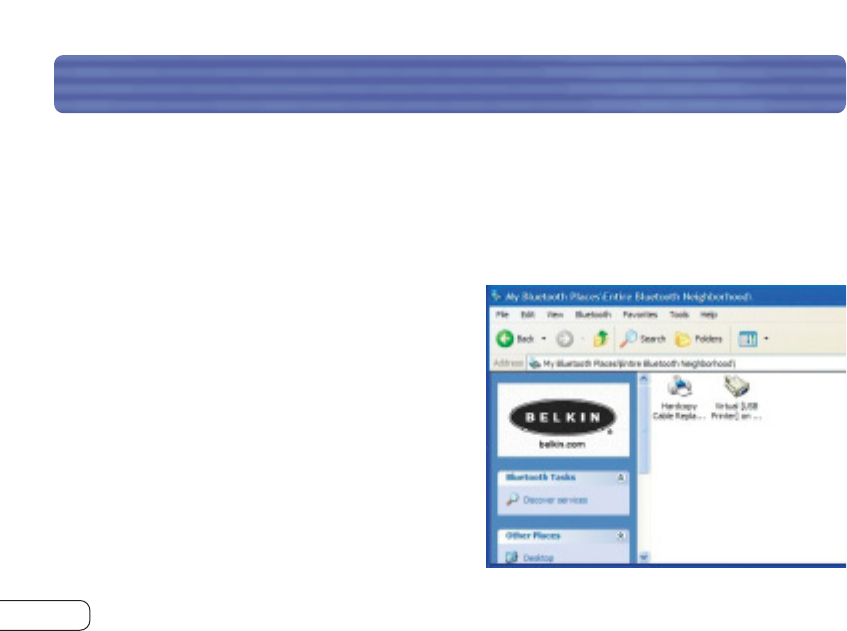

4. Double-click on the “Virtual Printer” icon.
5. A connection via Serial Port Profile over
the virtual COM port will be created. This
is usually “COM3” or “COM4” but can be
configured to another port. Make note of
the COM port for your specific application.
6. Go to Control Panel in Windows and open
the “Printers” folder.

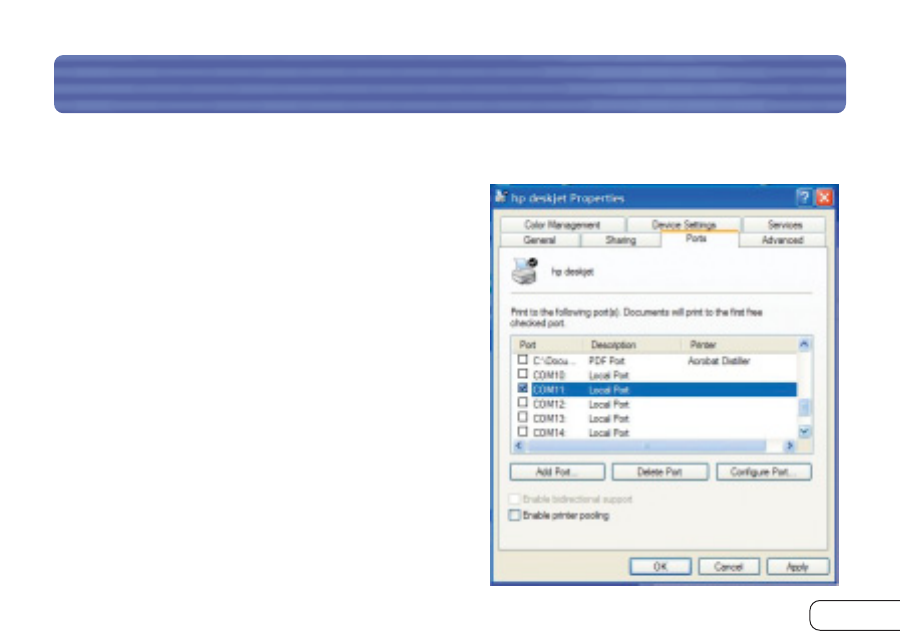

7. Right-click on the printer you pre-installed and choose “Properties”.
8. Select the “Ports” tab.
9. Under the “Ports” section, select the printer
for the virtual COM port created in step 5.
You are now ready to print via Bluetooth
technology to your USB printer.
Note: Each time you would like to print via the
printer connected to the Adapter, you will have
to double-click on the “Virtual [USB Printer]”
icon first to make a connection, unless you set
the printer you created above to be your
default printer. In that case, the PC stack will
automatically send the print job via virtual
COM port.
11
HARDWARE INSTALLATION
12
Connecting Via Hardcopy Replacement Profile
The method of connecting to the printer described below is for use of the Hardcopy
Replacement Profile. For example, using the Bluetooth PC Card (part number F8T002),
or the Bluetooth USB Adapter (part number F8T001 or F8T003) from Belkin on
Windows or devices that use WIDCOMM
BTW software.
1. Double-click on the Bluetooth icon on
your desktop.
2. Choose “Bluetooth” from the menu bar.
Click “Search for devices”. The “Belkin
USB Printer” icon should appear.
3. Double-click on the icon. You should
see “Discovering Services”. Icons will
appear symbolizing the services your
device offers.
HARDWARE INSTALLATION
13

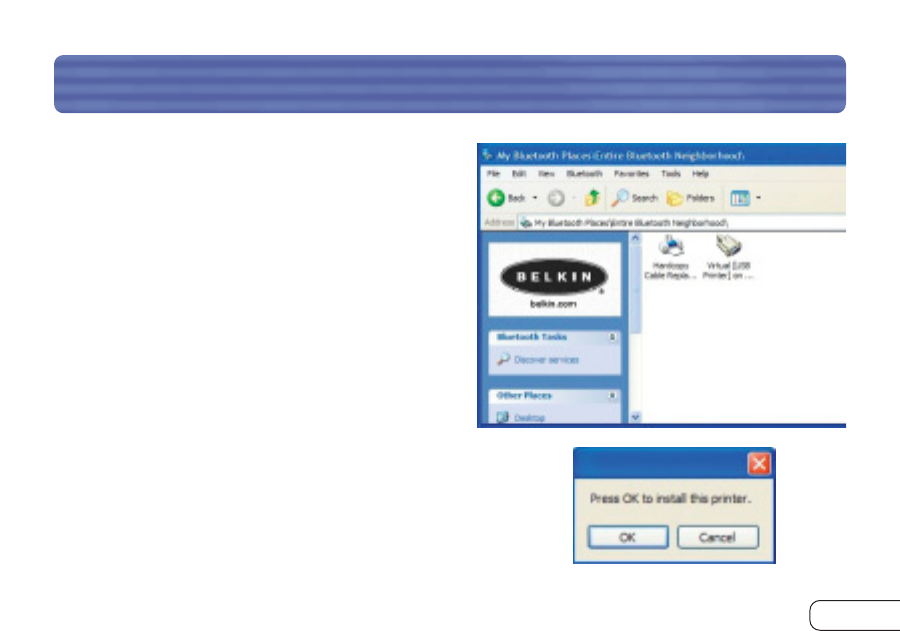

4. Double-click on the “Hardcopy Cable
Replacement” icon.
5. You will be prompted to add a printer.
Click “OK”.
HARDWARE INSTALLATION
HARDWARE INSTALLATION
14

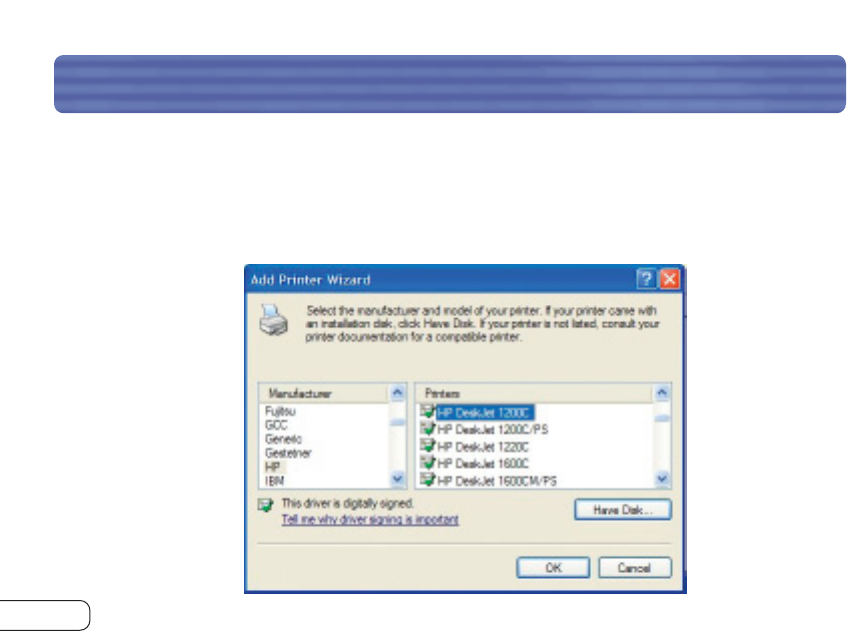

6. The “Add Printer Wizard” will appear. Select the printer from the list or browse for
the printer connected to your Adapter.
7. Follow the wizard to complete the printer installation.
15
FAQs
Which Bluetooth Profiles does the USB Printer Adapter support?
The Adapter supports the Serial Port Profile and the Hardcopy Replacement Profile.
Can I connect multiple Bluetooth devices to the Adapter?
Yes, you may. Every time a print job is sent, your computing device will create a
connection with the Adapter. Once the print job is complete, your computing device
will disconnect and make the Adapter available for other devices to use.
My Printer Status Monitor Utility indicates that there is no connection with the
printer. Is my Adapter functioning properly?
Because the Adapter disconnects after every print job to make itself available to
other devices, there is no constant communication between your Adapter and your
computing device. This may conflict with some printer monitor utilities. We recommend
that you disable any printer monitor utilities for your printer or disable bidirectional
support for the connected printer.
16
Does the Adapter support multifunctional printers?
We recommend that you do not use multifunctional printers that support other
non-printing functions. The Adapter only supports printing via Bluetooth. Other
functions like scanning will not work through the Adapter.
Can I print from my Pocket PC or Palm™ handheld enabled with
Bluetooth technology?
Yes, you can. You will need to install a print utility on your PDA first. For example,
“PrintPocketCE” for Pocket PCs from Field Software or “PrintBoy” for Palm OS® by
Pearson Software.
FAQs
17
INFORMATION
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole
responsibility that the product,
F8T031
to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Caution: Exposure to Radio Frequency Radiation.
The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the
device shall be used in such manner that the potential for human contact normal operation is minimized.
When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize
the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC
radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during
normal operation.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
18
INFORMATION
This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to this device that are not expressly
approved by Belkin Corporation may void the users authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This Class B digital complies with
Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
Europe-European Union Notice
Radio products with the CE 0560 or CE alert marking comply with the R&TTE Directive
(1995/5/EC) issued by the Commission of the European Community.
19
INFORMATION
Compliance with this directive implies conformity to the following European Norms
(in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on your Belkin product.
Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage
Directive (72/23/EEC) issued by the Commission of the European Community. Compliance with these
directives implies conformity to the following European Norms (in brackets are the equivalent
international standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with the CE 0560 or CE alert marking and may also carry the
CE logo.
20
INFORMATION
Belkin Corporation Limited Two-Year Product Warranty
Belkin Corporation warrants this product against defects in materials and workmanship for its warranty period. If a defect is
discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty
period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product
has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN,
EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH
OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN, OR USED WITH,
BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied
warranties, so the above limitations of exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights that vary from state to state.
Belkin Corporation
501 West Walnut Street
Compton • CA • 90220 • USA
Tel: 310.898.1100
Fax: 310.898.1111
Belkin Components, Ltd.
Express Business Park • Shipton Way
Rushden • NN10 6GL • United Kingdom
Tel: +44 (0) 1933 35 2000
Fax: +44 (0) 1933 31 2000
Belkin, Ltd.
7 Bowen Crescent • West Gosford
NSW 2250 • Australia
Tel: +61 (0) 2 4372 8600
Fax: +61 (0) 2 4372 8603
Belkin Tech Support
US: 310.898.1100 ext. 2263
800.223.5546 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 666 040
P74376
© 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.
The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by Belkin Corporation under license.
belkin.com
