User Manual
TuneBase FM for iPod
Introduction
Introduction | 01
iPod Version of Firmware
iPod touch 1.1
iPod nano 3rd generation (video) 1.0.1
iPod classic 1.0.1
iPod nano 2nd generation 1.1.3
iPod with video 1.2.1 and above
iPod nano 1st generation: 1.3.1 and above
iPod with color display 1.2.1 and above
iPod 4th generation 3.1.1 and above
iPod mini 1.4.1 and above
Note: iPod 3rd generation is not supported.
To check the firmware version of your iPod, select “Settings” and then select “About”.
Your version is listed under “Version”. If your firmware is out of date, you can use iTunes to
automatically update your iPod. See http://www.apple.com/ipod/download.
Your TuneBase FM can be used to charge, hold, power, and play your iPod as you drive. This
User Manual explains how you can use your TuneBase FM to get the most from your iPod,
virtually anywhere you go.
iPod Models You Can Use with Your TuneBase FM
Your TuneBase FM can be used with the following iPod models:
What’s in the Box
What’s in the Box | 02
What’s in the Box
TuneBase FM
Fit Ring
Spacer Pads
TuneBase FM
Fit Ring
Adapter Sleeves Spacer Pads
Setup Instructions
Setup Instructions | 03
Your TuneBase FM for iPod includes seven adapter sleeves and five spacer pads for all
supported iPod models.

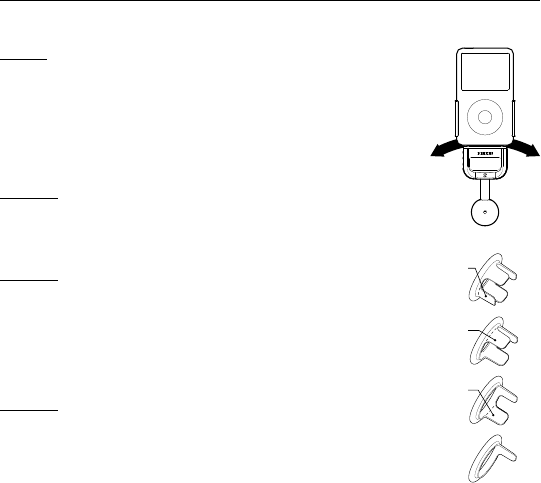

1. Select the correct sleeve and pad for your model of iPod from the chart below.

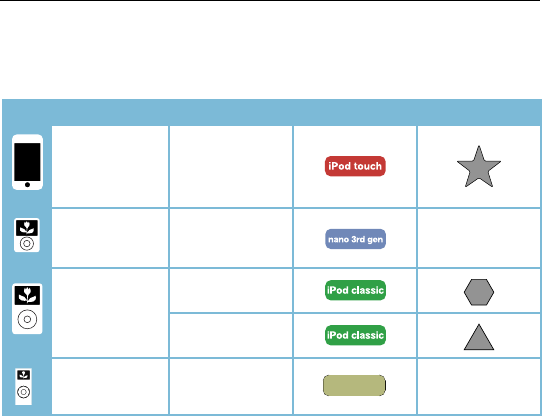

iPod Model Capacity Sleeve Pad
iPod touch 8GB/16GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
iPod nano
3rd generation
(video)
4GB/8GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
none
iPod classic
80GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
160GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess




















 






iPod nano
2nd generation 2GB/4GB/8GB

none
Setup Instructions
Setup Instructions | 04

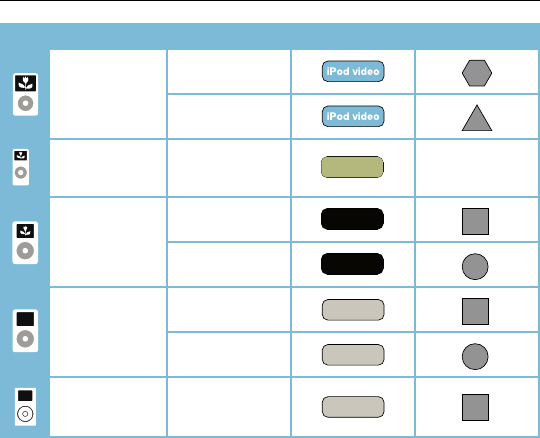

iPod Model Capacity Sleeve Pad
iPod
with video
30GB
60GB/80GB




















 






iPod nano
1st generation 1GB/2GB/4GB

none




















 






iPod with
color display
20GB/30GB

40GB/60GB





















 






iPod
4th generation
20GB

40GB





















 






iPod mini 1st
generation 4GB/8GB

Setup Instructions
Setup Instructions | 05

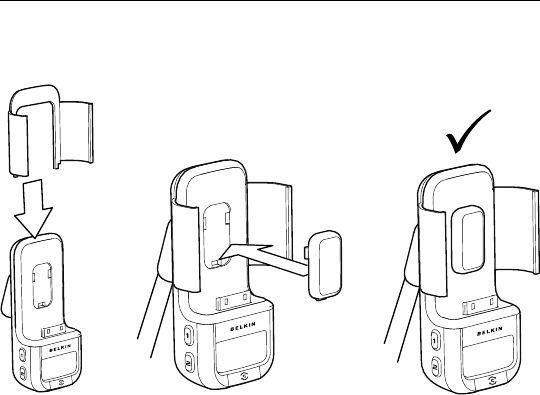

2. Carefully slide the sleeve into the top of the cradle and attach the spacer pad to the back
of the cradle.
Setup Instructions
Setup Instructions | 06
3. Turn down your stereo volume.
4. Connect your TuneBase FM to the cigarette lighter adapter or power outlet in your vehicle.
The LED on your TuneBase FM indicates proper connection.
Warning: Be careful when rotating the connector in the cigarette lighter adapter or power
outlet. If you experience resistance, unplug the connector and reinsert it in the desired
position. Failure to do so may damage the cigarette lighter adapter or power outlet.
Note: Cigarette lighter adapters vary in size in different vehicles. In some cases, the fit can be
improved by pressing the collar (included with your TuneBase FM) into the power outlet before
inserting the connector. However, the collar will not usually be needed.

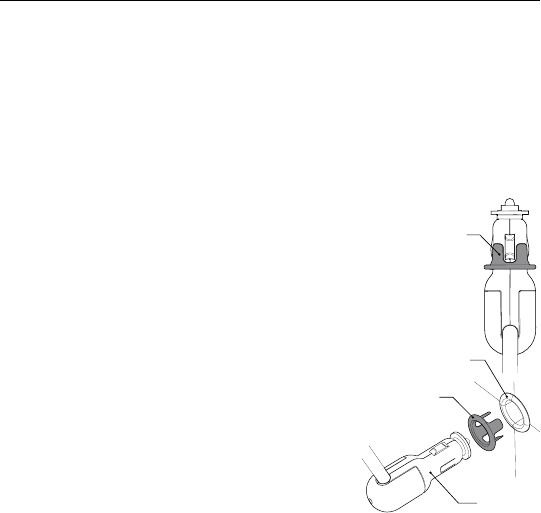

A. Be sure to position the ring securely around the metal contact to ensure
proper electrical connection.
B. Power source (cigarette lighter adapter or power outlet)
C. Fit ring
D. Connector
5. Bend the flexible neck to your desired position.
6. Carefully slide your iPod into the cradle at the top of your
TuneBase FM. The iPod will power on if the vehicle’s
battery is on.
Warning: To avoid damaging your iPod, please remove
your iPod from your TuneBase FM’s cradle before
disconnecting your TuneBase FM from the power outlet.
Note: Your iPod will automatically pause if your TuneBase
FM is removed from the cigarette lighter or if the vehicle is
turned off.
(A)
(B)
(D)
(C)
Basic Controls
Basic Controls | 07
Using Your TuneBase FM
Your TuneBase FM will automatically turn on when your iPod is connected and power is
available, and it will automatically turn off when your iPod is removed or if power
becomes unavailable.
Using ClearScan to Find the Best FM Frequency (recommended)
Your TuneBase FM uses ClearScan technology to scan for the clearest FM frequencies in
your area. If you hear any interference:

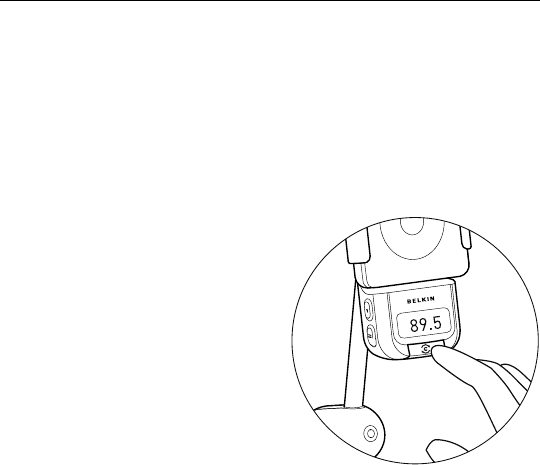

1. Press the “ClearScan” button. TuneBase FM will display the words “tune to” followed
by a clear frequency. It will then start transmitting on this new frequency.
2. Tune the stereo to the frequency on your TuneBase FM display.
3. If you hear interference on the new frequency,
just press the “ClearScan” button again and
tune your stereo to the new frequency.
Note: If you immediately press the ClearScan
button when you turn on your TuneBase FM,
it may take up to 30 seconds for ClearScan to
locate the best frequency.
Using the TuneBase FM
Using the TuneBase FM | 08
Manually Selecting an FM Frequency
If you want to use a specific frequency, you can manually select it on your TuneBase FM.
1. Tune your stereo to a frequency with a weak signal. If possible, try to find a frequency that
is not broadcasting a radio station.
2. Press the + or button on your TuneBase FM to select the same frequency. Pressing
and holding either button will provide faster tuning.
Storing a Preset Frequency
When you find a clear FM frequency, you can store it for later use. You can store two radio
frequencies using the 1 and 2 preset buttons.
1. If you are not currently on the frequency you want to store, use the + or buttons to
select the frequency.
2. To select a preset frequency, press the 1 or 2 preset button. Your TuneBase FM will
change to the preset frequency.
Selecting a Preset Frequency
Press the 1 or 2 preset button. Your TuneBase FM will change to the preset frequency.
Using the Audio-Out Jack and a Cassette Adapter
Your TuneBase FM is equipped with a 3.5mm audio-out jack. If you cannot find a clear FM
frequency, you can connect the 3.5mm audio-out jack on your TuneBase FM directly to your
stereo (if line-in is available) or to a cassette adapter.
Using the TuneBase FM
Using the TuneBase FM | 09
Using the PRO Setting to Improve Performance
When you connect your iPod, your TuneBase FM will automatically adjust the volume for your
iPod model. Although the default volume setting will be ideal for most conditions, you may
be able to improve the audio performance of your TuneBase FM by using the PRO setting.
Professional FM stations use dynamic compression to make music louder and fuller while
limiting distortion. You can use the three PRO settings on your TuneBase FM to add dynamic
compression to your audio:
Your TuneBase FM displays the current PRO setting. Pressing the “PRO” button changes the
setting as follows:
Listening to Mono Recordings
Your TuneBase FM transmits in stereo, but you can transmit in mono if needed. We suggest
that you switch to mono transmission if your stereo is not receiving a clear signal from your
TuneBase FM or if you are listening to a mono recording such as a podcast or audio book.
To switch to mono transmission, press the “PRO” button until the setting appears.

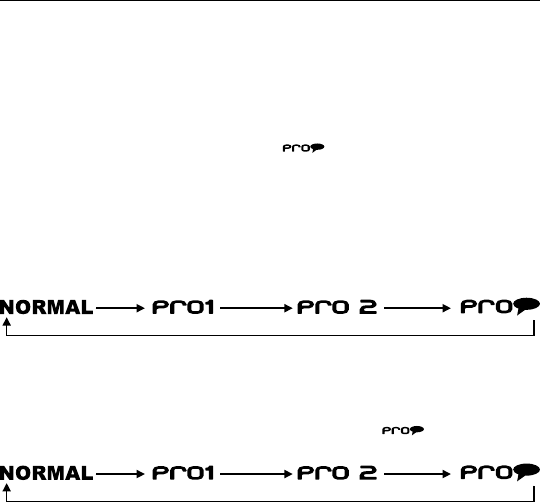

The PRO button settings are as follows:
Normal – No change to the audio. This setting works well
with all types of audio.
PRO 1 – Increases the average volume of the audio. This
setting works well with most types of music.
PRO 2 – Increases the average volume even further. This
setting works well with quieter music, but it may cause
distortion with louder music.
Increases the average volume and transmits
in mono (instead of stereo). This setting works well for
podcasts and audio books. It can also be used to improve
reception if you are not receiving a clear signal from your
TuneBase FM.
Troubleshooting
Troubleshooting | 10
You can quickly solve most problems with your TuneBase FM by following the advice in
this section.
Your iPod is not charging.
Solution
Make sure your TuneBase FM is correctly connected to the power outlet.
The green indicator light on your TuneBase FM’s cigarette lighter adapter should be lit at
all times.
Check to see that the iPod is pushed all the way into the cradle.
Make sure the power outlet is receiving power. Some vehicles do not provide power to
the power outlet unless the vehicle is in ignition mode or the engine is running.
If none of these solutions solves the problem, the fuse in your TuneBase FM might be
burned out. Carefully follow the steps below to replace the fuse.
Use a clean, level surface to disassemble
your TuneBase FM so that components do
not get lost. Do not attempt to change the
fuse in a vehicle.
To replace the fuse, you will need to remove
the front of the cigarette lighter adapter.
The front of the cigarette lighter adapter
is spring-loaded. Remove it slowly and
carefully using pliers so that it does not get
lost. Purchase a new fuse at an auto supply
store. Please refer to Fig. A for correct order
of assembly. Be sure to tighten the nut
firmly with pliers.

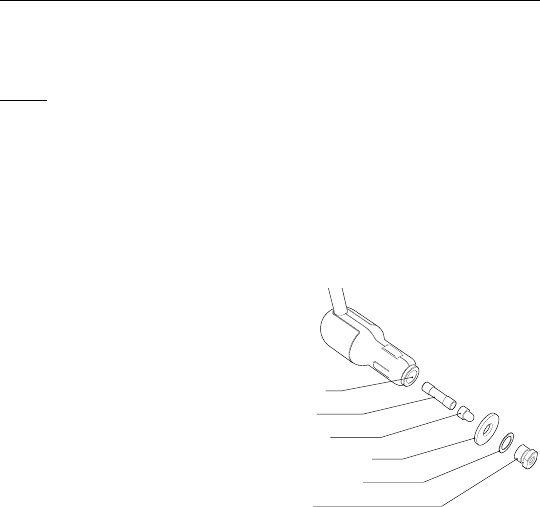

SPRING
(NOT PICTURED)
FIG. A
FUSE
CONTACT
FRICTION WASHER
METAL WASHER
NUT
Troubleshooting
Troubleshooting | 11
Your TuneBase FM and iPod are in the way of your vehicle’s controls.
Solution
Use the flexible gooseneck and the articulation behind the docking
cradle to position your TuneBase FM away from your vehicle’s
controls. Try to position the gooseneck in as close to an upright
position in relation to the adapter as possible (Fig. B).
Your TuneBase FM rotates out of position around the center of
the power outlet.
Solution 1
Be sure to solidly attach your TuneBase FM’s cigarette lighter
adapter to the power outlet. Test the stability by pushing it
sideways before driving.
Solution 2
In some vehicles, the power outlet is wider than the cigarette lighter
adapter. You may notice a wiggle in your TuneBase FM when you push
it. In that case, fit the provided collar around your TuneBase FM’s
cigarette lighter adapter. Then, attach the cigarette lighter adapter to
the power outlet. Slide the collar into the power outlet, making sure
that all four protrusions securely fit into the power outlet.
Solution 3
Some power outlets will not fit all four protrusions of the collar. In order
to improve the fit of the cigarette lighter adapter in the power outlet
of the vehicle, you can cut the collar to size. You can use scissors to
carefully cut as many protrusions as you need. Cut the protrusions
from one side to the other, and try to fit your TuneBase FM into the
power outlet after each cut. (Fig. C).
FIG. B
cut
cut
cut
FIG. C
Troubleshooting
Troubleshooting | 12
Your TuneBase FM connects firmly to the power outlet, but it still rotates.
Solution
Check to see if the power outlet rotates in its socket. If so, please consult your
vehicle’s manufacturer.
You cannot insert the cigarette lighter adapter into the power outlet.
Solution
The cigarette lighter adapters friction washer may need to be centered. Carefully follow the
steps below to center the friction washer.
Use a clean, level surface to disassemble your TuneBase FM so that components do not get
lost. Do not attempt to center the washer in a vehicle.
To center the washer, you will need to loosen the nut on the front of the cigarette lighter adapter.
Use pliers to slightly loosen the nut. It is not necessary to remove it. Move the friction washer
back into centered position. Use pliers to tighten the nut firmly.
The rubber washer remained in the power outlet when you
removed your TuneBase FM.
Solution
This is rare, but if it occurs you can remove the rubber washer from the power outlet and place
it back on the cigarette lighter adapter.
Disconnect the vehicle’s battery. Any attempt to remove the washer without
disconnecting the battery may result in physical harm to you or damage to
the vehicle.
Use pliers to carefully remove the friction washer from the power outlet. Place the friction
washer back on the cigarette lighter adapter. Then, reconnect the vehicle’s battery.
Information
Information | 13
Safety Warnings
Your TuneBase FM requires full concentration and both hands to install. Do not attempt to connect your
TuneBase FM while driving. Make sure your TuneBase FM fits securely and firmly into the power outlet
before driving. After installation, make sure your TuneBase FM does not freely rotate in the power outlet.
Do not attempt to adjust or retrieve an unsecured TuneBase FM or iPod while driving. Adjust your
TuneBase FM so that your TuneBase FM and iPod do not interfere with any of the operating controls of the
vehicle.
Do not insert any objects other than the cigarette lighter adapter into the power outlet without
disconnecting the battery of the vehicle first. Failure to observe this safety warning can result in
injury or property damage.
Belkin does not assume any responsibility for personal injury or property damage incurred due to hazardous
driving as a result of interaction with the TuneBase FM, the iPod, or the vehicle’s power outlet.
FCC Statement
Declaration of Conformity with FCC Rules for Electromagnetic Compatibility
We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare under our sole
responsibility that the product:
F8Z176
to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Belkin International, Inc., is not responsible for any interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority to operate this equipment.
ICES
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est
conforme á la norme NMB-003 du Canada.
Belkin International, Inc. Three-Year Product Warranty
Warranty | 14
What this warranty covers. Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product
that the product shall be free of defects in design, assembly, material, or workmanship.
What the period of coverage is. Belkin warrants the Belkin product for three years.
What will we do to correct problems? Product Warranty. Belkin will repair or replace, at its option, any defective
product free of charge (except for shipping charges for the product).
What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to
Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin
product has been improperly installed, altered in any way, or tampered with. The Belkin Product Warranty does not
protect against acts of God such as flood, lightning, earthquake, war, vandalism, theft, normal-use wear and tear, erosion,
depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized
program, or system equipment modification or alteration.
How to get service. To get service for your Belkin product you must take the following steps:
1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton CA 90220, Attn: Customer Service, or call (800)-
223-5546, within 15 days of the Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt and Belkin
product and how to proceed with your claim.
Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for
inspection shall be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship
the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and
estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and
of such estimate shall be borne solely by the purchaser. Damaged equipment must remain available for inspection until
the claim is finalized. Whenever claims are settled, Belkin reserves the right to be subrogated under any existing insurance
policies the purchaser may have.
How state law relates to the warranty. THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE
ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR
MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR
USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. Some
states do not allow the exclusion or limitation of incidental, consequential, or other damages, so the above limitations may
not apply to you.

Navigation menu
