TuneStage™ for iPod®
Introduction
Designed to let you roam and play your tunes from virtually anywhere in your home, TuneStage from Belkin delivers
the pristine, CD-quality sound that iPod users desire. Using
Bluetooth
™ technology, TuneStage transmits from up to
33 feet away from your stereo, free of the barriers that limit traditional remotes—such as walls, ceilings, or windows.
Please review this User Manual carefully so that you can be sure to get the most from your TuneStage.
Introduction | 01

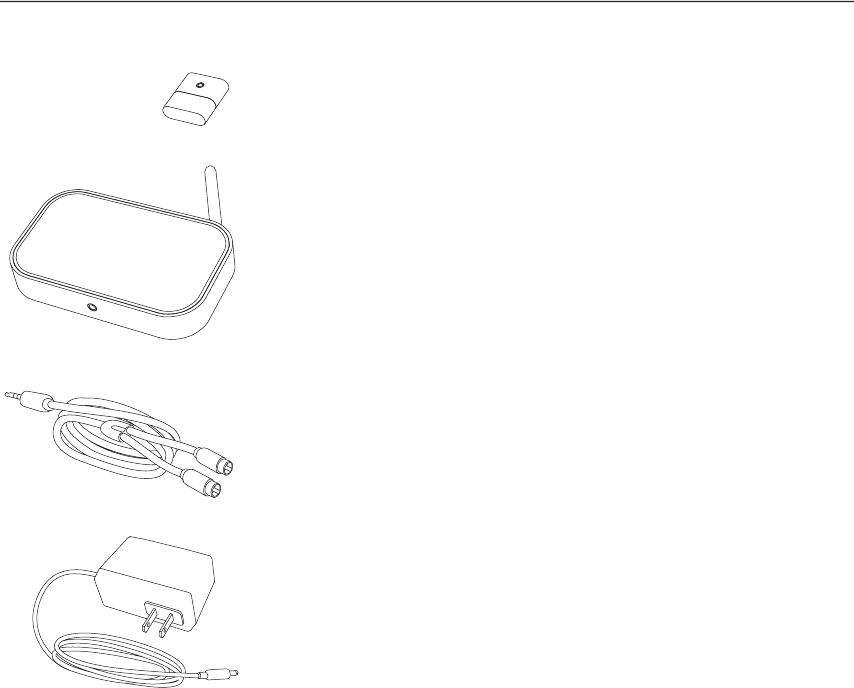

What’s in the Box
What’s in the Box | 02
7 Ft. RCA Stereo Cable
12V/1A AC Power Adapter
TuneStage
Bluetooth
Transmitter for iPod
TuneStage
Bluetooth
Receiver
Operating Instructions

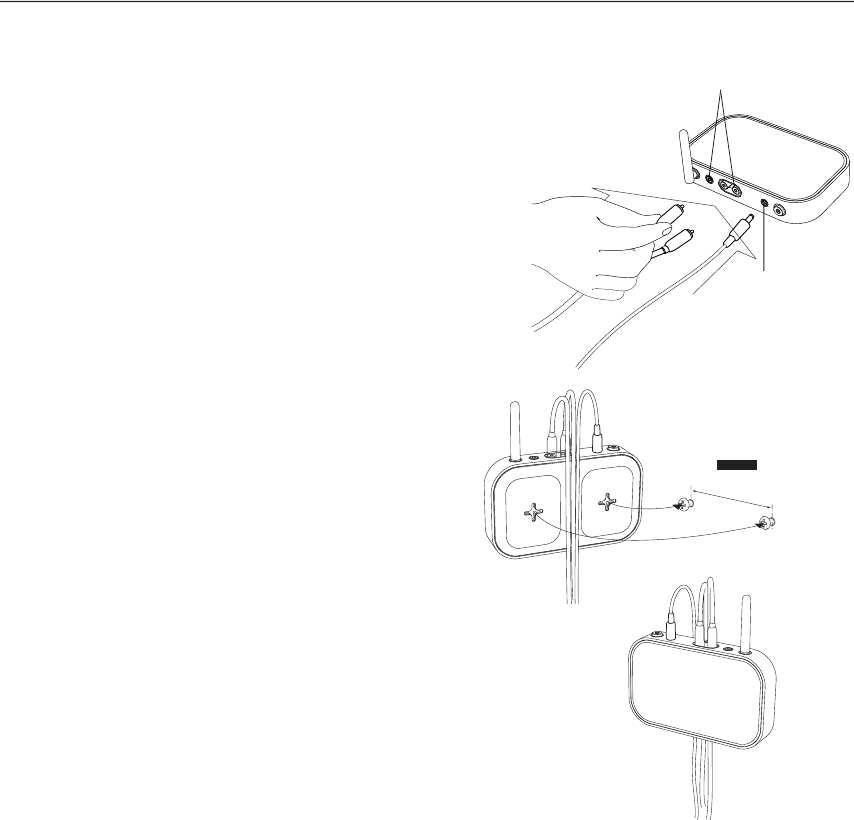

STEP 1 - TuneStage Receiver Setup
1.
Ensure that your stereo system is powered off.
2.
Plug the TuneStage Receiver into your home stereo
system either by using the included stereo cable or
a standard 3.5mm male/3.5mm male audio cable.
Plug the AC power adapter (included) into both the
Receiver and AC outlet and press the power button.
The blue Status LED on the front will begin blinking.
3.
Power on your home stereo system and select the
audio channel input that the TuneStage Receiver is
connected to.
Wall-Mounting the TuneStage Receiver
1.
Make sure the antenna is pointed upward.
2.
You can hang the TuneStage Receiver on a wall using
two screws (not included).
3.
The cables should run through the channel on the
bottom of the TuneStage Receiver, so they are held
securely to the wall.
Operating Instructions | 03
2xRCA or 3.5mm mini-jack stereo
connection
DC power adapter
connection
80 mm
3.2 inches
STEP 2 - TuneStage Transmitter Setup

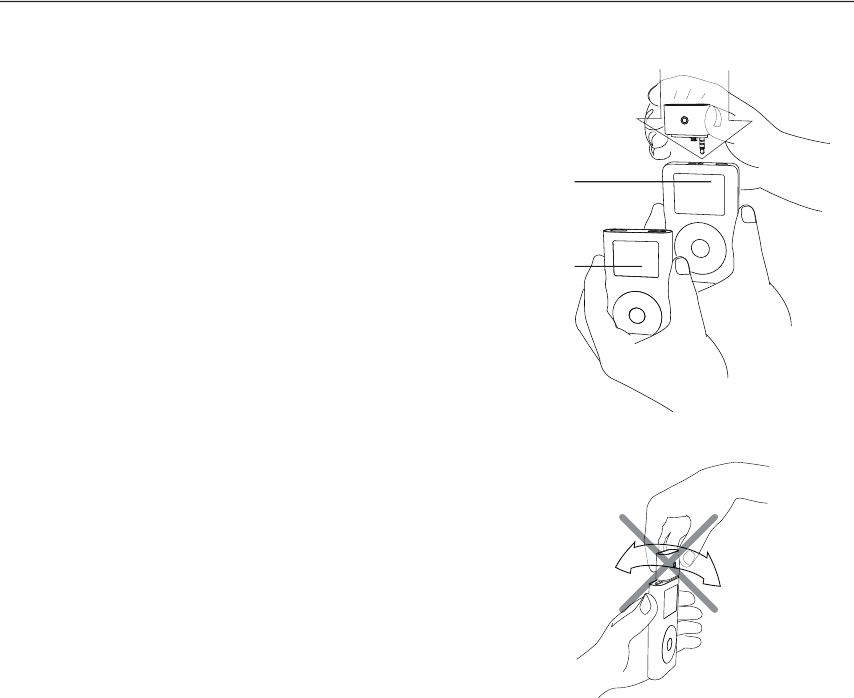

1.
Power on your iPod. Then, plug the TuneStage
Transmitter into the remote/headphone
connector.
Press “PLAY” on the iPod.
The TuneStage Transmitter will power on
automatically. The Transmitter’s blue Status
LED should be blinking rapidly.
2.
The TuneStage Transmitter and Receiver will
pair with each other automatically. When the
connection has been made, the blue light on the
TuneStage Receiver will stop flashing and stay on
solid. The light on the Transmitter will now
flash slowly.
3.
Play a tune from the iPod. Set the volume of the
iPod to a medium level, and adjust the volume of
your stereo system’s speakers as desired.
4.
Enjoy!
iPod
or
iPod mini
Operating Instructions | 04
Do not move the Transmitter back and
forth to avoid damage to the receptacle
For Best Results
• Try to keep the TuneStage Transmitter close to your home stereo system. While the Transmitter often
works at distances of 33 feet or more, a distance of 10 feet or less will minimize interference and
maximize performance.
• Power on the TuneStage Receiver first and then plug the Transmitter into the iPod to begin the
pairing process.
• Adjust the volume on the iPod to a medium level and increase the volume on the stereo to a desired
listening level.
•
Bluetooth
devices are known to have interference from devices operating in the same RF frequency
(2.4GHz). However, using AFH (Adaptive Frequency Hopping), the interference with 802.11b/g has been
minimized. Some interference (within a 6 1⁄2-foot range) with microwave ovens and 2.4GHz cordless
phones may be present.

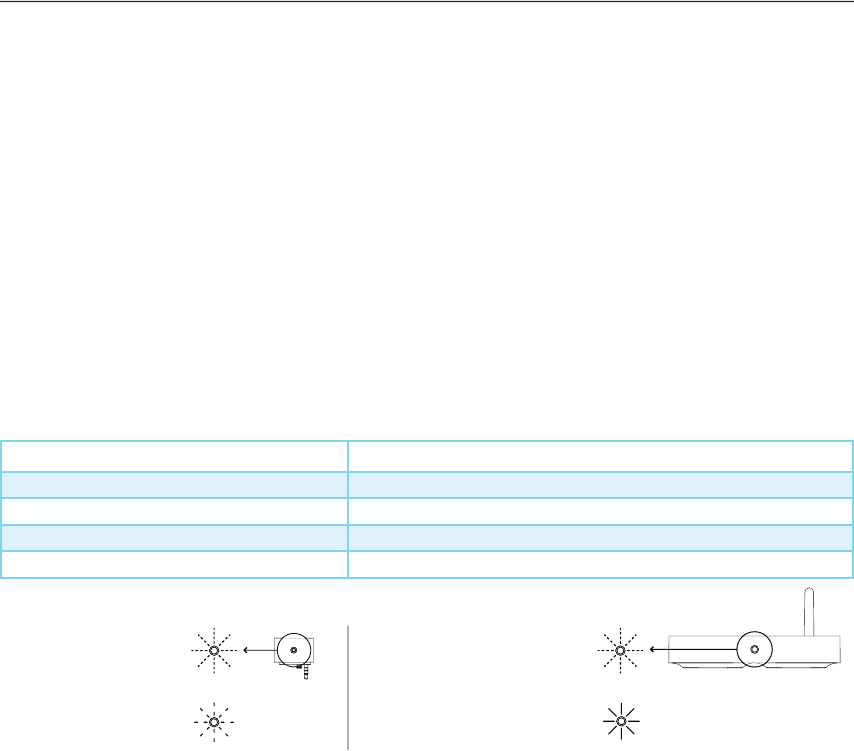

Understanding the LEDs
Operating Instructions | 05
Receiver Status LED
Power off
Off
Power switched on
Blinks on/off in 0.5 sec. intervals for 20 sec., then turns off
Detecting TX signal from standby
Blinks on/off in 0.5 sec. intervals for 20 sec., then turns off
Paired/receiving signal
On
Rapid Blinking:
Searching for
Bluetooth
Transmitter
(LED will turn OFF after 20 seconds
but the Receiver will continue searching)
Steady Light:
Paired with Transmitter
(
Bluetooth
connection active)
Rapid Blinking:
Searching for
Bluetooth
Receiver
Slow Blinking:
Paired with Receiver
(
Bluetooth
connection active)
Troubleshooting
Transmitter is not powering on when plugged into the iPod.
Remove the Transmitter and reinstall into the top of your iPod.
Ensure your iPod is charged and powered on.
Receiver is not powering on.
Ensure that the Receiver power switch is in the ON position. Ensure that the AC power adapter is connected
into a powered wall socket and that the plug is properly inserted into the TuneStage Receiver’s power jack.
After connecting the Transmitter and Receiver, there is no sound.
• Select a song on the iPod and press “PLAY”.
• Make sure the audio cable is correctly plugged into the back of the TuneStage Receiver as well as to the
back of the stereo system.
• Ensure the stereo system is set to the correct input channel.
• Make sure the iPod and stereo receiver are powered on.
• Repeat STEP 1 and STEP 2 from the instructions (page 3 and 4).
Troubleshooting | 06
Troubleshooting
There are multiple
Bluetooth
transmitters or receivers in the same room or range, and they may be
conflicting.
Belkin does not guarantee inter-compatibility with other
Bluetooth
devices; however, the TuneStage Transmitter
and Receiver are 100% compatible with each other. Should there be additional
Bluetooth
devices in the same
range, please follow these instructions:
There is more than one
Bluetooth
receiver (e.g., TuneStage Receiver and
Bluetooth
headphones) in the
same room or range.
The TuneStage Transmitter will pair with the
Bluetooth
receiver that was turned on first or is the closest in
proximity to the Transmitter. If you are paired with the incorrect receiver, turn off the power on the receiver that
will not be used. Remove and reconnect the TuneStage Transmitter to the iPod.
There is more than one
Bluetooth
transmitter (e.g., TuneStage Transmitter,
Bluetooth
USB dongle) in the
same room or range.
The TuneStage Receiver will pair with the closest
Bluetooth
transmitter. Turn off or remove the transmitter that
will not be used. Remove and reconnect the TuneStage Transmitter to the iPod or remove and reconnect the
USB dongle to the computer.
Troubleshooting | 07
Specifications
Bluetooth
Compliance:
Bluetooth
v1.2-compliant
Security Code: 1111
Supported Profiles: A2DP, AVRCP
Operating Frequency: 2.4 to 2.4835GHz
Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
Modulation: GFSK (Gaussian Frequency Shift Keying)
Radio Characteristics
RF Output: +2.0 dBm
Sensitivity: <0.1% BER at -81 dBm
Operating Range: 33 ft. (10m)*
*33-foot range is dependent upon environment, number of users, and other
wireless devices within immediate proximity.
Audio Performance
SNR + THD: -80 dB
Output Power: 80 mW into 600 Ohms
Operating Conditions
Typical Operating Current: <40mA
AC Power: 12V @ 1.0A
Physical
Receiver Dimensions: 6.5” x 4.5” x 1.2”
Transmitter Dimensions: 1.65” x 1.5” x 0.5”
Specifications | 08
Information
Belkin Corporation Limited 3-Year Product Warranty
Belkin Corporation warrants this product against defects in materials and workmanship for three years. If a defect
is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the
warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased
the product. Proof of purchase may be required. This warranty does not apply if the product has been damaged
by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of
Belkin; or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL
OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to
this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM
ANY BREACH OF WARRANTY, OR ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS,
DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING, ANY PROGRAM OR DATA STORED
IN OR USED WITH BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusion of implied
warranties, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights that vary from state to state.
Information | 09
FCC Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This Class B digital apparatus
complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Information | 10
