WIRELESS N ROUTER

N300

USER MANUAL

8820-00774

F9K1002

Ok mk 1/12/11

TABLE OF CONTENTS

Getting Started

What’s in the Box

Initial Setup

Advanced Tools & Settings

The Belkin Router Manager

Manual Setup Using Your Browser

Adding Computers to Your Network

Getting to Know Your Router

Front Panel

Back Panel

Technical Details

Technical Features

System Requirements

Using Your Router

Enabling Auto Update on Your Router

Updating Your Router via Your System Tray

Updating the Router’s Firmware via the Web Interface

Resetting the Router

Restoring Your Router to Factory Defaults

Restoring the Router to Default Settings Using the Web Interface

Troubleshooting, Support, and Warranty

Troubleshooting

Technical Support

Belkin International, Inc., Limited 2-Year Product Warranty

Regulatory Information

FCC Statement

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Getting Started

What’s in the Box

N300 Wireless N Router

Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)

BelkinSetupCDwithUserManual

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocationawayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

[RN150N300N450setup.ai]

1) ConnectyourRouter’sEthernetcabletoyourmodem’s

Ethernetport(onthebackofyourmodem).Thisportmight

belabeleddifferentlyonyourparticularmodem.Ifyouare

addingaRouterforthefirsttime,thisportmaybeconnected

toyourcomputerbyanEthernetcable.ItisOKtodisconnect

yourcomputerandplugtheRouterintothemodeminstead.

2) PlugtheRouter’spowersupplyintoawalloutlet.

3) PuttheCDintoyourcomputer.IftheCDdoesn’topen

automatically,pleasebrowsetoyourCDdriveanddouble‐

clickontheBelkinSetupCDicon.

[SCREENSHOTOFSETUPMENUsetupmenu.png]

4) ClicktheSetupiconontheCDmenu.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

[SCREENSHOTOFNETWORKINFOCARDSCREENsetup

netinfocard.png]

5) Afterabriefinstallation,thesetupsoftwarewillaskyoufor

thenetworknameandpasswordfromthenetwork

informationcardthatisattachedtoyourRouter.Storethe

cardunderthebaseofyourRouterforfuturereference.

[SCREENSHOTOFSUCCESSsetupsuccess.png]

6) Aprogressscreenwillappearwhileadditionalsoftwareis

installed.Thismaytakeafewminutestocomplete.Once

finished,a“Success”messagewillappearindicatingthatyou

areconnectedtotheInternetviayournewBelkinRouter.

Duringsetupyoumaybeaskedforadditionalinformation.

YoumayneedtoenterausernameandpasswordprovidedbyyourISP.

Thisusernameandpasswordislikelytobefoundonmaterialsthatcame

fromyourISPwhenyousignedupforservice.Ifnecessary,youmayneed

tocontactyourISPtoretrieveyourusernameandpassword.

IfyouhaveastaticIPaddress,youmayneedtoenteradditional

informationalsoprovidedbyyourISP.

Ifyourcomputerdoesn’thaveawirelessadapter,orthesetupsoftwareis

unabletocontrolit,youmaybeaskedtoconnectyourcomputertothe

Routerwithanetworkcable.

Advanced Tools & Settings

[SCREENSHOTOFADVANCEDMENUsetupadvanced2.png]

Aftertheinitialsetupiscomplete,youhavetheoptiontochangesettingslike

yournetworkname,securitytype,andpassword.Tomakethesechangesand

others,clickontheAdvancedToolsiconattheCDSetupmenuandselectone

ofthefollowingsettingsthatyouwouldliketochange:

NetworkName&Security

Personalizeyournetworkname(SSID),password,andstrengthof

wirelesssecurity.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

InternetServiceProvider&LoginSettings

HaveyoumovedorchangedInternetServiceProviders?Ifyou’dliketo

changethesesettingswithoutrunningthroughthesetupprocessagain,

thisistheplace.

The Belkin Router Manager

[N300/SCREENSHOTOFTRAYAPPMENU(TBD)]

TheBelkinRouterManagerappearsinyoursystemtray(Windows)ormenubar

(Mac).ItsiconindicatesthecurrentstatusofyourRouterandalsoallowsyouto

accessyourRouter’ssettingstomakechanges.Italsoprovidesquickaccessto

softwarethatcamebundledwithyourRouter.

ToaccesstheRoutersettings,clickontheiconandselectfromthemenuthat

appears.

ThestatusofyourRouterisshownbytheBelkinRouterManagericon,which

closelymimicsthelightonthefrontoftheRouter.

Blue: You are connected to your Belkin Router and it is connected to the Internet.

Amber: You are connected to your Belkin Router, but it is not connected to the

Internet.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Manual Setup Using Your Browser

[ZOOMEDSCREENSHOTOFADDRESSBARaddressbar.png]

Inyourbrowser,type“http://router”(youdonotneedtotypeinanythingelse

suchas“www”).ThenpresstheEnterkey.Ifyou’restillhavingtroublerunning

themanualsetupoption,type“192.168.2.1”inyourbrowser(youdonotneed

totypeinanythingelsesuchas“http://”or“www”).ThenpresstheEnterkey.

Adding Computers to Your Network

Wirelessdevicessuchascomputers,networkprinters,andgamingsystemscan

connecttoyourRouterwithafewsimplesteps.

UsingtheCD

1) PuttheSetupCDintoyourcomputer.IftheCDdoesn’topen

automatically,browsetoyourCDdriveandopentheBelkin

SetupCDicon.

2) ClicktheSetupiconontheCDmenu.

3) Afterabriefinstallation,thesetupsoftwarewillaskyoufor

thenetworknameandpasswordfromthenetwork

informationcardthatcamewithyourRouter.Thiscardis

mostlikelynowlocatedunderneaththefootofyourRouter

intheprovidedcardslot.

4) Aprogressscreenwillappearwhileadditionalsoftwareis

installed.Thismaytakeafewminutestocomplete.Once

finished,a“Success”messagewillappearindicatingthatyou

areconnectedtotheInternetviayournewBelkinRouter.

Note:ThesetupsoftwarerunsonlyonWindowsandMacOSX

systems.

Manually

IfyouchoosenottousetheincludedSetupCDforadding

additionalcomputersorwirelessdevices,youcanmanuallyadd

theseitemstoyournetwork.

1) Locatethewireless‐network‐connectionsoptiononyour

computerorwirelessdevice.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

2) SelectyourBelkinRouterfromthelistofavailablenetworks.

YoucanidentifyyourBelkinRouterbylocatingthenetwork

name(SSID)fromthecardlocatedunderneaththefootof

yourRouter.

3) Enteryournetworkpassword(locatedonyournetwork

informationcard).

Yourwirelessdevicewilltakeafewmomentstoconnectto

yournetwork.Iftheconnectionisnotmadethefirsttime,try

thisprocessagain.Ifyoustillhavedifficultyconnectingto

yournetworkaftertryingthisprocessafewtimes,seethe

“Troubleshooting”sectioninthismanualforhelpwith

connectingtoyournetwork.

Note:Insomecasesyoumaybepromptedtoselectthe

securitytype.Itisprintedonthecardforyourconvenience.

UsingtheWPSButton

1) StartWPSPushButtonConnection(WPSPBC)onyour

computerorotherWi‐Fidevicethatyouwouldliketo

connectwirelesslytoyourRouter.Oftentherewillbea

buttonforthispurposeinsoftwarethatcamewiththedevice,

oraphysical“WPS,”“PBC,”or“Security”buttononthedevice

itself.

2) Withintwominutes,presstheWPSbuttononyourRouter.

TheWPSlight(smalllightaboveWPSbutton)willblinkblue

whileitlistensforyourWi‐Fidevice.Onceaconnectionis

established,thelightwillturnblueandthengoout.Ifa

connectionisnotestablished,thelightwillblinkamber.You

mayrepeattheprocesstotryagain.

YoucanrepeatthisprocessforeachWPS‐enableddeviceyou’d

liketoaddtoyournetwork.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Getting to Know Your Router

Front Panel

[DIAGRAMfront.ai]

A)RouterStatusLight

YourRouter’sstatusisshownbythelightonthefront.

Off:TheRouterisnotpluggedintoapowersource.

BlinkingBlue:TheRouterisstartingup.

SolidBlue:TheRouterisconnectedtotheInternet.

BlinkingAmber:TheRoutercan’tdetectthemodem.Eitherthemodemis

off,isnotpluggedintotheRouter,orisunresponsive.

B)Wi‐FiProtectedSetup(WPS)LightandButton

TheWPSbuttononthefrontofyourRoutercanbeusedtohelp

establishasecureconnectionbetweenyourRouterandotherWPS‐

enabledWi‐Fidevicessuchascomputers.TousetheWPSfeature

onyourRouter,see“GettingStarted>AddingComputerstoYour

Network>UsingtheWPSButton”.

ThesmalllightneartheWPSbuttonshowswhatishappening

whileyouareusingWPStoestablishaconnection.

Off:Idle

BlinkingBlue:TheRouterislisteningforaWPS‐enabledcomputeror

otherdevice.

SolidBlue:TheRouterhasmadeasecureconnectionwiththecomputeror

otherdevice.

Amber:Aconnectionwasnotcreated.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Back Panel

[RDIAGRAMFORN150N300N450_back.ai]

A)Modem(WAN)Connector

ConnectyourmodemtothisportusinganEthernetcable.

B)Wired(LAN)Connectors

Connectcomputersandotherwirednetworkdevicestotheseports

usingEthernetcables.

C)ResetButton

ThisbuttonisusedtorestartyourRouterinrarecaseswhenit

functionsincorrectly.ResettingtheRouterwillpreserveyour

settings.Thisbuttonmayalsobeusedtorestorethefactorydefault

settings.PleaseseetheTroubleshootingsectionformore

information.

D)PowerConnector

Connecttheincludedpowersupplytothisjack.

Technical Details

Technical Features

Integrated 802.11n Wireless Access Point

Utilizing MIMO (Multiple Input Multiple Output) smart-antenna

technology, your Router can reach data transfer speeds of up to 300Mbps

across your network.

NAT IP Address Sharing

To save you the cost of adding IP addresses per computer in your house,

your Belkin Router uses Network Address Translation (NAT) technology,

allowing you to share a single IP address across your network.

SPI Firewall

Your Router is equipped with a firewall that will protect your network

from a wide array of common attacks and viruses.

Universal Plug-and-Play (UPnP) Compatibility

The UPnP (Universal Plug-and-Play) feature in your Router offers

seamless operation of voice and video messaging, games, and other

applications that are UPnP-compliant.

Web-Based Advanced User Interface

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

You can easily make changes to your Router’s advanced settings through

your web browser. These changes can be made from any computer on your

network.

Belkin Router Monitor

The Belkin Router Monitor application helps you to monitor your

Router’s status and change network settings.

Integrated 4-Port 10/100 Switch

Your Router has a built-in, 4-port network switch to allow your wired

computers to share: printers, data, MP3 files, digital photos, and much

more.

System Requirements

Router

Broadband Internet connection such as a cable or DSL modem with RJ45

(Ethernet) connection

At least one computer with an installed network interface adapter

TCP/IP networking protocol installed on each computer

RJ45 Ethernet networking cable

Internet browser

Setup Software

A computer running Windows® XP SP3 or higher, Windows Vista®, or

Windows 7; or Mac OS® X v10.5 or v10.6 only

Minimum 1GHz processor and 512MB RAM

600MB of free hard-drive space for installation

Using Your Router

Enabling Auto Update on Your Belkin Router

The Router has the capability to automatically check for a newer version of firmware and alert

you when it’s available. You can choose to download the new version or ignore it. By default

this feature is disabled. If you want to enable it, select “Enable” and click “Apply Changes”.

Note: We recommend you use a computer that has a wired connection to the Router.

Setup steps:

1. Open a web browser on the computer.

2. In the address bar of the web browser, type “http://192.168.2.1”.

3. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

4. Click on “System Settings” in the left-hand column under the “Utilities” heading.

5. Toward the lower-half side of the screen you will find “Auto Update Firmware Enabling”.

6. Select “Enable” by clicking the radio button and then click “Apply Changes” at the bottom of

the screen.

Updating Your Router via Your System Tray (Windows) or Menu Bar (Mac)

Once you have completed the setup process, you will need to update the new software for

your Router. This can be done easily via your computer’s system tray or menu bar.

Setup steps:

1. Click on the blue Belkin Router Manager icon (right-click for Windows) in your system

tray (Windows) or menu bar (Mac).

2. Select “Check for Updates” or “Update Available” from the menu.

3. You should now see the Belkin Updater window.

4. Click on the “Install Update” icon.

Updating the Router’s Firmware via the Web Interface

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

The following steps show you how to update your Router’s firmware using its web interface.

You do not need to be connected to the Internet as this interface is built into the Router

itself.

Setup steps:

1. Locate and download the firmware file from the Belkin support site. (Type your part

number into the search box in the top right corner and look for “Firmware” in the title.)

2. Save the file to a location on your computer where you can get to it easily, such as your

desktop.

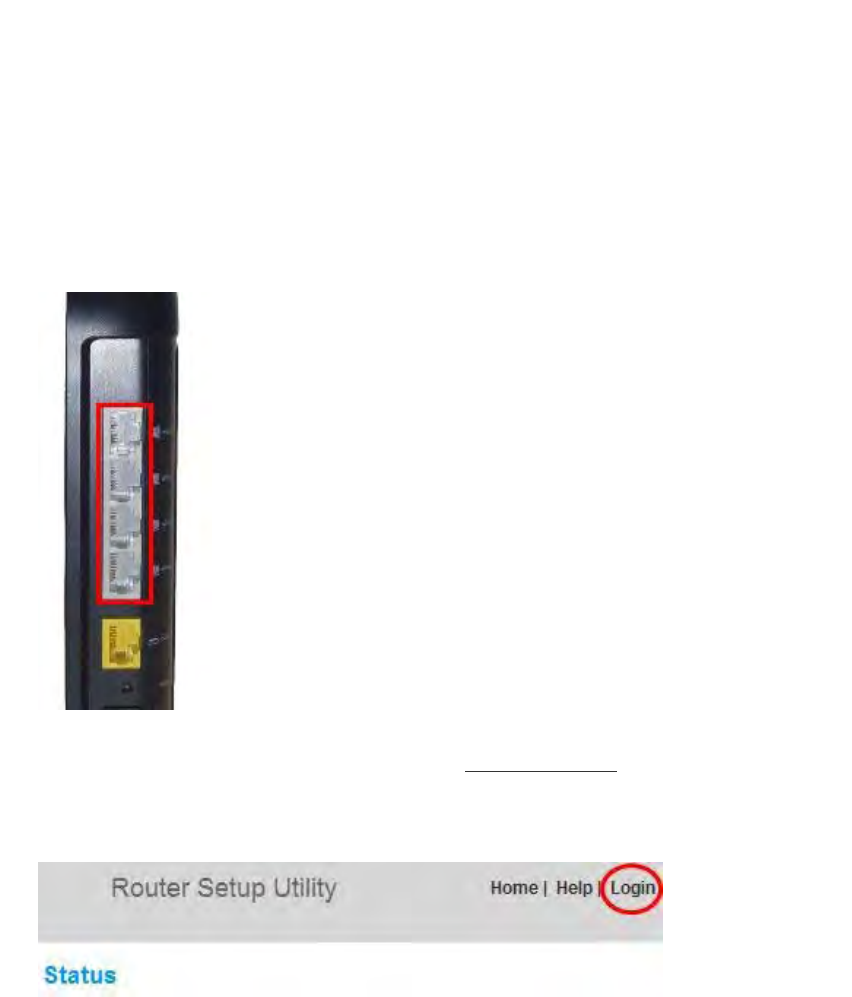

3. Connect the computer to one of the four LAN ports on the Router.

4. Open a web browser on the computer.

5. In the address bar of the web browser, type “http://192.168.2.1” and press “Enter” on your

keyboard.

6. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

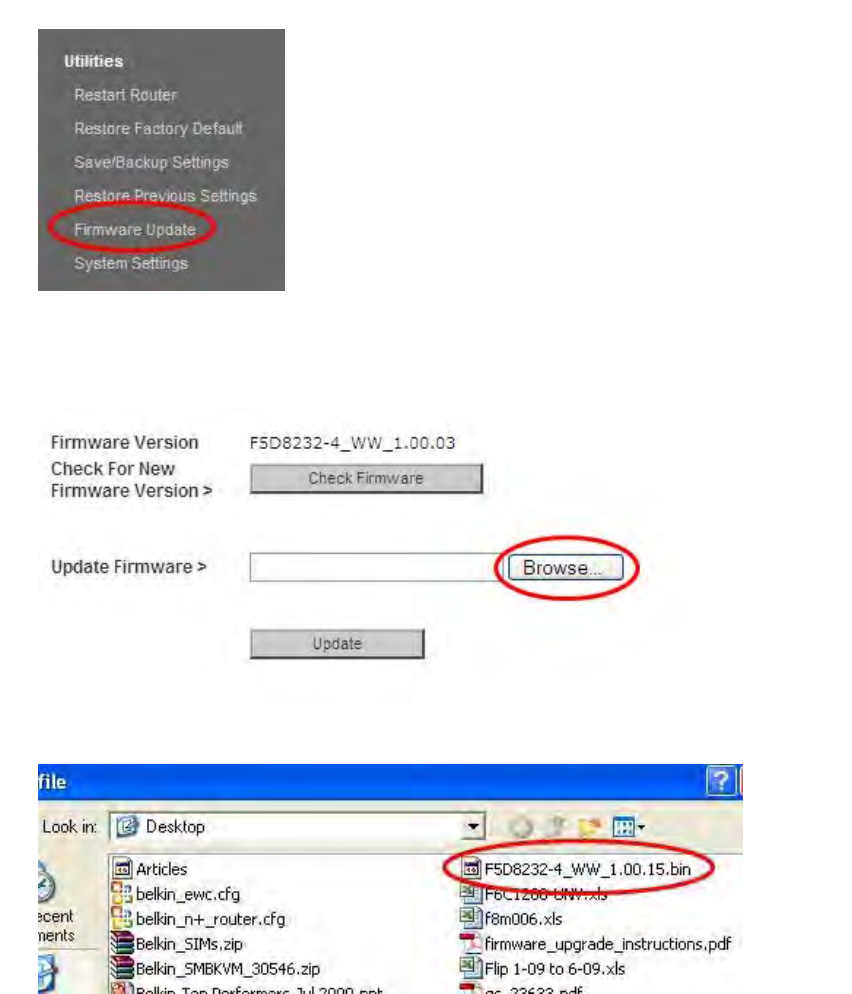

7. Click on “Firmware Update” toward the bottom of the left-hand menu.

8. Click the “Browse” button toward the middle of the screen to search for the file you saved

previously.

Note: The firmware version in the images below is depicted as an example. Your file name

will vary depending on your model and version.

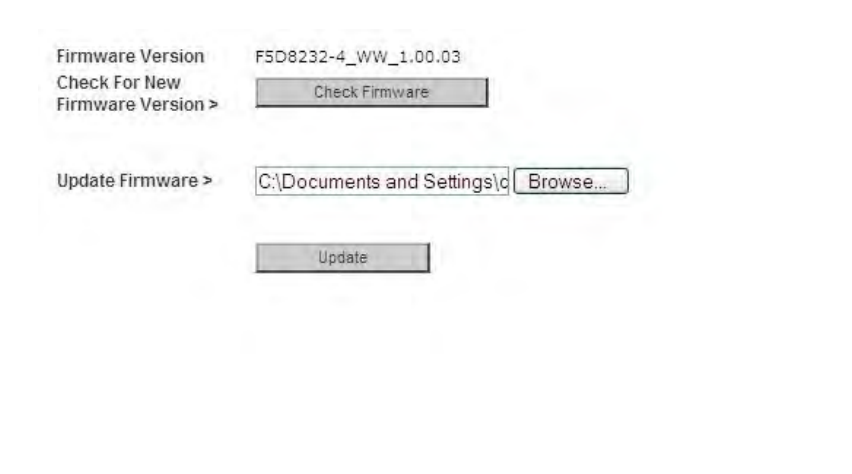

9. Select the firmware file by left-clicking on it and then click the “Open” button in the lower-

right corner of the window. This will take you back into the Router’s interface.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

10. Click the “Update” button.

11. A prompt asking, “Are you sure you want to continue with upgrading?” will appear. Click

“OK”.

12. A second prompt will open telling you the Router will not respond during the upgrade and

warning you not to remove the power supply from the Router. Click “OK” once more.

Congratulations. The firmware has been updated successfully.

Resetting the Router

Reset Button – Red

The “Reset” button is used in rare cases when the Router may function improperly. Resetting the

Router will restore the Router’s normal operation while maintaining the programmed settings. You

can also restore the factory default settings by using the “Reset” button. Use the restore option in

instances where you may have forgotten your custom password.

Resetting the Router

Push and release the “Reset” button. The lights on the Router will momentarily flash. The

“Router” light will begin to blink. When the “Router” light becomes solid again, the reset is

complete.

Restoring Your Router to Factory Defaults

Press and hold the “Reset” button for at least 10 seconds, and then release it. The lights on the

Router will momentarily flash. The “Router” light will begin to blink. When the “Router” light

becomes solid again, the restore is complete.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Restoring the Router to Default Settings Using the Web Interface

Symptoms

You need to restore the factory defaults using the web interface. This may be because the

Router is not performing as expected or you wish to remove all previously configured

settings.

Setup steps:

1. Open a web browser on the computer.

2. In the address bar of the web browser, type “http://192.168.2.1”.

3. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

4. Click on “Restore Factory Defaults” in the left-hand column under the “Utilities” heading.

5. Click on the “Restore Defaults” button.

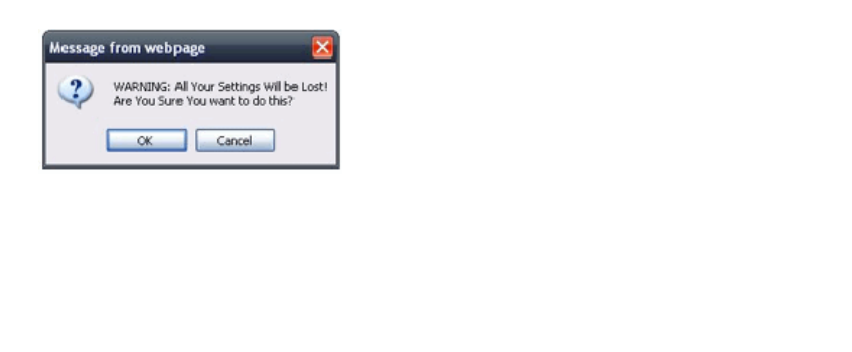

6. A warning box will open that says, “Warning: All your settings will be lost. Are you sure

you want to do this?” Click “OK”.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

7. The Router will begin the restoring process. Once the restore is complete, the Router will

reboot.

Note: This may take several minutes.

Your Router has successfully been restored to its factory settings.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Troubleshooting, Support, and Warranty

Troubleshooting

TheSetupCDdoesnotautomaticallystart.

IfBelkinSetupdoesnotrunwhenyouinserttheCD‐ROM,your

computermaynotbeconfiguredtoopenCDsautomatically.

IfBelkinSetupdoesnotappearwithin15seconds,browsetoyour

CD‐ROMdriveandopenthe“BelkinSetup”icon.Alternatively,you

mayvisithttp://router/andperformthesetupmanually.Please

see“ManualSetupUsingYourBrowser”earlierinthismanualfor

moreinformation.

BelkinSetupcannotfindmyRouter.

IfBelkinSetupisnotabletocommunicatewithyourRouterduring

theinstallationprocess,pleasecheckthefollowingitems.

1) Makesurethatthewirelesshardwareonyourcomputeristurned

on,ifavailable.

2) Tryconnectingyourcomputertooneofthefour“wired”portson

theRouterwithanEthernetcable.

3) EnsurethattheRouterison.Thefront‐panellightshouldbeon.

4) UnplugtheRouter’spowersupplyfor10seconds,thenplugitback

in.

5) Theremaybefirewallsoftwareonyourcomputerpreventingan

outgoingconnection.Youmaychoosetotemporarilydisablethis

softwarebeforeattemptingsetup.

IfBelkinSetupstillcannotfindtheRouter,youmightchoosetodo

amanualsetup.Referto“ManuallyConfiguringNetworkSettings”

inthismanualfordetails.

BelkinSetupcannotconnectmyRoutertotheInternet.

IfBelkinSetupisnotabletoconnecttheRoutertotheInternet,

pleasecheckthefollowingitems:

1) Use the troubleshooting suggestions within Belkin Setup.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

2) If your ISP requires a user name and password, make sure that

you have typed in your user name and password correctly.

Some user names require that the ISP’s domain may be at the

end of the name. Example: “myname@myisp.com”. The

“@myisp.com” part of the user name may need to be typed as

well as your user name.

3) If you continue to have no Internet connection, refer to

“Manually Configuring Network Settings” in this manual for an

alternative setup method.

BelkinSetupcompletedinstallation,butIcannotbrowsetheWeb.Thelighton

thefrontofmyRouterisblinkingamber.

1) MakesuretheRouterisconnectedtoyourmodemwithan

EthernetcableviatheRouter’soneWAN(modem)port.

2) Unplugthemodemfromitspowersourceandmakesurethat

itgoesdark.Thenreapplypowertothemodem.

3) UnplugyourRouter’spowersupply,wait10seconds,and

plugitbackin.ThiswillcausetheRoutertotrytoreestablish

communicationwiththemodem.

BelkinSetupcompletedinstallation,butIcannotbrowsetheWeb.Thelighton

thefrontofmyRouterissolidamber.

1) Use the troubleshooting suggestions within Belkin Setup.

2) If your ISP requires a user name and password, make sure

that you have typed in your user name and password

correctly. Some user names require that the ISP’s domain

may be at the end of the name. Example:

“myname@myisp.com”. The “@myisp.com” part of the

user name may need to be typed as well as your user name.

3) If you have a static connection, your ISP will have assigned

you an IP address, subnet mask, and gateway address.

Please re-run Belkin Setup and enter this information when

a static connection is mentioned.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

4) You may need to configure your Router to meet the

specific requirements of your ISP. To search our

knowledge base for ISP-specific issues, go to:

http://www.belkin.com/support and type in “ISP”.

5) If you continue to have no Internet connection, refer to

“Manually Configuring Network Settings” in this manual for

an alternative setup method.

Ican’tconnecttotheInternetwirelessly.

IfthelightonthefrontoftheRouterissolidblue,thenyourRouter

isconnectedtotheInternet.Youmaynotbeconnectedtothe

Router’swirelessnetwork.Pleasereferto“AddingComputersto

YourNetwork”inthismanualforinstructions.

If your Windows XP computer is running SP2, you will not be able to set up the Router

via the wireless setup process. You will need to either update to Windows XP SP3 or

complete the setup via a wired connection.

Ican’tconnecttotheInternetwirelesslyandmynetworknameisnotlistedin

AvailableNetworks.

1) VerifythatyourRouterisonandthefront‐panellightshows

solidblue.

2) IfyouarefarfromtheRouter,youmighttrymovingcloserto

seeifyoumighthavebeenoutofrange.

3) UsingacomputerattachedtotheRouterviaanetworkcable,

visithttp://router/andensurethat“BroadcastSSID”isON.

Thissettingisfoundonthe“ChannelandSSID”page.

Mywirelessnetworkperformanceisslow,inconsistent,suffersfromweak

signal,orI’mhavingdifficultymaintainingaVPNconnection.

Wireless technology is radio-based, which means connectivity

and the throughput performance between devices decreases

when the distance between devices increases. Other factors that

will cause signal degradation (metal is generally the worst

culprit) are obstructions such as walls and metal appliances.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Note also that connection speed may decrease as you move

farther away from the Router.

In order to determine if wireless issues are related to range, we

suggest temporarily moving the computer within 10 feet from

the Router if possible.

Changing the wireless channel—Depending on local wireless traffic and

interference, switching the wireless channel of your network can

improve performance and reliability. See the section titled

“Changing the Wireless Channel” for instructions on how to

choose other channels.

Limiting the wireless transmit rate—Limiting the wireless transmit rate can

help improve range and connection stability. Most wireless

cards have the ability to limit the transmission rate. To change

this property in Windows, go to the Windows Control Panel,

open “Network Connections”, and double-click on your wireless

card’s connection. In the properties dialog, select the

“Configure” button on the “General” tab, then choose the

“Advanced” tab and select the rate property.

Wireless client cards are usually set to automatically adjust the

wireless transmit rate for you, but doing so can cause periodic

disconnects when the wireless signal is too weak; as a rule,

slower transmission rates are more stable. Experiment with

different connection rates until you find the best one for your

environment. Note that all available transmission rates should

be acceptable for browsing the Internet. For more assistance,

see your wireless card’s user manual.

I’veinstalledthisnewRouterandsomeofmynetworkclients(computers,

gameconsoles,etc.)arenowunabletoconnect.

YournewRoutercamepre‐configuredwithanetworknameand

password,foundprintedonanattachedcard.Allclientsmustuse

thisnetworknameandpasswordtoconnectwirelesslytoyour

Router.Youwillneedtofindthenetworksettingsonyourclient,

selectthenetworknameprintedonthecardfromthelistof

availablenetworks,andenterthepasswordwhenpromptedtojoin

thewirelessnetwork.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

DoestheRoutersupportWirelessProtectedAccess(WPA)security?

TheRoutershipswithWPA/WPA2securityturnedon.WindowsXP

andsomeoldernetworkhardwaremayrequireasoftwareupdate

tosupportWPA/WPA2.

IamhavingdifficultysettingupWPAsecurityonmyRouter.

1) LogintoyourRouterbyvisitinghttp://router/withyour

webbrowser.Click on the “Login” button in the top right-

hand corner of the screen. You will be asked to enter your

password. If you have never set a password, leave the

“Password” field blank and click “Submit”.

2) Click“Wireless”intheleft‐handmenu.Thenclick“Security”

justbelowthat.

3) Selectthe“WPA/WPA2”option.

4) Enterapassword.Thiscanbefrom8–63charactersofyour

choice,includingspacesandpunctuation,ORa64‐digit

hexadecimalnumber(usingonlythenumbers0–9andletters

A–F).

5) Click“ApplyChanges”tofinish.Yourwirelessconnectionis

nowencrypted.Eachcomputerusingyourwirelessnetwork

willneedtousethenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:SomeoldernetworkinghardwaresupportsonlyWEP

encryption.Ifyouroldercomputerscannotconnecttoyour

network,try128‐bitor64‐bitWEP,orseeksoftwareupdates

fromtheirmanufacturers.

IamhavingdifficultysettingupWiredEquivalentPrivacy(WEP)securityonmy

Router.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

1) LogintoyourRouter.Visithttp://router/withyourweb

browser.Click on the “Login” button in the top right-hand

corner of the screen. You will be asked to enter your

password. If you have never set a password, leave the

“Password” field blank and click “Submit”.

2) Click“Wireless”intheleft‐handmenu.Thenclick“Security”

justbelowthat.

3) Selectthe“128‐bitWEP”option.

4) YoumaytypeinaWEPkeymanually,orgenerateonefroma

passphrase.Typeaphraseinthe“Passphrase”fieldandclick

the“Generate”button.AWEPkeyiscomposedof26

hexadecimaldigits(0–9,A–F).Forexample,C3030FAF4B

B2C3D44BC3D4EE74isavalid128‐bitWEPkey.

5) Click“ApplyChanges”tofinish.Yourwirelessactivityisnow

encrypted.Eachcomputerusingyourwirelessnetworkwill

needtousethenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:Someoldernetworkinghardwaresupportsonly64‐bit

WEPencryption.Ifyouroldercomputerscannotconnectto

yournetwork,try64‐bitWEP.

Technical Support

US

http://www.belkin.com/support

UK

http://www.belkin.com/uk/support

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Australia

http://www.belkin.com/au/support

NewZealand

http://www.belkin.com/au/support

Singapore

1800 622 1130

Europe

http://www.belkin.com/uk/support



Belkin International, Inc., Limited 2-Year Product Warranty

What this warranty covers.

Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this

Belkin product that the product shall be free of defects in design, assembly,

material, or workmanship.

What the period of coverage is.

Belkin warrants the Belkin product for two years.

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge

(except for shipping charges for the product). Belkin reserves the right to

discontinue any of its products without notice, and disclaims any limited warranty

to repair or replace any such discontinued products. In the event that Belkin is

unable to repair or replace the product (for example, because it has been

discontinued), Belkin will offer either a refund or a credit toward the purchase of

another product from Belkin.com in an amount equal to the purchase price of the

product as evidenced on the original purchase receipt as discounted by its

natural use.

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to

Belkin for inspection upon Belkin’s request at the sole expense of the purchaser,

or if Belkin determines that the Belkin product has been improperly installed,

altered in any way, or tampered with. The Belkin Product Warranty does not

protect against acts of God such as flood, lightning, earthquake, war, vandalism,

theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse,

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized

program, or system equipment modification or alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa

Vista, CA 90094, Attn: Customer Service, or call (800)-223-5546, within 15 days

of the Occurrence. Be prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on

how to forward your receipt and Belkin product and how to proceed with your

claim.

Belkin reserves the right to review the damaged Belkin product. All costs of

shipping the Belkin product to Belkin for inspection shall be borne solely by the

purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship

the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an

equipment repair facility to inspect and estimate the cost to repair such

equipment. The cost, if any, of shipping the equipment to and from such repair

facility and of such estimate shall be borne solely by the purchaser. Damaged

equipment must remain available for inspection until the claim is finalized.

Whenever claims are settled, Belkin reserves the right to be subrogated under

any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE

ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED

BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION

OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN

DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so

the above limitations may not apply to you.

IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL,

DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS,

BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE

SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

This warranty gives you specific legal rights, and you may also have

other rights, which may vary from state to state. Some states do not

allow the exclusion or limitation of incidental, consequential, or other

damages, so the above limitations may not apply to you.

*Regulatory Information

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA

90094, declare under our sole responsibility that the device, F9K1002 v1,

complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause

undesired operation.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Caution: Exposure to Radio Frequency Radiation.

The device shall be used in such a manner that the potential for human contact

normal operation is minimized.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

a minimum distance of 20cm between the radiator and your body.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy, and if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try and correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the distance between the equipment and the receiver.

 Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.

This device and its antenna(s) must not be co-located or operating in conjunction

with any other antenna or transmitter.

Canada-Industry Canada (IC)

The wireless radio of this device complies with RSS 139 & RSS 210 Industry

Canada. This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

Cet appareil numérique de la classe B conforme á la norme NMB-003 du

Canada.

*Back cover

registered trademarks of respective manufacturers listed. Mac and Mac OS are

trademarks of Apple Inc., registered in the U.S. and other countries. Windows

and Windows Vista are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

FCC Statement :

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction with

any other antenna or transmitter.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

11481227250_8820-00774_F9K1002_N300_Wirless_N_Router_v3_02_15_11_加上警

語-ok

IC Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.

Operation is subject to the following two conditions: (1) this device may not cause

interference and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction

with any other antenna or transmitter.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.



Belkin F9K1002V2 N300 WLAN AP User Manual

Belkin International, Inc. N300 WLAN AP

User Manual

Navigation menu

Namespaces

Views

Navigation
