USING YOUR ROUTER
21
Click “Click here to enter your DNS Settings” to configure DNS
information.
Either select or clear the “Automatic from ISP” check box. If you clear the
check box, in the “DNS Address and Secondary DNS Address” fields
enter the IP addresses of the primary DNS server and the secondary
server (if available). At least enter one DNS server IP address.
Click “Apply Changes”.
If after a few minutes your Internet Status says “Connected”, you’re
done! You can surf the Internet.
Telstra Bigpond/OptusNet Cable
Use this option for Bigpond Cable and OptusNet Cable connections
only.
Cloning your MAC address
Belkin provides the ability to clone (copy) the MAC address
of the computer into the Router. This MAC address, in
turn, will be seen by the ISP's system as the original MAC
address and will allow the connection to work.
If you are not sure if your ISP needs to see the original MAC
address, simply clone the MAC address of the computer
that was originally connected to the modem. Cloning the
address will not cause any problems with your network.
To Clone your MAC address, make sure that you are using the
computer which was ORIGINALLY CONNECTED to your modem
before the Router was installed. Click the “Clone” button and click
“Apply Changes”. Your MAC address is now cloned to the Router.
USING YOUR ROUTER
22
Conguring Basic Wireless Settings
You can view and specify the wireless security settings of your Router.
Setup steps:
Open a Web browser on the computer.
In the address bar of the Web browser, type http://192.168.2.1.
Click “Login” in the upper right corner of the page. The Router
does not ship with a password, so just click “Submit”.
Click on “Channel and SSID” in the left column
under the “Wireless” heading.
Configure the following parameters.
SSID: Set the wireless network name. The SSID can contain up to 32
alphanumeric characters. The default SSID is “belkin.###”.
Broadcast SSID: If checked, the Router broadcasts its SSID in the
wireless network, so that wireless clients can scan the SSID and
access the wireless network under the SSID. The check box is selected
by default. If the check box is cleared, only devices that know the
USING YOUR ROUTER
23
correct SSID can connect to the Router.
For the remaining settings, use the defaults.
The default channel is Auto.
It is unnecessary to change the wireless channel unless you notice
interference problems with another nearby wireless Router or access
point. Select a channel that is not being used by any other nearby
wireless networks.
The default mode is 802.11b/g/n.
If you do not know which mode to use, select 802.11b/g/n.
The default bandwidth is 20/40MHz.
The default protected mode is Off.
In most situations, best performance is achieved with Protected Mode
Off. If you are operating in an environment with HEAVY 802.11b traffic
or interference, best performance may be achieved with Protected
Mode On.
The default 802.11e/WMM QoS mode is On.
QoS prioritizes important data on your network such as multimedia
content and voice-over-IP (VoIP) so it will not be interfered by other data
being sent over the network.
Click “Apply Changes”.
Restarting Your Router
Sometimes, in order to make some changes take
effect, you need to restart the Router.
Setup Steps
USING YOUR ROUTER
24

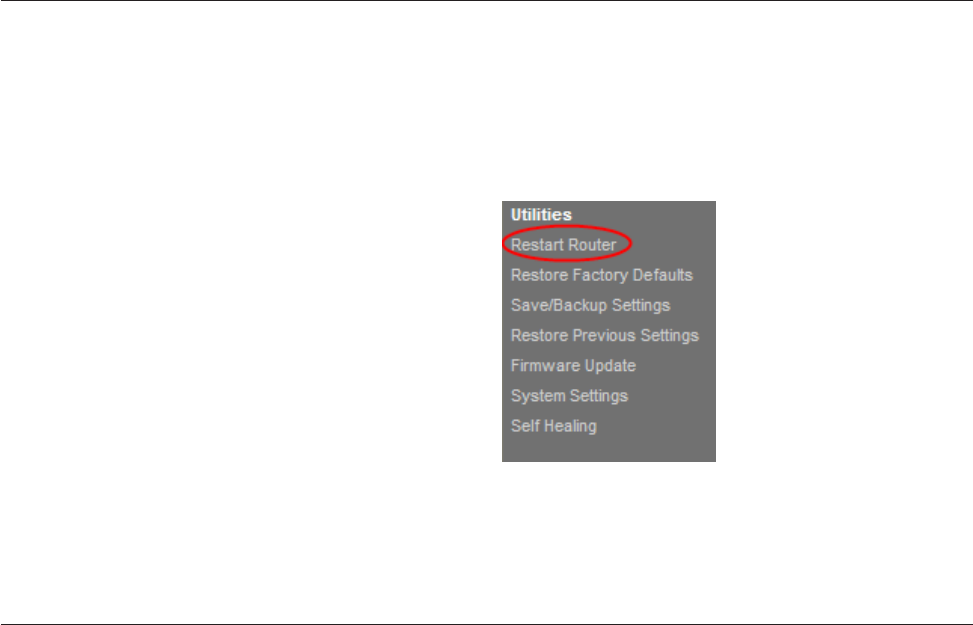

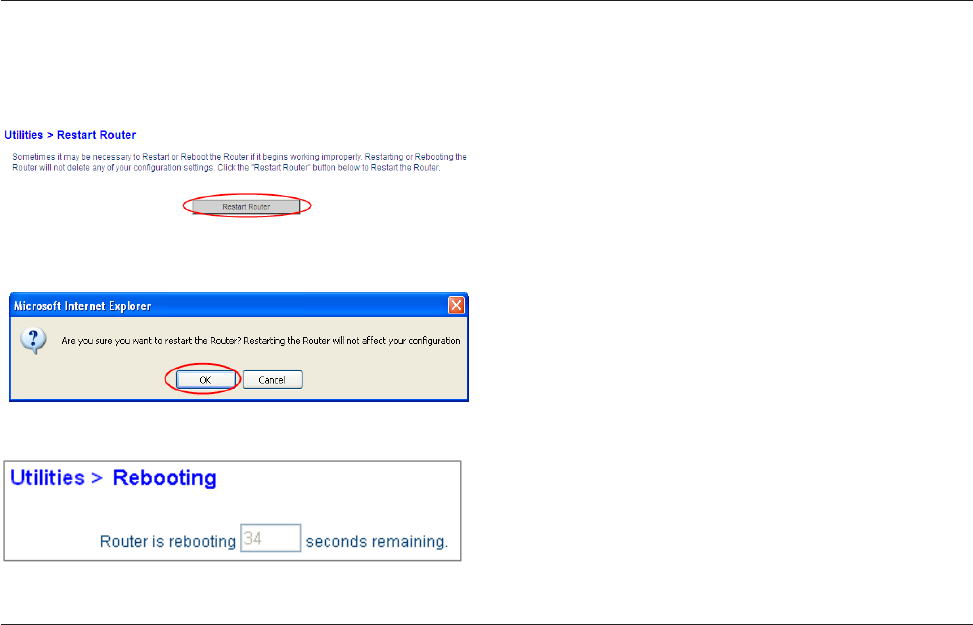

Click on “Restart Router” in the left-hand
column under the “Utilities” heading.
Click on the “Restart Router” button toward the middle of screen.
A dialog box appears to ask you whether to restart the
Router. Click the “OK” button to restart the Router.
After clicking the “OK” button, the Router begins to restart.
Restoring Your Router to Factory Defaults
Resetting the Router will restore the Router’s normal operation
while maintaining the programmed settings. Reset the Router
in rare cases when the Router may function improperly.
Using the Reset Button
Use the restore option in instances where you may have forgotten
your custom password or when the Router may function improperly.
Push and hold the “Reset” button for 8-10 seconds, and then
release it. The LAN light on the Router will momentarily flash
and the WLAN light will turn out. When the LAN and WLAN
lights become solid green again, the reset is complete.
Restoring the Router to Default Settings Using the Web Interface
You can also restore the factory defaults using the web interface.
This may be because the Router is not performing as expected
or you wish to remove all previously configured settings.
USING YOUR ROUTER
25
Setup Steps

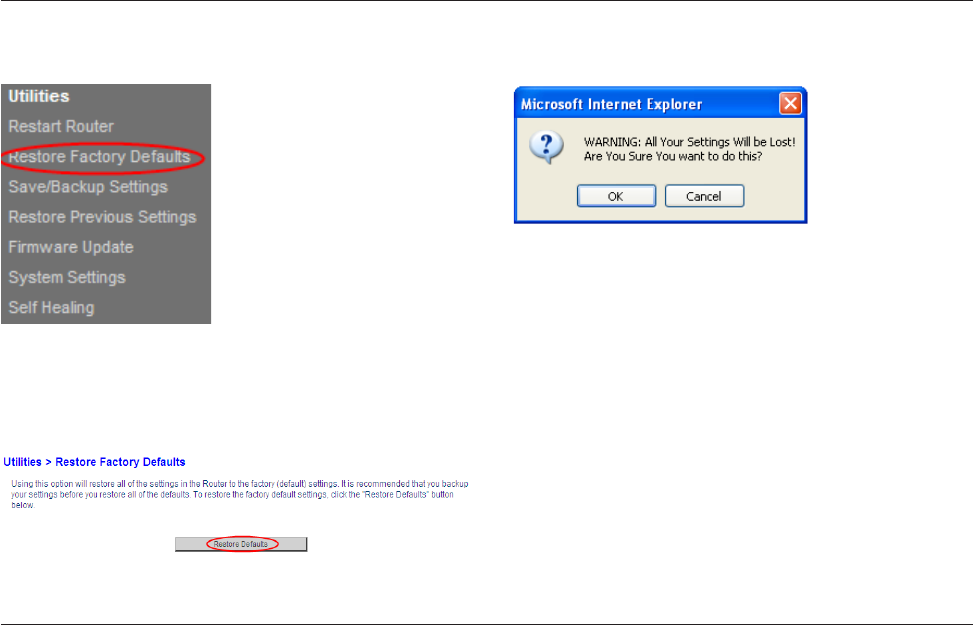

Click on “Restore Factory Defaults” in the left-hand column under the
“Utilities” heading.
Click on the “Restore Defaults” button.
A warning box will open that says, “Warning: All your settings
will be lost. Are you sure you want to do this?” Click “OK”.
The Router will begin the restoration process. Once the
restoration process is complete, the Router will reboot.
Note: This may take several minutes.
Your Router has been successfully restored to its factory settings.
USING YOUR ROUTER
26
Backing Up Your Conguration
The configuration settings of the Router are stored
within the Router in a configuration file. You can back
up (save) the file and retrieve it for later use.
We recommend that you back up your configuration file after
you complete settings. If the Router fails or becomes corrupted,
or an administrator password is lost, you can easily re-obtain
your configuration by restoring the configuration file.

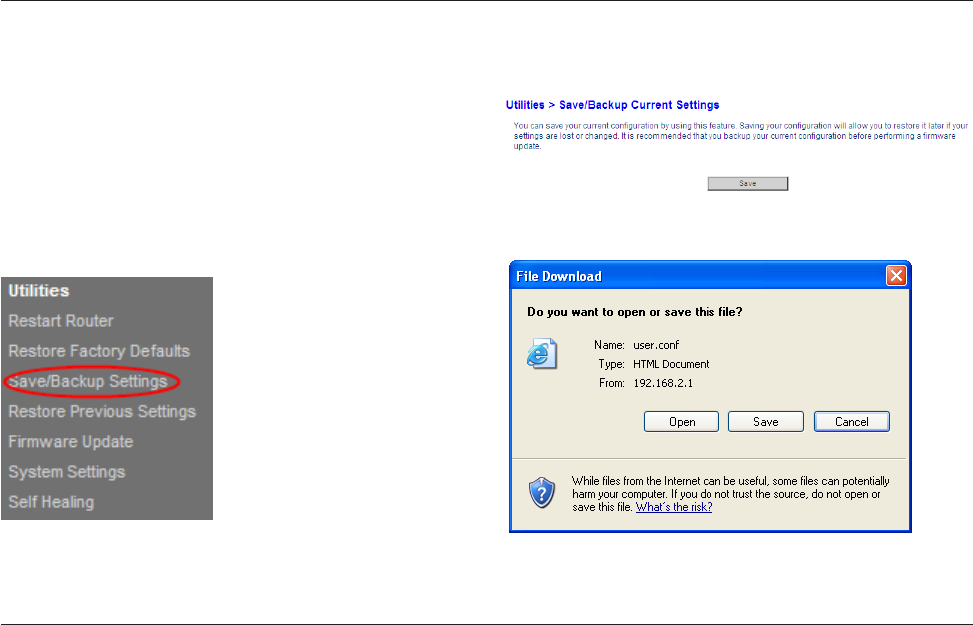

Setup Steps
Click on “Save/Backup Settings” in the left-hand column under the
“Utilities” heading.
Click on the “Save” button.
USING YOUR ROUTER
27

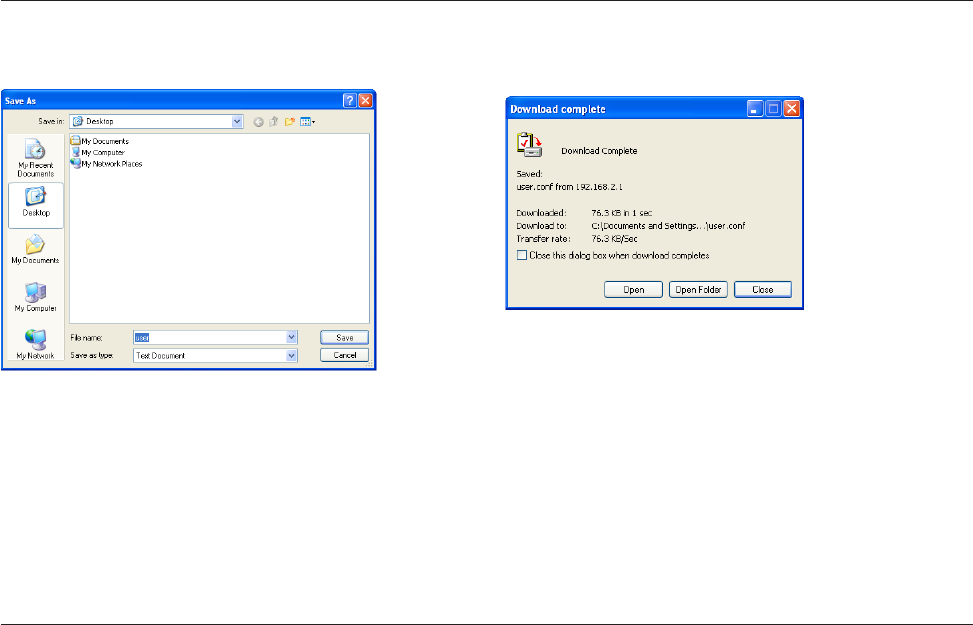

A dialog box will open that says, “Do you want
to open or save this file?” Click “Save”.
Select the location for saving the configuration file. Enter the file
name and select the file type, then click the “Save “button.
When the download process is complete, click “Close”.
Your Router’s configurations have been successfully saved to your
local PC.
USING YOUR ROUTER
28
Restoring Previous Settings
Sometimes, you need to restore the previous settings. This may be
because the Router is not performing as expected or you wish to
remove all current settings.
Setup Steps

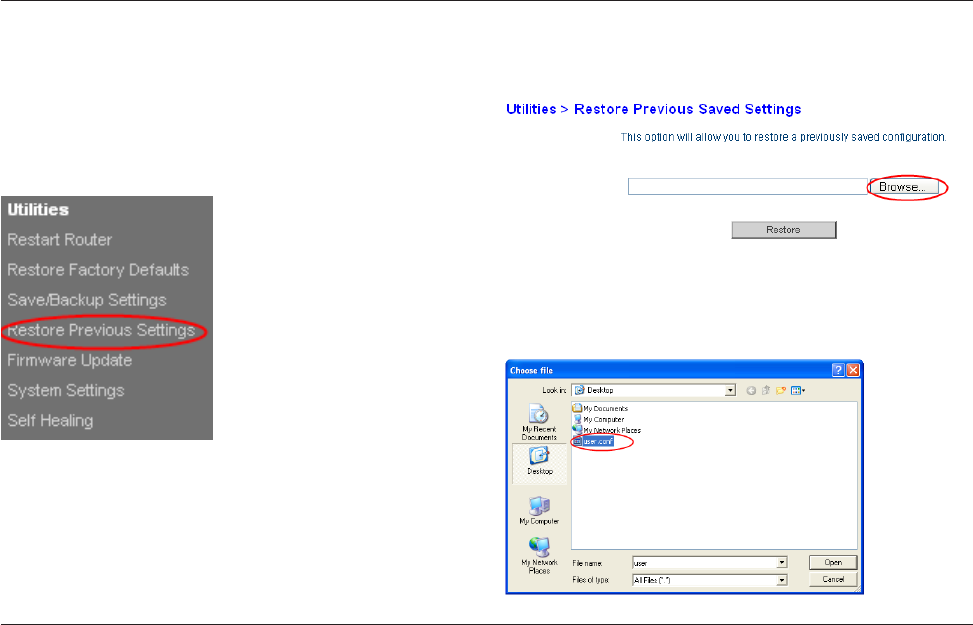

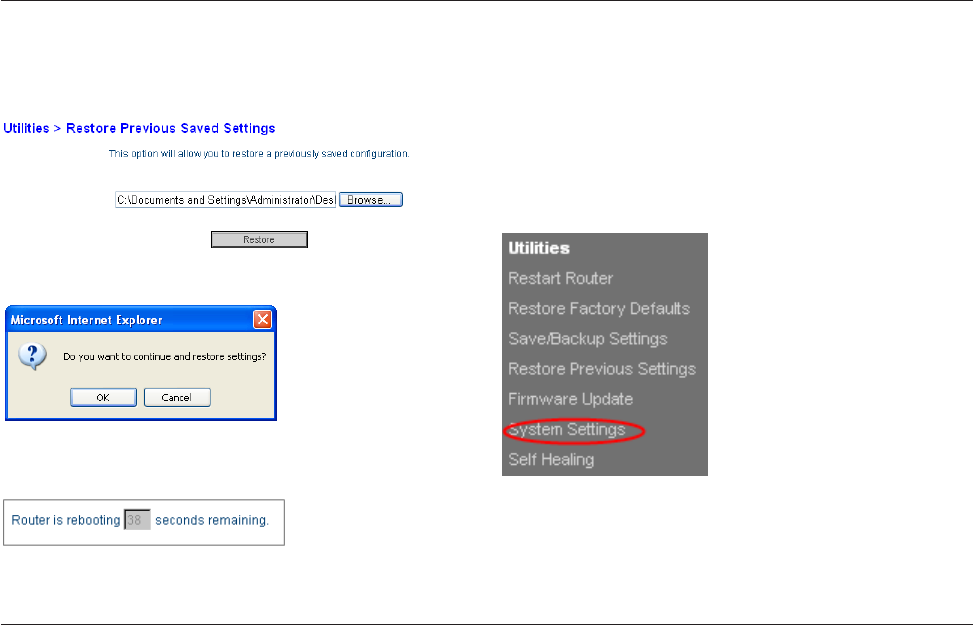

Click on “Restore Previous Settings” in the left-hand column under the
“Utilities” heading.
Click the “Browse…” button toward the middle of the screen to search
for the file you saved previously.
Note: The version of configuration file in the images below is depicted
as an example. Your file name will vary depending on your model and
version.
USING YOUR ROUTER
29
Select the configuration file by left-clicking on it and then click the
“Open” button in the lower-right corner of the window. This will take you
back into the Router’s interface.
Click the “Restore” button.
A prompt asking, “Do you want to continue and
restore settings?” will appear. Click “OK” and then the
Router begins to restore the previous settings.
The previous settings have been restored successfully.
Enabling Auto Firmware Update for Your Router
The Router has the capability to automatically check for a newer
version of firmware and alert you when it’s available. You can choose
to download the new version or ignore it. By default this feature is
enabled.
Note: We recommend you use a computer that
has a wired connection to the Router.
Setup Steps:
USING YOUR ROUTER
30

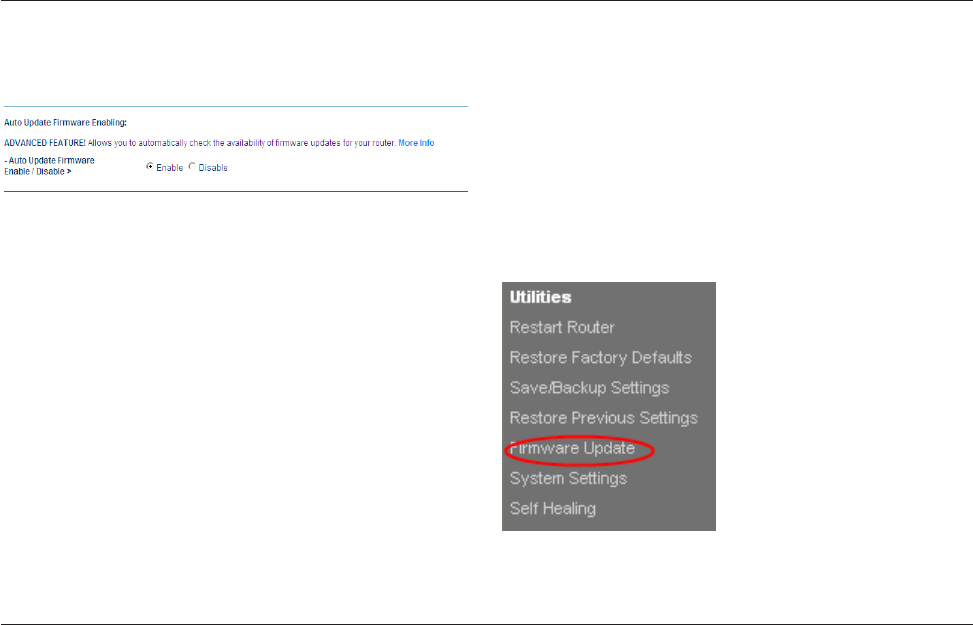

Click on “System Settings” in the left-hand column under the “Utilities”
heading.
Toward the lower-half side of the screen you will
find “Auto Update Firmware Enabling”.
Select the “Enable” radio button.
Click “Apply Changes”.
Updating the Router’s Firmware
The following steps show you how to update your
Router’s firmware using its Web interface.
Checking for New Firmware in the Firmware Upgrade Screen
N150 Router allows you to check for a new
firmware update available for this Router.
Setup steps:
USING YOUR ROUTER
31

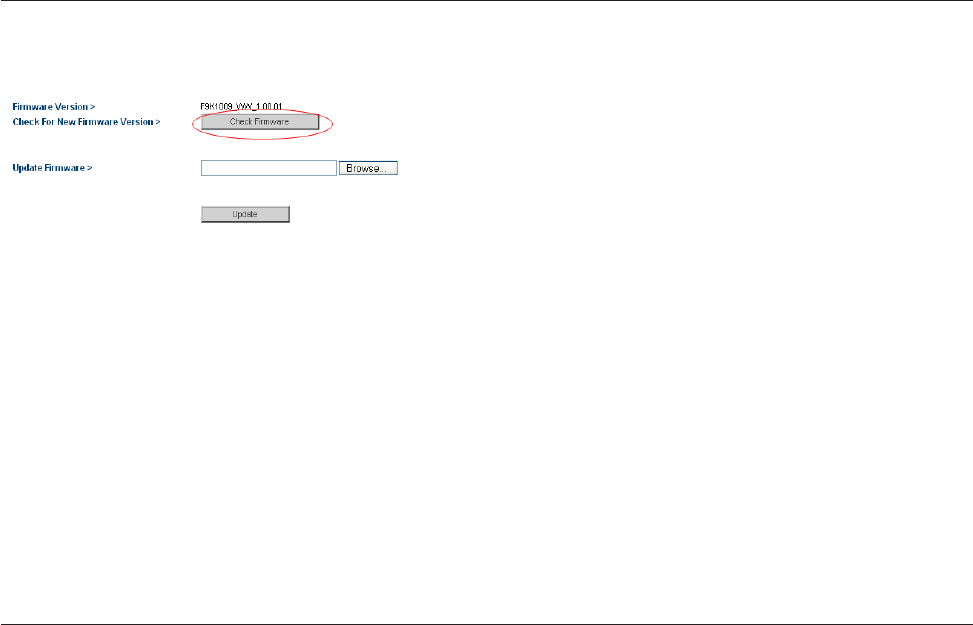

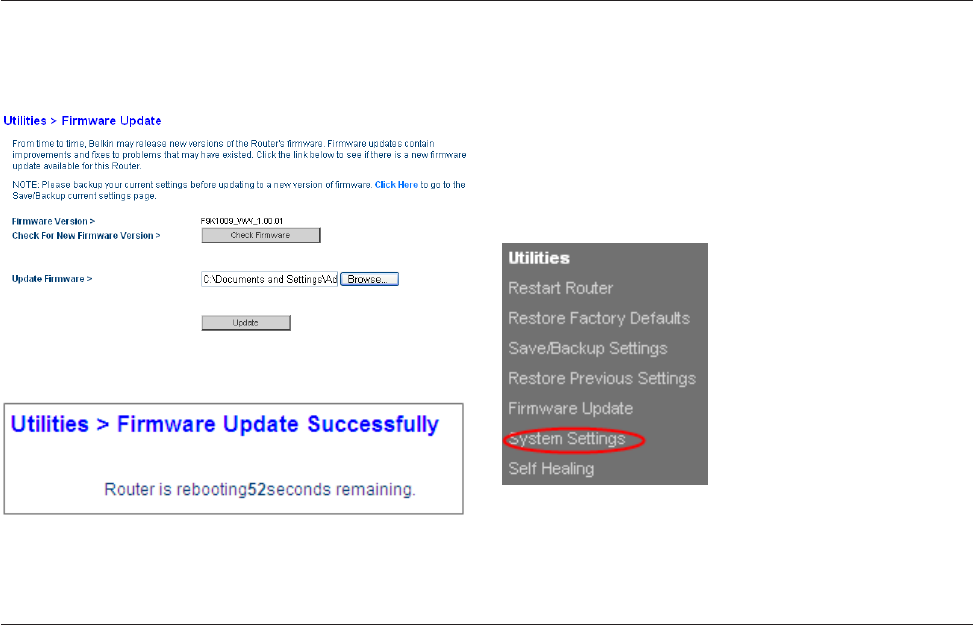

Click on “Firmware Update” in the left-hand
column under the “Utilities” heading.
Click “Check Firmware” to check for new firmware versions.
If a new version is found, you can directly update
your firmware by following the prompts.
Updating Manually to New Router Firmware
You can also manually update your Router firmware.
Setup Steps
Locate and download the firmware file from the Belkin support site.
(Type your part number into the search box in the top right corner and
look for “Firmware” in the title.)
Save the file to a location on your computer where you can get to it
easily, such as your desktop.
Connect the computer to one of the four LAN ports on the Router.
Open a web browser on the computer.
In the address bar of the web browser, type “http://192.168.2.1” and
press “Enter” on your keyboard.
Click “Login” in the upper right-hand corner of the page. The Router
does not ship with a password, so just click “Submit”.
USING YOUR ROUTER
32

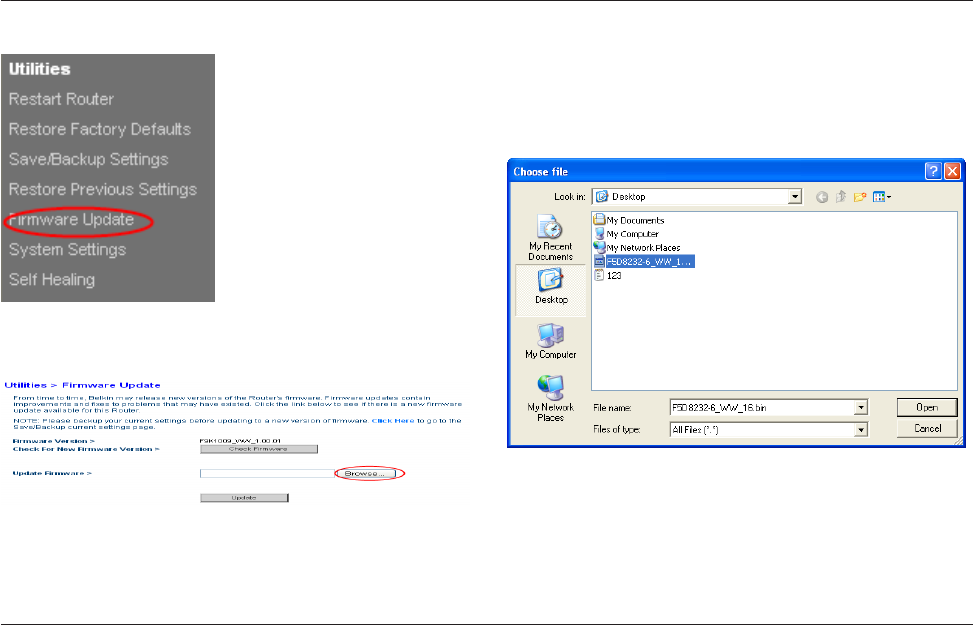

Click on “Firmware Update” in the left-hand
column under the “Utilities” heading.
Click the “Browse…” button toward the middle of the screen to search
for the file you saved previously.
Note: The firmware version in the images below is depicted as an
example. Your file name will vary depending on your model and version.
USING YOUR ROUTER
33
Select the firmware file (an “.img” file) by left-clicking on it and then click
the “Open” button in the lower-right corner of the window. This will take
you back into the Router’s interface.
Click the “Update” button.
Congratulations. The firmware has been updated successfully.
Conguring Administrator Password
The Router ships with NO password entered. If you wish to add a
password for more security, you can set a password here. Keep your
password in a safe place, as you will need this password if you need
to log into the Router in the future. It is also recommended that you set
a password if you plan to use the remote management feature of this
Router.
Setup Steps:
USING YOUR ROUTER
34

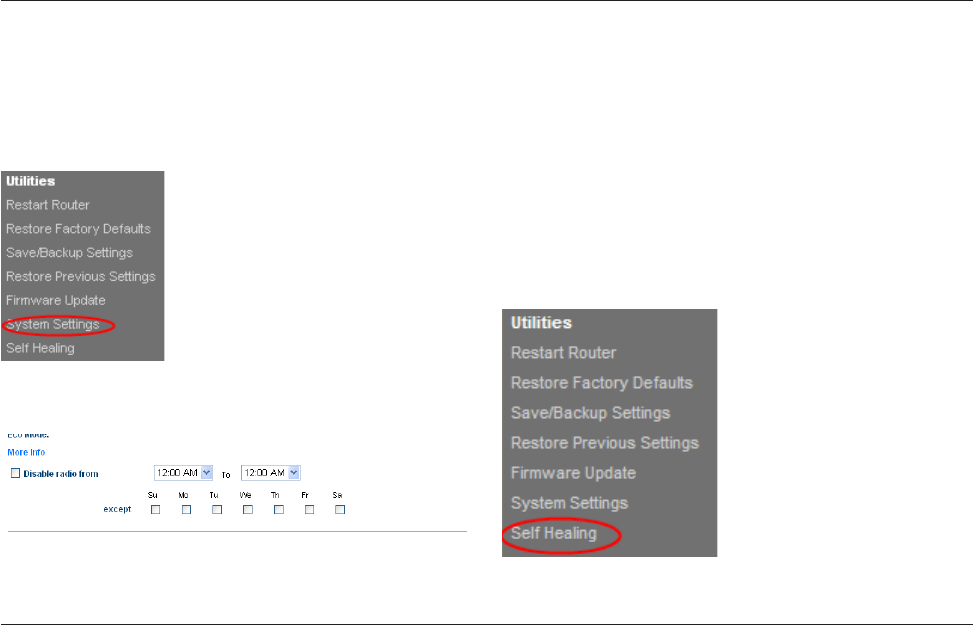

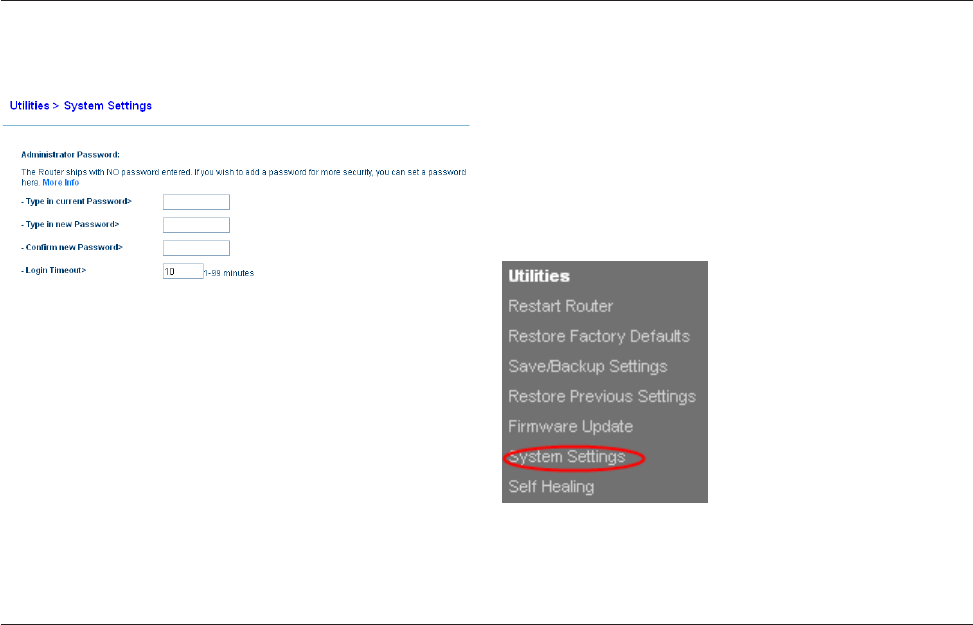

Click on “System Settings” in the left-hand column under the “Utilities”
heading.
Configuring the administrator password and login timeout.
Click “Apply Changes”.
Conguring Time Zone
The Router keeps time by connecting to a Simple Network Time
Protocol (SNTP) server. This allows the Router to synchronize the
system clock to the global Internet. The synchronized clock in the
Router is used to record the security log and control client filtering.
Select the time zone that you reside in. The system clock may not
update immediately.
Setup Steps:
USING YOUR ROUTER
35

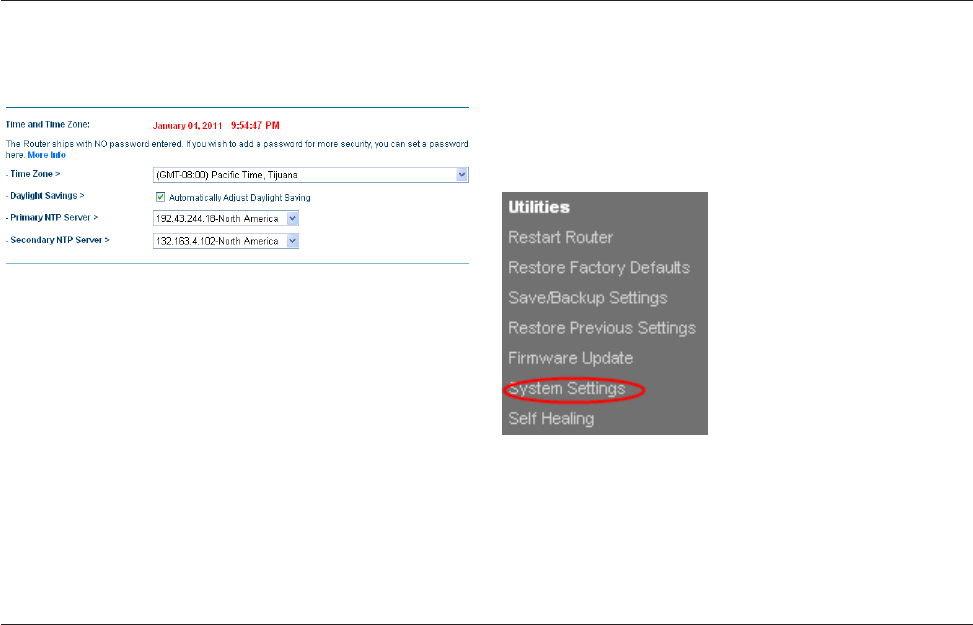

Click on “System Settings” in the left-hand column under the “Utilities”
heading.
Select the time zone that you reside in and the NTP server.
If you reside in an area that observes Daylight Saving, then
place a checkmark in the box next to “Daylight Savings”.
Click “Apply Changes”.

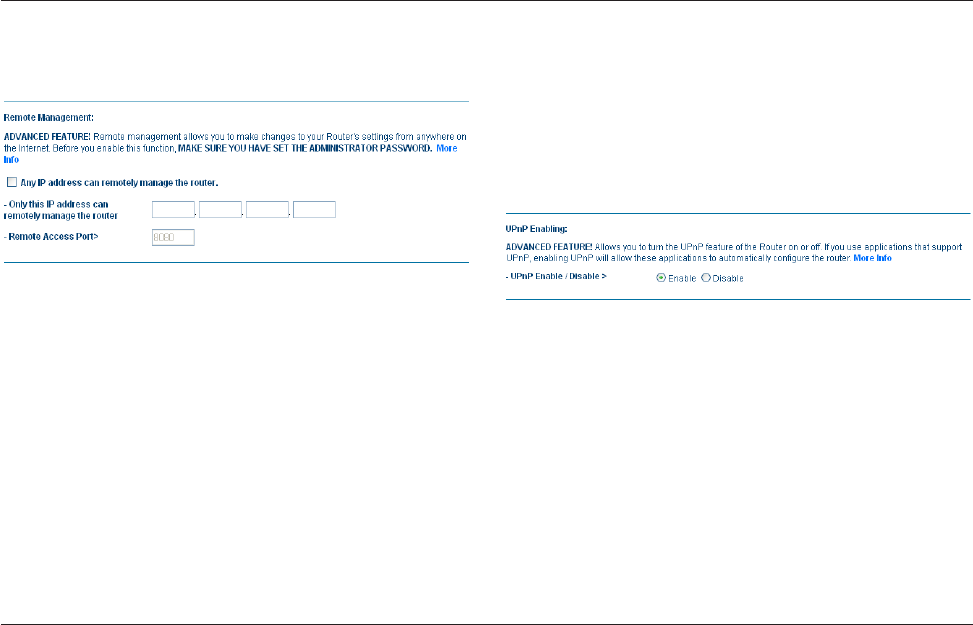

Conguring Remote Management
Remote management allows you to make changes to your Router's
settings from anywhere on the Internet. Before you enable this
function, make sure you have set the administrator password.
Setup Steps:
USING YOUR ROUTER
36
Click on “System Settings” in the left-hand column under the “Utilities”
heading.
If you select the “Any IP address can remotely manage the router”
check box, you are allowed to access the Router from anywhere on
the Internet by typing in your WAN IP address from any computer on
the Internet.
If you do not select the “Any IP address can remotely manage the router”
check box, specify an IP address to remotely manage the Router.
Note: Selecting “Only this IP address can remotely manage the router”
is more secure, but less convenient.
In the “Remote Access Port” field, set the port number for accessing the
router through remote Web management.
Click “Apply Changes”.
Conguring UPnP
UPnP (Universal Plug-and-Play) offers seamless operation of voice
messaging, video messaging, games, and other applications that are
UPnP compliant.
The Router ships with the UPnP feature enabled. If you are using any
applications that are UPnP compliant and wish to take advantage of the
UPnP features, you can enable the UPnP feature.
To use the UPnP function, simply select the “Enable” radio button in
the “UPnP Enabling” section of the “Utilities” > “System Settings” page.
USING YOUR ROUTER
37
Conguring the Eco Mode
This function allows you to dim the LEDs on the front of the Router to
save power and disable the wireless radio at predetermined times.
Setup Steps:
Click on “System Settings” in the left-hand column under the “Utilities”
heading.
Select the “Disable radio from” to enable the Eco mode.
Specify the days you want to use the Eco mode.
Click “Apply Changes”.

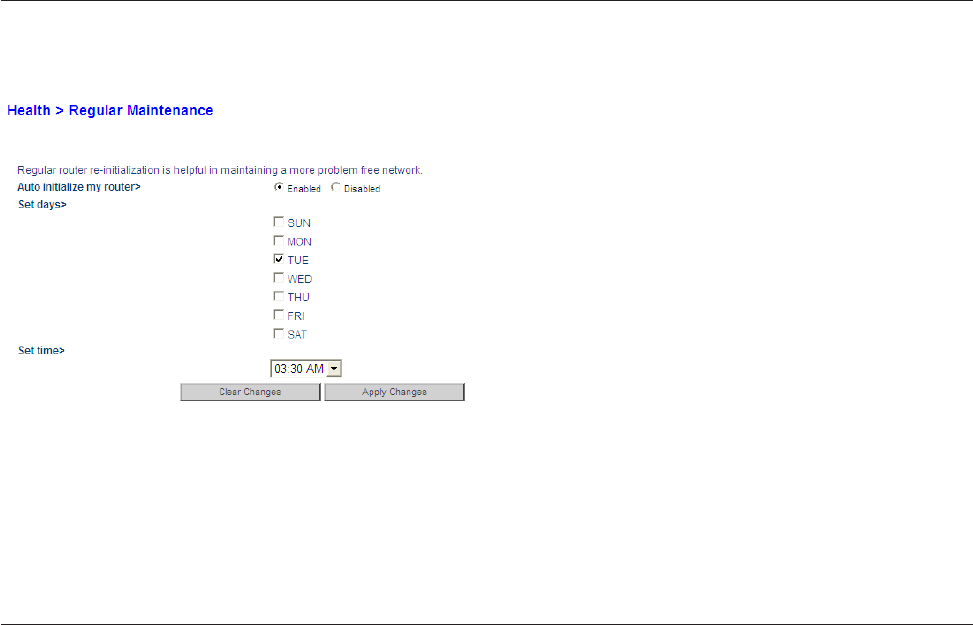

Conguring Self Healing
The self healing function allows the Router to implement regular restart,
reducing equipment function failure. You can arrange a schedule for
Router’s auto initialization.
Setup Steps:
USING YOUR ROUTER
38
Click on “Self Healing” in the left-hand column under the “Utilities”
heading.
Select the “Enabled” radio button to enable automatically initialization
for your Router.
Specify the days and the time for automatically initialization.
Click “Apply Changes”.
TROUBLESHOOTING
39
I cannot browse the Web.
Make sure the Router is connected to your modem with an Ethernet
cable via the Router’s one WAN (modem) port.
Unplug the modem from its power source and make sure that it goes
dark. Then reapply power to the modem.
Unplug your Route’s power supply, wait 10 seconds, and plug it back
in. This will cause the Router to try to reestablish communication with
the modem.
I can’t connect to the Internet wirelessly.
The Power and WLAN lights are solid green and your Router is
connected to the Internet. However, you cannot connect to the Router’s
wireless network. Please refer to “Adding Computers to Your Network”
in this manual for instructions.
I can’t connect to the Internet wireless and my network name is
not listed in Available Networks.
Verify that your Router is on and the Power, WLAN, and WAN lights on
the front panel show solid green.
If you are far from the Router, you might try moving closer to see if you
might have been out of range.
Using a computer attached to the Router via a network cable, visit
http://router/ and ensure that “Broadcast SSID” is On. This setting is
found on the “Channel and SSID” page.
My wireless network performance is slow, inconsistent, suffers
from weak signal, or I’m having difficulty maintaining a VPN
connection.
Wireless technology is radio-based, which means connectivity and
the throughput performance between devices decreases when the
distance between devices increases. Other factors that will cause
signal degradation (metal is generally the worst culprit) are obstructions
such as walls and metal appliances. Note also that connection speed
may decrease as you move farther away from the Router.
In order to determine if wireless issues are related to range, we suggest
temporarily moving the computer within 10 feet from the Router if
possible.
Changing the wireless channel—Depending on local wireless traffic
and interference, switching the wireless channel of your network can
improve performance and reliability. Visit http://router/ and choose
other channels on the “Channel and SSID” page under the “Wireless”
heading.
Limiting the wireless transmit rate—Limiting the wireless transmit
rate can help improve range and connection stability. Most wireless
cards have the ability to limit the transmission rate. To change this
property in Windows, go to the Windows Control Panel, open “Network
Connections”, and double-click on your wireless card’s connection. In
the properties dialog, select the “Configure” button on the “General”
tab, then choose the “Advanced” tab and select the rate property.
Wireless client cards are usually set to automatically adjust the wireless
transmit rate for you, but doing so can cause periodic disconnections
when the wireless signal is too weak; as a rule, slower transmission
rates are more stable. Experiment with different connection rates until
you find the best one for your environment. Note that all available
TROUBLESHOOTING
40
transmission rates should be acceptable for browsing the Internet. For
more assistance, see your wireless card’s user manual.
I’ve installed this new Router and some of my network clients
(computers, game consoles, ect) are now unable to connect.
Your new Router came pre-configured with a network name and
password, found printed on an attached card. All clients must use this
network name and password to connect wirelessly to your Router. You
will need to find the network settings on your client, select the network
name printed on the card from the list of available networks, and enter
the password when prompted to join the wireless network.
Does the Route support Wireless Protected Access (WPA)
security?
The Router ships with WPA/WPA2 security turned on. Windows XP and
some older network hardware may require a software update to support
WPA/ WPA2.
I am having difficulty setting up WPA security on my Router.
Log in to your Router by visiting http://router/ with your Web browser.
Click on the “Login” button in the top right-hand corner of the screen.
You will be asked to enter your password. If you have never set a
password, leave the “Password” field blank and click “Submit”.
Click “Security” under the “Wireless” heading in the left-hand menu.
Select the “WPA-PSK+WPA2-PSK” option.
Enter a password. This can be from 8-63 characters of your choice,
including spaces and punctuation, OR a 64-digit hexadecimal number
(using only the numbers 0-9 and letters A-F).
Click “Apply Changes” to finish. Your wireless connection is now
encrypted. Each computer using your wireless network will need to use
the new key.
Note: If you are configuring the Router over a wireless connection,
you will have to re-connect to the Router after changing any security
settings.
Note: Some older networking hardware supports only WEP encryption.
If your older computers cannot connect to your network, try 128-bit or
64-bit WEP, or seek software updates from their manufacturers.
41
TECHNICAL SUPPORT
US
http://www.belkin.com/support
UK
http://www.belkin.com/uk/support
Australia
http://www.belkin.com/au/support
New Zealand
http://www.belkin.com/au/support
Europe
http://www.belkin.com/uk/support
42
WARRANTY COVERAGE
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original
purchaser of this Belkin product that the product shall be free
of defects in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for Limited 2-Year Warranty.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product
free of charge (except for shipping charges for the product).
Belkin reserves the right to discontinue any of its products without
notice, and disclaims any limited warranty to repair or replace any
such discontinued products. In the event that Belkin is unable to
repair or replace the product (for example, because it has been
discontinued), Belkin will offer either a refund or a credit toward
the purchase of another product from Belkin.com in an amount
equal to the purchase price of the product as evidenced on the
original purchase receipt as discounted by its natural use.
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is
not provided to Belkin for inspection upon Belkin’s request at
the sole expense of the purchaser, or if Belkin determines that
the Belkin product has been improperly installed, altered in
any way, or tampered with. The Belkin Product Warranty does
not protect against acts of God such as flood, earthquake,
lightning, war, vandalism, theft, normal-use wear and tear,
erosion, depletion, obsolescence, abuse, damage due to low
voltage disturbances (i.e. brownouts or sags), non-authorized
program, or system equipment modification or alteration.
European Compliance Statement:
Belkin International hereby declares that this F9K1009 Wireless Router is in compliance
with the essential requirements and other revelant provisions of the RTT&E Directive
1999/5/EC, the EMC Directive 2004/108/EC, and the Low Voltage Directive
2006/5/EC. Conformity was assessed using a Technical Construction File.
A copy of the European Union CE marking “Declaration of Conformity”
may be obtained at the website: www.belkin.com/doc
For information on product disposal please refer to
http://environmental.belkin.com
© 2012 Belkin International, Inc. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Mac and Mac OS are trademarks of Apple Inc., registered
in the U.S. and other countries. Windows and Windows Vista are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries.

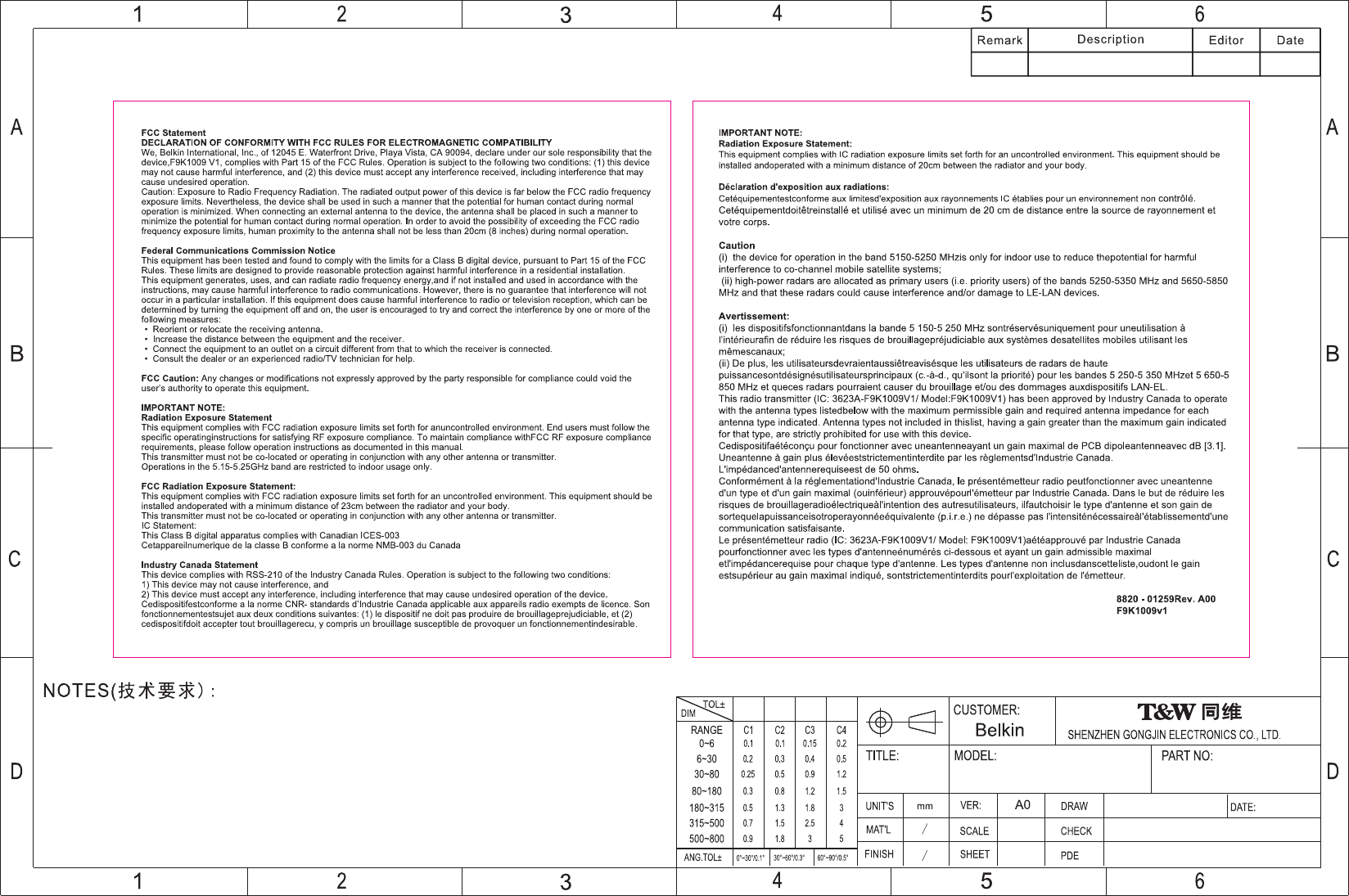

注:仅供打样.
1.External dimension(外尺寸)：120*120mm.
2.Printing color(印刷颜色)：black printing(黑色印刷).
3.Material(材质):128g copperplate paper(128g铜版纸) .
4.Coating(表面处理)：Varnishing(过光油)——双面过光油.
5.Output lpi(输出网线)：200 lpi.
6.Tolerance(公差)：L(长)*W(宽):±1mm.
7.Raw materials and the corresponding post processing should meet requirements defined
in the T&W Environmental Protection Technical Standards.
(原材料及后处理工艺均能满足我司《环保技术标准》要求).
14'02,25
饶鸿
1/1
1:1
彩页
614000000xxx
N150
