Getting Started

What’s in the Box

N450DBWirelessDual‐BandNRouter



Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)

BelkinSetupCDwithUserManual

Quick Setup Guide

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocationawayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

[Connect Your N450 DB Router

1. Turn off your modem by

disconnecting its power supply.

2. Connect your Router to your

modem using the cable (already attached).

[You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”]

3. Power up your modem by

plugging in its power supply.

4. Power up your Router by

plugging in its power supply.

[You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”]

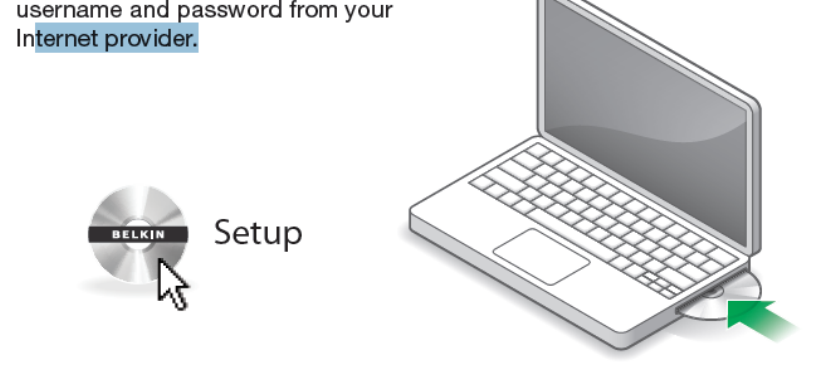

Run the Installer Software.

Insert the included CD into your

computer. It should run automatically;

if not, find the setup program and open it. Follow the prompts.

The setup software will configure your

Internet connection and let you know

when things are working.

If you have DSL, you may need a

username and password from your Internet provider.

[Image of laptop and CD]

[You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”]

[SCREENSHOTOFSETUPMENUsetupmenu.png]

1) ClicktheSetupiconontheCDmenu.

[Diagramofbottomoftheroutershowingservice

card–canbeobtainedfrom“TestedQIG201107

14.pdf”provided]

2) Afterabriefinstallation,thesetupsoftwarewillaskyoufor

thenetworknameandpasswordfromthenetwork

informationcardthatisstoredinthefootofyournewBelkin

Router.StorethecardunderthebaseofyourRouterfor

futurereference.

[SCREENSHOTOFSUCCESSsetupsuccess.png]

3) Aprogressscreenwillappearwhileadditionalsoftwareis

installed.Thismaytakeafewminutestocomplete.Once

finished,a“Success”messagewillappearindicatingthatyou

areconnectedtotheInternetviayournewBelkinRouter.

Duringsetupyoumaybeaskedforadditionalinformation.

YoumayneedtoenterausernameandpasswordprovidedbyyourISP.

Thisusernameandpasswordislikelytobefoundonmaterialsthatcame

fromyourISPwhenyousignedupforservice.Ifnecessary,youmayneed

tocontactyourISPtoretrieveyourusernameandpassword.

IfyouhaveastaticIPaddress,youmayneedtoenteradditional

informationalsoprovidedbyyourISP.

Ifyourcomputerdoesn’thaveawirelessadapter,orthesetupsoftwareis

unabletocontrolit,youmaybeaskedtoconnectyourcomputertothe

Routerwithanetworkcable.

Advanced Tools & Settings

[SCREENSHOTOFADVANCEDMENUsetupadvanced2.png]

Aftertheinitialsetupiscomplete,youhavetheoptiontochangesettingslike

yournetworkname,securitytype,andpassword.Tomakethesechangesand

others,clickontheAdvancedToolsiconattheCDSetupmenuandselectone

ofthefollowingsettingsthatyouwouldliketochange:

NetworkName&Security

Personalizeyournetworkname(SSID),password,andstrengthof

wirelesssecurity.

InternetServiceProvider&LoginSettings

HaveyoumovedorchangedInternetServiceProviders?Ifyou’dliketo

changethesesettingswithoutrunningthroughthesetupprocessagain,

thisistheplace.

The Belkin Router Manager

[SHARESCREENSHOTOFTRAYAPPMENU(TBD)]

TheBelkinRouterManagerappearsinyoursystemtray(Windows)ormenubar

(Mac).ItsiconindicatesthecurrentstatusofyourRouterandalsoallowsyouto

accessyourRouter’ssettingstomakechanges.Italsoprovidesquickaccessto

softwarethatcamebundledwithyourRouter.

ToaccesstheRoutersettings,clickontheiconandselectfromthemenuthat

appears.

ThestatusofyourRouterisshownbytheBelkinRouterManagericon,which

closelymimicsthelightonthefrontoftheRouter.

Blue: You are connected to your Belkin Router and it is connected to the Internet.

Amber: You are connected to your Belkin Router, but it is not connected to the

Internet.

Wirelessdevicessuchascomputers,networkprinters,andgamingsystemscan

connecttoyourRouterwithafewsimplesteps.

UsingtheCD

1) PuttheSetupCDintoyourcomputer.IftheCDdoesn’topen

automatically,browsetoyourCDdriveandopentheBelkin

SetupCDicon.

2) ClicktheSetupiconontheCDmenu.

3) Afterabriefinstallation,thesetupsoftwarewillaskyoufor

thenetworknameandpasswordfromthenetwork

informationcardthatcamewithyourRouter.Thiscardis

mostlikelynowlocatedunderneaththefootofyourRouter

intheprovidedcardslot.

4) Aprogressscreenwillappearwhileadditionalsoftwareis

installed.Thismaytakeafewminutestocomplete.Once

finished,a“Success”messagewillappearindicatingthatyou

areconnectedtotheInternetviayournewBelkinRouter.

Note:ThesetupsoftwarerunsonlyonWindowsandMacOSX

systems.

Manual Setup

If you know what sort of Internet service you have, you

might try a manual setup. For this, you will need a Wi-Fi-

enabled smartphone, tablet, or computer.

Connect to Your Router

Retrieve the network ID card from the foot of your new Belkin

Router.

[Diagram of bottom of the router showing service card – can be

obtained from “Tested QIG 2011 07 14.pdf” provided]

Can’t find the card? The default network name and password are also printed on the foot of

the Router.

Use your computer, tablet, or smartphone to connect to the

wireless network shown on the network ID card.

[Diagram of connecting to SSID screenshot – needs creating, take

direction from “Tested QIG 2011 07 14.pdf” provided]

When requested, please enter the password (security key) provided

on the card.

Take a moment to look at the light on the front of the Router. If it

is solid blue, your Router was able to connect to the Internet

automatically.

[Image of front of the router with blue LED (needs creating)]

If not, please proceed to “Manually Set Up Your Internet

Connection” on page XX.

UsingtheWPSButton

1) StartWPSPushButtonConnection(WPSPBC)onyour

computerorotherWi‐Fidevicethatyouwouldliketo

connectwirelesslytoyourRouter.Oftentherewillbea

buttonforthispurposeinsoftwarethatcamewiththedevice,

oraphysical“WPS,”“PBC,”or“Security”buttononthedevice

itself.

2) Withintwominutes,presstheWPSbuttononyourRouter

andholdfortwoseconds.

TheWPSlight(smalllightaboveWPSbutton)willblinkblue

whileitlistensforyourWi‐Fidevice.Onceaconnectionis

established,thelightwillturnblueandthengoout.Ifa

connectionisnotestablished,thelightwillblinkamber.You

mayrepeattheprocesstotryagain.

YoucanrepeatthisprocessforeachWPS‐enableddeviceyou’d

liketoaddtoyournetwork.

Manually Set Up Your Internet

Connection

Use a browser to visit http://router/. The router homepage should

appear.

[Image of browser showing the router homepage – see “Tested

QIG 2011 07 14.pdf” provided for guideline]

You can also try visiting http://192.168.2.1/.

The status of your Internet connection is shown in the

upper right corner of the router homepage. If after a few

moments it says “Connected,” you’re done! You can surf the

Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If not, select “Connection Type” from the menu on the left.

[Zoomed in image of the “Connection Type” option in the

homepage – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

If a password screen appears, press “Submit.”

[Image of the login screen showing the submit button – see

“Tested QIG 2011 07 14.pdf” provided for guideline]

Dynamic Connection

Cable and fiber customers generally require a dynamic

connection. Some DSL customers require a PPPoE

connection. Let’s try dynamic first. Select “Dynamic” from the

menu that appears and press “Next.”

[Image of the connection type screen with dynamic

selected – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

A service name is generally not required. Hit “Apply Changes.”

The Router will restart.

[Image of the service name page – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If after a few minutes your Internet Status says “Connected,”

you’re done! You can surf the Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If these steps do not work, try restarting your modem and

repeating the process.

If not, we’ll try a PPPoE connection next.

PPPoE Connection

Some DSL customers require a PPPoE connection. Select

PPPoE this time and press “Next.”

[Image of the connection type screen with PPPoE

selected – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

Enter the username and password supplied by your Internet

provider and click “Apply Changes.” Ignore the other fields. The

Router will restart.

[Image of the PPPoE page – see “Tested QIG 2011 07 14.pdf”

provided for guideline]

If after a few minutes your Internet Status says “Connected,”

you’re done! You can surf the Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If these steps do not work, try restarting your modem and

repeating the process.

[Be sure to use the correct icons, see the QIG F9K1104_8830-06656_N900.pdf for an

idea]

Connect Your Wireless Devices

iOS

(iPhone, iPad, and iPod touch)

1. Open the Settings app and select the Wi-Fi menu item.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Mac OS® X

Your Mac® provides a menu of available wireless networks at the right

end of the menu bar.

1. Click on the icon showing wireless waves.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Android

(phones and tablets)

1. Open the Settings app and select Wireless and Network.

2. From there, select Wi-Fi to see the list of available networks.

3. Select your wireless network from the list. If asked to do so, enter

your network password.

Windows® 7

Your computer provides a menu of available wireless networks at the

right end of the task bar.

1. Left-click on the icon that looks like signal strength bars.

2. Select your wireless network from the list. If asked, enter your

network password (network key).

Windows Vista® and Windows XP

Your device provides a menu of available wireless networks at the

right end of the task bar.

1. Right-click on the icon that shows a computer with wireless

waves (XP) or two computers (Windows Vista).

2. Choose View Available Wireless Networks (XP) or Connect to a

network (Vista) from the menu.

3. Select your wireless network from the list. If asked, enter your

network password (network key).

GuestAccess

YoucanallowgueststouseyourInternetconnectionwithout

joiningyourpersonalnetwork.Thenetworknameandpassword

fortheguestnetworkislocatedonthenetworkinformationcard

foundunderthefootofyourRouter.

Apersonusingyourguestnetworkwillbeabletojoinwithouta

password,butwillbeshownaloginpagewhentheyattempttosurf

theWeb.Theywillneedtoentertheguestpasswordintothispage

tocontinue.

Getting to Know Your Router

Front Panel

[DIAGRAMfront.ai]

A)RouterStatusLight

YourRouter’sstatusisshownbythelightonthefront.

Off:TheRouterisnotpluggedintoapowersource.

BlinkingBlue:TheRouterisstartingup.

SolidBlue:TheRouterisconnectedtotheInternet.

BlinkingAmber:TheRoutercan’tdetectthemodem.Eitherthemodemis

off,isnotpluggedintotheRouter,orisunresponsive.

B)Wi‐FiProtectedSetup(WPS)LightandButton

TheWPSbuttononthefrontofyourRoutercanbeusedtohelp

establishasecureconnectionbetweenyourRouterandotherWPS‐

enabledWi‐Fidevicessuchascomputers.TousetheWPSfeature

onyourRouter,see“GettingStarted>AddingComputerstoYour

Network>UsingtheWPSButton”.

ThesmalllightneartheWPSbuttonshowswhatishappening

whileyouareusingWPStoestablishaconnection.

Off:Idle

BlinkingBlue:TheRouterislisteningforaWPS‐enabledcomputeror

otherdevice.

SolidBlue:TheRouterhasmadeasecureconnectionwiththecomputeror

otherdevice.

Amber:Aconnectionwasnotcreated.

Back Panel

[RDIAGRAMFORN150N300N450_back.ai]

A)Modem(WAN)Connector

ConnectyourmodemtothisportusinganEthernetcable.

B)Wired(LAN)Connectors

Connectcomputersandotherwirednetworkdevicestotheseports

usingEthernetcables.

C)ResetButton

ThisbuttonisusedtorestartyourRouterinrarecaseswhenit

functionsincorrectly.ResettingtheRouterwillpreserveyour

settings.Thisbuttonmayalsobeusedtorestorethefactorydefault

settings.PleaseseetheTroubleshootingsectionformore

information.

D)PowerConnector

Connecttheincludedpowersupplytothisjack.

Technical Details

Technical Features

Integrated 802.11n Wireless Access Point

Utilizing Dual-Band Network technology, your Router creates two

separate networks (one at 2.4GHz band and the other at 5GHz), allowing

increased bandwidth to all your connected wireless devices and

computers.

NAT IP Address Sharing

To save you the cost of adding IP addresses per computer in your house,

your Belkin Router uses Network Address Translation (NAT) technology,

allowing you to share a single IP address across your network.

SPI Firewall

Your Router is equipped with a firewall that will protect your network

from a wide array of common attacks and viruses.

Web-Based Advanced User Interface

You can easily make changes to your Router’s advanced settings through

your web browser. These changes can be made from any computer on your

network.

Belkin Router Monitor

The Belkin Router Monitor application helps you to monitor your

Router’s status and change network settings.

Integrated 4-Port 10/100 Switch

Your Router has a built-in, 4-port 10/100 network switch to allow your

wired computers to share: printers, data, MP3 files, digital photos,

and much more.

System Requirements

Router

Broadband Internet connection such as a cable or DSL modem with RJ45

(Ethernet) connection

At least one computer with an installed network interface adapter

TCP/IP networking protocol installed on each computer

RJ45 Ethernet networking cable

Internet browser

Setup Software

A computer running Windows® XP SP3 (32-Bit) or higher, Windows Vista®

(32+64-Bit), or Windows 7 (32+64-Bit); or Mac OS® X v10.5 or above

Minimum 1GHz processor and 512MB RAM

600MB of free hard-drive space for installation

Using Your Router

Enabling Auto Update on Your Belkin Router

The Router has the capability to automatically check for a newer version of firmware and alert

you when it’s available. You can choose to download the new version or ignore it. By default

this feature is disabled. If you want to enable it, select “Enable” and click “Apply Changes”.

Note: We recommend you use a computer that has a wired connection to the Router.

Setup steps:

1. Open a web browser on the computer.

2. In the address bar of the web browser, type “http://192.168.2.1”.

3. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

4. Click on “System Settings” in the left-hand column under the “Utilities” heading.

5. Toward the lower-half side of the screen you will find “Auto Update Firmware Enabling”.

6. Select “Enable” by clicking the radio button and then click “Apply Changes” at the bottom of

the screen.

Updating Your Router via Your System Tray (Windows) or Menu Bar (Mac)

Once you have completed the setup process, you will need to update the new software for

your Router. This can be done easily via your computer’s system tray or menu bar.

Setup steps:

1. Click on the blue Belkin Router Manager icon (right-click for Windows) in your system

tray (Windows) or menu bar (Mac).

2. Select “Check for Updates” or “Update Available” from the menu.

3. You should now see the Belkin Updater window.

4. Click on the “Install Update” icon.

Updating the Router’s Firmware via the Web Interface

The following steps show you how to update your Router’s firmware using its web interface.

You do not need to be connected to the Internet as this interface is built into the Router

itself.

Setup steps:

1. Locate and download the firmware file from the Belkin support site. (Type your part

number into the search box in the top right corner and look for “Firmware” in the title.)

2. Save the file to a location on your computer where you can get to it easily, such as your

desktop.

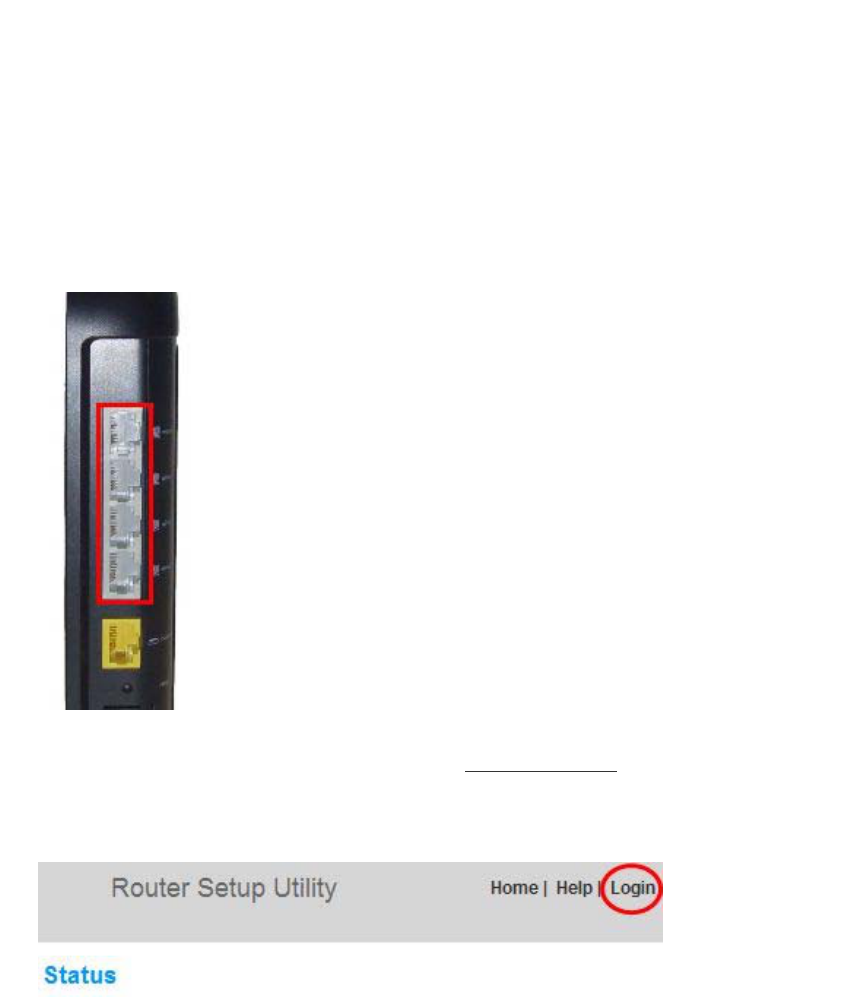

3. Connect the computer to one of the four LAN ports on the Router.

4. Open a web browser on the computer.

5. In the address bar of the web browser, type “http://192.168.2.1” and press “Enter” on your

keyboard.

6. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

7. Click on “Firmware Update” toward the bottom of the left-hand menu.

8. Click the “Browse” button toward the middle of the screen to search for the file you saved

previously.

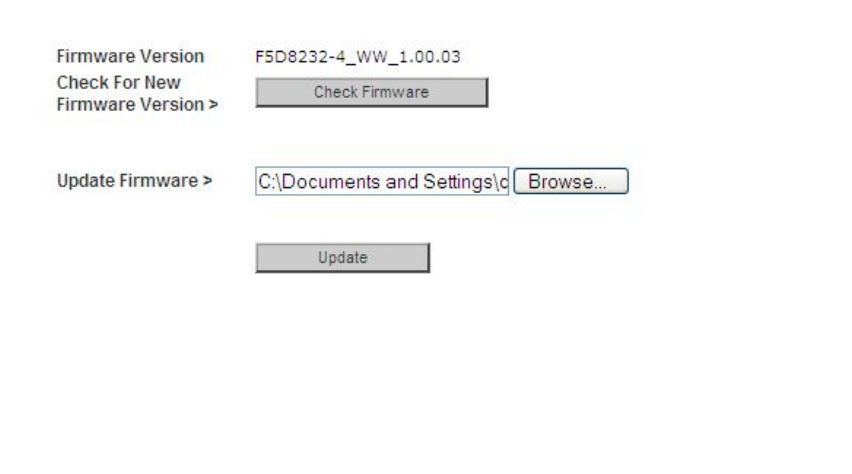

Note: The firmware version in the images below is depicted as an example. Your file name

will vary depending on your model and version.

9. Select the firmware file by left-clicking on it and then click the “Open” button in the lower-

right corner of the window. This will take you back into the Router’s interface.

10. Click the “Update” button.

11. A prompt asking, “Are you sure you want to continue with upgrading?” will appear. Click

“OK”.

12. A second prompt will open telling you the Router will not respond during the upgrade and

warning you not to remove the power supply from the Router. Click “OK” once more.

Congratulations. The firmware has been updated successfully.

Resetting the Router

Reset Button – Red

The “Reset” button is used in rare cases when the Router may function improperly. Resetting the

Router will restore the Router’s normal operation while maintaining the programmed settings. You

can also restore the factory default settings by using the “Reset” button. Use the restore option in

instances where you may have forgotten your custom password.

Resetting the Router

Push and release the “Reset” button. The lights on the Router will momentarily flash. The

“Router” light will begin to blink. When the “Router” light becomes solid again, the reset is

complete.

Restoring Your Router to Factory Defaults

Press and hold the “Reset” button for at least 10 seconds, and then release it. The lights on the

Router will momentarily flash. The “Router” light will begin to blink. When the “Router” light

becomes solid again, the restore is complete.

Restoring the Router to Default Settings Using the Web Interface

Symptoms

You need to restore the factory defaults using the web interface. This may be because the

Router is not performing as expected or you wish to remove all previously configured

settings.

Setup steps:

1. Open a web browser on the computer.

2. In the address bar of the web browser, type “http://192.168.2.1”.

3. Click “Login” in the upper right-hand corner of the page. The Router does not ship with a

password, so just click “Submit”.

4. Click on “Restore Factory Defaults” in the left-hand column under the “Utilities” heading.

5. Click on the “Restore Defaults” button.

6. A warning box will open that says, “Warning: All your settings will be lost. Are you sure

you want to do this?” Click “OK”.

7. The Router will begin the restoring process. Once the restore is complete, the Router will

reboot.

Note: This may take several minutes.

Your Router has successfully been restored to its factory settings.

Troubleshooting, Support, and Warranty

Troubleshooting

TheSetupCDdoesnotautomaticallystart.

IfBelkinSetupdoesnotrunwhenyouinserttheCD‐ROM,your

computermaynotbeconfiguredtoopenCDsautomatically.

IfBelkinSetupdoesnotappearwithin15seconds,browsetoyour

CD‐ROMdriveandopenthe“BelkinSetup”icon.Alternatively,you

mayvisithttp://router/andperformthesetupmanually.Please

see“ManualSetupUsingYourBrowser”earlierinthismanualfor

moreinformation.

BelkinSetupcannotfindmyRouter.

IfBelkinSetupisnotabletocommunicatewithyourRouterduring

theinstallationprocess,pleasecheckthefollowingitems.

1) Makesurethatthewirelesshardwareonyourcomputeristurned

on,ifavailable.

2) Tryconnectingyourcomputertooneofthefour“wired”portson

theRouterwithanEthernetcable.

3) EnsurethattheRouterison.Thefront‐panellightshouldbeon.

4) UnplugtheRouter’spowersupplyfor10seconds,thenplugitback

in.

5) Theremaybefirewallsoftwareonyourcomputerpreventingan

outgoingconnection.Youmaychoosetotemporarilydisablethis

softwarebeforeattemptingsetup.

IfBelkinSetupstillcannotfindtheRouter,youmightchoosetodo

amanualsetup.Referto“ManuallyConfiguringNetworkSettings”

inthismanualfordetails.

BelkinSetupcannotconnectmyRoutertotheInternet.

IfBelkinSetupisnotabletoconnecttheRoutertotheInternet,

pleasecheckthefollowingitems:

1) Use the troubleshooting suggestions within Belkin Setup.

2) If your ISP requires a user name and password, make sure that

you have typed in your user name and password correctly.

Some user names require that the ISP’s domain may be at the

end of the name. Example: “myname@myisp.com”. The

“@myisp.com” part of the user name may need to be typed as

well as your user name.

3) If you continue to have no Internet connection, refer to

“Manually Configuring Network Settings” in this manual for an

alternative setup method.

BelkinSetupcompletedinstallation,butIcannotbrowsetheWeb.Thelighton

thefrontofmyRouterisblinkingamber.

1) MakesuretheRouterisconnectedtoyourmodemwithan

EthernetcableviatheRouter’soneWAN(modem)port.

2) Unplugthemodemfromitspowersourceandmakesurethat

itgoesdark.Thenreapplypowertothemodem.

3) UnplugyourRouter’spowersupply,wait10seconds,and

plugitbackin.ThiswillcausetheRoutertotrytoreestablish

communicationwiththemodem.

BelkinSetupcompletedinstallation,butIcannotbrowsetheWeb.Thelighton

thefrontofmyRouterissolidamber.

1) Use the troubleshooting suggestions within Belkin Setup.

2) If your ISP requires a user name and password, make sure

that you have typed in your user name and password

correctly. Some user names require that the ISP’s domain

may be at the end of the name. Example:

“myname@myisp.com”. The “@myisp.com” part of the

user name may need to be typed as well as your user name.

3) If you have a static connection, your ISP will have assigned

you an IP address, subnet mask, and gateway address.

Please re-run Belkin Setup and enter this information when

a static connection is mentioned.

4) You may need to configure your Router to meet the

specific requirements of your ISP. To search our

knowledge base for ISP-specific issues, go to:

http://www.belkin.com/support and type in “ISP”.

5) If you continue to have no Internet connection, refer to

“Manually Configuring Network Settings” in this manual for

an alternative setup method.

Ican’tconnecttotheInternetwirelessly.

IfthelightonthefrontoftheRouterissolidblue,thenyourRouter

isconnectedtotheInternet.Youmaynotbeconnectedtothe

Router’swirelessnetwork.Pleasereferto“AddingComputersto

YourNetwork”inthismanualforinstructions.

If your Windows XP computer is running SP2, you will not be able to set up the Router

via the wireless setup process. You will need to either update to Windows XP SP3 or

complete the setup via a wired connection.

Ican’tconnecttotheInternetwirelesslyandmynetworknameisnotlistedin

AvailableNetworks.

1) VerifythatyourRouterisonandthefront‐panellightshows

solidblue.

2) IfyouarefarfromtheRouter,youmighttrymovingcloserto

seeifyoumighthavebeenoutofrange.

3) UsingacomputerattachedtotheRouterviaanetworkcable,

visithttp://router/andensurethat“BroadcastSSID”isON.

Thissettingisfoundonthe“ChannelandSSID”page.

Mywirelessnetworkperformanceisslow,inconsistent,suffersfromweak

signal,orI’mhavingdifficultymaintainingaVPNconnection.

Wireless technology is radio-based, which means connectivity

and the throughput performance between devices decreases

when the distance between devices increases. Other factors that

will cause signal degradation (metal is generally the worst

culprit) are obstructions such as walls and metal appliances.

Note also that connection speed may decrease as you move

farther away from the Router.

In order to determine if wireless issues are related to range, we

suggest temporarily moving the computer within 10 feet from

the Router if possible.

Changing the wireless channel—Depending on local wireless traffic and

interference, switching the wireless channel of your network can

improve performance and reliability. See the section titled

“Changing the Wireless Channel” for instructions on how to

choose other channels.

Limiting the wireless transmit rate—Limiting the wireless transmit rate can

help improve range and connection stability. Most wireless

cards have the ability to limit the transmission rate. To change

this property in Windows, go to the Windows Control Panel,

open “Network Connections”, and double-click on your wireless

card’s connection. In the properties dialog, select the

“Configure” button on the “General” tab, then choose the

“Advanced” tab and select the rate property.

Wireless client cards are usually set to automatically adjust the

wireless transmit rate for you, but doing so can cause periodic

disconnects when the wireless signal is too weak; as a rule,

slower transmission rates are more stable. Experiment with

different connection rates until you find the best one for your

environment. Note that all available transmission rates should

be acceptable for browsing the Internet. For more assistance,

see your wireless card’s user manual.

I’veinstalledthisnewRouterandsomeofmynetworkclients(computers,

gameconsoles,etc.)arenowunabletoconnect.

YournewRoutercamepre‐configuredwithanetworknameand

password,foundprintedonanattachedcard.Allclientsmustuse

thisnetworknameandpasswordtoconnectwirelesslytoyour

Router.Youwillneedtofindthenetworksettingsonyourclient,

selectthenetworknameprintedonthecardfromthelistof

availablenetworks,andenterthepasswordwhenpromptedtojoin

thewirelessnetwork.

DoestheRoutersupportWirelessProtectedAccess(WPA)security?

TheRoutershipswithWPA/WPA2securityturnedon.WindowsXP

andsomeoldernetworkhardwaremayrequireasoftwareupdate

tosupportWPA/WPA2.

IamhavingdifficultysettingupWPAsecurityonmyRouter.

1) LogintoyourRouterbyvisitinghttp://router/withyour

webbrowser.Click on the “Login” button in the top right-

hand corner of the screen. You will be asked to enter your

password. If you have never set a password, leave the

“Password” field blank and click “Submit”.

2) Click“Wireless”intheleft‐handmenu.Thenclick“Security”

justbelowthat.

3) Selectthe“WPA/WPA2”option.

4) Enterapassword.Thiscanbefrom8–63charactersofyour

choice,includingspacesandpunctuation,ORa64‐digit

hexadecimalnumber(usingonlythenumbers0–9andletters

A–F).

5) Click“ApplyChanges”tofinish.Yourwirelessconnectionis

nowencrypted.Eachcomputerusingyourwirelessnetwork

willneedtousethenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:SomeoldernetworkinghardwaresupportsonlyWEP

encryption.Ifyouroldercomputerscannotconnecttoyour

network,try128‐bitor64‐bitWEP,orseeksoftwareupdates

fromtheirmanufacturers.

IamhavingdifficultysettingupWiredEquivalentPrivacy(WEP)securityonmy

Router.

1) LogintoyourRouter.Visithttp://router/withyourweb

browser.Click on the “Login” button in the top right-hand

corner of the screen. You will be asked to enter your

password. If you have never set a password, leave the

“Password” field blank and click “Submit”.

2) Click“Wireless”intheleft‐handmenu.Thenclick“Security”

justbelowthat.

3) Selectthe“128‐bitWEP”option.

4) YoumaytypeinaWEPkeymanually,orgenerateonefroma

passphrase.Typeaphraseinthe“Passphrase”fieldandclick

the“Generate”button.AWEPkeyiscomposedof26

hexadecimaldigits(0–9,A–F).Forexample,C3030FAF4B

B2C3D44BC3D4EE74isavalid128‐bitWEPkey.

5) Click“ApplyChanges”tofinish.Yourwirelessactivityisnow

encrypted.Eachcomputerusingyourwirelessnetworkwill

needtousethenewkey.

Note:IfyouareconfiguringtheRouteroverawireless

connection,youwillhavetore‐connecttotheRouterafter

changinganysecuritysettings.

Note:Someoldernetworkinghardwaresupportsonly64‐bit

WEPencryption.Ifyouroldercomputerscannotconnectto

yournetwork,try64‐bitWEP.

Technical Support

US

http://www.belkin.com/support

UK

http://www.belkin.com/uk/support

Australia

http://www.belkin.com/au/support

NewZealand

http://www.belkin.com/au/support

Singapore

1800 622 1130

Europe

http://www.belkin.com/uk/support

Belkin International, Inc., Limited 2-Year Product Warranty

What this warranty covers.

Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this

Belkin product that the product shall be free of defects in design, assembly,

material, or workmanship.

What the period of coverage is.

Belkin warrants the Belkin product for two years.

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge

(except for shipping charges for the product). Belkin reserves the right to

discontinue any of its products without notice, and disclaims any limited warranty

to repair or replace any such discontinued products. In the event that Belkin is

unable to repair or replace the product (for example, because it has been

discontinued), Belkin will offer either a refund or a credit toward the purchase of

another product from Belkin.com in an amount equal to the purchase price of the

product as evidenced on the original purchase receipt as discounted by its

natural use.

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to

Belkin for inspection upon Belkin’s request at the sole expense of the purchaser,

or if Belkin determines that the Belkin product has been improperly installed,

altered in any way, or tampered with. The Belkin Product Warranty does not

protect against acts of God such as flood, lightning, earthquake, war, vandalism,

theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse,

damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized

program, or system equipment modification or alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa

Vista, CA 90094, Attn: Customer Service, or call (800)-223-5546, within 15 days

of the Occurrence. Be prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on

how to forward your receipt and Belkin product and how to proceed with your

claim.

Belkin reserves the right to review the damaged Belkin product. All costs of

shipping the Belkin product to Belkin for inspection shall be borne solely by the

purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship

the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an

equipment repair facility to inspect and estimate the cost to repair such

equipment. The cost, if any, of shipping the equipment to and from such repair

facility and of such estimate shall be borne solely by the purchaser. Damaged

equipment must remain available for inspection until the claim is finalized.

Whenever claims are settled, Belkin reserves the right to be subrogated under

any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE

ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED

BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION

OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN

DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so

the above limitations may not apply to you.

IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL,

DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS,

BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE

SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

This warranty gives you specific legal rights, and you may also have

other rights, which may vary from state to state. Some states do not

allow the exclusion or limitation of incidental, consequential, or other

damages, so the above limitations may not apply to you.

*Regulatory Information

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA

90094, declare under our sole responsibility that the device, F9K1105 V2,

complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause

undesired operation.

Caution: Exposure to Radio Frequency Radiation.

The device shall be used in such a manner that the potential for human contact

normal operation is minimized.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

a minimum distance of 20cm between the radiator and your body.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy, and if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try and correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the distance between the equipment and the receiver.

 Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this

equipment.

This device and its antenna(s) must not be co-located or operating in conjunction

with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz

frequency range.

Canada-Industry Canada (IC)

The wireless radio of this device complies with RSS 210 Industry Canada. This

Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Cet appareil numérique de la classe B conforme á la norme NMB-003 du

Canada.

CE Statement

Europe

European Union Radio products with the CE or CE alert marking comply with the

R&TTE Directive (1999/5/EC) issued by the Commission of the European

Community.

Compliance with this directive implies conformity to the following European

Norms (in brackets are the equivalent international standards).

• EN 60950-1:2006 (IEC60950-1) – Product Safety

• EN 300 328 Technical requirement for radio equipment

• ETS 301 489 General EMC requirements for radio equipment.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the (R&TTE) Radio and

Telecommunications Terminal Equipment Directive 1999/5/EC, (EMC) Electromagnetic

compatibility Directive 2004/108/EC, and the (LVD) Low Voltage Directive 2006/95/EC.

A copy of the European union CE marking “Declaration of Conformity” may be obtained

at the website: www.belkin.com/doc.

Information

Products with the CE marking comply with the EMC Directive (2004/108/EC) and

the Low Voltage Directive (2006/95/EC) issued by the Commission of the

European Community. Compliance with these directives implies conformity to the

following European Product Family Standards.

• EN 55022 (CISPR 22) – Electromagnetic Interference

• EN 55024-1 – Electromagnetic Immunity

• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics

• EN 61000-3-3 (IEC610000) – Power Line Flicker

• EN 60950-1 (IEC60950-1) – Product Safety

Products that contain the radio transmitter are sometimes labeled with the

Notified Body number (CE0560) or CE alert marking if the standard used in the

conformity is not harmonized across the European Community.

*Back cover

registered trademarks of respective manufacturers listed. iPad, iPhone, iPod

touch, Mac, and Mac OS are trademarks of Apple Inc., registered in the U.S. and

other countries. Windows and Windows Vista are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

Belkin F9K1105V2 N450 Dual Band Wireless Router User Manual K7SF9K1105V2 Manual R

Belkin International, Inc. N450 Dual Band Wireless Router K7SF9K1105V2 Manual R

user manual

Navigation menu

Namespaces

Views

Navigation
