N450 DB/N600 DB DUAL-BAND Wi-Fi® USB Adapter
User Manual
F9L1101V2
8820-00785 Rev. B00
Ok mk 2/14/12
Table of Contents
1 Introduction ........................................................................................................1
Benefits of a Home Network ................................................................................. 1
Advantages of a Wireless Network ....................................................................... 1
Placement of your Wireless Networking Hardware for
Optimal Performance ............................................................................................2
2 Overview............................................................................................................ 5
Product Features ..................................................................................................5
Applications and Advantages................................................................................6
Product Specifications ......................................................................................... 6
System Requirements...........................................................................................7
Package Contents.................................................................................................7
3 Installing and Setting up the Adapter ................................................................ 8
A — Installation Process for Windows Vista and 7 ...............................................8
B — Installation Process for Windows XP ..........................................................13

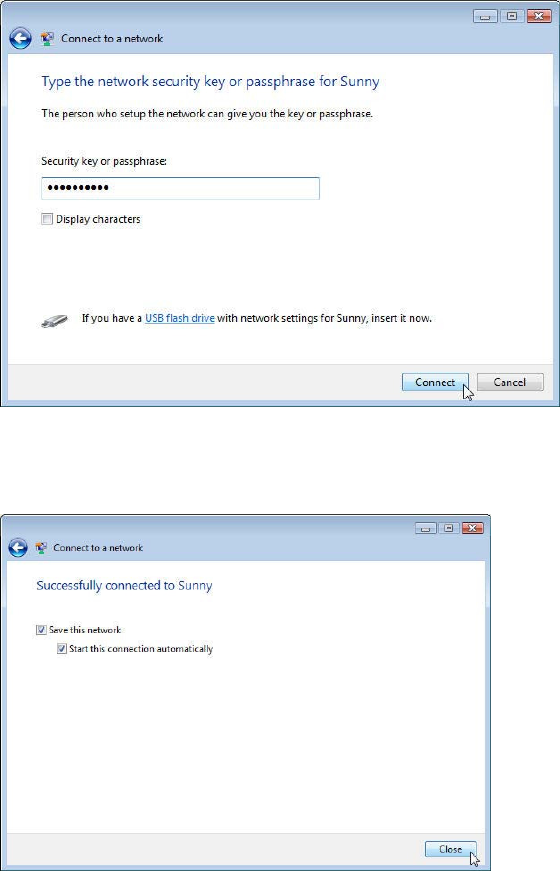

Connecting to a Secure Wi-Fi Network 20
Configuring your Adapter to Use Security........................................................... 25
4 Troubleshooting ............................................................................................... 34
5 Information...................................................................................................... 42
Introduction
Thank you for purchasing the Belkin N450 DB/N600 DB Dual-Band Wi-Fi USB
Adapter. Now you can take advantage of this great new technology and gain the
freedom to network your home and office computers wirelessly. This Adapter
allows you to connect a notebook or desktop computer to your network. Please
be sure to read through this User Manual completely, and pay special attention to
the section titled, “Placement of your Wireless Networking Hardware for Optimal
Performance.”
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email,
and chat
Advantages of a Wireless Network
• Mobility – you’ll no longer need a dedicated “computer room”—now you can
work on a networked laptop or desktop computer anywhere within your wireless
range
• Easy installation – Belkin Easy Installation Wizards make setup simple
• Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
• No cabling required – you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
Placement of your Wireless Networking Hardware for Optimal Performance
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your wireless
devices is between 100 and 200 feet. In the same way, your wireless connection
and performance will degrade somewhat as the distance between your wireless
router (or access point) and connected devices increases. This may or may not
be noticeable to you. As you move farther from your wireless router (or access
point), connection speed may decrease. Factors that can weaken signals simply
by getting in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might be related to
range or obstruction factors, try moving the computer to a position between five
and 10 feet from the wireless router (or access point) in order to see if distance is
the problem. If difficulties persist even at close range, please contact Belkin
Technical Support.
Note: While some of the items listed below can affect network performance, they
will not prohibit your wireless network from functioning; if you are concerned that
your network is not operating at its maximum effectiveness, this checklist may
help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of your
network, as close as possible to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients,” (i.e.,
computers enabled by Belkin Adapters or Cards):
• Ensure that your wireless router’s (or access point’s) antennas are parallel to
each other, and are positioned vertically (toward the ceiling). If your wireless
router (or access point) itself is positioned vertically, point the antennas as much
as possible in an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor that is
as close to the center of the home as possible. This may mean placing the
wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless 2.4GHz
phone.
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that may emit
radio “noise”, such as microwave ovens. Other objects that can inhibit wireless
communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
• Microwaves
If your wireless signal seems weak in some spots, make sure that objects such
as these are not blocking the signal’s path between your computers and wireless
router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending to the
above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router (or access point)
and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the
2.4GHz band (check manufacturer’s information). If this fixes the problem, your
phone may be interfering.
• If your phone supports channel selection, change the channel on the phone to
the farthest channel from your wireless network as possible. For example,
change the phone to channel 1 and move your wireless router (or access point)
to channel 11. (Your channel selection will vary depending on your region.) See
your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that can
conflict with yours. Use the Site Survey capabilities of your Belkin Wireless
Networking Utility to locate any other wireless networks, and move your wireless
router (or access point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels in order to find the
clearest connection and avoid interference from neighboring cordless phones or
other wireless devices.
For more Belkin wireless networking products, use the detailed Site Survey and
wireless channel information included in your User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and are used
where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect remotely to
an office network
• The “Bring Your Own Access” program from America Online (AOL), which lets
you use AOL through broadband provided by another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and password to access
your account
Secure connections can be interrupted by a computer’s power management
setting, which causes it to “go to sleep.” The simplest solution to avoid this is to
simply reconnect by re-running the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power management settings
so it does not go to sleep; however, this may not be appropriate for portable
computers. To change your power management setting in Windows, see the
“Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review steps 1–4 in the previous pages to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible area with your
wireless router. Should you need to cover an even wider area, we suggest the
Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website at
www.belkin.com/networking or call Belkin Technical Support.
Overview
Product Features
The Adapter complies with the IEEE 802.11n specification to communicate with
other 802.11n-compliant wireless devices at up to 300Mbps*. The Adapter is also
compatible with 802.11a/g devices at 54Mbps as well as 802.11b products at
11Mbps. The Adapter can operate on the same 2.4GHz frequency band as
802.11b/g Wi-Fi® products or 5GHz frequency band as 802.11a Wi-Fi products.
• 2.4GHz or 5GHz band operation
• USB 2.0 interface, for operation in virtually any computer with a USB 2.0 bus-
power port
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or 128-bit WEP
encryption
• Wireless access to networked resources
• Data rate of up to 300Mbps* (802.11n), 54Mbps (802.11a/g), or 11Mbps
(802.11b)
• Easy installation and use
• LED power and network link/activity indicator
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking without cables
• Connection rates of up to 300Mbps*
Provides immediate high-speed wireless connectivity at home, work, and hotspot
locations without compromising the use of existing 802.11b/g products
• Compatibility with 802.11a/b/g products
The Adapter is backward-compatible with existing Wi-Fi (IEEE 802.11a/b/g)
products
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas where
wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO users need
Product Specifications
Host Interface: USB 2.0
Operating Temperature: 32–131 degrees F (0–55 degrees C)
Storage Temperature: -4–149 degrees F (-20–65 degrees C)
Humidity: Max. 90% (non-condensing)
Maximum Operating Range: Up to 1,200 ft.**
*NOTE: The standard transmission rate—300Mbps—is the physical data rate.
Actual data throughput will be lower.
**Wireless performance may vary depending on the networking environment.
(Insert image of F9L1101v2, can be found on 8830-06467 D00)
(a) Power/Status LED
Lights when the Adapter is powered on and flashes when it is active.
(b) USB Connector
Part of the Adapter that fits into your computer’s USB port.
Package Includes:
N450 DB/N600 DB Dual-Band Wi-Fi USB Adapter
Setup CD with User Manual
System Requirements:
- PC with available USB port
- PC running Windows® XP (SP2 or greater***), Windows Vista®, or Windows 7
- CD-ROM drive
Specifications:
USB 2.0 Interface
***Some WPS functionality will be limited on XP service pack 2 without installing
some Windows updates. For full function, use XP service pack 3.
Installing and Setting up the Adapter
A. Installation Process for Windows Vista and 7
NOTE: For information on updated drivers, please visit the Belkin website at
www.belkin.com/support
.
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE
ADAPTER.
A.1 Insert the Installation Software CD into your CD-ROM drive.

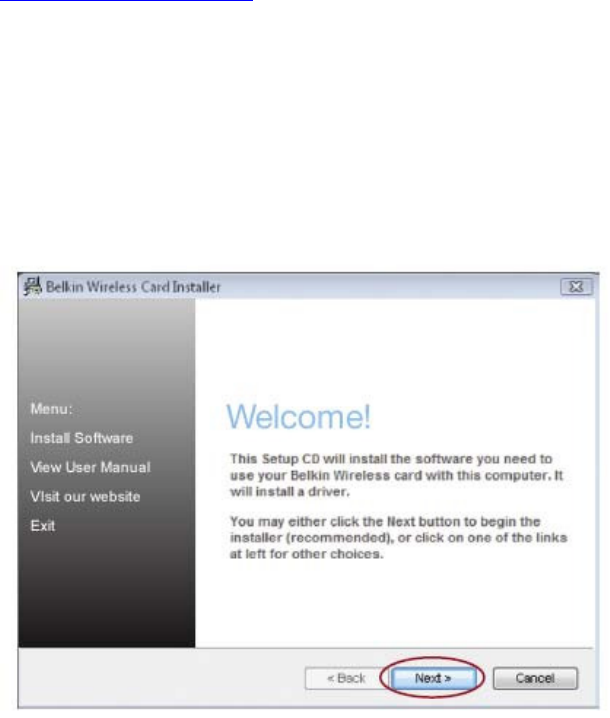

A.2 Click “Next” to begin the installation process.
Note: If the Belkin Wireless Card Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer” icon;
then double-click on the CD-ROM drive into which the installation CD has been
placed. If the Installer does not start automatically, double-click on the icon
named “Installer.exe”.
A.3 The InstallShield Wizard will start the installation process.

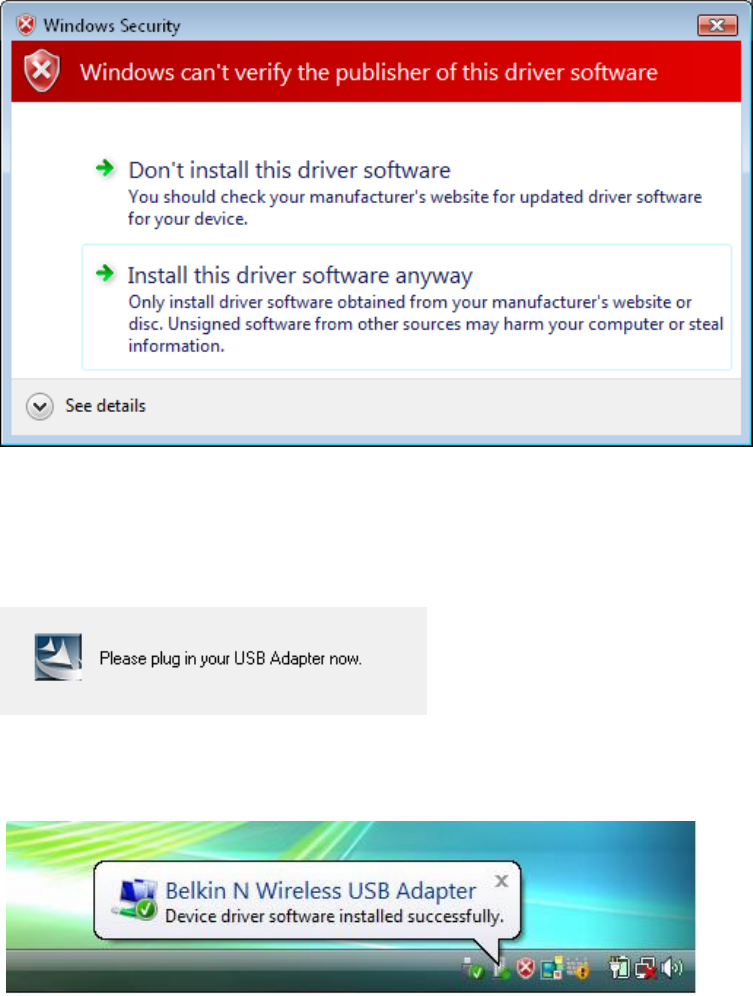

A.4 A window may appear showing the message, “Windows can’t verify the
publisher of this driver software”. This DOES NOT indicate a problem.
Our software has been fully tested and is compatible with this operating
system. Click on “Install this driver software anyway” to continue.
A.5 When prompted, plug in your Adapter.
A.6 When the installation completes, you will see the following pop-up
message on your Windows taskbar.
[Replace with this screenshot F7D4101.tif]

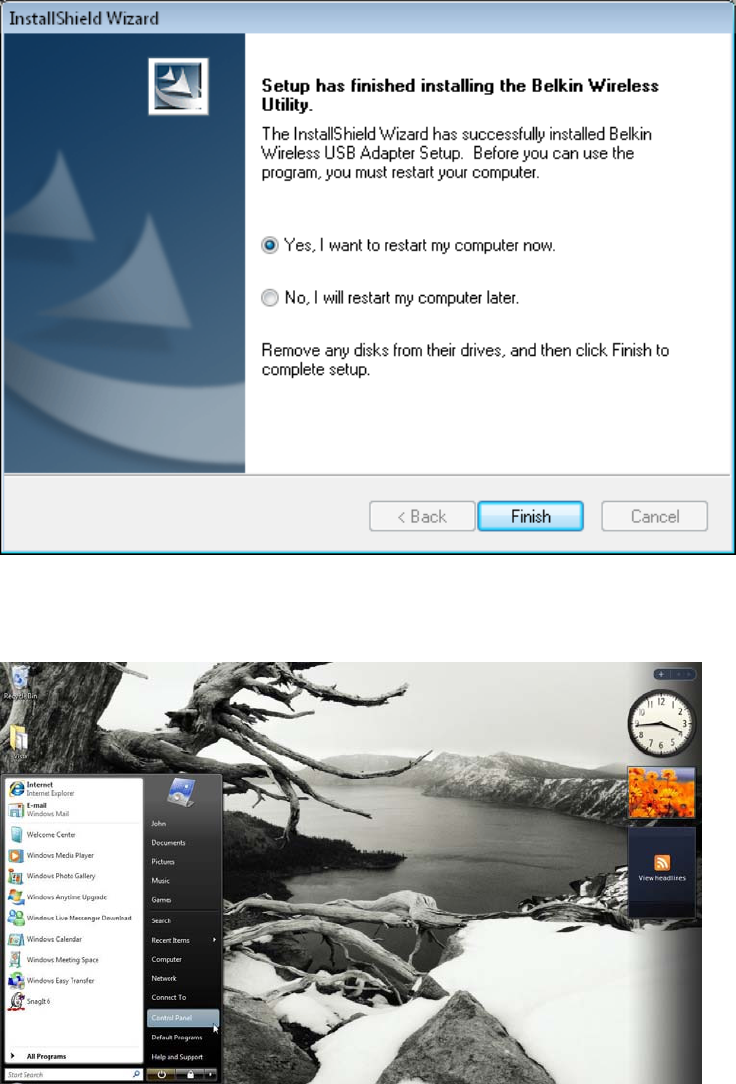

A.7 Click “Finish” to restart your computer.
A.8 To connect to the Internet, open the Network and Sharing Center by first
opening the Control Panel from the “Start” menu. (Insert screen shot)

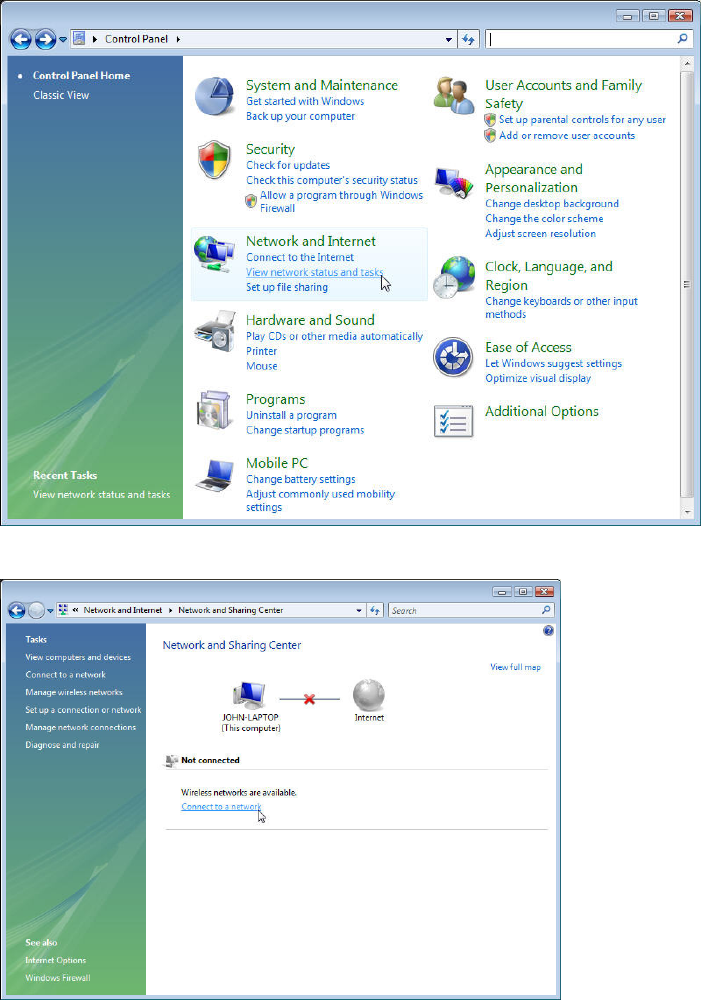

A.9 In the Control Panel, click on “View network status and tasks”. (Insert
screen shot)
A.10 In the Network and Sharing Center, click on “Connect to a network”.
(Insert screen shot)

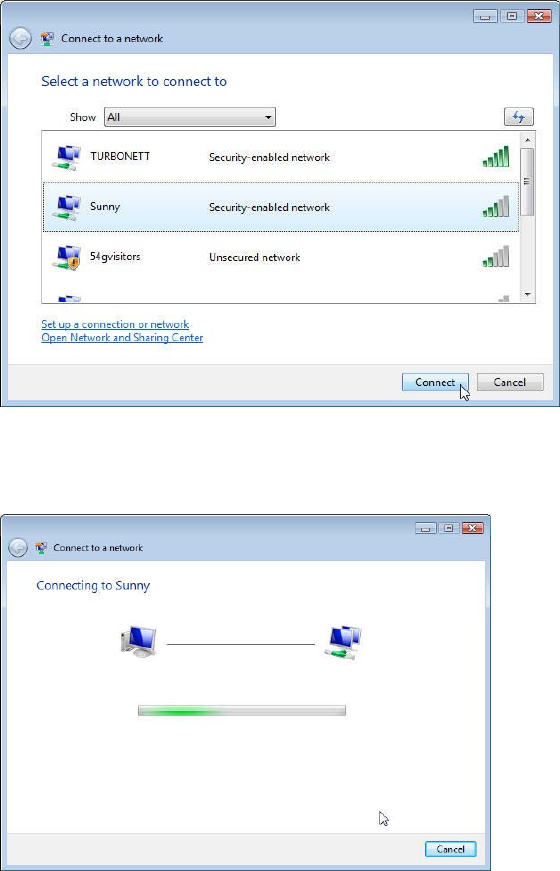

A.11 In the next screen, select an available wireless network and click
“Connect”. (Insert screen shot)
A.12 Your Adapter will attempt to connect to the selected network. (Insert
screen shot)
A.13 Depending on the security settings of your wireless network, you may
be prompted to enter a network security key or a passphrase. Click
“Connect” after you have done so. (Insert screen shot)
A.14 After connecting to the network, you can choose to save this network
and connect automatically when your Adapter is in range. (Insert screen
shot)

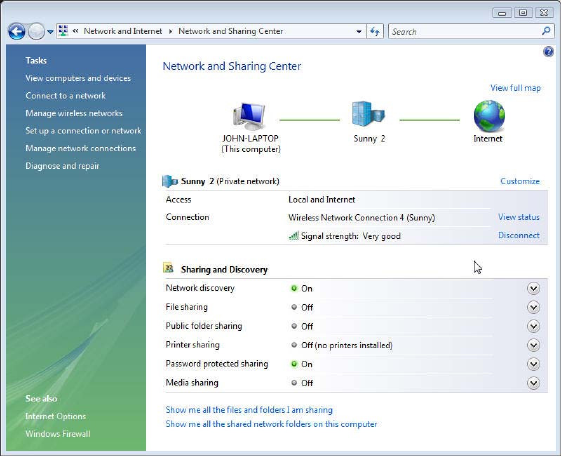

A.15 The Network and Sharing Center now indicates the network connection
that you have just made. The links on the left of the window allow you to
configure your network connections. (Insert screen shot)
B. Installation Process for Windows XP
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE
ADAPTER.
B.1 Insert the Installation Software CD into your CD-ROM drive.
B.2 The Belkin Wireless Adapter Installer screen will automatically appear
within up to 20 seconds. Click “Install Software” or “Next” to start the
installation.
Note: If the Belkin Wireless Adapter Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer” icon;
then double-click on the CD-ROM drive into which the installation CD has been
placed. Then, double-click on the icon named “Installer.exe”.

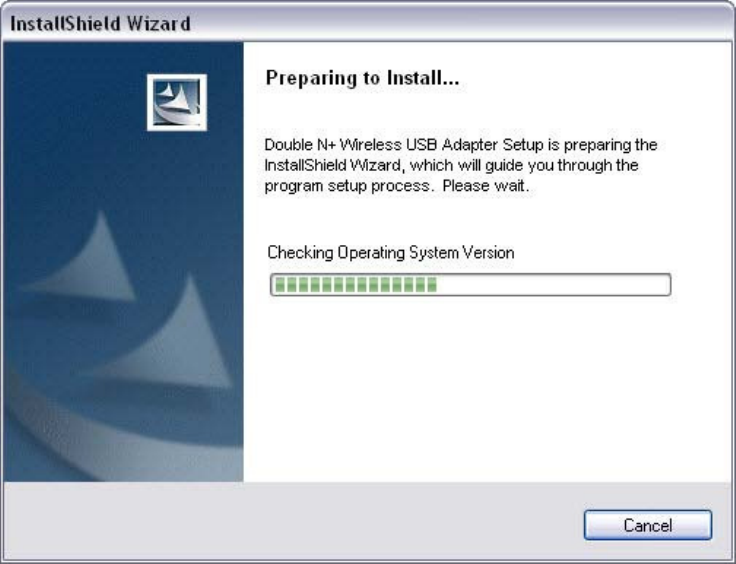

B.3 The InstallShield Wizard starts the installation process.

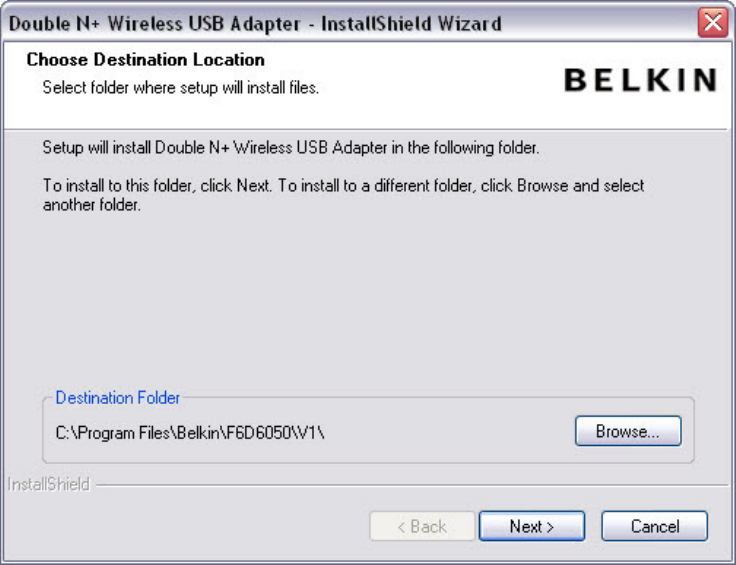

B.4 Select a destination folder for the software installation by clicking
“Browse”; or, simply click “Next” to select a default location.

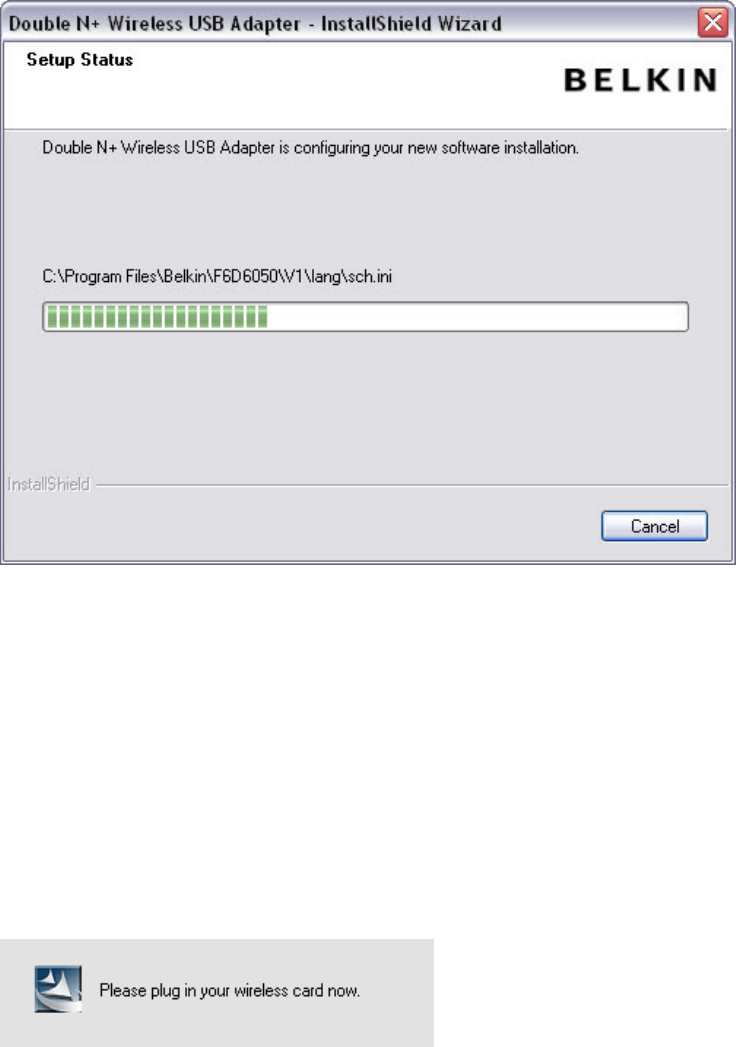

B.5 A Setup Status screen lets you know where you are in the setup
process.
B.6 After the software installation is finished, the following message will
appear. Connect the Adapter to your computer.
B.7 The Found New Hardware Wizard might appear in 3–15 seconds. If it
does, select “Yes, this time only” and click “Next” to install the hardware.
B.8 Select “Install the software automatically (Recommended)” and click
“Next” to continue.
B.9 You might see a screen similar to this one. This DOES NOT mean there
is a problem. Our software has been fully tested and is compatible with
this operating system. Select “Continue Anyway” and follow the on-
screen instructions.

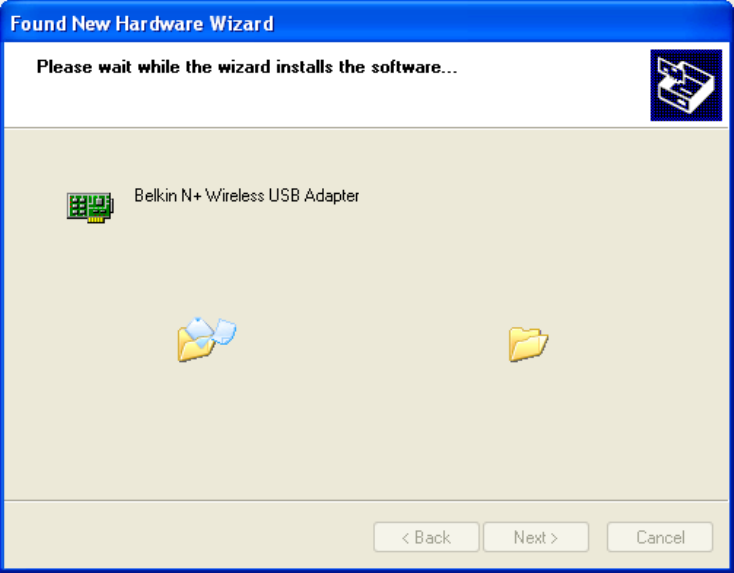

B.10 The Wizard will now install your software.

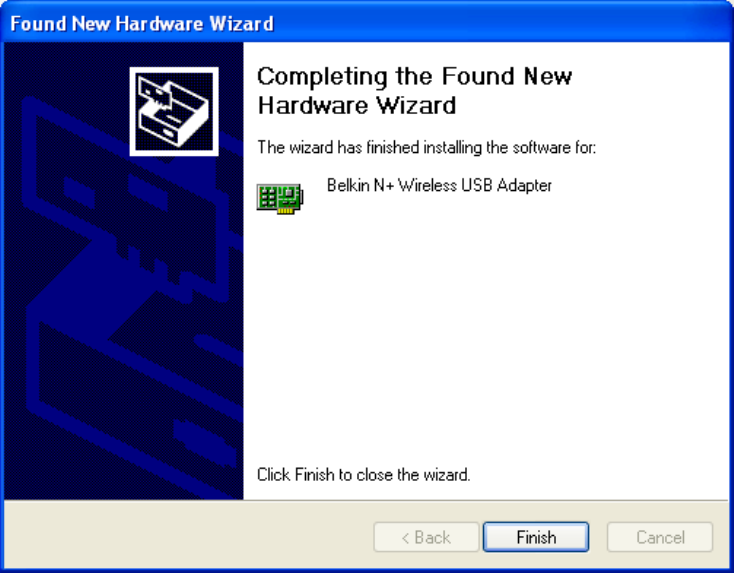

B.11 The installation is now complete. Click “Finish” to close the “Found New
Hardware Wizard”.

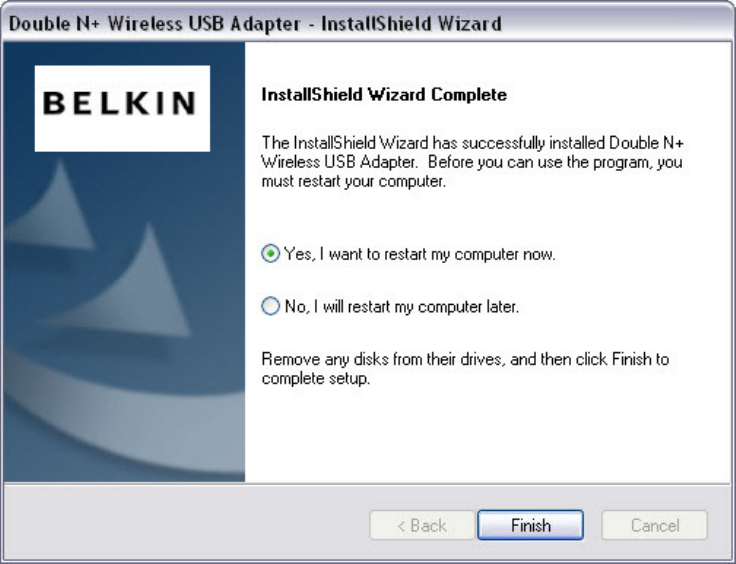

B.12 Click “Finish” again to exit the InstallShield Wizard.
B.13 Depending on which operating system you are using, you might be
required to reboot your computer for the changes to take effect. Save
your data and close all other applications. Then, click on “Finish” to
reboot your computer.
Connecting to a Secure Wi-Fi® Network
If you choose to connect to a secure network, determine the type of security
(WPA/WPA2 or WEP) and use the appropriate field in the dialog box.
Wireless Equivalent Privacy (WEP) is a less secure, but more widely adopted
wireless security protocol. Depending on the security level (64- or 128-bit), the
user will be asked to input a 10- or 26-character hex key. A hex key is a
combination of letters, a–f, and numbers, 0–9.
Wi-Fi Protected Access® (WPA®/WPA2®) is the new standard in wireless
security. Instead of a hex key, WPA/WPA2 uses only passphrases, which are
much easier to remember. The passphrase is 8–63 characters and can consist of
alphabet letters and numbers.
Troubleshooting
I can’t connect to the Internet wirelessly.
If you are unable to connect to the Internet from a wireless computer, please
check the following items:
Look at the lights on your wireless router. If you’re using a Belkin Wireless Router,
the lights should be as follows:
• The “router” light should be on and not blinking.
If this is NOT the case, make sure:
• The router’s power cord is plugged in.
• All cables are connected between the router and the modem.
• All the modem’s LEDs are functioning correctly. If not, see your modem’s user
manual.
• Reboot the router.
• Reboot the modem.
If you continue to have issues, please contact Belkin Technical Support.
If you are not using a Belkin Wireless Router, consult that router manufacturer’s
user guide.
Power LED does not come ON; Adapter is not working.
If the LED indicators are not ON, the problem may be that the Adapter is not
connected or installed properly. Verify that the Adapter is plugged firmly into the
USB port of your computer. Check to see that the drivers for the Adapter have
been installed. Right-click on the “My Computer” icon on your desktop. Choose
“Properties” and navigate to the “Device Manager” and see if your USB Network
Adapter is listed without any errors. If an error is indicated, contact Belkin
Technical Support.
Link LED is blinking slowly; I cannot connect to a wireless network or the
Internet.
If your Adapter appears to be functioning properly, but you cannot connect to a
network or you have a red wireless icon at the bottom of your screen, the
problem may be that there is a mismatch between the network name (SSID)
settings in your wireless network properties.
Check the SSID settings to see if they match. The SSID is case-sensitive and the
spelling on each computer must be exactly the same in order for the Adapter to
connect to the wireless router (or access point).
Note: To check the SSID settings or look for an available network, double-click
the Signal Indicator icon to bring up the “Wireless Networks” screen. Click “Add”
if you do not see the network you are trying to connect to and type in the SSID.
For more information about setting up an SSID, please reference your router
manufacturer’s user manual. If issues persist even at close range, please contact
Belkin Technical Support.
Link LED is solid but I cannot connect to the Internet.
If you have a signal but can’t get online or obtain an IP address, the problem may
be that there is a mismatch between the encryption key settings in your computer
and wireless router (or access point). Check the WEP, WPA, or WPA2 key
settings to see if they match. The key is case-sensitive and the spelling on each
computer and wireless router (or access point) must be exactly the same in order
for the Adapter to connect to the router. For more information about encryption,
please see the “Connecting to a Secure Wi-Fi Network” section.
If issues persist even at close range, please contact Belkin Technical Support.
Data transfer is sometimes slow.
Wireless technology is radio-based, which means connectivity and the
throughput performance between devices decreases when the distance between
devices increases. Other factors that will cause signal degradation (metal is
generally the worst culprit) are obstructions such as walls and metal appliances.
As a result, the typical indoor range of your wireless devices will be between 100
to 200 feet. Note also that connection speed may decrease as you move farther
from the wireless router (or access point).
In order to determine if wireless issues are related to range, we suggest
temporarily moving the computer, if possible, to five to 10 feet away from the
wireless router (or access point). Please see the section titled, “Placement of
your Wireless Networking Hardware for Optimal Performance.” If issues persist
even at close range, please contact Belkin Technical Support.
Signal strength is poor.
Wireless technology is radio-based, which means connectivity and the
throughput performance between devices decreases when the distance between
devices increases. Other factors that will cause signal degradation (metal is
generally the worst culprit) are obstructions such as walls and metal appliances.
As a result, the typical indoor range of your wireless devices will be between 100
to 200 feet. Note also that connection speed may decrease as you move farther
from the wireless router (or access point). In order to determine if wireless issues
are related to range, we suggest temporarily moving the computer, if possible, to
five to 10 feet away from wireless router (or access point).
Changing the wireless channel – Depending on local wireless traffic and
interference, switching the wireless channel of your network can improve
performance and reliability. The default channel the router is shipped with is
channel 6. You may choose from several other channels depending on your
region; see your router’s (or access point’s) user manual for instructions on how
to choose other channels.
Limiting the wireless transmit rate – Limiting the wireless transmit rate can
help improve the maximum wireless range, and connection stability. Most
wireless cards have the ability to limit the transmission rate. To change this
property, go to the Windows Control Panel, open “Network Connections” and
double-click on your Adapter’s connection. In the “Properties” dialog, select the
“Configure” button on the “General” tab (Windows 98 users will have to select the
USB Network Adapter in the list box and then click “Properties”), then choose the
“Advanced” tab and select the rate property. Wireless client cards are usually set
to automatically adjust the wireless transmit rate for you, but doing so can cause
periodic disconnects when the wireless signal is too weak; as a rule, slower
transmission rates are more stable. Experiment with different connection rates
until you find the best one for your environment; note that all available
transmission rates should be acceptable for browsing the Internet. For more
assistance, see your wireless card’s literature. If issues persist even at close
range, please contact Belkin Technical Support.
The Adapter does not perform or connection is unstable when computer
has a second built-in wireless network card (such as a mini PCI or
Intel® Centrino™).
This condition occurs if your computer has a built-in wireless card while your
Belkin N450 DB/N600 DB Dual-Band Wi-Fi USB Adapter is also active. This
happens because Windows must now handle two active wireless connections.
You must disable the built-in wireless card from your computer under “Network
Adapters” in the Device Manager.
The Adapter does not perform or connection is slow when computer has a
built-in wired Ethernet card.
This condition occurs if your computer has an active Ethernet card while your
Adapter is also active. This happens because Windows must now handle two
active network connections. You must disable the Ethernet card from your
computer under “Network Adapters” in the Device Manager.
What’s the difference between 802.11g and 802.11n?
Currently there are three commonly used wireless networking standards, which
transmit data at very different maximum speeds. Each is based on the
designation for certifying network standards. The most common wireless
networking standard, 802.11g, can transmit information up to 54Mbps; 802.11a
also supports up to 54Mbps, but in the 5GHz frequency; and 802.11n
specification can connect at up to 300Mbps. See the following chart for more
detailed information.
Belkin Wireless Comparison Chart
Wireless
Technology
G
(802.11g)
N150
(1x1 802.11n)
N300 MIMO
802.11n
N600 Dual-
Band MIMO
802.11n
Speed/Data
Rate*
Up to
54Mbps*
Up to
150Mbps*
Up to
300Mbps*
Up to
300Mbps*
Frequency Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Uses both
2.4GHz and
5GHz bands
for less
interference
and better
throughput
Compatibility Compatible
with 802.11b/g
Compatible
with 802.11b/g
Compatible
with 802.11n
and 802.11b/g
Compatible
with 802.11n
and
802.11a/b/g
Coverage*
Up to 400 ft.*
Up to 1,000 ft.* Up to 1,200
ft.*
Up to 1,400
ft.*
Advantage Common—
widespread
use for
Internet
sharing
Better
coverage and
consistent
speed and
range
Good speed
and coverage
Leading
edge— best
coverage and
throughput
*Distance and connection speeds will vary depending on your networking
environment.
Technical Support
US
http://www.belkin.com/support
UK
http://www.belkin.com/uk/support
Australia
http://www.belkin.com/au/support
New Zealand
http://www.belkin.com/au/support
Singapore
1800 622 1130
Europe
http://www.belkin.com/uk/support
Information
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA
90094, declare under our sole responsibility that the product, F9L1101V2, to
which this declaration relates, complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction
with any other antenna or transmitter.
This device is going to be operated in 5.15~5.25GHz frequency range, it is
restricted in indoor environment only.
IMPORTANT NOTE:
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specified in OET Bulletin 65 Supplement
C. This equipment should be installed and operated with minimum distance 0.5
cm between the radiator & your body.
IMPORTANT NOTE:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance with
FCC RF exposure compliance requirements, please follow operation instructions
as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
SAR compliance has been established in typical laptop computer(s) with USB
slots, and this product could be used in typical laptop computers with USB slots.
Other applications, such as handheld PCs or similar devices, have not been
verified and may not comply with related RF exposure rules and such use shall
be prohibited.
The availability of some specific channels and/or operational frequency bands is
country-dependent and firmware is programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
Modifications
The FCC requires the user to be notified that any changes or modifications to this
device that are not expressly approved by Belkin International, Inc., may void the
user’s authority to operate the equipment.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may
cause undesired operation of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance with
IC RF exposure compliance requirements, please follow operation instructions as
documented in this manual.
Belkin International, Inc., Limited 2-Year Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this
Belkin product that the product shall be free of defects in design, assembly,
material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for two years.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product). Belkin reserves the right to
discontinue any of its products without notice, and disclaims any limited warranty
to repair or replace any such discontinued products. In the event that Belkin is
unable to repair or replace the product (for example, because it has been
discontinued), Belkin will offer either a refund or a credit toward the purchase of
another product from Belkin.com in an amount equal to the purchase price of the
product as evidenced on the original purchase receipt as discounted by its
natural use.
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin for inspection upon Belkin’s request at the sole expense of the purchaser,
or if Belkin determines that the Belkin product has been improperly installed,
altered in any way, or tampered with. The Belkin Product Warranty does not
protect against acts of God such as flood, earthquake, lightning, war, vandalism,
theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse,
damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized
program, or system equipment modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa
Vista, CA 90094, Attn: Customer Service, or call (800)-223-5546, within 15
days of the Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on
how to forward your receipt and Belkin product and how to proceed with
your claim.
Belkin reserves the right to review the damaged Belkin product. All costs of
shipping the Belkin product to Belkin for inspection shall be borne solely by the
purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship
the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an
equipment repair facility to inspect and estimate the cost to repair such
equipment. The cost, if any, of shipping the equipment to and from such repair
facility and of such estimate shall be borne solely by the purchaser. Damaged
equipment must remain available for inspection until the claim is finalized.
Whenever claims are settled, Belkin reserves the right to be subrogated under
any existing insurance policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE
ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED
BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION
OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN
DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL,
DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS,
BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE
SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights,
which may vary from state to state. Some states do not allow the exclusion or
limitation of incidental, consequential, or other damages, so the above limitations
may not apply to you.
© 2012 Belkin International, Inc. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed. Windows and Windows
Vista are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
