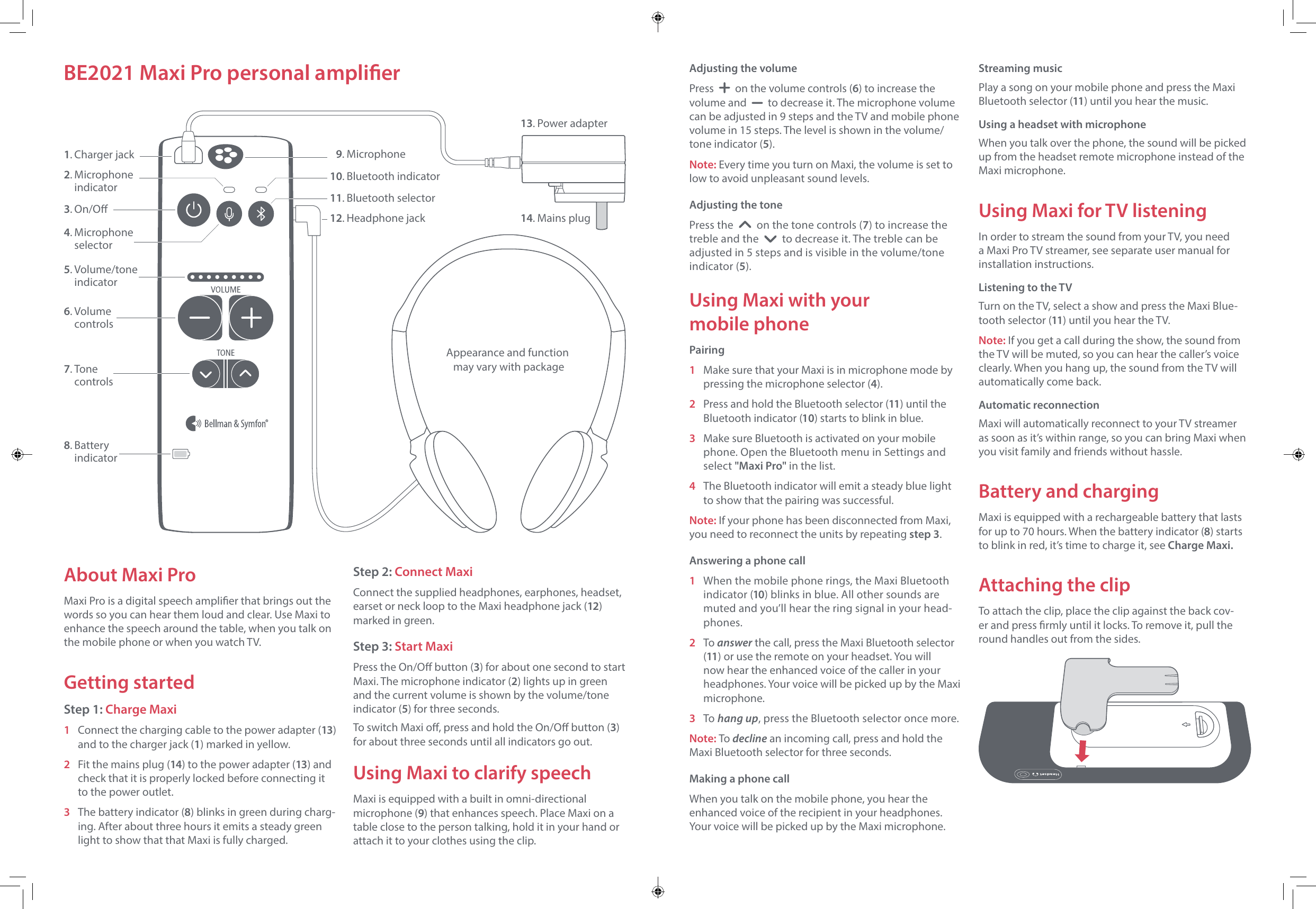

Adjusting the volumePress on the volume controls (6) to increase the volume and to decrease it. The microphone volume can be adjusted in 9 steps and the TV and mobile phone volume in 15 steps. The level is shown in the volume/tone indicator (5). Note: Every time you turn on Maxi, the volume is set to low to avoid unpleasant sound levels.Adjusting the tonePress the on the tone controls (7) to increase the treble and the to decrease it. The treble can be adjusted in 5 steps and is visible in the volume/tone indicator (5).Using Maxi with your mobile phonePairing1 Make sure that your Maxi is in microphone mode by pressing the microphone selector (4). 2 Press and hold the Bluetooth selector (11) until the Bluetooth indicator (10) starts to blink in blue.3 Make sure Bluetooth is activated on your mobile phone. Open the Bluetooth menu in Settings and select "Maxi Pro" in the list.4 The Bluetooth indicator will emit a steady blue light to show that the pairing was successful.Note: If your phone has been disconnected from Maxi, you need to reconnect the units by repeating step 3.Answering a phone call1 When the mobile phone rings, the Maxi Bluetooth indicator (10) blinks in blue. All other sounds are muted and you’ll hear the ring signal in your head-phones. 2 To answer the call, press the Maxi Bluetooth selector (11) or use the remote on your headset. You will now hear the enhanced voice of the caller in your headphones. Your voice will be picked up by the Maxi microphone.3 To hang up, press the Bluetooth selector once more.Note: To decline an incoming call, press and hold the Maxi Bluetooth selector for three seconds.Making a phone callWhen you talk on the mobile phone, you hear the enhanced voice of the recipient in your headphones. Your voice will be picked up by the Maxi microphone.Streaming musicPlay a song on your mobile phone and press the Maxi Bluetooth selector (11) until you hear the music.Using a headset with microphoneWhen you talk over the phone, the sound will be picked up from the headset remote microphone instead of the Maxi microphone.Using Maxi for TV listeningIn order to stream the sound from your TV, you need a Maxi Pro TV streamer, see separate user manual for installation instructions.Listening to the TVTurn on the TV, select a show and press the Maxi Blue-tooth selector (11) until you hear the TV.Note: If you get a call during the show, the sound from the TV will be muted, so you can hear the caller’s voice clearly. When you hang up, the sound from the TV will automatically come back.Automatic reconnectionMaxi will automatically reconnect to your TV streamer as soon as it’s within range, so you can bring Maxi when you visit family and friends without hassle.Battery and chargingMaxi is equipped with a rechargeable battery that lasts for up to 70 hours. When the battery indicator (8) starts to blink in red, it’s time to charge it, see Charge Maxi.Attaching the clipTo attach the clip, place the clip against the back cov-er and press rmly until it locks. To remove it, pull the round handles out from the sides.About Maxi ProMaxi Pro is a digital speech amplier that brings out the words so you can hear them loud and clear. Use Maxi to enhance the speech around the table, when you talk on the mobile phone or when you watch TV.Getting startedStep 1: Charge Maxi1 Connect the charging cable to the power adapter (13) and to the charger jack (1) marked in yellow.2 Fit the mains plug (14) to the power adapter (13) and check that it is properly locked before connecting it to the power outlet. 3 The battery indicator (8) blinks in green during charg-ing. After about three hours it emits a steady green light to show that that Maxi is fully charged.Step 2: Connect MaxiConnect the supplied headphones, earphones, headset, earset or neck loop to the Maxi headphone jack (12) marked in green.Step 3: Start MaxiPress the On/O button (3) for about one second to start Maxi. The microphone indicator (2) lights up in green and the current volume is shown by the volume/tone indicator (5) for three seconds. To switch Maxi o, press and hold the On/O button (3) for about three seconds until all indicators go out.Using Maxi to clarify speechMaxi is equipped with a built in omni-directional microphone (9) that enhances speech. Place Maxi on a table close to the person talking, hold it in your hand or attach it to your clothes using the clip.BE2021 Maxi Pro personal amplier1. Charger jack4. Microphone selector2. Microphone indicator5. Volume/tone indicator6. Volume controls7. Tone controls8. Battery indicator3. On/O 13. Power adapter14. Mains plugAppearance and function may vary with package11. Bluetooth selector10. Bluetooth indicator12. Headphone jack 9. Microphone
European oceBellman & Symfon AB Sodra Langebergsgatan 30436 32 AskimSwedenPhone +46 31 68 28 20E-mail info@bellman.comBE2021_007MAN003ENGLISHbellman.comTroubleshootingMost problems with Maxi Po can be solved quickly by following the advice below.If Try thisI can’t get the units to pair via Bluetooth. • Make sure that your Maxi is in microphone mode by pressing the microphone selector (4). Try pairing the units again by following the steps in the section Pairing.Nothing happens when I press the Maxi On/O button. • The batteries are depleted. Charge Maxi, see Charge Maxi.The Maxi battery indicator is blinking in red. • The battery level is low. Charge Maxi, see Charge Maxi.I hear no sound in my headphones, even though Maxi is turned on.• Check that the headphone plug is properly connected to the Maxi headphone jack (12). • Increase the volume by pressing the on the Maxi volume controls (6).• Connect the headphones to another device, like a smart phone, and check if you hear any sound. If not, the headphones may need to be replaced.• If Bluetooth mode is selected, make sure that the TV streamer or mobile phone is within range, paired and streaming a sound.I don’t hear the mobile phone in my headphones. • Make sure Bluetooth is activated on your mobile phone and that it is paired with your Maxi, see Pairing in the Using Maxi with your mobile phone section.I don’t hear the sound of the TV in my headphones. • Make sure the TV streamer is within range and paired with your Maxi, see Pairing in the Using Maxi for TV-listening section.The sound from the TV or mobile is too low, even though the Maxi volume is at the highest level.• Try to increase the volume on your TV or mobile phone instead.I hear a high-pitched noise in my headphones. • Lower the volume or increase the distance between Maxi and the headphones.• Direct the Maxi microphone (9) away from you.Maxi seems unresponsive/frozen. • Press and hold the On/O button (3) for ten seconds until Maxi turns o.• Press the On/O button for about one second to start Maxi again.Care and maintenanceUsing the productOperate the product in a dry environment where the temperature is always between 0° and 35° C.CleaningClean the product with a soft, lint-free cloth. Avoid get-ting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives.Service and warrantyIf the product appears to be damaged or doesn’t func-tion properly, follow the instructions in this leaet. If the product still doesn’t function as intended, contact your local dealer for information on service and warranty.bellman.comDESIGN FOR EARS™BE2021BELLMAN & SYMFON AB

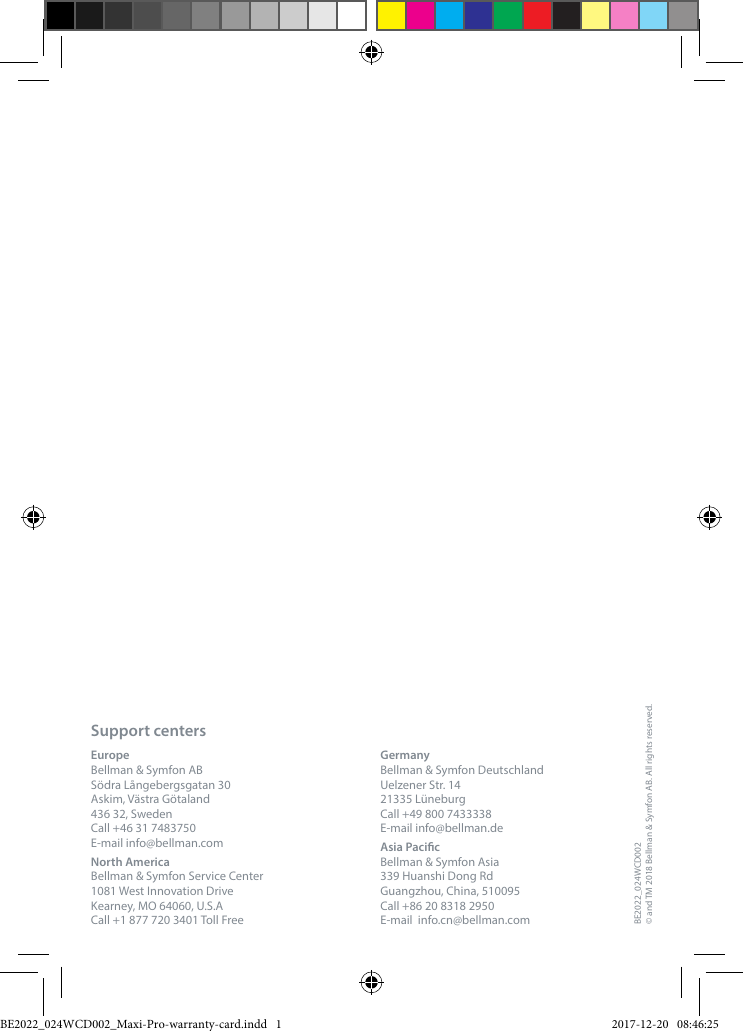

Support centersEurope Bellman & Symfon AB Södra Långebergsgatan 30Askim, Västra Götaland436 32, Sweden Call +46 31 7483750 E-mail info@bellman.comNorth America Bellman & Symfon Service Center 1081 West Innovation Drive Kearney, MO 64060, U.S.A Call +1 877 720 3401 Toll Free Germany Bellman & Symfon Deutschland Uelzener Str. 14 21335 Lüneburg Call +49 800 7433338 E-mail info@bellman.deAsia Pacic Bellman & Symfon Asia 339 Huanshi Dong Rd Guangzhou, China, 510095 Call +86 20 8318 2950 E-mail info.cn@bellman.comBE2022_024WCD002© and TM 2018 Bellman & Symfon AB. All rights reserved.BE2022_024WCD002_Maxi-Pro-warranty-card.indd 1 2017-12-20 08:46:25
ENGLISHWarranty cardBE2022_024WCD002_Maxi-Pro-warranty-card.indd 2 2017-12-20 08:46:25

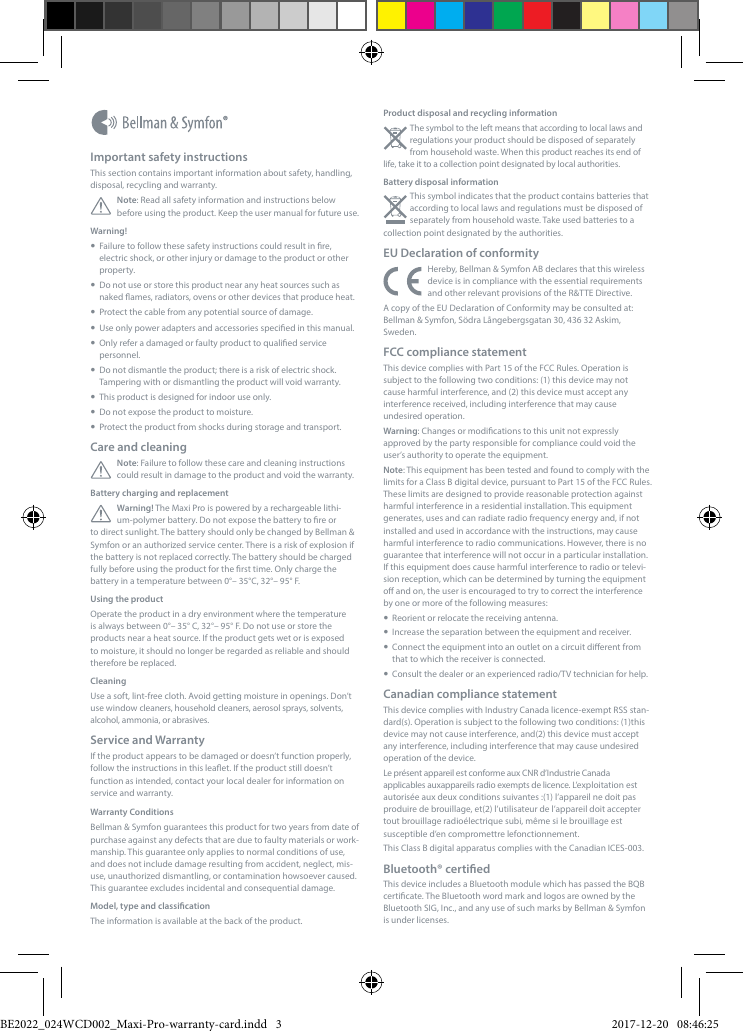

Product disposal and recycling informationThe symbol to the left means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Battery disposal informationThis symbol indicates that the product contains batteries that according to local laws and regulations must be disposed of separately from household waste. Take used batteries to a collection point designated by the authorities.EU Declaration of conformityHereby, Bellman & Symfon AB declares that this wireless device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive.A copy of the EU Declaration of Conformity may be consulted at: Bellman & Symfon, Södra Långebergsgatan 30, 436 32 Askim, Sweden.FCC compliance statementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi-sion reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.Canadian compliance statementThis device complies with Industry Canada licence-exempt RSS stan-dard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables auxappareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :(1) l’appareil ne doit pas produire de brouillage, et(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre lefonctionnement.This Class B digital apparatus complies with the Canadian ICES-003.Bluetooth® certiedThis device includes a Bluetooth module which has passed the BQB certicate. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Bellman & Symfon is under licenses.Important safety instructionsThis section contains important information about safety, handling, disposal, recycling and warranty.Note: Read all safety information and instructions below before using the product. Keep the user manual for future use.Warning!  Failure to follow these safety instructions could result in re, electric shock, or other injury or damage to the product or other property. Do not use or store this product near any heat sources such as naked ames, radiators, ovens or other devices that produce heat. Protect the cable from any potential source of damage. Use only power adapters and accessories specied in this manual. Only refer a damaged or faulty product to qualied service personnel. Do not dismantle the product; there is a risk of electric shock. Tampering with or dismantling the product will void warranty. This product is designed for indoor use only. Do not expose the product to moisture. Protect the product from shocks during storage and transport.Care and cleaningNote: Failure to follow these care and cleaning instructions could result in damage to the product and void the warranty.Battery charging and replacementWarning! The Maxi Pro is powered by a rechargeable lithi-um-polymer battery. Do not expose the battery to re or to direct sunlight. The battery should only be changed by Bellman & Symfon or an authorized service center. There is a risk of explosion if the battery is not replaced correctly. The battery should be charged fully before using the product for the rst time. Only charge the battery in a temperature between 0°– 35°C, 32°– 95° F.Using the productOperate the product in a dry environment where the temperature is always between 0°– 35° C, 32°– 95° F. Do not use or store the products near a heat source. If the product gets wet or is exposed to moisture, it should no longer be regarded as reliable and should therefore be replaced.CleaningUse a soft, lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives.Service and WarrantyIf the product appears to be damaged or doesn’t function properly, follow the instructions in this leaet. If the product still doesn’t function as intended, contact your local dealer for information on service and warranty.Warranty ConditionsBellman & Symfon guarantees this product for two years from date of purchase against any defects that are due to faulty materials or work-manship. This guarantee only applies to normal conditions of use, and does not include damage resulting from accident, neglect, mis-use, unauthorized dismantling, or contamination howsoever caused. This guarantee excludes incidental and consequential damage. Model, type and classicationThe information is available at the back of the product.BE2022_024WCD002_Maxi-Pro-warranty-card.indd 3 2017-12-20 08:46:25

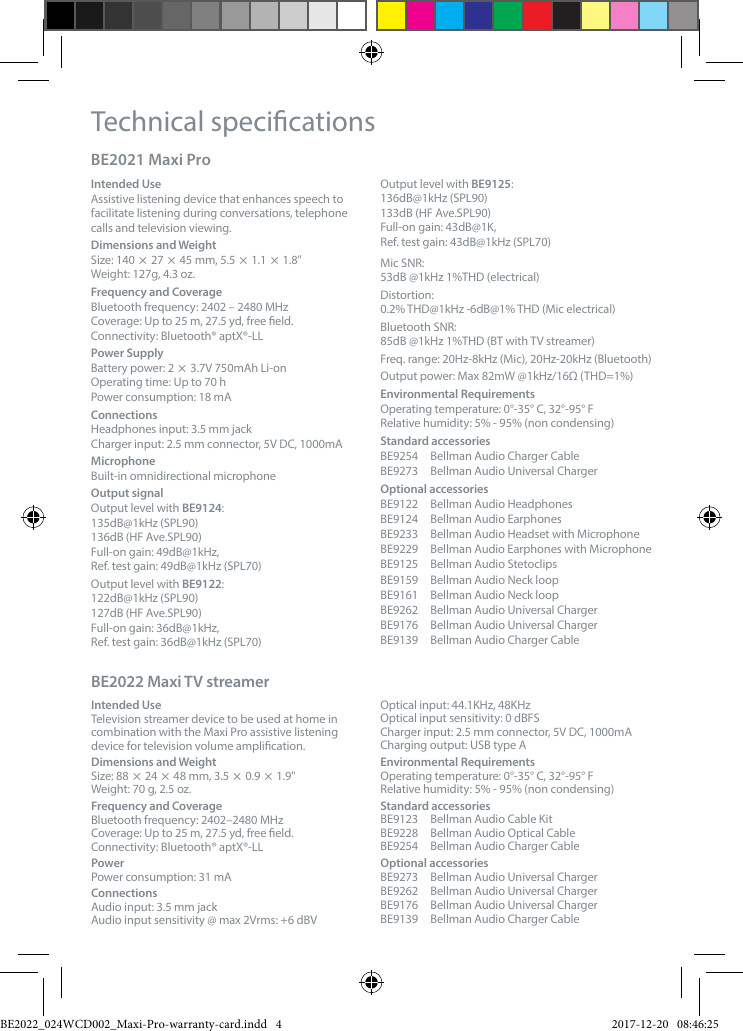

Technical specicationsBE2021 Maxi Pro Intended UseAssistive listening device that enhances speech to facilitate listening during conversations, telephone calls and television viewing.Dimensions and WeightSize: 140  27  45 mm, 5.5  1.1  1.8"Weight: 127g, 4.3 oz. Frequency and Coverage Bluetooth frequency: 2402 – 2480 MHzCoverage: Up to 25 m, 27.5 yd, free eld. Connectivity: Bluetooth® aptX®-LLPower SupplyBattery power: 2  3.7V 750mAh Li-onOperating time: Up to 70 hPower consumption: 18 mAConnectionsHeadphones input: 3.5 mm jackCharger input: 2.5 mm connector, 5V DC, 1000mAMicrophoneBuilt-in omnidirectional microphoneOutput signalOutput level with BE9124: 135dB@1kHz (SPL90) 136dB (HF Ave.SPL90)Full-on gain: 49dB@1kHz, Ref. test gain: 49dB@1kHz (SPL70)Output level with BE9122:122dB@1kHz (SPL90)127dB (HF Ave.SPL90)Full-on gain: 36dB@1kHz, Ref. test gain: 36dB@1kHz (SPL70)Output level with BE9125: 136dB@1kHz (SPL90)133dB (HF Ave.SPL90)Full-on gain: 43dB@1K, Ref. test gain: 43dB@1kHz (SPL70)Mic SNR: 53dB @1kHz 1%THD (electrical)Distortion: 0.2% THD@1kHz -6dB@1% THD (Mic electrical)Bluetooth SNR: 85dB @1kHz 1%THD (BT with TV streamer)Freq. range: 20Hz-8kHz (Mic), 20Hz-20kHz (Bluetooth)Output power: Max 82mW @1kHz/16Ω (THD=1%)Environmental RequirementsOperating temperature: 0°-35° C, 32°-95° FRelative humidity: 5% - 95% (non condensing)Standard accessoriesBE9254 Bellman Audio Charger CableBE9273 Bellman Audio Universal ChargerOptional accessoriesBE9122 Bellman Audio HeadphonesBE9124 Bellman Audio EarphonesBE9233 Bellman Audio Headset with MicrophoneBE9229 Bellman Audio Earphones with MicrophoneBE9125 Bellman Audio StetoclipsBE9159 Bellman Audio Neck loopBE9161 Bellman Audio Neck loopBE9262 Bellman Audio Universal ChargerBE9176 Bellman Audio Universal ChargerBE9139 Bellman Audio Charger CableBE2022 Maxi TV streamer Intended UseTelevision streamer device to be used at home in combination with the Maxi Pro assistive listening device for television volume amplication.Dimensions and WeightSize: 88  24  48 mm, 3.5  0.9  1.9"Weight: 70 g, 2.5 oz. Frequency and Coverage Bluetooth frequency: 2402–2480 MHzCoverage: Up to 25 m, 27.5 yd, free eld. Connectivity: Bluetooth® aptX®-LLPowerPower consumption: 31 mAConnectionsAudio input: 3.5 mm jackAudio input sensitivity @ max 2Vrms: +6 dBVOptical input: 44.1KHz, 48KHz Optical input sensitivity: 0 dBFSCharger input: 2.5 mm connector, 5V DC, 1000mACharging output: USB type AEnvironmental RequirementsOperating temperature: 0°-35° C, 32°-95° FRelative humidity: 5% - 95% (non condensing) Standard accessoriesBE9123 Bellman Audio Cable KitBE9228 Bellman Audio Optical CableBE9254 Bellman Audio Charger CableOptional accessories BE9273 Bellman Audio Universal ChargerBE9262 Bellman Audio Universal ChargerBE9176 Bellman Audio Universal ChargerBE9139 Bellman Audio Charger CableBE2022_024WCD002_Maxi-Pro-warranty-card.indd 4 2017-12-20 08:46:25
