Beltronics USA G7M4 Radar Detector User Manual RX65 Manual Rev2

Beltronics USA Inc Radar Detector RX65 Manual Rev2

Manual

5442 West Chester RoadWest Chester, Ohio45069 USAMade in CanadaPrinted in USA121RX65-0REVOwner's ManualRX65 Manual-Rev2 1/17/05 3:18 PM Page 1

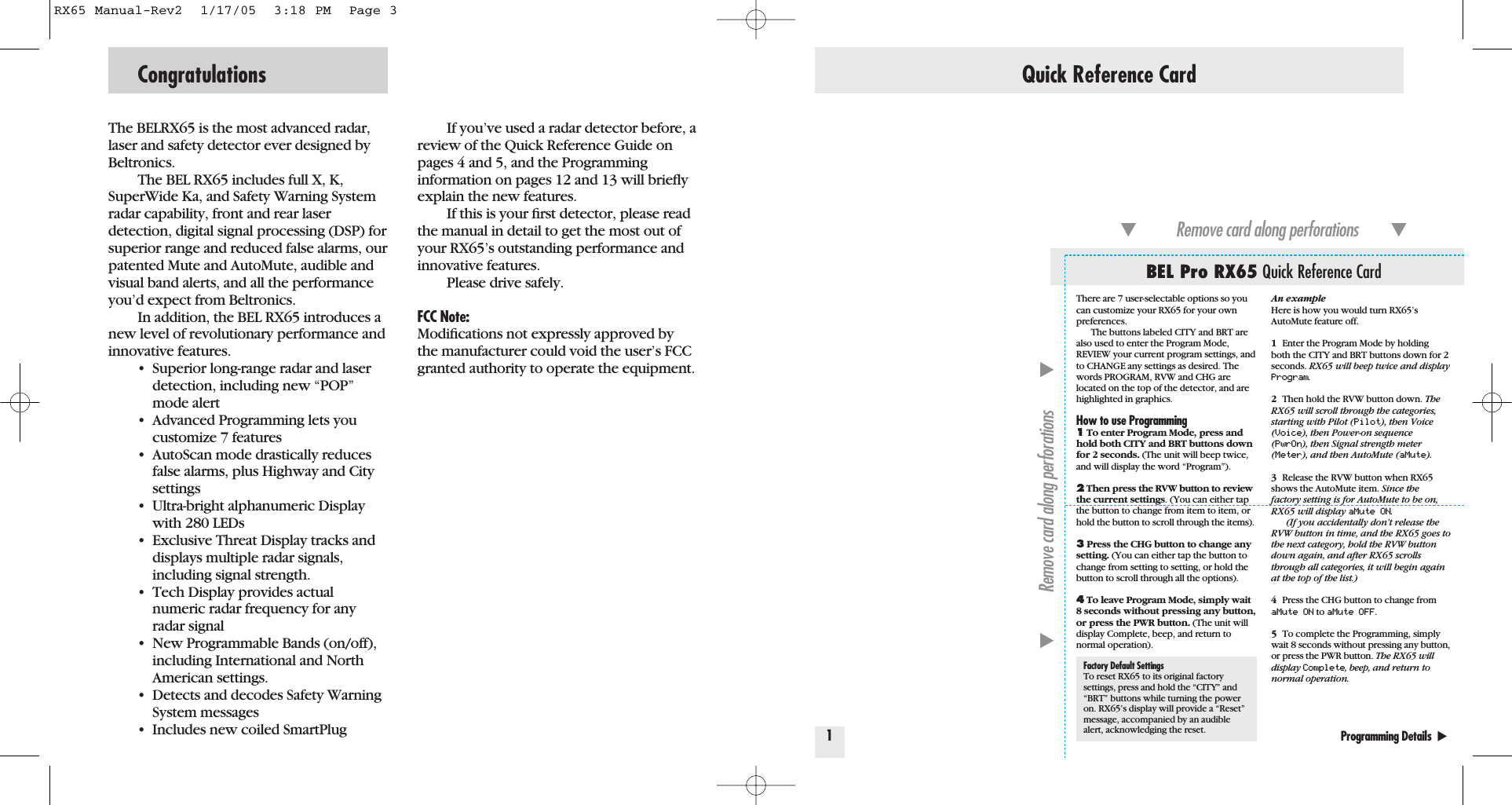

The BELRX65 is the most advanced radar,laser and safety detector ever designed byBeltronics.The BEL RX65 includes full X, K,SuperWide Ka, and Safety Warning Systemradar capability, front and rear laser detection, digital signal processing (DSP) forsuperior range and reduced false alarms, ourpatented Mute and AutoMute, audible andvisual band alerts, and all the performanceyou’d expect from Beltronics.In addition, the BEL RX65 introduces anew level of revolutionary performance andinnovative features.• Superior long-range radar and laser detection, including new “POP” mode alert• Advanced Programming lets you customize 7 features• AutoScan mode drastically reduces false alarms, plus Highway and City settings• Ultra-bright alphanumeric Display with 280 LEDs• Exclusive Threat Display tracks and displays multiple radar signals, including signal strength.• Tech Display provides actualnumeric radar frequency for any radar signal• New Programmable Bands (on/off), including International and North American settings. • Detects and decodes Safety Warning System messages• Includes new coiled SmartPlugIf you’ve used a radar detector before, areview of the Quick Reference Guide onpages 4 and 5, and the Programming information on pages 12 and 13 will brieflyexplain the new features.If this is your first detector, please readthe manual in detail to get the most out ofyour RX65’s outstanding performance andinnovative features.Please drive safely.FCC Note:Modifications not expressly approved bythe manufacturer could void the user’s FCCgranted authority to operate the equipment.Congratulations Quick Reference Card1Programming Details Factory Default SettingsTo reset RX65 to its original factorysettings, press and hold the “CITY” and“BRT” buttons while turning the poweron. RX65’s display will provide a “Reset”message, accompanied by an audiblealert, acknowledging the reset.BEL Pro RX65 Quick Reference CardRemove card along perforations Remove card along perforations An exampleHere is how you would turn RX65’sAutoMute feature off. 1Enter the Program Mode by holding both the CITY and BRT buttons down for 2seconds. RX65 will beep twice and displayProgram.2Then hold the RVW button down. TheRX65 will scroll through the categories,starting with Pilot (Pilot), then Voice(Voice), then Power-on sequence(PwrOn), then Signal strength meter(Meter), and then AutoMute (aMute).3Release the RVW button when RX65shows the AutoMute item. Since thefactory setting is for AutoMute to be on,RX65 will display aMute ON.(If you accidentally don’t release theRVW button in time, and the RX65 goes tothe next category, hold the RVW buttondown again, and after RX65 scrollsthrough all categories, it will begin againat the top of the list.)4Press the CHG button to change fromaMute ON to aMute OFF.5To complete the Programming, simplywait 8 seconds without pressing any button,or press the PWR button. The RX65 willdisplay Complete, beep, and return tonormal operation.There are 7 user-selectable options so youcan customize your RX65 for your ownpreferences.The buttons labeled CITY and BRT arealso used to enter the Program Mode,REVIEW your current program settings, andto CHANGE any settings as desired. Thewords PROGRAM, RVW and CHG arelocated on the top of the detector, and arehighlighted in graphics.How to use Programming1To enter Program Mode, press andhold both CITY and BRT buttons downfor 2 seconds. (The unit will beep twice,and will display the word “Program”).2Then press the RVW button to reviewthe current settings. (You can either tapthe button to change from item to item, orhold the button to scroll through the items).3Press the CHG button to change anysetting. (You can either tap the button tochange from setting to setting, or hold thebutton to scroll through all the options).4To leave Program Mode, simply wait8 seconds without pressing any button,or press the PWR button. (The unit willdisplay Complete, beep, and return tonormal operation).RX65 Manual-Rev2 1/17/05 3:18 PM Page 3

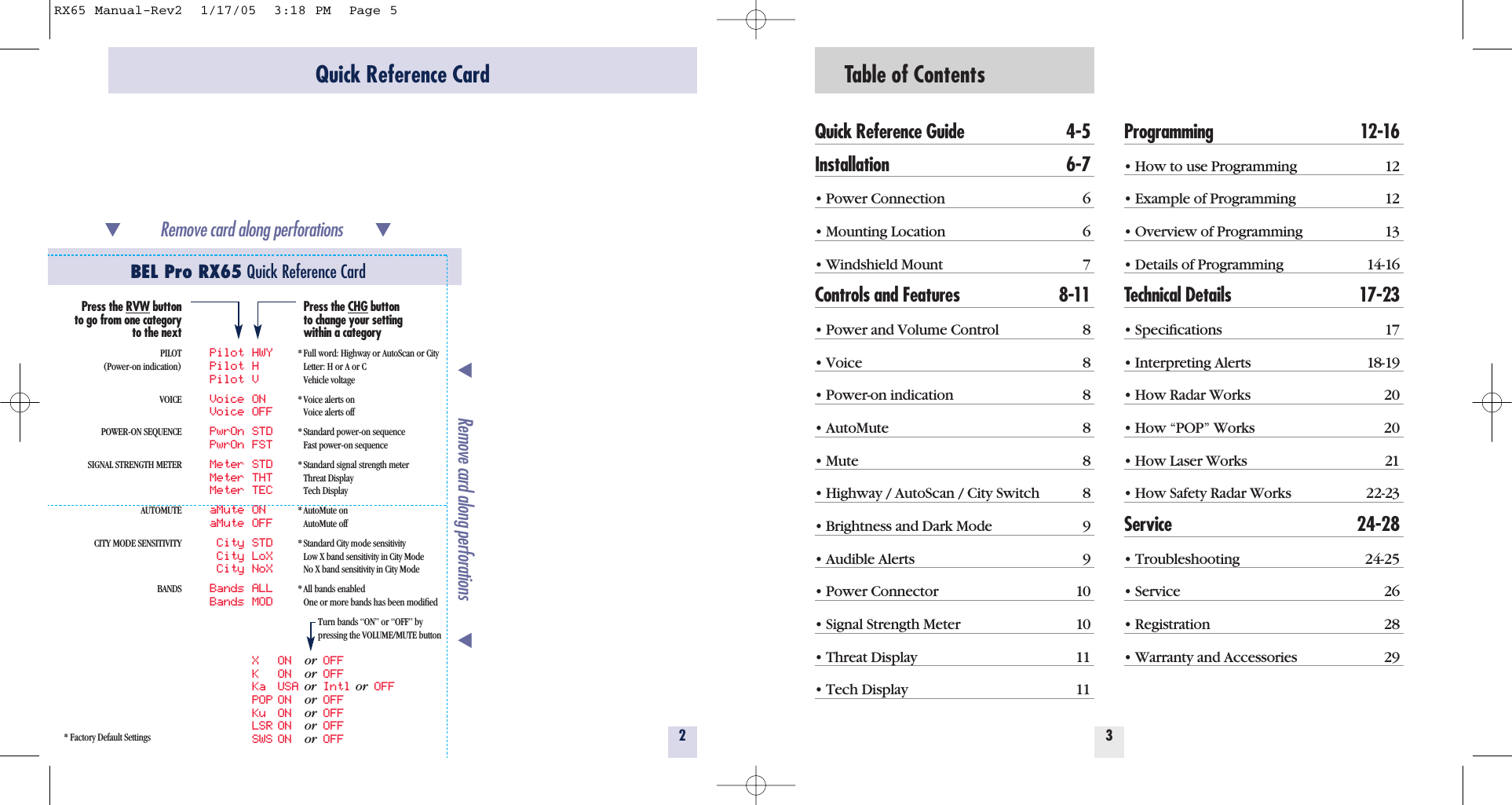

Table of ContentsQuick Reference Guide 4-5Installation 6-7• Power Connection 6• Mounting Location 6• Windshield Mount 7Controls and Features 8-11• Power and Volume Control 8• Voice 8• Power-on indication 8• AutoMute 8• Mute 8• Highway / AutoScan / City Switch 8• Brightness and Dark Mode 9• Audible Alerts 9• Power Connector 10• Signal Strength Meter 10• Threat Display 11• Tech Display 11Programming 12-16• How to use Programming 12• Example of Programming 12• Overview of Programming 13• Details of Programming 14-16Technical Details 17-23• Specifications 17• Interpreting Alerts 18-19• How Radar Works 20• How “POP” Works 20• How Laser Works 21• How Safety Radar Works 22-23Service 24-28• Troubleshooting 24-25• Service 26• Registration 28• Warranty and Accessories 2932Quick Reference CardBEL Pro RX65 Quick Reference Card* Factory Default SettingsRemove card along perforations Remove card along perforations Press the RVW buttonto go from one categoryto the nextPILOT(Power-on indication)VOICEPOWER-ON SEQUENCESIGNAL STRENGTH METERAUTOMUTECITY MODE SENSITIVITYBANDSPilot HWYPilot HPilot VVoice ONVoice OFFPwrOn STDPwrOn FSTMeter STDMeter THTMeter TECaMute ONaMute OFFCity STDCity LoXCity NoXBands ALLBands MODX ON or OFFK ON or OFFKa USA or Intl or OFFPOP ON or OFFKu ON or OFFLSR ON or OFFSWS ON or OFFPress the CHG buttonto change your settingwithin a category* Full word: Highway or AutoScan or CityLetter: H or A or CVehicle voltage* Voice alerts onVoice alerts off* Standard power-on sequenceFast power-on sequence* Standard signal strength meterThreat DisplayTech Display* AutoMute onAutoMute off* Standard City mode sensitivityLow X band sensitivity in City ModeNo X band sensitivity in City Mode* All bands enabledOne or more bands has been modifiedTurn bands “ON” or “OFF” bypressing the VOLUME/MUTE buttonRX65 Manual-Rev2 1/17/05 3:18 PM Page 5

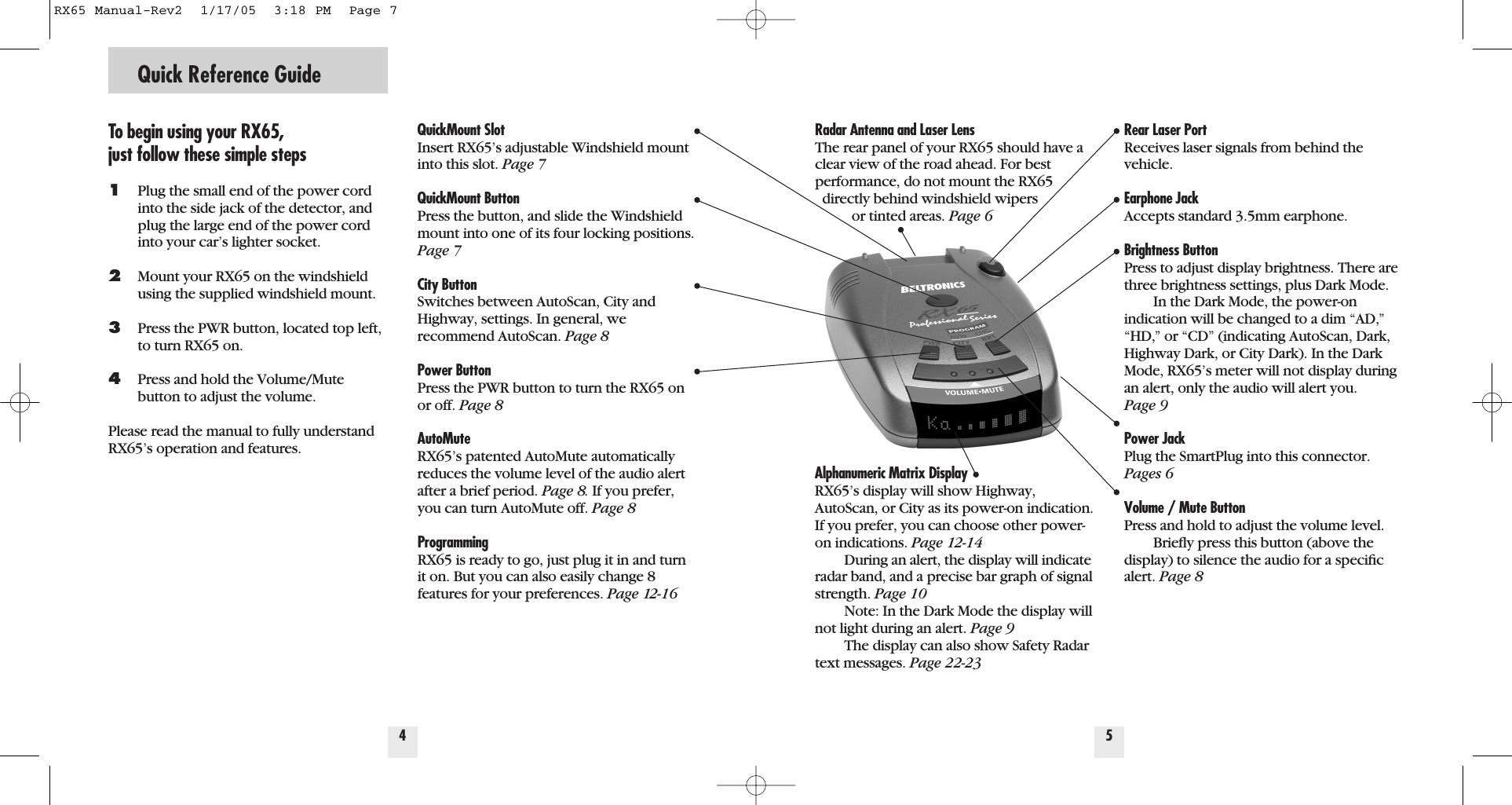

Radar Antenna and Laser LensThe rear panel of your RX65 should have aclear view of the road ahead. For bestperformance, do not mount the RX65 directly behind windshield wipers or tinted areas. Page 6Alphanumeric Matrix DisplayRX65’s display will show Highway,AutoScan, or City as its power-on indication.If you prefer, you can choose other power-on indications. Page 12-14During an alert, the display will indicateradar band, and a precise bar graph of signalstrength. Page 10Note: In the Dark Mode the display willnot light during an alert. Page 9The display can also show Safety Radartext messages. Page 22-23Quick Reference GuideTo begin using your RX65, just follow these simple steps1Plug the small end of the power cord into the side jack of the detector, and plug the large end of the power cord into your car’s lighter socket.2Mount your RX65 on the windshieldusing the supplied windshield mount.3Press the PWR button, located top left, to turn RX65 on.4Press and hold the Volume/Mute button to adjust the volume.Please read the manual to fully understandRX65’s operation and features.QuickMount Slot Insert RX65’s adjustable Windshield mountinto this slot. Page 7QuickMount ButtonPress the button, and slide the Windshieldmount into one of its four locking positions.Page 7City ButtonSwitches between AutoScan, City andHighway, settings. In general, we recommend AutoScan. Page 8Power ButtonPress the PWR button to turn the RX65 onor off. Page 8AutoMuteRX65’s patented AutoMute automaticallyreduces the volume level of the audio alertafter a brief period. Page 8. If you prefer,you can turn AutoMute off. Page 8ProgrammingRX65 is ready to go, just plug it in and turnit on. But you can also easily change 8features for your preferences. Page 12-164Rear Laser PortReceives laser signals from behind thevehicle.Earphone JackAccepts standard 3.5mm earphone.Brightness ButtonPress to adjust display brightness. There arethree brightness settings, plus Dark Mode.In the Dark Mode, the power-onindication will be changed to a dim “AD,”“HD,” or “CD” (indicating AutoScan, Dark,Highway Dark, or City Dark). In the DarkMode, RX65’s meter will not display duringan alert, only the audio will alert you. Page 9Power Jack Plug the SmartPlug into this connector.Pages 6Volume / Mute Button Press and hold to adjust the volume level. Briefly press this button (above thedisplay) to silence the audio for a specificalert. Page 85RX65 Manual-Rev2 1/17/05 3:18 PM Page 7

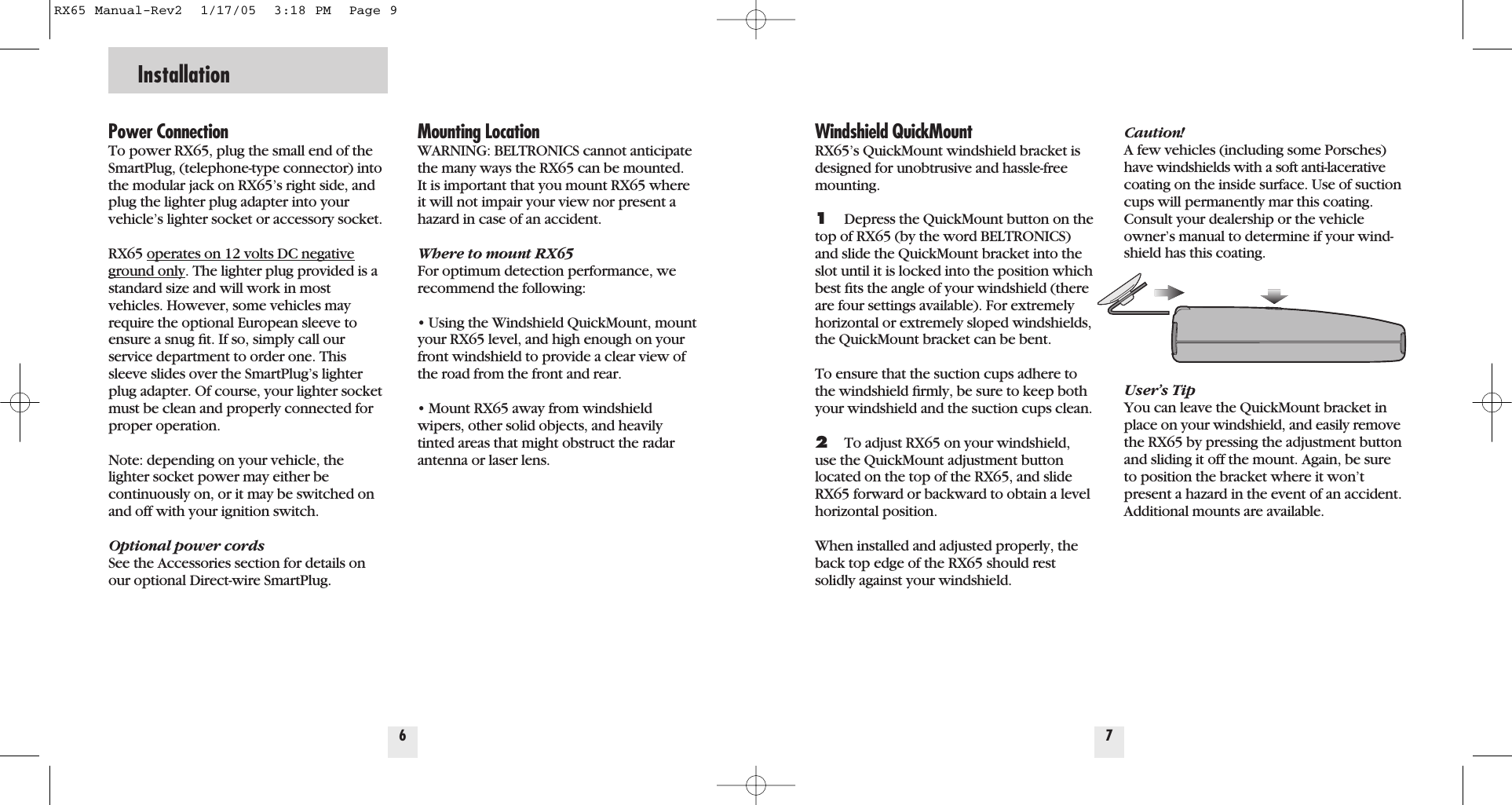

Power ConnectionTo power RX65, plug the small end of theSmartPlug, (telephone-type connector) intothe modular jack on RX65’s right side, andplug the lighter plug adapter into yourvehicle’s lighter socket or accessory socket.RX65 operates on 12 volts DC negativeground only. The lighter plug provided is astandard size and will work in most vehicles. However, some vehicles mayrequire the optional European sleeve toensure a snug fit. If so, simply call ourservice department to order one. Thissleeve slides over the SmartPlug’s lighterplug adapter. Of course, your lighter socketmust be clean and properly connected forproper operation.Note: depending on your vehicle, thelighter socket power may either be continuously on, or it may be switched onand off with your ignition switch.Optional power cordsSee the Accessories section for details onour optional Direct-wire SmartPlug. Mounting LocationWARNING: BELTRONICS cannot anticipatethe many ways the RX65 can be mounted.It is important that you mount RX65 whereit will not impair your view nor present ahazard in case of an accident.Where to mount RX65For optimum detection performance, werecommend the following:• Using the Windshield QuickMount, mountyour RX65 level, and high enough on yourfront windshield to provide a clear view ofthe road from the front and rear.• Mount RX65 away from windshieldwipers, other solid objects, and heavilytinted areas that might obstruct the radarantenna or laser lens.6InstallationWindshield QuickMountRX65’s QuickMount windshield bracket isdesigned for unobtrusive and hassle-freemounting. 1Depress the QuickMount button on thetop of RX65 (by the word BELTRONICS)and slide the QuickMount bracket into theslot until it is locked into the position whichbest fits the angle of your windshield (thereare four settings available). For extremelyhorizontal or extremely sloped windshields,the QuickMount bracket can be bent.To ensure that the suction cups adhere tothe windshield firmly, be sure to keep bothyour windshield and the suction cups clean.2To adjust RX65 on your windshield,use the QuickMount adjustment buttonlocated on the top of the RX65, and slideRX65 forward or backward to obtain a levelhorizontal position.When installed and adjusted properly, theback top edge of the RX65 should restsolidly against your windshield.Caution! A few vehicles (including some Porsches)have windshields with a soft anti-lacerativecoating on the inside surface. Use of suctioncups will permanently mar this coating.Consult your dealership or the vehicleowner’s manual to determine if your wind-shield has this coating.User’s TipYou can leave the QuickMount bracket inplace on your windshield, and easily removethe RX65 by pressing the adjustment buttonand sliding it off the mount. Again, be sureto position the bracket where it won’tpresent a hazard in the event of an accident.Additional mounts are available.7RX65 Manual-Rev2 1/17/05 3:18 PM Page 9
Controls and FeaturesPower On/OffTo turn the RX65 on, press the PWR buttonon the left side of the top case. When youturn the RX65 on, it goes through asequence of alerts.If you prefer, you may program yourRX65 for a shorter power-on sequence. Seethe Programming section for details. VoiceThe RX65 has our Digital Voice feature,which provides a digital voiceannouncement of the band being detecting.If you prefer, you can turn the DigitalVoice feature off in programming. SeeProgramming section for details.Power-on indicationAfter RX65’s start-up sequence is complete,the alphanumeric display will showHighway, City, or AutoScan to indicatewhich sensitivity mode is selected.If you prefer, you can select alternatepower-on displays. See the Programmingsection for details.AutoMuteYour RX65 has our patented AutoMutefeature. After RX65 alerts you to a radarencounter at the volume you have selected,the AutoMute feature will automaticallyreduce the volume to a lower level. Thiskeeps you informed without the annoyanceof a continuous full-volume alert.If you prefer, you can turn theAutoMute feature off. See the Programmingsection for details.Volume / Mute ButtonTo adjust the alert tone volume, press andhold the Volume/Mute bar located on thetop case.The Mute button, located on RX65’stop case, allows you to silence the audioalert during a radar encounter. To mute the audio for a single specificsignal, briefly press the Volume/Mutebutton. After that radar encounter haspassed, the mute will automatically resetand the audio will alert you to the nextencounter.Highway / AutoScan / City SwitchThe City button selects RX65’s sensitivitymode. We recommend the AutoScan modefor most driving.RX65’s AutoScan mode provides long-range warning, with minimum false alarms.In this mode, RX65’s internal computercontinuously analyzes all incoming signalsand intelligently adjusts the sensitivity.8You can also select conventionalHighway and City modes. When driving inurban areas where annoying X-band intrusion alarms and door openers arecommon, City mode can be engaged tolower X-band sensitivity and reduce X-bandalerts. Full sensitivity is maintained on allother bands. You can customize RX65’s Citymode sensitivity. See the Programmingsection for details.Brightness ButtonRX65’s BRT button selects the brightness ofRX65’s display. There are four settings:Maximum, Medium, Minimum, and Dark.Press the BRT button to select yourpreferred brightness.Dark ModeWhen you select the Dark mode with theBRT switch, RX65 changes to a very inconspicuous power-on indication: a veryBRT AD, HD, or CD. (In this display, the A,H, or C indicates AutoScan, Highway, orCity, and the D indicates Dark.)When RX65 is in the Dark mode, thedisplay will not show visual alerts whenRX65 detects signals. Only the audible alertwill tell you of detected signals.Audible AlertsFor Radar signals:RX65 uses a Geiger-counter-like soundto indicate the signal strength and type ofradar signal being encountered.When you encounter radar, a distinctaudible alert will sound and occur faster asthe signal gets stronger. This allows you tojudge the distance from the signal sourcewithout taking your eyes from the road.Each band has a distinct tone for easyidentification. X-band = chirping toneK-band = buzzing toneKa-band = double-chirp toneKu-band = high pitched buzzing toneFor Laser signals:Since laser signals are a possible threatno matter how weak, RX65 alerts you to alllaser signals with a full laser alert.For Safety signals:RX65 will alert you to these signalswith a double-buzz tone (and digital voice ifprogrammed) with a corresponding textmessage. A complete listing of the textmessages is on page 23.9RX65 Manual-Rev2 1/17/05 3:18 PM Page 11

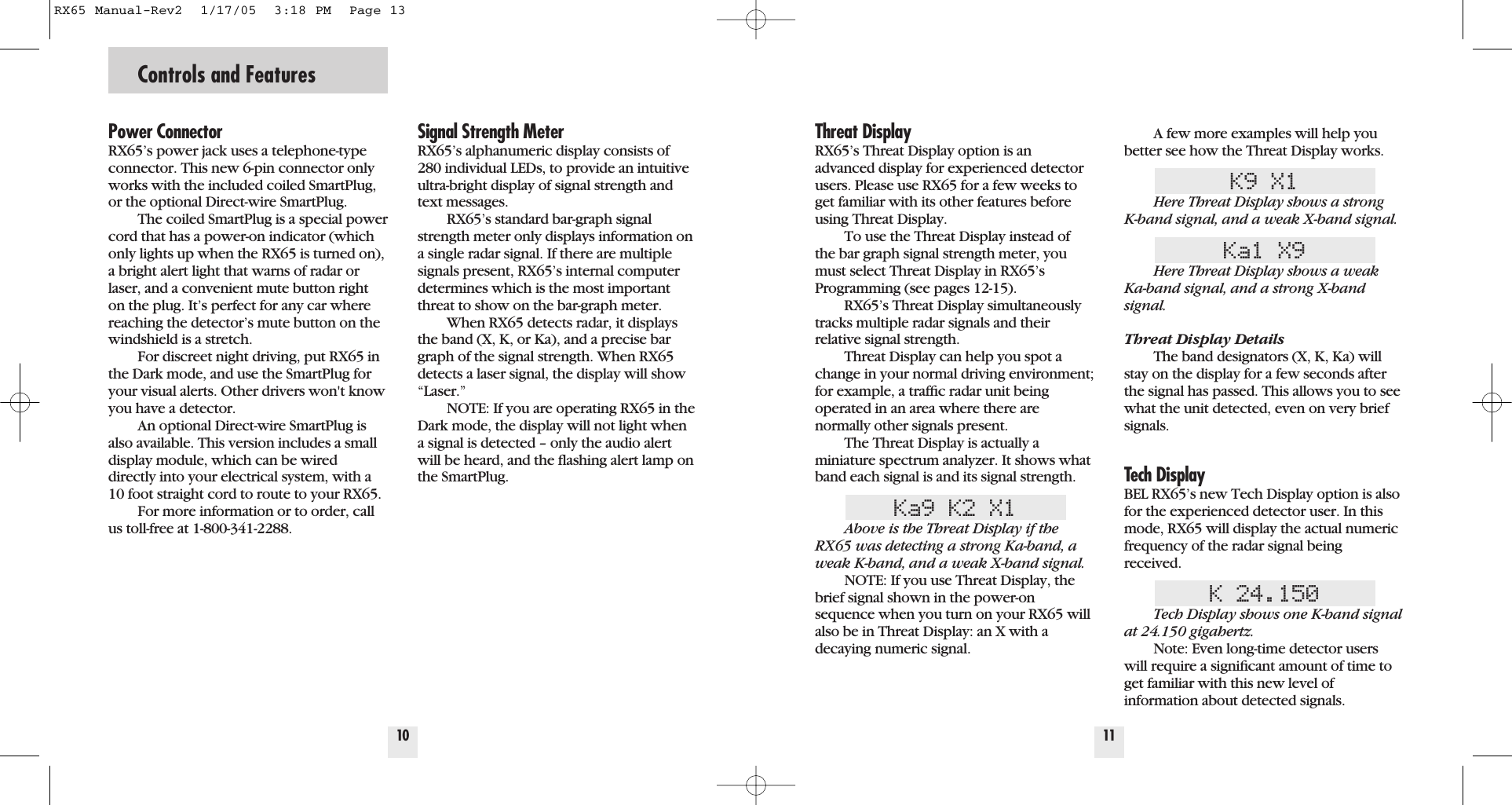

Controls and Features10Power ConnectorRX65’s power jack uses a telephone-typeconnector. This new 6-pin connector onlyworks with the included coiled SmartPlug,or the optional Direct-wire SmartPlug.The coiled SmartPlug is a special powercord that has a power-on indicator (whichonly lights up when the RX65 is turned on),a bright alert light that warns of radar orlaser, and a convenient mute button righton the plug. It’s perfect for any car wherereaching the detector’s mute button on thewindshield is a stretch.For discreet night driving, put RX65 inthe Dark mode, and use the SmartPlug foryour visual alerts. Other drivers won't knowyou have a detector.An optional Direct-wire SmartPlug isalso available. This version includes a smalldisplay module, which can be wireddirectly into your electrical system, with a10 foot straight cord to route to your RX65.For more information or to order, callus toll-free at 1-800-341-2288.Signal Strength Meter RX65’s alphanumeric display consists of280 individual LEDs, to provide an intuitiveultra-bright display of signal strength andtext messages.RX65’s standard bar-graph signalstrength meter only displays information ona single radar signal. If there are multiplesignals present, RX65’s internal computerdetermines which is the most importantthreat to show on the bar-graph meter.When RX65 detects radar, it displaysthe band (X, K, or Ka), and a precise bargraph of the signal strength. When RX65detects a laser signal, the display will show“Laser.”NOTE: If you are operating RX65 in theDark mode, the display will not light whena signal is detected – only the audio alertwill be heard, and the flashing alert lamp onthe SmartPlug.11Threat DisplayRX65’s Threat Display option is anadvanced display for experienced detectorusers. Please use RX65 for a few weeks toget familiar with its other features beforeusing Threat Display.To use the Threat Display instead ofthe bar graph signal strength meter, youmust select Threat Display in RX65’sProgramming (see pages 12-15).RX65’s Threat Display simultaneouslytracks multiple radar signals and their relative signal strength. Threat Display can help you spot achange in your normal driving environment;for example, a traffic radar unit being operated in an area where there arenormally other signals present.The Threat Display is actually a miniature spectrum analyzer. It shows whatband each signal is and its signal strength.Ka9 K2 X1Above is the Threat Display if theRX65 was detecting a strong Ka-band, aweak K-band, and a weak X-band signal.NOTE: If you use Threat Display, thebrief signal shown in the power-onsequence when you turn on your RX65 willalso be in Threat Display: an X with adecaying numeric signal.A few more examples will help youbetter see how the Threat Display works.K9 X1Here Threat Display shows a strong K-band signal, and a weak X-band signal.Ka1 X9Here Threat Display shows a weakKa-band signal, and a strong X-bandsignal.Threat Display DetailsThe band designators (X, K, Ka) willstay on the display for a few seconds afterthe signal has passed. This allows you to seewhat the unit detected, even on very briefsignals.Tech DisplayBEL RX65’s new Tech Display option is alsofor the experienced detector user. In thismode, RX65 will display the actual numericfrequency of the radar signal beingreceived.K 24.150Tech Display shows one K-band signalat 24.150 gigahertz.Note: Even long-time detector userswill require a significant amount of time toget familiar with this new level of information about detected signals.RX65 Manual-Rev2 1/17/05 3:18 PM Page 13

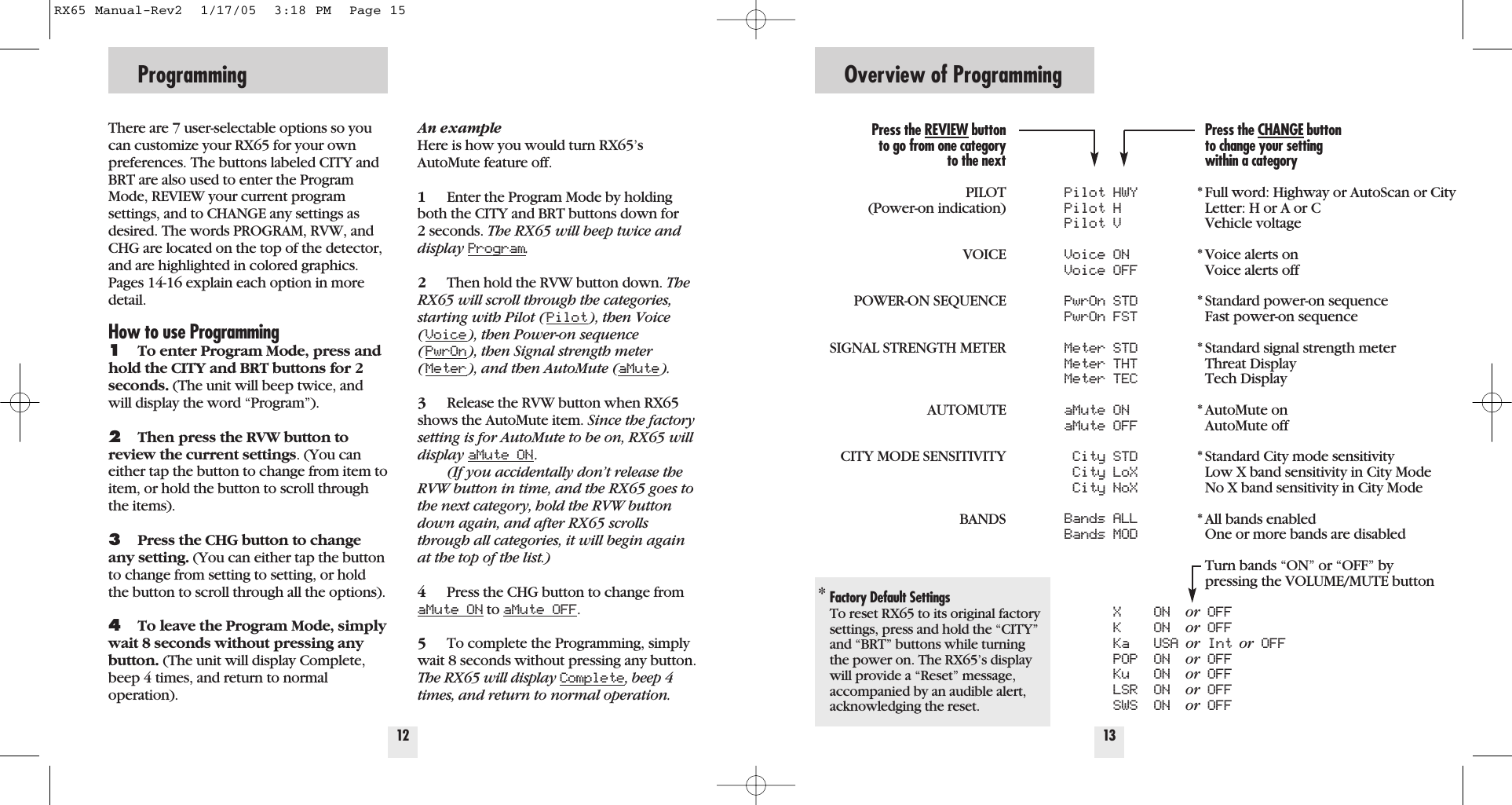

Programming12There are 7 user-selectable options so youcan customize your RX65 for your ownpreferences. The buttons labeled CITY andBRT are also used to enter the ProgramMode, REVIEW your current programsettings, and to CHANGE any settings asdesired. The words PROGRAM, RVW, andCHG are located on the top of the detector,and are highlighted in colored graphics.Pages 14-16 explain each option in moredetail.How to use Programming1To enter Program Mode, press andhold the CITY and BRT buttons for 2seconds. (The unit will beep twice, andwill display the word “Program”).2Then press the RVW button toreview the current settings. (You caneither tap the button to change from item toitem, or hold the button to scroll throughthe items).3Press the CHG button to changeany setting. (You can either tap the buttonto change from setting to setting, or holdthe button to scroll through all the options).4To leave the Program Mode, simplywait 8 seconds without pressing anybutton. (The unit will display Complete,beep 4 times, and return to normal operation).An exampleHere is how you would turn RX65’sAutoMute feature off. 1Enter the Program Mode by holdingboth the CITY and BRT buttons down for 2 seconds. The RX65 will beep twice anddisplay Program.2Then hold the RVW button down. TheRX65 will scroll through the categories,starting with Pilot (Pilot), then Voice(Voice), then Power-on sequence(PwrOn), then Signal strength meter(Meter), and then AutoMute (aMute).3Release the RVW button when RX65shows the AutoMute item. Since the factorysetting is for AutoMute to be on, RX65 willdisplay aMute ON.(If you accidentally don’t release theRVW button in time, and the RX65 goes tothe next category, hold the RVW buttondown again, and after RX65 scrollsthrough all categories, it will begin againat the top of the list.)4Press the CHG button to change fromaMute ON to aMute OFF.5To complete the Programming, simplywait 8 seconds without pressing any button.The RX65 will display Complete, beep 4times, and return to normal operation.Overview of Programming13Pilot HWYPilot HPilot VVoice ONVoice OFFPwrOn STDPwrOn FSTMeter STDMeter THTMeter TECaMute ONaMute OFFCity STDCity LoXCity NoXBands ALLBands MODX ON or OFFK ON or OFFKa USA or Int or OFFPOP ON or OFFKu ON or OFFLSR ON or OFFSWS ON or OFFPress the CHANGE buttonto change your settingwithin a category* Full word: Highway or AutoScan or CityLetter: H or A or CVehicle voltage* Voice alerts onVoice alerts off* Standard power-on sequenceFast power-on sequence* Standard signal strength meterThreat DisplayTech Display* AutoMute onAutoMute off* Standard City mode sensitivityLow X band sensitivity in City ModeNo X band sensitivity in City Mode* All bands enabledOne or more bands are disabledTurn bands “ON” or “OFF” bypressing the VOLUME/MUTE buttonPress the REVIEW buttonto go from one categoryto the nextPILOT(Power-on indication)VOICEPOWER-ON SEQUENCESIGNAL STRENGTH METERAUTOMUTECITY MODE SENSITIVITYBANDS*Factory Default SettingsTo reset RX65 to its original factorysettings, press and hold the “CITY”and “BRT” buttons while turningthe power on. The RX65’s displaywill provide a “Reset” message,accompanied by an audible alert,acknowledging the reset.RX65 Manual-Rev2 1/17/05 3:18 PM Page 15
Details of Programming14Pilot (Power-on indication)Note: When you are using the Dark mode,the display will only show HD, AD, or CD,(Highway-Dark, AutoScan-Dark, or City-Dark).Pilot HWY (Full description) In this setting, RX65 will display “Highway,”“City,” or “Auto” as its power-on indication.(factory default)Pilot H (Letter) In this setting, RX65 will display “H” forHighway, “C” for City, and “A” forAutoScan. Pilot V (Vehicle voltage) In this setting, RX65 will continually display“H” for Highway, “C” for City, and “A” forAutoScan, and the vehicle’s voltage. If thevehicle’s voltage drops below 10.5 volts, alow voltage warning is displayed, followedby an audible alert. A high voltage warningis also given if the voltage goes above 16.0volts. The high-voltage warning is alsofollowed by an audible alert. VoiceVoice On (Voice alerts on) In this setting, all radar, laser, and SWS (ifprogrammed on) alerts will be accompanied by a digital voice.Voice Off (Voice alerts off) In this setting, only the audio tones will beheard during an alert or SWS message.Power-on SequencePwrOnSTD (Standard) In this setting, each time you turn on theRX65, it will display “BEL RX65,” “Laser,”“Ka-band,” “K-band,” “X-band,” “Safety,”and any changes to factory settings. (factorydefault)PwrOnFST (Fast power-on) In this setting, the RX55 will only provide abrief audible tone, and will display any non-factory settings.15Signal Strength MeterMeterSTD (Standard meter) In this setting, the meter displays the bandof the received signal, and a bar graphshows the relative signal strength. (factorydefault)MeterTHT (Threat Display) In this setting, the meter simultaneouslytracks multiple radar signals, including relative signal strength for each.Note: The Threat Display feature isexplained in more detail on pages 10-11.MeterTEC (Tech Display meter) In this setting, the meter displays the actualnumeric frequency of the radar signalreceived.Note: The Tech Display feature isexplained in more detail on page 11.AutoMuteaMute ON (AutoMute on) In this setting, RX65’s audio alerts willinitially be at the volume you set, but after afew seconds, the RX65 will automaticallyreduce the volume level, to keep youinformed, but not annoyed. (factory default)aMuteOFF (AutoMute off) With AutoMute off, RX65’s audio alerts willremain at the volume you set for the duration of the radar encounter.City Mode SensitivityCity STD (Standard) In this setting, when you put RX65 in theCity mode, X-band sensitivity is significantlyreduced, to reduce annoyance from X-bandintrusion alarms and motion sensors.(factory default)City LoX (Low X band sensitivity) In this setting, when you put RX65 in theCity mode, X-band sensitivity is reducedmore than the standard setting. This willreduce X band alarms from other sourceseven further, but also significantly reducesrange to X band traffic radar.City NoX (No X band sensitivity) In this setting, when you put RX65 in theCity mode, it will not respond to any X bandsignals. WARNING: Only choose thissetting if you are absolutely certain thatthere are no X band traffic radar unitswhere you drive.NOTE: These settings only apply whenRX65 is operated in City mode. X-bandsensitivity is not affected when used in“AutoScan,” or “Highway” modes.RX65 Manual-Rev2 1/17/05 3:18 PM Page 17

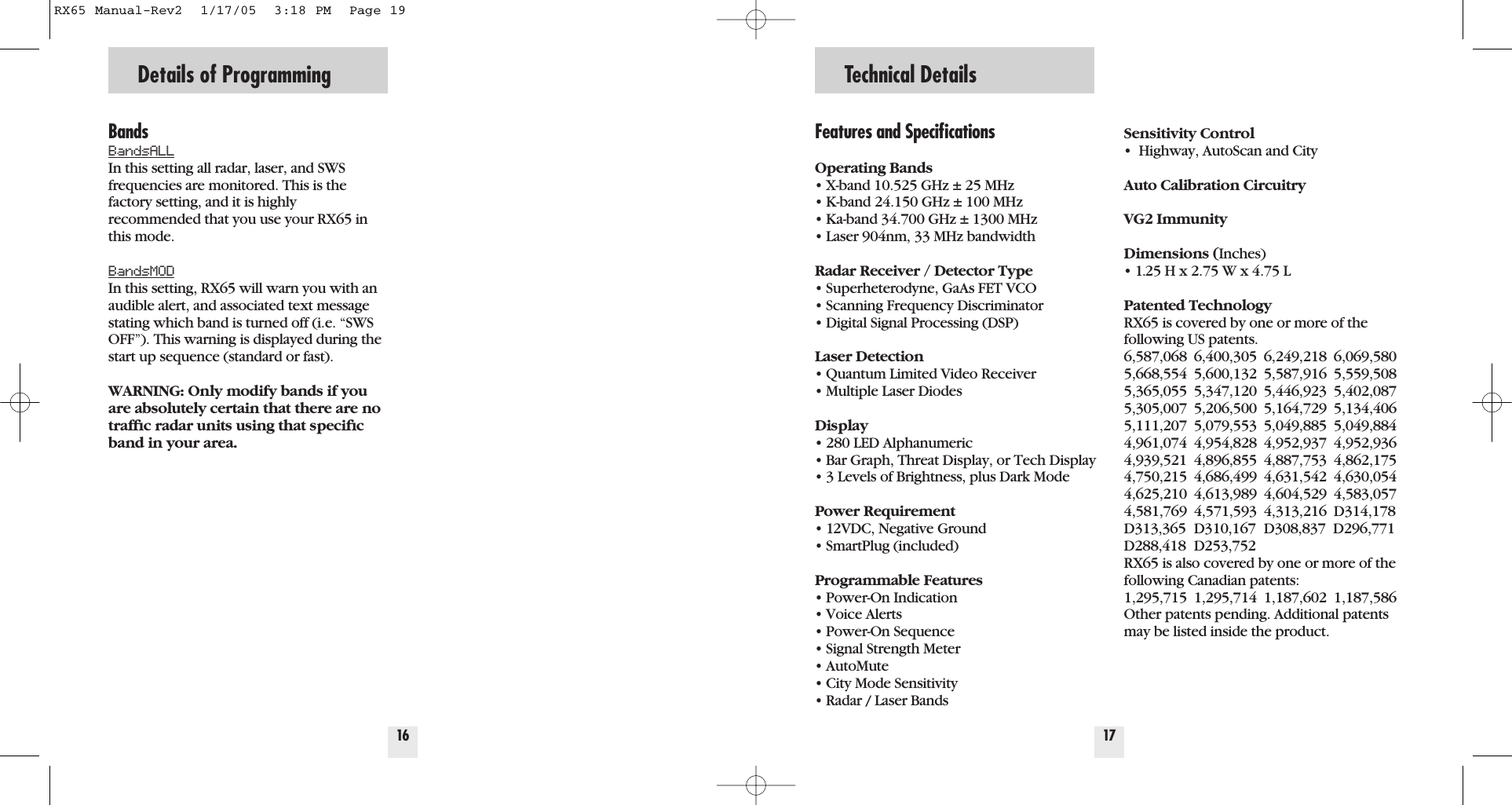

BandsBandsALLIn this setting all radar, laser, and SWSfrequencies are monitored. This is thefactory setting, and it is highly recommended that you use your RX65 inthis mode. BandsMODIn this setting, RX65 will warn you with anaudible alert, and associated text messagestating which band is turned off (i.e. “SWSOFF”). This warning is displayed during thestart up sequence (standard or fast).WARNING: Only modify bands if youare absolutely certain that there are notraffic radar units using that specificband in your area.16Details of ProgrammingFeatures and SpecificationsOperating Bands• X-band 10.525 GHz ± 25 MHz• K-band 24.150 GHz ± 100 MHz• Ka-band 34.700 GHz ± 1300 MHz• Laser 904nm, 33 MHz bandwidthRadar Receiver / Detector Type• Superheterodyne, GaAs FET VCO• Scanning Frequency Discriminator• Digital Signal Processing (DSP)Laser Detection• Quantum Limited Video Receiver • Multiple Laser DiodesDisplay• 280 LED Alphanumeric• Bar Graph, Threat Display, or Tech Display• 3 Levels of Brightness, plus Dark ModePower Requirement• 12VDC, Negative Ground• SmartPlug (included)Programmable Features• Power-On Indication• Voice Alerts• Power-On Sequence• Signal Strength Meter• AutoMute• City Mode Sensitivity• Radar / Laser BandsSensitivity Control• Highway, AutoScan and CityAuto Calibration CircuitryVG2 ImmunityDimensions (Inches)• 1.25 H x 2.75 W x 4.75 LPatented TechnologyRX65 is covered by one or more of thefollowing US patents. 6,587,068 6,400,305 6,249,218 6,069,5805,668,554 5,600,132 5,587,916 5,559,5085,365,055 5,347,120 5,446,923 5,402,0875,305,007 5,206,500 5,164,729 5,134,4065,111,207 5,079,553 5,049,885 5,049,8844,961,074 4,954,828 4,952,937 4,952,9364,939,521 4,896,855 4,887,753 4,862,1754,750,215 4,686,499 4,631,542 4,630,0544,625,210 4,613,989 4,604,529 4,583,0574,581,769 4,571,593 4,313,216 D314,178D313,365 D310,167 D308,837 D296,771D288,418 D253,752RX65 is also covered by one or more of thefollowing Canadian patents:1,295,715 1,295,714 1,187,602 1,187,586Other patents pending. Additional patentsmay be listed inside the product.17Technical DetailsRX65 Manual-Rev2 1/17/05 3:18 PM Page 19

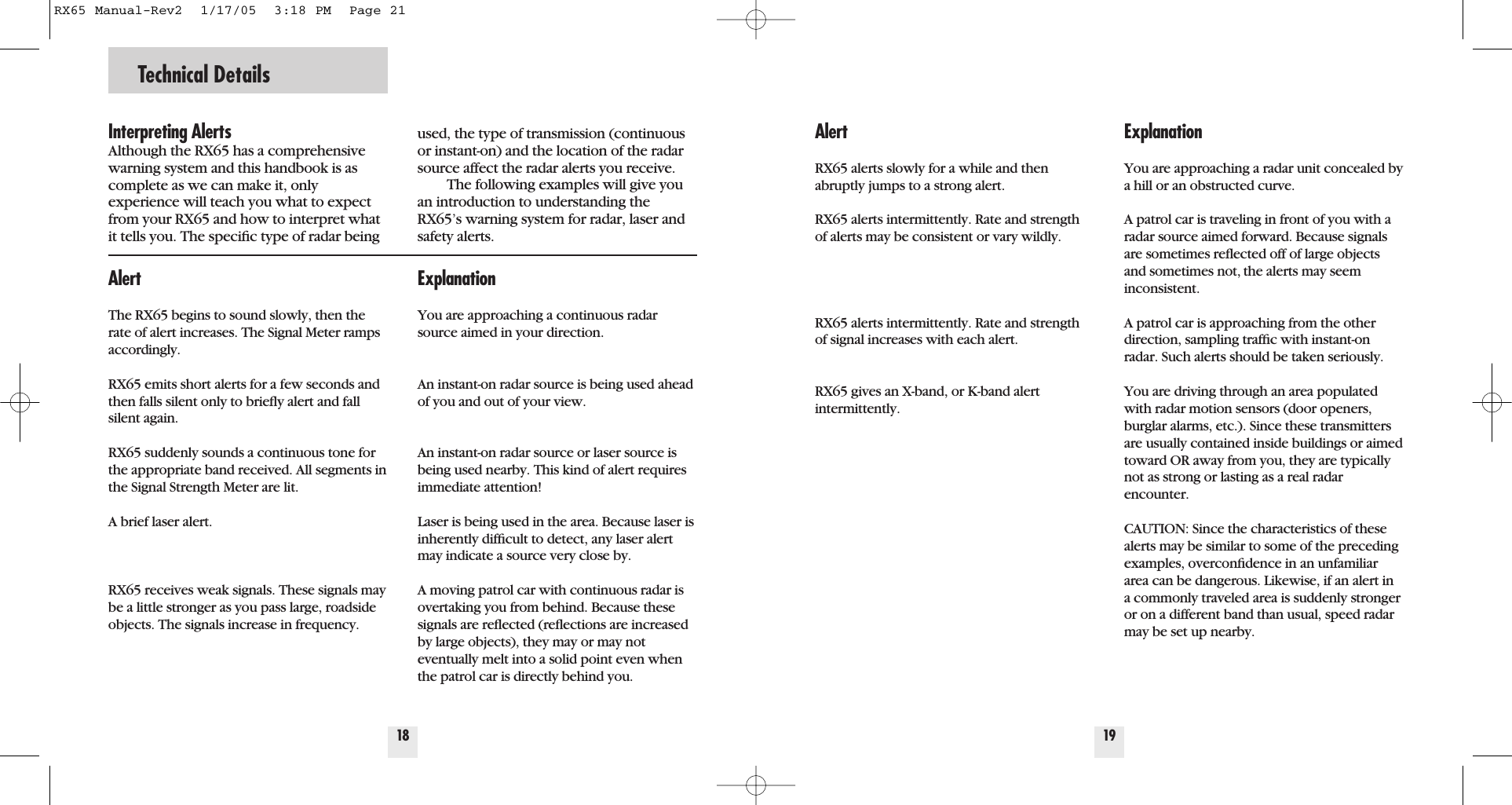

Technical Details18Interpreting AlertsAlthough the RX65 has a comprehensivewarning system and this handbook is ascomplete as we can make it, only experience will teach you what to expectfrom your RX65 and how to interpret whatit tells you. The specific type of radar beingused, the type of transmission (continuousor instant-on) and the location of the radarsource affect the radar alerts you receive.The following examples will give youan introduction to understanding theRX65’s warning system for radar, laser andsafety alerts.ExplanationYou are approaching a continuous radarsource aimed in your direction. An instant-on radar source is being used aheadof you and out of your view. An instant-on radar source or laser source isbeing used nearby. This kind of alert requiresimmediate attention!Laser is being used in the area. Because laser isinherently difficult to detect, any laser alertmay indicate a source very close by. A moving patrol car with continuous radar isovertaking you from behind. Because thesesignals are reflected (reflections are increasedby large objects), they may or may not eventually melt into a solid point even whenthe patrol car is directly behind you. AlertThe RX65 begins to sound slowly, then therate of alert increases. The Signal Meter rampsaccordingly.RX65 emits short alerts for a few seconds andthen falls silent only to briefly alert and fallsilent again. RX65 suddenly sounds a continuous tone forthe appropriate band received. All segments inthe Signal Strength Meter are lit.A brief laser alert. RX65 receives weak signals. These signals maybe a little stronger as you pass large, roadsideobjects. The signals increase in frequency.19ExplanationYou are approaching a radar unit concealed bya hill or an obstructed curve.A patrol car is traveling in front of you with aradar source aimed forward. Because signalsare sometimes reflected off of large objectsand sometimes not, the alerts may seem inconsistent. A patrol car is approaching from the otherdirection, sampling traffic with instant-onradar. Such alerts should be taken seriously. You are driving through an area populatedwith radar motion sensors (door openers,burglar alarms, etc.). Since these transmittersare usually contained inside buildings or aimedtoward OR away from you, they are typicallynot as strong or lasting as a real radarencounter.CAUTION: Since the characteristics of these alerts may be similar to some of the precedingexamples, overconfidence in an unfamiliararea can be dangerous. Likewise, if an alert ina commonly traveled area is suddenly strongeror on a different band than usual, speed radarmay be set up nearby. AlertRX65 alerts slowly for a while and thenabruptly jumps to a strong alert.RX65 alerts intermittently. Rate and strengthof alerts may be consistent or vary wildly. RX65 alerts intermittently. Rate and strengthof signal increases with each alert. RX65 gives an X-band, or K-band alert intermittently.RX65 Manual-Rev2 1/17/05 3:18 PM Page 21

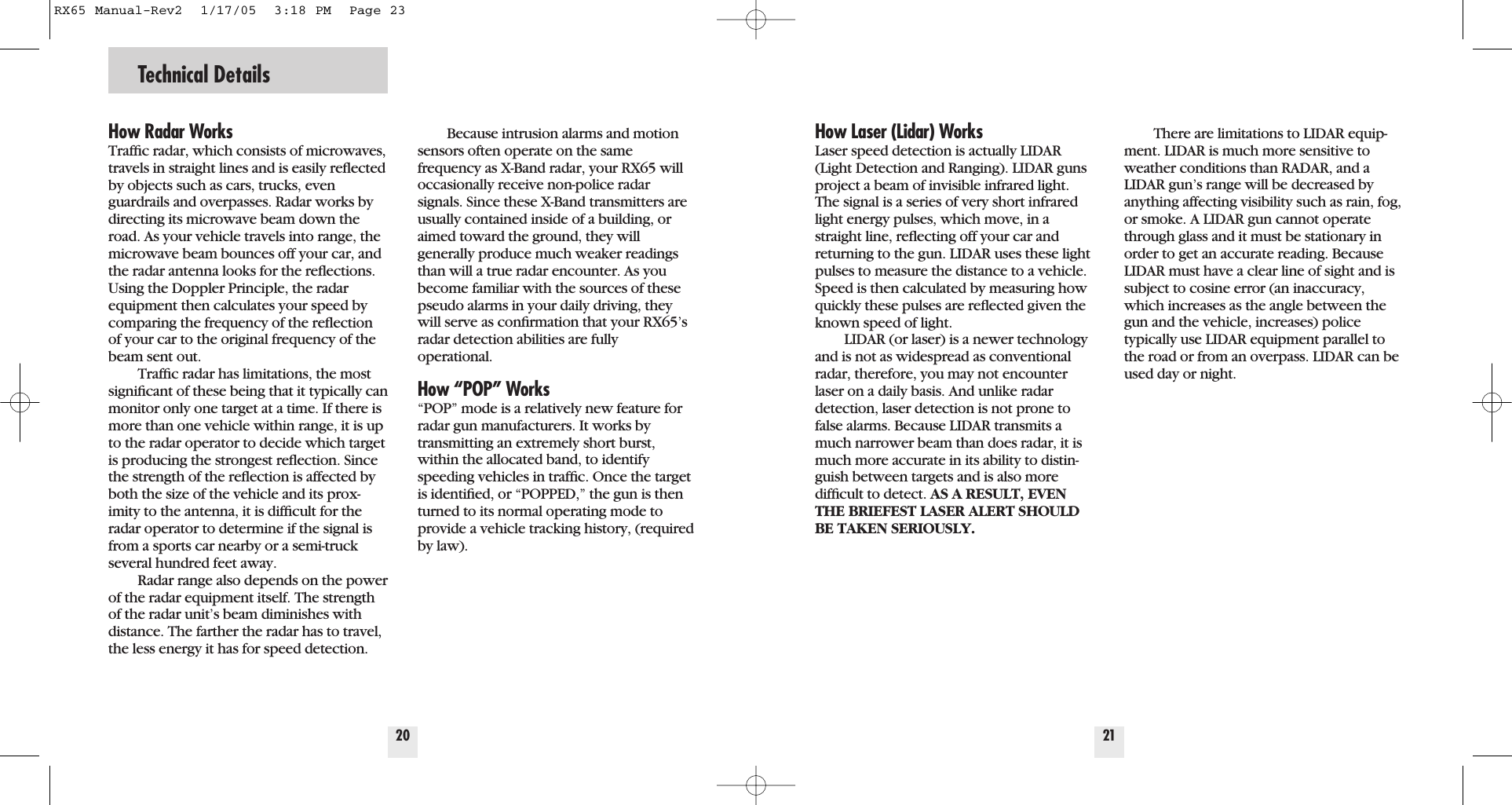

Technical Details20How Radar WorksTraffic radar, which consists of microwaves,travels in straight lines and is easily reflectedby objects such as cars, trucks, evenguardrails and overpasses. Radar works bydirecting its microwave beam down theroad. As your vehicle travels into range, themicrowave beam bounces off your car, andthe radar antenna looks for the reflections.Using the Doppler Principle, the radarequipment then calculates your speed bycomparing the frequency of the reflectionof your car to the original frequency of thebeam sent out.Traffic radar has limitations, the mostsignificant of these being that it typically canmonitor only one target at a time. If there ismore than one vehicle within range, it is upto the radar operator to decide which targetis producing the strongest reflection. Sincethe strength of the reflection is affected byboth the size of the vehicle and its prox-imity to the antenna, it is difficult for theradar operator to determine if the signal isfrom a sports car nearby or a semi-truckseveral hundred feet away.Radar range also depends on the powerof the radar equipment itself. The strengthof the radar unit’s beam diminishes withdistance. The farther the radar has to travel,the less energy it has for speed detection.Because intrusion alarms and motionsensors often operate on the samefrequency as X-Band radar, your RX65 willoccasionally receive non-police radarsignals. Since these X-Band transmitters areusually contained inside of a building, oraimed toward the ground, they will generally produce much weaker readingsthan will a true radar encounter. As youbecome familiar with the sources of thesepseudo alarms in your daily driving, theywill serve as confirmation that your RX65’sradar detection abilities are fully operational.How “POP” Works“POP” mode is a relatively new feature forradar gun manufacturers. It works by transmitting an extremely short burst,within the allocated band, to identifyspeeding vehicles in traffic. Once the targetis identified, or “POPPED,” the gun is thenturned to its normal operating mode toprovide a vehicle tracking history, (requiredby law).21How Laser (Lidar) WorksLaser speed detection is actually LIDAR(Light Detection and Ranging). LIDAR gunsproject a beam of invisible infrared light.The signal is a series of very short infraredlight energy pulses, which move, in astraight line, reflecting off your car andreturning to the gun. LIDAR uses these lightpulses to measure the distance to a vehicle.Speed is then calculated by measuring howquickly these pulses are reflected given theknown speed of light. LIDAR (or laser) is a newer technologyand is not as widespread as conventionalradar, therefore, you may not encounterlaser on a daily basis. And unlike radardetection, laser detection is not prone tofalse alarms. Because LIDAR transmits amuch narrower beam than does radar, it ismuch more accurate in its ability to distin-guish between targets and is also more difficult to detect. AS A RESULT, EVENTHE BRIEFEST LASER ALERT SHOULDBE TAKEN SERIOUSLY.There are limitations to LIDAR equip-ment. LIDAR is much more sensitive toweather conditions than RADAR, and aLIDAR gun’s range will be decreased byanything affecting visibility such as rain, fog,or smoke. A LIDAR gun cannot operatethrough glass and it must be stationary inorder to get an accurate reading. BecauseLIDAR must have a clear line of sight and issubject to cosine error (an inaccuracy,which increases as the angle between thegun and the vehicle, increases) police typically use LIDAR equipment parallel tothe road or from an overpass. LIDAR can beused day or night.RX65 Manual-Rev2 1/17/05 3:18 PM Page 23

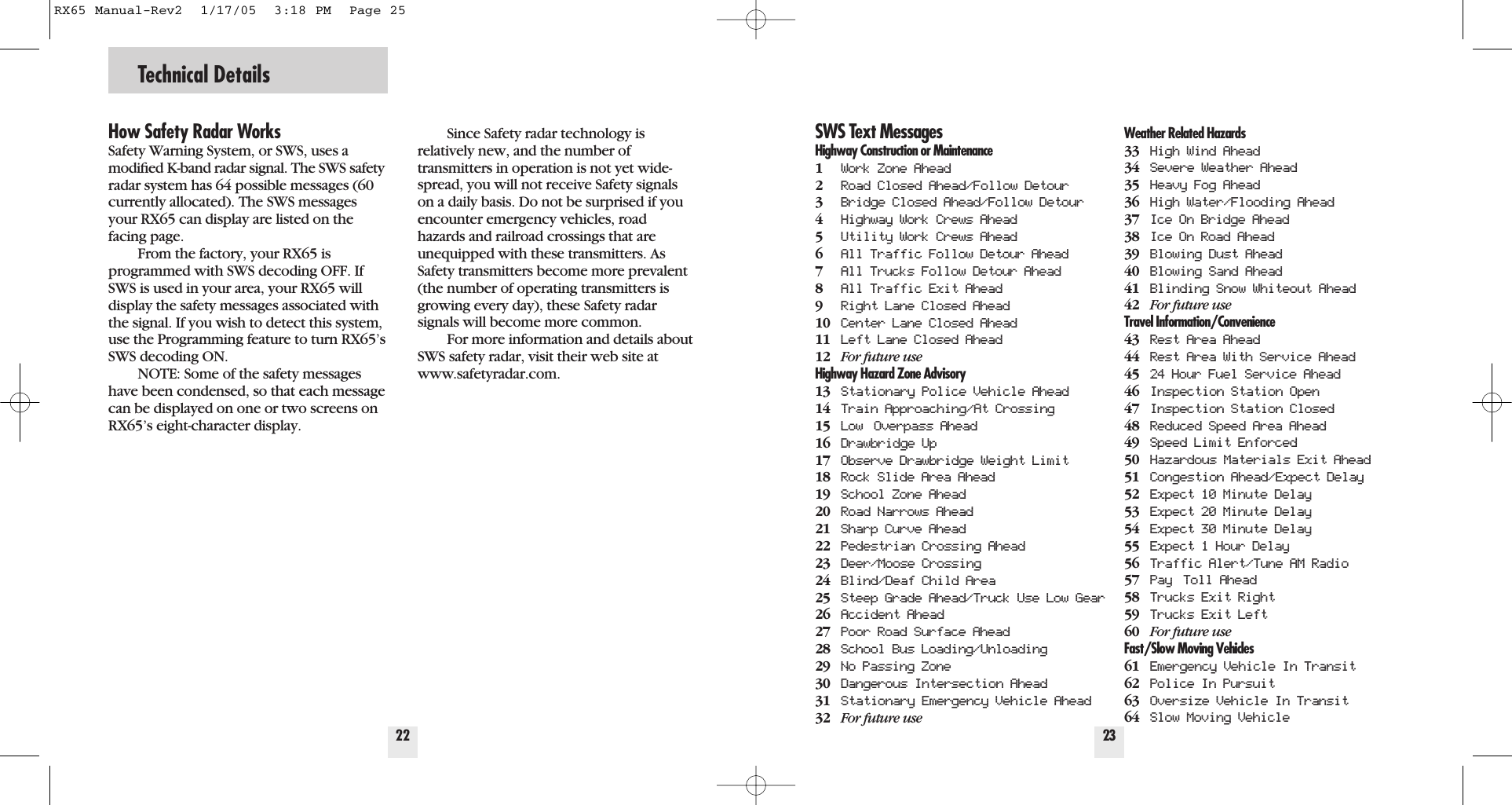

Technical Details22How Safety Radar WorksSafety Warning System, or SWS, uses a modified K-band radar signal. The SWS safetyradar system has 64 possible messages (60currently allocated). The SWS messagesyour RX65 can display are listed on thefacing page.From the factory, your RX65 isprogrammed with SWS decoding OFF. IfSWS is used in your area, your RX65 willdisplay the safety messages associated withthe signal. If you wish to detect this system,use the Programming feature to turn RX65’sSWS decoding ON.NOTE: Some of the safety messageshave been condensed, so that each messagecan be displayed on one or two screens onRX65’s eight-character display.Since Safety radar technology is relatively new, and the number of transmitters in operation is not yet wide-spread, you will not receive Safety signalson a daily basis. Do not be surprised if youencounter emergency vehicles, roadhazards and railroad crossings that areunequipped with these transmitters. AsSafety transmitters become more prevalent(the number of operating transmitters isgrowing every day), these Safety radarsignals will become more common.For more information and details aboutSWS safety radar, visit their web site atwww.safetyradar.com.23SWS Text MessagesHighway Construction or Maintenance1Work Zone Ahead2Road Closed Ahead/Follow Detour3Bridge Closed Ahead/Follow Detour4Highway Work Crews Ahead5Utility Work Crews Ahead6All Traffic Follow Detour Ahead7All Trucks Follow Detour Ahead8All Traffic Exit Ahead9Right Lane Closed Ahead10 Center Lane Closed Ahead11 Left Lane Closed Ahead12 For future useHighway Hazard Zone Advisory13 Stationary Police Vehicle Ahead14 Train Approaching/At Crossing15 Low Overpass Ahead16 Drawbridge Up17 Observe Drawbridge Weight Limit18 Rock Slide Area Ahead19 School Zone Ahead20 Road Narrows Ahead21 Sharp Curve Ahead22 Pedestrian Crossing Ahead23 Deer/Moose Crossing24 Blind/Deaf Child Area25 Steep Grade Ahead/Truck Use Low Gear26 Accident Ahead27 Poor Road Surface Ahead28 School Bus Loading/Unloading29 No Passing Zone30 Dangerous Intersection Ahead31 Stationary Emergency Vehicle Ahead32 For future useWeather Related Hazards33 High Wind Ahead34 Severe Weather Ahead35 Heavy Fog Ahead36 High Water/Flooding Ahead37 Ice On Bridge Ahead38 Ice On Road Ahead39 Blowing Dust Ahead40 Blowing Sand Ahead41 Blinding Snow Whiteout Ahead42 For future useTravel Information/Convenience43 Rest Area Ahead44 Rest Area With Service Ahead45 24 Hour Fuel Service Ahead46 Inspection Station Open47 Inspection Station Closed48 Reduced Speed Area Ahead49 Speed Limit Enforced50 Hazardous Materials Exit Ahead51 Congestion Ahead/Expect Delay52 Expect 10 Minute Delay53 Expect 20 Minute Delay54 Expect 30 Minute Delay55 Expect 1 Hour Delay56 Traffic Alert/Tune AM Radio57 Pay Toll Ahead58 Trucks Exit Right59 Trucks Exit Left60 For future useFast/Slow Moving Vehicles61 Emergency Vehicle In Transit62 Police In Pursuit63 Oversize Vehicle In Transit64 Slow Moving VehicleRX65 Manual-Rev2 1/17/05 3:18 PM Page 25

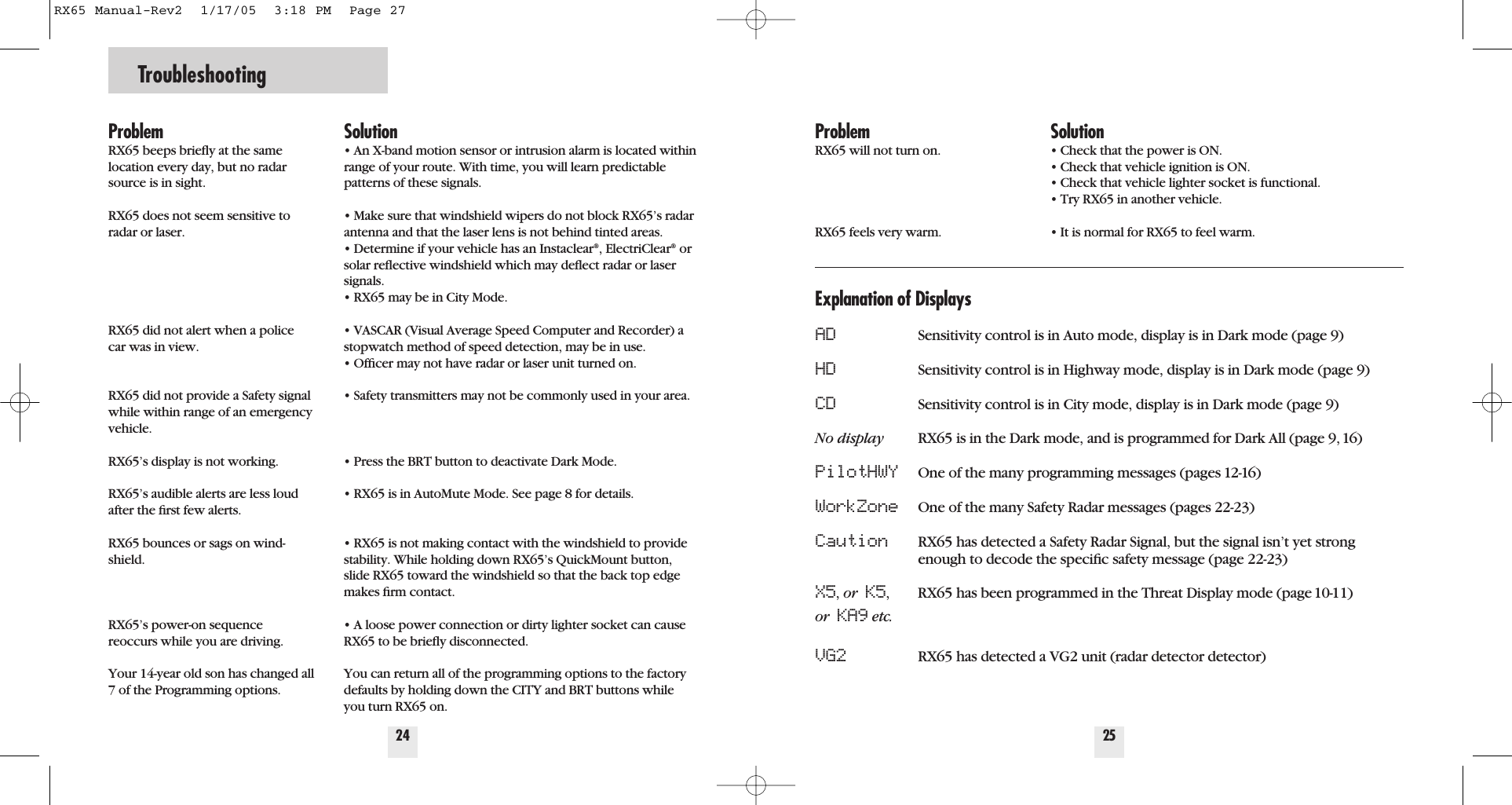

Troubleshooting24ProblemRX65 beeps briefly at the same location every day, but no radarsource is in sight.RX65 does not seem sensitive toradar or laser.RX65 did not alert when a policecar was in view.RX65 did not provide a Safety signalwhile within range of an emergencyvehicle.RX65’s display is not working.RX65’s audible alerts are less loudafter the first few alerts.RX65 bounces or sags on wind-shield.RX65’s power-on sequence reoccurs while you are driving. Your 14-year old son has changed all7 of the Programming options.Solution• An X-band motion sensor or intrusion alarm is located withinrange of your route. With time, you will learn predictablepatterns of these signals.• Make sure that windshield wipers do not block RX65’s radarantenna and that the laser lens is not behind tinted areas.• Determine if your vehicle has an Instaclear®, ElectriClear®orsolar reflective windshield which may deflect radar or lasersignals.• RX65 may be in City Mode.• VASCAR (Visual Average Speed Computer and Recorder) astopwatch method of speed detection, may be in use.• Officer may not have radar or laser unit turned on.• Safety transmitters may not be commonly used in your area.• Press the BRT button to deactivate Dark Mode.• RX65 is in AutoMute Mode. See page 8 for details.• RX65 is not making contact with the windshield to providestability. While holding down RX65’s QuickMount button,slide RX65 toward the windshield so that the back top edgemakes firm contact.• A loose power connection or dirty lighter socket can causeRX65 to be briefly disconnected.You can return all of the programming options to the factorydefaults by holding down the CITY and BRT buttons whileyou turn RX65 on.25ProblemRX65 will not turn on.RX65 feels very warm. Solution• Check that the power is ON.• Check that vehicle ignition is ON.• Check that vehicle lighter socket is functional.• Try RX65 in another vehicle.• It is normal for RX65 to feel warm.Explanation of DisplaysAD Sensitivity control is in Auto mode, display is in Dark mode (page 9)HD Sensitivity control is in Highway mode, display is in Dark mode (page 9)CD Sensitivity control is in City mode, display is in Dark mode (page 9)No display RX65 is in the Dark mode, and is programmed for Dark All (page 9, 16)PilotHWY One of the many programming messages (pages 12-16)WorkZone One of the many Safety Radar messages (pages 22-23)Caution RX65 has detected a Safety Radar Signal, but the signal isn’t yet strong enough to decode the specific safety message (page 22-23)X5, or K5, RX65 has been programmed in the Threat Display mode (page 10-11)or KA9 etc.VG2 RX65 has detected a VG2 unit (radar detector detector)RX65 Manual-Rev2 1/17/05 3:18 PM Page 27
Service26Service ProcedureIf your RX65 ever needs service, pleasefollow these simple steps:1Check the troubleshooting section ofthis manual. It may have a solution to yourproblem.2Call us at 1-800-341-2288. We may beable to solve your problem over the phone.If the problem requires that you send yourRX65 to the factory for repair, we willprovide you with a Service Order Number,which must be included on the outside ofyour shipping box. Enclose the following information with yourRX65:• Your Service Order Number• Your name and return address• Your daytime telephone number• A description of the problem you are experiencing.Out Of Warranty RepairsFor out of warranty repairs, include prepayment in the amount you werequoted by the Beltronics Customer ServiceRepresentative. If the detector has beendamaged, abused or modified, the repaircost will be calculated on a parts and laborbasis. If it exceeds the basic repair charge,you will be contacted with a quotation. Ifthe additional payment is not receivedwithin 30 days (or if you notify us that youchoose not to have your RX65 repaired atthe price quoted), your RX65 will bereturned, without repair. Payment can bemade by check, money order, or creditcard.Ship RX65 and Power Cord To: BELTRONICSCustomer Service DepartmentService Order Number ______________5442 West Chester RoadWest Chester, Ohio 45069For your own protection, we recommendthat you ship your RX65 postpaid andinsured. Insist on a proof of delivery, andkeep the receipt until the return of yourRX65.27Registeronline:@www.beltronicspro.comBELTRONICS PRODUCT REGISTRATION CARDIf you purchased your detector directly from BELTRONICS, you do not need to fill this out.If you did not purchase your detector directly from BELTRONICS, please fill out this section and return to us, or register online at our web address: www.beltronics.com. 1. First Name:___________________ Middle Initial____ Last Name__________________________Address______________________________________________________________________City_______________________________________ State_____________ ZIP______________Phone Number (In case we have a question)_____________________________________________2. Product Purchased________________________ Model___________ Serial Number___________3. Place of Purchase__________________________________ Date_________ Price____________4. Primary reason for purchasing this BELTRONICS product____________________________________________________________________________________________________________________________________________________________________________________________Remove card along perforations  RX65 Manual-Rev2 1/17/05 3:18 PM Page 29

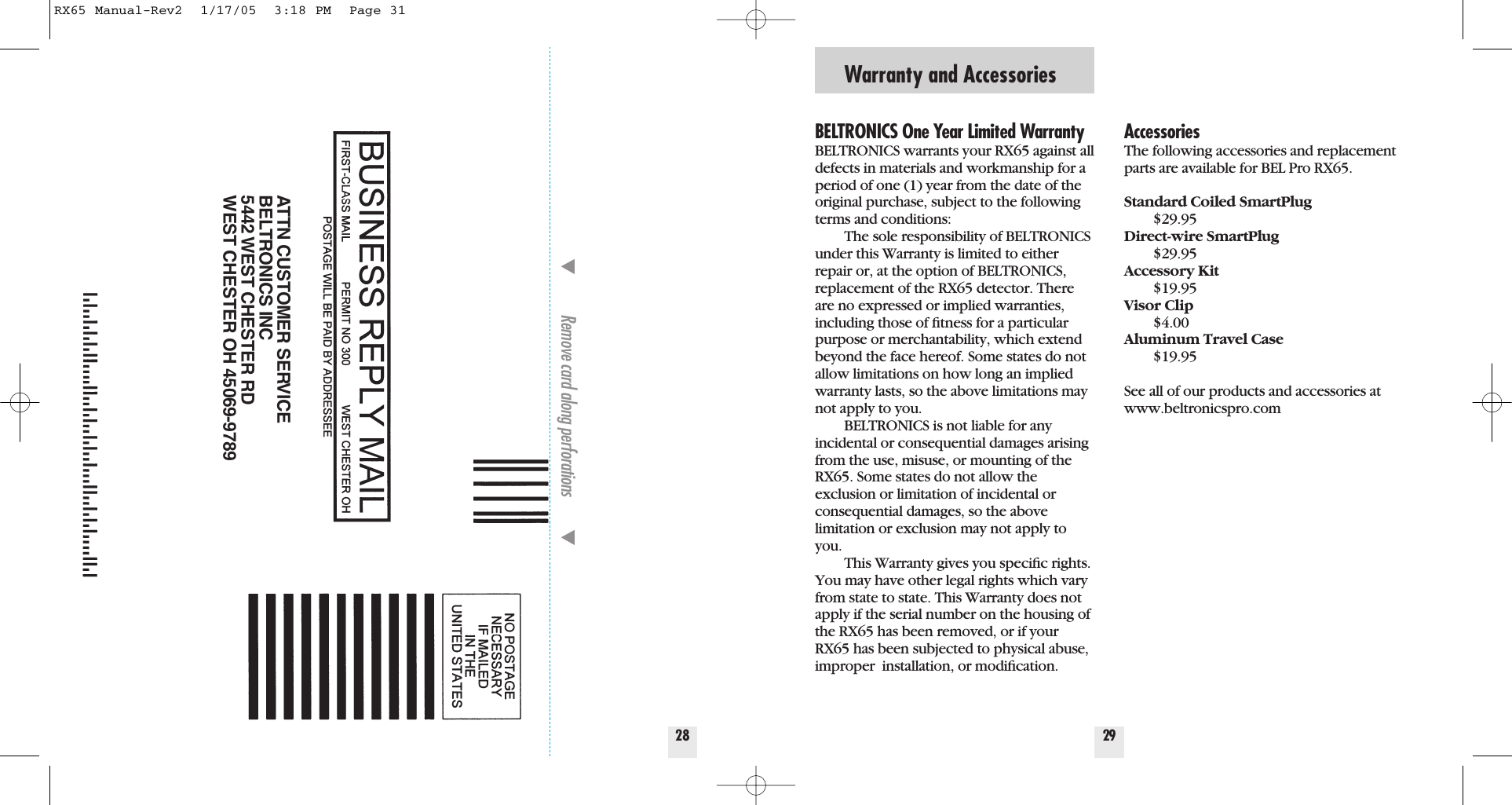

Warranty and Accessories29BELTRONICS One Year Limited WarrantyBELTRONICS warrants your RX65 against alldefects in materials and workmanship for aperiod of one (1) year from the date of theoriginal purchase, subject to the followingterms and conditions:The sole responsibility of BELTRONICSunder this Warranty is limited to eitherrepair or, at the option of BELTRONICS,replacement of the RX65 detector. Thereare no expressed or implied warranties,including those of fitness for a particularpurpose or merchantability, which extendbeyond the face hereof. Some states do notallow limitations on how long an impliedwarranty lasts, so the above limitations maynot apply to you.BELTRONICS is not liable for any incidental or consequential damages arisingfrom the use, misuse, or mounting of theRX65. Some states do not allow the exclusion or limitation of incidental orconsequential damages, so the above limitation or exclusion may not apply toyou.This Warranty gives you specific rights.You may have other legal rights which varyfrom state to state. This Warranty does notapply if the serial number on the housing ofthe RX65 has been removed, or if yourRX65 has been subjected to physical abuse,improper installation, or modification.AccessoriesThe following accessories and replacementparts are available for BEL Pro RX65.Standard Coiled SmartPlug$29.95Direct-wire SmartPlug$29.95Accessory Kit$19.95Visor Clip$4.00Aluminum Travel Case$19.95See all of our products and accessories atwww.beltronicspro.com28Remove card along perforations ATTN CUSTOMER SERVICEBELTRONICS INC5442 WEST CHESTER RDWEST CHESTER OH 45069-9789RX65 Manual-Rev2 1/17/05 3:18 PM Page 31
