Model: Vector V6 Owner’s Manual
RADAR AND LASER DETECTOR
VECTOR
![](asset-2.png)

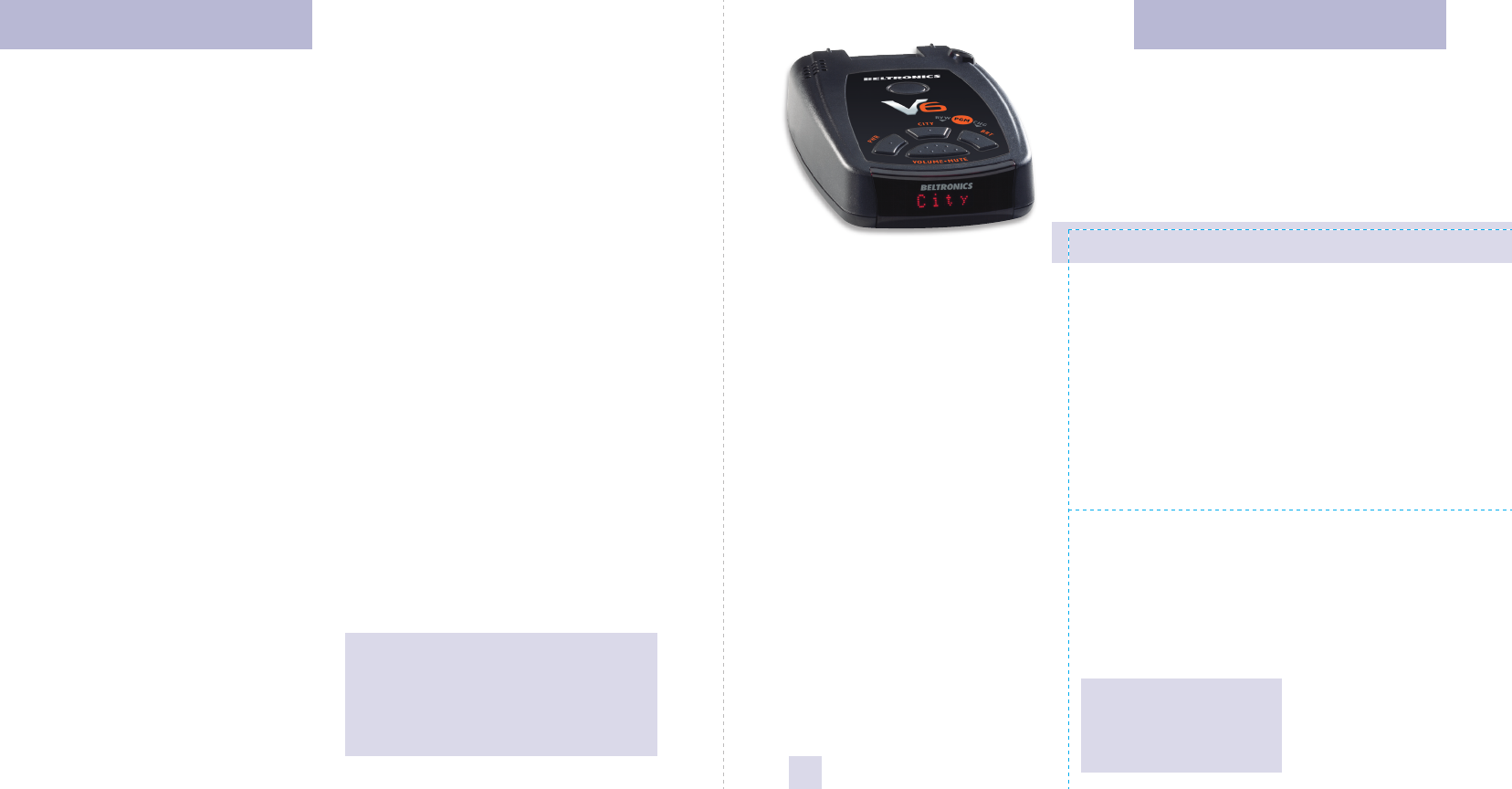

The Vector V6 is the most advanced radar,
laser and safety detector ever designed by
Beltronics.
The Vector V6 includes full X, K,
SuperWide Ka, and Safety Warning System
radar capability, front and rear laser
detection, varactor-tuned (VTO) microwave
receiver, digital signal processing (DSP) for
superior range and reduced false alarms,
our patented Mute and AutoMute, audible
and visual band alerts, and all the
performance you’d expect from Beltronics.
In addition, the Vector V6 introduces
the following revolutionary features:
• Varactor-tuned receiver provides
long-range protection against all
radar threats
• New easy-to-use Programming lets
you customize up to 6 features
• Ultra-bright text-display provides
easy to read information from any
angle
• Detects and decodes Safety Warning
System messages
If you’ve used a radar detector before,
are view of the Quick Reference Guide on
pages 4 and 5, and the Programming
information on pages 12 and 13 will
briefly explain the new features.
If this is your first detector, please read
the manual in detail to get the most out of
your V6’s outstanding performance and
innovative features.
Please drive safely.
Congratulations Quick Reference Card
Factory Default Settings
To reset your V6 to its original factory
settings, press and hold the “CITY” and
“BRT” buttons while turning the power
on. The V6’s display will provide a Reset
message, accompanied by an audible
alert, acknowledging the reset.
An example
Here is how you would turn the V6’s
AutoMute feature off.
1 Enter the Program Mode by holding
both the CITY and BRT buttons down for
2 seconds. The
V6 will beep twice and
display Program.
2 Then hold the RVW button down. V6
will scroll through the categories, starting
with Display (Pilot), then Voice (Voice),
then Power-On sequence (PwrOn), and
then AutoMute (aMute).
3 Release the RVW button when the V6
shows the AutoMute item. Since the
factory setting is for AutoMute to be on,
the V6 will display aMute ON.
If you accidentally don’t release the
Review button in time, and the V6 goes to
the next category, hold the RVW button
down again, and after the V6 scrolls
through all categories, it will begin again
at the top of the list.
4 Press the CHG button to change from
aMute ON to aMute OFF.
5 To complete the Programming, simply
wait 8 seconds without pressing any
button.
The V6 will display Complete, beep
4 times, and return to normal operation.
There are 6 user-selectable options so you
can customize your V6 for your own
preferences.
The buttons labeled CITY and BRT are
also used to enter the Program Mode,
REVIEW your current program settings,
and to CHANGE any settings as desired.
The words PGM, RVW and CHG are
located on the top of the detector, and are
highlighted in graphics.
How to use Programming
1 To enter Program Mode, press and
hold both CITY and BRT buttons down
for 2 seconds. The unit will beep twice,
and will display the word “Program”.
2 Then press the RVW button to review
the current settings. You can either tap
the button to change from item to item, or
hold the button to scroll through the items.
3 Press the CHG button to change any
setting. You can either tap the button to
change from setting to setting, or hold the
button to scroll through all the options.
4 To leave Program Mode, simply wait
8 seconds without pressing any
button. The unit will display Complete,
beep, and return to normal operation.
Beltronics V6 Quick Reference Card
Remove card along perforations
Remove card along perforations
Preferences Details
1
FCC Note:
Modifications not expressly approved
by the manufacturer could void the
user’s FCC granted authority to operate
the equipment.
![](asset-3.png)
Press the RVW button
to go from one
category to the next
PILOT
(Power-on indication)
VOICE
POWER-ON SEQUENCE
AUTOMUTE
CITY MODE SENSITIVITY
BANDS
Pilot HWY
Pilot H
Voice ON
Voice OFF
PwrOn STD
PwrOn FST
aMute ON
aMute OFF
City STD
City LoX
Bands DFT
Bands MOD
POP ON or OFF (default is off)
SWS ON or OFF (default is off)
TSR ON or OFF (default is off)
Press the CHG button
to change your setting
within a category
* Full word: Highway or City
Letter: H or C
* Voice alerts on
Voice alerts off
* Standard power-on sequence
Fast power-on sequence
* AutoMute on
AutoMute off
* Standard City mode sensitivity
Low X band sensitivity in City Mode
* Factory default settings
Factory default settings modified
Turn bands “ON” or “OFF” by
pressing VOLUME• MUTE button
Quick Reference Card
Beltronics V6 Quick Reference Card
* Factory Default Settings
Remove card along perforations
Remove card along perforations
2
Quick Reference Guide 4-5
Installation 6-7
• Power Connection 6
• Mounting Location 6
• Windshield Mount 7
Controls and Features 8-10
• Power and Volume Control 8
• Power-on indication 8
• Voice 8
• AutoMute 8
• Mute 8
• Highway / City Button 9
• Brightness and Dark Mode 9
• Audible Alerts 10
• Power Connector 10
• Signal Strength Meter 10
Programming 11-14
• How to use Programming 11
• Example of Programming 11
• Overview of Programming 12
• Details of Programming 13-14
Technical Details 15-21
• Specifications 15
• Interpreting Alerts 16-17
• How Radar Works 18
• How “POP” Works 18
• How Laser Works 19
• TSR Signal Ranking Software 20
• How Safety Radar Works 20-21
Service 22-28
• Troubleshooting 22-23
• Service 24
• Warranty and Accessories 25
• Registration 27-28
Table of Contents
3
![](asset-4.png)
To begin using your V6,
just follow these simple steps:
1 Plug the small end of the power cord
into the side jack of the detector, and
plug the large end of the power cord
into your car’s lighter socket.
2 Mount your V6 on the windshield
using the supplied windshield mount.
3 Press the PWR button, located top left,
to turn the V6 on.
4 Press and hold the Volume/Mute
button to adjust the volume.
Please read the manual to fully understand
your V6’s operation and features.

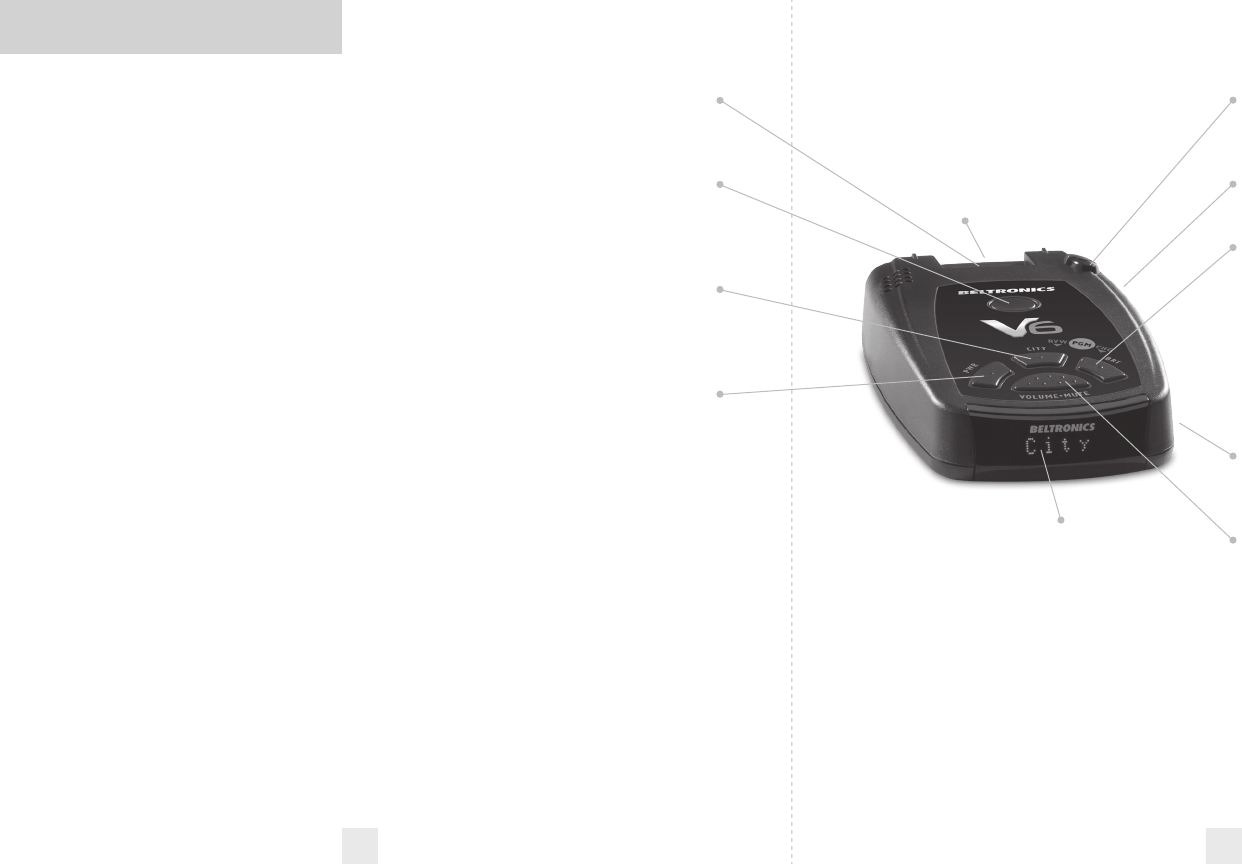

QuickMount Slot
Insert the V6’s adjustable Windshield
mount into this slot. Page 7
QuickMount Button
Press the button, and slide the Windshield
mount into one of its four locking
positions. Page 7
City Button
Switches between City and Highway
settings. In general, we recommend
Highway. Page 9
Power
Press the PWR button to turn the V6 on
or off.
AutoMute
Your V6’s patented AutoMute
automatically reduces the volume level of
the audio alert after a brief period. If you
prefer, you can turn AutoMute off. Page 8
Programming
Your V6 is ready to go, just plug it in and
turn it on. But you can also easily change 6
features for your preferences. Page 12-14
Quick Reference Guide
4
Radar Antenna and Laser Lens
The rear panel of your V6 should have
a clear view of the road ahead. For best
performance, do not mount the V6
directly behind windshield wipers
or tinted areas. Page 6
Alphanumeric Matrix Display
Your V6’s display will show Highway or
City as its power-on indication. If you
prefer, you can choose other power-on
indications. Page 12-14
During an alert, the display will
indicate radar band, and a precise bar graph
of signal strength. Page 10
NOTE: In the Dark Mode the display
will not light during an alert. Page 9
Rear Laser Port
Receives laser signals from behind the
vehicle.
Earphone Jack
Accepts standard mono 3.5mm earphone.
Brightness Button
Press to adjust display brightness. There are
three brightness settings, plus Dark Mode.
In the Dark Mode, the power-on
indication will be changed to a “HD” or
“CD” (indicating Highway Dark or City
Dark). In the Dark Mode, the V6’s meter
will not display during an alert, only the
audio will alert you. Page 9
Power Jack
Plug the power cord into this connector.
Page 6
Volume and Mute Button
Press and hold the Volume/Mute button to
adjust the alert volume level. Page 8
Briefly press this button to silence the
audio for a specific alert. (The audio will
alert you to the next encounter.) Page 8
5
![](asset-5.png)
Power Connection
To power your V6, plug the small end of the
power cord, (telephone-type connector)
into the modular jack on the V6’s right side,
and plug the lighter plug adapter into your
vehicle’s lighter socket or accessory socket.
Your V6 operates on 12 volts DC negative
ground only. The lighter plug provided is a
standard size and will work in most
vehicles. However, some vehicles may
require the optional European sleeve to
ensure a snug fit. If so, simply call our
service department to order one. This
sleeve slides over the lighter plug. Of
course, your lighter socket must be clean
and properly connected for proper
operation.
NOTE: Depending on your vehicle,
the lighter socket power may either be
continuously on, or it may be switched
on and off with your ignition switch.
Optional power cords
See the Accessories section for details on
our optional coiled SmartPlug or Direct-
wire power cords. Page 25
Mounting Location
WARNING: BELTRONICS cannot
anticipate the many ways the V6 can
be mounted. It is important that you
mount your V6 where it will not
impair your view nor present a
hazard in case of an accident.
Where to mount your V6
For optimum detection performance, we
recommend the following:
• Using the QuickMount bracket, mount
your V6 level, and high enough on your
front windshield to provide a clear view of
the road from the front and rear.
• Mount the V6 away from windshield
wipers, other solid objects, and heavily
tinted areas that might obstruct the radar
antenna or laser lens.
6
Installation
Windshield QuickMount

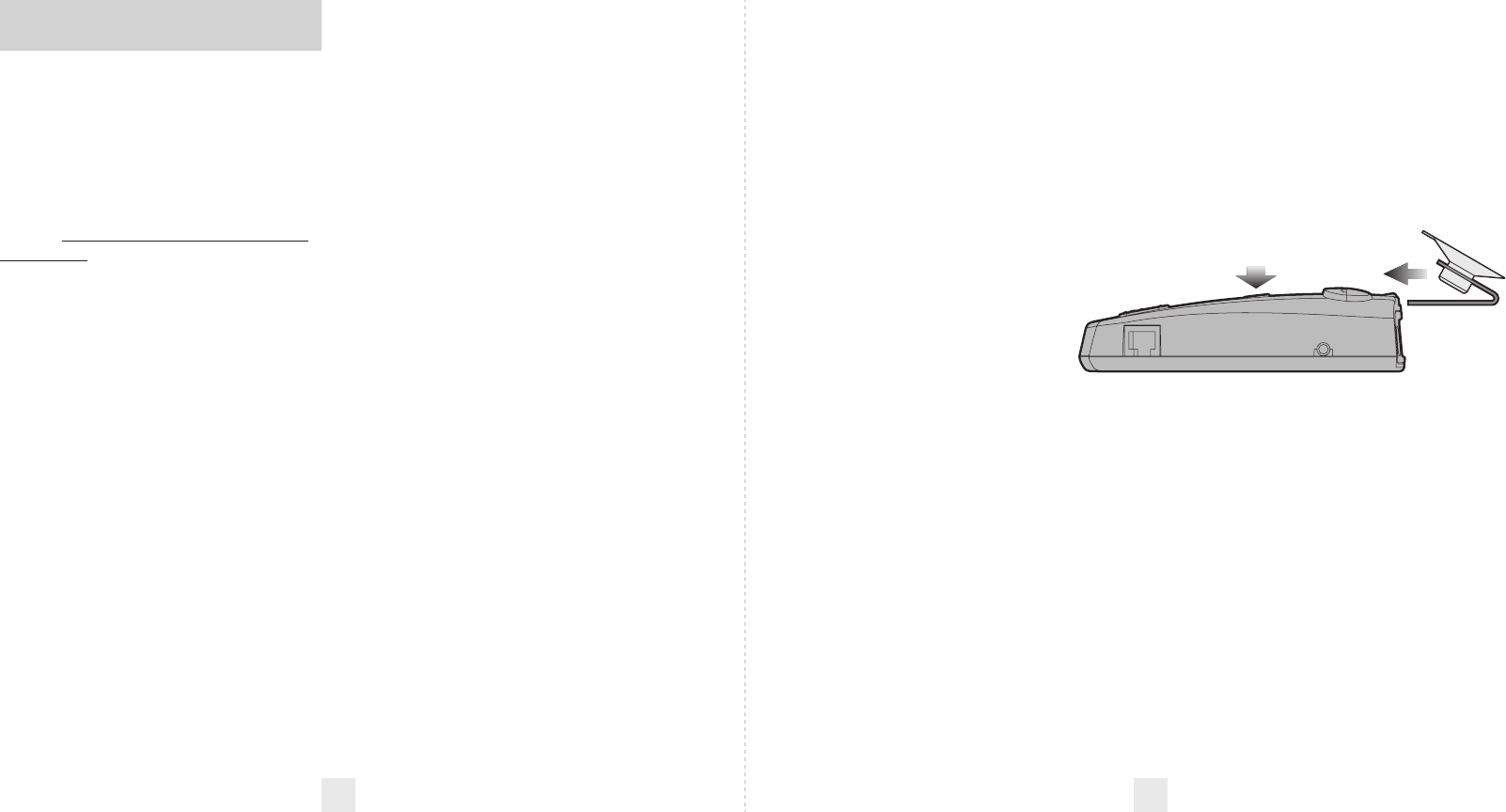

The V6’s QuickMount bracket is designed
for unobtrusive and hassle-free mounting.
1 Depress the QuickMount button on
the top of the V6 (by the word
BELTRONICS) and slide the QuickMount
bracket into the slot until it is locked into
the position which best fits the angle of
your windshield (there are four settings
available). For extremely horizontal
or extremely sloped windshields,
the QuickMount bracket can
be bent.
To ensure that the suction cups
adhere to the windshield firmly, be sure to
keep both your windshield and the suction
cups clean.
2 To adjust the V6 on your windshield,
use the QuickMount adjustment button
located on the top of the V6, and slide the
V6 forward or backward to obtain a level
horizontal position.
When installed and adjusted properly, the
back top edge of the V6 should rest solidly
against your windshield.
Caution!
A few vehicles (including some Porsches)
have windshields with a soft anti-lacerative
coating on the inside surface. Use of
suction cups will permanently mar this
coating. Consult your dealership or the
vehicle owner’s manual to determine if
your windshield has this coating.
User’s Tip
You can leave the QuickMount bracket in
place on your windshield, and easily remove
the V6 by pressing the adjustment button
and sliding the V6 off the mount. Again, be
sure to position the bracket where it won’t
present a hazard in the event of an
accident. Additional mounts are available.
7
![](asset-6.png)
Power
To turn your V6 on or off, press the PWR
button located on the top. When you turn
your V6 on, it goes through a sequence of
alerts.
If you prefer, you may program your V6
for a shorter power-on sequence. See the
Programming section for details.
Volume
Press and hold the Volume/Mute button
located on the top case to adjust the V6’s
alert volume level. The audio will ramp up
and down, accompanied by a bar-graph on
the display. Once you’ve reached your
preferred audio level, simply release the
button.
Power-on indication
After the V6’s start-up sequence is
complete, the alphanumeric display will
show Highway or City to indicate which
sensitivity mode is selected.
If you prefer, you can select alternate
power-on displays. See the Programming
section for details.
Voice Alerts
The V6 provides digital voice
announcements of radar and laser bands
detected. If Safety Radar (SWS) is turned on,
a safety radar message will also be
announced. See the Programming section
for details.
If you prefer, you can turn Voice Alerts
off. See Programming section for details.
AutoMute
Your V6 has our patented AutoMute feature.
After the V6 alerts you to a radar encounter
at the volume you have selected, the
AutoMute feature will automatically reduce
the volume to a lower level. This keeps you
informed without the annoyance of a
continuous full-volume alert.
If you prefer, you can turn the
AutoMute feature off. See the Programming
section for details.
Mute
The Mute button, located on the V6’s top
case, allows you to silence the audio alert
during a radar encounter.
To mute the audio for a single specific
signal, briefly press the Mute button. After
that radar encounter has passed, the mute
will automatically reset and the audio will
alert you to the next encounter.
Highway / City Button
The City button selects the V6’s sensitivity
mode. We recommend the Highway mode
for most driving.
When driving in urban areas where
annoying X-band intrusion alarms and door
openers are common, City mode can be
engaged to lower X-band sensitivity and
reduce X-band alerts. Full sensitivity is
maintained on all other bands. See the
Programming section for details.
Brightness
The V6’s BRT button selects the brightness
of your V6’s display. There are four settings:
Maximum, Medium, Minimum, and Dark.
Press the BRT button to select your
preferred brightness.
Dark Mode
When you select the Dark mode with the
BRT switch, your V6 changes to a very
inconspicuous power-on indication: a very
Dim HD or CD. (In this display, the H or C
indicates Highway or City, and the D
indicates Dark.)
When the V6 is in the Dark mode, the
display will not show visual alerts when V6
detects signals. Only the audible alert will
tell you of detected signals.
Controls and Features
8 9
![](asset-7.png)
Power Connector
The V6’s power jack uses a telephone-type
connector. This 4-conductor connector
only works with the included power cord,
optional direct-wire, or SmartPlug cord.
For more information or to order, call
us toll-free at 1-800-341-2288.
Signal Strength Meter
Your V6’s alphanumeric display consists of
280 individual LEDs, to provide an
intuitive ultra-bright display of signal
strength and text messages.
The V6’s standard bar-graph signal
strength meter only displays information
on a single radar signal. If there are multiple
signals present, the V6’s internal computer
determines which is the most important
threat to show on the bar-graph meter.
When your V6 detects radar, it displays
the band (X, K, or Ka), and a precise bar-
graph of the signal strength. When your V6
detects a laser signal, the display will show
“LASER.”
NOTE: If you are operating the V6
in the Dark mode, the display will not
light when a signal is detected, only
the audio will be heard.
Audible Alerts
For Radar signals:
Your V6 uses a Geiger-counter-like
sound to indicate the signal strength and
type of radar signal being encountered.
When you encounter radar, a distinct
audible alert will sound and occur faster as
the signal gets stronger. This allows you to
judge the distance from the signal source
without taking your eyes from the road.
Each band has a distinct tone for easy
identification.
X-band = chirping
K-band = buzzing
Ka-band = double-chirp
POP = full double-chirp
For Laser and POP signals:
Since laser and POP signals (if turned
on) are a possible threat no matter how
weak, the V6 alerts you to these bands at
full strength.
For Safety signals:
Your V6 will alert you to these signals
with a double-beep tone, and a
corresponding text message. A complete
listing of the text messages is on page 21.
There are 6 user-selectable options so you
can customize your V6 for your own
preferences. The buttons labeled CITY and
BRT are also used to enter the Program
Mode, REVIEW your current program
settings, and to CHANGE any settings as
desired. The words PGM, RVW, and CHG are
located on the top of the detector, and are
highlighted in colored graphics. Pages 13-
14 explain each option in more detail.
How to use Programming
1 To enter Program Mode, press and
hold both the CITY and BRT buttons
down for 2 seconds. The unit will beep
twice, and will display the word Program.
2 Then press the RVW button to
review the current settings. You can
either tap the button to change from item
to item, or hold the button to scroll through
the items.
3 Press the CHG button to change
any setting. You can either tap the button
to change from setting to setting, or hold
the button to scroll through all the options.
4 To leave the Program Mode,
simply wait 8 seconds without
pressing any button, or press the PWR
button. The unit will display Complete,
beep 4 times, and return to normal
operation.
An example
Here is how you would turn your V6’s
AutoMute feature off.
1 Enter the Program Mode by holding
both the CITY and BRT buttons down for
2 seconds. The V6 will beep twice and
display Program.
2 Then hold the RVW button down. The
V6 will scroll through the categories,
starting with Pilot (Pilot), Voice
(Voice), Power-on sequence (PwrOn),
and then AutoMute (aMute).
3 Release the RVW button when the V6
shows the AutoMute item. Since the factory
setting is for AutoMute to be on, the V6
will display aMute ON.
If you accidentally don’t release the
RVW button in time, and the V6 goes to
the next category, hold the RVW button
down again, and after your V6 scrolls
through all categories, it will begin again
at the top of the list.
4 Press the CHG button to change from
aMute ON to aMute OFF.
5 To complete the Programming, simply
wait 8 seconds without pressing any
button, or press the PWR button. The V6
will display Complete, beep 4 times, and
return to normal operation.
Controls and Features
10 11
Programming
![](asset-8.png)
Pilot HWY
Pilot H
Voice ON
Voice OFF
PwrOn STD
PwrOn FST
aMute ON
aMute OFF
City STD
City LoX
Bands DFT
Bands MOD
POP ON or OFF (default is off)
SWS ON or OFF (default is off)
TSR ON or OFF (default is off)
Press the CHANGE button
to change your setting
within a category
* Full word: Highway or City
Letter: H or C
* Voice alerts on
Voice alerts off
* Standard power-on sequence
Fast power-on sequence
* AutoMute on
AutoMute off
* Standard City mode sensitivity
Low X band sensitivity in City Mode
* Factory default settings
Factory default settings modified
Turn bands “ON” or “OFF” by
pressing the VOLUME•MUTE button
Press the REVIEW button
to go from one
category to the next
PILOT
(Power-on indication)
VOICE
POWER-ON SEQUENCE
AUTOMUTE
CITY MODE SENSITIVITY
BANDS
* Factory Default Settings
To reset your V6 to its original
factory settings, press and hold
the “CITY” and “BRT” buttons
while turning the power on. The
V6’s display will provide a
Reset message, accompanied
by an audible alert,
acknowledging the reset.
Pilot (Power-on indication)
NOTE: When you are using the
Dark mode, the display will only show
HD or CD (Highway-Dark or City-
Dark).
Pilot HWY (Full description)
In this setting, your V6 will display
“Highway” or “City” as its power-on
indication. (factory default)
Pilot H (Letter)
In this setting, your V6 will display “H” for
Highway and “C” for City.
Voice
Voice On (Voice announcements on)
In this setting, all radar, laser, and SWS
messages (if programmed) will be
announced using a digital voice.
Voice Off (Voice announcements off)
In this setting, only the distinct audio tone
will be heard when a radar, Laser, or SWS
message is detected.
Power-on Sequence
PwrOnSTD (Standard)
In this setting, each time you turn on your
V6, it will display “BEL V6,” “Laser,” “Ka-band,”
“K-band,” “X-band,” “Safety,” followed by a
brief X-band alert. (factory default)
If any bands have been changed from
the factory default settings, a double X-band
tone and corresponding message
(i.e. “SWS ON”), will alert you that one or
more bands have been changed.
PwrOnFST (Fast power-on)
In this setting, your V6 will provide a single
X-band tone. If any bands have been
changed from the factory default settings, a
double X-band tone and corresponding
message (i.e. “SWS ON”), will alert you that
one or more bands have been changed.
AutoMute
aMute ON (AutoMute on)
In this setting, your V6’s audio alerts will
initially be at the volume you set, but after a
few seconds, the V6 will automatically
reduce the volume level, to keep you
informed, but not annoyed. (factory default)
aMuteOFF (AutoMute off)
With AutoMute off, your V6’s audio alerts
will remain at the volume you set for the
duration of the radar encounter.
12 13
Overview of Programming Details of Programming
![](asset-9.png)
City Mode Sensitivity
City STD (Standard)
In this setting, when you put your V6 in the
City mode, X-band sensitivity is significantly
reduced, to reduce annoyance from X-band
intrusion alarms and motion sensors.
(factory default)
City LoX (Low X band sensitivity)
In this setting, when you put your V6 in the
City mode, X-band sensitivity is reduced
more than the standard setting. This will
reduce X-band alarms from other sources
even further, but also significantly reduces
range to X-band traffic radar.
Bands
BandsDFT
In this setting, all North American radar and
laser frequencies are monitored. This is the
factory setting and it is recommended that
you use your V6 in this mode.
BandsMOD
In this setting, your V6 will warn you with
an audible alert, and associated text
message stating which band has changed
from the original factory setting (i.e. “SWS
ON”). This warning is displayed during the
start up sequence (standard or fast).
Features and Specifications
Operating Bands
• X-band 10.525 GHz ± 25 MHz
• K-band 24.150 GHz ± 100 MHz
• Ka-band 34.700 GHz ± 1300 MHz
• Laser 904nm, 33 MHz bandwidth
Radar Receiver / Detector Type
• Superheterodyne, VTO
• Scanning Frequency Discriminator
• Digital Signal Processing (DSP)
Laser Detection
• Quantum Limited Video Receiver
• Multiple Laser Sensor Diodes
Display Type
• 280 LED Alphanumeric
• Bar Graph
• 3 Levels of Brightness, plus Dark Mode
Power Requirement
• 12VDC, Negative Ground
• Power cord (included)
Programmable Features
• Power-On Indication
• Voice Alerts
• Power-On Sequence
• AutoMute
• City Mode Sensitivity
• Bands
Sensitivity Control
• Highway, and City
Auto Calibration Circuitry
VG2 Immunity
Dimensions (Inches)
• 1.25 H x 2.75 W x 4.75 L
Patented Technology
Product is covered by one or more of the
following U.S. patents:
7,576,679 7,397,416 7,388,537 7,098,844
6,836,238 6,779,765 6,693,578 6,670,905
6,614,385 6,587,068 6,400,305 6,249,218
6,127,962 6,069,580 5,668,554 5,600,132
5,587,916 5,559,508 5,446,923 5,402,087
5,365,055 5,347,120 5,305,007 5,206,500
5,164,729 5,134,406 5,111,207 5,079,553
5,049,885 5,049,884 4,961,074 4,954,828
4,952,937 4,952,936 4,939,521 4,896,855
4,887,753 4,862,175 4,750,215 4,686,499
4,631,542 4,630,054 4,625,210 4,613,989
4,604,529 4,583,057 4,581,769 4,571,593
4,313,216 D314,178 D313,365 D310,167
D308,837 D296,771 D288,418 D253,752
Canadian patents:
2,381,585 2,337,077 2,330,964 1,295,715
1,295,714 1,187,602 1,187,586
European patents:
1,145,030 1,090,456
Other Patents Pending.
14 15
Details of Programming Technical Details
![](asset-a.png)
Interpreting Alerts
Although the V6 has a comprehensive
warning system and this handbook is as
complete as we can make it, only
experience will teach you what to expect
from your V6 and how to interpret what it
tells you. The specific type of radar being
used, the type of transmission (continuous
or instant-on) and the location of the radar
source affect the radar alerts you receive.
The following examples will give you
an introduction to understanding the your
V6’s warning system for radar, laser and
safety alerts.
Explanation
You are approaching a continuous radar
source aimed in your direction.
An instant-on radar source is being used
ahead of you and out of your view.
An instant-on radar source or laser source is
being used nearby. This kind of alert requires
immediate attention!
Laser is being used in the area. Because laser is
inherently difficult to detect, any laser alert
may indicate a source very close by.
A moving patrol car with continuous radar is
overtaking you from behind. Because these
signals are reflected (reflections are increased
by large objects), they may or may not
eventually melt into a solid point even when
the patrol car is directly behind you.
Alert
The V6 begins to sound slowly, then the rate
of alert increases. The Signal Meter ramps
accordingly.
The V6 emits short alerts for a few seconds
and then falls silent only to briefly alert and
fall silent again.
The V6 suddenly sounds a continuous tone
for the appropriate band received. All
segments in the Signal Strength Meter are lit.
A brief laser alert.
The V6 receives weak signals. These signals
may be a little stronger as you pass large,
roadside objects. The signals increase in
frequency.
Explanation
You are approaching a radar unit concealed
by a hill or an obstructed curve.
A patrol car is traveling in front of you with a
radar source aimed forward. Because signals
are sometimes reflected off of large objects
and sometimes not, the alerts may seem
inconsistent.
A patrol car is approaching from the other
direction, sampling traffic with instant-on
radar. Such alerts should be taken seriously.
You are driving through an area populated
with radar motion sensors (door openers,
burglar alarms, etc.). Since these transmitters
are usually contained inside buildings or
aimed toward OR away from you, they are
typically not as strong or lasting as a real radar
encounter.
CAUTION: Since the characteristics
of these alerts may be similar to some of
the preceding examples, overconfidence
in an unfamiliar area can be dangerous.
Likewise, if an alert in a commonly
traveled area is suddenly stronger or on
a different band than usual, speed radar
may be set up nearby.
Alert
The V6 alerts slowly for a while and then
abruptly jumps to a strong alert.
The V6 alerts intermittently. Rate and strength
of alerts may be inconsistent or vary wildly.
The V6 alerts intermittently. Rate and strength
of signal increases with each alert.
The V6 gives an X-band, or K-band alert
intermittently.
16 17
Technical Details
![](asset-b.png)
How Radar Works
Traffic radar, which consists of microwaves,
travels in straight lines and is easily
reflected by objects such as cars, trucks,
even guardrails and overpasses. Radar
works by directing its microwave beam
down the road. As your vehicle travels into
range, the microwave beam bounces off
your car, and the radar antenna looks for
the reflections. Using the Doppler Principle,
the radar equipment then calculates your
speed by comparing the frequency of the
reflection of your car to the original
frequency of the beam sent out.
Traffic radar has limitations, the most
significant of these being that it typically
can monitor only one target at a time. If
there is more than one vehicle within
range, it is up to the radar operator to
decide which target is producing the
strongest reflection. Since the strength of
the reflection is affected by both the size of
the vehicle and its proximity to the
antenna, it is difficult for the radar operator
to determine if the signal is from a sports
car nearby or a semi-truck several hundred
feet away.
Radar range also depends on the
power of the radar equipment itself. The
strength of the radar unit’s beam
diminishes with distance. The farther the
radar has to travel, the less energy it has for
speed detection.
Because intrusion alarms and motion
sensors often operate on the same
frequency as radar, your V6 will
occasionally receive non-police radar
signals. Since these transmitters are usually
contained inside of a building, or aimed
toward the ground, they will generally
produce much weaker readings than will a
true radar encounter. As you become
familiar with the sources of these pseudo
alarms in your daily driving, they will serve
as confirmation that your V6’s radar
detection abilities are fully operational.
How “POP” Works
“POP” mode is a relatively new feature for
radar gun manufacturers. It works by
transmitting an extremely short burst,
within the allocated band, to identify
speeding vehicles in traffic. Once the target
is identified, or “POPPED,” the gun is then
turned to its normal operating mode to
provide a vehicle tracking history, (required
by law).
How Laser (Lidar) Works
Laser speed detection is actually LIDAR
(Light Detection and Ranging). LIDAR guns
project a beam of invisible infrared light.
The signal is a series of very short infrared
light energy pulses, which move, in a
straight line, reflecting off your car and
returning to the gun. LIDAR uses these light
pulses to measure the distance to a vehicle.
Speed is then calculated by measuring how
quickly these pulses are reflected given the
known speed of light.
LIDAR (or laser) is a newer technology
and is not as widespread as conventional
radar, therefore, you may not encounter
laser on a daily basis. And unlike radar
detection, laser detection is not prone to
false alarms. Because LIDAR transmits a
much narrower beam than does radar, it is
much more accurate in its ability to
distinguish between targets and is also
more difficult to detect. AS A RESULT,
EVEN THE BRIEFEST LASER ALERT
SHOULD BE TAKEN SERIOUSLY.
There are limitations to LIDAR
equipment. LIDAR is much more sensitive
to weather conditions than RADAR, and a
LIDAR gun’s range will be decreased by
anything affecting visibility such as rain, fog,
or smoke. A LIDAR gun cannot operate
through glass and it must be stationary in
order to get an accurate reading. Because
LIDAR must have a clear line of sight and is
subject to cosine error (an inaccuracy,
which increases as the angle between the
gun and the vehicle, increases) police
typically use LIDAR equipment parallel to
the road or from an overpass. LIDAR can be
used day or night.
18 19
Technical Details
![](asset-c.png)
How Safety Radar Works
Safety Warning System, or SWS, uses a
modified K-band radar signal. The SWS safety
radar system has 64 possible messages (60
currently allocated). The SWS messages
your V6 can display are listed on the facing
page.
From the factory, your V6 is
programmed with SWS decoding OFF. If
SWS is used in your area, your V6 will
display the safety messages associated with
the signal. If you wish to detect this system,
use the Programming feature to turn the
V6’s SWS decoding ON.
NOTE: Some of the safety
messages have been condensed, so
that each message can be displayed
on one or two screens on the V6’s
eight-character display.
Since Safety radar technology is
relatively new, and the number of
transmitters in operation is not yet
widespread, you will not receive Safety
signals on a daily basis. Do not be surprised
if you encounter emergency vehicles, road
hazards and railroad crossings that are
unequipped with these transmitters. As
Safety transmitters become more prevalent
(the number of operating transmitters is
growing every day), these Safety radar
signals will become more common.
SWS Text Messages
Highway Construction or Maintenance
1 Work Zone Ahead
2 Road Closed Ahead/Follow Detour
3 Bridge Closed Ahead/Follow Detour
4 Highway Work Crews Ahead
5 Utility Work Crews Ahead
6 All Traffic Follow Detour Ahead
7 All Trucks Follow Detour Ahead
8 All Traffic Exit Ahead
9 Right Lane Closed Ahead
10 Center Lane Closed Ahead
11 Left Lane Closed Ahead
12 For future use
Highway Hazard Zone Advisory
13 Stationary Police Vehicle Ahead
14 Train Approaching/At Crossing
15 Low Overpass Ahead
16 Drawbridge Up
17 Observe Drawbridge Weight Limit
18 Rock Slide Area Ahead
19 School Zone Ahead
20 Road Narrows Ahead
21 Sharp Curve Ahead
22 Pedestrian Crossing Ahead
23 Deer/Moose Crossing
24 Blind/Deaf Child Area
25 Steep Grade Ahead/Truck Use Low Gear
26 Accident Ahead
27 Poor Road Surface Ahead
28 School Bus Loading/Unloading
29 No Passing Zone
30 Dangerous Intersection Ahead
31 Stationary Emergency Vehicle Ahead
32 For future use
Weather Related Hazards
33 High Wind Ahead
34 Severe Weather Ahead
35 Heavy Fog Ahead
36 High Water/Flooding Ahead
37 Ice On Bridge Ahead
38 Ice On Road Ahead
39 Blowing Dust Ahead
40 Blowing Sand Ahead
41 Blinding Snow Whiteout Ahead
42 For future use
Travel Information/Convenience
43 Rest Area Ahead
44 Rest Area With Service Ahead
45 24 Hour Fuel Service Ahead
46 Inspection Station Open
47 Inspection Station Closed
48 Reduced Speed Area Ahead
49 Speed Limit Enforced
50 Hazardous Materials Exit Ahead
51 Congestion Ahead/Expect Delay
52 Expect 10 Minute Delay
53 Expect 20 Minute Delay
54 Expect 30 Minute Delay
55 Expect 1 Hour Delay
56 Traffic Alert/Tune AM Radio
57 Pay Toll Ahead
58 Trucks Exit Right
59 Trucks Exit Left
60 For future use
Fast/Slow Moving Vehicles
61 Emergency Vehicle In Transit
62 Police In Pursuit
63 Oversize Vehicle In Transit
64 Slow Moving Vehicle
20 21
Technical Details
TSR Signal Ranking Software
Your radar detector includes a new
optional boost in anti-falsing software to
eliminate excessive alerts from erroneous X
and K-band sources. One example of this is
traffic flow monitoring systems. These
systems, which are becoming more widely
used in several countries, generate K-band
signals to measure the flow of traffic on a
given road. Unfortunately most detectors
see this as a real threat and will
alert you to it unnecessarily. Our
new proprietary software (TSR),
intelligently sorts, ranks and rejects this
type of false alarm automatically. The result
is ultimate protection without excessive
false alarms.
The TSR software is set up as an option
and can be activated through the
Programming section. We suggest you turn
TSR on if you are experiencing extreme
false alerts in your area. If not, your detector
is ready to start protecting you right out of
the box.
If you have any questions about this
new feature, please give us a call or visit our
website for more details.
![](asset-d.png)
Problem
The V6 beeps briefly at the same
location every day, but no radar
source is in sight.
The V6 does not seem sensitive to
radar or laser.
The V6 did not alert when a police
car was in view.
The V6 did not provide a Safety
signal while within range of an
emergency vehicle.
The V6’s display is not working.
The V6’s audible alerts are less loud
after the first few alerts.
The V6 bounces or sags on
windshield.
The V6’s power-on sequence
reoccurs while you are driving.
Solution
• An X or K-band motion sensor or intrusion alarm is located
within range of your route. With time, you will learn
predictable patterns of these signals.
• Make sure that windshield wipers do not block your V6’s
radar antenna and that the laser lens is not behind tinted
areas.
• Determine if your vehicle has an Instaclear®, ElectriClear®
or solar reflective windshield which may deflect radar or laser
signals.
• Your V6 may be in City Mode.
• VASCAR (Visual Average Speed Computer and Recorder) a
stopwatch method of speed detection, may be in use.
• Officer may not have radar or laser unit turned on.
• Safety transmitters may not be commonly used in your area.
• Press the BRT button to deactivate Dark Mode.
• The V6 is in AutoMute Mode. See page 8 for details.
• The V6 is not making contact with the windshield to
provide stability. While holding down the V6’s QuickMount
button, slide the V6 toward the windshield so that the back
top edge makes firm contact.
• A loose power connection or dirty lighter socket can cause
the V6 to be briefly disconnected.
Problem
Your 14-year old son has changed
all 6 of the Programming options.
The V6 will not turn on.
The V6 feels very warm.
Solution
• You can return all of the programming options to the
factory defaults by holding down the CITY and BRT buttons
while you turn the V6 on.
• Check that the power is ON.
• Check that vehicle ignition is ON.
• Check that vehicle lighter socket is functional.
• Try the V6 in another vehicle.
• It is normal for the V6 to feel warm.
Explanation of Displays
HD Sensitivity control is in Highway mode, display is in Dark mode (page 9)
CD Sensitivity control is in City mode, display is in Dark mode (page 9)
No display The V6 is in the Dark mode (page 9)
PilotHWY One of the many programming messages (pages 11-14)
WorkZone One of the many Safety Radar messages (pages 20-21)
Caution The V6 has detected a Safety Radar Signal, but the signal isn’t yet strong
enough to decode the specific safety message (page 20-21)
Self Cal The V6 is running a self-calibration test
Service The V6 has failed the calibration test. Contact Beltronics for repair
Required
22 23
Troubleshooting
![](asset-e.png)
Service Procedure
If your V6 ever needs service, please follow
these simple steps:
1 Check the troubleshooting section of
this manual. It may have a solution to your
problem.
2 Call us at 1-800-341-2288. We may be
able to solve your problem over the phone.
If the problem requires that you send your
V6 to the factory for repair, we will provide
you with a Service Order Number, which
must be included on the outside of your
shipping box.
Enclose the following information with
your V6:
• Your Service Order Number
• Your name and return address
• Your daytime telephone number
• A description of the problem you are
experiencing
• Copy of original purchase receipt
Beltronics Extended Service Plan
Beltronics offers an optional extended
service plan. Call Beltronics for details at
1-800-341-2288
Out Of Warranty Repairs
For out of warranty repairs, include
prepayment in the amount you were
quoted by the Beltronics Customer Service
Representative. If the detector has been
damaged, abused or modified, the repair
cost will be calculated on a parts and labor
basis. If it exceeds the basic repair charge,
you will be contacted with a quotation. If
the additional payment is not received
within 30 days (or if you notify us that you
choose not to have your V6 repaired at the
price quoted), your V6 will be returned,
without repair. Payment can be made by
check, money order, or credit card.
Ship your V6 and power cord to:
BELTRONICS
Customer Service Department
Service Order Number ______________
5442 West Chester Road
West Chester OH 45069
For your own protection, we recommend
that you ship your V6 postpaid and insured.
Insist on a proof of delivery, and keep the
receipt until the return of your V6.
BELTRONICS
One Year Limited Warranty
What this warranty covers: BELTRONICS
warrants your Product against all defects in
materials and workmanship.
For how long: One (1) year from the date of
the original purchase.
What we will do: BELTRONICS, at our
discretion, will either repair or replace your
Product free of charge.
What we will not do: BELTRONICS will not
pay shipping charges that you incur for sending
your product to us.
What you must do to maintain this
warranty: Show original proof of purchase
from an authorized BELTRONICS dealer.
Warranty Exclusions: Warranty does not
apply to your product under any of the
following conditions: 1. The serial number has
been removed or modified. 2. Your product has
been subjected to misuse or damage (including
water damage, physical abuse, and/or improper
installation). 3. Your product has been modified
in any way. 4. Your receipt or proof-of-purchase
is from a non-authorized dealer or internet
auction site including E-bay, U-bid, or other non-
authorized resellers.
To obtain service: 1. Contact BELTRONICS (1-
800-341-2288) to obtain a Return Authorization
number. 2. Properly pack your product and
include: your name, complete return address,
written description of the problem with your
product, daytime telephone number, and a
copy of the original purchase receipt. 3. Label
the outside of the package clearly with your
Return Authorization number. Ship the product
pre-paid (insured, for your protection) to:
Beltronics Inc, 5442 West Chester Rd., West
Chester, OH 45069.
LIMITATION OF WARRANTY: EXCEPT AS
EXPRESSLY PROVIDED HEREIN, YOU ARE
ACQUIRING THE PRODUCT “AS IS” AND
“WHERE IS,” WITHOUT REPRESENTATION OR
WARRANTY. BELTRONICS SPECIFICALLY
DISCLAIMS ANY REPRESENTATION OR
WARRANTY INCLUDING, BUT NOT LIMITED
TO THOSE CONCERNING THE MERCHANT-
ABILITY AND SUITABILITY OF THE PRODUCT
FOR A PARTICULAR PURPOSE. BELTRONICS
SHALL NOT BE LIABLE FOR CONSEQUENTIAL,
SPECIAL OR INCIDENTAL DAMAGES
INCLUDING, WITHOUT LIMITATION,
DAMAGES ARISING OUT OF THE USE, MISUSE
OR MOUNTING OF THE PRODUCT.
The above limitations or exclusions shall be
limited to the extent they violate the laws of
any particular state. BELTRONICS is not
responsible for products lost in shipment
between the owner and our service center.
Other legal rights: This Warranty gives you
specific rights. You may have other legal rights,
which vary, from state to state.
Accessories
The following accessories and replacement
parts are available for Beltronics V6.
Coiled SmartPlug $29.95
Direct-wire SmartPlug $29.95
Standard Coiled Power Cord $14.95
Direct-wire Power Cord $14.95
Detector Accessory Kit $14.95
Windshield Suction Cups Mount $9.95
Single Cup Windshield Mount $19.95
Features, specifications and prices are
subject to change without notice.
24
Service
25
Warranty and Accessories
![](asset-f.png)
27
Register
online:
@
www.
beltronics
.com
BELTRONICS PRODUCT REGISTRATION CARD
If you purchased your detector directly from BELTRONICS, you do not need to fill this out.
If you did not purchase your detector directly from BELTRONICS, please fill out this section and return to us,
or register online at our web address: www.beltronics.com.
1. First Name___________________ Middle Initial____ Last Name___________________________
Address______________________________________________________________________
City_______________________________________ State_____________ ZIP______________
Phone Number (In case we have a question)_____________________________________________
2. Product Purchased BELTRONICS Vector V6 Serial Number_______________________
3. Place of Purchase__________________________________ Date_________ Price____________
4. Primary reason for purchasing this BELTRONICS product____________________________________
____________________________________________________________________________
____________________________________________________________________________
Remove card along perforations
26
D I G I T A L R A D A R •L A S E R •S A F E T Y •D E T E C T O R
![](asset-10.png)
Remove card along perforations
ATTN CUSTOMER SERVICE
BELTRONICS INC
5442 WEST CHESTER RD
WEST CHESTER OH 45069-9789
28
