Bendix Commercial Vehicle Systems LF0162 LF Initiation Tool, 125 kHz LF Transmitter User Manual
Bendix Commercial Vehicle Systems LLC LF Initiation Tool, 125 kHz LF Transmitter
Users Manual
LF Initiator Operating Instructions Rev 1.0 Document #: 710.0026
1
SmarTire LF Initiator - Operating Instructions
The SmarTire LF Initiator is a wireless service tool that facilitates
the learning of sensor ID numbers into the receiver during system
setup on a vehicle. The Initiator works in conjunction with the
Commercial high pressure sensors*.
*LF Initiator is not compatible with Low Pressure Sensors (SmarTire for Passenger Car products that measure to
a maximum of 65 PSI).
Product Configurations
SmarTire Part No. Description Product Application
090.0006 Standard Function LF Initiator -
Initiate, De-Energize, Learn
Dealer tool for RV and
Commercial installations
Product Functions
BUTTON FUNCTION
Initiate This function is used after the sensors are installed to confirm that
the sensor was programmed properly. Pressing this button next to
the sensor causes the sensor to transmit its ID, pressure and
temperature readings.
De-energize This function should only be used when the sensors are taken out
of the tire and need to be shipped back to the supplier. Pressing
this button next to the sensor causes the sensor to stop
transmitting.
Learn This function is used at the time of sensor installation. Pressing
this button next to the sensor causes the sensor to transmit its
unique ID number for the purpose of programming the Receiver.
LED Functions
LIGHT COLOR FUNCTION
Green LF Initiator is working properly.
Red LF Initiator is not working properly. Contact SmarTire regarding
repair or replacement.
Orange Battery is low.
LF Initiator Operating Instructions Rev 1.0 Document #: 710.0026
2
Activating the LF Initiator
The Initiator is powered with a 9 Volt battery that is installed by opening
the battery access panel on the back. An ON / OFF switch is located on
the right side and this should be pushed upward to turn the Initiator
“ON”anddownwardtoturntheInitiator“OFF.”
Using the LF Initiator
The Initiator has a transmission range of approximately 2 feet. To ensure
proper reception, the Initiator should be within this transmission range
and the Initiator must be held facing the sensor for at least 5 seconds
after the button is pressed. Sensors are normally located adjacent to the
valve’s location (figure 1). Hold the Initiator against the tire and point it
toward the sensor location from a position slightly outside the rim flange
(figures 2 and 3).

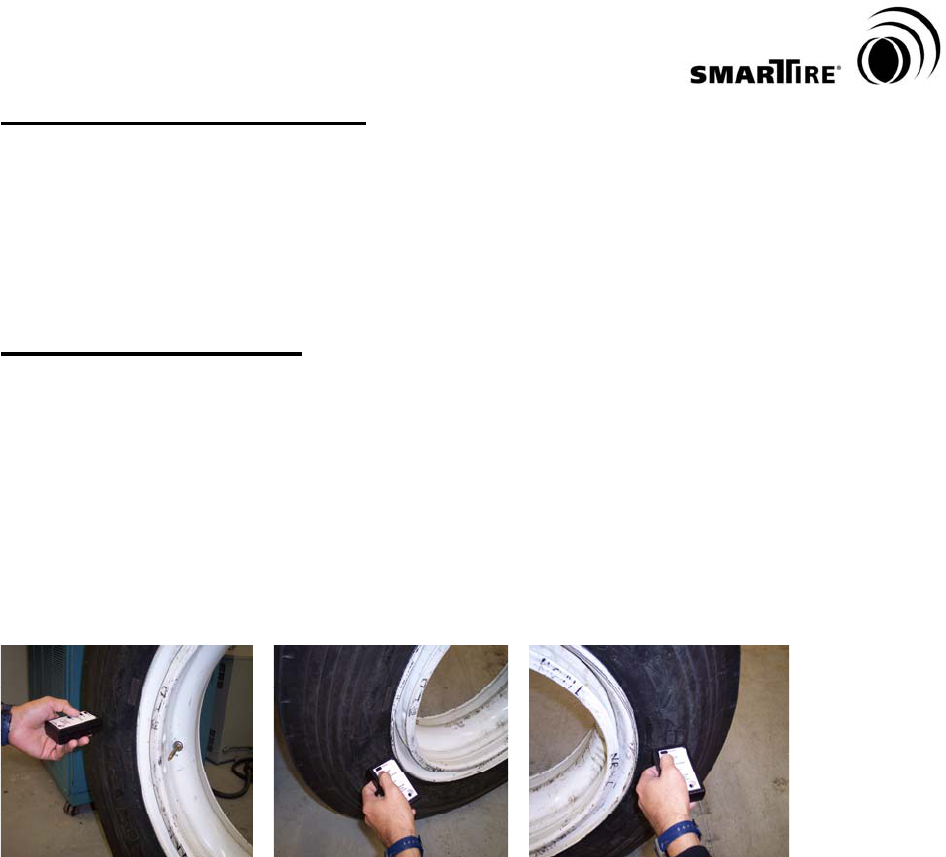

Figure 1 Figure 2 Figure 3
NOTE:
Normally dual tire assemblies are installed with their valves located 180 degrees from
each other. This means that the sensors will also be located 180 degrees from each other
and initiating either the outboard or inboard sensors will not cause the other sensor to
respond because of the mass of the wheel and hub separating the two locations. The
Initiator held against the sidewall of the outboard tire / wheel assembly and pointed
toward the location of the sensor on the inboard tire / wheel assembly will be within LF
field detection range.
LF Initiator Operating Instructions Rev 1.0 Document #: 710.0026
3
Programming Newly Installed Sensors
1. Install the sensors on the wheels as described in the SmarTire for RV
Installation Guide, and then install all of Tire / Wheel assemblies, onto the
vehicle;
2. Power up Receiver and Full Function Display (FFD) by switching ignition on
and setting the Receiver into ‘LEARN’ mode as described in the FFD User’s
Manual;
3. On the Display, select the desired tire position. The outline of the wheel
position to be programmed will flash;
4. Position the Initiator against the tire’s sidewall, press the LEARN button and
hold in that location for at least 5 seconds, as described in the previous section.
The Receiver registers a signal reception from that sensor by showing a filled
in wheel icon on the Display;
NOTE:
For the inboard locations of dual tires, the initiator can be held against the
outboard tire sidewall in line with the position of the inboard sensor to initiate
the transmission without having to reach around the outer tire / wheel assembly;
5. If programming more sensors in the system, select the next tire location on the
FFD and repeat step #4 until all sensor ID numbers and their appropriate
locations on the vehicle have been learned by the Receiver;
6. Exit the Receiver ‘LEARN’ mode by pressing the “Set” button on the Display;
NOTE:
If an ‘ERR’ message is displayed together with flashing tire locations, those
indicated locations have been programmed with the same sensor ID numbers. In
this case, press the TIRE button on the FFD to re–enter the Receiver ‘LEARN’
mode and reprogram the flashing sensor locations;
7. Press the “Set” button again to completely exit from the receiver
programming modes and save the sensor ID numbers to the Receiver memory;
Verifying Correct Installation
To check correct ID programming of the receiver, power up the receiver and
utilize the INITIATE button on the Initiator as described in step #4 to cause each
sensor to transmit. Alternatively, drive the vehicle above ~ 6 mph. If any locations
are not being received, it is likely that the programmed ID number is incorrect
and programming the sensors using the ‘LEARN’ function will need to be
repeated for those locations.
LF Initiator Operating Instructions Rev 1.0 Document #: 710.0026
4
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device
may not cause harmful interference, and(2) this device must accept any interference received, including interference
thatmay cause undesired operation.This equipment has been tested and found to comply with the limits for a Class
Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against
harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency
energyand, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio
communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this
equipment does cause harmful interference to radio or television reception,which can be determined by turning the
equipment off and on, the user isencouraged to try to correct the interference by one or more of the
followingmeasures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and
receiver.•Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.•Consult
the dealer or an experienced radio/TV technician for help.Changes or modifications to this device without the express
approval of SmarTireSystems Inc. may void the user’s authority to use this device.
US Warranty
This Warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit that is damaged beyond normal usage,
was not properly installed, was subjected to chemical contact, or other acts or omissions not sanctioned by the Operating Instructions.
All components are covered for one (1) year following the date of purchase.
The SmarTire warranty will be honored by any authorized SmarTire dealer. The owner is required to provide dated proof of purchase. The authorized dealer
will determine if there is a warrantable condition associated with materials and/or manufacturing workmanship. If a warrantable condition exists, the
component will be replaced free of charge, shipping prepaid. The owner is responsible for any labor and installation charges.
Telephone 604-276-9884 to obtain a Return Material Authorization (RMA) number. Send the postage prepaid package with the defective unit and RMA
number to: SmarTire USA Inc., PMB 309, 1700 W. Market Street, Akron, Ohio, USA, 44313.
All other Warranties, express or implied, are disclaimed. All collateral agreements, which purport to modify this Limited Warranty, are of no effect.The
absolute limit of liability is the purchase price of the unit. SmarTire Systems Inc. is not liable for any direct, consequential, indirect or punitive damages of
any kind.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE VALIDITY OR LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Canadian Warranty
This Warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit that is damaged beyond normal usage,
was not properly installed, and was subjected to chemical contact, or other acts or omissions not sanctioned by the Operating Instructions.
All components are covered for one (1) year following the date of purchase.
The SmarTire Warranty will be honoured by any authorized SmarTire dealer. The owner is required to provide dated proof of purchase. The authorized
dealer will determine if there is a warrantable condition associated with materials and/or manufacturing workmanship. If a warrantable condition exists, the
component will be replaced free of charge, shipping prepaid, if within the applicable warranty period. The owner is responsible for any labor and
installation charges.
Telephone 604-276-9884 to obtain a Return Material Authorization (RMA) number. Send the postage prepaid package with the defective unit and RMA
number to: SmarTire Systems Inc., 13151 Vanier Place, Suite 150, Richmond, British Columbia, Canada, V6V 2J1.
All other Warranties and conditions, express or implied, including Warranties and conditions for merchantability, durability or fitness for purpose, are
disclaimed. All collateral agreements, which modify this sole Warranty, are of no effect. SmarTire Systems Inc. is not liable for any direct, consequential,
indirect or punitive damages. The absolute limit to liability is the purchase price of the unit.
European Warranty
SmarTire Europe Limited (“SmarTire”) hereby warrants that this SmarTire LF Initiator shall be free from material defects in workmanship and/or materials
until the expiry of 24 months from its purchase by the end user, EXCEPT WHERE any such defect has been caused by:
1. Improper installation;
2. Improper or non-normal use;
3. Contact with any corrosive or otherwise harmful substance; or
4. Any other act or omission not sanctioned by the Operating Instruction or any failure to follow any other reasonable instructions given by SmarTire in
relation to the system.
The above warranty will be honoured by the retailer from which it was purchased, provided that the owner can provide dated proof of purchase.
The retailer shall at their own cost return any unit suspected to be defective. If the unit is subsequently found to be defective then the carriage costs shall be
refunded in full. Send the postage prepaid package with the defective unit to: SmarTire, Park 34, Didcot, Oxfordshire OX11 7WB, England.
In the event that any defect in the unit is covered by the above warranty, SmarTire will replace the affected components free of charge, shipping prepaid.
The owner shall be responsible for any labour and installation costs incurred in removing the defective parts and/or installing the replacements.
LF Initiator Operating Instructions Rev 1.0 Document #: 710.0026
5
SAVE AS SET OUT HEREIN SMARTIRE SHALL HAVE NO FURTHER LIABILITY OR OBLIGATION UNDER THE ABOVE WARRANTY. THIS
WARRANTY SHALL BE GOVERNED AND CONSTRUED IN ACCORDANCE WITH ENGLISH LAW.
YOUR STATUTORY RIGHTS ARE NOT AFFECTED.
SmarTire Systems Inc. SmarTire Europe Limited
Suite 150, 13151 Vanier Place Park 34
Richmond, British Columbia Didcot, Oxfordshire
Canada, V6V 2J1 United Kingdom, OX11 7WB
Tel: 1.888.982.3001 Tel: +44.1235.511010
Fax: 1.604.276.0864 Fax: +44.1235.514640
Email:info@smartire.com Email:info@smartire.co.uk
www.smartire.com www.smartire.com
