We’ve Made Some Changes For The Better.
9 Bendix Updates Design Of Its AD-IS® / AD-IP® Air
Dryer Purge Valve Assembly, Adds Replacement Kits
The times are changing and so are we. Over the years, evolving commercial vehicle engine emissions standards have
resulted in higher heat and new air system contaminants. So, as part of our ongoing continuous improvement process,
Bendix – the leader in air treatment system design – has redesigned our AD-IS® / AD-IP® air dryer purge valve assembly
for even greater service life and reliability for your customers.
Here’s an overview of the improvements along with an easy-to-use guide to help you and your customers transition to
the new part numbers.

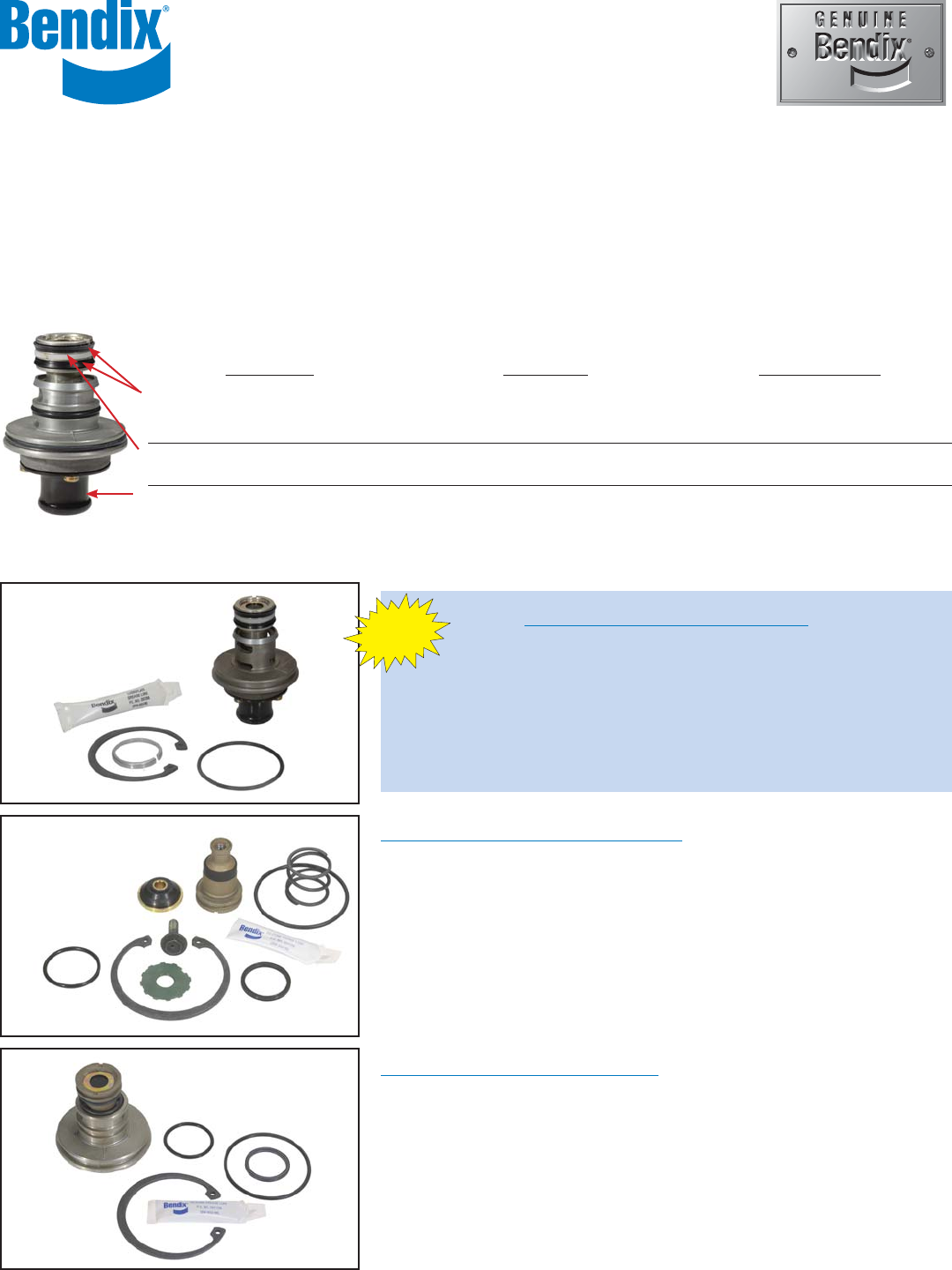

Our Updated Purge Valve Assembly Offers:
FEATURES
• New dual U-cup seal
• Wear band addition
• A longer return spring with more
active coils
BENEFITS
• Improved durability and
performance from two seals versus
one
• The U-cup seals are protected from
additional premature wear
• Enables consistent piston return
ADVANTAGES
• Durability lab test results show 2-3
times longer life than the previous
design
• Extends service life
signifi cantly
• Prevents the valve piston from stick-
ing or binding
Dual U-Cup Purge Valve Assembly Kit
New Part Numbers: K022105; K031559; K031560;
K031561; K031562; K031563
Current Status: Supersedes all existing quad ring kits
listed below as of 09/15/2008
Flip this document over to learn more about proper
assembly kit selection and current availability.
Quad Ring Purge Valve Maintenance Kit
Impacted Part Numbers: 5003547, 5017683
Current Status: Obsolete as of 09/15/2008
Why The Change?
The new & improved piston design will not fi t or operate in the
old style housing of the Bendix purge valve.
Replace With: Replace with a complete valve assembly
Flip to the reverse of this document to learn more about
the proper assembly kit selection and current availability.
Quad Ring Purge Valve Assembly Kit
Impacted Part Numbers: 800404; 5009650; 5017682; 5017687
Current Status: Obsolete as of 09/15/2008
Why The Change?
The quad ring was replaced by the dual U-cup seals and wear
ring.
Replace With: Replace with a complete valve assembly
Read the reverse side of this document to learn more about
the proper assembly kit selection and current availability.
New
Design
New
Replacement
Kit
OBSOLETE
OBSOLETE
BW2738 ©2008 Bendix Commercial Vehicle Systems LLC, a member of the Knorr-Bremse Group. • 11/08 • All rights reserved.
Original Kit
Piece Number
Confi guration /
Installation
Replacement Kit
Piece Number
800404
Purge Valve Assembly Kit for climate
conditions above -40°C (-40°F)
AD-IS® / AD-IP® Air Dryer K022105
AD-IS® / AD-IP® EverFlow™ Air Dryer
AD-IP® Drop-In Air Dryer K031560*
5017687
Arctic Purge Valve Assembly Kit for climate conditions
between -40°C to -50°C (-40°F to -58°F)
AD-IS® / AD-IP® Air Dryer K031559
AD-IS® / AD-IP® EverFlow™ Air Dryer
AD-IP® Drop-In Air Dryer K031561*
5009650
Purge Valve Assembly Kit for climate conditions
above -40°C (-40°F)
AD-IP® Air Dryer Discharge Line Unloader K031562
5017682
Arctic Purge Valve Assembly Kit for climate
conditions between -40°C to -50°C (-40°F to -58°F)
AD-IP® Air Dryer Discharge Line Unloader K031563
5003547
Purge Valve Maintenance Kit for climate
conditions above -40°C (-40°F) Purge valve maintenance kits will no longer be offered. Select the
appropriate purge valve assembly kit from those shown above that
best matches your application.
5017683
Arctic Purge Valve Maintenance Kit for climate
conditions between -40°C to -50°C (-40°F to -58°F)
* Available Q1 2009
For more information about the new updates to our redesigned purge
valve assembly kits, or about any of our complete line of Genuine Bendix
air dryers, valves, compressors, electronics, wheel end components and
more, talk to your Bendix account manager, call 1-800-AIR-BRAKE
(1-800-247-2725), or visit www.bendix.com today.
