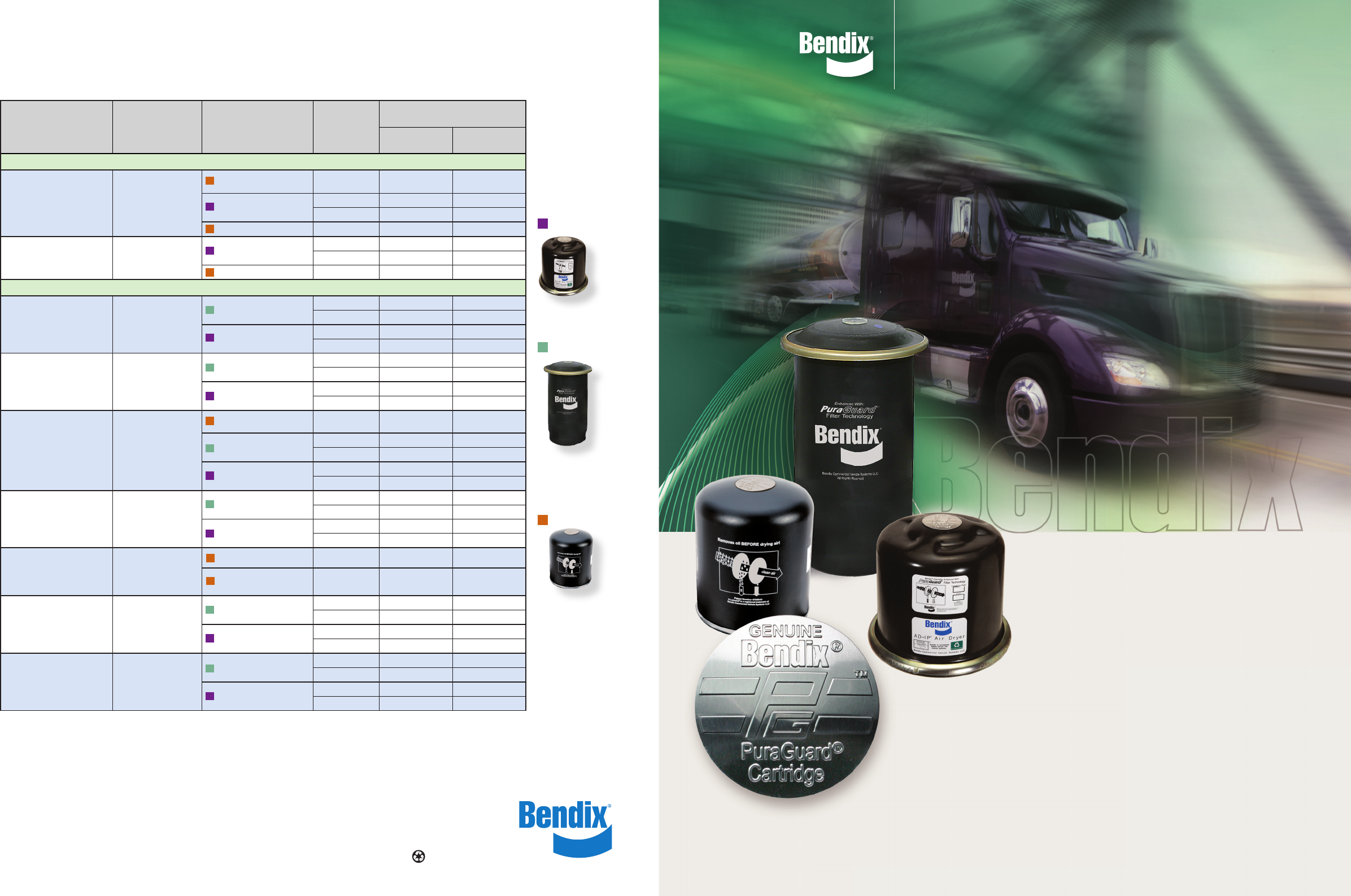

Bendix® PuraGuard® Oil Coalescing

Air Dryer Identifi cation

Bendix® PuraGuard® Oil Coalescing Cartridge Application Guide

Protect Your Investment

Current production air dryers with the Bendix® PuraGuard®

oil coalescing filter have one, or more, of the these

identifiers. (Early production may not include either of these

and only be identified by part number.)

References in this document to DAIMLER, DETROIT DIESEL, FREIGHTLINER, INTERNATIONAL, KENWORTH, MACK, NAVISTAR, PACCAR, PETERBILT, VOLVO,

WABCO, WESTERN STAR, and any other company or trademark are solely for identifi cation and cross reference purposes. The trademarks are the property of

their respective companies and are not affi liated with or endorsing Bendix Commercial Vehicle Systems LLC.

For more information, talk to your Bendix Account Manager, or to arrange a purchase, call

1-800-AIR-BRAKE (1-800-247-2725) or visit www.bendix.com today.

Bendix Commercial Vehicle Systems LLC • 901 Cleveland Street • Elyria, Ohio 44035 • www.bendix.com • 1-800-247-2725

BW2858 ©2013 Bendix Commercial Vehicle Systems LLC, a member of Knorr-Bremse Group • 03/13 • All Rights Reserved Printed on recycled paper

Bendix® AD-IS®,

AD-SP® or AD-RP™

Air Dryer Cartridge

Bendix® AD-9®

Air Dryer Cartridge

Bendix® AD-IP®

Air Dryer Cartridge

The Mark of Assurance.

Vehicle

Make/ Platform/

Model

Engine Bendix® Air Dryer Type

Bendix® PuraGuard®

Oil Coalescing Cartridge

OE Standard OE Spec

Option

PETERBILT®

Models 348, 365, 367,

382, 384, 386, 389,

579, 587

AD-IS® EverFlow®

Air Dryer Service New —5008414PG

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

AD-IS® Air Dryer Service New —5008414PG

Models 210, 220, 320,

325, 330, 337

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

AD-IS® Air Dryer Service New —5008414PG

INTERNATIONAL®

International®

DuraStar® 4000

MaxxForce®

7/8/9/10/DT

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

International® PayStar®

5000

MaxxForce®

11/13/15

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

International®

WorkStar® 7000

MaxxForce®

9/10/11/13/DT

AD-IS® EverFlow®

Air Dryer Service New —5008414PG

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

International® TranStar®

8000 MaxxForce® 11/13

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

International® 9900

Series

International®

LoneStar®

International® ProStar®

MaxxForce®

11/13/15

AD-IS® Air Dryer Service New —5008414PG

AD-IS® EverFlow®

Air Dryer Service New —5008414PG

IC BUS™ - CE

(Conventional)

IC BUS™ - FE

(Front Engine)

IC BUS™ - RE

(Rear Engine)

MaxxForce®

7/8/9/10/DT

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

BD CHASSIS - HC (Blue

Diamond)

MaxxForce®

7/8/9/10/DT

Cummins® ISB 6.71

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

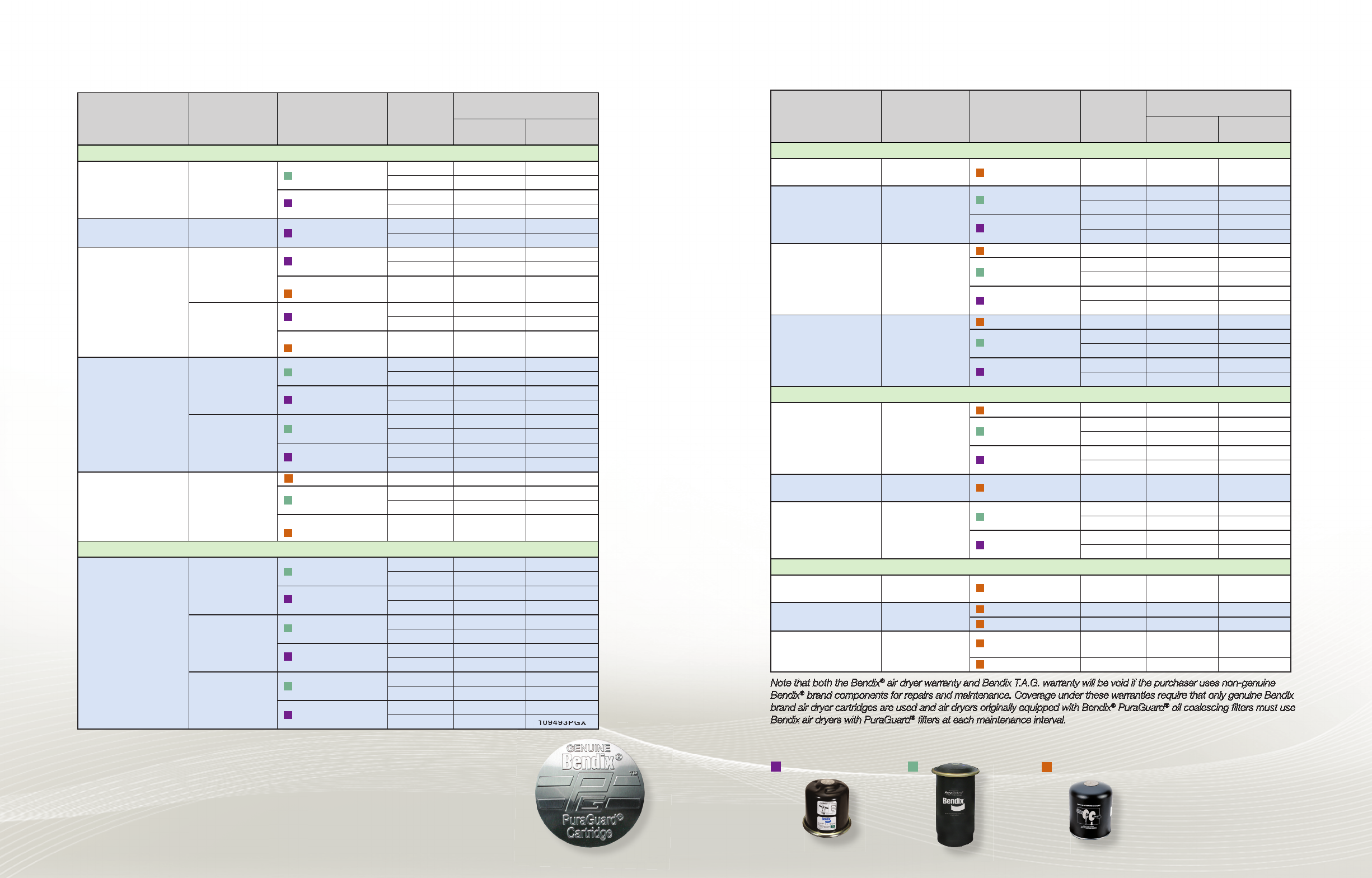

Bendix® PuraGuard® Oil Coalescing Cartridge Application Guide

IMPORTANT: If the Bendix® PuraGuard® oil coalescing cartridge is the OE Standard it must be replaced with a like unit.

Bendix® AD-IP®

Air Dryer Cartridge

Bendix® AD-9®

Air Dryer Cartridge

Bendix

®

AD-IS

®

,

AD-SP

®

, DRM

™

or

AD-RP

™

Air Dryer

Cartridge

Vehicle

Make/ Platform/

Model

Engine Bendix® Air Dryer Type

Bendix® PuraGuard®

Oil Coalescing Cartridge

OE Standard OE Spec

Option

FREIGHTLINER®

FCCC:BUS Cummins® ISB6.7,

ISC8.3, ISL9

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

FCCC:RV Cummins® ISB6.7,

ISC8.3, ISL9 AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

M2 - Business Class

Detroit™ DD13®,

DD15®, DD16®

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

DRM™ Dryer Reservoir

Module Service New 5008414PG —

Cummins® ISB6.7,

ISC8.3, ISL9

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

DRM™ Dryer Reservoir

Module Service New —5008414PG

Cascadia

Detroit™ DD13®,

DD15®, DD16®

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

Cummins® ISX15

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

Coronado Detroit™ DD13®

AD-SP® Air Dryer Service New 5008414PG —

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

DRM™ Dryer Reservoir

Module Service New 5008414PG —

WESTERN STAR®

Western Star

Detroit™ DD13®,

DD15®, DD16®

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

DD Tier 3

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

Cummins® ISC,

ISL, ISX15

AD-9® Air Dryer Service New —107796PG

Reman —107794PGX

AD-IP® Air Dryer Service New —065624PG

Reman —109493PGX

Vehicle

Make/ Platform/

Model

Engine Bendix® Air Dryer Type

Bendix® PuraGuard®

Oil Coalescing Cartridge

OE Standard OE Spec

Option

MACK®

REFUSE

Mack® TerraPro Mack® MP8 AD-RP™ Air Dryer Service New 5008414PG —

CONSTRUCTION

Mack® Granite® Series Mack® MP7, MP8

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

HIGHWAY

Mack® Pinnacle™ Series Mack® MP7, MP8

AD-RP™ Air Dryer Service New 5008414PG —

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

HEAV Y HAUL

Titan by Mack®Mack® MP10

AD-RP™ Air Dryer Service New 5008414PG —

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

VOLVO®

Volvo

VHD, VHD 430 Volvo D11, D13

AD-RP™ Air Dryer Service New 5008414PG —

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

Volvo VN 780,

VN 730, VN 670, VN 630

Volvo D11, D13,

D16 AD-RP™ Air Dryer Service New 50 08414PG —

Volvo VNL 430, VNM /

VNL Daycab Cummins® ISX15

AD-9® Air Dryer Service New 107796PG —

Reman 107794PGX —

AD-IP® Air Dryer Service New 065624PG —

Reman 109493PGX —

KENWORTH®

T680, T660, W900,

T800, C500

AD-IS® EverFlow®

Air Dryer Service New —5008414PG

T470, T440, T370, T270,

T170, K370

AD-SP® Air Dryer Service New —5008414PG

AD-IS® Air Dryer Service New —5008414PG

T700

AD-IS® EverFlow®

Air Dryer Service New —5008414PG

AD-IS® Air Dryer Service New —5008414PG

Note that both the Bendix® air dryer warranty and Bendix T.A.G. warranty will be void if the purchaser uses non-genuine

Bendix® brand components for repairs and maintenance. Coverage under these warranties require that only genuine Bendix

brand air dryer cartridges are used and air dryers originally equipped with Bendix® PuraGuard® oil coalescing fi lters must use

Bendix air dryers with PuraGuard® fi lters at each maintenance interval.

Bendix® PuraGuard® Oil Coalescing Cartridge Application Guide

IMPORTANT: If the Bendix® PuraGuard® oil coalescing cartridge is the OE Standard it must be replaced with a like unit.

For better air dryer performance, non-oil coalescing cartridges can be upgraded

to the Bendix® PuraGuard® oil coalescing cartridge.

Bendix® PuraGuard® Oil Coalescing Cartridge Application Guide

IMPORTANT: If the Bendix® PuraGuard® oil coalescing cartridge is the OE Standard it must be replaced with a like unit.

Bendix® AD-IP®

Air Dryer Cartridge

Bendix® AD-9®

Air Dryer Cartridge

Bendix

®

AD-IS

®

, AD-SP

®

, DRM

™

or

AD-RP

™

Air Dryer Cartridge

109493PGX
