BBeennddiixx®®BBrraakkee SShhooeess aanndd HHaarrddwwaarree KKiittss

Premium wheel-end brake products

PPaarrtt NNuummbbeerr RReeffeerreennccee BBooookk

CAUTION! The items in this catalog are listed for use only in the

applications and interchanges that appear in the catalog. Other use could

result in property damage or serious personal injury. Always refer to the

vehicle, trailer, or component manufacturer's service manual when performing

vehicle maintenance.

NOTE: The data listed herein is correct to the best of our knowledge and

belief, having been compiled from reliable and ofﬁ cial sources of information.

However, we cannot assume any responsibility for possible errors.

If any errors are found, or you have suggestions on ways to improve future

catalogs, we want to hear from you. Please call us at the phone number

shown on the back cover. Thank you for your assistance.

BW7248 TABLE OF CONTENTS

Brake Shoe Quick Reference ............................................................................................................4-6

Medium Duty Truck and Bus Reference Chart ......................................................................................7

Brake Linings for Standard Platforms ....................................................................................................8

Brake Linings for Extended Platforms ...................................................................................................9

Foundation Brake Quick Reference ...............................................................................................10-12

Actuators Quick Reference.............................................................................................................13-14

Slack Adjusters Quick Reference ...................................................................................................15-18

Brake Shoe Applications ...............................................................................................................19-44

Brake Hardware Kit Quick Reference ............................................................................................45-46

Hardware Kit General Features ..........................................................................................................47

Brake Hardware Kits ......................................................................................................................48-82

Supersession List ..........................................................................................................................83-88

Cross Reference ............................................................................................................................89-94

Glossary of Terms ..........................................................................................................................95-99

Part Number Index .....................................................................................................................100-102

Brake Size Unlined Application

Shoe Number

BW7248

BRAKE SHOE QUICK REFERENCE

LISTED BY DRUM DIAMETER

NOTE: Unlined shoes are listed numerically by FMSI number in the Brake Shoe Application section of this

catalog.

121/4 X 4 4700 DEXTER

121/4 X 5 4661C DEXTER

121/4 X 5 4661FCII BENDIX (SPICER®) FCII

121/4 X 51/2 4536B BENDIX (SPICER®) STD FORGE

121/4 X 51/2 4536E BENDIX (SPICER®) U BRAKE

121/4 X 51/2 4536FCII BENDIX (SPICER®) FCII

121/4 X 51/2 4536P BENDIX (SPICER®) FT TIMKEN FABRICATED

121/4 X 51/2 4544 BENDIX (SPICER®) STD FORGE

121/4 X 71/2 4591 BENDIX (EATON) SHULER

121/4 X 71/2 4591S BENDIX (SPICER®) STD. FORGE & AXLE

121/4 X 71/2 4607 BENDIX (SPICER®) STD FORGE

121/4 X 71/2 4670Q ROCKWELL / MERITOR TRAILER AXL

121/4 X 71/2 4692 BENDIX (SPICER®) U BRAKE

121/4 X 71/2 4692FC DEXTER PQ

121/4 X 71/2 4692FCII BENDIX (SPICER®) FCII

121/4 X 71/2 4692P BENDIX (SPICER®) FT TIMKEN FABRICATED

121/4 X 8 4649 FRUEHAUF DAP

141/2 X 10 4592A ROCKWELL COACH

141/2 X 4 4227G ROCKWELL COACH

141/2 X 5 4398B ROCKWELL COACH

141/2 X 6 4228B ROCKWELL COACH

141/2 X 8 4541B ROCKWELL COACH

15 X 3 235-1245 WAGNER

15 X 31/2 1307Q ROCKWELL Q

15 X 31/2 1307T ROCKWELL T

15 X 31/2 463-1280 WAGNER

15 X 4 1308A WAGNER

15 X 4 1308E BENDIX (SPICER®) SAP

15 X 4 1308Q ROCKWELL / MERITOR Q

15 X 4 1308Q BENDIX (SPICER®) FC

15 X 4 1308T ROCKWELL / MERITOR T

15 X 4 1443E BENDIX (SPICER®) ESII

15 X 4 4693 BENDIX

15 X 4 4693HA BENDIX (SPICER®) HEAVY AXLE

15 X 4 4702R ROCKWELL / MERITOR Q PLUS

15 X 4 4702R BENDIX (SPICER®) XTRALIFE II

15 X 4 4729EII BENDIX (SPICER®) ESII

15 X 4 512 WAGNER

15 X 5 4703R ROCKWELL / MERITOR Q PLUS

Brake Size Unlined Application

Shoe Number

BW7248 BRAKE SHOE QUICK REFERENCE

LISTED BY DRUM DIAMETER

NOTE: Unlined shoes are listed numerically by FMSI number in the Brake Shoe Application section of this

catalog.

15 X 6 4716EII BENDIX (SPICER®) REDUCED ENVELOPE

15 X 85/8 4710R ROCKWELL / MERITOR Q PLUS

15 X 85/8 4717EII BENDIX (SPICER®) REDUCED ENVELOPE

161/2 X 10 4552B ROCKWELL / MERITOR Q

161/2 X 10 4567P ROCKWELL / MERITOR P

161/2 X 10 4567Q ROCKWELL / MERITOR Q

161/2 X 4 4549P ROCKWELL P

161/2 X 4 4549Q ROCKWELL Q

161/2 X 5 4223E BENDIX (SPICER®) SAP

161/2 X 5 4524HA BENDIX (SPICER®) HEAVY AXLE

161/2 X 5 4524P ROCKWELL P

161/2 X 5 4524Q ROCKWELL / MERITOR Q

161/2 X 5 4524QM ROCKWELL / MERITOR Q / MACK

161/2 X 5 4719 BENDIX (EATON) ES

161/2 X 5 4719EII BENDIX (SPICER®) ESII

161/2 X 5 4720R ROCKWELL / MERITOR Q PLUS

161/2 X 5 4725 BENDIX (EATON) ES

161/2 X 6 4317E BENDIX (SPICER®) SAP

161/2 X 6 4514HA BENDIX (SPICER®) HEAVY AXLE

161/2 X 6 4514P ROCKWELL P

161/2 X 6 4514Q ROCKWELL / MERITOR Q

161/2 X 6 4514Q BENDIX (SPICER®) FC

161/2 X 6 4715R ROCKWELL / MERITOR Q PLUS

161/2 X 6 4725EII BENDIX (SPICER®) ESII

161/2 X 7 4311E BENDIX (SPICER®) SAP

161/2 X 7 4468 BENDIX (SPICER®) STD FORGE CAST SHOE

161/2 X 7 4515E BENDIX

161/2 X 7 4515F FRUEHAUF P 1st

161/2 X 7 4515FP FRUEHAUF P

161/2 X 7 4515HA BENDIX (SPICER®) HEAVY AXLE

161/2 X 7 4515M MACK FABRICATED

161/2 X 7 4515P ROCKWELL / MERITOR P

161/2 X 7 4515P BENDIX (SPICER®) FT

161/2 X 7 4515Q ROCKWELL / MERITOR Q

161/2 X 7 4515Q BENDIX (SPICER®) FC

161/2 X 7 4515QM ROCKWELL MACK STYLE

161/2 X 7 4515X2 FRUEHAUF XEM 2nd

161/2 X 7 4515X3 FRUEHAUF XEM 3rd

161/2 X 7 4625B MACK P

Brake Size Unlined Application

Shoe Number

BW7248

BRAKE SHOE QUICK REFERENCE

LISTED BY DRUM DIAMETER

NOTE: Unlined shoes are listed numerically by FMSI number in the Brake Shoe Application section of this

catalog.

161/2 X 7 4701HA BENDIX (SPICER®) HEAVY AXLE

161/2 X 7 4707R ROCKWELL / MERITOR Q PLUS

161/2 X 7 4708H BENDIX (SPICER®) CAST

161/2 X 7 4708M BENDIX (SPICER®) SEVERE DUTY

161/2 X 7 4708P ROCKWELL “P”

161/2 X 7 4708P BENDIX (SPICER®) ESII FOR

161/2 X 7 4708Q ROCKWELL “Q”

161/2 X 7 4708XEM FRUEHAUF “XEM”

161/2 X 7 4708XEM BENDIX (SPICER®) ESII FOR

161/2 X 7 4709 BENDIX (EATON) ES

161/2 X 7 4709E BENDIX (SPICER®) ES

161/2 X 7 4709EII BENDIX (SPICER®) ESII

161/2 X 7 4709SII BENDIX (SPICER®) SEVERE DUTY

161/2 X 8 4718R ROCKWELL / MERITOR Q PLUS

161/2 X 85/8 4551P ROCKWELL P

161/2 X 85/8 4551Q ROCKWELL / MERITOR Q

161/2 X 85/8 4674 BENDIX (EATON BRAKE) SAP

161/2 X 85/8 4711R ROCKWELL / MERITOR Q PLUS

161/2 X 85/8 4726EII BENDIX (SPICER®) ESII

161/4 X 31/2 4561 ROCKWELL T

18 X 7 4284 BENDIX (SPICER®) STD FORGE FABRICATED

18 X 7 4471B ROCKWELL CAST

18 X 7 4527B BENDIX (EATON) CAST SHOE

18 X 7 4669D ROCKWELL CAST IRON

20 X 8 4350 BENDIX (SPICER®) CAST SHOE

BW7248 UNLINED SINGLE WEB SHOES

Application Bendix Part Number Brake Size Lining Number

BENDIX 1308E 15 X 4 1308D

BENDIX ES 1443E 15 X 4 1443D

GM 442 15 X 5 4639D

KELSEY 400 15 X 5 4646D

KELSEY 401 15 X 4 4647D

LUCAS 542 15 X 5 4528AD

LUCAS 543 15 X 6 4504A

LUCAS 544 15 X 7 4505A

ROCKWELL/MERITOR 1308Q 15 X 4 1308D

ROCKWELL/MERITOR 1308T 15 X 4 1308D

WAGNER 235 15 X 3 1245D

WAGNER 321 15 X 3 1245CD

WAGNER 322 15 X 31/2 1280BD

WAGNER 346 15 X 5 4639D

WAGNER 381 15 X 6 4596D

WAGNER 383 15 X 7 4597D

WAGNER 455 15 X 31/2 1279D

WAGNER 458 15 X 4 1308D

WAGNER 463 15 X 31/2 1280D

WAGNER 512 15 X 4 1308D

MEDIUM DUTY TRUCK & BUS

BW7248

BENDIX FRICTION CONTENT

STANDARD PLATFORM

Maximum Maximum

GAWR GAWR Maximum Maximum

[16

1/2 x 85/8 [161/2 x 7 GAWR GAWR

Bendix Fiberglass Ceramic Aramid Carbon Metallic Drive and Drive and [16.5 x 5, 6 [15 x 4 Steer

Friction Attributes Fibers Fibers Fibers Fibers Fibers Trailer] Trailer] Steer Brake] Line Haul]

High value friction material of high

BLACK

torque for the line haul and medium-

X X X X 20,000 20,000 20,000 12,000

duty vocational applications.

Premium standard platform long

BLUE life conventional lining for all 20K X X 20,000 20,000 N.A. N.A.

line haul applications.

BRONZE Severe service full metallic lining X X X 25,000 23,000 20,000 N.A.

for the standard service platform.

The quiet lining for standard

service platform that works over

GOLD a complete temperature range X X X 23,000 20,000 16,000 14,600

(similar to transit lining).

ORANGE Severe duty combination lining X X X 25,000 23,000 20,000 N.A.

for the standard service platform.

Premium standard service plat-

RED form lining for typical over-the- X X 23,000 23,000 16,000 14,600

road 23K applications.

Standard service platform lining

that may be used for a wide

SILVER range of applications including X 20,000 20,000 N.A. N.A.

line haul and pick-up and delivery.

On/off highway line haul as well

YELLOW as vocational applications for the X X 25,000 23,000 20,000 N.A.

standard service platform.

SB 4515 Q RED

FMSI Number (Friction Materials Standard Institute, Inc.)

Product Prefix Designation

SB = New Lined Brake Shoe Kit (2 Shoes and Hardware Kit)

KT = Remanufactured Lined Brake Shoe Kit (2 Shoes and Hardware Kit)

EX = Single Remanufactured Lined Brake Shoe

No Prefix = New Lined Brake Shoe

No Prefix or Suffix: Unlined brake shoe – ie. 1308E. 1308 is the FMSI

number assigned for that 15 x 4 lining contour and rivet hole size and

pattern. The E is for Eaton style SAP

Shoe Core Identification

E = Bendix (Eaton) single anchor pin

Q = Rockwell – Meritor open anchor pin hole

T = Rockwell – Meritor closed anchor pin hole small T headed cam

HA = Bendix (Spicer) Heavy Axle

P = Rockwell – Meritor closed anchor pin hole, S cam head

X3 = Fruehauf XEM 3rd design

S = Standard Forge

R = Rockwell – Meritor Q+ thicker lining

EII = Bendix (Eaton) Extended Service thicker lining

QM = Rockwell – Meritor for Mack with relocated Return Spring Hole

FCII = Bendix (Spicer) Q+

Friction Material Designation

Brake Shoe and Kit Product Identiﬁ cation

BW7248 BENDIX FRICTION CONTENT

ES PLATFORM

Maximum Maximum Maximum Maximum

GAWR GAWR GAWR GAWR

[161/2 x 85/8 [161/2 x 7 [16.5 x 5,6 [15 x 4

Bendix Fiberglass Ceramic Aramid Carbon Metallic Drive Drive and Steer Steer Line

Friction Attributes Fibers Fibers Fibers Fibers Fibers and Trailer] Trailer] Brake] Haul]

Extended service heavy duty lining

ES 310 that works at high temperatures Formula for Reduced Envelope Brake Package 20,000 for all 15" x 8.625" 14,600 for all 15" x 6"

seen in the smaller sizes brakes. Reduced Envelope Brakes Reduced Envelope Brakes

Long life lining for extended duty

ES 420 platform for the complete temperature X X X 23,000 20,000 14,600 13,200

range in the 20K applications.

ES 440 Replaced with Bendix Gold. X X N.A. 20,000 16,000 14,600

ES 450 New extended service cohesive Cohesive Friction N.A. 20,000 14,600 13,200

lining for long haul owner operator.

On highway extended service lining

ES 600 that is extremely quiet as well as X X 23,000 22,000 14,600 13,200

having the torque to stop moderate

to heavy loads.

High torque extended service lining

ES 680 for both the bulk hauler as well as the X X N.A. 23,000 N.A. N.A.

specialty hauler.

Extended service lining for heavy

ES 690 haulers that are used in both line haul X X 26,000 23,000 N.A. N.A.

as well as vocational applications.

ES 1100 Severe service full metallic lining for X X X 26,000 23,000 20,000 13,200

the extended service platform.

ES 1100/ Severe service where a combination

ES 600 lining is best for the application on X X X N.A. 26,000 14,600 13,200

extended service platform.

ES1160 When ES1160 is referenced in the following pages, the actual lining material being installed is ES 1100/ES 600

ES310

Maximum GAWR*

20,000

EW SUPREME

6028 GG

(1083-7)

EH6040

23,000 25,000

Reduced Envelope

Platform

Standard

Platform

Extended Service

Platform Cohesive Lining Standard

Platform

Extended

Service

Platform

Standard

Platform

Extended

Service

Platform

Severe Service

Standard

Platform

Extended

Service

Platform

Combination Block

Standard

Platform

Extended

Service

Platform

Metallic

Extended

Service

Platform

Black

Blue

ES410

ES420

Red

ES450 Yellow

ES600

ES690 Gold ES440 Orange ES1160 Bronze ES1100 ES1050

EN PREMIUM 6008-1 FF (3030-197)

EL SUPREME II 6011 FF (3030-67)

MM MB21FF

MB20 FF

E77 FF

E78 FF

GS 2015 FF

GD 2016 FF

G52015

GF3008

4001M EF

CM16

AF/550/FF

AF/555/FF

AF/556/FF

DL FF

DB20 FF

MA210

MA212

MG1

MG2L

3001T FF/3002T FF

EX SUPREME 685 FF (931-

162)

MX 697 EE

EH SUPREME 6040 GG (1083-

MC 685/695FF

EC 685/6069GG

3002T FF 3001T FF

CM18

CM20 CM22A-1 CMB42 CMM46

MM HD1L FF

MM MB23 FF

MM HD5 GG

WT56

MM HB 62 GG

MB44

E44

E98 FF

E98

MM HB 60 GG

E88 FF

AF/557/FF AF/587/GG AF/560/FF

AF/555/FF

AF/560/FF AF/587/GG

GP2030

GG3020

GD2016

GC 2040 FF / 2020 FF GM 2040 FF

FLOE FF

HS FF

TS GG

GW2025

MBC FF

MBS FF

GZ2035

GM2040

METMA310

MG2

R401

CM29CM24

BXV, BXS, BXP BXHD

CF2000

GR3010

R403

COMPETITIVE CROSS REFERENCE

Note: Information compiled from various industry sources. The GAWR for each friction material may vary

depending on the AL factor. Bendix does not make any inference to FMSI testing results for the above non-

Bendix linings.

Maximum GAWR based on 16 1/2" x 7" Drive and Trailer applications.

*For more information, visit www.foundationbrakes.com For a supplier near you, call 1-866-610-9709

ABEX®

BENDIX®

BRAKEPRO™

CARLISLE®

EUCLID™

FRAS-LE®

HALDEX®/MIDLAND™/

GREYROCK®

MARATHON®

MERITOR®

TMD®

BW7248

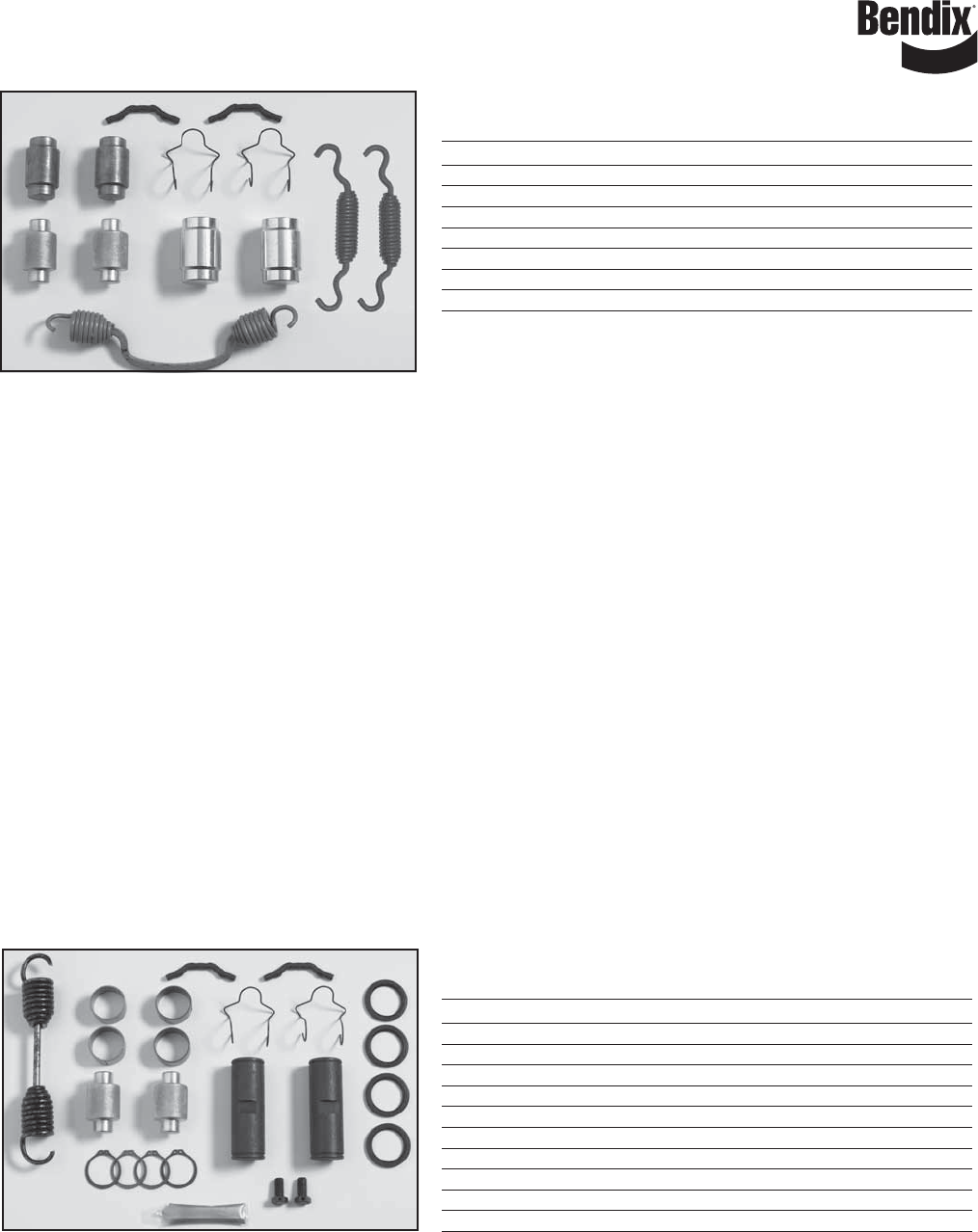

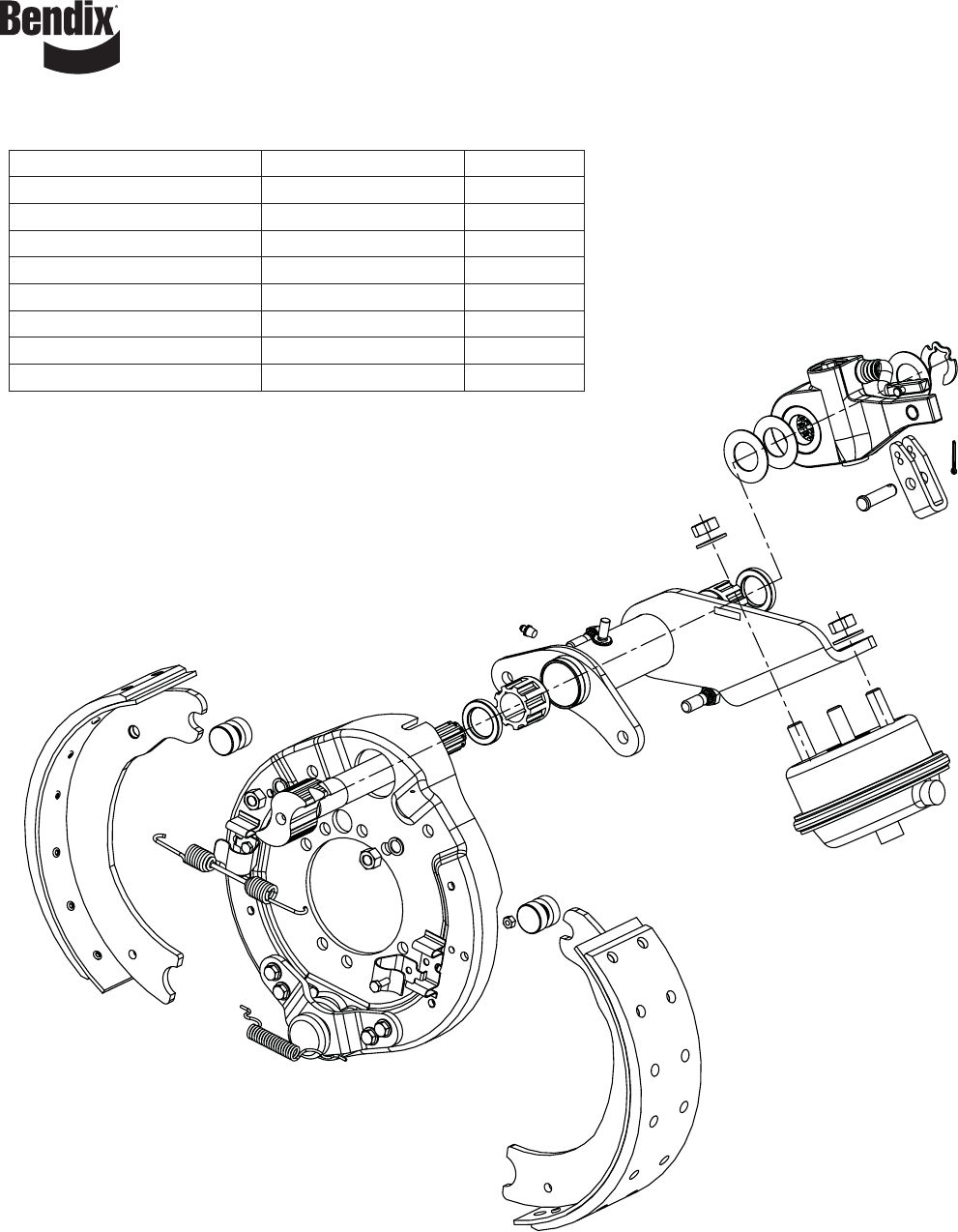

FOUNDATION BRAKE QUICK REFERENCE

Steer Axle Drum Brake

Application Description Piece Number

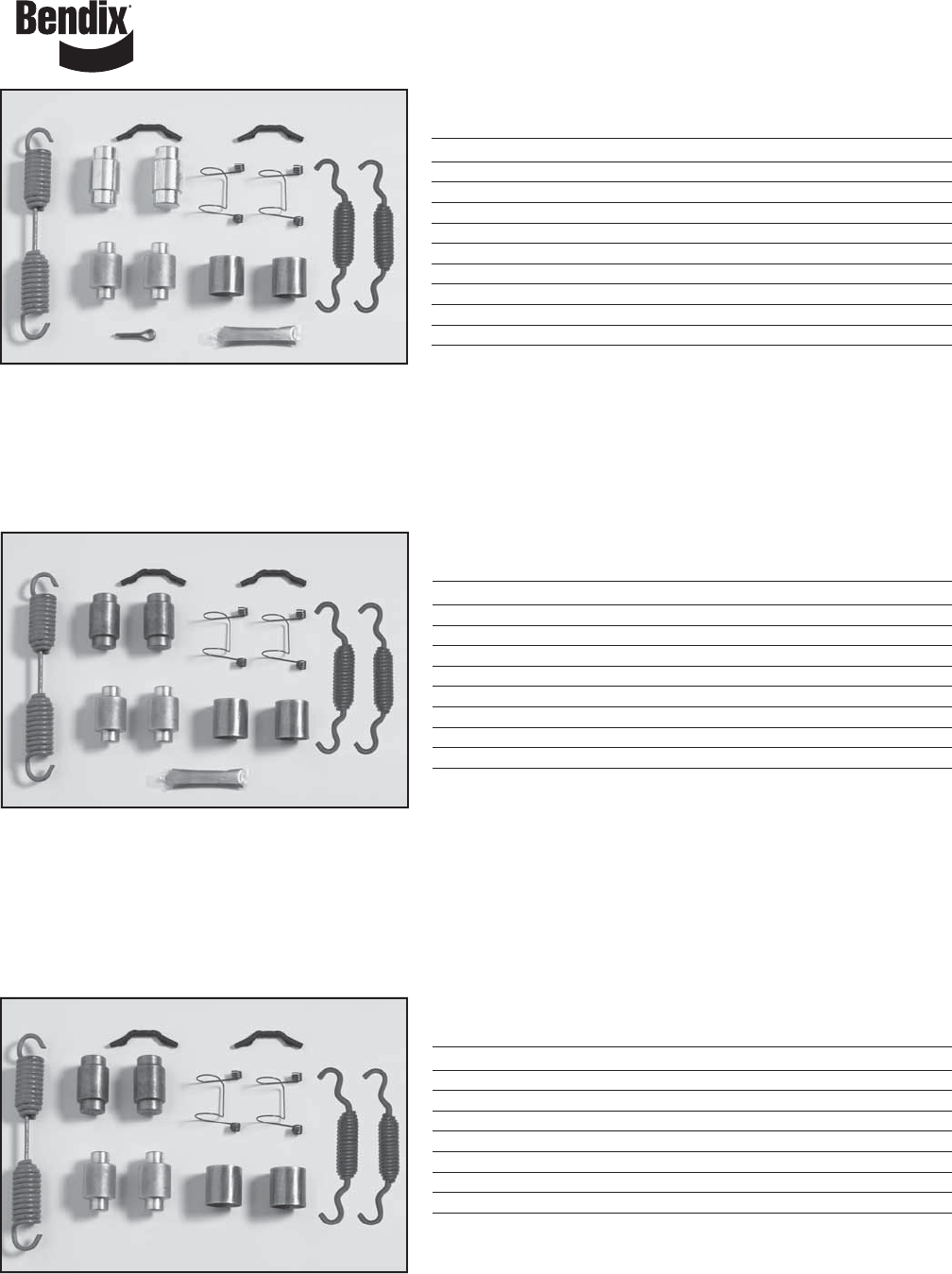

15”x4” Bendix Brake Hardware Kit HK54

15”x4” Bendix Extended Service Brake Hardware Kit HK54

15”x4” Meritor Brake Hardware Kit HK55

15”x4” Meritor Q Plus Brake Hardware Kit HK66XLS

15”x4” Bendix Camshaft Repair Kit 43-7060

15”x4” Bendix Extended Service Camshaft Repair Kit 43-7060

15”x4” Meritor Camshaft Repair Kit 43-7059

15”x4” Meritor Q Plus Camshaft Repair Kit 43-7070

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

BW7248 FOUNDATION BRAKE QUICK REFERENCE

Drive Axle Drum Brake

Application Description Piece Number

16.5” Dia. Bendix Brake Hardware Kit HK24XLSHM

16.5”

Dia. Bendix Extended Service

Brake Hardware Kit HK61XLS

16.5” Dia Meritor Brake Hardware Kit HK29XLS

16.5” Dia.Meritor Q Plus Brake Hardware Kit HK29XLS

16.5”

Dia. Bendix Extended Service

Camshaft Repair Kit 43-7069

16.5” Dia.Meritor Q Plus Camshaft Repair Kit 43-7048

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

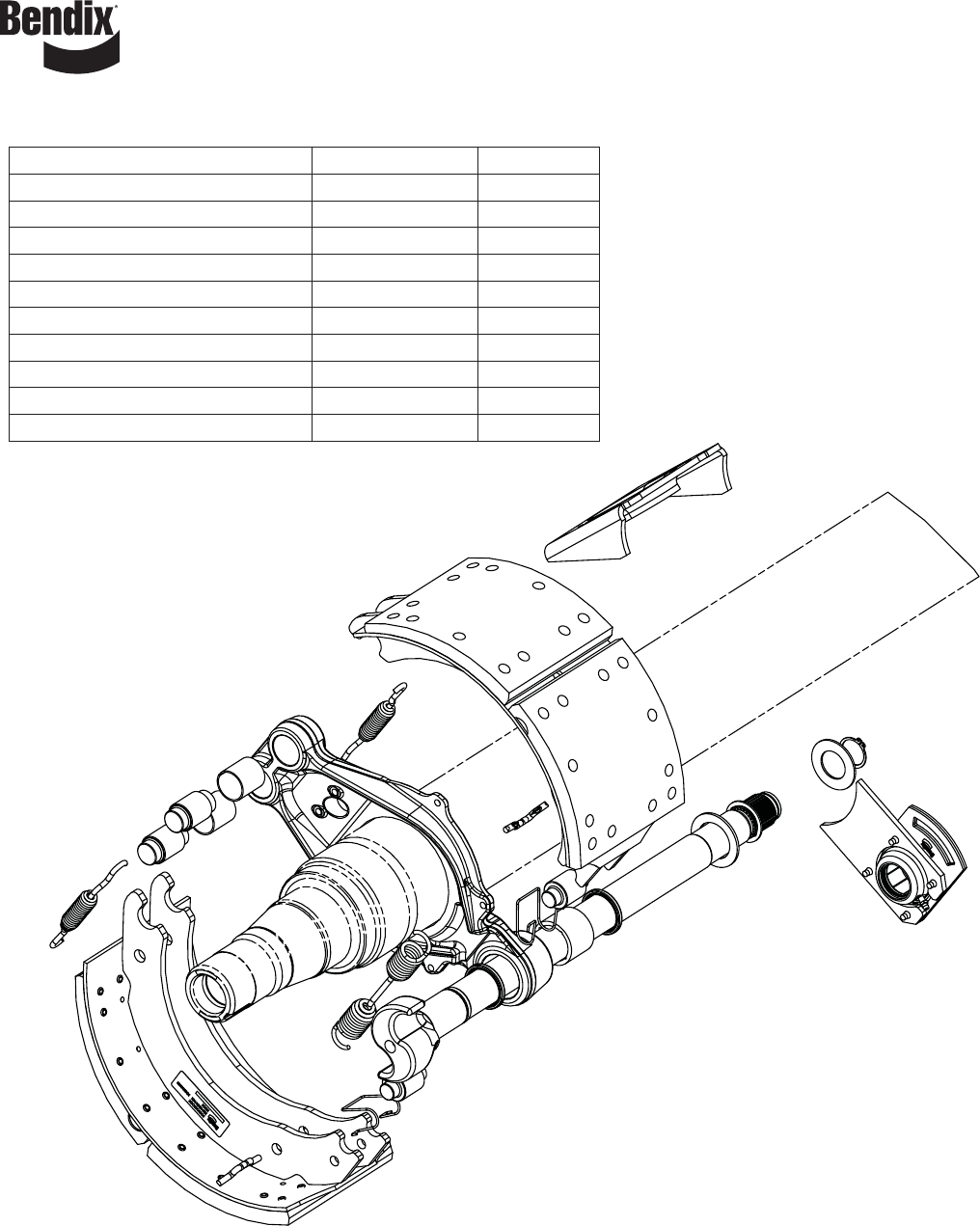

BW7248

FOUNDATION BRAKE QUICK REFERENCE

Trailer Axle Drum Brake

Application Description Piece Number

16.5” Dia. SAP Bendix Brake Hardware Kit HK24XLSHM

16.5” Dia. SAP Bendix Extended Service Brake Hardware Kit HK61XLS

16.5” Dia. DAP Bendix Brake Hardware Kit HK29XLS

16.5” Dia. DAP Bendix Extended Service Brake Hardware Kit HK29XLS

16.5” Dia. Meritor Brake Hardware Kit HK29XLS

16.5” Dia. Meritor Q Plus Brake Hardware Kit HK29XLS

16.5” Dia. ProPar Brake Hardware Kit HK34XLS

16.5” Dia. Bendix Extended Service Camshaft Repair Kit 43-7118

16.5” Dia. Meritor Q Plus Camshaft Repair Kit 43-7072

16.5” Dia. ProPar Camshaft Repair Kit 43-7039

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

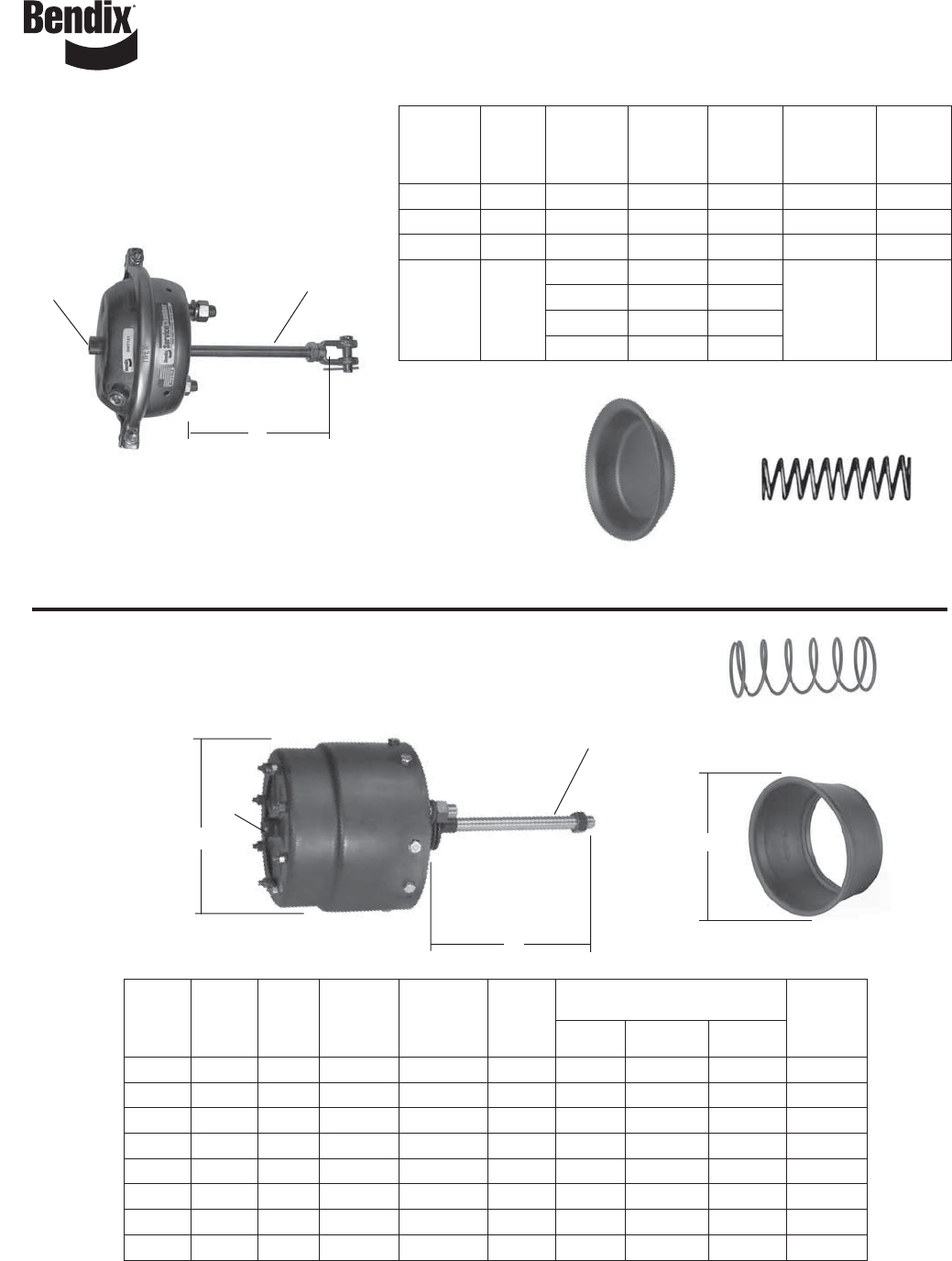

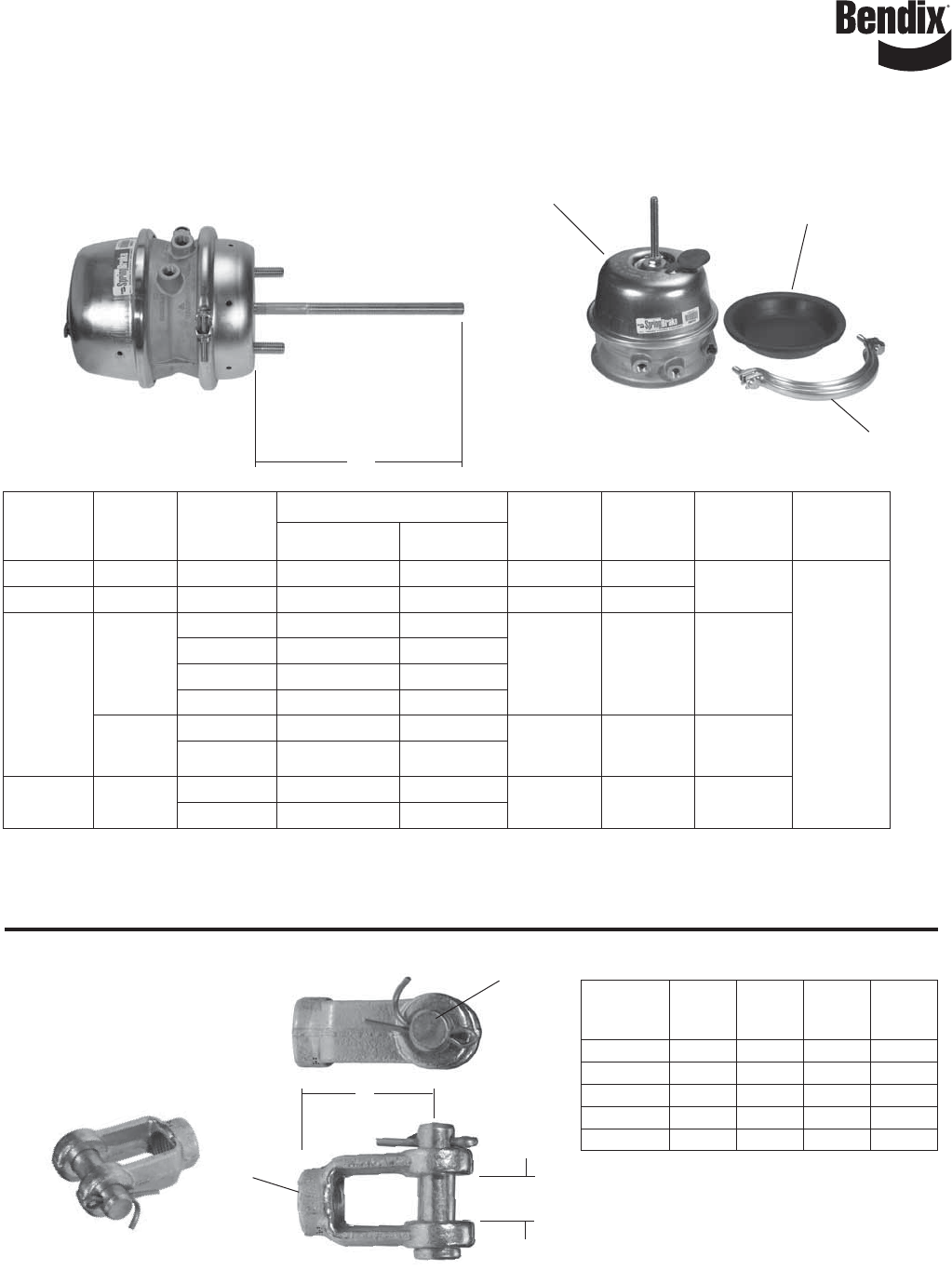

BW7248 ACTUATORS QUICK REFERENCE

Yoke Assemblies

For Brake Chambers

& Rotochambers

V.M.R.S. 13-004-018

Yoke A B C D

Assembly End to Slot Pin Thread

Pc. No. Pin Width Dia. Size

205948N 1-3/4" 9/16" 1/2" 1/2-20

228790N 1-3/4" 9/16" 1/2" 5/8-18

228798N 1-3/4" 9/16" 5/8" 5/8-18

229496N 1-7/8" 13/16" 3/4" 5/8-18

282592N 2" 13/16" 3/4" 3/4-16

Spring Brakes

V.M.R.S. 13-010-025

Service

Diaphragm

Type Stroke A

Push Rod

Length1

Spring Brake Service Pc. No. Piggyback

Kit3Piggyback Rubber

Service

Diaphragm

Service

Return

Spring

Without Yoke With Yoke2

24/24 2.50" 8.00" 800829 5007130 K027230 5007124 802489

800919

24/30 2.50" 8.00" 800830 5007131 K027231 5007125

30/30 2.50"

5.88" 801130 802708

5007610 5007126 802490

7.80" 800831 5007132N

9.75" 802547 N/A

12.00" 801300 N/A

3.00"

Long

Stroke

8.00" K022884 K022883 5011594 801377N 801379

9.75" 802541 N/A

30/36 2.50" 7.80" 800832 N/A K024654 5007127 802490

9.75" K022893 N/A

Piggyback

Assembly

1 Push rod length measured in the fully retracted, zero stroke position.

2 Yoke part number 228790N is included. See yoke information below.

3 Piggyback kit includes: Piggyback assembly, clamp bands with hardware, and a rubber service diaphragm.

Clamp Ring

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

BW7248

ACTUATORS QUICK REFERENCE

Brake Chambers

Fully Threaded Push Rod

V.M.R.S. 13-010-034

Push Rod

3/8"

N.P.T.

Inlet

Diaphragm Spring

Rotochambers

V.M.R.S. 13-010-034

Fully Threaded Push Rod Push Rod

Inlet

Spring

Diaphragm

A Dia.

Brake

Chamber

Type Stroke Service

New Pc.

No.

Push

Rod

Length Yoke

Included Rubber

Diaphragm Spring

16 2.25" 800823 8.60" No 234189 234192

20 2.50" 802990 8.20" No 234099 234129

24 2.50" 802986 8.00" No 234100 234130

30 2.50"

801685 6.00" No

234101 234131

800826 7.60" No

5007121N 7.60" Yes

802988 7.75" No

Type

Service

New

Pc. No.

Port

Size

(NPT) A

Diameter

Push Rod

Length

Push

Rod

Thread

Diaphragm Material and Size

SpringRubber Neoprene Diameter

9 229814 1/4"-18 4-3/4" 13" 1/2"-20 234172 236524 4-5/16" 231481

12 229815 3/8"-18 5-9/32" 11" 1/2"-20 231506 236525 4-27/32" 231513

16 229816 3/8"-18 5-7/8" 7-7/8" 1/2"-20 231525 236526 5-7/16" 231531

20 229817 3/8"-18 6-13/32" 6-7/8" 1/2"-20 231982 236527 5-31/32" 231933

24 229818 1/4"-18 6-15/16" 5-13/16" 1/2"-20 231516 236528 6-7/16" 231522

30 229819 1/4"-18 7-17/32" 9-1/16" 5/8"-18 231543 236529 7-3/32" 231549

36 229820 1/4"-18 8-5/32" 8-1/16" 5/8"-18 231534 236530 7-21/32" 231540

50 229821 3/8"-18 9-13/32" 10-15/16" 3/4"-16 231491 236531 8-29/32" 231498

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

BW7248 SLACK ADJUSTERS QUICK REFERENCE

Straight Arm

V.M.R.S. 13-001-030 (FRONT)

13-002-028 (REAR)

Service SAE

New Torque Arm Length (In.) Bushing Lube Fitting

Pc. No. Rating-lbs Spline Teeth A B C Dia. Fitting Direction

278302 26,000 1-1/4" 10 5.5 4.5 – 0.5 Straight Straight

278305 26,000 7.0 6.0 5.0

278323N 26,000 7.0 6.0 5.0

278326N 26,000 6.5 5.5 –

278008 30,000 1-1/2" 10 6.5 5.5 – 0.5 Straight Straight

278010N 30,000 6.0 5.0 –

278045N 30,000 7.0 6.0 5.0

279634N 30,000 7.75 6.75 –

101827N 26,000 6.0 – – 90 Deg. Left

277959N 26,000 6.5 5.5 – Straight Straight

102110N 30,000 1-1/2" 10 6.5 5.5 – 0.625 90 Deg. Down

278016N 30,000 6.5 5.5 – Straight Straight

278017N 30,000 6.0 5.0 – Straight Straight

278035N 30,000 7.5 5.5 – Straight Straight

288282 26,000 7.0 6.0 5.0 Straight Straight

286965N 26,000 1-1/2" 28 6.0 5.0 – 0.5 Straight Straight

288753N 26,000 6.5 5.5 – Straight Straight

287899N 30,000 6.5 5.5 – Straight Straight

101133N 26,000 6.0 5.0 – Straight Straight

101134 26,000 6.5 5.5 – Straight Straight

101289N 26,000 1-1/2" 28 6.5 5.5 – 0.625 90 Deg. Right

101290N 26,000 6.0 5.0 – 90 Deg. Right

101214N 30,000 6.5 5.5 – Straight Straight

101215N 30,000 6.0 5.0 – Straight Straight

101216N 30,000 7.0 – – Straight Straight

283411 26,000 1-5/8" 37 6.0 – – 0.5 Straight Straight

Bushing Diameter

Spline Lube Fitting

Offset Arm

Service SAE

New Torque Arm Length (In.) Bushing Lube

Pc. No. Rating-lbs Spline Teeth A B C Dia. Fitting Offset Handed

278288 6.0 5.0 4.0 RH

278289 6.0 5.0 4.0 LH

278294N 26,000 1-1/4" 10 5.5 4.5 – 0.5 Straight 0.625 RH

278295 5.5 4.5 – LH

278252 5.5 4.5 – RH

278253 5.5 4.5 – LH

279300N 5.25 – – RH

279301N 5.25 – – LH

279946N 26,000 1-1/2" 10 7.0 6.0 – 0.5 Straight 0.625 RH

279947N 7.0 6.0 – LH

280424 6.0 5.0 4.0 RH

280425 6.0 5.0 4.0 LH

282560 6.5 5.5 – RH

282561 6.5 5.5 – LH

279309 5.75 – – LH

279350 20,000 1-1/2” 10 7.0 – – 0.5 Straight 1.5 RH

279351N 7.0 – – LH

288539N 6.5 5.5 – RH

288540N 6.5 5.5 – LH

288541N 6.0 5.0 – RH

288542N 6.0 5.0 – LH

101413N 5.5 – – LH

101414N 20,000 1-1/2” 28 5.5 – – 0.5 Straight 1.5 RH

287896 6.5 5.5 – RH

287897 6.5 5.5 – LH

Selecting A Slack Adjuster

1. Determine if straight or offset arm. If offset determine if RH or LH is

needed.

2. Identify spline size (diameter and number of teeth).

3. Select model needed.

4. Determine the arm hole used (if slack contains more than one).

5. Identify bushing diameter.

Offset

Left Hand (LH) Shown –

Right Hand (RH) Opposite

Lube Fitting

Bushing Diameter

Spline

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

BW7248

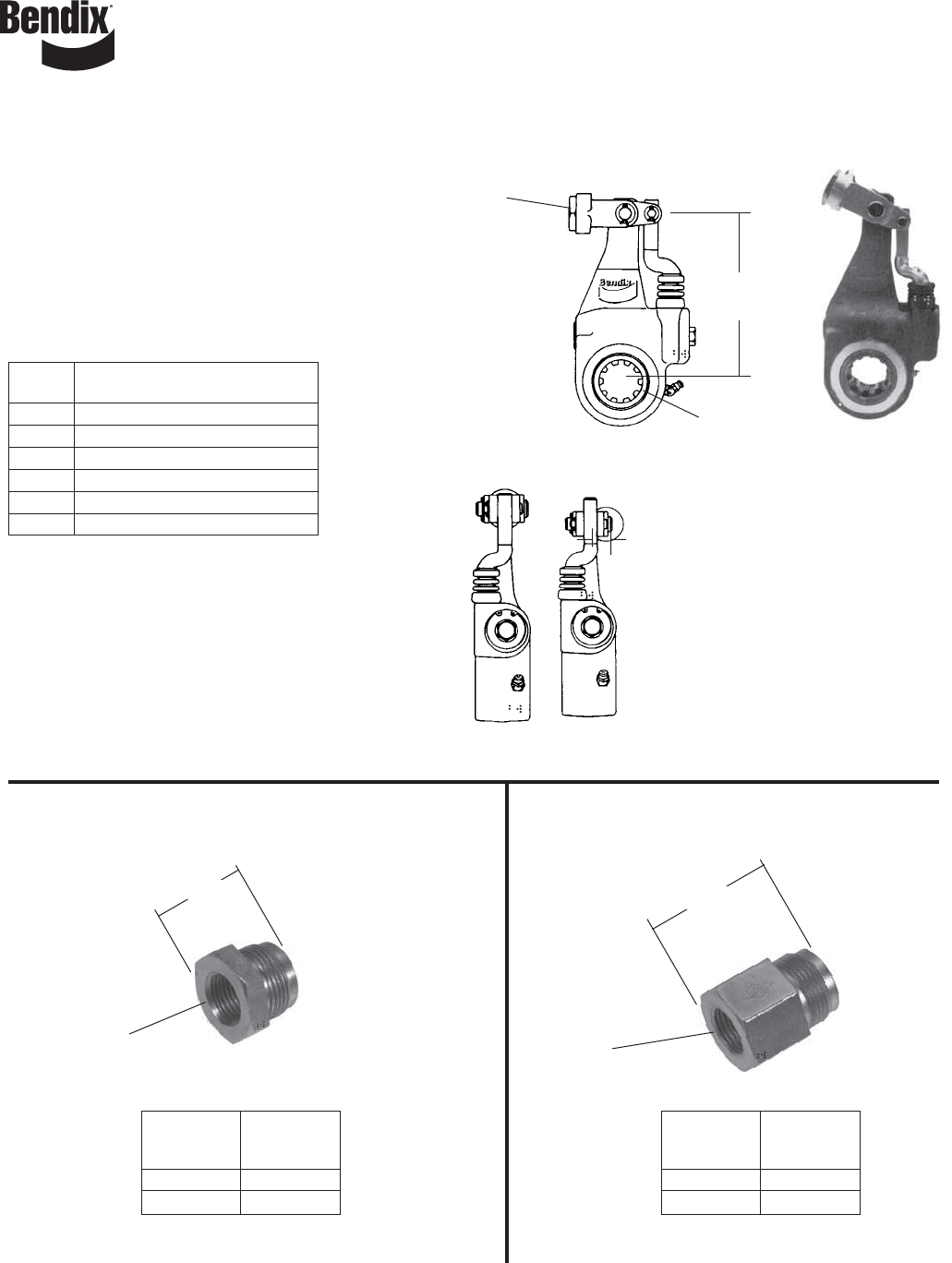

SLACK ADJUSTERS QUICK REFERENCE

ASA-5® Automatic Slack Adjuster

V.M.R.S. 013-001-030 (FRONT)

013-002-028 (REAR)

Kit

Pc. No. Description

107162 1/2" Adapter Kit - Quick Connect

107161N 5/8" Adapter Kit - Quick Connect

107157 Quick Connect Yoke Kit (Straight)

107159 Quick Connect Yoke Kit (Offset)

107158 Easy-On Yoke Kit (Straight)

107160 Easy-On Yoke Kit (Offset)

Kit contents at the end of this catalog

section.

ASA-5® Automatic Slack Adjuster

Maintenance Kits

Adapter

Thread

Size

“B”

Offset

Straight

Spline

Size

The most commonly used

adapter is supplied with

the slack adjuster. Other

adapters may be pur-

chased separately.

All offset slack adjusters

are provided as shown.

If the opposite offset is

needed remove the yoke

and rotate 180°.

ASA-5®

Automatic

Slack

Adjuster

Exterior

Arm

Length

Service A

New Push Rod

Pc. No. Thread Size

291452N 5/8"-18 UNF

292756N 1/2"-20 UNF

Service A

New Push Rod

Pc. No. Thread Size

297700N 5/8"-18 UNF

297701N 1/2"-20 UNF

Standard Adapter Extended Adapter

25/32"

1-9/32"

Offset

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁgurations are

available. Review catalog detail for speciﬁc application and component detail.

BW7248 SLACK ADJUSTERS QUICK REFERENCE

The easy-on-yoke assemblies are standard on the ASA-5® service basic slack adjusters, however, early production assemblies

may contain the quick connect yoke.

If the quick connect yoke is required it must be purchased separately and installed by the customer.

All ASA-5® slack adjusters are supplied with a 45° lube fitting unless otherwise noted.

ASA-5®

Adapter Service Parts/Kits

Slack Adjuster Arm Thread

Service Assy. Length Size Yoke

Pc. No. A B Offset Adapter Yoke

1 1/4"-10C Spline

065162 5" 1/2"-20 5/8" 292756N 107160

065163 5-1/2" 5/8"-18 5/8" 291452N 107160

065244 5-1/2" 1/2"-20 5/8" 292756N 107160

065164 5-1/2" 1/2"-20 Straight 292756N 107158

801351 5-1/2" 5/8"-18 Straight 291452N 107158

801359 5" 5/8"-18 5/8" 291452N 107160

1 1/4"-24 Spline

065166 5" 1/2"-20 5/8" 292756N 107160

065167 5-1/2" 5/8"-18 Straight 291452N 107158

065274 5-1/2" 1/2"-20 Straight 292756N 107158

801357 5" 5/8"-18 5/8" 291452N 107160

1 1/2"-10C Spline

065168 5" 1/2"-20 Straight 292756N 107158

065169 5-1/2" 1/2"-20 5/8" 292756N 107160

065170 5-1/2" 5/8"-18 Straight 291452N 107158

065172 6" 5/8"-18 Straight 291452N 107158

801352 5" 5/8"-18 Straight 291452N 107158

801353 5-1/2" 1/2"-20 Straight 292756N 107158

801358 5-1/2" 5/8"-18 5/8" 291452N 107160

1 1/2"-28 Spline

065173 5" 1/2"-20 Straight 292756N 107158

065174 5-1/2" 5/8"-18 Straight 291452N 107158

065176 6" 5/8"-18 Straight 291452N 107158

801354 5" 5/8"-18 Straight 291452N 107158

801355 5-1/2" 1/2"-20 Straight 292756N 107158

801356 6" 1/2"-20 Straight 292756N 107158

1 5/8"-37 Spline

065177 6" 5/8"-18 Straight 291452N 107158

065178 5-1/2" 5/8"-18 Straight 291452N 107158

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁgurations are

available. Review catalog detail for speciﬁc application and component detail.

BW7248

SLACK ADJUSTERS QUICK REFERENCE

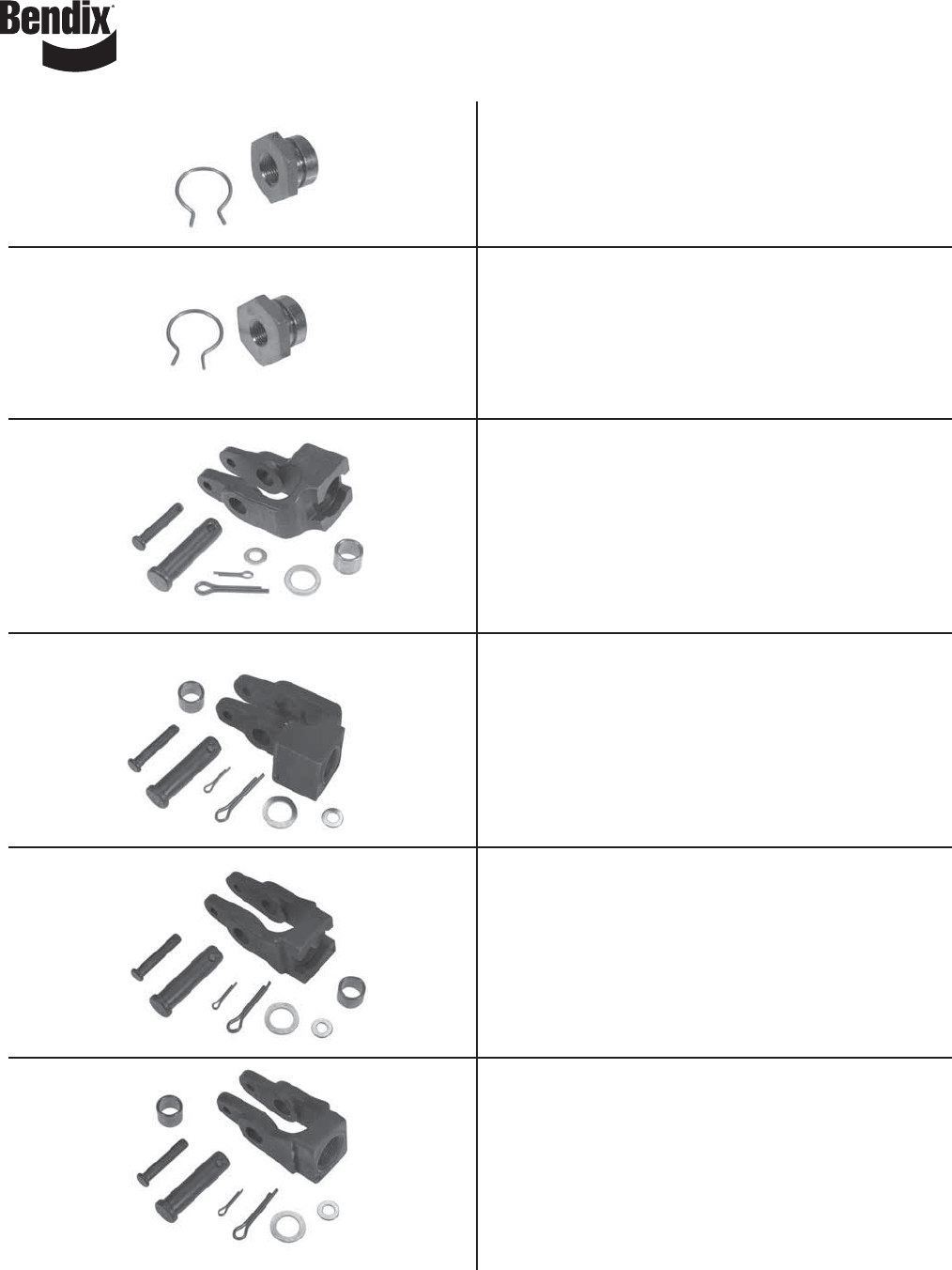

5/8" Adapter Kit - Quick Connect Pc. No. 107161N

1/2" Adapter Kit - Quick Connect Pc. No. 107162

Quick Connect Yoke Kit (Offset) - Pc. No. 107159

Easy-On Yoke Kit (Offset) - Pc. No. 107160

Quick Connect Yoke Kit (Straight) - Pc. No. 107157

Easy-On Yoke Kit (Straight) - Pc. No. 107158

NOTE:

Popular part numbers listed above are for reference only. Many other components and conﬁ gurations are

available. Review catalog detail for speciﬁ c application and component detail.

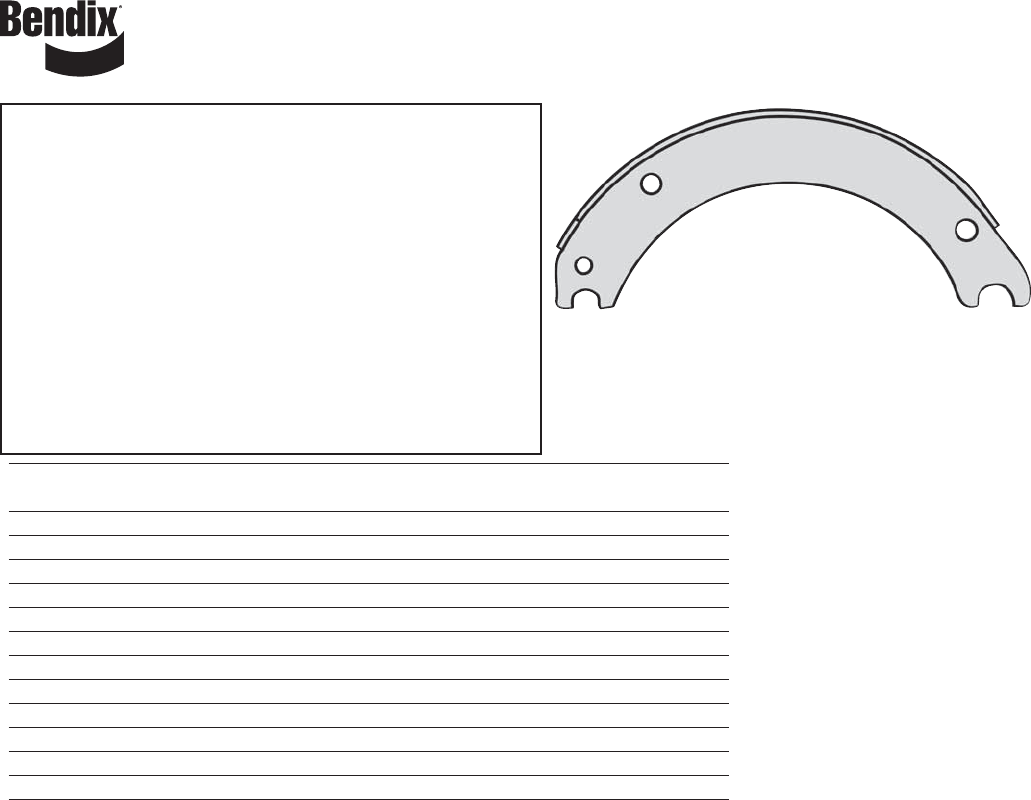

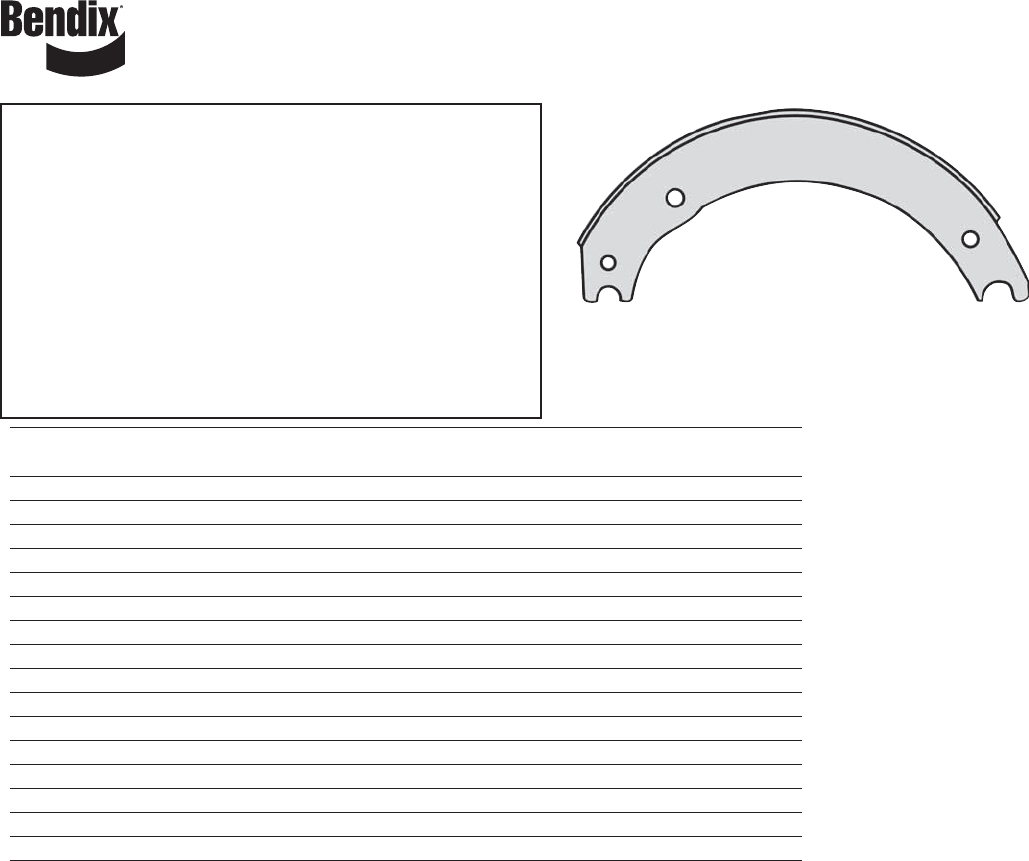

BW7248 BRAKE SHOE APPLICATIONS

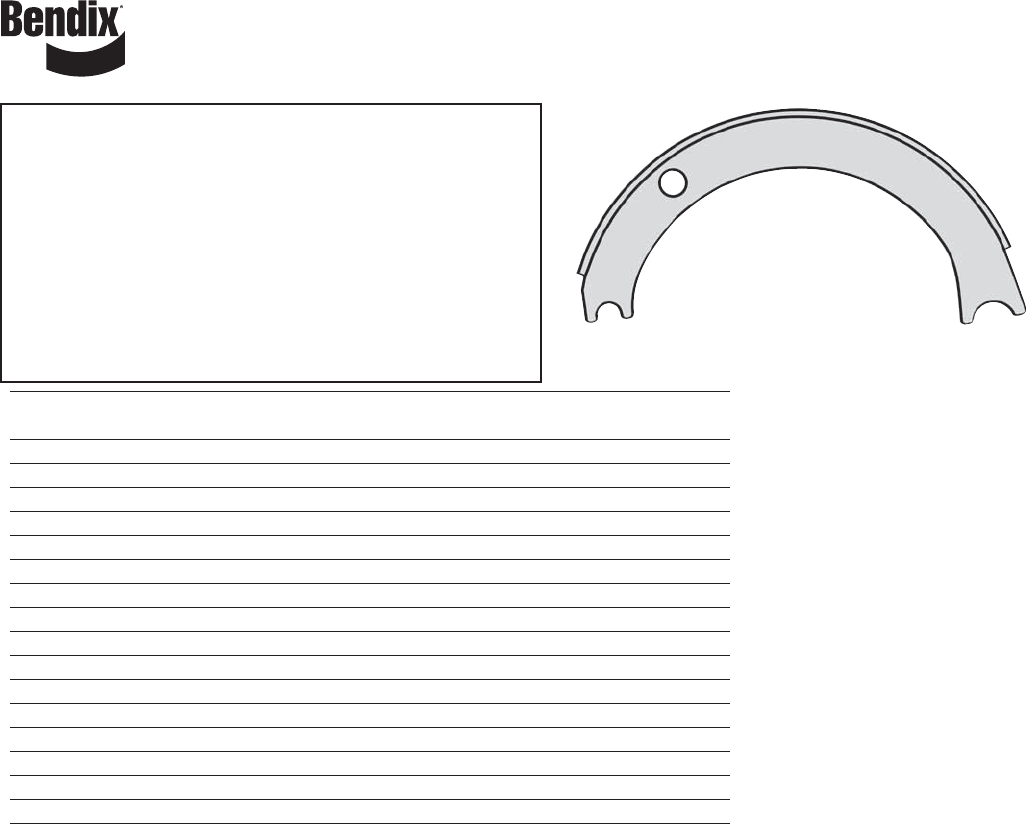

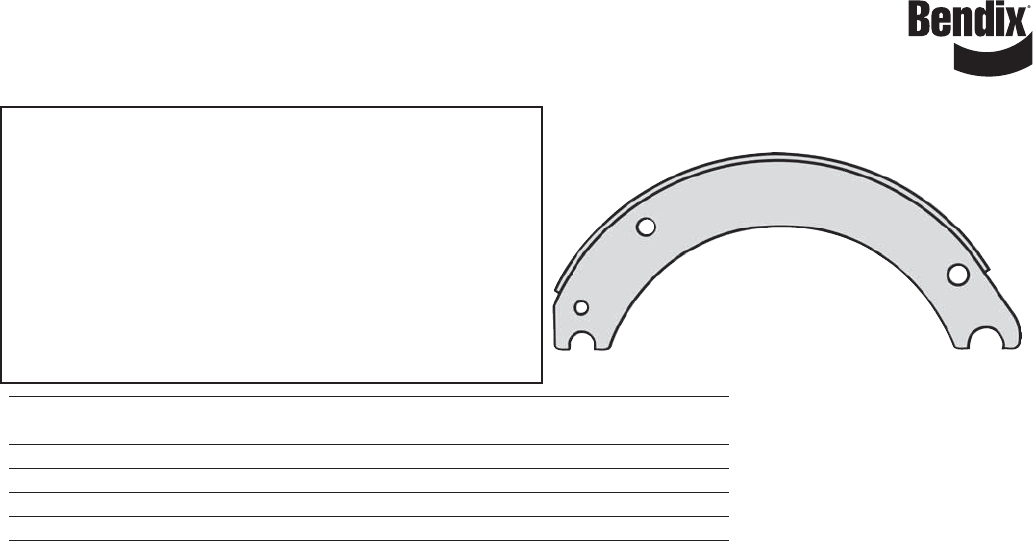

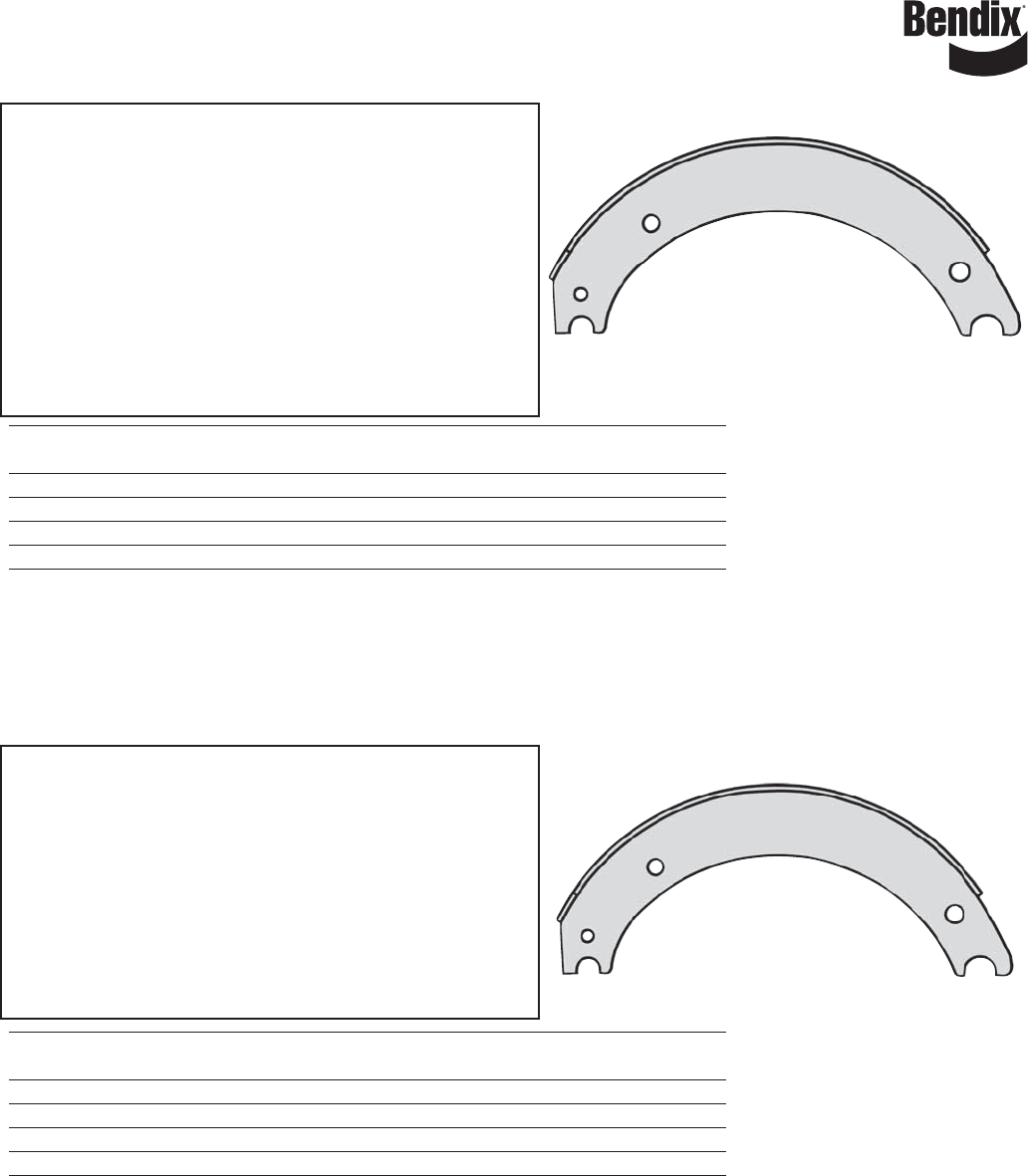

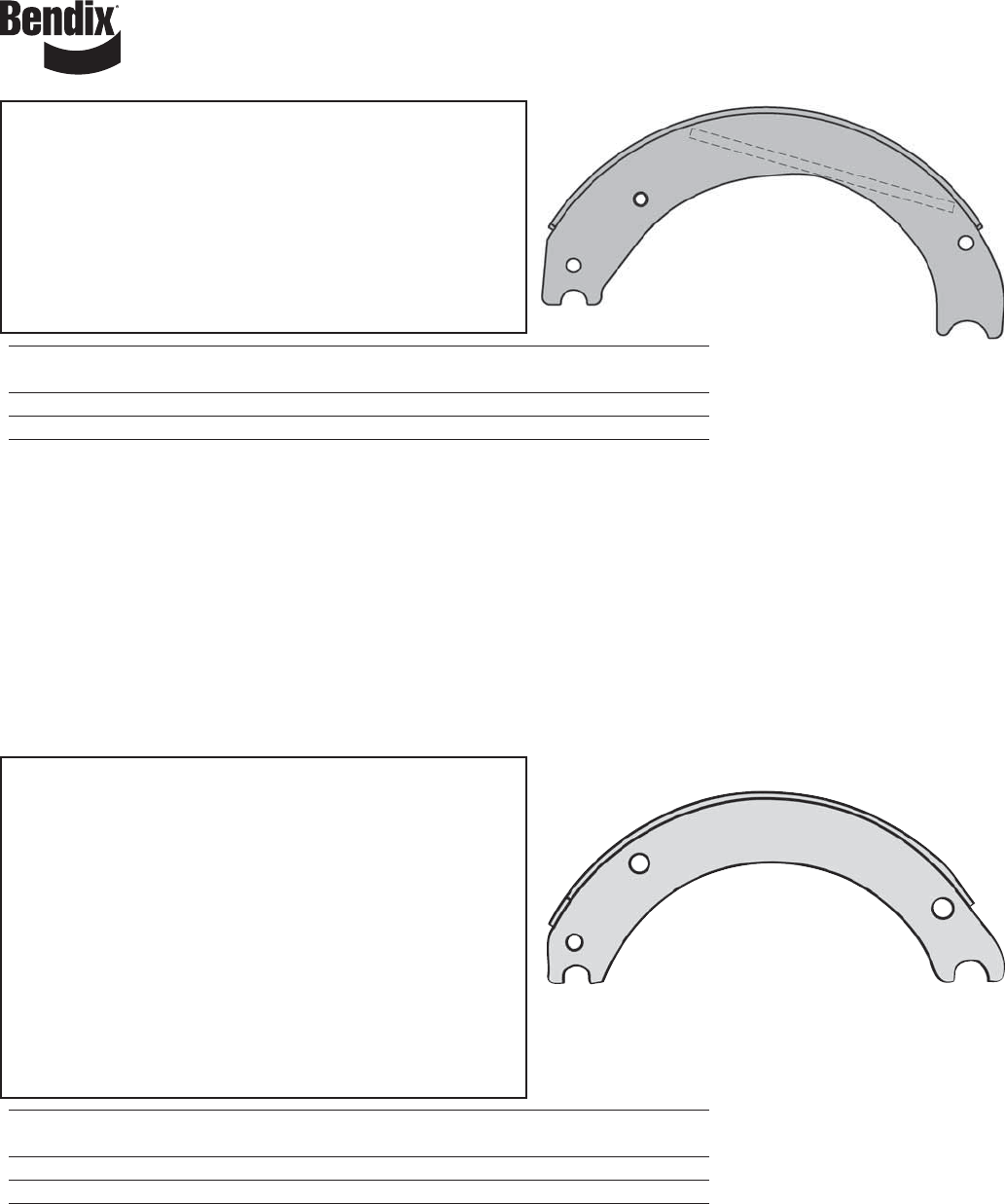

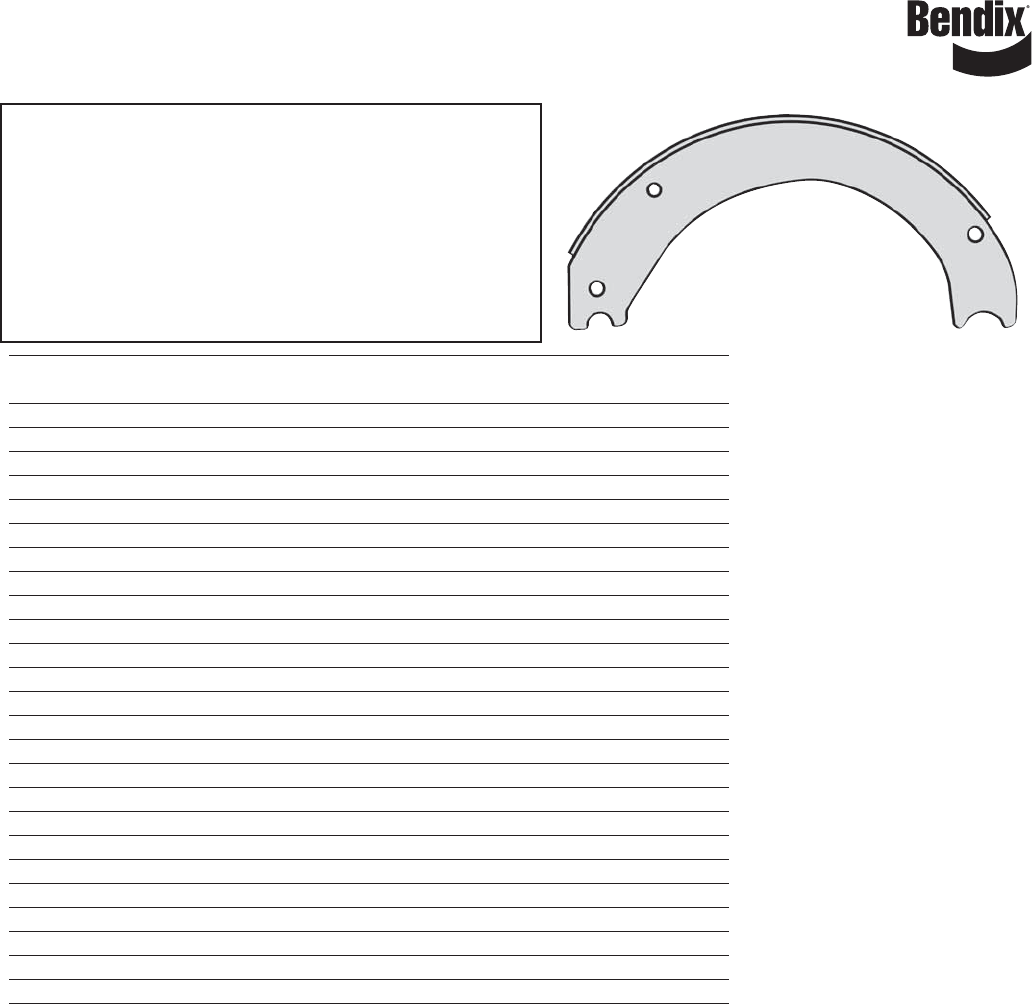

Unlined Brake Shoe No. 1308E

Brake Size: 15 X 4

Rivet Size: 10-7

Brake Type: BENDIX® SAP

Interchange with:

BENDIX 1005840

ROCKWELL / MERITOR A3222Q1837

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 1308EBLK SB1308EBLK HK54

Bendix Red 1308ERED SB1308ERED HK54

Bendix Black EX1308EBLK KT1308EBLK HK54

Bendix Red EX1308ERED KT1308ERED HK54

Hardware kit number available for this typical brake shoe application: HK54

Unlined Brake Shoe No. 1308Q

Brake Size: 15 X 4

Rivet Size: 10-7

Brake Type: ROCKWELL / MERITOR Q

BENDIX® FC

Interchange with:

ROCKWELL / MERITOR A3222F1982

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 1308QBLK SB1308QBLK HK55

Bendix Red 1308QRED SB1308QRED HK55

Bendix Black EX1308QBLK KT1308QBLK HK55

Bendix Red EX1308QRED KT1308QRED HK55

Hardware kit number available for this typical brake shoe application: HK55

Short kit available for this brake shoe application: HK77

Not interchangeable with Rockwell "T"

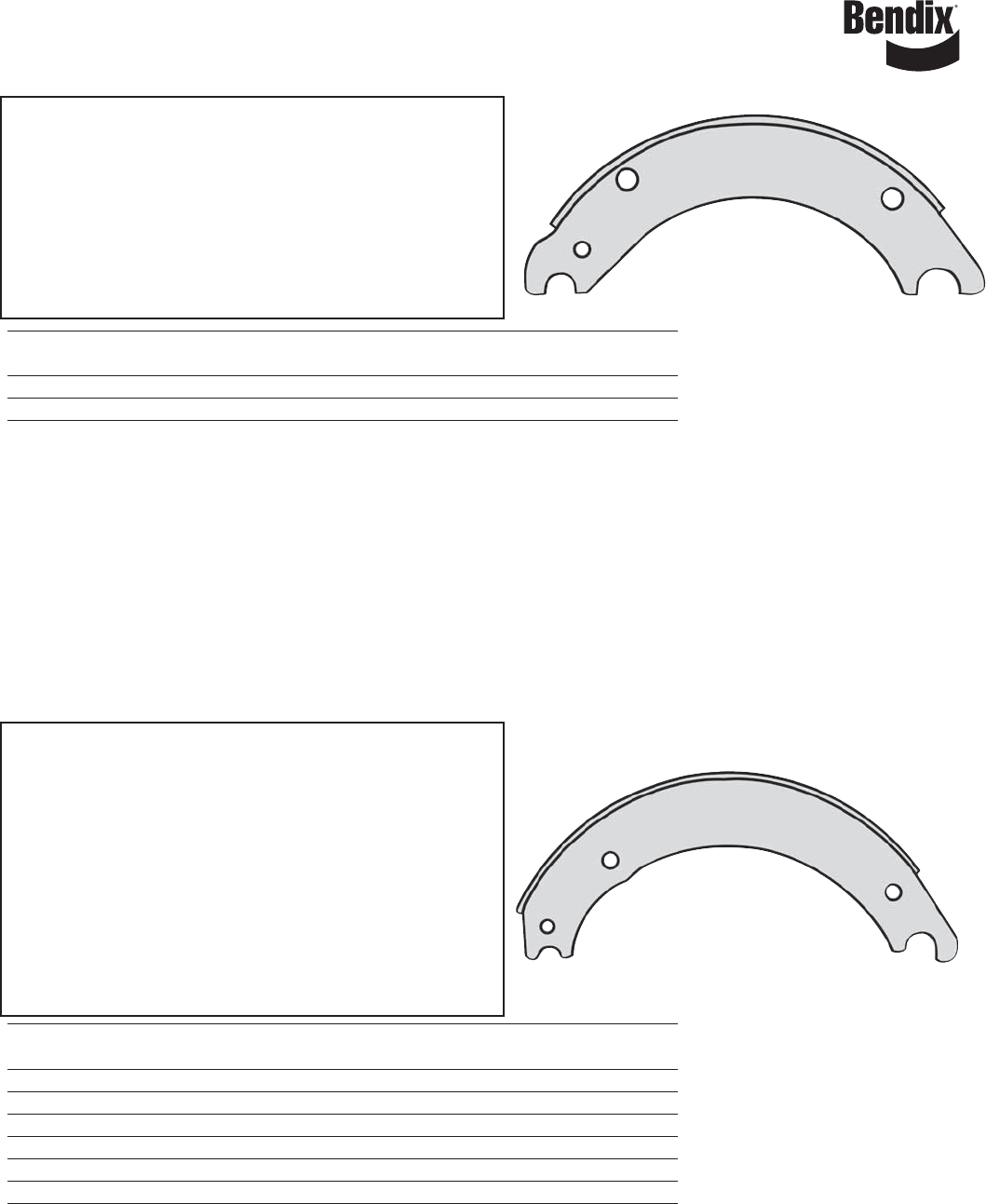

BW7248

BRAKE SHOE APPLICATIONS

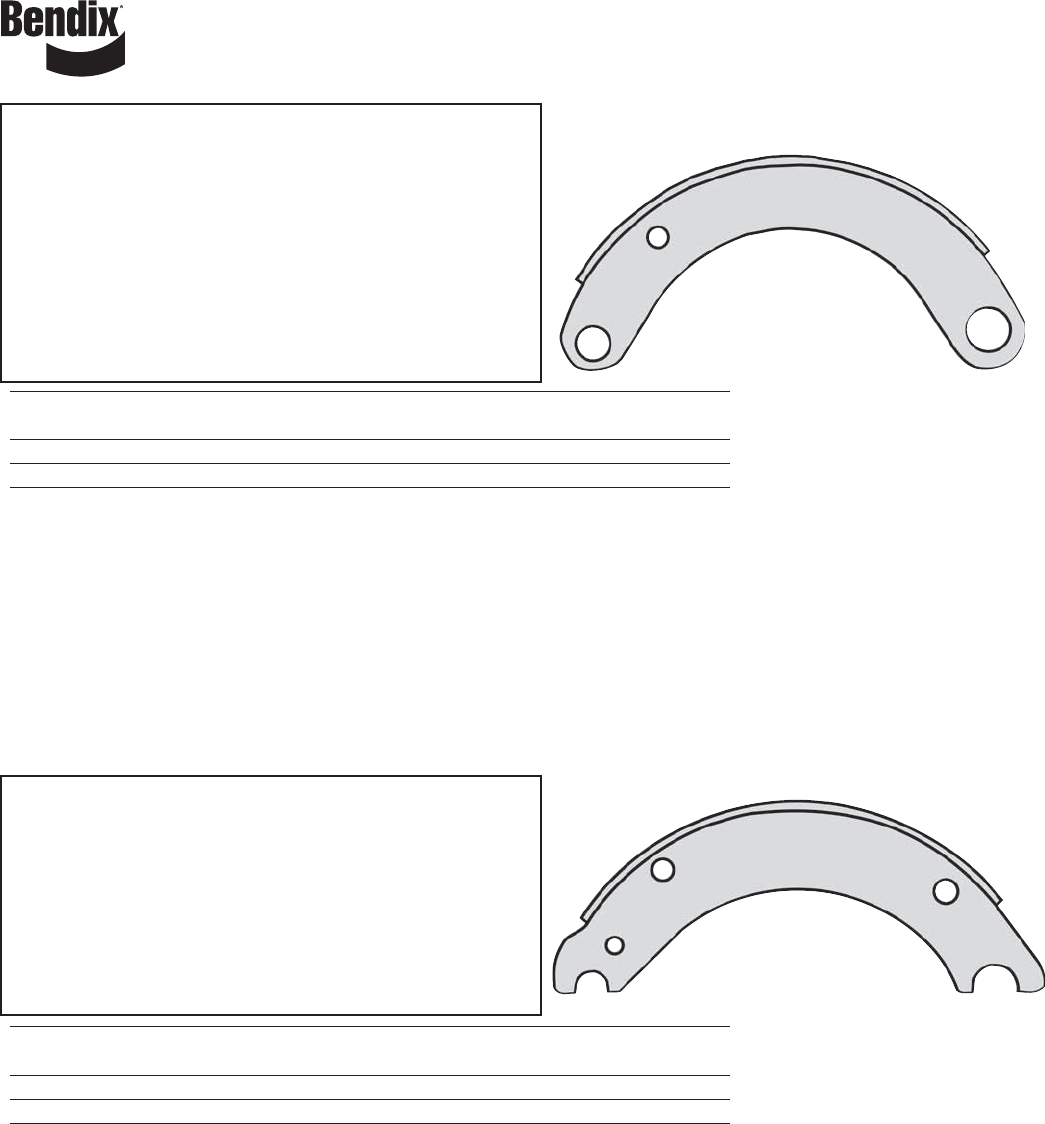

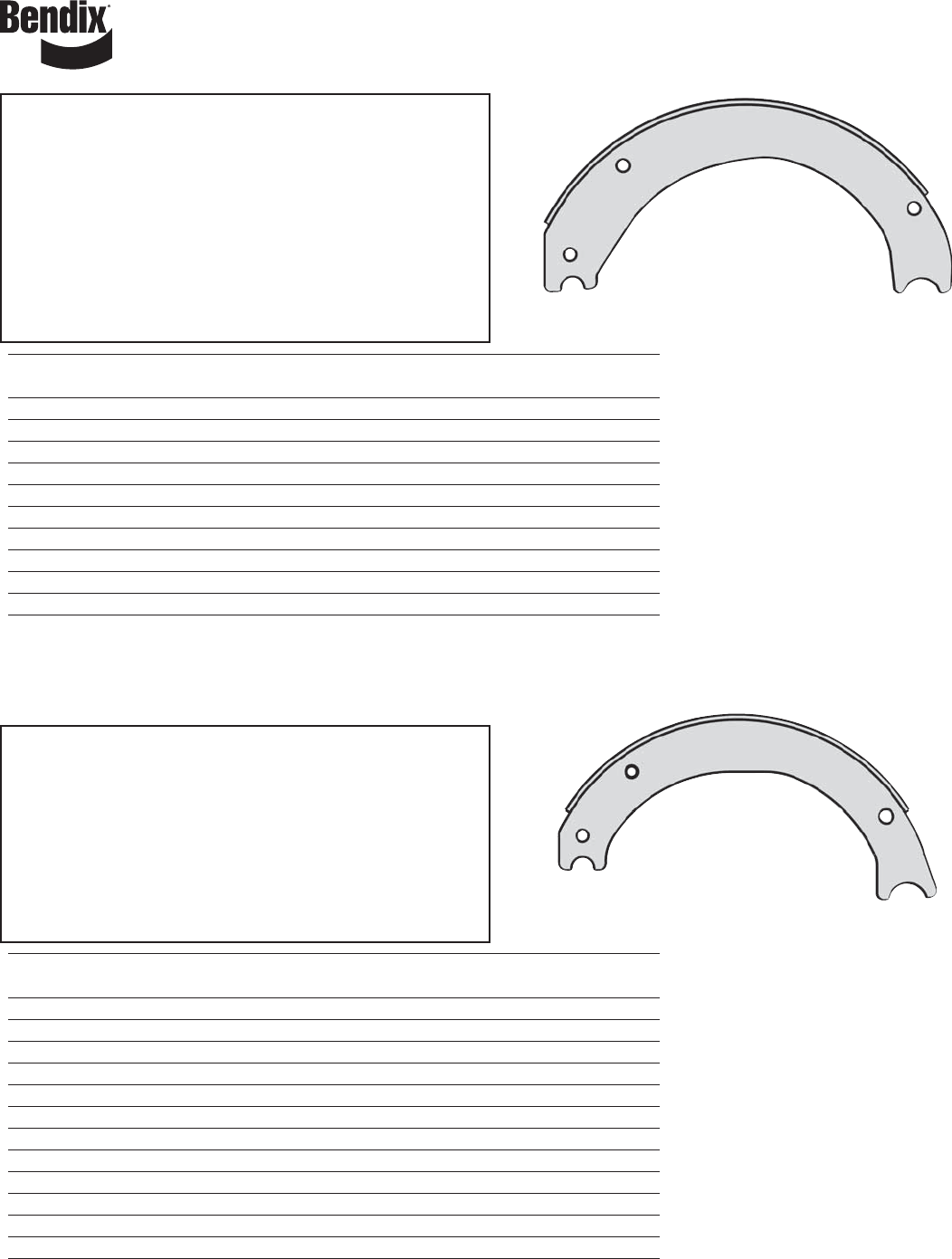

Unlined Brake Shoe No. 1308T

Brake Size: 15 X 4

Rivet Size: 10-7

Brake Type: ROCKWELL / MERITOR T

Interchange with:

ROCKWELL / MERITOR A3222F1072

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 1308TRED SB1308TRED HK51

Bendix Red EX1308TRED KT1308TRED HK51

Hardware kit number available for this typical brake shoe application: HK51

Short kit available for this brake shoe application: HK50

Not interchangeable with Rockwell "Q"

Unlined Brake Shoe No. 1443E

Brake Size: 15 X 4

Rivet Size: 10-7

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 807685

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 1443EBLK SB1443EBLK HK54

Bendix ES 420 1443E420 SB1443E420 HK54

Bendix ES 600 1443E600 SB1443E600 HK54

Bendix Red 1443ERED SB1443ERED HK54

Bendix Black EX1443EBLK KT1443EBLK HK54

Bendix ES 420 EX1443E420 KT1443E420 HK54

Bendix ES 600 EX1443E600 KT1443E600 HK54

Bendix Red EX1443ERED KT1443ERED HK54

This shoe DOES NOT interchange with standard Bendix 1308E front shoes.

Hardware kit number available for this typical brake shoe application: HK54

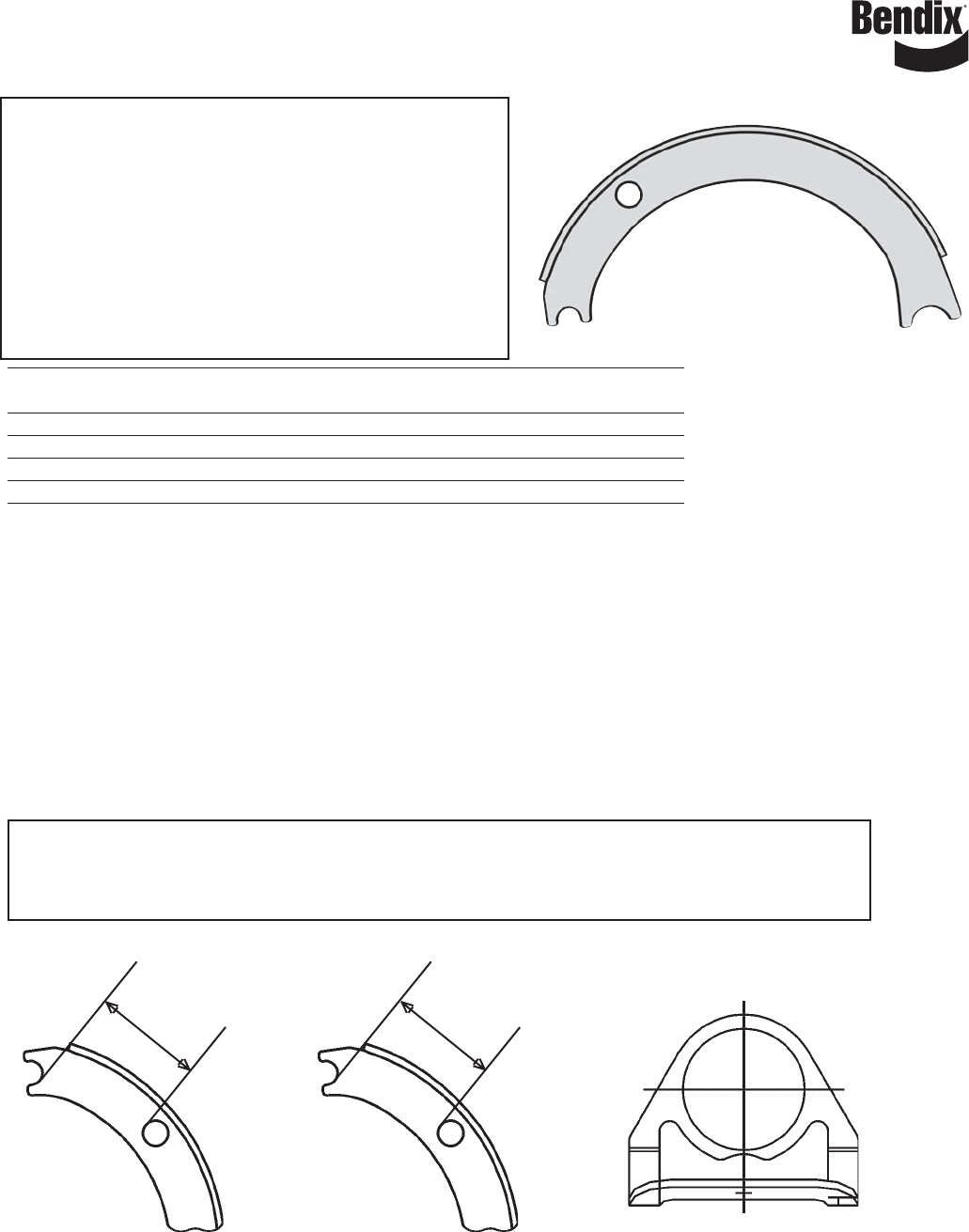

BW7248 BRAKE SHOE APPLICATIONS

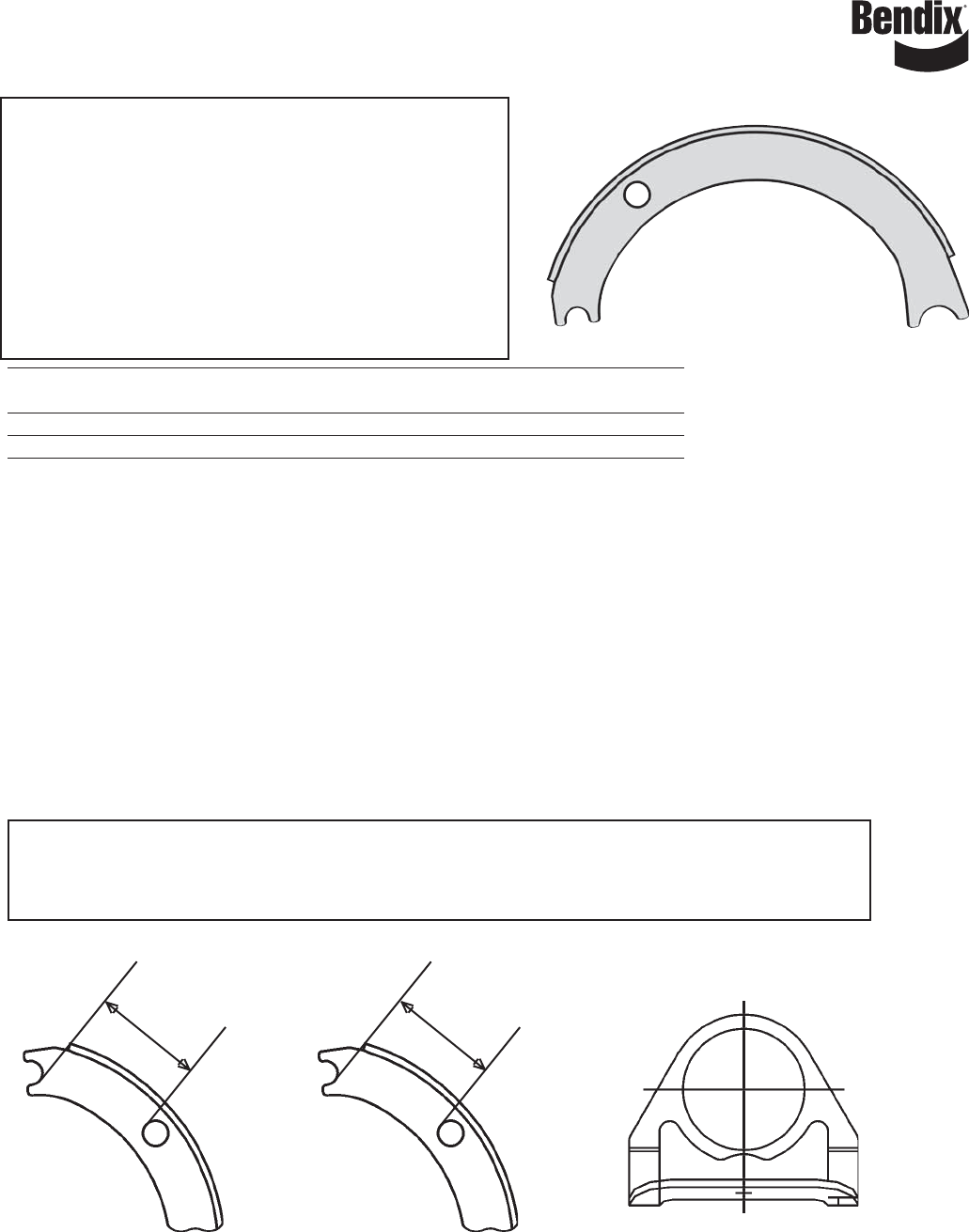

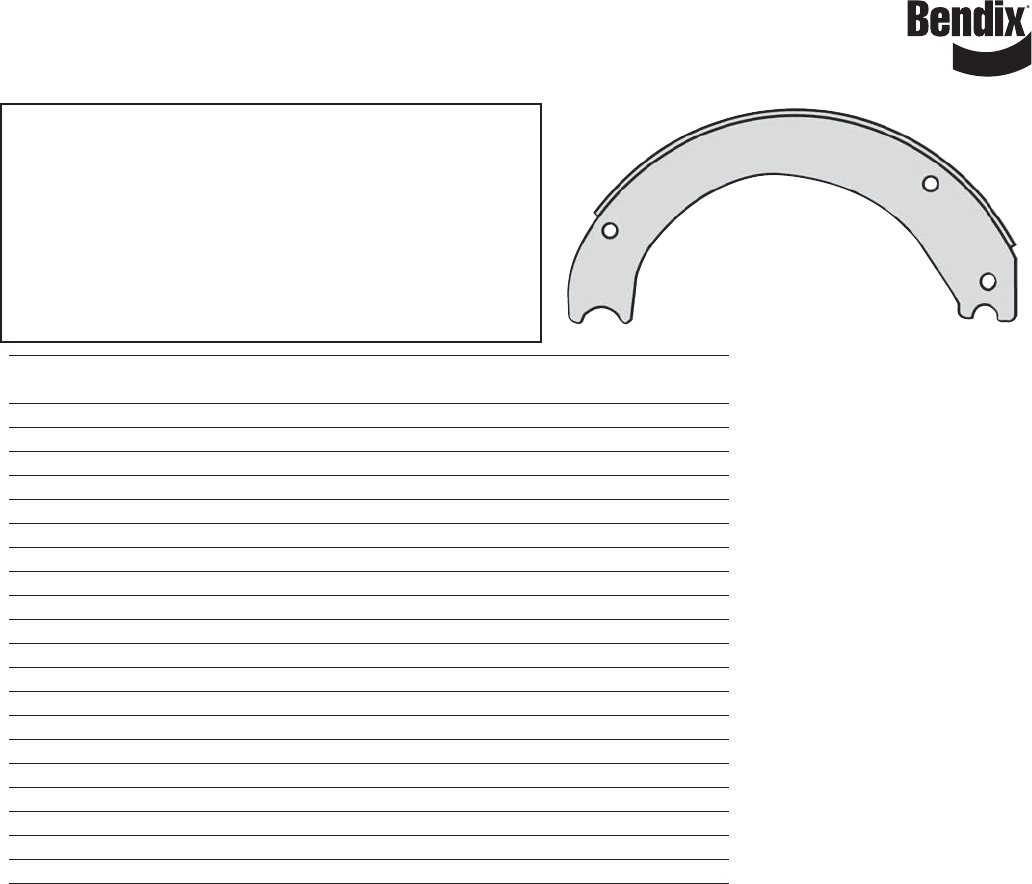

Unlined Brake Shoe No. 4223E

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: BENDIX® SAP

Interchange with:

BENDIX 805676 LOW MOUNT

BENDIX 805677 HIGH MOUNT

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Blue 4223EBLU SB4223EBLU HK24XLSHM

Bendix Red 4223ERED SB4223ERED HK24XLSHM

Bendix Blue EX4223EBLU KT4223EBLU HK24XLSHM

Bendix Red EX4223ERED KT4223ERED HK24XLSHM

• High mount shoes and low mount shoes use different return springs.

• High mount shoes can replace low mount shoes in all applications with the appropriate hardware kits.

• Low mount shoes cannot replace high mount shoes.

High Mount Low Mount Horse

Shoes Shoes Collar

3 1/2"

[88.9mm]

[101.6mm]

Hardware kit number available for “high mount” brake shoe application (see illustration below) for steer axles

where horse collar is not used: HK24XLSHM

Hardware kit number available for “low mount” brake shoe application (see illustration below) for steer axles where

horse collar is not used: HK24XLSLM, HK24SDLM

Hardware kit number available for this brake shoe application for “heavy duty” steer axles where horse collar is

used: HK64XLS

BW7248

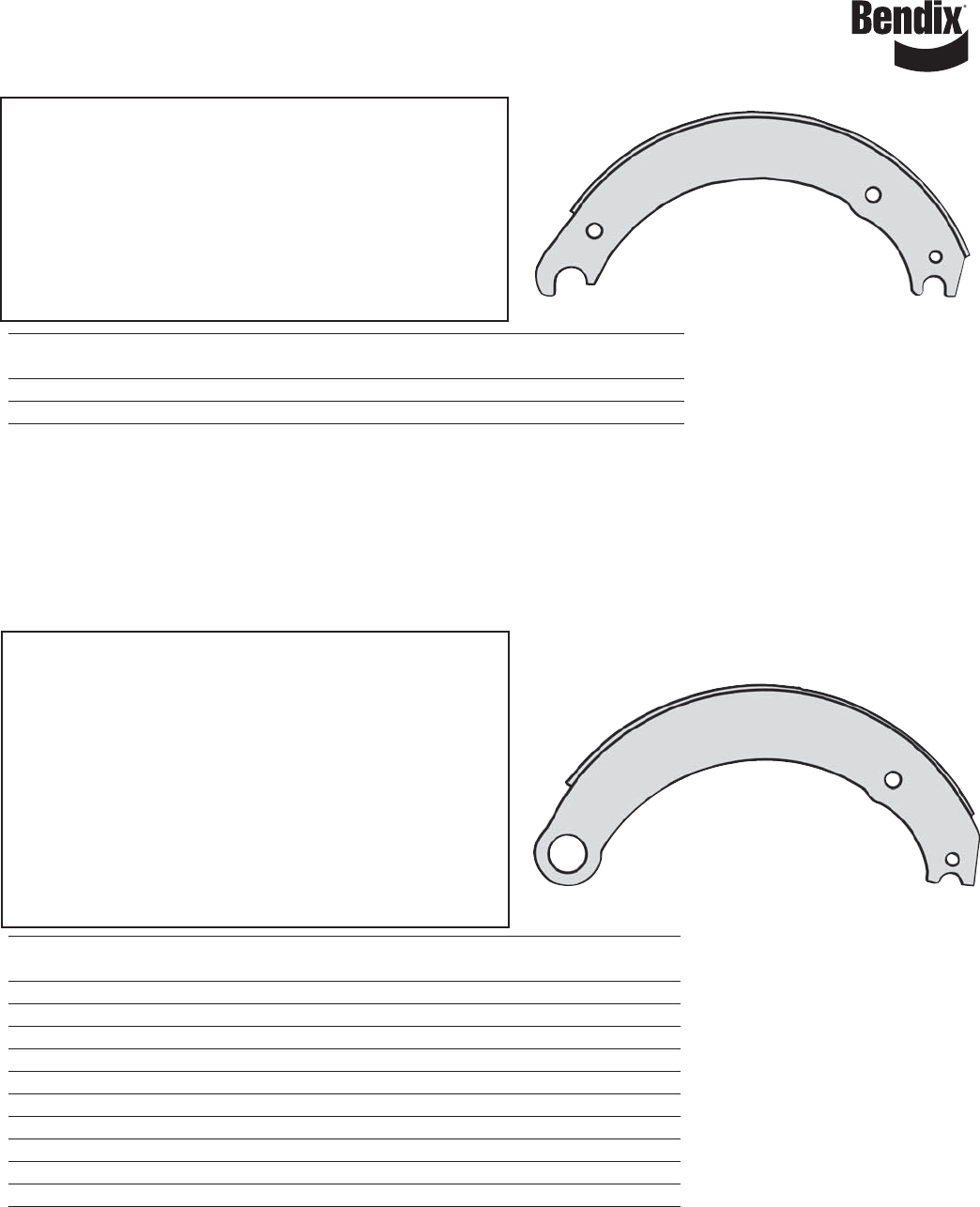

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4311E

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® SAP

Interchange with:

BENDIX 805442 LOW MOUNT

BENDIX 805460 HIGH MOUNT

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4311EBLK SB4311EBLK HK24XLSLM

Bendix Blue 4311EBLU SB4311EBLU HK24XLSLM

Bendix Bronze 4311EBRZ SB4311EBRZ HK24SDLM

Bendix Gold 4311EGLD SB4311EGLD HK24XLSLM

Bendix Orange 4311EORG SB4311EORG HK24XLSDLM

Bendix Red 4311ERED SB4311ERED HK24XLSLM

Bendix Silver 4311ESIL SB4311ESIL HK24XLSLM

Bendix Yellow 4311EYEL SB4311EYEL HK24XLSLM

Bendix Black EX4311EBLK KT4311EBLK HK24XLSLM

Bendix Blue EX4311EBLU KT4311EBLU HK24XLSLM

Bendix Bronze EX4311EBRZ KT4311EBRZ HK24SDLM

Bendix Gold EX4311EGLD KT4311EGLD HK24XLSLM

Bendix Orange EX4311EORG KT4311EORG HK24SDLM

Bendix Red EX4311ERED KT4311ERED HK24XLSLM

Bendix Silver EX4311ESIL KT4311ESIL HK24XLSLM

Bendix Yellow EX4311EYEL KT4311EYEL HK24XLSLM

Hardware kit number available for “high mount” brake application (see illustration on previous page) : HK24XLSHM

Hardware kit number available for “low mount” brake shoe application (see illustration on previous page) :

HK24XLSLM, HK24SDLM

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4317E

Brake Size: 16 1/2 X 6

Rivet Size: 10-8 1/2

Brake Type: BENDIX® SAP

Interchange with:

BENDIX 805679 HIGH MOUNT

BENDIX 805678 LOW MOUNT

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4317ERED SB4317ERED HK24XLSHM

Bendix Red EX4317ERED KT4317ERED HK24XLSHM

Hardware kit number available for “high mount” brake shoe application (see illustration on page 23) for steer axles

where horse collar is not used: HK24XLSHM

Hardware kit number available for “low mount” brake shoe application (see illustration on page 23) for steer axles

where horse collar is not used : HK24XLSLM, HK24SDLM

Hardware kit number available for this brake shoe application for heavy duty steer axles where horse collar is

used: HK64XLS

• High mount shoes and low mount shoes use different return springs.

• High mount shoes can replace low mount shoes in all applications with the appropriate hardware kits.

• Low mount shoes cannot replace high mount shoes.

High Mount Low Mount Horse

Shoes Shoes Collar

3 1/2"

[88.9mm]

[101.6mm]

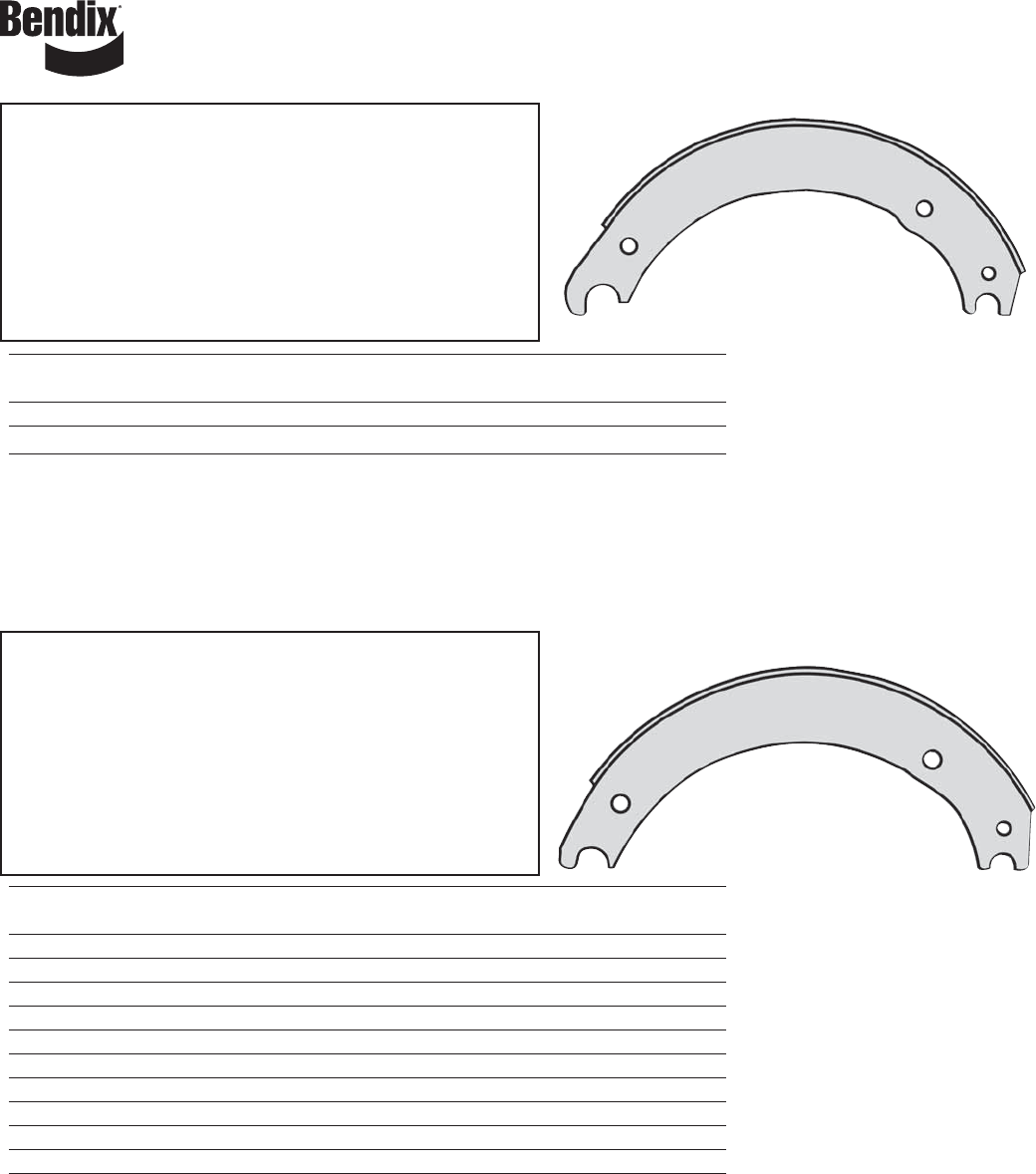

BW7248

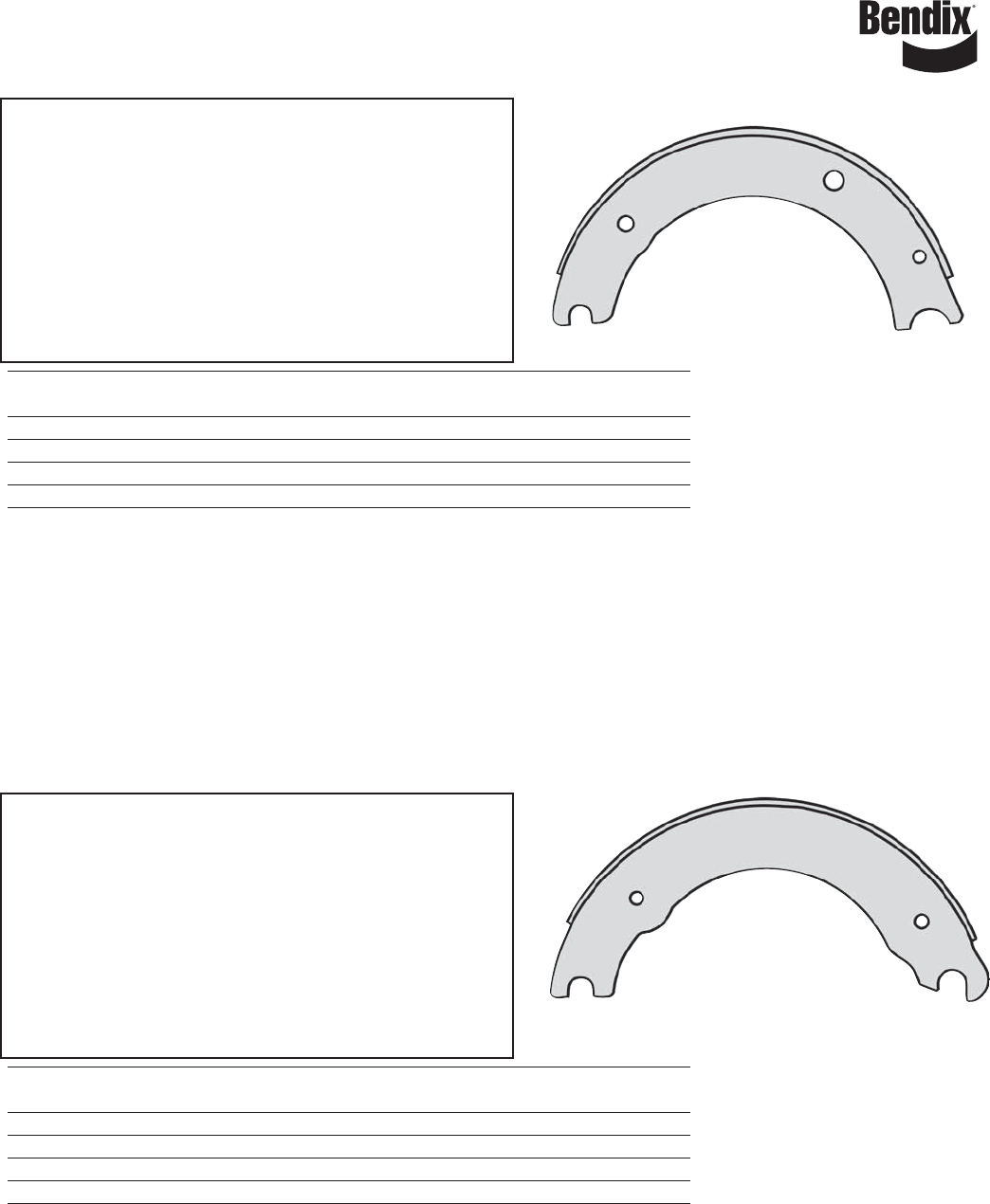

BRAKE SHOE APPLICATIONS

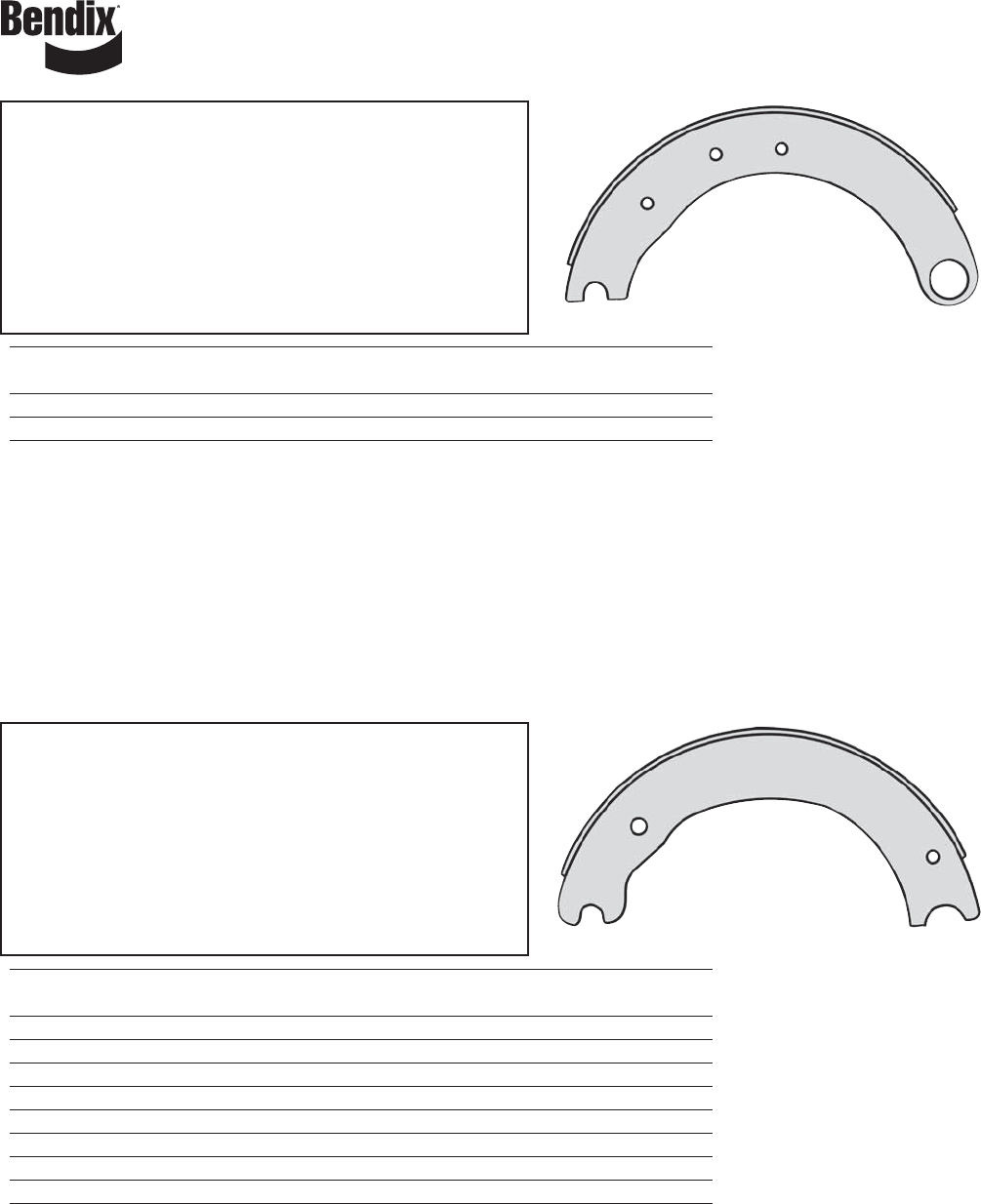

Unlined Brake Shoe No. 4514HA

Brake Size: 16 1/2 X 6

Rivet Size: 10-8 1/2

Brake Type: BENDIX® HEAVY AXLE

Interchange with:

BENDIX OE 165WS116X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Gold 4514HAGLD SB4514HAGLD HK95XLS

Bendix Gold EX4514HAGLD KT4514HAGLD HK95XLS

Hardware kit number available for this brake shoe application: HK95XLS

Not interchangeable with 4514 "Q"

To convert to 4514Q use anchor pin 150WJ134 or Kit 165KB156X

Unlined Brake Shoe No. 4514Q

Brake Size: 16 1/2 X 6

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR Q

Interchange with:

ROCKWELL / MERITOR A3222C1381

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Bronze 4514QBRZ SB4514QBRZ HK80XLS

Bendix Gold 4514QGLD SB4514QGLD HK80XLS

Bendix Orange 4514QORG SB4514QORG HK80XLS

Bendix Red 4514QRED SB4514QRED HK80XLS

Bendix Yellow 4514QYEL SB4514QYEL HK80XLS

Bendix Bronze EX4514QBRZ KT4514QBRZ HK80XLS

Bendix Gold EX4514QGLD KT4514QGLD HK80XLS

Bendix Orange EX4514QORG KT4514QORG HK80XLS

Bendix Red EX4514QRED KT4514QRED HK80XLS

Bendix Yellow EX4514QYEL KT4514QYEL HK80XLS

This shoe is completely interchangeable between Rockwell ‘Q’ and Bendix® ‘FC’ applications.

Hardware kit number available for this typical brake shoe application: HK80XLS

Hardware kit number available for steer axle brake shoe application where return spring must clear hub:

HK74XLS

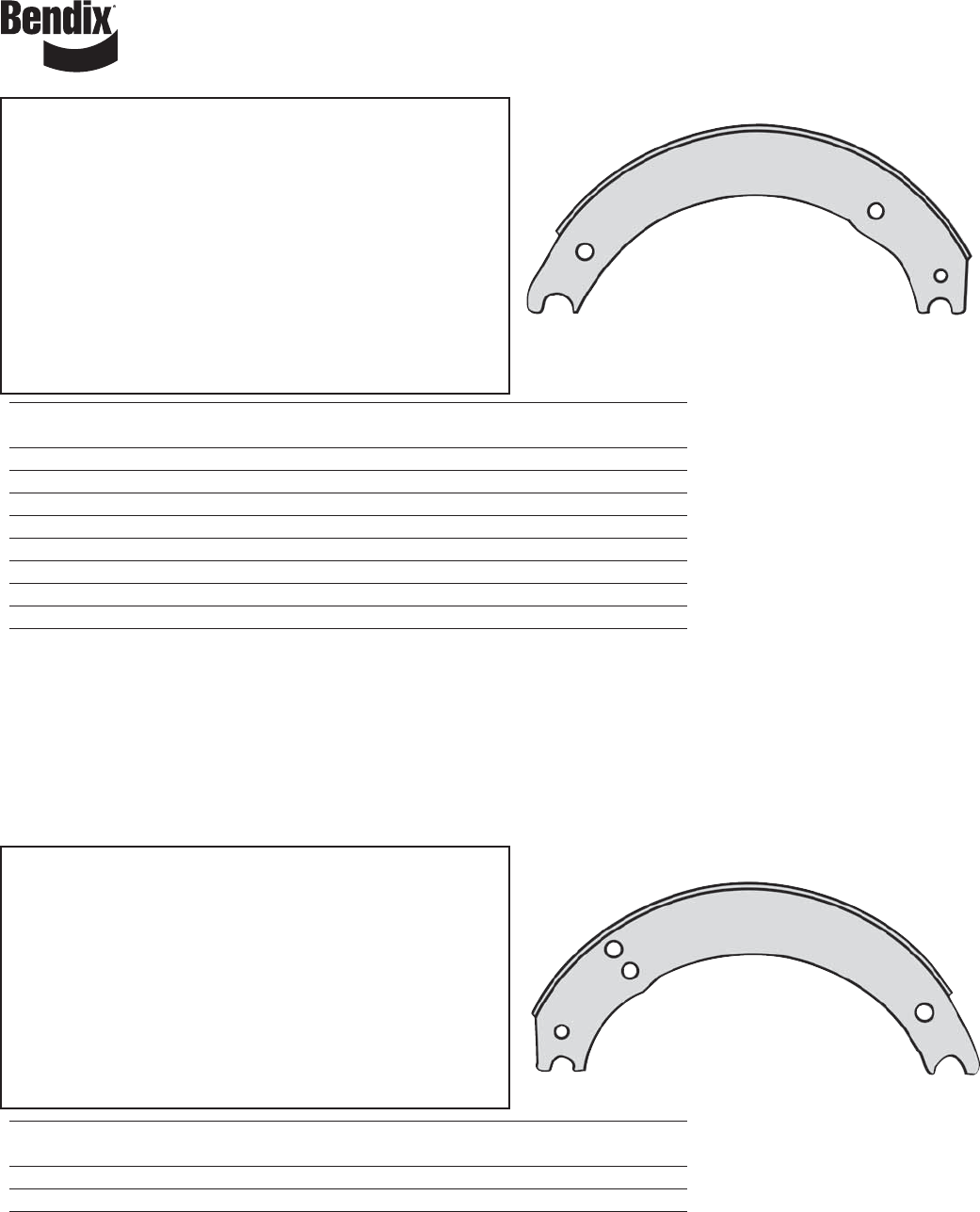

BW7248 BRAKE SHOE APPLICATIONS

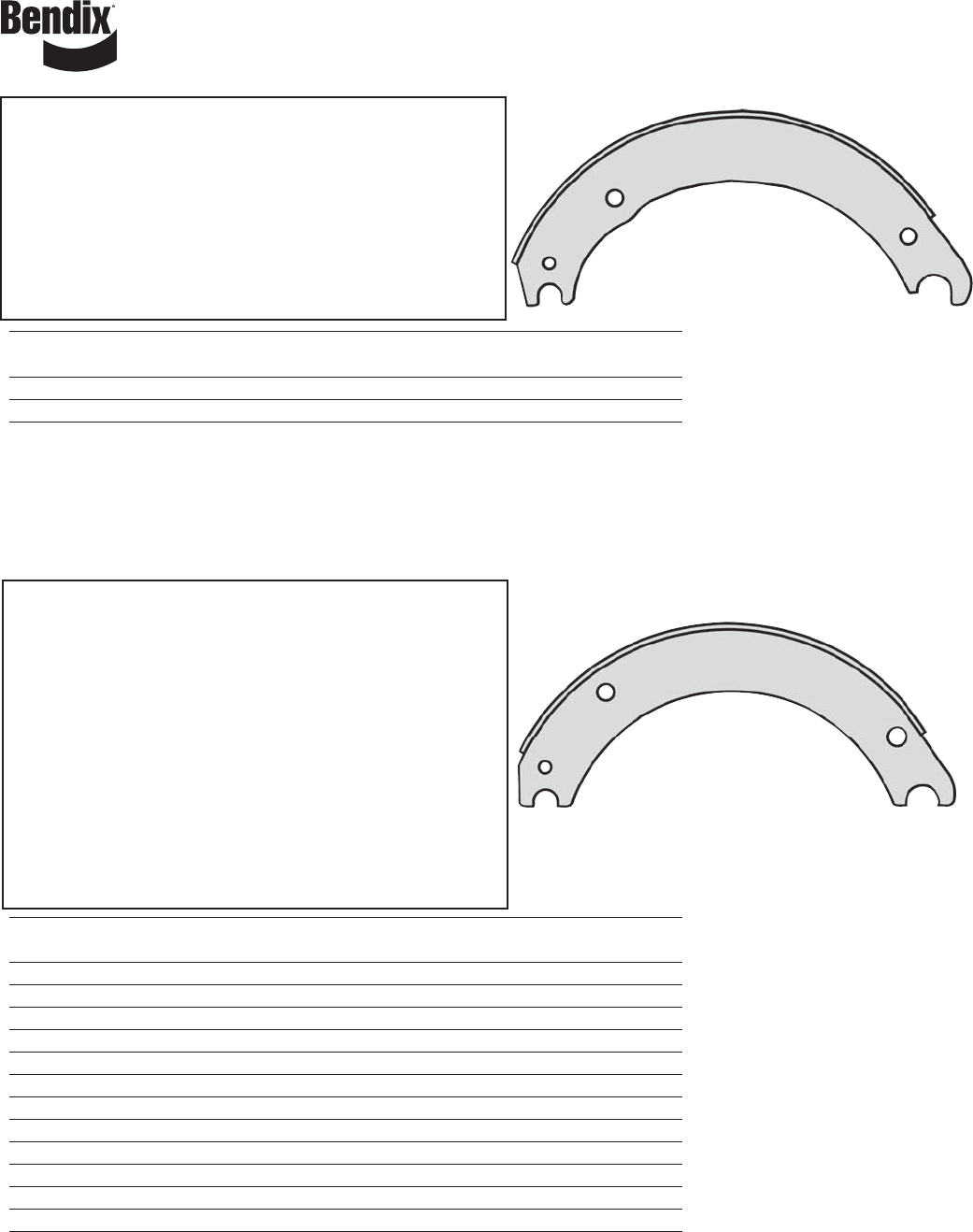

Unlined Brake Shoe No. 4515P

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR P

BENDIX® FT

Interchange with:

ROCKWELL / MERITOR A3722N66

BENDIX® OE M16WS163X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4515PBLK SB4515PBLK HK16XLS

Bendix Blue 4515PBLU SB4515PBLU HK16XLS

Bendix Red 4515PRED SB4515PRED HK16XLS

Bendix Silver 4515PSIL SB4515PSIL HK16

Bendix Yellow 4515PYEL SB4515PYEL HK16SD

Bendix Black EX4515PBLK KT4515PBLK HK16XLS

Bendix Blue EX4515PBLU KT4515PBLU HK16XLS

Bendix Red EX4515PRED KT4515PRED HK16XLS

Bendix Silver EX4515PSIL KT4515PSIL HK16XLS

Bendix Yellow EX4515PYEL KT4515PYEL HK16XLS

This shoe is completely interchangeable between Rockwell ‘P’ and Bendix® ‘FT’ applications.

Hardware kit numbers available for this brake shoe application for spiders with serviceable bushings: HK14SD,

HK14XLS.

Hardware kit numbers available for this brake shoe application for spiders with non-serviceable bushings: HK16,

HK16SD, HK16XLS.

Unlined Brake Shoe No. 4515HA

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® HEAVY AXLE

Interchange with:

BENDIX® OE 165WS115X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4515HARED SB4515HARED HK95XLS

Bendix Red EX4515HARED KT4515HARED HK95XLS

Hardware kit number available for this brake shoe application: HK95XLS

Applicable only for Fort Wayne Dana Axles

Shoe is not interchangeable with any other 4515 platform

To convert to 4515Q use anchor pin 150WJ134 A/P Kit 165KB156X

BW7248

BRAKE SHOE APPLICATIONS

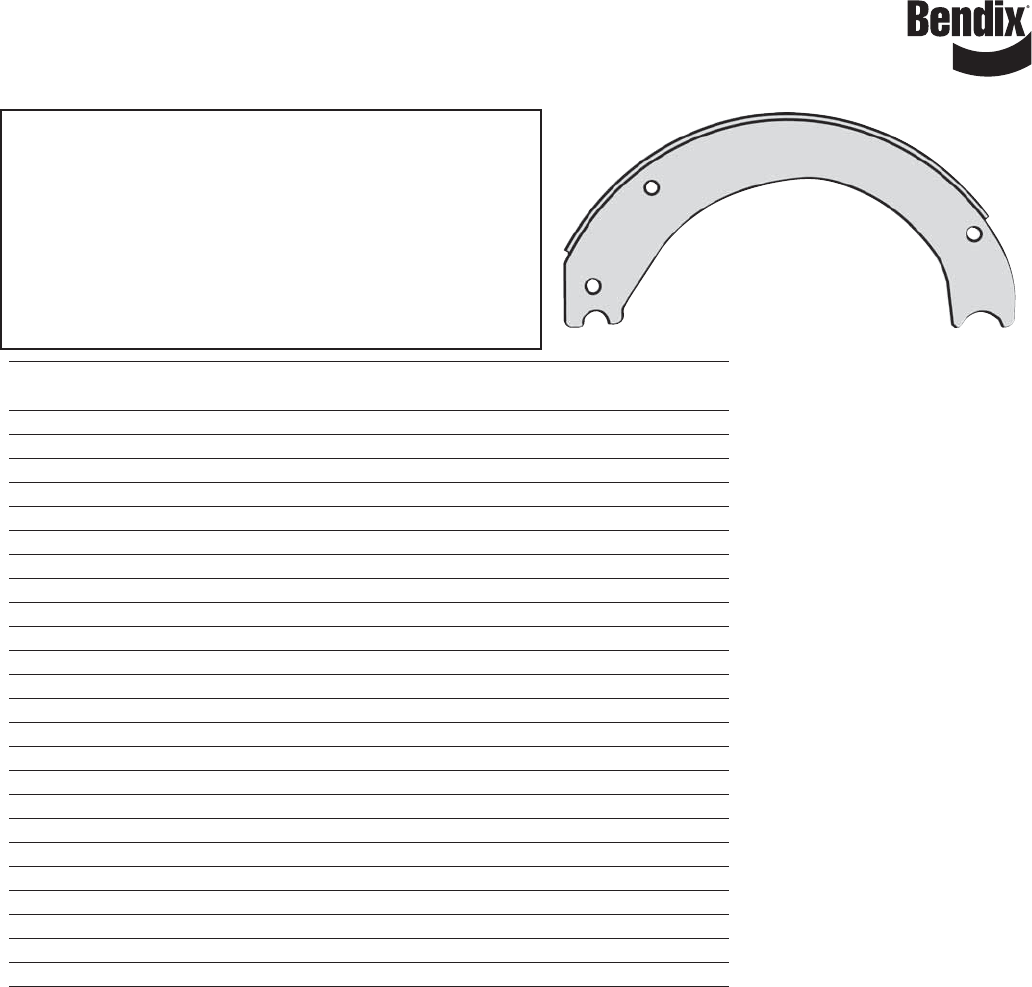

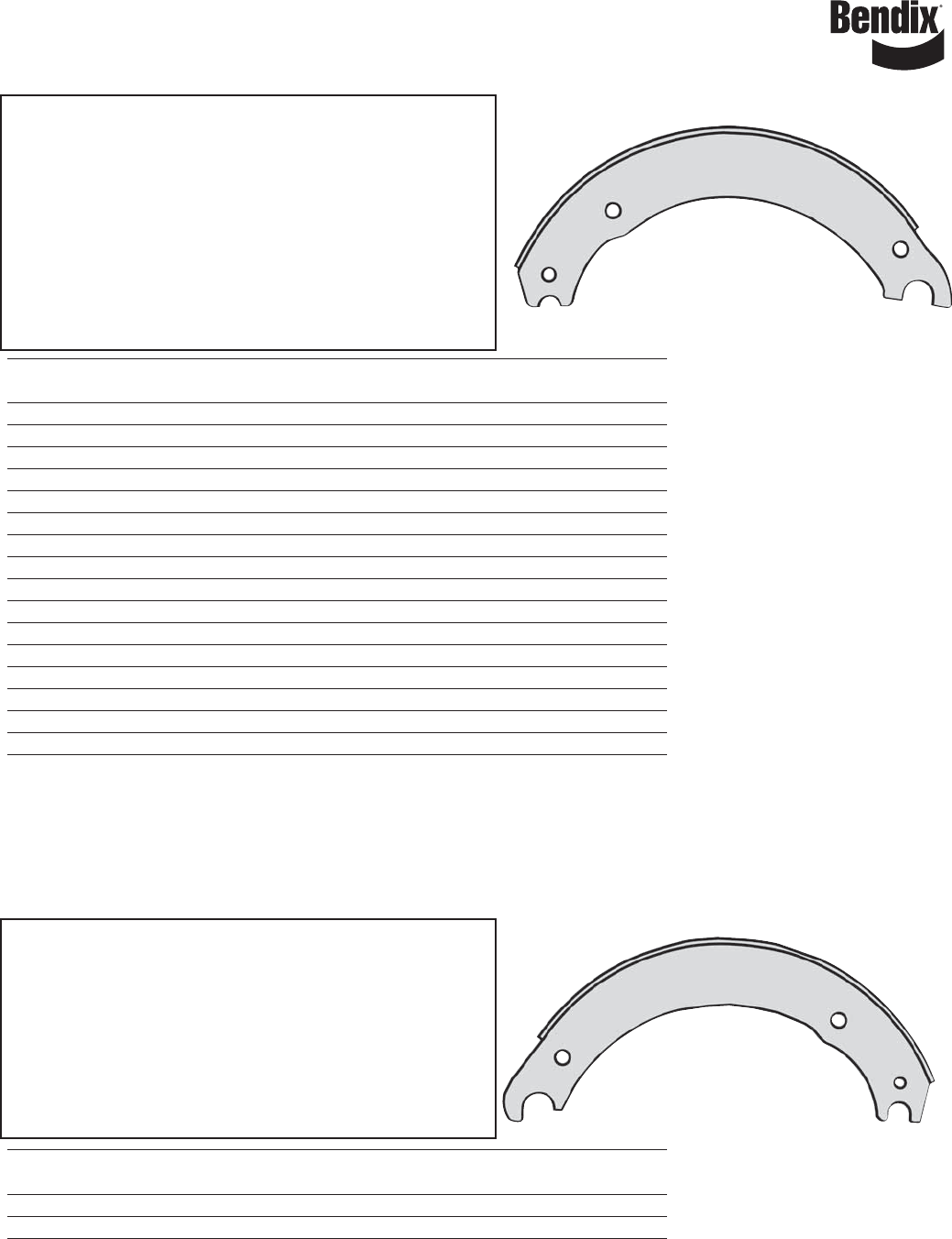

Unlined Brake Shoe No. 4515Q

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR Q

BENDIX® FC

Interchange with:

ROCKWELL / MERITOR A3222S1293

BENDIX® OE M16WS176X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4515QBLK SB4515QBLK HK29XLS

Bendix Blue 4515QBLU SB4515QBLU HK29XLS

Bendix Bronze 4515QBRZ SB4515QBRZ HK29SD

Bendix Gold 4515QGLD SB4515QGLD HK29XLS

Bendix Orange 4515QORG SB4515QORG HK29SD

Bendix Red 4515QRED SB4515QRED HK29XLS

Bendix Silver 4515QSIL SB4515QSIL HK29XLS

Bendix Yellow 4515QYEL SB4515QYEL HK29XLS

Bendix Black EX4515QBLK KT4515QBLK HK29XLS

Bendix Blue EX4515QBLU KT4515QBLU HK29XLS

Bendix Bronze EX4515QBRZ KT4515QBRZ HK29SD

Bendix Gold EX4515QGLD KT4515QGLD HK29XLS

Bendix Orange EX4515QORG KT4515QORG HK29SD

Bendix Red EX4515QRED KT4515QRED HK29XLS

Bendix Silver EX4515QSIL KT4515QSIL HK29XLS

Bendix Yellow EX4515QYEL KT4515QYEL HK29XLS

This shoe is completely interchangeable between Rockwell Q and Bendix® FC applications.

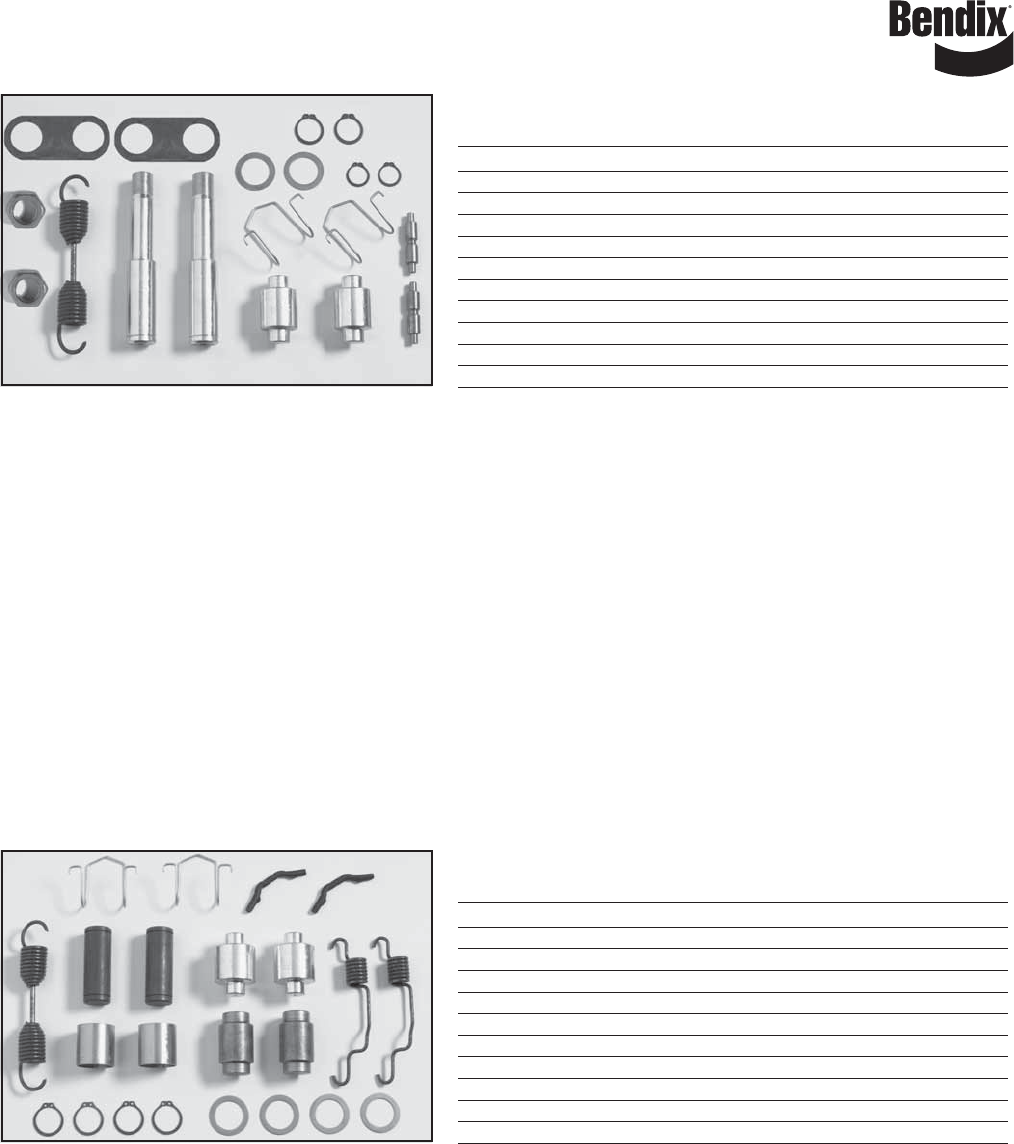

Hardware kit numbers available for this typical brake shoe application: HK29, HK29SD, HK29XLS

Hardware kit number available for Mack QM brake shoe application: HK75SD

Short kits available for this brake shoe application: HK38, HK38XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4524HA

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: BENDIX® HEAVY AXLE

Interchange with:

BENDIX® OE 165WS124X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Yellow 4524HAYEL SB4524HAYEL HK95XLS

Bendix Yellow EX4524HAYEL KT4524HAYEL HK95XLS

Hardware kit number available for this brake shoe application: HK95XLS

To convert to 4524Q use anchor pin 150WT134 or Kit 165KB156X

Unlined Brake Shoe No. 4515X3

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: FRUEHAUF XEM 3RD

Interchange with:

FRUEHAUF ACF003379001

FRUEHAUF ACF003380001

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4515X3BLK SB4515X3BLK HK34XLS

Bendix Blue 4515X3BLU SB4515X3BLU HK34XLS

Bendix Bronze 4515X3BRZ SB4515X3BRZ HK34SD

Bendix Gold 4515X3GLD SB4515X3GLD HK34XLS

Bendix Orange 4515X3ORG SB4515X3ORG HK34SD

Bendix Red 4515X3RED SB4515X3RED HK34XLS

Bendix Silver 4515X3SIL SB4515X3SIL HK34XLS

Bendix Yellow 4515X3YEL SB4515X3YEL HK34XLS

Bendix Black EX4515X3BLK KT4515X3BLK HK34XLS

Bendix Blue EX4515X3BLU KT4515X3BLU HK34XLS

Bendix Bronze EX4515X3BRZ KT4515X3BRZ HK34SD

Bendix Gold EX4515X3GLD KT4515X3GLD HK34XLS

Bendix Orange EX4515X3ORG KT4515X3ORG HK34SD

Bendix Red EX4515X3RED KT4515X3RED HK34XLS

Bendix Silver EX4515X3SIL KT4515X3SIL HK34XLS

Bendix Yellow EX4515X3YEL KT4515X3YEL HK34XLS

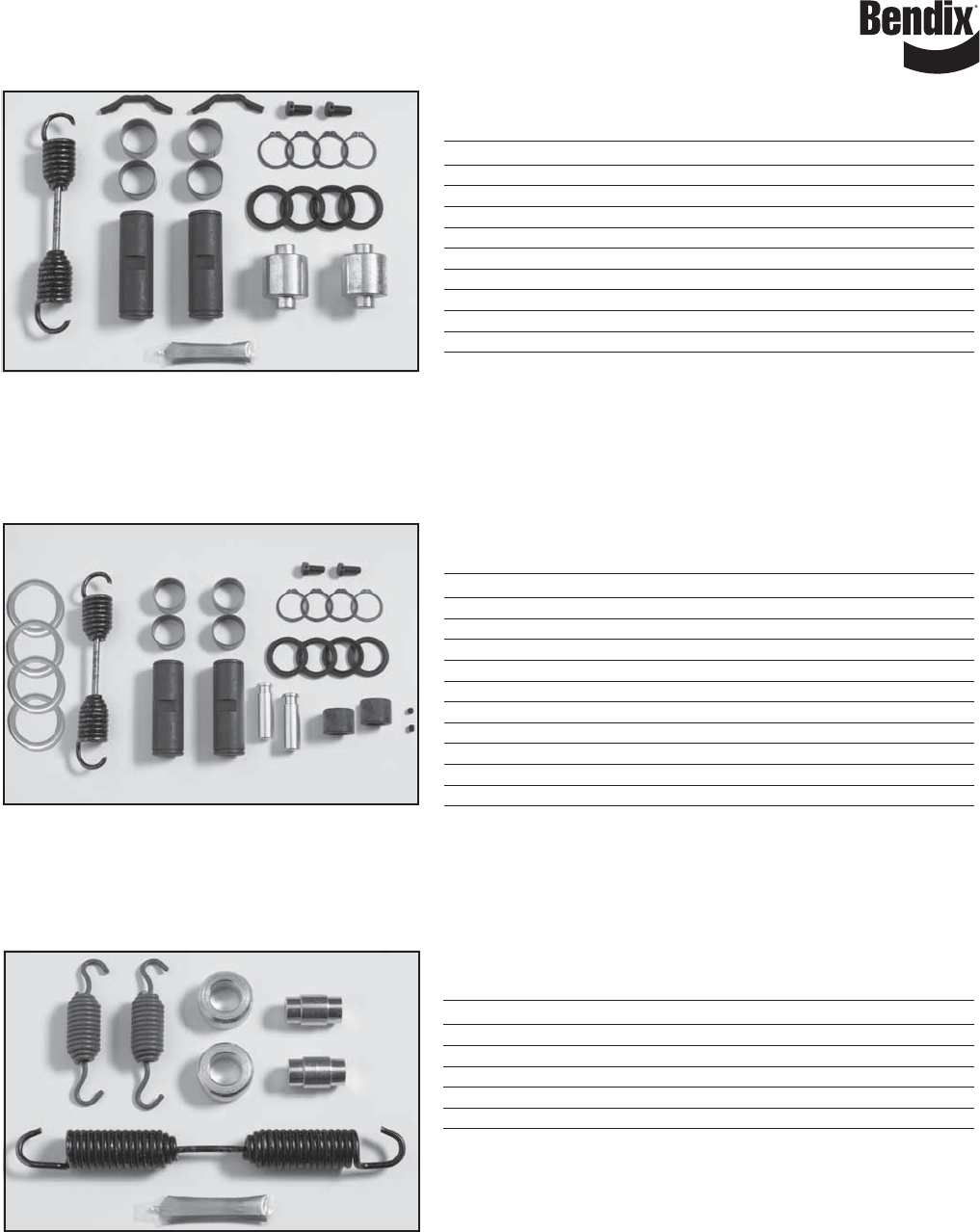

Hardware kit numbers available for this typical brake shoe application: HK34SD, HK34XLS

Hardware kit number available for Fruehauf 1st generation P brake shoe application: HK17XLS

Hardware kit number available for Fruehauf X2 brake shoe application: HK31XLS

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4524Q

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR Q

BENDIX® FC

Interchange with:

ROCKWELL / MERITOR A3222E1383

BENDIX® OE M16WS188X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Gold 4524QGLD SB4524QGLD HK29XLS

Bendix Orange 4524QORG SB4524QORG HK29SD

Bendix Red 4524QRED SB4524QRED HK29XLS

Bendix Yellow 4524QYEL SB4524QYEL HK29XLS

Bendix Gold EX4524QGLD KT4524QGLD HK29XLS

Bendix Orange EX4524QORG KT4524QORG HK29SD

Bendix Red EX4524QRED KT4524QRED HK29XLS

Bendix Yellow EX4524QYEL KT4524QYEL HK29XLS

Unlined Brake Shoe No. 4524QM

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR Q

BENDIX® FC

Interchange with:

ROCKWELL / MERITOR A3222J1440

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4524QMRED SB4524QMRED HK81XLS

Bendix Red EX4524QMRED KT4524QMRED HK81XLS

This shoe is completely interchangeable between Rockwell ‘Q’ and Bendix® ‘FC’ applications.

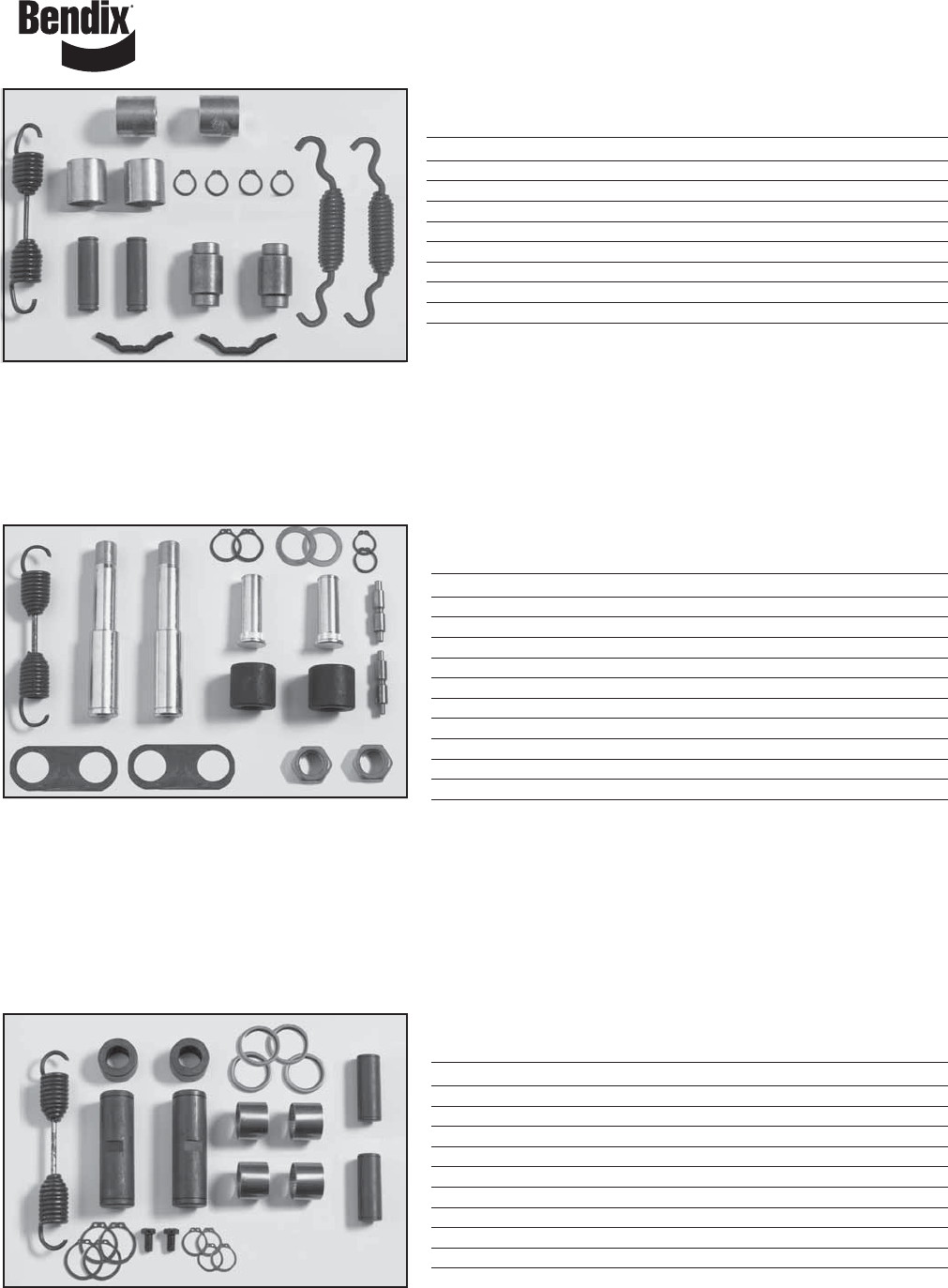

Hardware kit numbers available for this typical brake shoe application: HK29, HK29SD, HK29XLS

Hardware kit number available for steer axle brake shoe application where return spring must clear hub:

HK74XLS

Short kits available for this brake shoe application: HK38, HK38XLS

This shoe designed for Mack Truck applications only.

Hardware kit number available for this brake shoe application: HK81XLS

Hardware kit number available for steer axle brake shoe application where return spring must clear hub: HK74XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4551Q

Brake Size: 16 1/2 X 8 5/8

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR Q

BENDIX® FC

Interchange with:

ROCKWELL / MERITOR A3222J1570

BENDIX® OE M16WS161X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Blue 4551QBLU SB4551QBLU HK29XLS

Bendix Red 4551QRED SB4551QRED HK29XLS

Bendix Silver 4551QSIL SB4551QSIL HK29XLS

Bendix Blue EX4551QBLU KT4551QBLU HK29XLS

Bendix Red EX4551QRED KT4551QRED HK29XLS

Bendix Silver EX4551QSIL KT4551QSIL HK29XLS

Unlined Brake Shoe No. 4536FCII

Brake Size: 12 1/4 X 5 1/2

Rivet Size: 20-8

Brake Type: BENDIX® FCII

Interchange with:

BENDIX® OE M12WS173X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4536FCIIRED SB4536FCIIRED HK49-150

Bendix Red EX4536FCIIRED KT4536FCIIRED HK49-150

Hardware kit number available for this typical brake shoe application: HK49-150

Hardware kit number available for Bendix® U Brake shoe application with conventional low proﬁ le cam:

HK47XLS-125

Hardware kit number available for Bendix® U Brake shoe application with high proﬁ le cam: HK47XLS-150

Hardware kit number available for Bendix® FT brake shoe application with conventional low proﬁ le cam:

HK48XLS-125

Hardware kit number available for Bendix® FT brake shoe application with high proﬁ le cam: HK48XLS-150

This shoe is completely interchangeable between Rockwell ‘Q’ and Bendix® ‘FC’ applications.

Hardware kit numbers available for this typical brake shoe application: HK29, HK29SD, HK29XLS

Short kits available for this brake shoe application: HK38, HK38XLS

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4591S

Brake Size: 12 1/4 X 7 1/2

Rivet Size: 20-8

Brake Type: BENDIX® STD. FORGE &

AXLE

Interchange with:

BENDIX® OE M12WS127X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4591SRED SB4591SRED HK43XLS

Bendix Red EX4591SRED KT4591SRED HK43XLS

Unlined Brake Shoe No. 4661FCII

Brake Size: 12 1/4 X 5

Rivet Size: 20-8

Brake Type: BENDIX® FCII

Interchange with:

BENDIX® OE M12WS172X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4661FCIIRED SB4661FCIIRED HK49-150

Bendix Red EX4661FCIIRED KT4661FCIIRED HK49-150

Hardware kit number available for this brake shoe application: HK49-150

Not interchangeable with 4692FC

Hardware kit number available for this typical brake shoe application: HK43XLS

Hardware kit number available for Eaton Shuler brake shoe application: HK40

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4693HA

Brake Size: 15 X 4

Rivet Size: 10-8 1/2

Brake Type: BENDIX® HEAVY AXLE

Interchange with:

BENDIX® OE 150WS120X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Red 4693HARED SB4693HARED HK95XLS

Bendix Red EX4693HARED KT4693HARED HK95XLS

Hardware kit number available for this brake shoe application: HK95XLS

Unlined Brake Shoe No. 4692FCII

Brake Size: 12 1/4 X 7 1/2

Rivet Size: 10-8 1/2

Brake Type: BENDIX® FCII

Interchange with:

BENDIX® OE M12WS166X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4692FCIIBLK SB4692FCIIBLK HK49-150

Bendix Gold 4692FCIIGLD SB4692FCIIGLD HK49-150

Bendix Red 4692FCIIRED SB4692FCIIRED HK49-150

Bendix Black EX4692FCIIBLK KT4692FCIIBLK HK49-150

Bendix Gold EX4692FCIIGLD KT4692FCIIGLD HK49-150

Bendix Red EX4692FCIIRED KT4692FCIIRED HK49-150

Hardware kit number available for this typical brake shoe application: HK49-150

Hardware kit number available for Bendix® U Brake shoe application with conventional low proﬁ le cam:

HK47XLS-125

Hardware kit number available for Bendix® U Brake shoe application with high proﬁ le cam: HK47XLS-150

Hardware kit number available for Bendix® FT (1st Generation FC shoe) brake shoe application with conventional

low proﬁ le cam: HK48XLS-125

Hardware kit number available for Bendix® FT (1st Generation FC shoe) brake shoe application with high proﬁ le

cam: HK48XLS-150

Hardware kit available for DEXTER PQ brake shoe application: HK58XLS

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4701HA

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® HEAVY AXLE

Interchange with:

BENDIX® OE 165WS164X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Yellow 4701HAYEL SB4701HAYEL HK96XLS

Bendix Yellow EX4701HAYEL KT4701HAYEL HK96XLS

Hardware kit number available for this brake shoe application: HK96XLS

Unlined Brake Shoe No. 4702R

Brake Size: 15 X 4

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

BENDIX® XTRALIFE II

Interchange with:

ROCKWELL / MERITOR A3222M2223

BENDIX® OE 150WU134X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4702RBLK SB4702RBLK HK29XLS

Bendix ES 420 4702R420 SB4702R420 HK29XLS

Bendix ES 600 4702R600 SB4702R600 HK29XLS

Bendix Gold 4702RGLD SB4702RGLD HK29XLS

Bendix Gold 4702RGLD SB4702RGLD-BUS HK29SB

Bendix Red 4702RRED SB4702RRED HK29XLS

Bendix Black EX4702RBLK KT4702RBLK HK29XLS

Bendix ES 420 EX4702R420 KT4702R420 HK29XLS

Bendix ES 600 EX4702R600 KT4702R600 HK29XLS

Bendix Gold EX4702RGLD KT4702RGLD HK29XLS

Bendix Gold EX4702RGLD KT4702RGLD-BUS HK29SB

Bendix Red EX4702RRED KT4702RRED HK29XLS

This shoe is completely interchangeable between Rockwell ‘Q Plus’ and Bendix® ‘XtraLife II’ applications.

Hardware kit numbers available for this brake shoe application: HK29, HK29SD, HK29XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4703R

Brake Size: 15 X 5

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

Interchange with:

ROCKWELL / MERITOR A3222D2110

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4703RBLK SB4703RBLK HK29XLS

Bendix Gold 4703RGLD SB4703RGLD HK29XLS

Bendix Black EX4703RBLK KT4703RBLK HK29XLS

Bendix Gold EX4703RGLD KT4703RGLD HK29XLS

Hardware kit numbers available for this brake shoe application: HK29, HK29SD, HK29XLS

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4707R

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

BENDIX® XTRALIFE II

Interchange with:

ROCKWELL / MERITOR A3222D2006

BENDIX® OE M16WS193X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4707RBLK SB4707RBLK HK29XLS

Bendix ES 420 4707R420 SB4707R420 HK29XLS

Bendix ES 450 4707R450 SB4707R450 HK29XLS

Bendix ES 600 4707R600 SB4707R600 HK29XLS

Bendix Blue 4707RBLU SB4707RBLU HK29XLS

Bendix Bronze 4707RBRZ SB4707RBRZ HK29SD

Bendix Gold 4707RGLD SB4707RGLD HK29XLS

Bendix Gold 4707RGLD SB4707RGLD-BUS HK29SB

Bendix Orange 4707RORG SB4707RORG HK29SD

Bendix Red 4707RRED SB4707RRED HK29XLS

Bendix Silver 4707RSIL SB4707RSIL HK29XLS

Bendix Yellow 4707RYEL SB4707RYEL HK29XLS

Bendix Black EX4707RBLK KT4707RBLK HK29XLS

Bendix ES 420 EX4707R420 KT4707R420 HK29XLS

Bendix ES 450 EX4707R450 KT4707R450 HK29XLS

Bendix ES 600 EX4707R600 KT4707R600 HK29XLS

Bendix Blue EX4707RBLU KT4707RBLU HK29XLS

Bendix Bronze EX4707RBRZ KT4707RBRZ HK29SD

Bendix Gold EX4707RGLD KT4707RGLD HK29XLS

Bendix Gold EX4707RGLD KT4707RGLD-BUS HK29SB

Bendix Orange EX4707RORG KT4707RORG HK29SD

Bendix Red EX4707RRED KT4707RRED HK29XLS

Bendix Silver EX4707RSIL KT4707RSIL HK29XLS

Bendix Yellow EX4707RYEL KT4707RYEL HK29XLS

This shoe is completely interchangeable between Rockwell ‘Q Plus’ and Bendix® ‘XtraLife II’ applications.

Hardware kit numbers available for this brake shoe application: HK29, HK29SD, HK29XLS

Short kits available for this brake shoe application: HK38, HK38XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4708P

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII FOR

ROCKWELL “P”

Interchange with:

BENDIX 807849

BENDIX 819722

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix 420 4708P420 SB4708P420 HK69XLS

Bendix 600 4708P600 SB4708P600 HK69XLS

Bendix 420 EX4708P420 KT4708P420 HK69XLS

Bendix 600 EX4708P600 KT4708P600 HK69XLS

Hardware kit number available for this brake shoe application: HK69XLS

Unlined Brake Shoe No. 4708H

Brake Size: 16 1/2 X 7

Rivet Size: 1/4 bolt

Brake Type: BENDIX® CAST

Interchange with:

BENDIX 810517

BENDIX 810214

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 1100 4708H1100 SB4708H1100 HK72

Hardware kit number available for this brake shoe application: HK72

Unlined Brake Shoe No. 4708M

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® SEVERE DUTY

Interchange with:

BENDIX 807849

BENDIX 819722 No longer available

superseded by 4708P

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4708XEM

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII FOR

FRUEHAUF “XEM”

Interchange with:

BENDIX 819723

ROCKWELL / MERITOR R4708F

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 420 4708XEM420 SB4708XEM420 HK65SD

Bendix ES 600 4708XEM600 SB4708XEM600 HK65SD

Bendix ES 420 EX4708XEM420 KT4708XEM420 HK65SD

Bendix ES 600 EX4708XEM600 KT4708XEM600 HK65SD

Hardware kit number available for this brake shoe application: HK65SD

Unlined Brake Shoe No. 4708Q

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII FOR

ROCKWELL “Q”

Interchange with:

BENDIX 819721

ROCKWELL / MERITOR R4708R

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 420 4708Q420 SB4708Q420 HK67XLS

Bendix ES 600 4708Q600 SB4708Q600 HK67XLS

Bendix ES 420 EX4708Q420 KT4708Q420 HK67XLS

Bendix ES 600 EX4708Q600 KT4708Q600 HK67XLS

Hardware kit numbers available for this brake shoe application: HK67SD, HK67XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4709EII

Brake Size: 16 1/2 X 7

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 819707

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4709EIIBLK SB4709EIIBLK HK61XLS

Bendix ES 1100 4709EII1100 SB4709EII1100 HK61SD

Bendix ES 1160 4709EII1160 SB4709EII1160 HK61SD

Bendix ES 420 4709EII420 SB4709EII420 HK61XLS

Bendix ES 450 4709EII450 SB4709EII450 HK61XLS

Bendix ES 600 4709EII600 SB4709EII600 HK61XLS

Bendix Blue 4709EIIBLU SB4709EIIBLU HK61XLS

Bendix Gold 4709EIIGLD SB4709EIIGLD HK61XLS

Bendix Gold 4709EIIGLD SB4709EIIGLD-BUS HK61SB

Bendix Red 4709EIIRED SB4709EIIRED HK61XLS

Bendix Silver 4709EIISIL SB4709EIISIL HK61XLS

Bendix Yellow 4709EIIYEL SB4709EIIYEL HK61XLS

Bendix Black EX4709EIIBLK KT4709EBLK HK61XLS

Bendix ES 1100 EX4709EII1100 KT4709EII1100 HK61SD

Bendix ES 1160 EX4709EII1160 KT4709EII1160 HK61SD

Bendix ES 420 EX4709EII420 KT4709EII420 HK61XLS

Bendix ES 450 EX4709EII450 KT4709EII450 HK61XLS

Bendix ES 600 EX4709EII600 KT4709EII600 HK61XLS

Bendix Blue EX4709EIIBLU KT4709EIIBLU HK61XLS

Bendix Gold EX4709EIIGLD KT4709EIIGLD HK61XLS

Bendix Gold EX4709EIIGLD KT4709EIIGLD-BUS HK61SB

Bendix Orange EX4709EIIORG KT4709EIIORG HK61SD

Bendix Red EX4709EIIRED KT4709EIIRED HK61XLS

Bendix Silver EX4709EIISIL KT4709EIISIL HK61XLS

Bendix Yellow EX4709EIIYEL KT4709EIIYEL HK61XLS

Hardware kit numbers available for this typical brake shoe application: HK61, HK61SD, HK61XLS

Hardware Kit numbers available for welded ES brake shoe application: HK63, HK63SD, HK63XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4709SII

Brake Size: 10 X 8 1/2

Rivet Size: 10-8 1/2

Brake Type: BENDIX® SEVERE DUTY

BENDIX® ESII

Interchange with: BENDIX 974050

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 1100 4709SII1100 SB4709SII1100 HK61SD

Bendix ES 1100 EX4709SII1100 KT4709SII1100 HK61SD

Unlined Brake Shoe No. 4710R

Brake Size: 15 X 8 5/8

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

BENDIX® XTRALIFE II

Interchange with:

ROCKWELL / MERITOR A3222A2159

BENDIX® OE M15WS103-X

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 310 4710R310 SB4710R310 HK29XLS

Bendix ES 310 EX4710R310 KT4710R310 HK29XLS

This shoe is completely interchangeable between Rockwell ‘Q Plus’ and Bendix® ‘XtraLife II’ applications.

Hardware kit number available for this typical brake shoe application: HK29, HK29SD, HK29XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4711R

Brake Size: 16 1/2 X 8 5/8

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

BENDIX® XTRALIFE II

Interchange with:

ROCKWELL / MERITOR A3222K2169

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 420 4711R420 SB4711R420 HK29XLS

Bendix ES 600 4711R600 SB4711R600 HK29XLS

Bendix ES 420 EX4711R420 KT4711R420 HK29XLS

Bendix ES 600 EX4711R600 KT4711R600 HK29XLS

Hardware kit numbers available for this typical brake shoe application: HK29, HK29SD, HK29XLS

Short kits available for this brake shoe application: HK38, HK38XLS

Unlined Brake Shoe No. 4715R

Brake Size: 16 1/2 X 6

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

Interchange with:

ROCKWELL / MERITOR A3222P2200

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 600 4715R600 SB4715R600 HK74XLS

Bendix Gold 4715RGLD SB4715RGLD HK74XLS

Bendix ES 600 EX4715R600 KT4715R600 HK74XLS

Bendix Gold EX4715RGLD KT4715RGLD HK74XLS

Hardware kit numbers available for this typical brake shoe application: HK29, HK29SD, HK29XLS

Hardware kit number available for steer axle brake application where return spring must clear hub: HK74XLS

Short kits available for this brake shoe application: HK38, HK38XLS

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4716EII

Brake Size: 15 X 6

Rivet Size: 10-8 1/2

Brake Type: BENDIX® REDUCED

ENVELOPE

Interchange with: BENDIX 819716

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 310 4716EII310 SB4716EII310 HK90XLS

Bendix ES 310 EX4716EII310 KT4716EII310 HK90XLS

Unlined Brake Shoe No. 4717EII

Brake Size: 15 X 8 5/8

Rivet Size:

Brake Type: BENDIX® REDUCED

ENVELOPE

Interchange with: BENDIX 819718

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 310 4717EII310 SB4717EII310 HK91XLS

Bendix ES 310 EX4717EII310 KT4717EII310 HK91XLS

Hardware kit number available for this typical brake shoe application: HK91XLS

Hardware kit number available for this typical brake shoe application: HK90XLS

Unlined Brake Shoe No. 4718R

Brake Size: 16 1/2 X 8

Rivet Size:

Brake Type: ROCKWELL / MERITOR

Q PLUS

Interchange with:

A-3222-5-2272

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4718RBLK SB4718RBLK HK29XLS

Bendix Red 4718RRED SB4718RRED HK29XLS

Bendix Silver 4718RSIL SB4718RSIL HK29XLS

Bendix Black EX4718RBLK KT4718RBLK HK29XLS

Bendix Red EX4718RRED KT4718RRED HK29XLS

Bendix Silver EX4718RSIL KT4718RSIL HK29XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4719EII

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 819705

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 1160 4719EII1160 SB4719EII1160 HK61SD

Bendix ES 1160 4719EII1160 SB4719EII1160HC HK62SD

Bendix ES 420 4719EII420 SB4719EII420 HK61XLS

Bendix ES 420 4719EII420 SB4719EII420HC HK62XLS

Bendix ES 450 4719EII450 SB4719EII450 HK61XLS

Bendix ES 450 4719EII450 SB4719EII450HC HK62XLS

Bendix ES 600 4719EII600 SB4719EII600 HK61XLS

Bendix ES 600 4719EII600 SB4719EII600HC HK62XLS

Bendix Gold 4719EIIGLD SB4719EIIGLD HK61XLS

Bendix Gold 4719EIIGLD SB4719EIIGLD-BUS HK62SB

Bendix Gold 4719EIIGLD SB4719EIIGLDHC HK62XLS

Bendix Orange 4719EIIORG SB4719EIIORG HK61SD

Bendix ES 1160 EX4719EII1160 KT4719EII1160 HK61SD

Bendix ES 1160 EX4719EII1160 KT4719EII1160HC HK62SD

Bendix ES 420 EX4719EII420 KT4719EII420 HK61XLS

Bendix ES 420 EX4719EII420 KT4719EII420HC HK62XLS

Bendix ES 450 EX4719EII450 KT4719EII450 HK61XLS

Bendix ES 450 EX4719EII450 KT4719EII450HC HK62XLS

Bendix ES 600 EX4719EII600 KT4719EII600 HK61XLS

Bendix ES 600 EX4719EII600 KT4719EII600HC HK62XLS

Bendix Gold EX4719EIIGLD KT4719EIIGLD HK61XLS

Bendix Gold EX4719EIIGLD KT4719EIIGLDHC HK62XLS

Bendix Gold EX4719EIIGLD KT4719EIIGLD-BUS HK62SB

Bendix Orange EX4719EIIORG KT4719EIIORG HK61SD

Hardware kit numbers available for this typical brake shoe application: HK61, HK61SD, HK61XLS

Hardware kit numbers available for welded ES brake shoe application: HK63, HK63SD, HK63XLS

Hardware kit numbers available for horse collar brake shoe application: HK62, HK62SD, HK62XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4720R

Brake Size: 16 1/2 X 5

Rivet Size: 10-8 1/2

Brake Type: ROCKWELL / MERITOR

Q PLUS

BENDIX® XTRALIFE II

Interchange with:

BENDIX® OE 165WU124X

MERITOR A3222Z2288

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 1160 4720R1160 SB4720R1160 HK74XLS

Bendix ES 420 4720R420 SB4720R420 HK74XLS

Bendix ES 450 4720R450 SB4720R450 HK74XLS

Bendix ES 600 4720R600 SB4720R600 HK74XLS

Bendix Gold 4720RGLD SB4720RGLD HK74XLS

Bendix Orange 4720RORG SB4720RORG HK74XLS

Bendix ES 1160 EX4720R1160 KT4720R1160 HK74XLS

Bendix ES 420 EX4720R420 KT4720R420 HK74XLS

Bendix ES 450 EX4720R450 KT4720R450 HK74XLS

Bendix ES 600 EX4720R600 KT4720R600 HK74XLS

Bendix Gold EX4720RGLD KT4720RGLD HK74XLS

Bendix Orange EX4720RORG KT4720RORG HK74XLS

Hardware kit number available for this typical brake shoe application: HK74XLS

Hardware kit numbers available for trailer axle brake shoe application: HK29, HK29SD, HK29XLS

Short kits available for this brake shoe application: HK38, HK38XLS

BW7248 BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4725EII

Brake Size: 16 1/2 X 6

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 819706

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 1160 4725EII1160 SB4725EII1160 HK61SD

Bendix ES 1160 4725EII1160 SB4725EII1160HC HK62SD

Bendix ES 420 4725EII420 SB4725EII420 HK61XLS

Bendix ES 420 4725EII420 SB4725EII420HC HK62XLS

Bendix ES 600 4725EII600 SB4725EII600 HK61XLS

Bendix ES 600 4725EII600 SB4725EII600HC HK62XLS

Bendix Gold 4725EIIGLD SB4725EIIGLD HK61XLS

Bendix Gold 4725EIIGLD SB4725EIIGLDHC HK62XLS

Bendix Gold 4725EIIGLD SB4725EIIGLD-BUS HK62SB

Bendix Orange 4725EIIORG SB4725EIIORG HK62XLS

Bendix ES 1160 EX4725EII1160 KT4725EII1160 HK61SD

Bendix ES 1160 EX4725EII1160 KT4725EII1160HC HK62SD

Bendix ES 420 EX4725EII420 KT4725EII420 HK61XLS

Bendix ES 420 EX4725EII420 KT4725EII420HC HK62XLS

Bendix ES 600 EX4725EII600 KT4725EII600 HK61XLS

Bendix ES 600 EX4725EII600 KT4725EII600HC HK62XLS

Bendix Gold EX4725EIIGLD KT4725EIIGLD HK61XLS

Bendix Gold EX4725EIIGLD KT4725EIIGLDHC HK62XLS

Bendix Gold EX4725EIIGLD KT4725EIIGLD-BUS HK62SB

Bendix Orange EX4725EIIORG KT4725EIIORG HK61XLS

Hardware kit numbers available for this typical brake shoe application: HK61, HK61SD, HK61XLS

Hardware kit numbers available for welded ES brake shoe application: HK63, HK63SD, HK63XLS

Hardware kit numbers available for the horse collar brake shoe application: HK62, HK62SD, HK62XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

BW7248

BRAKE SHOE APPLICATIONS

Unlined Brake Shoe No. 4726EII

Brake Size: 16 1/2 X 8 5/8

Rivet Size: 10-8 1/2

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 819708

BENDIX 974051

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix ES 420 4726EII420 SB4726EII420 HK61XLS

Bendix ES 450 4726EII450 SB4726EII450 HK61XLS

Bendix ES 600 4726EII600 SB4726EII600 HK61XLS

Bendix Gold 4726EIIGLD SB4726EIIGLD HK61XLS

Bendix Gold 4726EIIGLD SB4726EIIGLD-BUS HK61SB

Bendix ES 420 EX4726EII420 KT4726EII420 HK61XLS

Bendix ES 450 EX4726EII450 KT4726EII450 HK61XLS

Bendix ES 600 EX4726EII600 KT4726EII600 HK61XLS

Bendix Gold EX4726EIIGLD KT4726EIIGLD HK61XLS

Bendix Gold EX4726EIIGLD KT4726EIIGLD-BUS HK61SB

Unlined Brake Shoe No. 4729EII

Brake Size: 15 X 4

Rivet Size:

Brake Type: BENDIX® ESII

Interchange with:

BENDIX 974584

Linings Lined Shoe Replace-A-Brake Hardware in

Number Kit Number Replace-A-Brake Kit

Bendix Black 4729EIIBLK SB4729EIIBLK HK97XLS

Bendix ES 420 4729EII420 SB4729EII420 HK97XLS

Bendix ES 450 4729EII450 SB4729EII450 HK97XLS

Bendix ES 600 4729EII600 SB4729EII600 HK97XLS

Bendix Gold 4729EIIGLD SB4729EIIGLD HK97XLS

Bendix Red 4729EIIRED SB4729EIIRED HK97XLS

Bendix Black EX4729EIIBLK KT4729EIIBLK HK97XLS

Bendix ES 420 EX4729EII420 KT4729EII420 HK97XLS

Bendix ES 450 EX4729EII450 KT4729EII450 HK97XLS

Bendix ES 600 EX4729EII600 KT4729EII600 HK97XLS

Bendix Gold EX4729EIIGLD KT4729EIIGLD HK97XLS

Bendix Red EX4729EIIRED KT4729EIIRED HK97XLS

Hardware kit number available for this brake shoe application: HK97XLS

Hardware kit numbers available for this brake shoe application: HK61, HK61SD, HK61XLS

Kit numbers containing a -BUS sufﬁ x designates kits designed speciﬁ cally for school bus applications

Brake Shoe Brake Shoe Hardware Kit

Number Size Number Brake Shoe Brake Shoe Hardware Kit

Number Size Number

BW7248 BRAKE HARDWARE KIT

QUICK REFERENCE

NOTE: Refer to front of this catalog for the speciﬁ c unlined brake shoe applications carried by Bendix.

1307Q 15 X 31/2 HK55

1307Q 15 X 31/2 HK77

1307T 15 X 31/2 HK50

1307T 15 X 31/2 HK51

1308A 15 X 4 HK53

1308E 15 X 4 HK54

1308Q 15 X 4 HK55

1308Q 15 X 4 HK77

1308T 15 X 4 HK50

1308T 15 X 4 HK51

1443E 15 X 4 HK54

235-1245A 15 X 3 HK56

380-4596 15 X 6 HK60

382-4597 15 X 7 HK60

4223E 161/2 X 5 HK24SDLM

4223E 161/2 X 5 HK24XLSHM

4223E 161/2 X 5 HK24XLSLM

4223E 161/2 X 5 HK64XLS

4227G 141/2 X 4 HK87

4228B 141/2 X 6 HK87

4284 18 X 7 HK27

4311E 161/2 X 7 HK24SDLM

4311E 161/2 X 7 HK24XLSHM

4311E 161/2 X 7 HK24XLSLM

4317E 161/2 X 6 HK24SDLM

4317E 161/2 X 6 HK24XLSHM

4317E 161/2 X 6 HK24XLSLM

4317E 161/2 X 6 HK64XLS

4350 20 X 8 HK46

4398B 141/2 X 5 HK86

4468 161/2 X 7 HK22XLS

4471B 18 X 7 HK68

4514HA 161/2 X 6 HK95XLS

4514P 161/2 X 6 HK14SD

4514P 161/2 X 6 HK14XLS

4514P 161/2 X 6 HK16

4514Q 161/2 X 6 HK29

4514Q 161/2 X 6 HK38

4514Q 161/2 X 6 HK74XLS

4514Q 161/2 X 6 HK80XLS

4514Q 161/2 X 6 HK81XLS

4515E 161/2 X 7 HK71

4515F 161/2 X 7 HK17XLS

4515FP 161/2 X 7 HK17XLS

4515HA 161/2 X 7 HK95XLS

4515M 161/2 X 7 HK75SD

4515P 161/2 X 7 HK14SD

4515P 161/2 X 7 HK14XLS

4515P 161/2 X 7 HK16

4515Q 161/2 X 7 HK29

4515Q 161/2 X 7 HK38

4515X2 161/2 X 7 HK31XLS

4515X3 161/2 X 7 HK34SD

4515X3 161/2 X 7 HK34XLS

4524HA 161/2 X 5 HK95XLS

4524P 161/2 X 5 HK14SD

4524P 161/2 X 5 HK14XLS

4524P 161/2 X 5 HK16

4524Q 161/2 X 5 HK29

4524Q 161/2 X 5 HK38

4524Q 161/2 X 5 HK74XLS

4524Q 161/2 X 5 HK80XLS

4524QM 161/2 X 5 HK81XLS

4527B 18 X 7 HK26

4536B 121/4 X 51/2 HK43XLS

4536E 121/4 X 51/2 HK47XLS-125

4536E 121/4 X 51/2 HK47XLS-150

4536FCII 121/4 X 51/2 HK49-150

4536P 121/4 X 51/2 HK48XLS-125

4536P 121/4 X 51/2 HK48XLS-150

4541B 141/2 X 8 HK85

4544 121/4 X 51/2 HK45XLS

4544 121/4 X 51/2 HK49-125

4544 121/4 X 51/2 HK49-150

4549P 161/2 X 4 HK14SD

4549P 161/2 X 4 HK14XLS

4549P 161/2 X 4 HK16

4549Q 161/2 X 4 HK29

BW7248

BRAKE HARDWARE KIT

QUICK REFERENCE

Brake Shoe Brake Shoe Hardware Kit

Number Size Number Brake Shoe Brake Shoe Hardware Kit

Number Size Number

NOTE: Refer to front of this catalog for the speciﬁ c unlined brake shoe applications carried by Bendix.

4549Q 161/2 X 4 HK38

4551P 161/2 X 85/8 HK14SD

4551P 161/2 X 85/8 HK14XLS

4551P 161/2 X 85/8 HK16

4551Q 161/2 X 85/8 HK29

4551Q 161/2 X 85/8 HK38

4552B 161/2 X 10 HK22XLS

4561 161/4 X 31/2 HK52

4567P 161/2 X 10 HK14SD

4567P 161/2 X 10 HK14XLS

4567P 161/2 X 10 HK16

4567Q 161/2 X 10 HK29

4567Q 161/2 X 10 HK38

4591 121/4 X 71/2 HK40

4591S 121/4 X 71/2 HK43XLS

4592A 141/2 X 10 HK83

4592A 141/2 X 10 HK84

4607 121/4 X 71/2 HK45XLS

4607 121/4 X 71/2 HK49-125

4607 121/4 X 71/2 HK49-150

4625B 161/2 X 7 HK19SD

4649 121/4 X 8 HK41

4661C 121/4 X 5 HK43XLS

4661FCII 121/4 X 5 HK49-150

4669D 18 X 7 HK76

4670Q 121/4 X 71/2 HK44XLS

4692 121/4 X 71/2 HK47XLS-125

4692 121/4 X 71/2 HK47XLS-150

4692FC 121/4 X 71/2 HK58XLS

4692FCII 121/4 X 71/2 HK49-150

4692P 121/4 X 71/2 HK48XLS-125

4692P 121/4 X 71/2 HK48XLS-150

4693 15 X 4 HK70

4693HA 15 X 4 HK95XLS

4700 121/4 X 4 HK43XLS

4701HA 161/2 X 7 HK96XLS

4701Q 161/2 X 7 HK32SD

4702R 15 X 4 HK29XLS

4707R 161/2 X 7 HK29

4707R 161/2 X 7 HK38

4708H 161/2 X 7 HK72

4708M 161/2 X 7 HK73

4708P 161/2 X 7 HK69XLS

4708Q 161/2 X 7 HK67SD

4708Q 161/2 X 7 HK67XLS

4708XEM 161/2 X 7 HK65SD

4709 161/2 X 7 HK63

4709EII 161/2 X 7 HK61

4710R 15 X 85/8 HK29XLS

4711R 161/2 X 85/8 HK29

4711R 161/2 X 85/8 HK38

4715R 161/2 X 6 HK29

4715R 161/2 X 6 HK38

4715R 161/2 X 6 HK74XLS

4716EII 15 X 6 HK90XLS

4717EII 15 X 85/8 HK91XLS

4719 161/2 X 5 HK63

4719EII 161/2 X 5 HK61

4720R 161/2 X 5 HK74XLS

4720R 161/2 X 5 HK38

4725 161/2 X 5 HK63

4725EII 161/2 X 6 HK61

4726EII 161/2 X 85/8 HK61

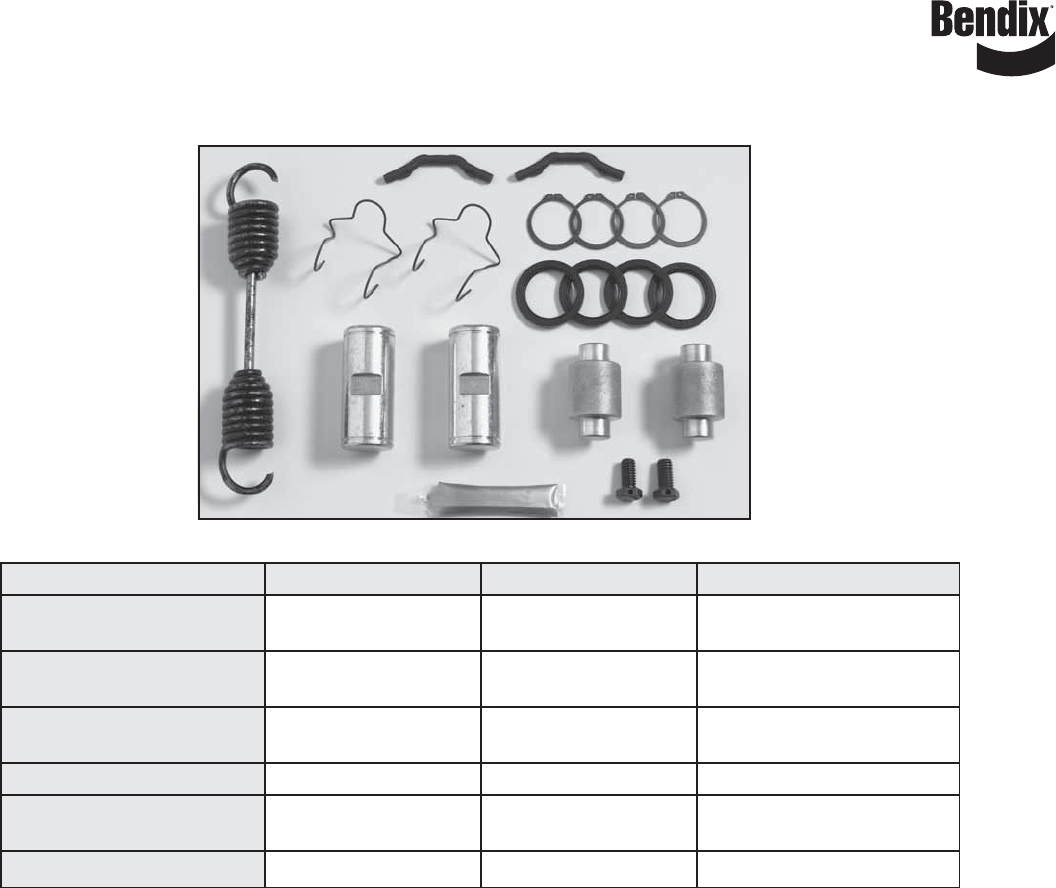

BW7248 Hardware Kit General Features

Bendix Kits Bendix XLS Kits Bendix SD Kits

Application Standard Service Extended Service Severe Duty

Platforms Platforms Environments

Market Trailer, Line Haul Large Fleets Off-Highway, Refuse,

Snow Removal

Return Spring Standard Heat Heavy-Duty Heat Heavy-Duty Heat

Treated Music Wire Treated Music Wire Treated Music Wire

Cam Roller Smooth Knurled Knurled

Anchor Pin Bushing Steel or Composite Stainless Steel or Stainless Steel or

Composite Composite, Dimpled

Lubricant Not Applicable Not Applicable Antiseize Lubricant

Genuine Bendix Hardware Kits are designed for every application and operating condition.

Choose from three levels of hardware kits designed to meet the speciﬁ c needs of your ﬂ eets:

• Bendix Hardware Kits meet or exceed all OE standards and are speciﬁ cally designed for

trailer and line haul applications.

• Bendix XLS Hardware Kits, designed to meet the demands of the Bendix Extended Service

brake systems, feature knurled rollers, heavy-duty return springs and stainless steel anchor

pin bushings.

• Bendix SD Hardware Kits, designed for the most severe applications, feature anti-seize

lubricant and dimpled stainless steel bushings. The combination of these components

reduce anchor pin to bushing seizure, making future brake changes easier.

For superior performance and the “Lowest Cost per Mile” choose Bendix.

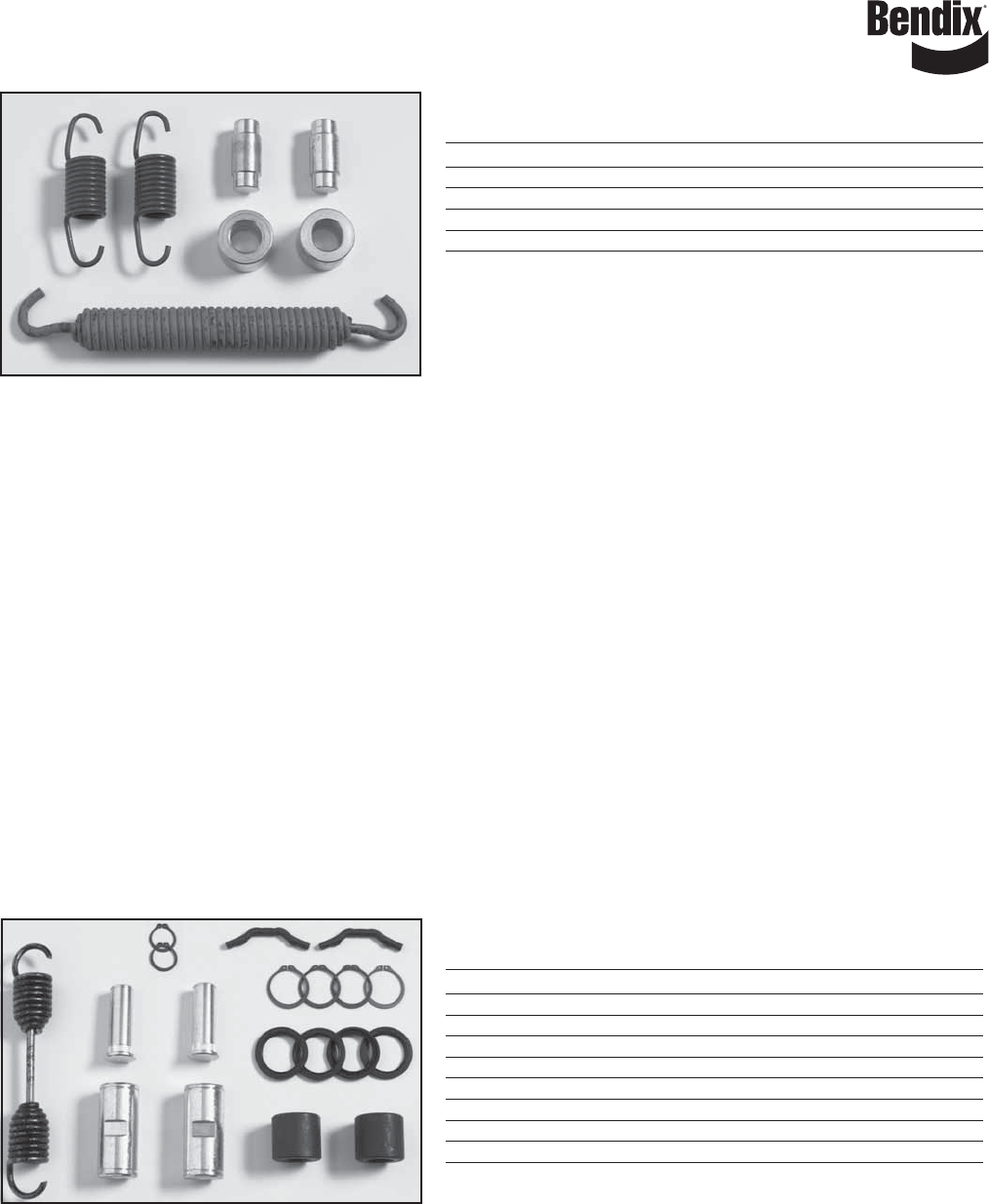

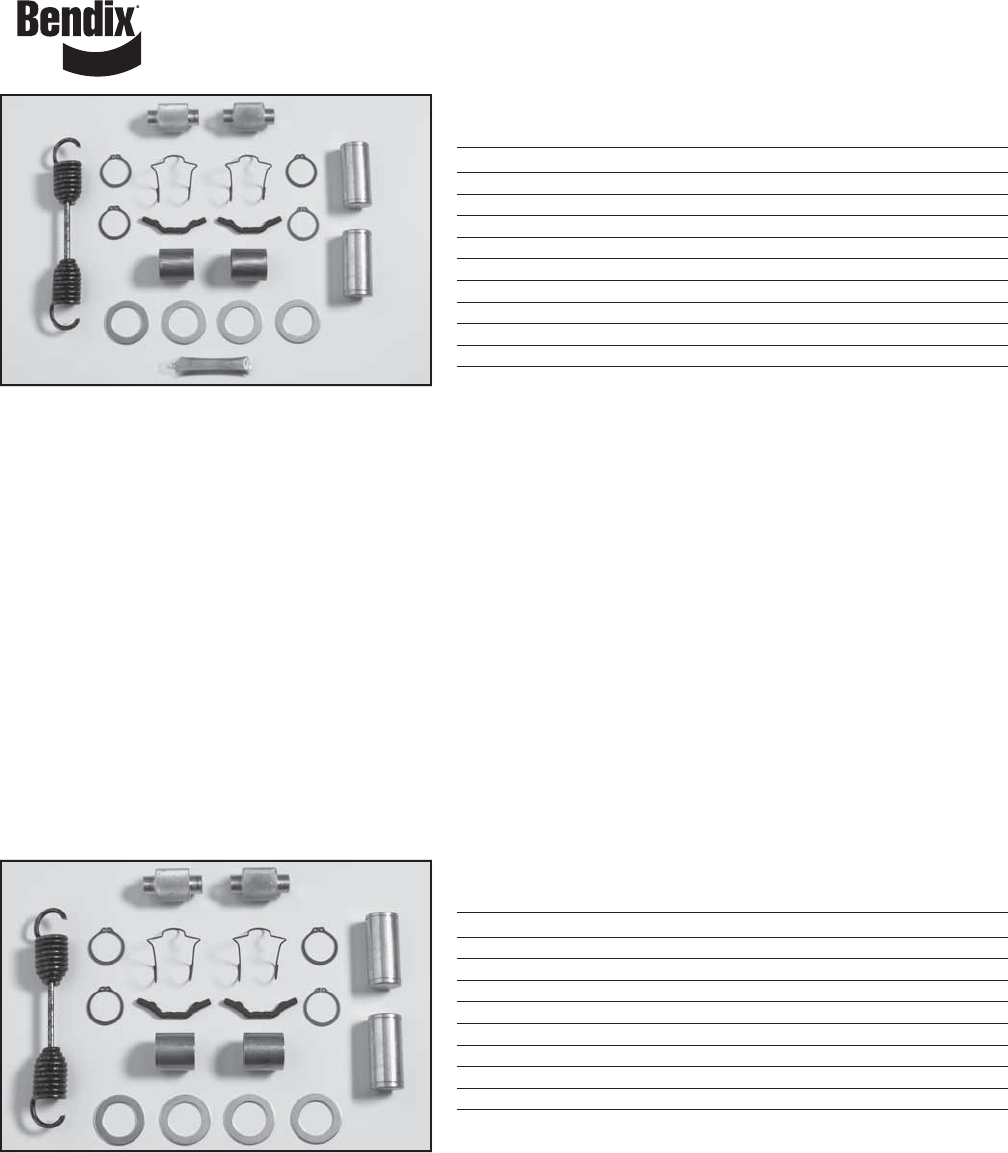

BW7258

BRAKE HARDWARE KITS

Kit Number: HK14XLS

Bendix No. Description Qty.

15-527 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

35-1580 Anchor Pin Washer 4

Application

4514P 161/2 X 6 ROCKWELL P

4515P 161/2 X 7 ROCKWELL / MERITOR P

4515P 161/2 X 7 BENDIX® FT

4524P 161/2 X 5 ROCKWELL P

4549P 161/2 X 4 ROCKWELL P

4551P 161/2 X 85/8 ROCKWELL P

4567P 161/2 X 10 ROCKWELL / MERITOR P

Heavy duty universal kit for truck and trailer “P” type brakes

Use for spiders with serviceable bushings (ﬂ oating anchor pin application)

Kit Number: HK14SD

Bendix No. Description Qty.

15-527 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

35-1580 Anchor Pin Washer 4

Antiseize Hw Kit Lubricant 1

Application

4514P 161/2 X 6 ROCKWELL P

4515P 161/2 X 7 ROCKWELL / MERITOR P

4515P 161/2 X 7 BENDIX® FT

4524P 161/2 X 5 ROCKWELL P

4549P 161/2 X 4 ROCKWELL P

4551P 161/2 X 85/8 ROCKWELL P

4567P 161/2 X 10 ROCKWELL / MERITOR P

Severe duty universal kit for truck and trailer “P” type brakes

Use for spiders with serviceable bushings (ﬂ oating anchor pin application)

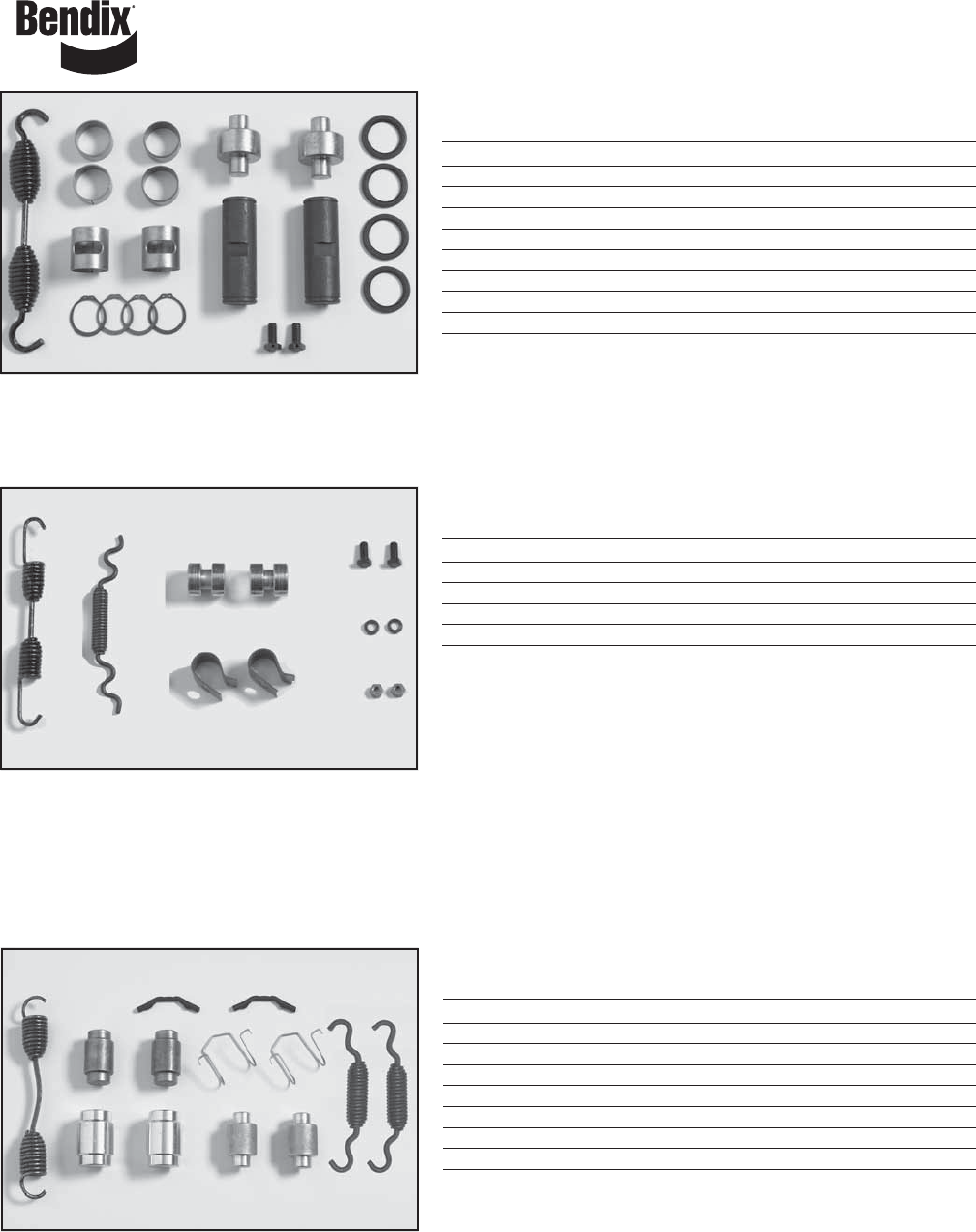

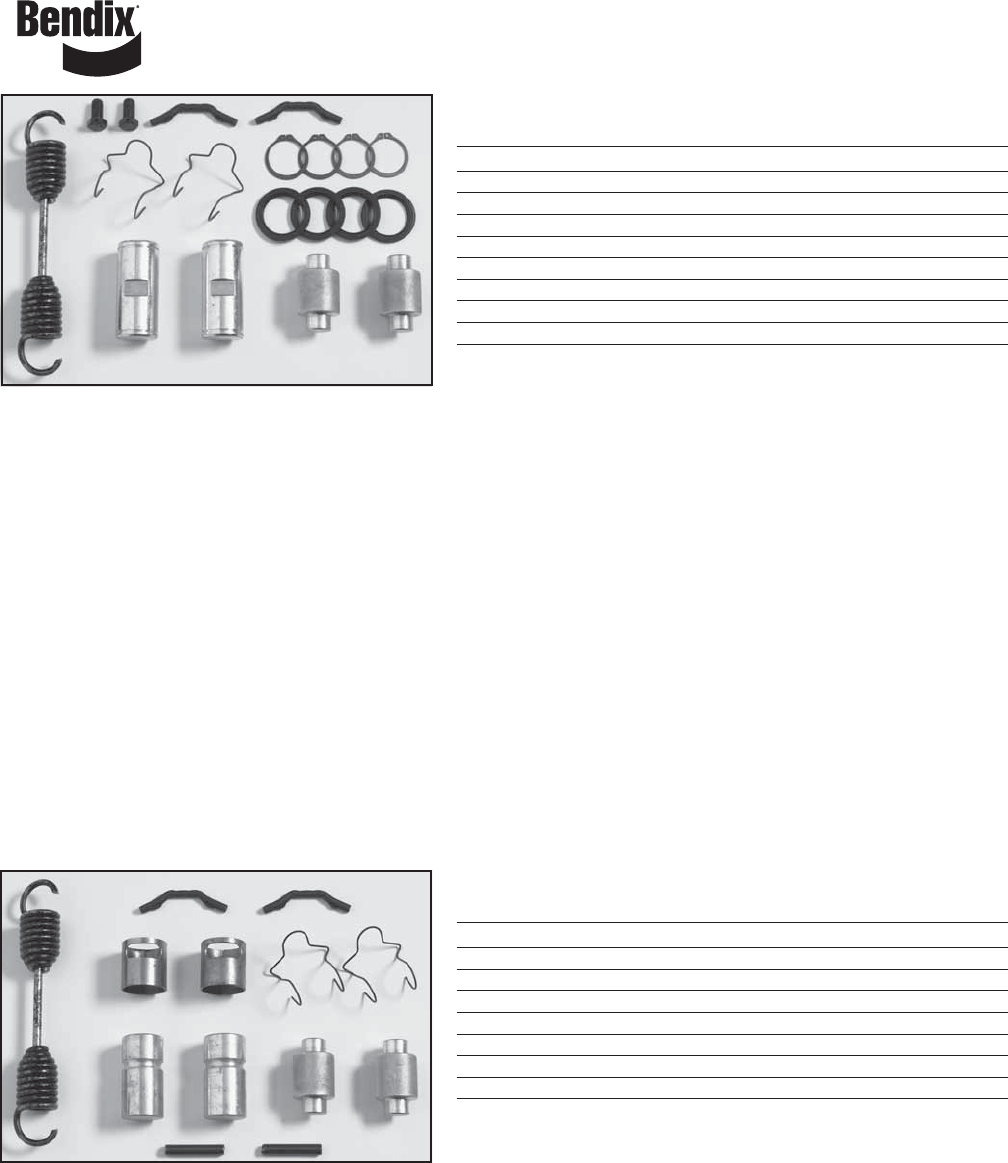

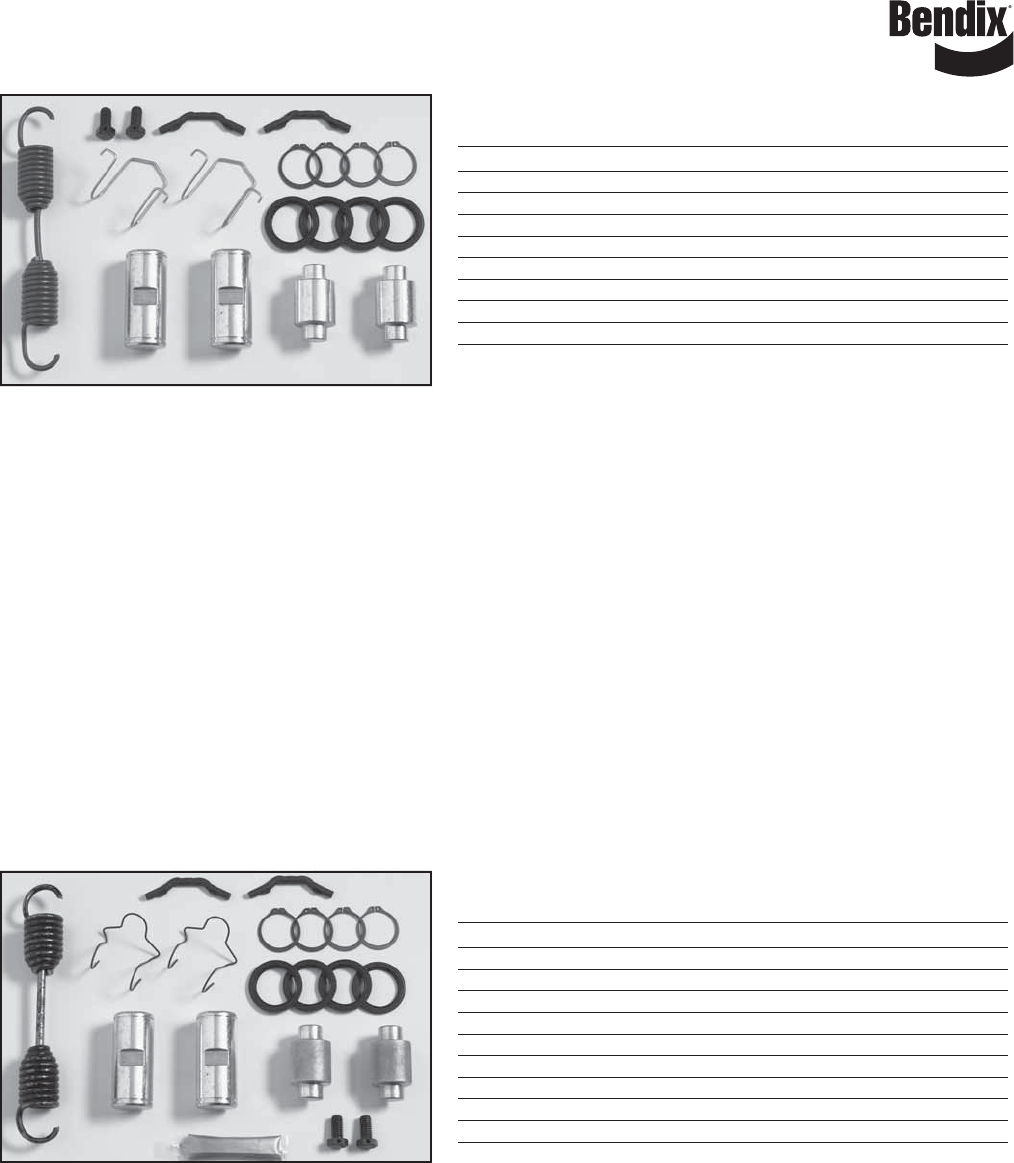

BW7258 BRAKE HARDWARE KITS

Kit Number: HK16SD

Bendix No. Description Qty.

15-526 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Antiseize Hw Kit Lubricant 1

Application

4514P 161/2 X 6 ROCKWELL P

4515P 161/2 X 7 ROCKWELL / MERITOR P

4515P 161/2 X 7 BENDIX® FT

4524P 161/2 X 5 ROCKWELL P

4549P 161/2 X 4 ROCKWELL P

4551P 161/2 X 85/8 ROCKWELL P

4567P 161/2 X 10 ROCKWELL / MERITOR P

Severe duty universal kit for early model truck and trailer “P” type brakes

Use for applications with non-rebushable spiders (ﬁ xed anchor pin application)

Kit Number: HK16

Bendix No. Description Qty.

15-526 Anchor Pin 2

19-856 Return Spring 1

20-881 Return Spring Pin 2

32-1425 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

34-1529 Cam Roller Retainer 2

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Application

4514P 161/2 X 6 ROCKWELL P

4515P 161/2 X 7 ROCKWELL / MERITOR P

4515P 161/2 X 7 BENDIX® FT

4524P 161/2 X 5 ROCKWELL P

4549P 161/2 X 4 ROCKWELL P

4551P 161/2 X 85/8 ROCKWELL P

4567P 161/2 X 10 ROCKWELL / MERITOR P

Universal kit for early model truck and trailer “P” type brakes

Use for applications with non-rebushable spiders (ﬁ xed anchor pin application)

BW7258

BRAKE HARDWARE KITS

Kit Number: HK17XLS

Bendix No. Description Qty.

15-529 Anchor Pin 2

16-561 Anchor Pin Bushing - Os Slot 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

34-1533 Roll Pin Lock 2

Application

4515F 161/2 X 7 FRUEHAUF P 1st

4515FP 161/2 X 7 FRUEHAUF P

For use with old style spiders, drilled for roll pin

Use HK14SD or HK14XLS for new style spiders, not drilled for roll pin

Kit Number: HK16XLS

Bendix No. Description Qty.

15-526 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Application

4514P 161/2 X 6 ROCKWELL P

4515P 161/2 X 7 ROCKWELL / MERITOR P

4515P 161/2 X 7 BENDIX® FT

4524P 161/2 X 5 ROCKWELL P

4549P 161/2 X 4 ROCKWELL P

4551P 161/2 X 85/8 ROCKWELL P

4567P 161/2 X 10 ROCKWELL / MERITOR P

Heavy duty universal kit for early model truck and trailer “P” type brakes

Use for applications with non-rebushable spiders (ﬁ xed anchor pin application)

BW7258 BRAKE HARDWARE KITS

Kit Number: HK24SDLM

Bendix No. Description Qty.

19-854 Return Spring 1

19-859 Retainer Spring 2

32-1441A Cam Roller - Knurled 2

32-1442A Cam Roller Pin 2

Antiseize Hw Kit Lubricant 1

Application

4223E 161/2 X 5 BENDIX® SAP

4311E 161/2 X 7 BENDIX® SAP

4317E 161/2 X 6 BENDIX® SAP

For use with low mount brake shoe (see illustration on next page)

Kit Number: HK22XLS

Bendix No. Description Qty.

15-532 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

23-1026 Brake Shoe Bushing 4

32-1435 Cam Roller - Smooth 2

32-1440 Cam Roller Pin 2

34-1525 Camshaft Lockring 4

34-1539 Anchor Pin Lock Screw 2

34-1540 Roller Pin Set Screw 2

35-1577 Retainer 4

35-1582 Neoprene Anchor Pin Seal 4

Application

4468 161/2 X 7 BENDIX® STD FORGE CAST SHOE

4552B 161/2 X 10 BENDIX® CAST SHOE

Kit Number: HK19SD

Bendix No. Description Qty.

15-532 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

23-1026 Brake Shoe Bushing 4

32-1431 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Antiseize Hw Kit Lubricant 1

Application

4625B 161/2 X 7 MACK P

For use on fabricated shoes with bushed anchor pin holes and 15/8" cam rollers

BW7258

BRAKE HARDWARE KITS

• High mount shoes and low mount shoes use different return springs.

• High mount shoes can replace low mount shoes in all applications with the appropriate hardware kits.

• Low mount shoes cannot replace high mount shoes .

High Mount Low Mount

Shoes Shoes

3 1/2"

[88.9mm]

[101.6mm]

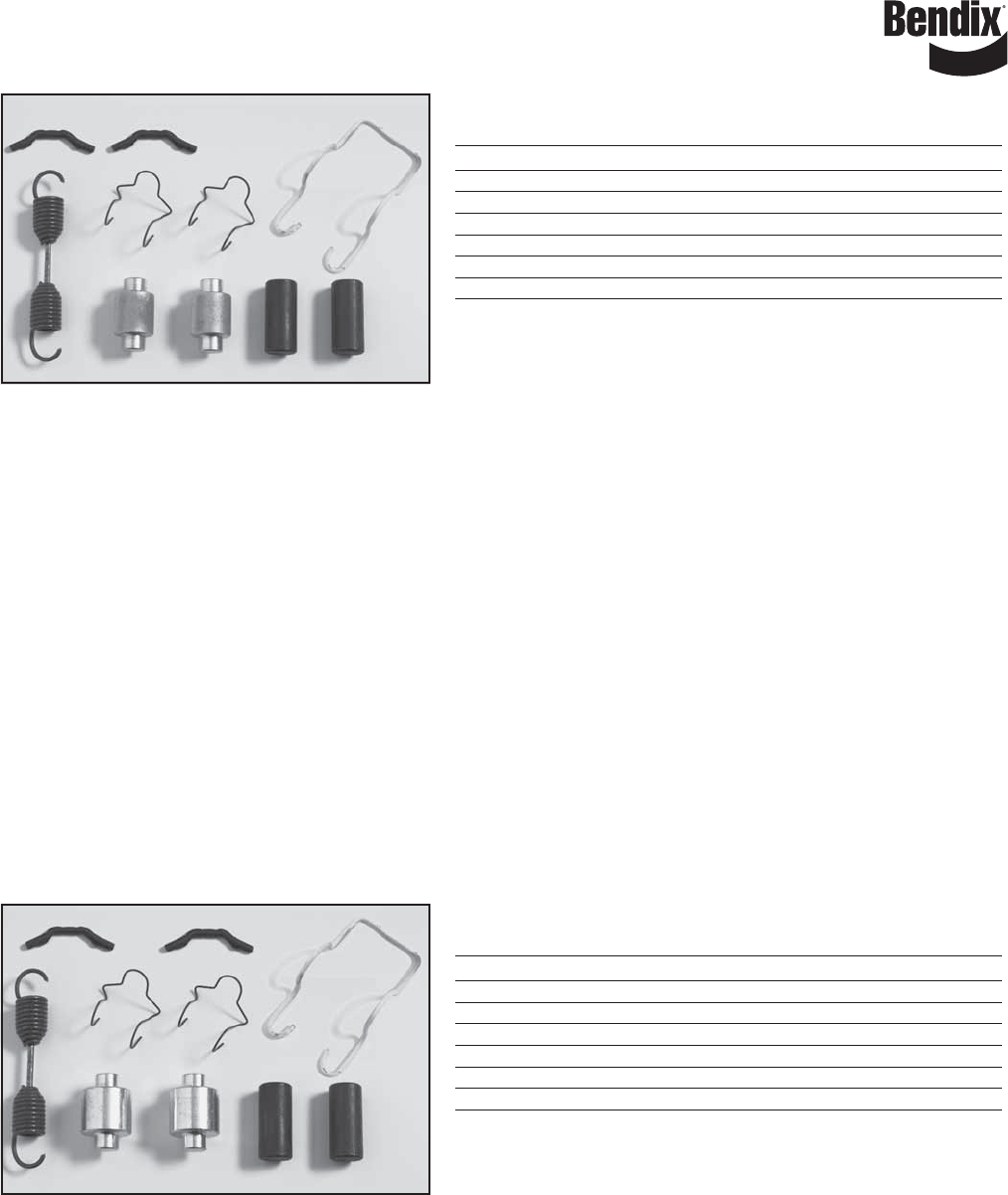

Kit Number: HK24XLSLM

Bendix No. Description Qty.

19-854 Return Spring 1

19-859 Retainer Spring 2

32-1441A Cam Roller - Knurled 2

32-1442A Cam Roller Pin 2

Application

4223E 161/2 X 5 BENDIX® SAP

4311E 161/2 X 7 BENDIX® SAP

4317E 161/2 X 6 BENDIX® SAP

For use with low mount brake shoe (see illustration below)

Drive axle brakes

Application

4223E 161/2 X 5 BENDIX® SAP

4311E 161/2 X 7 BENDIX® SAP

4317E 161/2 X 6 BENDIX® SAP

Special return spring for Ford application (brake shoe has offset spring retainer pin)

For use with high mount brake shoe (see illustration below)

Kit Number: HK24XLSHM

Bendix No. Description Qty.

19-859 Retainer Spring 2

19-874 Return Spring 1

32-1441A Cam Roller - Knurled 2

32-1442A Cam Roller Pin 2

BW7258 BRAKE HARDWARE KITS

Kit Number: HK26

Bendix No. Description Qty.

19-876 Return Spring 1

19-877 Retainer Spring 2

32-1443 Wide Web Cam Roller 2

32-1444 Cam Roller Pin 2

Application

4527B 18 X 7 BENDIX CAST SHOE

For use with bolt-on spiders

Drive axle brakes

Kit Number: HK27

Bendix No. Description Qty.

15-526 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1445 Cam Roller - Knurled 2

32-1446 Cam Roller Pin 2

34-1525 Camshaft Lockring 4

34-1526 Lockring 2

35-1582 Neoprene Anchor Pin Seal 4

Application

4284 18 X 7 BENDIX® STD FORGE FABRICATED

BW7258

BRAKE HARDWARE KITS

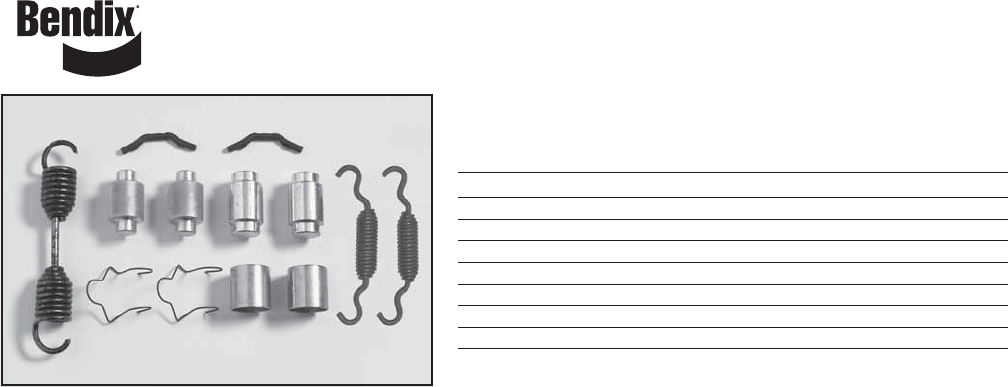

Kit Number: HK29

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-565 Anchor Pin Bushing 2

19-856A Return Spring 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1425 Cam Roller - Smooth 2

34-1529 Cam Roller Retainer 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4549Q 161/2 X 4 ROCKWELL Q

4551Q 161/2 X 85/8 ROCKWELL / MERITOR Q

4551Q 161/2 X 85/8 BENDIX® FC

4567Q 161/2 X 10 ROCKWELL / MERITOR Q

4702R 15 X 4 ROCKWELL / MERITOR Q PLUS

4702R 15 X 4 BENDIX® XTRALIFE II

4707R 161/2 X 7 ROCKWELL / MERITOR Q PLUS

4707R 161/2 X 7 BENDIX® XTRALIFE II

4710R 15 X 85/8 ROCKWELL / MERITOR Q PLUS

4710R 15 X 85/8 BENDIX® XTRALIFE II

4711R 161/2 X 85/8 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

Also for use with Hendrickson “INTRAAX” brake

BW7258 BRAKE HARDWARE KITS

Kit Number: HK29SD

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

Antiseize Hw Kit Lubricant 1

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4549Q 161/2 X 4 ROCKWELL Q

4551Q 161/2 X 85/8 ROCKWELL / MERITOR Q

4551Q 161/2 X 85/8 BENDIX® FC

4567Q 161/2 X 10 ROCKWELL / MERITOR Q

4702R 15 X 4 ROCKWELL / MERITOR Q PLUS

4702R 15 X 4 BENDIX® XTRALIFE II

4707R 161/2 X 7 ROCKWELL / MERITOR Q PLUS

4707R 161/2 X 7 BENDIX® XTRALIFE II

4710R 15 X 85/8 ROCKWELL / MERITOR Q PLUS

4710R 15 X 85/8 BENDIX® XTRALIFE II

4711R 161/2 X 85/8 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

Also for use with Hendrickson “INTRAAX” brake

BW7258

BRAKE HARDWARE KITS

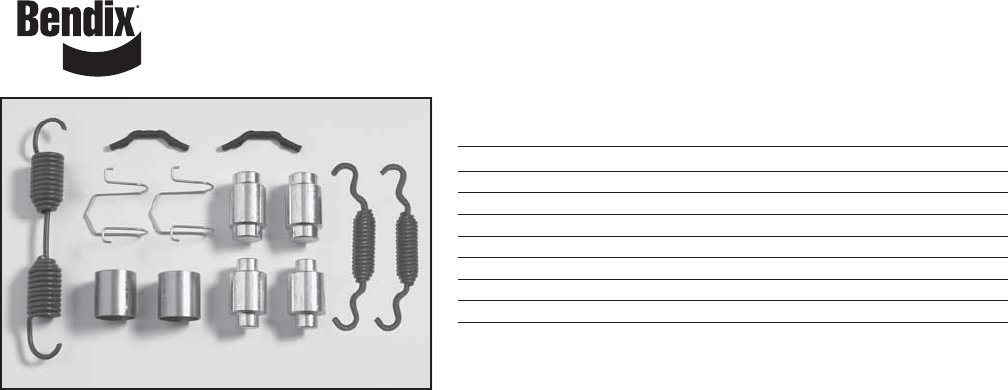

Kit Number: HK29XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4549Q 161/2 X 4 ROCKWELL Q

4551Q 161/2 X 85/8 ROCKWELL / MERITOR Q

4551Q 161/2 X 85/8 BENDIX® FC

4567Q 161/2 X 10 ROCKWELL / MERITOR Q

4702R 15 X 4 ROCKWELL / MERITOR Q PLUS

4702R 15 X 4 BENDIX® XTRALIFE II

4707R 161/2 X 7 ROCKWELL / MERITOR Q PLUS

4707R 161/2 X 7 BENDIX® XTRALIFE II

4710R 15 X 85/8 ROCKWELL / MERITOR Q PLUS

4710R 15 X 85/8 BENDIX® XTRALIFE II

4711R 161/2 X 85/8 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

Also for use with Hendrickson “INTRAAX” brake

BW7258 BRAKE HARDWARE KITS

Kit Number: HK31XLS

Bendix No. Description Qty.

12-403 Cotter Pin 1

15-543 Anchor Pin 2

16-561 Anchor Pin Bushing - Os Slot 2

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

34-1533 Roll Pin Lock 2

Application

4515X2 161/2 X 7 FRUEHAUF XEM 2nd

Early model “XEM” brake

19-853A replaced by 19-853 in Canada

Kit Number: HK32SD

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-853 Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1430 Cam Roller - Smooth 2

34-1532 Cam Roller Retainer - Rockwell 2

Antiseize Hw Kit Lubricant 1

Application

4701Q 161/2 X 7 BENDIX® Q

BW7258

BRAKE HARDWARE KITS

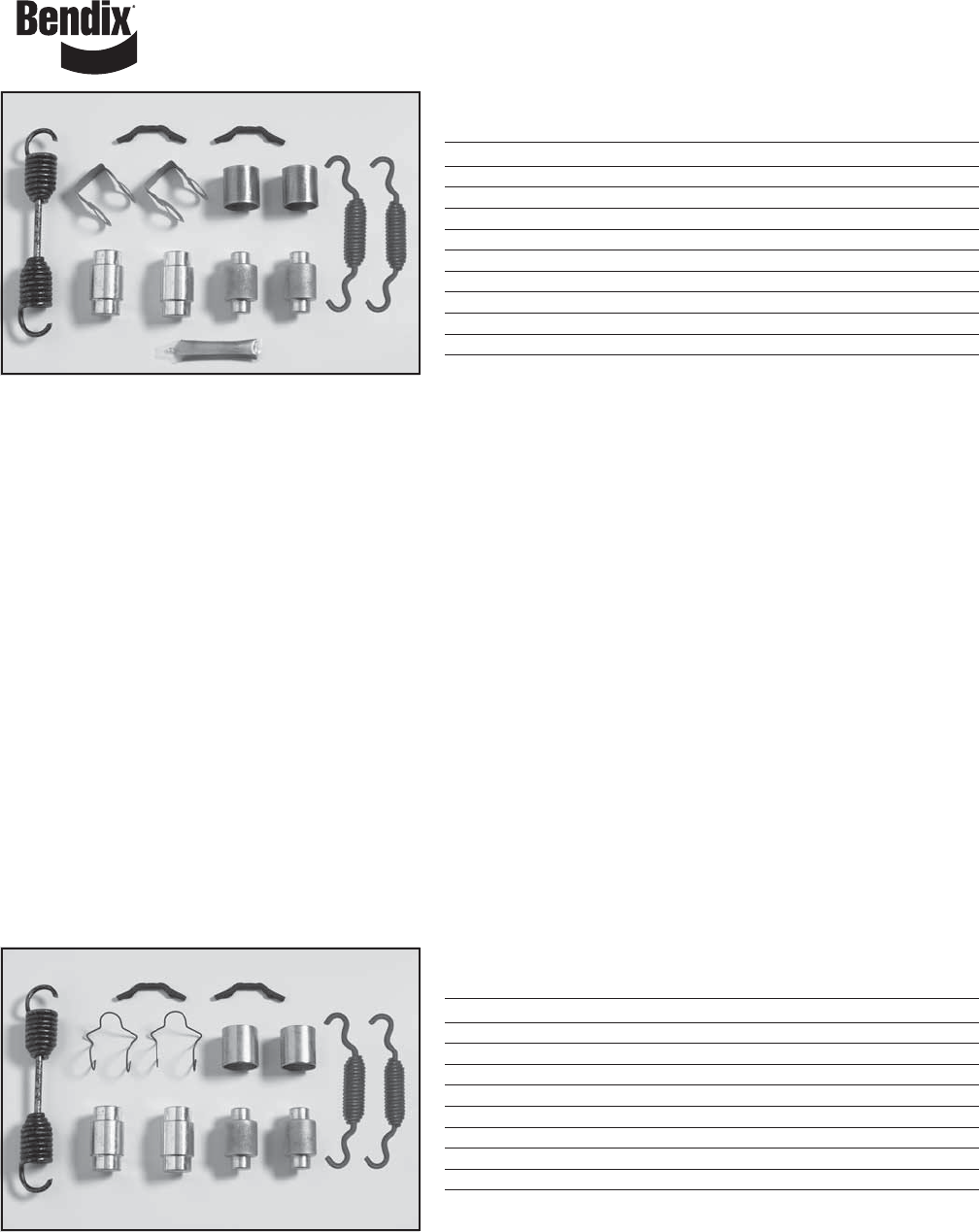

Kit Number: HK34SD

Bendix No. Description Qty.

12-403 Cotter Pin 1

15-536 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1530 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4515X3 161/2 X 7 FRUEHAUF XEM 3RD

Late model “XEM” brake

19-853A replaced by 19-853 in Canada

Kit Number: HK34XLS

Bendix No. Description Qty.

12-403 Cotter Pin 1

15-536 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

Application

4515X3 161/2 X 7 FRUEHAUF XEM 3RD

Late model “XEM” brake

19-853A replaced by 19-853 in Canada

BW7258 BRAKE HARDWARE KITS

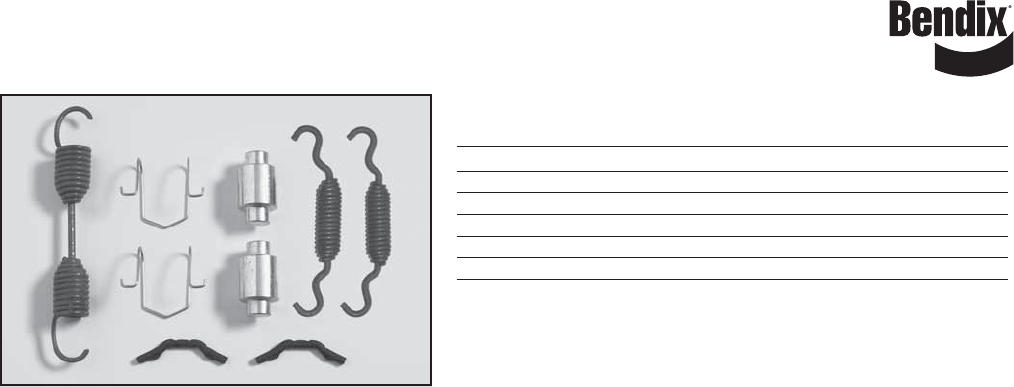

Kit Number: HK38

Bendix No. Description Qty.

19-856A Return Spring 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1425 Cam Roller - Smooth 2

34-1529 Cam Roller Retainer 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4549Q 161/2 X 4 ROCKWELL Q

4551Q 161/2 X 85/8 ROCKWELL / MERITOR Q

4551Q 161/2 X 85/8 BENDIX® FC

4567Q 161/2 X 10 ROCKWELL / MERITOR Q

4707R 161/2 X 7 ROCKWELL / MERITOR Q PLUS

4707R 161/2 X 7 BENDIX® XTRALIFE II

4711R 161/2 X 85/8 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

Short kit (less anchor pins and bushings)

For full kit, use HK29

Also for use with Hendrickson “INTRAAX” brake

BW7258

BRAKE HARDWARE KITS

Kit Number: HK38XLS

Bendix No. Description Qty.

19-853A Return Spring - Heavy Duty 1

19-860 Return Spring 2

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 ROCKWELL / MERITOR Q

4515Q 161/2 X 7 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4549Q 161/2 X 4 ROCKWELL Q

4551Q 161/2 X 85/8 ROCKWELL / MERITOR Q

4551Q 161/2 X 85/8 BENDIX® FC

4567Q 161/2 X 10 ROCKWELL / MERITOR Q

4707R 161/2 X 7 ROCKWELL / MERITOR Q PLUS

4707R 161/2 X 7 BENDIX® XTRALIFE II

4711R 161/2 X 85/8 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

19-853A replaced by 19-853 in Canada

Short kit (less anchor pins and bushings)

For full kit, use HK29XLS

BW7258 BRAKE HARDWARE KITS

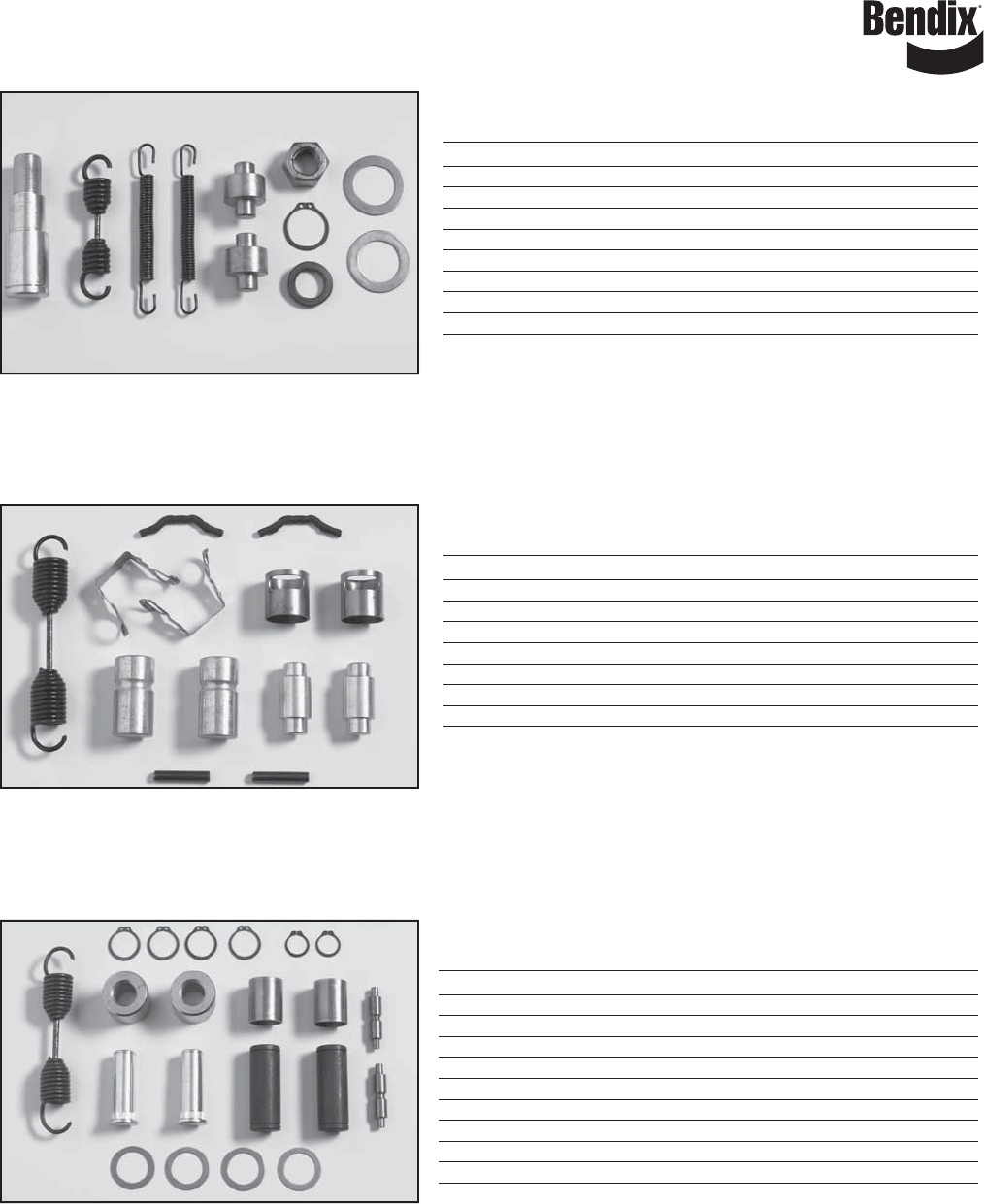

Kit Number: HK40

Bendix No. Description Qty.

15-540 Anchor Pin 1

19-864 Return Spring 1

19-866 Retainer Spring 2

29-1301 Camshaft Lockring 1

29-1307 Camshaft Washer 2

32-1429 Cam Roller - Smooth 2

34-1545 Anchor Pin Lock Nut 1

34-1546 Anchor Pin Lockwasher 1

Application

4591 121/4 X 71/2 EATON SHULER

Kit Number: HK41

Bendix No. Description Qty.

15-529 Anchor Pin 2

16-561 Anchor Pin Bushing - Os Slot 2

19-863 Return Spring 1

20-881 Return Spring Pin 2

32-1430 Cam Roller - Smooth 2

34-1531 Cam Roller Retainer 2

34-1533 Roll Pin Lock 2

Application

4649 121/4 X 8 FRUEHAUF DAP

Kit Number: HK43XLS

Bendix No. Description Qty.

15-537 Anchor Pin 2

16-564 Anchor Pin Bushing - Stainless Steel 2

19-862 Return Spring - Heavy Duty 1

20-882 Return Spring Pin 2

32-1445 Cam Roller - Knurled 2

32-1446 Cam Roller Pin 2

34-1526 Lockring 2

34-1527 Camshaft Lockring 4

35-1581 Anchor Pin Washer 4

Application

4536B 121/4 X 51/2 BENDIX® STD FORGE

4591S 121/4 X 71/2 BENDIX® STD. FORGE & AXLE

4661C 121/4 X 5 DEXTER

4700 121/4 X 4 DEXTER

Fabricated brake shoes

Closed on both ends

BW7258

BRAKE HARDWARE KITS

Kit Number: HK44XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-860 Return Spring 2

19-882 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1467 Cam Roller - Knurled 2

32-1468 Cam Roller Pin 2

34-1526 Lockring 4

Application

4670Q 121/4 X 71/2 ROCKWELL / MERITOR TRAILER AXL

Fabricated brake shoes

Kit Number: HK45XLS

Bendix No. Description Qty.

15-539 Anchor Pin 2

19-862 Return Spring - Heavy Duty 1

20-882 Return Spring Pin 2

32-1445 Cam Roller - Knurled 2

32-1446 Cam Roller Pin 2

34-1526 Lockring 2

34-1527 Camshaft Lockring 2

34-1536 3/4 -16 Anchor Pin Nut 2

34-1544 Anchor Pin Link 2

35-1581 Anchor Pin Washer 2

Application

4544 121/4 X 51/2 BENDIX® STD FORGE

4607 121/4 X 71/2 BENDIX® STD FORGE

Converts 4544 shoe to 4536B fabricated

Converts 4607 shoe to 4591S fabricated

Kit Number: HK46

Bendix No. Description Qty.

15-544 Anchor Pin 2

19-880 Return Spring 1

23-1032 Brake Shoe Bushing 4

29-1269 Spider Seal 4

29-1301 Camshaft Lockring 4

32-1453 Cam Roller Pin 2

32-1454 Cam Roller 2

34-1527 Camshaft Lockring 4

34-1539 Anchor Pin Lock Screw 2

Application

4350 20 X 8 BENDIX® CAST SHOE

BW7258 BRAKE HARDWARE KITS

Kit Number: HK47XLS-125

Bendix No. Description Qty.

15-545 Anchor Pin 2

19-862 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

34-1563 Anchor Pin Retainer 1

Application

4536E 121/4 X 51/2 BENDIX® U BRAKE

4692 121/4 X 71/2 BENDIX® U BRAKE

11/4" Roller - Use with fast rise cams manufactured from 1989 to July, 1994

Fabricated shoes

Open both ends

Kit Number: HK47XLS-150

Bendix No. Description Qty.

15-545 Anchor Pin 2

19-862 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1427 Cam Roller - Smooth 2

34-1532 Cam Roller Retainer - Rockwell 2

34-1563 Anchor Pin Retainer 1

Application

4536E 121/4 X 51/2 BENDIX® U BRAKE

4692 121/4 X 71/2 BENDIX® U BRAKE

11/2" Roller - Use with new style cams manufactured since July, 1994

Fabricated shoes

Open both ends

BW7258

BRAKE HARDWARE KITS

Kit Number: HK48XLS-125

Bendix No. Description Qty.

15-537 Anchor Pin 2

16-564 Anchor Pin Bushing - Stainless Steel 2

19-862 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1527 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

35-1581 Anchor Pin Washer 4

Application

4536P 121/4 X 51/2 BENDIX® FT TIMKEN FABRICATED

4692P 121/4 X 71/2 BENDIX® FT TIMKEN FABRICATED

11/4" Roller - Use with fast rise cams manufactured from 1989 to July, 1994

Fabricated shoes

Open roller ends

Closed anchor end

Kit Number: HK48XLS-150

Bendix No. Description Qty.

15-537 Anchor Pin 2

16-564 Anchor Pin Bushing - Stainless Steel 2

19-862 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1427 Cam Roller - Smooth 2

34-1527 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

35-1581 Anchor Pin Washer 4

Application

4536P 121/4 X 51/2 BENDIX® FT TIMKEN FABRICATED

4692P 121/4 X 71/2 BENDIX® FT TIMKEN FABRICATED

11/2" Roller - Use with new style cams manufactured since July, 1994

Fabricated shoes

Open roller ends

Closed anchor end

BW7258 BRAKE HARDWARE KITS

Kit Number: HK49-125

Bendix No. Description Qty.

15-539 Anchor Pin 2

19-862 Return Spring - Heavy Duty 1

20-882 Return Spring Pin 2

32-1425 Cam Roller - Smooth 2

34-1526 Lockring 2

34-1529 Cam Roller Retainer 2

34-1536 3/4 -16 Anchor Pin Nut 2

34-1537 Anchor Pin Lockwasher 2

34-1544 Anchor Pin Link 2

35-1581 Anchor Pin Washer 2

Application

4544 121/4 X 51/2 BENDIX® STD FORGE

4607 121/4 X 71/2 BENDIX® STD FORGE

11/4" Roller - Use with conventional low proﬁ le cam

Converts brake from cast to fabricated shoe

Open roller end, closed anchor end

Kit Number: HK49-150

Bendix No. Description Qty.

15-537 Anchor Pin 2

15-542 Anchor Pin 2

16-565 Anchor Pin Bushing 2

19-862 Return Spring - Heavy Duty 1

19-941 Retainer Spring - 121/4 2

20-881 Return Spring Pin 2

32-1427 Cam Roller - Smooth 2

34-1527 Camshaft Lockring 4

34-1529 Cam Roller Retainer 2

35-1581 Anchor Pin Washer 4

Application

4536FCII 121/4 X 51/2 BENDIX® FCII

4544 121/4 X 51/2 BENDIX® STD FORGE

4607 121/4 X 71/2 BENDIX® STD FORGE

4661FCII 121/4 X 5 BENDIX® FCII

4692FCII 121/4 X 71/2 BENDIX® FCII

11/2" Roller - Use with high proﬁ le cam

Applicable hardware to convert standard application 4692 to 4692

FC (Fast Change)

BW7258

BRAKE HARDWARE KITS

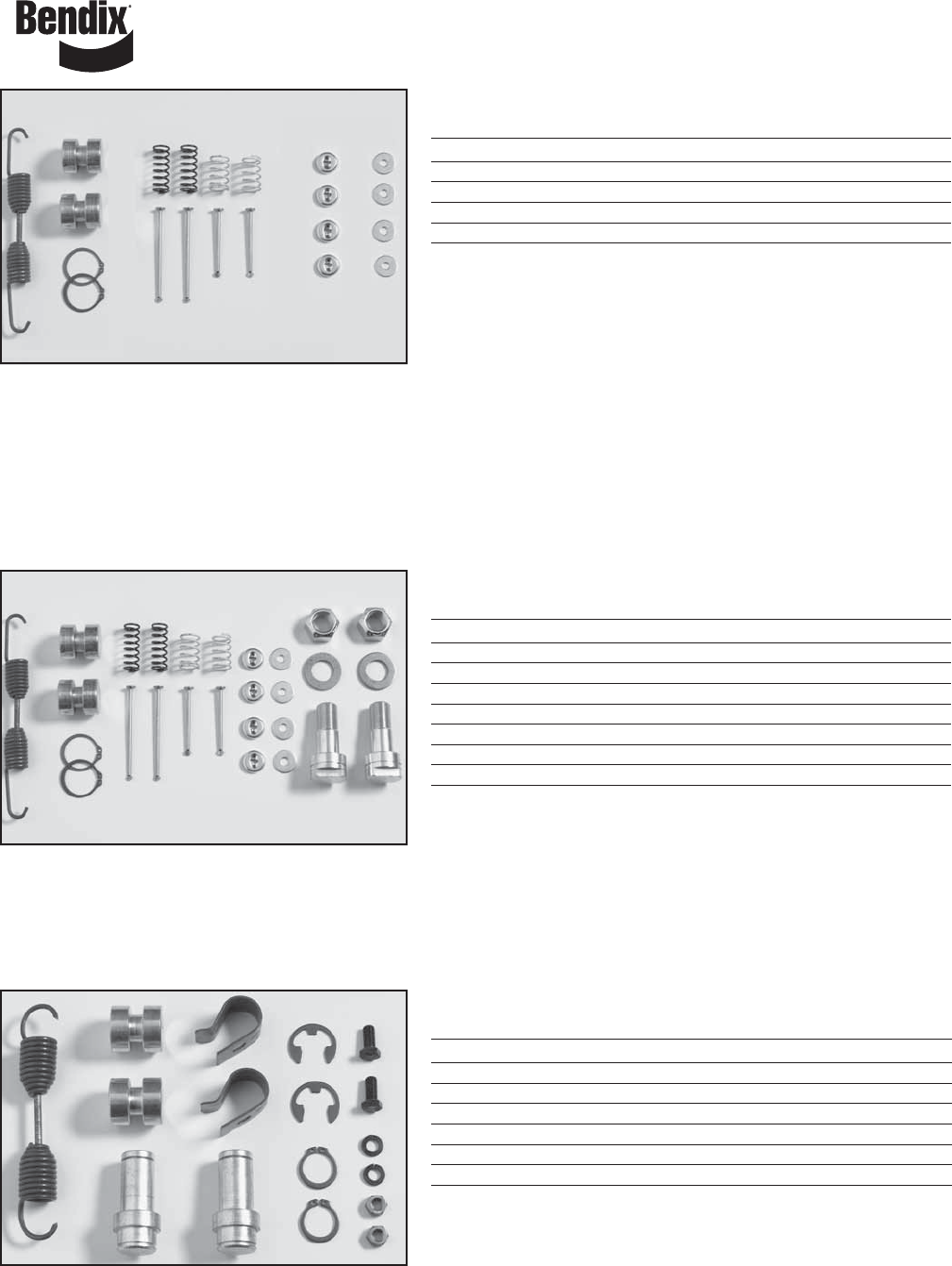

Kit Number: HK50

Bendix No. Description Qty.

19-896 Return Spring 1

19-921 Hold Down Assembly 2

32-1464 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 2

Application

1307T 15 X 31/2 ROCKWELL T

1308T 15 X 4 ROCKWELL / MERITOR T

Short kit (less anchor pins, nuts and washers)

For full kit, use HK51

Steer axle brakes

Kit Number: HK52

Bendix No. Description Qty.

15-551 Anchor Pin 2

19-862 Return Spring - Heavy Duty 1

19-920 Hold Down Assembly 2

32-1465 Cam Roller - Smooth 2

34-1543 Anchor Pin Lock Ring 2

34-1549 Anchor Pin Lock 2

Application

4561 161/4 X 31/2 ROCKWELL T

Steer axle brakes

Application

1307T 15 X 31/2 ROCKWELL T

1308T 15 X 4 ROCKWELL / MERITOR T

Steer axle brakes - types 1 and 2

Kit Number: HK51

Bendix No. Description Qty.

15-550 Anchor Pin 2

19-896 Return Spring 1

19-921 Hold Down Assembly 2

32-1464 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 2

34-1551 Anchor Pin Hex Nut 2

34-1552 Anchor Pin Washer 2

BW7258 BRAKE HARDWARE KITS

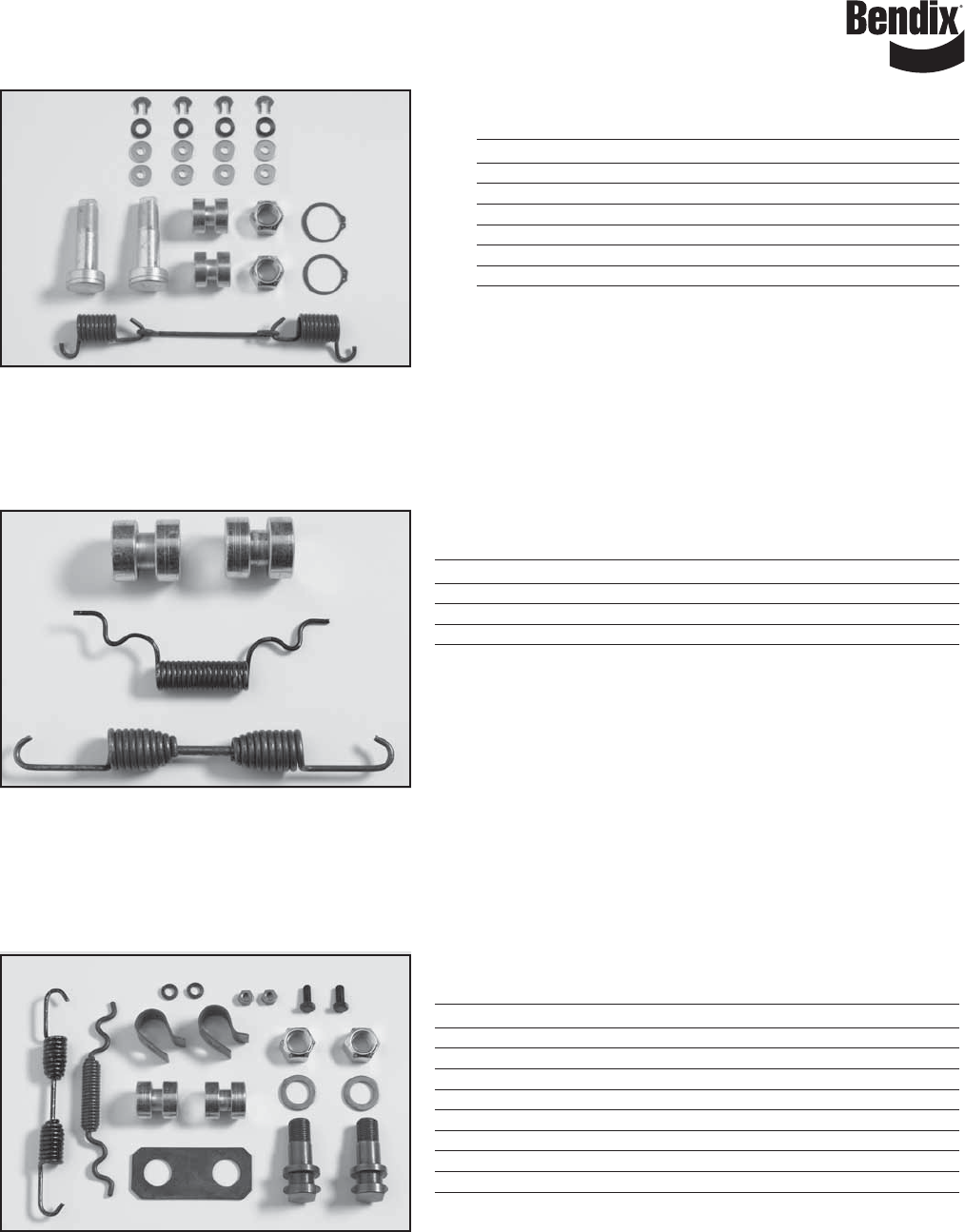

Kit Number: HK53

Bendix No. Description Qty.

15-557 Anchor Pin 2

19-891 Return Spring 1

19-892A Hold Down Assembly 4

32-1463 Cam Roller - Smooth 2

34-1550 Anchor Pin Lock 2

34-1551 Anchor Pin Hex Nut 2

Application

1308A 15 X 4 WAGNER

Steer axle brakes

Kit Number: HK54

Bendix No. Description Qty.

19-922 Retainer Spring 1

19-923 Return Spring 1

32-1464 Cam Roller - Smooth 2

Application

1308E 15 X 4 BENDIX® SAP

1443E 15 X 4 BENDIX® ESII

Steer axle brakes

Kit Number: HK55

Bendix No. Description Qty.

15-562 Anchor Pin 2

19-902 Return Spring 1

19-903 Retainer Spring 1

19-920 Hold Down Assembly 2

32-1464 Cam Roller - Smooth 2

34-1551 Anchor Pin Hex Nut 2

34-1561 Anchor Pin Plate 1

34-1562 Anchor Pin Washer 2

Application

1307Q 15 X 31/2 ROCKWELL Q

1308Q 15 X 4 ROCKWELL / MERITOR Q

1308Q 15 X 4 BENDIX® FC

Steer axle brakes

BW7258

BRAKE HARDWARE KITS

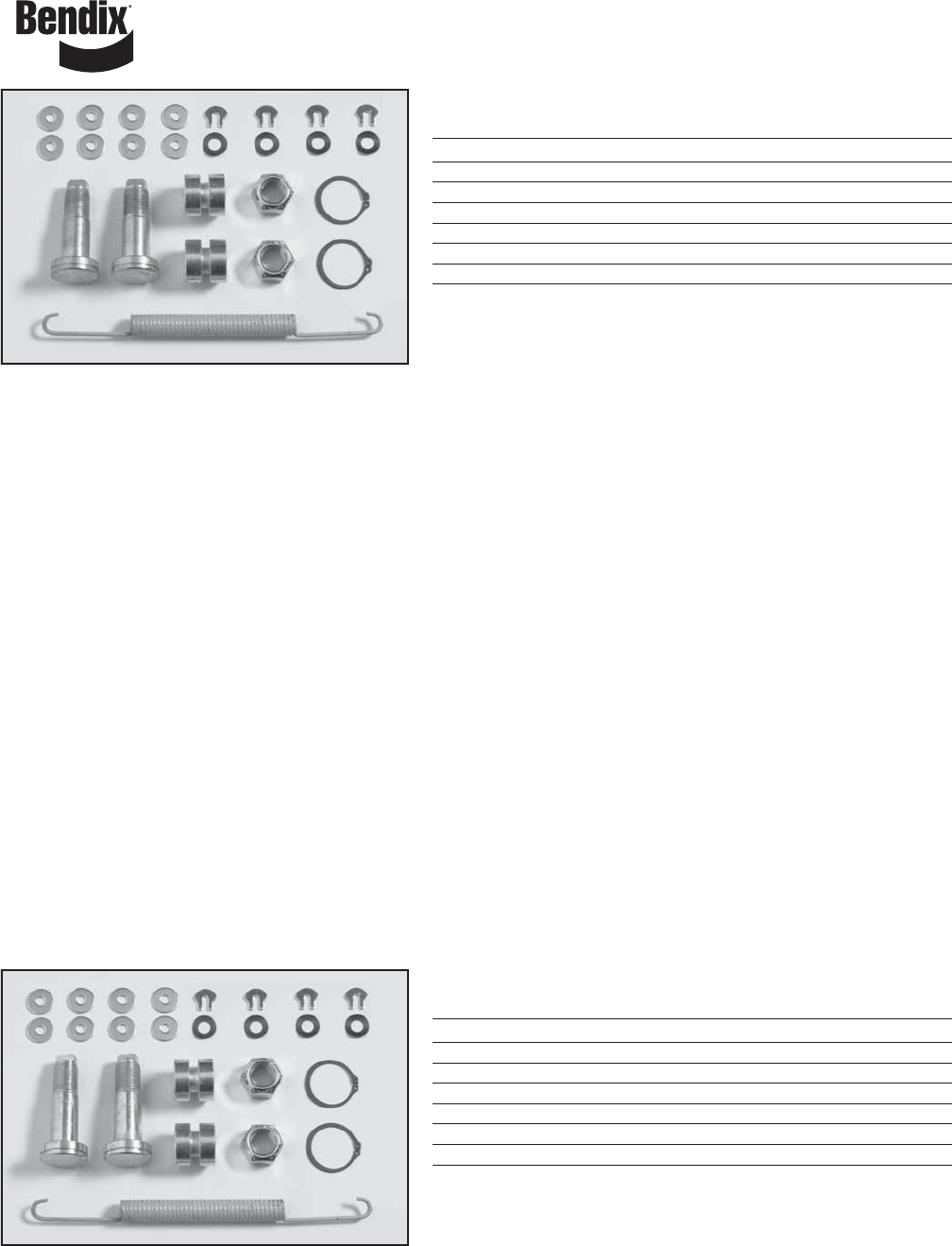

Kit Number: HK56

Bendix No. Description Qty.

15-555 Anchor Pin 2

19-890 Return Spring 1

19-892A Hold Down Assembly 4

32-1462 Cam Roller - Smooth 2

34-1550 Anchor Pin Lock 2

34-1551 Anchor Pin Hex Nut 2

Application

235-1245 15 X 3 WAGNER

Steer axle brakes

Kit Number: HK57

Bendix No. Description Qty.

15-556 Anchor Pin 2

19-890 Return Spring 1

19-892A Hold Down Assembly 4

32-1462 Cam Roller - Smooth 2

34-1550 Anchor Pin Lock 2

34-1551 Anchor Pin Hex Nut 2

Application

463-1280 15 X 31/2 WAGNER

Steer axle brakes

BW7258 BRAKE HARDWARE KITS

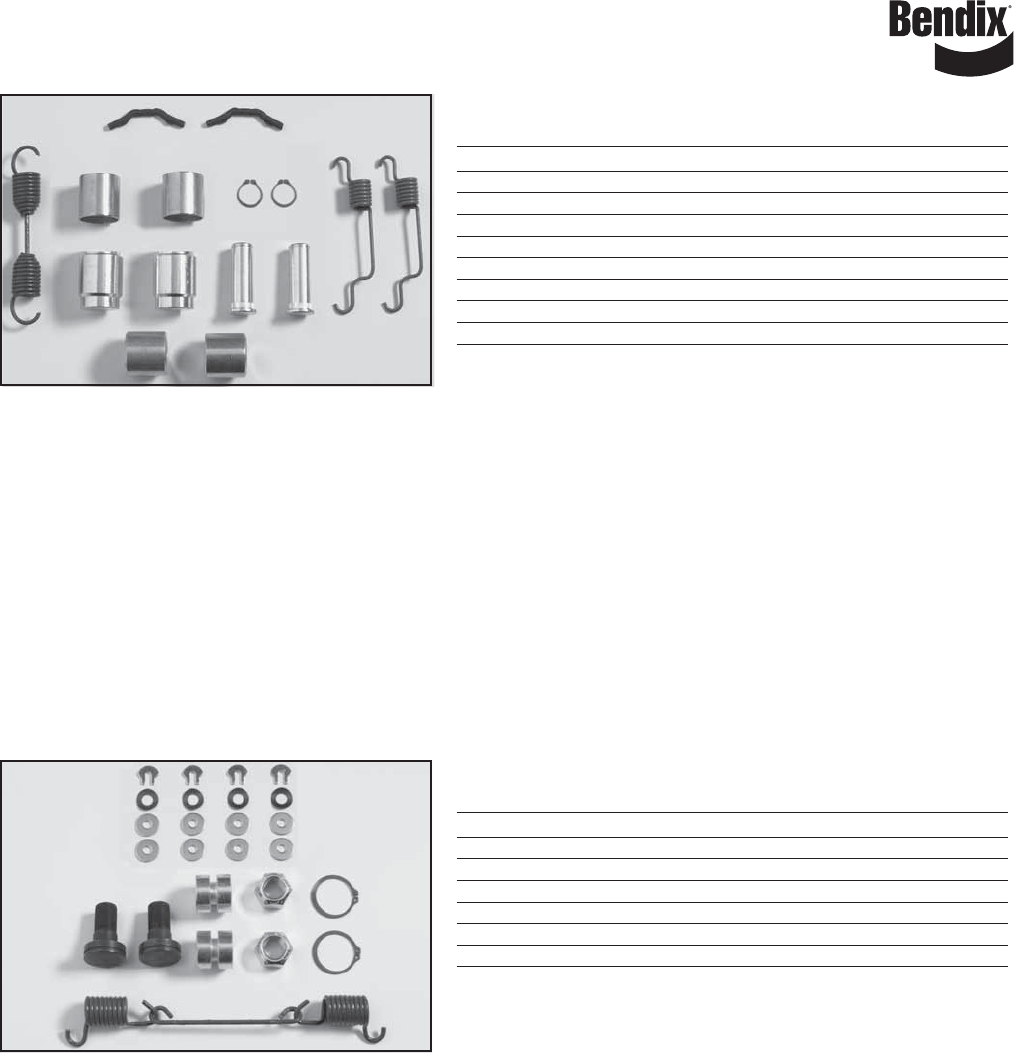

Kit Number: HK58XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-862 Return Spring - Heavy Duty 1

19-941 Retainer Spring - 121/4 2

20-881 Return Spring Pin 2

32-1445 Cam Roller - Knurled 2

32-1446 Cam Roller Pin 2

34-1526 Lockring 2

Application

4692FC 121/4 X 71/2 DEXTER PQ

19-941 replaced by 19-860 in Canada

Kit Number: HK59

Bendix No. Description Qty.

15-568 Anchor Pin 2

19-891 Return Spring 1

19-892A Hold Down Assembly 4

32-1462 Cam Roller - Smooth 2

34-1550 Anchor Pin Lock 2

34-1551 Anchor Pin Hex Nut 2

Application

512 15 X 4 WAGNER

Steer axle brakes

BW7258

BRAKE HARDWARE KITS

Kit Number: HK60

Bendix No. Description Qty.

15-541 Anchor Pin 2

19-884 Return Spring 1

32-1460 Cam Roller Pin 2

32-1461 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

35-1582 Neoprene Anchor Pin Seal 4

Application

380-4596 15 X 6 WAGNER

382-4597 15 X 7 WAGNER

Drive axle brake

Kit Number: HK61

Bendix No. Description Qty.

19-915 Return Spring - Heavy Duty 1

19-940 Retainer Spring - 161/2 & 15 2

32-1490 Cam Roller - Unplated - Smooth 2

34-1570 Cam Roller Retainer 2

Application

4709EII 161/2 X 7 BENDIX® ESII

4726EII 161/2 X 85/8 BENDIX® ESII

BW7258 BRAKE HARDWARE KITS

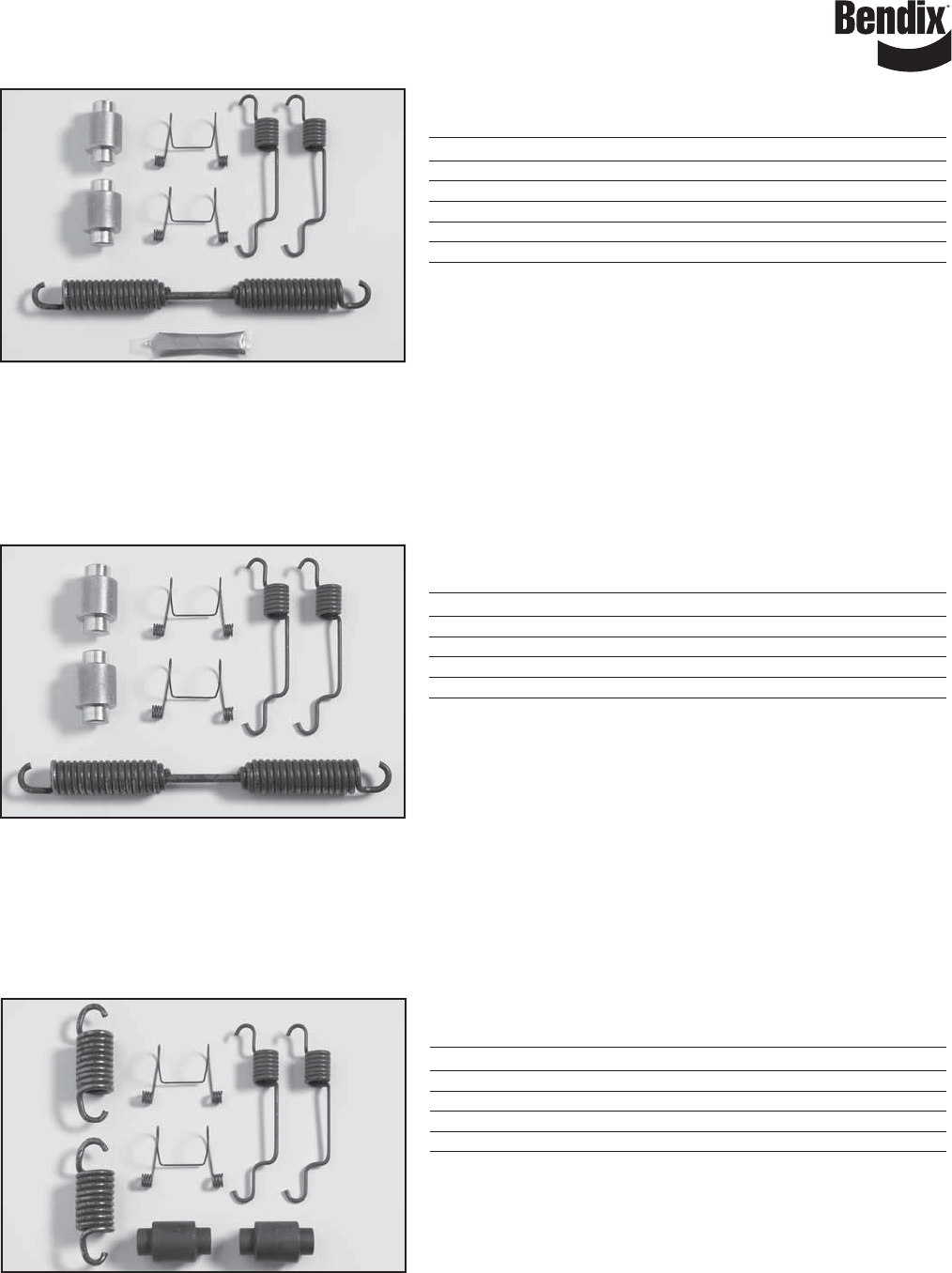

Kit Number: HK61SD

Bendix No. Description Qty.

19-915 Return Spring - Heavy Duty 1

19-940 Retainer Spring - 161/2 & 15 2

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4709EII 161/2 X 7 BENDIX® ESII

4726EII 161/2 X 85/8 BENDIX® ESII

Kit Number: HK61XLS

Bendix No. Description Qty.

19-915 Return Spring - Heavy Duty 1

19-940 Retainer Spring - 161/2 & 15 2

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4709EII 161/2 X 7 BENDIX® ESII

4726EII 161/2 X 85/8 BENDIX® ESII

Application

4719EII 161/2 X 5 BENDIX® ESII

4725EII 161/2 X 6 BENDIX® ESII

Front axle brakes

Kit Number: HK62

Bendix No. Description Qty.

19-924 Return Spring - Heavy Duty 2

19-940 Retainer Spring - 161/2 & 15 2

32-1490 Cam Roller - Unplated - Smooth 2

34-1570 Cam Roller Retainer 2

BW7258

BRAKE HARDWARE KITS

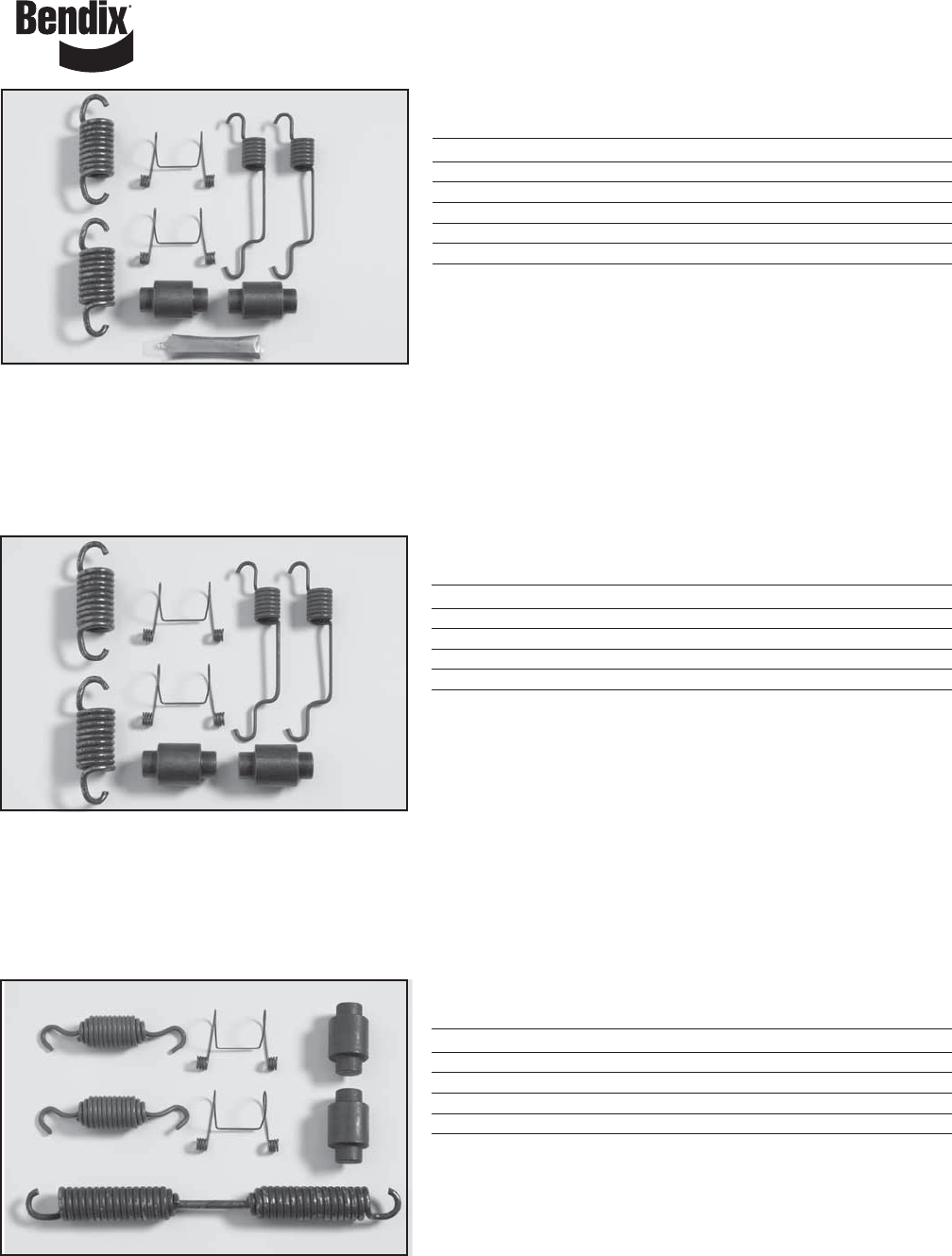

Kit Number: HK62SD

Bendix No. Description Qty.

19-924 Return Spring - Heavy Duty 2

19-940 Retainer Spring - 161/2 & 15 2

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4719EII 161/2 X 5 BENDIX® ESII

4725EII 161/2 X 6 BENDIX® ESII

Front axle brakes

Kit Number: HK62XLS

Bendix No. Description Qty.

19-924 Return Spring - Heavy Duty 2

19-940 Retainer Spring - 161/2 & 15 2

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4719EII 161/2 X 5 BENDIX® ESII

4725EII 161/2 X 6 BENDIX® ESII

Front axle brakes

Kit Number: HK63

Bendix No. Description Qty.

19-859 Retainer Spring 2

19-915 Return Spring - Heavy Duty 1

32-1490 Cam Roller - Unplated - Smooth 2

34-1570 Cam Roller Retainer 2

Application

4709 161/2 X 7 BENDIX® ES

4719 161/2 X 5 BENDIX® ES

4725 161/2 X 5 BENDIX® ES

BW7258 BRAKE HARDWARE KITS

Kit Number: HK63SD

Bendix No. Description Qty.

19-859 Retainer Spring 2

19-915 Return Spring - Heavy Duty 1

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4709 161/2 X 7 BENDIX® ES

4719 161/2 X 5 BENDIX® ES

4725 161/2 X 5 BENDIX® ES

Kit Number: HK63XLS

Bendix No. Description Qty.

19-859 Retainer Spring 2

19-915 Return Spring - Heavy Duty 1

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4709 161/2 X 7 BENDIX® ES

4719 161/2 X 5 BENDIX® ES

4725 161/2 X 5 BENDIX® ES

Kit Number: HK64XLS

Bendix No. Description Qty.

19-859 Retainer Spring 2

19-875 Return Spring 1

32-1441A Cam Roller - Knurled 2

32-1442A Cam Roller Pin 2

Application

4223E 161/2 X 5 BENDIX® SAP

4317E 161/2 X 6 BENDIX® SAP

Longer center bar on return spring to allow for additional spindle clearance

Applicable on “heavy duty” steer axle applications where horse collar is used

BW7258

BRAKE HARDWARE KITS

Kit Number: HK65SD

Bendix No. Description Qty.

12-403 Cotter Pin 1

15-536 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-860 Return Spring 2

19-930 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4708XEM 161/2 X 7 FRUEHAUF “XEM”

4708XEM 161/2 X 7 BENDIX® ESII FOR

Kit Number: HK67SD

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-860 Return Spring 2

19-930 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Antiseize Hw Kit Lubricant 1

Application

4708Q 161/2 X 7 ROCKWELL “Q”

4708Q 161/2 X 7 BENDIX® ESII FOR

Steer axle brakes

Kit Number: HK67XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-860 Return Spring 2

19-930 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4708Q 161/2 X 7 ROCKWELL “Q”

4708Q 161/2 X 7 BENDIX® ESII FOR

BW7258 BRAKE HARDWARE KITS

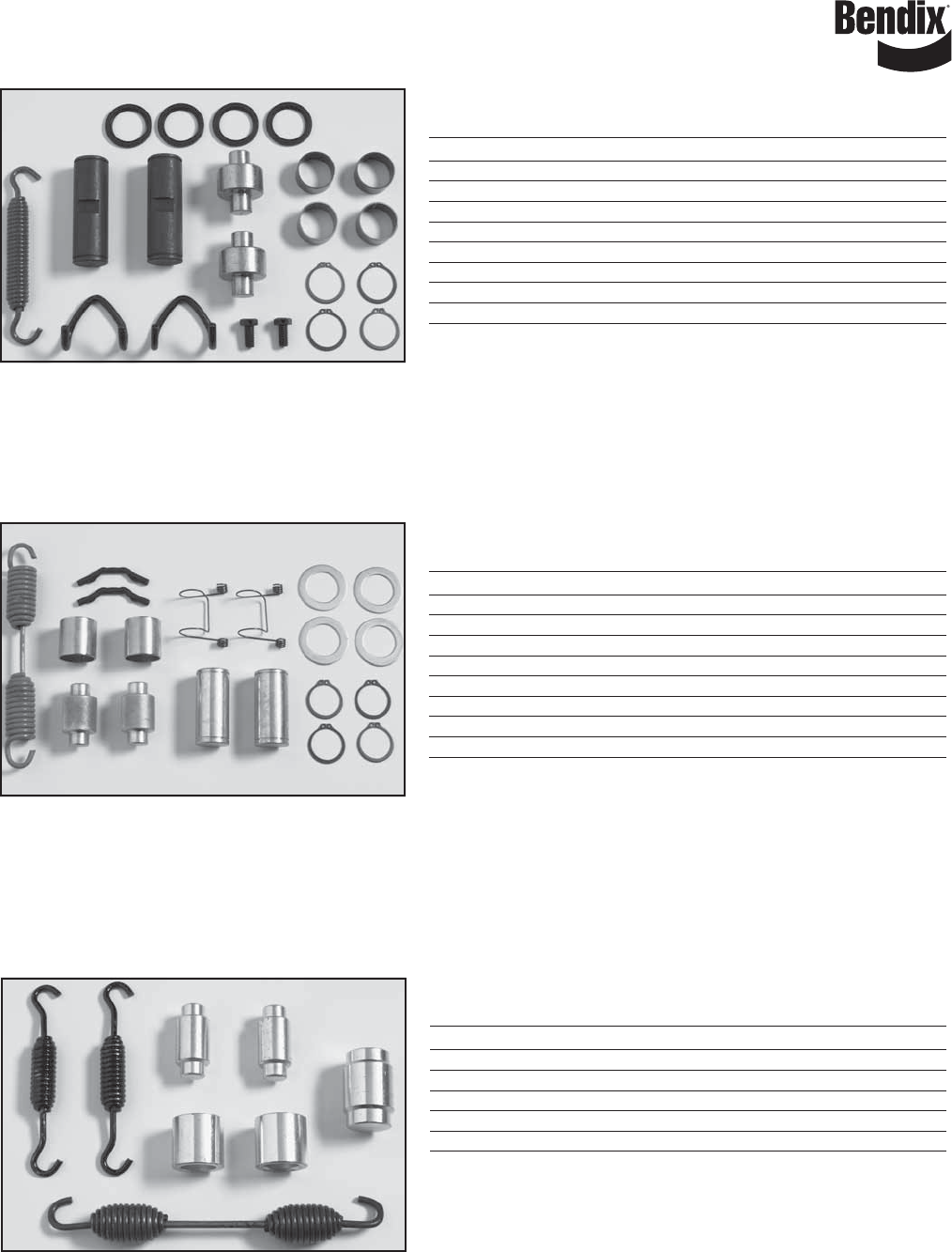

Kit Number: HK68

Bendix No. Description Qty.

15-532 Anchor Pin 2

19-865 Return Spring 1

23-1026 Brake Shoe Bushing 4

32-1458 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

34-1539 Anchor Pin Lock Screw 2

34-1565 Spring Retainer 2

35-1582 Neoprene Anchor Pin Seal 4

Application

4471B 18 X 7 ROCKWELL CAST

Kit Number: HK69XLS

Bendix No. Description Qty.

15-527 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-930 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1570 Cam Roller Retainer 2

35-1580 Anchor Pin Washer 4

Application

4708P 161/2 X 7 ROCKWELL “P”

Kit Number: HK70

Bendix No. Description Qty.

15-563 Anchor Pin 1

19-904 Return Spring 1

19-905 Retainer Spring 2

32-1479 Cam Roller - Smooth 2

32-1480 Cam Roller Pin 2

Application

4693 15 X 4 BENDIX

Ford Cargo, front drum brake

BW7258

BRAKE HARDWARE KITS

Kit Number: HK71

Bendix No. Description Qty.

15-564 Anchor Pin 2

16-566 Anchor Pin Bushing 2

19-906 Return Spring 1

19-907 Retainer Spring 2

20-881 Return Spring Pin 2

32-1479 Cam Roller - Smooth 2

32-1480 Cam Roller Pin 2

Application

4515E 161/2 X 7 BENDIX

Truck and tractor brake

Kit Number: HK72

Bendix No. Description Qty.

15-602 Anchor Pin 2

16-562 Anchor Pin Bushing 2

16-701 Shoe Bushing 4

19-939 Return Spring 1

32-1563 Cam Roller 2

32-1564 Cam Roller Pin 2

34-1525 Camshaft Lockring 4

34-1583 Lock Screw 2

34-1584 Lock Pin 2

35-1580 Anchor Pin Washer 4

Application

4708H 161/2 X 7 BENDIX® CAST

Kit Number: HK73

Bendix No. Description Qty.

15-603 Anchor Pin 2

16-562 Anchor Pin Bushing 2

19-954 Return Spring 1

20-881 Return Spring Pin 2

32-1425 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

34-1570 Cam Roller Retainer 2

34-1583 Lock Screw 2

35-1580 Anchor Pin Washer 4

Application

4708M 161/2 X 7 BENDIX® SEVERE DUTY

BW7258 BRAKE HARDWARE KITS

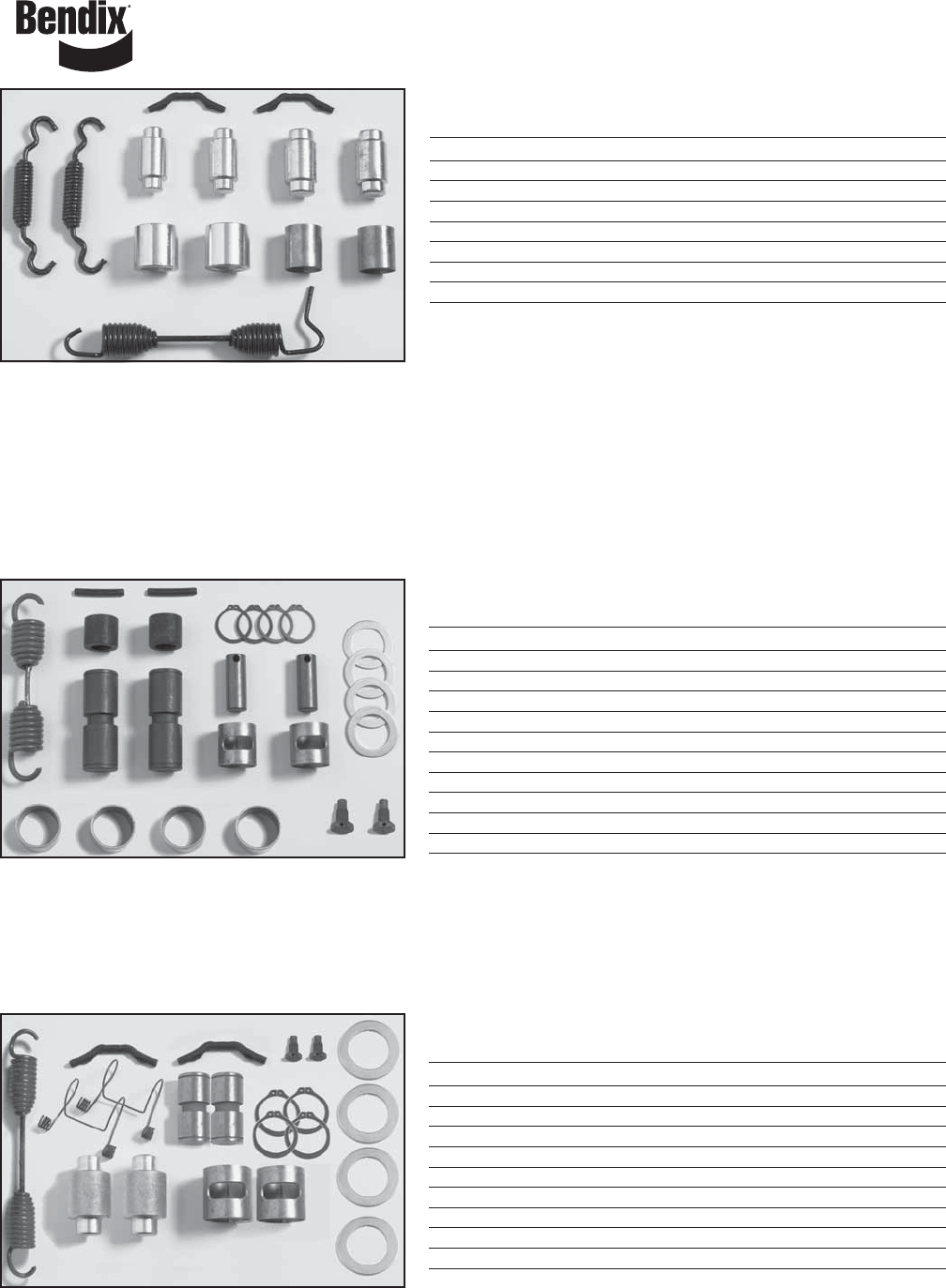

Kit Number: HK74XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-860 Return Spring 2

19-950 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1532 Cam Roller Retainer - Rockwell 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4514Q 161/2 X 6 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

4715R 161/2 X 6 ROCKWELL / MERITOR Q PLUS

4715R 161/2 X 6 BENDIX® XTRALIFE II

4720R 161/2 X 5 ROCKWELL / MERITOR Q PLUS

4720R 161/2 X 5 BENDIX® XTRALIFE II

Return spring has offset to clear hub for use with steer axle brakes

Kit Number: HK75SD

Bendix No. Description Qty.

15-532 Anchor Pin 2

19-853 Return Spring - Heavy Duty 1

20-881 Return Spring Pin 2

23-1026 Brake Shoe Bushing 4

32-1428 Cam Roller - Knurled 2

34-1525 Camshaft Lockring 4

34-1532 Cam Roller Retainer - Rockwell 2

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Antiseize Hw Kit Lubricant 1

Application

4515M 161/2 X 7 MACK FABRICATED

For use on fabricated shoes with bushed anchor pin holes and 11/4" cam rollers

BW7258

BRAKE HARDWARE KITS

Kit Number: HK76

Bendix No. Description Qty.

15-532 Anchor Pin 2

16-562 Anchor Pin Bushing 2

19-878 Return Spring 1

23-1026 Brake Shoe Bushing 4

32-1458 Cam Roller - Smooth 2

34-1525 Camshaft Lockring 4

34-1539 Anchor Pin Lock Screw 2

35-1582 Neoprene Anchor Pin Seal 4

Application

4669D 18 X 7 ROCKWELL CAST IRON

Kit Number: HK77

Bendix No. Description Qty.

19-902 Return Spring 1

19-903 Retainer Spring 1

19-920 Hold Down Assembly 2

32-1464 Cam Roller - Smooth 2

Application

1307Q 15 X 31/2 ROCKWELL Q

1308Q 15 X 4 ROCKWELL / MERITOR Q

1308Q 15 X 4 BENDIX® FC

Steer axle brakes

Kit Number: HK80XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-860 Return Spring 2

19-913 Return Spring 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1529 Cam Roller Retainer 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4514Q 161/2 X 6 BENDIX® FC

4524Q 161/2 X 5 ROCKWELL / MERITOR Q

4524Q 161/2 X 5 BENDIX® FC

Steer axle brakes

BW7258 BRAKE HARDWARE KITS

Kit Number: HK81XLS

Bendix No. Description Qty.

15-542 Anchor Pin 2

16-563 Anchor Pin Bushing - Stainless Steel 2

19-860 Return Spring 2

19-910 Return Spring 1

20-881 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1529 Cam Roller Retainer 2

Application

4514Q 161/2 X 6 ROCKWELL / MERITOR Q

4514Q 161/2 X 6 BENDIX® FC

4524QM 161/2 X 5 ROCKWELL / MERITOR Q

4524QM 161/2 X 5 BENDIX® FC

Steer axle brakes

Kit Number: HK82SD

Bendix No. Description Qty.

15-565 Anchor Pin 2

16-700 Anchor Pin Bushing - Dimpled Stainless Steel 2

19-853A Return Spring - Heavy Duty 1

19-900 Retainer Spring 2

20-881 Return Spring Pin 2

20-886 Return Spring Pin 2

29-1342 Spring Retainer Lock Ring 2

32-1475 Cam Roller - Smooth 2

34-1532 Cam Roller Retainer - Rockwell 2

Antiseize HW Kit Lubricant 1+

Application

4515QM 161/2 X 7 ROCKWELL MACK STYLE

Kit Number: HK83

Bendix No. Description Qty.

16-703 Anchor Pin Bushing 2

19-953 Return Spring 1

29-1404 Camshaft Washer 2

29-1407 Camshaft Washer 2

29-1408 Lock Washer 2

32-1561 Shoe Roller 2

51-1020 Anchor Pin Nut 2

Application

4592A 141/2 X 10 ROCKWELL COACH

Drive axle brakes

“10” Series brake shoe, type 1 and 3

BW7258

BRAKE HARDWARE KITS

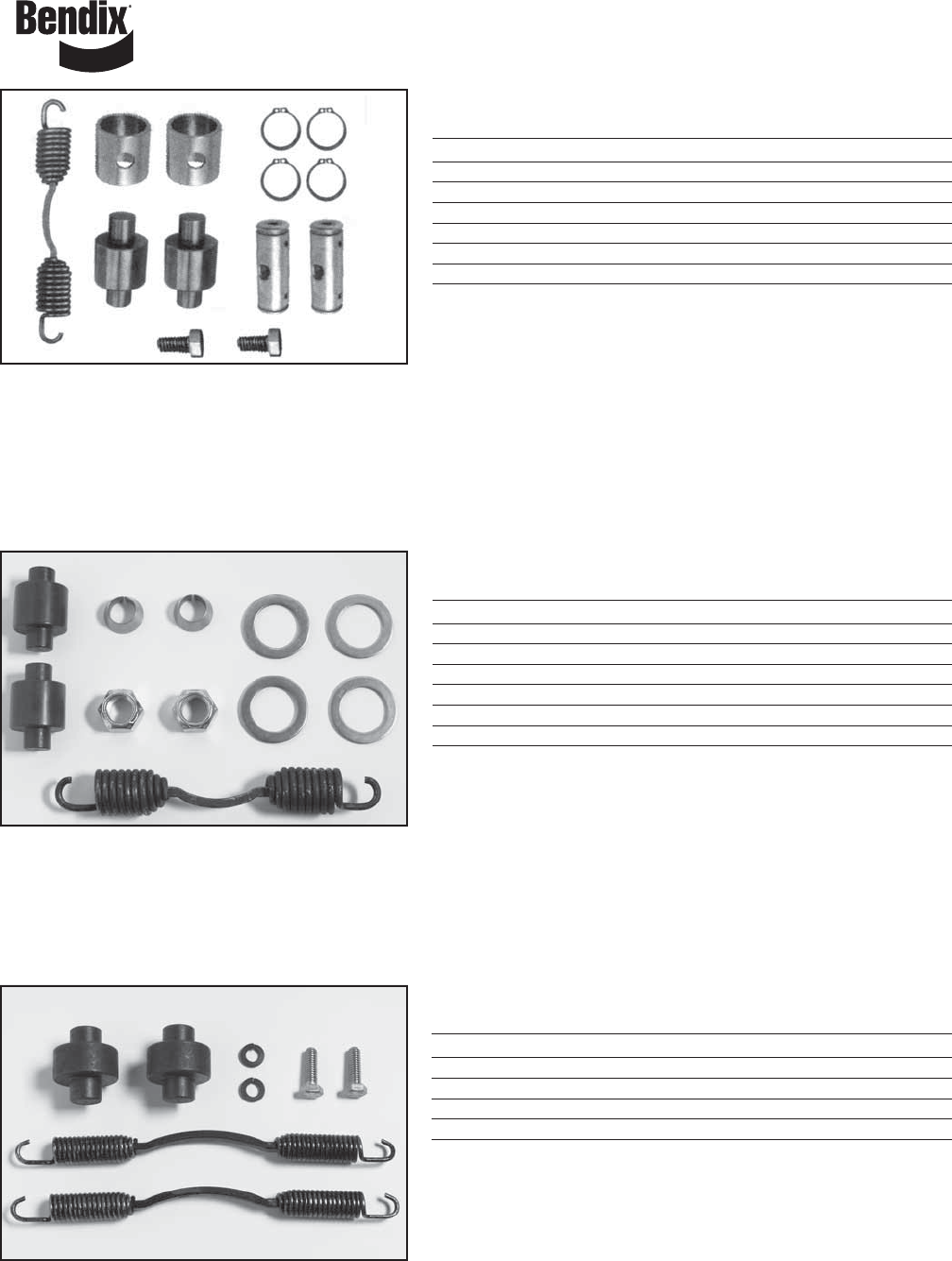

Kit Number: HK84

Bendix No. Description Qty.

15-601 Anchor Pin 2

16-702 Anchor Pin Bushing 2

19-953 Return Spring 1

29-1405 Snap Ring 4

32-1562 Cam Roller 2

34-1585 Bolt 2

Application

4592A 141/2 X 10 ROCKWELL COACH

Drive axle brakes

“10” Series brake shoe, type 2

Kit Number: HK85

Bendix No. Description Qty.

16-703 Anchor Pin Bushing 2

19-953 Return Spring 1

29-1402 Camshaft Washer 2

29-1403 Camshaft Washer 2

32-1575 Shoe Roller 2

51-1020 Anchor Pin Nut 2

Application

4541B 141/2 X 8 ROCKWELL COACH

Drive axle brakes

“8” Series brake shoe, type 1

Kit Number: HK86

Bendix No. Description Qty.

19-952 Return Spring 2

29-1401 Lock Washer 2

29-1409 Lock Bolt 2

32-1560 Shoe Roller 2

Application

4398B 141/2 X 5 ROCKWELL COACH

Steer axle brakes

BW7258 BRAKE HARDWARE KITS

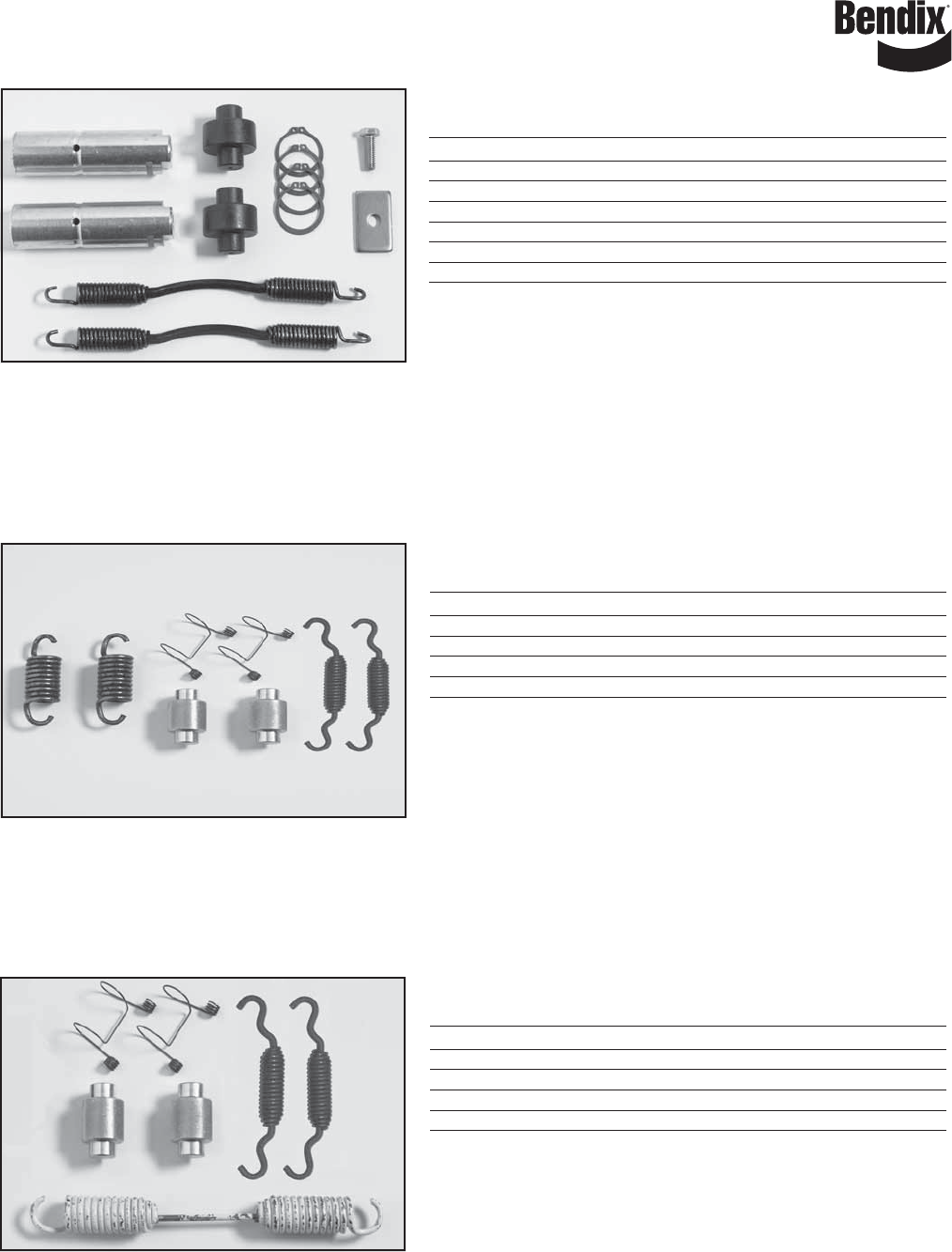

Kit Number: HK87

Bendix No. Description Qty.

15-600 Anchor Pin 2

19-952 Return Spring 2

29-1409 Lock Bolt 1

30-1400 Lock Plate 1

32-1560 Shoe Roller 2

34-1525 Camshaft Lockring 4

Application

4227G 141/2 X 4 ROCKWELL COACH

4228B 141/2 X 6 ROCKWELL COACH

Steer axle brakes

Kit Number: HK90XLS

Bendix No. Description Qty.

19-860 Return Spring 2

19-924 Return Spring - Heavy Duty 2

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4716EII 15 X 6 BENDIX® REDUCED ENVELOPE

Steer axle brakes

Kit Number: HK91XLS

Bendix No. Description Qty.

19-860 Return Spring 2

19-925 Return Spring - Heavy Duty 1

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4717EII 15 X 85/8 BENDIX® REDUCED ENVELOPE

Drive axle brakes

BW7258

BRAKE HARDWARE KITS

Kit Number: HK95XLS

Bendix No. Description Qty.

19-853 Return Spring - Heavy Duty 1

19-860 Return Spring 2

19-934 Return Spring 1

20-881 Return Spring Pin 2

20-887 Return Spring Pin 2

20-888 Return Spring Pin 2

32-1427 Cam Roller - Smooth 2

34-1529 Cam Roller Retainer 2

Application

4514HA 161/2 X 6 BENDIX® HEAVY AXLE

4515HA 161/2 X 7 BENDIX® HEAVY AXLE

4524HA 161/2 X 5 BENDIX® HEAVY AXLE

4693HA 15 X 4 BENDIX® HEAVY AXLE

Drive axle brakes

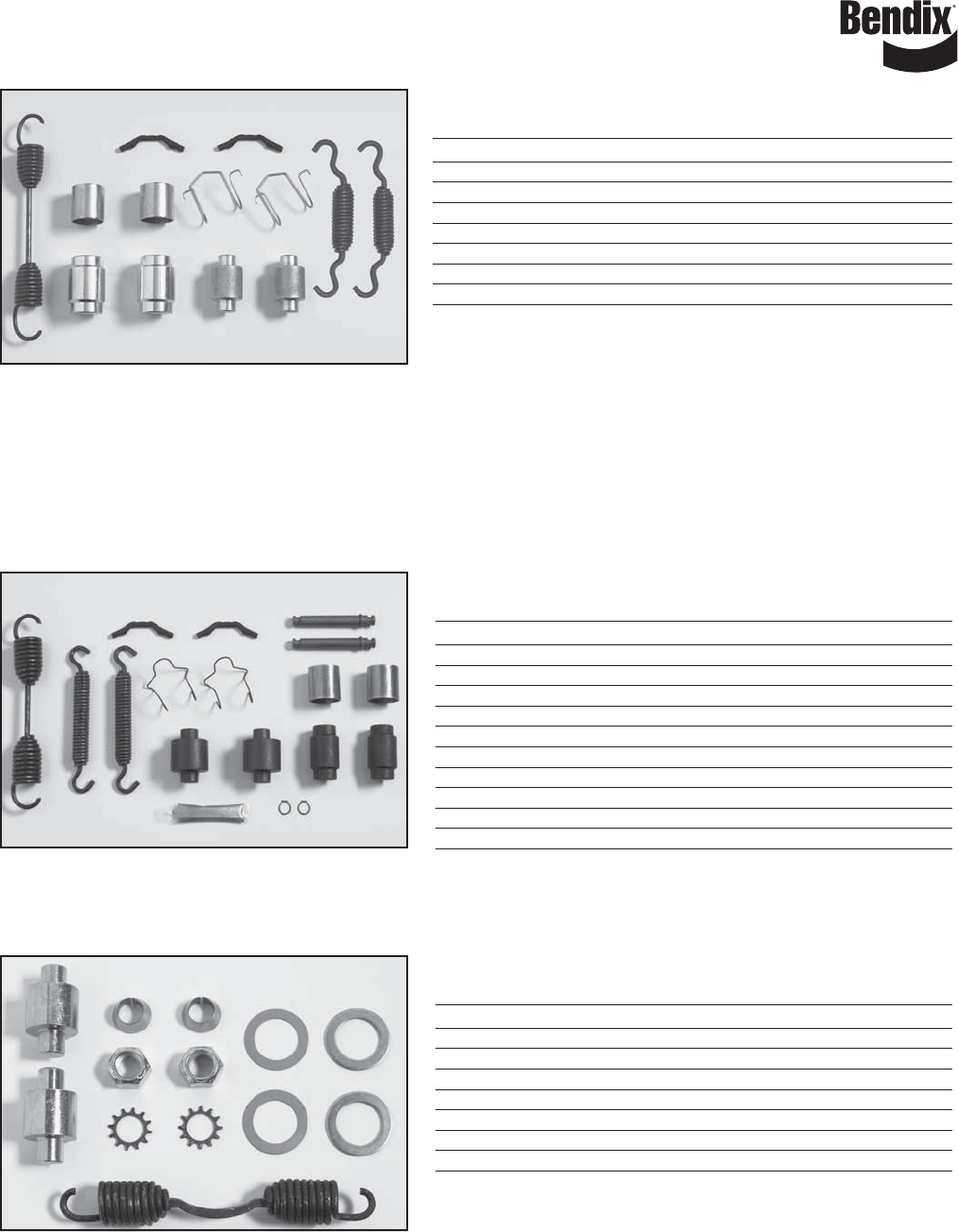

Kit Number: HK96XLS

Bendix No. Description Qty.

19-853 Return Spring - Heavy Duty 1

19-860 Return Spring 2

19-935 Return Spring 1

20-881 Return Spring Pin 2

20-887 Return Spring Pin 2

20-888 Return Spring Pin 2

32-1428 Cam Roller - Knurled 2

34-1529 Cam Roller Retainer 2

Application

4701HA 161/2 X 7 BENDIX® HEAVY AXLE

Kit Number: HK97XLS

Bendix No. Description Qty.

19-940 Retainer Spring - 161/2 & 15 0

19-956 RETURN SPRING 1

32-1471 Cam Roller - Knurled 2

34-1570 Cam Roller Retainer 2

Application

4729EII 15 X 4 BENDIX® ESII

Previous Number New Number Previous Number New Number

BW7248 SUPERSESSION LIST

1308-10A 1308ERED

1308EMB21 1308ERED

1308QMB21 1308QRED

1308TMB21 1308TRED

14-2A HK14XLS

14-3A HK14XLS

1443EMB21 1443E410

1443ERED 1443E600

14-4A HK14XLS

14A HK14SD

16-1A HK16SD

16-3A HK16XLS

16-4A HK16XLS

16A HK16XLS

17-1A HK17XLS

18A HK17XLS

19-2A HK75SD

19-3A HK19SD

20A HK22XLS

22A HK22XLS

24-1A HK24XLSLM

24-1ABULK HK24XLSLM-BULK

24-1SS HK24SDLM

24A HK24XLSLM

24ABULK HK24XLSLM-BULK

24A-BULK HK24XLSLM-BULK

26A HK26

27A HK27

28-1A HK29

28-1ABULK HK29-BULK

28-1AR HK29

28-1ARBULK HK29-BULK

28A HK29

29-1A HK29XLS

29-1ABULK HK29XLS-BULK

29-1A-BULK HK29XLS-BULK

29-1AC HK29XLS

29-1AR HK29XLS

29-1ARBULK HK29XLS-BULK

29-1ARC HK29XLS

29A HK29

29AC HK29

29XL HK32SD

30A HK29

30AC HK29XLS

30A-HD HK29XLS

30AR HK29

30ARC HK29XLS

31-1A HK31XLS

314147 HK61

314148 SB4709EII420

314149 SB4709EII410

314150 SB4709EII420

314151 SB4709EII600

314153 SB4709EII1160

314156 SB4719EII420

314157 SB4719EII420

314158 SB4719EII420

314168 SB4725EII420

314169 SB4725EII410

314170 SB4725EII420

314174 SB4725EII1160

314181 SB4726EII420

314182 SB4726EII600

314390 SB4709EII410

314419 SB4719EII420

314425 SB4725EII1160

314966 SB1443E410

317202 SB1443E420

317688 SB4719EII420

317690 SB4719EII420

317694 SB4719EII1160

317696 SB4725EII410

317697 SB4725EII420

317698 SB4725EII600

317701 SB4725EII1160

317702 SB4725EII1160

318278 SB4717EII310

326517 SB4729EII600

326518 SB4729EII440

34-1A HK34XLS

34-1ABULK HK34XLS-BULK

Previous Number New Number Previous Number New Number

BW7248

SUPERSESSION LIST

34-1AC-BULK HK34XLS-BULK

34-2A HK34XLS

34A HK34SD

34ABULK HK34XLS-BULK

34A-BULK HK34XLS-BULK

38A HK38

38AR HK38

38AR-HD HK38XLS

40A HK40

41A HK41

42A HK45XLS

4311EBLUE 4311EBLU

4311ESILVER 4311ESIL

4311EYELLOW 4311EYEL

43A HK43XLS

44A HK44XLS

4514HARED 4514HAGLD

4514QBLU 4514QRED

4515HABLU 4515HARED

4515HAYEL 4515HARED

4515P197 4515PBLU

4515P931 4515PRED

4515PBLUE 4515PBLU

4515PBRZ 4515PYEL

4515PGRN 4515PSIL

4515PMB21 4515PSIL

4515PMB23 4515PYEL

4515PORG 4515PYEL

4515PSILVER 4515PSIL

4515PYELLOW 4515PYEL

4515QBLUE 4515QBLU

4515QBRONZE 4515QBRZ

4515QMB23 4515QYEL

4515QORANGE 4515QORG

4515QSILVER 4515QSIL

4515QYELLOW 4515QYEL

4515X3197 4515X3BLU

4515X3931 4515X3RED

4515X3BLUE 4515X3BLU

4515X3BRONZE 4515X3BRZ

4515X3MB21 4515X3SIL

4515X3MB23 4515X3YEL

4515X3ORANGE 4515X3ORG

4515X3YELLOW 4515X3YEL

4524HABRZ 4524HAYEL

4524HARED 4524HAYEL

4524HAYELLOW 4524HAYEL

4524QBRZ 4524QORG

4524QMBRZ 4524QMRED

4524QMYEL 4524QMRED

4524QORANGE 4524QORG

4524QYELLOW 4524QYEL

4536FCIIBLU 4536FCIIRED

4551QMB21 4551QSIL

45A HK45XLS

46-1A HK46

4661FCIIBLU 4661FCIIRED

4661QRED 4661FCIIRED

4692FCIIBLU 4692FCIIRED

4692QRED 4692FCIIRED

4693HAMB21 4693HARED

46A HK46

4701HABLU 4701HAYEL

4701HAMB21 4701HAYEL

4701QBLU 4701QYEL

4701QMB21 4701QYEL

4702RMB21 4702R420

4702RRED 4702R600

4702RYEL 4702R600

4707R197 4707R420

4707RBLUE 4707RBLU

4707RMB21 4707RSIL

4707RMB23 4707RRED

4707RYELLOW 4707RYEL

4709EBLU 4709EIIBLU

4709EII931 4709EII600

4709EIIBLUE 4709EIIBLU

4709EIIBRZ 4709EII1100

4709EIIMB21 4709EII410

4709EIIORG 4709EII1160

4709EIISILVER 4709EIISIL

4709ERED 4709EIIRED

Previous Number New Number Previous Number New Number

BW7248 SUPERSESSION LIST

4710R197 4710R310

4710RMB21 4710R310

4710RRED 4710R310

4710RYEL 4710R310

4719EIIRED 4719EII600

47-1A HK49-150

4725EII1241 4725EII1160

4725EIIRED 4725EII600

4726EIIRED 4726EII600

47A HK47XLS-125

47B HK47XLS-150

48A HK48XLS-125

48B HK48XLS-150

49A HK49-125

50-1A HK56

50-2A HK57

50A HK56

51-1A HK51

51-2A HK50

51A HK50

5-2242 HK54

5-2243 HK24XLSLM

52A HK52

53-1A HK53

53-2A HK59

5-3319 HK67SD

5-3321 HK65SD

54A HK54

55-1A HK77

55A HK55

5-808330 HK63XLS

5-810213 HK72

60-1A HK60

60A HK60

63-1A HK61

63-2A HK62

63A HK63

65A HK65SD

67A HK67XLS

68A HK68

69A HK69XLS

70-1A HK70

70A HK70

71-1A HK71

71A HK71

805896 4311EBLU

807856 4709EII420

808877 4311EYEL

80A HK80XLS

810212 SB4708H1100

810522 4708H1100

811548 4709EII600

811549 4709EII600

811745 SB1443E420

812074 4726EII600

812075 4726EII600

812088 4719EII420

812118 HK73

812119 SB4708M600

815625 SB4717EII310

815626 HK91XLS

818212 4725EII410

818218 4709EII420

818251 4719EII420

818255 4726EII420

818298 4725EII1160

818569 1443E410

818570 1443E420

818632 4709EII420

819199 4709EII410

819259 4708Q410

819316 4726EII420

819318 4719EII420

819320 4719EII420

819326 4725EII410

819327 4725EII420

819329 4725EII1160

819615 4725EII1160

819616 4725EII1160

819746 4709EII1160

819752 4719EII420

819754 4719EII420

Previous Number New Number Previous Number New Number

BW7248

SUPERSESSION LIST

819755 4719EII420

819756 4719EII600

819762 4725EII410

819763 4725EII410

819764 4725EII420

819765 4725EII420

819766 4725EII600

819772 4709EII410

819774 4709EII420

819775 4709EII420

819776 4709EII600

819784 4726EII420

819785 4726EII420

819786 4726EII600

819789 4726EII600

81A HK81XLS

824904 SB4709EII420

825170 SB4708XEM420

825171 SB4708Q420

825172 SB4708P420

825651 SB4726EII420

82A HK82SD

90A HK90XLS

91A HK91XLS

95A HK95XLS

96A HK96XLS

974110 4709SII1100

974236 4716EII310

974238 4717EII310

974587 4729EII600

974848 4729EII440

EB974587 4729EII600

EX4514QBLU EX4514QRED

EX4709EBLU EX4709EIIBLU

EX4709ERED EX4709EIIRED

EXAA1308QRED EX1308QRED

EXAA1308TRED EX1308TRED

EXAA1443ERED EX1443ERED

EXAA4311EBLUE EX4311EBLU

EXAA4311EBRONZE EX4311EBRZ

EXAA4311EORANGE EX4311EORG

EXAA4311ERED EX4311ERED

EXAA4514QRED EX4514QRED

EXAA4515PBLUE EX4515PBLU

EXAA4515PRED EX4515PRED

EXAA4515QBLUE EX4515QBLU

EXAA4515QBRONZE EX4515QBRZ

EXAA4515QORANGE EX4515QORG

EXAA4515QRED EX4515QRED

EXAA4515X3BLUE EX4515X3BLU

EXAA4515X3BRONZE EX4515X3BRZ

EXAA4515X3ORANGE EX4515X3ORG

EXAA4515X3RED EX4515X3RED

EXAA4524QMRED EX4524QMRED

EXAA4524QORANGE EX4524QORG

EXAA4524QRED EX4524QRED

EXAA4551QBLUE EX4551QBLU

EXAA4551QRED EX4551QRED

EXAA4702RRED EX4702RRED

EXAA4707RBLUE EX4707RBLU

EXAA4707RORANGE EX4707RORG

EXAA4707RRED EX4707RRED

EXQA4311ESILVER EX4311ESIL

EXQA4311EYELLOW EX4311EYEL

EXQA4515PSILVER EX4515PSIL

EXQA4515PYELLOW EX4515PYEL

EXQA4515QSILVER EX4515QSIL

EXQA4515QYELLOW EX4515QYEL

EXQA4515X3YELLOW EX4515X3YEL

EXQA4524QYELLOW EX4524QYEL

EXQA4551QSILVER EX4551QSIL

EXQA4707RSILVER EX4707RSIL

EXQA4707RYELLOW EX4707RYEL

EXXAA4514QRED EX4514QRED

HK66XLS HK29XLS

K1308-10A SB1308ERED

K1308-10B SB1308ERED

K4223-29B SB4223ERED

K4223-30A SB4223ERED

K4223-30B SB4223EBLU

K4311-21A SB4311EBLU

K4311-21B SB4311ESIL

Previous Number New Number Previous Number New Number

BW7248 SUPERSESSION LIST

K4311-32A SB4311EBLU

K4311-32B SB4311ESIL

K4317-26A SB4317ERED

K4317-26B SB4317ERED

K4317-28A SB4317ERED

K4317-28B SB4317ERED

K4514-13A SB4514QRED

K4514-13B SB4514QRED

K4515-15A SB4515QBLU

K4515-20A SB4515X3BLU

K4591-24B SB4591SRED

K809420 SB4708XEM420

K809423 SB4708P420

K809426 SB4708Q420

K809558 SB4709EII420

K811477 SB1443E420

K811600 SB4709EII1100

K811816 SB4708Q600

K815419 SB4717EII310

KT4514QBLU KT4514QRED

KT4709ERED KT4709EIIRED

KTEAA1308ERED KT1308ERED

KTEAA1308QRED KT1308QRED

KTEAA1308TRED KT1308TRED

KTEAA1443ERED KT1443ERED

KTEAA4311EBLUE KT4311EBLU

KTEAA4311EBRONZE KT4311EBRZ

KTEAA4311EORANGE KT4311EORG

KTEAA4311ERED KT4311ERED

KTEAA4514QRED KT4514QRED

KTEAA4515PBLUE KT4515PBLU

KTEAA4515PRED KT4515PRED

KTEAA4515QBLUE KT4515QBLU

KTEAA4515QBRONZE KT4515QBRZ

KTEAA4515QORANGE KT4515QORG

KTEAA4515QRED KT4515QRED

KTEAA4515X3BLUE KT4515X3BLU

KTEAA4515X3BRONZE KT4515X3BRZ

KTEAA4515X3ORANGE KT4515X3ORG

KTEAA4515X3RED KT4515X3RED

KTEAA4524QMRED KT4524QMRED

KTEAA4524QORANGE KT4524QORG

KTEAA4551QBLUE KT4551QBLU

KTEAA4551QRED KT4551QRED

KTEAA4702RRED KT4702RRED

KTEAA4707RBLUE KT4707RBLU

KTEAA4707RORANGE KT4707RORG

KTEAA4707RRED KT4707RRED

KTEQA4311EGREEN KT4311EGRN

KTEQA4311ESILVER KT4311ESIL

KTEQA4311EYELLOW KT4311EYEL

KTEQA4515PSILVER KT4515PSIL

KTEQA4515PYELLOW KT4515PYEL

KTEQA4515QSILVER KT4515QSIL

KTEQA4515QYELLOW KT4515QYEL

KTEQA4515X3SILVER KT4515X3SIL

KTEQA4515X3YELLOW KT4515X3YEL

KTEQA4524QYELLOW KT4524QYEL

KTEQA4551QSILVER KT4551QSIL

KTEQA4707RSILVER KT4707RSIL

KTEQA4707RYELLOW KT4707RYEL

SB1308-585RED SB1308TRED

SB1308EMB21 SB1308ERED

SB1308QMB21 SB1308QRED

SB1308TMB21 SB1308TRED

SB1443EMB21 SB1443E410

SB1443ERED SB1443E600

SB4223ABLU SB4223ERED

SB4311EBLUE SB4311EBLU

SB4311EBRONZE SB4311EBRZ

SB4311ESILVER SB4311ESIL

SB4311EYELLOW SB4311EYEL

SB4514HARED SB4514HAGLD

SB4514QBLU SB4514QRED

SB4515HABLU SB4515HARED

SB4515HAYEL SB4515HARED

SB4515P197 SB4515PBLU

SB4515P931 SB4515PRED

SB4515PBLUE SB4515PBLU

SB4515PBRZ SB4515PYEL

SB4515PGRN SB4515PSIL

SB4515PMB21 SB4515PSIL

Previous Number New Number Previous Number New Number

BW7248

SUPERSESSION LIST

SB4515PMB23 SB4515PYEL

SB4515PORG SB4515PYEL

SB4515PSILVER SB4515PSIL

SB4515PYELLOW SB4515PYEL

SB4515QBLUE SB4515QBLU

SB4515QBRONZE SB4515QBRZ

SB4515QMB23 SB4515QYEL

SB4515QSILVER SB4515QSIL

SB4515QYELLOW SB4515QYEL

SB4515X3931 SB4515X3RED

SB4515X3BLUE SB4515X3BLU

SB4515X3BRONZE SB4515X3BRZ

SB4515X3MB23 SB4515X3YEL

SB4515X3ORANGE SB4515X3ORG

SB4515X3SILVER SB4515X3SIL

SB4515X3YELLOW SB4515X3YEL

SB4524HABRZ SB4524HAYEL

SB4524HARED SB4524HAYEL

SB4524HAYELLOW SB4524HAYEL

SB4524QBRZ SB4524QORG

SB4524QMBRZ SB4524QMRED

SB4524QMYEL SB4524QMRED

SB4524QORANGE SB4524QORG

SB4524QYELLOW SB4524QYEL

SB4661FCIIBLU SB4661FCIIRED

SB4661QRED SB4661FCIIRED

SB4692QRED SB4692FCIIRED

SB4693HAMB21 SB4693HARED

SB4701HABLU SB4701HAYEL

SB4701HAMB21 SB4701HAYEL

SB4701QBLU SB4701QYEL

SB4701QMB21 SB4701QYEL

SB4702RMB21 SB4702R420

SB4702RRED SB4702R600

SB4702RYEL SB4702R600

SB4707R197 SB4707R420

SB4707RBLUE SB4707RBLU

SB4707RMB21 SB4707RSIL

SB4707RMB23 SB4707RRED

SB4707RSILVER SB4707RSIL

SB4707RYELLOW SB4707RYEL

SB4708EIIQ420 SB4708Q420

SB4709EBLU SB4709EIIBLU

SB4709EII197 SB4709EII420

SB4709EII931 SB4709EII600

SB4709EIIBLUE SB4709EIIBLU

SB4709EIIBRZ SB4709EII1100

SB4709EIIMB21 SB4709EIISIL

SB4709EIIORG SB4709EII1160

SB4709EIISILVER SB4709EIISIL

SB4709ERED SB4709EIIRED

SB4710R197 SB4710R310

SB4710RMB21 SB4710R310

SB4710RRED SB4710R310

SB4710RYEL SB4710R310

SB4711RBLU SB4711R420

SB4719EIIRED SB4719EII600

SB4725EIIRED SB4725EII600

SB4726EIIRED SB4726EII600

BW7248 CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

1005840 Bendix 1308E

1006404 Bendix 1308ERED

1009000 Bendix 1308ERED

122844 Bendix HK16XLS

123209 Bendix HK16SD

123574 Bendix HK16XLS

123939 Bendix HK16SD

125035 Bendix HK54

125400 Bendix HK24XLSLM

125766 Bendix HK43XLS

126131 Bendix HK29

126496 Bendix HK31XLS

12844 Bendix HK16XLS

314148 Bendix SB4709EII420

314149 Bendix SB4709EII410

314150 Bendix SB4709EII420

314151 Bendix SB4709EII600

314181 Bendix SB4726EII420

314182 Bendix SB4726EII600

314391 Bendix SB4708Q410

314419 Bendix SB4719EII420

314425 Bendix SB4725EII1160

314966 Bendix SB1443E410

317202 Bendix SB1443E420

317688 Bendix SB4719EII420

317689 Bendix SB4719EII420

317690 Bendix SB4719EII420

317691 Bendix SB4719EII600

317694 Bendix SB4719EII1160

317695 Bendix SB4725EII420

317696 Bendix SB4725EII410

317697 Bendix SB4725EII420

317698 Bendix SB4725EII600

317701 Bendix SB4725EII1160

317702 Bendix SB4725EII1160

318278 Bendix SB4717EII310

5-2236 Bendix HK16XLS

5-2237 Bendix HK16SD

5-2238 Bendix HK16XLS

5-2239 Bendix HK16SD

5-2242 Bendix HK54

5-2243 Bendix HK24XLSLM

5-2244 Bendix HK43XLS

5-2245 Bendix HK29

5-2246 Bendix HK31XLS

5-3319 Bendix HK67SD

5-3321 Bendix HK65SD

5-3387 Bendix HK55

5-3690 Bendix HK24XLSHM

518401 Bendix HK67SD

519132 Bendix HK65SD

543238 Bendix HK55

653907 Bendix HK24XLSHM

805442 Bendix 4311E

805676 Bendix 4223E

805677 Bendix 4223E

805678 Bendix 4317E

805679 Bendix 4317E

805896 Bendix 4311EBLU

806229 Bendix 4709E

807684 Bendix 1443E420

807685 Bendix 1443E

807772 Bendix 4708Q

807799 Bendix 4708XEM

807849 Bendix 4708M

807849 Bendix 4708P

808877 Bendix 4311EYEL

809558 Bendix 4709EII420

810214 Bendix 4708H

810517 Bendix 4708H

811477 Bendix 1443E420

811548 Bendix 4709EII600

811549 Bendix 4709EII600

811745 Bendix SB1443E420

812074 Bendix 4726EII600

812075 Bendix 4726EII600

812088 Bendix 4719EII420

812114 Bendix 4708M

812119 Bendix 4708P600

813230E Bendix 4709EII1160

815082 Bendix 4717EII310

815625 Bendix SB4717EII310

BW7248

CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

816871 Bendix 4717EII310

818163 Bendix 4719EII420

818212 Bendix 4725EII410

818218 Bendix 4709EII420

818251 Bendix 4719EII420

818253 Bendix 4725EII420

818255 Bendix 4726EII420

818298 Bendix 4725EII1160

818569 Bendix 1443E410

818570 Bendix 1443E420

818632 Bendix 4709EII420

819199 Bendix 4709EII410

819259 Bendix 4708Q410

819515 Bendix 4719EII1160

819615 Bendix 4725EII1160

819616 Bendix 4725EII1160

819617 Bendix 4725EII1160

819618 Bendix 4725EII1160

819705 Bendix 4719EII

819706 Bendix 4725EII

819707 Bendix 4709EII

819708 Bendix 4726EII

819716 Bendix 4716EII

819718 Bendix 4717EII

819750 Bendix 4719EII420

819751 Bendix 4719EII420

819752 Bendix 4719EII420

819754 Bendix 4719EII420

819755 Bendix 4719EII420

819756 Bendix 4719EII600

819762 Bendix 4725EII420

819763 Bendix 4725EII410

819764 Bendix 4725EII420

819765 Bendix 4725EII420

819766 Bendix 4725EII600

819771 Bendix 4709EII420

819772 Bendix 4709EII410

819774 Bendix 4709EII420

819775 Bendix 4709EII420

819776 Bendix 4709EII600

819779 Bendix 4709EII600

819784 Bendix 4726EII420

819785 Bendix 4726EII420

819786 Bendix 4726EII600

819789 Bendix 4726EII600

823142 Bendix SB4716EII310

823143 Bendix SB4716EII310

824904 Bendix SB4709EII420

824906 Bendix SB4717EII310

825171 Bendix SB4708Q420

825172 Bendix SB4708P420

825651 Bendix SB4726EII420

973696 Bendix 4708Q420

973698 Bendix 4708P420

974236 Bendix 4716EII310

974238 Bendix 4717EII310

B1308-10A Bendix 1308ERED

B1308-25A Bendix 1308QRED

B1308-25B Bendix 1308QRED

B4311-21A Bendix 4311EBLU

B4311-21B Bendix 4311ERED

B4311-32A Bendix 4311EBLU

B4311-32B Bendix 4311ERED

B4317-26B Bendix 4317ERED

B4317-28B Bendix 4317ERED

B4514-13B Bendix 4514QRED

B4515-15A Bendix 4515QBLU

B4515-15B Bendix 4515QRED

B4515-20A Bendix 4515X3BLU

B4524-11A Bendix 4524QRED

B4591-24B Bendix 4591SRED

B809423 Bendix 4709EII420

B809426 Bendix 4708Q420

B811477 Bendix 1443E420

B811816 Bendix 4708Q600

B811817 Bendix 4708P600

ES811745 Bendix SB1443E420

K1308-10A Bendix SB1308ERED

K1308-10B Bendix SB1308ERED

K1308-25A Bendix SB1308ERED

K1308-25B Bendix SB1308ERED

K4311-21A Bendix SB4311EBLU

BW7248 CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

K4311-21B Bendix SB4311ERED

K4311-32A Bendix SB4311EBLU

K4311-32B Bendix SB4311ERED

K4317-26B Bendix SB4317ERED

K4317-28B Bendix SB4317ERED

K4514-13B Bendix SB4514QRED

K4515-15A Bendix SB4515QRED

K4515-20A Bendix SB4515X3BLU

K4524-11A Bendix SB4524QRED

K4591-24B Bendix SB4591SRED

K809423 Bendix SB4708P420

K809426 Bendix SB4708Q420

K809558 Bendix SB4709EII420

K811477 Bendix SB1443E420

K811600 Bendix SB4709EII1100

K811816 Bendix SB4708Q600

K815419 Bendix SB4717EII310

1001238 Bendix® OE HK24SDLM

1001238 Bendix® OE HK24XLSLM

1005003 Bendix® OE HK24XLSHM

1005006 Bendix® OE HK26

150KB113X Bendix® OE HK32SD

150WS120X Bendix® OE 4693HA

150WU134X Bendix® OE 4702R

150WU136X Bendix® OE 4710R

165WS115X Bendix® OE 4515HA

165WS116X Bendix® OE 4514HA

165WS124X Bendix® OE 4524HA

165WS164X Bendix® OE 4701HA

165WU119X Bendix® OE 4707R

165WU124X Bendix® OE 4720R

16KB128X Bendix® OE HK29

314146 Bendix® OE HK62

314147 Bendix® OE HK61

808330 Bendix® OE HK63

810213 Bendix® OE HK72

812118 Bendix® OE HK73

815626 Bendix® OE HK91XLS

823141 Bendix® OE HK90XLS

M12LK101X Bendix® OE HK43XLS

M12WS127X Bendix® OE 4591S

M12WS166X Bendix® OE 4692FCII

M12WS172X Bendix® OE 4661FCII

M12WS173X Bendix® OE 4536FCII

M15WS103-X Bendix® OE 4710R

M16LK100X Bendix® OE HK22XLS

M16LK103X Bendix® OE HK14XLS

M16LK104X Bendix® OE HK75SD

M16WS161X Bendix® OE 4551Q

M16WS163X Bendix® OE 4515P

M16WS176X Bendix® OE 4701Q

M16WS176X Bendix® OE 4515Q

M16WS188X Bendix® OE 4524Q

M16WS193X Bendix® OE 4707R

08-100105 Dayton HK16XLS

08-100125 Dayton HK16XLS

08-100165 Dayton HK16SD

08-100175 Dayton HK16SD

08-100305 Dayton HK14XLS

08-100365 Dayton HK14SD

08-100365 Dayton HK14XLS

08-100664 Dayton HK17XLS

08-100665 Dayton HK17XLS

08-104160 Dayton HK22XLS

08-104200 Dayton HK24XLSLM

08-104220 Dayton HK24XLSLM

08-105104 Dayton HK47XLS-150

08-105105 Dayton HK47XLS-125

08-107300 Dayton HK45XLS

08-107400 Dayton HK43XLS

08-107404 Dayton HK48XLS-150

08-107405 Dayton HK48XLS-125

08-107500 Dayton HK45XLS

08-107505 Dayton HK49-125

08-107600 Dayton HK40

08-108275 Dayton HK75SD

08-108310 Dayton HK19SD

08-108400 Dayton HK60

08-108402 Dayton HK60

08-108600 Dayton HK46

08-108804 Dayton HK29

08-108805 Dayton HK29

BW7248

CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

08-108815 Dayton HK29

08-108834 Dayton HK29XLS

08-108835 Dayton HK29XLS

08-108844 Dayton HK29

08-108846 Dayton HK38

08-108847 Dayton HK38

08-108864 Dayton HK29XLS

08-108865 Dayton HK29XLS

08-108874 Dayton HK29XLS

08-108875 Dayton HK29XLS

08-108877 Dayton HK38XLS

08-109035 Dayton HK31XLS

08-109135 Dayton HK34SD

08-109135 Dayton HK34XLS

08-109145 Dayton HK34XLS

08-109165 Dayton HK34XLS

08-109175 Dayton HK34XLS

08-109300 Dayton HK44XLS

08-109560 Dayton HK27

08-109600 Dayton HK26

08-109840 Dayton HK68

08-110000 Dayton HK59

08-110100 Dayton HK56

08-110200 Dayton HK57

08-110202 Dayton HK56

08-110202 Dayton HK57

08-110700 Dayton HK51

08-110702 Dayton HK50

08-110900 Dayton HK52

08-110902 Dayton HK52

08-111100 Dayton HK55

08-111102 Dayton HK77

08-111300 Dayton HK54

08-114000 Dayton HK70

08-114002 Dayton HK70

08-114200 Dayton HK71

08-114212 Dayton HK71

08-114800 Dayton HK63

08-115402 Dayton HK67XLS

08-115505 Dayton HK69XLS

08-115805 Dayton HK65SD

08-116004 Dayton HK29XLS

08-116200 Dayton HK32SD

08-116235 Dayton HK96XLS

08-116600 Dayton HK95XLS

08-116705 Dayton HK80XLS

K71-98 Dexter HK43XLS

E-10244 Euclid HK61

E-10760 Euclid HK62

E-10841 Euclid HK87

E-10866 Euclid HK86

E-10867 Euclid HK85

E-10869 Euclid HK83

E-10870 Euclid HK84

E-10875 Euclid HK58XLS

E-1607HD Euclid HK75SD

E-1816HD Euclid HK14SD

E-1816S Euclid HK14XLS

E-1887AHD Euclid HK24SDLM

E-1887ASHD Euclid HK24XLSLM

E-2121 Euclid HK17XLS

E-2126 Euclid HK40

E-2402HD Euclid HK43XLS

E-2403HD Euclid HK45XLS

E-2675HD Euclid HK19SD

E-2713 Euclid HK60

E-2740 Euclid HK57

E-2769HD Euclid HK29SD

E-2769HD Euclid HK29XLS

E-2769S Euclid HK29

E-2769S-R Euclid HK29

E-2769SHD Euclid HK29XLS

E-2769SHD-R Euclid HK29XLS

E-2821 Euclid HK26

E-3305 Euclid HK56

E-3373HD Euclid HK48XLS-125

E-3374HD Euclid HK49-125

E-3484 Euclid HK44XLS

E-3518 Euclid HK68

E-3710HD Euclid HK34SD

E-3710S Euclid HK34XLS

E-3782 Euclid HK47XLS-125

BW7248 CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

E-3801 Euclid HK24XLSHM

E-3858 Euclid HK81XLS

E-3869 Euclid HK55

E-3895S Euclid HK38

E-3895S-R Euclid HK38

E-3895SHD Euclid HK38XLS

E-3992 Euclid HK76

E-4691 Euclid HK51

E-4692 Euclid HK52

E-4880S Euclid HK31XLS

E-4880SHD Euclid HK31XLS

E-5139 Euclid HK54

E-5481A Euclid HK63

E-5499 Euclid HK27

E-5515 Euclid HK32SD

E-6879 Euclid HK50

E-69995 Euclid HK96XLS

E-7231 Euclid HK70

E-7237 Euclid HK71

E-7238 Euclid HK71

E-7899 Euclid HK55

E-7899 Euclid HK77

E-8923 Euclid HK65SD

E-8925 Euclid HK67XLS

E-8925 Euclid HK67SD

E-9039 Euclid HK91XLS

E-9048 Euclid HK72

E-9052 Euclid HK73

E-9070 Euclid HK80XLS

E-9141 Euclid HK90XLS

E-9281 Euclid HK48XLS-150

E-9282 Euclid HK49-150

E-9283 Euclid HK47XLS-150

E-9644 Euclid HK74XLS

E1778 Euclid 4311E

E2241 Euclid 4515P

E2242 Euclid 4551P

E2393 Euclid 4536P

E2394 Euclid 4591S

E2394A Euclid 4692P

E2684 Euclid 4514P

E2685 Euclid 4515F

E2687 Euclid 4524P

E3303 Euclid 4524Q

E3304 Euclid 4514Q

E3491 Euclid 4670Q

E3522 Euclid 4551Q

E3920 Euclid 4515P

E4785 Euclid 512

E5126 Euclid 1308E

E5303A Euclid 4692FC

E5480 Euclid 4709E

E5503 Euclid 4707R

KIT-1 Euclid HK22XLS

KIT-4HD Euclid HK16SD

KIT-4S Euclid HK16

KIT-4SHD Euclid HK16XLS

KIT4HD Euclid HK16SD

KIT4S Euclid HK16

KIT4SHD Euclid HK16XLS

ACC-001996-902 Fruehauf HK17XLS

ACC-001996-903 Fruehauf HK31XLS

ACC-001996-923 Fruehauf HK34SD

ACC-001996-923 Fruehauf HK34XLS

ACF003379001 Fruehauf 4515X3

ACF003380001 Fruehauf 4515X3

ACF003380002 Fruehauf 4515X3

L2047 Leland 4551Q

L2346 Leland 4670Q

L2354 Leland 4514Q

L2355 Leland 4524Q

L2534 Leland 4514Q

L2805 Leland 512

L2808 Leland 1308E

L2916 Leland 4536P

L2917 Leland 4692P

L2918 Leland 4692FC

801698 Oe Jeep 4468

KIT 1125 Rockwell HK50

KIT 8000 Rockwell HK29

KIT 8000A Rockwell HK29

KIT 8000HD Rockwell HK29XLS

BW7248

CROSS REFERENCE

Manufacturer Manufacturer Bendix

Number Number Manufacturer Manufacturer Bendix

Number Number

KIT 8000HDA Rockwell HK29XLS

KIT 8004 Rockwell HK44XLS

KIT 8014 Rockwell HK38

KIT 8014A Rockwell HK38XLS

KIT 8029 Rockwell HK55

KIT 8081 Rockwell HK74XLS

KIT 9000 Rockwell HK14XLS

KIT 9001HD Rockwell HK14SD

KIT 9002 Rockwell HK16

KIT 9002N Rockwell HK16SD

KIT 9003 Rockwell HK19SD

KIT 9004 Rockwell HK75SD

KIT 9017 Rockwell HK16XLS

KIT 9017NC Rockwell HK16

KIT 9081 Rockwell HK67XLS

A3222A2159 Rockwell/Meritor 4710R

A3222C1381 Rockwell/Meritor 4514Q

A3222D2006 Rockwell/Meritor 4707R

A3222E1383 Rockwell/Meritor 4524Q

A3222F1072 Rockwell/Meritor 1308T

A3222F1982 Rockwell/Meritor 1308Q

A3222J1440 Rockwell/Meritor 4524QM

A3222J1570 Rockwell/Meritor 4551Q

A3222K2169 Rockwell/Meritor 4711R

A3222M2223 Rockwell/Meritor 4702R

A3222P2200 Rockwell/Meritor 4715R

A3222Q1837 Rockwell/Meritor 1308E

A3222S1293 Rockwell/Meritor 4515Q

A3222V1088 Rockwell/Meritor 1308E

A3722D82 Rockwell/Meritor 4524Q

A3722N66 Rockwell/Meritor 4515P

R4708F Rockwell/Meritor 4708XEM

R4708R Rockwell/Meritor 4708Q

R507004 Rockwell/Meritor HK54

R507002 Rockwell/Meritor HK24XLSLM

R507010 Rockwell/Meritor HK34XLS

R507057 Rockwell/Meritor HK63XLS

R507064 Rockwell/Meritor HK61XLS

F33186 Wagner HK60

F79791 Wagner HK56

F79791 Wagner HK57

BW7248 GLOSSARY OF TERMS

ABS: Anti-lock braking system

Actuator: A device which physically initiates the mechanical motion of a brake system component.

Air Disc Brakes (ADB): Air-actuated brakes, which upon application, employ a caliper to clamp two brake pads

against a rotor. Air discs, compared with drum-type brakes, have superior ability to resist fade.

AL Factor: A mathematical expression of the brake chamber and slack adjuster combination. “A”

equals the effective area, in square inches, of the brake chamber. “L” equals the effective length, in inches, of

the slack adjuster. For example, 30 (air chamber) x 6 (slack adjuster) = 180AL Factor.

Anchor Pin: A pin or pins inserted in the brake spider to which the brake shoes attach and pivot upon.

Anti-compounding: A system that prevents application of service brakes from compounding (adding) to the

force exerted by parking brakes. Functionally, this guards against brake drum cracking, brake shoe and brake

lining damage.

Anti-Lock: Optional on trailers until March 1, 1998, a safety oriented system which senses wheel rotation (at

one or more axles) during braking and cycles the brakes to prevent wheel lockup.

ASA: Automatic slack adjuster

ATA: American Trucking Association

ATC: Automatic traction control

BBW: Brake by wire

BCN: Brake certiﬁ cation notice

Bell-Mounted Drum: Drum with variation of inner diameter (i.e., greater at open end), preventing full contact

with brake linings.

Blue Drum: Brake drum with friction surface blued from high temperature. High temperature may result, for

example, from dragging of brakes caused by weak return springs. Blue drum also may result from lack of brake

balance.

Brake Block: Friction material or lining attached to brake shoe.

Brake Chamber Diaphragm: A device within the brake chamber that converts air pressure to mechanical force

via a push rod.

Brake Drag: Failure of one or more brakes to release immediately and/or completely after driver removes his

foot from the brake treadle. Constant drag, unrelated to a brake application, also can exist.

Brake Fade: Brake fade results from a reduction in friction between linings and drums caused by exposure to

water, dragging brakes on a down-grade or over-adjusted brakes resulting in an over-heated brake drum. Heat

fade occurs when linings overheat and become less aggressive. Gradual and predictable fade is desirable as a

warning. (Silver and Yellow will glaze if not burnished.)

Burnish: The conditioning or seasoning of a brake lining by wear and temperature via a test procedure or

in-service operation.

Caliper: In an air disc brake system, the clamping device to which the friction material is attached. When

actuated, the caliper applies braking force to both sides of the rotor.

BW7248

GLOSSARY OF TERMS

Cam Base Circle Radius: The perpendicular distance from the center of the s-cam to the vector deﬁ ned by the

center of the cam roller and the intersection of the cam roller with the s-cam proﬁ le. Most CBCR are designed to

be at or near 1/2 inch.

Clevis pin: Pin connecting the arm of slack adjuster to a brake chamber push rod yoke.

CMVSS: Canadian Motor Vehicle Safety Standard

Coefﬁ cient of Friction: Developed by Friction Materials Standards Institute, a double-letter code printed on the

edge of a brake block to designate its range of aggressiveness. (Example: EE, FF, GG, FG)

Cracked Drum: Brake drum cracked all the way through by excessive heat build-up (perhaps signifying

inadequate drum weight and/or driver abuse) and/or resurfacing of a drum beyond the manufacturer’s limit.

CTI: Central tire inﬂ ation

Dual Brake System: Mandated by FMVSS 121, the use of a dual air system (primary and secondary) in order

to retain braking ability in the event one system fails.

Dust Shield: A plate made of metal or polyethylene that is mounted behind a brake drum to minimize the entry

of dirt and road splash.

EBS: Electronic braking system

ECU: Electronic control unit

Edge Code: The information found the edge of a brake block. Bendix friction edge coding includes the type of

friction and the coefﬁ cient of friction.

Emergency Brake System: Not a separate system, emergency braking (in event of air loss) involves various

portions of the parking and service brake systems.

Engine Brake: An optional device that converts a diesel engine into a power-absorbing air compressor to slow

a vehicle on downgrades.

ES: Extended Service, Bendix’ term for brake design using thicker than standard lining.

ESII: Bendix’ redesigned Extended Service brake shoe, introduced in 1996. It employs a new Hot Staked

manufacturing process, redesigned retaining springs, lighter weight and elimination of the tabs from the

previous design table.

Exhaust Brake: An optional device that uses engine exhaust back pressure to slow a vehicle on downgrades.

FC: Fast Change, Bendix’ term for brake design with an open anchor pin rib. Interchanges with Rockwell Q

design.

FCII: Bendix’ redesigned 12-1/4 Fast Change brake shoe, introduced in 1996. It includes a redesigned table,

thicker rib material, an improved welding process, and standardization of brake hardware components.

FMSI: Friction Materials Standards Institute

FMVSS: Federal Motor Vehicle Safety Standard

Foundation Brake System: A term inclusive of mechanical components involved in mechanically providing

braking force: brake chambers, slack adjusters, brake drums, brake shoe assemblies.

BW7248 GLOSSARY OF TERMS

FT: Fabricated, Tapered, Bendix’ term for brake design with a closed anchor pin rib. Interchanges with Rockwell

P design.

GAW: Gross axle weight

GAWR: Gross Axle Weight Rating, a rating in pounds of brake lining material, or axle carrying capacity.

GCW: Gross combination weight: the total weight carrying capacity of a combination vehicle as determined by

axle ratings.

GCWR: Gross combination weight rating

Grease-Stained Drum: A brake drum with discoloration of the friction surface caused by, for example, improper

greasing of brake camshaft.

GVW: Gross vehicle weight: the total weight carrying capacity of one vehicle, (such as a straight truck, bus,

tractor or trailer) as determined by axle ratings.

GVWR: Gross vehicle weight rating

HA: Sufﬁ x used to denote brake shoes used on axles produced by Bendix’ Heavy Axle & Brake Division.

HDBMC: Heavy Duty Brake Manufacturer’s Council

Heat-Checked Drums: A brake drum with a pattern of hard, slightly raised, dark spots on its friction surface.

Caused by localized overheating and sudden cooling. Those spots should be ground off to prevent drum

cracking, uneven lining wear and loss of braking efﬁ ciency. If spots cannot be removed, the drum should be

discarded.

Lining Growth: Permanent swelling of brake linings due to heat exposure.

Lining Number : Numbers shown are FMSI (Friction Materials Standards Institute) standards and ﬁ t the

corresponding brake shoe core.

NHTSA: National Highway Transportation Safety Administration

Out-Of-Round Drum: A brake drum with variations in its inner diameter, causing reduced braking efﬁ ciency

and excessive wear on one side of the brake linings. An out-of-round drum often can be machined, within

manufacturer’s limits, to restore concentricity.

Over-Sized Drum: This refers to a brake drum having an inner diameter greater than the discard diameter

marked on the drum by its manufacturer.

P Brake: Rockwell’s term for brake design with a closed anchor pin rib. Interchanges with Bendix FT design.

PM: Preventive maintenance

Polished Drums: A brake drum with a friction surface polished to a mirror-like ﬁ nish by unsuitable brake linings.

Remove gloss from drum with eighty grit emery cloth.

Push Rod: A rod, protruding from a brake chamber, which is connected to the arm of a slack adjuster via a

clevis pin.

Q Brake: Quick-change, Rockwell’s term for brake design with an open anchor pin rib. Interchanges with

Bendix FC design.

BW7248

GLOSSARY OF TERMS

Q Plus: Rockwell’s term for a quick-change design brake shoe using thicker than standard lining.

R12: Pilot control air valve with quick dump

R14: Pilot control air valve with quick dump and anti-compounding

REB: Bendix’ new 15” design Reduced Envelope Brake.

Replace-A-Brake: Bendix’ term for a kit to service one brake assembly. It includes two new lined brake shoes

and the necessary anchor pins, rollers, springs, etc.

Retarder: Auxiliary brake device: engine brake, exhaust brake, hydraulic retarder or electric retarder.

Return Springs: Springs which retract brake shoes upon release of the brake actuator valve.

RFI: Radio frequency interference

Roll Over: A term denoting that an s-cam has traveled beyond its designed stopping position during brake

application.

RP: Recommended practice

SAE: Society of Automotive Engineers

SAP: Single Anchor Pin, Bendix’ term for brake design utilizing one non-replaceable anchor pin per brake

assembly.

S-cam Brake: A type of brake where mechanically induced rotation of an S shaped cam forces brake linings

against the brake drum.

Scored Drum: Brake drum with a grooved friction surface, resulting in excessive lining wear. Severe scoring

requires that a drum be machined, within manufacturer’s limits, before replacing the linings.

Service Brakes: As opposed to parking brakes, that portion of the brake system used for normal brake

applications.

Slack Adjuster: A lever, connecting the brake push rod with the foundation brake camshaft, which provides

torque to rotate the brake camshaft when the brake treadle is depressed. Used only on cam-actuated brakes, it

also provides a means of adjusting clearance between the brake shoes and the drum to compensate for lining

wear. Some models are automatic, requiring proper installation procedures and requiring periodic inspection

to insure proper functioning. Manual slack adjusters require proper installation and manual adjustment at

maintenance intervals.

SLR: Static loaded radius

Spring Brake: Generally refers to a tandem chamber actuator that incorporates an air-applied service brake

chamber or an air-released/spring applied parking or emergency brake chamber. Spring brakes apply upon

sudden air loss (emergency mode) or activation of a dash-mounted parking brake control. Spring brakes remain

applied until that chamber is recharged or the spring is manually compressed or caged. The spring portion often

is referred to as the piggyback. Some spring brake actuators do not incorporate a service air chamber and are

solely parking and emergency brakes. For example, some parking brakes are applied by air pressure and

subsequently held mechanically by a pawl which drops into a notch on the brake chamber push rod.

Stroke: Refers to a total distance traveled by a brake chamber push rod or slack adjuster arm during brake

application.

BW7248 GLOSSARY OF TERMS

Supply Tank: The air reservoir immediately downstream of the air compressor.

T Brake: Rockwell’s term for a front brake shoe design using a single web with a closed anchor pin end.

Threaded Drum: Brake drum resurfaced on a lathe too quickly, resulting in a friction surface similar to that of a

scored drum.

Tire Rolling Radius: The distance, expressed in inches, from the center of a tire to the pavement, measured

when mounted on a vehicle and loaded to its maximum capacity.

TMC: Maintenance Council

Turned Drum: A brake drum that has been resurfaced on a lathe to remove scoring or other defects.

Wedge Brake: As opposed to a brake applied by a s-cam, this type of brake is applied by a single or double

wedge type mechanism. This type of brake is self-adjusting and, as such, does not utilize a slack adjuster.

XEM: Xtra Easy Maintenance, Fruehauf’s term for brake design with an open anchor pin rib. This shoe will not

interchange with Rockwell Q and Bendix FC shoes.

XtraLife: Bendix’ term for a quick-change design brake shoe using thicker than standard lining. Available in both

the original XtraLife design, and the new XtraLife II version.

100

BW7248

PART NUMBER INDEX

1308E ...............................19

1308ERED .......................19

1308Q .............................. 19

1308QRED .......................19

1308T ............................... 20

1308TRED ....................... 20

1443E ...............................20

1443E420 .........................20

1443E600 .........................20

1443ERED .......................20

4223E ...............................21

4223EBLU ........................21

4223ERED .......................21

4311E ............................... 22

4311EBLU ........................ 22

4311EBRZ ........................ 22

4311EGLD ........................22

4311EORG ....................... 22

4311ERED ....................... 22

4311ESIL .......................... 22

4311EYEL ........................22

4317E ...............................23

4317ERED .......................23

4514HA ............................ 24

4514HAGLD .....................24

4514Q .............................. 24

4514QBRZ .......................24

4514QGLD ....................... 24

4514QORG ......................24

4514QRED .......................24

4514QYEL ........................ 24

4515HA ............................ 25

4515HARED ....................25

4515P ...............................25

4515PBLU ........................25

4515PRED .......................25

4515PSIL .........................25

4515PYEL ........................25

4515Q .............................. 26

4515QBLU ....................... 26

4515QBRZ .......................26

4515QGLD ....................... 26

4515QORG ......................26

4515QRED .......................26

4515QSIL .........................26

4515QYEL ........................ 26

4515X3 .............................27

4515X3BLU ......................27

4515X3BRZ .....................27

4515X3GLD ..................... 27

4515X3ORG ....................27

4515X3RED .....................27

4515X3SIL .......................27

4515X3YEL ......................27

4524HA ............................ 27

4524HAYEL ...................... 27

4524Q .............................. 28

4524QGLD ....................... 28

4524QORG ......................28

4524QRED .......................28

4524QYEL ........................ 28

4524QM ........................... 28

4524QMRED ....................28

4536FCII .......................... 29

4536FCIIRED ...................29

4551Q .............................. 29

4551QBLU ....................... 29

4551QRED .......................29

4551QSIL .........................29

4591S ...............................30

4591SRED .......................30

4661FCII .......................... 30

4661FCIIRED ...................30

4692FCII .......................... 31

4692FCIIGLD ................... 31

4692FCIIRED ...................31

4693HA ............................ 31

4693HARED ....................31

4701HA ............................ 32

4701HAYEL ...................... 32

4702R ..............................32

4702R420 ........................32

4702R600 ........................32

4702RGLD .......................32

4702RRED ....................... 32

4703R ..............................33

4703RGLD .......................33

4707R ..............................34

4707R420 ........................34

4707R450 ........................34

4707R600 ........................34

4707RBLU .......................34

4707RBRZ ....................... 34

4707RGLD .......................34

4707RORG ...................... 34

4707RRED ....................... 34

4707RSIL ......................... 34

4707RYEL ........................ 34

4708H ..............................35

4708H1100 ....................... 35

4708M ..............................35

4708P ...............................35

4708P420 .........................35

4708P600 .........................35

4708Q .............................. 36

4708Q420 ........................ 36

4708Q600 ........................ 36

4708XEM ......................... 36

4708XEM420 ................... 36

4708XEM600 ................... 36

4709EII .............................37

4709EII1100 ..................... 37

4709EII1160 ..................... 37

4709EII420 .......................37

4709EII450 .......................37

4709EII600 .......................37

4709EIIBLU ......................37

4709EIIGLD ..................... 37

4709EIIRED .....................37

4709EIISIL .......................37

4709EIIYEL ......................37

4709SII .............................38

4709SII1100 ..................... 38

4710R ..............................38

4710R310 ........................38

4711R ............................... 39

4711R420 ......................... 39

4711R600 ......................... 39

4715R ..............................39

4715R600 ........................39

4715RGLD .......................39

4716EII .............................40

4716EII310 .......................40

4717EII .............................40

4717EII310 .......................40

4718R ..............................40

4718RRED ....................... 40

4718RSIL ......................... 40

4719EII .............................41

4719EII1160 ..................... 41

4719EII420 .......................41

4719EII450 .......................41

4719EII600 .......................41

4719EIIGLD ..................... 41

4719EIIORG ....................41

4720R ..............................42

4720R1160 ....................... 42

4720R420 ........................42

4720R450 ........................42

4720R600 ........................42

4720RGLD .......................42

4720RORG ...................... 42

4725EII .............................43

4725EII1160 ..................... 43

4725EII420 .......................43

4725EII600 .......................43

4725EIIGLD ..................... 43

4725EIIORG ....................43

4726EII .............................44

4726EII420 .......................44

4726EII450 .......................44

4726EII600 .......................44

4726EIIGLD ..................... 44

4729EII .............................44

4729EII420 .......................44

4729EII450 .......................44

4729EII600 .......................44

4729EIIGLD ..................... 44

4729EIIRED .....................44

EX1308ERED .................. 19

EX1308QRED .................. 19

EX1308TRED ..................20

EX1443E420 .................... 20

EX1443E600 .................... 20

EX1443ERED .................. 20

EX4223EBLU ................... 21

EX4223ERED .................. 21

EX4311EBLU ...................22

EX4311EBRZ ................... 22

EX4311EGLD ................... 22

EX4311EORG .................. 22

EX4311ERED ...................22

EX4311ESIL ..................... 22

EX4311EYEL ...................22

EX4317ERED .................. 23

EX4514HAGLD ................ 24

EX4514QBRZ .................. 24

EX4514QGLD ..................24

EX4514QORG ................. 24

EX4514QRED .................. 24

EX4514QYEL ................... 24

EX4515HARED ................25

EX4515PBLU ................... 25

EX4515PRED .................. 25

EX4515PSIL ..................... 25

EX4515PYEL ...................25

EX4515QBLU ..................26

EX4515QBRZ .................. 26

EX4515QGLD ..................26

EX4515QORG ................. 26

EX4515QRED .................. 26

EX4515QSIL ....................26

EX4515QYEL ................... 26

EX4515X3BLU ................. 27

EX4515X3BRZ .................27

EX4515X3GLD ................27

EX4515X3ORG ................27

EX4515X3RED ................ 27

EX4515X3SIL ................... 27

EX4515X3YEL .................27

EX4524HAYEL ................. 27

EX4524QGLD ..................28

EX4524QORG ................. 28

EX4524QRED .................. 28

EX4524QYEL ................... 28

EX4524QMRED ............... 28

EX4536FCIIRED .............. 29

EX4551QBLU ..................29

EX4551QRED .................. 29

EX4551QSIL ....................29

EX4591SRED .................. 30

EX4661FCIIRED .............. 30

EX4692FCIIGLD ..............31

EX4692FCIIRED .............. 31

EX4693HARED ................31

EX4701HAYEL ................. 32

EX4702R420 ....................32

EX4702R600 ....................32

EX4702RGLD .................. 32

EX4702RRED ..................32

EX4703RGLD .................. 33

EX4707R420 ....................34

EX4707R450 ....................34

EX4707R600 ....................34

EX4707RBLU ...................34

EX4707RBRZ ..................34

EX4707RGLD .................. 34

EX4707RORG .................34

EX4707RRED ..................34

EX4707RSIL ....................34

EX4707RYEL ...................34

EX4708P420 .................... 35

EX4708P600 .................... 35

EX4708Q420 ...................36

EX4708Q600 ...................36

EX4708XEM420 ..............36

EX4708XEM600 ..............36

EX4709EII1100 ................37

EX4709EII1160 ................37

EX4709EII420 .................. 37

EX4709EII450 .................. 37

EX4709EII600 .................. 37

101

BW7248 PART NUMBER INDEX

EX4709EIIBLU ................. 37

EX4709EIIGLD ................37

EX4709EIIORG ................37

EX4709EIIRED ................ 37

EX4709EIISIL ................... 37

EX4709EIIYEL .................37

EX4709SII1100 ................38

EX4710R310 ....................38

EX4711R420 .................... 39

EX4711R600 .................... 39

EX4715R600 ....................39

EX4715RGLD .................. 39

EX4716EII310 .................. 40

EX4717EII310 .................. 40

EX4718RRED ..................40

EX4718RSIL ....................40

EX4719EII1160 ................41

EX4719EII420 .................. 41

EX4719EII450 .................. 41

EX4719EII600 .................. 41

EX4719EIIGLD ................41

EX4719EIIORG ................41

EX4720R1160 .................. 42

EX4720R420 ....................42

EX4720R450 ....................42

EX4720R600 ....................42

EX4720RGLD .................. 42

EX4720RORG .................42

EX4725EII1160 ................43

EX4725EII420 .................. 43

EX4725EII600 .................. 43

EX4725EIIGLD ................43

EX4725EIIORG ................43

EX4726EII420 .................. 44

EX4726EII450 .................. 44

EX4726EII600 .................. 44

EX4726EIIGLD ................44

EX4729EII420 .................. 44

EX4729EII450 .................. 44

EX4729EII600 .................. 44

EX4729EIIGLD ................44

EX4729EIIRED ................ 44

KT1308ERED ..................19

KT1308QRED ..................19

KT1308TRED ...................20

KT1443E420 ....................20

KT1443E600 ....................20

KT1443ERED ..................20

KT4223EBLU ...................21

KT4223ERED ..................21

KT4311EBLU ................... 22

KT4311EBRZ ...................22

KT4311EGLD ................... 22

KT4311EORG ..................22

KT4311ERED ................... 22

KT4311ESIL .....................22

KT4311EYEL .................... 22

KT4317ERED ..................23

KT4514HAGLD ................24

KT4514QBRZ ..................24

KT4514QGLD .................. 24

KT4514QORG .................24

KT4514QRED ..................24

KT4514QYEL ...................24

KT4515HARED ................ 25

KT4515PBLU ...................25

KT4515PRED ..................25

KT4515PSIL ..................... 25

KT4515PYEL ...................25

KT4515QBLU ...................26

KT4515QBRZ ..................26

KT4515QGLD .................. 26

KT4515QORG .................26

KT4515QRED ..................26

KT4515QSIL ....................26

KT4515QYEL ...................26

KT4515X3BLU .................27

KT4515X3BRZ ................. 27

KT4515X3GLD .................27

KT4515X3ORG ................ 27

KT4515X3RED ................27

KT4515X3SIL ................... 27

KT4515X3YEL .................27

KT4524HAYEL .................27

KT4524QGLD .................. 28

KT4524QORG .................28

KT4524QRED ..................28

KT4524QYEL ...................28

KT4524QMRED ...............28

KT4536FCIIRED ..............29

KT4551QBLU ...................29

KT4551QRED ..................29

KT4551QSIL ....................29

KT4591SRED ..................30

KT4661FCIIRED ..............30

KT4692FCIIGLD .............. 31

KT4692FCIIRED ..............31

KT4693HARED ................ 31

KT4701HAYEL .................32

KT4702R420 .................... 32

KT4702R600 .................... 32

KT4702RGLD ..................32

KT4702RGLD-BUS .......... 32

KT4702RRED .................. 32

KT4703RGLD ..................33

KT4707R420 .................... 34

KT4707R450 .................... 34

KT4707R600 .................... 34

KT4707RBLU ................... 34

KT4707RBRZ ...................34

KT4707RGLD ..................34

KT4707RGLD-BUS .......... 34

KT4707RORG ..................34

KT4707RRED .................. 34

KT4707RSIL ..................... 34

KT4707RYEL ................... 34

KT4708P420 ....................35

KT4708P600 ....................35

KT4708Q420 ....................36

KT4708Q600 ....................36

KT4708XEM420 ...............36

KT4708XEM600 ...............36

KT4709EII1100 ................37

KT4709EII1160 ................37

KT4709EII420 ..................37

KT4709EII450 ..................37

KT4709EII600 ..................37

KT4709EIIBLU .................37

KT4709EIIGLD .................37

KT4709EIIGLD-BUS ........37

KT4709EIIORG ................ 37

KT4709EIIRED ................37

KT4709EIISIL ................... 37

KT4709EIIYEL .................37

KT4709SII1100 ................38

KT4710R310 .................... 38

KT4711R420 ....................39

KT4711R600 ....................39

KT4715R600 .................... 39

KT4715RGLD ..................39

KT4716EII310 ..................40

KT4717EII310 ..................40

KT4718RRED .................. 40

KT4718RSIL ..................... 40

KT4719EII1160 ................41

KT4719EII1160HC ...........41

KT4719EII420 ..................41

KT4719EII420HC ............. 41

KT4719EII450 ..................41

KT4719EII450HC ............. 41

KT4719EII600 ..................41

KT4719EII600HC ............. 41

KT4719EIIGLD .................41

KT4719EIIGLDHC ...........41

KT4719EIIGLD-BUS ........41

KT4719EIIORG ................ 41

KT4720R1160 ..................42

KT4720R420 .................... 42

KT4720R450 .................... 42

KT4720R600 .................... 42

KT4720RGLD ..................42

KT4720RORG ..................42

KT4725EII1160 ................43

KT4725EII1160HC ...........43

KT4725EII420 ..................43

KT4725EII420HC ............. 43

KT4725EII600 ..................43

KT4725EII600HC ............. 43

KT4725EIIGLD .................43

KT4725EIIGLDHC ...........43

KT4725EIIGLD-BUS ........43

KT4725EIIORG ................ 43

KT4726EII420 ..................44

KT4726EII450 ..................44

KT4726EII600 ..................44

KT4726EIIGLD .................44

KT4726EIIGLD-BUS ........44

KT4729EII420 ..................44

KT4729EII450 ..................44

KT4729EII600 ..................44

KT4729EIIGLD .................44

KT4729EIIRED ................44

SB1308ERED .................. 19

SB1308QRED .................. 19

SB1308TRED ..................20

SB1443E420 .................... 20

SB1443E600 .................... 20

SB1443ERED .................. 20

SB4223EBLU ................... 21

SB4223ERED .................. 21

SB4311EBLU ...................22

SB4311EBRZ ................... 22

SB4311EGLD ................... 22

SB4311EORG .................. 22

SB4311ERED ...................22

SB4311ESIL ..................... 22

SB4311EYEL ...................22

SB4317ERED .................. 23

SB4514HAGLD ................ 24

SB4514QBRZ .................. 24

SB4514QGLD ..................24

SB4514QORG ................. 24

SB4514QRED .................. 24

SB4514QYEL ................... 24

SB4515HARED ................25

SB4515PBLU ................... 25

SB4515PRED .................. 25

SB4515PSIL ..................... 25

SB4515PYEL ...................25

SB4515QBLU ..................26

SB4515QBRZ .................. 26

SB4515QGLD ..................26

SB4515QORG ................. 26

SB4515QRED .................. 26

SB4515QSIL ....................26

SB4515QYEL ................... 26

SB4515X3BLU ................. 27

SB4515X3BRZ .................27

SB4515X3GLD ................27

SB4515X3ORG ................27

SB4515X3RED ................ 27

SB4515X3SIL ................... 27

SB4515X3YEL .................27

SB4524HAYEL ................. 27

SB4524QGLD ..................28

SB4524QORG ................. 28

SB4524QRED .................. 28

SB4524QYEL ................... 28

SB4524QMRED ............... 28

SB4536FCIIRED .............. 29

SB4551QBLU ..................29

SB4551QRED .................. 29

SB4551QSIL ....................29

SB4591SRED .................. 30

SB4661FCIIRED .............. 30

SB4692FCIIGLD ..............31

SB4692FCIIRED .............. 31

SB4693HARED ................31

SB4701HAYEL ................. 32

SB4702R420 ....................32

SB4702R600 ....................32

SB4702RGLD .................. 32

SB4702RGLD-BUS ..........32

SB4702RRED ..................32

SB4703RGLD .................. 33

SB4707R420 ....................34

SB4707R450 ....................34

SB4707R600 ....................34

SB4707RBLU ...................34

SB4707RBRZ ..................34

SB4707RGLD .................. 34

SB4707RGLD-BUS ..........34

102

BW7248

PART NUMBER INDEX

SB4707RORG .................34

SB4707RRED ..................34

SB4707RSIL ....................34

SB4707RYEL ...................34

SB4708H1100 .................. 35

SB4708P420 .................... 35

SB4708P600 .................... 35

SB4708Q420 ...................36

SB4708Q600 ...................36

SB4708XEM420 ..............36

SB4708XEM600 ..............36

SB4709EII1100 ................37

SB4709EII1160 ................37

SB4709EII420 .................. 37

SB4709EII450 .................. 37

SB4709EII600 .................. 37

SB4709EIIBLU ................. 37

SB4709EIIGLD ................37

SB4709EIIGLD-BUS ........ 37

SB4709EIIRED ................ 37

SB4709EIISIL ................... 37

SB4709EIIYEL .................37

SB4709SII1100 ................38

SB4710R310 ....................38

SB4711R420 .................... 39

SB4711R600 .................... 39

SB4715R600 ....................39

SB4715RGLD .................. 39

SB4716EII310 .................. 40

SB4717EII310 .................. 40

SB4718RRED ..................40

SB4718RSIL ....................40

SB4719EII1160 ................41

SB4719EII1160HC ........... 41

SB4719EII420 .................. 41

SB4719EII420HC .............41

SB4719EII450 .................. 41

SB4719EII450HC .............41

SB4719EII600 .................. 41

SB4719EII600HC .............41

SB4719EIIGLD ................41

SB4719EIIGLD-BUS ........ 41

SB4719EIIGLDHC ........... 41

SB4719EIIORG ................41

SB4720R1160 .................. 42

SB4720R420 ....................42

SB4720R450 ....................42

SB4720R600 ....................42

SB4720RGLD .................. 42

SB4720RORG .................42

SB4725EII1160 ................43

SB4725EII1160HC ........... 43

SB4725EII420 .................. 43

SB4725EII420HC .............43

SB4725EII600 .................. 43

SB4725EII600HC .............43

SB4725EIIGLD ................43

SB4725EIIGLDHC ........... 43

SB4725EIIGLD-BUS ........ 43

SB4725EIIORG ................43

SB4726EII420 .................. 44

SB4726EII450 .................. 44

SB4726EII600 .................. 44

SB4726EIIGLD ................44

SB4726EIIGLD-BUS ........ 44

SB4729EII420 .................. 44

SB4729EII450 .................. 44

SB4729EII600 .................. 44

SB4729EIIGLD ................44

SB4729EIIRED ................ 44

HK14SD ...........................48

HK14XLS ......................... 48

HK16 ................................49

HK16SD ...........................49

HK16XLS ......................... 50

HK17XLS ......................... 50

HK19SD ...........................51

HK22XLS ......................... 51

HK24SDLM ......................51

HK24XLSHM ....................52

HK24XLSLM .................... 52

HK26 ................................53

HK27 ................................53

HK29 ................................54

HK29SD ...........................55

HK29XLS ......................... 56

HK31XLS ......................... 57

HK32SD ...........................57

HK34SD ...........................58

HK34XLS ......................... 58

HK38 ................................59

HK38XLS ......................... 60

HK40 ................................61

HK41 ................................61

HK43XLS ......................... 61

HK44XLS ......................... 62

HK45XLS ......................... 62

HK46 ................................62

HK47XLS-125 ..................63

HK47XLS-150 ..................63

HK48XLS-125 ..................64

HK48XLS-150 ..................64

HK49-125 ......................... 65

HK49-150 ......................... 65

HK50 ................................66

HK51 ................................66

HK52 ................................66

HK53 ................................67

HK54 ................................67

HK55 ................................67

HK56 ................................68

HK57 ................................68

HK58XLS ......................... 69

HK59 ................................69

HK60 ................................70

HK61 ................................70

HK61SD ...........................71

HK61XLS ......................... 71

HK62 ................................71

HK62SD ...........................72

HK62XLS ......................... 72

HK63 ................................72

HK63SD ...........................73

HK63XLS ......................... 73

HK64XLS ......................... 73

HK65SD ...........................74

HK67SD ...........................74

HK67XLS ......................... 74

HK68 ................................75

HK69XLS ......................... 75

HK70 ................................75

HK71 ................................76

HK72 ................................76

HK73 ................................76

HK74XLS ......................... 77

HK75SD ...........................77

HK76 ................................78

HK77 ................................78

HK80XLS ......................... 78

HK81XLS ......................... 79

HK82SD ...........................79

HK83 ................................79

HK84 ................................80

HK85 ................................80

HK86 ................................80

HK87 ................................81

HK90XLS ......................... 81

HK91XLS ......................... 81

HK95XLS ......................... 82

HK96XLS ......................... 82

HK97XLS ......................... 82

103

BW7248

Notes

104

BW7248

Notes

105

BW7248

Notes

106

BW7248

Notes

901 Cleveland Street • Elyria, Ohio 44035 • 1-866-610-9709 • www.foundationbrakes.com

For more information, talk to your Bendix representative,

call 1-866-610-9709 or visit www.foundationbrakes.com.

Bendix Bw7248 Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
