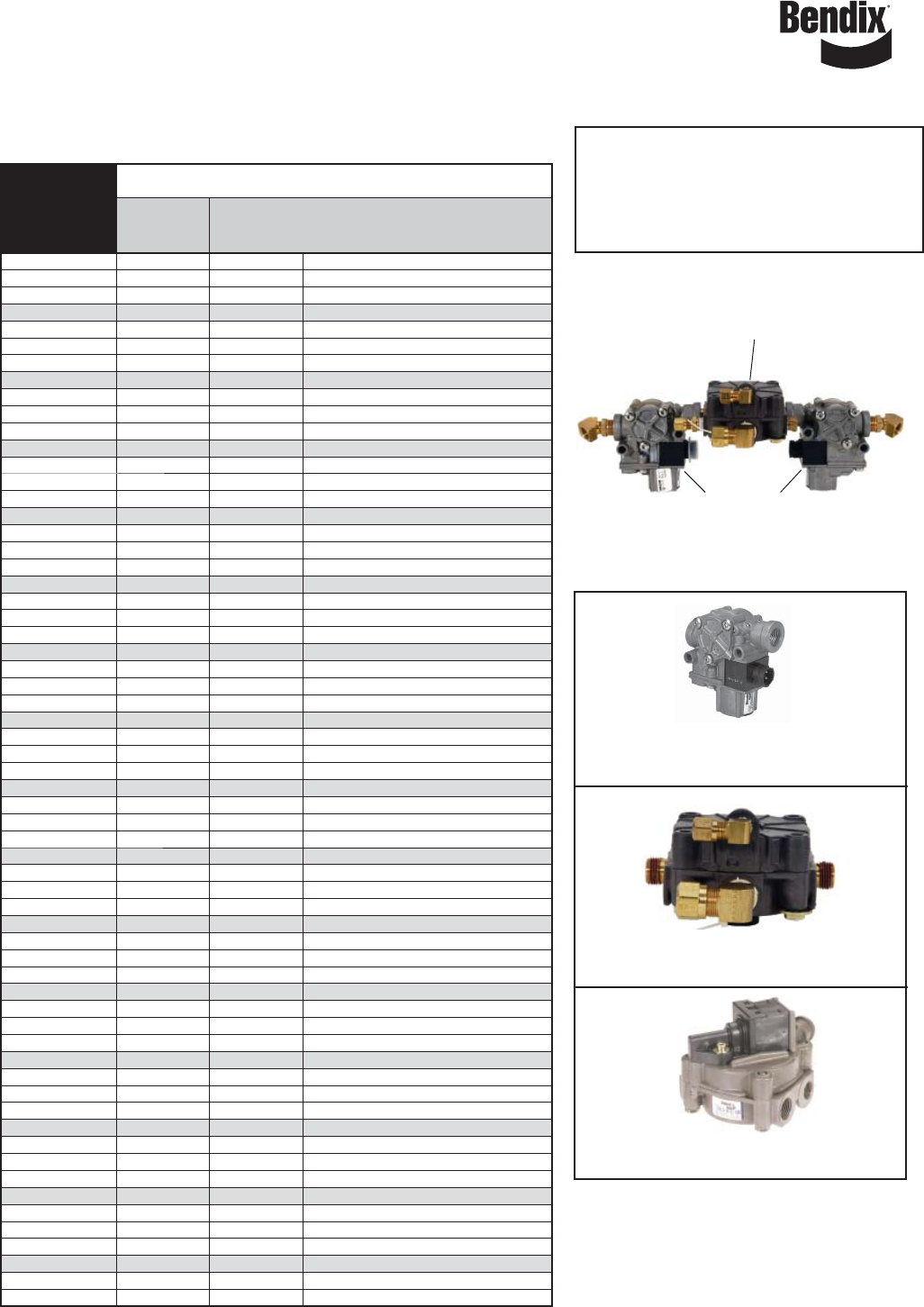

Part Number Update

Bulletin No: PNU-138-000 Effective Date: September 15, 2009 Cancels: N/A Page: 1 of 1

Subject: Bendix® Rear Axle Module (RAM) Replacement

Typical Rear Axle Module Assembly

Bendix® M-32™

Modulators

Typical ATR-3™ Traction Relay Valve

©2009 Bendix Commercial Vehicle Systems LLC 7/09. All Rights Reserved. Printed in U.S.A.

Rear Axle Module Service Assemblies

will no longer be available as a

complete assembly. When servicing the

Bendix® RAM replace the individual

components as needed.

Typical Bendix® M-32™ Traction

Relay Valves

Typical R-15™ Relay Valve

Bendix® R-15™ Relay

Valve or ATR-3™

Traction Relay Valve

Bendix® RAM

Part No.

Service Replacement Components

M-32™

Modulator

Part No.

Relay Valve Assembly

Part No.

300134* 801666 801928 R-15™ Relay Valve (4.0 psi)

300145* 801666 801928 R-15™ Relay Valve (4.0 psi)

300146* 801666 801938 ATR-3™ Traction Relay (5.5 psi)

300147* 801666 801929 R-15™ Relay Valve (5.5 psi)

300148* 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

300148N* 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

300152* 801666 801928 R-15™ Relay Valve (4.0 psi)

300153* 801666 801938 ATR-3™ Traction Relay (5.5 psi)

300153N* 801666 801938 ATR-3™ Traction Relay (5.5 psi)

300154* 801666 801929 R-15™ Relay Valve (5.5 psi)

300155* 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

300200* 801666 801928 R-15™ Relay Valve (4.0 psi)

300201* 801666 801929 R-15™ Relay Valve (5.5 psi)

300202* 801666 801928 R-15™ Relay Valve (4.0 psi)

300203* 801666 801929 R-15™ Relay Valve (5.5 psi)

300203N* 801666 801929 R-15™ Relay Valve (5.5 psi)

300309* 801665 801929 R-15™ Relay Valve (5.5 psi)

300310* 801665 801928 R-15™ Relay Valve (4.0 psi)

300311* 801665 801929 R-15™ Relay Valve (5.5 psi)

300311N* 801665 801929 R-15™ Relay Valve (5.5 psi)

300312* 801665 801928 R-15™ Relay Valve (4.0 psi)

300313* 801665 801930 ATR-3™ Traction Relay (5.5 psi)

300314* 801665 801932 ATR-3™ Traction Relay (4.0 psi)

300315* 801665 801930 ATR-3™ Traction Relay (5.5 psi)

300315N* 801665 801930 ATR-3™ Traction Relay (5.5 psi)

300316* 801665 801932 ATR-3™ Traction Relay (4.0 psi)

801647 801665 801930 ATR-3™ Traction Relay (5.5 psi)

801648 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

801649 801666 801938 ATR-3™ Traction Relay (5.5 psi)

801650 801665 801932 ATR-3™ Traction Relay (4.0 psi)

801659 801665 801929 R-15™ Relay Valve (5.5 psi)

801660 801666 801928 R-15™ Relay Valve (4.0 psi)

801661 801666 801929 R-15™ Relay Valve (5.5 psi)

801662 801665 801928 R-15™ Relay Valve (4.0 psi)

5011740 802665 801930 ATR-3™ Traction Relay (5.5 psi)

5011741 802665 801930 ATR-3™ Traction Relay (5.5 psi)

5011742 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

5011743 801666 801938 ATR-3™ Traction Relay (5.5 psi)

5011744 801666 K040498 ATR-3™ Traction Relay (4.0 psi)

5011745 801666 801938 ATR-3™ Traction Relay (5.5 psi)

5011781 801665 801929 R-15™ Relay Valve (5.5 psi)

5011782 801665 801929 R-15™ Relay Valve (5.5 psi)

5011783 801666 801928 R-15™ Relay Valve (4.0 psi)

5011784 801666 801929 R-15™ Relay Valve (5.5 psi)

5011785 801666 801928 R-15™ Relay Valve (4.0 psi)

5011786 801666 801929 R-15™ Relay Valve (5.5 psi)

5012684 801665 801932 ATR-3™ Traction Relay (4.0 psi)

5012686 801665 801928 R-15™ Relay Valve (4.0 psi)

5012956 801665 801932 ATR-3™ Traction Relay (4.0 psi)

5012958 801665 801928 R-15™ Relay Valve (4.0 psi)

5013648 802665 801930 ATR-3™ Traction Relay (5.5 psi)

5013649 801665 801929 R-15™ Relay Valve (5.5 psi)

5017071 801665 801929 R-15™ Relay Valve (5.5 psi)

5017072 801665 801928 R-15™ Relay Valve (4.0 psi)

5019379 802665 801930 ATR-3™ Traction Relay (5.5 psi)

5019380 801665 801929 R-15™ Relay Valve (5.5 psi)

5019381 801665 801928 R-15™ Relay Valve (4.0 psi)

5019676 802697 K019736 ATR-3™ Traction Relay (4.0 psi)

5019742 801665 801932 ATR-3™ Traction Relay (4.0 psi)

5020110 802697 K019736 ATR-3™ Traction Relay (4.0 psi)

K019465 802697 K019736 ATR-3™ Traction Relay (4.0 psi)

K019466 802697 K019736 ATR-3™ Traction Relay (4.0 psi)

* When servicing the modulators

on these assemblies, replace both

modulators at the same time.
