PRODUCTThis Bendix® 720cc twin cylinder compressor is a “discharge line unloader” DLU-style compressor. The compressor pumps continuously, unlike some compressor designs which use an "unloader" mechanism in the compressor head to switch from a pumping mode to a non-pumping mode. With a DLU-style compressor, the control of air delivery to the vehicle’s air system is managed by using a separate discharge line unloader valve mounted in parallel with a turbo cut-off-style air dryer (see Figure 6).DESCRIPTIONThe function of the air compressor is to provide and maintain air, under pressure, to operate devices in air brake systems. The Bendix 720cc compressor is a twin cylinder reciprocating compressor with a rated displacement of 31.6 cubic feet per minute at 1250 RPM.The compressor consists of an integral water-cooled cylinder head assembly and water-cooled crankcase.The cylinder head assembly is made up of an aluminum cylinder head, an aluminum cooling plate, and a cast iron valve plate assembly. It uses two sealing gaskets. The cylinder head contains air and water ports. A cooling plate is located between the cylinder head and valve plate assemblies and assists in cooling.The valve plate assembly consists of brazed cast iron plates which have valve openings and passages for air and engine coolant to ow into, and out of, the cylinder head and crankcase water jacket. The compressor discharge valves ®SD-01-3131BENDIX® 720CC TWIN CYLINDER COMPRESSOR FOR INTERNATIONAL® MAXXFORCE® BIG BORE ENGINESMAXXFORCE® is a trademark of International Engine Intellectual Property Company, LLC.FIGURE 1 - BENDIX® 720CC TWIN CYLINDER COMPRESSOR FIGURE 2 - NAMEPLATES Bendix Part Number . . . . . . ACustomer Part Number. . . . . BCompressor Serial Number . . CABC720cc COMPRESSORBENDIX PRODUCT - ASSY IN FRANCEBENDIX P/NNAVP/NABSafety ValveCooling PlateCylinder HeadValve Plate AssemblyLocatingPinsCrankcaseMounting FaceRear FlangeRight Side View

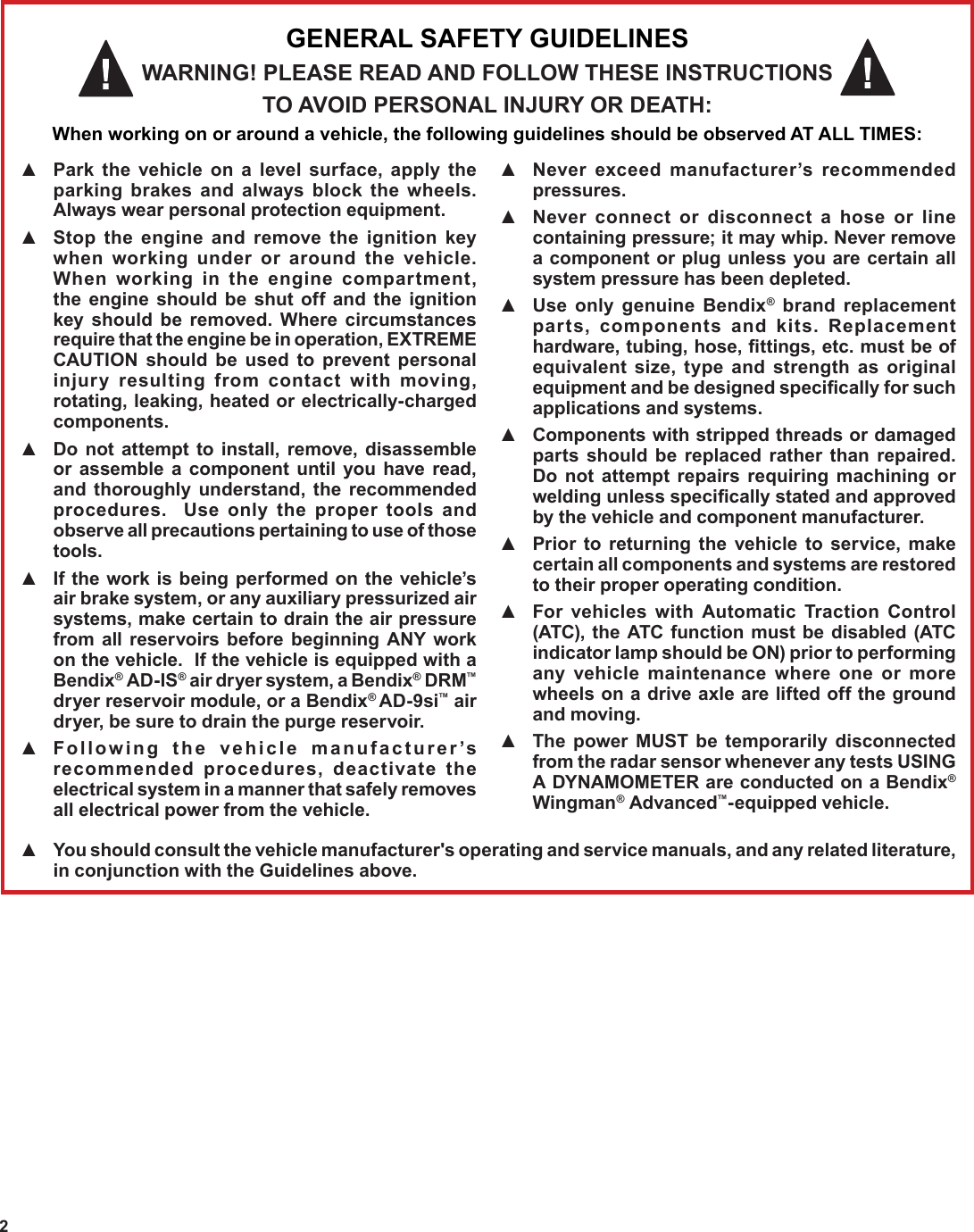

2GENERAL SAFETY GUIDELINESWARNING! PLEASE READ AND FOLLOW THESE INSTRUCTIONSTO AVOID PERSONAL INJURY OR DEATH:When working on or around a vehicle, the following guidelines should be observed AT ALL TIMES: ▲ Park the vehicle on a level surface, apply the parking brakes and always block the wheels. Always wear personal protection equipment. ▲Stop the engine and remove the ignition key when working under or around the vehicle. When working in the engine compartment, the engine should be shut off and the ignition key should be removed. Where circumstances require that the engine be in operation, EXTREME CAUTION should be used to prevent personal injury resulting from contact with moving, rotating, leaking, heated or electrically-charged components. ▲Do not attempt to install, remove, disassemble or assemble a component until you have read, and thoroughly understand, the recommended procedures. Use only the proper tools and observe all precautions pertaining to use of those tools. ▲If the work is being performed on the vehicle’s air brake system, or any auxiliary pressurized air systems, make certain to drain the air pressure from all reservoirs before beginning ANY work on the vehicle. If the vehicle is equipped with a Bendix® AD-IS® air dryer system, a Bendix® DRM™ dryer reservoir module, or a Bendix® AD-9si™ air dryer, be sure to drain the purge reservoir. ▲ Following the vehicle manufacturer’s recommended procedures, deactivate the electrical system in a manner that safely removes all electrical power from the vehicle. ▲Never exceed manufacturer’s recommended pressures. ▲Never connect or disconnect a hose or line containing pressure; it may whip. Never remove a component or plug unless you are certain all system pressure has been depleted. ▲ Use only genuine Bendix® brand replacement parts, components and kits. Replacement hardware, tubing, hose,  ttings, etc. must be of equivalent size, type and strength as original equipment and be designed speci cally for such applications and systems. ▲Components with stripped threads or damaged parts should be replaced rather than repaired. Do not attempt repairs requiring machining or welding unless speci cally stated and approved by the vehicle and component manufacturer. ▲Prior to returning the vehicle to service, make certain all components and systems are restored to their proper operating condition. ▲ For vehicles with Automatic Traction Control (ATC), the ATC function must be disabled (ATC indicator lamp should be ON) prior to performing any vehicle maintenance where one or more wheels on a drive axle are lifted off the ground and moving. ▲The power MUST be temporarily disconnected from the radar sensor whenever any tests USING A DYNAMOMETER are conducted on a Bendix® Wingman® Advanced™-equipped vehicle. ▲ You should consult the vehicle manufacturer's operating and service manuals, and any related literature, in conjunction with the Guidelines above.
