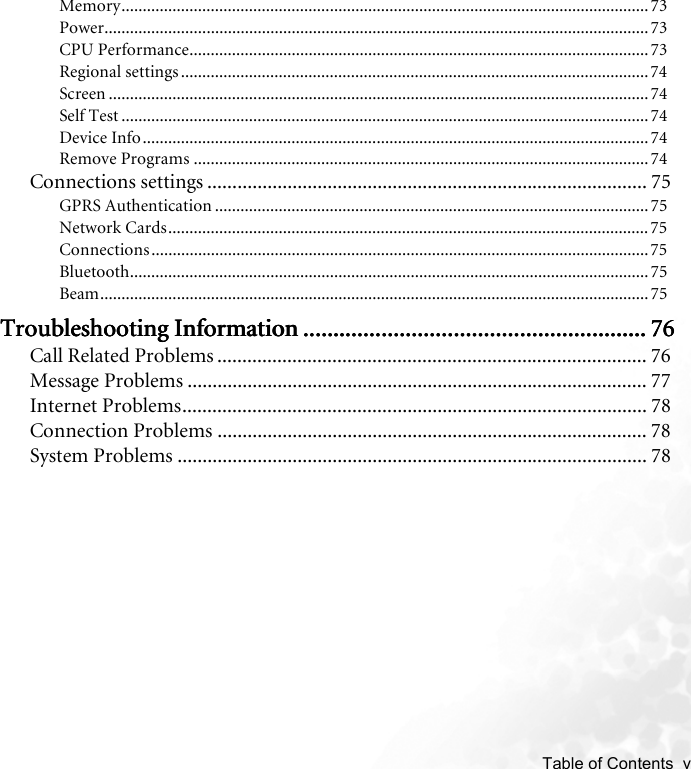

Table of Contents vMemory............................................................................................................................73Power................................................................................................................................73CPU Performance............................................................................................................ 73Regional settings ..............................................................................................................74Screen ...............................................................................................................................74Self Test ............................................................................................................................74Device Info.......................................................................................................................74Remove Programs ........................................................................................................... 74Connections settings ........................................................................................ 75GPRS Authentication ...................................................................................................... 75Network Cards................................................................................................................. 75Connections.....................................................................................................................75Bluetooth..........................................................................................................................75Beam.................................................................................................................................75Troubleshooting InformationTroubleshooting InformationTroubleshooting InformationTroubleshooting Information .................................................................................................................................................................................................................................... 76767676Call Related Problems ...................................................................................... 76Message Problems ............................................................................................ 77Internet Problems............................................................................................. 78Connection Problems ...................................................................................... 78System Problems .............................................................................................. 78
vi Table of Contents <Memo>

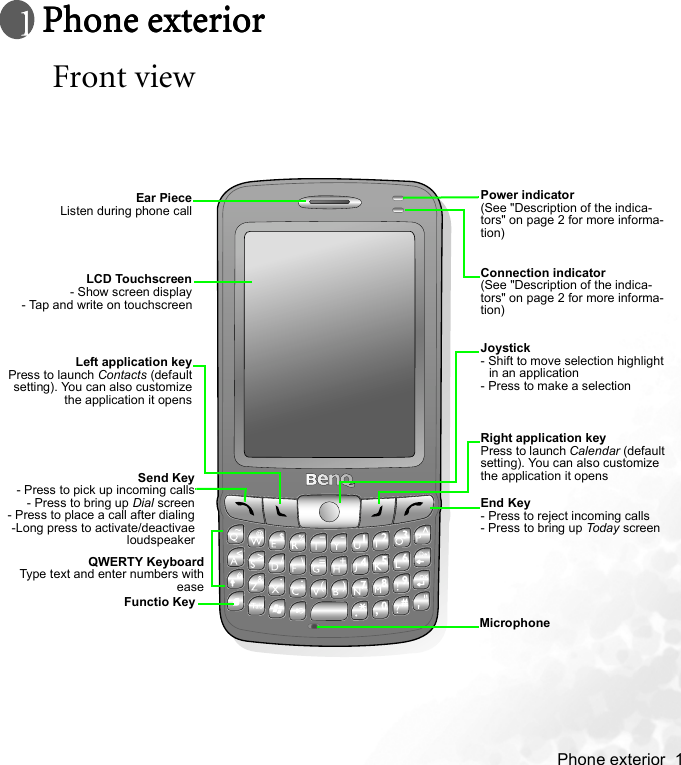

Phone exterior 1Phone exteriorPhone exteriorPhone exteriorPhone exteriorFront viewLCD Touchscreen- Show screen display- Tap and write on touchscreenLeft application keyPress to launch Contacts (defaultsetting). You can also customizethe application it opensQWERTY KeyboardType text and enter numbers witheaseMicrophoneSend Key- Press to pick up incoming calls- Press to bring up Dial screen- Press to place a call after dialing-Long press to activate/deactivaeloudspeakerEar PieceListen during phone callPower indicator(See "Description of the indica-tors" on page 2 for more informa-tion)Connection indicator(See "Description of the indica-tors" on page 2 for more informa-tion)Right application keyPress to launch Calendar (default setting). You can also customize the application it opensEnd Key- Press to reject incoming calls- Press to bring up Today screenJoystick- Shift to move selection highlight in an application- Press to make a selectionFunctio Key
2 Phone exterior Description of the indicatorsDescription of the indicatorsDescription of the indicatorsDescription of the indicatorsIndicator Color Lighting Behavior DescriptionPower indicatorRed FlashIndicates that a new event (new message, a new missed call, system warning..., etc.) occurs (indicated by the appearance of cer-tain icons on the Navigation bar)On Charging in progress.Green Flash The PDA phone is in stand-by mode.On Charging is complete.Orange On The battery is completely drained.Network indicatorGreen Flash Indicates that the wireless LAN function has been enabled.Blue Flash Indicates that the Bluetooth function has been enabled.Green/Blue Alternating FlashIndicates that the wireless LAN and Blue-tooth functions have both been enabled.

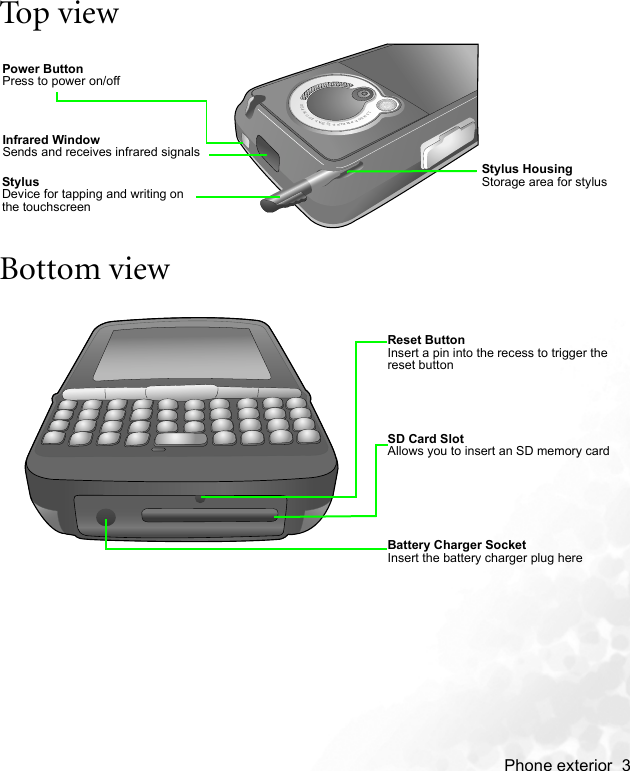

Phone exterior 3Top v ie wBottom view1.3MEGAPIXELSDIGITALZOOMF2.8Power ButtonPress to power on/offStylusDevice for tapping and writing on the touchscreenInfrared WindowSends and receives infrared signalsStylus HousingStorage area for stylusBattery Charger SocketInsert the battery charger plug hereSD Card SlotAllows you to insert an SD memory cardReset ButtonInsert a pin into the recess to trigger the reset button

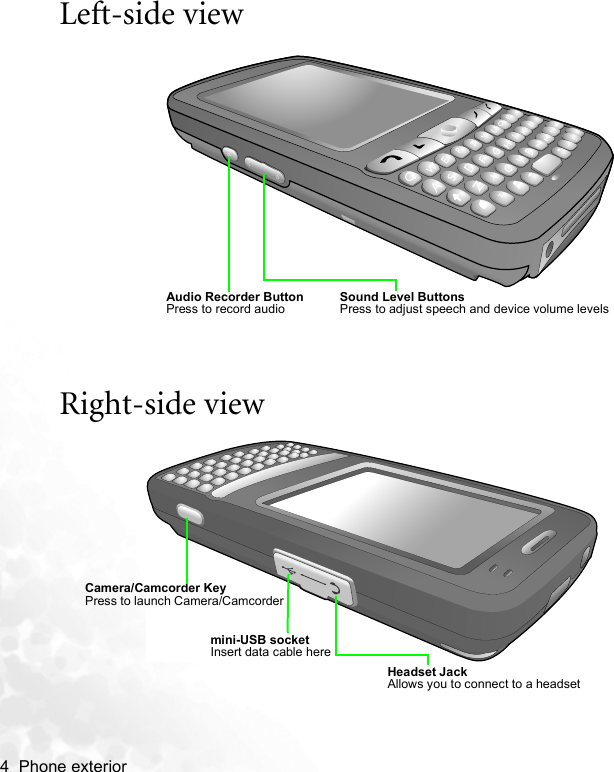

4 Phone exterior Left-side viewRight-side viewAudio Recorder ButtonPress to record audioSound Level ButtonsPress to adjust speech and device volume levelsCamera/Camcorder KeyPress to launch Camera/Camcordermini-USB socketInsert data cable hereHeadset JackAllows you to connect to a headset

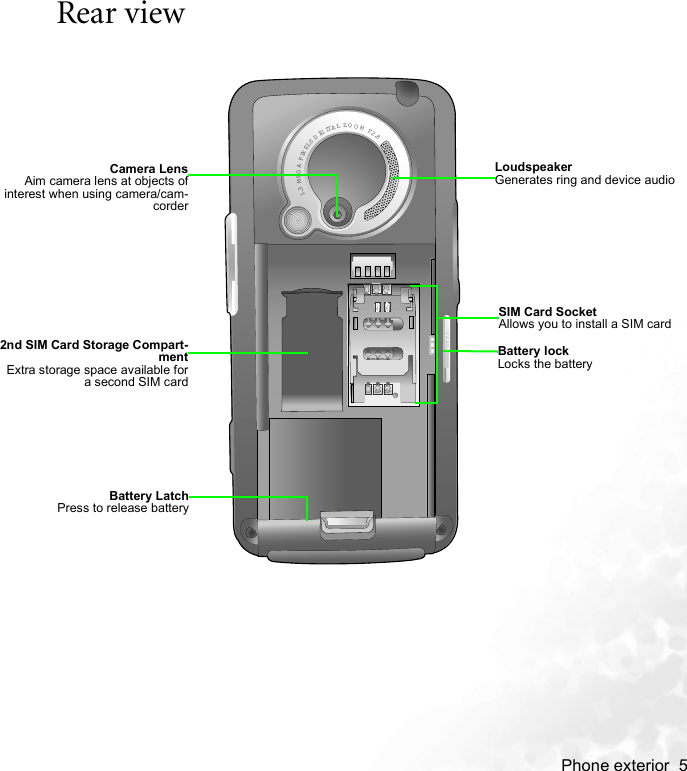

Phone exterior 5Rear view1.3MEGAPIXELSDIGITALZOOMF2.8Camera LensAim camera lens at objects ofinterest when using camera/cam-corderLoudspeakerGenerates ring and device audioSIM Card SocketAllows you to install a SIM card2nd SIM Card Storage Compart-mentExtra storage space available fora second SIM cardBattery LatchPress to release batteryBattery lockLocks the battery

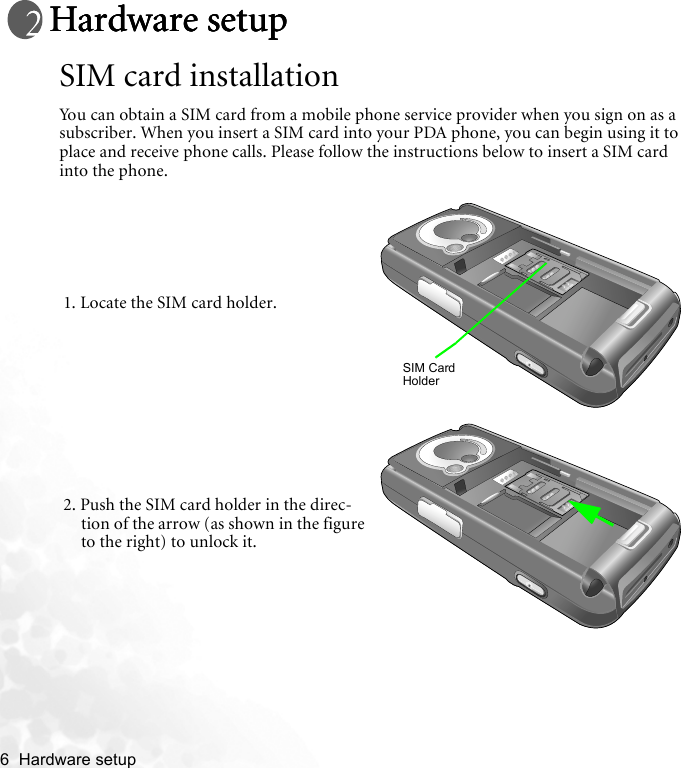

6 Hardware setup Hardware setupHardware setupHardware setupHardware setupSIM card installationYou can obtain a SIM card from a mobile phone service provider when you sign on as a subscriber. When you insert a SIM card into your PDA phone, you can begin using it to place and receive phone calls. Please follow the instructions below to insert a SIM card into the phone.1. Locate the SIM card holder.2. Push the SIM card holder in the direc-tion of the arrow (as shown in the figure to the right) to unlock it. SIM Card Holder

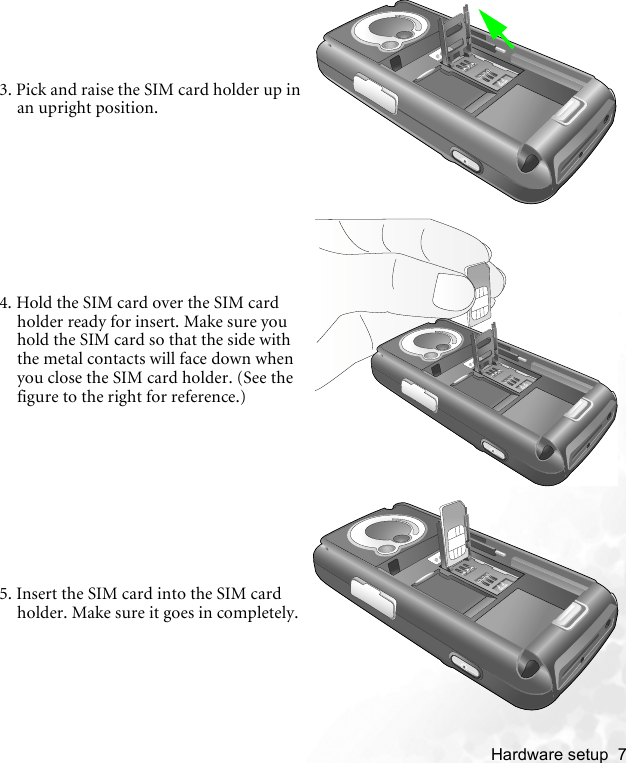

Hardware setup 73. Pick and raise the SIM card holder up in an upright position.4. Hold the SIM card over the SIM card holder ready for insert. Make sure you hold the SIM card so that the side with the metal contacts will face down when you close the SIM card holder. (See the figure to the right for reference.)5. Insert the SIM card into the SIM card holder. Make sure it goes in completely.

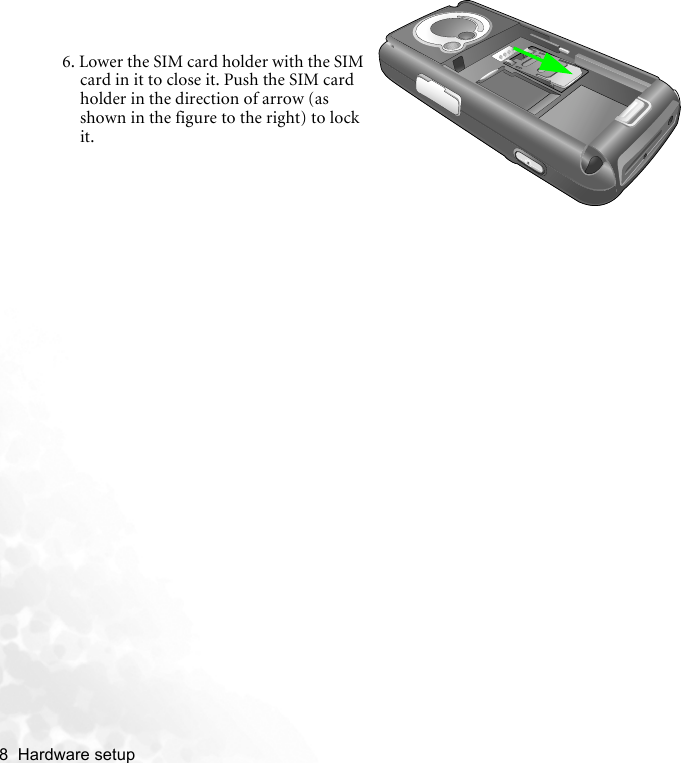

8 Hardware setup 6. Lower the SIM card holder with the SIM card in it to close it. Push the SIM card holder in the direction of arrow (as shown in the figure to the right) to lock it.

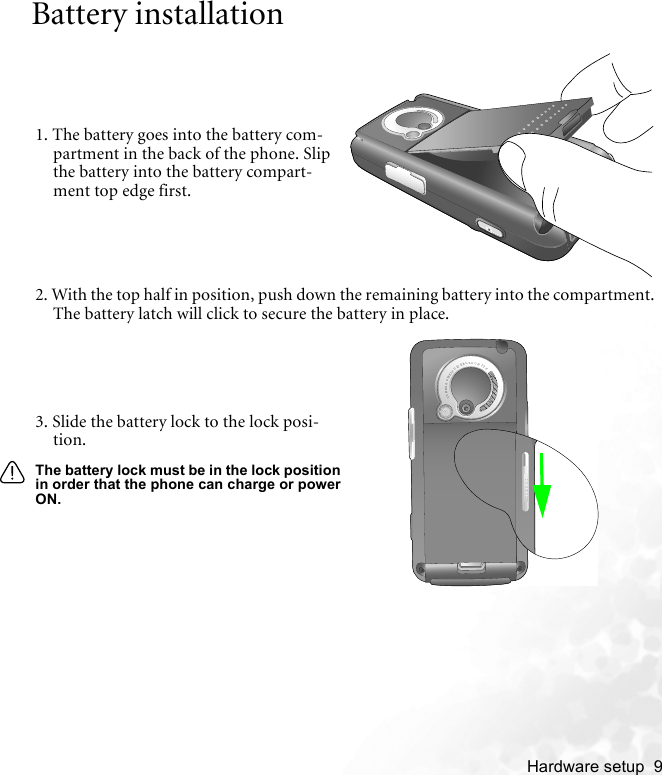

Hardware setup 9Battery installation1. The battery goes into the battery com-partment in the back of the phone. Slip the battery into the battery compart-ment top edge first.2. With the top half in position, push down the remaining battery into the compartment. The battery latch will click to secure the battery in place.3. Slide the battery lock to the lock posi-tion.The battery lock must be in the lock positionin order that the phone can charge or powerON.1.3MEGAPIXELSDIGITALZOOMF2.8
10 Hardware setup Removing the battery1. We suggest you to power off the PDA phone before you remove the battery.2. Slide the battery lock to the unlock position and you will hear a beep sound.The battery lock must be in the unlockposition in order that the battery can beremoved.3. Meanwhile, a warning picture appears on the screen of your PDA phone.4. Then remove the battery.1.3MEGAPIXELSDIGITALZOOMF2.8

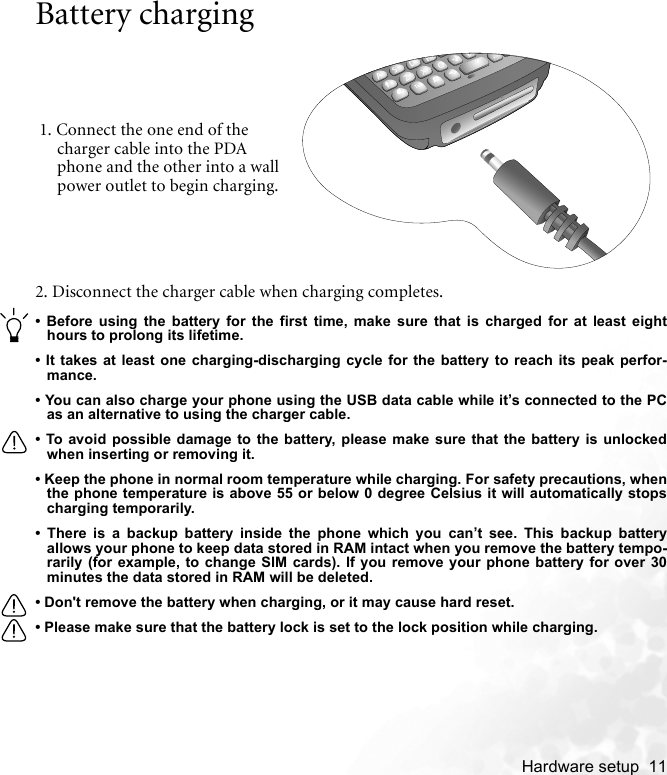

Hardware setup 11Battery charging2. Disconnect the charger cable when charging completes.• Before using the battery for the first time, make sure that is charged for at least eighthours to prolong its lifetime.• It takes at least one charging-discharging cycle for the battery to reach its peak perfor-mance.• You can also charge your phone using the USB data cable while it’s connected to the PCas an alternative to using the charger cable. • To avoid possible damage to the battery, please make sure that the battery is unlockedwhen inserting or removing it.• Keep the phone in normal room temperature while charging. For safety precautions, whenthe phone temperature is above 55 or below 0 degree Celsius it will automatically stopscharging temporarily.• There is a backup battery inside the phone which you can’t see. This backup batteryallows your phone to keep data stored in RAM intact when you remove the battery tempo-rarily (for example, to change SIM cards). If you remove your phone battery for over 30minutes the data stored in RAM will be deleted.• Don't remove the battery when charging, or it may cause hard reset.• Please make sure that the battery lock is set to the lock position while charging.1. Connect the one end of the charger cable into the PDA phone and the other into a wall power outlet to begin charging.

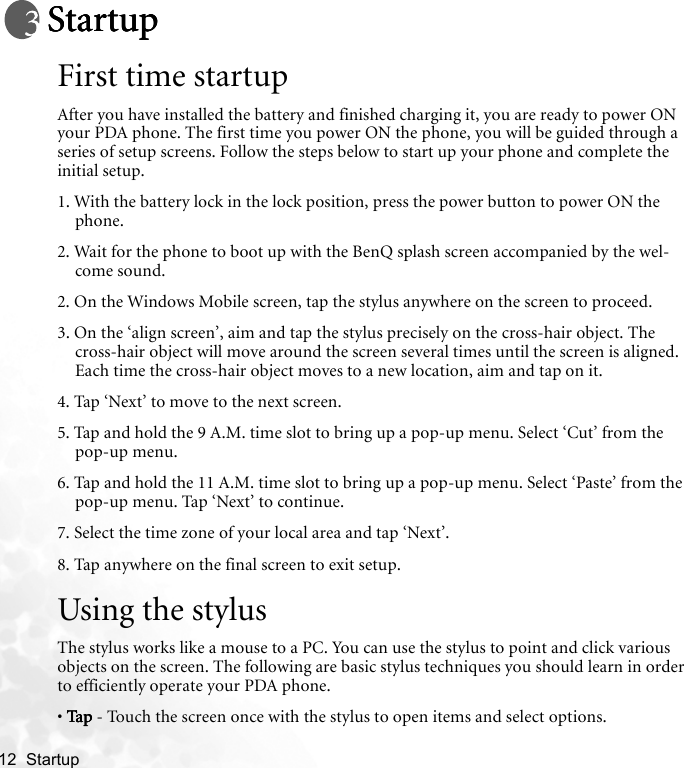

12 Startup StartupStartupStartupStartupFirst time startupAfter you have installed the battery and finished charging it, you are ready to power ON your PDA phone. The first time you power ON the phone, you will be guided through a series of setup screens. Follow the steps below to start up your phone and complete the initial setup.1. With the battery lock in the lock position, press the power button to power ON the phone.2. Wait for the phone to boot up with the BenQ splash screen accompanied by the wel-come sound.2. On the Windows Mobile screen, tap the stylus anywhere on the screen to proceed.3. On the ‘align screen’, aim and tap the stylus precisely on the cross-hair object. The cross-hair object will move around the screen several times until the screen is aligned. Each time the cross-hair object moves to a new location, aim and tap on it.4. Tap ‘Next’ to move to the next screen.5. Tap and hold the 9 A.M. time slot to bring up a pop-up menu. Select ‘Cut’ from the pop-up menu.6. Tap and hold the 11 A.M. time slot to bring up a pop-up menu. Select ‘Paste’ from the pop-up menu. Tap ‘Next’ to continue.7. Select the time zone of your local area and tap ‘Next’.8. Tap anywhere on the final screen to exit setup.Using the stylusThe stylus works like a mouse to a PC. You can use the stylus to point and click various objects on the screen. The following are basic stylus techniques you should learn in order to efficiently operate your PDA phone.• TapTapTapTap - Touch the screen once with the stylus to open items and select options.

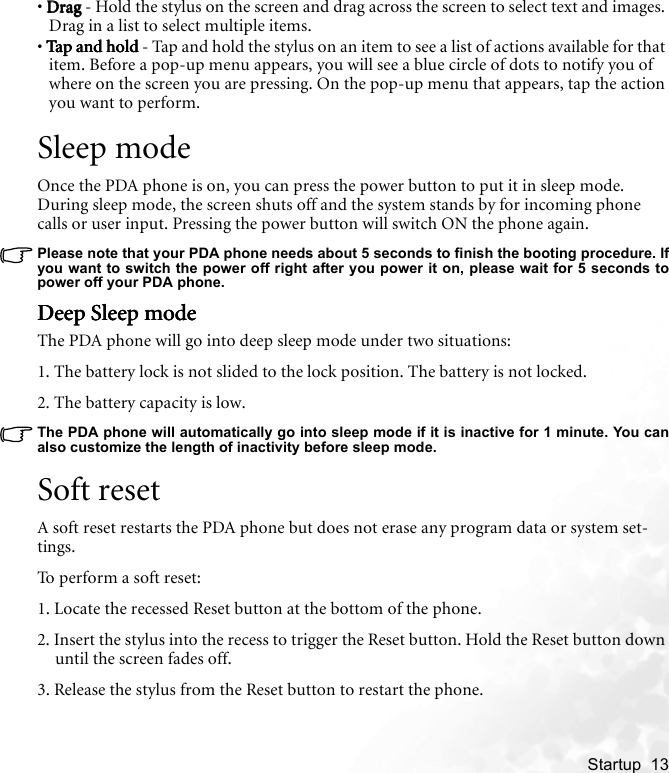

Startup 13• DragDragDragDrag - Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items.• Tap and holdTap and holdTap and holdTap and hold - Tap and hold the stylus on an item to see a list of actions available for that item. Before a pop-up menu appears, you will see a blue circle of dots to notify you of where on the screen you are pressing. On the pop-up menu that appears, tap the action you want to perform.Sleep modeOnce the PDA phone is on, you can press the power button to put it in sleep mode. During sleep mode, the screen shuts off and the system stands by for incoming phone calls or user input. Pressing the power button will switch ON the phone again. Please note that your PDA phone needs about 5 seconds to finish the booting procedure. Ifyou want to switch the power off right after you power it on, please wait for 5 seconds topower off your PDA phone.Deep Sleep modeDeep Sleep modeDeep Sleep modeDeep Sleep modeThe PDA phone will go into deep sleep mode under two situations:1. The battery lock is not slided to the lock position. The battery is not locked.2. The battery capacity is low.The PDA phone will automatically go into sleep mode if it is inactive for 1 minute. You canalso customize the length of inactivity before sleep mode.Soft resetA soft reset restarts the PDA phone but does not erase any program data or system set-tings.To perform a soft reset:1. Locate the recessed Reset button at the bottom of the phone.2. Insert the stylus into the recess to trigger the Reset button. Hold the Reset button down until the screen fades off.3. Release the stylus from the Reset button to restart the phone.

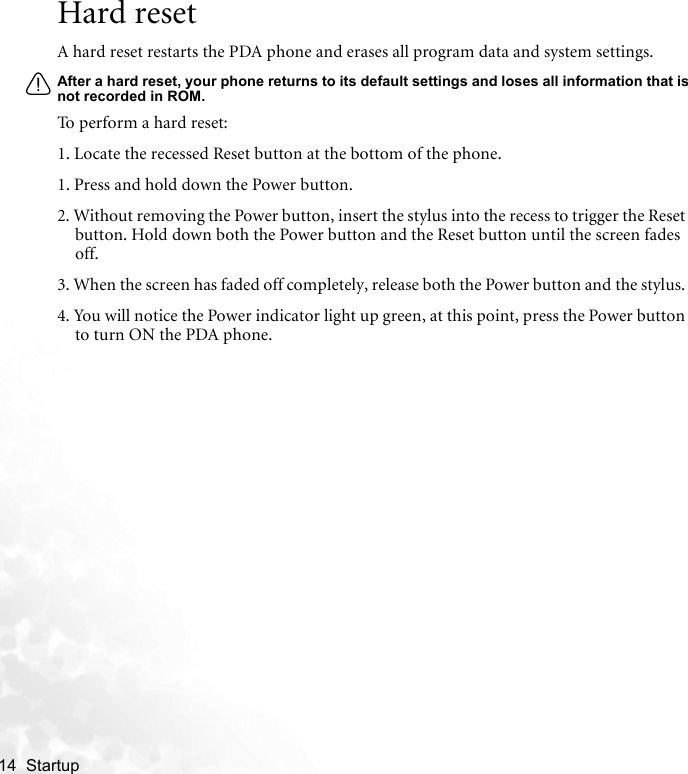

14 Startup Hard resetA hard reset restarts the PDA phone and erases all program data and system settings.After a hard reset, your phone returns to its default settings and loses all information that isnot recorded in ROM.To perform a hard reset:1. Locate the recessed Reset button at the bottom of the phone.1. Press and hold down the Power button.2. Without removing the Power button, insert the stylus into the recess to trigger the Reset button. Hold down both the Power button and the Reset button until the screen fades off.3. When the screen has faded off completely, release both the Power button and the stylus. 4. You will notice the Power indicator light up green, at this point, press the Power button to turn ON the PDA phone.

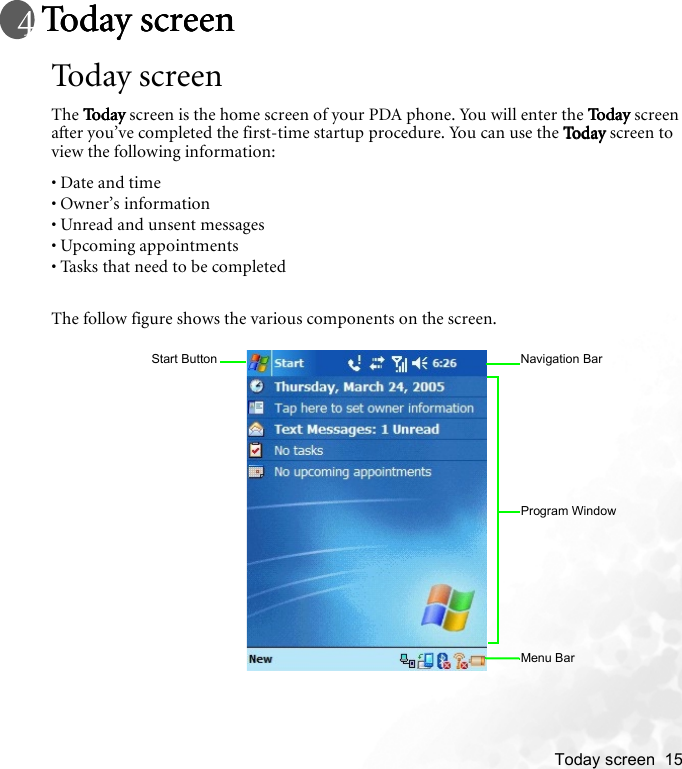

Today screen 15To d ay s cr e e nTo d ay s cr e e nTo d ay s cr e e nTo d ay s cr e e nToday screenThe TodayTo d a yTo d a yToday screen is the home screen of your PDA phone. You will enter the TodayTo d a yTo d a yTo d ay s c r e en after you’ve completed the first-time startup procedure. You can use the TodayTo d ayTod a yToday screen to view the following information:• Date and time• Owner’s information• Unread and unsent messages• Upcoming appointments• Tasks that need to be completedThe follow figure shows the various components on the screen.Start Button Navigation BarProgram WindowMenu Bar

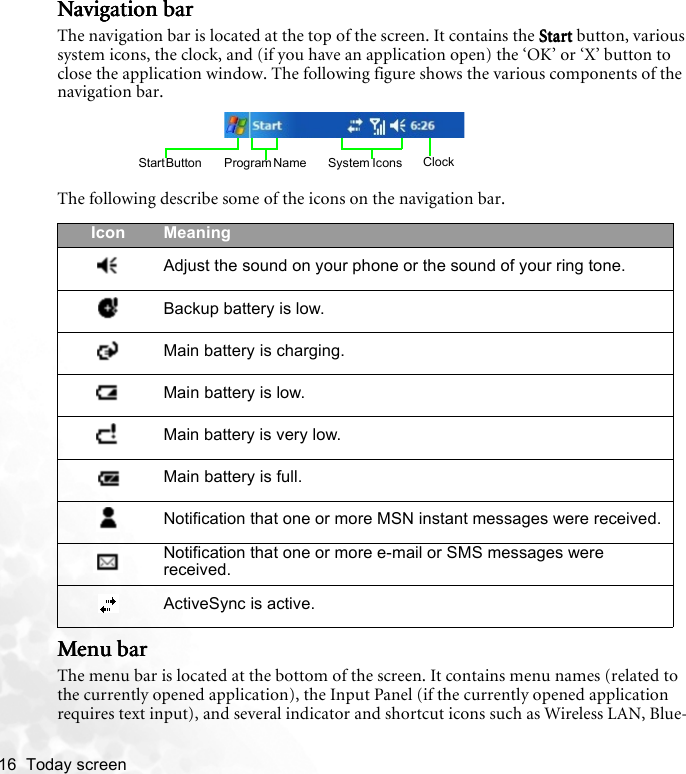

16 Today screen Navigation barNavigation barNavigation barNavigation barThe navigation bar is located at the top of the screen. It contains the StartStartStartStart button, various system icons, the clock, and (if you have an application open) the ‘OK’ or ‘X’ button to close the application window. The following figure shows the various components of the navigation bar.The following describe some of the icons on the navigation bar.Menu barMenu barMenu barMenu barThe menu bar is located at the bottom of the screen. It contains menu names (related to the currently opened application), the Input Panel (if the currently opened application requires text input), and several indicator and shortcut icons such as Wireless LAN, Blue-Icon MeaningAdjust the sound on your phone or the sound of your ring tone.Backup battery is low.Main battery is charging.Main battery is low.Main battery is very low.Main battery is full.Notification that one or more MSN instant messages were received.Notification that one or more e-mail or SMS messages were received.ActiveSync is active.Start Button Program Name System Icons Clock

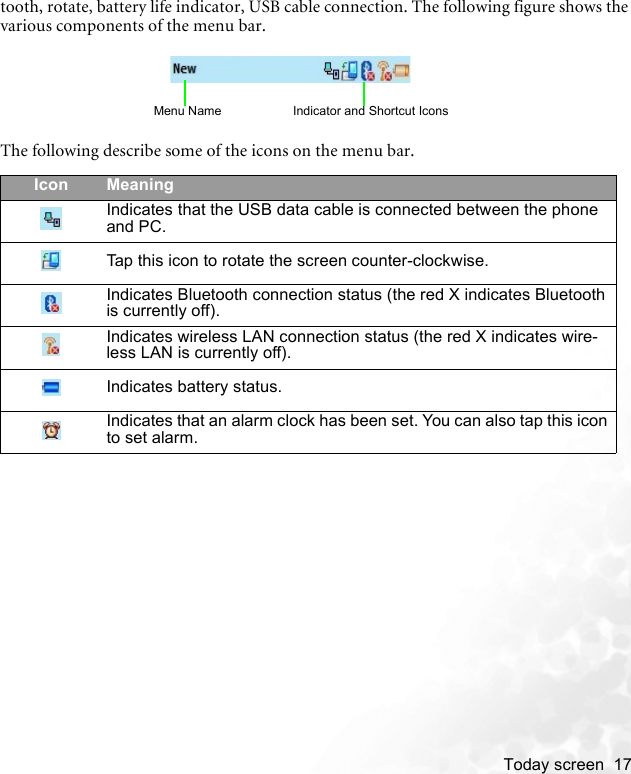

Today screen 17tooth, rotate, battery life indicator, USB cable connection. The following figure shows the various components of the menu bar.The following describe some of the icons on the menu bar.Icon MeaningIndicates that the USB data cable is connected between the phone and PC.Tap this icon to rotate the screen counter-clockwise.Indicates Bluetooth connection status (the red X indicates Bluetooth is currently off).Indicates wireless LAN connection status (the red X indicates wire-less LAN is currently off).Indicates battery status.Indicates that an alarm clock has been set. You can also tap this icon to set alarm.Menu Name Indicator and Shortcut Icons

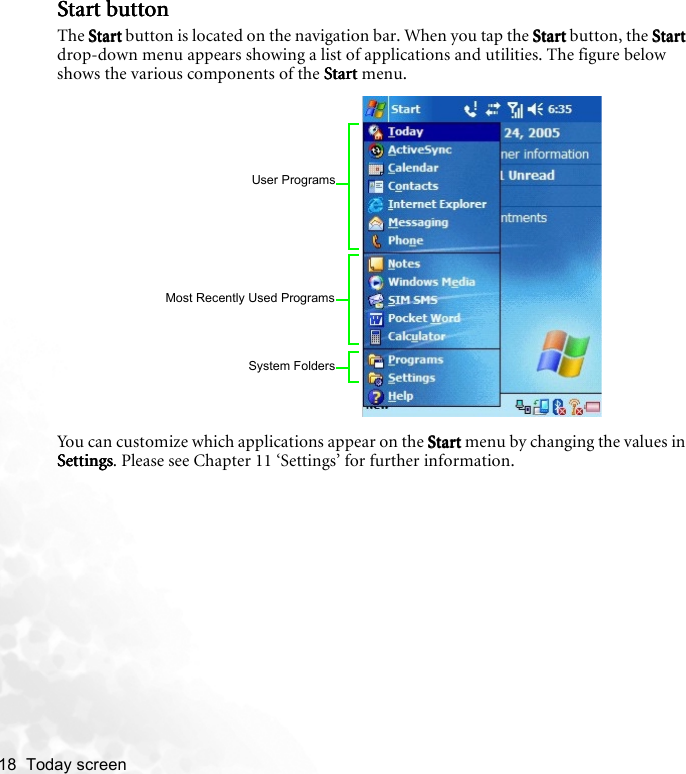

18 Today screen Start buttonStart buttonStart buttonStart buttonThe StartStartStartStart button is located on the navigation bar. When you tap the StartStartStartStart button, the StartStartStartStart drop-down menu appears showing a list of applications and utilities. The figure below shows the various components of the StartStartStartStart menu.You can customize which applications appear on the StartStartStartStart menu by changing the values in SettingsSettingsSettingsSettings. Please see Chapter 11 ‘Settings’ for further information.User ProgramsMost Recently Used ProgramsSystem Folders
Input methods 19Input methodsInput methodsInput methodsInput methodsThe PDA phone has a number of input method choices to choose from. When using the phone function, simply use the QWERTY keyboard to enter the phone number then press the SendSendSendSend key. When using an application that supports text input, you have the option of using the QWERTY keyboard or choosing from a number of ‘soft’ input methods from the Input Panel to enter typed text. The stylus is available as a point and click device for navigation. Finally, you can use the stylus to handwrite or make drawings (for certain applications that support this) and have the results saved as graphics. For example, in the NotesNotesNotesNotes application, you can literally scribble notes on the touchscreen and save it to a file.Entering typed textWhen you need to enter typed text into an application you can do so either with the QWERTY keyboard or one of the input methods provided by the Input Panel. The Input Panel is an icon on the menu bar when you open an application that supports text input. Using the QWERTY keyboardUsing the QWERTY keyboardUsing the QWERTY keyboardUsing the QWERTY keyboardThe QWERTY keyboard allows you to enter text conveniently - just type on it. You can use the QWERTY keyboard anytime you need to type something. For example, use the QWERTY keyboard to key in the phone number you wish to dial in the Phone applica-tion. Or type in a long block of text into your Calendar or Pocket Word application. The QWERTY keyboard makes text entry very convenient and is an efficient alternative to the soft input methods as to be described below.

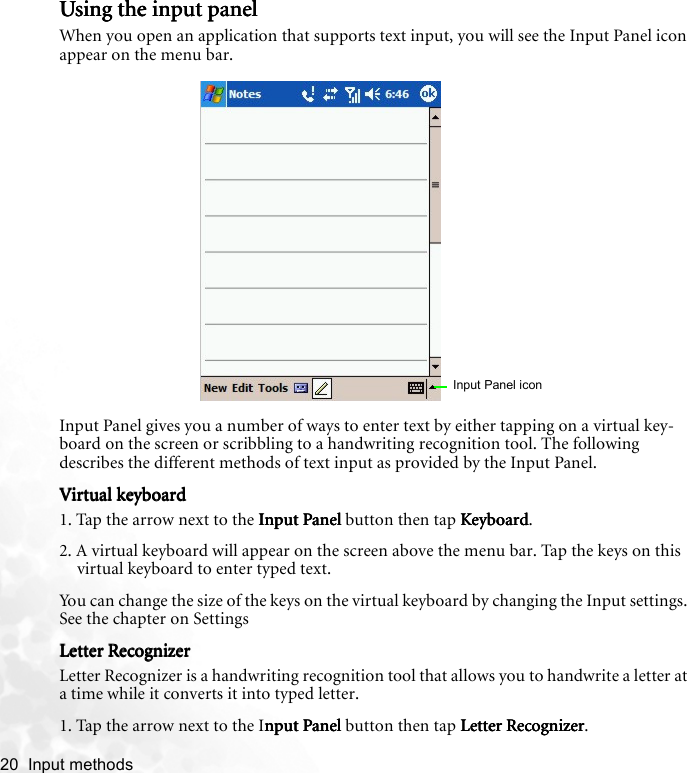

20 Input methods Using the input panel Using the input panel Using the input panel Using the input panel When you open an application that supports text input, you will see the Input Panel icon appear on the menu bar.Input Panel gives you a number of ways to enter text by either tapping on a virtual key-board on the screen or scribbling to a handwriting recognition tool. The following describes the different methods of text input as provided by the Input Panel.Virtual keyboardVirtual keyboardVirtual keyboardVirtual keyboard1. Tap the arrow next to the Input PanelInput PanelInput PanelInput Panel button then tap KeyboardKeyboardKeyboardKeyboard.2. A virtual keyboard will appear on the screen above the menu bar. Tap the keys on this virtual keyboard to enter typed text.You can change the size of the keys on the virtual keyboard by changing the Input settings. See the chapter on SettingsLetter RecognizerLetter RecognizerLetter RecognizerLetter RecognizerLetter Recognizer is a handwriting recognition tool that allows you to handwrite a letter at a time while it converts it into typed letter.1. Tap the arrow next to the Input Panelnput Panelnput Panelnput Panel button then tap LetterLetterLetterLetter RecognizerRecognizerRecognizerRecognizer.Input Panel icon

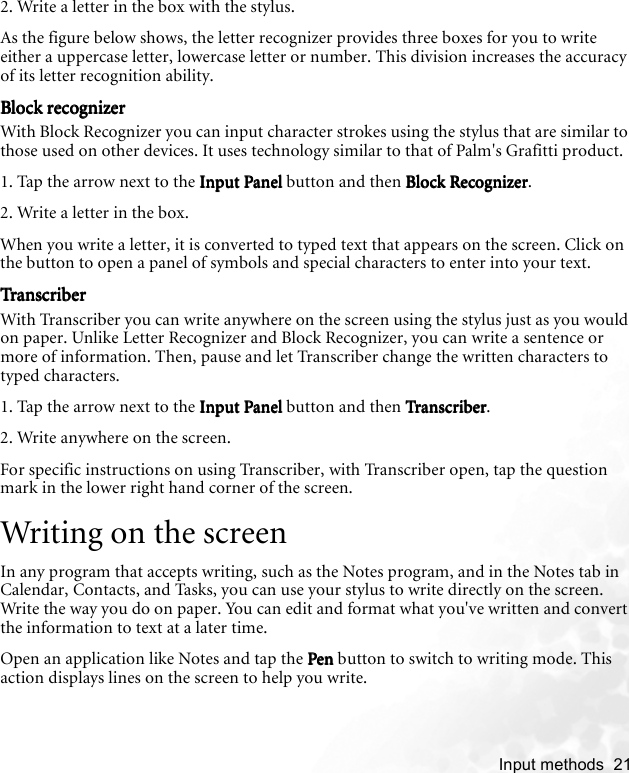

Input methods 212. Write a letter in the box with the stylus.As the figure below shows, the letter recognizer provides three boxes for you to write either a uppercase letter, lowercase letter or number. This division increases the accuracy of its letter recognition ability.Block recognizerBlock recognizerBlock recognizerBlock recognizerWith Block Recognizer you can input character strokes using the stylus that are similar to those used on other devices. It uses technology similar to that of Palm's Grafitti product.1. Tap the arrow next to the Input PanelInput PanelInput PanelInput Panel button and then Block RecognizerBlock RecognizerBlock RecognizerBlock Recognizer.2. Write a letter in the box.When you write a letter, it is converted to typed text that appears on the screen. Click on the button to open a panel of symbols and special characters to enter into your text.Tra nscribe rTra nscribe rTra nscribe rTra nscribe rWith Transcriber you can write anywhere on the screen using the stylus just as you would on paper. Unlike Letter Recognizer and Block Recognizer, you can write a sentence or more of information. Then, pause and let Transcriber change the written characters to typed characters.1. Tap the arrow next to the Input PanelInput PanelInput PanelInput Panel button and then TranscriberTra nscri berTra nscri berTranscriber.2. Write anywhere on the screen.For specific instructions on using Transcriber, with Transcriber open, tap the question mark in the lower right hand corner of the screen.Writing on the screenIn any program that accepts writing, such as the Notes program, and in the Notes tab in Calendar, Contacts, and Tasks, you can use your stylus to write directly on the screen. Write the way you do on paper. You can edit and format what you've written and convert the information to text at a later time.Open an application like Notes and tap the PenPenPenPen button to switch to writing mode. This action displays lines on the screen to help you write.

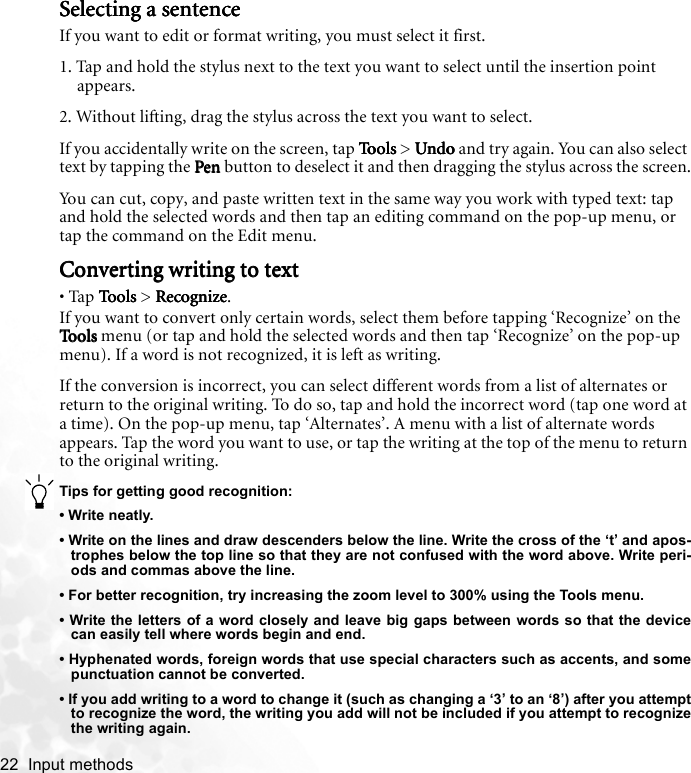

22 Input methods Selecting a sentenceSelecting a sentenceSelecting a sentenceSelecting a sentenceIf you want to edit or format writing, you must select it first.1. Tap and hold the stylus next to the text you want to select until the insertion point appears.2. Without lifting, drag the stylus across the text you want to select.If you accidentally write on the screen, tap ToolsToolsToolsTools > UndoUndoUndoUndo and try again. You can also select text by tapping the PenPenPenPen button to deselect it and then dragging the stylus across the screen.You can cut, copy, and paste written text in the same way you work with typed text: tap and hold the selected words and then tap an editing command on the pop-up menu, or tap the command on the Edit menu.Converting writing to textConverting writing to textConverting writing to textConverting writing to text• Tap Tool sToo l sToo l sTools > RecognizeRecognizeRecognizeRecognize.If you want to convert only certain words, select them before tapping ‘Recognize’ on the ToolsToolsToolsTools menu (or tap and hold the selected words and then tap ‘Recognize’ on the pop-up menu). If a word is not recognized, it is left as writing.If the conversion is incorrect, you can select different words from a list of alternates or return to the original writing. To do so, tap and hold the incorrect word (tap one word at a time). On the pop-up menu, tap ‘Alternates’. A menu with a list of alternate words appears. Tap the word you want to use, or tap the writing at the top of the menu to return to the original writing.Tips for getting good recognition:• Write neatly.• Write on the lines and draw descenders below the line. Write the cross of the ‘t’ and apos-trophes below the top line so that they are not confused with the word above. Write peri-ods and commas above the line.• For better recognition, try increasing the zoom level to 300% using the Tools menu.• Write the letters of a word closely and leave big gaps between words so that the devicecan easily tell where words begin and end.• Hyphenated words, foreign words that use special characters such as accents, and somepunctuation cannot be converted.• If you add writing to a word to change it (such as changing a ‘3’ to an ‘8’) after you attemptto recognize the word, the writing you add will not be included if you attempt to recognizethe writing again.
Input methods 23Drawing on the screenYou can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be resized, while writing cannot.Creating a drawingCreating a drawingCreating a drawingCreating a drawing• Cross three ruled lines on your first stroke. A drawing box appears. Subsequent strokes in or touching the drawing box become part of the drawing. Drawings that do not cross three ruled lines will be treated as writing.You may want to change the zoom level so that you can more easily work on or view yourdrawing. Tap Tools and then a zoom level.Selecting a drawingSelecting a drawingSelecting a drawingSelecting a drawingIf you want to edit or format a drawing, you must select it first.• Tap and hold the stylus on the drawing until the selection handle appears. To multiple drawings, deselect the Pen button and then drag to select the drawings you want.You can cut, copy, and paste selected drawings by tapping and holding the selected draw-ing and then tapping an editing command on the pop-up menu, or by tapping the com-mand on the Edit menu. To resize a drawing, make sure the Pen button is not selected, and drag a selection handle.

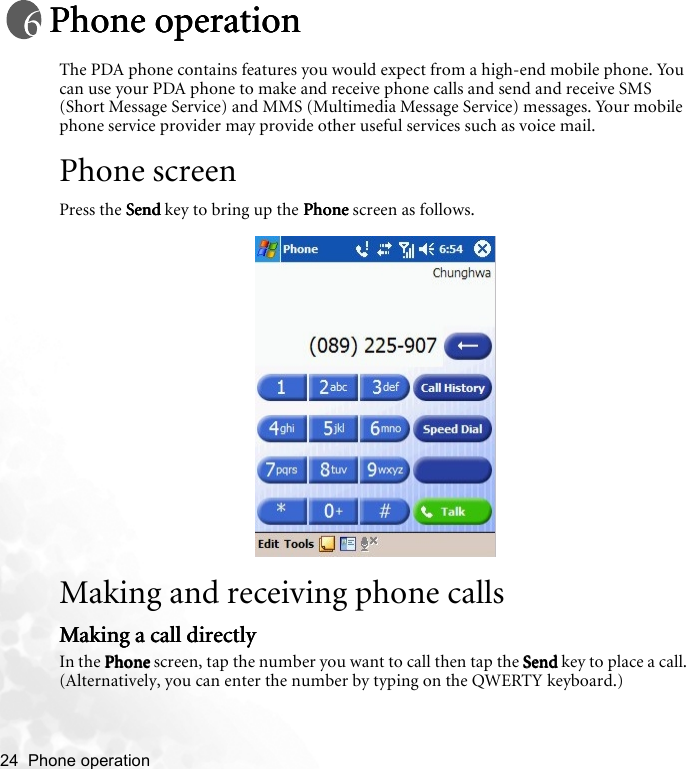

24 Phone operation Phone operationPhone operationPhone operationPhone operationThe PDA phone contains features you would expect from a high-end mobile phone. You can use your PDA phone to make and receive phone calls and send and receive SMS (Short Message Service) and MMS (Multimedia Message Service) messages. Your mobile phone service provider may provide other useful services such as voice mail.Phone screenPress the SendSendSendSend key to bring up the PhonePhonePhonePhone screen as follows.Making and receiving phone callsMaking a call directlyMaking a call directlyMaking a call directlyMaking a call directlyIn the PhonePhonePhonePhone screen, tap the number you want to call then tap the SendSendSendSend key to place a call. (Alternatively, you can enter the number by typing on the QWERTY keyboard.)

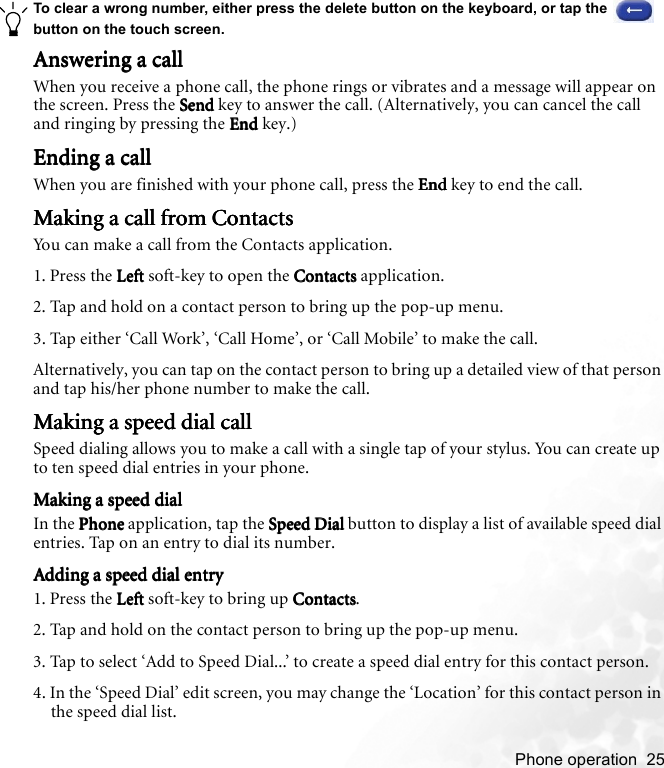

Phone operation 25To clear a wrong number, either press the delete button on the keyboard, or tap the button on the touch screen.Answering a callAnswering a callAnswering a callAnswering a callWhen you receive a phone call, the phone rings or vibrates and a message will appear on the screen. Press the SendSendSendSend key to answer the call. (Alternatively, you can cancel the call and ringing by pressing the EndEndEndEnd key.)Ending a callEnding a callEnding a callEnding a callWhen you are finished with your phone call, press the EndEndEndEnd key to end the call.Making a call from ContactsMaking a call from ContactsMaking a call from ContactsMaking a call from ContactsYou can make a call from the Contacts application.1. Press the LeftLeftLeftLeft soft-key to open the ContactsContactsContactsContacts application.2. Tap and hold on a contact person to bring up the pop-up menu.3. Tap either ‘Call Work’, ‘Call Home’, or ‘Call Mobile’ to make the call.Alternatively, you can tap on the contact person to bring up a detailed view of that person and tap his/her phone number to make the call.Making a speed dial callMaking a speed dial callMaking a speed dial callMaking a speed dial callSpeed dialing allows you to make a call with a single tap of your stylus. You can create up to ten speed dial entries in your phone.Making a speed dialMaking a speed dialMaking a speed dialMaking a speed dialIn the PhonePhonePhonePhone application, tap the Speed Dial Speed Dial Speed Dial Speed Dial button to display a list of available speed dial entries. Tap on an entry to dial its number.Adding a speed dial entryAdding a speed dial entryAdding a speed dial entryAdding a speed dial entry1. Press the LeftLeftLeftLeft soft-key to bring up ContactsContactsContactsContacts.2. Tap and hold on the contact person to bring up the pop-up menu.3. Tap to select ‘Add to Speed Dial...’ to create a speed dial entry for this contact person.4. In the ‘Speed Dial’ edit screen, you may change the ‘Location’ for this contact person in the speed dial list.

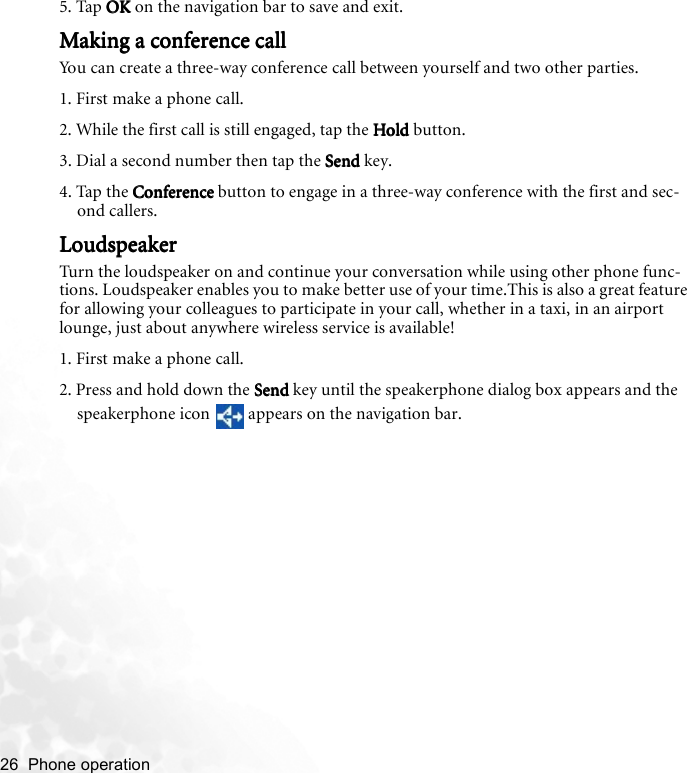

26 Phone operation 5. Tap OKOKOKOK on the navigation bar to save and exit.Making a conference callMaking a conference callMaking a conference callMaking a conference callYou can create a three-way conference call between yourself and two other parties.1. First make a phone call.2. While the first call is still engaged, tap the HoldHoldHoldHold button.3. Dial a second number then tap the SendSendSendSend key.4. Tap the ConferenceConferenceConferenceConference button to engage in a three-way conference with the first and sec-ond callers.LoudspeakerLoudspeakerLoudspeakerLoudspeakerTurn the loudspeaker on and continue your conversation while using other phone func-tions. Loudspeaker enables you to make better use of your time.This is also a great feature for allowing your colleagues to participate in your call, whether in a taxi, in an airport lounge, just about anywhere wireless service is available!1. First make a phone call.2. Press and hold down the SendSendSendSend key until the speakerphone dialog box appears and the speakerphone icon appears on the navigation bar.

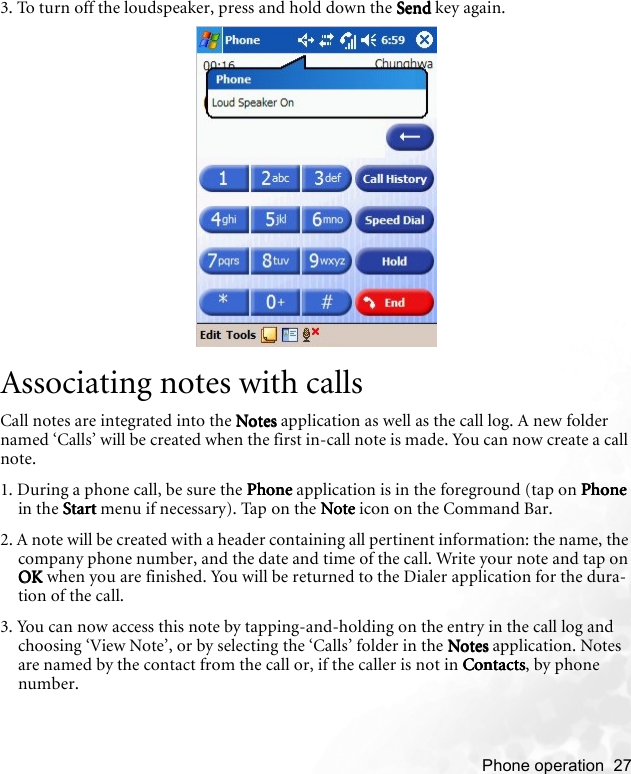

Phone operation 273. To turn off the loudspeaker, press and hold down the SendSendSendSend key again.Associating notes with callsCall notes are integrated into the NotesNotesNotesNotes application as well as the call log. A new folder named ‘Calls’ will be created when the first in-call note is made. You can now create a call note.1. During a phone call, be sure the PhonePhonePhonePhone application is in the foreground (tap on PhonePhonePhonePhone in the StartStartStartStart menu if necessary). Tap on the NoteNoteNoteNote icon on the Command Bar. 2. A note will be created with a header containing all pertinent information: the name, the company phone number, and the date and time of the call. Write your note and tap on OKOKOKOK when you are finished. You will be returned to the Dialer application for the dura-tion of the call.3. You can now access this note by tapping-and-holding on the entry in the call log and choosing ‘View Note’, or by selecting the ‘Calls’ folder in the NotesNotesNotesNotes application. Notes are named by the contact from the call or, if the caller is not in ContactsContactsContactsContacts, by phone number.

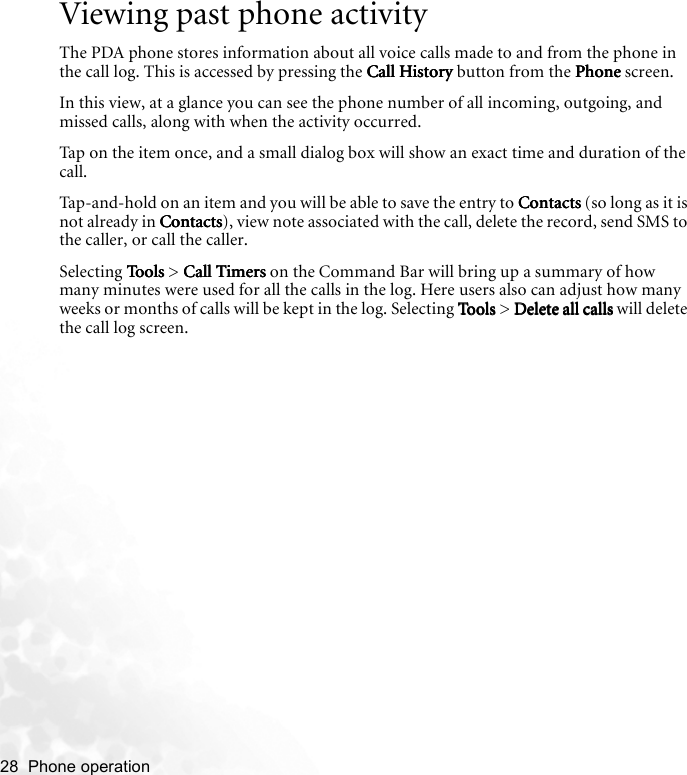

28 Phone operation Viewing past phone activityThe PDA phone stores information about all voice calls made to and from the phone in the call log. This is accessed by pressing the Call HistoryCall HistoryCall HistoryCall History button from the PhonePhonePhonePhone screen.In this view, at a glance you can see the phone number of all incoming, outgoing, and missed calls, along with when the activity occurred.Tap on the item once, and a small dialog box will show an exact time and duration of the call.Tap-and-hold on an item and you will be able to save the entry to ContactsContactsContactsContacts (so long as it is not already in ContactsContactsContactsContacts), view note associated with the call, delete the record, send SMS to the caller, or call the caller.Selecting ToolsToolsToolsTools > Call TimersCall TimersCall TimersCall Timers on the Command Bar will bring up a summary of how many minutes were used for all the calls in the log. Here users also can adjust how many weeks or months of calls will be kept in the log. Selecting ToolsTool sTool sTools > Delete all callsDelete all callsDelete all callsDelete all calls will delete the call log screen.

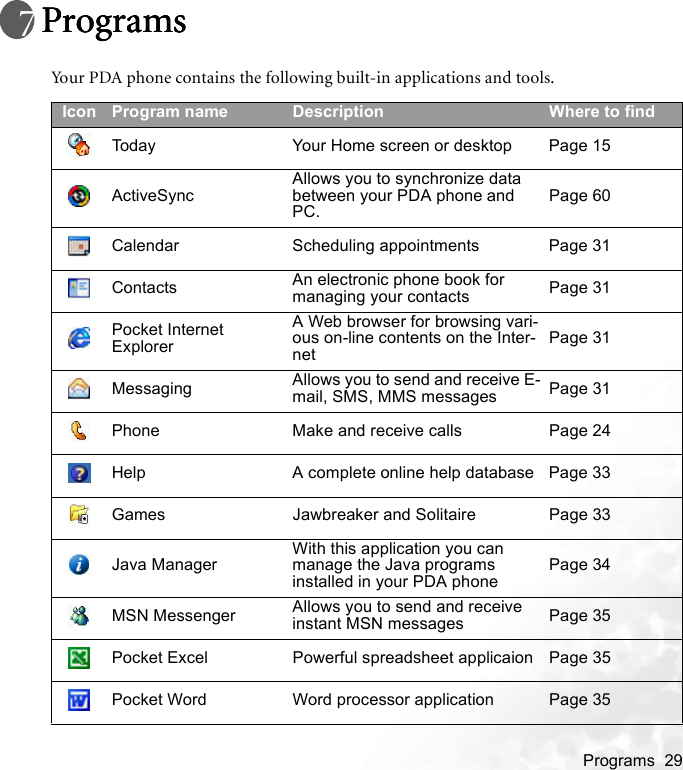

Programs 29ProgramsProgramsProgramsProgramsYour PDA phone contains the following built-in applications and tools.Icon Program name Description Where to findToday Your Home screen or desktop Page 15ActiveSyncAllows you to synchronize data between your PDA phone and PC.Page 60Calendar Scheduling appointments Page 31Contacts An electronic phone book for managing your contacts Page 31Pocket Internet ExplorerA Web browser for browsing vari-ous on-line contents on the Inter-netPage 31Messaging Allows you to send and receive E-mail, SMS, MMS messages Page 31Phone Make and receive calls Page 24Help A complete online help database Page 33Games Jawbreaker and Solitaire Page 33Java ManagerWith this application you can manage the Java programs installed in your PDA phonePage 34MSN Messenger Allows you to send and receive instant MSN messages Page 35Pocket Excel Powerful spreadsheet applicaion Page 35Pocket Word Word processor application Page 35
30 Programs You can find help on most of these applications on Start > Help.Pocket Studio Camera/camcorder application with photo editor Page 40Universal RemoconAn application that turns your PDA phone into an universal remote control for your home appliancesPage 35SIM Phonebook Allows you to access your SIM card phone book Page 36SIM Message Allows you to access your SIM card SMS messages Page 36SIM Tool Kit Extra services provided by your SIM card carrier Page 36Windows Media Audio/video file player Page 37Calculator Electronic calculator Page 37Task An application that allows you to manage your to do items Page 37Photo Caller ID Assign pictures to callers in your phone book Page 37Set Ringtone Set PDA phone’s ring tone Page 37Notes With this application you can jot down your notes Page 38Find A file searching tool application Page 38Pictures A JPEG viewer for viewing digital pictures Page 38Speech Commander Allows you to use your voice to control applications Page 38File Explorer View files and folders in the phone Page 39

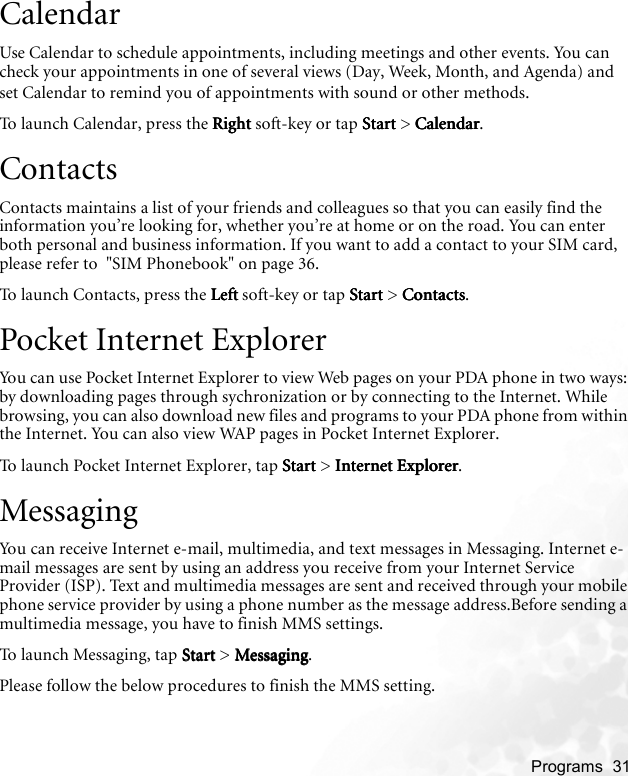

Programs 31CalendarUse Calendar to schedule appointments, including meetings and other events. You can check your appointments in one of several views (Day, Week, Month, and Agenda) and set Calendar to remind you of appointments with sound or other methods.To launch Calendar, press the RightRightRightRight soft-key or tap Start Start Start Start > CalendarCalendarCalendarCalendar.ContactsContacts maintains a list of your friends and colleagues so that you can easily find the information you’re looking for, whether you’re at home or on the road. You can enter both personal and business information. If you want to add a contact to your SIM card, please refer to "SIM Phonebook" on page 36.To launch Contacts, press the LeftLeftLeftLeft soft-key or tap Start Start Start Start > ContactsContactsContactsContacts.Pocket Internet ExplorerYou can use Pocket Internet Explorer to view Web pages on your PDA phone in two ways: by downloading pages through sychronization or by connecting to the Internet. While browsing, you can also download new files and programs to your PDA phone from within the Internet. You can also view WAP pages in Pocket Internet Explorer.To launch Pocket Internet Explorer, tap Start Start Start Start > Internet Explorer Internet Explorer Internet Explorer Internet Explorer.MessagingYou can receive Internet e-mail, multimedia, and text messages in Messaging. Internet e-mail messages are sent by using an address you receive from your Internet Service Provider (ISP). Text and multimedia messages are sent and received through your mobile phone service provider by using a phone number as the message address.Before sending a multimedia message, you have to finish MMS settings. To launch Messaging, tap StartStartStartStart > Messaging Messaging Messaging Messaging.Please follow the below procedures to finish the MMS setting.

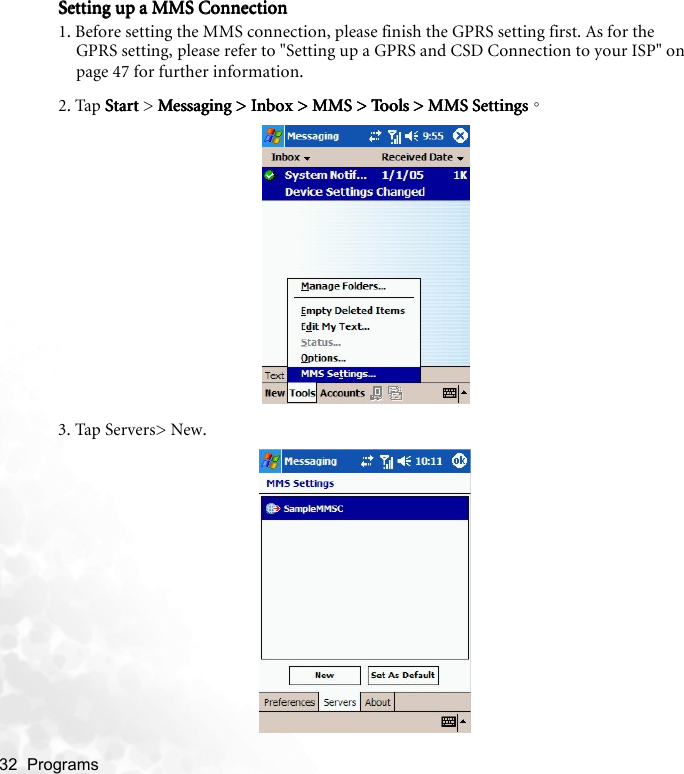

32 Programs Setting up a MMS ConnectionSetting up a MMS ConnectionSetting up a MMS ConnectionSetting up a MMS Connection1. Before setting the MMS connection, please finish the GPRS setting first. As for the GPRS setting, please refer to "Setting up a GPRS and CSD Connection to your ISP" on page 47 for further information. 2. Tap StartStartStartStart > MessagingMessagingMessagingMessaging > > > > Inbox Inbox Inbox Inbox > > > > MMSMMSMMSMMS > > > > ToolsToolsToolsTools > MMS > MMS > MMS > MMS SettingsSettingsSettingsSettings。3. Tap Servers> New.

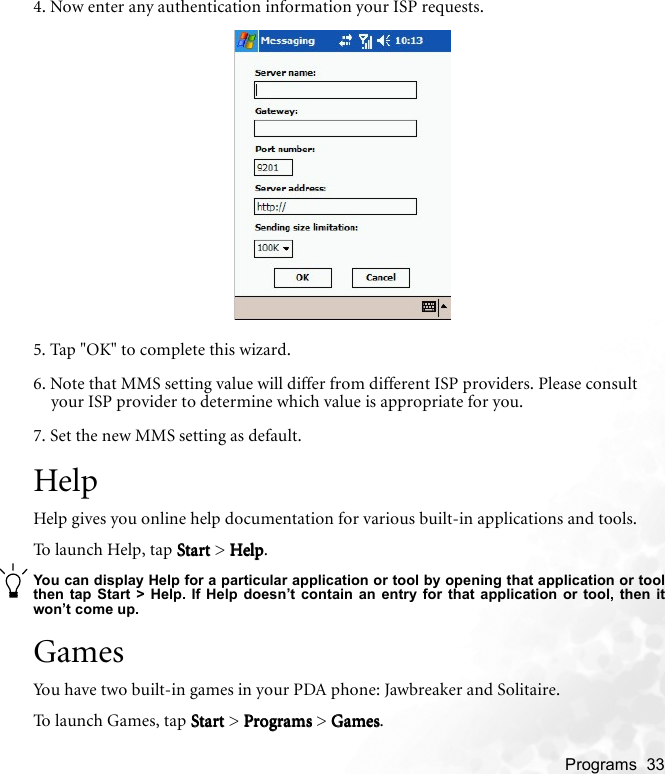

Programs 334. Now enter any authentication information your ISP requests.5. Tap "OK" to complete this wizard.6. Note that MMS setting value will differ from different ISP providers. Please consult your ISP provider to determine which value is appropriate for you.7. Set the new MMS setting as default.HelpHelp gives you online help documentation for various built-in applications and tools.To launch Help, tap StartStartStartStart > HelpHelpHelpHelp.You can display Help for a particular application or tool by opening that application or toolthen tap Start > Help. If Help doesn’t contain an entry for that application or tool, then itwon’t come up.GamesYou have two built-in games in your PDA phone: Jawbreaker and Solitaire.To launch Games, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > Games Games Games Games.

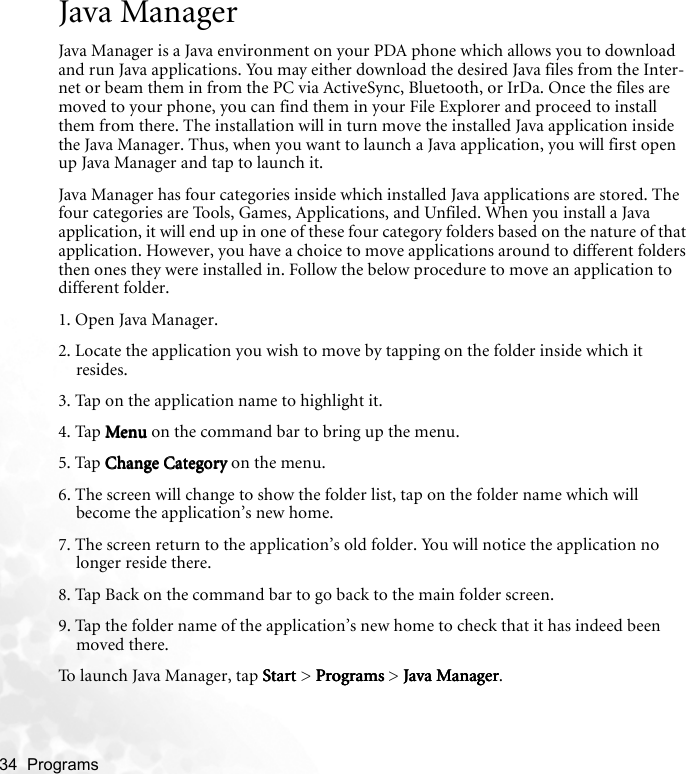

34 Programs Java ManagerJava Manager is a Java environment on your PDA phone which allows you to download and run Java applications. You may either download the desired Java files from the Inter-net or beam them in from the PC via ActiveSync, Bluetooth, or IrDa. Once the files are moved to your phone, you can find them in your File Explorer and proceed to install them from there. The installation will in turn move the installed Java application inside the Java Manager. Thus, when you want to launch a Java application, you will first open up Java Manager and tap to launch it.Java Manager has four categories inside which installed Java applications are stored. The four categories are Tools, Games, Applications, and Unfiled. When you install a Java application, it will end up in one of these four category folders based on the nature of that application. However, you have a choice to move applications around to different folders then ones they were installed in. Follow the below procedure to move an application to different folder.1. Open Java Manager.2. Locate the application you wish to move by tapping on the folder inside which it resides.3. Tap on the application name to highlight it.4. Tap MenuMenuMenuMenu on the command bar to bring up the menu.5. Tap Change CategoryChange CategoryChange CategoryChange Category on the menu.6. The screen will change to show the folder list, tap on the folder name which will become the application’s new home.7. The screen return to the application’s old folder. You will notice the application no longer reside there.8. Tap Back on the command bar to go back to the main folder screen.9. Tap the folder name of the application’s new home to check that it has indeed been moved there.To launch Java Manager, tap Start Start Start Start > Programs Programs Programs Programs > Java ManagerJava ManagerJava ManagerJava Manager.

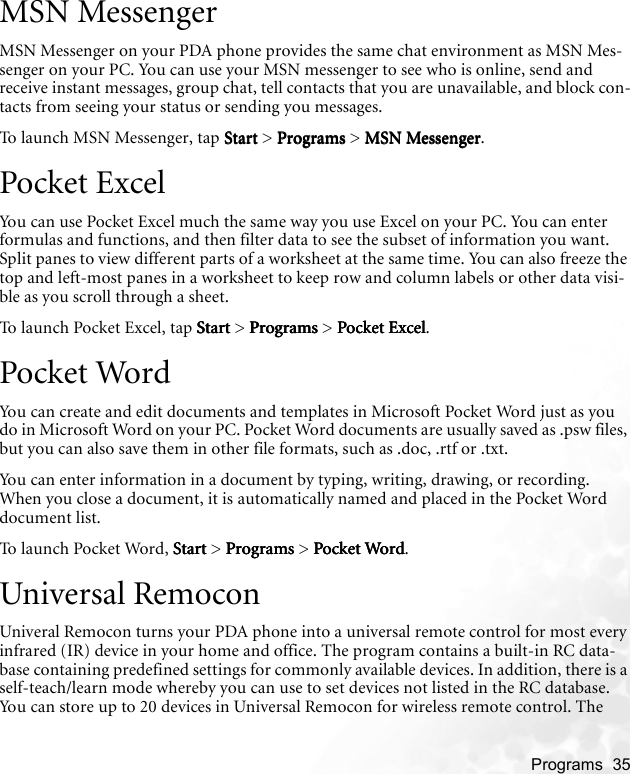

Programs 35MSN MessengerMSN Messenger on your PDA phone provides the same chat environment as MSN Mes-senger on your PC. You can use your MSN messenger to see who is online, send and receive instant messages, group chat, tell contacts that you are unavailable, and block con-tacts from seeing your status or sending you messages.To launch MSN Messenger, tap Start Start Start Start > Programs Programs Programs Programs > MSN MessengerMSN MessengerMSN MessengerMSN Messenger.Pocket ExcelYou can use Pocket Excel much the same way you use Excel on your PC. You can enter formulas and functions, and then filter data to see the subset of information you want. Split panes to view different parts of a worksheet at the same time. You can also freeze the top and left-most panes in a worksheet to keep row and column labels or other data visi-ble as you scroll through a sheet.To launch Pocket Excel, tap StartStartStartStart > Programs Programs Programs Programs > Pocket ExcelPocket ExcelPocket ExcelPocket Excel.Pocket WordYou can create and edit documents and templates in Microsoft Pocket Word just as you do in Microsoft Word on your PC. Pocket Word documents are usually saved as .psw files, but you can also save them in other file formats, such as .doc, .rtf or .txt.You can enter information in a document by typing, writing, drawing, or recording. When you close a document, it is automatically named and placed in the Pocket Word document list.To launch Pocket Word, StartStartStartStart > ProgramsProgramsProgramsPrograms > Pocket WordPocket WordPocket WordPocket Word.Universal RemoconUniveral Remocon turns your PDA phone into a universal remote control for most every infrared (IR) device in your home and office. The program contains a built-in RC data-base containing predefined settings for commonly available devices. In addition, there is a self-teach/learn mode whereby you can use to set devices not listed in the RC database. You can store up to 20 devices in Universal Remocon for wireless remote control. The
36 Programs devices are of the following 8 profiles: TV, DVD, VCR, AIRCON, CD, AUDIO, LD/VCD, and OTHER.To launch Universal Remocon, StartStartStartStart > ProgramsProgramsProgramsPrograms > Universal RemoconUniversal RemoconUniversal RemoconUniversal Remocon.SIM PhonebookSIM Phonebook displays the phone book stored on your SIM card. The data in SIM phone book are separate from the data in Contacts (which also contains a phone book). The data in Contacts are stored in your PDA phone’s ROM memory area whereas the data in SIM Phonebook are stored in the SIM card. You can copy data from SIM Phonebook to Contacts by checking off the items in display and select ‘Copy’. Then tap ‘Contacts’ to see what data are in Contacts. Also, you can copy data from Contacts to SIM Phonebook by checking off the items in display and select ‘Copy’. Then tap ‘SIM Phonebook’ to see what data are in SIM Phonebook.To launch SIM Phonebook, tap StartStartStartStart > Programs Programs Programs Programs > SIM Phonebook SIM Phonebook SIM Phonebook SIM Phonebook.SIM MessageSIM Message displays the SMS messages stored on your SIM card. The messages in SIM Message are separate from the messages in Messaging’s SMS Inbox. The messages in Messaging are stored in your PDA phone’s ROM memory area whereas the messages in SIM Message are stored in the SIM card. You can copy data from SIM Message to Messaging by checking off the items in display and select ‘Copy’. Tap ‘INBOX SMS’ to see what messages are in Messaging. To launch SIM Message, tap StartStartStartStart > Programs Programs Programs Programs > SIM Message SIM Message SIM Message SIM Message.SIM Tool KitSTK (or SIM Tool Kit) allows you to use the STK services provided by your carrier as part of your subscription.To launch STK, tap StartStartStartStart > Programs Programs Programs Programs > SIM Tool Kit SIM Tool Kit SIM Tool Kit SIM Tool Kit.

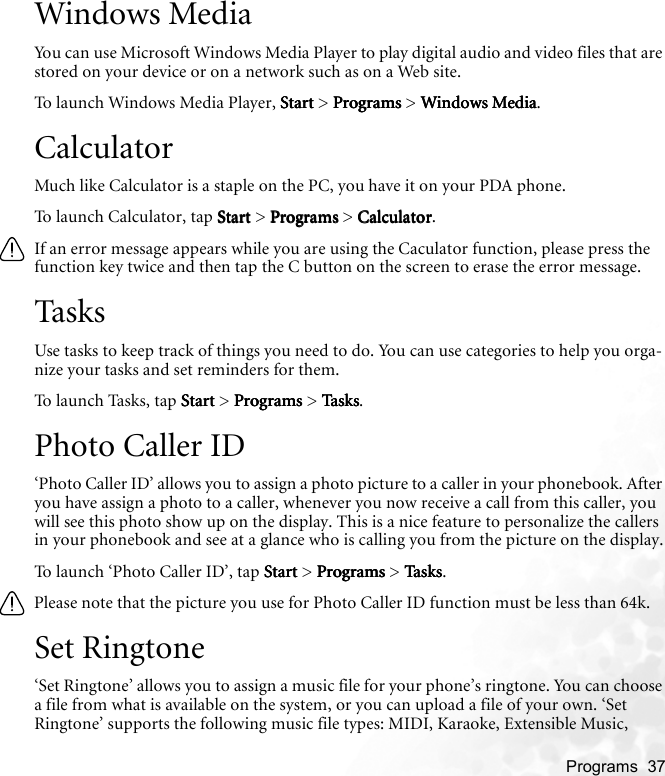

Programs 37Windows MediaYou can use Microsoft Windows Media Player to play digital audio and video files that are stored on your device or on a network such as on a Web site.To launch Windows Media Player, StartStartStartStart > ProgramsProgramsProgramsPrograms > Windows MediaWindows MediaWindows MediaWindows Media.CalculatorMuch like Calculator is a staple on the PC, you have it on your PDA phone.To launch Calculator, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > CalculatorCalculatorCalculatorCalculator.If an error message appears while you are using the Caculator function, please press the function key twice and then tap the C button on the screen to erase the error message.TasksUse tasks to keep track of things you need to do. You can use categories to help you orga-nize your tasks and set reminders for them.To launch Tasks, tap StartStartStartStart > Programs Programs Programs Programs > TasksTask sTask sTasks.Photo Caller ID‘Photo Caller ID’ allows you to assign a photo picture to a caller in your phonebook. After you have assign a photo to a caller, whenever you now receive a call from this caller, you will see this photo show up on the display. This is a nice feature to personalize the callers in your phonebook and see at a glance who is calling you from the picture on the display.To launch ‘Photo Caller ID’, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > TasksTa s ksTa s k sTasks.Please note that the picture you use for Photo Caller ID function must be less than 64k.Set Ringtone‘Set Ringtone’ allows you to assign a music file for your phone’s ringtone. You can choose a file from what is available on the system, or you can upload a file of your own. ‘Set Ringtone’ supports the following music file types: MIDI, Karaoke, Extensible Music,
38 Programs SMAF, Sound, and MP3. When you assign a music file as a ringtone, your PDA phone will copy the file to the following directiry: Windows/Rings. If the free memory left in your PDA phone is less than 5 MB, a warning message appears and you are not able to set the ringtone. To set the ringtone, delete the undesired files in the Rings folder.To launch ‘Set Ringtone’, tap StartStartStartStart > Programs Programs Programs Programs > Set Ringtone Set Ringtone Set Ringtone Set Ringtone.NotesNotes helps you quickly capture your ideas, notes, and thoughts. You can create a note using written and typed text, drawings, and recordings. You can also share your notes with others through e-mail, infrared, and synchronization with your PC.To launch Tasks, tap StartStartStartStart > ProgramProgramProgramProgram > NotesNotesNotesNotes.FindUse Find to find a file or item in your PDA phone. Enter the name of the file or item and select its data type and tap ‘Go’. The matched results will be listed on the screen.To launch Find, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > FindFindFindFind.PicturesUse Pictures to view JPEG pictures stored on your PDA phone or on a storage card, send pictures to others, view a slideshow of your pictures, or set a picture as the background on the Today screen.To launch Tasks, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > PicturesPicturesPicturesPictures.Speech CommanderSpeech Commander allows you to control your PDA phone by voice. You can use voice to make a phone call, look up contact person’s information or start a program.To launch Tasks, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > Speech CommanderSpeech CommanderSpeech CommanderSpeech Commander.

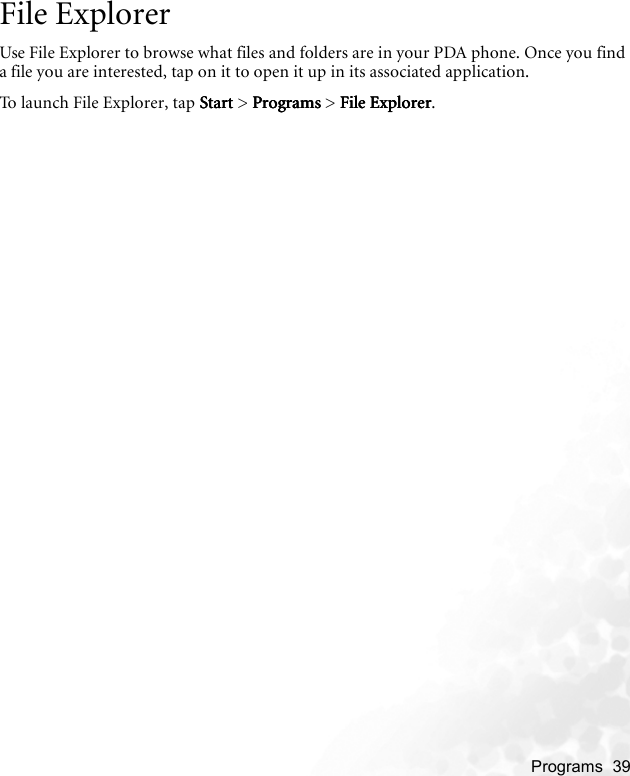

Programs 39File ExplorerUse File Explorer to browse what files and folders are in your PDA phone. Once you find a file you are interested, tap on it to open it up in its associated application.To launch File Explorer, tap StartStartStartStart > ProgramsProgramsProgramsPrograms > File ExplorerFile ExplorerFile ExplorerFile Explorer.

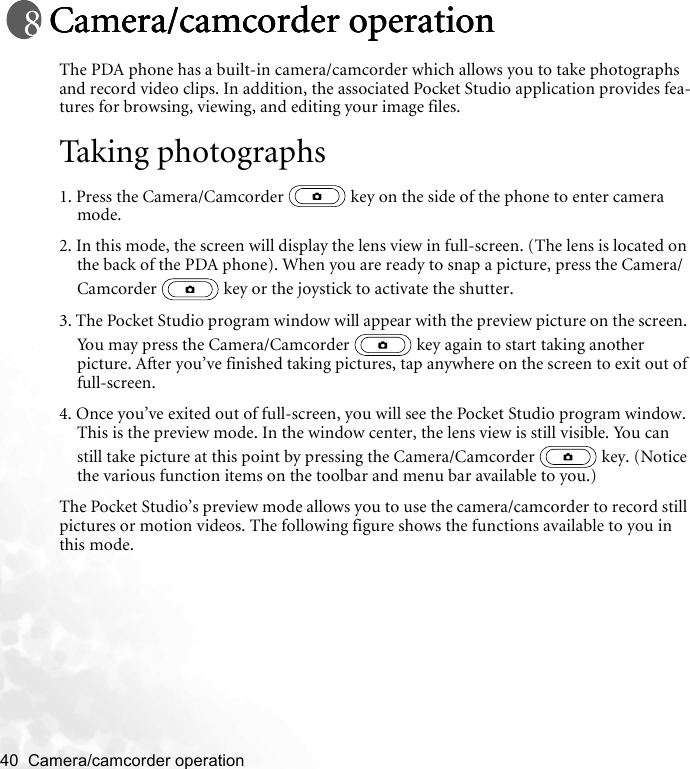

40 Camera/camcorder operation Camera/camcorder operationCamera/camcorder operationCamera/camcorder operationCamera/camcorder operationThe PDA phone has a built-in camera/camcorder which allows you to take photographs and record video clips. In addition, the associated Pocket Studio application provides fea-tures for browsing, viewing, and editing your image files.Taking photographs1. Press the Camera/Camcorder key on the side of the phone to enter camera mode.2. In this mode, the screen will display the lens view in full-screen. (The lens is located on the back of the PDA phone). When you are ready to snap a picture, press the Camera/Camcorder key or the joystick to activate the shutter.3. The Pocket Studio program window will appear with the preview picture on the screen. You may press the Camera/Camcorder key again to start taking another picture. After you’ve finished taking pictures, tap anywhere on the screen to exit out of full-screen.4. Once you’ve exited out of full-screen, you will see the Pocket Studio program window. This is the preview mode. In the window center, the lens view is still visible. You can still take picture at this point by pressing the Camera/Camcorder key. (Notice the various function items on the toolbar and menu bar available to you.)The Pocket Studio’s preview mode allows you to use the camera/camcorder to record still pictures or motion videos. The following figure shows the functions available to you in this mode.

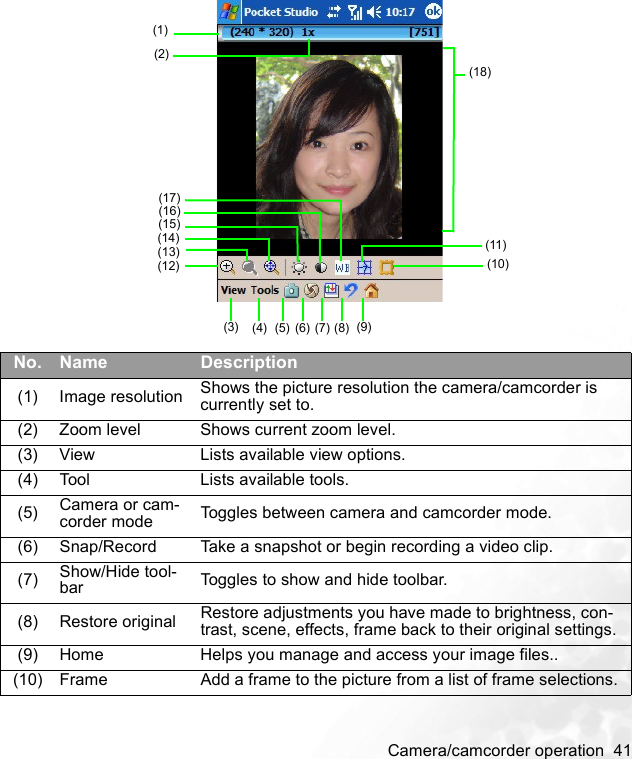

Camera/camcorder operation 41No. Name Description(1) Image resolution Shows the picture resolution the camera/camcorder is currently set to.(2) Zoom level Shows current zoom level.(3) View Lists available view options.(4) Tool Lists available tools.(5) Camera or cam-corder mode Toggles between camera and camcorder mode.(6) Snap/Record Take a snapshot or begin recording a video clip.(7) Show/Hide tool-bar Toggles to show and hide toolbar.(8) Restore original Restore adjustments you have made to brightness, con-trast, scene, effects, frame back to their original settings.(9) Home Helps you manage and access your image files..(10) Frame Add a frame to the picture from a list of frame selections.(1)(2)(18)(17)(16)(15)(14)(13)(12)(3) (4) (5) (6) (7) (8) (9)(11)(10)

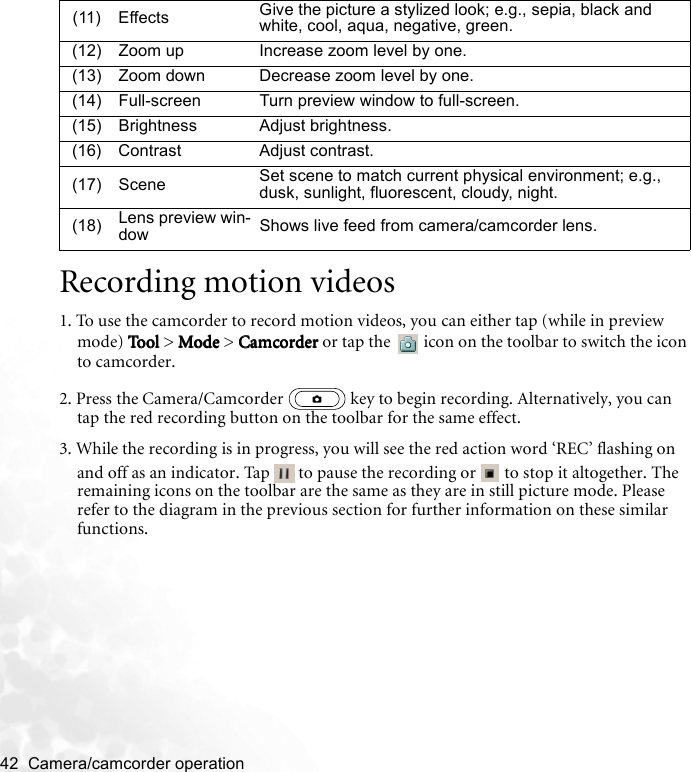

42 Camera/camcorder operation Recording motion videos1. To use the camcorder to record motion videos, you can either tap (while in preview mode) ToolToolTo olTool > Mo deModeModeMode > CamcorderCamcorderCamcorderCamcorder or tap the icon on the toolbar to switch the icon to camcorder.2. Press the Camera/Camcorder key to begin recording. Alternatively, you can tap the red recording button on the toolbar for the same effect.3. While the recording is in progress, you will see the red action word ‘REC’ flashing on and off as an indicator. Tap to pause the recording or to stop it altogether. The remaining icons on the toolbar are the same as they are in still picture mode. Please refer to the diagram in the previous section for further information on these similar functions.(11) Effects Give the picture a stylized look; e.g., sepia, black and white, cool, aqua, negative, green.(12) Zoom up Increase zoom level by one.(13) Zoom down Decrease zoom level by one.(14) Full-screen Turn preview window to full-screen.(15) Brightness Adjust brightness.(16) Contrast Adjust contrast.(17) Scene Set scene to match current physical environment; e.g., dusk, sunlight, fluorescent, cloudy, night.(18) Lens preview win-dow Shows live feed from camera/camcorder lens.

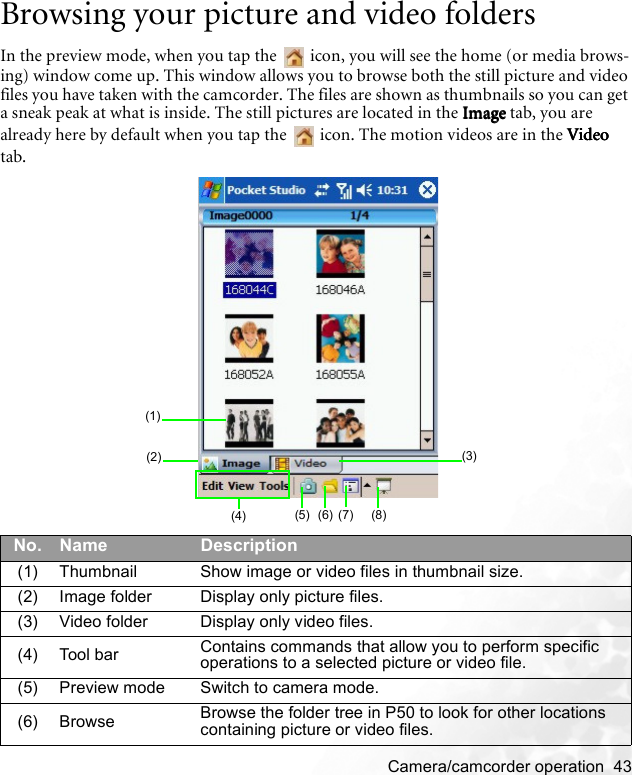

Camera/camcorder operation 43Browsing your picture and video foldersIn the preview mode, when you tap the icon, you will see the home (or media brows-ing) window come up. This window allows you to browse both the still picture and video files you have taken with the camcorder. The files are shown as thumbnails so you can get a sneak peak at what is inside. The still pictures are located in the ImageImageImageImage tab, you are already here by default when you tap the icon. The motion videos are in the VideoVideoVideoVideo tab.No. Name Description(1) Thumbnail Show image or video files in thumbnail size.(2) Image folder Display only picture files.(3) Video folder Display only video files.(4) Tool bar Contains commands that allow you to perform specific operations to a selected picture or video file.(5) Preview mode Switch to camera mode.(6) Browse Browse the folder tree in P50 to look for other locations containing picture or video files.(1)(2) (3)(5) (6) (7) (8)(4)
44 Camera/camcorder operation In addition to the function icons located on the toolbar, you can tap and hold on a selectimage or video thumbnail file and bring up a pop menu that allows you to perform variousoperations to the image or video.Viewing your pictures and videosWhen you are in the browse window browsing the Image or Video folder, you can tap on a thumbnail to open it up for viewing. In the case that the thumbnail is a motion video, it will begin playing the video clip. The toolbar functions in the view window are described in the following table.(7) View Display thumbnails as large, small, detailed icons.(8) Slideshow Play a slideshow of all pictures (if you are in the image folder) or all videos (if in video folder).No. Name Description(1) Zoom in Increase zoom level.(2) Zoom out Decrease zoom level.(3) ScrollWhen you zoom a picture to a size larger than the screen itself, this function allows you to scroll around the zoomed-in picture to view different portions of it.(2)(3)(4)(5)(6)(7)(8)(1)

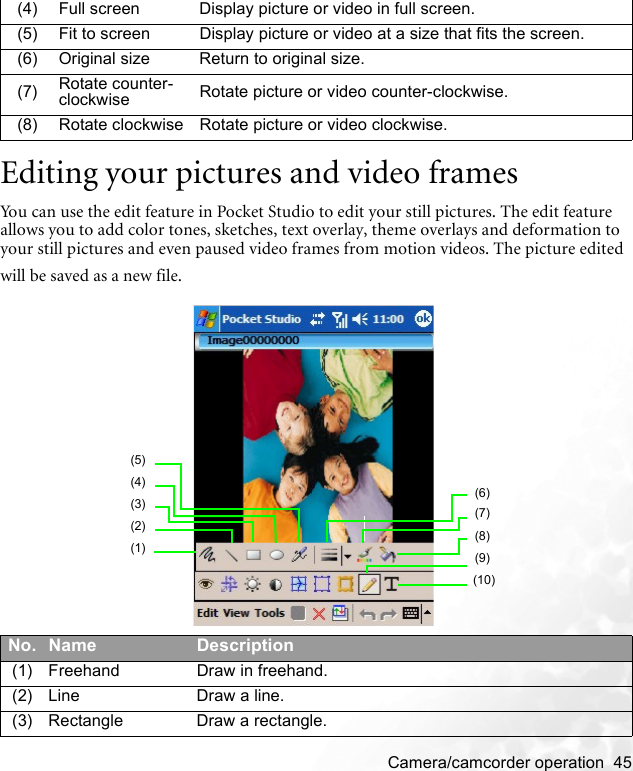

Camera/camcorder operation 45Editing your pictures and video framesYou can use the edit feature in Pocket Studio to edit your still pictures. The edit feature allows you to add color tones, sketches, text overlay, theme overlays and deformation to your still pictures and even paused video frames from motion videos. The picture edited will be saved as a new file.(4) Full screen Display picture or video in full screen.(5) Fit to screen Display picture or video at a size that fits the screen.(6) Original size Return to original size.(7) Rotate counter-clockwise Rotate picture or video counter-clockwise.(8) Rotate clockwise Rotate picture or video clockwise.No. Name Description(1) Freehand Draw in freehand.(2) Line Draw a line.(3) Rectangle Draw a rectangle.(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)
46 Camera/camcorder operation Settings menuThe settings menu for Preview and file browser are different. Under Preview mode, tap ToolToolToolTool > SettingsSettingsSettingsSettings to open up the settings window. The settings window allows you change the settings for these categories: GeneralGeneralGeneralGeneral, CameraCameraCameraCamera and CamcorderCamcorderCamcorderCamcorder. Under file browser mode, tap ToolToolTo olTool > SettingsSettingsSettingsSettings to open up the settings window. The settings window allows you change the settings for these categories: GeneralGeneralGeneralGeneral, Player Player Player Player and Slideshow Slideshow Slideshow Slideshow.Under CameraCameraCameraCamera, you can change the image quality of the picture you take by adjusting the value for ImageImageImageImage ResolutionResolutionResolutionResolution and ImageImageImageImage QualityQualityQualityQuality. The default value for Image Resolution is 320 x 240 (QVGA) or 76.8K pixels. You can set this value to its maximum which is 1280 x 960 (SXGA) or 1.2M pixels. The Image Quality can be set to either Low, Normal, or High.Under CamcorderCamcorderCamcorderCamcorder, you can change the video quality by adjusting Video Resolution and Video Quality. The default value for Video Resolution is 320 x 240 (QVGA). This is the maximum value for this setting, the alternative value is 176 x 144 (QCIF).The Video Quality can be set to either Low, Normal, or High.Keep in mind that the higher the image or video quality you set, the more memory space theimage or video file will take up.If available memory space becomes an issue, this is a tradeoff you need to consider.Under SlideshowSlideshowSlideshowSlideshow, you can change the value for transition typetransition typetransition typetransition type which determines how the pictures or videos in the slideshow move from one to the next. This is a special effect that is part of slideshow to make playback interesting. Play around with different values in this setting and see which one you like best.(4) Ellipse Draw an ellipse.(5) Airbrush Draw with an airbrush.(6) Pen/Brush size Adjust the pen/brush size.(7) Line color. Change the pen/line color.(8) Fill colorChange the background color. This is useful when drawing a rectangle or circle. The foreground color is the pen/line color and the background color is the fill color.(9) Pencil/Brush Display the pencil/brush toolbar in order to use the draw functions.(10) Text overlay Type text into a textbox in the picture.
