User manual

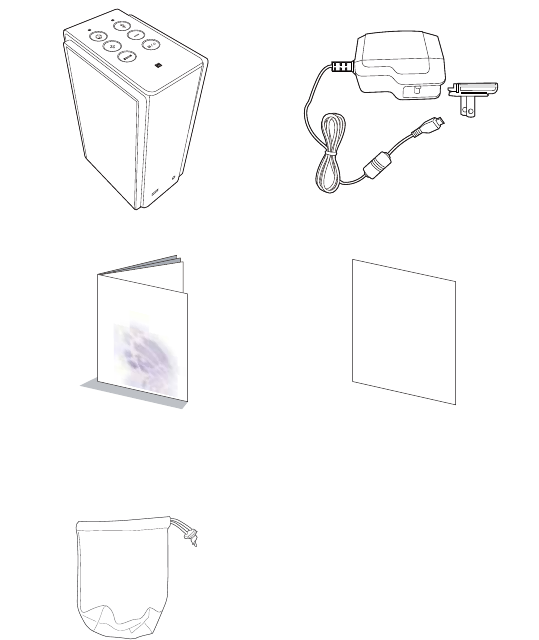

Package content
Speaker x1 Power adapter x1
Quick start guide
x1
Warranty card
x1
(Supply varies from regions.)
Pouch x 1
Warranty Card
Buttons & connectors
Pairing and connecting Bluetooth® devices
A
B
C
D
E
F
GH I
J
K
1.
3. 4.
2.
Buttons & connectors
Pairing and connecting Bluetooth® devices
Recommendations
• Download the app “BenQ Audio” to your Android™ or iOS devices from
respective application stores to indulge in the best music playing experience.
• To flexibly tune in with the speaker everywhere for optimal acoustics, have it
charged beforehand and put it in an open space.
• The LED indicator of power button is lit in green with 81% or more of remaining
power, in yellow with 80%~31% of power, and in red with 30% or less of power.
• The LED indicator of power button also indicates non-distorted 3D sound of
“on” in green and of “off” in red. The LED indicator of power button mentioned
above all flash for about 5 seconds.
• The input priority of sound is USB > line-in > Bluetooth®.
A. Play/Pause E. LED indicator for
Power
I. NFC
B. Volume down F. Power J. Micro USB port
(charger-in jack)
C. Bluetooth®G. Volume up K. Line-in jack
D. LED indicator for
Bluetooth®
H. Sound mode
1. Have the power adaptor plugged in. Press and hold the power button for
2.5 seconds.
2. Press and hold the Bluetooth® button for 2.5 seconds to make the speaker
discoverable. The LED indicator for Bluetooth® will blink in blue.
3. Turn on Bluetooth® of your device to discover and pair with “treVolo S”.
4. Flip out both speaker panes and enjoy your music.
•NFC-enabled devices can wake up treVolo S, and treVolo S can automatically connect to Blue-
tooth® of the devices when they are close to each other.
•treVolo S can paired with another treVolo S to perform duo mode. See more infomation on the
user manual.
English
• On details of treVolo S or other products by BenQ, check out BenQ’s official
website at www.BenQ.com for further information.
Music playing variations
Specification
Connecting to your devices
using a cable.
Performance Other information
Frequency
response
80 Hz ~ 20,000 kHz I/O port Micro USB x1,
Line-in x1
Play time 18 hours (depends on
user scenarios)
Input power
rating
DC 5V 2A
Connection Operating
temperature
0 ~ 40°C
Bluetooth®Bluetooth® 4.1 (with
aptX) Storage
temperature
-10 ~ 50°C
You will hear a warning
sound if the temperature
exceeds 60°C.
Input 3.5 mm stereo input,
USB audio
Dimension 63.2 x 96.3 x 157.5 mm
(closed)
Physical Weight 1 kg (battery included)
Button
definition
Power, Volume up, Vol-
ume down, Sound
mode, Play/Pause, BT
pairing
LED indicator
(Power)
Red / Green LED x 1
LED indicator
(Bluetooth®)
Blue LED x 1
LINE IN
or
treVolo_4J.H0K01.004_Speaker QSG.book Page 4 Friday, February 19, 2016 4:25 PM
2
General Safety Information
When setting up or operating your device, please pay special attention to the fol-
lowing:
•Make sure you follow all instructions and warnings related to the system.
•Do not store your device in environments where the temperature is below -10°C
or above 50°C, nor use your device in environments where the temperature is
below 0°C or above 40°C. Otherwise system performance will be adversely
affected.
•Do not expose your device to rain or excess humidity, and keep it away from
liquids (such as beverages, faucets, and so on).
•Avoid exposing your device to direct sunlight, or intense light source, and keep it
away from sources of heat (such as radiators, space heaters, stoves, and so on).
•Do not expose your device to heavy impacts or strong vibrations.
•Do not use your device near a gas leak.
•Do not use your device near water, for example, near a bathtub, wash bowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
•Do not place the device in the vicinity of strong magnetic fields.
•Use the supplied adapter to charge your device, and make sure no heavy objects
are placed on the adapter.
•Keep the device accessories away from children.
•Please DO NOT put anything upon the device while using it or leaving it alone.
•Beware of being suffered from the pinch while flipping speaker panes.
Safety information about the battery
The incorrect use of battery may cause leak of chemicals or explosion. Caution:
The leak of chemicals may harm the skin and erode the metal contacts. If any chem-
icals leaks from the device, please use the dry cloth to wipe it clean and contact
your BenQ dealer or service center for battery replacement.
Safety information about power adapter
•Use only the power adapter supplied with device. Use of another type of power
adapter will result in malfunction and/or danger.
English
•Please use the proper electric outlet and make sure no heavy objects are placed on
the power adapter or power cord.
•Allow adequate ventilation around the adapter when using it to operate the device
or charge the battery. Do not cover the power adapter with paper or other
objects that will reduce cooling. Do not use the power adapter while it is inside a
carrying case.
•Do not use the adapter in a high moisture environment. Never touch the adapter
when your hands are wet.
•Connect the adapter to a proper power source. The voltage requirements are
found on the product case and/or packaging.
•Do not use the adapter if it becomes damaged.
•Do not attempt to service the adapter. There are no service parts inside. Replace
the unit if it is damaged or exposed to excess moisture.Consult your BenQ dealer
or service center for help and maintenance.
•The adapter stops charging and the LED indicator of power button is lit in red
when the temperature reaches 40°C.
Caution
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batter-
ies according to the instructions.
Do not carry the speaker around by holding one of the panes as the speaker may
be damaged.
Regulatory Statements
FCC Statement
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
IC statement (for Canadian users)
This Class B digital apparatus complies with Canadian ICES-3 (B).
Cet appareil numérique de la classe A est conforme à la norme NMB-3(B) du Can-
ada.
The device complies with RSS-210 of the Industry Canada Rules. Operation is sub-
ject to the following two conditions (If the product within RF function):
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause
undesired operation of the device.
Not all models are available in all regions. If certain safety regulations are required for specific region,
BenQ ensures that products available in that region are complied with the requested regulations.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB‐003Canada.
Pourréduirelerisqued’interférenceauxautresutilisateurs,letyped’antenneetson
gaindoiventêtrechoisiesdefaçonquelapuissanceisotroperayonnéeéquiva‐lente
(PIRE)nedépassepascequiestnécessairepourunecommunicationréussie.
CetappareilestconformeàlanormeRSSIndustrieCanadaexemptsde
licencenorme(s).Sonfonctionnementestsoumisauxdeuxconditionssuivantes:1.
Cetappareilnepeutpasprovoquerd’interférenceset2.Cetappareildoitaccepter
touteinterférence,ycomprislesinterférencesquipeuventcauserunmauvais
fonctionnementdudispositif.
Informationtouser
Notice:
Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidyourauthoritytooperatetheequipment.
Aucunemodificationapportéeàl’appareilparl’utilisateur,quellequ’ensoitlanature.
Toutchangementoumodificationpeuventannulerledroitd’utilisationdel’appareil
parl’utilisateur.
Labelling requirements
Notice:
This device complies with Part 15 of the FCC Rules and Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
RF Radiation Exposure Statement:
1. This Transmitter must not be colocated or operating in conjunction with any
other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20 centimeters between the radiator and your body.
1. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre
antenne ou autre émetteur.
2. Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC
pour un environnement non contrôlé. L'antenne doit être installé de façon à
garder une distance minimale de 20 centimètres entre la source de rayonne-
ments et votre corps.
This device complies with the Canada portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in this
manual. The further RF exposure reduction can be achieved if the product can be
kept as far as possible from the user body or set the device to lower output power
if such function is available.
Déclaration d'exposition aux radiationsCet appareil est conforme aux limites
d'exposition aux radiofréquences portables établies au Canada pour un environ-
nement non contrôlé et ne présente pas de risque dans le cadre d’une utilisation
conforme à celle décrite dans ce manuel. Une réduction accrue de l’exposition aux
radiofréquences peut être obtenue en tenant l’appareil aussi éloigné que possible
du corps humain ou en réglant l’appareil sur une puissante inférieure si cette fonc-
tion est disponible.
CE DoC
DECLARATION OF CONFORMITY
This device complies with the requirements set out in the Council Directives on
the Approximation of the Laws of the Member States relating Electromagnetic
Compatibility (2004/108/EC), Low Voltage Directive (2006/95/EC), Radio and Tele-
communications Terminal Equipment Directive (1999/5/EC), the Restriction of The
Use of Certain Hazardous Substances in Electrical And Electronic Equipment
Directive (2011/65/EU), Turkish EEE and ErP Directive, Commission Regulation
(EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parlia-
ment and of the Council with regard to ecodesign requirements for standby and off
mode electric power consumption of electrical and electronic household and office
equipment, and the Directive 2009/125/EC of the European parliament and of the
council establishing a framework for the setting of ecodesign requirements for
energy-related products.
Complies with
IDA Standards
DB101054
WEEE
Battery
Disposal of Waste Electrical and Electronic
Equipment and/or Battery by users in
private households in the European Union
This symbol on the product or on the packaging indicates that
this can not be disposed of as household waste. You must dis-
pose of your waste equipment and/or battery by handling it over
to the applicable take-back scheme for the recycling of electrical
and electronic equipment and/or battery. For more information
about recycling of this equipment and/or battery, please contact
your city office, the shop where you purchased the equipment
or your household waste disposal service. The recycling of
materials will help to conserve natural resources and ensure that
it is recycled in a manner that protects human health and envi-
ronment.
Recycling information: See http://www.benq.com/support/recy-
cle for details.
WEEE
