Benq AWL300 Wireless LAN USB Adapter User Manual 7

Benq Corporation Wireless LAN USB Adapter 7

Contents

Manual

Benq Wireless LAN USB Adapter
AWL300
User Manual
Version 1.0 – 2002
Benq Wireless LAN
AWL300 USB Adapter User Manual i
Contents
Contents ..........................................................................................................................i
1. Installation..................................................................................................................1
1.1 Driver Installation....................................................................................1
1.2 Application Installation............................................................................3
1.3 Application & USB Driver Installation...................................................7
2. Uninstallation...........................................................................................................13
3. Configuration & Monitor Utility .............................................................................16
3.1 Monitor...................................................................................................16
3.2 Statistics .................................................................................................18
3.3 Site Survey.............................................................................................19
3.4 Encryption..............................................................................................20
3.5 Advanced ...............................................................................................21
3.6 Version...................................................................................................22
Benq Wireless LAN
AWL300 USB Adapter User Manual
1

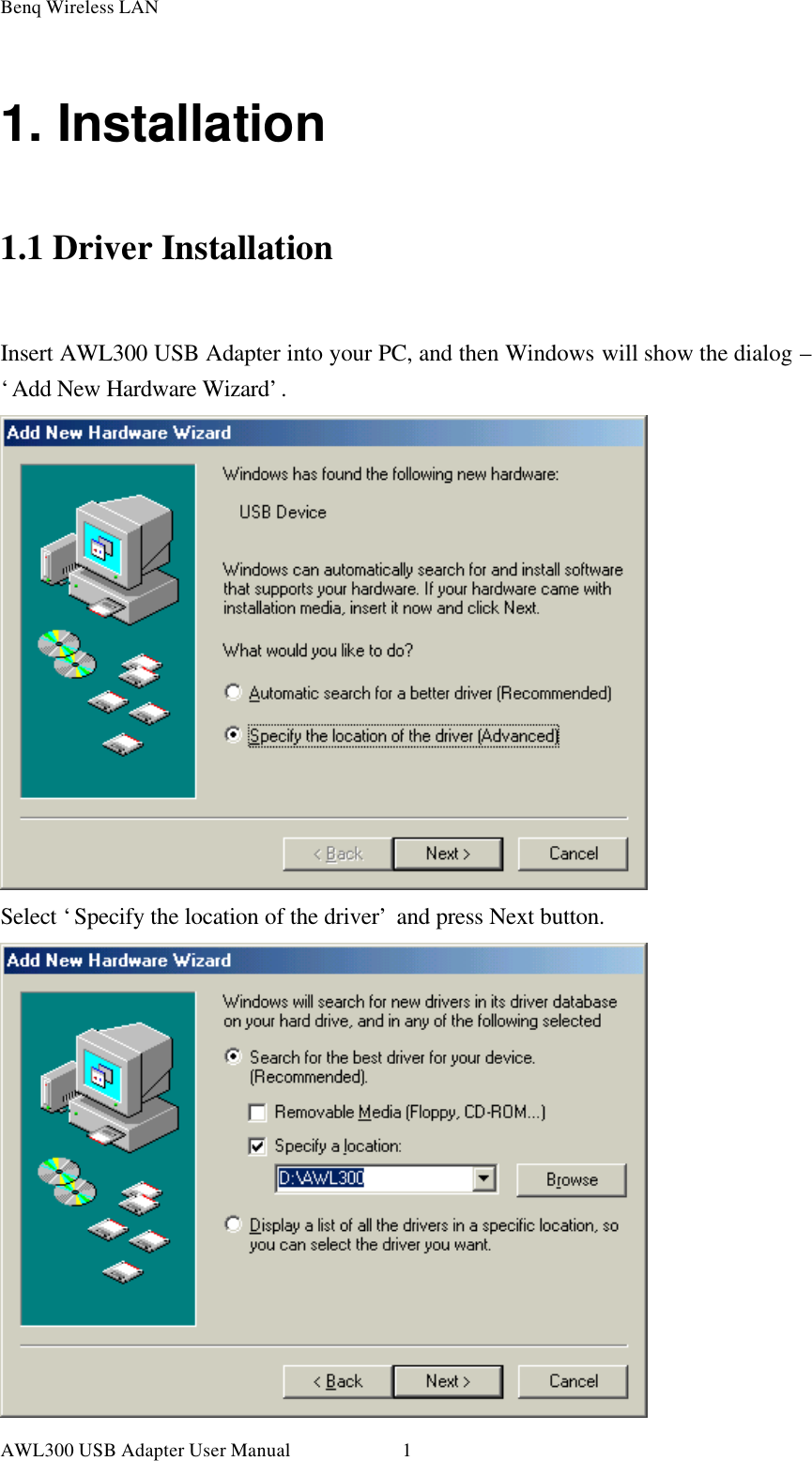

1. Installation
1.1 Driver Installation
Insert AWL300 USB Adapter into your PC, and then Windows will show the dialog –
‘Add New Hardware Wizard’.
Select ‘Specify the location of the driver’ and press Next button.
Benq Wireless LAN
AWL300 USB Adapter User Manual
2

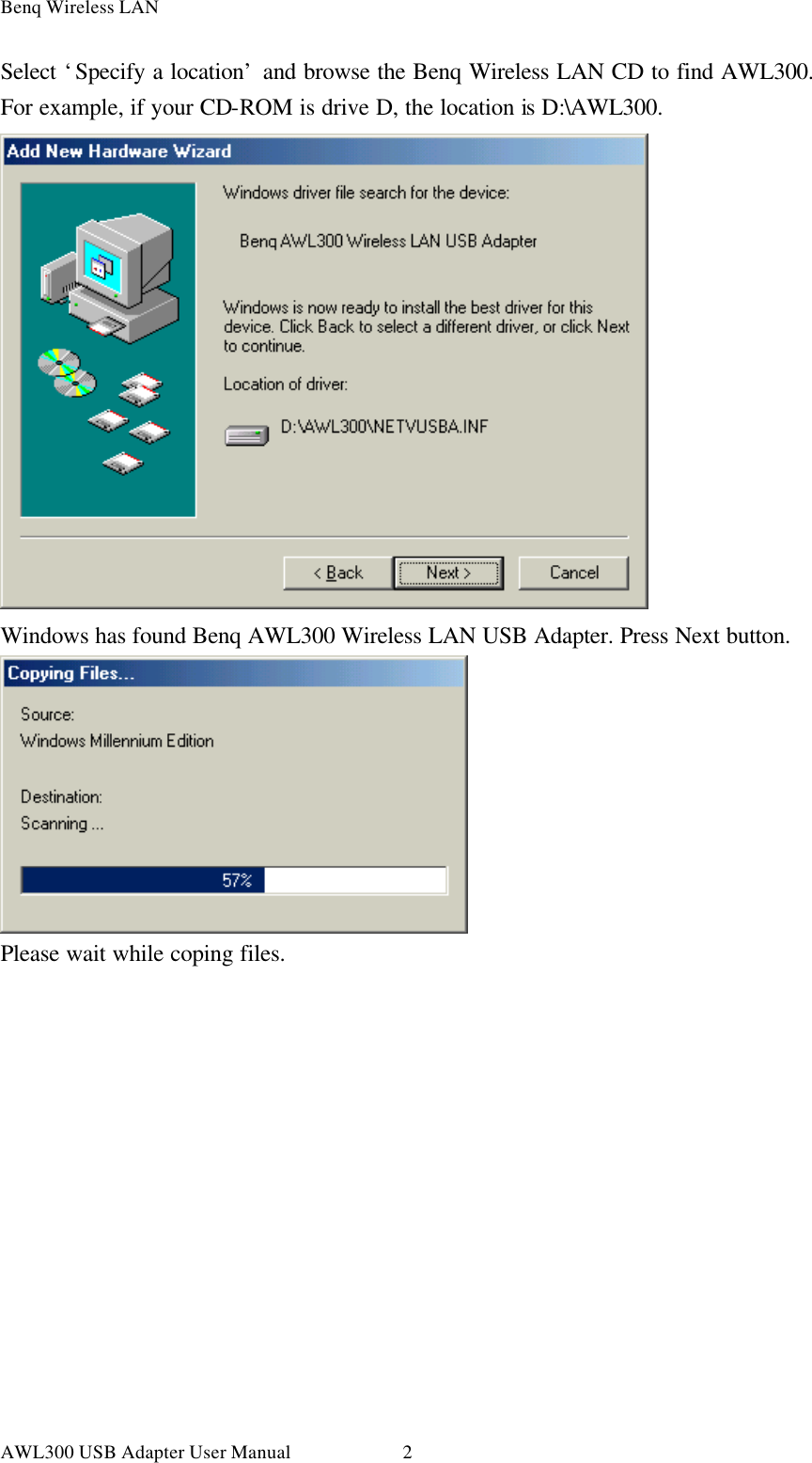

Select ‘Specify a location’ and browse the Benq Wireless LAN CD to find AWL300.
For example, if your CD-ROM is drive D, the location is D:\AWL300.

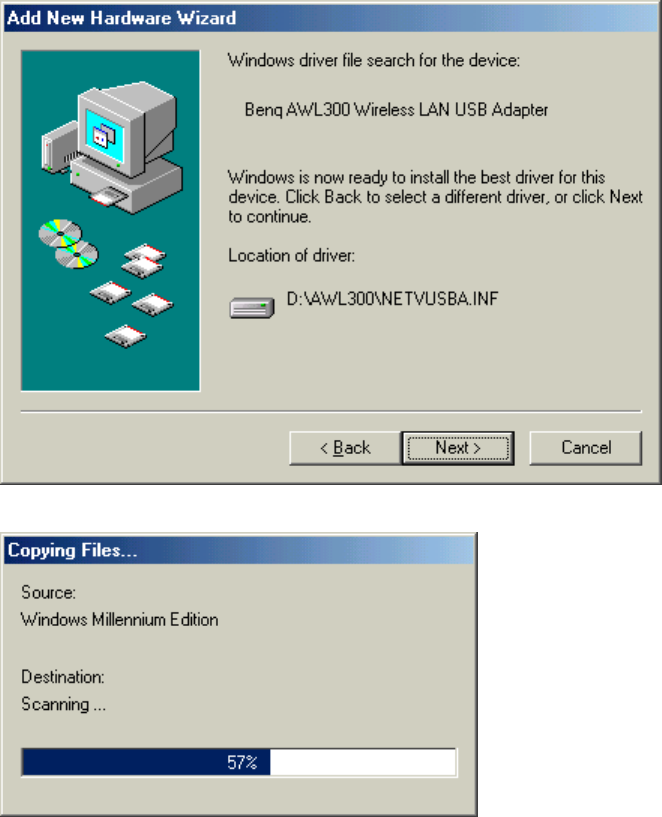

Windows has found Benq AWL300 Wireless LAN USB Adapter. Press Next button.
Please wait while coping files.
Benq Wireless LAN
AWL300 USB Adapter User Manual
3

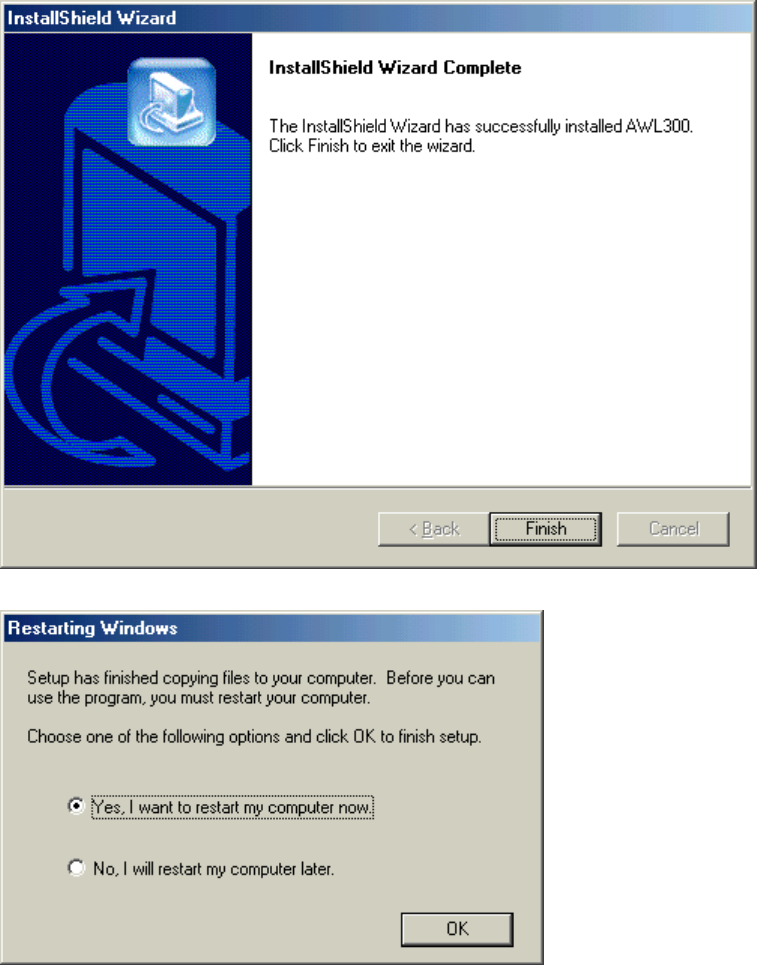

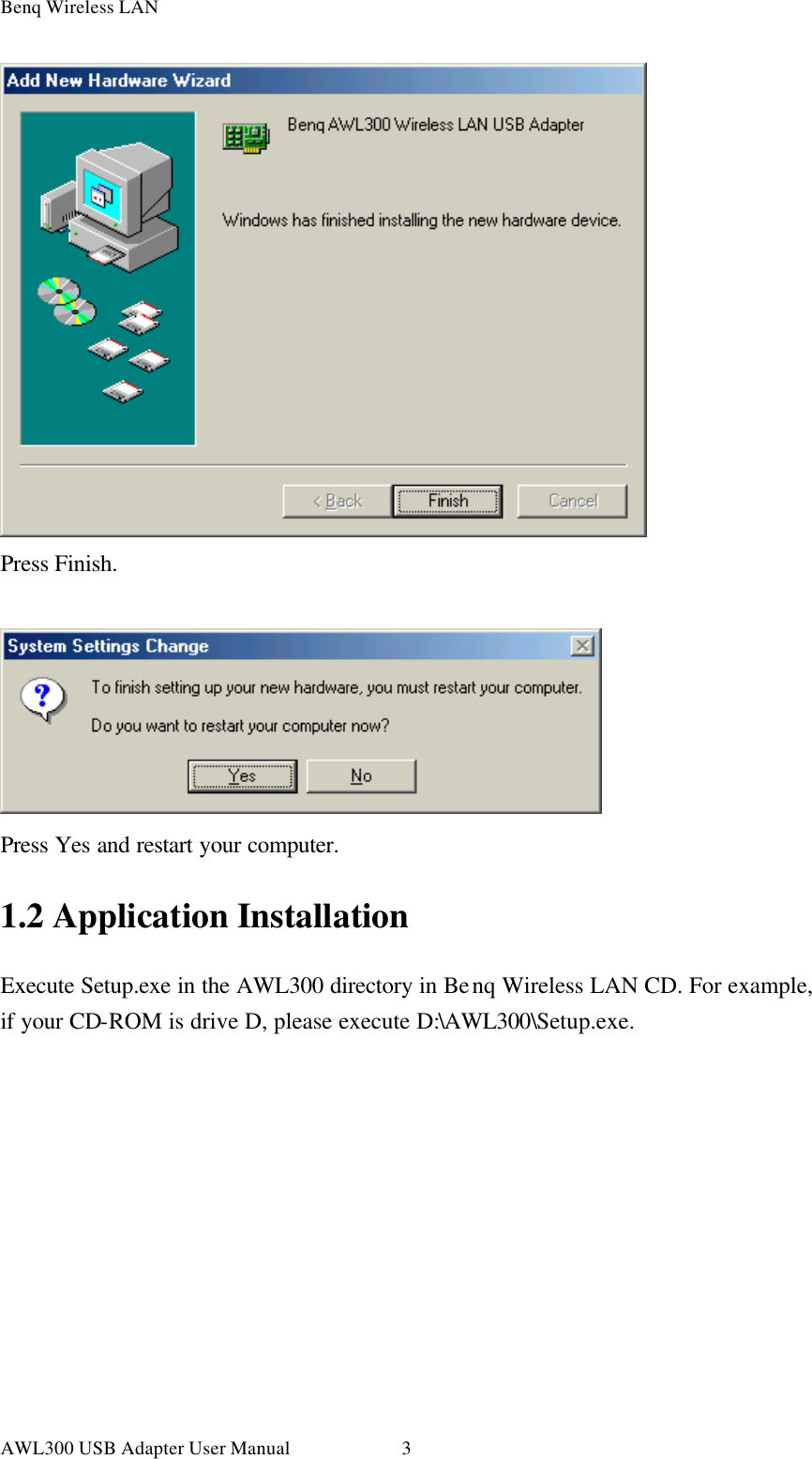

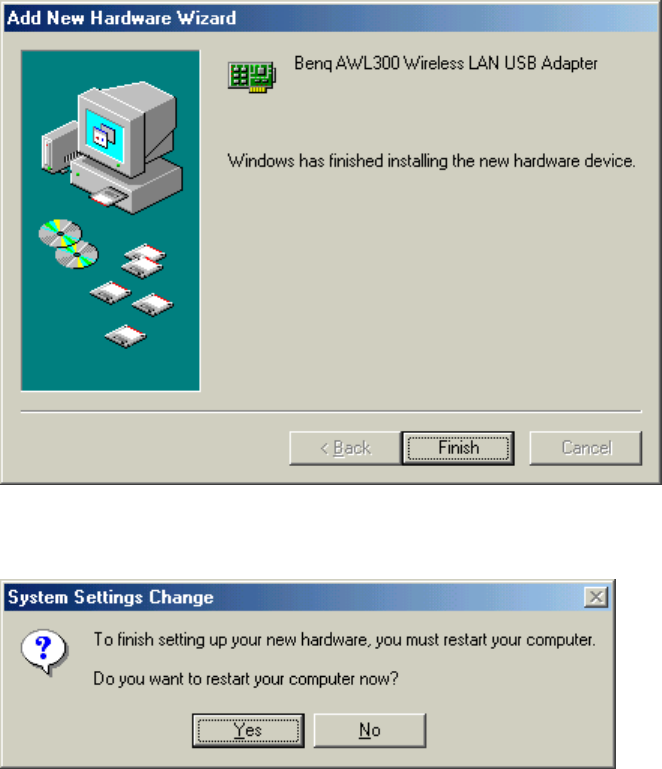

Press Finish.
Press Yes and restart your computer.
1.2 Application Installation
Execute Setup.exe in the AWL300 directory in Benq Wireless LAN CD. For example,
if your CD-ROM is drive D, please execute D:\AWL300\Setup.exe.
Benq Wireless LAN
AWL300 USB Adapter User Manual
4

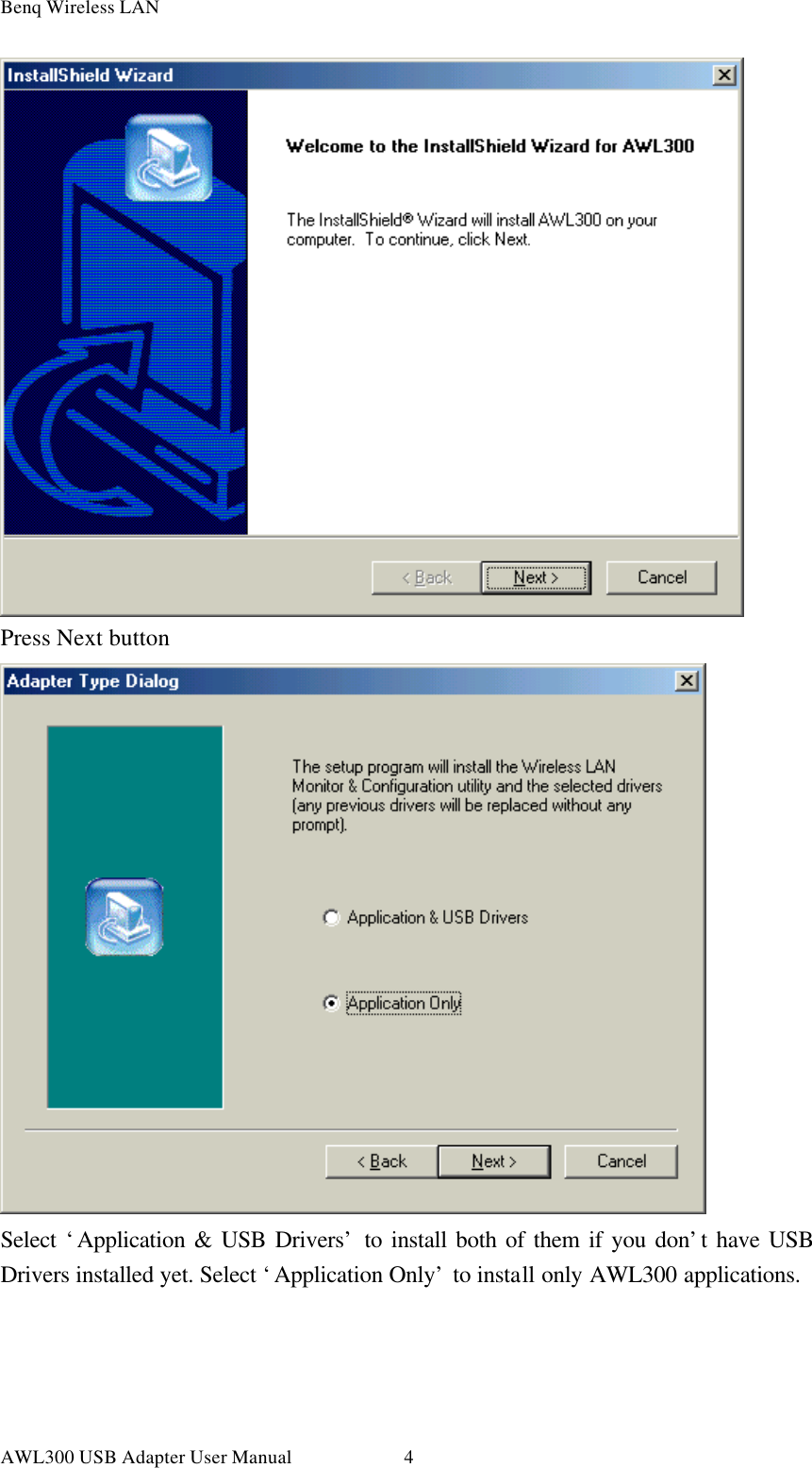

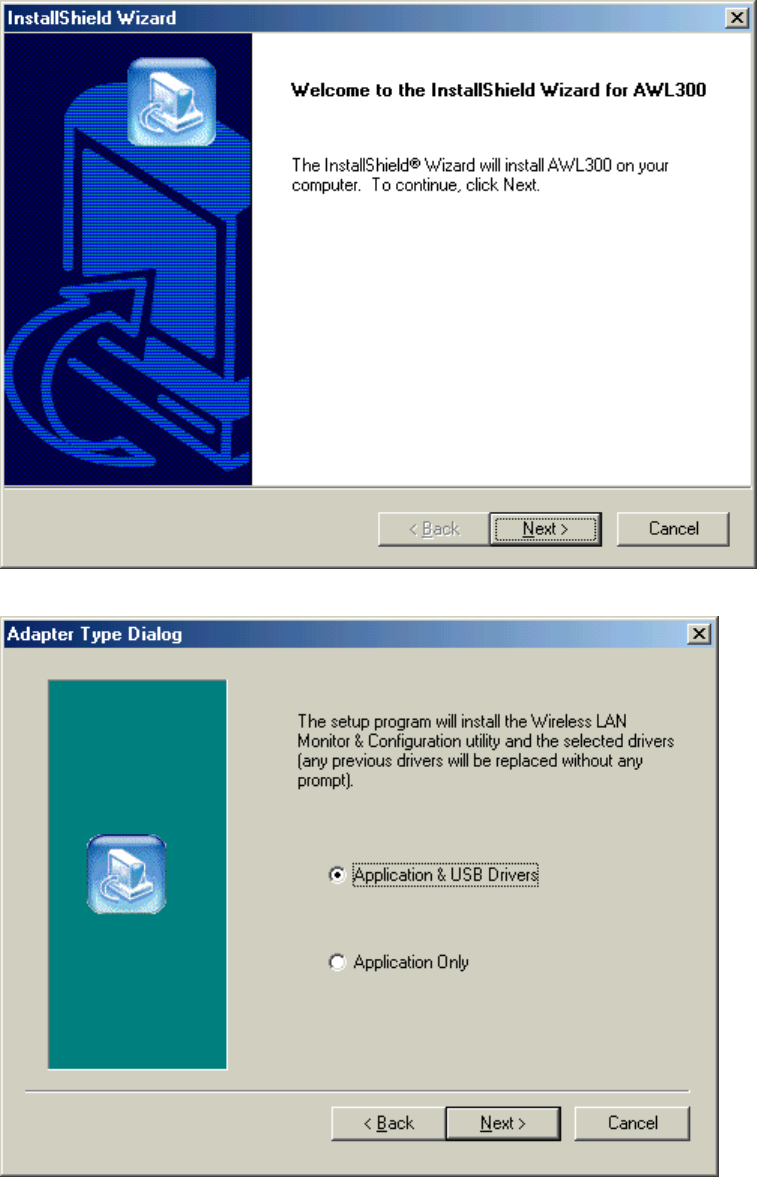

Press Next button
Select ‘Application & USB Drivers’ to install both of them if you don’t have USB
Drivers installed yet. Select ‘Application Only’ to install only AWL300 applications.
Benq Wireless LAN
AWL300 USB Adapter User Manual
5

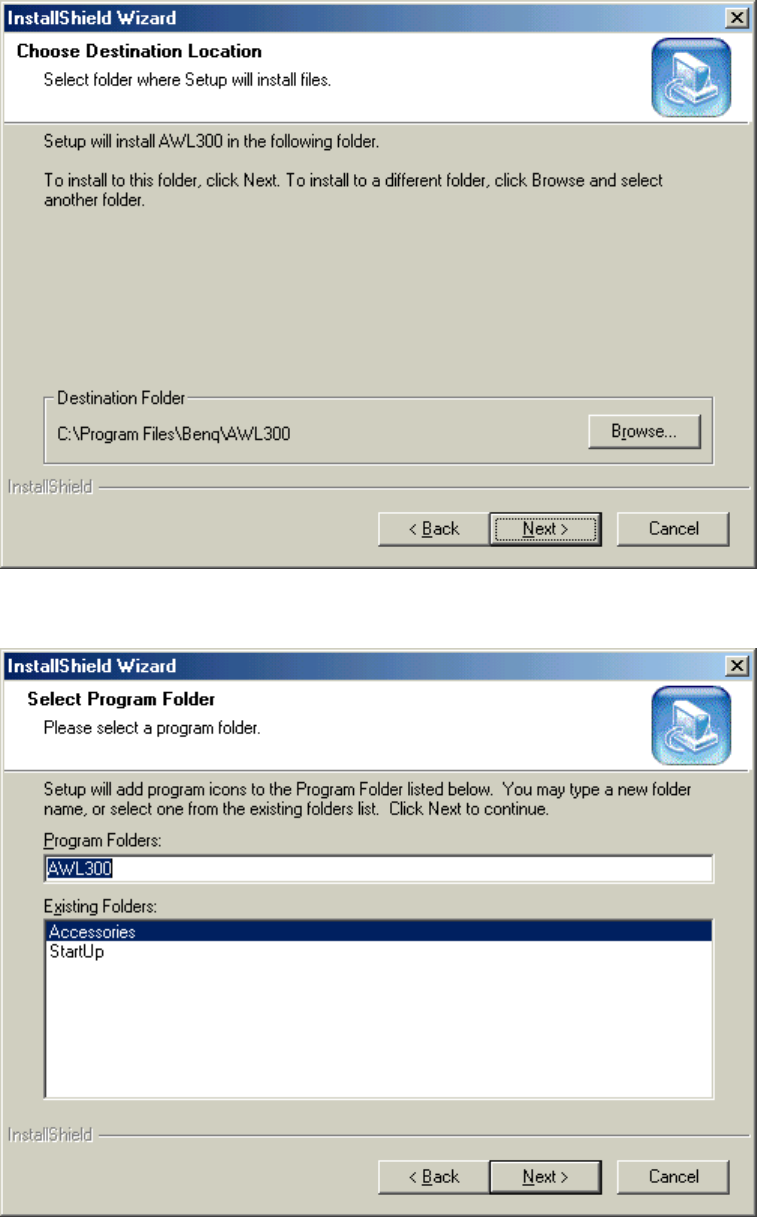

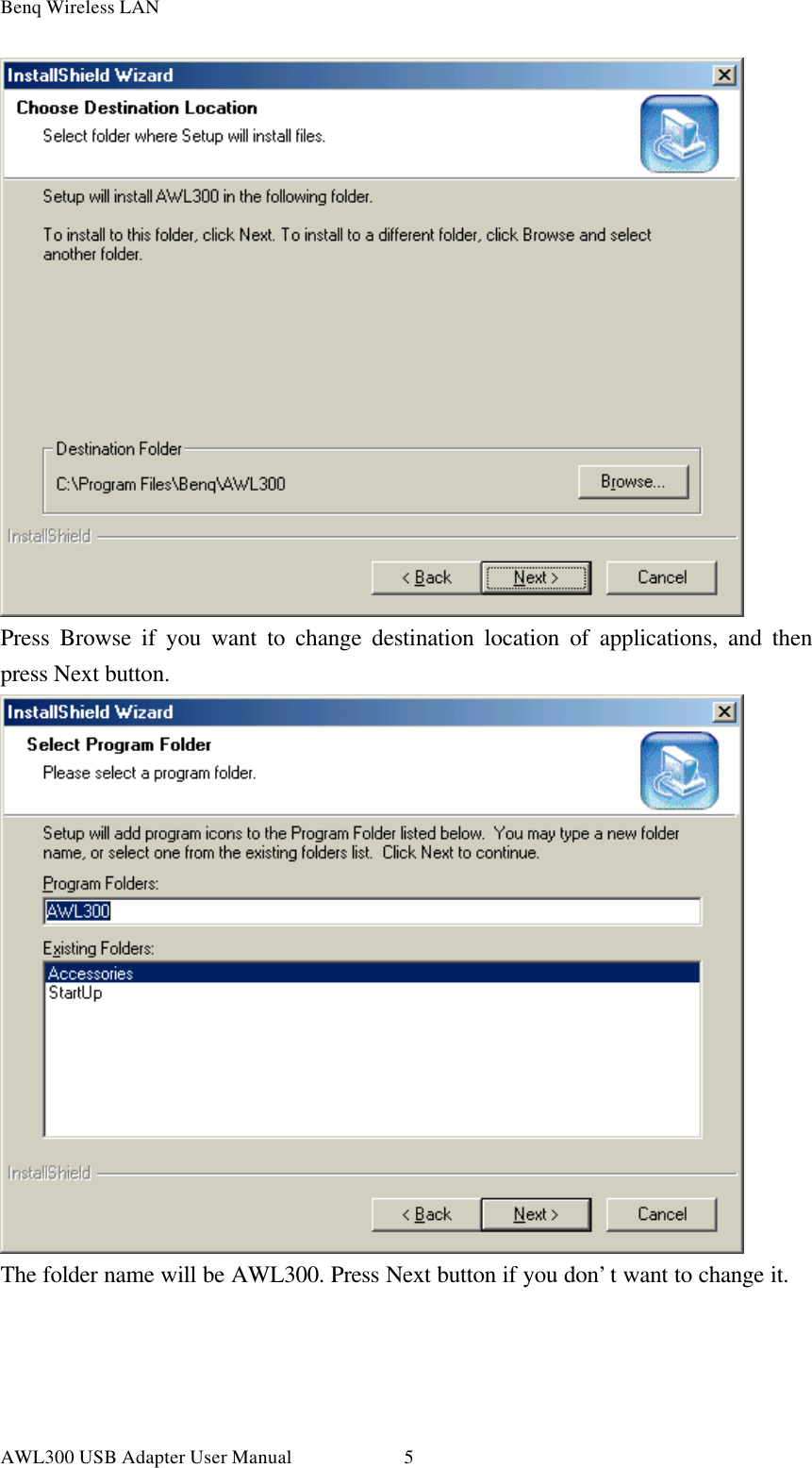

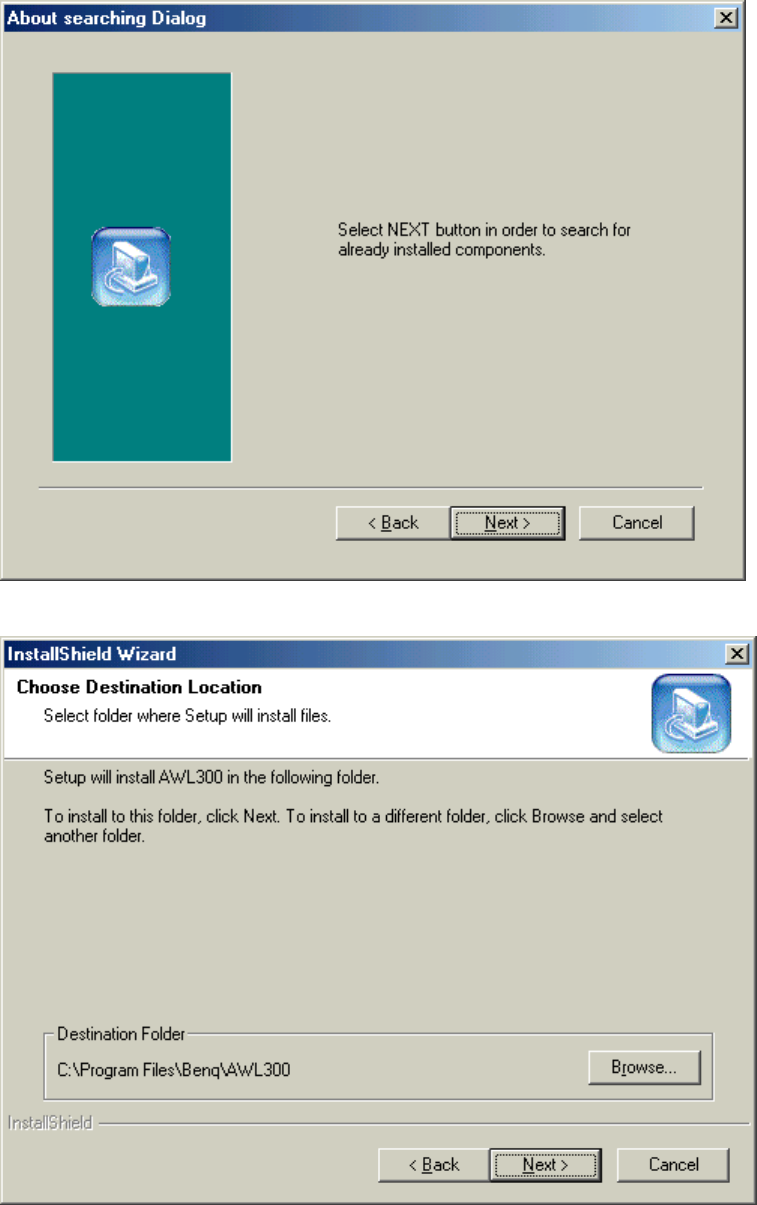

Press Browse if you want to change destination location of applications, and then
press Next button.

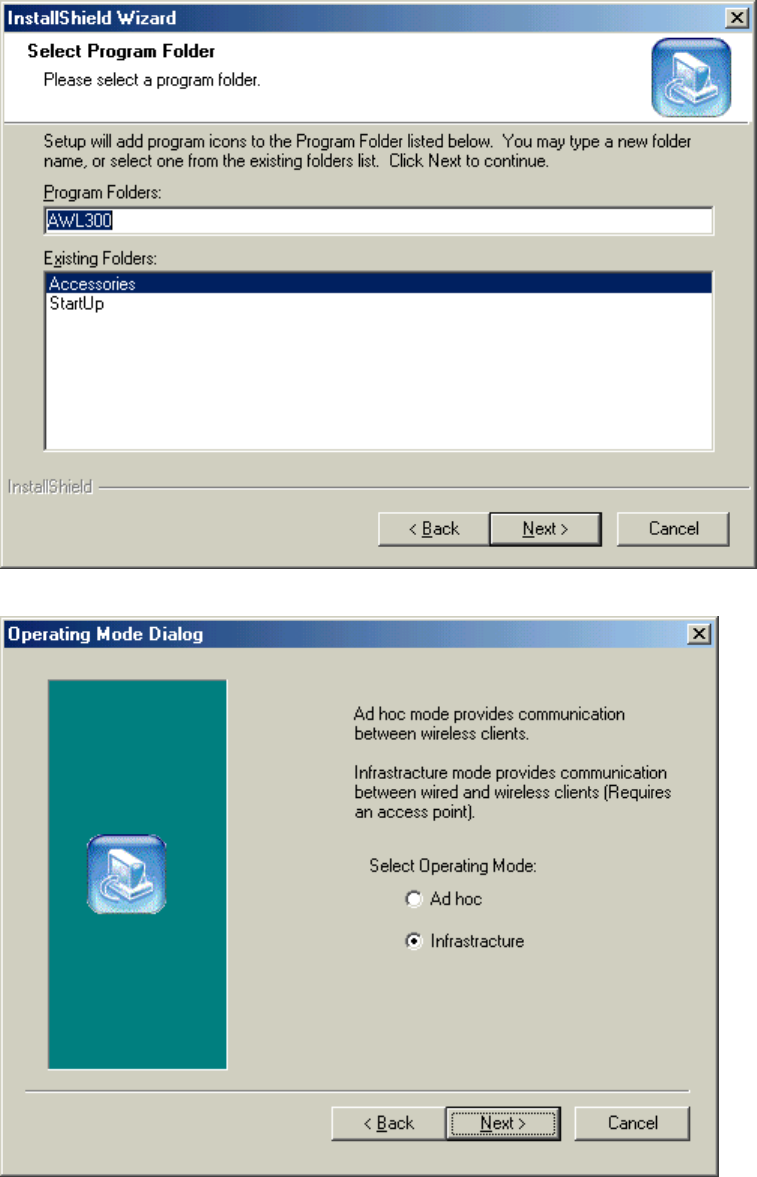

The folder name will be AWL300. Press Next button if you don’t want to change it.
Benq Wireless LAN
AWL300 USB Adapter User Manual
6

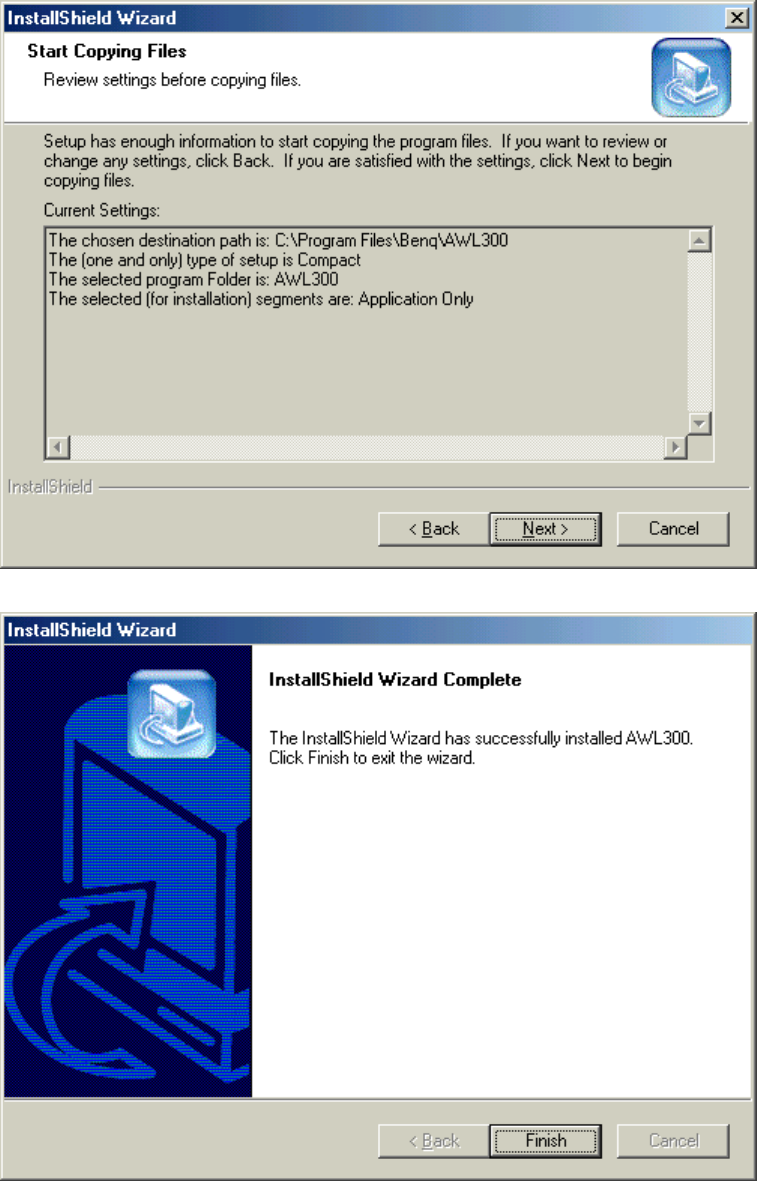

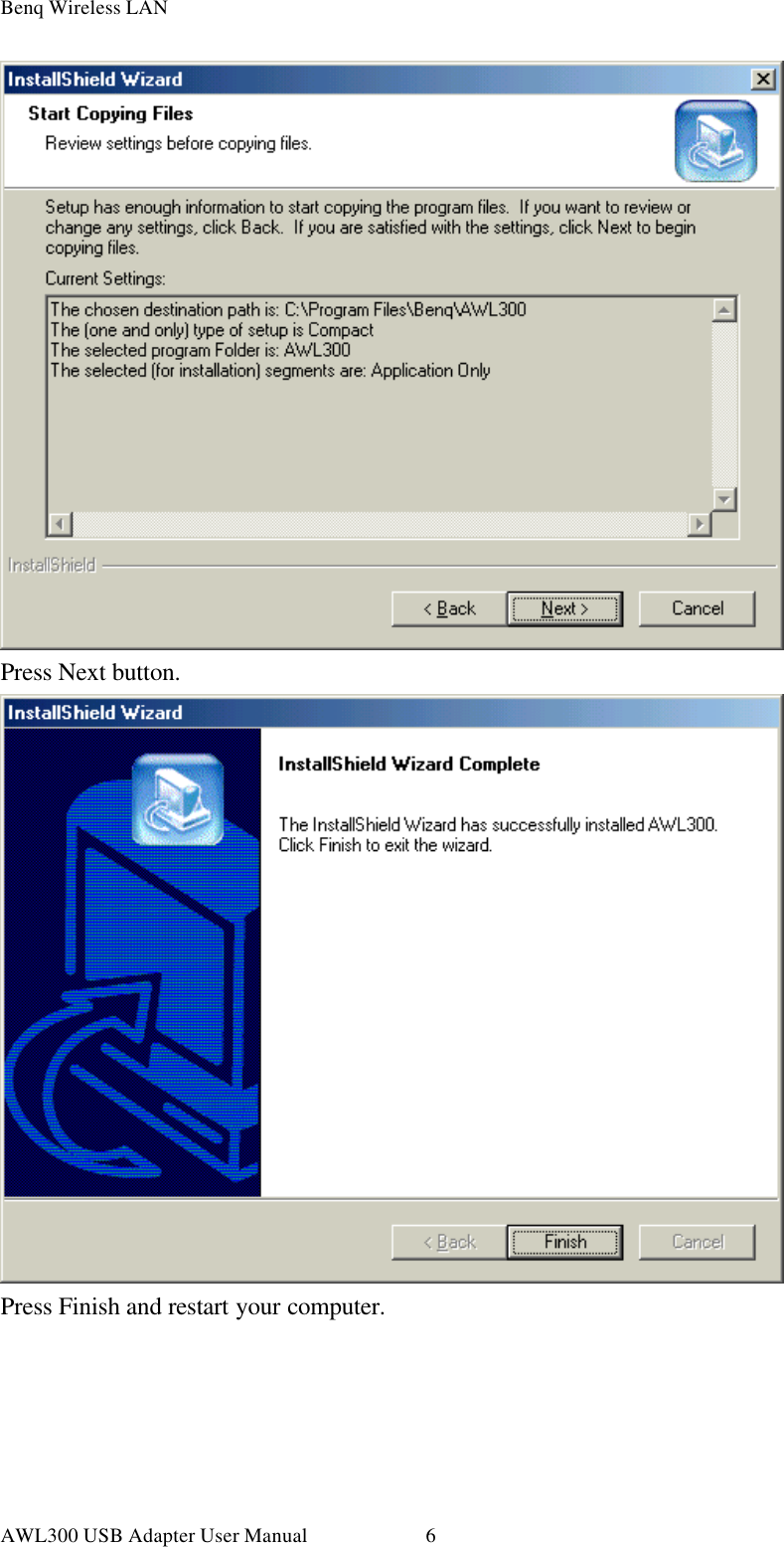

Press Next button.
Press Finish and restart your computer.
Benq Wireless LAN
AWL300 USB Adapter User Manual
7
1.3 Application & USB Driver Installation
Execute Setup.exe in the AWL300 directory in Benq Wireless LAN CD. For example,
if your CD-ROM is drive D, please execute D:\AWL300\Setup.exe.
Press Next button
Benq Wireless LAN
AWL300 USB Adapter User Manual
8

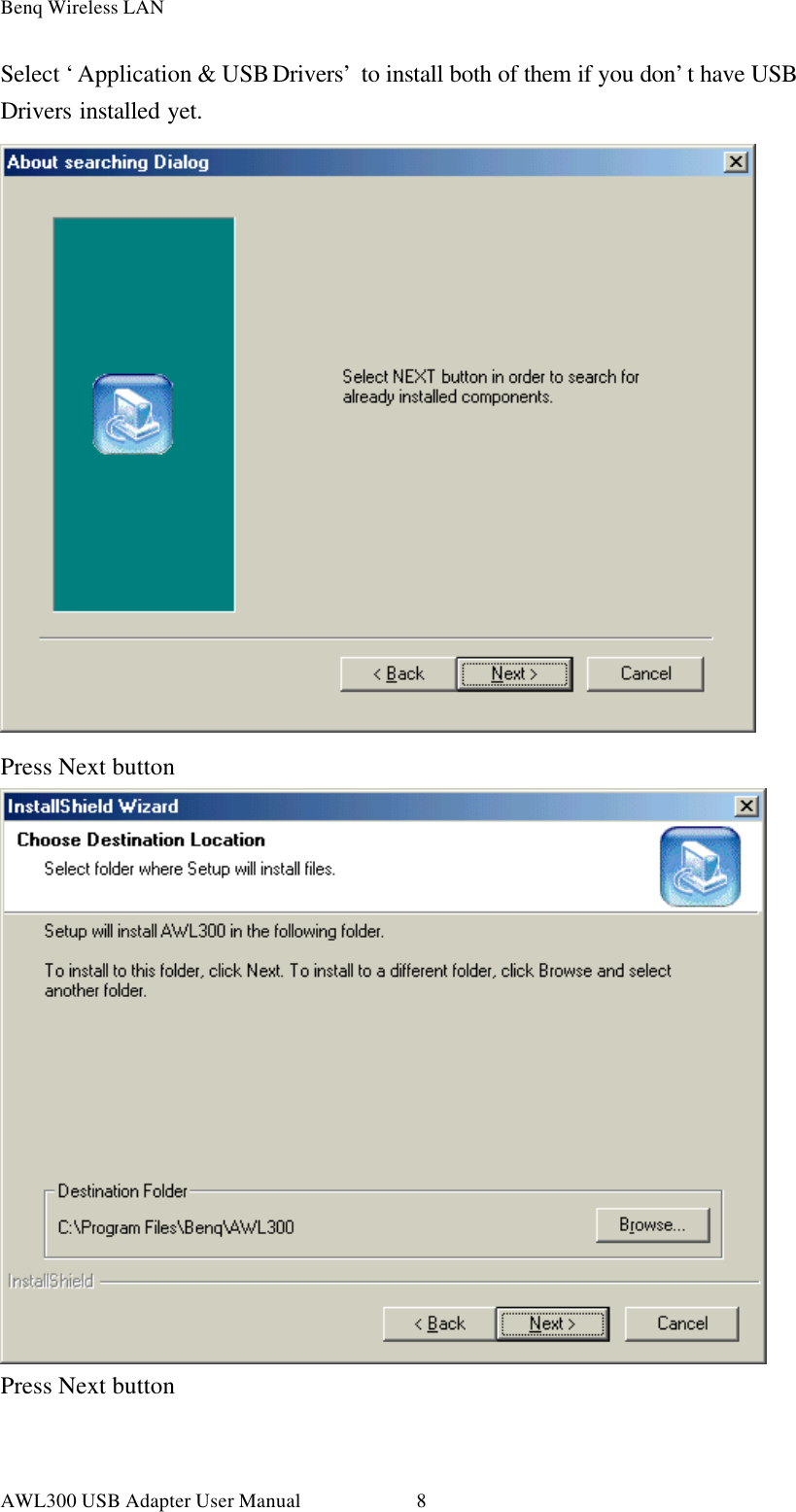

Select ‘Application & USB Drivers’ to install both of them if you don’t have USB
Drivers installed yet.
Press Next button
Press Next button
Benq Wireless LAN
AWL300 USB Adapter User Manual
9

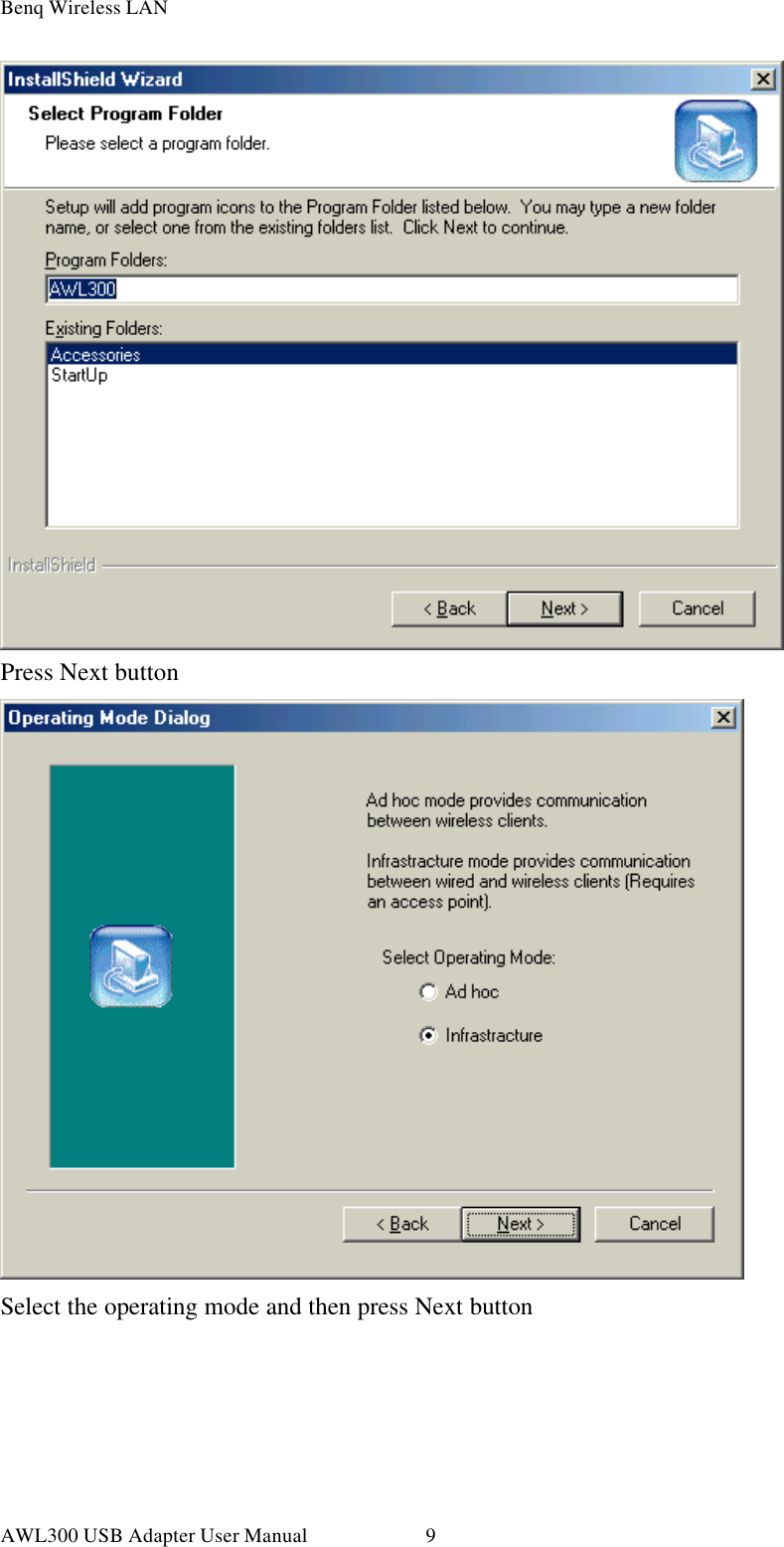

Press Next button
Select the operating mode and then press Next button
Benq Wireless LAN
AWL300 USB Adapter User Manual 10

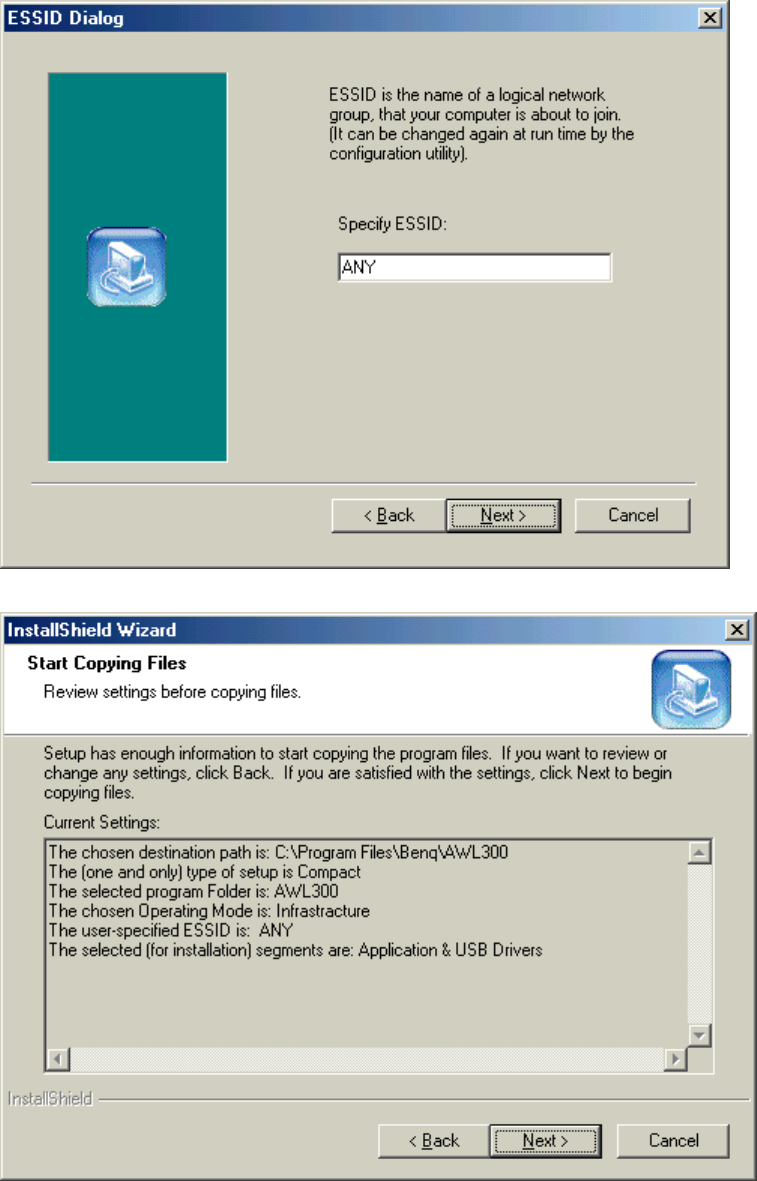

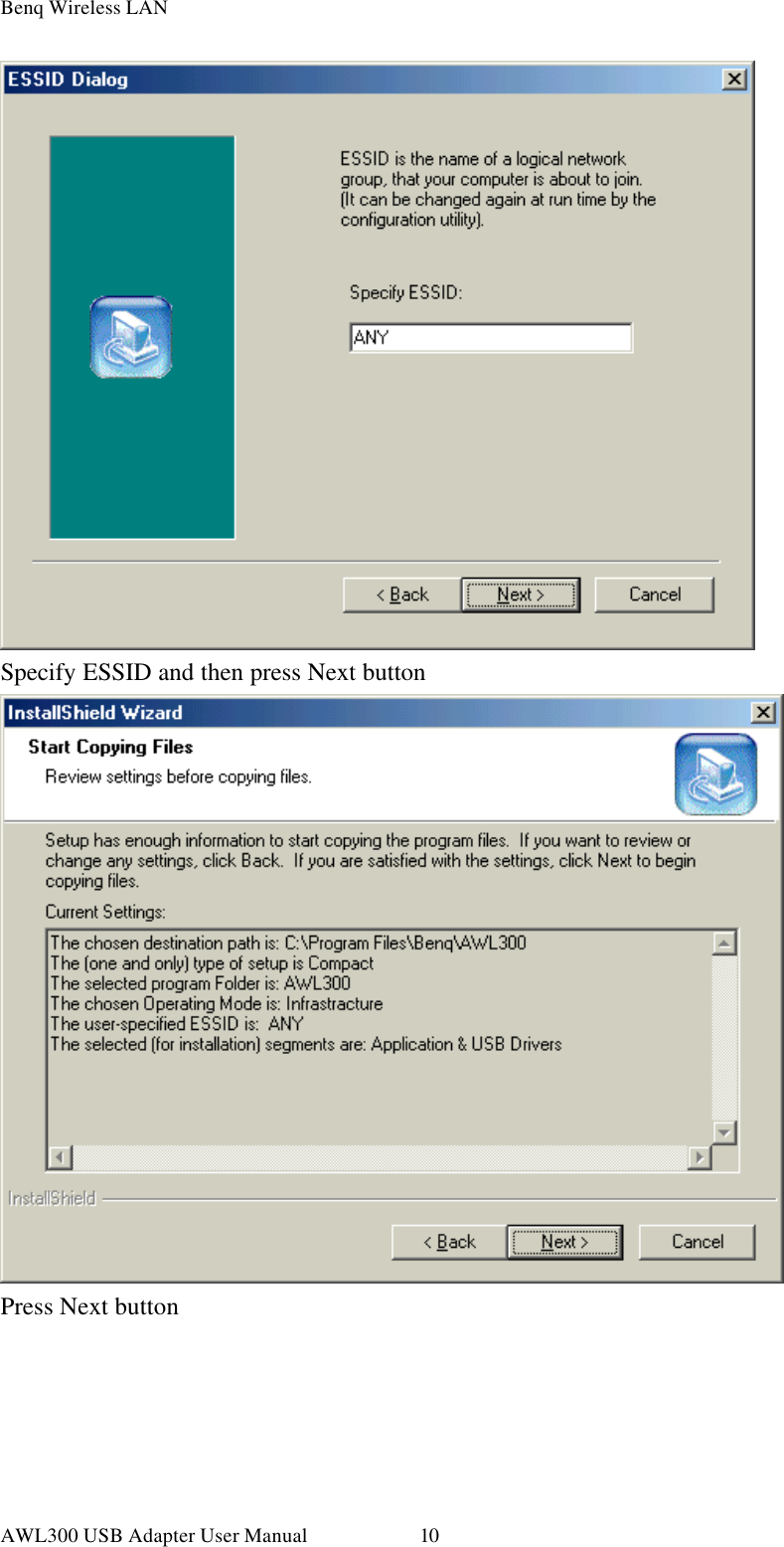

Specify ESSID and then press Next button
Press Next button
Benq Wireless LAN
AWL300 USB Adapter User Manual 11

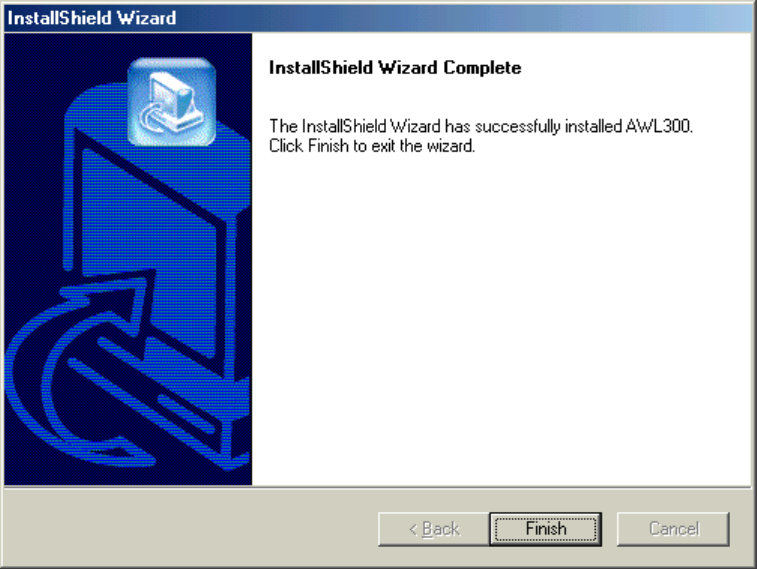

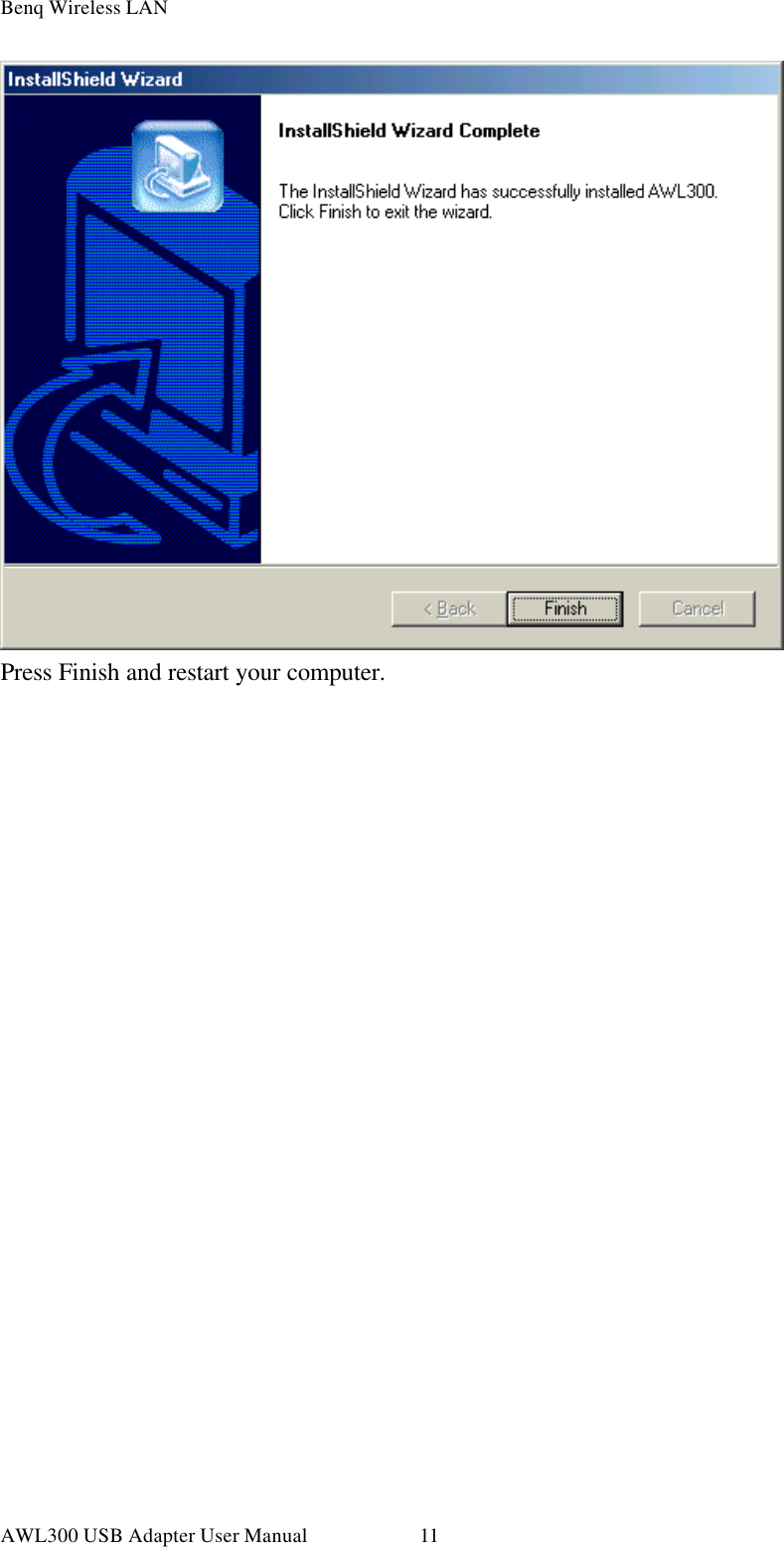

Press Finish and restart your computer.
Benq Wireless LAN
AWL300 USB Adapter User Manual 12

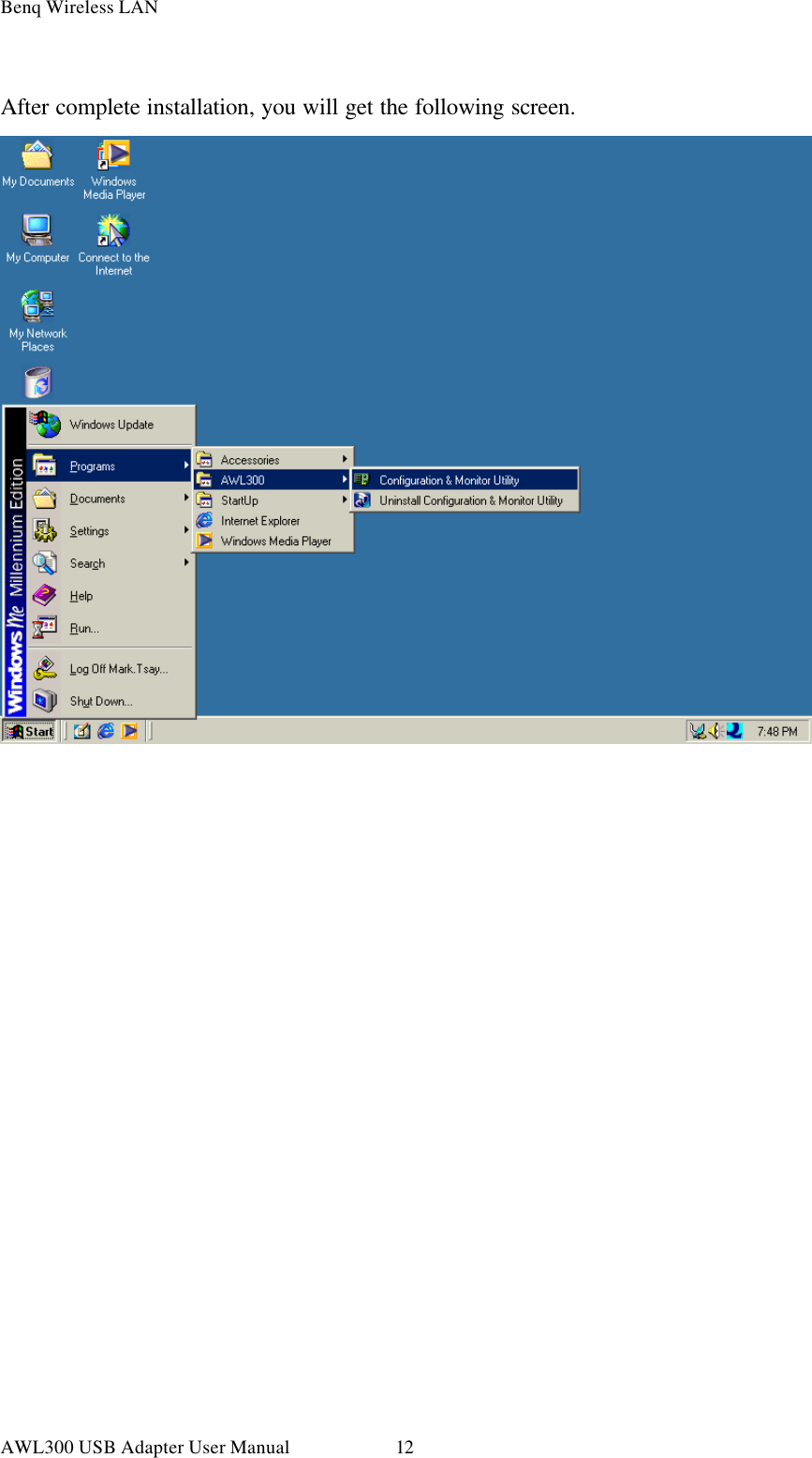

After complete installation, you will get the following screen.
Benq Wireless LAN
AWL300 USB Adapter User Manual 13
2. Uninstallation

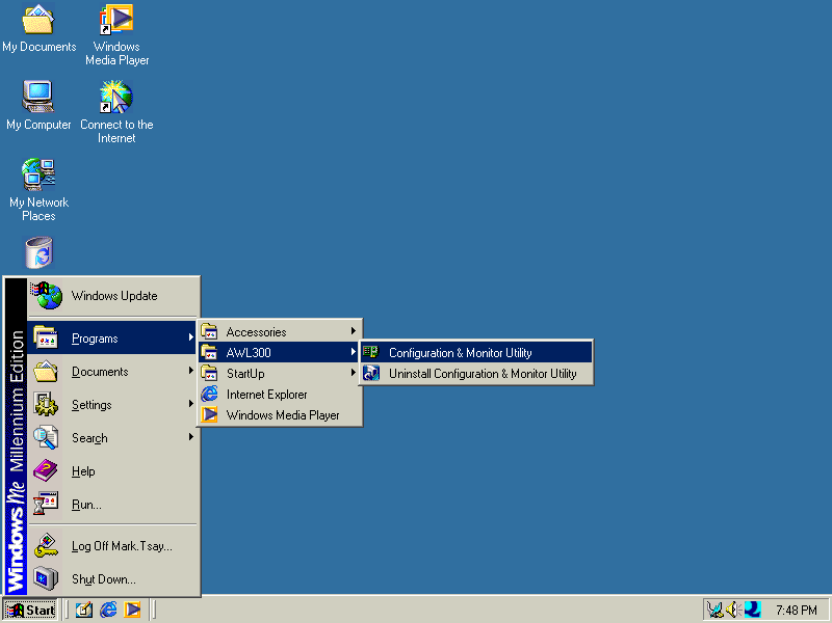

To uninstall AWL300, you can run the “Uninstall Configuration & Monitor Utility” as
the following figure.
Press OK if you really want to remove AWL300.
Benq Wireless LAN
AWL300 USB Adapter User Manual 14

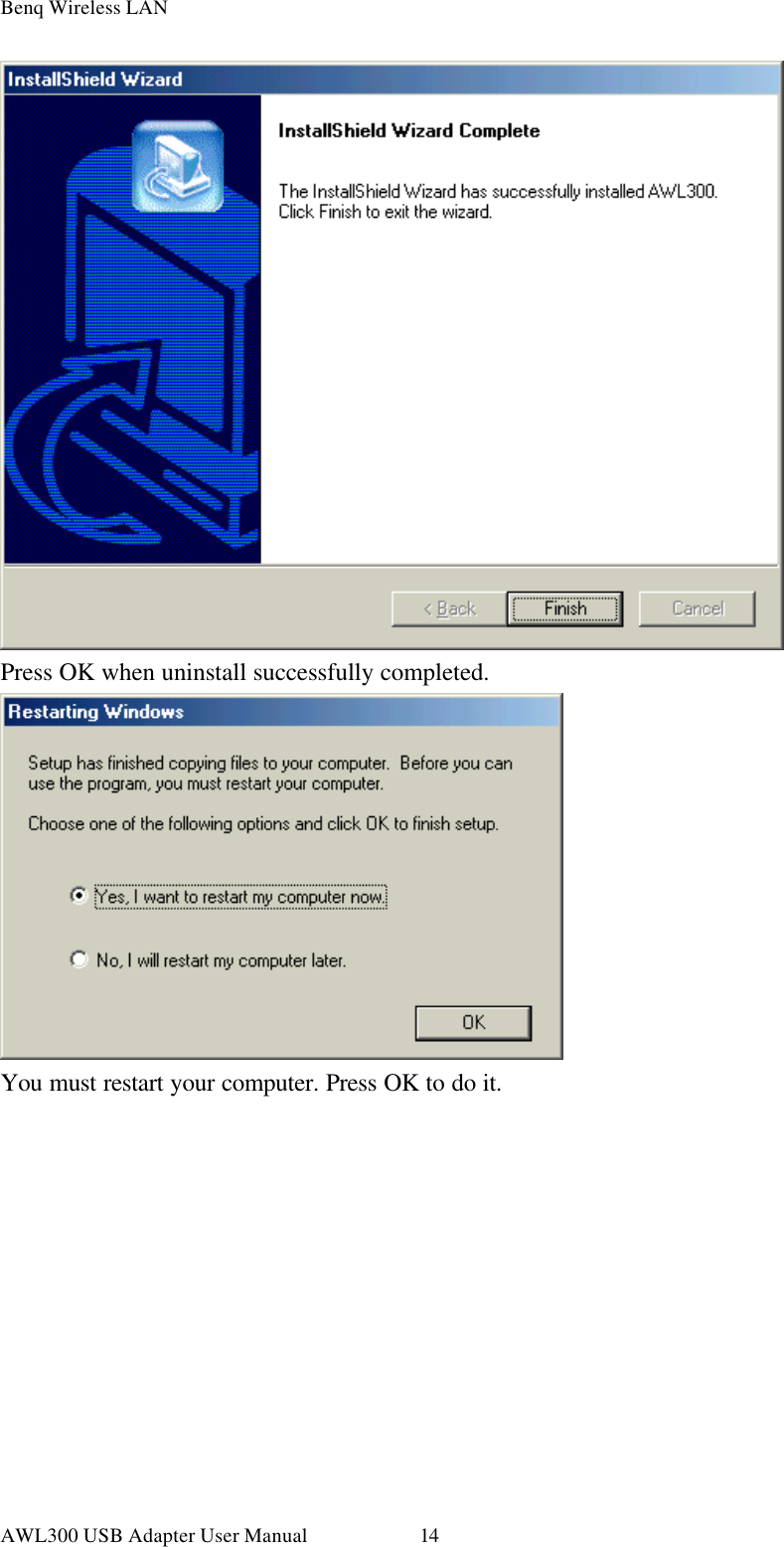

Press OK when uninstall successfully completed.
You must restart your computer. Press OK to do it.
Benq Wireless LAN
AWL300 USB Adapter User Manual 15
You can also remove AWL300 from Add/Remove Programs Properties in Control
Panel
Benq Wireless LAN
AWL300 USB Adapter User Manual 16

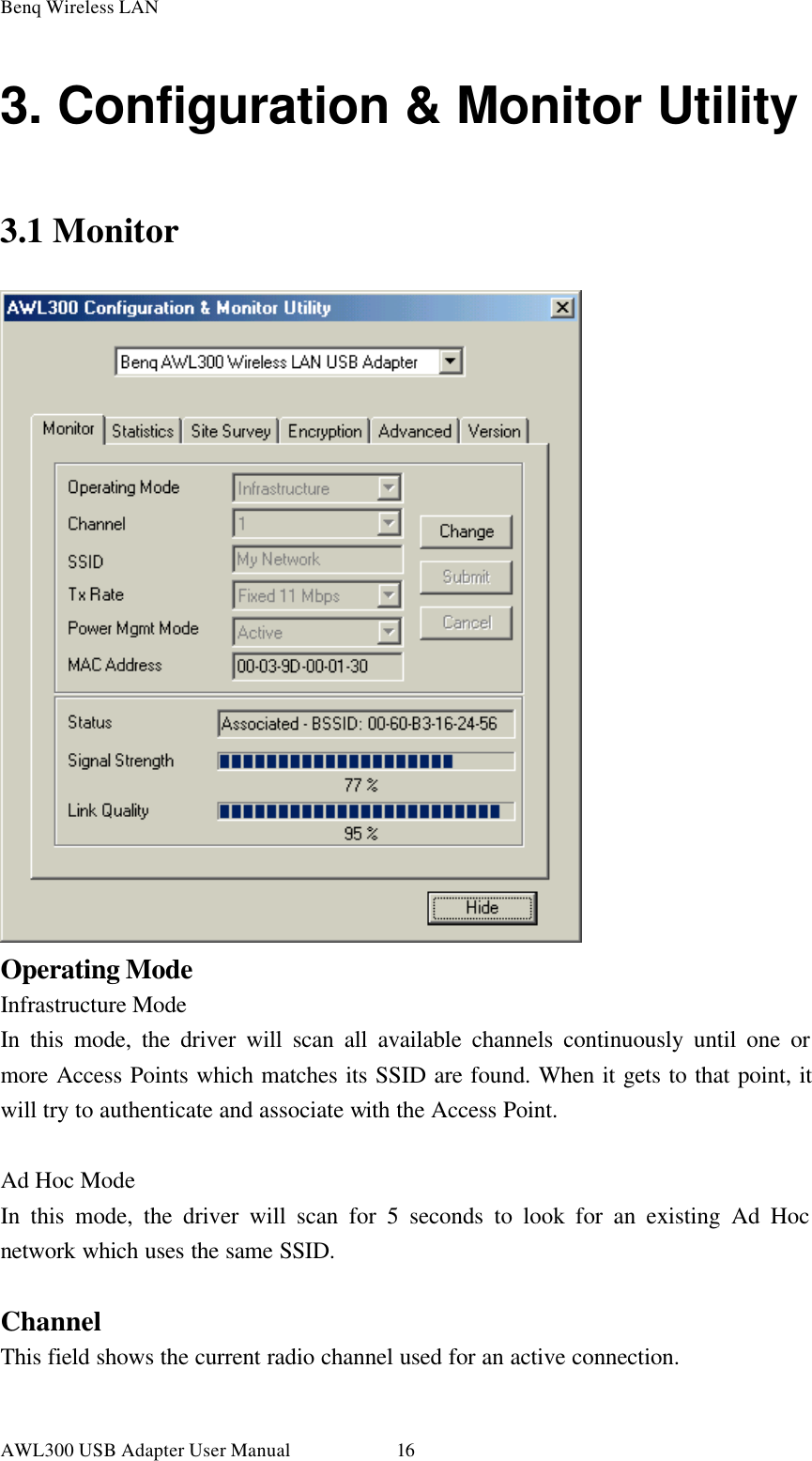

3. Configuration & Monitor Utility

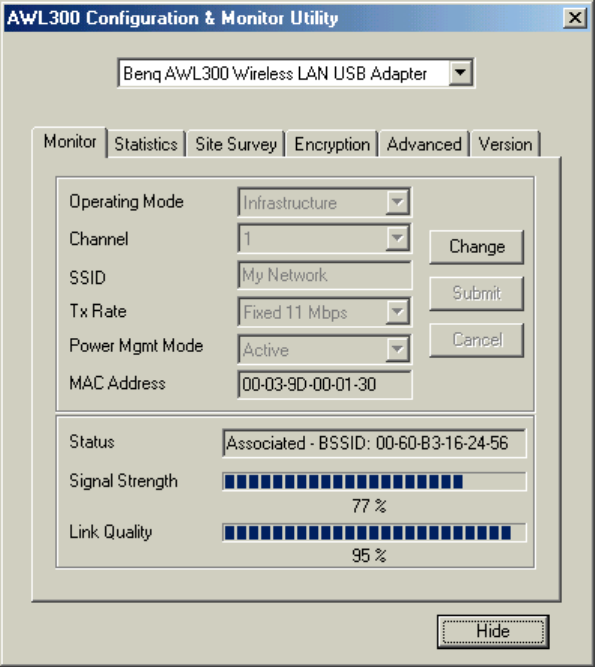

3.1 Monitor
Operating Mode
Infrastructure Mode
In this mode, the driver will scan all available channels continuously until one or
more Access Points which matches its SSID are found. When it gets to that point, it
will try to authenticate and associate with the Access Point.
Ad Hoc Mode
In this mode, the driver will scan for 5 seconds to look for an existing Ad Hoc
network which uses the same SSID.
Channel
This field shows the current radio channel used for an active connection.
Benq Wireless LAN
AWL300 USB Adapter User Manual 17

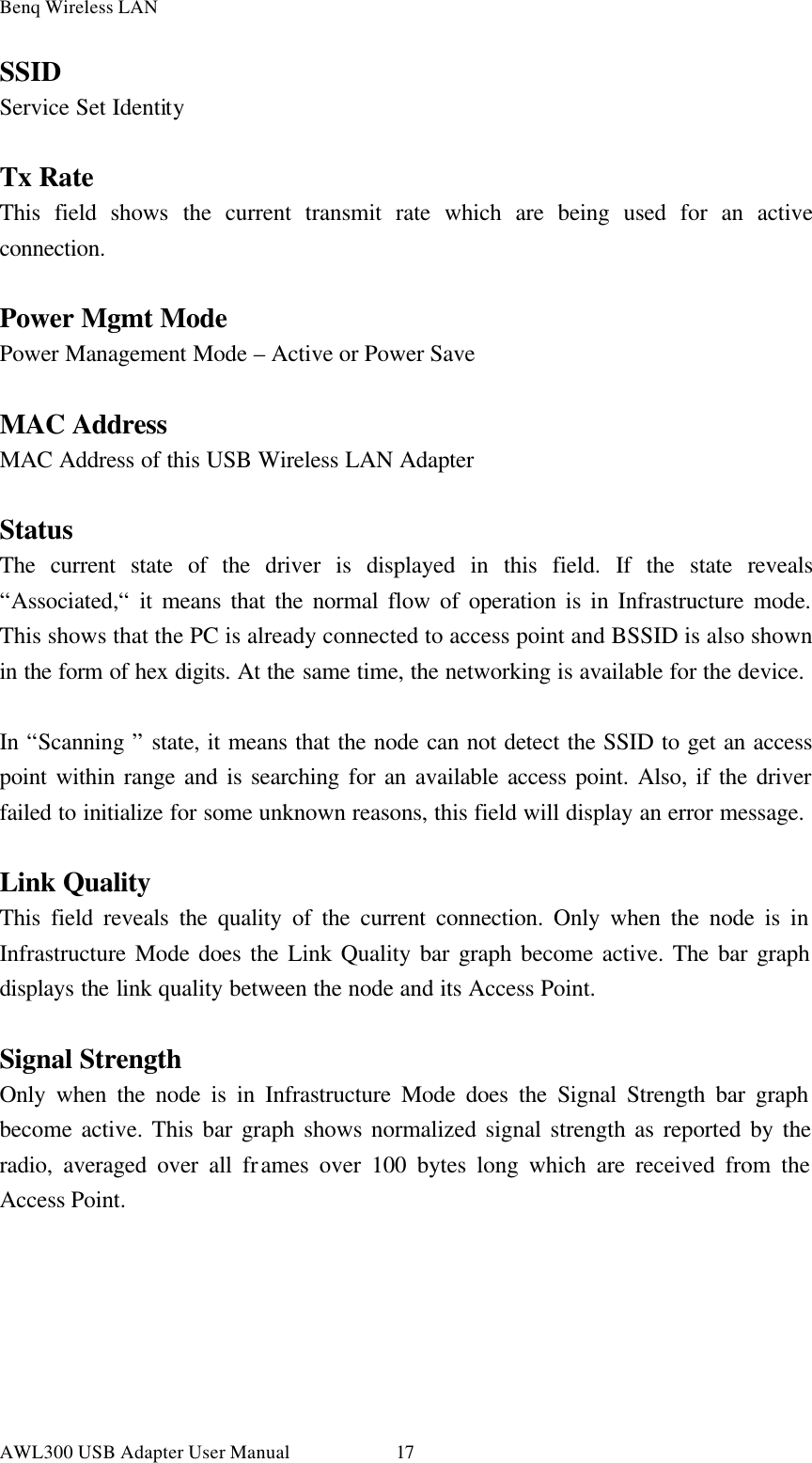

SSID
Service Set Identity
Tx Rate
This field shows the current transmit rate which are being used for an active
connection.
Power Mgmt Mode
Power Management Mode – Active or Power Save
MAC Address
MAC Address of this USB Wireless LAN Adapter
Status
The current state of the driver is displayed in this field. If the state reveals
“Associated,“ it means that the normal flow of operation is in Infrastructure mode.
This shows that the PC is already connected to access point and BSSID is also shown
in the form of hex digits. At the same time, the networking is available for the device.
In “Scanning ” state, it means that the node can not detect the SSID to get an access
point within range and is searching for an available access point. Also, if the driver
failed to initialize for some unknown reasons, this field will display an error message.
Link Quality
This field reveals the quality of the current connection. Only when the node is in
Infrastructure Mode does the Link Quality bar graph become active. The bar graph
displays the link quality between the node and its Access Point.
Signal Strength
Only when the node is in Infrastructure Mode does the Signal Strength bar graph
become active. This bar graph shows normalized signal strength as reported by the
radio, averaged over all frames over 100 bytes long which are received from the
Access Point.
Benq Wireless LAN
AWL300 USB Adapter User Manual 18

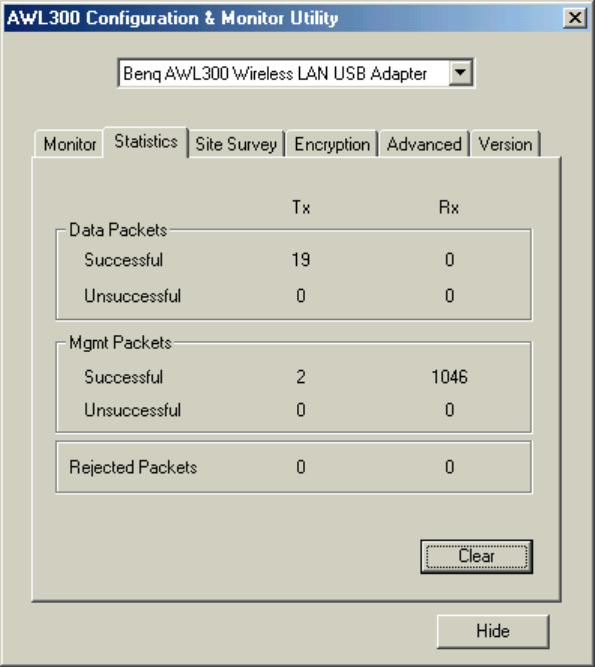

3.2 Statistics
The Statistics Page shows the counts of packets transmitted and received. Press Clear
button to set these numbers to zero.
Benq Wireless LAN
AWL300 USB Adapter User Manual 19

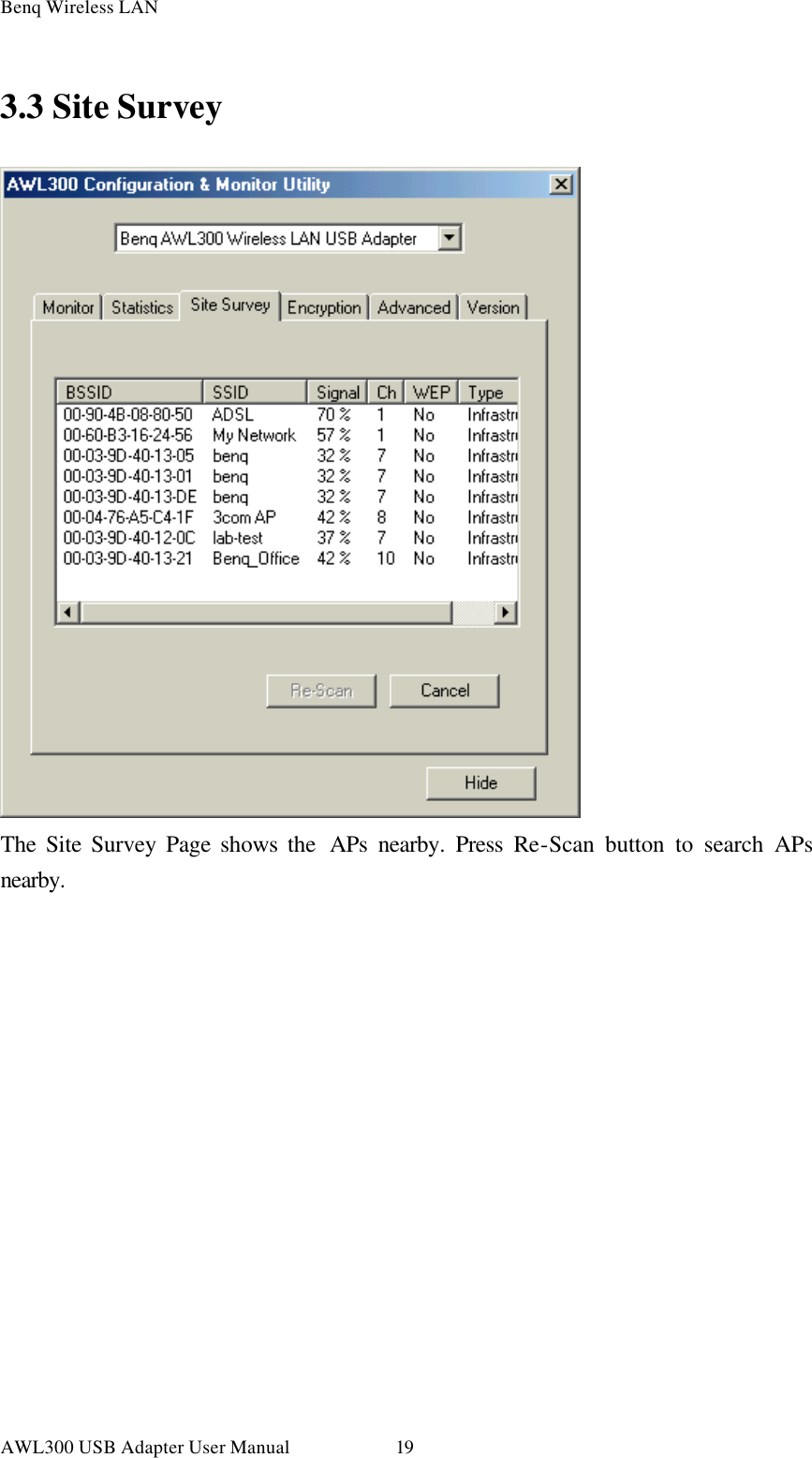

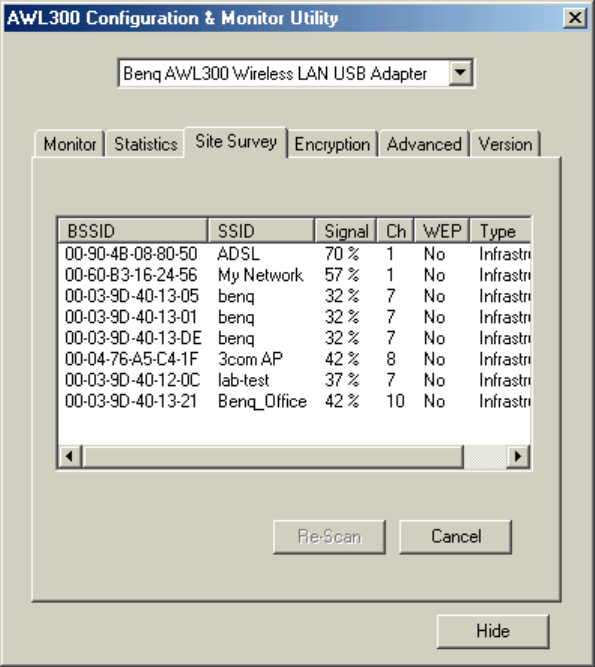

3.3 Site Survey
The Site Survey Page shows the APs nearby. Press Re-Scan button to search APs
nearby.
Benq Wireless LAN
AWL300 USB Adapter User Manual 20

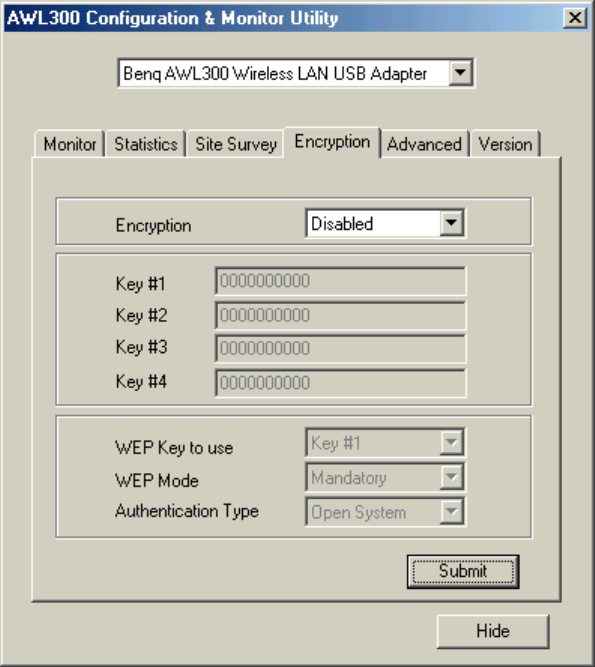

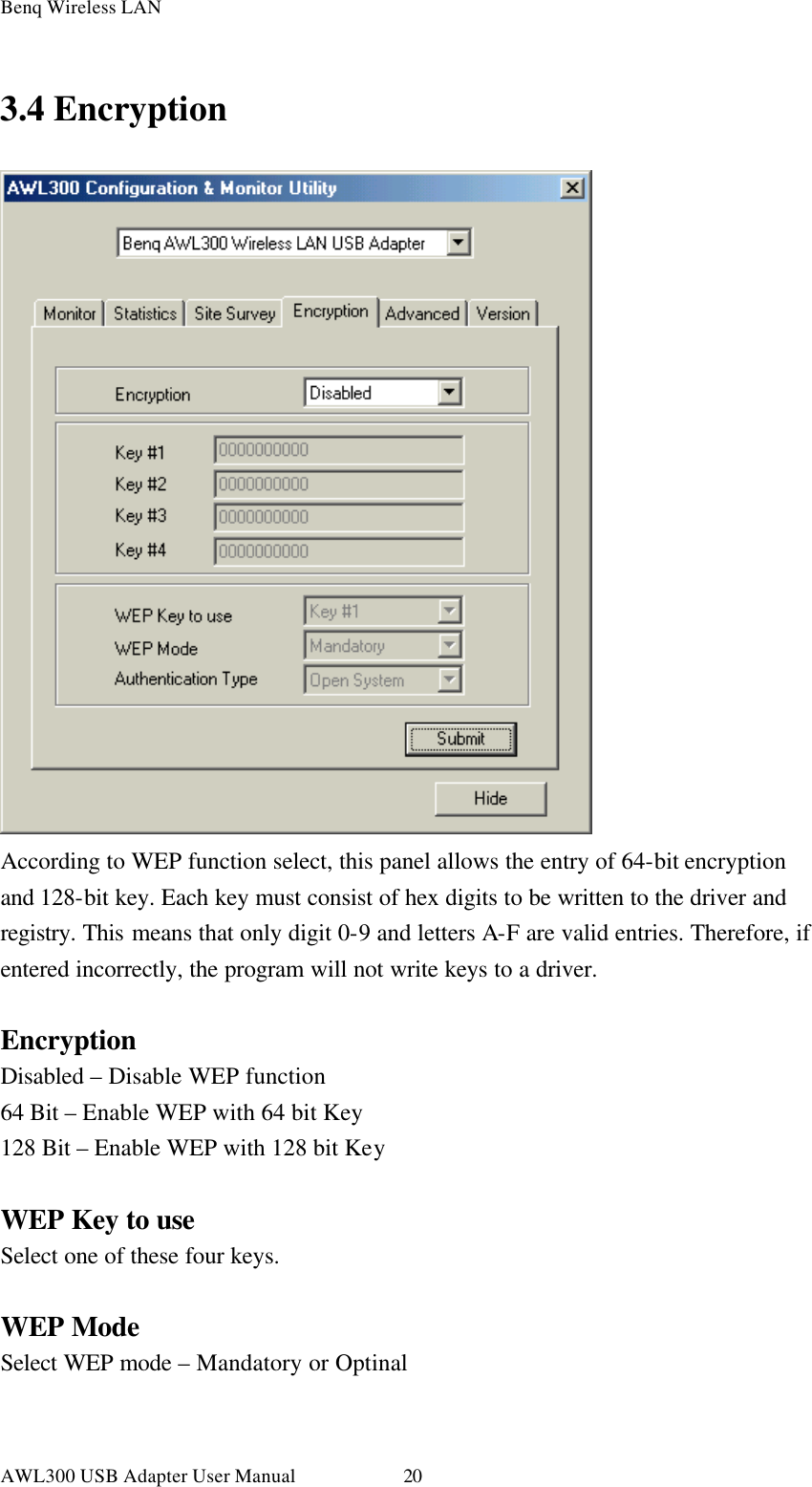

3.4 Encryption
According to WEP function select, this panel allows the entry of 64-bit encryption
and 128-bit key. Each key must consist of hex digits to be written to the driver and
registry. This means that only digit 0-9 and letters A-F are valid entries. Therefore, if
entered incorrectly, the program will not write keys to a driver.
Encryption
Disabled – Disable WEP function
64 Bit – Enable WEP with 64 bit Key
128 Bit – Enable WEP with 128 bit Key
WEP Key to use
Select one of these four keys.
WEP Mode
Select WEP mode – Mandatory or Optinal
Benq Wireless LAN
AWL300 USB Adapter User Manual 21
Authentication Type
Select Open System type or Shared Key type

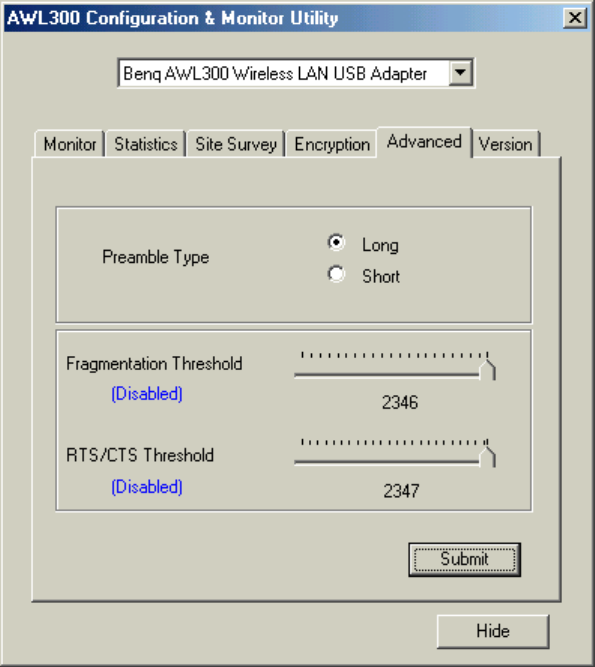

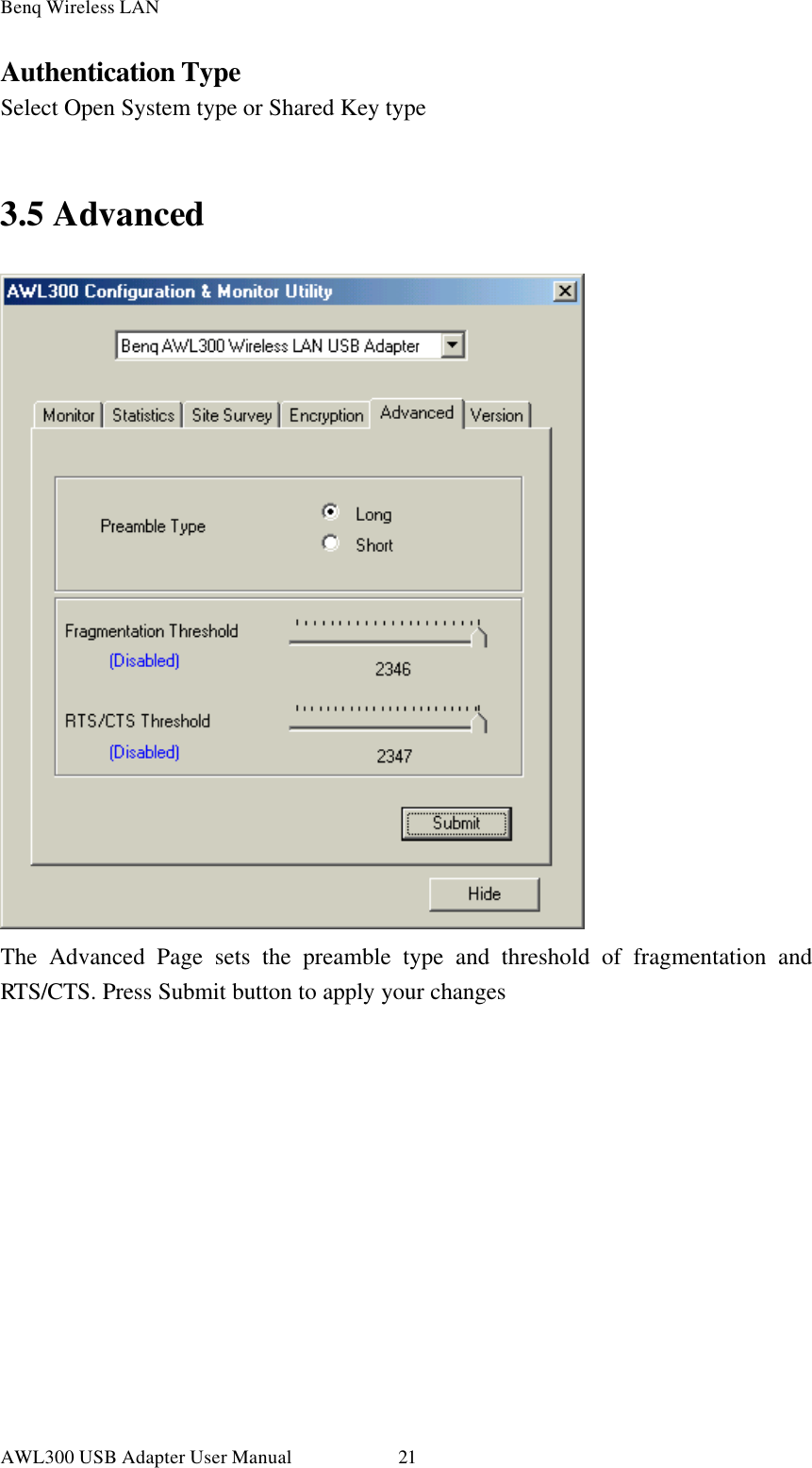

3.5 Advanced
The Advanced Page sets the preamble type and threshold of fragmentation and
RTS/CTS. Press Submit button to apply your changes
Benq Wireless LAN
AWL300 USB Adapter User Manual 22

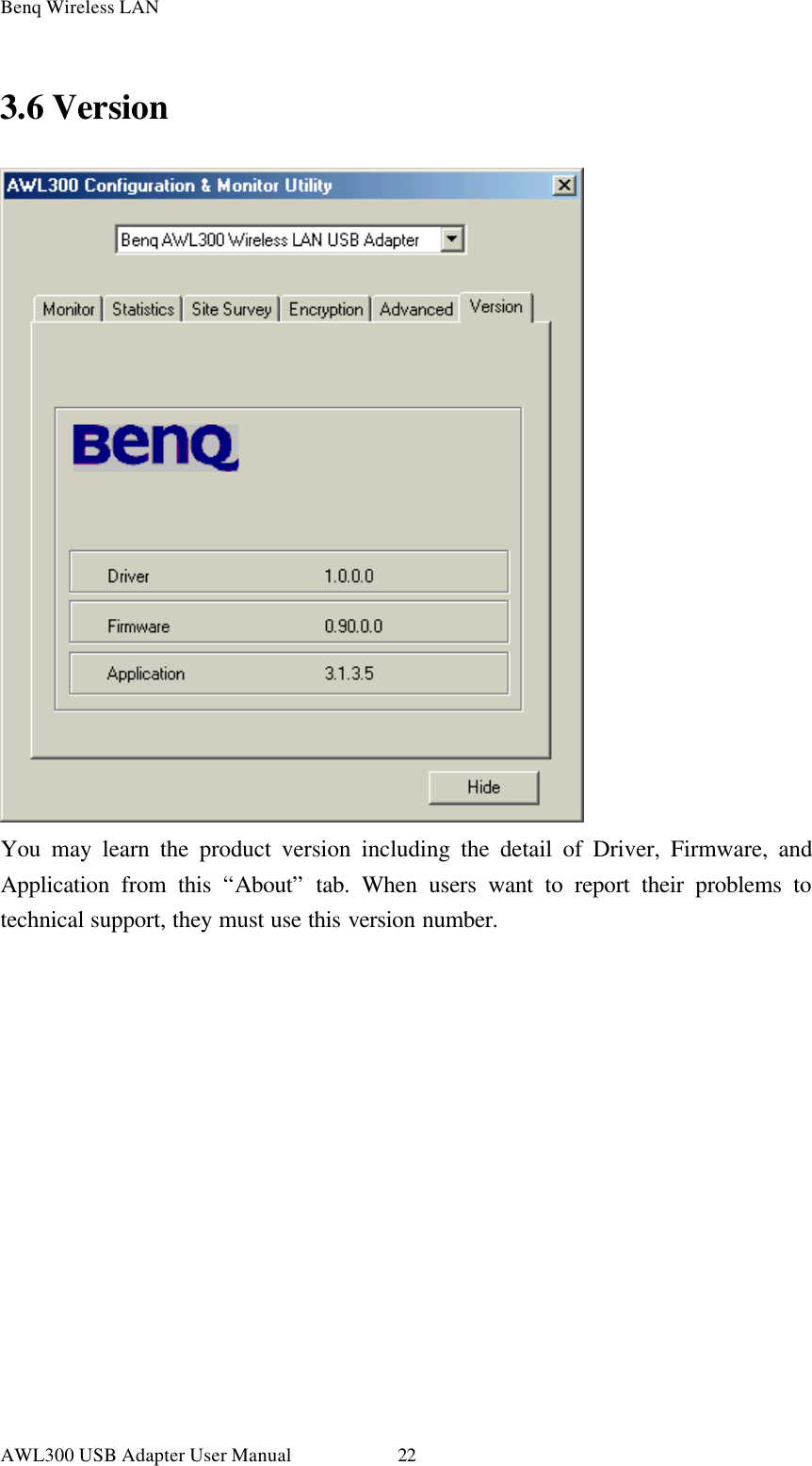

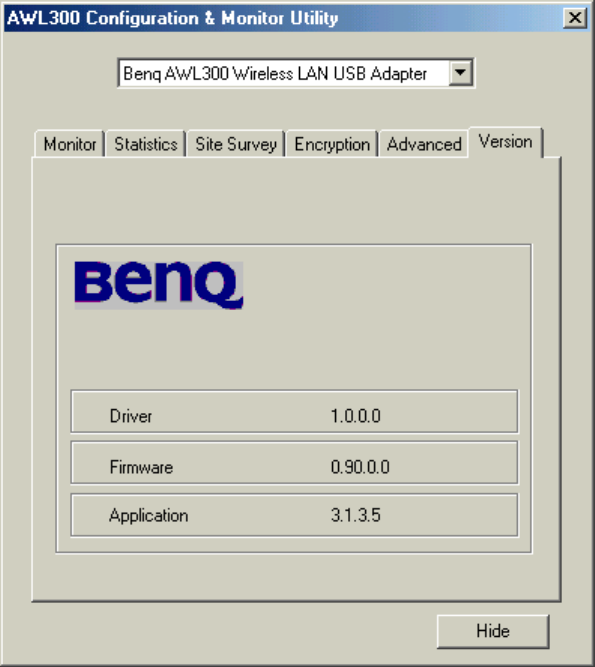

3.6 Version
You may learn the product version including the detail of Driver, Firmware, and
Application from this “About” tab. When users want to report their problems to
technical support, they must use this version number.
