Benq Corporation Acer Bluetooth PC Card ProductSheet

User Manual

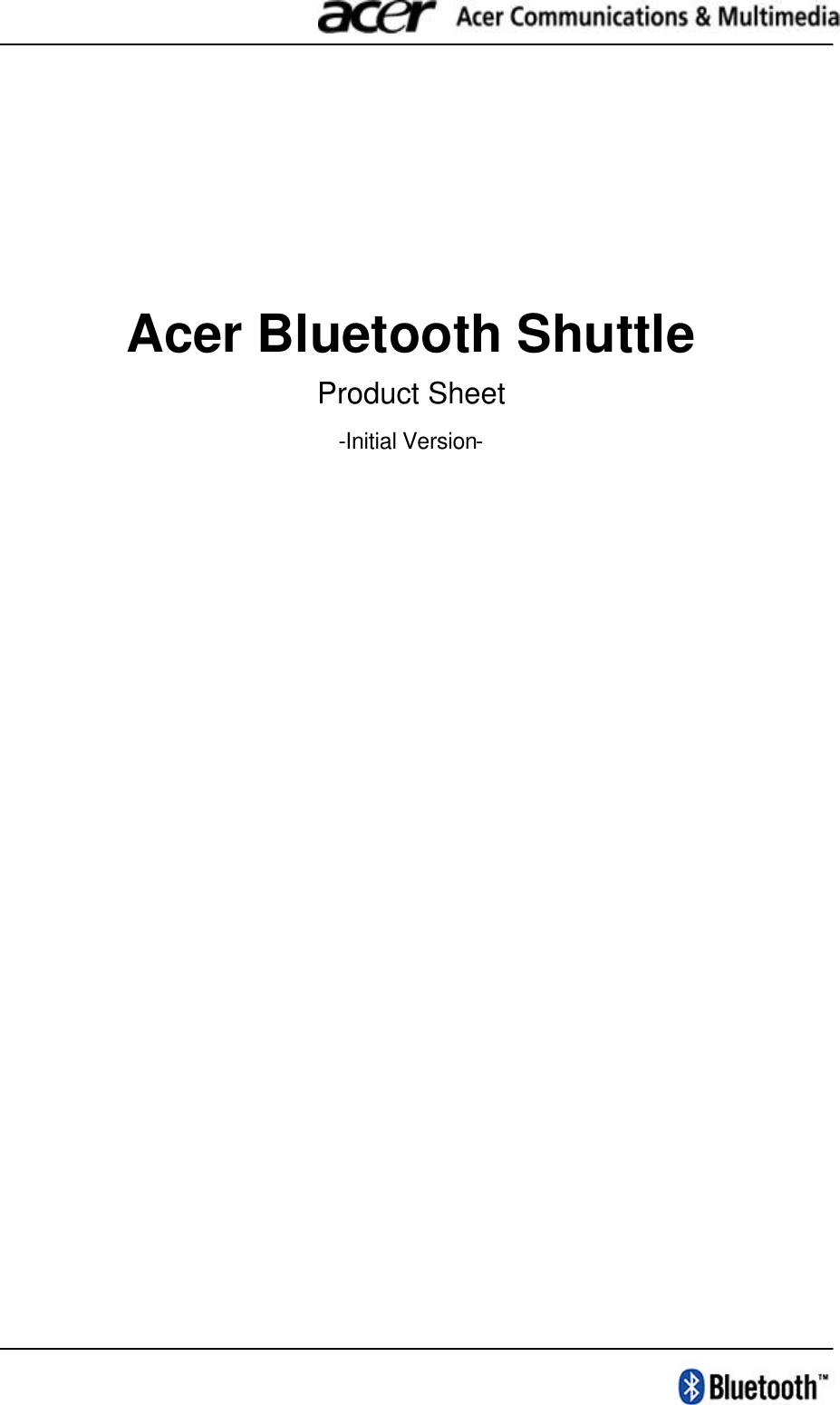

                                                                                                           Acer Bluetooth Shuttle Product Sheet -Initial Version-
                                                                                                       Hardware Specification of Acer Bluetooth Shuttle Acer Bluetooth Shuttle is a Bluetooth PCMCIA product. It enables BluetoothTM wireless technology for the desktop / laptop computers equipped with the PCMCIA interface, and support point-to-multiple-point pico-net.  It provided a standard PCMCIA interface with following characteristics: • PCMCIA release 2.01, Card & Socket Service Compliant, 5V Compliant, • Extended PCMCIA Type II form factor with Internal Antenna • Dimension: 111.3mm x 54mm x 9.1mm with Embedded Antenna • PCMCIA Dimension: 85.6mm x 54mm x 5mm • Bluetooth 1.1 Compliant • Radio Output Power  ≦ 20dBm; Bluetooth class I operation. • Receive sensitivity < –80dBm; BER=10-3 @ antenna I/P port • FCC part 15; ETS300328 and ETS300826 complied      System Overview of PCMCIA interface

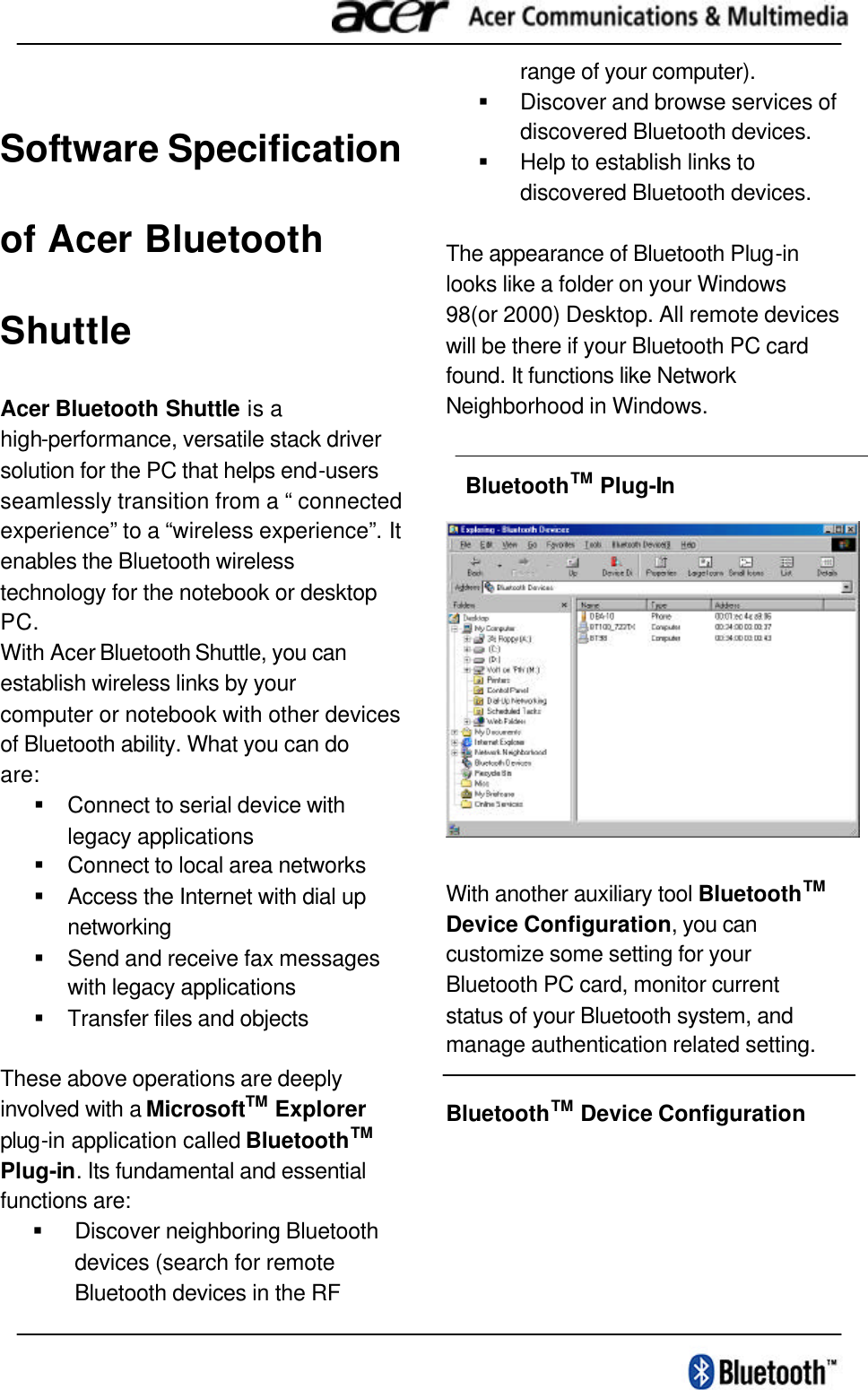

                                                                                                        Software Specification of Acer Bluetooth Shuttle Acer Bluetooth Shuttle is a high-performance, versatile stack driver solution for the PC that helps end-users seamlessly transition from a “ connected experience” to a “wireless experience”. It enables the Bluetooth wireless technology for the notebook or desktop PC. With Acer Bluetooth Shuttle, you can establish wireless links by your computer or notebook with other devices of Bluetooth ability. What you can do are: § Connect to serial device with legacy applications   § Connect to local area networks § Access the Internet with dial up networking § Send and receive fax messages with legacy applications § Transfer files and objects    These above operations are deeply involved with a MicrosoftTM Explorer plug-in application called BluetoothTM Plug-in. Its fundamental and essential functions are: § Discover neighboring Bluetooth devices (search for remote Bluetooth devices in the RF range of your computer). § Discover and browse services of discovered Bluetooth devices. § Help to establish links to discovered Bluetooth devices.  The appearance of Bluetooth Plug-in looks like a folder on your Windows 98(or 2000) Desktop. All remote devices will be there if your Bluetooth PC card found. It functions like Network Neighborhood in Windows.      With another auxiliary tool BluetoothTM Device Configuration, you can customize some setting for your Bluetooth PC card, monitor current status of your Bluetooth system, and manage authentication related setting.    BluetoothTM Device Configuration BluetoothTM Plug-In

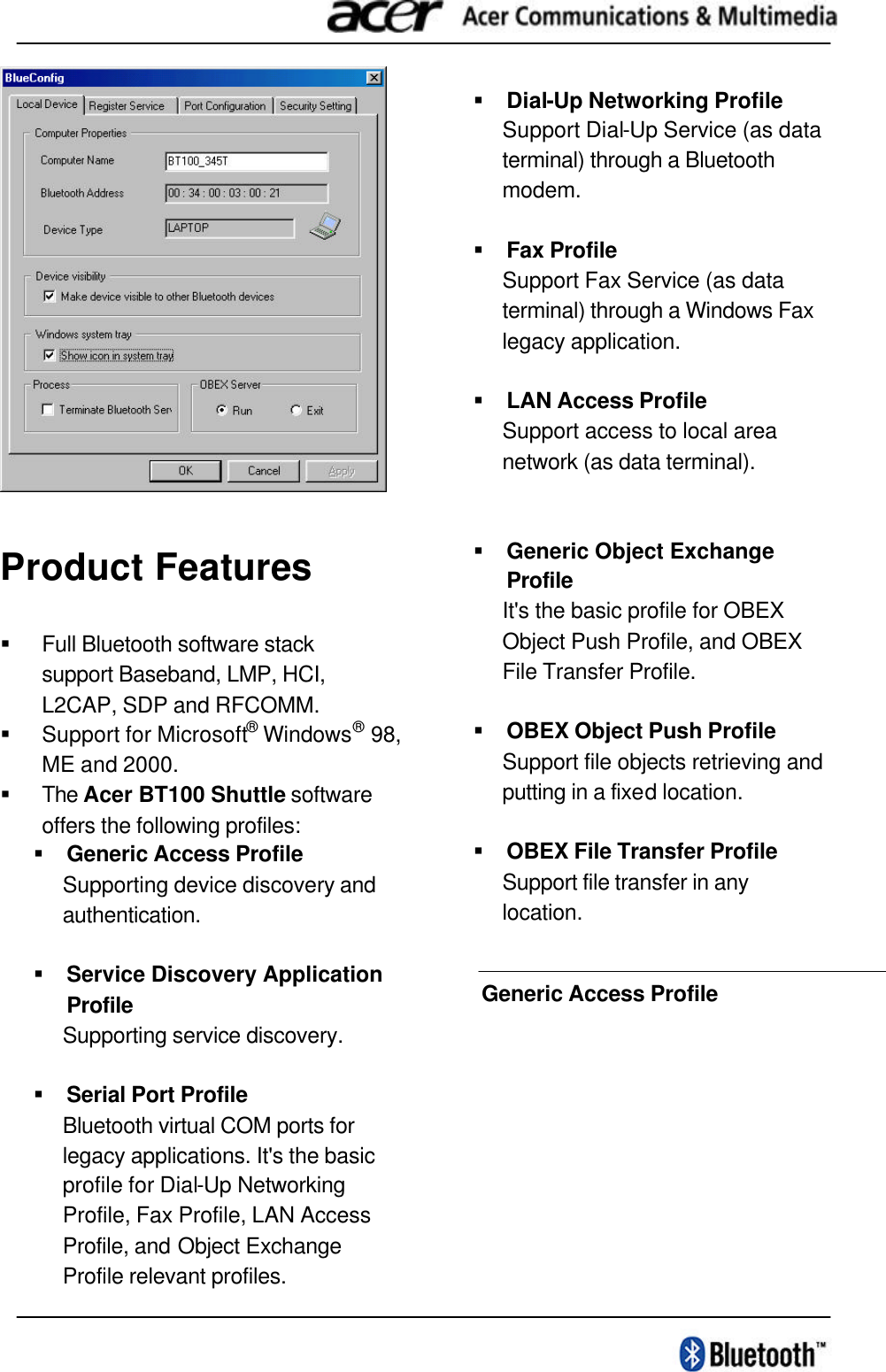

                                                                                                        Product Features § Full Bluetooth software stack support Baseband, LMP, HCI, L2CAP, SDP and RFCOMM. § Support for Microsoft® Windows® 98, ME and 2000. § The Acer BT100 Shuttle software offers the following profiles: § Generic Access Profile Supporting device discovery and authentication.  § Service Discovery Application Profile Supporting service discovery.    § Serial Port Profile Bluetooth virtual COM ports for legacy applications. It's the basic profile for Dial-Up Networking Profile, Fax Profile, LAN Access Profile, and Object Exchange Profile relevant profiles.  § Dial-Up Networking Profile Support Dial-Up Service (as data terminal) through a Bluetooth modem.  § Fax Profile Support Fax Service (as data terminal) through a Windows Fax legacy application.  § LAN Access Profile Support access to local area network (as data terminal).     § Generic Object Exchange Profile It's the basic profile for OBEX Object Push Profile, and OBEX File Transfer Profile.  § OBEX Object Push Profile Support file objects retrieving and putting in a fixed location.  § OBEX File Transfer Profile Support file transfer in any location.    Generic Access Profile

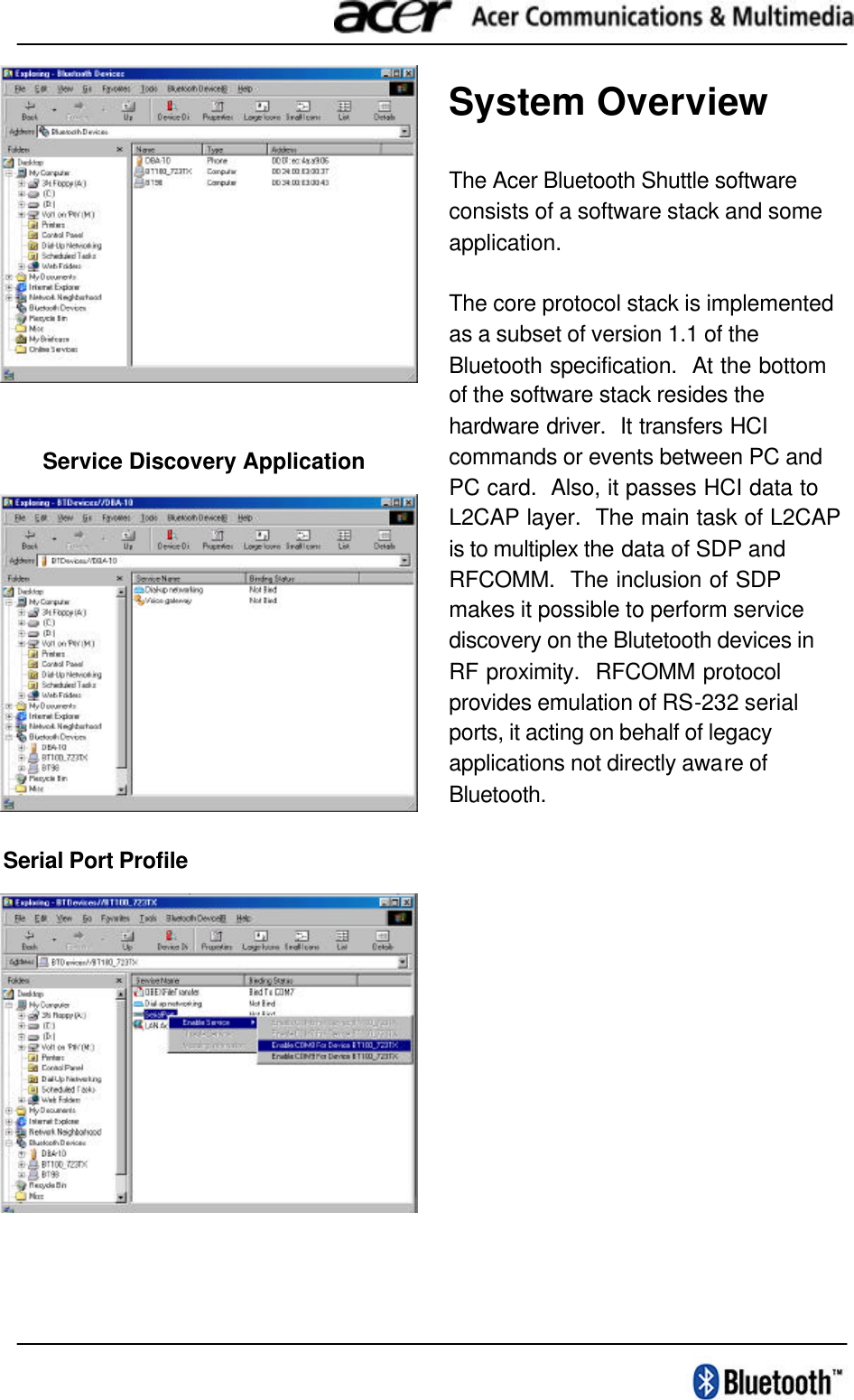

                                                                                                               System Overview The Acer Bluetooth Shuttle software consists of a software stack and some application.    The core protocol stack is implemented as a subset of version 1.1 of the Bluetooth specification.  At the bottom of the software stack resides the hardware driver.  It transfers HCI commands or events between PC and PC card.  Also, it passes HCI data to L2CAP layer.  The main task of L2CAP is to multiplex the data of SDP and RFCOMM.  The inclusion of SDP makes it possible to perform service discovery on the Blutetooth devices in RF proximity.  RFCOMM protocol provides emulation of RS-232 serial ports, it acting on behalf of legacy applications not directly aware of Bluetooth.   Service Discovery Application Serial Port Profile

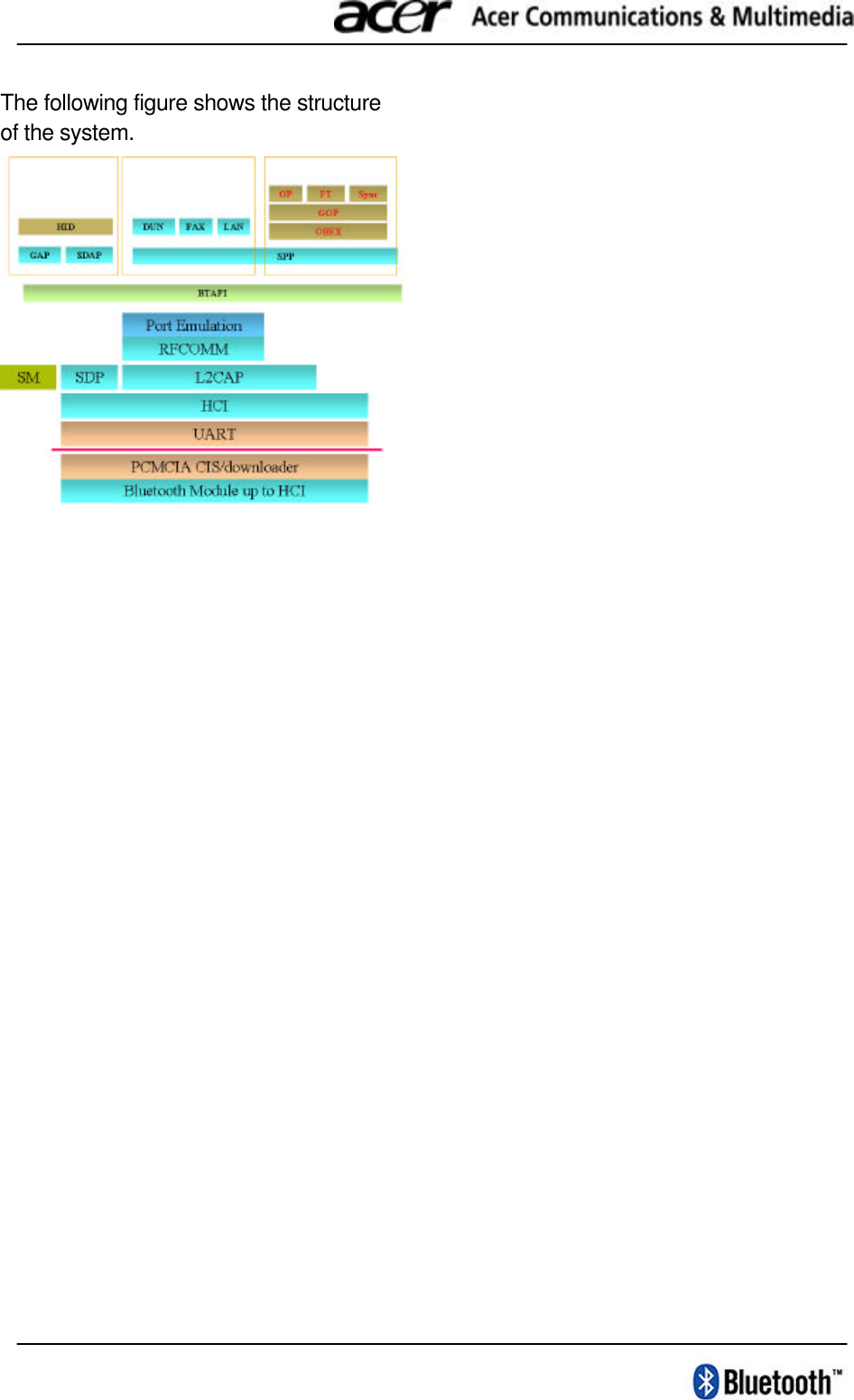

                                                                                                        The following figure shows the structure of the system.

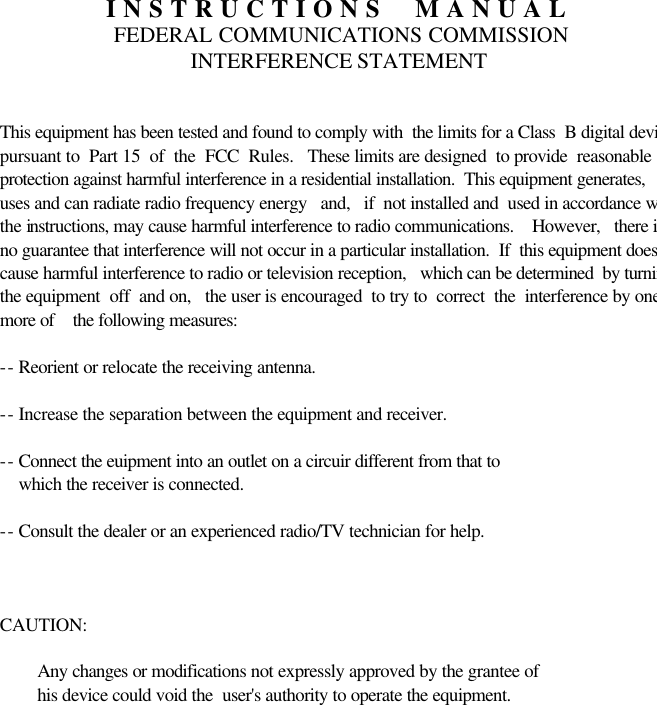

 INSTRUCTIONS  MANUAL FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT   This equipment has been tested and found to comply with  the limits for a Class  B digital device, pursuant to  Part 15  of  the  FCC  Rules.   These limits are designed  to provide  reasonable  protection against harmful interference in a residential installation.  This equipment generates,   uses and can radiate radio frequency energy   and,   if  not installed and  used in accordance with the instructions, may cause harmful interference to radio communications.    However,   there is no guarantee that interference will not occur in a particular installation.  If  this equipment does cause harmful interference to radio or television reception,   which can be determined  by turning the equipment  off  and on,   the user is encouraged  to try to  correct  the  interference by one or more of    the following measures:  -- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.  -- Connect the euipment into an outlet on a circuir different from that to         which the receiver is connected.  -- Consult the dealer or an experienced radio/TV technician for help.    CAUTION:    Any changes or modifications not expressly approved by the grantee of             his device could void the  user's authority to operate the equipment.
