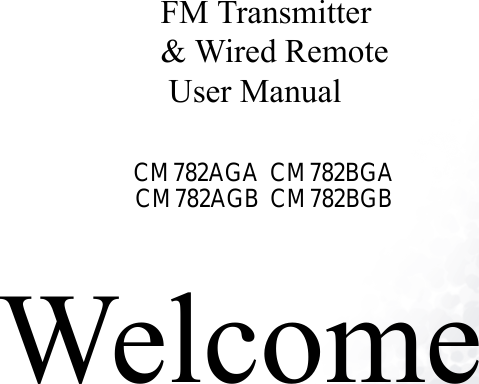

WelcomeFM Transmitter& Wired Remote User Manual CM782AGA CM782BGA CM782AGB CM782BGB

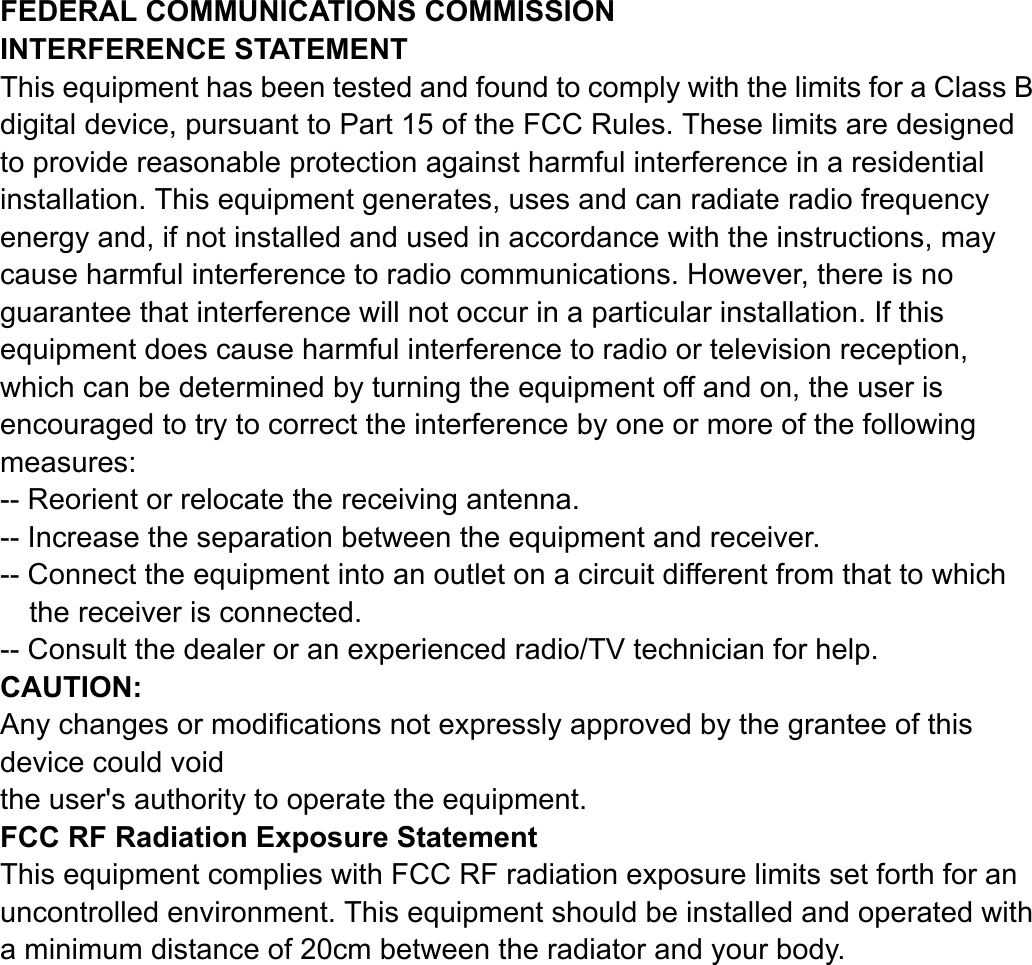

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

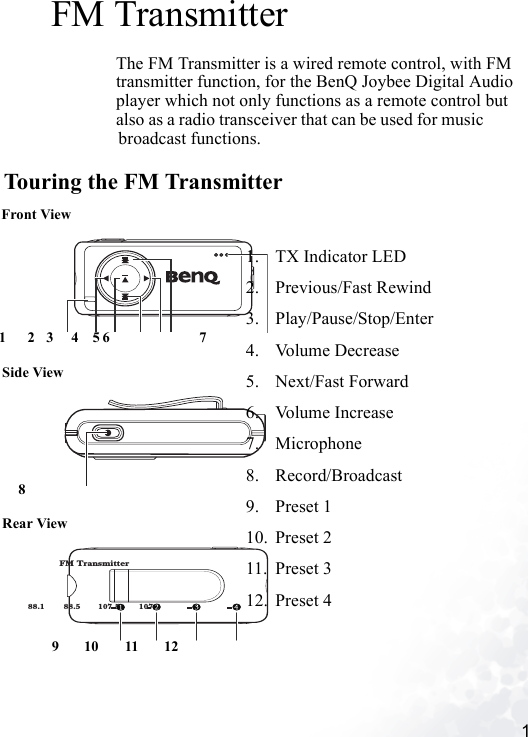

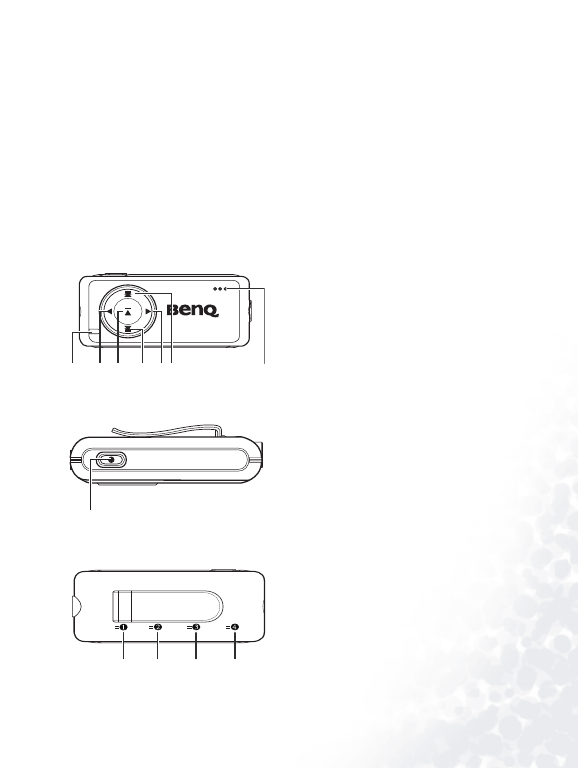

1FM TransmitterThe FM Transmitter is a wired remote control, with FM transmitter function, for the BenQ Joybee Digital Audio player which not only functions as a remote control but also as a radio transceiver that can be used for music broadcast functions.Touring the FM TransmitterFM Transmitter88.1 88.5 107.5 107.9Front ViewRear View8123456 71. TX Indicator LED2. Previous/Fast Rewind3. Play/Pause/Stop/Enter4. Volume Decrease5. Next/Fast Forward6. Volume Increase7. Microphone8. Record/Broadcast9. Preset 110. Preset 211. Preset 312. Preset 4910 1211Side View

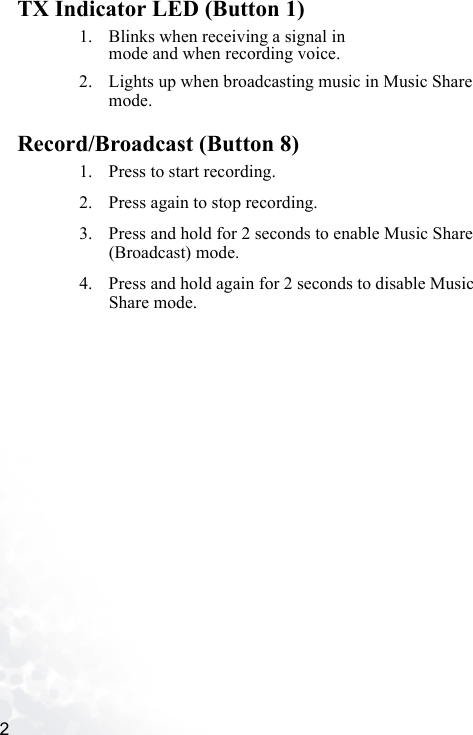

2 TX Indicator LED (Button 1)1. Blinks when receiving a signal in mode and when recording voice.2. Lights up when broadcasting music in Music Share mode.Record/Broadcast (Button 8)1. Press to start recording.2. Press again to stop recording.3. Press and hold for 2 seconds to enable Music Share (Broadcast) mode.4. Press and hold again for 2 seconds to disable Music Share mode.

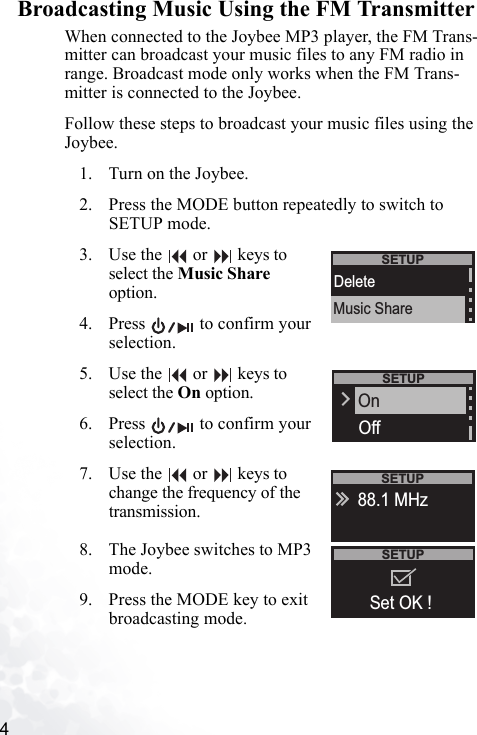

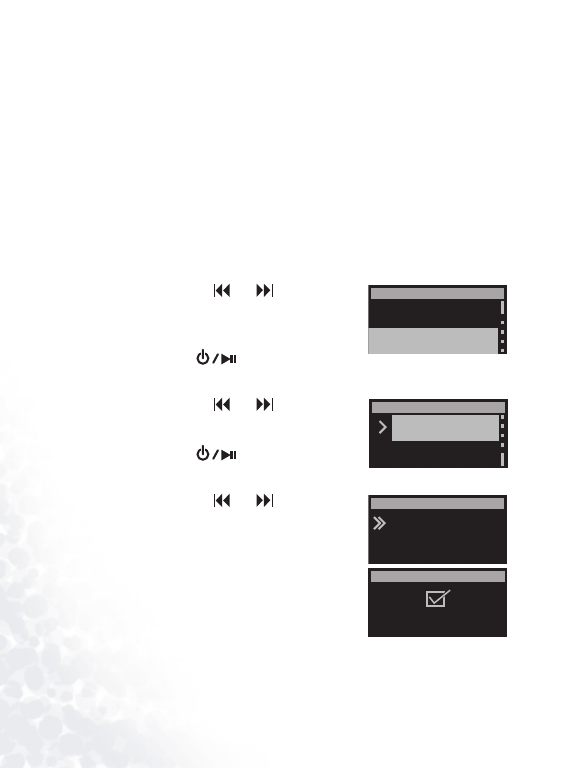

4 Broadcasting Music Using the FM TransmitterWhen connected to the Joybee MP3 player, the FM Trans-mitter can broadcast your music files to any FM radio in range. Broadcast mode only works when the FM Trans-mitter is connected to the Joybee.Follow these steps to broadcast your music files using the Joybee.1. Turn on the Joybee.2. Press the MODE button repeatedly to switch to SETUP mode. 3. Use the or keys to select the Music Share option.4. Press to confirm your selection. 5. Use the or keys to select the On option.6. Press to confirm your selection.7. Use the or keys to change the frequency of the transmission.8. The Joybee switches to MP3 mode.9. Press the MODE key to exit broadcasting mode.SETUPDeleteMusic ShareSETUPOffOnSETUP88.1 MHzSETUPSet OK !
5Broadcasting on the Preset Radio Stations1. Turn on the Joybee.2. Press the MODE button repeatedly to switch to SETUP mode. 3. Use the or keys to select the Music Share option.4. Press to confirm your selection. 5. Use the or keys to select the On option.6. Press to confirm your selection.7. Press and hold the and the keys for 2 sec-onds to enter the preset fre-quency mode and use the or keys to select a specific preset frequency for broadcast.8. The LED will light once to signal it is on preset 1, twice for preset 2, three times for preset 3 and 4 times for preset 4.9. Press the key. The current track is broadcast on the selected frequency.10. Press and hold the key for 2 seconds to end the broadcast.11. Press the MODE key to exit the preset radio mode.SETUPDeleteMusic ShareSETUPOffOnSETUP88.1 MHzRECREC

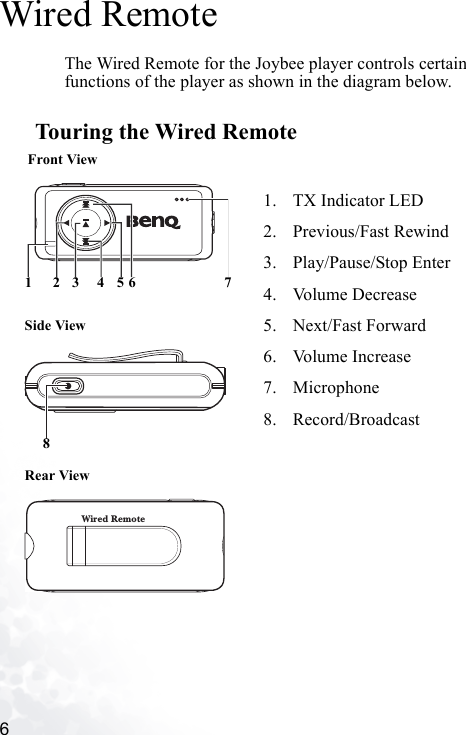

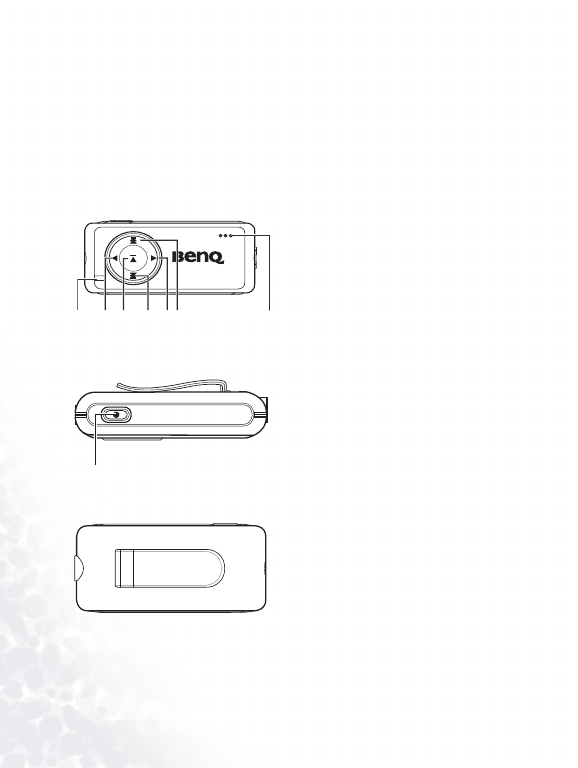

6 Wired RemoteThe Wired Remote for the Joybee player controls certain functions of the player as shown in the diagram below.Touring the Wired RemoteFront ViewSide View8123456 7Wired RemoteRear View1. TX Indicator LED2. Previous/Fast Rewind3. Play/Pause/Stop Enter4. Volume Decrease5. Next/Fast Forward6. Volume Increase7. Microphone8. Record/Broadcast
7TX Indicator LED (Button 1)1. Blinks when recording voice.2. Lights up when broadcasting music in Music Share mode.Record/Broadcast (Button 8)1. Press to start recording.2. Press again to stop recording.3. Press and hold for 2 seconds to enable Music Share (Broadcast) mode.4. Press and hold again for 2 seconds to disable Music Share mode.
