BenQ HERC3A(M580a)Mobile Phone User’s Manual

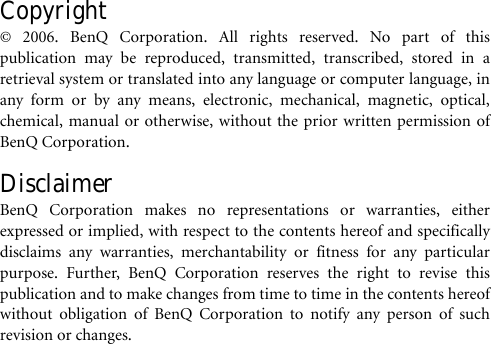

Copyright© 2006. BenQ Corporation. All rights reserved. No part of thispublication may be reproduced, transmitted, transcribed, stored in aretrieval system or translated into any language or computer language, inany form or by any means, electronic, mechanical, magnetic, optical,chemical, manual or otherwise, without the prior written permission ofBenQ Corporation.DisclaimerBenQ Corporation makes no representations or warranties, eitherexpressed or implied, with respect to the contents hereof and specificallydisclaims any warranties, merchantability or fitness for any particularpurpose. Further, BenQ Corporation reserves the right to revise thispublication and to make changes from time to time in the contents hereofwithout obligation of BenQ Corporation to notify any person of suchrevision or changes.

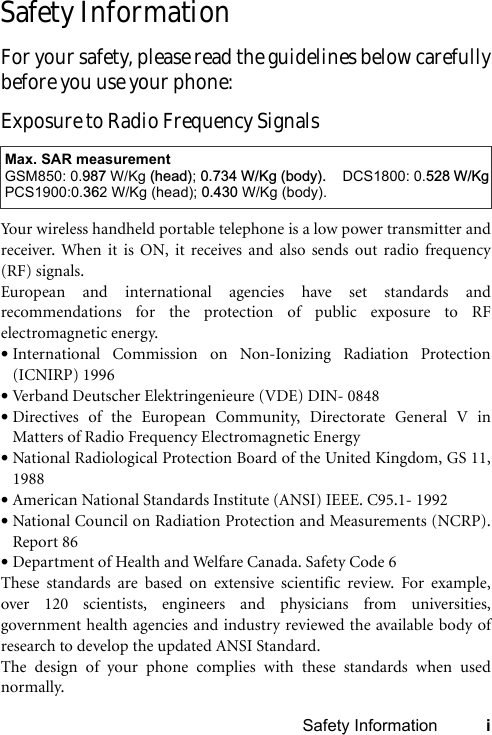

Safety Information iSafety InformationFor your safety, please read the guidelines below carefullybefore you use your phone:Exposure to Radio Frequency SignalsYour wireless handheld portable telephone is a low power transmitter andreceiver. When it is ON, it receives and also sends out radio frequency(RF) signals.European and international agencies have set standards andrecommendations for the protection of public exposure to RFelectromagnetic energy.•International Commission on Non-Ionizing Radiation Protection(ICNIRP) 1996•Verband Deutscher Elektringenieure (VDE) DIN- 0848•Directives of the European Community, Directorate General V inMatters of Radio Frequency Electromagnetic Energy•National Radiological Protection Board of the United Kingdom, GS 11,1988•American National Standards Institute (ANSI) IEEE. C95.1- 1992•National Council on Radiation Protection and Measurements (NCRP).Report 86•Department of Health and Welfare Canada. Safety Code 6These standards are based on extensive scientific review. For example,over 120 scientists, engineers and physicians from universities,government health agencies and industry reviewed the available body ofresearch to develop the updated ANSI Standard.The design of your phone complies with these standards when usednormally.Max. SAR measurementGSM850: 0.987 W/Kg (head); 0.734 W/Kg (body). DCS1800: 0.528 W/KgPCS1900:0.362 W/Kg (head); 0.430 W/Kg (body).

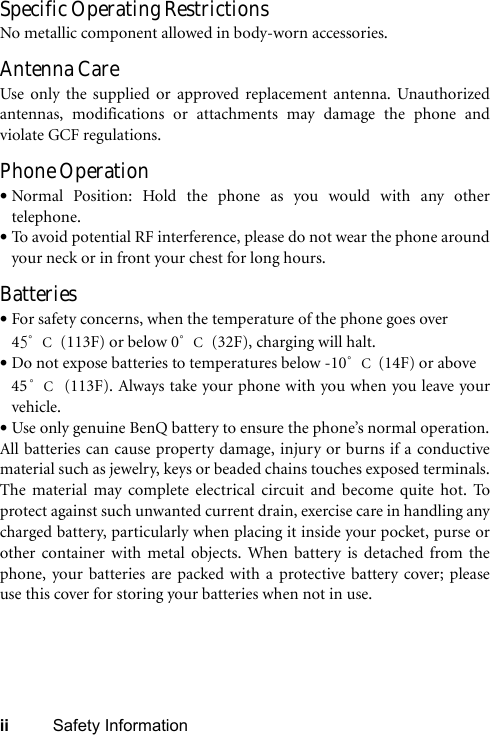

ii Safety InformationSpecific Operating RestrictionsNo metallic component allowed in body-worn accessories.Antenna CareUse only the supplied or approved replacement antenna. Unauthorizedantennas, modifications or attachments may damage the phone andviolate GCF regulations. Phone Operation•Normal Position: Hold the phone as you would with any othertelephone.•To avoid potential RF interference, please do not wear the phone aroundyour neck or in front your chest for long hours.Batteries•For safety concerns, when the temperature of the phone goes over 45°C (113F) or below 0°C (32F), charging will halt. •Do not expose batteries to temperatures below -10°C (14F) or above 45°C (113F). Always take your phone with you when you leave yourvehicle.•Use only genuine BenQ battery to ensure the phone’s normal operation.All batteries can cause property damage, injury or burns if a conductivematerial such as jewelry, keys or beaded chains touches exposed terminals.The material may complete electrical circuit and become quite hot. Toprotect against such unwanted current drain, exercise care in handling anycharged battery, particularly when placing it inside your pocket, purse orother container with metal objects. When battery is detached from thephone, your batteries are packed with a protective battery cover; pleaseuse this cover for storing your batteries when not in use.

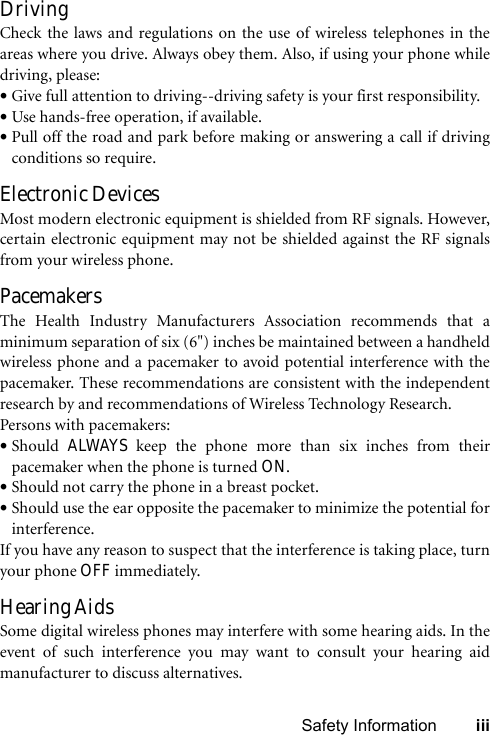

Safety Information iiiDrivingCheck the laws and regulations on the use of wireless telephones in theareas where you drive. Always obey them. Also, if using your phone whiledriving, please:•Give full attention to driving--driving safety is your first responsibility.•Use hands-free operation, if available.•Pull off the road and park before making or answering a call if drivingconditions so require.Electronic DevicesMost modern electronic equipment is shielded from RF signals. However,certain electronic equipment may not be shielded against the RF signalsfrom your wireless phone.PacemakersThe Health Industry Manufacturers Association recommends that aminimum separation of six (6") inches be maintained between a handheldwireless phone and a pacemaker to avoid potential interference with thepacemaker. These recommendations are consistent with the independentresearch by and recommendations of Wireless Technology Research.Persons with pacemakers:•Should ALWAYS keep the phone more than six inches from theirpacemaker when the phone is turned ON.•Should not carry the phone in a breast pocket.•Should use the ear opposite the pacemaker to minimize the potential forinterference.If you have any reason to suspect that the interference is taking place, turnyour phone OFF immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In theevent of such interference you may want to consult your hearing aidmanufacturer to discuss alternatives.
iv Safety InformationOther Medical DevicesIf you use any other personal medical device, consult the manufacturer ofyour device to determine if they are adequately shielded from external RFenergy. Your physician may be able to assist you in obtaining thisinformation.Turn your phone OFF in health care facilities when any regulations postedin these areas instruct you to do so. Hospitals or health care facilities maybe using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shieldedelectronic systems in motor vehicles. Check with the manufacturer or itsrepresentative regarding your vehicle. You should also consult themanufacturer of any equipment that has been added to your vehicle.Posted FacilitiesTurn your phone OFF in any facility where posted notice so requires.AircraftFCC regulations prohibit using your phone while in the air. Switch OFFyour phone before boarding an aircraft.Blasting AreasTo avoid interfering with blasting operations, turn your phone OFF whenin a “blasting area” or in area posted “TURN OFF TWO-WAY RADIO.”Obey all signs and instructions.Potentially Explosive AtmospheresTurn your phone OFF and do not remove the battery when in any areawith a potentially explosive atmosphere and obey all signs andinstructions. Sparks, from your battery, in such areas could cause anexplosion or fire resulting in bodily injury or even death.

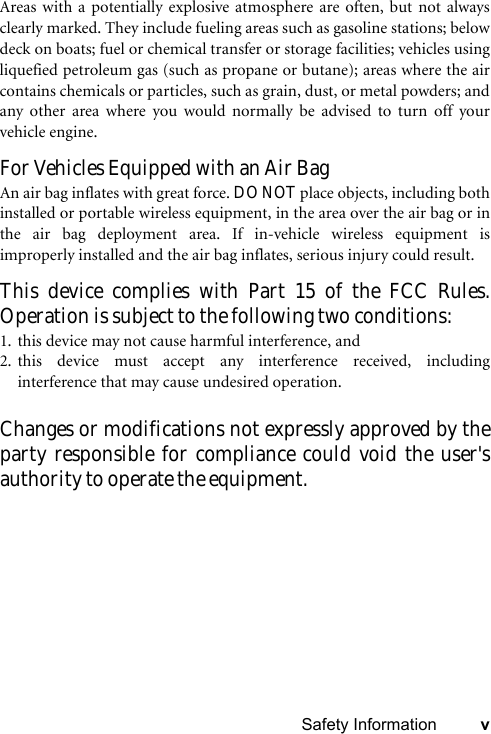

Safety Information vAreas with a potentially explosive atmosphere are often, but not alwaysclearly marked. They include fueling areas such as gasoline stations; belowdeck on boats; fuel or chemical transfer or storage facilities; vehicles usingliquefied petroleum gas (such as propane or butane); areas where the aircontains chemicals or particles, such as grain, dust, or metal powders; andany other area where you would normally be advised to turn off yourvehicle engine.For Vehicles Equipped with an Air BagAn air bag inflates with great force. DO NOT place objects, including bothinstalled or portable wireless equipment, in the area over the air bag or inthe air bag deployment area. If in-vehicle wireless equipment isimproperly installed and the air bag inflates, serious injury could result.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. this device may not cause harmful interference, and2. this device must accept any interference received, includinginterference that may cause undesired operation.Changes or modifications not expressly approved by theparty responsible for compliance could void the user'sauthority to operate the equipment.
vi Safety InformationEuropean Union Directives Conformance StatementThis device complies with the OJ-Directive as below:3GPP TS 51.010-1EN 301 511EN 50360/ EN 50361ETSI EN 301 489-1/-7EN 60950ETSI EN 300 328 & ETSI EN 301 489-17 (Bluetooth)Electromagnetic Compatibility Directive (89/336/EEC), Low VoltageDirective (73/23/EEC)And R&TTE Directive (99/05/EEC).And also complies with the standard:
viiTable of ContentsTable of ContentsSafety Information...........................................................i1. Preparing Your Phone For Use...................................1Inserting a SIM Card ............................................................ 1Installing the Battery ............................................................ 2Installing the Back Cover ..................................................... 2Charging the Phone.............................................................. 3Turning the Phone On ......................................................... 42. Getting to Know Your Phone .....................................5Your Phone at a Glance........................................................ 5Sub Display ........................................................................... 7Idle Screen ............................................................................ 7Using the Keys in Idle Mode.............................................. 10Menu Navigation................................................................ 123. Using Your Phone .....................................................13Call Functions..................................................................... 13Making a Phone Call ..............................................................13Ending a Phone Call...............................................................13Answering a Phone Call .........................................................13Rejecting an Incoming Call....................................................13Muting the Incoming Call .....................................................13Adjusting the Volume ............................................................14Making an International Call ................................................14Making an Emergency Call....................................................14Dialing an Extension Number...............................................14
viii Table of ContentsListening to Voicemails..........................................................15Operations During a Call.......................................................15Phone Book......................................................................... 20Adding Contacts to the Phone Book.....................................20Finding Contacts in the Phone Book ....................................22Last Missed, Dialed, and Received Calls............................ 23Using the Silent Profile....................................................... 24Camera ................................................................................ 25Taking Pictures.......................................................................25Camera Setup .........................................................................26LCD Icons on the Camera Viewfinder..................................27Managing Your Pictures ........................................................28Shortcuts ............................................................................. 29Setting Shortcuts ....................................................................29Using Shortcuts ......................................................................30Messages.............................................................................. 30SMS .........................................................................................30MMS........................................................................................34Voicemail ................................................................................39Cell Broadcast.........................................................................40Memory Status .......................................................................40Input Methods.................................................................... 41Shifting between Upper and Lower Case Letters..................41Multitap Text Input ...............................................................41T9 Text Input..........................................................................42Numeric Input........................................................................44Entering Symbols ...................................................................44

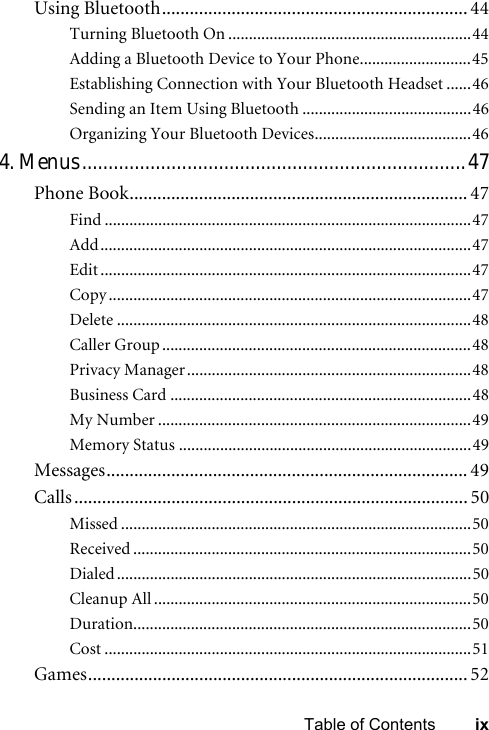

ixTable of ContentsUsing Bluetooth.................................................................. 44Turning Bluetooth On ...........................................................44Adding a Bluetooth Device to Your Phone...........................45Establishing Connection with Your Bluetooth Headset ......46Sending an Item Using Bluetooth .........................................46Organizing Your Bluetooth Devices......................................464. Menus.........................................................................47Phone Book......................................................................... 47Find .........................................................................................47Add..........................................................................................47Edit ..........................................................................................47Copy ........................................................................................47Delete ......................................................................................48Caller Group ...........................................................................48Privacy Manager.....................................................................48Business Card .........................................................................48My Number ............................................................................49Memory Status .......................................................................49Messages.............................................................................. 49Calls ..................................................................................... 50Missed .....................................................................................50Received ..................................................................................50Dialed ......................................................................................50Cleanup All .............................................................................50Duration..................................................................................50Cost .........................................................................................51Games.................................................................................. 52

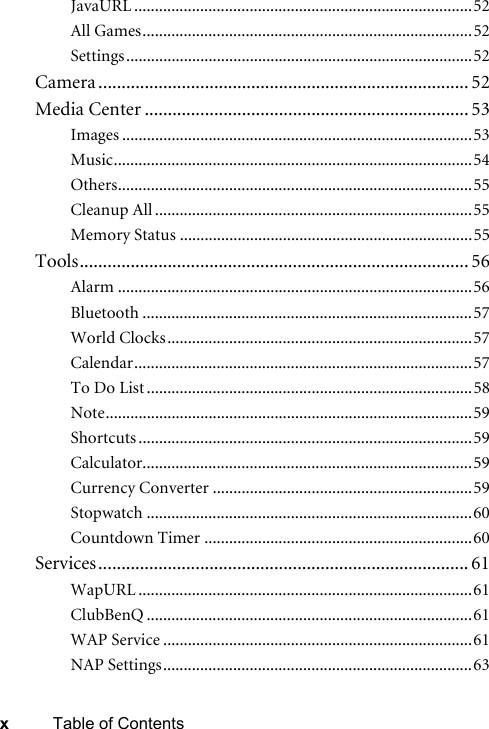

xTable of ContentsJavaURL ..................................................................................52All Games................................................................................52Settings....................................................................................52Camera ................................................................................ 52Media Center ...................................................................... 53Images .....................................................................................53Music.......................................................................................54Others......................................................................................55Cleanup All .............................................................................55Memory Status .......................................................................55Tools.................................................................................... 56Alarm ......................................................................................56Bluetooth ................................................................................57World Clocks..........................................................................57Calendar..................................................................................57To Do List ...............................................................................58Note.........................................................................................59Shortcuts .................................................................................59Calculator................................................................................59Currency Converter ...............................................................59Stopwatch ...............................................................................60Countdown Timer .................................................................60Services................................................................................ 61WapURL .................................................................................61ClubBenQ ...............................................................................61WAP Service ...........................................................................61NAP Settings...........................................................................63

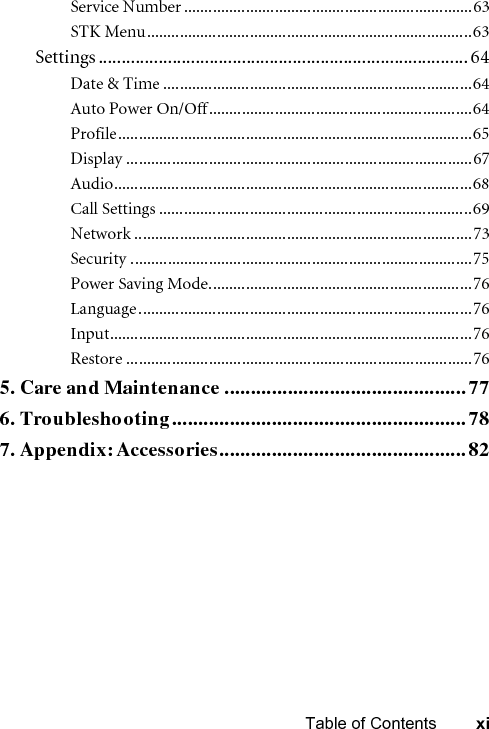

xiTable of ContentsService Number ......................................................................63STK Menu...............................................................................63Settings ................................................................................ 64Date & Time ...........................................................................64Auto Power On/Off................................................................64Profile......................................................................................65Display ....................................................................................67Audio.......................................................................................68Call Settings ............................................................................69Network ..................................................................................73Security ...................................................................................75Power Saving Mode................................................................76Language .................................................................................76Input........................................................................................76Restore ....................................................................................765. Care and Maintenance ..............................................776. Troubleshooting........................................................787. Appendix: Accessories...............................................82
xii Table of Contents

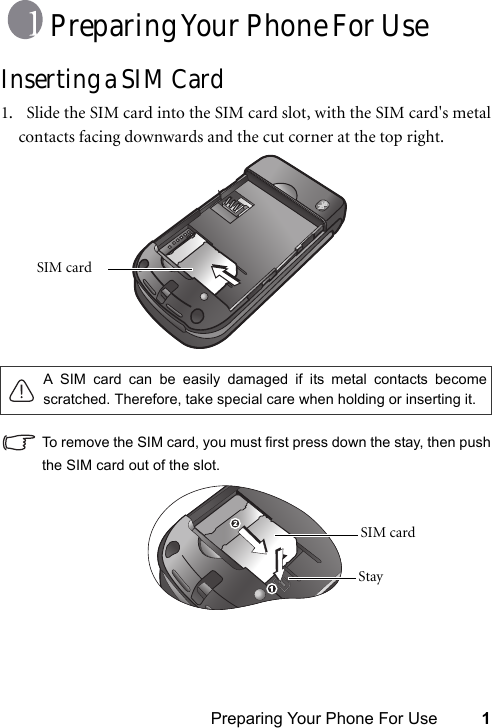

Preparing Your Phone For Use 1Preparing Your Phone For UseInserting a SIM Card1. Slide the SIM card into the SIM card slot, with the SIM card's metalcontacts facing downwards and the cut corner at the top right. To remove the SIM card, you must first press down the stay, then pushthe SIM card out of the slot.A SIM card can be easily damaged if its metal contacts becomescratched. Therefore, take special care when holding or inserting it.SIM card SIM card Stay

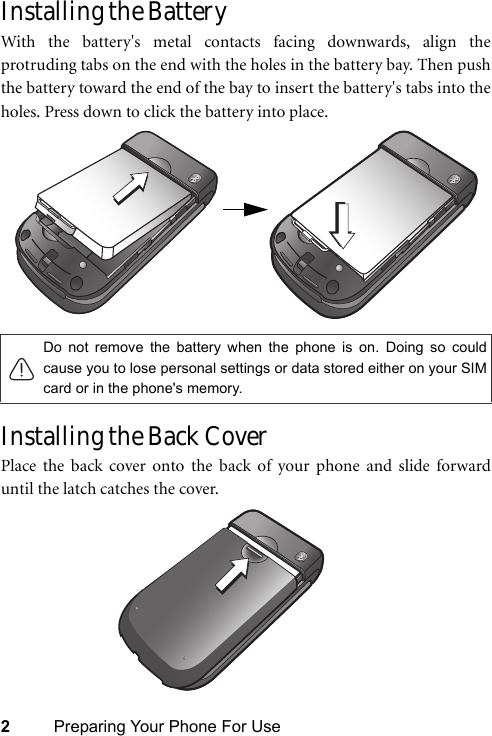

2Preparing Your Phone For UseInstalling the BatteryWith the battery's metal contacts facing downwards, align theprotruding tabs on the end with the holes in the battery bay. Then pushthe battery toward the end of the bay to insert the battery's tabs into theholes. Press down to click the battery into place. Installing the Back CoverPlace the back cover onto the back of your phone and slide forwarduntil the latch catches the cover.Do not remove the battery when the phone is on. Doing so couldcause you to lose personal settings or data stored either on your SIMcard or in the phone's memory.
Preparing Your Phone For Use 3Charging the Phone1. Insert the charger connector deep into the charger socket at thebottom of your phone. Ensure that the connector is plugged in theright direction with the side showing arrow icon or "up" facingupwards.2. Plug the charger into a power outlet.3. Once the phone is fully charged, remove the charger from both thepower outlet and the phone.Please note:•It takes approximately 4 hours to fully charge a battery.•When the battery is weak, the phone will play an alert sound.•When the battery is discharged, the charging may not start immediatelywhen you plug in the connector. Wait 10 to 15 minutes for the phone tobegin charging.Do not remove the battery while the phone is charging.
4Preparing Your Phone For UseTurning the Phone On1. Press and hold to turn the phone on. The phone will displaythe welcome animation.2. Enter your PIN code and press to confirm.The PIN (Personal Identification Number) is the password providedby your network operator. You need this password in order to use theSIM card. To activate/disable PIN password authentication, go to Settings >Security > PIN Code > PIN 1 Code > Set Status. See page 75. 3. When the PIN code entered has been accepted, the phone willautomatically search for the designated network. This search processmay take a few seconds.4. The idle screen will be displayed, as well as network signal strengthand the name of the network operator. You can now use the phone.If the phone is not able to detect the designated network, or links to anetwork that you are not authorized to use, the signal strength meterwill show no bars. You will only be able to make emergency calls.If you enter the PIN incorrectly three times in a row, the SIM card willbe locked. You must now enter the PUK (Personal Unblocking Key)for that SIM card in order to unlock it. Please contact your networkoperator to obtain a PUK.
Getting to Know Your Phone 5Getting to Know Your PhoneYour Phone at a GlanceFront and side views Sub displayFront Camera Charger socketHands-free headset / Data cable jackBluetooth hot keySpeaker

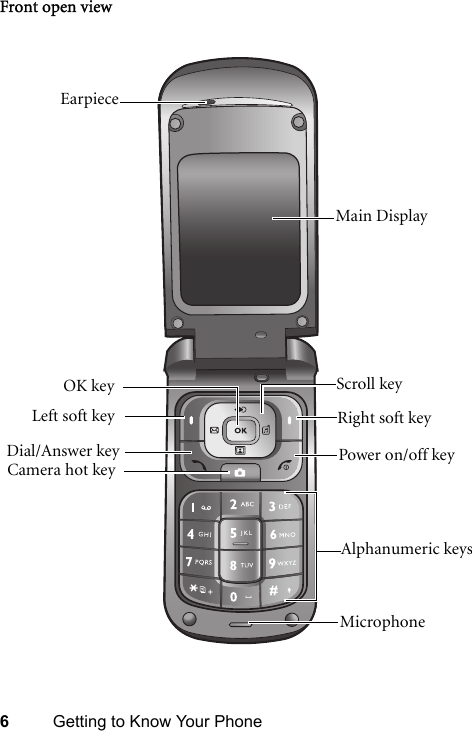

6Getting to Know Your PhoneFront open view EarpieceMain DisplayRight soft keyOK keyDial/Answer keyAlphanumeric keysPower on/off keyLeft soft keyMicrophoneCamera hot keyScroll key
Getting to Know Your Phone 7Sub DisplayWhen the flip is closed, the sub display's status bar will show icons fornetwork strength, battery power, the current time and the currentprofile in use. The sub display will also alert you to incoming calls, newmessages and missed calls.Idle Screen •To set the wallpaper of the display, go to Settings > Display >Wallpaper. Alternatively, you can go to Media Center > Images.See page 53 and page 67.•To set the current time and date, as well as the format to beshown, go to Settings > Date & Time. See page 64.Status barName of network operatorPress to enter theindicated function.Press to enter the main menu.Press to enter theindicated function.

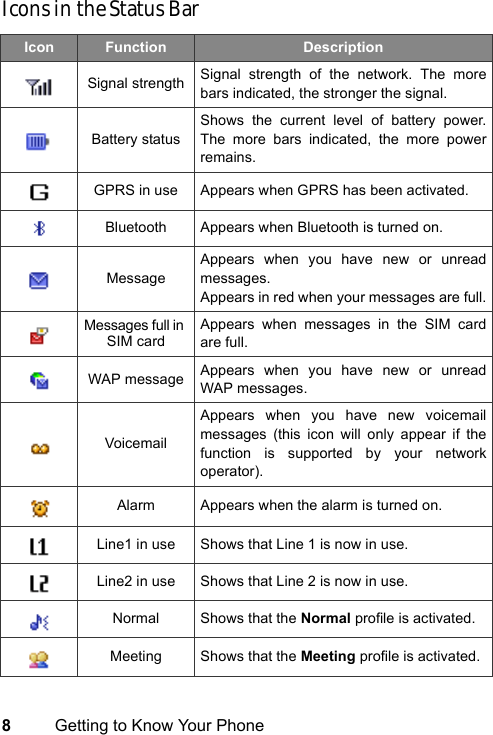

8Getting to Know Your PhoneIcons in the Status Bar Icon Function DescriptionSignal strength Signal strength of the network. The morebars indicated, the stronger the signal.Battery statusShows the current level of battery power.The more bars indicated, the more powerremains.GPRS in use Appears when GPRS has been activated.Bluetooth Appears when Bluetooth is turned on.MessageAppears when you have new or unreadmessages.Appears in red when your messages are full.Messages full in SIM cardAppears when messages in the SIM cardare full.WAP message Appears when you have new or unreadWAP messages.VoicemailAppears when you have new voicemailmessages (this icon will only appear if thefunction is supported by your networkoperator).Alarm Appears when the alarm is turned on.Line1 in use Shows that Line 1 is now in use.Line2 in use Shows that Line 2 is now in use.Normal Shows that the Normal profile is activated. Meeting Shows that the Meeting profile is activated.
Getting to Know Your Phone 9Outdoors Shows that the Outdoors profile isactivated.Silent Shows that the Silent profile is activated.Personal Shows that the Personal profile is activated.Headset Appears when a headset is connected to thephone. Divert Appears when the call divert is activated.Roaming Roaming is activated (not your regularnetwork).Icon Function Description
10 Getting to Know Your PhoneUsing the Keys in Idle ModeIn this user manual, "long-press" means to press and hold down a keyfor about two seconds. "Press" means to press a key and releaseimmediately. Key Commands and functionsPower on/off key•Long-press to turn the phone on or off.•Press this key to end a call, reject an incoming call, orto cancel a dialing.Send/Answer key•Press to send or answer a call.•Press to access the call record list.Left soft key•Press to perform the function indicated on the display.Right soft key•Press to perform the function indicated on the display.•Long-press to turn the silent profile on or off.OK key•Press to open up the main menu.
Getting to Know Your Phone 11Scroll key•Press to access Shortcuts.•Press to access Profiles.•Press to access Camera Photos.•Press to create a new SMS.Camera hot key•Press to activate the camera mode. Asterisk key•Press this key to enter an asterisk " * ".•To make an international call, long-press this key untilthe display shows "+", then enter the recipient's countrycode, area code and phone number.Voicemail key•Long-press to dial your voicemail number.# key•Press to enter "#".•For extensions: After entering a phone number, long-press to enter a "P" and then enter the extensionnumber.~Alphanumeric keys•Press to enter digits.Bluetooth hot key•Long press to access a list of your blurtooth devices.Key Commands and functions
12 Getting to Know Your PhoneMenu Navigation1. In idle mode, press to bring up the main menu.2. Use the scroll key to move up, down, right or left through the menu,for example, scroll to Settings, and press to enter its menu.3. Use the scroll key to scroll to a submenu, for example Profiles, andpress to enter the submenu item.You can also access a menu item by pressing the correspondingmenu number. In the above example, press to access Profiles.

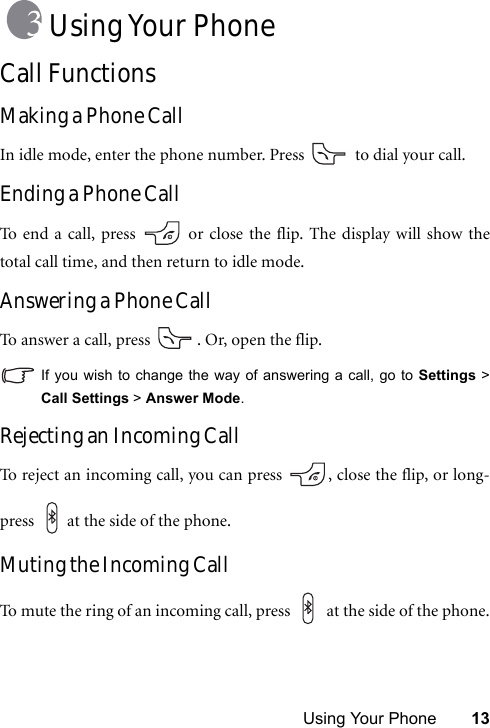

Using Your Phone 13Using Your PhoneCall FunctionsMaking a Phone CallIn idle mode, enter the phone number. Press to dial your call.Ending a Phone CallTo end a call, press or close the flip. The display will show thetotal call time, and then return to idle mode.Answering a Phone CallTo answer a call, press . Or, open the flip.If you wish to change the way of answering a call, go to Settings >Call Settings > Answer Mode.Rejecting an Incoming CallTo reject an incoming call, you can press , close the flip, or long-press at the side of the phone. Muting the Incoming CallTo mute the ring of an incoming call, press at the side of the phone.
14 Using Your PhoneAdjusting the VolumeDuring a call, if you want to adjust the speech volume, you can press or .Please note: Adjusting speech volume works during a call or whendailing.Making an International Call1. Enter the outgoing international call code, or long-press until"+" appears on the display.2. Enter the recipient's country code, area code and phone number.Dial the call by pressing .Making an Emergency CallTo call emergency services, enter 112 (the international emergencynumber) and then press to dial the call. You can make anemergency call even if your phone is locked or cannot access yournetwork, or there is no SIM card inserted, so long as you are withinrange of a network of the type supported by your phone.Dialing an Extension NumberAfter you enter a telephone number, long-press until "P" appearson the display. At this point, you can enter the desired extensionnumber, and then press to dial it.
Using Your Phone 15Listening to VoicemailsLong-press to dial the voicemail phone number and listen toyour voicemails.Please note:•If the network vendor supports it, the voicemail icon will appear on thedisplay when you have new voicemails.•If the voicemail number is not stored in the memory, you will not be able toaccess your voicemail by long-pressing . In this case, you will needto manually set the number by going to Messages > Voicemail > SetNumber.Operations During a CallThe following options marked with an asterisk (*) are dependent onnetwork support and may require a subscription.MutePress (Mute) to turn off the microphone. The person on theother end of the line will not be able to hear your voice. To restorethe microphone's function, press (Unmute).Putting a Call on Hold*• When the only call is active:a. Press (Hold) to hold this call.b. Press to end this call.•When the only call is on hold:

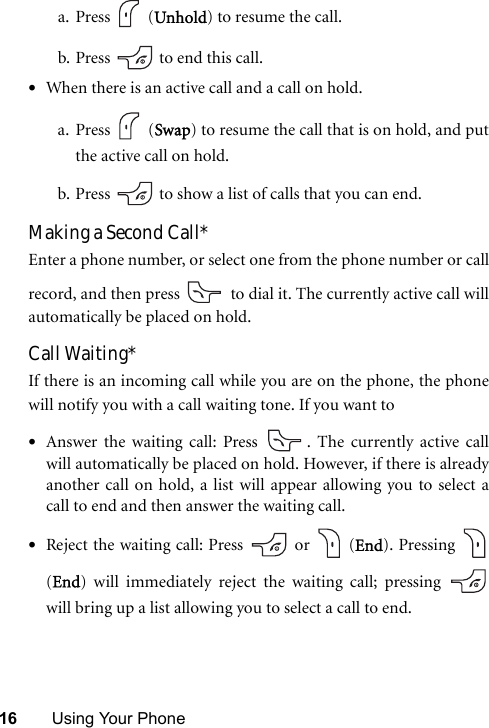

16 Using Your Phonea. Press (Unhold) to resume the call.b. Press to end this call.•When there is an active call and a call on hold.a. Press (Swap) to resume the call that is on hold, and putthe active call on hold.b. Press to show a list of calls that you can end.Making a Second Call*Enter a phone number, or select one from the phone number or callrecord, and then press to dial it. The currently active call willautomatically be placed on hold.Call Waiting*If there is an incoming call while you are on the phone, the phonewill notify you with a call waiting tone. If you want to•Answer the waiting call: Press . The currently active callwill automatically be placed on hold. However, if there is alreadyanother call on hold, a list will appear allowing you to select acall to end and then answer the waiting call.•Reject the waiting call: Press or (End). Pressing (End) will immediately reject the waiting call; pressing will bring up a list allowing you to select a call to end.
Using Your Phone 17Call MenuIf you press during a call, it will bring up a call menu whichprovides a number of functions during a call.Items marked with an asterisk (*) depend on network supportand may require a subscription.Use Loudspeaker/Mute SpeakerAllows you to turn on/off the loudpeaker.Use HeadsetAllows you to search for a bluetooth headset device.Phone BookAllows you to search for a contact in the phone book.Call RecordsAllows you to view missed, received, and dialed calls. Conference*Conference calls allow you to converse with more than oneparty at a time.Hold/Unhold/Swap*Toggles the call status.Join/PrivateAdds a party that is on hold to the current conference call,or isolates a single party in a conference call and puts allother parties on hold.
18 Using Your PhoneForwardAllows two parties to connect, while ending one's own call(one of the two parties may be involved in an active callwhile the other is either on hold or being dialed), so as toallow the two parties to have their own call.Send DTMFWhen the phone is connected with other devices or services,you can send DTMF (Dual Tone Multi-Frequency) strings.DTMF strings are keypad tones that can be sent via themicrophone as you dial another number. Your phone will emitthe tones in order to communicate with answering machines,pagers, computerized telephone services, and so forth.Enter the number and then press to send the DTMFstring.End CallEnd AllEnds all calls, whether active or on hold.End ActiveEnds only the active call.End HoldEnds only a call or calls on hold.End OneEnds only a single call by the number or the contact.Hold/Unhold/SwapToggles the call status.
Using Your Phone 19Mute/UnmuteActivates/cancels the silent mode.SMSAllows you to read or write an SMS message duing a call. Fordetails, see page 30, "SMS".
20 Using Your PhonePhone BookAdding Contacts to the Phone BookYou can store up to 500 entries in the phone memory. The capacity ofa phone book on your SIM card depends on the type of SIM cardprovided by your network operator. 1. In idle mode, enter the phone number to save, then press (Save).2. Select the memory where the contact is to be stored, Add to SIM orAdd to Phone.3. Scroll to the data field that you want to edit, and then press toenter data. For information about the input method, see page 41, "InputMethods".4. After filling the entry, press to return to the phone book datafield.5. Press (Option) to•Save: Save the entries you have entered. •Change Type: Change the category of the phone number (forexample, from Mobile Number to Home Number). This optioncan only be used in the phone number data field.•Add New Field: Adds additional data fields for a contact.•Delete Field: Removes the selected data field.6. Once you have completed editing a contact's data, press (Options) and then select Save to save the entries.
Using Your Phone 21Contact data fields on SIM card memory: Contact data fields on phone memory: Additional contact data fields on phone memory: Name The contact's name.Number The contact's phone number.Caller GroupUsed to select a caller group for the contact. To definea ring tone and image for each caller group, go toPhone Book > Caller Group. See page 48.Name The contact's name.Mobile Number The contact's mobile phone number.Home Number The contact's home number.Email The contact's email address.Caller Group Used to select a caller group for the contact.Mobile Number The contact's mobile phone number.Home Number The contact's home number.Office Number The contact's office phone number.Other Number Other phone number for the contact.Home Address The contact's home address.Office Address The contact's office address.
22 Using Your PhoneFinding Contacts in the Phone Book1. In idle mode, press (Names) to display contacts stored in thePhone Book.•Press the alphanumeric key that corresponds to the first letter of thename you wish to locate the appropriate number of times.Company The contact's company name.Department The contact's department name.Position The contact's position.Note Used to edit notes for the contact.Special Day Used to enter a special date for the contact.Ring IDUsed to set a ring tone for the contact. When there isan incoming call from the contact, the phone will playthis ring tone.A ring tone set in this field will replace the oneassociated with the contact's caller group, ifany.Image IDUsed to set the image that will appear on the displaywhen there is an incoming call from the contact.The image set in this field will replace the imageassociated with the contact's caller group, if any.
Using Your Phone 23•If necessary, scroll to the contact you want.The icon in the status bar appears differently according to thememory, SIM or phone, that the contact is saved to.2. When you have found the contact you want, you can•Press to dial the number. If the entry has more than one phonenumber, then you will be prompted to select a number.•Press (Option) to access a list of options including Add, Edit,Copy to Phone/SIM, Delete, and Send vCard (By SMS or ByBluetooth).•Press to view the contact's details.Press again will dial the currently highlighted phone number.If you want to send a SMS/MMS message to the contact, you canpress (Option) and select Send Message. For details aboutediting SMS/MMS messages, see page 30, "Messages".Last Missed, Dialed, and Received CallsThere are two ways you can view the last missed, dialed, and receivedcalls on your phone.1. If there have been any missed calls, the display will show a missed callmessage along with the number of calls that were missed. Press to view the missed call number.2. In the idle mode, press to view the list of the most recentmissed, dialed, and received calls.
24 Using Your PhoneThe icon will appear beside missed calls; the icon will appearbeside dialed calls; the will appear beside received calls.Scroll to the number you want and then you can•Press to call back.•Press (Option) and select your desired function.Using the Silent ProfileIn idle mode, you can long-press to activate the silent profile. Onceit is activated, the phone will alert you to an incoming call by vibratingwithout ringing.1. When you long-press to activate the silent profile, the phone willvibrate for one second. The icon will appear in the status bar.2. To turn off the silent profile, long-press .To select or define a profile, go to Settings > Profiles. See page 65,"Profile".
Using Your Phone 25CameraYour phone features a digital camera that allows you to take a picture,and then set it as an image ID or wallpaper. You can also send thepicture in a MMS message, or send it to another device throughBluetooth.Taking Pictures1. Press to activate the camera mode.2. The viewfinder is then displayed.3. To adjust various camera settings, press (Option) to bring up thesetup menu. For details, see page 26, "Camera Setup".The LCD icons will change according the settings you made. Forinformation on each icon, see page 27, "LCD Icons on the CameraViewfinder".4.When the viewfinder appears, scroll left or right to adjust theexposure value.5. Press to take a photo. The photo will be saved automatically.To delete the newly saved photo, press (Delete). To take a newphoto without deleting the one just taken and saved, press .

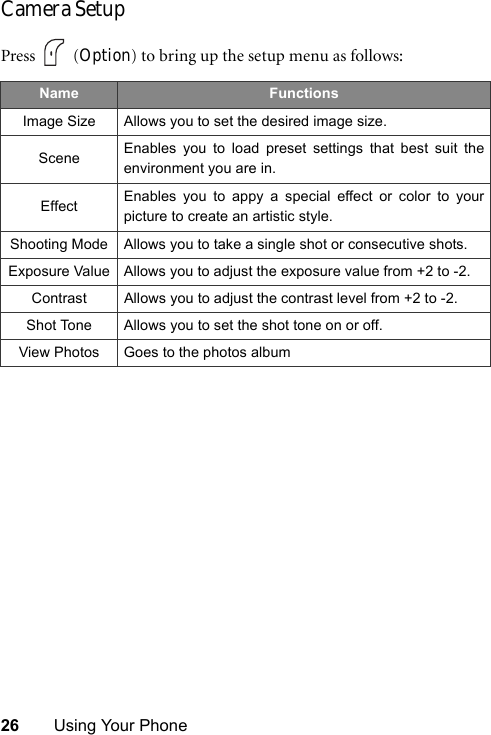

26 Using Your PhoneCamera SetupPress (Option) to bring up the setup menu as follows:Name FunctionsImage Size Allows you to set the desired image size.Scene Enables you to load preset settings that best suit theenvironment you are in.Effect Enables you to appy a special effect or color to yourpicture to create an artistic style.Shooting Mode Allows you to take a single shot or consecutive shots.Exposure Value Allows you to adjust the exposure value from +2 to -2.Contrast Allows you to adjust the contrast level from +2 to -2.Shot Tone Allows you to set the shot tone on or off.View Photos Goes to the photos album

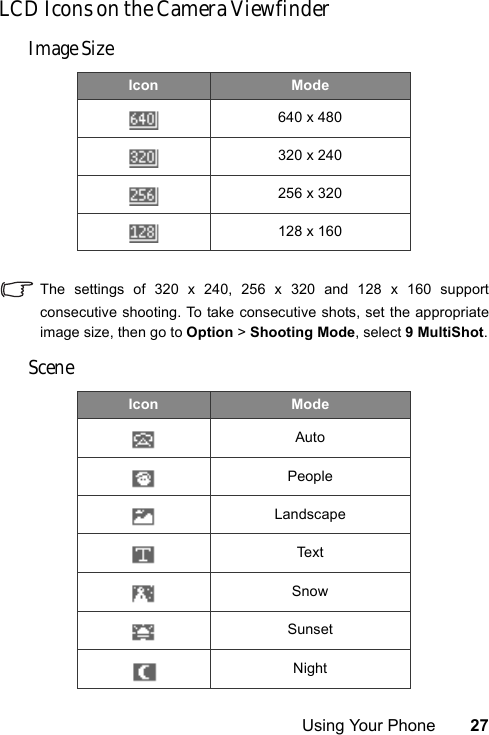

Using Your Phone 27LCD Icons on the Camera ViewfinderImage SizeThe settings of 320 x 240, 256 x 320 and 128 x 160 supportconsecutive shooting. To take consecutive shots, set the appropriateimage size, then go to Option > Shooting Mode, select 9 MultiShot.Scene Icon Mode 640 x 480320 x 240256 x 320128 x 160Icon Mode AutoPeopleLandscapeTex tSnowSunsetNight

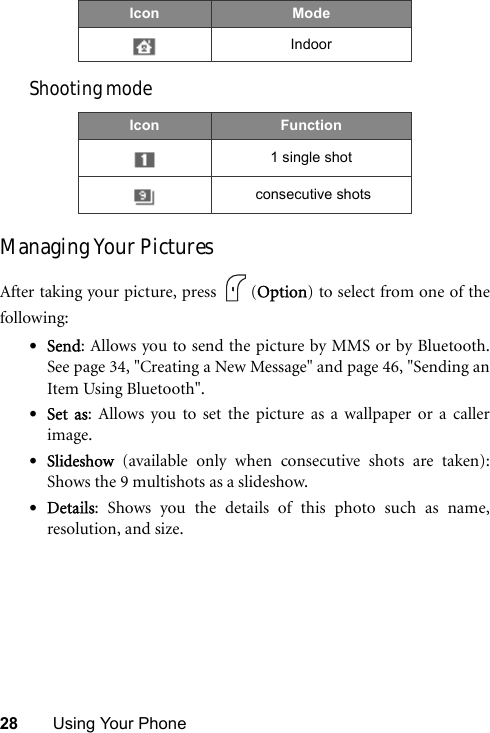

28 Using Your PhoneShooting modeManaging Your PicturesAfter taking your picture, press (Option) to select from one of thefollowing:•Send: Allows you to send the picture by MMS or by Bluetooth.See page 34, "Creating a New Message" and page 46, "Sending anItem Using Bluetooth". •Set as: Allows you to set the picture as a wallpaper or a callerimage.•Slideshow (available only when consecutive shots are taken):Shows the 9 multishots as a slideshow.•Details: Shows you the details of this photo such as name,resolution, and size.IndoorIcon Function1 single shot consecutive shotsIcon Mode

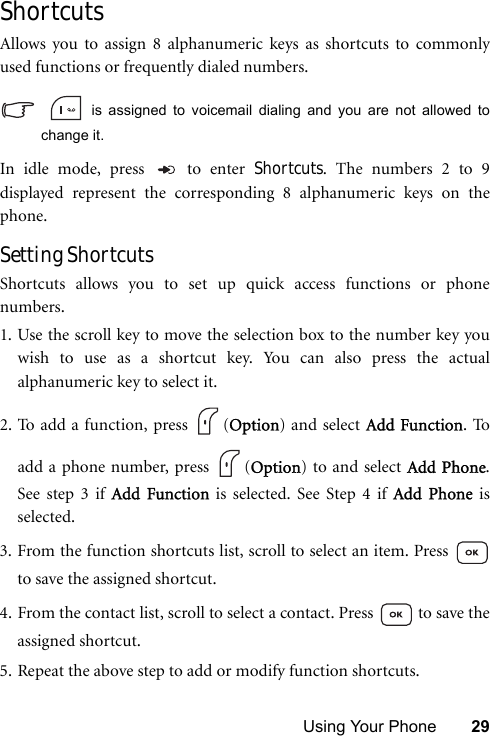

Using Your Phone 29ShortcutsAllows you to assign 8 alphanumeric keys as shortcuts to commonlyused functions or frequently dialed numbers. is assigned to voicemail dialing and you are not allowed tochange it.In idle mode, press to enter Shortcuts. The numbers 2 to 9displayed represent the corresponding 8 alphanumeric keys on thephone.Setting ShortcutsShortcuts allows you to set up quick access functions or phonenumbers.1. Use the scroll key to move the selection box to the number key youwish to use as a shortcut key. You can also press the actualalphanumeric key to select it.2. To add a function, press (Option) and select Add Function. Toadd a phone number, press (Option) to and select Add Phone.See step 3 if Add Function is selected. See Step 4 if Add Phone isselected.3. From the function shortcuts list, scroll to select an item. Press to save the assigned shortcut.4. From the contact list, scroll to select a contact. Press to save theassigned shortcut.5. Repeat the above step to add or modify function shortcuts.
30 Using Your Phone6. To cancel a shortcut key, scroll to the shortcut key that you want tocancel, and then press (Option). Select Delete to cancel theshortcut. Using ShortcutsThere are two ways to use shortcuts:1. In idle mode, long-press an alphanumeric key to access its assignedshortcut.2. In idle mode, press to enter Shortcuts. You can then:•Scroll to move the selection box to the icon corresponding to thedesired key. Then press to access its assigned shortcut.•Press the corresponding alphanumeric key to access its assignedshortcut.MessagesYour phone supports various messaging services including SMS (ShortMessaging Service) and MMS (Multimedia Messaging Service). SMSallows you send text messages, while MMS enables you to send photos,colored images and music through your phone. You must have asubscription that supports MMS. Please contact your network operatorfor details.SMSReceiving a New Message1. When you receive a new message, " 1 New Message" willappear on the display with a tone or vibration if selected.
Using Your Phone 312. To read the message, press . To manage the message, press (Option). For details about managing received messages,see page 32, "Managing Inbox".Creating a New Message1. To bring up the message editing screen, press in idle mode,or go to Messages > SMS > New. Use the alphanumeric keys toenter text. For information about the input method, see page 41, "InputMethods". Press (Option) you can execute the following tasks:•Insert: Allows you to insert texts, images, melodies, vCards(Phone Book records), or vCalendars (Calendar events).•Alignment: Allows you align text. •Spell: Opens the spell check box to allow you to create yourown word into the dictionary. (only shown when the inputmethod is T9)•Symbols: Opens the symbol table.•Input Methods: To switch to another input method.•Cases: To switch to lower or upper cases, or to use CapsLock.•T9 Settings: Enable Choice List to show the list of candidatewords (if they were once entered) when you enter letters.Enable Auto Completion to complete the predicted word (ifit was entered before), and use the scroll key to displayalternative words. (only shown when the input method isT9)
32 Using Your Phone2. When you have finished editing the text, press and selectSend Message.3. Enter a phone number directly or press (Browse) to select acontact from your phone book.4. Scroll to the desired contact and press to select. Press (Done) to confirm selection.5. Press to send.Managing InboxYour phone saves incoming messages in the Inbox. To manageInbox messages, go to Messages > SMS > Inbox. A list of messagesreceived appear. To view a message, scroll to it and press .Press (Option) and select your desired function.Read messages saved on the phone or on the SIM will bemarked by or . Unread messages saved on the phone oron the SIM will be marked by or .Managing OutboxOutbox saves a backup copy of messages that you failed to send. Tomanage Outbox messages, go to Messages > SMS > Outbox. Toview a message, scroll to it and press . Press (Option) andselect your desired function.

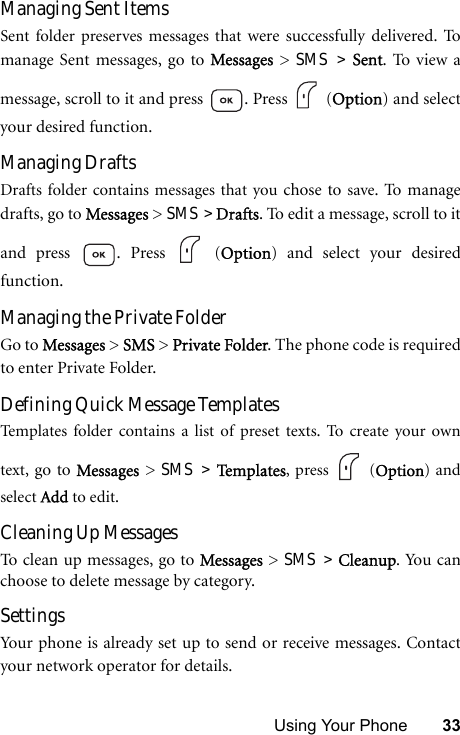

Using Your Phone 33Managing Sent ItemsSent folder preserves messages that were successfully delivered. Tomanage Sent messages, go to Messages > SMS > Sent. To view amessage, scroll to it and press . Press (Option) and selectyour desired function.Managing DraftsDrafts folder contains messages that you chose to save. To m a na g edrafts, go to Messages > SMS > Drafts. To edit a message, scroll to itand press . Press (Option) and select your desiredfunction.Managing the Private FolderGo to Messages > SMS > Private Folder. The phone code is requiredto enter Private Folder.Defining Quick Message TemplatesTemplates folder contains a list of preset texts. To create your owntext, go to Messages > SMS > Te m p l a te s , press (Option) andselect Add to edit.Cleaning Up MessagesTo clean up messages, go to Messages > SMS > Cleanup. Yo u c a nchoose to delete message by category.SettingsYour phone is already set up to send or receive messages. Contactyour network operator for details.
34 Using Your PhoneMMSIn order to use MMS, you have to subscribe to both GPRS and MMSservices provided by your operator. Contact your operator for details onMMS settings.Downloading New MessagesIf you set MMS > Settings > Deferred Download on, the operatorwill send you a new message notification and will not download themessage. Press if you wish to download the message.Reading a MessageHaving successfully downloaded the MMS message, the display willautomatically switch to Inbox, press to start playing the MMSmessage page by page. Press (Stop) again to stop playing. Press (Option) and select your desired function.Creating a New Message1. To write and send a new MMS message, go to MMS > New. Toedit the message content, scroll to the Content and then press. Press (Option) you can execute the following tasks:•Insert: Allows you to insert photos, images, melodies, texts,vCards, vCalendars, or new pages.•Preview: Plays all the pages in the message in sequence.•Remove Image: Removes the image or photo inserted in thepage.•Remove Melody: Removes the melody inserted in the page.
Using Your Phone 35•Remove Text: Removes the texts in the page.•Remove vCard: Removed the vCard inserted in the page.•Remove vCal: Remove the vCalendar inserted in the page.•Remove Page: Removes the current page.•Previous/Next Page: Go to previous or next page.•Page Duration: Sets the length of time that each page isdisplayed when playing the message.•Spell: Opens the spell check box to allow you to create yourown word into the dictionary. (only shown when the inputmethod is T9)•Symbols: Opens the symbol table.•Input Methods: To switch to another input method.•Cases: To switch to lower or upper cases, or to use CapsLock.•T9 Settings: Enable Choice List to show the list of candidatewords (if they were once entered) when you enter letters.Enable Auto Completion to complete the predicted word (ifit was entered before), and use the scroll key to displayalternative words. (only shown when the input method isT9)For information about the input method, see page 41, "InputMethods".2. After you finish creating the MMS message, press to returnto the main list.•To: Enter the recipient's phone number or select a contactfrom your phone book by pressing (Browse). To sendyour message, this field can not be left blank.•Subject: Allows you to enter text for the subject.
36 Using Your Phone•Content: Contains the message that you created.•Cc: Allows you to send the message as a carbon copy toothers.•Bcc: Allows you to send the message as a confidential carboncopy to others.•Priority: Allows you to set the priority for this message.•Receipt: Allows you to set if a confirmation is to be sent backto you when the message has been delivered, read, or both.3. Press (Option) and select Send Message to send themessage.Managing InboxYour phone saves incoming messages in the Inbox. To manageInbox messages, go to MMS > Inbox. A list of received messagesappear. To view a message, scroll to it and press . Press (Option) and select your desired function.Managing OutboxOutbox preserves a backup copy of messages that you failed tosend. To manage Outbox messages, go to MMS > Outbox. To view amessage, scroll to it and press . Press (Option) and selectyour desired function.

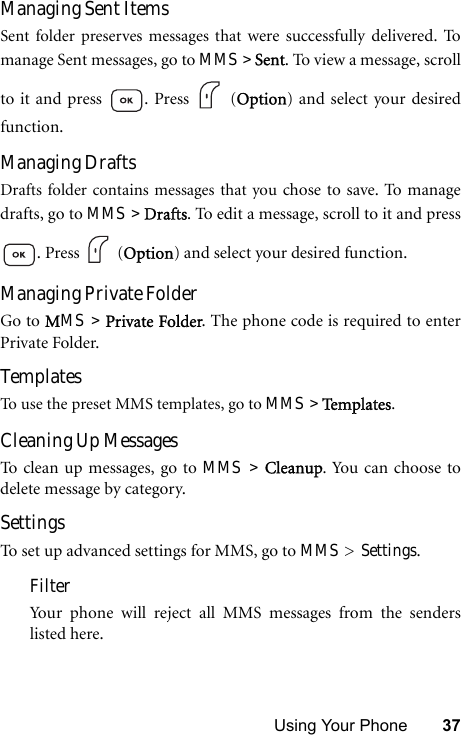

Using Your Phone 37Managing Sent ItemsSent folder preserves messages that were successfully delivered. Tomanage Sent messages, go to MMS > Sent. To view a message, scrollto it and press . Press (Option) and select your desiredfunction.Managing DraftsDrafts folder contains messages that you chose to save. To m a na g edrafts, go to MMS > Drafts. To edit a message, scroll to it and press. Press (Option) and select your desired function.Managing Private FolderGo to MMS > Private Folder. The phone code is required to enterPrivate Folder.TemplatesTo use the preset MMS templates, go to MMS > Te m p l a te s .Cleaning Up MessagesTo clean up messages, go to MMS > Cleanup. You can choose todelete message by category.SettingsTo set up advanced settings for MMS, go to MMS > Settings.FilterYour phone will reject all MMS messages from the senderslisted here.

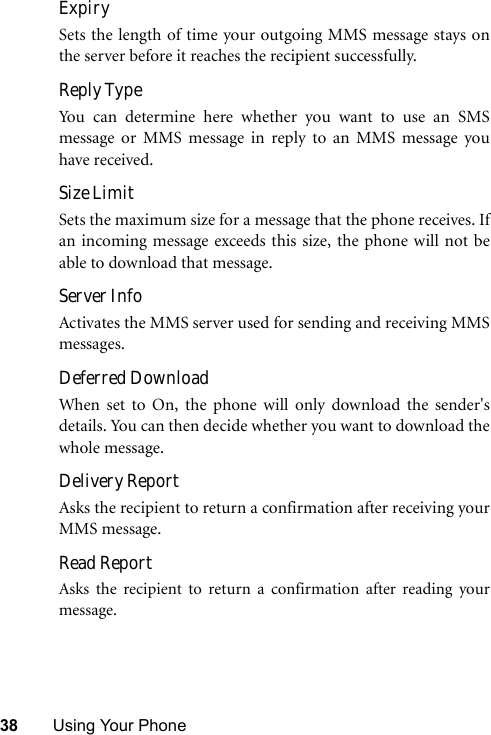

38 Using Your PhoneExpirySets the length of time your outgoing MMS message stays onthe server before it reaches the recipient successfully.Reply TypeYou can determine here whether you want to use an SMSmessage or MMS message in reply to an MMS message youhave received.Size LimitSets the maximum size for a message that the phone receives. Ifan incoming message exceeds this size, the phone will not beable to download that message.Server InfoActivates the MMS server used for sending and receiving MMSmessages.Deferred DownloadWhen set to On, the phone will only download the sender'sdetails. You can then decide whether you want to download thewhole message.Delivery ReportAsks the recipient to return a confirmation after receiving yourMMS message.Read ReportAsks the recipient to return a confirmation after reading yourmessage.

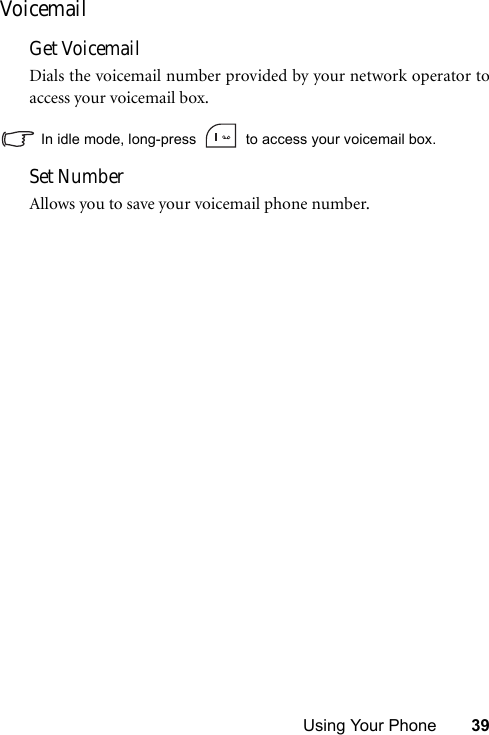

Using Your Phone 39VoicemailGet VoicemailDials the voicemail number provided by your network operator toaccess your voicemail box.In idle mode, long-press to access your voicemail box.Set NumberAllows you to save your voicemail phone number.

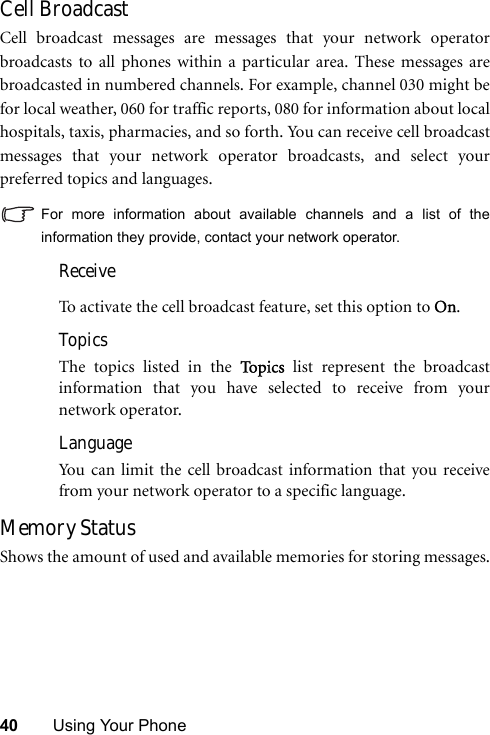

40 Using Your PhoneCell BroadcastCell broadcast messages are messages that your network operatorbroadcasts to all phones within a particular area. These messages arebroadcasted in numbered channels. For example, channel 030 might befor local weather, 060 for traffic reports, 080 for information about localhospitals, taxis, pharmacies, and so forth. You can receive cell broadcastmessages that your network operator broadcasts, and select yourpreferred topics and languages.For more information about available channels and a list of theinformation they provide, contact your network operator.ReceiveTo activate the cell broadcast feature, set this option to On.TopicsThe topics listed in the To p i c s list represent the broadcastinformation that you have selected to receive from yournetwork operator.LanguageYou can limit the cell broadcast information that you receivefrom your network operator to a specific language.Memory StatusShows the amount of used and available memories for storing messages.

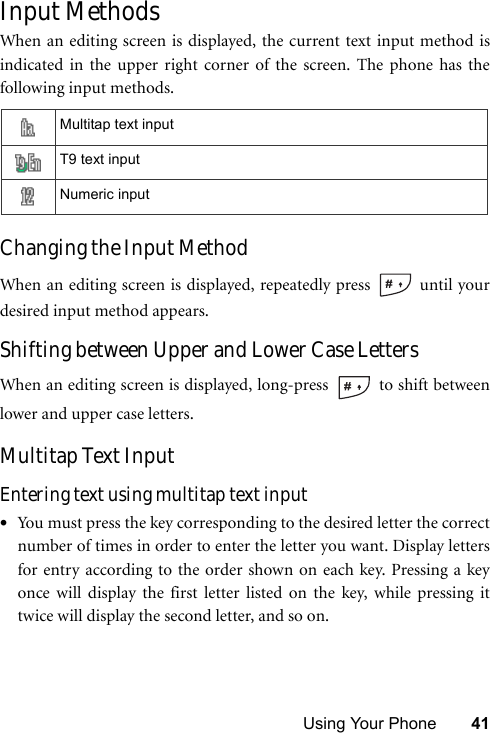

Using Your Phone 41Input MethodsWhen an editing screen is displayed, the current text input method isindicated in the upper right corner of the screen. The phone has thefollowing input methods. Changing the Input MethodWhen an editing screen is displayed, repeatedly press until yourdesired input method appears.Shifting between Upper and Lower Case LettersWhen an editing screen is displayed, long-press to shift betweenlower and upper case letters.Multitap Text InputEntering text using multitap text input •You must press the key corresponding to the desired letter the correctnumber of times in order to enter the letter you want. Display lettersfor entry according to the order shown on each key. Pressing a keyonce will display the first letter listed on the key, while pressing ittwice will display the second letter, and so on.Multitap text inputT9 text inputNumeric input

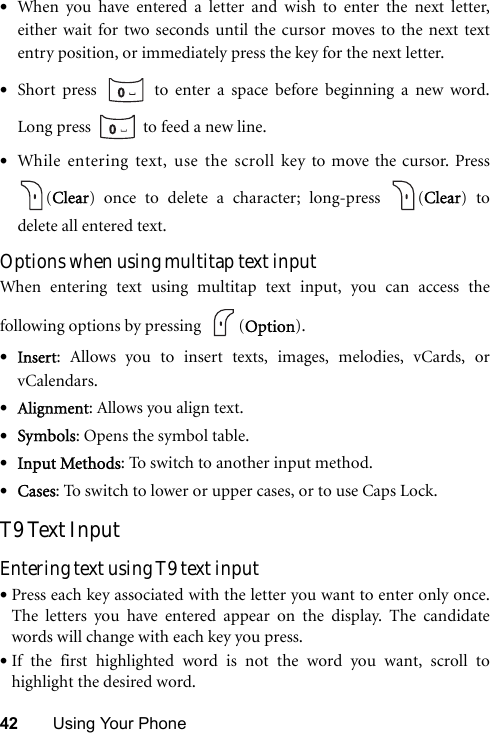

42 Using Your Phone•When you have entered a letter and wish to enter the next letter,either wait for two seconds until the cursor moves to the next textentry position, or immediately press the key for the next letter.•Short press to enter a space before beginning a new word.Long press to feed a new line.•While entering text, use the scroll key to move the cursor. Press(Clear) once to delete a character; long-press (Clear) todelete all entered text.Options when using multitap text inputWhen entering text using multitap text input, you can access thefollowing options by pressing (Option).•Insert: Allows you to insert texts, images, melodies, vCards, orvCalendars.•Alignment: Allows you align text.•Symbols: Opens the symbol table.•Input Methods: To switch to another input method.•Cases: To switch to lower or upper cases, or to use Caps Lock.T9 Text InputEntering text using T9 text input•Press each key associated with the letter you want to enter only once.The letters you have entered appear on the display. The candidatewords will change with each key you press.•If the first highlighted word is not the word you want, scroll tohighlight the desired word.

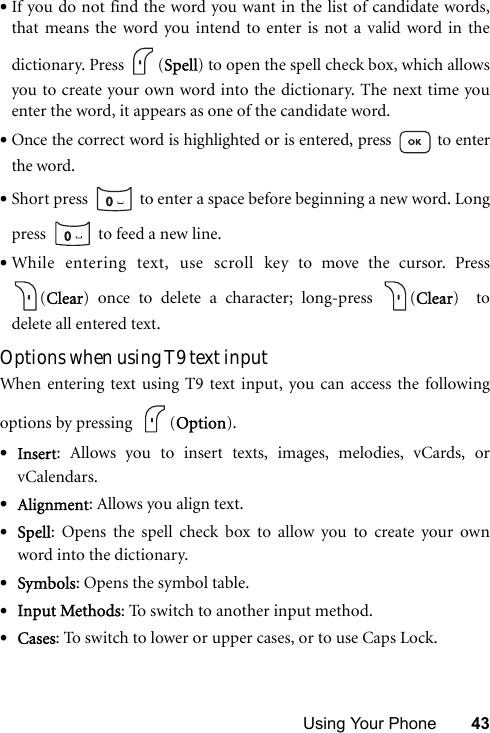

Using Your Phone 43•If you do not find the word you want in the list of candidate words,that means the word you intend to enter is not a valid word in thedictionary. Press (Spell) to open the spell check box, which allowsyou to create your own word into the dictionary. The next time youenter the word, it appears as one of the candidate word.•Once the correct word is highlighted or is entered, press to enterthe word.•Short press to enter a space before beginning a new word. Longpress to feed a new line.•While entering text, use scroll key to move the cursor. Press(Clear) once to delete a character; long-press (Clear) todelete all entered text.Options when using T9 text inputWhen entering text using T9 text input, you can access the followingoptions by pressing (Option).•Insert: Allows you to insert texts, images, melodies, vCards, orvCalendars.•Alignment: Allows you align text.•Spell: Opens the spell check box to allow you to create your ownword into the dictionary.•Symbols: Opens the symbol table.•Input Methods: To switch to another input method.•Cases: To switch to lower or upper cases, or to use Caps Lock.
44 Using Your Phone•T9 Settings: Enable Choice List to show the list of candidate words (ifthey were once entered) when you enter letters. Enable AutoCompletion to complete the predicted word (if it was enteredbefore), and use the scroll key to display alternative words.Numeric InputThe numeric input method allows you to use the alphanumeric keys to to enter numbers.Entering SymbolsTo open the symbol table, press . Press again to open thenext page. Use scroll key to highlight the desired symbol. Press toplace the symbol in the text.Using BluetoothYour phone features Bluetooth function that allows you to have awireless connection between your mobile phone and another Bluetoothdevice.Turning Bluetooth OnBoth the following ways will allow you to turn Bluetooth on.•Go to Tools > Bluetooth > Turn On to turn Bluetooth on.
Using Your Phone 45•Press the Bluetooth hot key on the right side of your phone tobring up a trusted device list in which all the once paired devices arelisted. Select a device to connect to and press (Option). SelectConnect and press . The connection will be successful if theselected Bluetooth device is available at that time. If the list is empty,see below about how to add a Bluetooth device to your phone.Adding a Bluetooth Device to Your Phone1. If you go to Too l s > Bluetooth > Turn On to turn on Bluetooth, youwill be asked to search and to add Bluetooth devices, press (Ye s )to begin searching.2. Alternatively, you can go to To o l s > Bluetooth > Devices, add adevice by pressing (Option) and select Add. The phone thenbegins searching.3. When a list of available devices appear on the screen, select a deviceto connect to and press .4. When a message appears asking for your permission to connect tothis device, press (Ye s ) to connect.5. Enter the passkey for the device, both in the phone and in the devicethat you are connecting to.6. When the passkey is accepted, the device is paired.
46 Using Your PhoneEstablishing Connection with Your Bluetooth Headset1. Go to Tools > Bluetooth > Tur n On to turn on the Bluetooth.2. You will be asked to search and to add Bluetooth devices, press(Yes ) to begin searching. Make sure that your Bluetooth headsetis switched on and is in "pairable mode".3. When a list of devices appear on the screen, select a device to connectto and press .4. When a message pops up, press (Yes ) to connect.5. Enter the Bluetooth headset passkey and press .Please check the user manual of your Bluetooth headset for thispasskey.6. When the passkey is accepted, the headset is paired. The Bluetoothconnection is established automatically.Sending an Item Using BluetoothYou can send the items in your phone such as images, melodies, vCards(Phone Book records), or a vCalendars (Calendar events) to anotherBluetooth device. When you select By Bluetooth as the Send method, alist of the once connected Bluetooth devices that can transfer dataappears. Select an available device to connect to and press .Organizing Your Bluetooth DevicesGo to To o ls > Bluetooth > Devices. Select a device from the list, andpress (Option) to access a list of options.

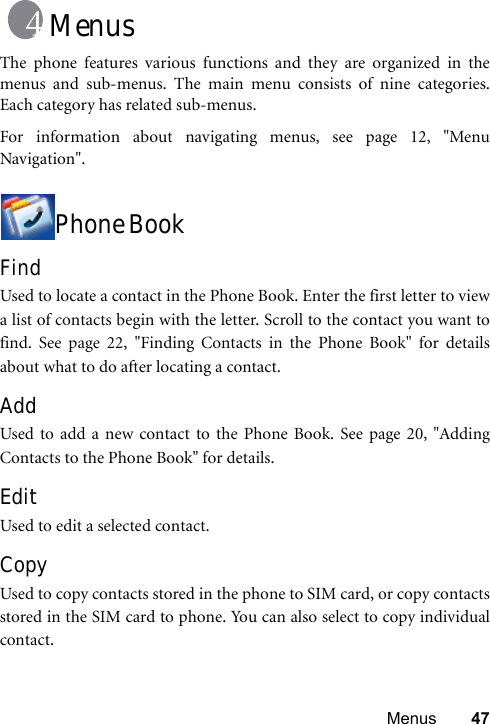

Menus 47MenusThe phone features various functions and they are organized in themenus and sub-menus. The main menu consists of nine categories.Each category has related sub-menus.For information about navigating menus, see page 12, "MenuNavigation".Phone BookFindUsed to locate a contact in the Phone Book. Enter the first letter to viewa list of contacts begin with the letter. Scroll to the contact you want tofind. See page 22, "Finding Contacts in the Phone Book" for detailsabout what to do after locating a contact.AddUsed to add a new contact to the Phone Book. See page 20, "AddingContacts to the Phone Book" for details.EditUsed to edit a selected contact.CopyUsed to copy contacts stored in the phone to SIM card, or copy contactsstored in the SIM card to phone. You can also select to copy individualcontact.

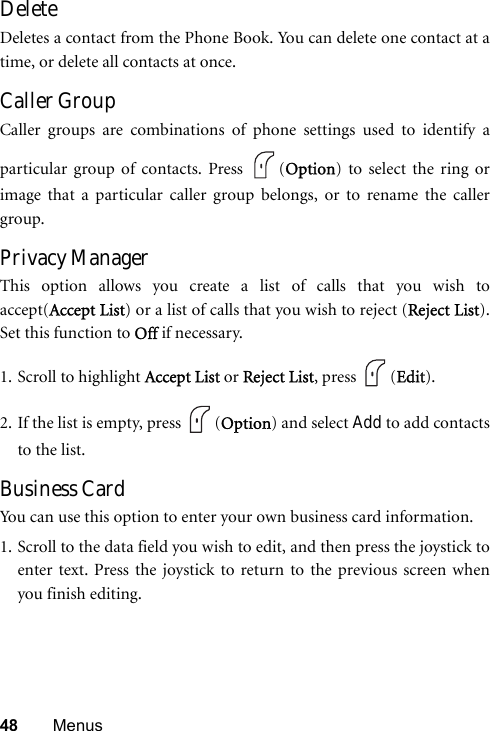

48 MenusDeleteDeletes a contact from the Phone Book. You can delete one contact at atime, or delete all contacts at once.Caller GroupCaller groups are combinations of phone settings used to identify aparticular group of contacts. Press (Option) to select the ring orimage that a particular caller group belongs, or to rename the callergroup.Privacy ManagerThis option allows you create a list of calls that you wish toaccept(Accept List) or a list of calls that you wish to reject (Reject List).Set this function to Off if necessary. 1. Scroll to highlight Accept List or Reject List, press (Edit).2. If the list is empty, press (Option) and select Add to add contactsto the list.Business CardYou can use this option to enter your own business card information. 1. Scroll to the data field you wish to edit, and then press the joystick toenter text. Press the joystick to return to the previous screen whenyou finish editing.
Menus 492. Press (Option) and select Save to save all the entered data. SelectSend vCard > By SMS to send the vCard in a short message. SelectSend vCard > By Bluetooth to send the vCard using Bluetooth. Seepage 46, "Sending an Item Using Bluetooth".My NumberThis option allows you to store your phone number and name.Memory StatusShows you the number of entries that have been stored and themaximum entries that can be stored, on the SIM and on the phone.MessagesFor the description of features available in the messages menu, see page30, "Messages".
50 MenusCallsThis menu includes a list of your missed calls, dialed calls, and receivedcalls. Call costs and time are also recorded.MissedShows your most recent missed calls. See page 23, "Last Missed, Dialed, and Received Calls" for details.ReceivedShows your most recent received calls. See page 23, "Last Missed, Dialed, and Received Calls" for details.DialedShows your most recent dialed calls.See page 23, "Last Missed, Dialed, and Received Calls" for details.Cleanup AllDeletes all of the call records.DurationThis feature is only accessible if supported by your network operator.LastShows the duration of the last call.AllShows the total time for all calls.
Menus 51ReceivedShows the total time for all received calls.DialedShows the total time for all dialed calls.ResetResets all call time records.CostThe cost calculation requires the support of the network operator.LastShows the cost of your last call.AllShows the total cost of all calls.ResetResets all call cost records.Requires entry of the PIN2 code.LimitShows the current limit set for total call costs.SettingsAllows you to set the unit price and a currency for calculating callcosts.Requires entry of the PIN2 code.
52 MenusGamesYour phone features a number of entertaining applications and games.You can play the games that embedded in the phone, or download Javaapplications directly to your phone.JavaURLStarts up the browser and connects you to the Java download page.All GamesEmbedded games and downloaded Java games are stored in this menu.To find out how to play these games, please read their on-screeninstructions.SettingsInternet SettingAllows you to connect the phone to the Internet if the Javaapplication activated requires the Internet connection. For detailson making the Java connection, refer to page 63, "NAP Settings".Java VersionShows the phone's Java virtual machine version, as well as theamount of memory available for Java applications.CameraFor information about using the camera, see page 25, "Camera".
Menus 53Media CenterImagesImages stores built-in images, photos taken by the phone's camera, orimages that you download to the phone. Images contains three folder bydefault.Camera PhotosPhotos that are taken by the phone's camera are stored in CameraPhotos.1. Scroll to the desired photo.2. Press to display the selected photo. Scroll up or down todisplay the next or previous photo.3. Press (Option) to perform the following:•Send: Select By MMS to send the photo in a MMS message.Select By Bluetooth to send this photo to another Bluetoothdevice. See page 46, "Sending an Item Using Bluetooth".•Delete: Allows you to delete the photo.•Set as: Allows you to set this photo as a wallpaper or as animage caller ID for a specified contact or a new entry.•Move: Allows you to move this photo to Images.•Copy: Allows you to copy this photo to Images.•Browsing Mode: Previews the photos in a list or in thumbnailmode.•Rename: Allows you to rename the photo.•Delete All: Allows you to delete all photos in Camera Photos.•Details: Shows details of the photo.
54 MenusDefaultBuilt-in images on your phone are stored in Default.1. Scroll to the desired image.2. Press to display the selected image. Scroll up or down todisplay the next or previous picture.3. Press (Option) to perform the following:•Send: Allows you to send the image in a MMS/SMS message.•Set as: Allows you to set this image as a wallpaper or as animage caller ID for a specified contact or a new entry.•Details: Shows details of the image.Non-ForwardIf you download a file that has copyright protection, the file will besaved in Non-Forward folder. Copyright protection may preventthe files from being transferred or forwarded.MusicMusic stores ringtones that are built-in on your phone, or those youdownload to the phone. DefaultBuilt-in ringtones on your phone are stored in Default.1. Scroll to the desired ringtone.2. Press (Option) to perform the following:•Send: Allows you to send the ringtone in a MMS/SMSmessage.
Menus 55•Set as: Allows you to set this rintone for incoming calls or asa ring ID for a specified contact or a new entry.•Details: Shows details of the ringtone.Non-ForwardIf you download a file that has copyright protection, the file will besaved in Non-Forward folder. Copyright protection may preventthe files from being transferred or forwarded.OthersFiles that are not supported by your mobile phone are stored here. Cleanup AllThis option will delete all the files that are stored in the Media Centerexcept those built-in files.Memory StatusShows the amount of used and available memories on the phone.
56 MenusToolsAlarmTo set an alarm, follow the steps below:1. Select an alarm and press .2. Scroll to right to turn the status on.3. Scroll to an option and change the setting as needed.FrequencyAllows you to select the days you want the alarm to sound. TimeAllows you enter the time for the alarm to sound.Time DurationAllows you to set the length of the alarm.Alarm ToneAllows you to set the ringtone of the alarm.4. To save all your current alarm settings, press (Save).5. When setting is saved, will appear in the display's status bar.Press (Snooze) or any key but (Exit) to stop the alarm, orpress when the flip remains closed. The alarm will ring again fiveminutes later. Press to turn off the alarm. The alarm will not ringuntil the next scheduled time.

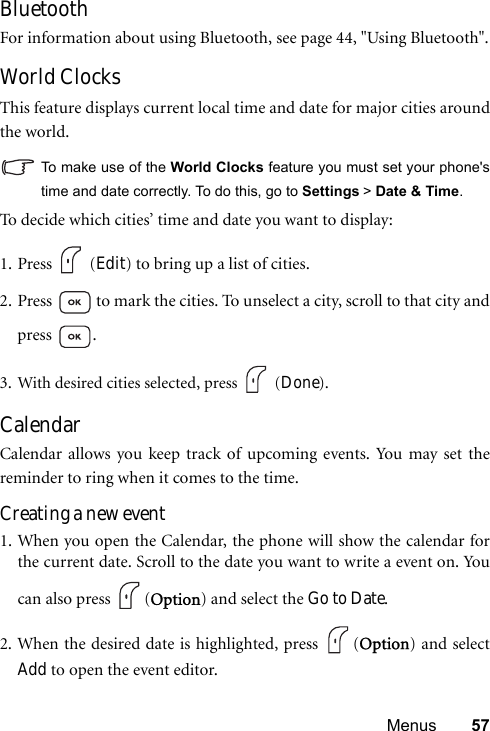

Menus 57BluetoothFor information about using Bluetooth, see page 44, "Using Bluetooth".World ClocksThis feature displays current local time and date for major cities aroundthe world.To make use of the World Clocks feature you must set your phone'stime and date correctly. To do this, go to Settings > Date & Time.To decide which cities’ time and date you want to display:1. Press (Edit) to bring up a list of cities.2. Press to mark the cities. To unselect a city, scroll to that city andpress .3. With desired cities selected, press (Done). CalendarCalendar allows you keep track of upcoming events. You may set thereminder to ring when it comes to the time.Creating a new event1. When you open the Calendar, the phone will show the calendar forthe current date. Scroll to the date you want to write a event on. Youcan also press (Option) and select the Go to Date.2. When the desired date is highlighted, press (Option) and selectAdd to open the event editor.

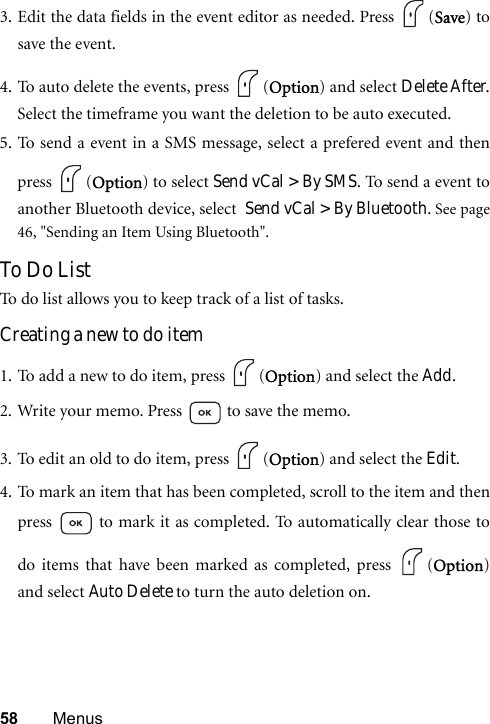

58 Menus3. Edit the data fields in the event editor as needed. Press (Save) tosave the event.4. To auto delete the events, press (Option) and select Delete After.Select the timeframe you want the deletion to be auto executed.5. To send a event in a SMS message, select a prefered event and thenpress (Option) to select Send vCal > By SMS. To send a event toanother Bluetooth device, select Send vCal > By Bluetooth. See page46, "Sending an Item Using Bluetooth".To Do ListTo do list allows you to keep track of a list of tasks.Creating a new to do item1. To add a new to do item, press (Option) and select the Add.2. Write your memo. Press to save the memo.3. To edit an old to do item, press (Option) and select the Edit.4. To mark an item that has been completed, scroll to the item and thenpress to mark it as completed. To automatically clear those todo items that have been marked as completed, press (Option)and select Auto Delete to turn the auto deletion on.
Menus 59NoteNote allows you to write down quick notes. You can set a passwordprotection for the notes.The default phone code is 1234. To change the phone code, go to themenu Settings > Security > Phone Lock. See page 75.ShortcutsFor information on Shortcuts, see page 29, "Shortcuts".CalculatorAllows you to use the phone as a calculator.1. Enter numbers using alphanumeric keys.2. Use the scroll key to perform calculations. Press to perform+(add); press to perform -(substract); press to perform /(divide); press to perform x(multiply); press to get theresult(equal).3. Press to delete numbers and symbols entered. Press or to enter a decimal point.Currency ConverterCurrency converter allows you to convert currencies and set theexchange rate.1. To set the currencies for conversion, press (Option) and selecteither Currency 1 (to set the currency at the top of the screen) orCurrency 2 (to set the currency at the bottom of the screen).
60 Menus2. To set the exchange rate, press (Option) and select Rate Setting.3. Enter the amount of currency, the result will appear in the othercurrency field.StopwatchStopwatch allows you to measure times for sports game.1. Press to start the stop watch.2. While the stopwatch is running, you can press (Split) to saveeach elapsed time.3. Press to halt the stopwatch.4. Scroll to view the list of elapsed times.5. To reset the stopwatch, press (Reset).Countdown TimerCountdown timer allows you to specify length of time to count down.1. Enter the length of time you want to count down.2. Press and the timer starts counting down to zero.3. Press to halt the countdown timer.4. To reset the countdown timer, press (Reset).
Menus 61ServicesYour phone features a WAP browser, allowing you to use the phone formobile Internet connectivity. You can browse the online services offeredby the network operator or ISP, such as information on financial news,sports, travel, and entertainment. To use the phone to get online,necessary WAP and GPRS settings must be made.To activate the mobile Internet connectivity, consult your networkoperator for WAP and GPRS services. In general, the networkoperator will automatically transmit the needed settings to your phone.If not, you will need to manually configure necessary settings. Forfurther details, contact your network operator.WapURLStarts up the WAP browser and connects to the homepage.ClubBenQUsed to start up the WAP browser and connect to ClubBenQ website.WAP ServiceStart BrowserStarts up the browser and connects to the homepage.Browsing a webpageReferring to the soft key commands appear on the screen, press and to perform needed tasks while browsing awebpage. Scroll up or down until the item you want washighlighted, and then press to select it.
62 MenusEnding the online sessionWhile online, long-press to close the browser and returnto the idle mode.WAP MessageWhen you receive a new WAP message, will be shown on thedisplay. This option will start up the browser so you can read theWAP message.Go to URLAllows you to link to the URL you enter.WAP SettingsAllows you to configure settings for different network operators'WAP servers, and then select the desired server to get online.1. Scroll to the desired server and press (Option).2. Select Add Profile to manually configure the server's settings asfollows:•Profile NameGives the WAP server a name.•HomepageSets the homepage that the browser will link to when it isstarted up.•IP AddressEnter the IP address used for accessing the mobile Internet.•PortEnter the connection port specified by the network operator.
Menus 63•NAPIf you are using a GPRS network, choose to configure GPRSNAP settings or CSD NAP settings and select either type ofsettings to get online.If you are using a dialup network, you are restricted toconfiguring only the CSD NAP settings to connect to theInternet.For detailed information on how to properly configure GPRSand CSD settings, contact your network operator.3. Press and press (Save) to save the settings.4. Scroll to the server that you would like to use and press toconfirm your choice.Clear CacheClears webpage content that the browser temporarily stores inmemory.NAP SettingsUsed to configure GPRS or CSD settings according to the network typeused by the phone.Service NumberProvided by your network operator if the service is supported. Forfurther details, please contact your network operator.STK MenuShown only if it is provided by your network operator. For furtherdetails, please contact your network operator.
64 MenusSettingsDate & TimeAllows you to set the time and date, as well as the format that will bedisplayed on the screen. DateAllows you to set today's date.TimeAllows you to set the current time.FormatAllows you set the format in which the date and the time will bedisplayed.Time ZoneAllows you to select a time zone where you are at.Auto Time ZoneWhen turning this feature on, the time displayed on the phone willauto switch to the local time where you are at.Auto Power On/OffAllows you specify a time for the phone to be automatically turned onor off.When on an airplane, be sure that you deactivate the Auto PowerOn/Off feature.
Menus 651. Select Power On or Power Off.2. Scroll to turn the status on or off.3. If status is set to On, specify a time.ProfileA profile is a group of settings that determine whether the phone willalert you to incoming calls through a ring tone or a vibrating alert, andhow ring tones in general are used on the phone. These settings allowthe phone's operations to best suit the environment you are in.1. Scroll to the desired profile and then press the joystick to activate thisprofile. You can choose from among the following profiles:NormalThis is the default profile.MeetingThe options in this profile have been preset to suit a meetingenvironment.OutdoorsThe options in this profile have been preset to suit an outdooractivity.SilentThe options in this profile have been preset to suit anenvironment where silence is required.AirplaneWhen you are on a plane, activate this profile willautomatically turn off the phone.
66 MenusPersonalAllows you to use this profile for a group of custom settings.2. To customize settings, scroll to a profile, and then press (Edit).You can not modify settings in Silent mode and in Airplane mode.VibrateDecides whether the phone will vibrate when there is anincoming call.Call RingAllows you to set the ringtone that will sound when there is anincoming call.Message ToneAllows you to set the ringtone that will sound when there is anew message.Calendar ToneAllows you to set the ringtone that will sound when yourcalendar event approaches.Keypad ToneDecides whether keypad will sound when keys are pressed.Ring VolumeAllows you to adjust the ring volume.RenameAllows you to rename the profile. (only available in thePersonal profile)
Menus 67RestoreAllows you to reset the profile to its default configuration.Requires entry of the phone code.DisplayThemeYou can change the appearance of the display. Select differentthemes to change the display color and background.WallpaperDesignates the wallpaper used for the standby screen.Welcome MessageAllows you create a welcome message to be displayed when thephone is turned on. Personal BannerAllows you to enter text to be displayed on the standby screen.ContrastAllows you to adjust contrast of the display. Scroll up or down toadjust it.BrightnessAllows you to adjust brightness of the display to be appeared lighteror darker. Scroll up or down to adjust it.Backlight DurationAllows you to specify how long the keypad backlight remains onafter last key is pressed.

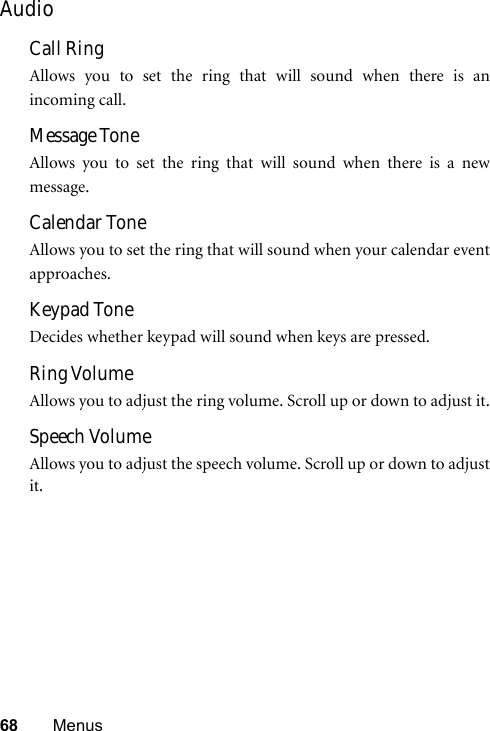

68 MenusAudioCall RingAllows you to set the ring that will sound when there is anincoming call.Message ToneAllows you to set the ring that will sound when there is a newmessage.Calendar ToneAllows you to set the ring that will sound when your calendar eventapproaches.Keypad ToneDecides whether keypad will sound when keys are pressed.Ring VolumeAllows you to adjust the ring volume. Scroll up or down to adjust it.Speech VolumeAllows you to adjust the speech volume. Scroll up or down to adjustit.

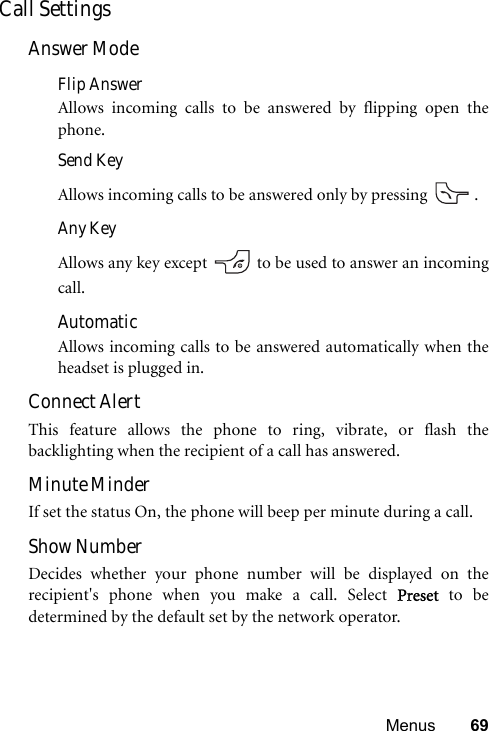

Menus 69Call SettingsAnswer ModeFlip AnswerAllows incoming calls to be answered by flipping open thephone.Send KeyAllows incoming calls to be answered only by pressing .Any KeyAllows any key except to be used to answer an incomingcall.AutomaticAllows incoming calls to be answered automatically when theheadset is plugged in.Connect AlertThis feature allows the phone to ring, vibrate, or flash thebacklighting when the recipient of a call has answered.Minute MinderIf set the status On, the phone will beep per minute during a call.Show NumberDecides whether your phone number will be displayed on therecipient's phone when you make a call. Select Preset to bedetermined by the default set by the network operator.
70 MenusCall DivertThis feature allows you to divert calls to a designated phonenumber or voicemail box. Requires the support of the network operator.Forward AllDiverts all incoming calls.When BusyDiverts incoming calls when you are in the middle of anothercall.No ReplyDiverts incoming calls when you do not answer.Not ReachableDiverts incoming calls when your phone is turned off oroutside network coverage.Cancel AllCancels all call divert options.Call BarringYou can request that your network operator block the dialing orreceiving of certain calls. To activate or cancel any of the optionsbelow, you must enter the network password provided by thenetwork operator.Requires the support of the network operator.All OutgoingBlocks dialing of any calls from the phone.

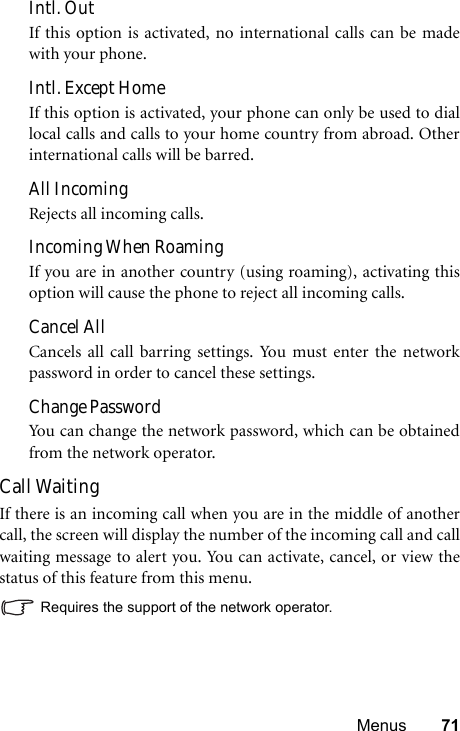

Menus 71Intl. OutIf this option is activated, no international calls can be madewith your phone.Intl. Except HomeIf this option is activated, your phone can only be used to diallocal calls and calls to your home country from abroad. Otherinternational calls will be barred.All IncomingRejects all incoming calls.Incoming When RoamingIf you are in another country (using roaming), activating thisoption will cause the phone to reject all incoming calls.Cancel AllCancels all call barring settings. You must enter the networkpassword in order to cancel these settings.Change PasswordYou can change the network password, which can be obtainedfrom the network operator.Call WaitingIf there is an incoming call when you are in the middle of anothercall, the screen will display the number of the incoming call and callwaiting message to alert you. You can activate, cancel, or view thestatus of this feature from this menu.Requires the support of the network operator.

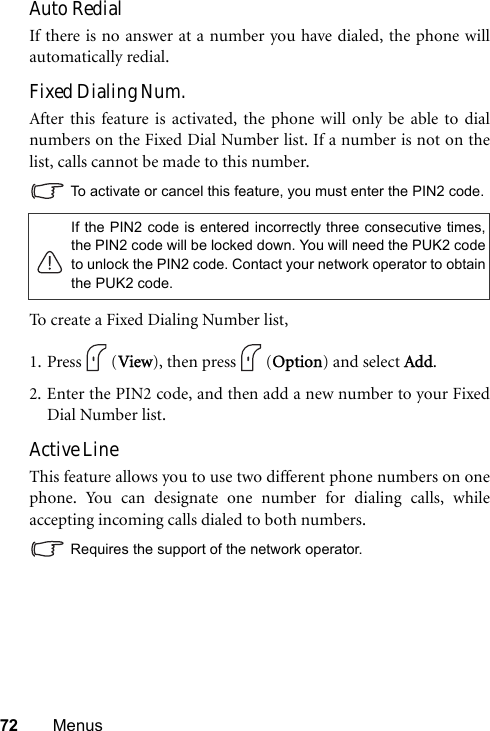

72 MenusAuto RedialIf there is no answer at a number you have dialed, the phone willautomatically redial.Fixed Dialing Num.After this feature is activated, the phone will only be able to dialnumbers on the Fixed Dial Number list. If a number is not on thelist, calls cannot be made to this number.To activate or cancel this feature, you must enter the PIN2 code.To create a Fixed Dialing Number list, 1. Press (View), then press (Option) and select Add. 2. Enter the PIN2 code, and then add a new number to your FixedDial Number list.Active LineThis feature allows you to use two different phone numbers on onephone. You can designate one number for dialing calls, whileaccepting incoming calls dialed to both numbers.Requires the support of the network operator.If the PIN2 code is entered incorrectly three consecutive times,the PIN2 code will be locked down. You will need the PUK2 codeto unlock the PIN2 code. Contact your network operator to obtainthe PUK2 code.
Menus 73User GroupUser GroupUsed to create a closed group of callers based on a serviceprovided by the network operator. The members of a UserGroup can call each other, but cannot conduct calls withanyone outside the group unless special provisions are made. Outside AccessWhen the User Group service is activated, enabling OutsideAccess will allow users in the group to make calls to numbersoutside the group. However, incoming calls will still berestricted to calls within the group.NetworkGenerally speaking, the network that your phone uses is configuredautomatically. When turned on, the phone will automatically connectto the network provided by your network operator, or willautomatically connect to the roaming network when you are outside thecoverage of your regular network. When outside the coverage of yourregular network, you can manually select the local network system.Your network operator must be able to support network selection inorder for you to use this feature.Network ModeAllows you to set the network searching automatic or manual.Automatic: If this option is selected, when outside the coverage of yourregular network, the phone will automatically scan for theavailable network.

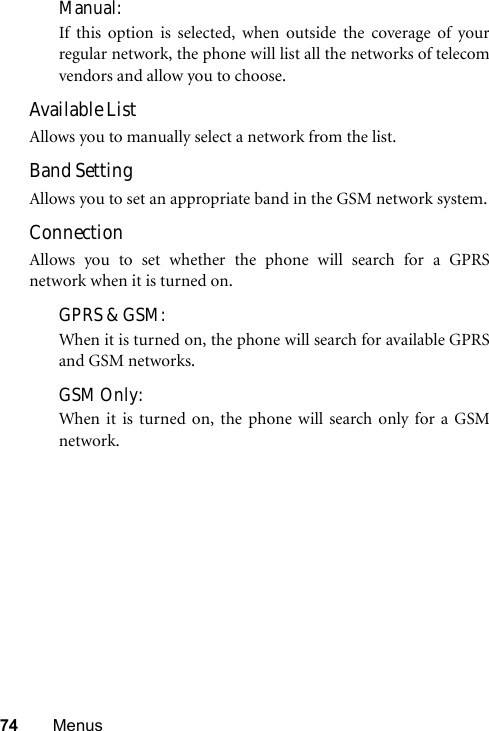

74 MenusManual: If this option is selected, when outside the coverage of yourregular network, the phone will list all the networks of telecomvendors and allow you to choose.Available ListAllows you to manually select a network from the list.Band SettingAllows you to set an appropriate band in the GSM network system.ConnectionAllows you to set whether the phone will search for a GPRSnetwork when it is turned on.GPRS & GSM: When it is turned on, the phone will search for available GPRSand GSM networks.GSM Only: When it is turned on, the phone will search only for a GSMnetwork.
Menus 75SecurityYou can use various codes and locks to prevent unauthorized use of thephone.PIN Code The PIN (Personal Identification Number) is the passwordprovided by your network operator. You need this password inorder to use the SIM card. PIN1 CodeUsed to activate, deactivate or change the PIN1 Code. Tochange the PIN1 Code, select Set Status and set to On. EnterPIN1.PIN2 CodeUsed to change the PIN2 code. The procedure is the same as forthe PIN1 Code.Phone LockOnce the phone lock is activated, you will be required to enter thephone code when the phone is turned on. You must enter thecorrect code to unlock it (the default phone code is 1234). Whenthe phone is locked, you will only be able to make emergency calls.If you enter the PIN incorrectly three times in a row, the SIM cardwill be locked. You must now enter the PUK (PersonalUnblocking Key) for that SIM card in order to unlock it. Pleasecontact your network operator to obtain a PUK.

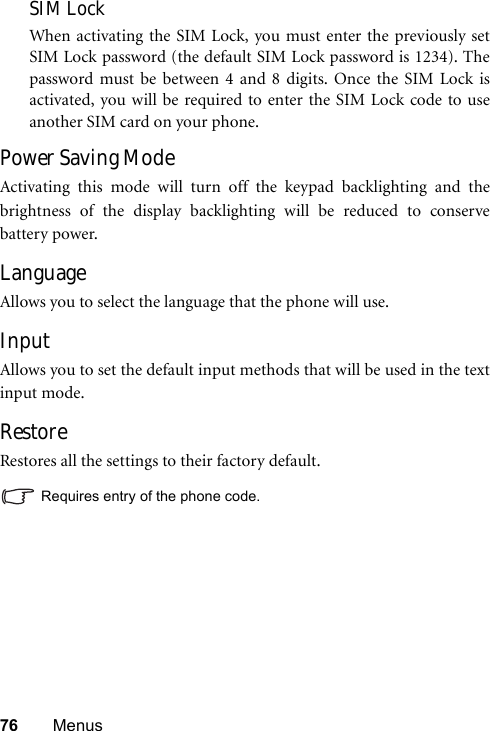

76 MenusSIM LockWhen activating the SIM Lock, you must enter the previously setSIM Lock password (the default SIM Lock password is 1234). Thepassword must be between 4 and 8 digits. Once the SIM Lock isactivated, you will be required to enter the SIM Lock code to useanother SIM card on your phone. Power Saving ModeActivating this mode will turn off the keypad backlighting and thebrightness of the display backlighting will be reduced to conservebattery power.LanguageAllows you to select the language that the phone will use.InputAllows you to set the default input methods that will be used in the textinput mode.RestoreRestores all the settings to their factory default.Requires entry of the phone code.

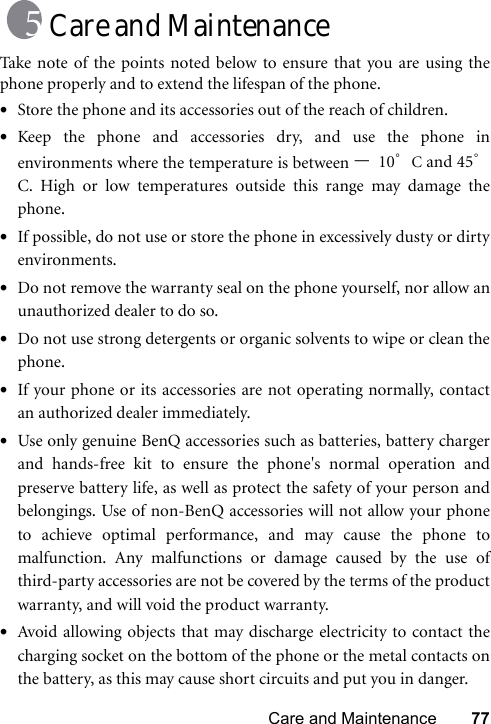

Care and Maintenance 77Care and MaintenanceTake note of the points noted below to ensure that you are using thephone properly and to extend the lifespan of the phone.•Store the phone and its accessories out of the reach of children.•Keep the phone and accessories dry, and use the phone inenvironments where the temperature is between –10°C and 45°C. High or low temperatures outside this range may damage thephone.•If possible, do not use or store the phone in excessively dusty or dirtyenvironments.•Do not remove the warranty seal on the phone yourself, nor allow anunauthorized dealer to do so.•Do not use strong detergents or organic solvents to wipe or clean thephone.•If your phone or its accessories are not operating normally, contactan authorized dealer immediately.•Use only genuine BenQ accessories such as batteries, battery chargerand hands-free kit to ensure the phone's normal operation andpreserve battery life, as well as protect the safety of your person andbelongings. Use of non-BenQ accessories will not allow your phoneto achieve optimal performance, and may cause the phone tomalfunction. Any malfunctions or damage caused by the use ofthird-party accessories are not be covered by the terms of the productwarranty, and will void the product warranty.•Avoid allowing objects that may discharge electricity to contact thecharging socket on the bottom of the phone or the metal contacts onthe battery, as this may cause short circuits and put you in danger.

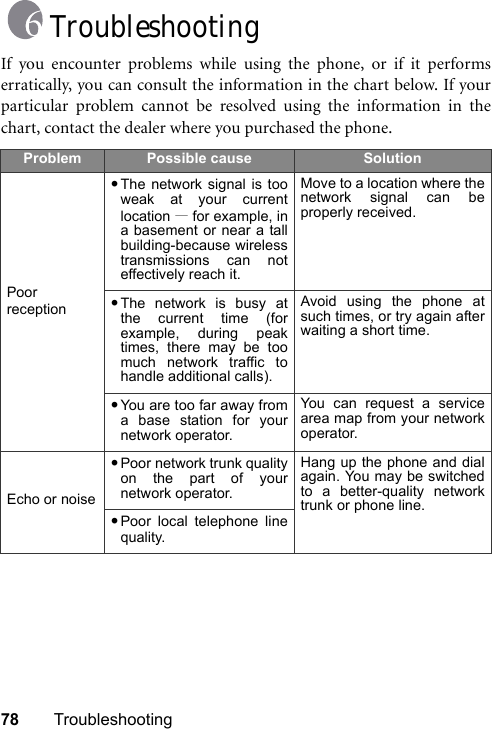

78 TroubleshootingTroubleshootingIf you encounter problems while using the phone, or if it performserratically, you can consult the information in the chart below. If yourparticular problem cannot be resolved using the information in thechart, contact the dealer where you purchased the phone.Problem Possible cause SolutionPoor reception•The network signal is tooweak at your currentlocation —for example, ina basement or near a tallbuilding-because wirelesstransmissions can noteffectively reach it. Move to a location where thenetwork signal can beproperly received.•The network is busy atthe current time (forexample, during peaktimes, there may be toomuch network traffic tohandle additional calls).Avoid using the phone atsuch times, or try again afterwaiting a short time.•You are too far away froma base station for yournetwork operator.You can request a servicearea map from your networkoperator.Echo or noise•Poor network trunk qualityon the part of yournetwork operator.Hang up the phone and dialagain. You may be switchedto a better-quality networktrunk or phone line.•Poor local telephone linequality.
Troubleshooting 79Shortened standby time•The standby time is related to your network operator's system configuration. The same phone used with different network operators' systems will not provide exactly the same length of standby time.If you are located in an areawhere signaling is weak,temporarily shut off thephone.•The battery is depleted. In high-temperature environments, battery life will be shortened.Use a new battery.•If you are not able to connect to the network, the phone will continue to send out signals as it attempts to locate a base station. Doing so consumes battery power and will consequently shorten standby time.Change your location to onewhere the network isaccessible, or temporarilyturn off your phone.You cannot switch your phone on.•Battery power has beendepleted.Recharge the phone's battery.SIM card error•SIM card malfunction ordamage.Take the SIM card to yournetwork operator for testing.•SIM card inserted improperly.Insert the SIM card properly.•Debris on the SIM cardcontacts.Use a soft, dry cloth to cleanthe SIM card contacts.Problem Possible cause Solution
80 TroubleshootingUnable to connect to the network.•SIM card invalid. Contact your network operator.•You are not within thenetwork's service area.Check the service area with your network operator.•Poor signal. Move to an open space, or if you are inside a building, move closer to a window.You cannot answer incoming calls.•You have activated Reject List in the Privacy Manager option.Go to Phone Book > Privacy Manager > Reject List in order to remove contacts from the list.•You have activated theCall Barring feature.Go to Settings > Call Settings > Call Barring, and then select Cancel All.You cannot make outgoing calls.•You have activated theCall Barring feature.Go to Settings > Call Settings > Call Barring, and then select Cancel All.•You have activated the Fixed Dial Number feature.Go to Settings > Call Settings > Fixed Dialing Number to turn this feature off.PIN Code is blocked.•You have entered an incorrect PIN code three consecutive times.Contact your network operator. If the network operator provides the SIM card's PUK code, use the PUK code to unlock the SIM card.Battery will not charge.•The battery or battery charger is damaged.Contact the dealer.•The phone's temperatureis below 0°C or higherthan 45°C.Adjust the battery charging environment to avoid extremes of temperature.•Poor contact between thebattery and charger.Check all connectors to make sure all connections have been properly made.Problem Possible cause Solution
Troubleshooting 81Unable to enter information into the Phone Book.•The Phone Book's memory is already full.Delete unnecessary data from the Phone Book.Unable to select certain features.•Your network operatordoes not support thesefeatures, or you have notapplied for services thatprovide these features.Contact your network operator.Unable to be searched by other Bluetooth devices•Your phone is set to beundiscoverable. In thiscase, your phone can pairwith other Bluetoothdevices but can't be foundby them.Go to Tools > Bluetooth > Settings > Discoverable and set your phone to be discoverable by other Bluetooth devices.Problem Possible cause Solution
82 Appendix: AccessoriesAppendix: AccessoriesFor the accessories that are compatible with your phone, refer to the listbelow.Item Model nameBattery PLI-104Travel charger CSB-10A; CSB-10C; CSB-10E; CSB-10I;CSB-10S; CSB-10UData cable DCP-100 Car charger CSG-101Hand-sfree headset HEM-104Bluetooth Headset BHM-100,BTHS-6023
