Benq PABREEZE treVolo Bluetooth Speaker User Manual

Benq Corporation treVolo Bluetooth Speaker

User manual

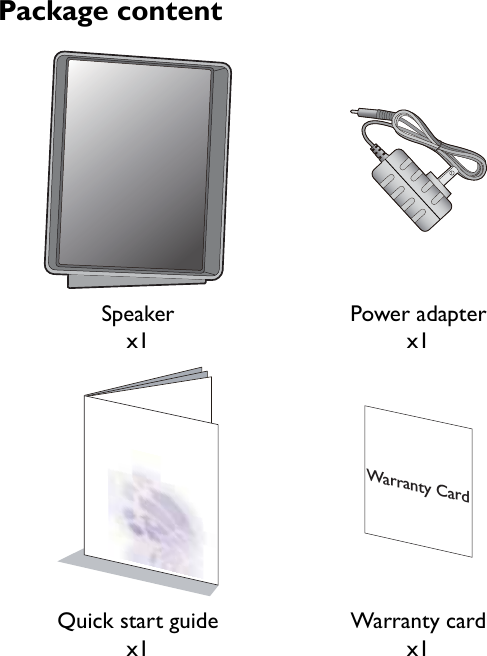

Package contentSpeakerx1Power adapterx1Quick start guidex1Warranty cardx1Warranty Card
Buttons & connectorsPairing and connecting Bluetooth devicesABCGHIJKDFE2.1.4.3.
Buttons & connectorsPairing and connecting Bluetooth devicesMusic playing variations3.5mm audio cable (line-in) or USB connection A. Mode button(Hang up)E. LED indicator I. Line-in jackB. Volume up button F. Power button J. Line-out jackC. Volume down buttonG. Bluetooth button K. DC-IN jackD. Play/pause button (Answer)H. Micro USB port1. Have the power adaptor plugged in. Press and hold the power button for 2 seconds.2. Press and hold the Bluetooth button for 2 seconds to make the speaker discoverable.3. Turn on Bluetooth of your device to discover and pair with “BenQ eVolo”.4. Flip out both speaker panes and enjoy your music.•Download the app “BenQ Audio” to your Android or iOS devices from respective application stores to indulge in the best music streaming experience.•To flexibly tune in with the speaker everywhere, have it charge beforehand.•For optimal acoustics, put the speaker in an open space.OREnglish
Streaming via Bluetooth to your home audio systemSpecificationPerformance Other informationFrequency response60 Hz ~ 20 kHz Other feature Built-in microphone for speakerphone functionBattery life 6 ~ 8 hours I/O port Micro USB x1, Line-in x1, Line-out x1, Power Jack x1Connection Input power ratingDC 12V 2ABluetooth Bluetooth 4.1 (with aptX) Operating temperature0 ~ 40ºCInput 3.5 mm stereo input, USB audioStorage temperature-10 ~ 50ºCPhysical Dimension 174.6 x 134.6 x 78.5 mm (close)Button definitionPower, Volume up, Vol-ume down, Sound mode (hang up), Play/pause (answer), BT pairingWeight 1.2 kgLED indicator Red / Blue / Green LED x 1OR3.0/4.0/4.1
General Safety Information 20General Safety InformationWhen setting up or operating your device, please pay special attention to the fol-lowing: •Make sure you follow all instructions and warnings related to the system. •Do not store your device in environments where the temperature is below -10°C or above 50°C, nor use your device in environments where the temperature is below 0°C or above 40°C. Otherwise system performance will be adversely affected.•Do not expose your device to rain or excess humidity, and keep it away from liquids (such as beverages, faucets, and so on). •Avoid exposing your device to direct sunlight, or intense light source, and keep it away from sources of heat (such as radiators, space heaters, stoves, and so on). •Do not expose your device to heavy impacts or strong vibrations.•Do not use your device near a gas leak.•Do not use your device near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.•Do not place the device in the vicinity of strong magnetic fields.•Use the supplied adapter to charge your device, and make sure no heavy objects are placed on the adapter. •Keep the device accessories away from children. •Please DO NOT put anything upon the device while using it or leaving it alone. •Beware of being suffered from the pinch while flipping speaker panes.Safety information about the batteryThe incorrect use of battery may cause leak of chemicals or explosion. Caution: The leak of chemicals may harm the skin and erode the metal contacts. If any chem-icals leaks from the device, please use the dry cloth to wipe it clean and contact your BenQ dealer or service center for battery replacement.Safety information about power adapter•Use only the power adapter supplied with device. Use of another type of power adapter will result in malfunction and/or danger.English
Regulatory Statements21•Please use the proper electric outlet and make sure no heavy objects are placed on the power adapter or power cord. •Allow adequate ventilation around the adapter when using it to operate the device or charge the battery. Do not cover the power adapter with paper or other objects that will reduce cooling. Do not use the power adapter while it is inside a carrying case.•Do not use the adapter in a high moisture environment. Never touch the adapter when your hands are wet.•Connect the adapter to a proper power source. The voltage requirements are found on the product case and/or packaging.•Do not use the adapter if it becomes damaged.•Do not attempt to service the adapter. There are no service parts inside. Replace the unit if it is damaged or exposed to excess moisture.Consult your BenQ dealer or service center for help and maintenance.Regulatory StatementsFCC StatementFederal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter-ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.Not all models are available in all regions. If certain safety regulations are required for specific region, BenQ ensures that products available in that region are complied with the requested regulations.

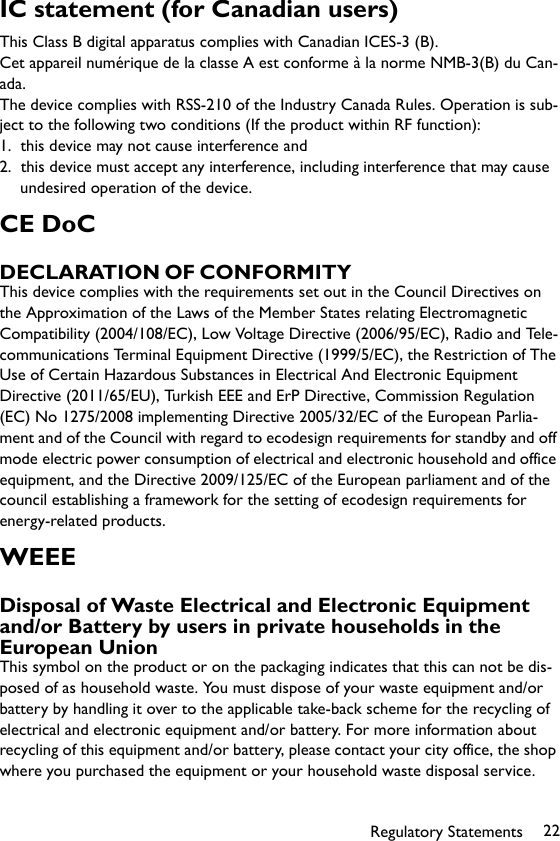

Regulatory Statements 22IC statement (for Canadian users)This Class B digital apparatus complies with Canadian ICES-3 (B).Cet appareil numérique de la classe A est conforme à la norme NMB-3(B) du Can-ada.The device complies with RSS-210 of the Industry Canada Rules. Operation is sub-ject to the following two conditions (If the product within RF function):1.  this device may not cause interference and2.  this device must accept any interference, including interference that may cause undesired operation of the device.CE DoCDECLARATION OF CONFORMITY                                                This device complies with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC), Low Voltage Directive (2006/95/EC), Radio and Tele-communications Terminal Equipment Directive (1999/5/EC), the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2011/65/EU), Turkish EEE and ErP Directive, Commission Regulation (EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parlia-ment and of the Council with regard to ecodesign requirements for standby and off mode electric power consumption of electrical and electronic household and office equipment, and the Directive 2009/125/EC of the European parliament and of the council establishing a framework for the setting of ecodesign requirements for energy-related products.WEEEDisposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European UnionThis symbol on the product or on the packaging indicates that this can not be dis-posed of as household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service.
Regulatory Statements23The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.Recycling information: See http://www.benq.com/support/recycle for details.

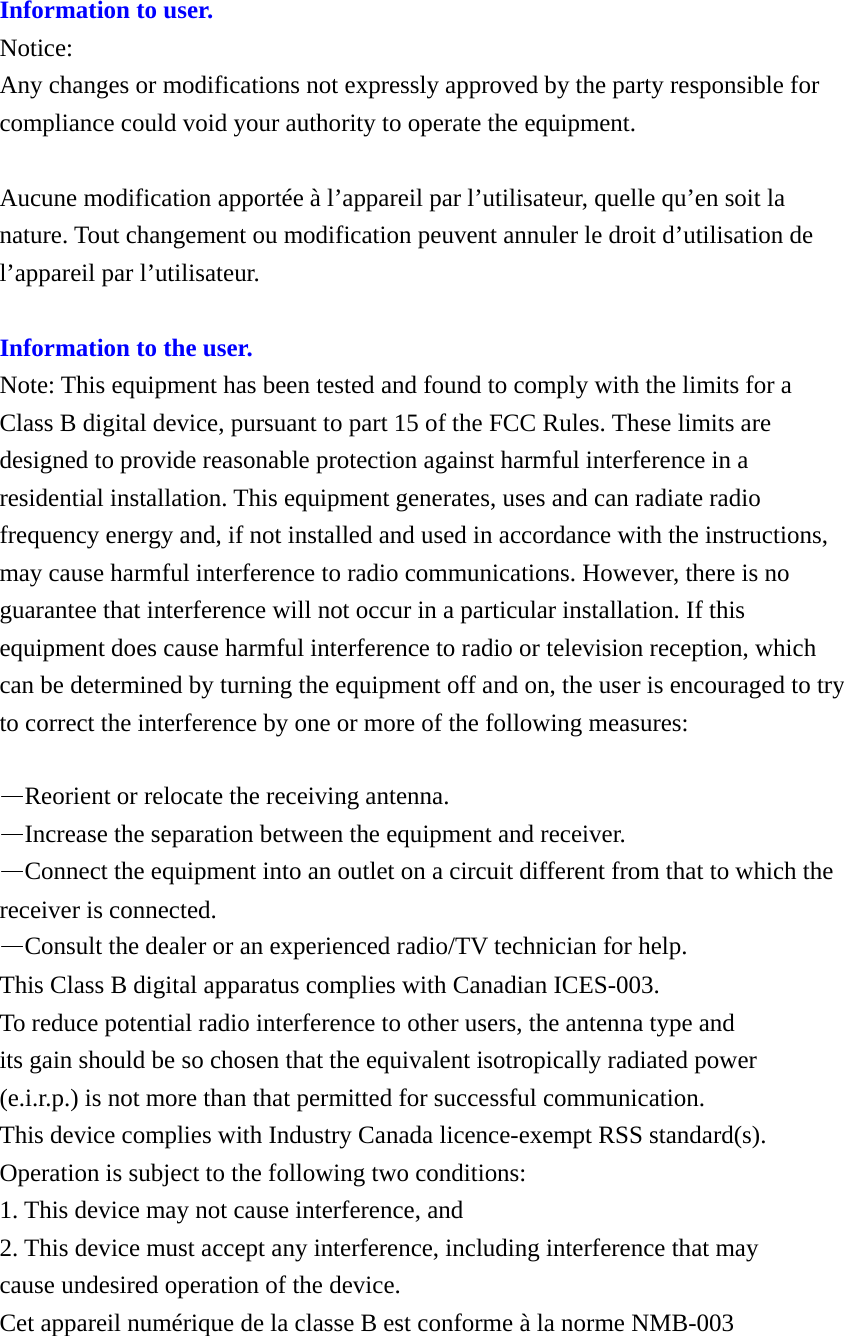

                     Information to user. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.  Aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil par l’utilisateur.  Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numérique de la classe B est conforme à la norme NMB-003
Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas provoquer d’interférences et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Labelling requirements Notice: This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Radiation Exposure Statement:   1. This Transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.  1.L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur. 2.Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un environnement non contrôlé. L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps.

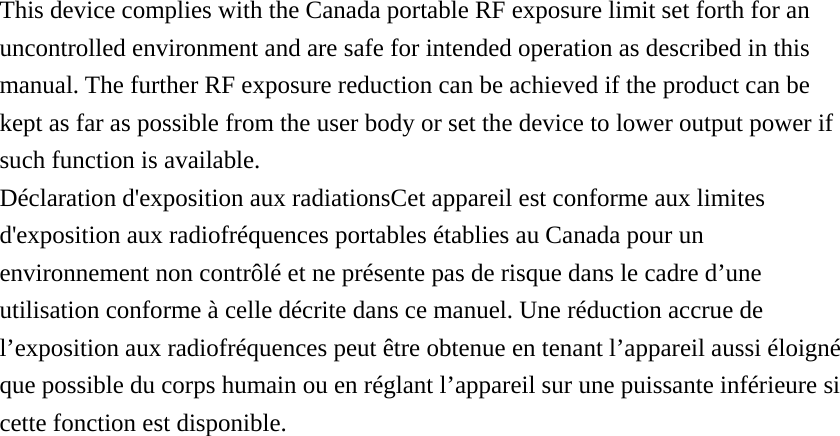

This device complies with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Déclaration d'exposition aux radiationsCet appareil est conforme aux limites d'exposition aux radiofréquences portables établies au Canada pour un environnement non contrôlé et ne présente pas de risque dans le cadre d’une utilisation conforme à celle décrite dans ce manuel. Une réduction accrue de l’exposition aux radiofréquences peut être obtenue en tenant l’appareil aussi éloigné que possible du corps humain ou en réglant l’appareil sur une puissante inférieure si cette fonction est disponible.
