Benq QP20 QCast Mirror HDMI Wireless Dongle User Manual 1
Benq Corporation QCast Mirror HDMI Wireless Dongle 1
Benq >
User Manual
QP20 –
QCast Mirror HDMI Wireless Dongle
Quick Start Guide Brief
Confidential. © BenQ Corporation, all rights reserved.
Shipping Contents
•QCast Mirror HDMI Wireless Dongle
•Micro USB cable
•Quick Start Guide
Confidential. © BenQ Corporation, all rights reserved.
Product Overview
HDMI Connector
2.4/5G Wi-Fi Switcher*
* 5G Wi-Fi is default setting, please press this bottom or enter Advanced Settings page to switch Wi-
Fi settings.
Confidential. © BenQ Corporation, all rights reserved.

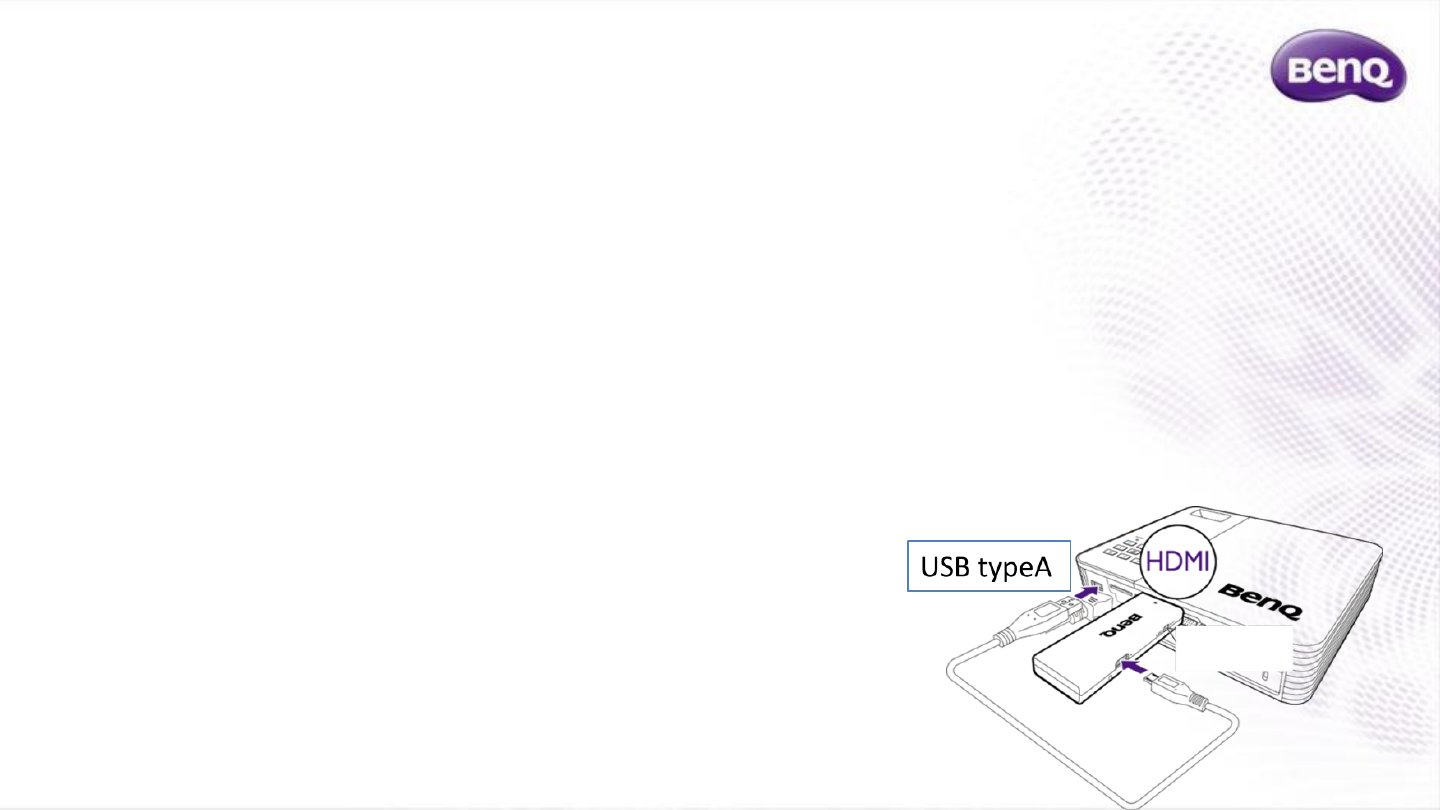

How to Setup
(step by step)
- Plug Mirco USB cable into QCast Mirror
- Plug HDMI as signal output to Projector
- Plug USB type A (5V/1A) with Projector for
Power supply
- Select HDMI Source on Projector, then
Standby page will be shown
Confidential. © BenQ Corporation, all rights reserved.

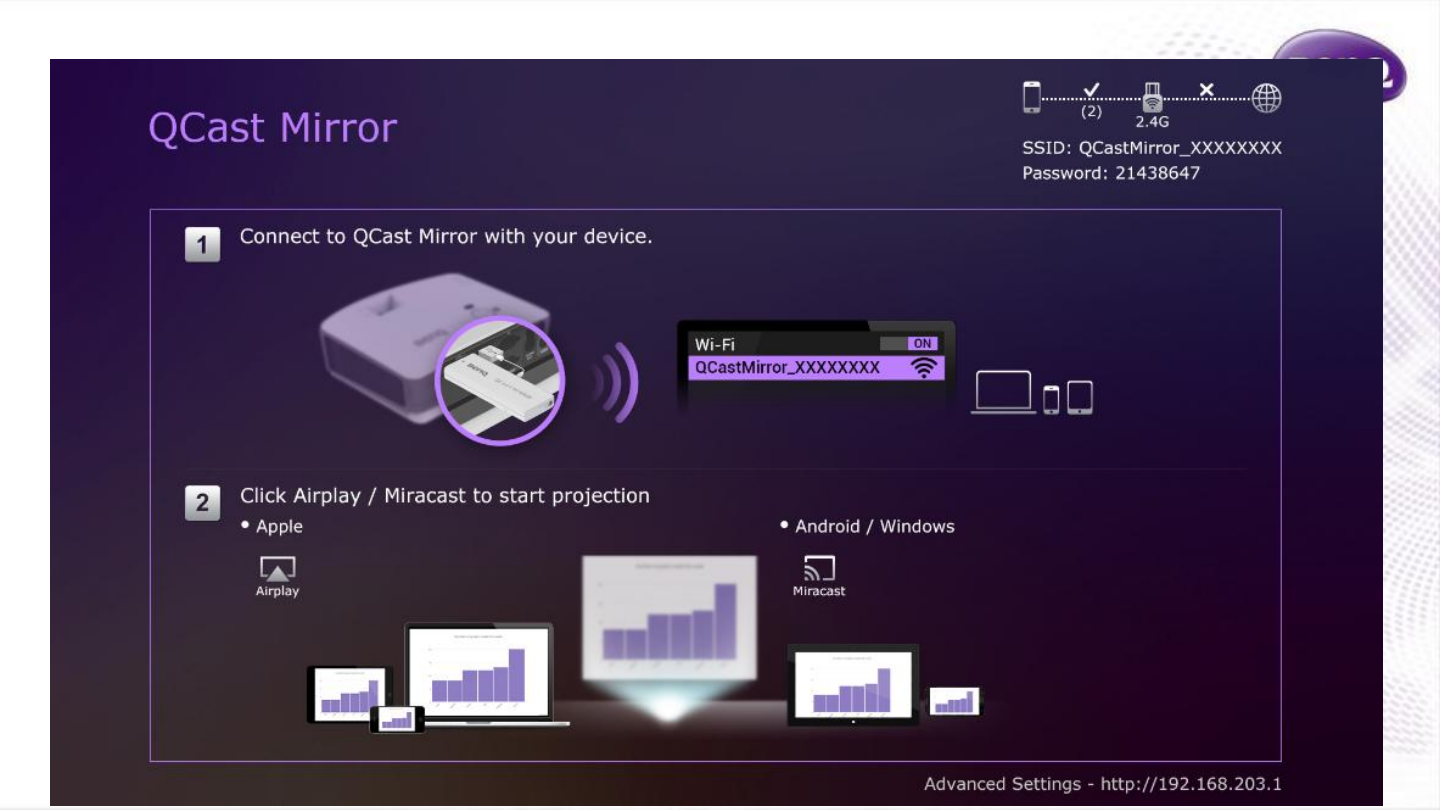

How to Display
(step by step )
Airplay
- Search SSID on Wi-Fi list of device and connect
- Enter Password to finish pairing QCast Mirror and device
- Click Airplay function embedded in your device
- Select QCast Mirror SSID to start projection
Miracast
- Click Miracast function embedded in your device
- Select QCast Mirror SSID to start projection
Confidential. © BenQ Corporation, all rights reserved.
Confidential. © BenQ Corporation, all rights reserved.

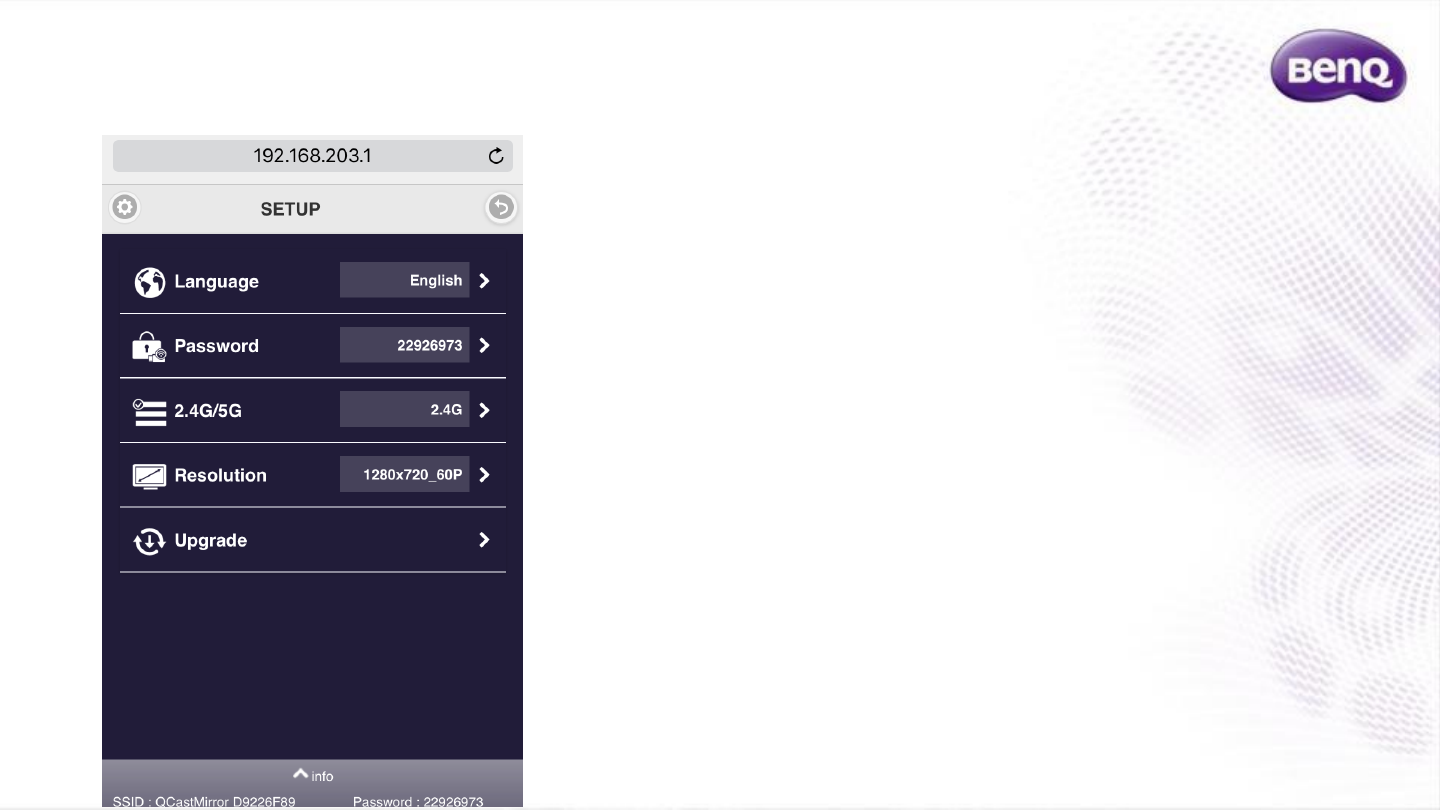

Advanced Settings
Open your browser to link http://192.168.203.1
•Language: Setting language for Advanced
Settings page
•Password: Change Wi-Fi password
•2.4G/5G: Select 2.4G/5G Wi-Fi as default
•Resolution: Setting output resolution
•Upgrade: Latest firmware upgrade (Please
noted this requires internet connection)
Confidential. © BenQ Corporation, all rights reserved.
Specification(1)
QCast Mirror HDMI Wireless Dongle
Model Name QP20
Color White
Wireless
Standard IEEE 802.11a/b/g/n/ac
Frequency
Band
2.4G: 2.412GHz ~ 2.462GHz
5G: 5.180GHz ~ 5.240GHz(Default Setting)
CPU AM8251@500Mhz
DRAM DDR3 128MB
Flash NAND Flash 128MB
Output
Resolution 1280x720 @60hz
1920x1080 @30hz
1920x1080 @24hz
I/O HDMI 1.2
Micro USB for DC 5V/1A
2.4/5G Wi-Fi Switcher (Only can operate 2.4GHz or 5GHz band at one time)
Power
Consumption
2.4G(20M: 240mA;40M: 220mA)
5G(20M: 300mA;40M: 270mA;80M: 260mA)
Working
Temp. 0~50°C
Dimension 84 x 11 x 32 mm (Not include HDMI connector)
Weight
30
g approx
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving an tenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Confidential. © BenQ Corporation, all rights reserved.
Specification(2)
System
Requirement
PC
Windows OS
Windows 8.1 and later with Miracast support
*Miracast support depends on WiFi module and graphics chipset.
Mac OS
Mac OS X 10.9 and above with AirPlay Mirror support
*Recommended Models: Mac Book series and iMac series after
E/2013
Tablet/SmartPhone
iOS
iOS8 and later with Airplay Mirror support
Android
Android 4 above with Miracast support
WindowsPhone
Windows Phone 8.1 and later with Miracast support
*For further information, please see more on official website:
http://www.benq.com/
