RP700+_User Manual_part2
Using the touch screen26
Important instructions for using the touch screen

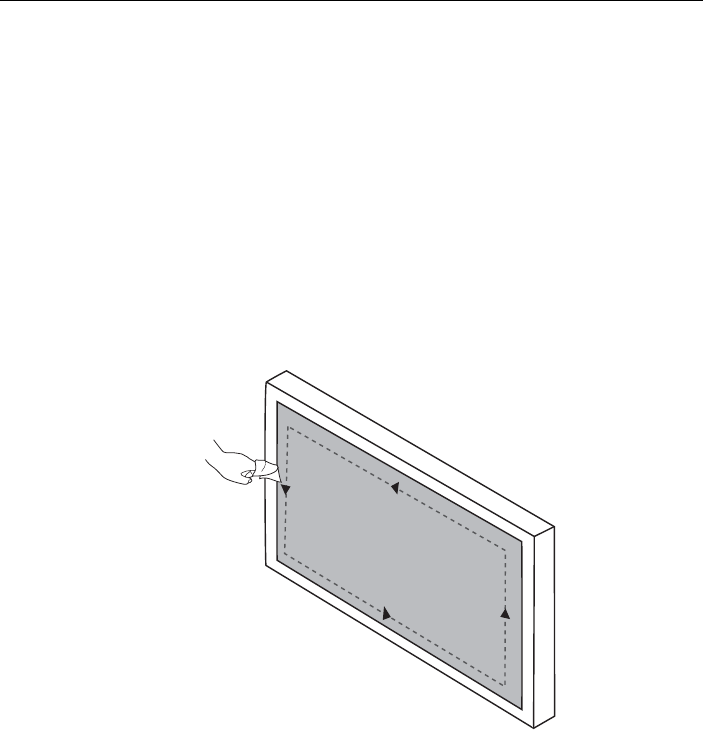

Please clean the frame when there is sign of malfunction on the touch screen.
• Before you clean the screen, make sure the display is turned off, and unplug the power
cord.
• Remove dust or dirt from the screen and the infrared plastic filter periodically. It is
suggested using a small amount of alcohol to clean the infrared plastic filter.
• To avoid damage to the screen, never use any type of abrasive materials to wipe the
screen.
• Use a neutral detergent to clean the touch screen. Avoid using detergents with erosive
substance, such as banana oil or ammonia.
• Moisten a clean soft, lint-free cloth with a neutral detergent and then clean the touch
screen.
• Do not spray a detergent on the screen surface or the body directly. It may result in a
short circuit to the touch screen.
• Keep the touch screen out of direct sunlight or spotlights.
Basic operations 27
Basic operations

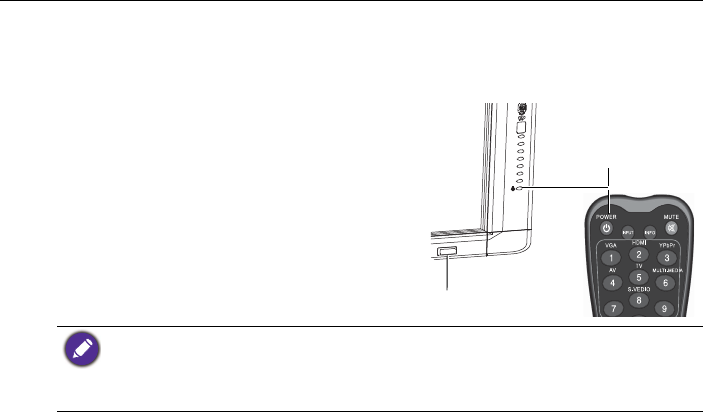

Turning the display on or off
Only by switching on master switch will either
power button work. To turn on or off the
display, press the power button on the display’s
control panel or on the remote control.
Power
Button
Master Switch
• The display’s standby mode still consumes power. To completely cut off power supply, set the
power switch to the off position or disconnect the power cord from the power outlet.
• The display follows the VESA approved DPM Power Management function. The power
management function is an energy saving feature that automatically reduces the display’s power
consumption when the keyboard or the mouse has not been used for a fixed period.
Basic operations28
Switching input signals
Press the INPUT button and those signal selection buttons on the remote control or the
INPUT button on the control panel to select an input signal.
Adjusting audio volume level
Press /- or/+ on the control panel or / VOL- // VOL+ on the remote control to
adjust the volume.

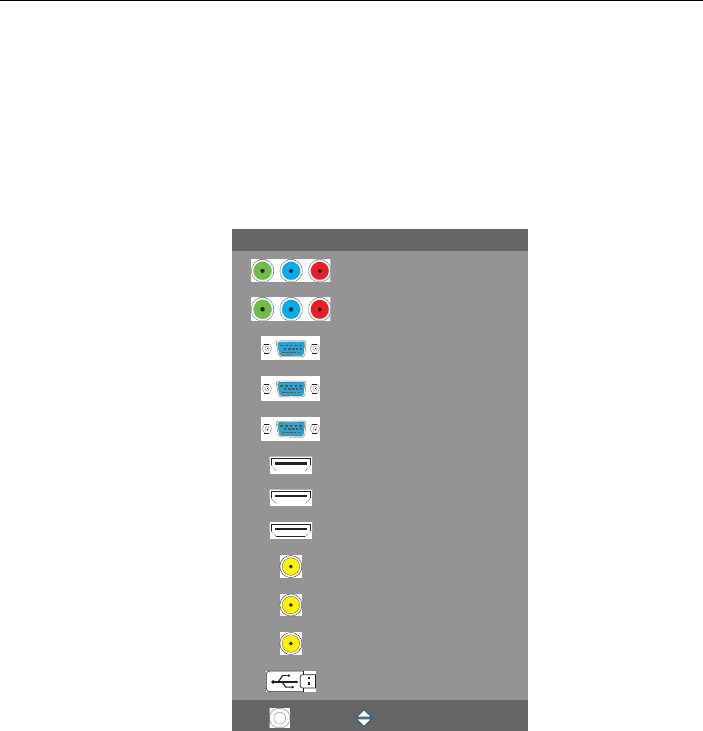

RP700+
Input Source
Component 1
Component 2
VGA 1
VGA 2
VGA 3
HDMI 1
HDMI 2
HDMI 3
AV 1
AV 2
S-Video
Media
OK FLIP
The OSD (On-Screen Display) menu 29
The OSD (On-Screen Display) menu
OSD menu overview
Menu name Options/functions See page
• Picture Mode
• Color Temperature
• Aspect Ratio
• Noise Reduction
• Screen
• Backlight
• Auto Backlight
31
Sound
• Sound Mode
• Balance
• Auto Volume
• Surround Sound
• SPDIF Mode
• Equalizer
• Amplifier Control
32
Default
• OSD Language
• Blending
• Key Lock
• Restore Factory Default
• Temperature Control
33
Clock
• Clock
• Off Time
• On Time
• Sleep Time
• Auto Sleep
• OSD Duration
34
Some options are only available when a certain input signal source is selected.
The OSD (On-Screen Display) menu30

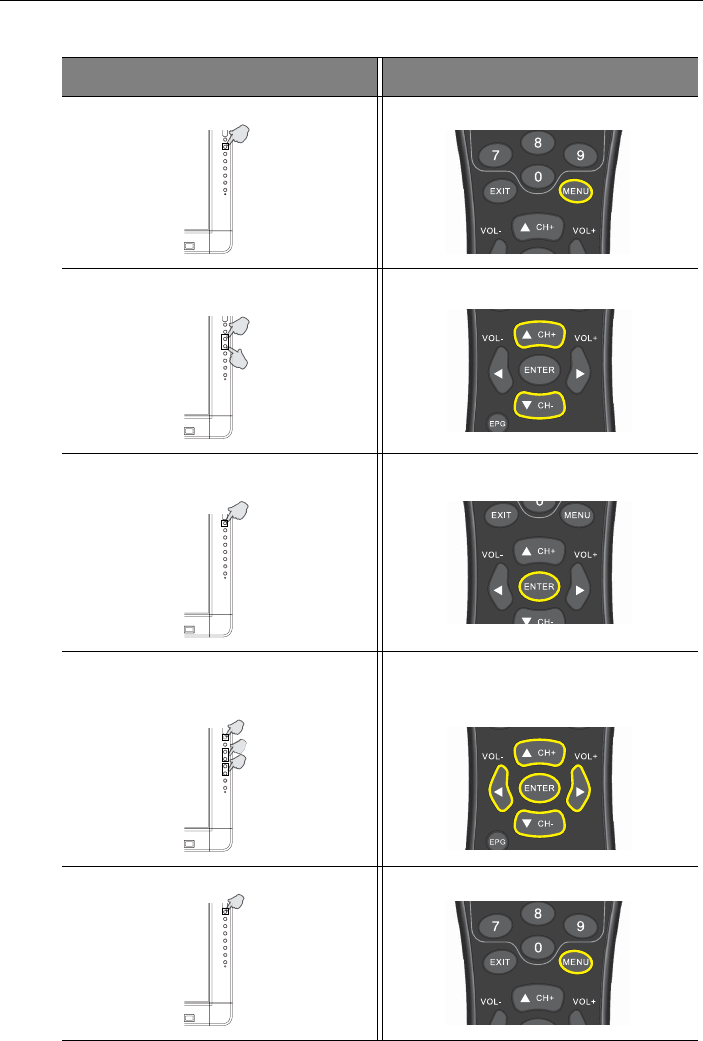

Operations in the OSD menu
Using the control panel buttons Using the remote control
1. Press MENU to open the OSD menu. 1. Press MENU to open the OSD menu.
2. In the OSD menu, press or to
select an item. 2. Press or to select an item.
3. Press INPUT/ENTER to confirm
selections. 3. Press ENTER to confirm selections.
4. Press or to select a feature and
press or to adjust settings. Press
INPUT/ENTER to save changes.
4. Press and to select a feature and
press or to adjust settings. Press
ENTER to confirm changes.
5. Press MENU to close the OSD menu. 5. Press MENU to close the OSD menu.
The OSD (On-Screen Display) menu 31

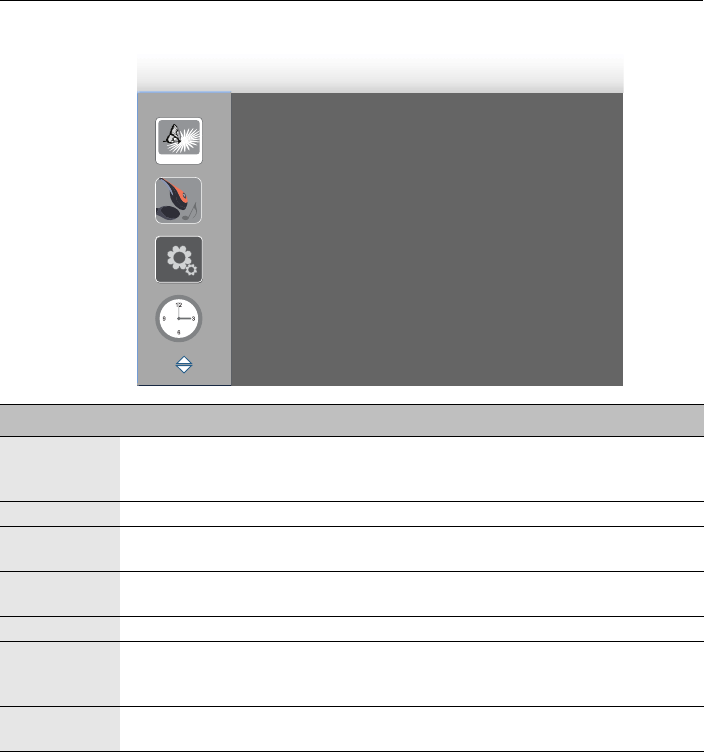

Picture menu
Picture Mode Standard
Color Temperature User
Aspect Ratio 4:3
Noise Reduction Default
Screen Auto Adjust
Backlight
Auto Backlight 10
Name Description
Picture Mode
Sets the display mode. Available modes are Standard, Mild, User,
Classroom, and Dynamic. Properties such as Contrast, Brightness,
Color, Sharpness, and Tint can be adjusted if the mode is set to User.
Color
Temperature
Adjusts the color temperature. Available color temperatures are
Classroom, Warm, Medium, Cool, and User. Properties such as Red,
Green, and Blue can be adjusted further if color temperature is set to
User
Aspect Ratio
Sets the picture’s aspect ratio. Available aspect ratios are Auto, 4:3, 16:9,
Zoom1, Zoom2, Overscan, Panorama, PointToPoint.
Aspect rations supported by each input:
• HDMI: Auto, 4:3, 16:9, Zoom1, Zoom2, Overscan, Panorama,
PointToPoint.
• VGA: 4:3, 16:9, PointToPoint.
• M-USB: Auto, 4:3, 16:9.
• AV, Component, and S-Video: Auto, 4:3, 16:9, Zoom1, Zoom2,
Panorama,
Noise
Reduction
Reduces electrical image noise caused by different media players. Available
modes are Off, Low, Middle, High, and Default.
Screen Sets screen to Auto Adjust, or manually fine-tunes Horizontal Pos.,
Vertical Pos., Size, and Phase.
Backlight Adjusts the backlight intensity for the screen.
Auto
Backlight Sets the backlight intensity to automatic mode with Off or On.
The OSD (On-Screen Display) menu32
Sound menu
Sound Mode Standard
Balance
Auto Volume On
Surround Sound Off
SPDIF Mode Auto
Equalizer Standard
Amplifier Control Inside
Sound
Name Description
Sound Mode
Adjusts the sound output from the speakers. Available modes are Standard,
Music, Movie, Sports, and User. Properties such as Treble and Bass can
be adjusted i if the mode is set to User.
Balance Adjusts the audio balance.
Auto
Volume Sets volume to automatic mode with Off or On.
Surround
Sound Sets the surround mode to Off, Surround, or SRS Trusurround XT.
SPDIF Mode Sets SPDIF mode to PCM or Auto.
Equalizer
Sets equalizer mode to User, Standard, Music, Movie, or Sports.
Properties such as 120 Hz, 500 Hz, 1.2 KHz, 7.5 KHz, and 12 KHz can be
adjusted when mode is set to User.
Amplifier
Control Sets amplifier control mode to Insideor Outside.
The OSD (On-Screen Display) menu 33
Default menu
OSD Language English
Blending Off
Key Lock Off
Restore Factory Default
Temperature Control Off
Default
Name Description
OSD Language Sets your preferred language for the OSD menu.
Blending Sets blending modes to Off, Low, Middle, or High.
Key Lock Sets key lock status to Off or On.
Restore Factory
Default Returns all settings to factory default values with prompts of Yes or No.
Temperature
Control Sets temperature control mode to Off or On.
The OSD (On-Screen Display) menu34

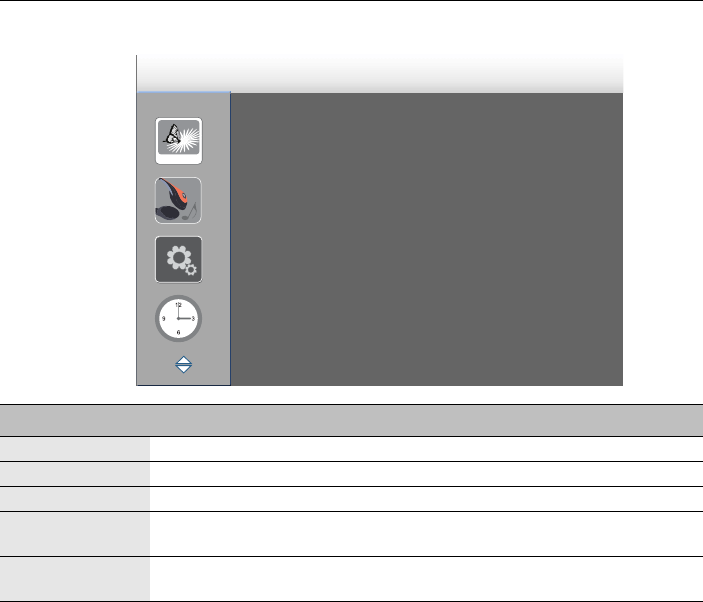

Clock menu
Clock Date
Off Time Off
On Time Off
Sleep Time Off
Auto Sleep Off
OSD Duration Off
Clock
Name Description
Clock
Sets the current date and time with items such as Date, Month, Year, Hour,
Minute.
Set the current time before you set the On/Off Timer.
Off Time
Sets when to turn off the display. Available options are Off, Once, Everyday,
Monday~Friday, Monday~Saturday, Saturday~Sunday, and Sunday.
Properties such as Hour and Minute can be adjusted further.
On Time
Sets when to turn on the display. Available options are Off, Once, Everyday,
Monday~Friday, Monday~Saturday, Saturday~Sunday, and Sunday.
Properties such as Hour and Minute can be adjusted further.
Sleep Time Sets time to hibernate the display from Off, 10min, 20min, 30min, 60min,
90min, 120min, 180min, and 240min.
Auto Sleep Sets automatic hibernation to Off or On.
OSD
Duration Sets time for OSD to last from Off, 5sec, 10sec, or 15sec.
Multimedia OSD operation 37

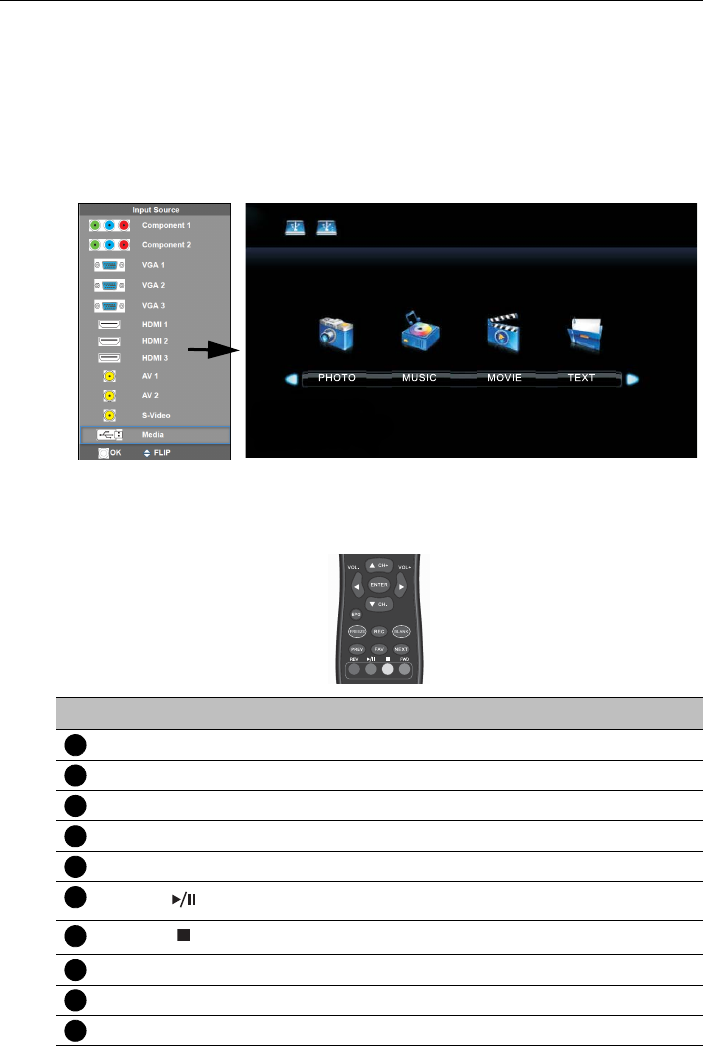

Multimedia OSD operation
The multimedia OSD system provides a variety of settings when the display is connecting
to USB drives.
To access the multimedia OSD system:
1. Make sure the USB drive is correctly connecting to the display. See Connecting the
multimedia inputs on page 19 for details.
2. Press MULTI-MEDIA on the remote control or select Media from the source
selection bar to access the multimedia OSD system. The main page appears.
3. Select your desired menu to operate.
Multimedia buttons on the remote control
To operate the multimedia OSD system, use the buttons on the remote control.
No Name Description
MENU Switches to the OSD menu.
EXIT Goes back to root page of disk selection.
ENTER Selects/deselects an item.
// /Directional arrows for selecting a desired item.
REV Fast rewinds the current selected item.
Starts/resumes/pauses playback.
Stops image playback.
FWD Fast forwards the current selected item.
PREV Goes back to the previous selected item.
NEXT Goes to the next selected item.
1
2
3
4
5
6
7
8
9
10
Multimedia OSD operation38
Viewing files
To view the files on your USB flash drive, simply plug your USB flash drive to the M USB
jack on the display and select from PHOTO, MOVIE, MUSIC, and TEXT.
PHOTO:
Lists all the supported image files in thumbnail view. Select the image you want to display
and perform the functions as provided on the screen according to your needs.
Return
Remote control key functions
No Name Description
MENU Switches to the OSD menu.
EXIT Goes back to root page of disk selection.
ENTER Selects/deselects a desired image.
// /Directional arrows for selecting a desired image.
REV
Starts/resumes/pauses playback.
Stops image playback.
FWD
PREV Goes back to the previous selected image.
NEXT Goes to the next selected image.
1
2
3
4
5
6
7
8
9
10
• Instead of press INFO button on the remote control, metadata of the selection on the cursor
will be revealed around 3 seconds later.
• Use // / and ENTER to select multiple files as a playlist.
• Use /for previous/next image in the playback.
• Supported image format: jpg/jpeg/bmp/png.
Multimedia OSD operation 39
MUSIC:
Select the track you want to play and perform the functions as provided on the screen
according to your needs.
Remote control key functions
No Name Description
MENU Switches to the OSD menu.
EXIT Goes back to root page of disk selection.
ENTER Selects/deselects a desired track.
// /Directional arrows for selecting a desired track.
REV Fast rewinds the current selected track.
Starts/resumes/pauses playback.
Stops playback.
FWD Fast forwards the current selected track.
PREV Goes back to the previous selected track.
NEXT Goes to the next selected track.
1
2
3
4
5
6
7
8
9
10
• Instead of press INFO button on the remote control, metadata of the selection on the cursor
will be revealed around 3 seconds later.
• Use // / and ENTER to select multiple files as a playlist.
• Supported audio format: mp3/wma/AAC.
Multimedia OSD operation40

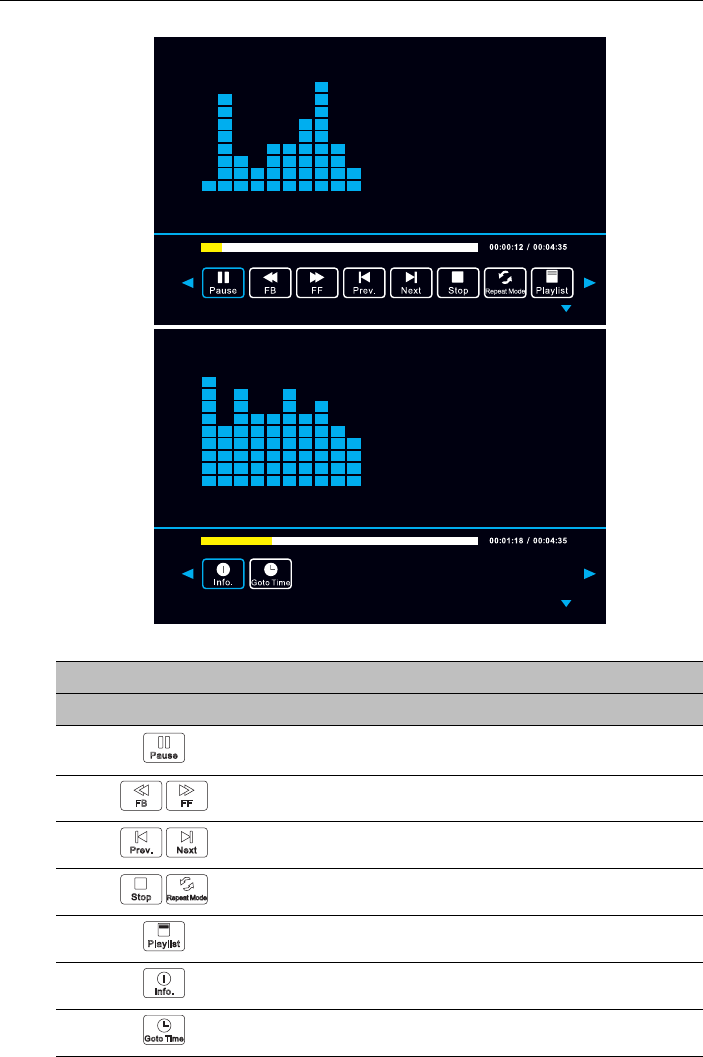

Legend of icons
Icon Description
Pauses/resumes playback.
Fast rewinds/fast forwards playback.
Goes back/go to the previous/next track in the playlist.
Stops playback/selects repeat mode as single repeat or all
repeat.
Checks the items in the playlist.
Displays metadata of the current track.
Directly goes to certain playback time and plays.
Multimedia OSD operation 41
MOVIE:
Select the video file you want to play and perform the functions as provided on the
screen according to your needs.
Remote control key functions
No Name Description
MENU Switches to the OSD menu.
EXIT Goes back to root page of disk selection.
ENTER Selects/deselects a desired video.
// /Directional arrows for selecting a desired video.
REV Fast rewinds the current selected video.
Starts/resumes/pauses playback.
Stops playback.
FWD Fast forwards the current selected video.
PREV Goes back to the previous selected video.
NEXT Goes to the next selected video.
1
2
3
4
5
6
7
8
9
10
• Instead of press INFO button on the remote control, metadata of the selection on the cursor
will be revealed around 3 seconds later.
• Use // / and ENTER to select multiple files as a playlist.
• Press PREV/NEXT multiple times for multiple rewind/forward speed.
• Supported video format: avi/mkv/ts/dat/vob/mpg/mpeg/mov/mp4/rm/rmvb. Some subtitle files
(.srt) may be displayed incorrectly due to encoding formats.
Multimedia OSD operation42
TEXT:
Supports text files. Select the text file you want to display and perform the functions as
provided on the screen according to your needs.
Remote control key functions
No Name Description
MENU Switches to the OSD menu.
EXIT Goes back to root page of disk selection.
ENTER Opens the selected file.
// /Directional arrows for selecting a desired text file
REV Page up.
Starts/resumes/pauses playback.
Stops playback.
FWD Page down.
PREV Goes back to the previous selected text file.
NEXT Goes to the next selected text file.
1
2
3
4
5
6
7
8
9
10
• Instead of press INFO button on the remote control, metadata of the selection on the cursor
will be revealed around 3 seconds later.
• Use // / and ENTER to select multiple files as a playlist.
• Supported text file encoding format: UTF-8.
Product information 41
Product information
Specifications
Item
Specifications
RP700+
LCD panel
Backlight E-LED
Panel size 70”
Pixel pitch (mm) 0.802
Native resolution
(pixels) 1920 x 1080
Brightness (cd/m2)
(typical) 350
Contrast (typical) 4000:1
Response time (ms)
(typical) 6
Panel Bit 10-bit
Touc h
Tec h n ol o g y IR To u ch
Resolution 32767 x 32767
Capacity 6 points
Accuracy +/- 2mm
Touch Output USB x 3
Operating System Windows XP/Vista/7/8, Mac OSX 10.6~10.9
Linux, Chrome OS
Panel glass Tempered glass AG coating, 80
Thickness 4mm
Input
Computer VGA (D-Sub 15-pin)
Video Composite Video (RCA jacks), S-Video,
YPbPr (RCA jacks), HDMI
Audio L/R (RCA jacks), Line-in (3.5 mm jack),
Mic-in (3.5 mm Jack)
USB Type A; Mini B
Control RS-232C (D-Sub 9-pin),
TV Tuner X
Output
Computer VGA (D-Sub 15-pin)
Video Composite Video
Audio Line-out (3.5 mm jack)
External speaker out
(L/R) O
Audio Audio W (Amp) 15W x 2
Internal speaker O
Product information42
Power
Supply 100 - 240V AC, 50/60 Hz
Consumption Max. 300W
Consumption Standby < 1W
Environment
Operating Temperature 0 - 40oC, 32 - 104oF
Operating Humidity 10 - 90% (without condensation)
Storage Temperature -25 - 55oC, -13 - 131oF
Storage Humidity 10 - 95% (without condensation)
Display Orientation Landscape/Portrait
Mechanical
Weight (kg) 72
Dimensions (W x H x
D) (mm) 1645.1 x 971.8 x 123.5mm
Bezel Dimension - T/B/
L/R (mm) 50/50/50/50
Feature
DVI daisy chain X
RS232 control daisy
chain X
Image setting O
Picture mode O
Sharpness
enhancement O
Proof of image
retention X
Dimming control O
Blank O
Freeze O
10-bit color processing O
Built-in video wall
support X
Scheduling O
Source / volume control O
HDMI-HDCP O
De-Interlacing / comb
Filter O
Ambient light sensor O
Specifications and functions are subject to change without notice.
Product information 43

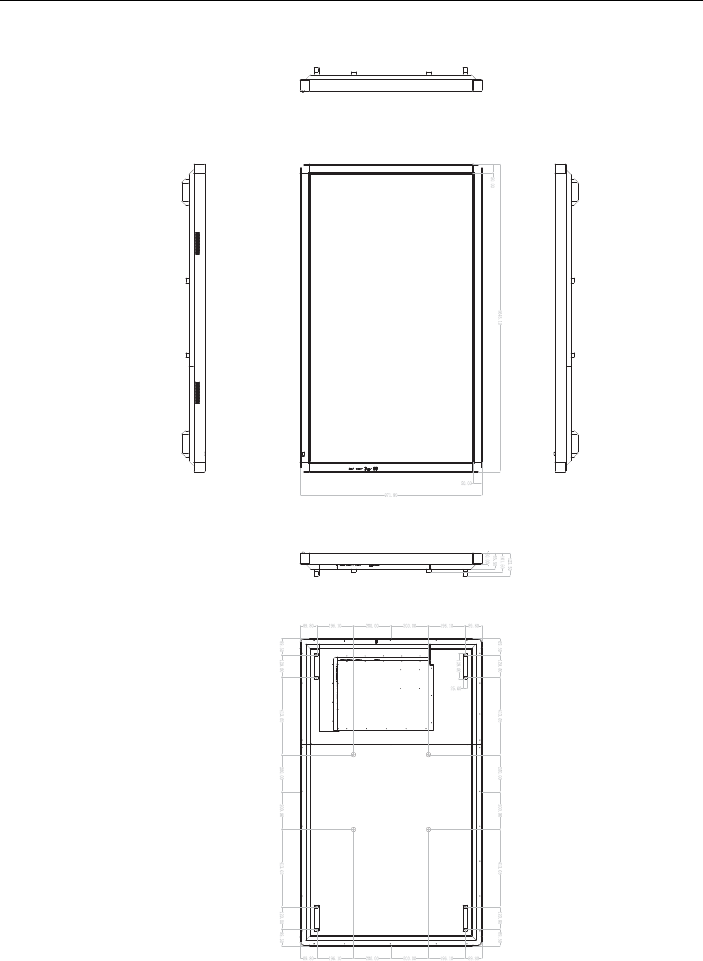

Dimensions
RP700+
Unit: mm
Product information44
Supported input signal resolution
Resolution
Input source
AV S-Video YPbPr VGA HDMI
640 x 480 @ 60Hz
640 x 480 @ 67Hz
640 x 480 @ 72Hz
640 x 480 @ 75Hz
720 x 400 @ 70Hz
800 x 600 @ 60Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 75Hz
1152 x 870 @ 75Hz
1280 x 720 @ 60Hz
1280 x 768 @ 60Hz
1280 x 800 @ 60Hz
RB
1280 x 800 @ 60Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1360 x 768 @ 60Hz
1366 x 768 @ 60Hz
1400 x 1050 @ 60Hz
1600 x 1200 @ 60Hz
1680 x 1050 @ 60Hz
RB
1600 x 1050 @ 60Hz
1920 x 1080 @ 60Hz
NTSC-M
NTSC-J
PAL-BDGHI
576i (50Hz)
Product information 45
480i (60Hz)
480p (60Hz)
576p (50Hz)
720p (25Hz)
720p (30Hz)
720p (50Hz)
720p (60Hz)
1080i (50Hz)
1080i (60Hz)
1080p (24Hz)
1080p (25Hz)
1080p (30Hz)
1080p (24Psf)
1080p (25Psf)
1080p (50Hz)
1080p (60Hz)
• : supported
• Blank: not supported
Troubleshooting46
Troubleshooting
Problem Solution
No picture Check the following:
• Is the display turned on? Check the power indicator of the
display.
• Is the signal source device turned on? Turn on the device
and try again.
• Are there any loose cable connections? Make sure that all
cables are connected firmly.
• Have you chosen an unsupported output resolution on
the computer? Refer to Supported input signal resolution
on page 44 to select a supported resolution and try again.
• Have you chosen an unsupported output resolution on
the DVD or Blu-ray disc player? Refer to Supported input
signal resolution on page 44 to select a supported
resolution and try again.
No sound Check the following:
• Have you turned on the mute function on the display or
the input source device? Turn off the mute function or
increase the audio volume level and try again.
• Are there any loose cable connections? Make sure that all
cables are connected firmly.
The computer input
image looks strange
• Have you chosen an unsupported output resolution on
the computer? Refer to Supported input signal resolution
on page 44 to select a supported resolution and try again.
• Use the Auto Adjust function (See Picture menu on
page 31) to let the display automatically optimize the
display of computer image.
• If the result of the Auto Adjust function is not
satisfactory, use the Phase, Horizontal Pos. and
Vertical Pos. functions to manually adjust the image.
The control panel
buttons do not work
Have you locked the control panel buttons? Unlock the
buttons and try again.
Troubleshooting 47
6/5/14
The remote control does
not work
• Have you locked the remote control function? Unlock the
function and try again.
• Check for incorrect battery orientation.
• Check for dead batteries.
• Check your distance and angle from the display.
• Check whether remote control is properly being pointed
at the display’s remote control sensor window.
• Check for any obstacle between the remote control and
the remote control sensor window.
• Check that the remote control sensor window is not
under strong fluorescent lighting, or in direct sunlight.
• Check for any devices (computer or personal digital
assistant, PDA) nearby that transmit infrared signals which
may cause interference to signal transmission between the
remote control and the display. Turn off the infrared
function of these devices.
