RP700+_User Manual_part1
RP700+
Interactive Flat Panel
User Manual
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or
implied, with respect to the contents of this document. BenQ Corporation reserves the
right to revise this publication and to make changes from time to time in the contents
thereof without obligation to notify any person of such revision or changes.
Copyright
Copyright 2014 BenQ Corporation. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written permission
of BenQ Corporation.
Table of Contents i
Table of Contents
Safety warnings and precautions ...................................... 1
Important safety instructions............................................ 2
Notes on the LCD panel of this display..................................... 2
Safety notice for remote control................................................. 3
Battery safety notice....................................................................... 3
BenQ ecoFACTS.............................................................................. 4
Package contents ................................................................. 5
Setting up the display .......................................................... 6

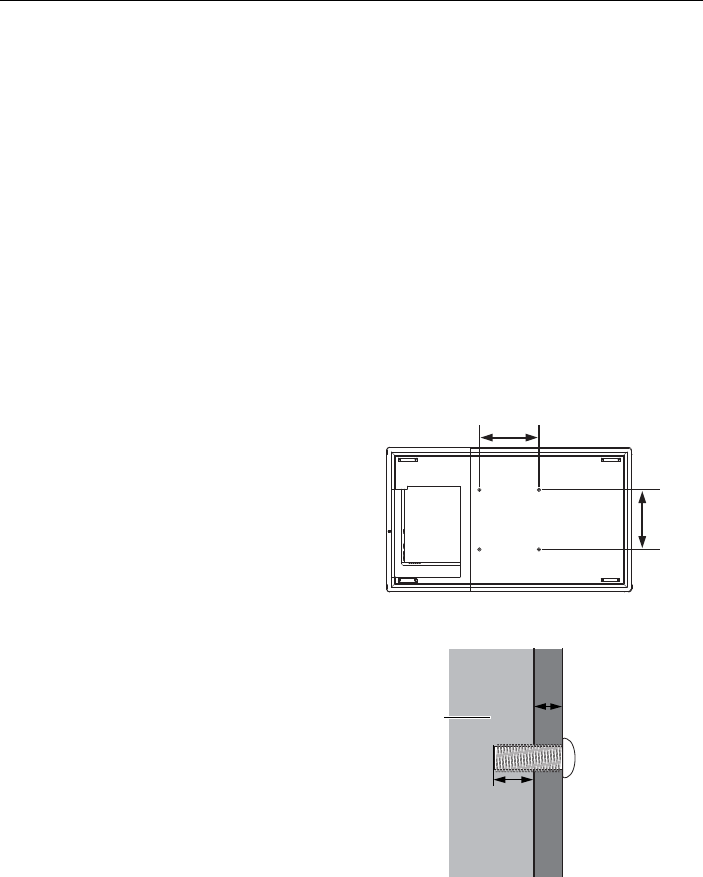

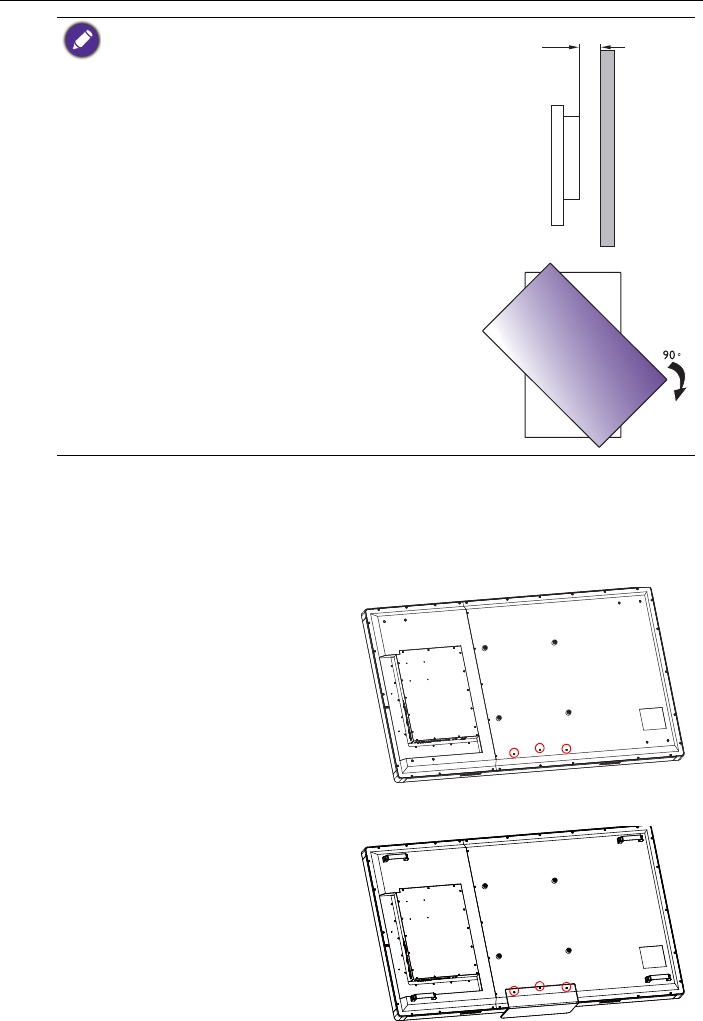

Mounting the display....................................................................... 6
Parts of the display and their functions .......................... 9

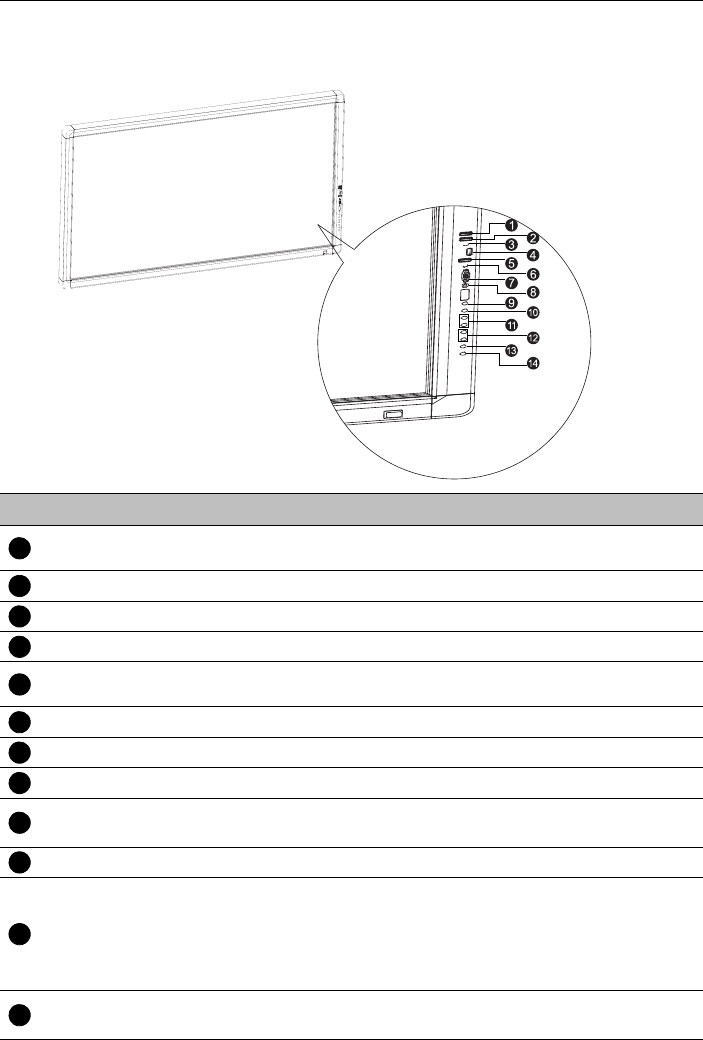

Front/Rear panel ................................. 9

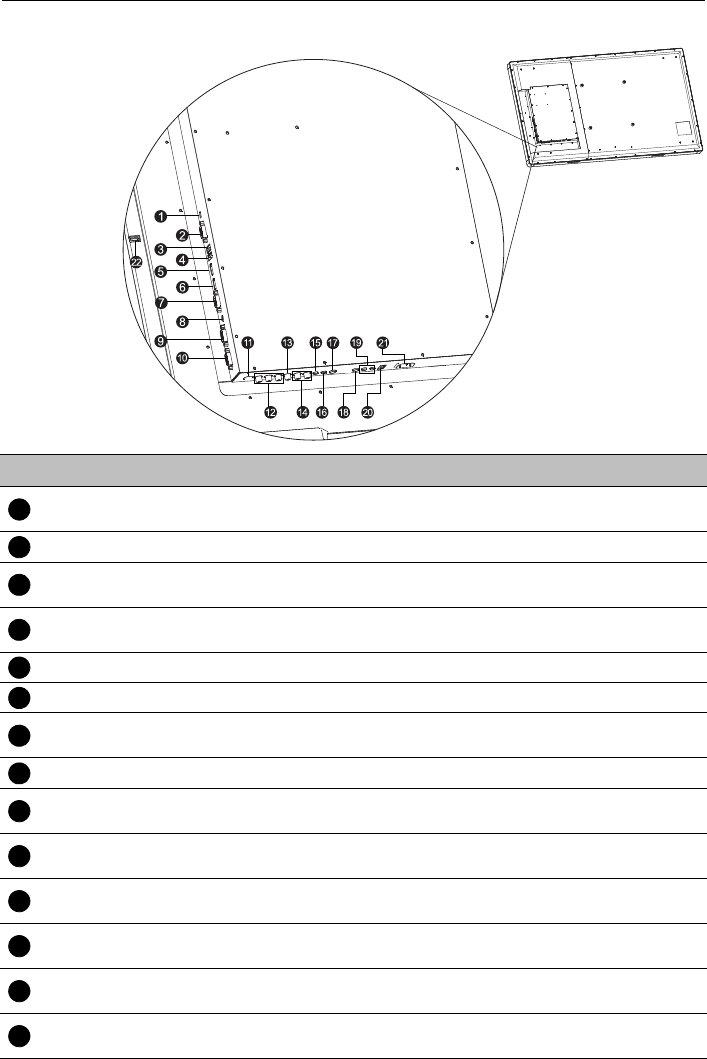

Input/output terminals................................................................. 11
Remote control............................................................................. 13

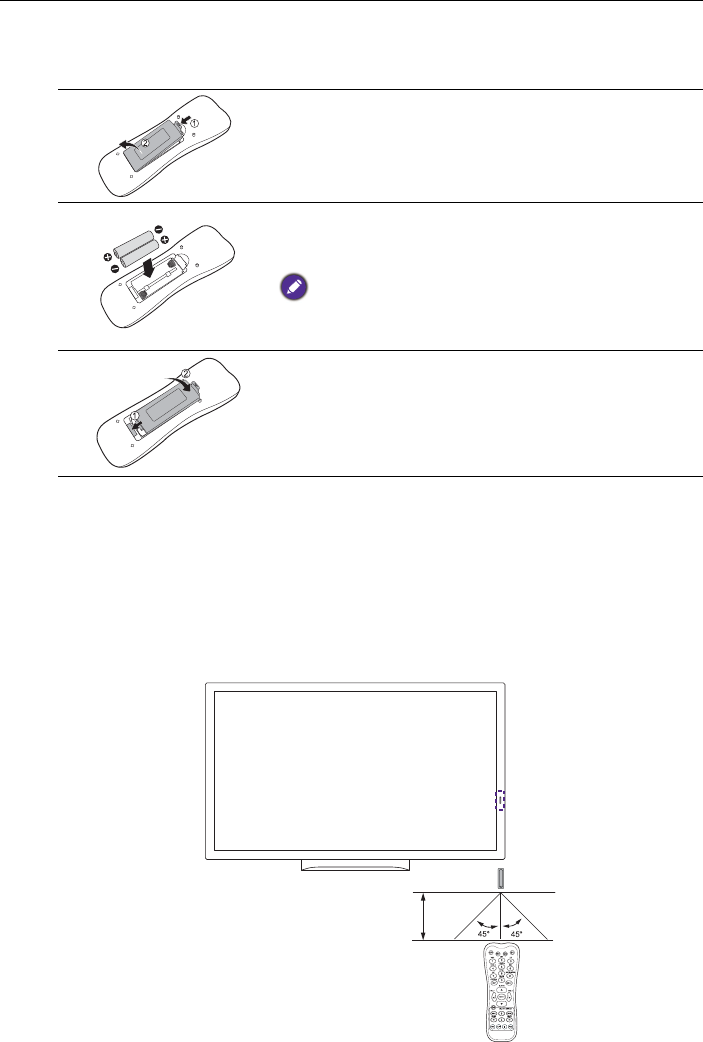

Using the remote control........................................................... 14
Connection ......................................................................... 15

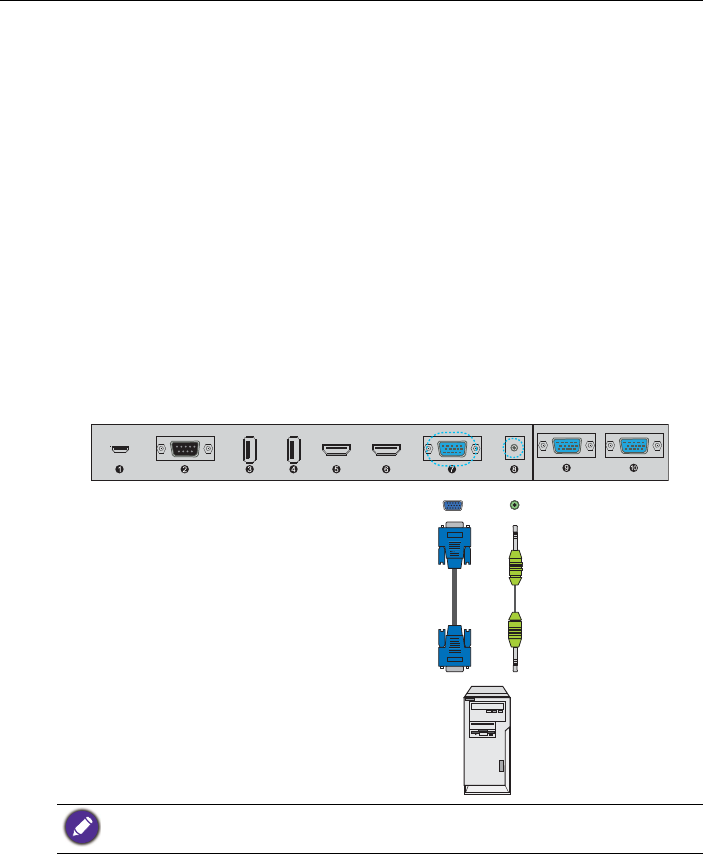

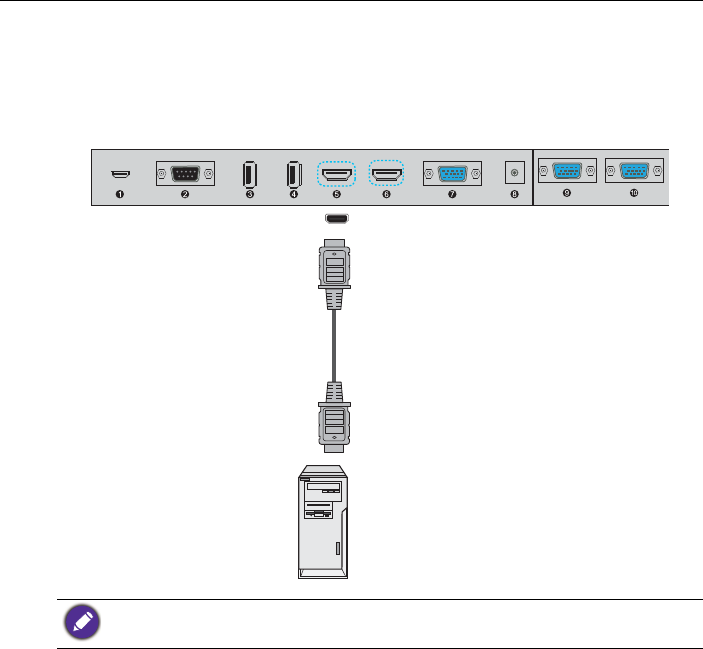

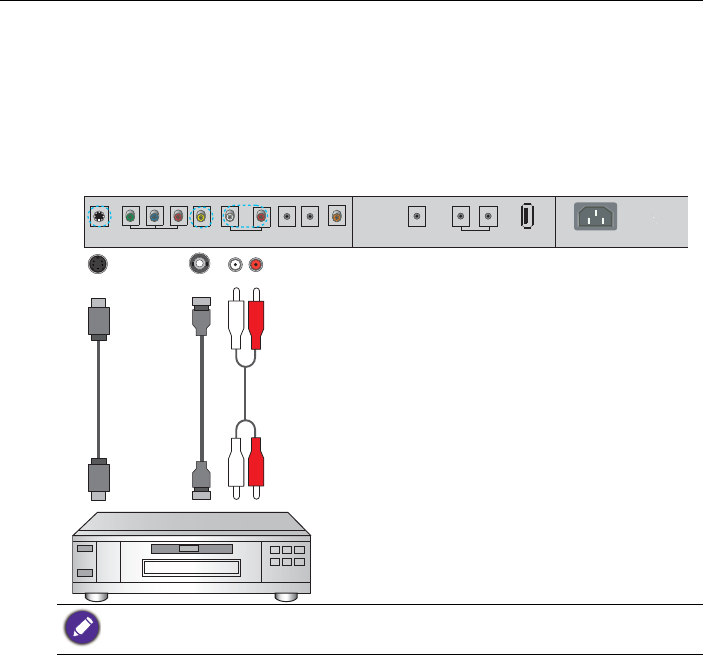

Connecting audio/video signals ................................................. 15
Connecting the touch module................................................... 20

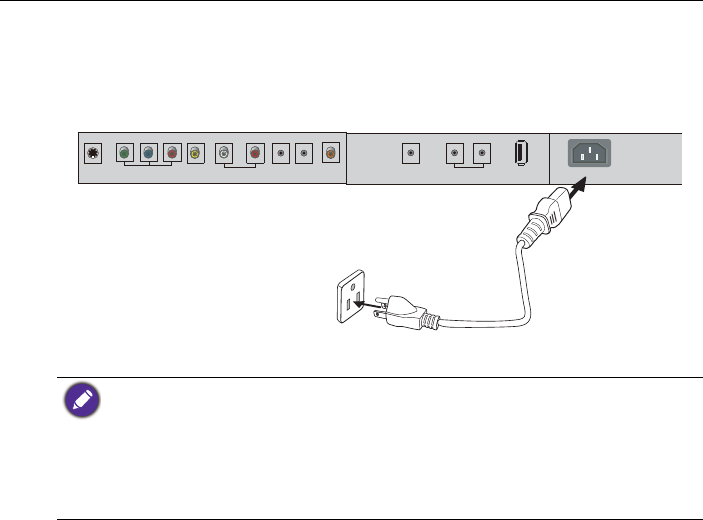

Connecting power........................................................................ 21

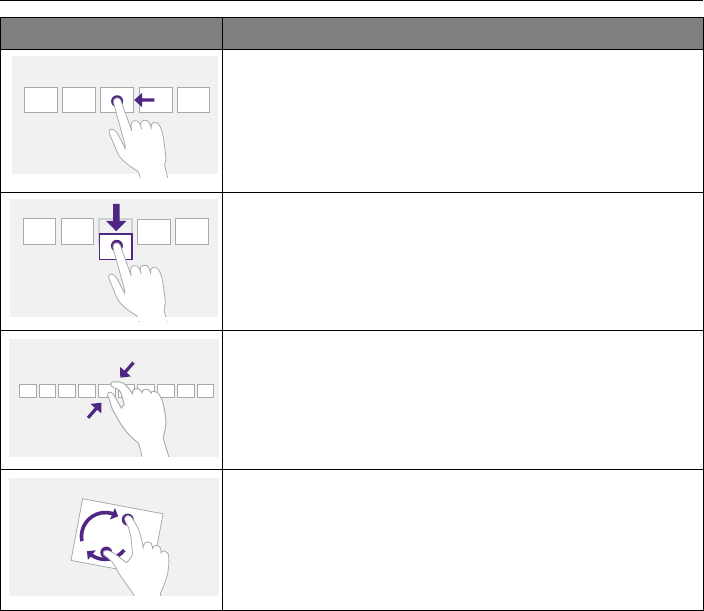

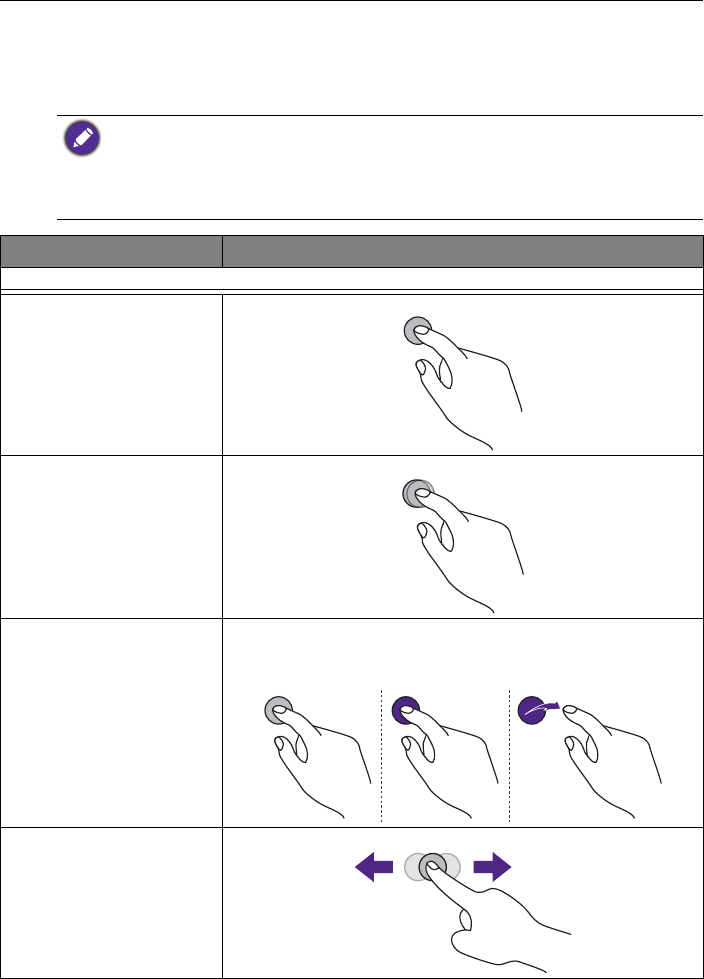

Using the touch screen..................................................... 22
Important instructions for using the touch screen............... 26
Basic operations................................................................. 27
Turning the display on or off ..................................................... 27
Switching input signals ................................................................. 28
Adjusting audio volume level ..................................................... 28
The OSD (On-Screen Display) menu ........................... 29
OSD menu overview ................................................................... 29
Operations in the OSD menu ................................................... 30
Picture menu .............................................................................. 31
Sound menu ................................................................................ 32
Default menu ............................................................................... 33
Clock menu .................................................................................. 34
Multimedia OSD operation............................................. 35
Multimedia buttons on the remote control ........................... 35
Table of Contentsii
Viewing files.................................................................................... 36
Product information.......................................................... 41
Specifications.................................................................................. 41
Dimensions..................................................................................... 43
Supported input signal resolution ............................................. 44
Troubleshooting................................................................. 46
Safety warnings and precautions 1
Safety warnings and precautions
• The mains plug of the power supply cord shall remain readily operable. The AC
receptacle (mains socket outlet) shall be installed near the equipment and shall be easily
accessible. To completely disconnect this equipment from the AC mains, disconnect the
power cord plug from the AC receptacle.
• Do not place this display on an uneven, sloping or unstable surface (such as a trolley)
where it may fall and cause damage to itself or others.
• Do not place this display near water, like a spa or pool, or in a position which will allow
the splashing or spraying of water onto the display, like in front of an open window
where rain water may enter.
• Do not install this display in a confined space without proper ventilation and air
circulation, such as in a closed cabinet. Allow proper space around the display for
dissipating heat inside. Do not block any openings and vents on the display. Overheating
may result in hazards and electric shock.
• Installation of this display should only be performed by a qualified technician. Failure to
install this display properly may cause injuries and damages to the personnels and the
display itself. Check the installation regularly and maintain the display periodically to
ensure the best working condition.
• Use only the accessories approved or recommended by the manufacturer to mount this
display. Using wrong or unsuitable accessories may cause the display to fall and result in
serious personal injuries. Make sure that the surface and fixing points are strong enough
to sustain the weight of the display.
• To reduce the risk of electric shock, do not remove covers. No user serviceable parts
inside. Refer servicing to qualified service personnel.
• To prevent personal injuries, mounting the display or installing desktop stands is
required before use.
THIS EQUIPMENT MUST BE
GROUNDED
To ensure safe operation, the three-pin
plug must be inserted only into a
standard three-pin power outlet which
is effectively grounded through normal
household wiring. Extension cords
used with the equipment must have
three cores and be correctly wired to
provide connection to the ground.
Wrongly wired extension cords are a
major cause of fatalities.
The fact that the equipment operates
satisfactorily does not imply that the
power outlet is grounded or that the
installation is completely safe. For your
safety, if you are in any doubt about
the effective grounding of the power
outlet, please consult a qualified
electrician.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated "dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
Important safety instructions2
Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Notes on the LCD panel of this display
• The Liquid Crystal Display (LCD) panel of this display has a very thin protective layer of
glass which is liable to marking or scratching, and cracking if struck or pressured. The
liquid crystal substrate is also liable to damage under excessive force or extreme
temperatures. Please handle with care.
• The response time and brightness of the LCD panel may vary with the ambient
temperature.
• Avoid placing the display in direct sun or where direct sun or spot lighting will shine
onto the LCD panel, as the heat may damage the panel and the external casing of the
display, and the bright light will make viewing the display more difficult than necessary.
• The LCD panel consists of individual pixels to display images and is manufactured
according to the design specifications. While 99.9% of these pixels work normally,
0.01% of the pixels may remain constantly lit (in red, blue or green) or unlit. This is a
technical limitation of the LCD technology and is not a defect.
• LCD screens, like plasma (PDP) and conventional CRT (Cathode Ray Tube) screens, are
also susceptible to 'screen burn-in' or 'image retention' which can be found on the
Important safety instructions 3
screen as visible fixed lines and shades. To avoid such damage to the screen, avoid
displaying still images (like On-Screen Display menus, TV station logos, fixed/inactive
text or icons) for more than two hours. Change the aspect ratio from time to time. Fill
the entire screen with the image and eliminate the black bars whenever possible. Avoid
displaying images in 4:3 aspect ratio over a long period of time, otherwise there may be
visible burn marks on the screen as two vertical lines.
Note: Under certain circumstances, condensation may occur on the inner side of the
cover glass, it's a natural phenomenon and will not affect the operation of the display.
This condensation will usually disappear after around 2 hours of normal operation.
Safety notice for remote control
• Do not put the remote control in the direct heat, humidity, and avoid fire.
• Do not drop the remote control.
• Do not expose the remote control to water or moisture. Failure to do so could result
in malfunction.
• Confirm there is no object between the remote control and the remote sensor of the
product.
• When the remote control will not be used for an extended period, remove the
batteries.
Battery safety notice
The use of the wrong type of batteries may cause chemical leaks or explosion. Please
note the following:
• Always ensure that the batteries are inserted with the positive and negative terminals in
the correct direction as shown in the battery compartment.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life
or cause chemical leaks from the old batteries.
• When batteries fail to function, replace them immediately.
• Chemicals which leak from batteries may cause skin irritation. If any chemical matter
seeps out of the batteries, wipe it up immediately using a dry cloth, and replace the
batteries as soon as possible.
• Due to varying storage conditions, the battery life for the batteries included with your
product may be shortened. Replace them within 3 months or as soon as you can after
initial use.
• There may be local restrictions on the disposal or recycling of batteries. Consult your
local regulations or waste disposal provider.
Important safety instructions4
BenQ ecoFACTS
BenQ has been dedicated to the design and development of greener product as part of
its aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate
vision with the ultimate goal to achieve a low-carbon society. Besides meeting
international regulatory requirement and standards pertaining to environmental
management, BenQ has spared no efforts in pushing our initiatives further to incorporate
life cycle design in the aspects of material selection, manufacturing, packaging,
transportation, using and disposal of the products. BenQ ecoFACTS label lists key eco-
friendly design highlights of each product, hoping to ensure that consumers make
informed green choices at purchase. Check out BenQ's CSR Website at http://
csr.BenQ.com/ for more details on BenQ's environmental commitments and
achievements.
Package contents 5
Package contents
Open the sales package and check the contents. If any item is missing or damaged, please
contact your dealer immediately.
LCD display Power cord x4
D-Sub (15-pin)
cable x1 with
two ferrite cores
Audio cable x2
Pen tray USB cable x1 AAA battery x 2 Touch pen x 2
Speaker cable x2 Remote control Quick start guide
• The type of power cord supplied may differ from that illustrated depending on your region of
purchase.
• Before discarding the package, check that you haven't left any accessories inside the box.
• Dispose of packaging materials wisely. You can recycle the cardboard carton. Consider storing
the package (if possible) for future transport of the display.
• Do not leave plastic bags within reach of young children or babies.
Setting up the display6
Setting up the display
Mounting the display
You can install the display on a vertical surface with a suitable wall mounting bracket or
on a horizontal surface with the optional desktop stands. Please pay attention to the
following notes during installation:
• This display should be installed by at least two adult persons. Attempting to install this
display by only one person may result in danger and injuries.
• Refer the installation to qualified technicians. Improper installation may cause the
display to fall or malfunction.
Installing the display on a wall
1. Place a clean, dry and lint-free cloth on a flat, horizontal and object-free surface.
Make sure that the size of the cloth is larger than the display.
2. Gently lay the display on the cloth with the LCD screen facing down.
3. Remove the desktop stands from the display if installed.
4. Identify the wall mounting screw
holes on the back of the display
as shown in the illustration.
5. Install the wall mounting bracket
on the display and attach the
display to the wall according to
the mounting bracket’s
instructions. The length of the
screw should exceed the
thickness of the wall mounting
bracket by at least 10 mm. Make
sure that all screws are
tightened and secured properly.
(Recommended torque: 470 -
635N•cm). The mounting means
should be strong enough to bear
the weight of the display.
400mm
400mm
*Screw type: M8
Thickness of
the wall
mounting
bracket
10 mm
(0.39")
LCD display
Setting up the display 7
Installing the pen tray
• To maintain proper ventilation, keep at least 10 mm of
clear space from the back cover of the display to the
wall.
• Please consult a professional technician for wall mount
installations. The manufacturer accepts no liability for
installations not performed by a professional technician.
• The AC IN/OUT socket should be on top of connectors
when rotating your display.
1. Place a clean, dry and lint-free cloth on a flat, horizontal and object-free surface.
Make sure that the size of the cloth is larger than the display.
2. Gently lay the display on the cloth with the LCD screen facing down.
3. Identify the wall mounting screw
holes on the back of the display
as shown in the illustration and
remove the 3 screws on the
display.
4. Place the pen tray on the back
of the display as shown, and
fasten the 3 screws back to the
respective holes.
10mm
(0.39")
∄ֻ
Setting up the display8
5. Lay the display straight and the
pen tray is at the bottom edge
of the display.
Parts of the display and their functions 9
Parts of the display and their functions
Front/Rear panel
No. Name Description
PC USB Connects to the extended USB port of computer from PC
USB at back.
M USB Accesses multimedia files on USB drives directly.
MIC Connects to a microphone.
HDMI 3 Receives HDMI signals from an external device.
TOUCH 3 Connects the USB cable from the display to a computer to
use the touch module.
AUDIO Receives audio signals from an external device.
VGA 3 Receives analog RGB signals from an external device.
AV 2 Receives composite video signals from an external device.
INPUT/ENTER • Selects/confirms options in On-Screen Display (OSD) menu.
• Selects input sources.
MENU Opens or closes the OSD menu.
FREEZE/BLANK
• Freezes/vacates the screen.
• Scrolls through settings and options in the OSD menu.
• Freezes the image when the OSD menu is off/Hides the
image (the screen becomes blank) when the OSD menu is
off.
/-,/+ • Scrolls through settings and options in the OSD menu.
• /-,/+: Hot keys for audio volume adjustment.
1
2
3
4
5
6
7
8
9
10
11
12
Parts of the display and their functions10
MUTE Turns off sound or restores.
ON/OFF Turns the display on or off.
13
14
TOUCH 3 must be used with HDMI 3 or VGA 3.
Parts of the display and their functions 11
Input/output terminals
No. Name Description
PC SERVER
PORT Connects to the USB port of computer for service.
RS232 Receives control signals from a computer.
TOUCH 1 Connects the USB cable from the display to a computer to use the
touch module.
TOUCH 2 Connects the USB cable from the display to a computer to use the
touch module.
HDMI 1 Receives HDMI signals from an external device.
HDMI 2 Receives HDMI signals from an external device.
VGA 1 Receives analog RGB signals from an external device (such as a
computer).
AUDIO Receives audio signals from an external device.
VGA 2 Receives analog RGB signals from an external device (such as a
computer).
VGA OUT Outputs analog RGB signals from the VGA IN input to another
display.
S-VIDEO Receives S-Video signals from an external device (such as a VCR or
DVD player).
YPbPr 1 Receives component video (YPbPr) signals from an external device
(such as a DVD player, HDTV device or Laser disc player).
AV 1 Receives composite video signals from an external device (such as
a VCR or DVD player).
L R Receives audio signals from an external device that outputs video
to YPbPr 1 or AV 1.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Parts of the display and their functions12
YPbPr 2 Receives component video (YPbPr) signals from an external device
via 3.5mm RGB component video cable.
AV OUT Outputs composite video signals from the AV IN input to another
display with a 3-in-1 3.5mm RCA cable.
SPDIF Out Outputs digital audio signals via a coaxial cable to an external
device.
Earphone Connects to a headphone or an earphone.
Sound Box L R Connects to external stereo speakers.

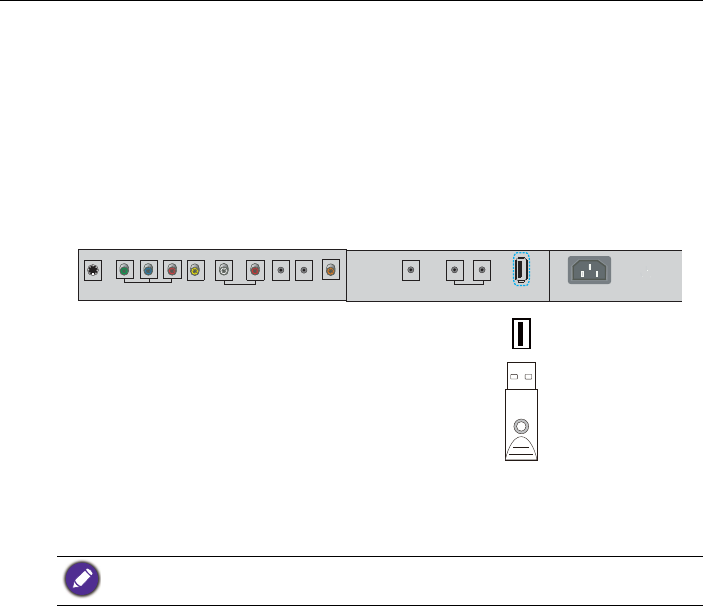

M USB Accesses multimedia files on USB drives directly.
Power Connects to a power outlet via the supplied power cord.
PC USB Extends the USB port of computer to PC USB at front.
15
16
17
18
19
20
21
22
• TOUCH 1 must be used with HDMI 1 or VGA 1, and TOUCH 2 must be used with HDMI 2
or VGA 2.
• Either front or back PC USB has to be adopted for the other functioning as a USB extender.
Parts of the display and their functions 13
Remote control
POWER
Turns the display on or off.
INPUT
Selects an input source.
EXIT
Returns to the previous menu or closes
the OSD menu when the OSD menu is
on.
/ VOL- // VOL+
• Scrolls through settings and options in
the OSD menu.
• Turns down/up the volume.
ENTER
Confirms your selection or save changes.
FREEZE
Freezes the image when the OSD menu is off. Not
applicable to files on USB drives.
MUTE
Turns on or off the mute function.
INFO
Shows the current input source and resolution.
Numeric buttons (0-9) /Input source
buttons
• Performs as numeric buttons when the OSD
menu is on.
• Performs as input source buttons when the OSD
menu is off. To select an input source as printed
on top of the button, press INPUT and press a
desired source such as VGA, HDMI, and etc.
MENU
Opens or closes the OSD menu.
CH+ /CH-
Scrolls through settings and options in the OSD
menu when the OSD menu is on.
BLANK
Hides the image (the screen becomes blank) when
the OSD menu is off. Press again to resume
normal display.
MULTI-MEDIA buttons
See Multimedia OSD operation on page 37 for
details.
17
8
9
10
11
4
5
3
2
612
133
1
2
3
4
5
6
7
8
9
10
11
12
13
Parts of the display and their functions14
Using the remote control
Installing remote control batteries
Remote control usage tips
• Point and aim the top front of the remote control directly at the display’s remote
control sensor window when you press the buttons.
• Do not let the remote control become wet or place it in humid environments (like
bathrooms).
• If the display’s remote control sensor window is exposed to direct sunlight or strong
light, the remote control may not operate properly. In this situation, change the light
source, readjust the angle of the display or operate the remote control from a location
closer to display’s remote control sensor window.
1. Open the remote control battery compartment
cover.
2. Insert the supplied batteries ensuring that the
positive and negative marked battery terminals match
the (+) and (-) marks in the battery compartment.
The supplied batteries are provided for your convenience so
that you can operate the display straight away. You should
replace them as soon as possible.
3. Refit the battery compartment cover.
Max. 10 m
(32.8 feet)
Connection 15
Connection
Connecting audio/video signals
Pay attention to the following notes when you connect cables:
• Please turn off all devices.
• Familiarize yourself with the audio/video ports on the display and the devices you want
to use. Be aware that incorrect connections may adversely affect picture quality.
• Do not remove cables from the ports by pulling the cable itself. Always grasp and pull
the connectors at the end of the cable.
• Ensure that all cables are fully inserted and firmly seated.
Connecting the VGA input
1. Connect the VGA 1 jack on the display to the VGA output jack on a computer using
a D-Sub (15-pin) cable.
2. Connect the computer’s audio output jack to the AUDIO jack on the display using a
suitable audio cable.
3. To view images from this input, press the INPUT button and press the VGA button
on the remote control.
The audio cable is not supplied and should be purchased separately.
D-Sub (15-pin) cable Audio cable
Computer
Connection16
Connecting the digital inputs
1. Connect the HDMI output jack of a computer or A/V device (such as a VCR or DVD
player) to the HDMI 1 input jack on the display using an HDMI cable.
2. To view video image from this input, press the INPUT button and press the HDMI
button on the remote control.
The cables are not supplied and should be purchased separately.
Computer
HDMI cable
Connection 17
Connecting the YPbPr component video input
1. Connect the YPbPr 1 jacks on the display to the component output jacks on an A/V
device (such as a VCR or DVD player) using a component video cable.
2. Connect the DVD player’s audio outputt jacks to the L R jacks on the display using
a suitable audio cable.
3. To view video image from this input, press the INPUT button and press the YPbPr
button on the remote control.
The cables are not supplied and should be purchased separately.
Audio
cable
DVD player / VCR
Component
video cable
Connection18
Connecting the AV and S-Video inputs
1. Connect the S-VIDEO or AV 1 jack on the display to the output jack on an A/V
device (such as a VCR) using an appropriate video cable.
2. Connect the VCR’s audio output jacks to the AV 1 jacks on the display using a
suitable audio cable.
3. To view video image from this input, press the INPUT button and press the AV
button on the remote control for the AV signal, or press the INPUT button
repeatedly for the S-Video signal.
The cables are not supplied and should be purchased separately.
Audio
cable
DVD player / VCR
AV
cable
S-Video
cable
Connection 19
Connecting the multimedia inputs
To view multimedia files on the USB flash drive:
1. Plug the USB flash drive in the M USB port.
2. Press INPUT and MULTI-MEDIA on the remote control or select Media to access
the multimedia OSD system. See the Multimedia OSD operation on page 37 for
details.
The cables are not supplied and should be purchased separately.
USB flash drive
Connection20
Connecting the touch module
Connect the USB TYPE A FOR TOUCH (type A) jack (TOUCH 1, TOUCH 2, or
TOUCH 3) on the display to the USB port of a computer using the supplied USB cable.
The touch module of the display supports easy Plug-and-Play operation. There is no need
to install additional drivers on the computer.
• Avoid blocking the touch screen frame (where sensors are located) when initiating the touch
module.
• It is highly recommended that you connect the display to the PC or laptop directly. Avoid
connecting the display to a face plate device which may cause failures in touch operations.
• If any ghost image occurs, please try to un-plug and then re-plug all USB cables. If the failure
image still exists, use another USB type A to A cable.
• TOUCH 1 must be used with HDMI 1 or VGA 1, TOUCH 2 must be used with HDMI 2 or
VGA 2, and TOUCH 3 must be used with HDMI 3 or VGA 3.
USB cable
Computer
Connection 21
Connecting power
Plug one end of the power cord into the Power jack on the display and the other end
into an appropriate power outlet (if the outlet is switched, turn on the switch).
• The supplied power cord is suitable for use with 110-240V AC power only.
• The power cord and outlet illustrated may differ from the ones used in your region.
• Only use an appropriate power cord for your region. Never use a power cord which appears
damaged or frayed, or change the plug type on the power cord.
• Be aware of the power loading when you use extension cords or multiple outlet power boards.
• There are no user serviceable parts in this display. Never unscrew or remove any covers.
There are dangerous voltages inside the display. Turn off the power and unplug the power cord
if you intend to move the display.
Using the touch screen22
Using the touch screen
You can use the optical touch screen to control your operating system. The touch screen
can emulate basic mouse functions and supports multi-touch functions for Windows 7/
8*. The following table shows a list of gestures you can use on the touch screen.
• Ensure that you have installed the USB cable on the display to a computer.
• *Multi-touch functions are only supported by Windows 8, Windows 7 - Home Premium,
Professional, Enterprise and Ultimate versions. For Windows XP, Windows Vista and Windows
7 - Starter and Home Basic versions, multi-touch is not supported.
• Windows is a registered trademark of Microsoft Corporation in the United States and other
countries.
OS functions Gesture actions
For Windows XP, Windows Vista and Windows 7
Click
Tap the screen once.
Double-click
Tap the screen twice.
Right-click
1. Press on the target.
2. Hold and wait for a blue ring to appear.
3. Release your finger.
Drag
Drag one finger left or right.
Using the touch screen 23
For Windows Vista and Windows 7
Selection
Drag one finger left or right.
Pan up / Pan down / Back /
Forward
Quickly drag your finger (Flick) in a desired direction.
Multi-touch functions
For Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions
Right-click
1. Press on the target.
2. Tap the screen with another finger.
3. Release the second finger.
Scrolling
Drag one or two fingers up or down.
Zoom
Move two fingers apart or toward each other.
OS functions Gesture actions
or
Using the touch screen24
Supported by specific
applications
• Move two fingers in opposing directions.
• Use one finger to pivot around another.
Supported by specific
applications
Tap two fingers simultaneously.
The target should be the midpoint between the fingers.
For Windows XP, Windows Vista and Windows 7
Wakeup from Windows
sleep mode (S3)
Press and hold for 4 seconds.
OS functions Gesture actions
Gesture Description
For Windows 8
Press and hold to learn
This touch interaction causes detailed information or teaching
visuals (for example, a tooltip or context menu) to be displayed
without a commitment to an action. Anything displayed this way
should not prevent users from panning if they begin sliding their
finger.
Tap for primary action
Tapping on an element invokes its primary action, for instance
launching an application or executing a command.
Using the touch screen 25
Slide to pan
Slide is primarily used for panning interactions but can also be
used for moving, drawing or writing. Slide can also be used to
target small, densely packed elements by scrubbing (sliding the
finger over related objects such as radio buttons).
Swipe to select, command, and move
Sliding the finger a short distance, perpendicular to the panning
direction, selects objects in a list or grid (ListView and
GridLayout controls). Display the AppBar with relevant
commands when objects are selected.
Pinch and stretch to zoom
While the pinch and stretch gestures are commonly used for
resizing, they also enable jumping to the beginning, end, or
anywhere within content with Semantic Zoom. A
SemanticZoom control provides a zoomed out view for showing
groups of items and quick ways to dive back into them.
Turn to rotate
Rotating with two or more fingers causes an object to rotate.
Gesture Description
