Benton Technology OX10 Tablet PC User Manual 1

Benton Technology Company Limited Tablet PC 1

USERS MANUAL

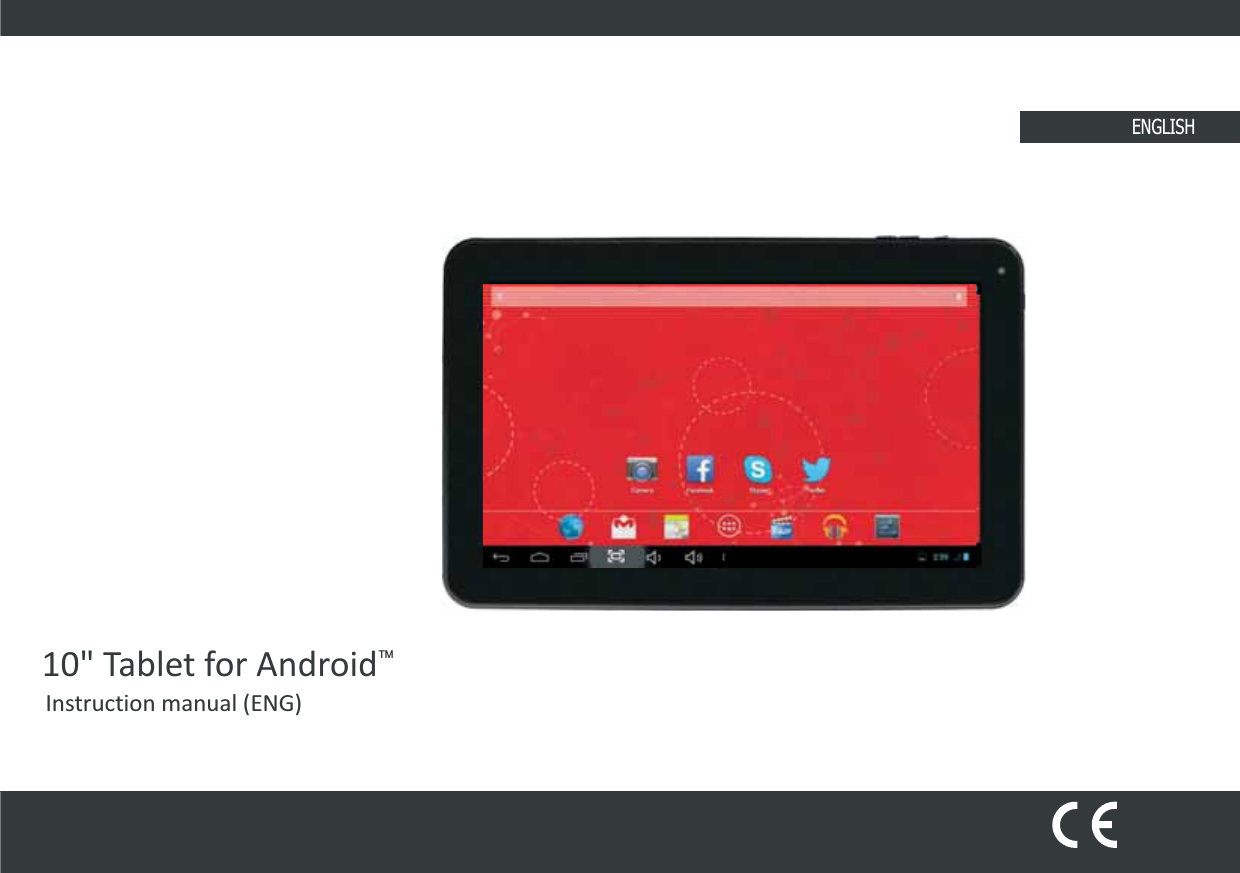

ENGLISHInstruction manual (ENG)10" Tablet for AndroidTM

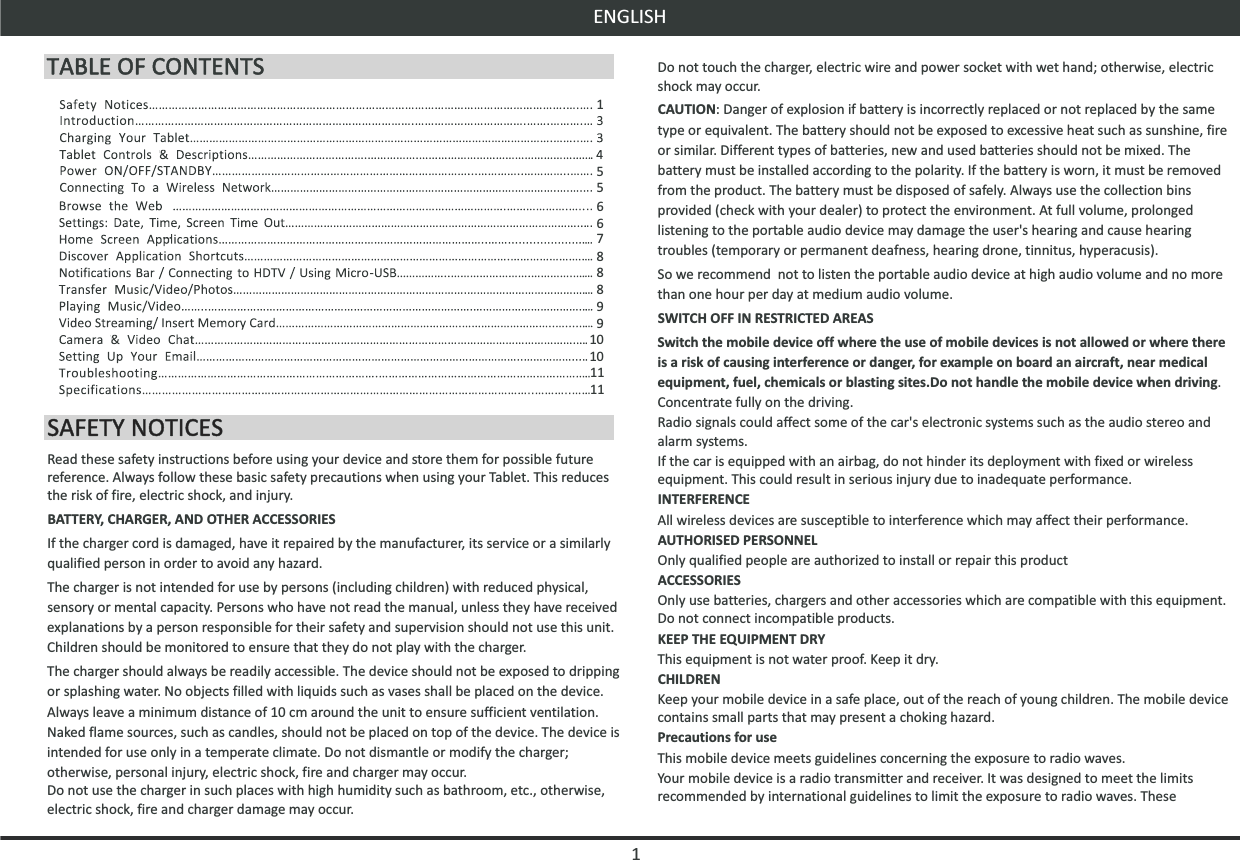

1ENGLISHRead these safety instructions before using your device and store them for possible future reference. Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury.BATTERY, CHARGER, AND OTHER ACCESSORIESIf the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard.The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit. Children should be monitored to ensure that they do not play with the charger.The charger should always be readily accessible. The device should not be exposed to dripping or splashing water. No objects filled with liquids such as vases shall be placed on the device. Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation. Naked flame sources, such as candles, should not be placed on top of the device. The device is intended for use only in a temperate climate. Do not dismantle or modify the charger; otherwise, personal injury, electric shock, fire and charger may occur.Do not use the charger in such places with high humidity such as bathroom, etc., otherwise, electric shock, fire and charger damage may occur.Do not touch the charger, electric wire and power socket with wet hand; otherwise, electric shock may occur.CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent. The battery should not be exposed to excessive heat such as sunshine, fire or similar. Different types of batteries, new and used batteries should not be mixed. The battery must be installed according to the polarity. If the battery is worn, it must be removed from the product. The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment. At full volume, prolonged listening to the portable audio device may damage the user's hearing and cause hearing troubles (temporary or permanent deafness, hearing drone, tinnitus, hyperacusis).So we recommend not to listen the portable audio device at high audio volume and no more than one hour per day at medium audio volume.SWITCH OFF IN RESTRICTED AREASSwitch the mobile device off where the use of mobile devices is not allowed or where there is a risk of causing interference or danger, for example on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.Do not handle the mobile device when driving. Concentrate fully on the driving.Radio signals could affect some of the car's electronic systems such as the audio stereo and alarm systems.If the car is equipped with an airbag, do not hinder its deployment with fixed or wireless equipment. This could result in serious injury due to inadequate performance.INTERFERENCEAll wireless devices are susceptible to interference which may affect their performance.AUTHORISED PERSONNELOnly qualified people are authorized to install or repair this productACCESSORIESOnly use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products.KEEP THE EQUIPMENT DRYThis equipment is not water proof. Keep it dry.CHILDRENKeep your mobile device in a safe place, out of the reach of young children. The mobile device contains small parts that may present a choking hazard.Precautions for useThis mobile device meets guidelines concerning the exposure to radio waves.Your mobile device is a radio transmitter and receiver. It was designed to meet the limits recommended by international guidelines to limit the exposure to radio waves. These 1586911568108107911

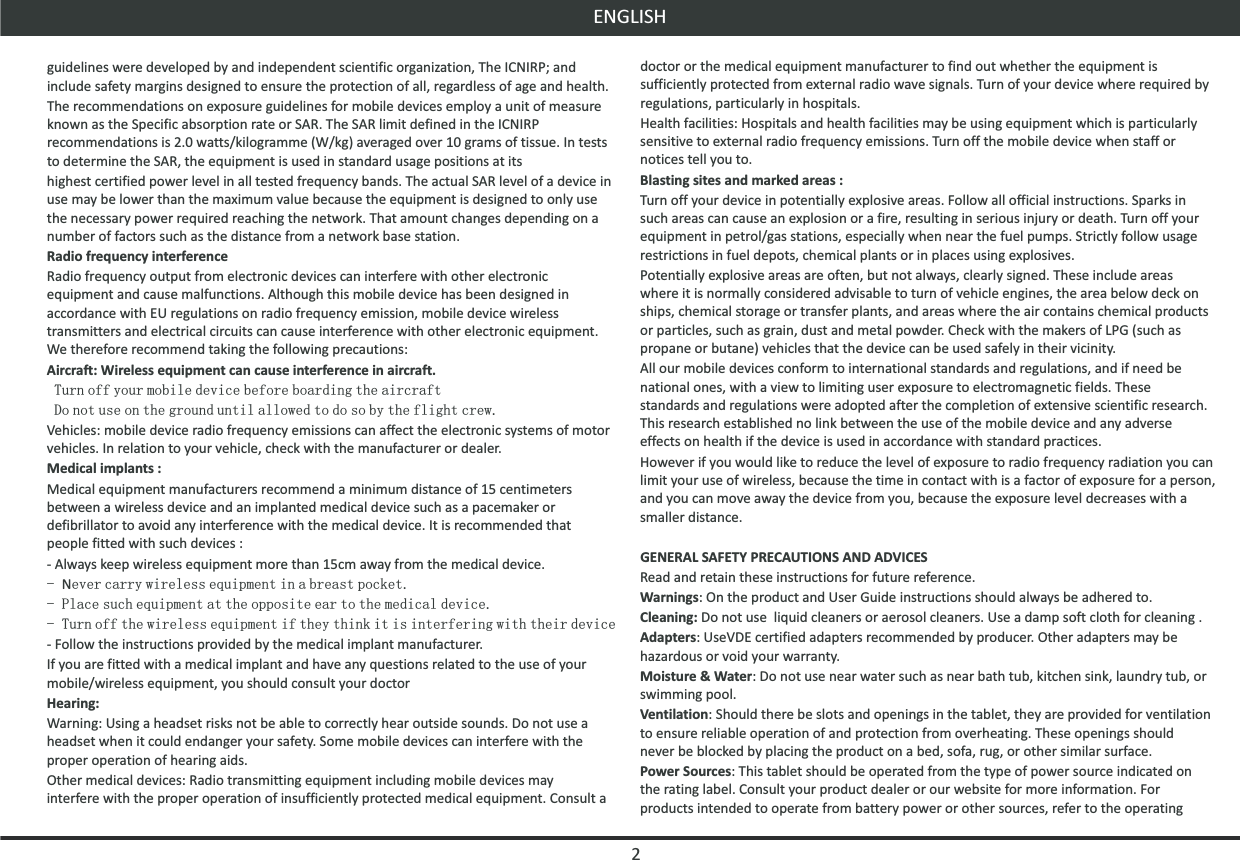

ENGLISHdoctor or the medical equipment manufacturer to find out whether the equipment is sufficiently protected from external radio wave signals. Turn of your device where required by regulations, particularly in hospitals.Health facilities: Hospitals and health facilities may be using equipment which is particularly sensitive to external radio frequency emissions. Turn off the mobile device when staff or notices tell you to.Blasting sites and marked areas :Turn off your device in potentially explosive areas. Follow all official instructions. Sparks in such areas can cause an explosion or a fire, resulting in serious injury or death. Turn off your equipment in petrol/gas stations, especially when near the fuel pumps. Strictly follow usage restrictions in fuel depots, chemical plants or in places using explosives.Potentially explosive areas are often, but not always, clearly signed. These include areas where it is normally considered advisable to turn of vehicle engines, the area below deck on ships, chemical storage or transfer plants, and areas where the air contains chemical products or particles, such as grain, dust and metal powder. Check with the makers of LPG (such as propane or butane) vehicles that the device can be used safely in their vicinity.All our mobile devices conform to international standards and regulations, and if need be national ones, with a view to limiting user exposure to electromagnetic fields. These standards and regulations were adopted after the completion of extensive scientific research. This research established no link between the use of the mobile device and any adverse effects on health if the device is used in accordance with standard practices.However if you would like to reduce the level of exposure to radio frequency radiation you can limit your use of wireless, because the time in contact with is a factor of exposure for a person, and you can move away the device from you, because the exposure level decreases with a smaller distance.GENERAL SAFETY PRECAUTIONS AND ADVICESRead and retain these instructions for future reference.Warnings: On the product and User Guide instructions should always be adhered to.Cleaning: Do not use liquid cleaners or aerosol cleaners. Use a damp soft cloth for cleaning .Adapters: UseVDE certified adapters recommended by producer. Other adapters may be hazardous or void your warranty.Moisture & Water: Do not use near water such as near bath tub, kitchen sink, laundry tub, or swimming pool.Ventilation: Should there be slots and openings in the tablet, they are provided for ventilation to ensure reliable operation of and protection from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.Power Sources: This tablet should be operated from the type of power source indicated on the rating label. Consult your product dealer or our website for more information. For products intended to operate from battery power or other sources, refer to the operating guidelines were developed by and independent scientific organization, The ICNIRP; and include safety margins designed to ensure the protection of all, regardless of age and health. The recommendations on exposure guidelines for mobile devices employ a unit of measure known as the Specific absorption rate or SAR. The SAR limit defined in the ICNIRP recommendations is 2.0 watts/kilogramme (W/kg) averaged over 10 grams of tissue. In tests to determine the SAR, the equipment is used in standard usage positions at itshighest certified power level in all tested frequency bands. The actual SAR level of a device in use may be lower than the maximum value because the equipment is designed to only use the necessary power required reaching the network. That amount changes depending on a number of factors such as the distance from a network base station.Radio frequency interferenceRadio frequency output from electronic devices can interfere with other electronic equipment and cause malfunctions. Although this mobile device has been designed in accordance with EU regulations on radio frequency emission, mobile device wireless transmitters and electrical circuits can cause interference with other electronic equipment. We therefore recommend taking the following precautions:Aircraft: Wireless equipment can cause interference in aircraft. Turn off your mobile device before boarding the aircraft Do not use on the ground until allowed to do so by the flight crew.Vehicles: mobile device radio frequency emissions can affect the electronic systems of motor vehicles. In relation to your vehicle, check with the manufacturer or dealer.Medical implants :Medical equipment manufacturers recommend a minimum distance of 15 centimeters between a wireless device and an implanted medical device such as a pacemaker or defibrillator to avoid any interference with the medical device. It is recommended that people fitted with such devices :- Always keep wireless equipment more than 15cm away from the medical device.- Never carry wireless equipment in a breast pocket.- Place such equipment at the opposite ear to the medical device.- Turn off the wireless equipment if they think it is interfering with their device- Follow the instructions provided by the medical implant manufacturer.If you are fitted with a medical implant and have any questions related to the use of your mobile/wireless equipment, you should consult your doctorHearing:Warning: Using a headset risks not be able to correctly hear outside sounds. Do not use a headset when it could endanger your safety. Some mobile devices can interfere with the proper operation of hearing aids.Other medical devices: Radio transmitting equipment including mobile devices may interfere with the proper operation of insufficiently protected medical equipment. Consult a 2

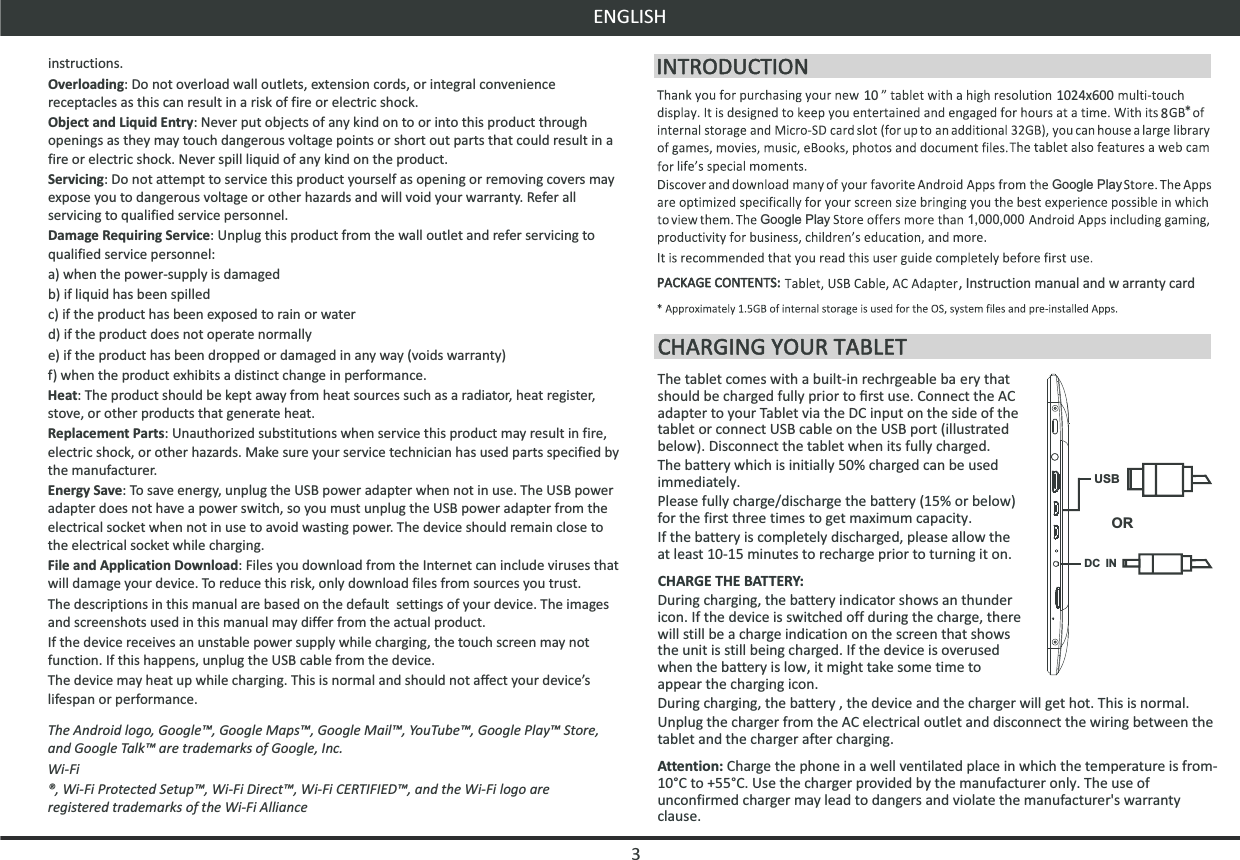

10instructions.Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.Object and Liquid Entry: Never put objects of any kind on to or into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards and will void your warranty. Refer all servicing to qualified service personnel.Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel: a) when the power-supply is damagedb) if liquid has been spilledc) if the product has been exposed to rain or waterd) if the product does not operate normallye) if the product has been dropped or damaged in any way (voids warranty)f) when the product exhibits a distinct change in performance.Heat: The product should be kept away from heat sources such as a radiator, heat register, stove, or other products that generate heat.Replacement Parts: Unauthorized substitutions when service this product may result in fire, electric shock, or other hazards. Make sure your service technician has used parts specified by the manufacturer.Energy Save: To save energy, unplug the USB power adapter when not in use. The USB power adapter does not have a power switch, so you must unplug the USB power adapter from the electrical socket when not in use to avoid wasting power. The device should remain close to the electrical socket while charging.File and Application Download: Files you download from the Internet can include viruses that will damage your device. To reduce this risk, only download files from sources you trust.The descriptions in this manual are based on the default settings of your device. The images and screenshots used in this manual may differ from the actual product.If the device receives an unstable power supply while charging, the touch screen may not function. If this happens, unplug the USB cable from the device.The device may heat up while charging. This is normal and should not affect your device’s lifespan or performance.The Android logo, Google™, Google Maps™, Google Mail™, YouTube™, Google Play™ Store, and Google Talk™ are trademarks of Google, Inc.Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi CERTIFIED™, and the Wi-Fi logo are registered trademarks of the Wi-Fi AllianceENGLISH1024x6008Google PlayGoogle Play 1,000,000, Instruction manual and w arranty cardThe tablet comes with a built-in rechrgeable ba ery that should be charged fully prior to first use. Connect the AC adapter to your Tablet via the DC input on the side of the tablet or connect USB cable on the USB port (illustrated below). Disconnect the tablet when its fully charged.The battery which is initially 50% charged can be used immediately. Please fully charge/discharge the battery (15% or below) for the first three times to get maximum capacity.If the battery is completely discharged, please allow the at least 10-15 minutes to recharge prior to turning it on.CHARGE THE BATTERY:During charging, the battery indicator shows an thunder icon. If the device is switched off during the charge, there will still be a charge indication on the screen that shows the unit is still being charged. If the device is overused when the battery is low, it might take some time to appear the charging icon.During charging, the battery , the device and the charger will get hot. This is normal.Unplug the charger from the AC electrical outlet and disconnect the wiring between the tablet and the charger after charging.Attention: Charge the phone in a well ventilated place in which the temperature is from-10°C to +55°C. Use the charger provided by the manufacturer only. The use of unconfirmed charger may lead to dangers and violate the manufacturer's warranty clause.DC INUSBOR3
25789106412ENGLISH1. Back key Tap to go back to the previous page (screen)2. Volume +/- Press and hold to increase/decrease the sound volume3. Web Cam Front Camera for Video Chat4. Power On/Off Press and hold to turn on; when powering o ffyou will be asked to confirm.5. 3.5mm Jack Audio connec o listen to Stereo earphones or Powered Speakers 6. Mini HDMI Jack HDMI Connec or Video/Audio Playback on external devices 7. Micro USB Connect to a Computer to transfer files; you can charge your unit through USB port8. Host Micro USB OTG USB Connec o a mass storage device to transfer files, or connect to a keyboard or mouse9. RESET bu on To reset unit insert into hole some hard pin and press and hold a few seconds.10. DC IN Connect the AC Power Adapter to charge the ba ery (about 3 hours to full charge)11. Micro SD Card Slot Load External Storage Memory Card (up to 32GB)12. Mic Microphone for Audio recording13. Screen Apps Tap to open Applica ou can move and delete the App icon from the screen or you can add the App from App Tray.14. Home key Tap to go back to Home Louncher screen15. Open Apps key Tap to view open applica wipe to the le o close Apps and save ba ery life.16. Screen shoot key Tap to make current Screen shoot (it can be turned o ffin Se eenshoot se17. Se ey Tap to enter the se een. There you can adjust se ounts or adjust the se e App.18. Setup op Tap to open Setup screen (you can adjust: Wall Paper, Menage apps and access to System se19. App Tray Tap to access all applica ted on the unit.20. Back Cam Rear camera for making Photos / Video clips21. Speaker Listen the Sound through Speaker unless Earphone jack is connected. Sound will mute.41319311122015 16 17 14 1821

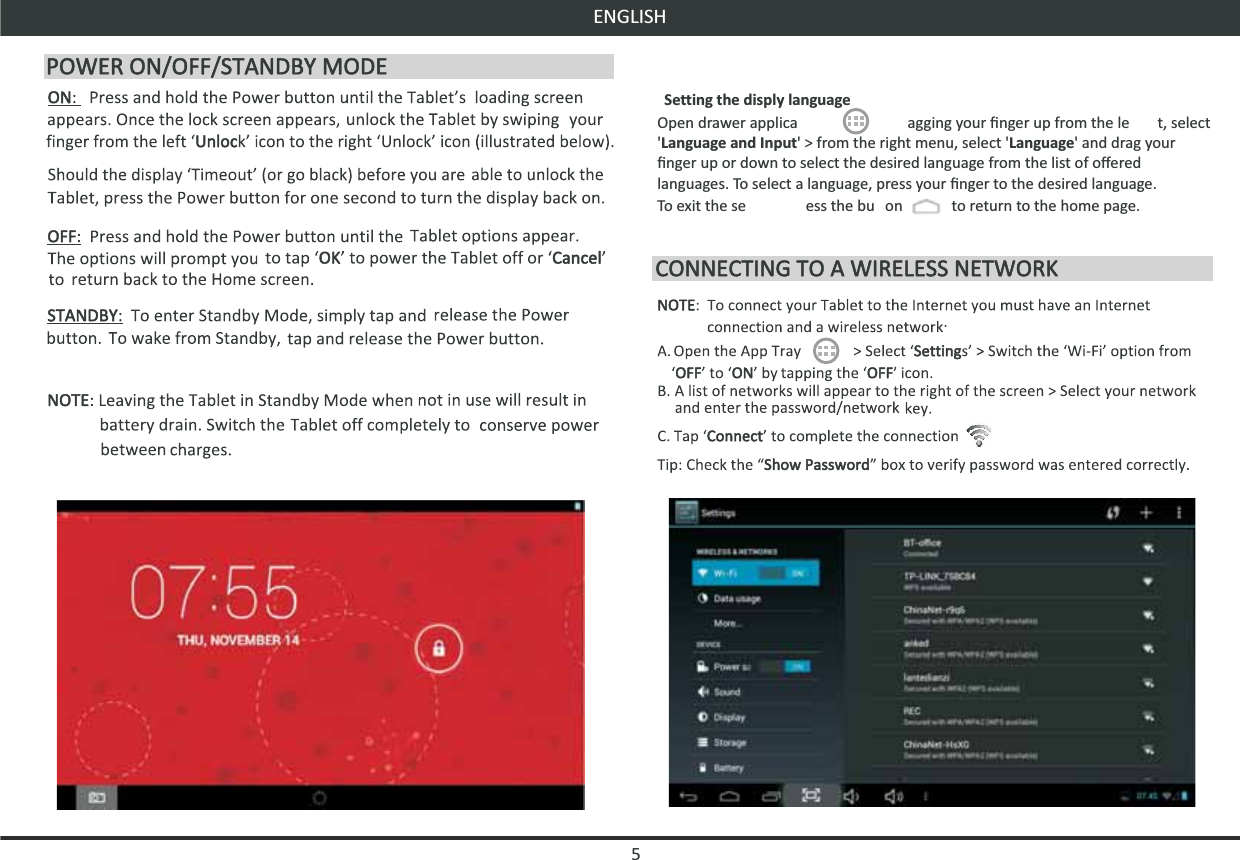

ENGLISHSetting the disply languageOpen drawer applica agging your finger up from the le t, select 'Language and Input' > from the right menu, select 'Language' and drag your finger up or down to select the desired language from the list of offered languages. To select a language, press your finger to the desired language.To exit the se ess the bu on to return to the home page. 5
ENGLISH6
ENGLISH7

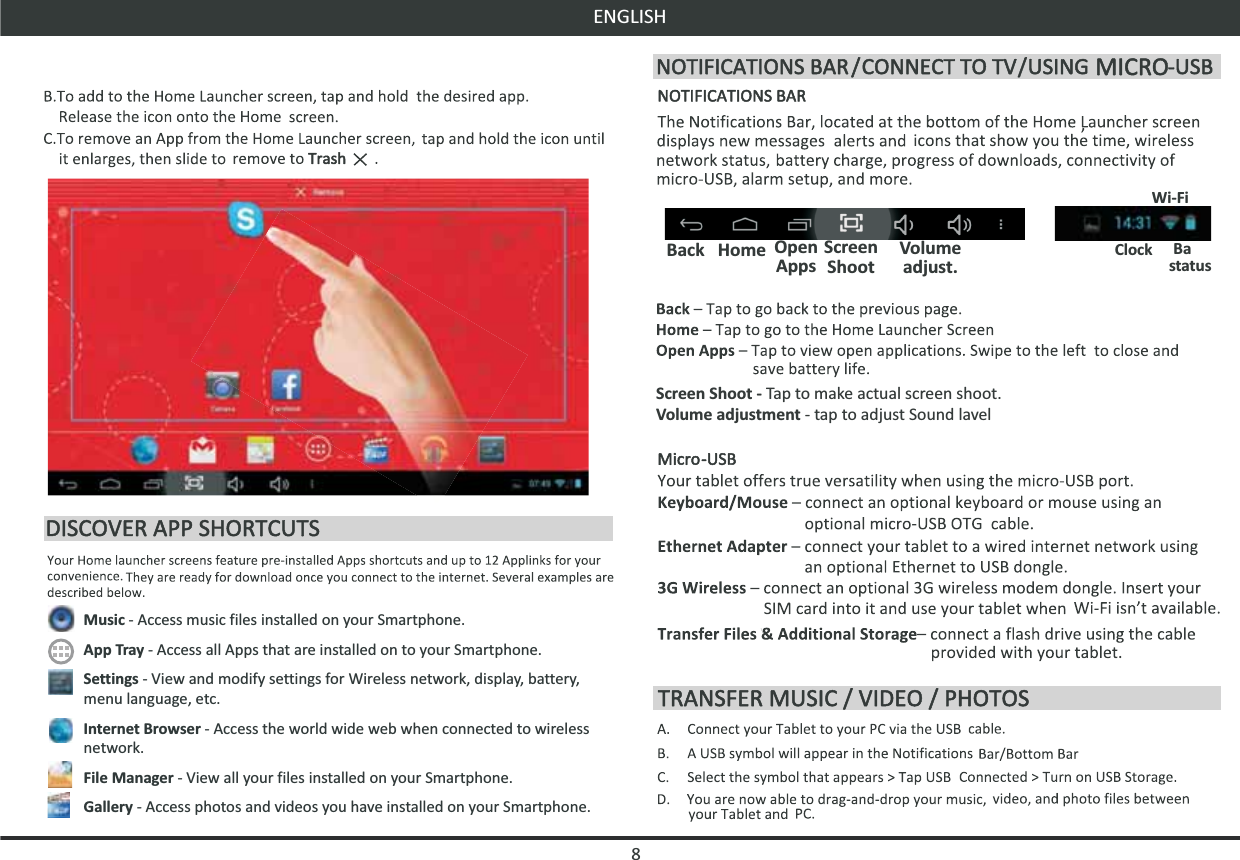

ENGLISHMusic - Access music files installed on your Smartphone.App Tray - Access all Apps that are installed on to your Smartphone.Settings - View and modify settings for Wireless network, display, battery, menu language, etc.Internet Browser - Access the world wide web when connected to wireless network.File Manager - View all your files installed on your Smartphone.Gallery - Access photos and videos you have installed on your Smartphone.Back Home Screen Shoot - Tap to make actual screen shoot. Volume adjustment - tap to adjust Sound lavelVolume adjust.ScreenShootOpen Apps8Clock BastatusWi-Fi
ENGLISHNOTE:9

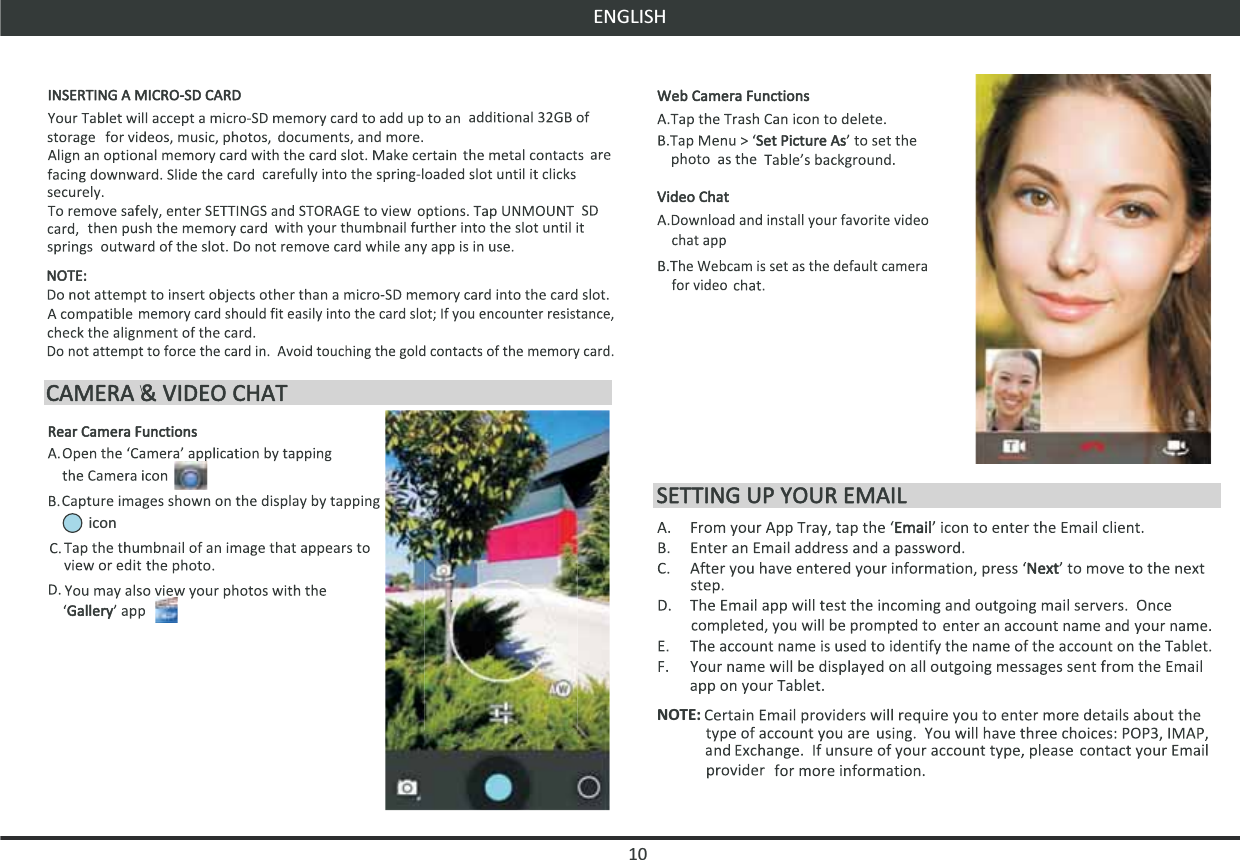

ENGLISH10iconNOTE:

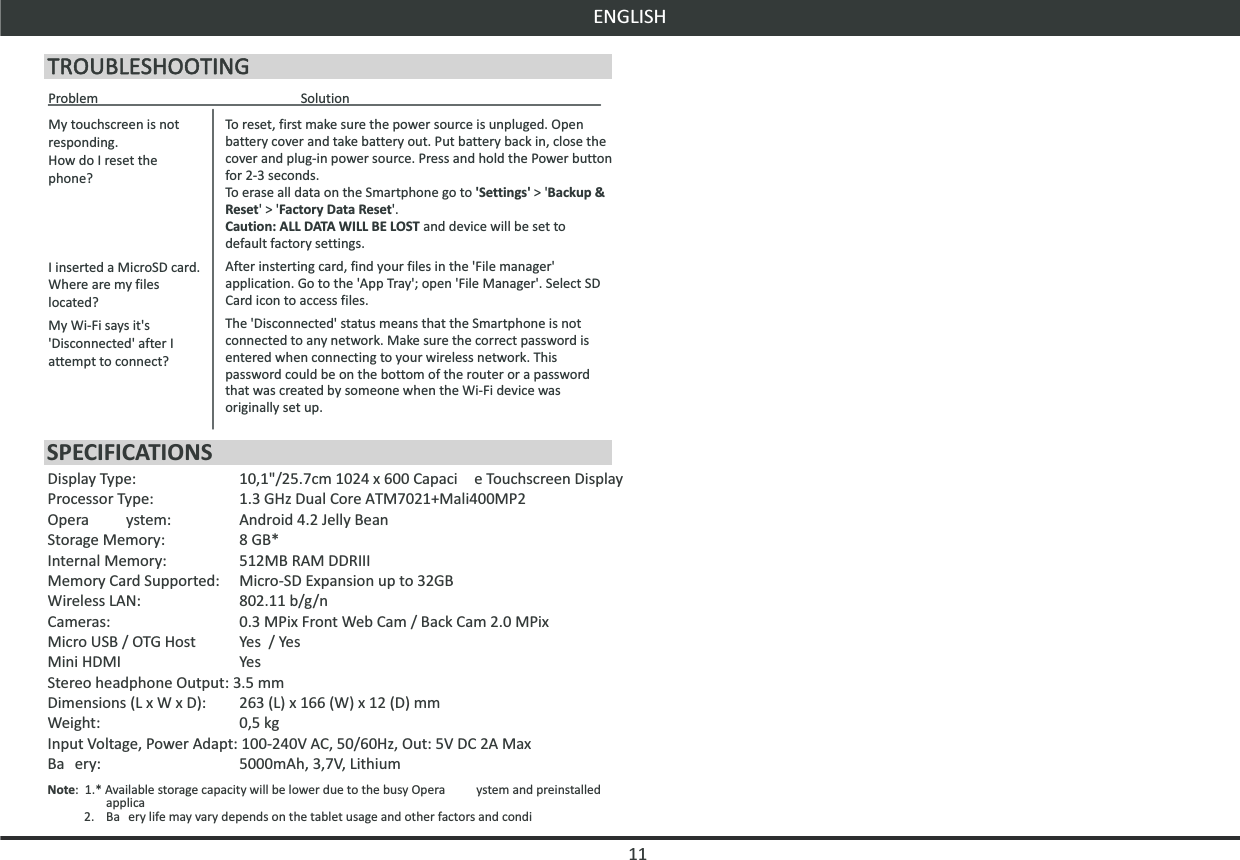

ENGLISH11My touchscreen is not responding.How do I reset the phone?I inserted a MicroSD card. Where are my files located?My Wi-Fi says it's 'Disconnected' after I attempt to connect?To reset, first make sure the power source is unpluged. Open battery cover and take battery out. Put battery back in, close the cover and plug-in power source. Press and hold the Power button for 2-3 seconds.To erase all data on the Smartphone go to 'Settings' > 'Backup & Reset' > 'Factory Data Reset'.Caution: ALL DATA WILL BE LOST and device will be set to default factory settings.After insterting card, find your files in the 'File manager' application. Go to the 'App Tray'; open 'File Manager'. Select SD Card icon to access files.The 'Disconnected' status means that the Smartphone is not connected to any network. Make sure the correct password is entered when connecting to your wireless network. This password could be on the bottom of the router or a password that was created by someone when the Wi-Fi device was originally set up.Problem SolutionDisplay Type: 10,1"/25.7cm 1024 x 600 Capaci e Touchscreen DisplayProcessor Type: 1.3 GHz Dual Core ATM7021+Mali400MP2Opera ystem: Android 4.2 Jelly BeanStorage Memory: 8 GB*Internal Memory: 512MB RAM DDRIIIMemory Card Supported: Micro-SD Expansion up to 32GBWireless LAN: 802.11 b/g/nCameras: 0.3 MPix Front Web Cam / Back Cam 2.0 MPixMicro USB / OTG Host Yes / YesMini HDMI YesStereo headphone Output: 3.5 mmDimensions (L x W x D): 263 (L) x 166 (W) x 12 (D) mmWeight: 0,5 kgInput Voltage, Power Adapt: 100-240V AC, 50/60Hz, Out: 5V DC 2A MaxBa ery: 5000mAh, 3,7V, LithiumNote: 1.* Available storage capacity will be lower due to the busy Opera ystem and preinstalled applica 2. Ba ery life may vary depends on the tablet usage and other factors and condiSPECIFICATIONS
)HGHUDO&RPPXQLFDWLRQV&RPPLVVLRQ)&&,QWHUIHUHQFH6WDWHPHQW7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD&ODVV%GLJLWDOGHYLFHSXUVXDQWWR3DUWRIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQDUHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHXVHVDQGFDQUDGLDWHUDGLRIUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQGXVHGLQDFFRUGDQFHZLWKWKHLQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV+RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQWGRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRIIDQGRQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQHRIWKHIROORZLQJPHDVXUHVz 5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQDz ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHUz &RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULV  FRQQHFWHGz &RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV 7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQGWKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ)&&&DXWLRQ$Q\FKDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKHXVHU¶VDXWKRULW\WRRSHUDWHWKLVHTXLSPHQW5)H[SRVXUHZDUQLQJ7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQPHQW7KHHTXLSPHQWPXVWQRWEHFRORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHU
