Bernafon AG Morgenstrasse 131 CH-3018 Bern Switzerland
Main +41 31 998 15 15 Fax +41 31 998 15 90 www.bernafon.com 1
Bernafon Radio Model - Quick Installation Guide
Radio Model Name: Fusion2 mini RITE
The Fusion2 mini RITE radio model is a low power,
inductive radio transceiver working at 3.84 MHz consisting
of:
a Digital-Signal-Processor (DSP)
a radio Front-End (FE)
memory (EEPROM)
antenna coil
and smaller components
All components are mounted on a flexible Printed-Circuit-
Board (PCB), which is intended to be installed as a module
into Bernafon wireless hearing aid devices.
The module also has all voltage regulators included inside
the DSP and FE and buffered data programming inputs
on the board.
The module requires a battery, one or two microphones and
an audio receiver to be attached and must be mounted in an
external plastic shell.

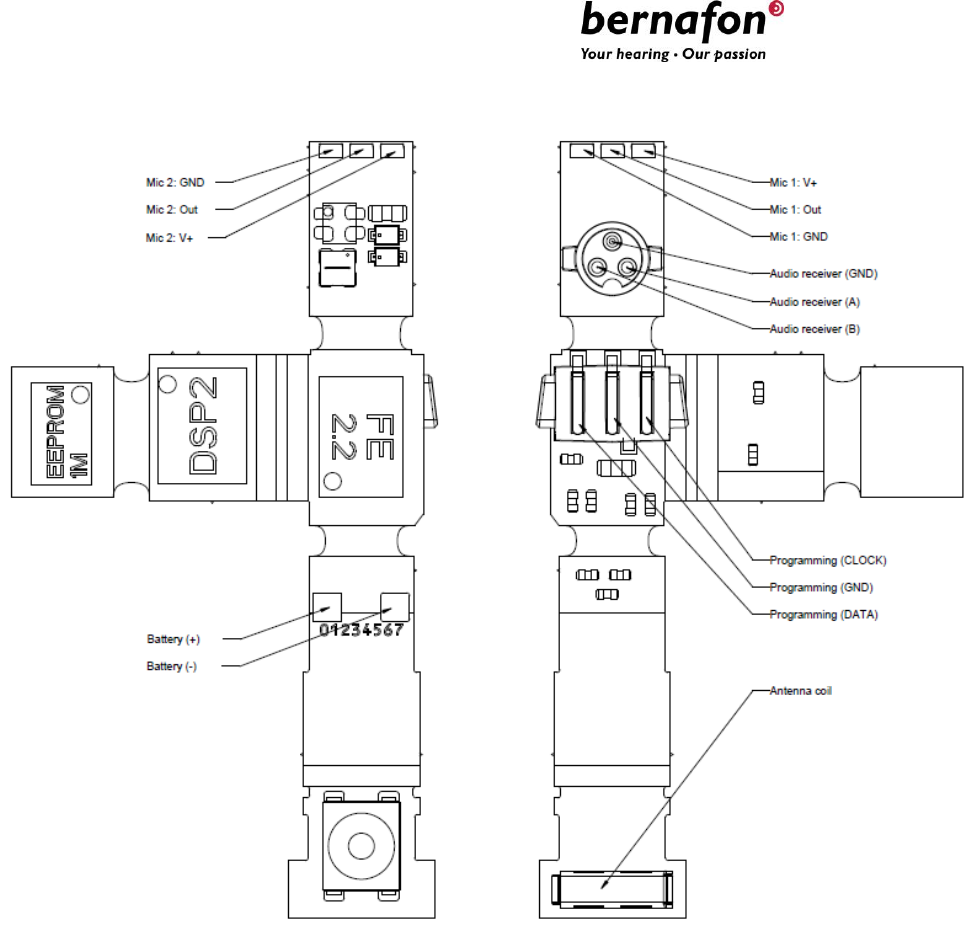

The module is depicted to the right with its main
components and connections:
Bernafon AG Morgenstrasse 131 CH-3018 Bern Switzerland
Main +41 31 998 15 15 Fax +41 31 998 15 90 www.bernafon.com 2
Bernafon Radio Model - Regulatory Label Information
Radio Model Name: Fusion2 mini RITE
Contains: FCC ID: U6XF2RITE3
IC: 7031A-F2RITE3
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Bernafon AG may void the FCC authorization to operate this equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
