ShanghaiBerryElectronicTechCO.,Ltd

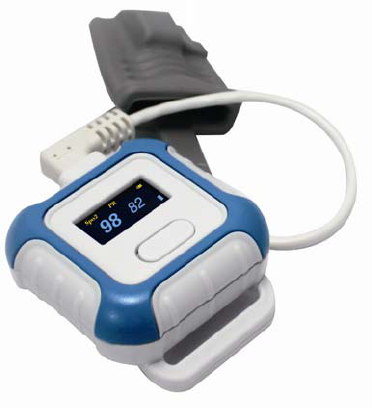

PulseOximeter

Model:BM2000



I.ProductFeature

1.Simpleandconvenientusageofproduct,onetouchoperation

available.

2.Smallvolume,lightweight,(weightisabout50gincludingbatteries),

convenienttocarry.

3.Lowerconsumption,originaltwo3.7Vlithiumbatteriescan

continuouslyworkfor24hours.

4.Lowvoltagealarmshowsinscreenwhenthere’slowbattery,may

influencethenormalworking.

5.Themachinewillautomaticallypoweroffwhenthere’snosignal

generated.

6.Widelyusedinclinicalcuresuchasinphysiciansandsurgical

operationdepartment,anesthesiadepartment,pediatricsdepartment,

ShanghaiBerryElectronicTechCO.,Ltd

emergencyroomandsoon.Alsoissuitableinoxygenbar,community

healthcare,family,sports&healthcare(machinemustbeusedbefore

orafterthesport,notsuggesttousewhenexercising)andoutdoor

activity.

7.Dailymaintainsandcalibrationisunnecessary.

8.CommunicationcanrealizebetweenBluetoothandupper

computer.

9.Chargeisavailable.



II.Specification

1.Displaymode:OLEDScreen

2.Spo2measurerange:35‐100%

Spo2Resolution：1%

Spo2Accuracy:in,±2%（80%‐100%）;±3%（70%‐79%）

3.Pulsemeasurerange:25‐250BPM

PluseRateResolution：1bpm

Accuracy:±2bpmor±2%



ShanghaiBerryElectronicTechCO.,Ltd



III.Workingenvironment:

Workingtemperature:5‐40degree

Storagetemperature:‐20‐70degree

Environmenthumidity:

Working:<80%

Storage:<93%



IV.UsingBerryBSA09001Pwillhavebetterperformanceandmore

comfortableexperience.



V.OperatingInstructions:

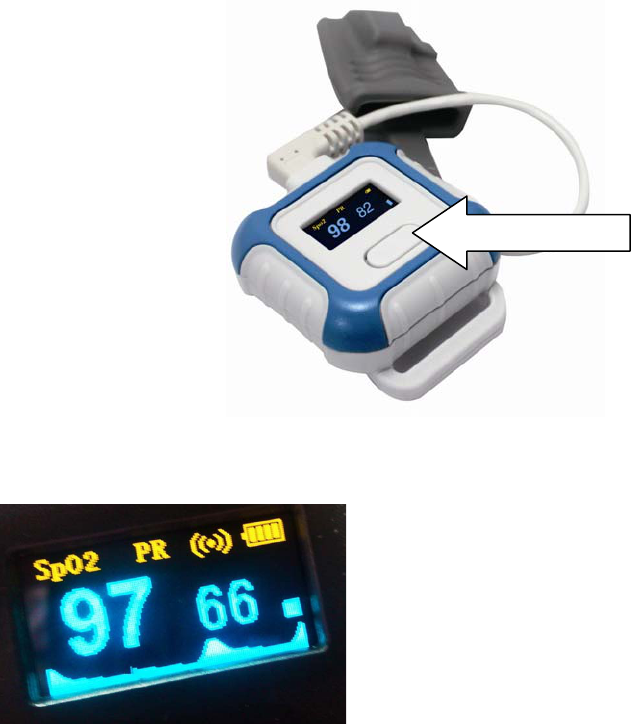

1.Poweronandpoweroff

Poweron:Press“POWER”button,machinestartsupandenter

mainmenu.

Poweroff:Press“POWER”buttonfor3seconds,machinepoweroff,

orthesensordroppedfor10seconds,themachineautomaticallypower

off.



ShanghaiBerryElectronicTechCO.,Ltd



2.Display:



Whenscreenisonfor30seconds,machinewillautomaticallypoweroff,

whenscreenneedstobeon,press“Power”button.

3.Communication:

a.OpenpcBluetooth,searchthedevice,thepulseoximeter’suser

nameisBerryMed,pairingmodeis0000.

b.ChecktheBluetoothserialno.whenconnected,suchascom13.

c.Openpcsoftware.

d.ChooseBluetoothserialno.

e.Clicktoopen.

f.Enterdisplayinterface.

Power

ShanghaiBerryElectronicTechCO.,Ltd

FCCWarning:

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Caution:Anychangesormodiﬁcationstothisdevicenotexplicitlyapprovedby

manufacturercouldvoidyourauthoritytooperatethisequipment.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.



ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforan

uncontrolledenvironment.Thisdeviceanditsantennamustnotbelocatedor

operatinginconjunctionwithanyotherantennaortransmitter.



ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevice

canbeusedinportableexposureconditionwithoutrestriction.


