Betrue Technology BTS105B BLUETOOTH SPEAKER User Manual

Shenzhen BETRUE Technology Co., Ltd. BLUETOOTH SPEAKER Users Manual

Users Manual

User’s Manual  Model: BTS105B

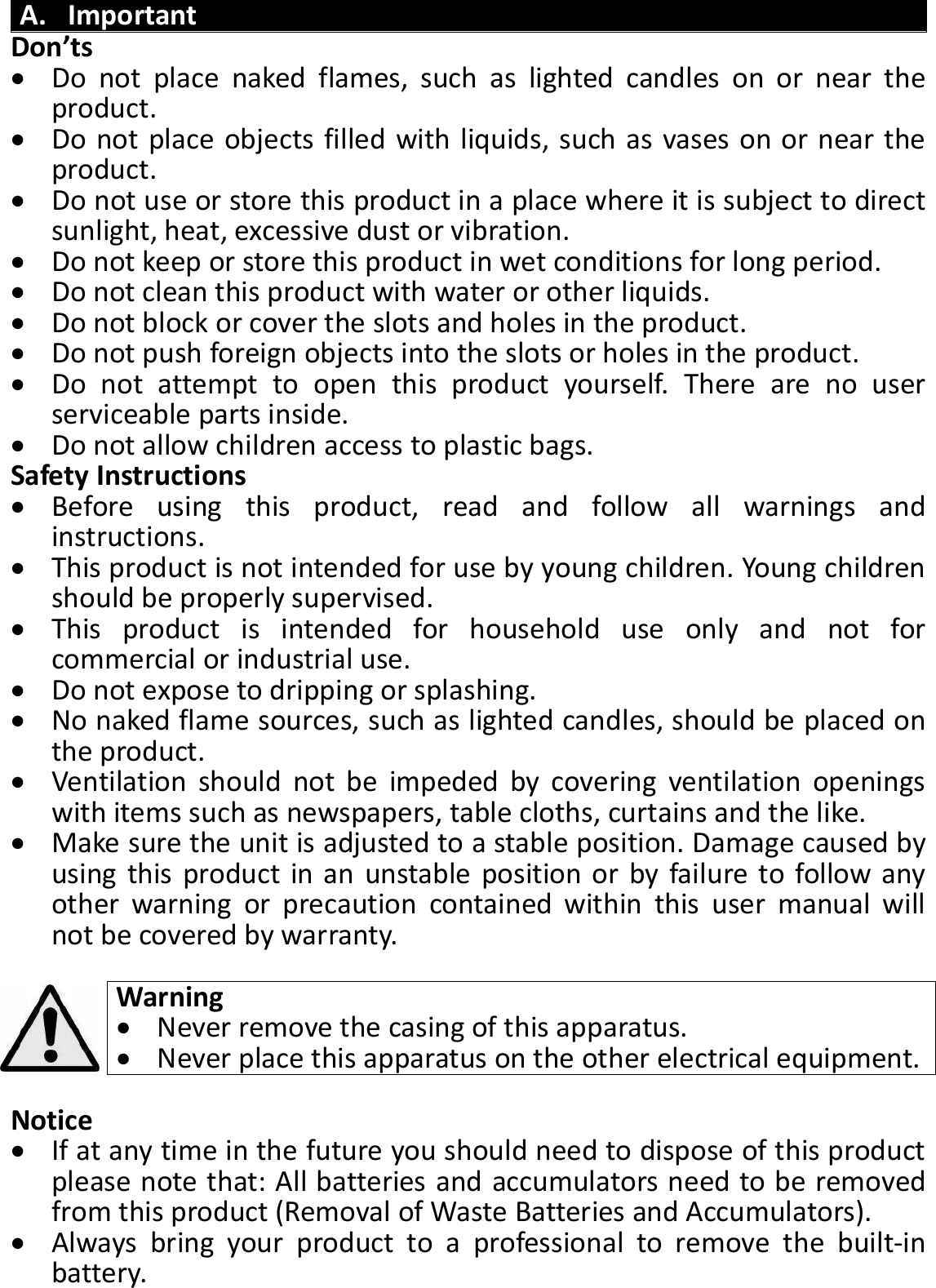

A. Important Don’ts  Do  not  place  naked  flames,  such  as  lighted  candles  on  or  near  the product.  Do not place objects filled with liquids, such as vases on or near the product.  Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.  Do not keep or store this product in wet conditions for long period.  Do not clean this product with water or other liquids.  Do not block or cover the slots and holes in the product.  Do not push foreign objects into the slots or holes in the product.  Do  not  attempt  to  open  this  product  yourself.  There  are  no  user serviceable parts inside.  Do not allow children access to plastic bags. Safety Instructions  Before  using  this  product,  read  and  follow  all  warnings  and instructions.  This product is not intended for use by young children. Young children should be properly supervised.  This  product  is  intended  for  household  use  only  and  not  for commercial or industrial use.  Do not expose to dripping or splashing.  No naked flame sources, such as lighted candles, should be placed on the product.  Ventilation  should  not  be  impeded  by  covering  ventilation  openings with items such as newspapers, table cloths, curtains and the like.  Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other  warning  or  precaution  contained  within  this  user  manual  will not be covered by warranty.  Warning  Never remove the casing of this apparatus.  Never place this apparatus on the other electrical equipment.  Notice  If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators).  Always  bring  your  product  to  a  professional  to  remove  the  built-in battery.

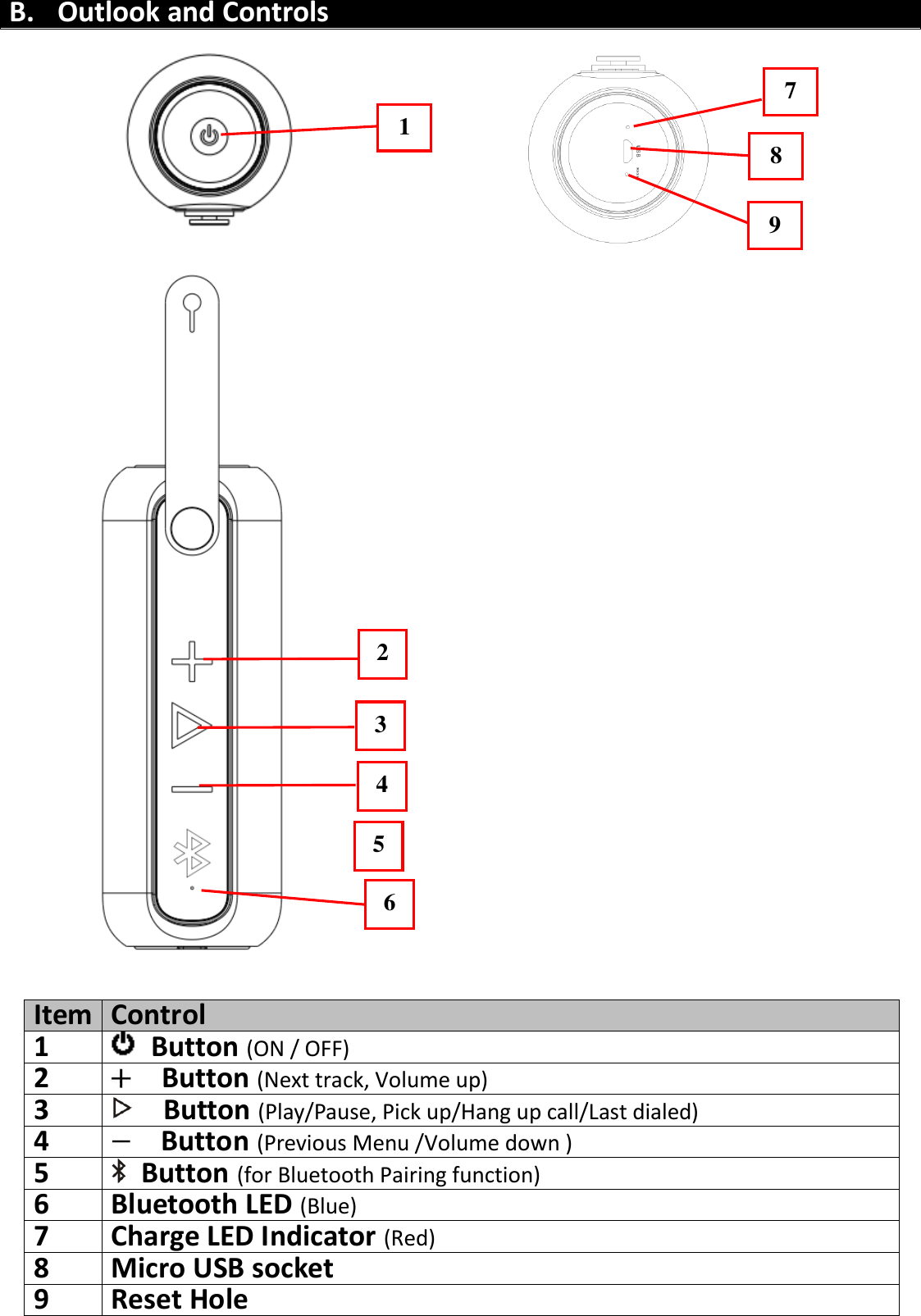

B. Outlook and Controls                                                   Item Control 1   Button (ON / OFF) 2   Button (Next track, Volume up) 3    Button (Play/Pause, Pick up/Hang up call/Last dialed) 4     Button (Previous Menu /Volume down ) 5   Button (for Bluetooth Pairing function) 6 Bluetooth LED (Blue) 7 Charge LED Indicator (Red) 8 Micro USB socket 9 Reset Hole 1 2 3 5 9 8 7 4 6

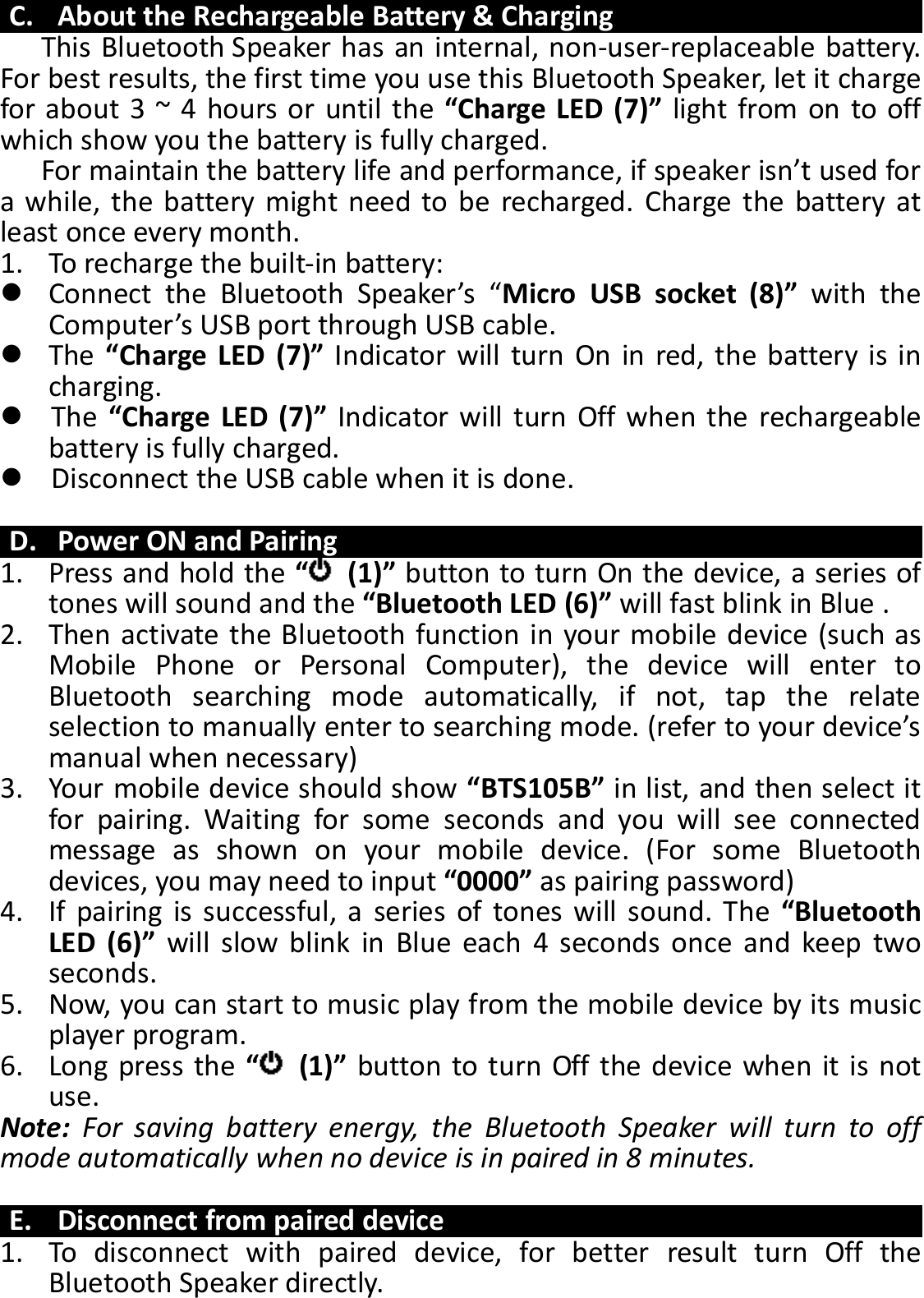

    C. About the Rechargeable Battery & Charging This Bluetooth Speaker has an internal, non-user-replaceable battery. For best results, the first time you use this Bluetooth Speaker, let it charge for about 3 ~ 4 hours or until the “Charge LED (7)” light from on to off which show you the battery is fully charged. For maintain the battery life and performance, if speaker isn’t used for a while,  the  battery might need  to be  recharged.  Charge the  battery at least once every month. 1. To recharge the built-in battery:  Connect  the  Bluetooth  Speaker’s  “Micro  USB  socket  (8)”  with  the Computer’s USB port through USB cable.  The  “Charge LED  (7)” Indicator will turn  On in red,  the  battery  is  in charging.    The  “Charge LED (7)” Indicator will  turn  Off  when the rechargeable battery is fully charged.    Disconnect the USB cable when it is done.  D. Power ON and Pairing 1. Press and hold the “  (1)” button to turn On the device, a series of tones will sound and the “Bluetooth LED (6)” will fast blink in Blue . 2. Then activate the Bluetooth function in your mobile device (such as Mobile  Phone  or  Personal  Computer),  the  device  will  enter  to Bluetooth  searching  mode  automatically,  if  not,  tap  the  relate selection to manually enter to searching mode. (refer to your device’s manual when necessary) 3. Your mobile device should show “BTS105B” in list, and then select it for  pairing.  Waiting  for  some  seconds  and  you  will  see  connected message  as  shown  on  your  mobile  device.  (For  some  Bluetooth devices, you may need to input “0000” as pairing password) 4. If  pairing  is  successful, a  series  of  tones  will  sound.  The  “Bluetooth LED  (6)”  will  slow  blink  in  Blue  each  4  seconds  once  and  keep  two seconds. 5. Now, you can start to music play from the mobile device by its music player program. 6. Long press the “  (1)” button to turn Off the device when it is not use. Note:  For  saving  battery  energy,  the  Bluetooth  Speaker  will  turn  to  off mode automatically when no device is in paired in 8 minutes.  E. Disconnect from paired device 1. To  disconnect  with  paired  device,  for  better  result  turn  Off  the Bluetooth Speaker directly.

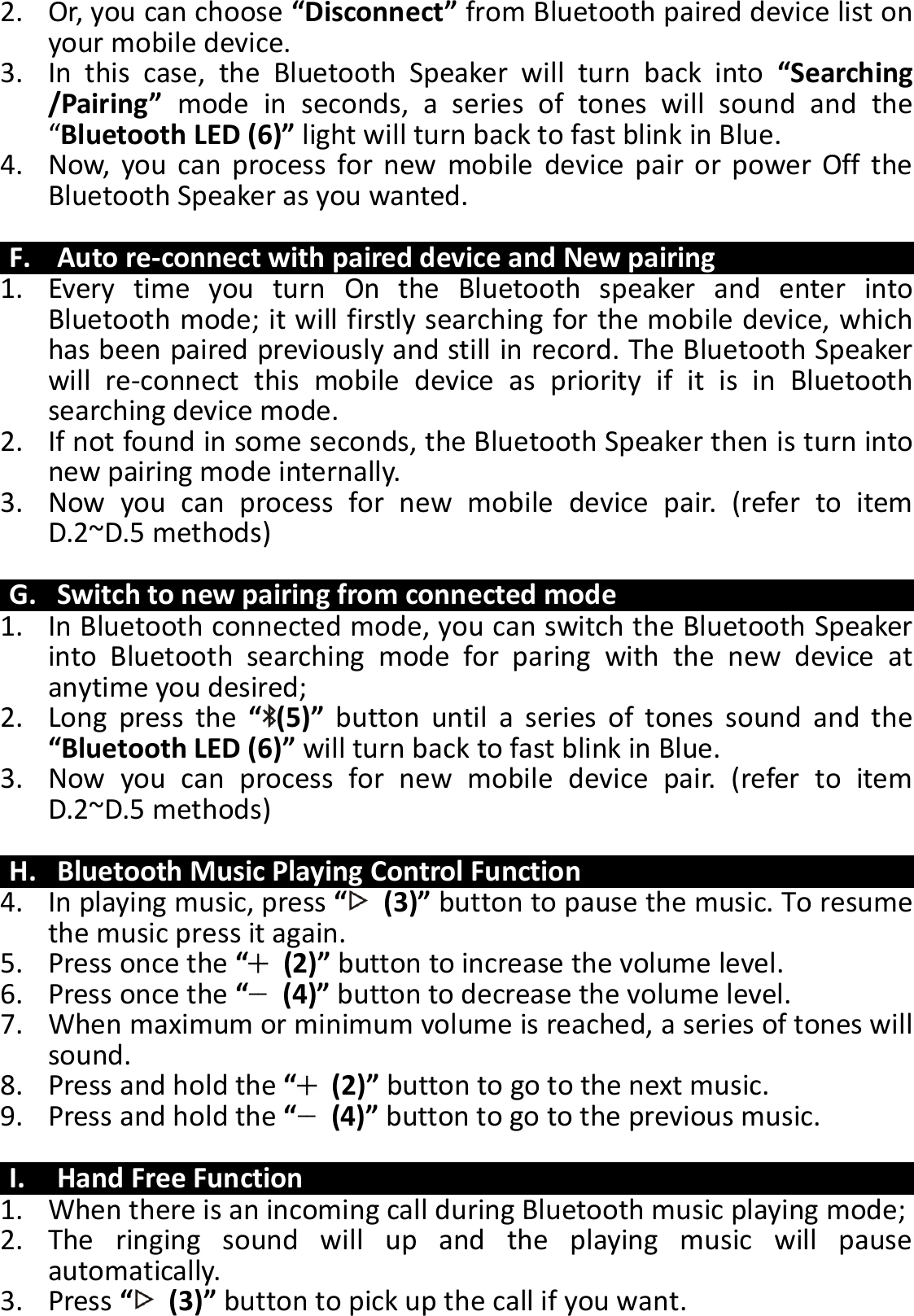

2. Or, you can choose “Disconnect” from Bluetooth paired device list on your mobile device. 3. In  this  case,  the  Bluetooth  Speaker  will  turn  back  into  “Searching /Pairing”  mode  in  seconds,  a  series  of  tones  will  sound  and  the “Bluetooth LED (6)” light will turn back to fast blink in Blue.   4. Now,  you  can  process  for new  mobile  device  pair  or  power  Off  the Bluetooth Speaker as you wanted.  F. Auto re-connect with paired device and New pairing 1. Every  time  you  turn  On  the  Bluetooth  speaker  and  enter  into   Bluetooth mode; it will firstly searching for the mobile device, which has been paired previously and still in record. The Bluetooth Speaker will  re-connect  this  mobile  device  as  priority  if  it  is  in  Bluetooth searching device mode.   2. If not found in some seconds, the Bluetooth Speaker then is turn into new pairing mode internally. 3. Now  you  can  process  for  new  mobile  device  pair.  (refer  to  item D.2~D.5 methods)  G. Switch to new pairing from connected mode 1. In Bluetooth connected mode, you can switch the Bluetooth Speaker into  Bluetooth  searching  mode  for  paring  with  the  new  device  at anytime you desired; 2. Long  press  the  “(5)”  button  until  a  series  of  tones  sound  and  the “Bluetooth LED (6)” will turn back to fast blink in Blue. 3. Now  you  can  process  for  new  mobile  device  pair.  (refer  to  item D.2~D.5 methods)  H. Bluetooth Music Playing Control Function 4. In playing music, press “  (3)” button to pause the music. To resume the music press it again. 5. Press once the “  (2)” button to increase the volume level. 6. Press once the “  (4)” button to decrease the volume level. 7. When maximum or minimum volume is reached, a series of tones will sound. 8. Press and hold the “  (2)” button to go to the next music. 9. Press and hold the “  (4)” button to go to the previous music.  I. Hand Free Function 1. When there is an incoming call during Bluetooth music playing mode; 2. The  ringing  sound  will  up  and  the  playing  music  will  pause automatically. 3. Press “  (3)” button to pick up the call if you want.

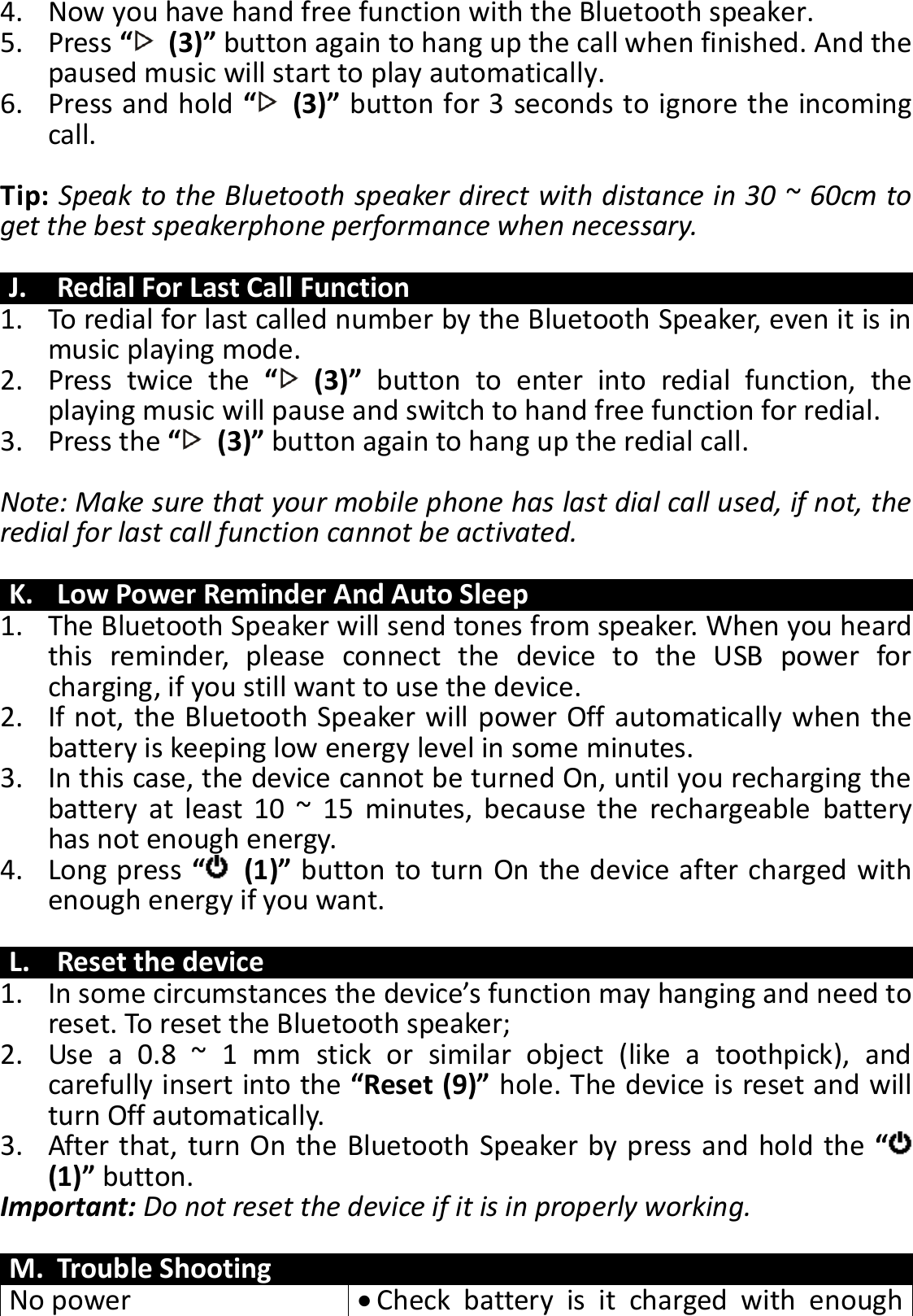

4. Now you have hand free function with the Bluetooth speaker. 5. Press “  (3)” button again to hang up the call when finished. And the paused music will start to play automatically. 6. Press and hold “  (3)” button for 3 seconds to ignore the incoming call.    Tip: Speak to the Bluetooth speaker direct with distance in 30 ~ 60cm to get the best speakerphone performance when necessary.  J. Redial For Last Call Function 1. To redial for last called number by the Bluetooth Speaker, even it is in music playing mode. 2. Press  twice  the  “  (3)” button  to  enter  into  redial  function,  the playing music will pause and switch to hand free function for redial. 3. Press the “  (3)” button again to hang up the redial call.  Note: Make sure that your mobile phone has last dial call used, if not, the redial for last call function cannot be activated.  K. Low Power Reminder And Auto Sleep 1. The Bluetooth Speaker will send tones from speaker. When you heard this  reminder,  please  connect  the  device  to  the  USB  power  for charging, if you still want to use the device. 2. If not, the Bluetooth Speaker will power Off automatically when the battery is keeping low energy level in some minutes. 3. In this case, the device cannot be turned On, until you recharging the battery  at  least  10  ~  15  minutes,  because  the  rechargeable  battery has not enough energy. 4. Long press “  (1)” button to turn On the device after charged with enough energy if you want.  L. Reset the device 1. In some circumstances the device’s function may hanging and need to reset. To reset the Bluetooth speaker; 2. Use  a  0.8  ~  1  mm  stick  or  similar  object  (like  a  toothpick),  and carefully insert into the “Reset (9)” hole. The device is reset and will turn Off automatically.   3. After that, turn On the Bluetooth Speaker by press and hold the “ (1)” button. Important: Do not reset the device if it is in properly working.  M. Trouble Shooting No power  Check  battery  is  it  charged  with  enough

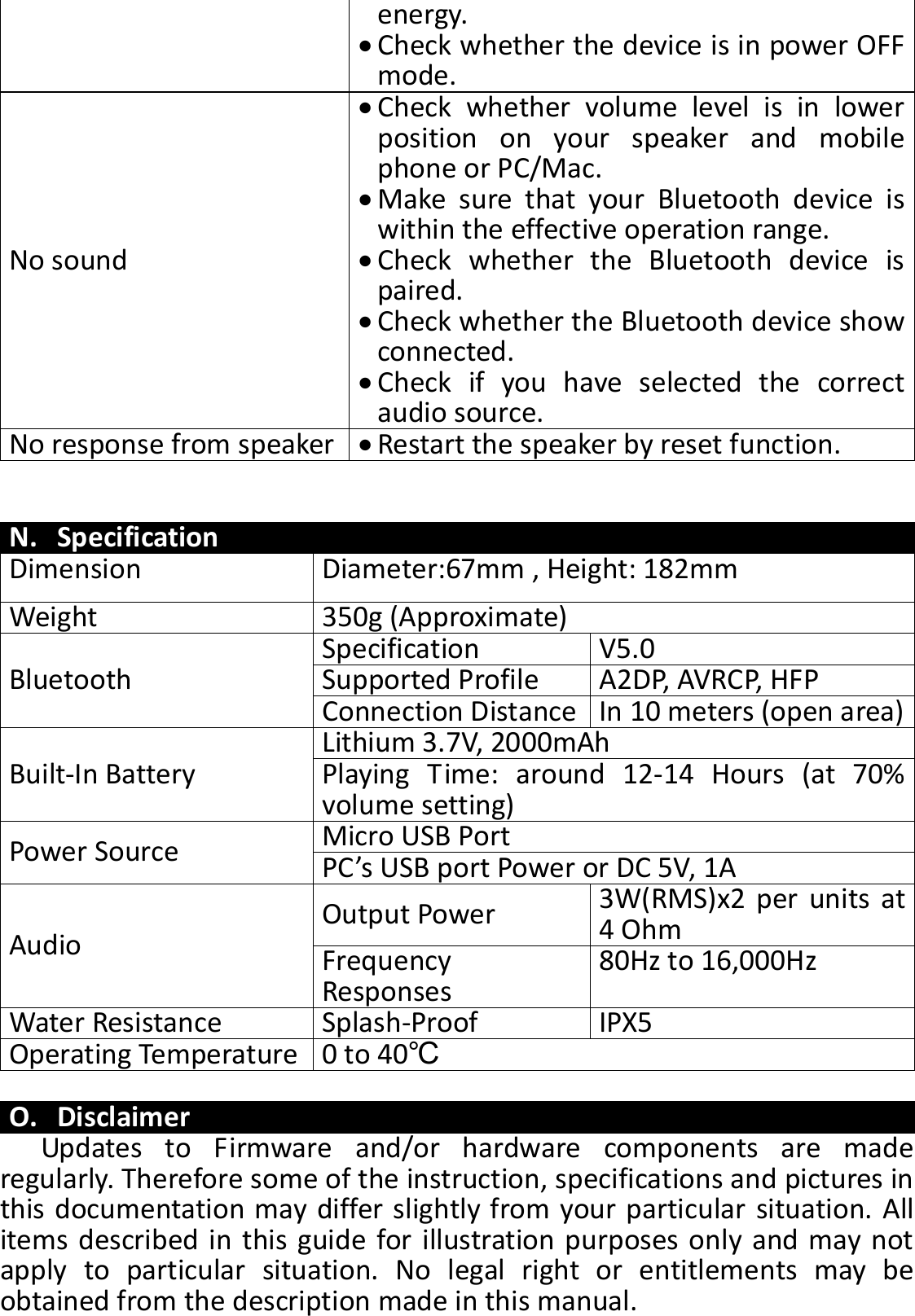

energy.    Check whether the device is in power OFF mode. No sound  Check  whether  volume  level  is  in  lower position  on  your  speaker  and  mobile phone or PC/Mac.  Make  sure  that  your  Bluetooth  device  is within the effective operation range.  Check  whether  the  Bluetooth  device  is paired.  Check whether the Bluetooth device show connected.  Check  if  you  have  selected  the  correct audio source. No response from speaker  Restart the speaker by reset function.   N. Specification Dimension Diameter:67mm , Height: 182mm Weight 350g (Approximate)   Bluetooth Specification V5.0   Supported Profile A2DP, AVRCP, HFP Connection Distance In 10 meters (open area) Built-In Battery Lithium 3.7V, 2000mAh Playing  Time:  around  12-14  Hours  (at  70% volume setting) Power Source Micro USB Port   PC’s USB port Power or DC 5V, 1A Audio Output Power 3W(RMS)x2 per  units at 4 Ohm Frequency Responses 80Hz to 16,000Hz Water Resistance Splash-Proof IPX5 Operating Temperature 0 to 40℃  O. Disclaimer Updates  to  Firmware  and/or  hardware  components  are  made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply  to  particular  situation.  No  legal  right  or  entitlements  may  be obtained from the description made in this manual.
 P. Recycling This symbol indicates that the relevant electrical product or  battery  should  not  be  disposed  of  as  general household waste in Europe. To ensure the correct waste treatment  of  the  product  and  battery,  please  dispose them  in  accordance  to  any  applicable  local  laws  of requirement  for  disposal  of  electrical  equipment  or batteries. In so doing, you will help to conserve natural resources  and  improve  standards  of  environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).   FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are  designed  to  provide  reasonable  protection  against  harmful interference  in  a  residential  installation.  This  equipment  generates  uses and can radiate radio frequency energy and, if not installed and used in accordance  with  the  instructions,  may  cause  harmful  interference  to radio communications. However, there is no guarantee that interference will  not  occur  in  a  particular  installation.  If  this  equipment  does  cause harmful  interference  to  radio  or  television  reception,  which  can  be determined by turning the equipment off and on, the user is encouraged to  try  to  correct  the  interference  by  one  or  more  of  the  following measures: -- Reorient or relocate the receiving antenna.    -- Increase the separation between the equipment and receiver.     -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.    -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
