Users manual
1
User’s Manual
Model: BTS-26
FCC ID:2AA7L-BTS26
Bluetooth Speaker
(Splash-Proof)
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device
does not cause harmful interference
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
2
A. Important
Don’ts
Do not place naked flames, such as lighted candles on or near the
product.
Do not place objects filled with liquids, such as vases on or near the
product.
Do not use or store this product in a place where it is subject to direct
sunlight, heat, excessive dust or vibration.
Do not keep or store this product in wet conditions for long period.
Do not push foreign objects into the slots or holes in the product.
Do not attempt to open this product yourself. There are no user
serviceable parts inside.
Do not allow children access to plastic bags.
Safety Instructions
Before using this product, read and follow all warnings and
instructions.
This product is not intended for use by young children. Young children
should be properly supervised.
This product is intended for household use only and not for
commercial or industrial use.
No naked flame sources, such as lighted candles, should be placed on
the product.
Ventilation should not be impeded by covering ventilation openings
with items such as newspapers, table cloths, curtains and the like.
Make sure the unit is adjusted to a stable position. Damage caused by
using this product in an unstable position or by failure to follow any
other warning or precaution contained within this user manual will
not be covered by warranty.
We, suggests retaining the packaging in case for future transport of the
product.
WARNING:
Never remove the casing of this apparatus.
Never place this apparatus on the other electrical
equipment.
Caution for Splash-proof
This unit has been constructed to resist for light splashes water or light
rain. It should never be operated under running water and under no
circumstances it should never be fully immersed in water.
This unit has silicon seals cover to minimize the risk of moisture/rains
water getting inside from USB port. However, do not immerse it in
water since permanent damage to the electrical and mechanical parts
will result.
3
B. Outlook and Controls
1
2
3
4
6
5
7
8
11
10
12
1
13
9
4
Item
Control
1
Loud Speaker
2
Built-In Bass Radiator
3
Silicon Seal Cover
4
Micro USB Socket (Under Silicon Seal Cover)
5
Mode LED Indicator (Red and Blue)
6
Button (ON / OFF, Pick up/hang up/Redial/Ignore)
7
Button (Previous, Volume down)
8
Button (Next, Volume up)
9
Button (Play / Pause, New Pairing)
10
Button (Torch light control; Light On (High)/ Light On (Mid) / Light Off)
11
MIC Hole (for Hand-Free)
12
Torch LED Light
13
Slot Foot (for bike mount bracket)
C. About the rechargeable Battery & Charging
a. Regarding the lithium rechargeable battery:
1. This device has an internal, non-user-replaceable battery. For best
results, the first time you use this Bike Bluetooth Speaker, let it
charge for about 2.5 ~ 3.5 hours or until the “Mode LED (5)”
indicator turn Off from red light which show the battery is fully
charged.
2. For maintain the battery life and performance, if device isn’t used for
a while, the battery might need to be recharged. Recharge the
battery at least once per month.
b. To recharge the built-in battery:
You can charge the Bike Bluetooth Speaker’s battery in two ways:
1. Connect it to the Computer. Or,
2. Use the USB power charger. (not included)
c. Connection and Charging:
1. Open the “Silicon Seal Cover (3)” and connects the Bike Bluetooth
Speaker’s “Micro USB Socket (4)” with the Computer’s USB port
through the USB cable.
2. The “Mode LED (5)” indicator will turn On in red light, the battery is
in charging.
3. The “Mode LED (5)” indicator will turn Off from red light when it’s
fully charged.
4. Disconnect the USB cable when it is done.
Mode LED Function for charge:
Item
Charge Mode
LED Status
1.
In Charging:
Red light On
2.
Charge Completed:
Red light Off
5
D. Power ON and Pairing
1. Press and hold the “ (6)” button for 2 ~ 3 seconds to turn On the
device, a series of tones will sound and the “Mode LED (5)” will fast
blinking in blue (half second once). It is in Bluetooth’s searching or
pairing mode;
2. Then, activate the Bluetooth function in your mobile device (such as
Mobile Phone, MID or Personal Computer); the mobile device will
enter to Bluetooth searching mode automatically, if not, tap the
relate selection to manually enter to searching mode. (refer to your
mobile device’s manual when necessary)
3. Your mobile device should show “BTS26” in list, and then select it for
pairing. Waiting for some seconds, then you will see connected
message as shown on your mobile Bluetooth device when they are
connected and paired.
4. For some mobile Bluetooth devices, you may need to input “0000”
as pairing password.
5. However, if pairing is successful, the “Mode LED (5)” indicator will
switch to slow blinking from fast.
6. Now, you can start to music play from the mobile device by it music
player program.
7. Press and hold the “ (6)” button to turn Off the device when it is
not in use.
Mode LED Function for Bluetooth:
Item
Mode
Description
LED Status
1.
Power OFF
Light Off
2.
Power ON
At BT pairing mode
Light fast blinking in blue
(half second once)
At BT paired mode
Light slow blinking in blue
(4 seconds once)
Note: For saving battery energy, the Bike Bluetooth Speaker will turn to
off mode automatically when no device is in paired in 8 minutes.
E. Disconnect from paired device
1. To disconnect with paired device and for better result, turn OFF the
Bike Bluetooth Speaker by power ON/OFF button directly. Or,
2. You can choose disconnect from the mobile device’s list by the
paired device, however, most devices will go back to reconnection
mode in seconds. Means the Bike Bluetooth Speaker may again
reconnected with the paired device within some seconds
automatically. So, turn OFF the Bluetooth function on you mobile
device in this case if you want.
6
F. Auto re-connect with paired device and New pairing
1. Every time you turn On the Bike Bluetooth Speaker power; it will
firstly searching for the mobile device, which has been paired
previously and still in record. The Bike Bluetooth Speaker will
re-connect this mobile device as priority if it is in Bluetooth searching
device mode.
2. If not found in some seconds, the Bike Bluetooth Speaker then is
turn into new pairing mode internally.
3. Now you can process for new mobile device pair. (refer to item D.2~5
methods)
G. Switch to new pairing from connected mode
1. In Bluetooth connected mode, you can switch the Bluetooth Speaker
into Bluetooth searching mode for paring with the new device at any
time you desired;
2. Press and hold the “ (9)” button until a series of tones sound and
the “Mode LED (5)” will turn back to fast blinking in blue.
3. Now you can process for new mobile device pair. (refer to item D.2~5
methods)
H. Bluetooth Music Playing Control Function
a. On your Bluetooth Device:
1. Switch to music play mode and choose music to start the play, select
music by using / button/icon, Play/Pause the playing
music by using button/icon. And,
2. Adjust the volume level by using device’s volume control “Down /
Up” button/icon on your Bluetooth device. (refer to your device
user’s manual when necessary)
b. On Bike Bluetooth Speaker:
1. In playing music, press “ (9)” button to pause the music. To
resume the music press it again.
2. Press and hold the “ (8)” button to increases the volume level.
3. Press and hold the “ (7)” button to decreases the volume level.
4. When maximum or minimum volume is reached, a series of tones
will sound.
5. Press once the “ (8)” button to next music.
6. Press once the “ (7)” button to previous music.
I. Hand Free Function
1. When there is an in-coming call;
2. The ringing sound will up and the playing music will pause
automatically.
3. Press and hold the “ (6)” button to ignore the in-coming call if you
7
want. Or;
4. Press the “ (6)” button to pick up the call.
5. Now you have hand free function with the Bluetooth speaker.
6. Press the “ (6)” button again to hang up the call when finished.
7. To reject the incoming call, press the “ (6)” button twice to ignore.
8. The paused music will resume playing automatically.
Tip: speak to the “MIC (11)” hole direct with distance in 30 ~ 60cm to get
the best speakerphone performance when necessary.
J. Redial For Last Call Function
1. To redial for last called number by the Bike Bluetooth Speaker, even
it is in music playing mode.
2. Press the “ (6)” button twice to enter into redial function, the
playing will pause and switch to hand free function for redial.
3. Press the “ (6)” button again to hang up the redial call.
4. Make sure that your mobile phone has have last dial call used, if not,
the redial for last call function cannot be activated.
K. Low Power Reminder And Auto Sleep
1. The Bike Bluetooth Speaker will send tones sound from speaker, if
the rechargeable lithium battery running at low energy, when you
heard this sounds, please connect the device to the computer or USB
power for charging, if you still want to use the device.
2. If not, the Bike Bluetooth Speaker will power Off automatically when
the battery is keeping low energy level in some minutes.
3. In this case, the device cannot be turned On, until you recharging the
battery at least 10 ~ 15 minutes, because the rechargeable battery
has not enough energy.
L. Use Torch Light
1. Press the “ (10)” button to turn On the LED torch light.
2. Press it again to lower the torch light brightness if you want and
press it once again to turn Off.
M. Reset the Bike Bluetooth Speaker
1. In some circumstances the device’s function may hanging and need
to reset. To do this;
2. Press the ” (7)” and “ (8)” buttons at the same time, the device
should reset and turn itself to Off automatically.
3. And now, power On the Bike Bluetooth Speaker by press and hold
the “ (6)” button for 2 ~ 3 seconds.
Important: Do not reset the device if it is proper working.
8

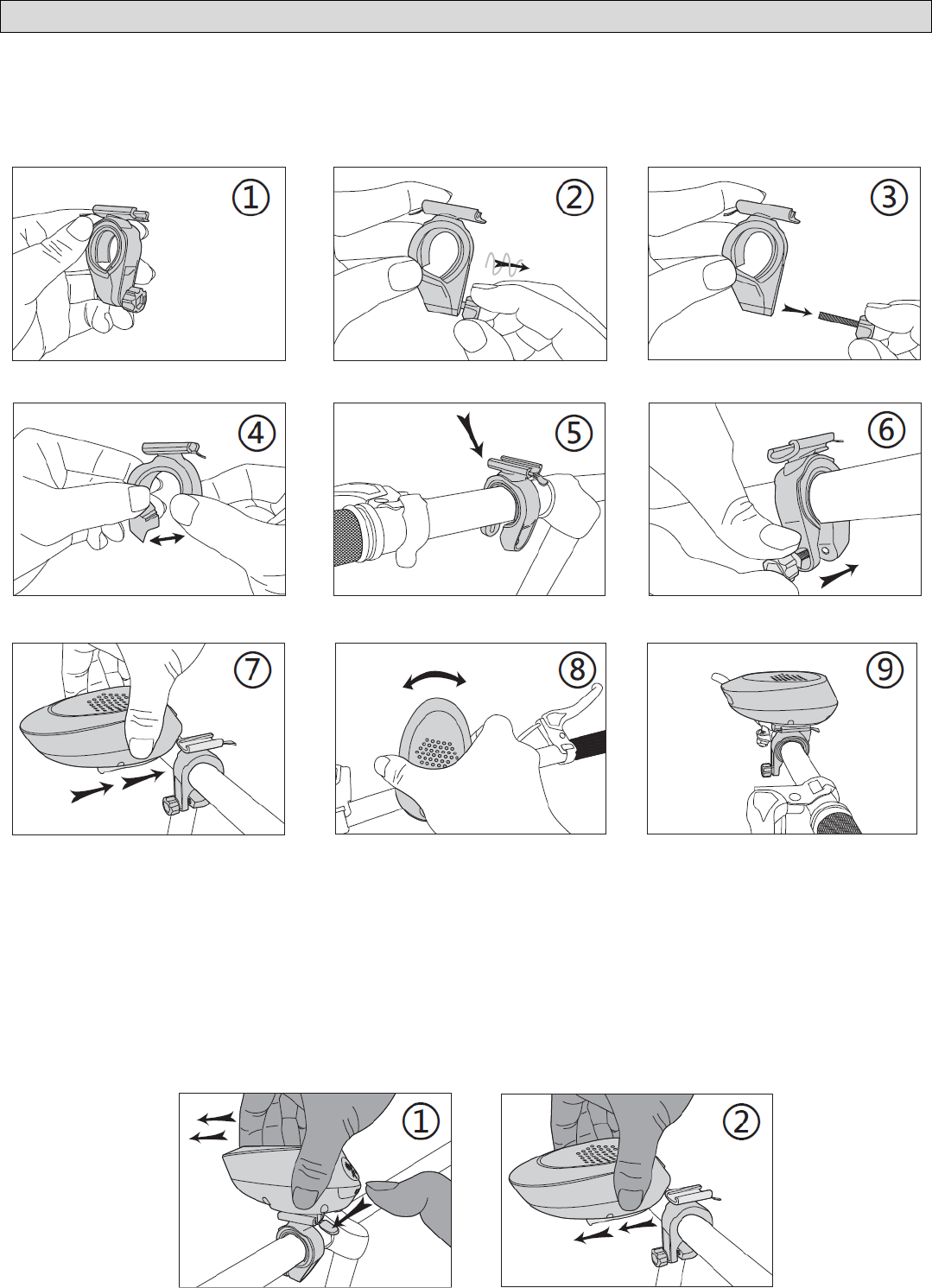

N. Bike Mount Bracket Installation
1. To mount the Bike Bluetooth Speaker on the handlebar of bicycle;
2. Use provided Bike Mount Bracket and to see the following
illustration to install:
Remark: the provided Bike Mount Bracket included 3 pcs different size of
rubber pad for adjusts to fit your bicycle’s handlebar, decrease number of
them when necessary.
3. To remove the Bike Bluetooth Speaker from the Bike mount Bracket
and handlebar:
9
O. Splash-Proof Handling
1. The Bike Bluetooth Speaker can handle a brief jet of water on its
surface (Splash-Proof IPX4). However, it should never be operated
under running water and under no circumstance it should never be
fully immersed in water.
2. Before use the Bike Bluetooth speaker, make sure that the “Silicon
Seal Cover (3)” tightens closed at the right position.
3. After used, always wipe the outside of the cabinet thoroughly if it
becomes wet with moisture or water splashes. This will help to
prevent the internal parts of the unit from entry of water and
possible moisture damage.
P. Trouble Shooting
No power
Check battery is it charged with enough energy.
Check whether the device is in power OFF mode.
No sound
Check whether volume level is in lower position
on your speaker and mobile phone or PC/Mac.
Make sure that your Bluetooth device is within
the effective operation range.
Check whether the Bluetooth device is paired.
Check whether the Bluetooth device show
connected.
Check if you have selected the correct audio
source.
No response from
speaker
Reset and restart the device by using reset
function.
Q. Technical Specification
Dimension
115 mm (L) x 65 mm (W) x 55 mm (H)
(Not included Bike Mount Bracket)
Weight
130g (Approximate)
(Not included Bike Mount Bracket)
Bluetooth
Specification
V4.1+EDR
Supported Profile
A2DP, AVRCP, HFP
Connection Distance
In 10 meters (open area)
Built-In Battery
Lithium 3.7V, 1050mAh
Playing Time:
5 ~ 6 Hours (at 75% ~ 80% of volume setting)
Power Source
Micro USB Port
PC’s USB port Power or DC 5V, 500mA
Audio
Output Power
4W (RMS) at 4 Ohm
Freq. Responses
80Hz to 18,000Hz
10
Torch Light
Scattered Brightness
High : 100 Lux (1m)
Mid. : 45 Lux (1m)
Water Resistance
Splash-Proof
IPX4
Operating Temperature
0 to 40℃
R. Disclaimer
Updates to Firmware and/or hardware components are made
regularly. Therefore some of the instruction, specifications and pictures in
this documentation may differ slightly from your particular situation. All
items described in this guide for illustration purposes only and may not
apply to particular situation. No legal right or entitlements may be
obtained from the description made in this manual.
S. Recycling
This symbol indicates that the relevant electrical
product or battery should not be disposed of as general
household waste in Europe. To ensure the correct waste
treatment of the product and battery, please dispose
them in accordance to any applicable local laws of
requirement for disposal of electrical equipment or
batteries. In so doing, you will help to conserve natural
resources and improve standards of environmental
protection in treatment and disposal of electrical waste
(Waste Electrical and Electronic Equipment Directive).
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that
this device does not cause harmful interference (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be u
sed in portable exposure condition without restriction.
FCC ID: 2AA7L-BTS26
利用 pdfFactory Pro 测试版本创建的PDF文档 www.pdffactory.com
