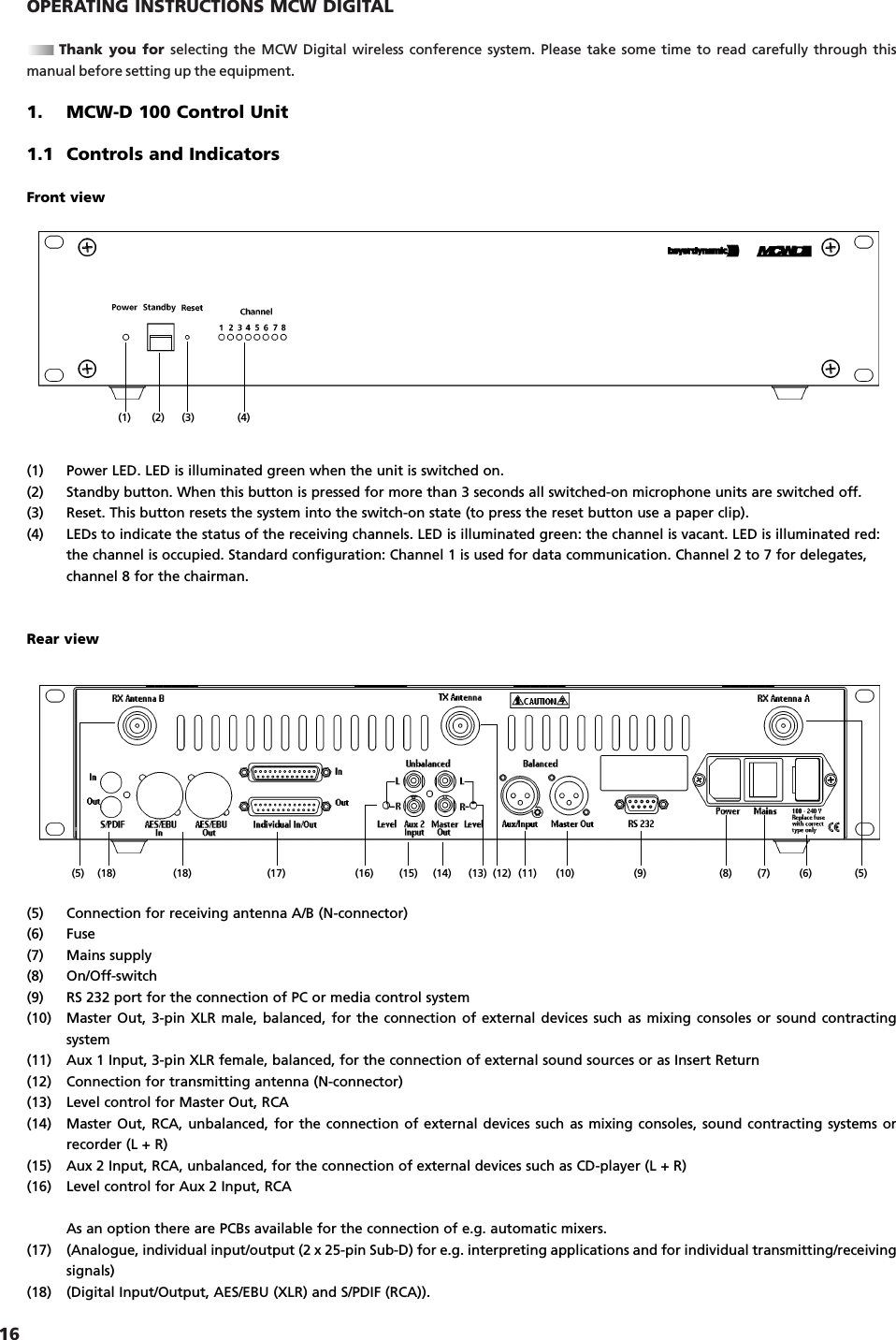

16OPERATING INSTRUCTIONS MCW DIGITALThank you for selecting the MCW Digital wireless conference system. Please take some time to read carefully through thismanual before setting up the equipment.1. MCW-D 100 Control Unit1.1 Controls and IndicatorsFront view(1) Power LED. LED is illuminated green when the unit is switched on.(2) Standby button. When this button is pressed for more than 3 seconds all switched-on microphone units are switched off.(3) Reset. This button resets the system into the switch-on state (to press the reset button use a paper clip).(4) LEDs to indicate the status of the receiving channels. LED is illuminated green: the channel is vacant. LED is illuminated red:the channel is occupied. Standard configuration: Channel 1 is used for data communication. Channel 2 to 7 for delegates, channel 8 for the chairman.Rear view(5) Connection for receiving antenna A/B (N-connector)(6) Fuse(7) Mains supply(8) On/Off-switch(9) RS 232 port for the connection of PC or media control system(10) Master Out, 3-pin XLR male, balanced, for the connection of external devices such as mixing consoles or sound contractingsystem(11) Aux 1 Input, 3-pin XLR female, balanced, for the connection of external sound sources or as Insert Return(12) Connection for transmitting antenna (N-connector)(13) Level control for Master Out, RCA (14) Master Out, RCA, unbalanced, for the connection of external devices such as mixing consoles, sound contracting systems orrecorder (L + R)(15) Aux 2 Input, RCA, unbalanced, for the connection of external devices such as CD-player (L + R)(16) Level control for Aux 2 Input, RCAAs an option there are PCBs available for the connection of e.g. automatic mixers.(17) (Analogue, individual input/output (2 x 25-pin Sub-D) for e.g. interpreting applications and for individual transmitting/receivingsignals)(18) (Digital Input/Output, AES/EBU (XLR) and S/PDIF (RCA)).(1) (2) (3) (4)(5)(6)(7)(8)(9)(10)(11)(12)(13)(14)(15)(16)(17)(18)(18)(5)

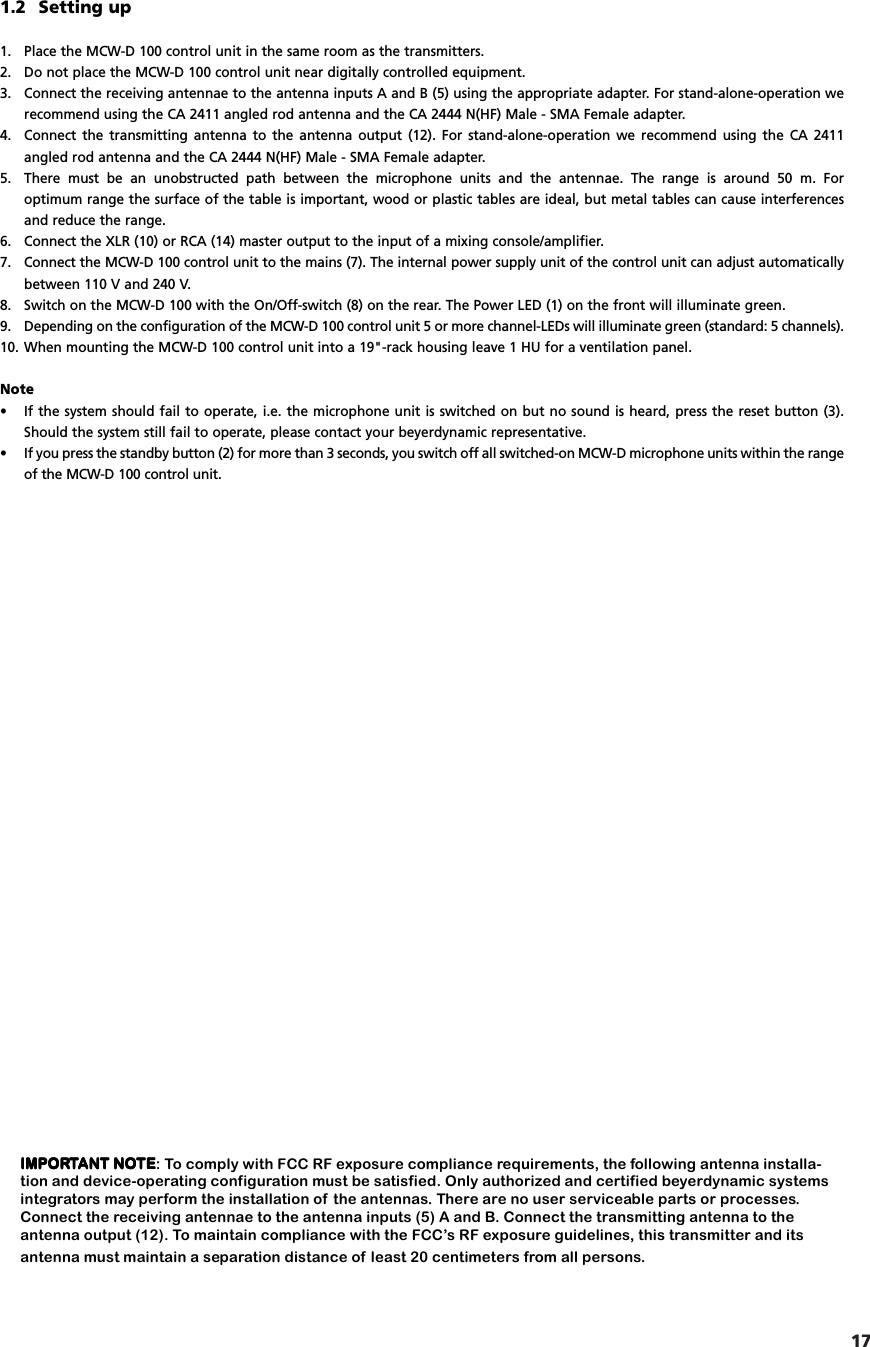

17english1.2 Setting up1. Place the MCW-D 100 control unit in the same room as the transmitters.2. Do not place the MCW-D 100 control unit near digitally controlled equipment.3. Connect the receiving antennae to the antenna inputs A and B (5) using the appropriate adapter. For stand-alone-operation werecommend using the CA 2411 angled rod antenna and the CA 2444 N(HF) Male - SMA Female adapter.4. Connect the transmitting antenna to the antenna output (12). For stand-alone-operation we recommend using the CA 2411 angled rod antenna and the CA 2444 N(HF) Male - SMA Female adapter.5. There must be an unobstructed path between the microphone units and the antennae. The range is around 50 m. For optimum range the surface of the table is important, wood or plastic tables are ideal, but metal tables can cause interferencesand reduce the range.6. Connect the XLR (10) or RCA (14) master output to the input of a mixing console/amplifier.7. Connect the MCW-D 100 control unit to the mains (7). The internal power supply unit of the control unit can adjust automaticallybetween 110 V and 240 V.8. Switch on the MCW-D 100 with the On/Off-switch (8) on the rear. The Power LED (1) on the front will illuminate green.9. Depending on the configuration of the MCW-D 100 control unit 5 or more channel-LEDs will illuminate green (standard: 5 channels).10. When mounting the MCW-D 100 control unit into a 19"-rack housing leave 1 HU for a ventilation panel.Note• If the system should fail to operate, i.e. the microphone unit is switched on but no sound is heard, press the reset button (3).Should the system still fail to operate, please contact your beyerdynamic representative.• If you press the standby button (2) for more than 3 seconds, you switch off all switched-on MCW-D microphone units within the rangeof the MCW-D 100 control unit. IMPORIMPORIMPORIMPORIMPORTTTTTANT NOANT NOANT NOANT NOANT NOTETETETETE: To comply with FCC RF exposure compliance requirements, the following antenna installa-tion and device-operating configuration must be satisfied. Only authorized and certified beyerdynamic systemsintegrators may perform the installation of the antennas. There are no user serviceable parts or processes.Connect the receiving antennae to the antenna inputs (5) A and B. Connect the transmitting antenna to theantenna output (12). To maintain compliance with the FCC’s RF exposure guidelines, this transmitter and itsantenna must maintain a separation distance of least 20 centimeters from all persons.
182. MCW-D 1021/1011 and MCW-D 1023/1013 Microphone Units2.1 Controls and IndicatorsRear view of MCW-D 1021/1011 Delegate and MCW-D 1023/1013 Chairman Microphone Unit(1) Multi-function socket (connection of programming device, externalcharger or DC-supply)(2) Operating control LED(3) Charging contacts for MCW-D 10, LE-D 10 charger(4) Mini stereo jack (3.5 mm) for the connection of recorders or headphonesATTENTION: This connection has been covered, because at presentspecial headphones can be connected only. If you need thisconnection please contact beyerdynamic.(5) Gooseneck microphone with illuminated ring(6) Loudspeaker (MCW-D 1021 only)(7) LED to indicate the function (green / red)(8) Microphone button(6)(5)(7)(8)(6)(5)(7)(8)(9) (10)Top View MCW-D 1021/1011 Delegate Microphone Unit(5) Gooseneck microphone with illuminated ring(6) Loudspeaker (MCW-D 1023 only)(7) LED to indicate the function (green / red)(8) Microphone button(9) Clear button for clearing the delegate microphone units(10) Function button for optional functionsFunction buttonDepending on the configuration the following functions are possible withthis button (10): mute, clear or priority. The function button can be configuredwith a programming device connected to the chairman microphone unit orremotely with the control unit. The MCW-D editor software can be used toconfigure the button.1. MuteAll delegate microphone units which were activated before, will bemuted when the chairman is speaking and will be re-activated when thechairman switches off his microphone.2. ClearAll delegate microphone units are cleared and cannot switch on theirmicrophone as long as the chairman is speaking.3. PriorityAll delegate microphone units will be cleared and the microphone of thechairman unit will be switched on. The delegates can switch on theirmicrophones again.4. FunctionA command is sent via the RS 232 serial interface from the MCW-D 100control unit and a programmed function is carried out via a media con-trol system for instance (e.g. light control).For the functions 1. - 3. there is also a command sent via the RS 232serial interface from the MCW-D 100 control unit.Top View MCW-D 1023/1013 Chairman Microphone Unit(1) (2) (3) (4)
19english2.2 Setting upThe microphone units have no separate on/off switch. They are switched on and off with the microphone button. By pressingthe button briefly, the microphone unit is switched on. The LED (7) flashes for a moment and the LED (2) on the rear is illuminated. Bypressing the button for more than 2 seconds the microphone unit is switched off and the LED (7) will illuminate twice red/greenbriefly. Using the controller software (standby button) the microphone unit can be switched off via the control unit. Furthermore, themicrophone units are switched off automatically, when they do not receive a data signal from the control unit for more than oneminute.Important:If the microphone unit is out of range of the MCW-D 100 control unit the LED (7) will flash red. After one minute the microphone unitwill switch off automatically.Switching onSwitch on the microphone unit by pressing the microphone button briefly. The green operating control LED (2) on the rear will illuminate.The microphone units have an integrated rechargeable battery allowing an operating time of at least 10 hours in conference mode.As soon as the capacity is too low for satisfactory operation, the operating control LED (2) will flash. The remaining time of operation is around 30 minutes. The decreasing battery voltage is also signaled by the MCW-D 100 control unit at the RS 232 socketand can be evaluated by an external media control system.Manual ModePress the microphone button (8) to switch the gooseneck microphone on or off.The LED (7) is illuminated green: The integrated transmitter is adjusted to a free frequency and switched on.Red ring of the gooseneckmicrophone is illuminated: The microphone is ready for talking.Using the standard version of the MCW-D 100 control unit 3 delegates and 1 chairman can speak simultaneously. Using additional PCBs inside the MCW-D 100 up to 6 delegates and 1 chairman can speak simultaneously.Important:If the number of open microphones is reached, a microphone can only be switched on manually when another microphone unit has been switched off. Request-To-Talk ModeThe mode is only possible in conjunction with a PC using the MCW-D Controller software or media control system (AMX/Panja®,Crestron®etc.). The request-to-talk is registered in the system by pressing the microphone button of the microphone unit. The allo-cation is made by the operator at the PC or touchscreen of the media control system. The LED (7) is illuminated to indicate the request-to-talk. If you press the microphone button again the request-to-talk is cleared. The LED (7) goes out.2.3 Auto-Off-FunctionThe delegate microphone units have a power saving auto-off function, i.e. if no-one speaks into the microphone for more than20 seconds, the microphone unit switches off automatically. The auto-off-function has been deactivated at the factory. The responsethreshold and the time after which the microphone switches off can be adjusted with a programming device or PC using the Editorsoftware. The illuminated ring of the gooseneck microphone will flash 5 seconds before the microphone unit is switched off.2.4 Addressing the Microphone Units / Serial NumberAt the factory each microphone unit is programmed with a different identity number so that the MCW-D 100 control unit cancontrol them individually. This number is printed on the bottom.When you subsequently order more microphone units later, please inform the supplier of your current identitiy numbers to avoid duplication.

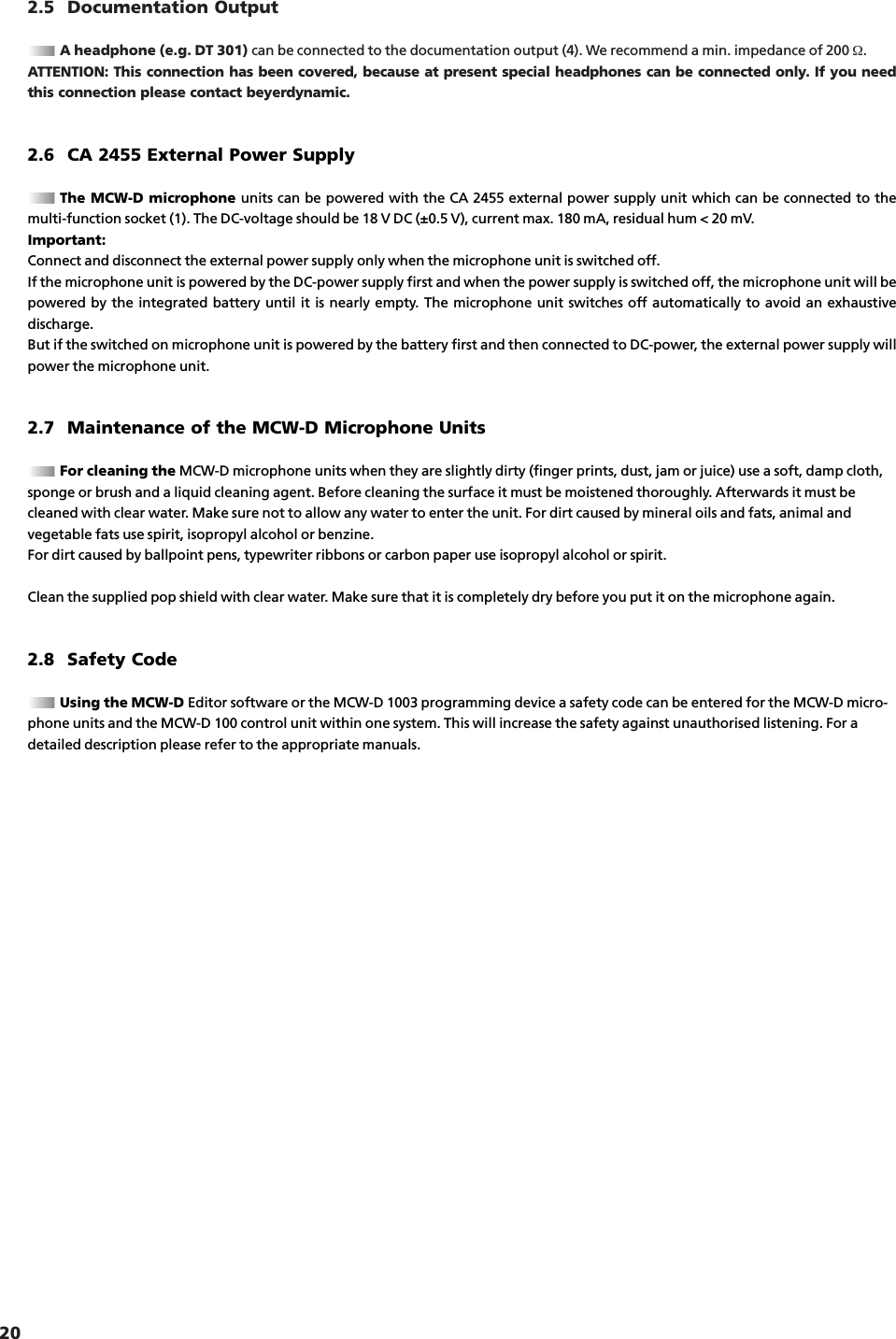

202.5 Documentation OutputA headphone (e.g. DT 301) can be connected to the documentation output (4). We recommend a min. impedance of 200 Ω.ATTENTION: This connection has been covered, because at present special headphones can be connected only. If you needthis connection please contact beyerdynamic.2.6 CA 2455 External Power SupplyThe MCW-D microphone units can be powered with the CA 2455 external power supply unit which can be connected to themulti-function socket (1). The DC-voltage should be 18 V DC (±0.5 V), current max. 180 mA, residual hum < 20 mV.Important:Connect and disconnect the external power supply only when the microphone unit is switched off. If the microphone unit is powered by the DC-power supply first and when the power supply is switched off, the microphone unit will bepowered by the integrated battery until it is nearly empty. The microphone unit switches off automatically to avoid an exhaustive discharge.But if the switched on microphone unit is powered by the battery first and then connected to DC-power, the external power supply willpower the microphone unit.2.7 Maintenance of the MCW-D Microphone UnitsFor cleaning the MCW-D microphone units when they are slightly dirty (finger prints, dust, jam or juice) use a soft, damp cloth,sponge or brush and a liquid cleaning agent. Before cleaning the surface it must be moistened thoroughly. Afterwards it must becleaned with clear water. Make sure not to allow any water to enter the unit. For dirt caused by mineral oils and fats, animal andvegetable fats use spirit, isopropyl alcohol or benzine.For dirt caused by ballpoint pens, typewriter ribbons or carbon paper use isopropyl alcohol or spirit.Clean the supplied pop shield with clear water. Make sure that it is completely dry before you put it on the microphone again.2.8 Safety CodeUsing the MCW-D Editor software or the MCW-D 1003 programming device a safety code can be entered for the MCW-D micro-phone units and the MCW-D 100 control unit within one system. This will increase the safety against unauthorised listening. For adetailed description please refer to the appropriate manuals.

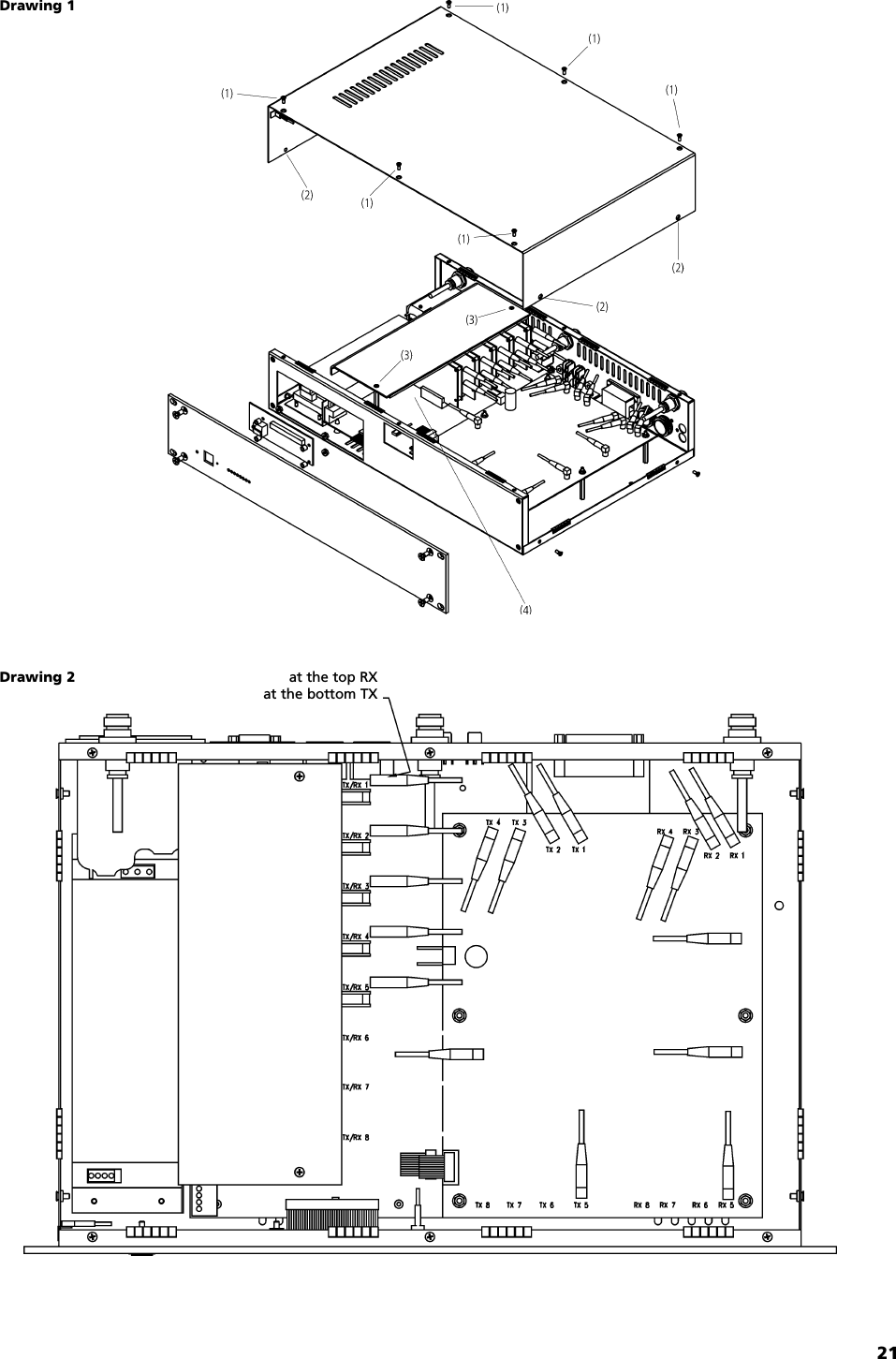

21englishDrawing 2 at the top RXat the bottom TXDrawing 1

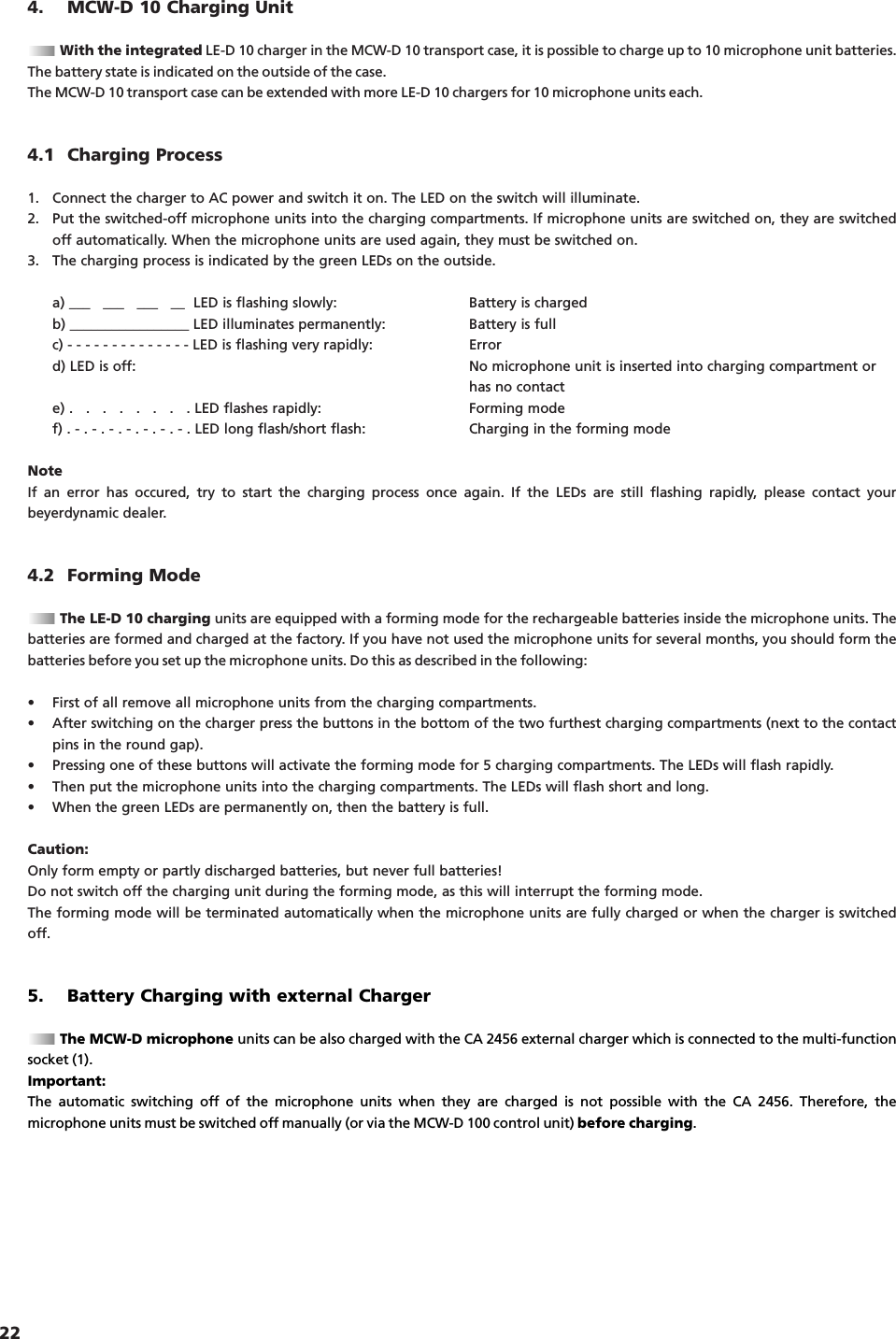

224. MCW-D 10 Charging UnitWith the integrated LE-D 10 charger in the MCW-D 10 transport case, it is possible to charge up to 10 microphone unit batteries.The battery state is indicated on the outside of the case.The MCW-D 10 transport case can be extended with more LE-D 10 chargers for 10 microphone units each.4.1 Charging Process1. Connect the charger to AC power and switch it on. The LED on the switch will illuminate.2. Put the switched-off microphone units into the charging compartments. If microphone units are switched on, they are switchedoff automatically. When the microphone units are used again, they must be switched on.3. The charging process is indicated by the green LEDs on the outside.a) ___ ___ ___ __ LED is flashing slowly: Battery is chargedb) _________________ LED illuminates permanently: Battery is fullc) - - - - - - - - - - - - - - LED is flashing very rapidly: Errord) LED is off: No microphone unit is inserted into charging compartment or has no contacte) . . . . . . . . LED flashes rapidly: Forming modef) . - . - . - . - . - . - . - . LED long flash/short flash: Charging in the forming modeNoteIf an error has occured, try to start the charging process once again. If the LEDs are still flashing rapidly, please contact yourbeyerdynamic dealer.4.2 Forming ModeThe LE-D 10 charging units are equipped with a forming mode for the rechargeable batteries inside the microphone units. Thebatteries are formed and charged at the factory. If you have not used the microphone units for several months, you should form thebatteries before you set up the microphone units. Do this as described in the following:• First of all remove all microphone units from the charging compartments.• After switching on the charger press the buttons in the bottom of the two furthest charging compartments (next to the contactpins in the round gap).• Pressing one of these buttons will activate the forming mode for 5 charging compartments. The LEDs will flash rapidly.• Then put the microphone units into the charging compartments. The LEDs will flash short and long.• When the green LEDs are permanently on, then the battery is full.Caution:Only form empty or partly discharged batteries, but never full batteries!Do not switch off the charging unit during the forming mode, as this will interrupt the forming mode.The forming mode will be terminated automatically when the microphone units are fully charged or when the charger is switchedoff.5. Battery Charging with external ChargerThe MCW-D microphone units can be also charged with the CA 2456 external charger which is connected to the multi-functionsocket (1).Important:The automatic switching off of the microphone units when they are charged is not possible with the CA 2456. Therefore, the microphone units must be switched off manually (or via the MCW-D 100 control unit) before charging.

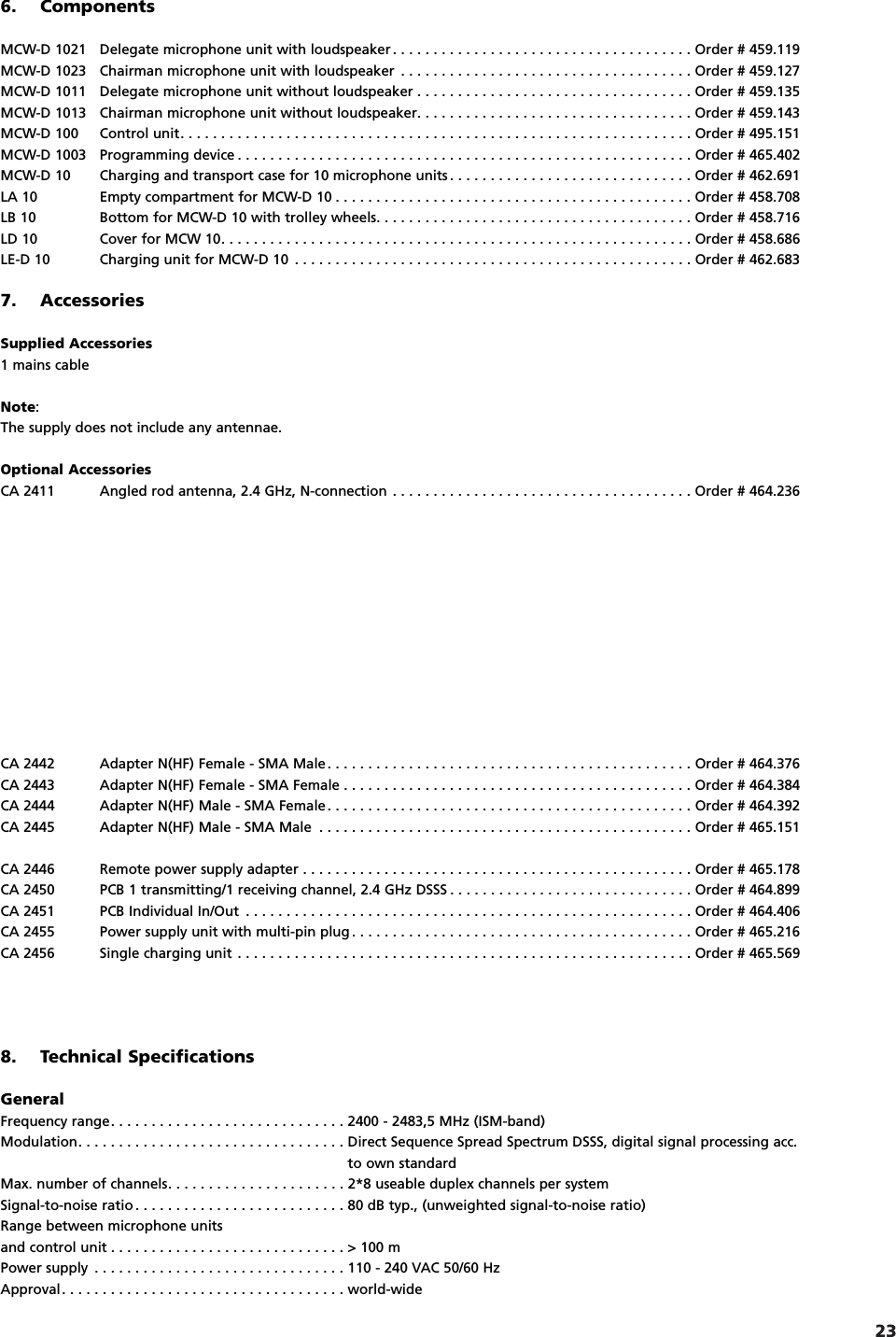

23english7. AccessoriesSupplied Accessories1 mains cableNote:The supply does not include any antennae.Optional AccessoriesCA 2411 Angled rod antenna, 2.4 GHz, N-connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.236CA 2442 Adapter N(HF) Female - SMA Male. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.376CA 2443 Adapter N(HF) Female - SMA Female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.384CA 2444 Adapter N(HF) Male - SMA Female. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.392CA 2445 Adapter N(HF) Male - SMA Male . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 465.151CA 2446 Remote power supply adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 465.178CA 2450 PCB 1 transmitting/1 receiving channel, 2.4 GHz DSSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.899CA 2451 PCB Individual In/Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 464.406CA 2455 Power supply unit with multi-pin plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 465.216CA 2456 Single charging unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 465.5698. Technical SpecificationsGeneralFrequency range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2400 - 2483,5 MHz (ISM-band)Modulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Direct Sequence Spread Spectrum DSSS, digital signal processing acc. to own standardMax. number of channels. . . . . . . . . . . . . . . . . . . . . . 2*8 useable duplex channels per system Signal-to-noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . 80 dB typ., (unweighted signal-to-noise ratio)Range between microphone unitsand control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 100 mPower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 VAC 50/60 HzApproval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . world-wide 6. ComponentsMCW-D 1021 Delegate microphone unit with loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 459.119MCW-D 1023 Chairman microphone unit with loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 459.127MCW-D 1011 Delegate microphone unit without loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 459.135MCW-D 1013 Chairman microphone unit without loudspeaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 459.143MCW-D 100 Control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 495.151MCW-D 1003 Programming device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 465.402MCW-D 10 Charging and transport case for 10 microphone units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 462.691LA 10 Empty compartment for MCW-D 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 458.708LB 10 Bottom for MCW-D 10 with trolley wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 458.716LD 10 Cover for MCW 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 458.686LE-D 10 Charging unit for MCW-D 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 462.683

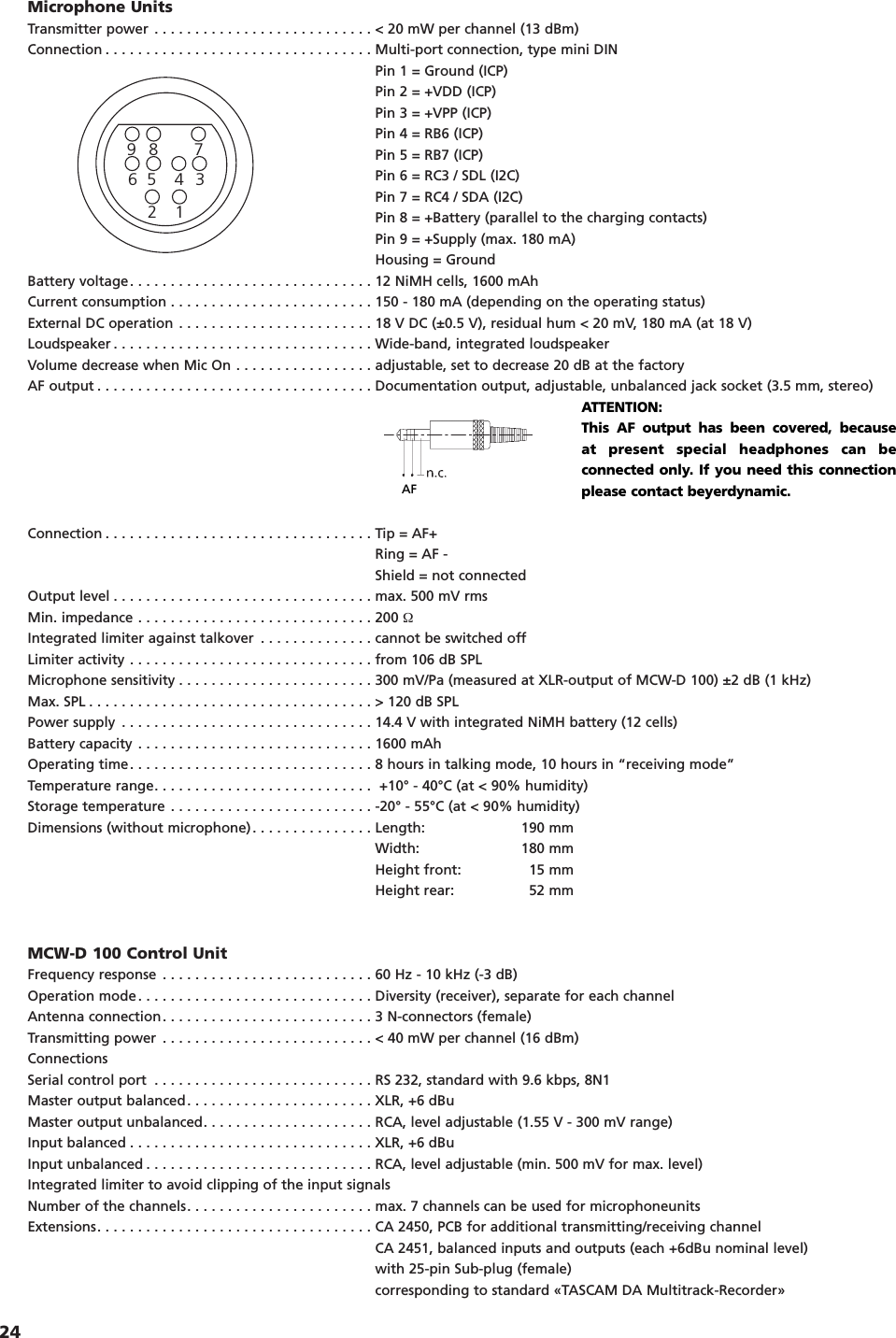

24Microphone UnitsTransmitter power . . . . . . . . . . . . . . . . . . . . . . . . . . . < 20 mW per channel (13 dBm)Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Multi-port connection, type mini DINPin 1 = Ground (ICP)Pin 2 = +VDD (ICP)Pin 3 = +VPP (ICP)Pin 4 = RB6 (ICP)Pin 5 = RB7 (ICP)Pin 6 = RC3 / SDL (I2C)Pin 7 = RC4 / SDA (I2C)Pin 8 = +Battery (parallel to the charging contacts)Pin 9 = +Supply (max. 180 mA)Housing = GroundBattery voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 NiMH cells, 1600 mAhCurrent consumption . . . . . . . . . . . . . . . . . . . . . . . . . 150 - 180 mA (depending on the operating status)External DC operation . . . . . . . . . . . . . . . . . . . . . . . . 18 V DC (±0.5 V), residual hum < 20 mV, 180 mA (at 18 V)Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wide-band, integrated loudspeakerVolume decrease when Mic On . . . . . . . . . . . . . . . . . adjustable, set to decrease 20 dB at the factoryAF output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Documentation output, adjustable, unbalanced jack socket (3.5 mm, stereo)Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tip = AF+Ring = AF -Shield = not connectedOutput level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 500 mV rmsMin. impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 ΩIntegrated limiter against talkover . . . . . . . . . . . . . . cannot be switched offLimiter activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . from 106 dB SPLMicrophone sensitivity . . . . . . . . . . . . . . . . . . . . . . . . 300 mV/Pa (measured at XLR-output of MCW-D 100) ±2 dB (1 kHz)Max. SPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 120 dB SPLPower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.4 V with integrated NiMH battery (12 cells) Battery capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600 mAhOperating time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 hours in talking mode, 10 hours in “receiving mode”Temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . +10° - 40°C (at < 90% humidity)Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . -20° - 55°C (at < 90% humidity)Dimensions (without microphone). . . . . . . . . . . . . . . Length: 190 mmWidth: 180 mmHeight front: 15 mmHeight rear: 52 mmMCW-D 100 Control UnitFrequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)Operation mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diversity (receiver), separate for each channelAntenna connection. . . . . . . . . . . . . . . . . . . . . . . . . . 3 N-connectors (female)Transmitting power . . . . . . . . . . . . . . . . . . . . . . . . . . < 40 mW per channel (16 dBm)ConnectionsSerial control port . . . . . . . . . . . . . . . . . . . . . . . . . . . RS 232, standard with 9.6 kbps, 8N1Master output balanced. . . . . . . . . . . . . . . . . . . . . . . XLR, +6 dBuMaster output unbalanced. . . . . . . . . . . . . . . . . . . . . RCA, level adjustable (1.55 V - 300 mV range)Input balanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR, +6 dBuInput unbalanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA, level adjustable (min. 500 mV for max. level)Integrated limiter to avoid clipping of the input signalsNumber of the channels. . . . . . . . . . . . . . . . . . . . . . . max. 7 channels can be used for microphoneunitsExtensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CA 2450, PCB for additional transmitting/receiving channelCA 2451, balanced inputs and outputs (each +6dBu nominal level)with 25-pin Sub-plug (female) corresponding to standard «TASCAM DA Multitrack-Recorder»AF123456789ATTENTION:This AF output has been covered, because at present special headphones can beconnected only. If you need this connectionplease contact beyerdynamic.
25englishPower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 V AC 50/60 HzFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15 A slow-blow Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . < 70 V ATemperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . +10° - 50°C (at < 90% humidity)Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 channel LEDs (red/green) and Power LEDDepth of Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380 mm at leastDimensions (W x H x D) . . . . . . . . . . . . . . . . . . . . . . . 19", 2HU (440 x 88 x 310 mm)MCW-D 10 / LE-D 10 ChargerMax. charging current . . . . . . . . . . . . . . . . . . . . . . . . 1 APower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 V AC / 230 V AC, 50 / 60 HzCharging principle . . . . . . . . . . . . . . . . . . . . . . . . . . . software controlled charging curve, variable impulse charging, re-charging after 72 hrs.Rechargeable battery . . . . . . . . . . . . . . . . . . . . . . . . . NiMH, 12 cellsSwitching-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ∆U-recognition and safety timerFuse at the mains socket . . . . . . . . . . . . . . . . . . . . . . 6.3 A slow-blow fuseMax. ambient temperature . . . . . . . . . . . . . . . . . . . . 40°C when charging (< 90% atmospheric humidity)Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . -20° - 55°CVentilator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . switched on automaticallyCharging unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 microphone unitsCharging time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2 hours when the battery is completely empty (1600 mAh)Min. charging time in the “forming” mode . . . . . . . 30 minutesLED-indication when battery is charged:a) ___ ___ ___ __ LED is flashing slowly: . . . . . . . Battery is chargedb) _________________ LED illuminates permanently: . Battery is fullc) - - - - - - - - - - - - - - LED is flashing very rapidly: . . . Errord) LED is off: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No microphone unit is inserted into charging compartment or has no contacte) . . . . . . . . LED flashes rapidly: . . . . . . . . . Forming modef) . - . - . - . - . - . - . - . LED long flash/short flash:. . . . Charging in the forming modeDimensions (L x W x H). . . . . . . . . . . . . . . . . . . . . . . . 657 x 370 x 451 mmCA 2451 PCB Individual In/Out 8 inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorderFrequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)8 outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-pin Sub-D (female) corresponding to connection of TASCAM-DA recorderFrequency response . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz - 10 kHz (-3 dB)Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. levelInput level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 dBu for max. level (without limiter)Connection:CA 2455 DC Power Supply UnitVoltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V (± 0.5 V) DCCurrent consumption . . . . . . . . . . . . . . . . . . . . . . . . . max. 333 mAInput voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 - 240 V AC 50/60 HzPlug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Euro plug, other plugs upon request

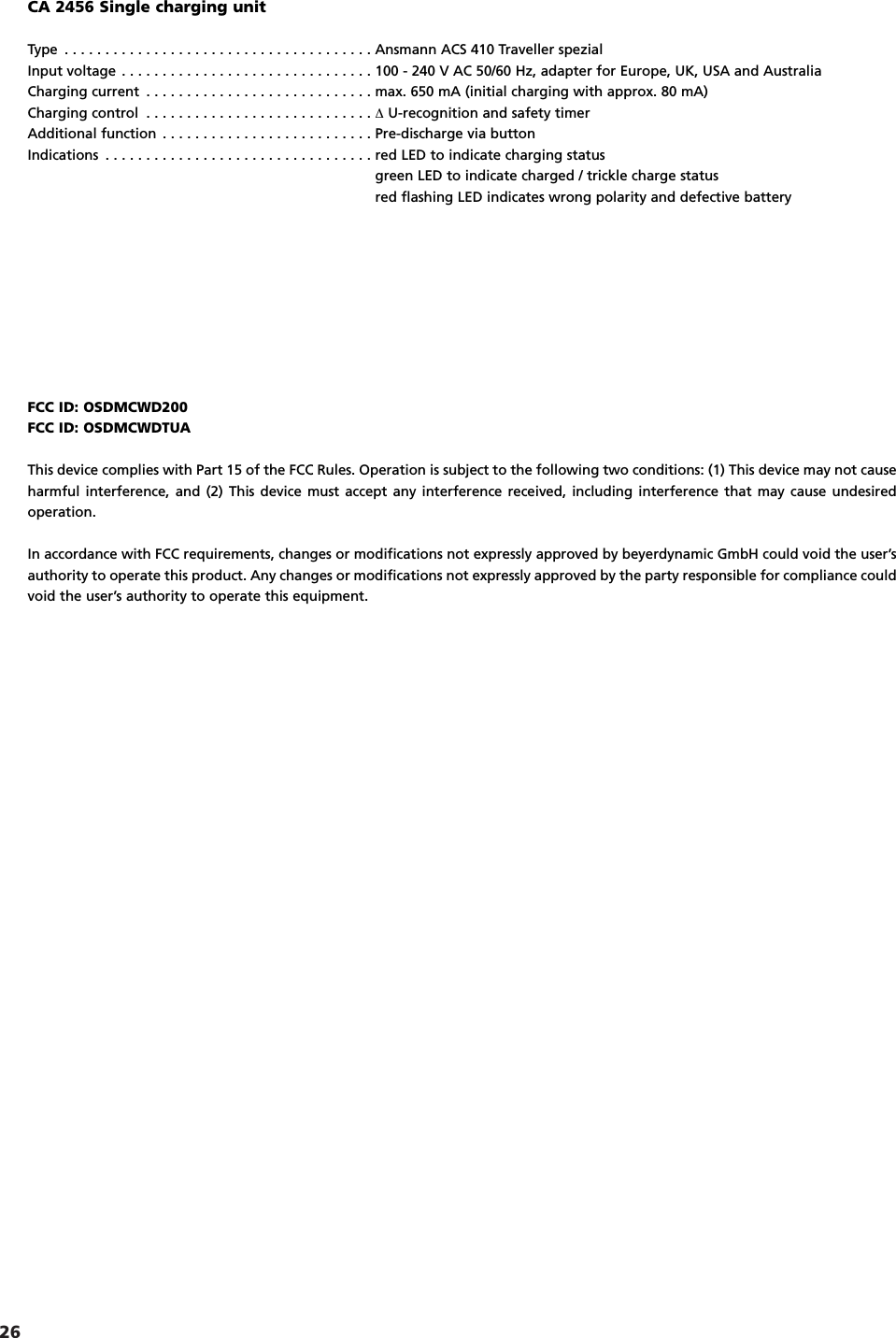

26FCC ID: OSDMCWD200FCC ID: OSDMCWDTUAThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.In accordance with FCC requirements, changes or modifications not expressly approved by beyerdynamic GmbH could void the user’sauthority to operate this product. Any changes or modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate this equipment.CA 2456 Single charging unitType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ansmann ACS 410 Traveller spezialInput voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V AC 50/60 Hz, adapter for Europe, UK, USA and AustraliaCharging current . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 650 mA (initial charging with approx. 80 mA)Charging control . . . . . . . . . . . . . . . . . . . . . . . . . . . . ∆U-recognition and safety timerAdditional function . . . . . . . . . . . . . . . . . . . . . . . . . . Pre-discharge via buttonIndications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . red LED to indicate charging statusgreen LED to indicate charged / trickle charge statusred flashing LED indicates wrong polarity and defective battery
EC-DECLARATIONOF CONFORMITYApplication ofCouncil directive: 89/336/EEC, 93/68/EEC Electromagnetic Compatibility99/5/EECR&TTE DirectiveStandards to which Conformity is Declared: EN 60268 (former DIN IEC 268)ETS 300 440ETS 300 826Manufacturer’s Name: beyerdynamic GmbH & Co.Manufacturer’s Address: Theresienstraße 8, 74072 Heilbronn, GermanyType of Equipment: Wireless Conference SystemMCW DigitalModel Numbers: MCW D 1011, MCW D 1013, MCW D 1021, MCW D 1023MCW D 100I, the undersigned, as an employee of beyerdynamic, hereby declare that the equipmentspecified conforms to the above Directive and Standards.Date: 1st November, 2001Full Name: Ulrich RothPosition: R&D Manager
