OPERATING INSTRUCTIONSStegosWireless digital Boundary Microphone System
Stegos – Contents 31. Safety and environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.1 Stegos RS receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.2 Stegos TB boundary microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62. Stegos RS receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72.2 How to connect the antennae . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82.3 Where to place the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82.4 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82.5 How to operate the receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92.6 How to install a receiver into a 19" rack. . . . . . . . . . . . . . . . . . . . . . . . . . . 103. Stegos TB boundary microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103.2 How to operate the microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113.3 How to recharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123.4 Mains operated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124. Stegos software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134.1 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134.3 Putting into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144.4 Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154.5 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176. Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177. Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188. Simultaneous operation of the Stegos system and other 2.4 GHz devices . . . . . . . 188.1 Physical laws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188.2 Stegos and WLAN or WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198.3 Stegos and Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208.4 Example for Stegos, media control systems and WLAN. . . . . . . . . . . . . . . . 209. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2110. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21EC-Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25FCC-Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Stegos – Safety and Environment4Thank you for selecting the Stegos wireless digital boundary microphone system. Please take some timeto read carefully through this manual before setting up the equipment.The wireless Stegos system includes receiver and boundary microphone and has been developed especially for the use with video conference systems. Up to three Stegos systems can be operated inneighbouring rooms simultaneously. 1. Safety and environment1.1 Stegos RS receiver1. Read these instructions.2. Keep these instructions. 3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,and the point where they exit from the apparatus.9. Only use attachments/accessories specified by the manufacturer. 10. Unplug this apparatus during lightning storms or when unused for long periods of time. 11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has beendamaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does notoperate normally, or has been dropped.Exemption from liability• beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product.Location• The equipment must be set up so that the mains switch, mains plug and all connections on the rearof the device are easily accessible. • If you transport the equipment to another location take care to ensure that it is adequately securedand can never be damaged by being dropped or by impacts on the equipment. Fire hazard• Never place naked flames (e.g. candles) near the equipment.The lightning flash within an equilateral triangle is intended to alert the user to the presence ofuninsulated dangerous voltage within the device that may be sufficient enough to constitute arisk of electric shock to users.The exclamation mark within an equilateral triangle is intended to alert the user to the presenceof important operating and maintenance instructions in the literature accompanying the product.
Stegos – Safety and Environment 5Humidity / heat sources• Never expose the equipment to rain or a high level of humidity. For this reason do not install it inthe immediate vicinity of swimming pools, showers, damp basement rooms or other areas with unusually high atmospheric humidity. • Never place objects containing liquid (e.g. vases or drinking glasses) on the equipment. Liquids in theequipment could cause a short circuit. • Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.Connection• The equipment must be connected to a mains socket that has an earth contact. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Lay all connection cables so that they do not present a trip hazard. • Whenever working on the equipment switch off all inputs and outputs to the power supply. • Check whether the connection figures comply with the existing mains supply. Serious damage couldoccur due to connecting the system to the wrong power supply. An incorrect mains voltage could damage the equipment or cause an electric shock.• Please note that different operating voltages require the use of different types of power cable andplugs.Please refer to the following table:• If the equipment causes a blown fuse or a short circuit, disconnect it from the mains and have it checked and repaired. • Do not hold the mains cable with wet hands. There must be no water or dust on the contact pins. In both cases you could receive an electric shock. • The mains cable must be firmly connected. If it is loose there is a fire hazard. • Always pull out the mains cable from the mains and/or from the equipment by the plug – never bythe cable. The cable could be damaged and cause an electric shock or fire. • Do not use the equipment if the mains plug is damaged. • If you connect defective or unsuitable accessories, the equipment could be damaged. Only use connection cables available from or recommended by beyerdynamic. If you use cables you havemade up yourself, all claim to warranty is null and void. Maintenance• Only clean the equipment with a slightly damp or dry cloth. Never use solvents as these damage thesurface.Troube shooting and servicing• Do not open the equipment without authorisation. You could receive an electric shock. There areno user-serviceable parts inside.• Leave all service work to authorised expert personnel. Voltage Power plug according to standard110 - 125 V UL817 and CSA C 22.2 no 42.220 - 230 V CEE 7 page VII, SR section 107-2-D1/IEC 83 page C4.240 V BS 1363 (1984): “Specification for 13A fused plugs andswitched and un-switched socket outlets.”

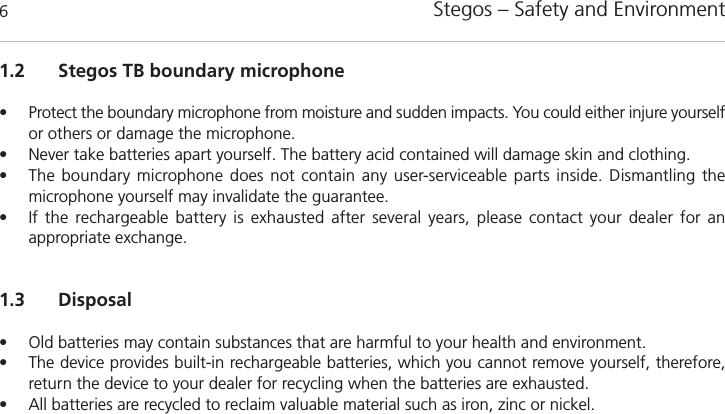

Stegos – Safety and Environment61.2 Stegos TB boundary microphone• Protect the boundary microphone from moisture and sudden impacts. You could either injure yourselfor others or damage the microphone. • Never take batteries apart yourself. The battery acid contained will damage skin and clothing. • The boundary microphone does not contain any user-serviceable parts inside. Dismantling the microphone yourself may invalidate the guarantee. • If the rechargeable battery is exhausted after several years, please contact your dealer for an appropriate exchange. 1.3 Disposal• Old batteries may contain substances that are harmful to your health and environment. • The device provides built-in rechargeable batteries, which you cannot remove yourself, therefore, return the device to your dealer for recycling when the batteries are exhausted. • All batteries are recycled to reclaim valuable material such as iron, zinc or nickel.
Stegos – RS Receiver 72. Stegos RS receiverThe receiver provides three different connections for video conference systems: 3-pin Phoenix terminalstrip, mini jack (3.5 mm) and 3-pin XLR. The individual microphone signals are available via a multipinPhoenix terminal strip. For the data exchange with media control systems or PC there is an RS 232 interface and a USB connection available. The channel LEDs display which channel is occupied (red) oravailable (green). Up to four acoustical boundary microphones can be operated with one receiver. 2.1 Controls and indicatorsᕡPower on LEDᕢAudio channel LEDs 1 to 4 (green = channel vacant; red = channel occupied)ᕣLEDs for RF band (high, mid, low)ᕤPush-button for RF band selectionᕥStandby button for microphoneᕦLED for headphone channelᕧHeadphone connectionᕨRotary potentiometer with push-button to select headphone channel and volume of the individualmicrophonesᕩUSB connectionµAntenna connection¸RS 232 interface¹Output audio channels, 12-pin Phoenix terminal stripƸConnection for video conference system, 3-pin Phoenix terminal stripƹConnection for video conference system, mini jack (3.5 mm) ƺConnection for video conference system, 3-pin XLRƻChangeover switchƼOn/Off switchƽFuseƾMains connectionFront view Rear viewᕡ ᕢ ᕣ ᕤ ᕥ ᕦ ᕧ ᕨ ᕩƺ ƻ Ƽ ƽ ƾµ µ¸ ¹ Ƹ ƹ

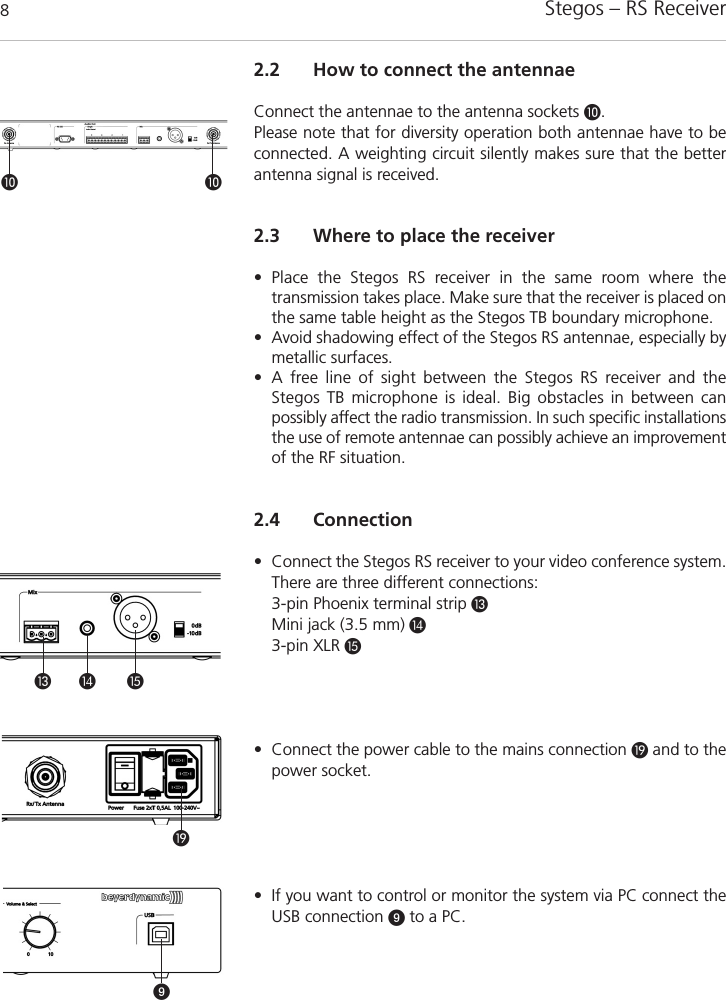

Stegos – RS Receiver82.2 How to connect the antennaeConnect the antennae to the antenna sockets µ.Please note that for diversity operation both antennae have to beconnected. A weighting circuit silently makes sure that the betterantenna signal is received. 2.3 Where to place the receiver• Place the Stegos RS receiver in the same room where the transmission takes place. Make sure that the receiver is placed onthe same table height as the Stegos TB boundary microphone.• Avoid shadowing effect of the Stegos RS antennae, especially bymetallic surfaces.• A free line of sight between the Stegos RS receiver and the Stegos TB microphone is ideal. Big obstacles in between can possibly affect the radio transmission. In such specific installationsthe use of remote antennae can possibly achieve an improvementof the RF situation. 2.4 Connection• Connect the Stegos RS receiver to your video conference system.There are three different connections: 3-pin Phoenix terminal strip ƸMini jack (3.5 mm) ƹ3-pin XLR ƺ• Connect the power cable to the mains connection ƾand to thepower socket.• If you want to control or monitor the system via PC connect theUSB connection ᕩto a PC.µ µƺƾᕩƸ ƹ
Stegos – RS Receiver 92.5 How to operate the receiver• Turn on the receiver with the on/off switch Ƽ. The green poweron LED ᕡwill illuminate.• The channel LEDs 1 to 4 will illuminate green to indicate the availability. As soon as you turn on the first Stegos TB boundarymicrophone, the channel LED 1 will illuminate ᕢred to indicatethat the channel is occupied.• At the factory the RF band “Low” has been adjusted. If inter-ferences occur, you should change the frequency band. Use thetip of a pencil or a paper clip to press the countersunk push-button for RF band selection ᕤ. The boundary microphones areautomatically set to the selected frequency band. ƼᕡᕢᕤWiring Phoenix terminal strips – rear view Stegos RS+- - - - -+++ +-+ShieldHotCold
Stegos – TB Boundary Microphone103. Stegos TB boundary microphoneThe boundary microphone provides a semi-cardioid polar pattern with a high gain before feedback. Themicrophone is powered via integrated rechargeable NiMH batteries, which have to be recharged beforeusing the microphone the first time. The operating time is 14 hours at minimum. The microphone canbe recharged or operated permanently via a power supply unit connected to the DC connection. The maximum charging time is around 2 hours. The battery and charging state is displayed via an LED on therear of the microphone. 3.1 Controls and indicatorsቢ ባ ቤብቢButton for On / Off / Mute of the microphoneባDC connection for charging or DC-powered operationቤOperating control LEDብButton for On / Off of the device2.6 How to install a receiver into a 19" rack• If you want to install a receiver into a 19" rack, mount the supplied brackets to the right and lefthand side. Mounting bracket Mounting bracket
Stegos – TB Boundary Microphone 113.2 How to operate the microphoneOn/Off mode• Turn on the Stegos TB boundary microphone with the push-button ቢ. The microphone that is turned on first, is always allocated to channel 1.• The microphone is open and the push-button will illuminate red.If you press the push-button ቢanother time, the microphone ismuted, but the channel still allocated. The push-button does not illuminate any more. Push-To-Mute mode• Turn on the Stegos TB boundary microphone with the push-button ቢ. The microphone that is turned on first, is always allocated to channel 1.• The microphone is open and the push-button ቢ will illuminatered. If you hold down the push-button ቢ, the microphone ismuted. The push-button ቢ does not illuminate any more. Themicrophone is still allocated to a channel. • If you release the push-button ቢ, the microphone is open again.Function test• You can test if the boundary microphone are operating: Connect a headphone to the Stegos RS receiver ᕧ.Turn the control ᕨ to set the volume and press the control ᕨ several times until you have listened to all channels from 1 to 4 orthe Mix signal. How to turn off• There are several ways to turn off the microphone: a) Press the on/off switch ቢfor about 3 seconds (only whenthe on/off mode has been selected).b) Press the push-button ብfor about 3 seconds at the rear ofthe microphone unit.ብቢቢᕨᕧ
Stegos – TB Boundary Microphone123.3 How to recharge•Before the Stegos TB boundary microphone is used for the firsttime, you have to recharge the integrated rechargeable batteries. • In order to recharge the batteries connect the supplied mainscharger adapter to the microphone ባand a power socket. TheLED ቤwill illuminate briefly for one time. The charging time is approx. 2 hours. • The LED ቤdisplays the charging process: LED flashes red . . . . . . . . . . . . . . . Charging in processLED illuminates permanently red. . Battery is fullLED flashes slowly red. . . . . . . . . . Normal charging processLED flashes rapidly red . . . . . . . . . Error (in this case disconnectthe mains charger adapter,then connect again; if neededphone the support staff)• The operating time of the rechargeable batteries integrated in theStegos TB boundary microphone is at least 14 hours. The LED ቤon the rear displays a reduced battery charge. Whenthe LED ቤstarts flashing green, the maximum operating time ofthe batteries is still approx. 1 hours. The Stegos software displaysthe battery status in per cent.Important:• Depending on the kind and time of use as well as the number ofcharging cycles, rechargeable batteries are subject to a naturalaging process reducing the total capacity and the maximum ope-rating time.• It is normal that rechargeable batteries are heated up during thecharging process.• If the boundary microphone is turned on while charging, the LED ቤwill illuminate green.ባ ቤᕥƼc) Press the stand-by push-button ᕥof the Stegos RS receiver.d) Turn off the Stegos RS receiver via the on/off switch Ƽonthe rear of the Stegos RS receiver. e) Select the “Power off” push-button in the Stegos software.

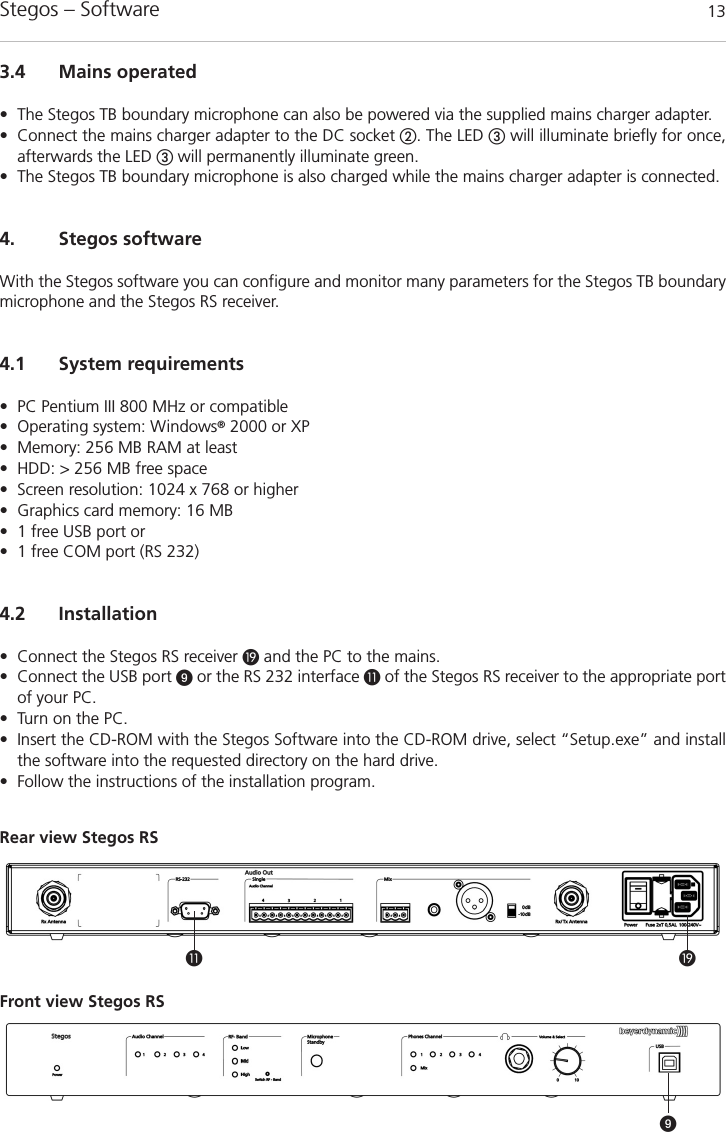

Stegos – Software 13ƾ¸Front view Stegos RSRear view Stegos RS ᕩ3.4 Mains operated• The Stegos TB boundary microphone can also be powered via the supplied mains charger adapter.• Connect the mains charger adapter to the DC socket ባ. The LED ቤwill illuminate briefly for once,afterwards the LED ቤwill permanently illuminate green.• The Stegos TB boundary microphone is also charged while the mains charger adapter is connected.4. Stegos softwareWith the Stegos software you can configure and monitor many parameters for the Stegos TB boundarymicrophone and the Stegos RS receiver. 4.1 System requirements• PC Pentium III 800 MHz or compatible• Operating system: Windows®2000 or XP• Memory: 256 MB RAM at least• HDD: > 256 MB free space• Screen resolution: 1024 x 768 or higher• Graphics card memory: 16 MB• 1 free USB port or• 1 free COM port (RS 232) 4.2 Installation• Connect the Stegos RS receiver ƾand the PC to the mains.• Connect the USB port ᕩor the RS 232 interface ¸of the Stegos RS receiver to the appropriate portof your PC.• Turn on the PC.• Insert the CD-ROM with the Stegos Software into the CD-ROM drive, select “Setup.exe” and installthe software into the requested directory on the hard drive. • Follow the instructions of the installation program.

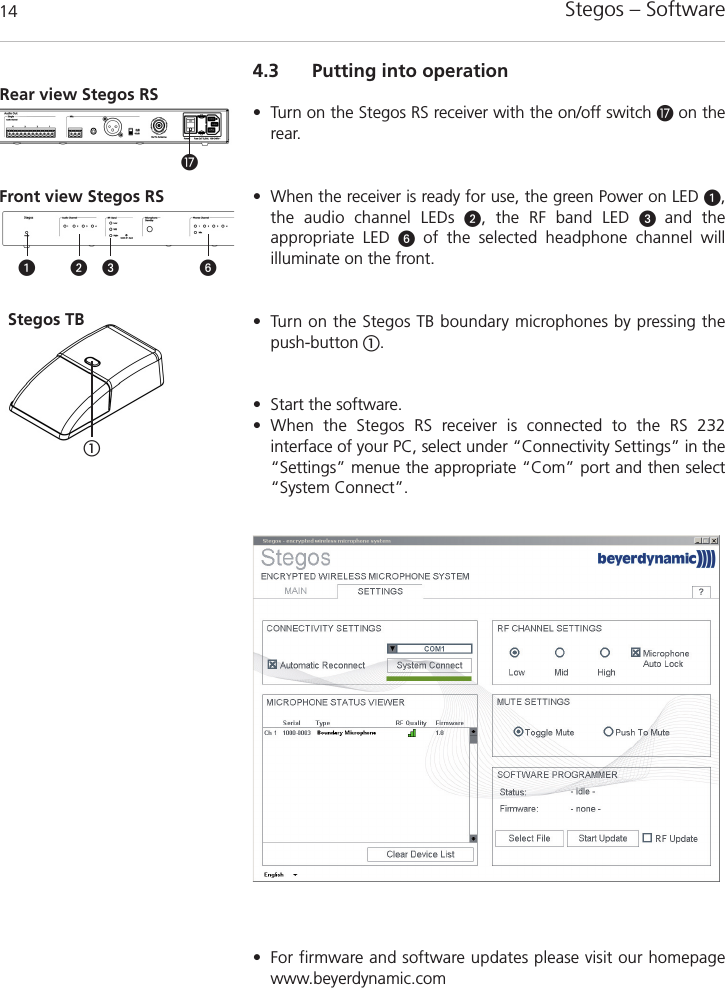

Stegos – Software 144.3 Putting into operation• Turn on the Stegos RS receiver with the on/off switch Ƽon therear. • When the receiver is ready for use, the green Power on LED ᕡ,the audio channel LEDs ᕢ, the RF band LED ᕣ and the appropriate LED ᕦof the selected headphone channel will illuminate on the front.• Turn on the Stegos TB boundary microphones by pressing the push-button ቢ.• Start the software.• When the Stegos RS receiver is connected to the RS 232 interface of your PC, select under “Connectivity Settings” in the“Settings” menue the appropriate “Com” port and then select“System Connect”. Front view Stegos RS Rear view Stegos RS ᕡ ᕢ ᕦᕣƼቢ• For firmware and software updates please visit our homepagewww.beyerdynamic.comStegos TB

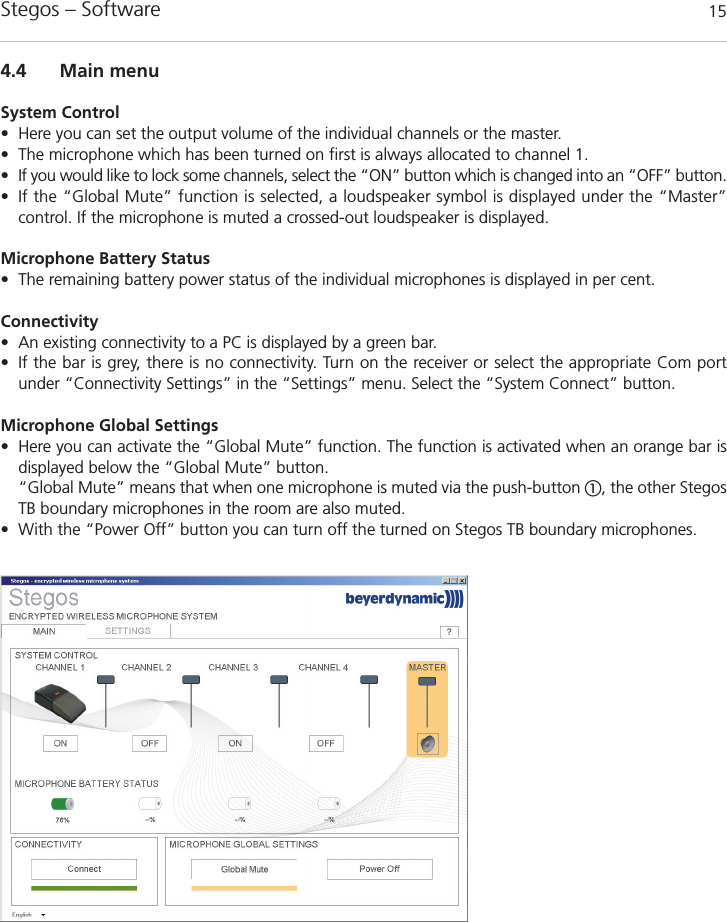

Stegos – Software 154.4 Main menuSystem Control• Here you can set the output volume of the individual channels or the master.• The microphone which has been turned on first is always allocated to channel 1.• If you would like to lock some channels, select the “ON” button which is changed into an “OFF” button.• If the “Global Mute” function is selected, a loudspeaker symbol is displayed under the “Master” control. If the microphone is muted a crossed-out loudspeaker is displayed.Microphone Battery Status• The remaining battery power status of the individual microphones is displayed in per cent. Connectivity• An existing connectivity to a PC is displayed by a green bar. • If the bar is grey, there is no connectivity. Turn on the receiver or select the appropriate Com portunder “Connectivity Settings” in the “Settings” menu. Select the “System Connect” button. Microphone Global Settings• Here you can activate the “Global Mute” function. The function is activated when an orange bar isdisplayed below the “Global Mute” button. “Global Mute” means that when one microphone is muted via the push-button ቢ, the other StegosTB boundary microphones in the room are also muted. • With the “Power Off” button you can turn off the turned on Stegos TB boundary microphones.
Stegos – Software 164.5 SettingsConnectivity Settings• Depending if you have connected the Stegos RS receiver to the USB port or RS 232 interface, you canselect the appropriate Com port. • When you have selected the Com port, select “Connect”. • If the connection is to be set automatically after a reboot, tick the “Automatic Reconnect” tick box. Microphone Status Viewer• Here you can recognise which microphones are currently active or which microphones were active. Theactive microphones display in addition to the serial number, device type and firmware as well as thechannel and RF quality. • If the RF quality is okay, three bars are displayed. If the RF quality drops, the bars are reduced correspondingly. RF Channel Settings• You can select among three frequency bands: Low, Mid, High. • In order to set the microphones automatically to the selected frequency band, tick the “MicrophoneAuto Lock” tick box. • If the microphones are configured according to your requests you can deactivate the “MicrophoneAuto Lock” tick box.TipThe function “Microphone Auto Lock” has the advantage that the microphones automatically searchfor a Stegos RS receiver when turned on and are configured to this one. If you change the frequencyband (e.g. to avoid jamming sources such as Wireless LAN), the microphones automatically search fora receiver again and are configured to the changed frequency band.Mute Settings• If you activate the “Toggle Mute” option, the microphone is activated when the push-button ቢ ispressed and deactivated when the push-button is pressed again. • If you activate the “Push-To-Mute (PTM)” option, the microphone is always open and only muted,when you hold down the push-button ቢ.

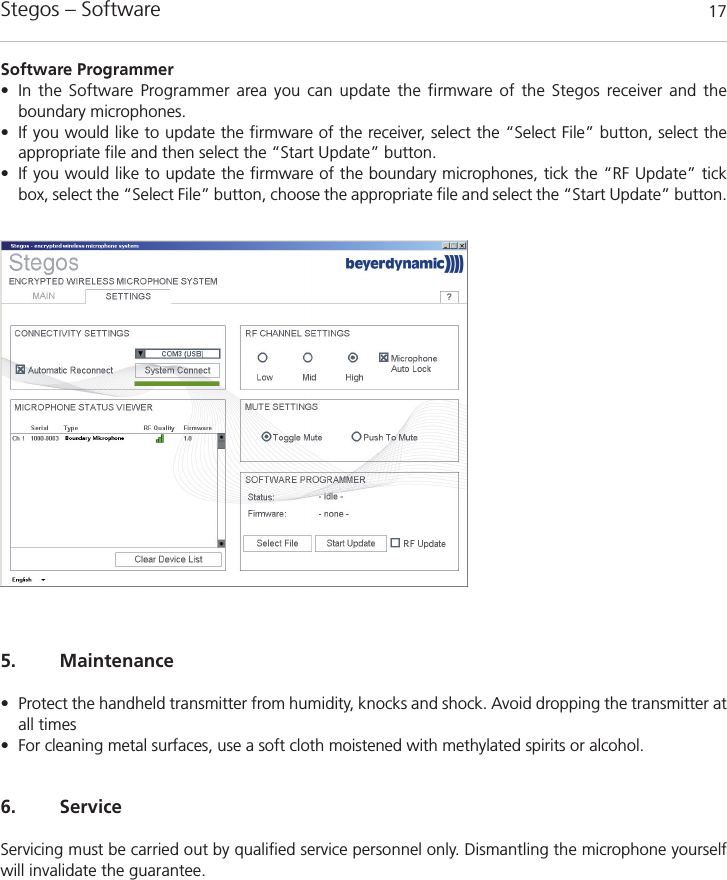

Stegos – Software 175. Maintenance• Protect the handheld transmitter from humidity, knocks and shock. Avoid dropping the transmitter atall times• For cleaning metal surfaces, use a soft cloth moistened with methylated spirits or alcohol.6. ServiceServicing must be carried out by qualified service personnel only. Dismantling the microphone yourselfwill invalidate the guarantee.Software Programmer• In the Software Programmer area you can update the firmware of the Stegos receiver and the boundary microphones. • If you would like to update the firmware of the receiver, select the “Select File” button, select the appropriate file and then select the “Start Update” button. • If you would like to update the firmware of the boundary microphones, tick the “RF Update” tickbox, select the “Select File” button, choose the appropriate file and select the “Start Update” button.

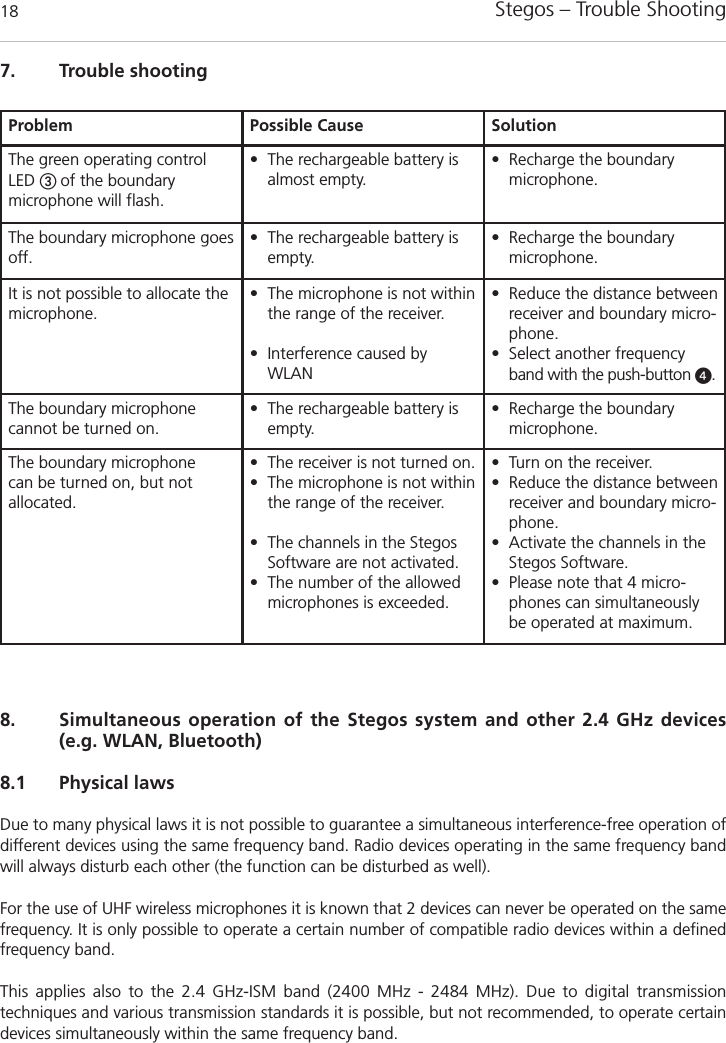

Stegos – Trouble Shooting188. Simultaneous operation of the Stegos system and other 2.4 GHz devices(e.g. WLAN, Bluetooth)8.1 Physical lawsDue to many physical laws it is not possible to guarantee a simultaneous interference-free operation ofdifferent devices using the same frequency band. Radio devices operating in the same frequency bandwill always disturb each other (the function can be disturbed as well).For the use of UHF wireless microphones it is known that 2 devices can never be operated on the samefrequency. It is only possible to operate a certain number of compatible radio devices within a definedfrequency band.This applies also to the 2.4 GHz-ISM band (2400 MHz - 2484 MHz). Due to digital transmission techniques and various transmission standards it is possible, but not recommended, to operate certaindevices simultaneously within the same frequency band.7. Trouble shootingProblem Possible Cause SolutionThe green operating controlLED ቤ of the boundary microphone will flash.• The rechargeable battery is almost empty.• Recharge the boundary microphone.The boundary microphone goesoff.• The rechargeable battery is empty.• Recharge the boundary microphone.It is not possible to allocate themicrophone.• The microphone is not withinthe range of the receiver.• Interference caused byWLAN• Reduce the distance betweenreceiver and boundary micro-phone.• Select another frequencyband with the push-button ᕤ.The boundary microphone cannot be turned on.• The rechargeable battery is empty.• Recharge the boundary microphone.The boundary microphone can be turned on, but not allocated.• The receiver is not turned on.• The microphone is not withinthe range of the receiver.• The channels in the StegosSoftware are not activated. • The number of the allowedmicrophones is exceeded.• Turn on the receiver.• Reduce the distance betweenreceiver and boundary micro-phone.• Activate the channels in theStegos Software. • Please note that 4 micro-phones can simultaneouslybe operated at maximum.

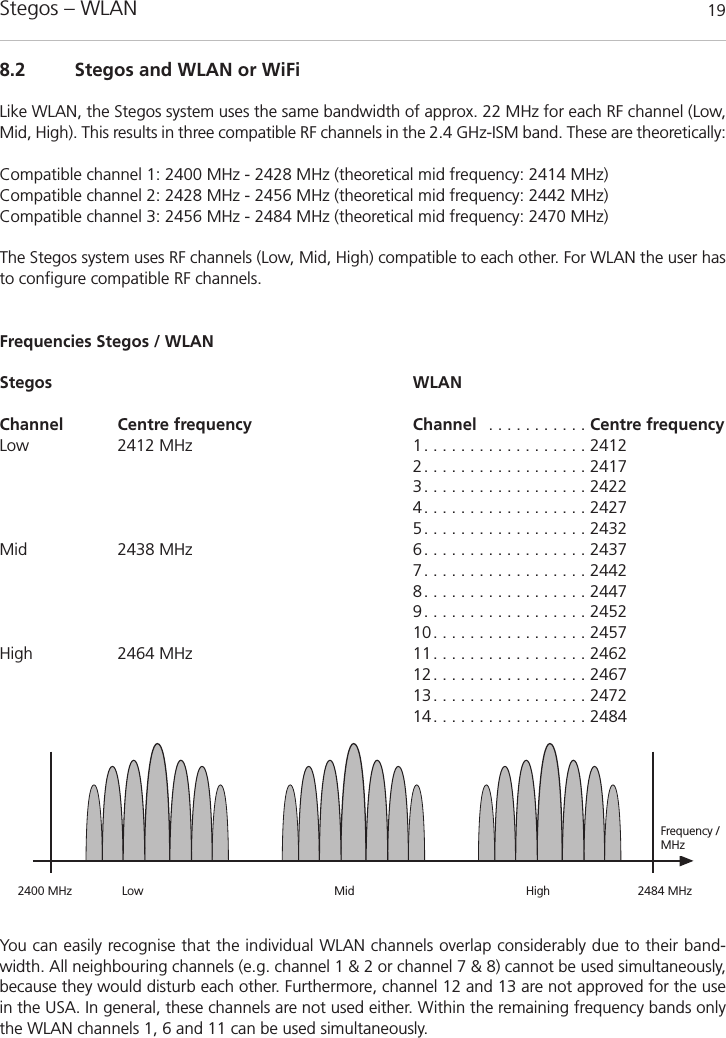

Stegos – WLAN 192400 MHz Low Mid High 2484 MHzFrequency /MHz8.2 Stegos and WLAN or WiFiLike WLAN, the Stegos system uses the same bandwidth of approx. 22 MHz for each RF channel (Low,Mid, High). This results in three compatible RF channels in the 2.4 GHz-ISM band. These are theoretically:Compatible channel 1: 2400 MHz - 2428 MHz (theoretical mid frequency: 2414 MHz)Compatible channel 2: 2428 MHz - 2456 MHz (theoretical mid frequency: 2442 MHz)Compatible channel 3: 2456 MHz - 2484 MHz (theoretical mid frequency: 2470 MHz)The Stegos system uses RF channels (Low, Mid, High) compatible to each other. For WLAN the user hasto configure compatible RF channels.Frequencies Stegos / WLANStegos WLANChannel Centre frequency Channel . . . . . . . . . . . Centre frequencyLow 2412 MHz 1. . . . . . . . . . . . . . . . . . 24122. . . . . . . . . . . . . . . . . . 24173. . . . . . . . . . . . . . . . . . 24224. . . . . . . . . . . . . . . . . . 24275. . . . . . . . . . . . . . . . . . 2432Mid 2438 MHz 6. . . . . . . . . . . . . . . . . . 24377. . . . . . . . . . . . . . . . . . 24428. . . . . . . . . . . . . . . . . . 24479. . . . . . . . . . . . . . . . . . 245210. . . . . . . . . . . . . . . . . 2457High 2464 MHz 11. . . . . . . . . . . . . . . . . 246212. . . . . . . . . . . . . . . . . 246713. . . . . . . . . . . . . . . . . 247214. . . . . . . . . . . . . . . . . 2484You can easily recognise that the individual WLAN channels overlap considerably due to their band-width. All neighbouring channels (e.g. channel 1 & 2 or channel 7 & 8) cannot be used simultaneously,because they would disturb each other. Furthermore, channel 12 and 13 are not approved for the usein the USA. In general, these channels are not used either. Within the remaining frequency bands onlythe WLAN channels 1, 6 and 11 can be used simultaneously.
Stegos – WLAN20For this reason the WLAN channels 1, 6 and 11 were selected for the RF channels Low, Mid and Highused for the Stegos system. Due to this frequency compatibility the Stegos system is operated WLAN-friendly.Due to careful frequency planning it is possible to operate one Stegos receiver and a maximum of twoWLAN devices nearby simultaneously.More tips for installation• Keep a minimum distance of approx. 5 m between WLAN or WiFi devices (e.g. Router, Repeater) andthe transmitting and receiving antennae of the Stegos RS receiver. • If possible, deactivate all WLAN interfaces of laptops using the same frequency range as Stegos.• The distance between the WLAN or WiFi and Stegos channels should be as large as possible.• The channels of the Stegos system can be selected with the supplied Stegos software.8.3 Stegos and Bluetooth• Bluetooth devices make use of the whole 2.4 GHz range with changing carrier frequencies (frequencyhopping). • Interferences caused by Bluetooth devices (including microwave ovens) in normal operation can be excluded due to different measures inside the Stegos system and an advanced transmission protocol.• It cannot be excluded, however, that an exisisting Bluetooth data traffic will be intefered by Stegos.8.4 Example for Stegos, media control systems and WLANThe 2.4 GHz technology is used for many applications in discussions and meetings. In addition to a wireless discussion system other functions (light or volume control etc.) are operated via a wireless 2.4 GHz touch screen of a media control system. Furthermore, the participants of a meeting often havedirect internet access via a WLAN access point.The Stegos system and WLAN make use of compatible transmission standards. This should be consideredwhen also using a media control system with a touch screen. State-of the-art devices correspond to theWLAN standard.1. Configure the Stegos system to the RF channel “Low”. The Stegos system then makes use of thefrequency range of 2401 to 2423 MHz. This frequency range must be reserved for the Stegos exclusively.2. Configure the touch screen of the media control system to the frequency range of 2426 to 2448 MHz. This corresponds to the WLAN channel 6. This frequency range must be reserved for theuse of the touch screen exclusively.3. Configure the WLAN access point to WLAN channel 11 making use of the frequency range 2451 to2473 MHz. This frequency range must be reserved for the use by WLAN exclusively.

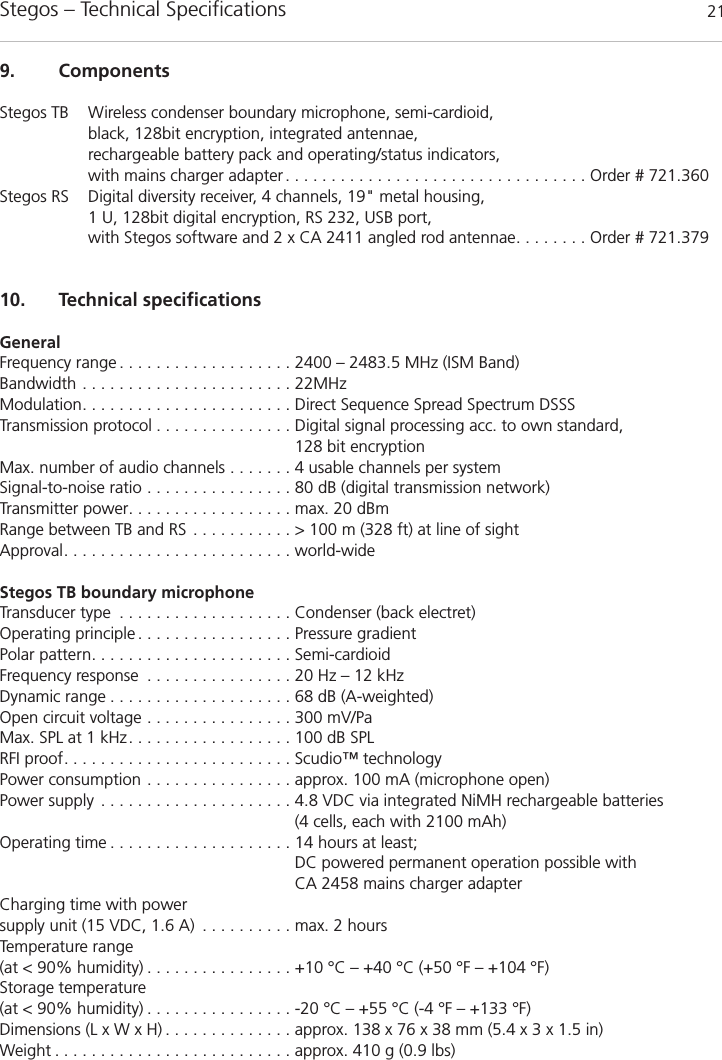

Stegos – Technical Specifications 219. ComponentsStegos TB Wireless condenser boundary microphone, semi-cardioid, black, 128bit encryption, integrated antennae, rechargeable battery pack and operating/status indicators,with mains charger adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.360Stegos RS Digital diversity receiver, 4 channels, 19" metal housing,1 U, 128bit digital encryption, RS 232, USB port,with Stegos software and 2 x CA 2411 angled rod antennae. . . . . . . . Order # 721.37910. Technical specificationsGeneralFrequency range . . . . . . . . . . . . . . . . . . . 2400 – 2483.5 MHz (ISM Band)Bandwidth . . . . . . . . . . . . . . . . . . . . . . . 22MHzModulation. . . . . . . . . . . . . . . . . . . . . . . Direct Sequence Spread Spectrum DSSS Transmission protocol . . . . . . . . . . . . . . . Digital signal processing acc. to own standard, 128 bit encryptionMax. number of audio channels . . . . . . . 4 usable channels per systemSignal-to-noise ratio . . . . . . . . . . . . . . . . 80 dB (digital transmission network)Transmitter power. . . . . . . . . . . . . . . . . . max. 20 dBm Range between TB and RS . . . . . . . . . . . > 100 m (328 ft) at line of sightApproval. . . . . . . . . . . . . . . . . . . . . . . . . world-wideStegos TB boundary microphoneTransducer type . . . . . . . . . . . . . . . . . . . Condenser (back electret)Operating principle . . . . . . . . . . . . . . . . . Pressure gradientPolar pattern. . . . . . . . . . . . . . . . . . . . . . Semi-cardioidFrequency response . . . . . . . . . . . . . . . . 20 Hz – 12 kHzDynamic range . . . . . . . . . . . . . . . . . . . . 68 dB (A-weighted)Open circuit voltage . . . . . . . . . . . . . . . . 300 mV/PaMax. SPL at 1 kHz. . . . . . . . . . . . . . . . . . 100 dB SPLRFI proof. . . . . . . . . . . . . . . . . . . . . . . . . Scudio™ technologyPower consumption . . . . . . . . . . . . . . . . approx. 100 mA (microphone open)Power supply . . . . . . . . . . . . . . . . . . . . . 4.8 VDC via integrated NiMH rechargeable batteries(4 cells, each with 2100 mAh)Operating time . . . . . . . . . . . . . . . . . . . . 14 hours at least;DC powered permanent operation possible with CA 2458 mains charger adapter Charging time with power supply unit (15 VDC, 1.6 A) . . . . . . . . . . max. 2 hoursTemperature range(at < 90% humidity) . . . . . . . . . . . . . . . . +10 °C – +40 °C (+50 °F – +104 °F)Storage temperature(at < 90% humidity) . . . . . . . . . . . . . . . . -20 °C – +55 °C (-4 °F – +133 °F)Dimensions (L x W x H) . . . . . . . . . . . . . . approx. 138 x 76 x 38 mm (5.4 x 3 x 1.5 in)Weight . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 410 g (0.9 lbs)
Stegos – Technical Specifications22Stegos RS receiverConnections (on the rear)Balanced, per channel (+6 dBu) . . . . . . . Phoenix terminals (4x3)Balanced, Mix Signal (+6 dBu/-10dB switchable) . . . . . . . . . . . Phoenix terminals / XLR (male) / mini jack (3.5 mm)Monitor headphone output . . . . . . . . . . 1/4" jack (6.35 mm) Media control / Service . . . . . . . . . . . . . . RS 232, 57.6 kbps, 8-N-1 Media control / PC . . . . . . . . . . . . . . . . . USB, type B (on the front)Tx/Rx and Rx antennae . . . . . . . . . . . . . . 2 N(HF)-connectors (socket)Power connection. . . . . . . . . . . . . . . . . . IEC power connection, incl. power cable 1.5 m (4,9 ft)Power supply unitVoltage supply . . . . . . . . . . . . . . . . . . . . 100 – 240 VAC, 50/60 HzFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 A, slow-blowPower consumption . . . . . . . . . . . . . . . . typ. 3 W, max. 5 WIndicators (on the front)Power. . . . . . . . . . . . . . . . . . . . . . . . . . . LED (green)Channel (active/occupied) . . . . . . . . . . . . 4x LED (green/red))Frequency range . . . . . . . . . . . . . . . . . . . 3x LED (green)Monitor selection (Channel / Mix) . . . . . . . 5x LED (green)Controls (on the front)Standby microphones . . . . . . . . . . . . . . . Push-buttonSelection RF band . . . . . . . . . . . . . . . . . . Countersunk push-buttonVolume control monitor-headphonewith monitor channel selection . . . . . . . . Rotary potentiometer with push-buttonGeneralTemperature range(at < 90% humidity) . . . . . . . . . . . . . . . . +10 °C – +50 °C (+50 °F – +122 °F)Storage temperature(at < 90% humidity) . . . . . . . . . . . . . . . . -20 °C – +55 °C (-4 °F – +131 °F)Dimensions (L x W x H) . . . . . . . . . . . . . . 19", 1 U (238 x 450 x 44mm / 9.4 x 17.7 x 1.7 in)Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 kg (5.5 lbs)

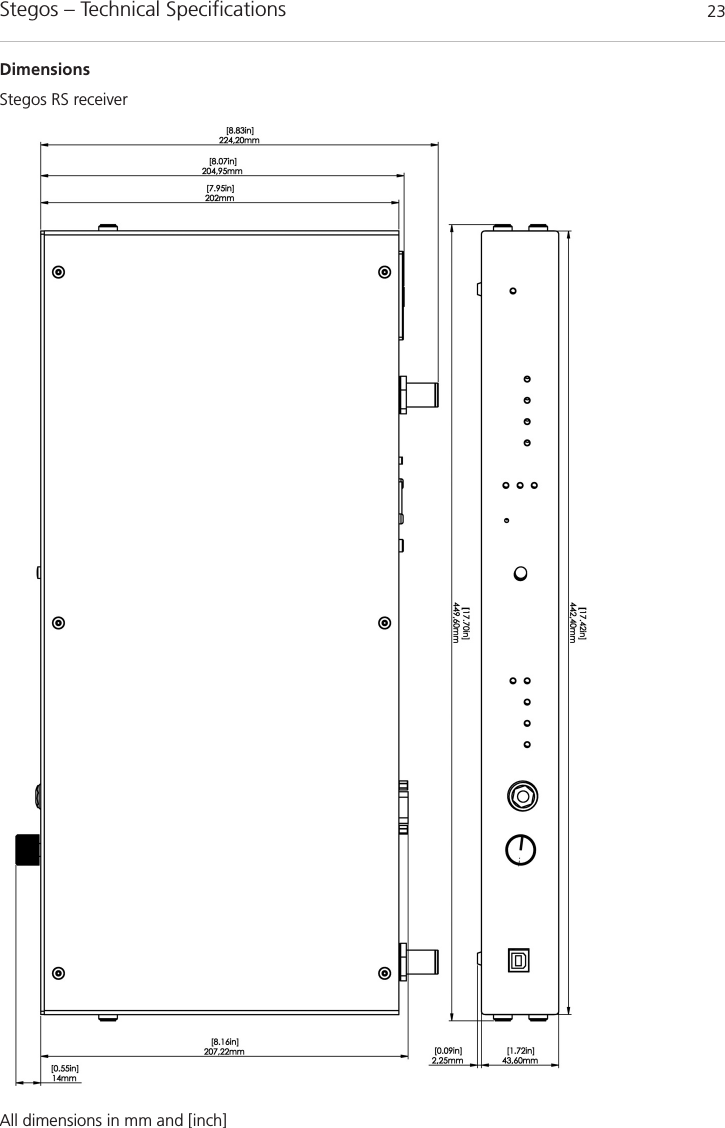

Stegos – Technical Specifications 23Stegos RS receiverDimensionsAll dimensions in mm and [inch]
Stegos – Technical Specifications24Stegos TB boundary microphoneAll dimensions in mm and [inch]Dimensions
Stegos – EC Declaration of Conformity 25EC-DECLARATIONOF CONFORMITYApplication ofCouncil Directive: 1999/5/ECR&TTE Directive2004/108/ECElectromagnetic Compatibility2006/95/EC Low Voltage DirectiveStandards to which EMC EN 301 489-1 V1.8.1Conformity is declared: EN 301 489-17 V1.3.2Radio Spectrum EN 300 328 V1.7.1Safety EN 60 950-1Manufacturer’s Name: beyerdynamic GmbH & Co. KGManufacturer’s Address: Theresienstrasse 8, 74072 Heilbronn, GermanyType of Equipment: Digital Wireless Microphone SystemModel Number/s: Stegos TB, Stegos RSI, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to the above Directive and Standards.Manufacturer’s Signature:Date: August 1st, 2010Full Name: Ulrich RothPosition: Director of R&D 0682 !

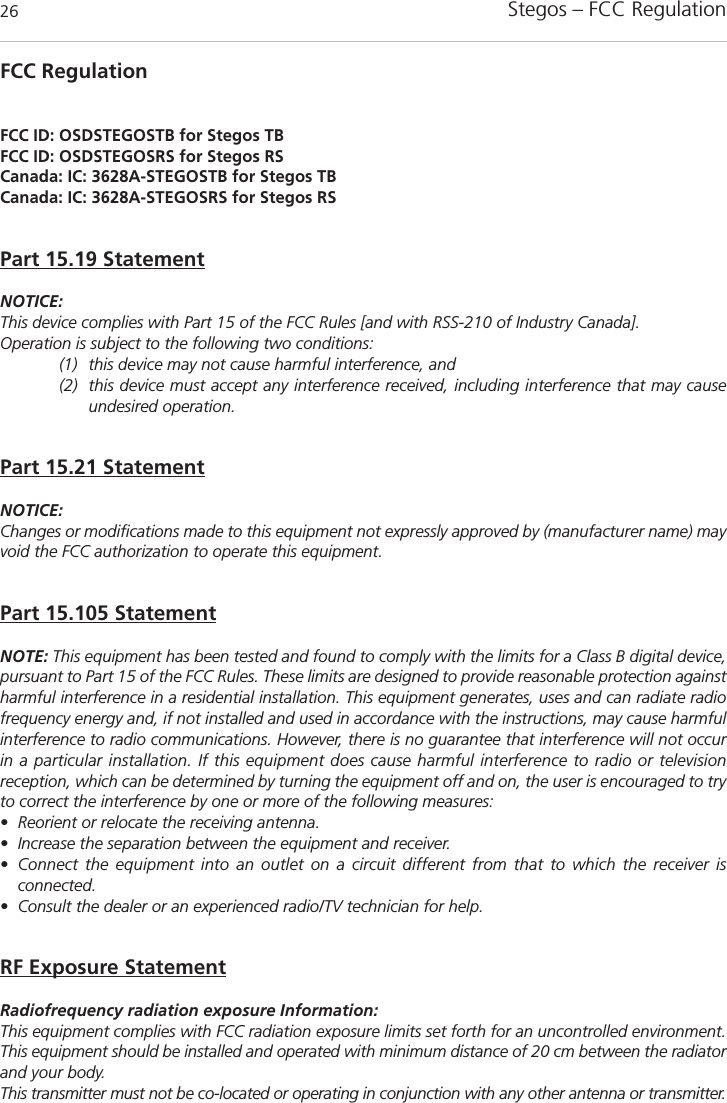

Stegos – FCC Regulation26FCC RegulationFCC ID: OSDSTEGOSTB for Stegos TBFCC ID: OSDSTEGOSRS for Stegos RSCanada: IC: 3628A-STEGOSTB for Stegos TBCanada: IC: 3628A-STEGOSRS for Stegos RSPart 15.19 StatementNOTICE:This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may causeundesired operation.Part 15.21 StatementNOTICE:Changes or modifications made to this equipment not expressly approved by (manufacturer name) mayvoid the FCC authorization to operate this equipment.Part 15.105 StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.RF Exposure StatementRadiofrequency radiation exposure Information:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance of 20 cm between the radiatorand your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
