SynexisWireless Tour Guide SystemOPERATING INSTRUCTIONS

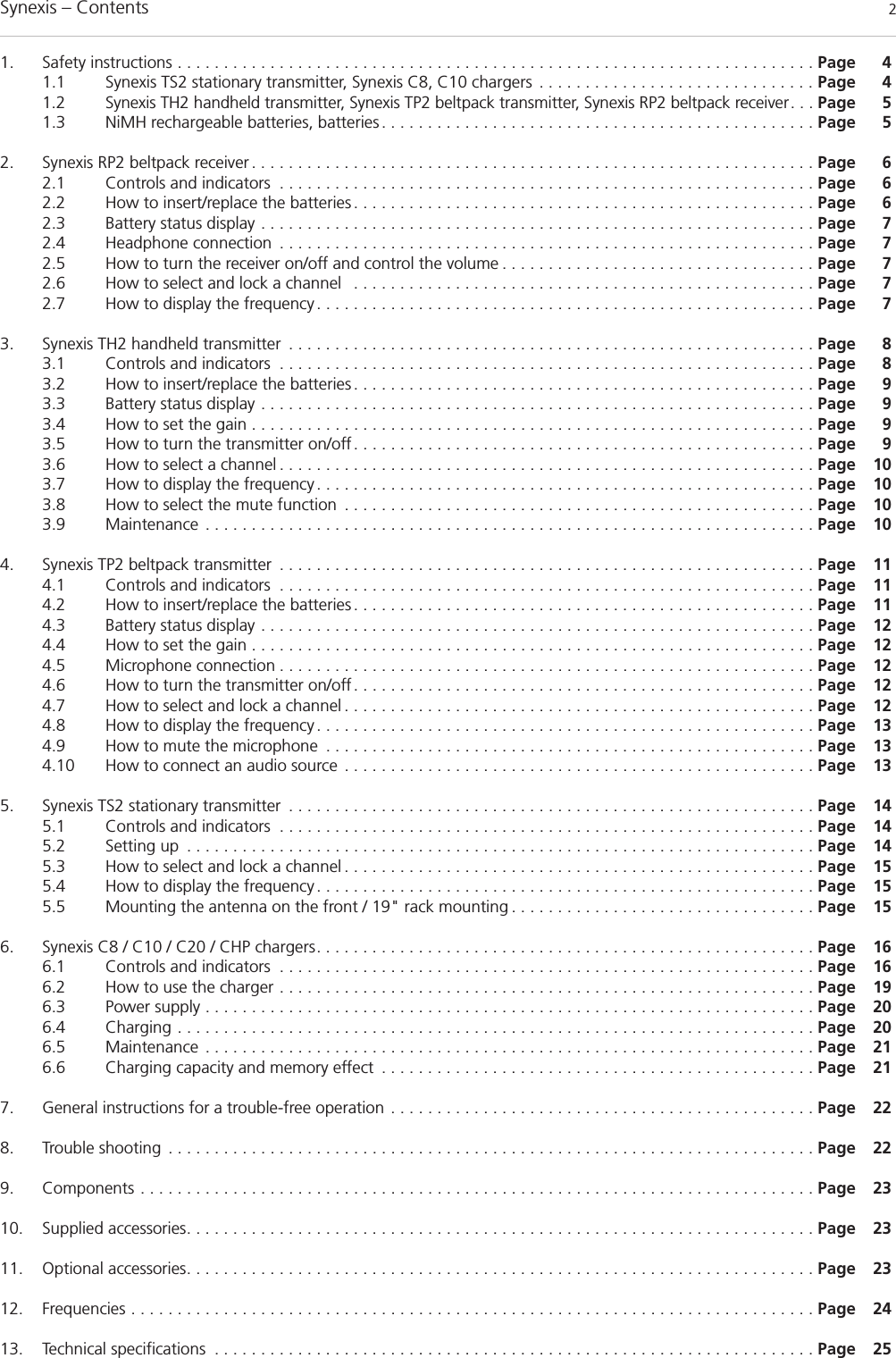

Synexis – Contents 21. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41.1 Synexis TS2 stationary transmitter, Synexis C8, C10 chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41.2 Synexis TH2 handheld transmitter, Synexis TP2 beltpack transmitter, Synexis RP2 beltpack receiver. . . Page 51.3 NiMH rechargeable batteries, batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52. Synexis RP2 beltpack receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.2 How to insert/replace the batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.3 Battery status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.4 Headphone connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.5 How to turn the receiver on/off and control the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.6 How to select and lock a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.7 How to display the frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 73. Synexis TH2 handheld transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 83.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 83.2 How to insert/replace the batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.3 Battery status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.4 How to set the gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.5 How to turn the transmitter on/off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.6 How to select a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 103.7 How to display the frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 103.8 How to select the mute function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 103.9 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 104. Synexis TP2 beltpack transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 114.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 114.2 How to insert/replace the batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 114.3 Battery status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 124.4 How to set the gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 124.5 Microphone connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 124.6 How to turn the transmitter on/off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 124.7 How to select and lock a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 124.8 How to display the frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 134.9 How to mute the microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 134.10 How to connect an audio source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 135. Synexis TS2 stationary transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 145.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 145.2 Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 145.3 How to select and lock a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 155.4 How to display the frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 155.5 Mounting the antenna on the front / 19" rack mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 156. Synexis C8 / C10 / C20 / CHP chargers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 166.1 Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 166.2 How to use the charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 196.3 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 206.4 Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 206.5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 216.6 Charging capacity and memory effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 217. General instructions for a trouble-free operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 228. Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 229. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2310. Supplied accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2311. Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2312. Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2413. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25

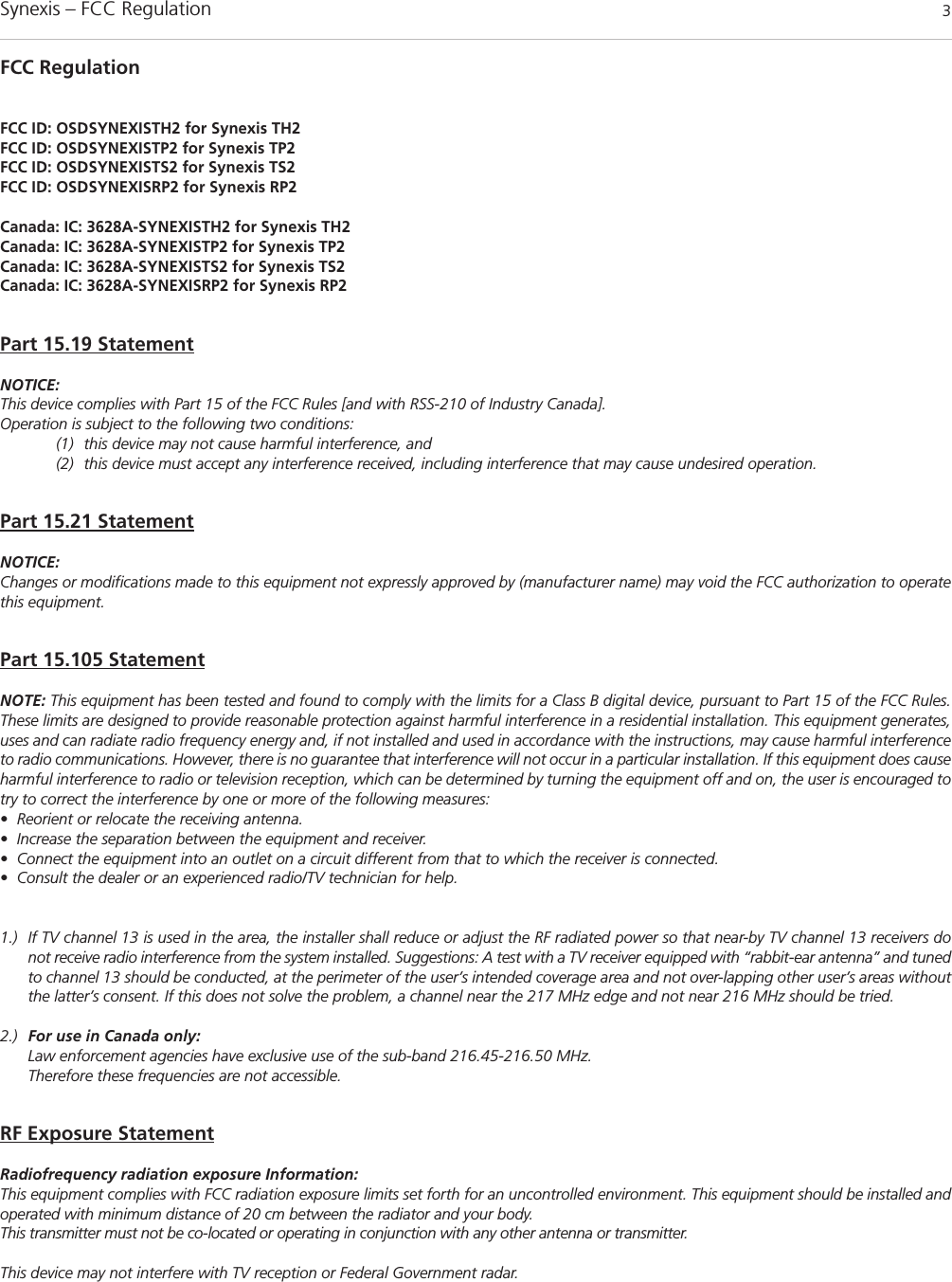

Synexis – FCC Regulation 3FCC RegulationFCC ID: OSDSYNEXISTH2 for Synexis TH2FCC ID: OSDSYNEXISTP2 for Synexis TP2FCC ID: OSDSYNEXISTS2 for Synexis TS2FCC ID: OSDSYNEXISRP2 for Synexis RP2Canada: IC: 3628A-SYNEXISTH2 for Synexis TH2Canada: IC: 3628A-SYNEXISTP2 for Synexis TP2Canada: IC: 3628A-SYNEXISTS2 for Synexis TS2Canada: IC: 3628A-SYNEXISRP2 for Synexis RP2Part 15.19 StatementNOTICE:This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Part 15.21 StatementNOTICE:Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operatethis equipment.Part 15.105 StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.1.) If TV channel 13 is used in the area, the installer shall reduce or adjust the RF radiated power so that near-by TV channel 13 receivers donot receive radio interference from the system installed. Suggestions: A test with a TV receiver equipped with “rabbit-ear antenna” and tunedto channel 13 should be conducted, at the perimeter of the user’s intended coverage area and not over-lapping other user’s areas withoutthe latter’s consent. If this does not solve the problem, a channel near the 217 MHz edge and not near 216 MHz should be tried.2.) For use in Canada only:Law enforcement agencies have exclusive use of the sub-band 216.45-216.50 MHz.Therefore these frequencies are not accessible.RF Exposure StatementRadiofrequency radiation exposure Information:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed andoperated with minimum distance of 20 cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This device may not interfere with TV reception or Federal Government radar.
Synexis – Safety Instructions 4Thank you for selecting the Synexis wireless tour guide system from beyerdynamic. Please take some time to read carefully through this manualbefore using the system. The Synexis tour guide system provides an optimum digital audio transmission for guided tours e.g. in factories or museums or in multilingual conferences e.g. in conjunction with an interpretation system. Synexis consists of the following components:• Synexis RP2 beltpack receiver• Synexis TH2 handheld transmitter• Synexis TP2 beltpack transmitter• Synexis TS2 stationary transmitter• Synexis C8 charger• Synexis C10 charger• Synexis C20 charger• Synexis CHP charger1. Safety instructionsGeneral• READ the operating instructions.• KEEP the operating instructions.• HEED all warnings.• FOLLOW all instructions. Exemption from liability• beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product.1.1 Synexis TS2 stationary transmitter, Synexis C8, C10 chargersLocation• The equipment must be set up so that the mains switch, mains plug and all connections on the rear of the device are easily accessible. • If you transport the equipment to another location take care to ensure that it is adequately secured and can never be damaged by being dropped or by impacts on the equipment. Fire hazard• Never place naked flames (e.g. candles) near the equipment.Humidity / heat sources• Never expose the equipment to rain or a high level of humidity. For this reason do not install it in the immediate vicinity of swimming pools,showers, damp basement rooms or other areas with unusually high atmospheric humidity. • Never place objects containing liquid (e.g. vases or drinking glasses) on the equipment. Liquids in the equipment could cause a short circuit. • Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.Connection – Synexis TS2 stationary transmitter, Synexis CHP charger• The device can only be powered with the supplied external power adapter connected to a power outlet. Connection - Synexis C8, C10, C20 chargers• The equipment must be connected to a mains socket that has an earth contact. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit fromthe apparatus.• Lay all connection cables so that they do not present a trip hazard. • Whenever working on the equipment switch off all inputs and outputs to the power supply. • Check whether the connection figures comply with the existing mains supply. Serious damage could occur due to connecting the system tothe wrong power supply. An incorrect mains voltage could damage the equipment or cause an electric shock.• Please note that different operating voltages require the use of different types of power cable and plugs.Please refer to the following table:Voltage Power plug according to standard110 - 125 V UL817 and CSA C 22.2 no 42.220 - 230 V CEE 7 page VII, SR section 107-2-D1/IEC 83 page C4.240 V BS 1363 (1984): “Specification for 13A fused plugs andswitched and un-switched socket outlets.”
Synexis – Safety Instructions 5• If the equipment causes a blown fuse or a short circuit, disconnect it from the mains and have it checked and repaired. • Do not hold the mains cable with wet hands. There must be no water or dust on the contact pins. In both cases you could receive an electric shock. • The mains cable must be firmly connected. If it is loose there is a fire hazard. • Always pull out the mains cable from the mains and/or from the equipment by the plug – never by the cable. The cable could be damaged andcause an electric shock or fire. • Do not use the equipment if the mains plug is damaged. • If you connect defective or unsuitable accessories, the equipment could be damaged. Only use connection cables available from or recommended by beyerdynamic. Ventilation - Synexis C8, C10, C20 chargers• Do not insert objects into the ventilation grilles or other openings. You could damage the equipment and/or injure yourself. Maintenance• Only clean the equipment with a slightly damp or dry cloth. Never use solvents as these damage the surface.Trouble shooting and servicing• Do not open the equipment without authorisation. You could receive an electric shock. There are no user-serviceable parts inside.• Leave all service work to authorised expert personnel. 1.2 Synexis TH2 handheld transmitter, Synexis TP2 beltpack transmitter, Synexis RP2 beltpack receiver• Protect the transmitter/receiver from moisture and sudden impacts. You could either injure yourself or others or damage the transmitter. • Always switch off the transmitter/receiver before charging or changing the batteries. Synexis TH2 handheld transmitter• Do not blow into the microphone. In a condenser microphone this could damage the transformer. It is preferable to carry out a speech trial. Synexis TP2 beltpack transmitter• Clip-on microphones are often very compact. If they are accidentally swallowed there is a risk of choking. Always keep this type of micro-phone away from small children. Synexis RP2 beltpack receiver• The Synexis RP2 receiver can produce sound pressures of more than 85 dB (A). 85 dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is usedas a basis according to the specifications of industrial medicine. Higher volumes or longer durations can damage your hearing. At higher volumes, the duration must be shortened in order to prevent hearing damage. The following are symptoms that you have been exposed toexcessive noise for too long a time:– You can hear ringing or whistling sounds in your ears.– You have the impression (even for a short time only) that you can no longer hear high notes.1.3 NiMH rechargeable batteries, batteries• The TH2, TP2 transmitters and the RP2 receiver can only be operated with AA (LR6) Mignon alkaline batteries or equivalent NiMH rechargeablebatteries (1600 mAh to 2100 mAh).• The normal commercial alkaline batteries can have a length tolerance of 2 - 3 mm. When changing the batteries always ensure good contact.• If the transmitter is not being used for weeks or months, please remove the batteries. Batteries can leak when not being used for a long timeand corrode the conductor strips and components. Repair is not then possible. In this case all warranty claims are null and void. The description “leak proof” on batteries is no guarantee that they will not run out. • Never take batteries apart yourself. The battery acid contained will damage skin and clothing. • If abused or misused, rechargeable batteries may leak. In extreme cases, they may even present an explosion, heat, fire, smoke or gas hazard.Disposal• If you throw away the device, please remove the batteries. • Old batteries may contain substances that are harmful to your health and environment. • Dispose used batteries always according to the applicable disposal regulations. Please do not throw used battery packs into the fire (danger ofexplosion) or your household rubbish, take them to your local collection points. The return is free and required by law. Please dispose discharged batteries only. • For removing the batteries, please refer to chapter “How to insert/replace the batteries”. • All batteries are recycled to reclaim valuable material such as iron, zinc or nickel.

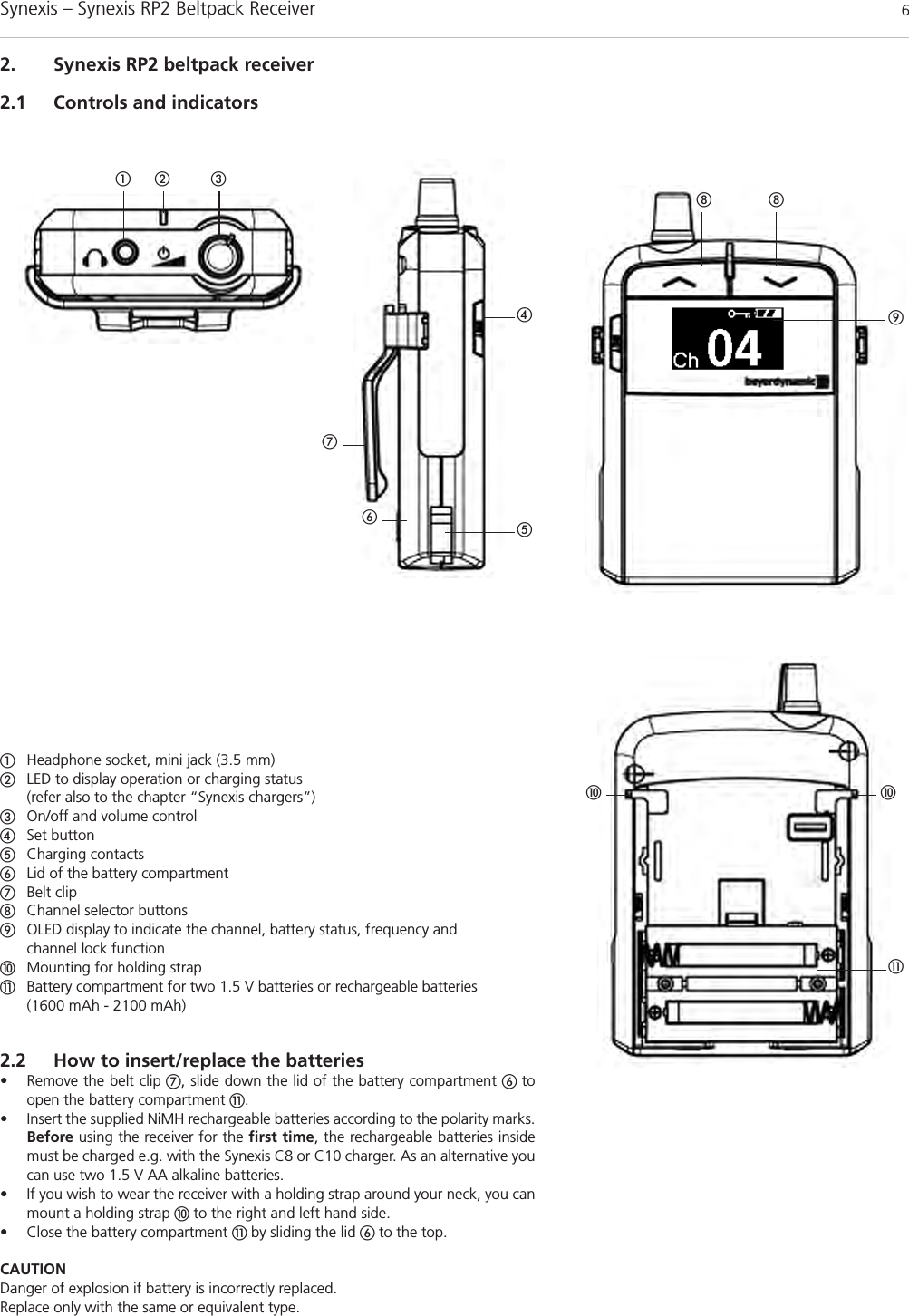

Synexis – Synexis RP2 Beltpack Receiver 62. Synexis RP2 beltpack receiver2.1 Controls and indicatorsቢቩ ቩባ ቤቪቭብቦቧቫ ቫቨቢHeadphone socket, mini jack (3.5 mm) ባLED to display operation or charging status (refer also to the chapter “Synexis chargers”)ቤOn/off and volume control ብSet buttonቦCharging contactsቧLid of the battery compartmentቨBelt clipቩChannel selector buttonsቪOLED display to indicate the channel, battery status, frequency and channel lock functionቫMounting for holding strapቭBattery compartment for two 1.5 V batteries or rechargeable batteries (1600 mAh - 2100 mAh)2.2 How to insert/replace the batteries• Remove the belt clip ቨ, slide down the lid of the battery compartment ቧ toopen the battery compartment ቭ.• Insert the supplied NiMH rechargeable batteries according to the polarity marks.Before using the receiver for the first time, the rechargeable batteries insidemust be charged e.g. with the Synexis C8 or C10 charger. As an alternative youcan use two 1.5 V AA alkaline batteries.• If you wish to wear the receiver with a holding strap around your neck, you canmount a holding strap ቫto the right and left hand side. • Close the battery compartment ቭ by sliding the lid ቧ to the top.CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.
Synexis – Synexis RP2 Beltpack Receiver 72.3 Battery status display• The battery status is displayed ቪ in 4 stages. • If only one bar is displayed, you should recharge the receiver as soon as possible. • If the battery frame is flashing, the batteries are empty and have to be replaced orrecharged.• If the receiver is equipped with rechargeable NiMH batteries, put it into the appropriate charger (e.g. Synexis C8 or C10). Despite the Auto-Off function werecommend turning off the receiver before charging.The LED ባindicates the charging status:LED is flashing blue . . . . . . . . . . The batteries are being chargedLED illuminates blue. . . . . . . . . . The batteries are fully chargedLED is flashing red . . . . . . . . . . . Error2.4 Headphone connection• Connect a beyerdynamic headphone with mono or stereo mini jack plug to theheadphone socket ቢ.2.5 How to turn the receiver on/off and control the volume• Switch on the beltpack receiver by turning the control ቤ clockwise to the right.• The LED ባ will illuminate:blue, when a transmitter is turned on and reception available. red, when there is no transmitter turned on or no reception available.• Use the control ቤ to set the requested volume by turning it more clockwise. • The selected channel and the battery status are displayed ቧ.• After use, switch off the receiver by turning the control ቤ anti-clockwise.• The LED ባwill go out.CAUTION• Do not set the volume too high, because listening at high levels can damageyour hearing.2.6 How to select and lock a channel • Use one of the two channel selector buttons ቩto select the requested channel. • If you release the channel selector button ቩ, the channel will automatically bestored after approx. 3 seconds. • If you would like to lock the selected channel to avoid accidental shifting, holddown the Set button ብfor about 3 seconds. A key symbol will be displayed ቪ.The channel is locked.If you would like to unlock a locked channel, hold down the Set button ብforabout 3 seconds. The key symbol in the display ቪ will disappear.2.7 How to display the frequency• Press the Set button ብbriefly.• The frequency will be displayed ቪfor a few seconds. ቢባ ቤቩቩቪብ

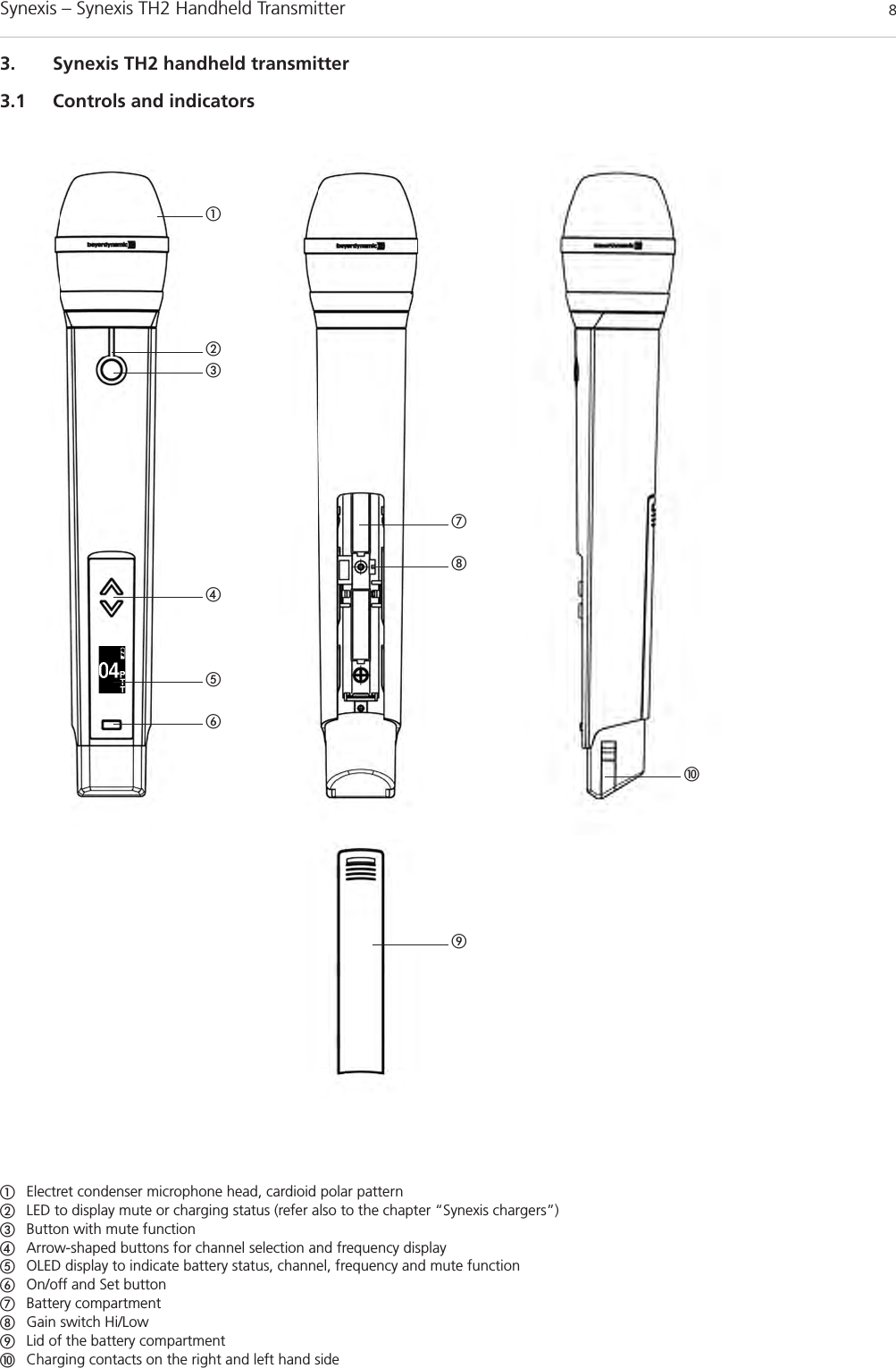

Synexis – Synexis TH2 Handheld Transmitter 83. Synexis TH2 handheld transmitter3.1 Controls and indicatorsቢባቤብቦቧቨቩቪቫቢElectret condenser microphone head, cardioid polar patternባLED to display mute or charging status (refer also to the chapter “Synexis chargers”) ቤButton with mute function ብArrow-shaped buttons for channel selection and frequency displayቦOLED display to indicate battery status, channel, frequency and mute functionቧOn/off and Set buttonቨBattery compartmentቩGain switch Hi/LowቪLid of the battery compartmentቫCharging contacts on the right and left hand side
Synexis – Synexis TH2 Handheld Transmitter 9ቨ ቪ3.2 How to insert/replace the batteries• Slide down the lid of the battery compartment ቪ to open the battery compartment ቨ.• Insert the supplied NiMH rechargeable batteries according to the polarity marks.Before using the transmitter for the first time, the rechargeable batteries insidemust be charged e.g. with the Synexis C8 charger. As an alternative you can usetwo 1.5 V AA alkaline batteries.• Close the battery compartment ቨ by sliding the lid ቪ to the top.CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.ቨቩቧቦHL3.5 How to turn the transmitter on/off• Turn on the handheld transmitter by pressing the on/off button ቧ for approx. 2 seconds.• The battery status, selected channel and mute function are displayed ቦ.• After use turn off the handheld transmitter by pressing the on/off button ቧ forapprox. 2 seconds.3.4 How to set the gain• Inside the battery compartment ቨ you will find the gain switch ቩto set thegain for close or distant miking. Remove the batteries first and then set the gain.Position “High” = set switch to “H”Position “Low” = set switch to “L”3.3 Battery status display• The battery status is displayed ቦ in 4 stages. • If only one bar is displayed, you should recharge the receiver as soon as possible. • If the battery frame is flashing, the batteries are empty and have to be replaced orrecharged.• If the transmitter is equipped with rechargeable NiMH batteries, put it into theappropriate charger (e.g. Synexis C8). Despite the Auto-Off function we recommend turning off the transmitter before charging.Depending on the charger, the LED of the charger or the LED ባindicates thecharging status:LED is flashing blue . . . . . . . . . . The batteries are being chargedLED illuminates blue. . . . . . . . . . The batteries are fully chargedLED is flashing red . . . . . . . . . . . Error
Synexis – Synexis TH2 Handheld Transmitter 101.2.3.3.9 Maintenance• Protect the handheld transmitter from moisture and sudden impacts. • For cleaning metal surfaces, use a soft cloth moistened with methylated spirits oralcohol.• Clean the foam pop shield under clear running water:1. Unscrew the microphone basket counter clockwise.2. Remove the foam pop shield (if necessary use tweezers).3. Wash the pop shield under clear running water and dry it afterwards with ahairdryer or allow it to dry overnight.• Place the dry pop shield inside the microphone basket and screw the microphonebasket clockwise.Important• Place the microphone basket and the pop shield on the transmitter again onlywhen completely dry.3.8 How to select the mute function• Press the on/off button ቧ and the mute button ቤsimultaneously for approx. 2 seconds until the channel and mute display ቦ will start to flash.• Use the mute button ቤ to select the requested mute function. • After approx. 2 seconds the selected mute function will automatically be storedor immediately if you press briefly the on/off button ቧ.• If the LED ባwill illuminate blue, the microphone is activated. If the LED ባ willflash red, the microphone is muted.• There are three different mute functions available: Push-To-Mute (PTM): Hold down the mute button ቤ to mute the microphone. Push-To-Talk (PTT): Hold down the mute button ቤ to activate the microphone.Mute Toggle (MTG): Press the button ቤ briefly to change between muted andactivated microphone. 3.7 How to display the frequency• Press both arrow-shaped buttons ብsimultaneously. • The frequency will be displayed ቦfor approx. 2 seconds. 3.6 How to select a channel• Press the on/off button ቧand one of the two arrow-shaped buttons ብsimultaneously for approx. 2 seconds until the channel display ቦ will flash. • Use the upper or lower arrow-shaped button ብto select the requested channel. • The channel will automatically be stored after approx. 2 seconds. If you pressbriefly the on/off button ቧ, the channel will immediately be stored. ቦቤባ ቧቦብቧብ
Synexis – Synexis TP2 Beltpack Transmitter 114. Synexis TP2 beltpack transmitter4.1 Controls and indicatorsቢቫ ቫባ ቤ ብቭተቯቦቧቪቩቮ ቮቨቢOn/off switchባLED to display operating or charging status (refer also to the chapter “Synexis chargers”)ቤPush-button to mute the microphoneብMicrophone connection, 4-pin mini XLRቦSet buttonቧLine-In input to connect an audio source such as MP3 player, mini stereo jack (3.5 mm)ቨBelt clipቩLid of the battery compartmentቪCharging contacts on the right and left hand sideቫChannel selector buttonsቭOLED display to indicate the channel, battery status, frequency and channel lock functionቮMounting for holding strapቯGain switch, 3 stages Hi/Mid/LowተBattery compartment4.2 How to insert/replace the batteries• Remove the belt clip ቨ, slide down the lid of the battery compartment ቩ toopen the battery compartment ተ.• Insert the supplied NiMH rechargeable batteries according to the polarity marks.Before using the transmitter for the first time, the rechargeable batteries insidemust be charged e.g. with the Synexis C8 or C10 charger. As an alternative youcan use two 1.5 V AA alkaline batteries.• If you wish to wear the transmitter with a holding strap around your neck, youcan mount a holding strap ቮto the right and left hand side. • Close the battery compartment ተ by sliding the lid ቩ to the top.CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.
Synexis – Synexis TP2 Beltpack Transmitter 124.3 Battery status display• The battery status is displayed ቭ in 4 stages. • If only one bar is displayed, you should recharge the receiver as soon as possible. • If the battery frame is flashing, the batteries are empty and have to be replaced orrecharged.• If the transmitter is equipped with rechargeable NiMH batteries, put it into theappropriate charger (e.g. Synexis C8 or C10). Despite the Auto-Off function werecommend turning off the transmitter before charging.The LED ባindicates the charging status:LED is flashing blue . . . . . . . . . . The batteries are being chargedLED illuminates blue. . . . . . . . . . The batteries are fully chargedLED is flashing red . . . . . . . . . . . Errorቯባቢ ብL M H4.5 Microphone connection• Connect a microphone to the 4-pin mini XLR socket ብ. Make sure the connectorwill correctly lock in place. Note• In order to avoid popping noise in the Synexis RP2 receiver, you should connectthe microphone when the mute function ቤ is activated or when Synexis TP2 re-ceiver is turned off. 4.6 How to turn the transmitter on/off • Turn on the beltpack transmitter with the on/off switch ቢ.• The LED ባ will illuminate blue.• The selected channel and the battery status are displayed ቭ.• After use turn off the beltpack transmitter with the on/off switch ቢ.• The LED ባwill go out.4.4 How to set the gain• With the 3-stage (Hi/Mid/Low) gain switch ቯ you can set the gain for close ordistant miking. Remove the lid of the battery compartment ቩ to access theswitch. Position “Low” = set switch to “L”Position “Mid” = set switch to “M”Position “High” = set switch to “H”4.7 How to select and lock a channel • Use one of the two channel selector buttons ቫto select the requested channel. • If you release the channel selector button ቫ, the channel will automatically bestored after approx. 3 seconds.• If you would like to lock the selected channel to avoid accidental shifting, holddown the Set button ቦfor about 3 seconds. A key symbol will be displayed ቭ.The channel is locked.If you would like to unlock a locked channel, hold down the Set button ቦforabout 3 seconds. The key symbol in the display ቭ will disappear.ቫ ቫቭቦ

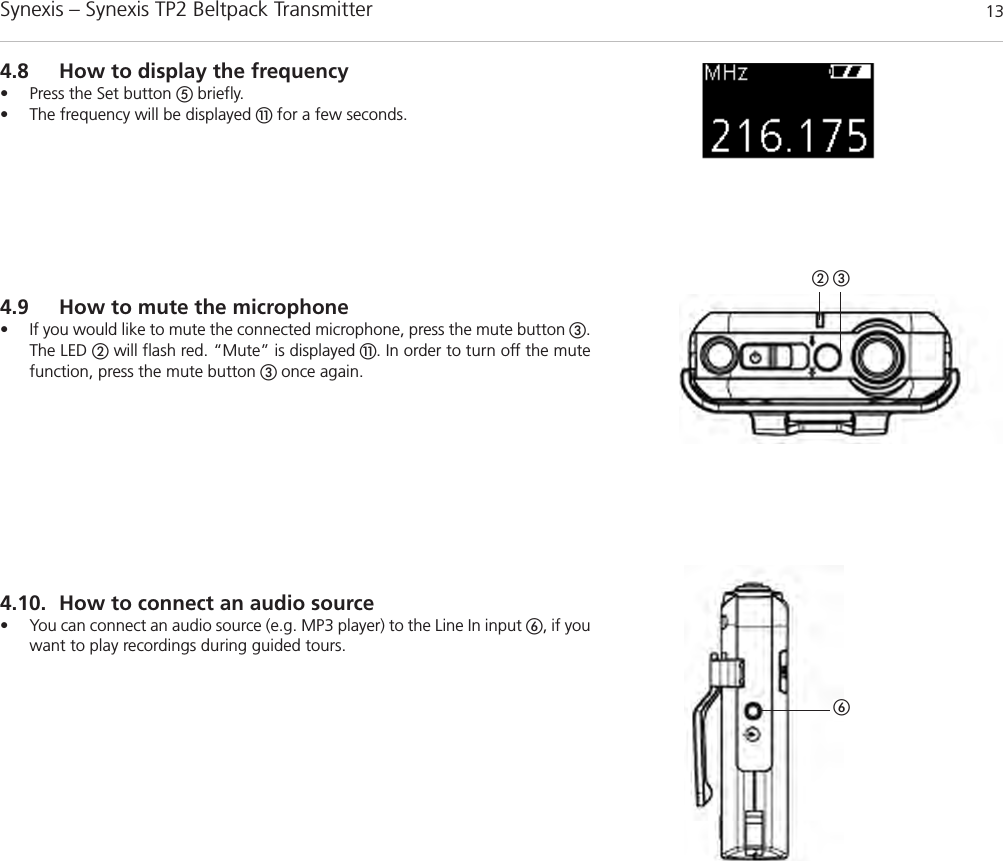

Synexis – Synexis TP2 Beltpack Transmitter 13ባ ቤቧ4.10. How to connect an audio source • You can connect an audio source (e.g. MP3 player) to the Line In input ቧ, if youwant to play recordings during guided tours. 4.8 How to display the frequency• Press the Set button ቦbriefly.• The frequency will be displayed ቭfor a few seconds. 4.9 How to mute the microphone• If you would like to mute the connected microphone, press the mute button ቤ.The LED ባwill flash red. “Mute” is displayed ቭ. In order to turn off the mutefunction, press the mute button ቤ once again.

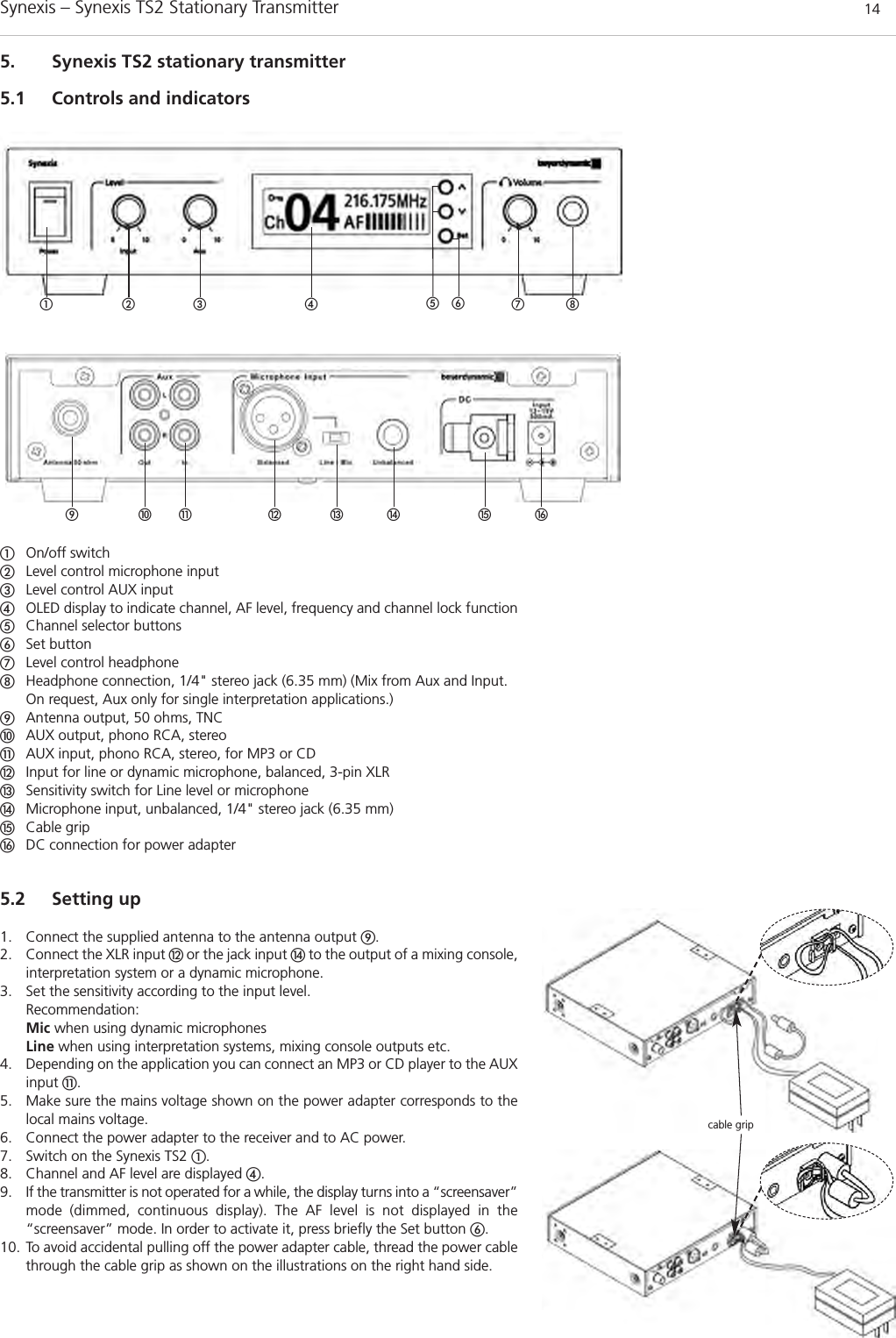

Synexis – Synexis TS2 Stationary Transmitter 145. Synexis TS2 stationary transmitter5.1 Controls and indicatorsቢOn/off switchባLevel control microphone input ቤLevel control AUX inputብOLED display to indicate channel, AF level, frequency and channel lock functionቦChannel selector buttonsቧSet buttonቨLevel control headphoneቩHeadphone connection, 1/4" stereo jack (6.35 mm) (Mix from Aux and Input.On request, Aux only for single interpretation applications.)ቪAntenna output, 50 ohms, TNCቫAUX output, phono RCA, stereoቭAUX input, phono RCA, stereo, for MP3 or CDቮInput for line or dynamic microphone, balanced, 3-pin XLRቯSensitivity switch for Line level or microphone ተMicrophone input, unbalanced, 1/4" stereo jack (6.35 mm)ቱCable gripቲDC connection for power adapter5.2 Setting up1. Connect the supplied antenna to the antenna output ቪ.2. Connect the XLR input ቮ or the jack input ተto the output of a mixing console,interpretation system or a dynamic microphone.3. Set the sensitivity according to the input level.Recommendation:Mic when using dynamic microphonesLine when using interpretation systems, mixing console outputs etc.4. Depending on the application you can connect an MP3 or CD player to the AUXinput ቭ.5. Make sure the mains voltage shown on the power adapter corresponds to thelocal mains voltage.6. Connect the power adapter to the receiver and to AC power.7. Switch on the Synexis TS2 ቢ.8. Channel and AF level are displayed ብ.9. If the transmitter is not operated for a while, the display turns into a “screensaver”mode (dimmed, continuous display). The AF level is not displayed in the “screensaver” mode. In order to activate it, press briefly the Set button ቧ.10. To avoid accidental pulling off the power adapter cable, thread the power cablethrough the cable grip as shown on the illustrations on the right hand side. ቢ ባ ቤ ብ ቨ ቩቦቧcable gripቪ ቫ ቭ ቮ ቯ ተ ቱ ቲ
Synexis – Synexis TS2 Stationary Transmitter 155.3 How to select and lock a channel• Select a channel with the channel selector buttons ቦ. • Press the up or down button ቦuntil the requested channel is displayed ብ.• Release the button ቦ to store the selected channel.• If you would like to lock the selected channel to avoid accidental shifting, holddown the Set button ቧfor about 3 seconds. A key symbol will be displayed ብ.The channel is locked.If you would like to unlock a locked channel, hold down the Set button ቧforabout 3 seconds. The key symbol in the display ብ will disappear.5.4 How to display the frequency• Press the Set button ቧ briefly. • The frequency is displayed next to the channel. ብቦቧTwo transmitters - 19" rack mounting• Remove the rubber pads from the bottom of the transmitter.• Mount the connection plates on the top and bottom of the two transmitters. • After joining the two transmitters together, mount the supplied brackets on the right and left hand side of the transmitters and mountthem in a 19" rack. 5.5 Mounting the antenna on the front / 19" rack mountingOne transmitter - mounting the antenna on the front• Remove the rubber pads from the bottom of the transmitter. • Attach the shorter one of the two supplied brackets to one side of the transmitter and the longer bracket with a hole for mounting theantenna on the front on the other side. • Connect the antenna cable to the antenna input ቪon the rear, pull the cable through the hole and mount the antenna on the front.
Synexis – Synexis C8 / C10 / C20 / CHP Chargers 16ቢCharging status of handheld transmitterባCharging compartment for handheld transmitterቤPower on LEDብCharging compartments for beltpack transmitters / beltpack receiversቦGroundቧFuseቨMains connectionቩConnection to loop through another chargerቢባ ቤቦ ቧ ቨቩብ6. Synexis C8 / C10 / C 20 / CHP chargers6.1 Controls and indicatorsSynexis C8

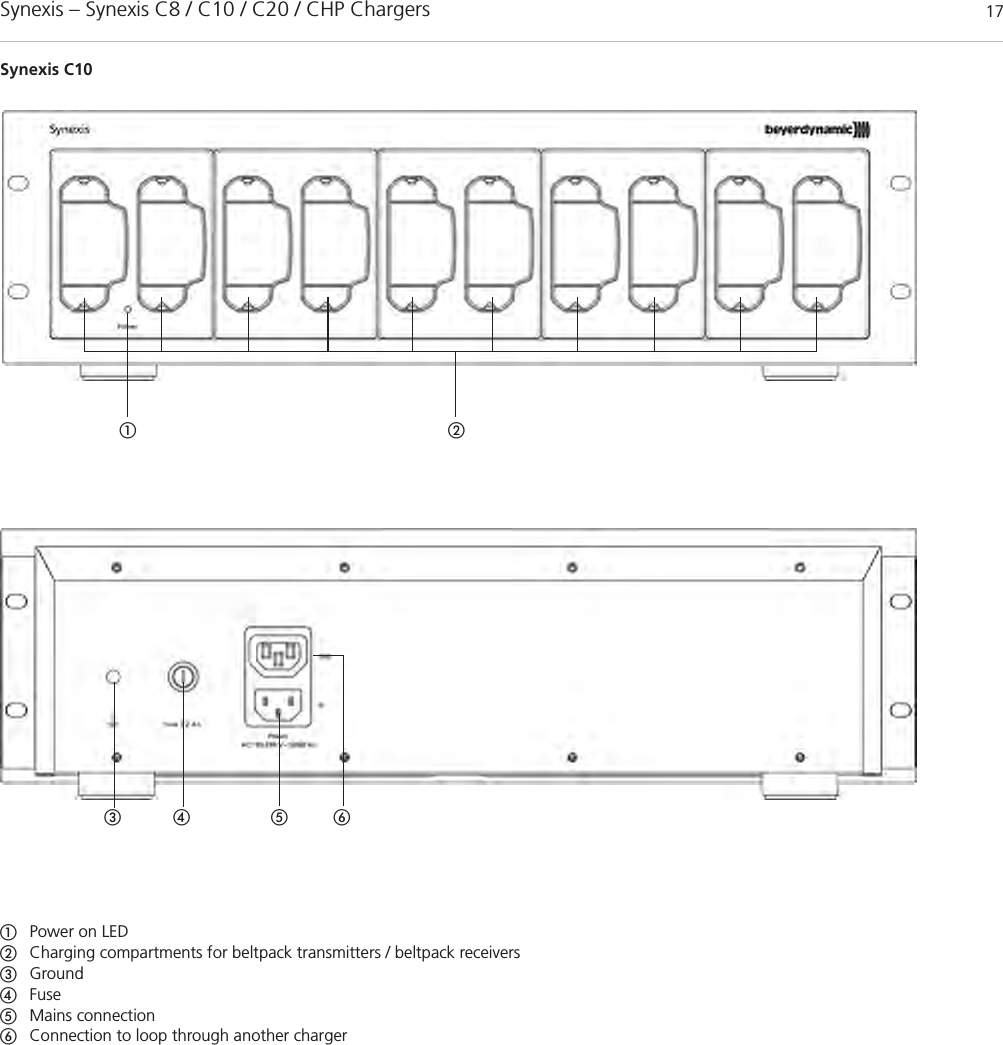

Synexis – Synexis C8 / C10 / C20 / CHP Chargers 17Synexis C10ቢPower on LEDባCharging compartments for beltpack transmitters / beltpack receiversቤGroundብFuseቦMains connectionቧConnection to loop through another chargerቢቤ ብ ቦቧባ
Synexis – Synexis C8 / C10 / C20 / CHP Chargers 18Synexis C20ቢMains connectioባPower on switch with LEDቤFuseብCharging compartment for handheld transmitterቦCharging compartments for beltpack transmitters / beltpack receiversቢባቦብቦቤSynexis CHPቢባባቢDC connection for power adapterባCharging compartments for beltpack transmitters / beltpack receivers / handheld transmittersCautionThe beltpack transmitter/receiver and handheld transmitter cannot simultaneously be inserted into the same charging compartment!
Synexis – Synexis C8 / C10 / C20 / CHP Chargers 19Safety information:•Never charge a beltpack receiver, handheld or beltpack transmitter when they are powered with normal batteries! The batteries can explode and damage the transmitter!• Despite the Auto-Off function we recommend turning off the receivers, handheld and beltpack transmitters before charging!• After a power failure or after the receiver and/or transmitter has been reinserted, the entire charging process begins again. Overcharging is prevented however.• If you use the transmitter and receiver from time to time only, we recommend to recharge these devices every 2 or 3 months to avoidthe rechargeable batteries being over-discharged due to self-discharge. • Do not cover the ventilation slots of the Synexis C8, C10, C20 chargers. With Synexis C20 charge only when the case is wide open. 6.2 How to use the chargers• The Synexis chargers have been developed for charging the rechargeable batteries inside the Synexis RP beltpack receiver, Synexis TP beltpack transmitter and Synexis TH handheld transmitter. •Synexis C8 provides 8 charging compartments for the Synexis RP beltpack receiver or Synexis TP beltpack transmitter and one charging com-partment for the Synexis TH handheld transmitter.•Synexis C10 provides 10 charging compartments for the Synexis RP beltpack receiver or Synexis TP beltpack transmitter .•Synexis C20 provides 20 charging compartments for the Synexis RP beltpack receiver or Synexis TP beltpack transmitter and one chargingcompartment for the Synexis TH handheld transmitter. The charger is built into a practical trolley. The accessory compartment in the coverof the case provides room for headphones and microphones of the beltpack receivers/transmitters. •Synexis CHP provides 2 charging compartments for the Synexis RP beltpack receiver or Synexis TP beltpack transmitter or the Synexis THhandheld transmitter. • The Synexis C8 or C10 charger has been designed for the installation into a 19" rack (3 U). When you install the charger into a 19" rack,make sure that the charger is connected to a switchable mains supply. Synexis CHP with beltpack transmitter/receiver and handheld transmitterSynexis CHP with beltpack transmitter/receiver
Synexis – Synexis C8 / C10 / C20 / CHP Chargers 206.3 Power supplySynexis C8 / C10• Connect the Synexis C8 ቨ or C10 ቦ charger to AC power.• The charger has no separate on/off switch and is ready for operation when it is connected to AC power.• You can link a maximum of 8 chargers by connecting the first charger via the connection ቨor ቦto the connection ቩor ቧ of the secondcharger and then connect the second charger via the mains connection ቨor ቦ to AC power.Note: For appropriate IEC-60320 C13/C14 power cord extensions, please contact your local dealer. ቨ / ቦቩ / ቧSynexis C8 / C10Synexis C20• Put the case horizontally down and open the cover all the way to the stop.• Connect the Synexis C20 charger ቢ to AC power.• Switch on the charger with the power on switch ባ.Synexis C20ቢባ
Synexis – Synexis C8 / C10 / C20 / CHP Chargers 216.4 Charging • When the Synexis beltpack receivers / beltpack transmitters are equipped with rechargeable batteries, put them into the appropriate charging compartments of the Synexis C8, C10, C20 or CHP charger.• When the handheld transmitter is equipped with rechargeable batteries, you can recharge it in the appropriate charging compartment ofthe Synexis C8, C20 (display and mute button point upwards) or CHP charger (refer to the appropriate drawing). • The charging process starts automatically. • The LED of the beltpack receiver and transmitter indicates the charging state of the batteries. • To indicate the charging state of the batteries inside the handheld transmitter there is an LED ቢabove the charging compartment ባofthe Synexis C8 charger.LED is flashing blue: The batteries are being chargedLED illuminates blue: The batteries are fully chargedLED is flashing red: Error (no or defective rechargeable batteries or accidental attempt to charge alkaline batteries)6.5 Maintenance• For maintenance and cleaning disconnect the charger from AC power.• In order to ensure a perfect function, keep the contacts in the charging compartments clean. • Clean the charger with a dry cloth only.• When the housing or the power cable is damaged, the charger must not be put into operation. 6.6 Charging capacity and memory effect• A rechargeable battery achieves its full capacity after several times of charging and discharging.Note:• Furthermore, significance levels are integrated such as dU-recognition, supervision of voltage gradient, temperature and safety timer.Synexis CHP• Connect the Synexis C20 charger to AC power.• Switch on the charger with the power on switch.ቢSynexis CHP
Synexis – Trouble Shooting 227. General instructions for a trouble-free operation• Make sure that the transmitter and receiver are on the same frequency.• Check the batteries and replace or recharge them if necessary.• The transmission range depends on various factors such as local, constructional conditions. It can be reduced due to shadowing effects ofmetal partitions (e.g. in lifts), high production machinery and reflections from metallic objects. Taking all negative circumstances into account,the average transmission range is between 30 and 50 m.In practice the group should not have more than 30 participants, as the length of the group could extend beyond the transmission range ofthe system. Furthermore, the group should be kept within optical vision for safety reasons.• To avoid popping try holding the Synexis TH2 microphone at a slight angle below the mouth.• Blowing into the microphone to check that it is working can cause serious damage. Speaking a few words or counting is recommended.8. Trouble shootingProblem Possible cause SolutionTransmitter does not work • Transmitter and receiver have different frequencies• Microphone is muted• Microphone is not properly connected tothe Synexis TP2 beltpack transmitter• Insufficient battery voltage• Poor battery contact, batteries inserted incorrectly• Check if transmitter and receiver have thesame frequency. Adjust the same frequencywith the channel selector switch.• Activate the microphone by turning offthe mute function.• Connect the microphone properly to theSynexis TP2 beltpack transmitter.• Replace the alkaline batteries or rechargethe rechargeable batteries.• Check the batteries and insert themagain.Noise / chirping • Two transmitters on the same frequency• Interference from other transmitters • Change the frequency of one transmitter.• Switch off the other transmitters.Receiver does not work • Batteries are empty or headphone is defective• Headphone is not connected properly tothe receiver• Transmitter and receiver have different frequencies• Recharge / replace batteries or try anotherheadphone.• Make sure that the headphone is connected properly.• Check if transmitter and receiver have thesame frequency. Adjust the same frequencywith the channel selector switch.No reception • Distance between transmitter and receiveris too long• Transmitter is not switched on• Transmitter works on a different frequency• No microphone connected to beltpacktransmitter• Reduce the distance between transmitterand receiver.• Switch on the transmitter.• Make sure that transmitter and receiverare on the same frequency.• Connect suitable microphone.

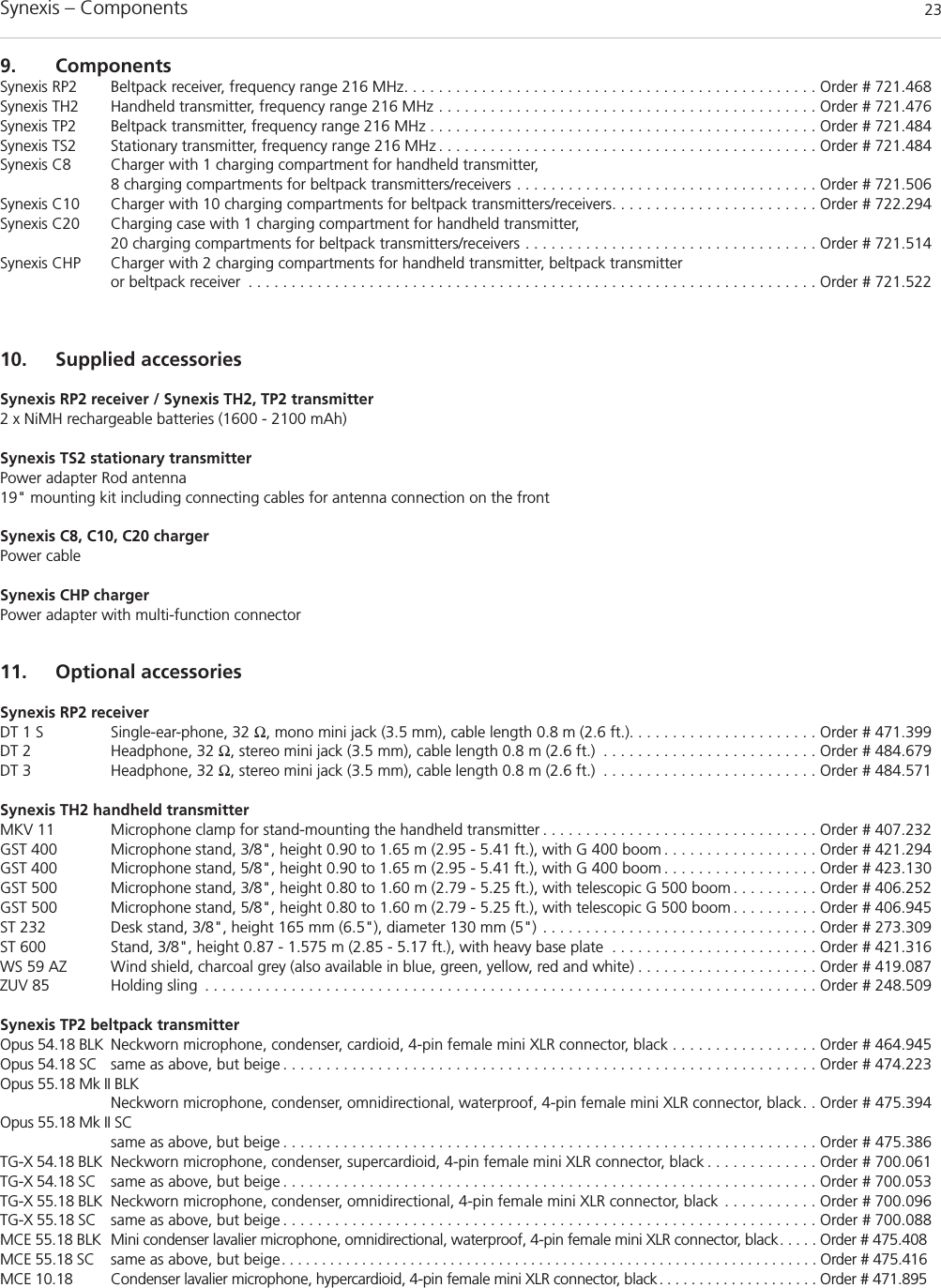

Synexis – Components 239. ComponentsSynexis RP2 Beltpack receiver, frequency range 216 MHz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.468Synexis TH2 Handheld transmitter, frequency range 216 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.476Synexis TP2 Beltpack transmitter, frequency range 216 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.484Synexis TS2 Stationary transmitter, frequency range 216 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.484Synexis C8 Charger with 1 charging compartment for handheld transmitter, 8 charging compartments for beltpack transmitters/receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.506Synexis C10 Charger with 10 charging compartments for beltpack transmitters/receivers. . . . . . . . . . . . . . . . . . . . . . . . Order # 722.294Synexis C20 Charging case with 1 charging compartment for handheld transmitter, 20 charging compartments for beltpack transmitters/receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.514Synexis CHP Charger with 2 charging compartments for handheld transmitter, beltpack transmitteror beltpack receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 721.52210. Supplied accessoriesSynexis RP2 receiver / Synexis TH2, TP2 transmitter2 x NiMH rechargeable batteries (1600 - 2100 mAh)Synexis TS2 stationary transmitterPower adapter Rod antenna 19" mounting kit including connecting cables for antenna connection on the frontSynexis C8, C10, C20 chargerPower cable Synexis CHP chargerPower adapter with multi-function connector11. Optional accessoriesSynexis RP2 receiver DT 1 S Single-ear-phone, 32 Ω, mono mini jack (3.5 mm), cable length 0.8 m (2.6 ft.). . . . . . . . . . . . . . . . . . . . . . Order # 471.399DT 2 Headphone, 32 Ω, stereo mini jack (3.5 mm), cable length 0.8 m (2.6 ft.) . . . . . . . . . . . . . . . . . . . . . . . . . Order # 484.679DT 3 Headphone, 32 Ω, stereo mini jack (3.5 mm), cable length 0.8 m (2.6 ft.) . . . . . . . . . . . . . . . . . . . . . . . . . Order # 484.571Synexis TH2 handheld transmitterMKV 11 Microphone clamp for stand-mounting the handheld transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 407.232GST 400 Microphone stand, 3/8", height 0.90 to 1.65 m (2.95 - 5.41 ft.), with G 400 boom . . . . . . . . . . . . . . . . . . Order # 421.294GST 400 Microphone stand, 5/8", height 0.90 to 1.65 m (2.95 - 5.41 ft.), with G 400 boom . . . . . . . . . . . . . . . . . . Order # 423.130GST 500 Microphone stand, 3/8", height 0.80 to 1.60 m (2.79 - 5.25 ft.), with telescopic G 500 boom . . . . . . . . . . Order # 406.252GST 500 Microphone stand, 5/8", height 0.80 to 1.60 m (2.79 - 5.25 ft.), with telescopic G 500 boom . . . . . . . . . . Order # 406.945ST 232 Desk stand, 3/8", height 165 mm (6.5"), diameter 130 mm (5") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 273.309ST 600 Stand, 3/8", height 0.87 - 1.575 m (2.85 - 5.17 ft.), with heavy base plate . . . . . . . . . . . . . . . . . . . . . . . . Order # 421.316WS 59 AZ Wind shield, charcoal grey (also available in blue, green, yellow, red and white) . . . . . . . . . . . . . . . . . . . . . Order # 419.087ZUV 85 Holding sling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 248.509Synexis TP2 beltpack transmitterOpus 54.18 BLK Neckworn microphone, condenser, cardioid, 4-pin female mini XLR connector, black . . . . . . . . . . . . . . . . . Order # 464.945Opus 54.18 SC same as above, but beige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 474.223Opus 55.18 Mk II BLKNeckworn microphone, condenser, omnidirectional, waterproof, 4-pin female mini XLR connector, black. . Order # 475.394Opus 55.18 Mk II SCsame as above, but beige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 475.386TG-X 54.18 BLK Neckworn microphone, condenser, supercardioid, 4-pin female mini XLR connector, black . . . . . . . . . . . . . Order # 700.061TG-X 54.18 SC same as above, but beige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 700.053TG-X 55.18 BLK Neckworn microphone, condenser, omnidirectional, 4-pin female mini XLR connector, black . . . . . . . . . . . Order # 700.096TG-X 55.18 SC same as above, but beige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 700.088MCE 55.18 BLK Mini condenser lavalier microphone, omnidirectional, waterproof, 4-pin female mini XLR connector, black. . . . . Order # 475.408MCE 55.18 SC same as above, but beige. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 475.416MCE 10.18 Condenser lavalier microphone, hypercardioid, 4-pin female mini XLR connector, black. . . . . . . . . . . . . . . . . . . . Order # 471.895
Synexis – Frequencies 2412. FrequenciesChannel display Frequency1216.025 MHz2216.075 MHz3216.125 MHz4216.175 MHz5216.225 MHz6216.275 MHz7216.325 MHz8216.375 MHz9216.425 MHz10 216.525 MHz11 216.575 MHz12 216.625 MHz13 216.675 MHz14 216.725 MHz15 216.775 MHz16 216.825 MHz17 216.875 MHz18 216.925 MHz19 216.975 MHz
Synexis – Technical Specifications 2513. Technical specificationsSynexis RP2 beltpack receiverOscillation type . . . . . . . . . . . . . . . . . . . . . . . . . . PLL synthesized control OSCCarrier frequency range. . . . . . . . . . . . . . . . . . . . 216.025 - 216.975 MHzAdjustable channel . . . . . . . . . . . . . . . . . . . . . . . 19 channelsFrequency response . . . . . . . . . . . . . . . . . . . . . . . 100 Hz - 10 kHzDynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . > 70 dBAmbient temperature . . . . . . . . . . . . . . . . . . . . . -10 - +50 °CT.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 3%Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Two 1.2 V AA (NiMH, 1600 mAh) ortwo 1.5 V AA (Alkaline)Operation range . . . . . . . . . . . . . . . . . . . . . . . . . 50 m (line of sight)Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 µV @ Sinad 12 dBAntenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Headphone cable serves as antennaAdjacent channel performance . . . . . . . . . . . . . . 60 dB @ 50 kHzIMD rejection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.4 MHz / 455 kHzAudio level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 mVHeadphone jack . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 mm jack, applicable for either mono or stereo headphoneOperation hours . . . . . . . . . . . . . . . . . . . . . . . . . NiMH – 16 hours, typicallyAlkaline – 18 hours, typicallyDimensions (D x W x H) . . . . . . . . . . . . . . . . . . . . 31.7 x 67.7 x 92 mmWeight (without batteries). . . . . . . . . . . . . . . . . . 90 g Synexis TH2 handheld transmitterOscillation type . . . . . . . . . . . . . . . . . . . . . . . . . . PLL synthesized control OSCCarrier frequency range. . . . . . . . . . . . . . . . . . . . 216.025 - 216.975 MHzAdjustable channel . . . . . . . . . . . . . . . . . . . . . . . 19 channelsFrequency response . . . . . . . . . . . . . . . . . . . . . . . 100 Hz - 10 kHzDynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . > 70 dBAmbient temperature . . . . . . . . . . . . . . . . . . . . . -10 - +50 °CT.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 3%Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Two 1.2 V AA (NiMH, 1600 mAh) ortwo 1.5 V AA (Alkaline)Operation range . . . . . . . . . . . . . . . . . . . . . . . . . 50 m (line of sight)Microphone capsule . . . . . . . . . . . . . . . . . . . . . . CondenserAntenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mesh head antennaRF output power . . . . . . . . . . . . . . . . . . . . . . . . . 10 mWSpurious emission . . . . . . . . . . . . . . . . . . . . . . . . < 250 nWAudio input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . through mic capsuleMaximum deviation. . . . . . . . . . . . . . . . . . . . . . . ±10 kHzOperation hours . . . . . . . . . . . . . . . . . . . . . . . . . NiMH – 7 hours, typicallyAlkaline – 8 hours, typicallyDimensionsDiameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47.7 mmHeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262.4 mmWeight (without batteries). . . . . . . . . . . . . . . . . . 200 g Synexis TP2 beltpack transmitterOscillation type . . . . . . . . . . . . . . . . . . . . . . . . . . PLL synthesized control OSCCarrier frequency range. . . . . . . . . . . . . . . . . . . . 216.025 - 216.975 MHzAdjustable channel . . . . . . . . . . . . . . . . . . . . . . . 19 channelsFrequency response . . . . . . . . . . . . . . . . . . . . . . . 100 Hz - 10 kHzDynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . > 70 dBAmbient temperature . . . . . . . . . . . . . . . . . . . . . -10 - +50 °CT.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 2%Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Two 1.2 V AA (NiMH, 1600 mAh) ortwo 1.5 V AA (Alkaline)Operation range . . . . . . . . . . . . . . . . . . . . . . . . . 50 m (line of sight)Microphone capsule type. . . . . . . . . . . . . . . . . . . CondenserAntenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Microphone cable serves as antennaRF output power . . . . . . . . . . . . . . . . . . . . . . . . . 10 mWSpurious emission . . . . . . . . . . . . . . . . . . . . . . . . < 250 nWAudio input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mic in and Aux inMaximum deviation. . . . . . . . . . . . . . . . . . . . . . . ±10 kHzOperation hours . . . . . . . . . . . . . . . . . . . . . . . . . NiMH – 8 hours, typicallyAlkaline – 10 hours, typicallyDimensions (D x W x H) . . . . . . . . . . . . . . . . . . . . 31.7 x 67.7 x 92 mmWeight (without batteries). . . . . . . . . . . . . . . . . . 90 g

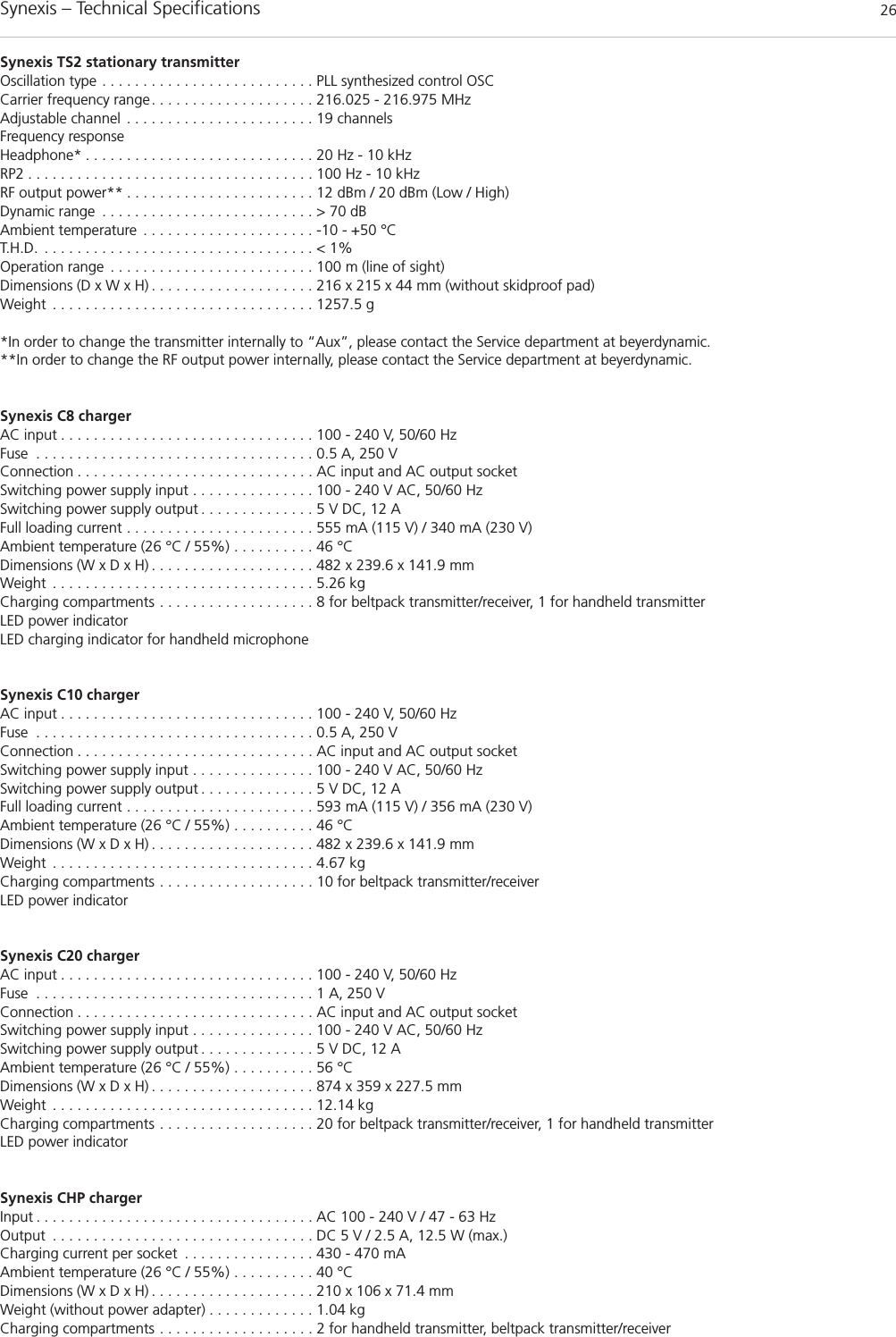

Synexis – Technical Specifications 26Synexis TS2 stationary transmitterOscillation type . . . . . . . . . . . . . . . . . . . . . . . . . . PLL synthesized control OSCCarrier frequency range. . . . . . . . . . . . . . . . . . . . 216.025 - 216.975 MHzAdjustable channel . . . . . . . . . . . . . . . . . . . . . . . 19 channelsFrequency responseHeadphone* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz - 10 kHzRP2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Hz - 10 kHzRF output power** . . . . . . . . . . . . . . . . . . . . . . . 12 dBm / 20 dBm (Low / High)Dynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . > 70 dBAmbient temperature . . . . . . . . . . . . . . . . . . . . . -10 - +50 °CT.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1%Operation range . . . . . . . . . . . . . . . . . . . . . . . . . 100 m (line of sight)Dimensions (D x W x H) . . . . . . . . . . . . . . . . . . . . 216 x 215 x 44 mm (without skidproof pad)Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1257.5 g *In order to change the transmitter internally to “Aux”, please contact the Service department at beyerdynamic.**In order to change the RF output power internally, please contact the Service department at beyerdynamic.Synexis C8 chargerAC input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V, 50/60 HzFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 A, 250 VConnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC input and AC output socketSwitching power supply input . . . . . . . . . . . . . . . 100 - 240 V AC, 50/60 HzSwitching power supply output . . . . . . . . . . . . . . 5 V DC, 12 AFull loading current . . . . . . . . . . . . . . . . . . . . . . . 555 mA (115 V) / 340 mA (230 V)Ambient temperature (26 °C / 55%) . . . . . . . . . . 46 °CDimensions (W x D x H) . . . . . . . . . . . . . . . . . . . . 482 x 239.6 x 141.9 mmWeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26 kgCharging compartments . . . . . . . . . . . . . . . . . . . 8 for beltpack transmitter/receiver, 1 for handheld transmitterLED power indicatorLED charging indicator for handheld microphoneSynexis C10 chargerAC input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V, 50/60 HzFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 A, 250 VConnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC input and AC output socketSwitching power supply input . . . . . . . . . . . . . . . 100 - 240 V AC, 50/60 HzSwitching power supply output . . . . . . . . . . . . . . 5 V DC, 12 AFull loading current . . . . . . . . . . . . . . . . . . . . . . . 593 mA (115 V) / 356 mA (230 V)Ambient temperature (26 °C / 55%) . . . . . . . . . . 46 °CDimensions (W x D x H) . . . . . . . . . . . . . . . . . . . . 482 x 239.6 x 141.9 mmWeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.67 kgCharging compartments . . . . . . . . . . . . . . . . . . . 10 for beltpack transmitter/receiverLED power indicatorSynexis C20 chargerAC input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V, 50/60 HzFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A, 250 VConnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC input and AC output socketSwitching power supply input . . . . . . . . . . . . . . . 100 - 240 V AC, 50/60 HzSwitching power supply output . . . . . . . . . . . . . . 5 V DC, 12 AAmbient temperature (26 °C / 55%) . . . . . . . . . . 56 °CDimensions (W x D x H) . . . . . . . . . . . . . . . . . . . . 874 x 359 x 227.5 mmWeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.14 kgCharging compartments . . . . . . . . . . . . . . . . . . . 20 for beltpack transmitter/receiver, 1 for handheld transmitterLED power indicatorSynexis CHP chargerInput . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC 100 - 240 V / 47 - 63 HzOutput . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 5 V / 2.5 A, 12.5 W (max.)Charging current per socket . . . . . . . . . . . . . . . . 430 - 470 mAAmbient temperature (26 °C / 55%) . . . . . . . . . . 40 °CDimensions (W x D x H) . . . . . . . . . . . . . . . . . . . . 210 x 106 x 71.4 mmWeight (without power adapter) . . . . . . . . . . . . . 1.04 kgCharging compartments . . . . . . . . . . . . . . . . . . . 2 for handheld transmitter, beltpack transmitter/receiver
E 1/BA Synexis (08.10) • Änderungen und Irrtümer vorbehalten • Subject to change without notice • Sujet à changement sans préavisbeyerdynamic GmbH & Co. KGTheresienstr. 8 | 74072 Heilbronn – GermanyTel. +49 (0) 7131 / 617 - 0 | Fax +49 (0) 7131 / 617 - 204info@beyerdynamic.de | www.beyerdynamic.comWeitere Vertriebspartner weltweit finden Sie unter www.beyerdynamic.comFor further distributors worldwide, please go to www.beyerdynamic.com
