Users Manual
ZN-502 A/S/AS
USER MANUAL
Statement : This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful Interference, and (2) this device must accept any interference
received, Including interference that may cause undesired operation.
The below a two product is market with a one Box
Above product type is transceiver, accordingly the receiver portion of the
respectively product is proceed a DoC under the Verification procedure
Thank you for purchasing our product. Our systems have all been
designed and tested to be compatible with the earliest to latest
vehicles available throughout the world. Our primary goal was to
provide a reliable and stable product. Our secondary goal was to
ensure that our systems are easy to install. Our final goal was to
provide features that would benefit the user and installer. We are
confident that our products will meet and exceed your expectations.
We are constantly working to research, design, and build next
generation products. We would not expect anything less since we
use our products in our own vehicles.
- Two-way Remote Controller
FCC ID: WJ3ALC-502G
- Two-way Main Controller
FCC ID: WJ3MB-SFG
2
CAUTION!
PLEASE READ CAREFULLY
This device under provision section 15.21 of FCC Rule Part 15 that
changes or modiications not epressly approved by the party responsible
for compliance could avoid the user’s authority to operate the equipment.
The user and installer should completely read the User Manual, Installation
Manual, and the vehicle’s manual completely before installing and
operating this system. Not reading the manuals completely may result in
injury or
damage to the user(s), installer(s), and/or the vehicle. Installation and use
of this system is acknowledgment that the user and installer have fully read
the manuals and indemnify Zenesis Electronics Corporation from any
injuries or damages resulting from wrong use and/or installation of our
system. Please take the following minimum precautions.
1. When using remote start, place the gear in Park(P) (automatic
transmission) or Neutral (manual transmission) and set the
parking brake (emergency brake).
2. The transmission (Tx) and reception (Rx) distance will vary from
interference from other radio signals.
3. If any defects are discovered, do not open or attempt to repair the
system. Ask the installer for assistance.
4. Zenesis Electronics Corporation will not be responsible for any
theft and/or damages to your vehicle.
5. The user of this system will be responsible for any injuries and/or
damages resulting from misuse.
6. Zenesis Electronics Corporation does not condone the installation
of ANY remote starter equipped product into a convertible or
open-concept type vehicle.
3
CONTENTS
1. Introduction
1.1 System Contents 6
1.2 Remote Control Button Layout 7
1.3 LCD Display Introduction 8
1.4 Remote Control Button Introduction 9
2. Primary Features
2.1 Door Lock (Arm) 11
2.2 Door Unlock (Disarm) 11
2.3 Arm / Disarm Status 11
2.4 Car Find & Status 12
2.5 LCD Screen Status 12
2.6 Panic 12
2.7 Remote Start 13
2.8 Trunk Release 14
2.9 Valet Mode 14
3. Secondary Features
3.1 Remote Control Beep Mute 16
3.2 Siren 16
3.3 Passive Lock (Arm) 17
3.4 Safety Relock (Rearm) 17
3.5 Ignition Lock 18
3.6 Cold Start Timer 18
3.7 Turbo Timer 19
3.8 Option 1 Input 19
3.9 Remote Control Registration 20
3.10 Remote Start Registration 20
3.11 User Programmable Options 21
3.12 Time, Time Alarm, Timer Remote Start Reservation Set 22
3.13 Aux 1 Output 23
3.14 Aux 2 Output 23
3.15 Shock Sensor Option 23
3.16 Shock Sensor Sensitivity Adjustment 24
3.17 Z-Pass Touch 24
4. Factory Rese
5.Others 26
4. Warranty Card
27
4
1. INTRODUCTION
1.1 System Contents
1.2 Remote Control Button Layout
1.3 LCD Display Introduction
1.4 Remote Control Button Introduction
5

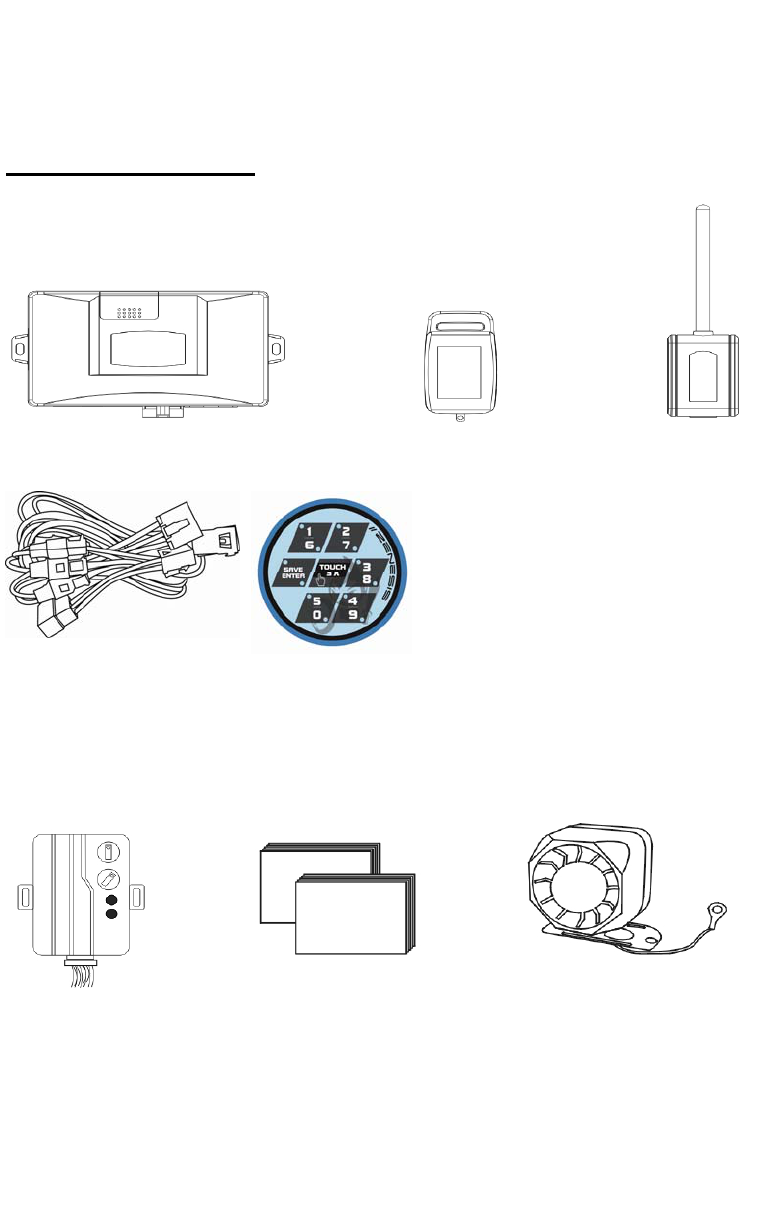

1.1 System Contents
Main Control Module Remote Control Antenna
Wiring Harness Z-PASS TOUCH
Shock Sensor Manuals Siren
6

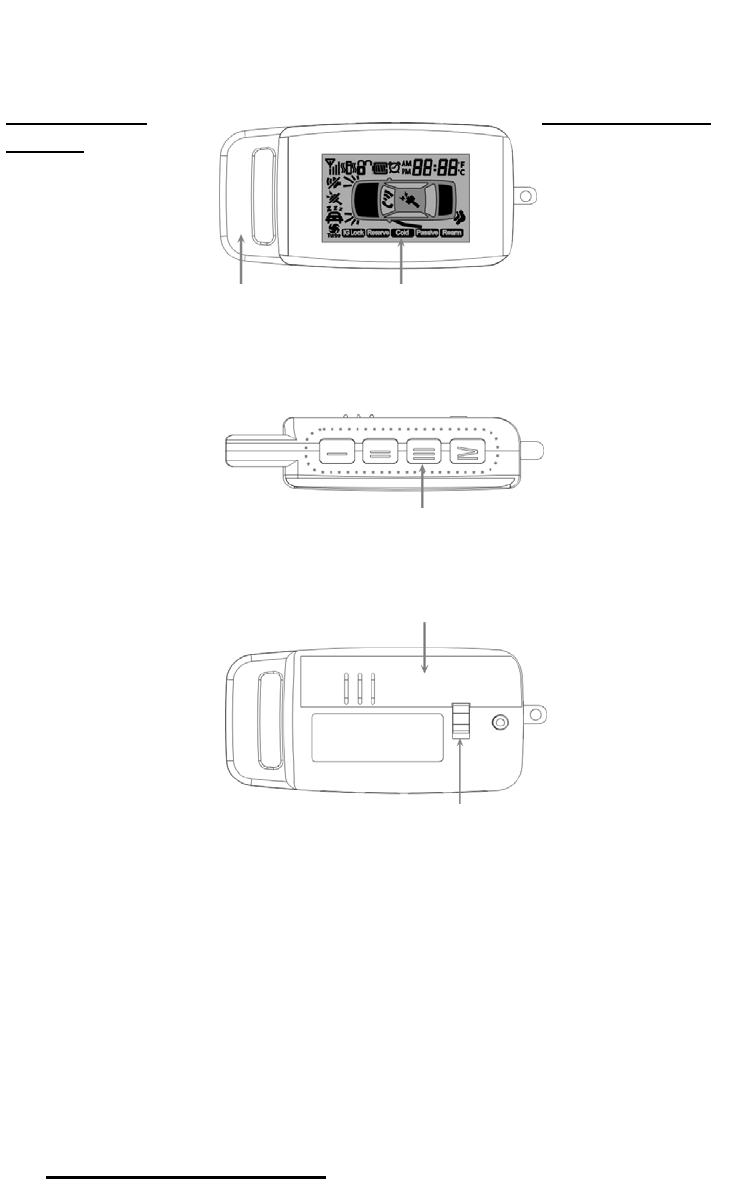

1.2 Remote Control Button
Layout
Front View
Antenna OLCD / UCLCD
Buttons
Battery 1.5 V AAA
Back View
Lock / Unlock
2-way Remote & Main Controller Specifications
- Please see the page 26

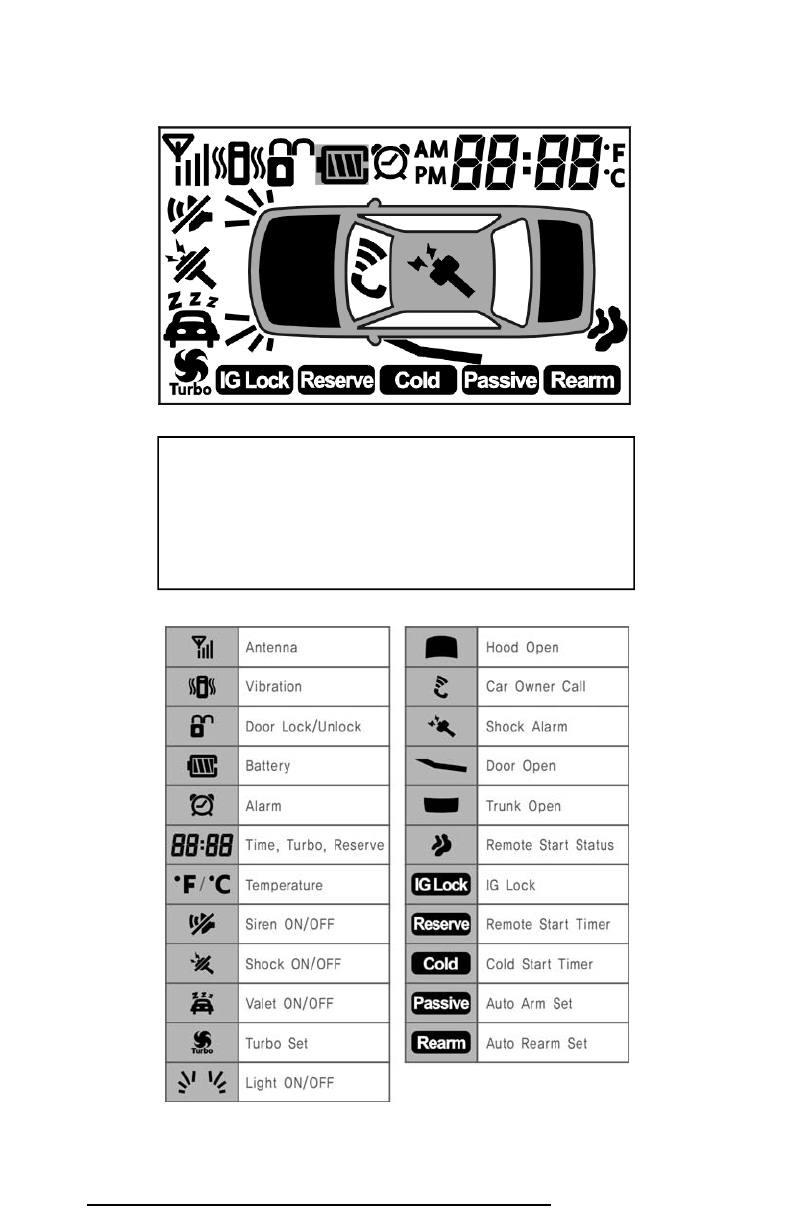

1.3 LCD Display Layout 7
1.4 Remote Control Button Introduction
8
CAUTION
NEVER use the system except for its intended use.
This is an electronic system with complex circuitry.
Avoid dropping the components or cause any other
physical damage as that will void the warranty.
LEGEND:
“ - “ means to hold for 2 seconds - press and hold button(s)
until 1st beep is heard from the remote control.
“ ~ “ means to hold for 4 seconds - press and hold button(s)
until 2nd beep are heard from the remote control.
9
Button(s) Duration* Description
Ⅰ 0.5 sec Arm / Door Lock
Ⅱ 0.5 sec Disarm / Door Unlock
Ⅲ× 3 Times 0.5 sec Remote Control Hold ON/OFF
Ⅳ 0.5 sec Vehicle Status / Car Finder
Ⅰ - 2+ sec Panic
Ⅲ- 2+ sec Remote Start
Ⅳ - 2 sec Trunk Release
Ⅱ ~ 4 sec Time / Alarm / Remote Start Timer Set
Ⅰ + Ⅳ 0.5 sec Remote Control Beep Mute ON/OFF
Ⅱ + Ⅲ 0.5 sec Siren Mute ON/OFF
Ⅰ + Ⅱ 0.5 sec Aux 1
Ⅲ + Ⅳ 0.5 sec Aux 2
2. PRIMARY FEATURES
2.1 Arm (Door Lock)
2.2 Disarm (Door Unlock)
2.3 Arm / Disarm Status
2.4 Car Find & Status
2.5 LCD Screen Status
2.6 Panic
2.7 Remote Start
2.8 Trunk Release
2.9 Valet Mode
2.1 Door Lock (Arm) ButtonⅠ 0.5 sec
10
11

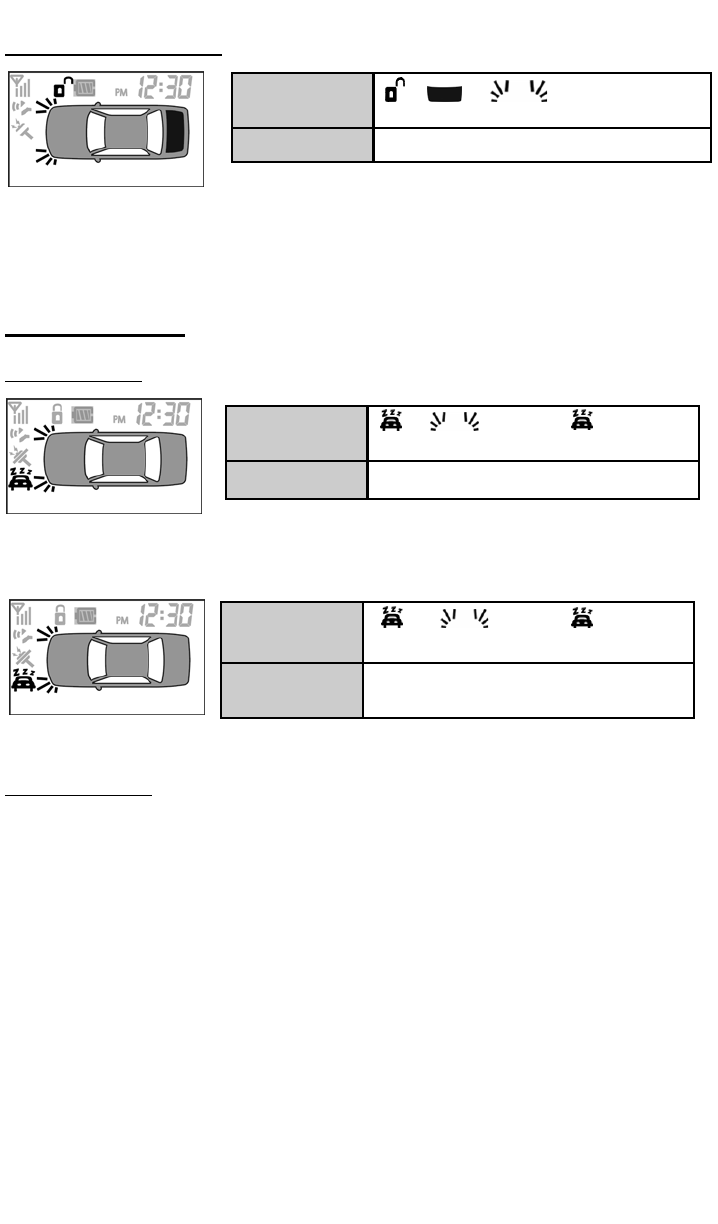

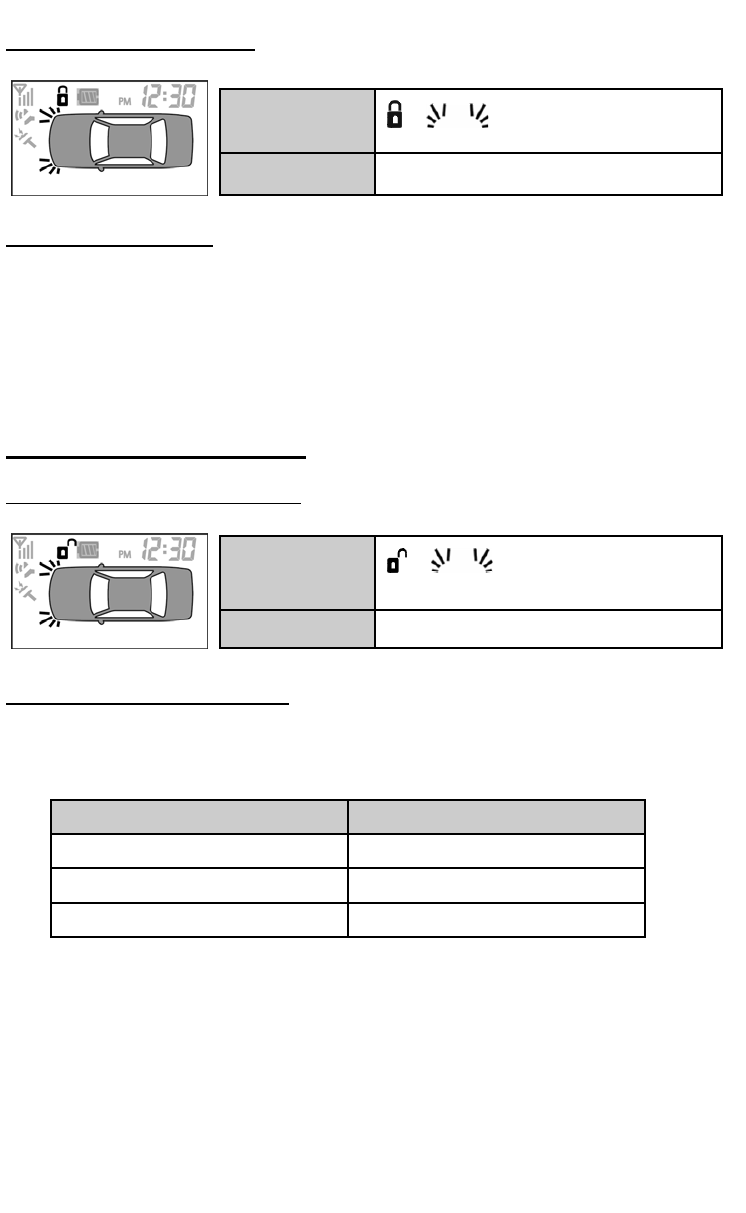

Successful Arm (Door Lock)
Failed Arm (Door Lock)
If a door, trunk and/or hood is open while arming, 4 siren chirps and 4 parking light
flashes will occur immediately.
Please ensure any doors, trunk and/or hood that is open, is closed. Rearm the
system.
2.2 Door Unlock (Disarm) Button Ⅱ 0.5 sec
Successful Disarm (Door Unlock)
2.3 Arm / Disarm Status Ⅱ 0.5 sec
After the
alarm is
triggered, pressing Button II will stop the siren from sounding.
The system is still armed at this point. Pressing Button II again will disarm the
system. The LED’s on the Z-Pass module (while Discreet Mode is OFF) and the
LED on the Antenna Module will indicate the status of the system. If a door is
opened and closed, the Triggered Alarm status on the Z-Pass will be cleared.
The siren duration can be programmed through the User Programmable
Options
Remote Control & flash. 1 beep will occur.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will flash. 2 beeps will
occur.
Vehicle 2 parking light flashes & 2 siren chirps.
11
Status Z-Pass LED’s
Armed Mode Normal Flash
Disarmed Mode No Flash
Triggered Alarm Fast Flash

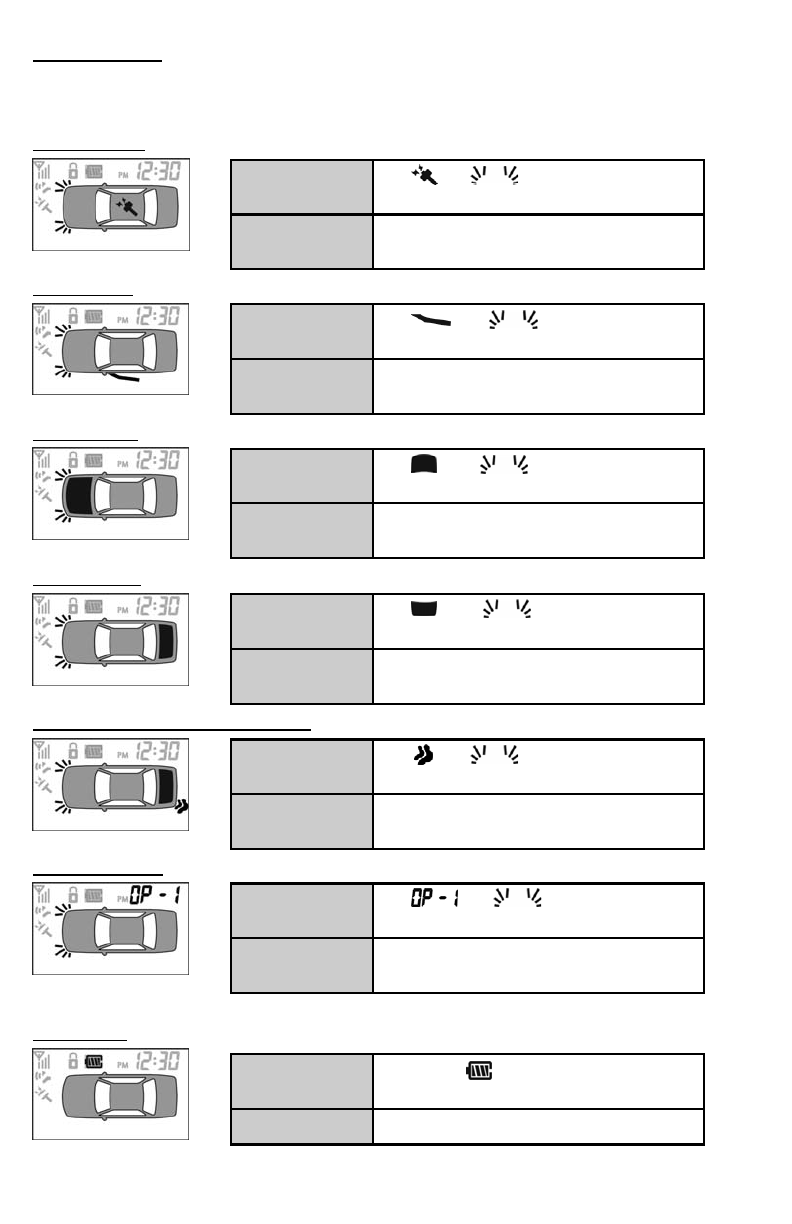

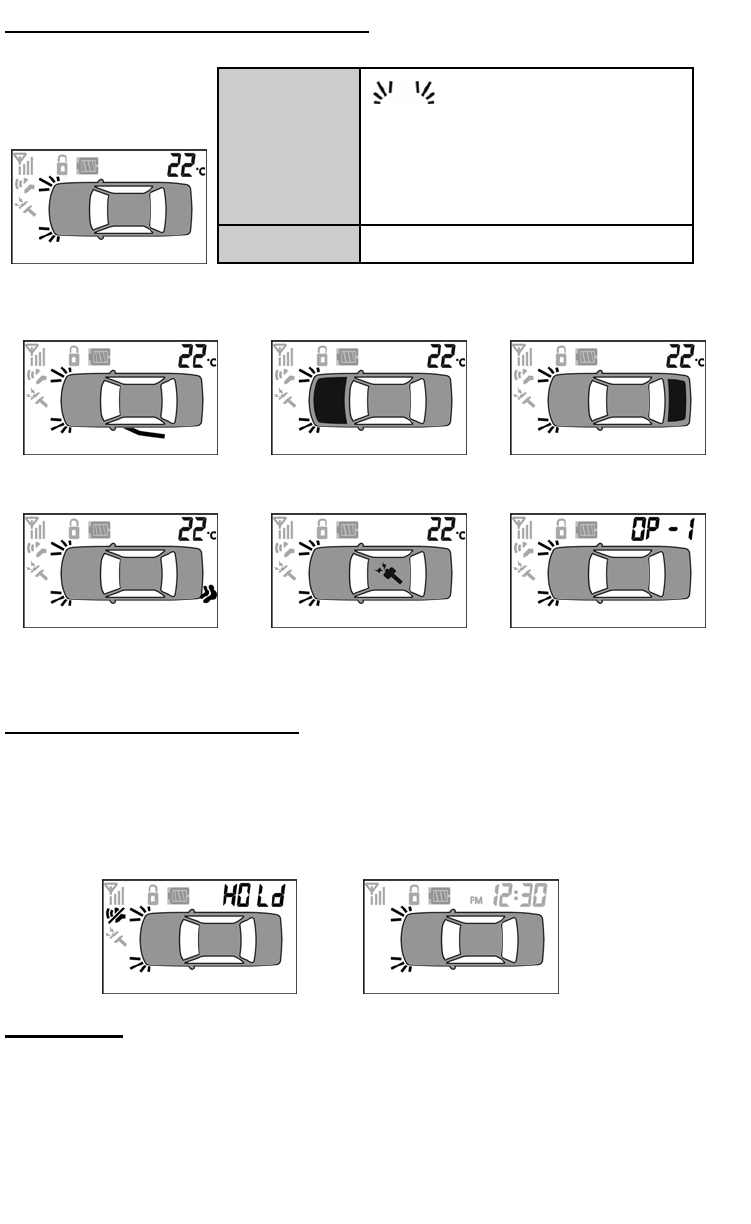

2.4 Vehicle Status / Car Finder Button Ⅳ 0.5 sec
Open Door Open Hood Open Trunk
Remote Start On Shock Sensor Trigger Option 1 Input Trigger
2.5 Remote Control Hold ButtonⅢ 0.5 sec x 3 Times
Pressing Button Ⅲ 3 times for 0.5 second each will put the remote control buttons
into “Hold” mode. Any button presses will be ignored. To come out of “Hold” mode,
press Button III 3 times for 0.5 second each again.
Hold ON Hold OFF
2.6 Panic ButtonⅠ 2+ sec
If there is a potential threat, you can alert those around you by using this feature.
The siren will sound for 2 minutes and the parking lights will flash. Press either
Button Ⅰ or Button Ⅱ to turn off panic mode.
Remote Control
6 blinks & the vehicle’s inner
temperature will be displayed. The
following status indications will be
checked and displayed. If the status is
normal, only the temperature will be
displayed. 4 beeps will occur.
Vehicle 6 parking light flashes & 6 siren chirps
12
2.7 Remote Start ButtonⅢ 2+ sec

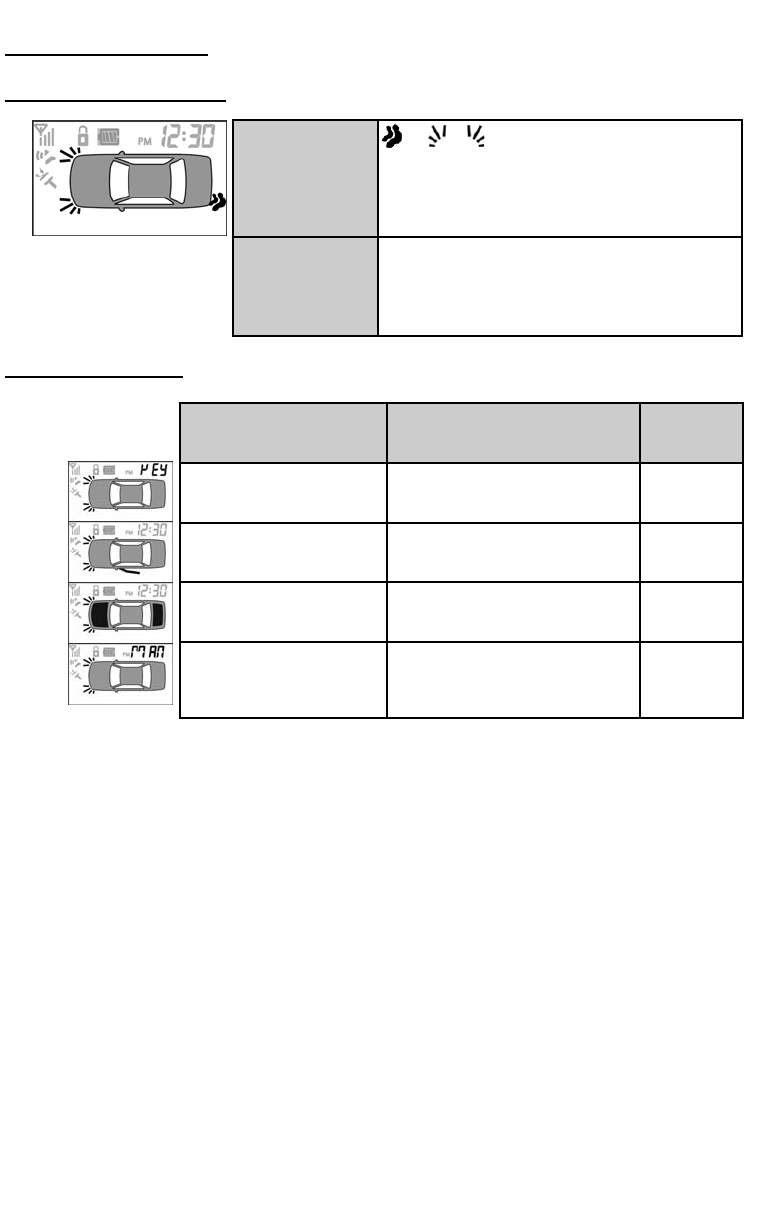

Successful Remote Start
Failed Remote Start
If Button Ⅲ is pressed for 2+ seconds while remote start is on, remote start will turn
off. The default remote start engine running time is 15 minutes. The time can be
changed through the User Programmable Options.
CAUTION: Do not use the remote start feature if the vehicle is in an enclosed area.
Do not use the remote start feature where laws prevent its usage. Do
not turn the key to the Start position or else damage may be done to the
starter motor. Ensure that the parking brake (emergency brake) is
always engaged. Do not use the remote start feature with convertible
and/or open concept cars such as utility vehicles.
13
Remote Control
& will blink until remote start is
turned off. 1 beep will occur if the main
control module communicates with the
remote control. 5 beeps will occur after
remote start is successful.
Vehicle
1 parking light flash & 1 siren chirp if the
main control module communicates with the
remote control. 5 parking light flashes & 5
siren chirps after remote start is successful.
Reason for Failure Vehicle Remote
Control
Key at ON Position 1 parking light flash & 1 siren
chirp 3 beeps
Open Door 3 parking light flashes & 3
siren chirps 3 beeps
Open Hood and/or
Trunk
4 parking light flashes & 4
siren chirps 3 beeps
Failed Remote Start
Reservation for Manual
Transmission Vehicles
7 parking light flashes & 7
siren chirps 3 beeps
2.8 Trunk Release Button Ⅳ 2 sec
Trunk release will unlock the door(s) and disarm the system.
NOTE: On manual transmission vehicles, trunk release will turn off
remote start.
2.9 Valet Mode ButtonsⅠ+ Ⅲ 4 sec
Valet Mode ON
Valet mode OFF
Valet mode without remote control (Emergency shut off)
1. Insert the key into the key cylinder and turn to the ON position.
2. Within 3 seconds, press the foot brake 6 times.
3. On the 6th press, hold down the foot brake until 1 parking light flash and 1
siren chirp occur.
NOTE: This feature can be used to turn off the alarm with the key if the system
has been triggered.
NOTE: Valet mode can only be turned off via the remote control.
Remote Control & & will blink. 2
beeps will occur.
Vehicle 2 x parking light flashes & 2 siren chirps
Remote Control & 1 will blink. will stay
ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will turn
OFF.
Vehicle 2 parking light flashes & 2 siren chirps
14
3.SECONDARY FEATURES
3.1 Remote Control Beep Mute
3.2 Siren Mute

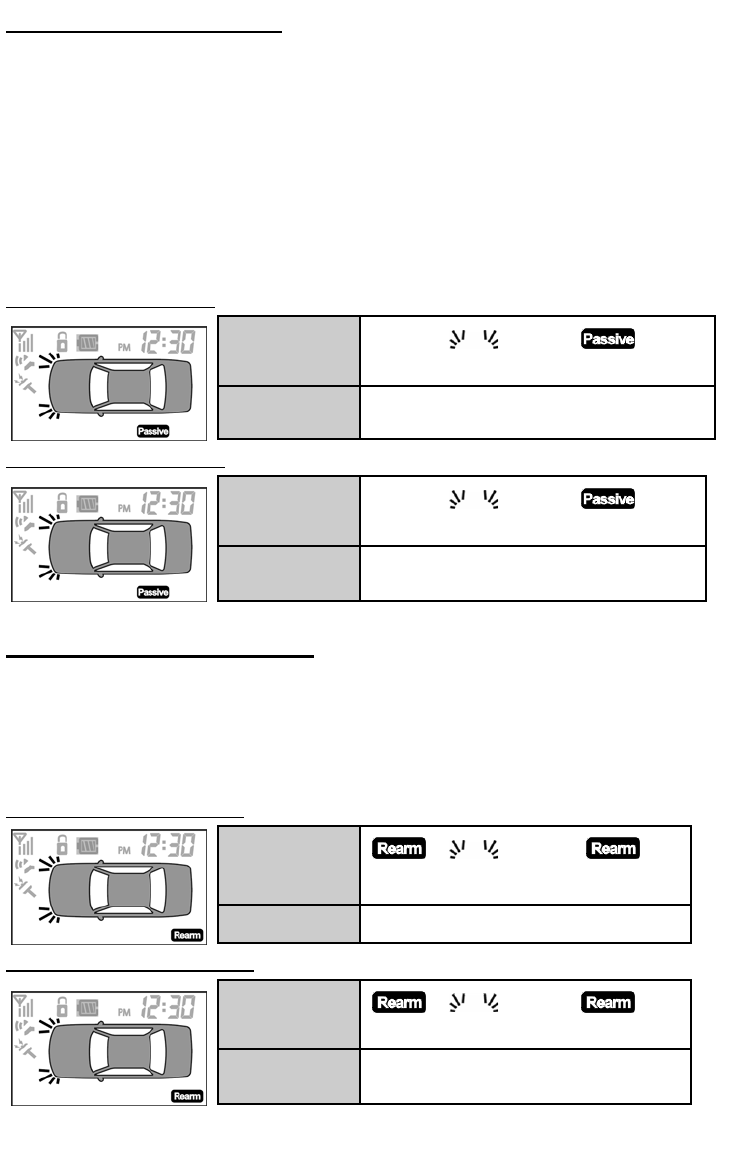

3.3 Passive Lock (Arm)
3.4 Safety Relock (Rearm)

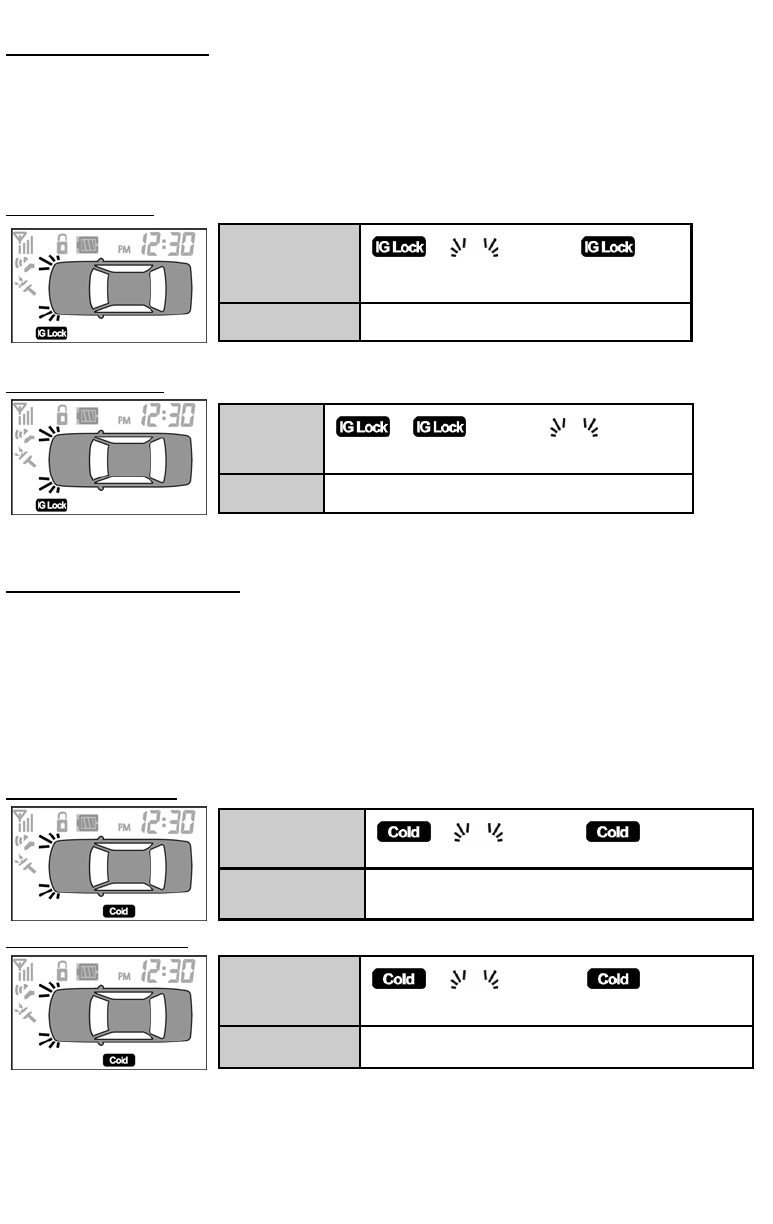

3.5 Ignition Lock
3.6 Cold Start Timer
3.7 Turbo Timer
3.8 Option 1 Input
3.9 Remote Control Registration
3.10 Remote Start Reservation
3.11 User Programmable Options
3.12 Time, Time Alarm, Timer Remote Start Reservation Set
3.13 Aux 1 Output
3.14 Aux 2 Output
3.15 Shock Sensor Option
3.16 Shock Sensor Sensitivity Adjustment
3.17 Z-Pass Touch
15

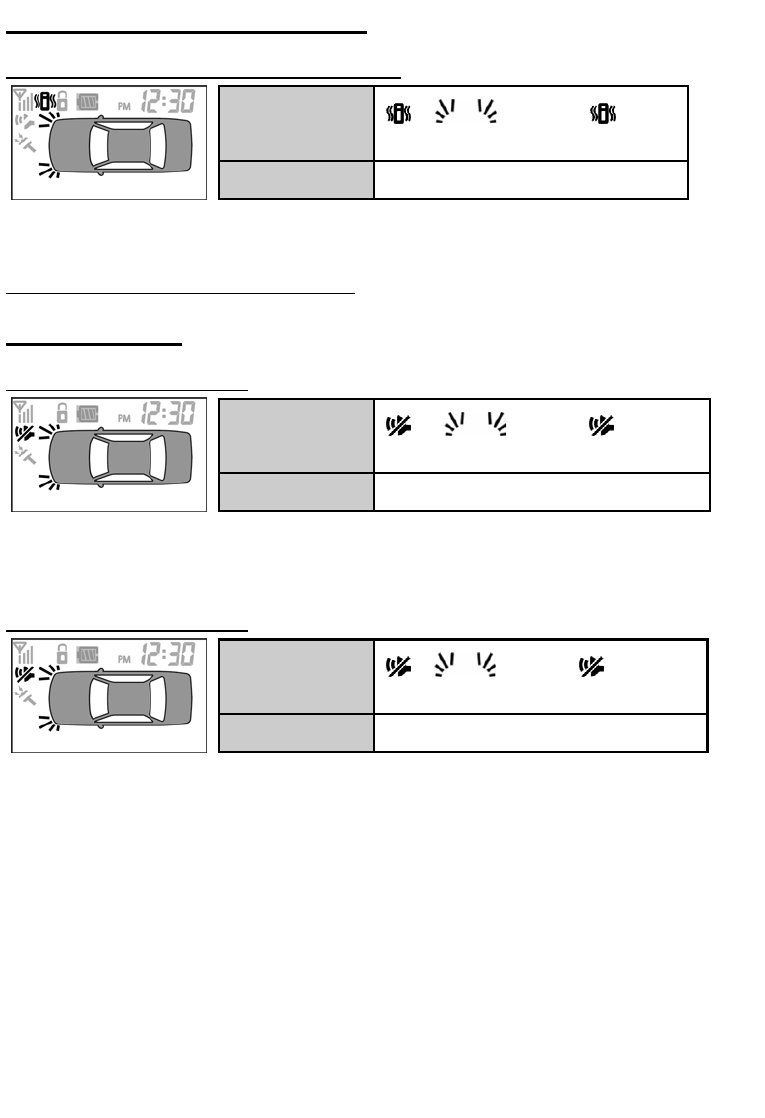

3.1 Remote Control Beep Mute ButtonsⅠ+ Ⅳ 0.5 sec
Remote Control Beep Mute ON - Vibrate ON
When Remote Control Mute is ON, the remote control will use vibration alerts.
Remote control mute OFF - Beeper ON
3.2 Siren Mute ButtonsⅡ+ Ⅲ 0.5 sec
Siren Mute ON - Siren OFF
No siren chirps will occur unless for alarm alerts (door trigger, hood trigger, trunk
trigger, shock trigger, and/or Option 1 trigger) and panic mode.
Siren Mute OFF - Siren ON
Remote Control & will blink. will
stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink . will stay
ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will turn
OFF.
Vehicle 2 parking light flashes & 2 siren chirps
16
3.3 Passive Arm (Lock) ButtonsⅠ+Ⅱ 4 sec + Brake Pedal
To activate or deactivate this function, the Brake Pedal must be held down at the
same time while Buttons I + II are pressed for 4 seconds. Once a door is opened
and closed and the system is not armed via the remote control, the system will
automatically arm and lock the doors. The system will arm and lock the doors
after
25 seconds of the last door closing. Every 5 seconds, 1 parking light flash and 1
siren chirp will occur. On the 5th occurrence, the system will arm and the doors
will
lock.
Passive Arm (Lock) ON
Passive Arm (Lock) OFF
3.4 Safety Rearm (Relock) ButtonsⅡ+ Ⅲ 4 sec + Brake Pedal
To activate or deactivate this function, the Brake Pedal must be held down at the
same time while Buttons II + III are pressed for 4 seconds. If the system is in the
armed state and the system is disarmed but a door is not opened, the system will
Safety Rearm automatically within 30 seconds.
Safety Rearm (Relock) ON
Safety Rearm (Relock) OFF
Remote Control & will blink. will
stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will
turn OFF.
Vehicle 2 parking light flashes & 2 siren chirps
Remote Control & will blink. will
stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will
turn OFF.
Vehicle 2 parking light flashes & 2 siren chirps
17
3.5 Ignition Lock ButtonsⅠ+ Ⅳ 4 sec
To activate or deactivate this function, the Brake Pedal must be held down at the
same time while Buttons I + IV are pressed for 4 seconds. Ignition lock will lock the
doors when the foot brake is pressed after the key is put into key cylinder and turned
to the ON position. If a door is opened while the key is in the ON position, the doors
will lock again once the door is closed and the foot brake is pressed again.
Ignition Lock ON
Ignition Lock OFF
3.6 Cold Start Timer ButtonsⅡ+ Ⅳ 4 sec
To activate or deactivate this function, the Brake Pedal must be held down at the
same time while Buttons II+ IV are pressed for 4 seconds. Once Cold Start Timer I
s turned ON, the vehicle will remote start automatically every 1, 2, or 3 hour(s) as
specified by the User Programmable Options. If the vehicle is driven or remote start
is turned ON, the timer will automatically restart once the engine is turned OFF.
The timer can be set through the User Programmable Options.
Cold start timer ON
Cold start timer OFF
Remote Control & will blink. will
stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote
Control & will blink. will turn
OFF.
Vehicle 2 parking light flashes & 2 siren chirps
Remote Control & will blink. will stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will turn
OFF.
Vehicle 2 parking light flashes & 2 siren chirps
18

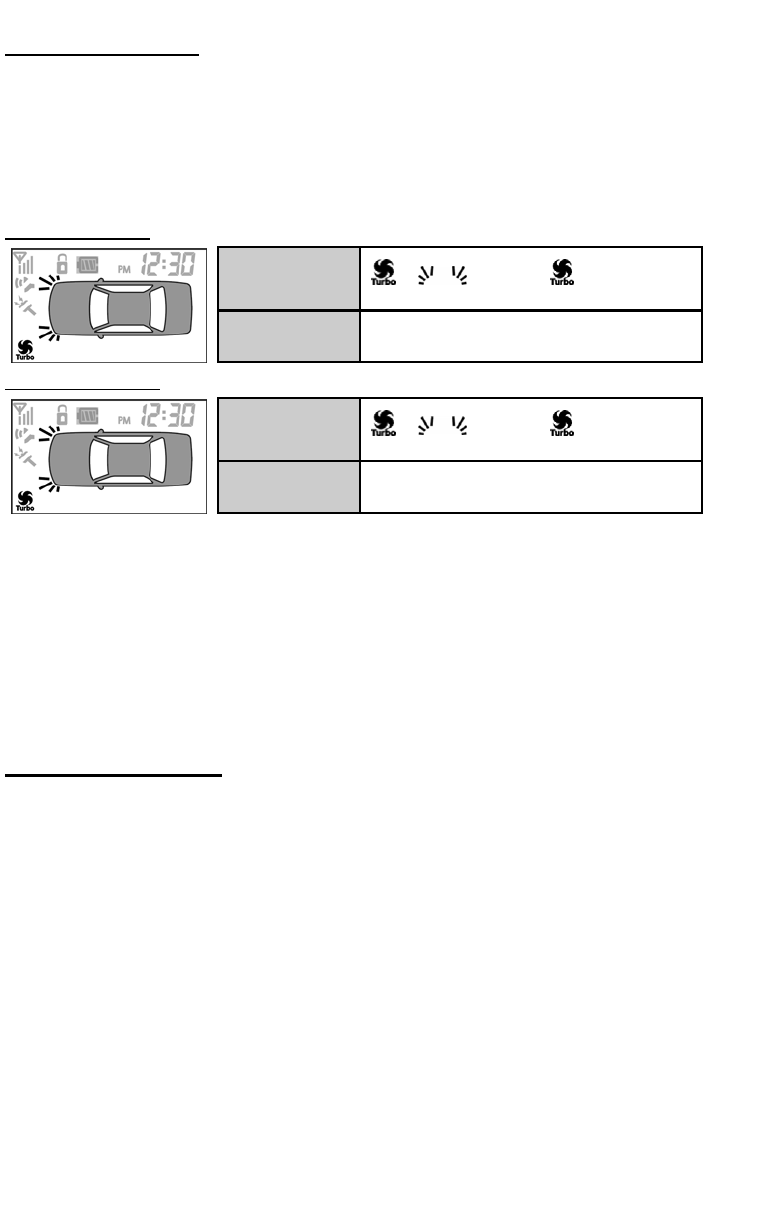

3.7 Turbo Timer ButtonsⅢ + Ⅳ 4 sec
To activate or deactivate this function, the Brake Pedal must be held down at the
same time while Buttons III + IV are pressed for 4 seconds. This feature will allow
turbocharged or supercharged vehicles to cool down by idling the engine for a
specified amount of time even though the key is turn to the OFF position. The
engine will continue to idle.
Turbo Timer ON
Turbo Timer OFF
The duration for idling can be specified through the User Programmable Options.
CAUTION: Please ensure that the vehicle is in Park (automatic transmission) or
Neutral (manual transmission). Also, ensure that the parking brake
(emergency brake) is engaged. Do not idle the vehicle in an enclosed
area. Do not idle the vehicle if any laws prohibit this action. Do not idle
the vehicle if it is a convertible or open concept type of vehicle.
3.8 Option 1 Input
Additional sensors can be added to the system using Option 1 input. No additional
programming is required. When the sensor is triggered, the parking lights will flash
and the siren will sound.
Remote Control & will blink. will stay ON.
Vehicle 1 parking light flash & 1 siren chirp
Remote Control & will blink. will stay OFF.
Vehicle 2 parking light flash & 2 siren chirp
19
3.9 Remote Control Registration
1. Insert key and turn the key to ON position (engine is OFF).
2. Press brake pedal 4 times.
3. On the 4th press, hold the brake pedal down.
4. 3 parking light flashes and 3 siren chirps will confirm remote control
programming mode.
5. Press Button Ⅰ (Lock Button) .
6. After each remote control is added, there will be a confirmation of 2 parking
light flashes and 2 siren chirps. You can add up to 3 2-way remote controls
and 2 1-way remote controls per system.
7. Once the key is turned to the OFF position or 10 seconds without adding a
remote control passes, the system will exit remote control programming
mode.
※ Each time a remote control is added, all remote controls must be
reprogrammed to the system. Adding a remote control erases
previously stored remote controls from the system.
3.10 Remote Start Reservation
Manual transmission vehicles require remote start reservation in order to ensure
that the vehicle is properly prepared for remote start. There are 2 remote start
reservation modes: automatic and manual. Please note that automatic and
manual do not refer to the transmission type. Rather, automatic and manual refer
to the type of remote start reservation.
1. Automatic Remote Start Reservation (Default)
a. Before turning off the engine, put the transmission into Neutral. Ensure that
the parking brake (emergency brake) is engaged. Take foot off of the foot
brake.
b. Turn the key to the OFF position. The engine should still be running.
c. Exit the vehicle within 2 minutes.
d. Once the last door is closed, the engine will turn off.
e. Arm the system. Remote start is ready to be used.
2. Manual Remote Start Reservation
a. Before turning off the engine, put the transmission into Neutral. Ensure that
the parking brake (emergency brake) is engaged. Take foot off the foot brake.
b. Press Button Ⅲ for 2 seconds.
c. Turn the key to the OFF position. The engine should still be running.
d. Exit the vehicle within 2 minutes.
e. Once the last door is closed, the engine will turn off.
f. Arm the system. Remote start is ready to be used.
NOTE1: Remote start reservation type can be changed through the User
Programmable Options.
NOTE2: If a door, trunk, or hood is opened, remote start reservation will be
cancelled and remote start will not be available.
20
3.11 User Programmable Options Buttons Ⅲ + Ⅳ 2 sec
When you enter programming mode by holding Buttons III + Ⅳ for 2 seconds, you
will hear 1 remote control beep. The parking lights will flash 1 time and the siren
will chirp 1 time. You are now in programming mode. Follow the chart below for
programming options.
For example, to select 5 minutes for Remote Start Run Time, hold Buttons III + Ⅳ
for 2 seconds. You will hear 1 remote control beep, see 1 parking light flash, and
hear 1 siren chirp. Within 5 seconds, press Button IV. You will hear 1 remote
control beep to signify the first button press. Press Button I to enter the Remote
Start Run Time menu. You will hear 2 remote control beeps to signify the second
button press. Now, press Button Ⅱ to select 5 minutes. You will hear 3 remote
control beeps to signify the third button press. You will also hear 1 chirp and see 1
parking light flash.
User Option
Options
Ⅰ Ⅱ Ⅲ
Remote Start Run Time Ⅳ → Ⅰ 15 min 5 min 25 min
Diesel Warm Up Time Ⅳ → Ⅱ 30 sec 15 sec 7.5 sec
Siren Sound Time Ⅳ → Ⅲ 30 sec 70 sec 100 sec
Turbo Timer Run Time Ⅳ → Ⅳ 1 min 2 min 5 min
Remote Start Reservation Ⅲ → Ⅳ Automatic Manual
Cold Start Timer Ⅲ → Ⅲ 1 hour 2 hours 3 hours
Button
Sequence
Shock Sensor ON/OFF Ⅲ → Ⅱ ON OFF
Temperature Unit Ⅲ →Ⅰ Fahrenheit Celsius
Default values.
21
3.12 Time, Alarm, Remote Start Timer Set Button
Ⅱ4 sec
The time, alarm, and remote start timer can be set by holding down Button I for 4
seconds. The following buttons are used.
ButtonⅠ : Time Menu (Time → Alarm→ Remote Start Timer)
Press and hold Button Ⅱ for 4 seconds. Once the time starts to blink,
toggle to Alarm and Remote Start Time and back to Time by pressing
Button I for 0.5 second at a time.
ButtonⅡ : Hours setting.
Press and/or hold Button II in order to increase the hours value.
Button Ⅲ : Minutes setting.
Press and/or hold Button III in order to increase the minutes value.
Button Ⅳ: Confirmation or rejection.
Press and hold Button IV for 2 seconds in order to accept the desired time
or press for 0.5 second in order to reject the set time.
NOTE : If a button is not pressed within 20 seconds of another press,
programming mode will be exited.

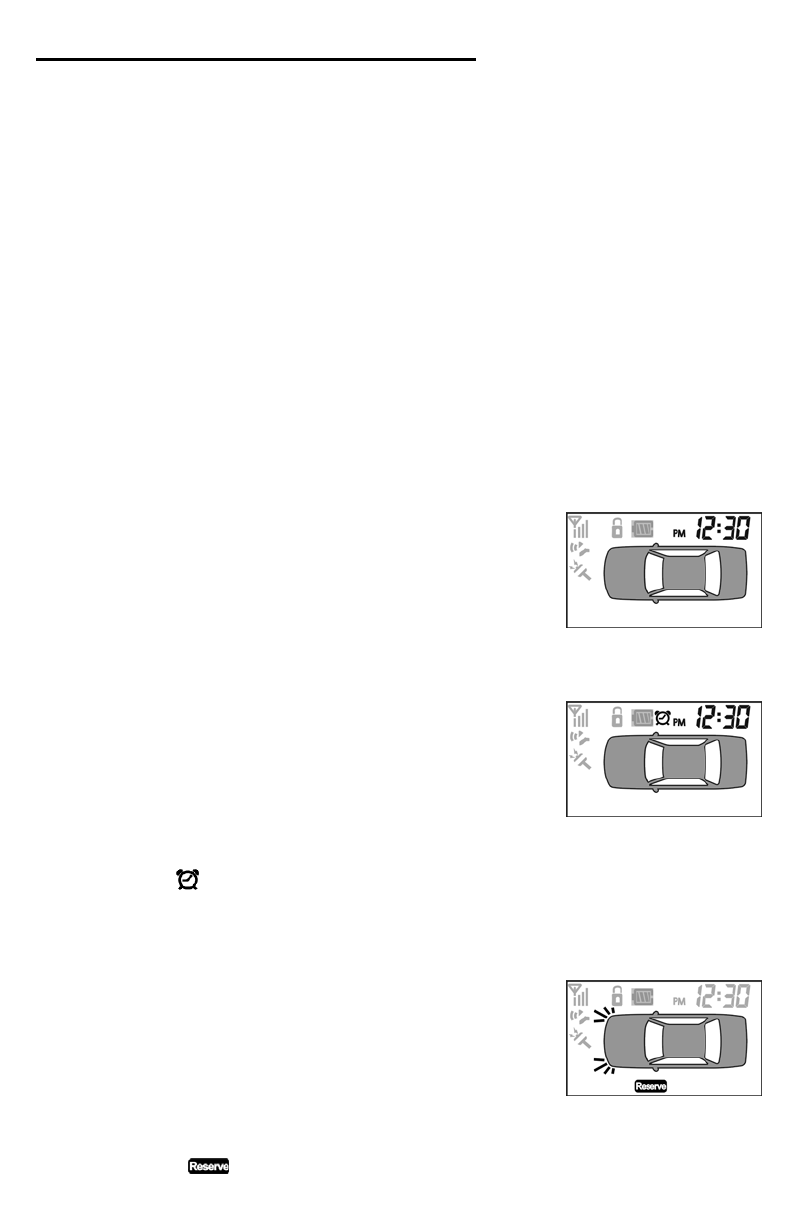

1. Time - Clock Feature Displaying Current Time
a. Press and hold Button Ⅱ for 4 seconds. The time
will begin to blink.
b. Press ButtonⅡ and Button Ⅲ in order to adjust
the hours and minutes.
c. Press and hold Button Ⅳ for 2 seconds in order to
confirm the set time.
2. Alarm - Alarm Clock Feature
a. Press and hold Button Ⅱ for 4 seconds. The time
will begin to blink.
b. Press Button I for 0.5 second to toggle to Alarm
setting.
c. Press ButtonⅡ and Button Ⅲ in order to adjust
the hours and minutes.
d. Press and hold Button Ⅳ for 2 seconds in order to confirm the set time.
e. The icon will appear.
3. Remote Start Timer Set - Remote Start will occur at the specified time if all
constraints on remote start are met. Remote Start will occur each day at the
specified time until the feature is turned OFF.
a. Press and hold Button Ⅱ for 4 seconds. The time
will begin to blink.
b. Press Button I twice for 0.5 second each to toggle
to Remote Start Timer setting.
c. Press ButtonⅡ and Button Ⅲ in order to adjust
the hours and minutes.
d. Press and hold Button Ⅳ for 2 seconds in order to confirm the set time.
e. The icon will appear.
22
3.13 Aux 1 Output Buttons Ⅰ + Ⅱ 0.5 sec
Aux 1 output can be used to control other devices such as window modules for rolling
up or rolling down windows. Press Buttons Ⅲ + Ⅳ for 0.5 second to activate Aux 1
output. 2 parking light flashes and 2 siren chirps will confirm output. The remote
control will blink 2 times and beep 2 times.
3.14 Aux 2 Output Buttons Ⅲ+ Ⅳ 0.5 sec
Aux 2 output can be used to control other devices such as window modules for rolling
up or rolling down windows. Press Buttons Ⅱ+ Ⅳ for 0.5 second to activate Aux 2
output. 2 parking light flashes and 2 siren chirps will confirm output. The remote
control will blink 2 times and beep 2 times.

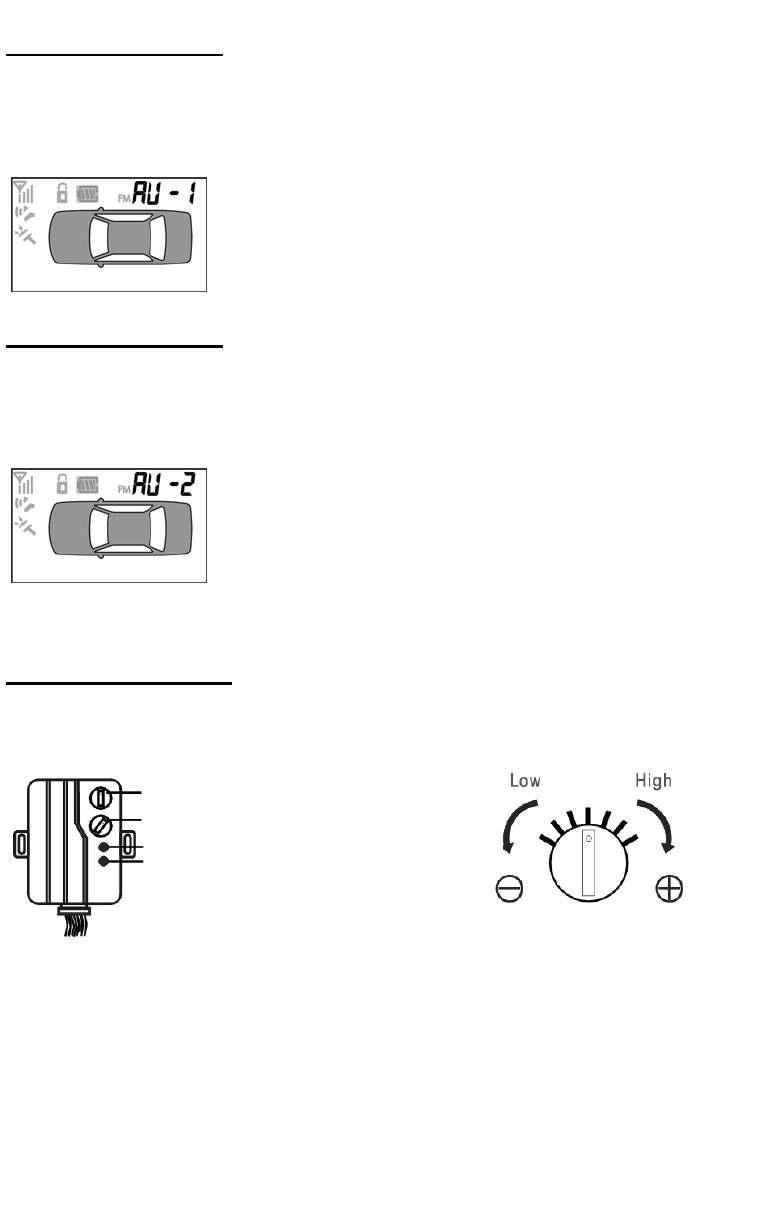

3.15 Shock Sensor
23
Warning shock sensitivity adjustment
Full shock sensitivity adjustment
Green LED indicator for warning shock
Red LED indicator for full shock
3.16 Shock Sensor Sensitivity Adjustment
The sensitivity of the shock sensor can be controlled by turning a dial on the shock
sensor module. Turn the dial according to the amount of sensitivity that is desired.
Keep in mind that turning the sensitivity to its maximum can result in false alarms
3.17 Z-Pass Touch
The system can be armed or disarmed by “touching” the Z-Pass Touch with a PIN
of 4 - 10 digits.
1. PIN Registration
a. Turn Key to ON position (Engine OFF)
b. Press ENTER until ALL OUTER LED’s light up.
c. Enter 4 - 10 digit PIN. In order to toggle between “1 - 5” and “6 - 0”,
press “SHIFT”.
d. Once all of the numbers are entered, press ENTER until all LED’s
blink
3 times.
2. System Arm/Disarm
a. Press ENTER until ALL LED’s blink 1 time.
b. Enter 4 - 10 digit PIN.
c. Press ENTER until ALL LED’s blink 4 times.
d. System will Arm or Disarm accordingly.
3. Driver Call
a. Press DRIVER CALL 3 times while the system is in armed mode.
b. All LED’s will blink quickly and 2 siren chirp / light flash will occur.
Driver call will be sent to the 2-way remote control.
4. Discrete mode
- Hold driver call button until outer LED’s blink once.
- To turn off discrete mode, hold down driver call button until outer LED’s
blink twice. Discrete mode can be done in armed or disarmed mode.
Vehicle
Full Shock Continuous parking light flash and siren
sound.
Remote Control
Tune
Warning Shock Beep 10 second parking light flash and siren
sound.
24
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control & will blink. The
remote control will beep or vibrate.
Vehicle Parking lights will flash and siren will
sound.
Remote Control will blink. The remote
control will beep every hour.
Vehicle
4. Triggers
The following triggers will occur ONLY when the system is armed.
Shock Trigger
Door Trigger
Hood Trigger
Trunk Trigger
Alarm Trigger During Remote Start
Option 1 Trigger
Low Battery
25
26
WARRANTY CARD
Use this warranty card for your records. Please go to
www.zenesisalarms.com
Visit the link above for specific warranty terms and conditions.
ITU emission Code
8K50F1D
Oscillation Type
X-TAL
Modulation Type
FSK (Frequency shift keying)
Data Rate (Mbps)
1200 bps
Operated Frequency 433.920 ㎒
Channel Number One Channel
Communication Type
Simplex(Two-way)
Operation temperature
(-) 40℃ ~ (+) 80 ℃
Remote Controller:
- 250 g / 66 (L) ㎜ x 30 (W) ㎜ x 15 (D) ㎜
Main Controller:
140 (L) ㎜ x 95 (W) ㎜ x 30 (D) ㎜
Power Source
Remote Controller:
1.5 Vdc (Alkaline battery), Size: AAA
Main controller:: 12Vdc (Use the Car Adaptor)
Weight / Dimension
27
