Users Manual
Z-101 A/S/AS
USER MANUAL
Thank you for purchasing our product. Our systems have all been
designed and tested to be compatible with the earliest to latest
vehicles available throughout the world. Our primary goal was to
provide a reliable and stable product. Our secondary goal was to
ensure that our systems are easy to install. Our final goal was to
provide features that would benefit the user and installer. We are
confident that our products will meet and exceed your expectations.
We are constantly working to research, design, and build next
generation products. We would not expect anything less since we
use our products in our own vehicles.
Statement : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful Interference,
and (2) this device must accept any interference received,
Including interference that may cause undesired operation.
Notice : For intentional radiator shall caution the user that changes or
modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the
equipment
The use of a permanently attached antenna or of an antenna that user a
unique coupling to the intentional radiator shall be considered sufficient to
comply with the provisions of this section.
The manufacturer may design the unit so that broken antenna can be
replaced by the user, but the use of a standard antenna jack or electrical
connector is prohibited.
NOTES:
NOTES:
CAUTION!
PLEASE READ CAREFULLY
The user and installer should completely read the User Manual,
Installation Manual, and the vehicle’s manual completely before
installing and operating this system. Not reading the manuals
completely may result in injury or damage to the user(s), installer(s),
and/or the vehicle. Installation and use of this system is
acknowledgment that the user and installer have fully read the
manuals and indemnify Zenesis Alarms from any injuries or damages
resulting from wrong use of our system. Please take the following
precautions.
1. When using remote start, place the gear in Park(P)
(automatic transmission) or Neutral (manual transmission)
and set the parking brake (emergency brake)
2. The transmission (Tx) and reception (Rx) distance will vary
from interference from other radio signals.
3. If any defects are discovered, do not open or attempt to
repair the system. Ask the installer for assistance.
4. Zenesis Alarms will not be responsible for any theft and/or
damages to your vehicle.
5. The installer of this system will be responsible for any injuries
and/or damages resulting from incorrect installation.
6. The user of this system will be responsible for any injuries
and/or damages resulting from misuse.
CONTENTS
1. Introduction
1.1 System Contents
1.2 Remote Control Button Layout
1.3 Remote Control Battery Replacement
1.4 Remote Control Button Introduction (Primary/Secondary)
2. Primary Features
2.1 Door Lock (Arm—101 A/AS Only)
2.2 Door Unlock (Disarm—101 A/AS Only)
2.3 Arm / Disarm Status (101 A/AS Only)
2.4 Vehicle Status
2.5 Panic (101 A/AS Only)
2.6 Remote Start
2.7 Trunk Release
2.8 Valet Mode
2.9 Remote Control Button Hold
3. Secondary Features
3.1 User Programmable Options
3.2 Remote Control Registration
3.3 Remote Start Reservation
3.4 Temperature Status
3.5 Paging (101 A/AS Only)
3.6 Remote Control Beep Mute
3.7 Siren Mute (101 A/AS Only)
3.8 Passive Lock (Arm—101 A/AS Only)
3.9 Safety Relock (Rearm—101 A/AS Only)
3.10 Ignition Lock
3.11 Cold Start Timer
3.12 Turbo Timer
3.13 Convenience Run
3.14 Aux Outputs
3.15 Shock Sensor (101 A/AS Only)
3.16 Shock Sensor Sensitivity (101 A/AS Only)
3.16 Shock Sensor ON/OFF (101 A/AS Only)
3.17 Z-PASS TOUCH
6. Warranty Card
6
7
8
9
13
14
14
15
15
15
16
16
17
19
21
21
22
22
22
23
23
24
24
25
28
29
30
31
31
32
32
33
WARRANTY CARD
Use this warranty card for your records. Please go to www.zenesis
alarms/warranty to fill out the warranty details. Visit the link above
for specific warranty terms and conditions.
Model Number
Owner’s Name
Owner’s Address
Owner’s Phone
Date of Purchase
Date of Install
Retailer Name
Retailer Address
Retailer Phone
Installer Name
Installer Address
Installer Phone

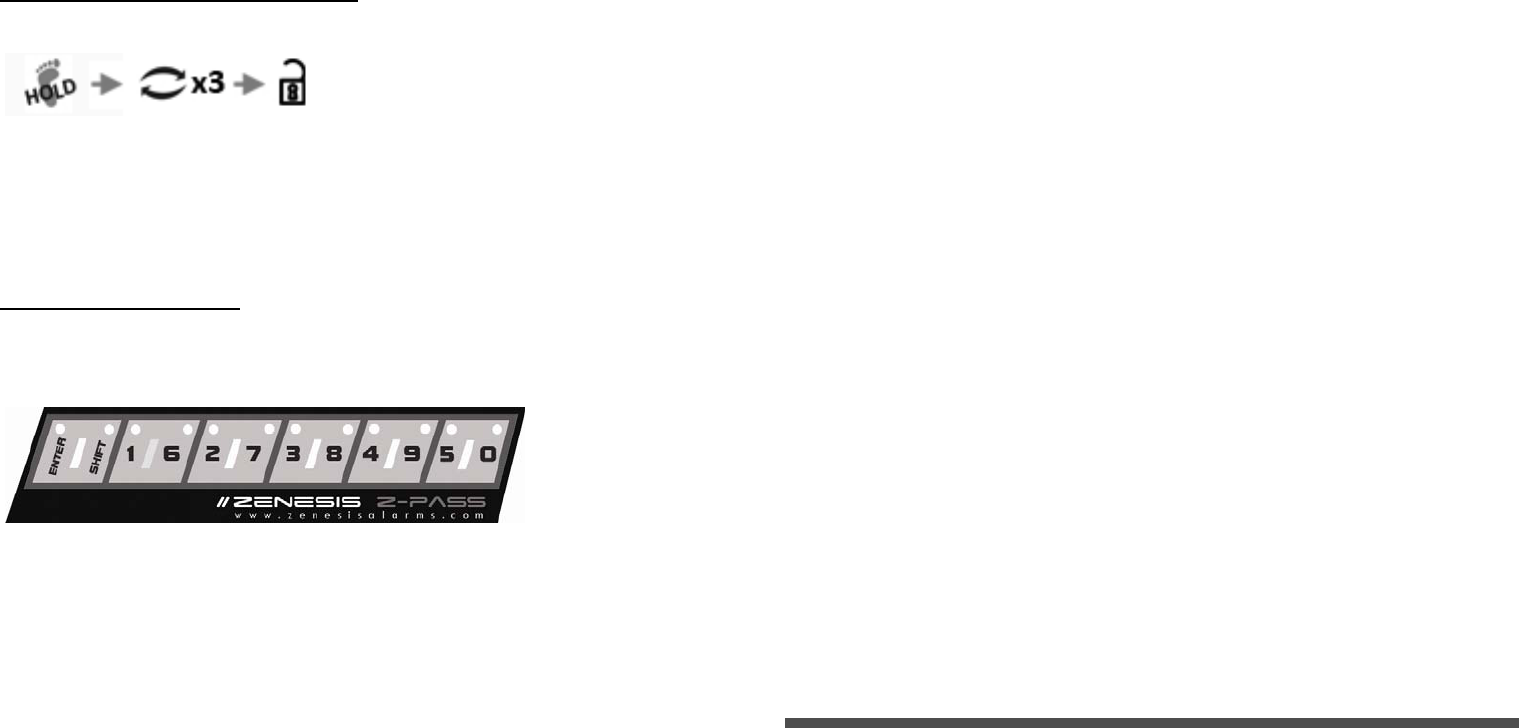

3.16 SHOCK SENSOR ON/OFF
The Shock Sensor can be turned ON or OFF via the remote control.
To turn ON or OFF the shock sensor, follow the Button Sequence: Hold Brake
Pedal and than press Function Button 3 times and than press Unlock Button once.
Do the same procedure again to toggle between ON and OFF.
3.17 Z-PASS TOUCH
The system can be armed or disarmed by “touching” the Z-Pass Touch with a
PIN of 4 - 10 digits.
1. PIN Registration
a. Turn Key to ON position (Engine OFF)
b. Press ENTER until ALL OUTER LED’s light up.
c. Enter 4 - 10 digit PIN. In order to toggle between “1 - 5” and “6 - 0”,
press “SHIFT”.
d. Once all of the numbers are entered, press ENTER until all LED’s
blink 3 times.
2. System Arm/Disarm
a. Press ENTER until ALL LED’s blink 1 time.
b. Enter 4 - 10 digit PIN.
c. Press ENTER until ALL LED’s blink 4 times.
d. System will Arm or Disarm accordingly.
3. Driver Call
a. Press DRIVER CALL 3 times while the system is in armed mode.
b. All LED’s will blink quickly and 2 siren chirp / light flash will occur.
Driver call will be sent to the 2-way remote control.
4. Discrete mode
- Hold driver call button until outer LED’s blink once.
- To turn OFF discrete mode, hold down driver call button until outer
LED’s blink twice. Discrete mode can be done in armed or disarmed
mode.
1. INTRODUCTION
1.1 System Contents
1.2 Remote Control Button Layout
1.3 Remote Control Battery Replacement
1.4 Remote Control Button Introduction

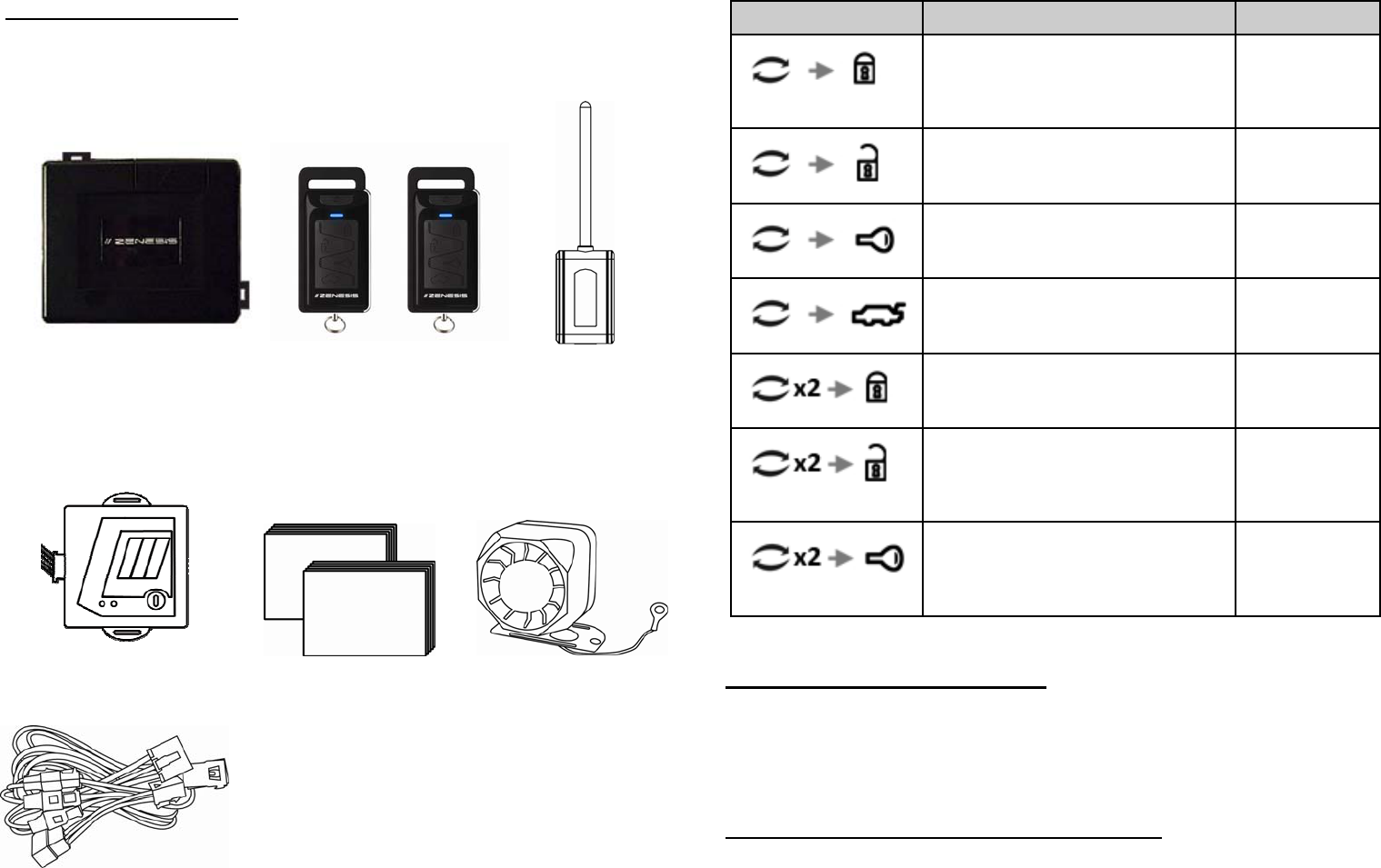

1.1 System Contents
Main Control Module Remote Control x 2
1 x 2-way & 1 x 1-way
Antenna Module
Shock Sensor Manuals Siren
Wiring Harnesses
3.15 Shock Sensor (101 A/AS)
The dual stage shock sensor can detect 2 types of shock: light and hard. Light
shocks will result in siren chirps and parking light flashes as a warning. Hard
shocks will result in the system being triggered. Sustained light shocks will also
trigger the system. If paging is on, the remote control will alert the user to the
triggering of the system.
3.16 Shock Sensor Sensitivity (101 A/AS)
The sensitivity of the shock sensor can be controlled by turning a dial on the
shock sensor module. Turn the dial according to the amount of sensitivity that is
desired. Keep in mind that turning the sensitivity to its maximum can result in
false alarms.

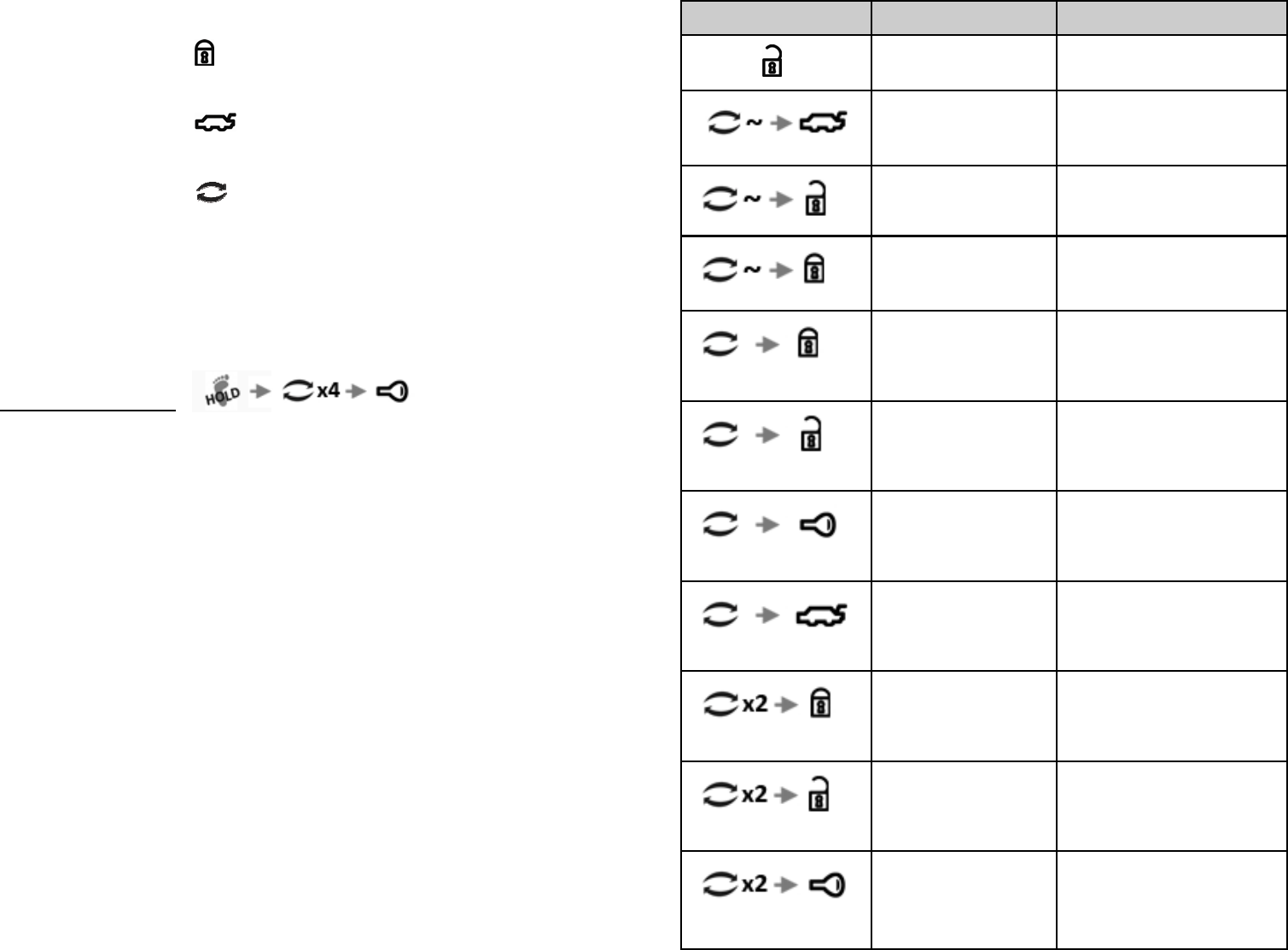

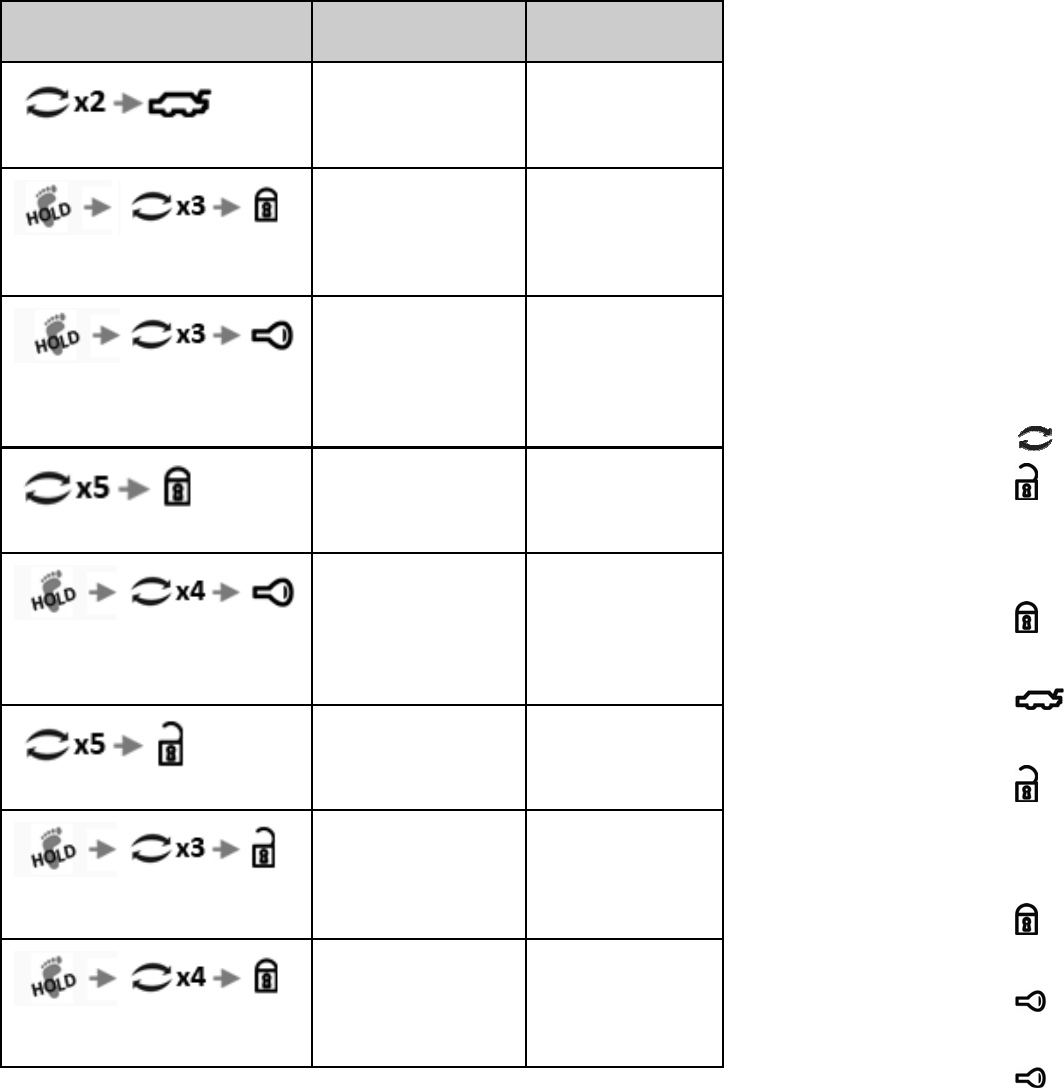

Button(s) Duration Description
Press and release Function Button
→ Press and release Lock Button
Aux 1
Press and release Function Button 0
→ Press and release Unlock Button
Aux 2
Press and release Function Button
→ Press and release Remote Start
Button
Aux 3
Press and release Function Button
→ Press and release Trunk Button
Aux 4
Press and release Function Button
twice → Press and release Lock
Button
Aux 5
Press and release Function Button
twice → Press and release Unlock
Button
Aux 6
Press and release Function Button
twice → Press and release Remote
Start Button
Aux 7
1. While the engine is running, hold down Brake Pedal Press and hold
Remote Start Button for 2 seconds. You will see 6 parking light flashes.
You will see alternating BLUE and RED LED flashes on the remote control.
You will hear 6 siren chirps and remote control beeps.
2. Engage the parking brake
3. Turn the key to the OFF position and vacate the vehicle without pressing
the brake pedal.
4. Press and release .
5. You will see 6 parking light flashes. You will see alternating BLUE and
RED LED flashes on the remote control. You will hear 6 siren chirps and
remote control beeps. The system is armed.
6. The engine will run according to the Remote Start Run Time.
7. When you return to the vehicle, press and release . The system is
disarmed.
8. Turn the key to the ON position. Do not turn the key to the Start position.
You may damage your starter motor.
9. Disengage the parking brake and drive away.
3.14 Aux Outputs
• Aux outputs can be used to control other devices such as window modules
for rolling up or rolling down windows.
• Press corresponding Button Sequences to activate Aux outputs. 1 parking
light flash and 1 siren chirp will confirm output. The remote control will blink
once and beeps a melody to confirm.
TIMED PULSE, MOMENTARY, LATCH:
Each AUX OUTPUT has three sub-categories of programming: TIMED PULSE,
MOMENTARY and LATCH.
TIMED PULSE, once activated will run the AUX OUTPUT for a programmed set
period of time. For example, if it takes 6 seconds to roll down the windows, the
AUX OUTPUT that is programmed will “run” the AUX OUTPUT for 6 seconds in
order to roll down the windows.
MOMENTARY, once activated will run the AUX OUTPUT according to how long
you are activating (pressing) the corresponding button sequence. For example, if
you have a convertible, you can HOLD DOWN the corresponding AUX OUTPUT
button sequence and stop at a desired time. If you want your convertible roof to
stop at halfway, you can do so through this.
LATCH: once activated will run the AUX OUTPUT. You must press the
corresponding button sequence to deactivate the AUX OUTPUT function.

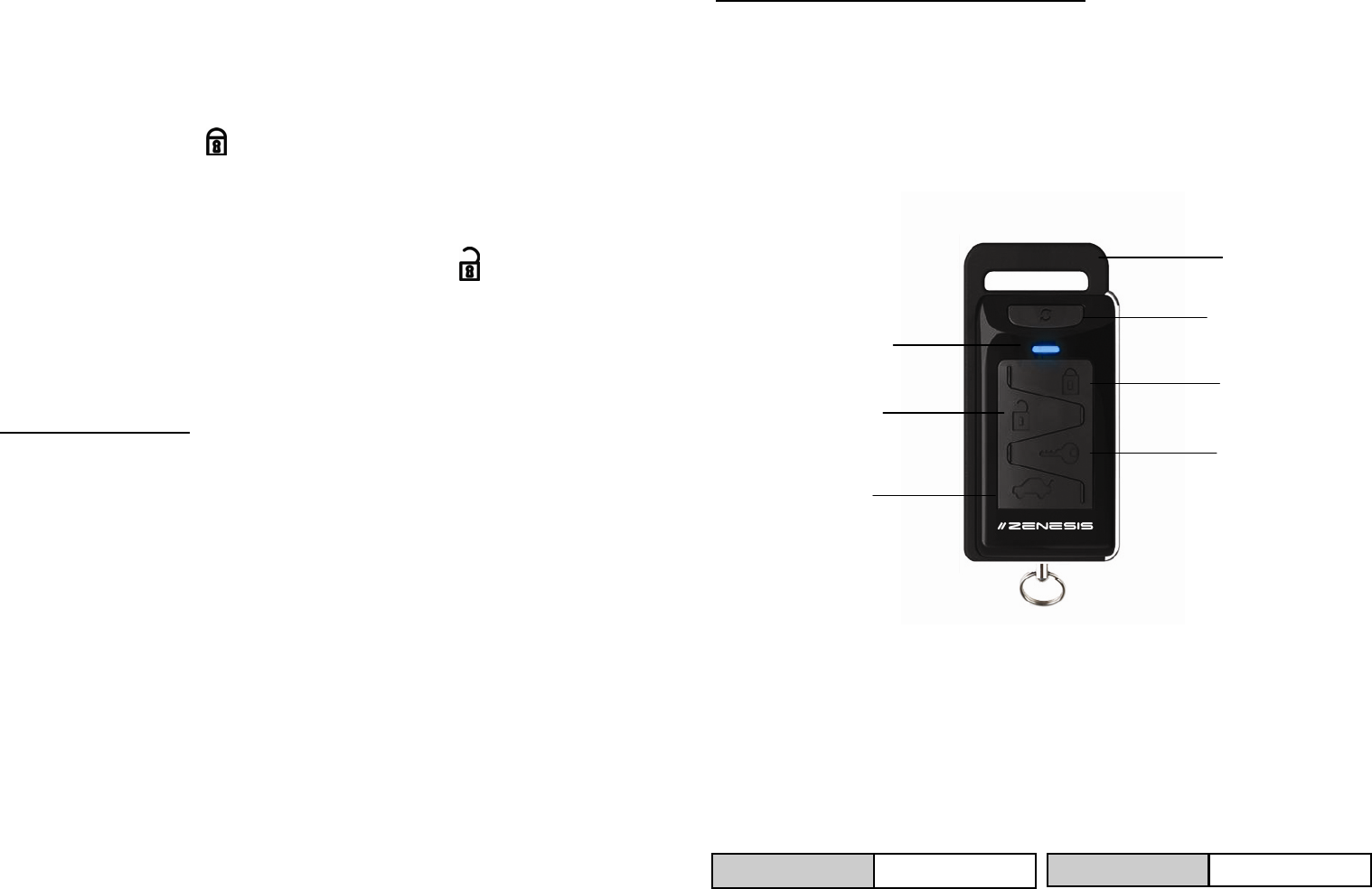

1.2 Remote Control Button Layout
Door Lock / Arm
Door Unlock /
Disarm
Remote Start
Trunk Release
Antenna
One-way Remote Control
Specifications
Radiation ± 20 ppm / year Temperature - 40°C ~ +80°C
LED
Function

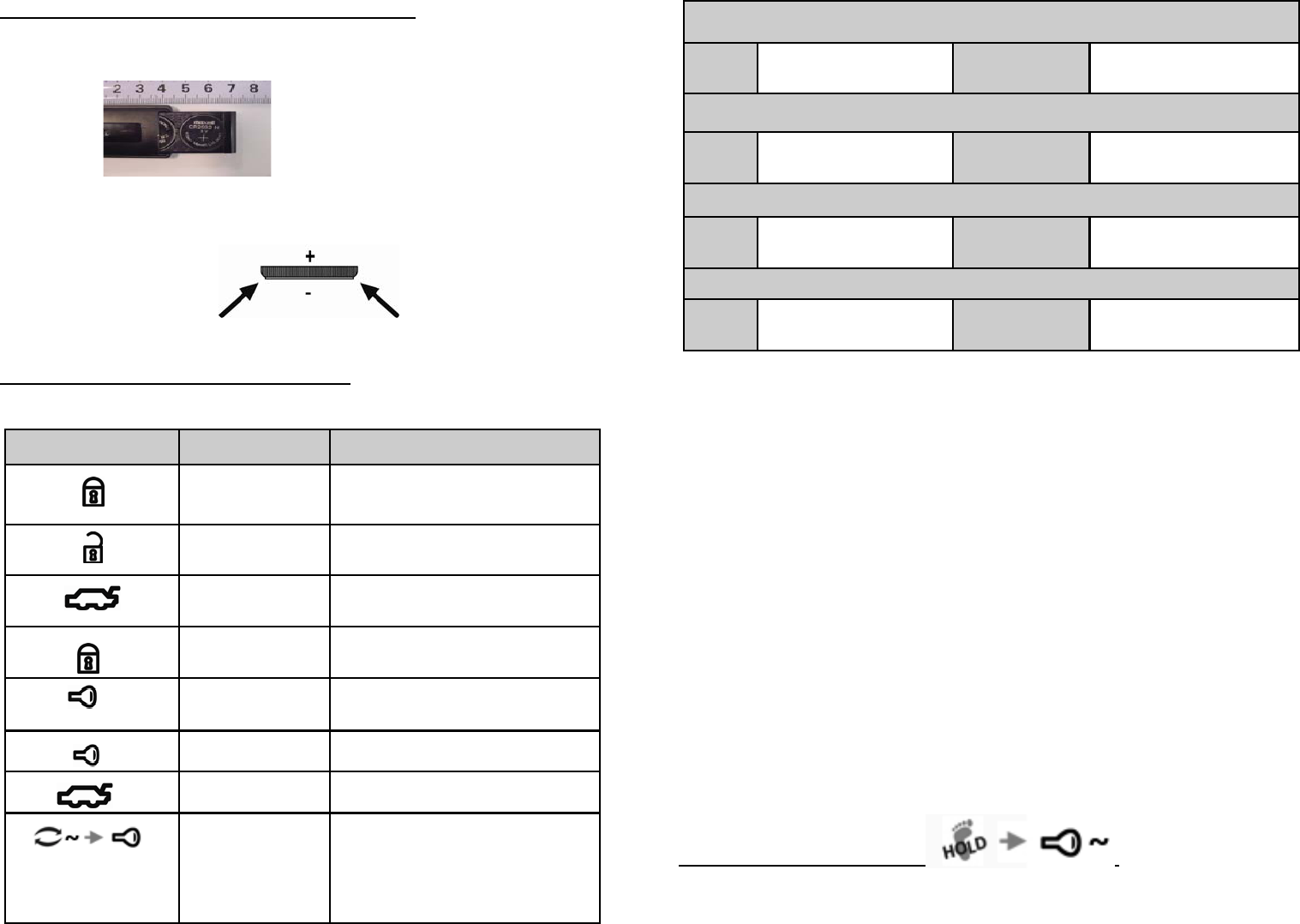

1.3 Remote Control Battery Replacement
Slide out the battery tray.
1.Replace with CR2032 3V battery.
Caution: Ensure that the polarity of the battery is correct. The positive (+)
terminal should be facing you.
1.4 Remote Control Button Layout
Primary Features
Secondary Features
Button(s) Duration Description
0.5 sec Door Lock / Arm (101 A/AS)
0.5 sec Door Unlock / Disarm (101 A/AS)
0.5 sec Vehicle Status
~ 2 sec Panic (101 A/AS)
~ 2 sec Remote Start
~ 2 sec Trunk Release
Hold Function
Button for 2 sec
→ Press and
release Remote
Start Button
Valet Mode ON/OFF
x 3 0.5 sec Remote Control Button Hold
When the Turbo Timer is set to ON, the Turbo Timer Run Time must be set in the
User Programmable Options. Each time the engine is turned OFF, the engine
will continue to run according to the set time.
When the Turbo Timer is set to Auto (Normal), ZMATIC Intelligent Turbo Timer
takes the guesswork out of knowing how long to keep the engine running so that
the turbocharger and/or supercharger can adequately cool down. ZMATIC
Intelligent Turbo Timer will calculate an adequate amount of time through
complex algorithms based upon driving “style” and duration. The maximum
amount of Turbo Timer Running Time for this setting is 6 minutes.
When the Turbo Timer is set to Auto (Extreme), ZMATIC Intelligent Turbo Timer
will make the same complex calculations as Auto (Normal). However, this setting
is for those drivers who wish to run the Turbo Timer longer than normal due to
extreme driving conditions due to spirited driving. The maximum amount of
Turbo Timer Running Time for this setting is 12 minutes.
The duration for idling can be specified through the User Programmable Options.
CAUTION: Please ensure that the vehicle is in Park (automatic transmission) or
Neutral (manual transmission). Also, ensure that the parking brake
(emergency brake) is engaged. Do not idle the vehicle in an enclosed
area. Do not idle the vehicle if any laws prohibit this action.
3.13 Convenience Run
(Hold Brake Pedal down. Press and hold Remote Start Button for 2 seconds)
This feature will allow the engine to run even though the key has been
removed from the key cylinder. The engine will run for the amount of time that is
set in Remote Start Run Time.
Turbo Timer ON
Vehicle 1 parking light flashes &
1 siren chirp Remote Control 1 x BLUE LED flash & 1
beep
Turbo Timer OFF
Vehicle 2 parking light flashes &
2 siren chirps Remote Control 2 x BLUE LED flashes &
2 beeps
Turbo Timer AUTO (NORMAL)
Vehicle 3 parking light flashes &
3 siren chirps Remote Control 3 x BLUE LED flashes &
3 beeps
Turbo Timer AUTO (EXTREME)
Vehicle 4 parking light flashes &
4 siren chirps Remote Control 4 x BLUE LED flashes &
4 beeps
see 3 parking light and BLUE LED flashes. Cold or Hot Start Main Setting
is now set to Cold.
18. Press and release .
19. You will also hear 1 remote control beep to signify the first button in the
sequence.
20. Press and release .
21. You will hear 2 remote control beeps to signify the second button in the
sequence.
22. Press and release .
23. You will hear 3 remote control beeps to signify the third button press.
24. You will also hear 5 siren chirps and remote control beeps. You will also
see 5 parking light and BLUE LED flashes. Run time is now set to 25
minutes.
Wait until the BLUE LED on the remote control ceases to flash. You have no
exited Cold/Hot Start Timer Programming Mode.
3.12 Turbo Timer
(Hold Brake Pedal. Press and release Function Button 4 times and then press
and release Remote Start Button)
This feature will allow turbocharged or supercharged vehicles to cool down by
idling the engine for a specified amount of time. The engine will continue to idle
after the key is turned to the OFF position.
Zenesis Electronics developed patent-pending ZMATIC Intelligent Turbo Timer
that allows users to select 4 different settings for Turbo Timer.
There are 4 settings for the Turbo Timer: OFF (default) → ON → Auto (Normal)
→ Auto (Extreme).
You can access each setting by going through the process (Hold Brake Pedal.
Press Function Button 4 times and then press Remote Start Button) each time.
Each time you press the Button Sequence, the system will cycle to the next
setting. Each setting also has siren chirps/parking light flashes & remote control
beeps/BLUE LED flashes according to the setting. See table below:
Button(s) Duration Description
~ 2 sec Temperature Status
Hold Function Button
for 2 sec → Press and
release Trunk Button
Paging ON/OFF (101 A/AS)
Hold Function Button
for 2 sec → Press and
release Unlock Button
Remote Control Beep Mute
ON/OFF
Hold Function Button
2 sec → Press and
release Lock Button
Siren Mute ON/OFF (101 A/
AS)
Press and release
Function Button →
Press and release
Lock Button
Aux 1
Press and release
Function Button →
Press and release
Unlock Button
Aux 2
Press and release
Function Button →
Press and release
Remote Start Button
Aux 3
Press and release
Function Button →
Press and release
Trunk Button
Aux 4
Press and release
Function Button twice
→ Press and release
Lock Button
Aux 5
Press and release
Function Button twice
→ Press and release
Unlock Button
Aux 6
Press and release
Function Button twice
→ Press and release
Remote Start Button
Aux 7
Button(s) Duration Description
Press and release
Function Button twice
→ Press and release
Trunk Button
AUX 8
Hold Brake Pedal →
Press and release
Function Button three
times → Press and
release Lock Button
Passive Arm ON/
OFF
Hold Brake Pedal →
Press and release
Function Button three
times → Press and
release Remote Start
Button
Ignition Lock ON/
OFF
Press and release
Function Button five
times → Press and
release Lock Button
Second car control
Hold Brake Pedal →
Press and release
Function Button four
times → Press and
release Remote Start
Button
Turbo Timer ON /
OFF / AUTO
(Normal) / AUTO
(Extreme)
Press and release
Function Button five
times → Press and
release Unlock Button
Cold/Hot Timer
Options
Hold Brake Pedal →
Press and release
Function Button three
times → Press and
release Unlock Button
Shock Sensor ON/
OFF
Hold Brake Pedal →
Press and release
Function Button four
times → Press and
release Lock Button
Safety Rearm
temperature is hotter than a set temperature or colder than a set
temperature.
3. Hot Start Temperature
This is the threshold temperature for the Hot setting. If the vehicle’s
internal temperature goes above this value, the timer will start.
4. Cold Start Temperature
This is the threshold temperature for the Cold setting. If the vehicle’s
internal temperature falls below this value, the timer will start.
5. Run Time
This is the amount of time that the remote start will run for during Cold/Hot
Start.
For example, if Cold/Hot Start Timer is set to start every hour if the temperature
falls below –15˚C and remote start is to run for 25 minutes, programming would
be…
1. Press and release 5 times.
2. Press and release .
3. You will hear 5 siren chirps and see 5 parking light flashes. The remote
control will beep once and the BLUE LED will flash quickly. You are now in
Cold/Hot Start Timer Programming Mode. Follow the chart below for
programming options.
4. Press and release .
5. You will also hear 1 remote control beep to signify the first button in the
sequence.
6. Press and release .
7. You will hear 2 remote control beeps to signify the second button in the
sequence.
8. Press and release .
9. You will hear 3 remote control beeps to signify the third button press.
10. You will also hear 2 siren chirps and remote control beeps. You will also
see 2 parking light and BLUE LED flashes. Cold/Hot Start Timer will now
start every 1 hour.
11. Press and release .
12. You will also hear 1 remote control beep to signify the first button in the
sequence.
13. Press and release .
14. You will hear 2 remote control beeps to signify the second button in the
sequence.
15. Press and release .
16. You will hear 3 remote control beeps to signify the third button press.
17. You will also hear 3 siren chirps and remote control beeps. You will also
10. You can program more features if desired.
11. If you are finished programming, wait until you exit programming mode.
The remote control BLUE LED will stop flashing quickly.
1. Timer Setting
The timer setting will either turn ON or OFF the Cold/Hot Timer. Selecting
a time to start the remote starter will turn ON Cold/Hot Timer.
2. Cold or Hot Start Main Setting
The Cold/Hot Timer can be set to start according to timer and/or
temperature constraints. If Hot, Cold, or Hot & Cold is not selected, the
remote start will engage according to the timer only. If Hot is selected, the
remote start will engage if the vehicle’s internal temperature is hotter than a
set temperature. If Cold is selected, the remote start will engage if the
vehicle’s internal temperature is colder than a set temperature. If Hot &
Cold is selected, the remote starter will engage if the vehicle’s internal
Feature Button
Combination
Options
(Default)
Timer
Setting →
OFF 1 Hour
(starts
every 1
hour)
2 Hours
(starts
every 2
hours)
4 Hours
(starts
every 4
hours)
6 Hours
(starts
every 6
hours)
Cold or
Hot Start
Main
Setting
→
OFF HOT
COLD HOT &
COLD
(combo)
Hot Start
Temperat
ure →
25 C
(77 F)
30 C
(86 F)
35 C
(95 F)
40 C
(104 F)
45 C
(113 F)
Cold
Start
Temperat
ure
→
- 10 C
(14 F)
- 15 C
(5 F)
- 20 C
(-4 F)
- 25 C
(-13 F)
- 30 C
(-22 F)
Run time
(duration)
→
5
minutes
10
minutes
15
minutes
20
minutes
25
minutes
Legend:
~ : Press and hold button for 2 seconds.
→ : Press buttons in sequence (not together).
: Function Button

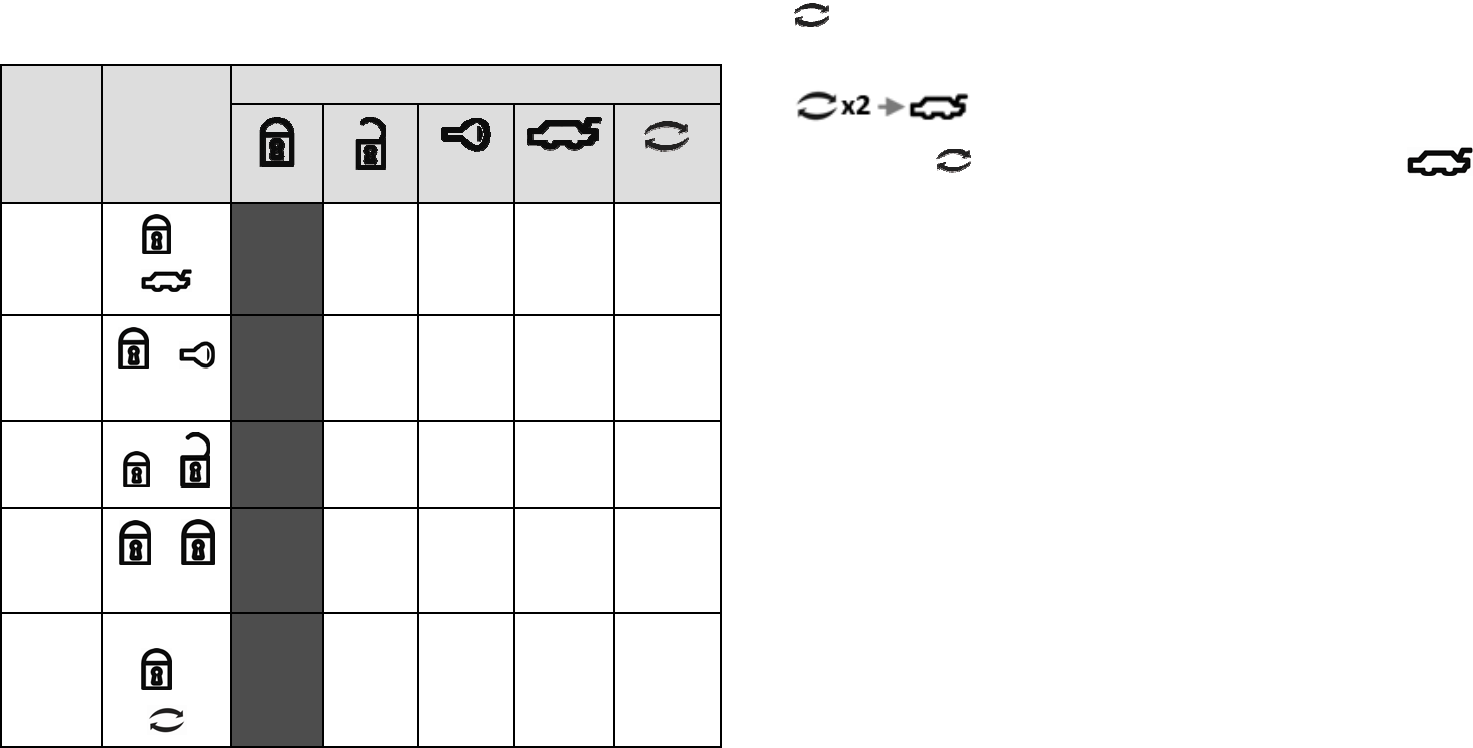

For example,
means to press (Function Button) two (2) times and then press .
2. PRIMARY FEATURES
2.1 Door Lock (Arm—302AS)
2.2 Door Unlock (Disarm—302AS)
2.3 Arm / Disarm Status (302AS)
2.4 Vehicle Status
2.5 Panic (302AS)
2.6 Remote Start
2.7 Trunk Release
2.8 Valet Mode
2.9 Remote Control Button Hold
3.11 Cold/Hot Start Timer
A timer can be set to remote start the car. Once activated, the vehicle will remote
start automatically. The timer can be set to start every 1,2, 4, or 6 hours.
However, a temperature constraint can also be added so that if the temperature
reaches a certain level, the timer will start. There are 3 temperature constraints:
HOT, COLD, HOT & COLD. If HOT is selected, the timer will start if the
temperature is hotter than a specific temperature. If COLD is selected, the timer
will start if the temperature is colder than a specific temperature. If HOT and
COLD is selected, the timer will start if the temperature is hotter than a specific
temperature or colder than another temperature. The engine will run for 5, 10, 15,
20, or 25 minutes.
1. Press and release 5 times.
2. Press and release .
3. You will hear 5 siren chirps and see 5 parking light flashes. The remote
control will beep once and the BLUE LED will flash quickly. You are now in
Cold/Hot Start Timer Programming Mode. Follow the chart below for
programming options.
4. Press and release each button in the Button Sequence to enter the
programming mode for the desired feature.
5. You will also hear 1 remote control beep to signify the first button in the
sequence.
6. You will hear 2 remote control beeps to signify the second button in the
sequence.
7. Press the appropriate button according to the option for the feature.
8. You will hear 3 remote control beeps to signify the third button press.
9. If programming for the feature is successful, you will see parking light flash
(es) and remote control BLUE LED flash(es) according to the last button
being pressed. You will also hear corresponding siren chirp(s) and remote
control beeps. Refer to table below.

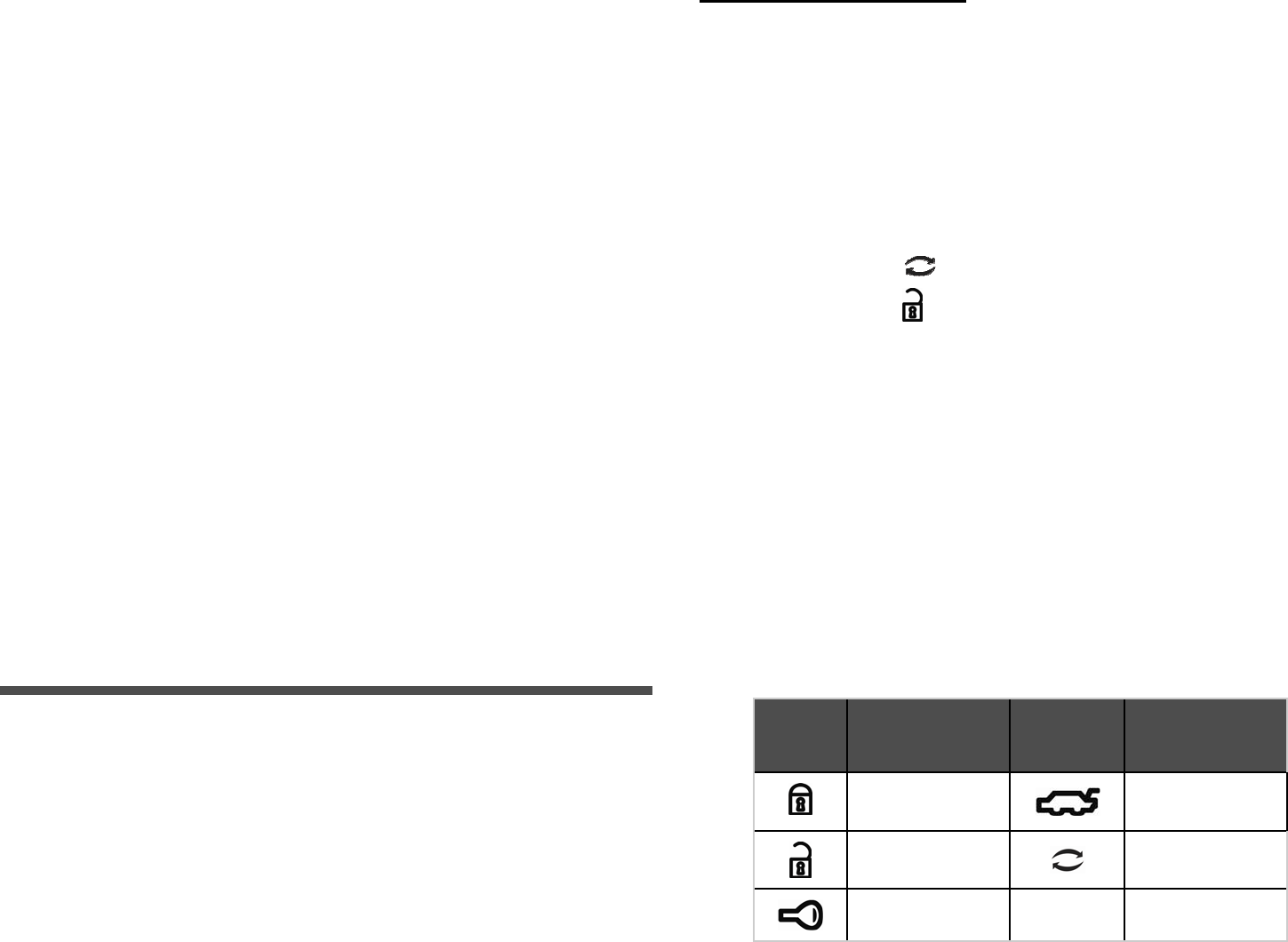

Button Parking Light &
LED Flash(es) /
Chirp(s) / Beep(s)
Button Parking Light &
LED Flash(es) /
Chirp(s) / Beep(s)
1 4
2 5
3
Alternatively, installing ZPASS TOUCH system will prevent accidental key
lockouts.

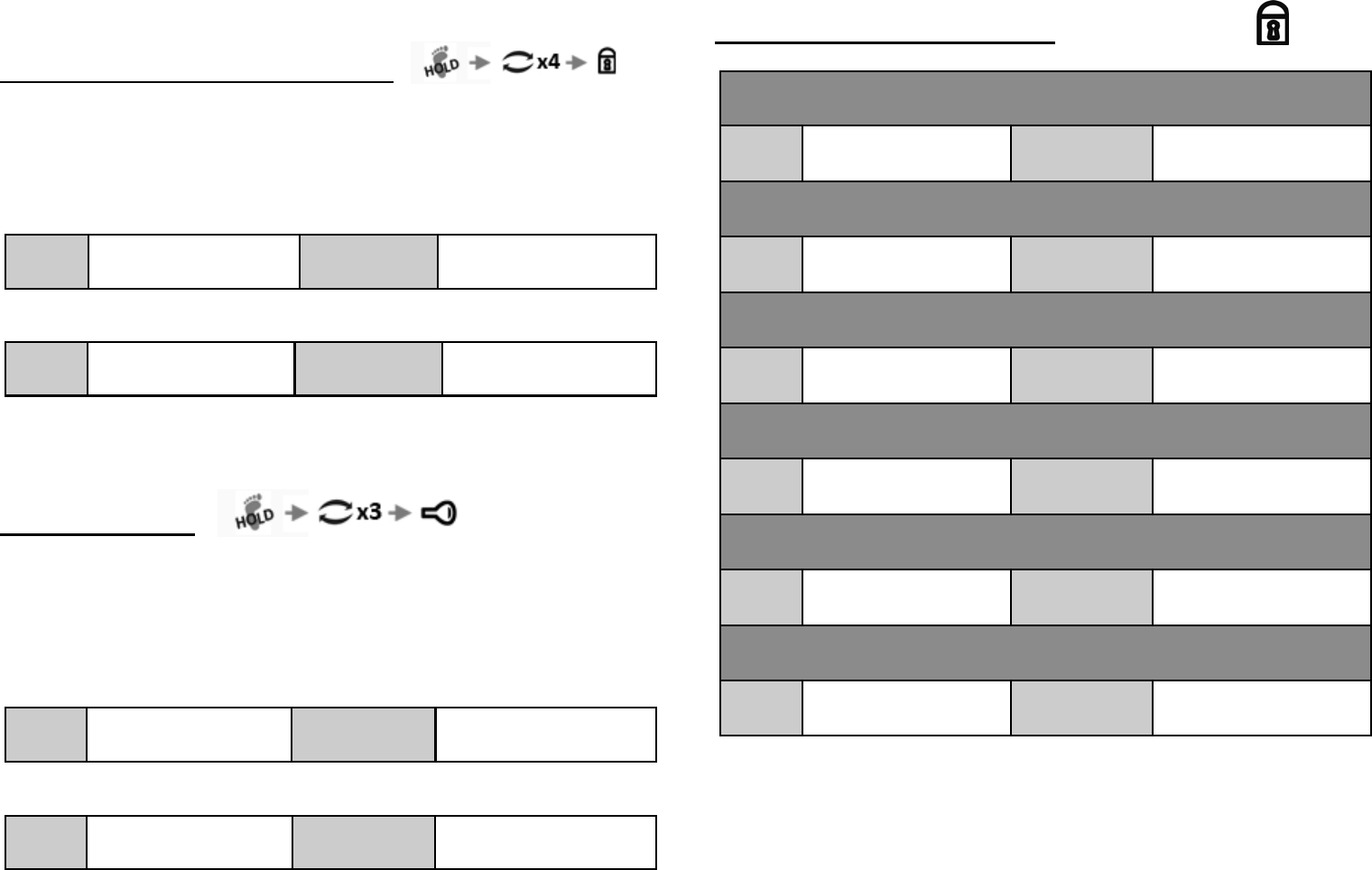

3.9 Safety Relock (Rearm—101 A/AS)
(Hold down brake pedal. Press and release Function Button 4 times and then
press and release Lock Button)
If the system is in the armed state and the system is disarmed but a door is not
opened, the system will Safety Rearm automatically within 30 seconds.
Safety relock (rearm) ON
Safety relock (rearm) OFF
If safety relock (rearm) occurs, the BLUE LED on the remote control flash once
and 1 beep will occur. Paging mode must be ON.
3.10 Ignition Lock
(Hold down brake pedal. Press and release Function Button 3 times and then
press and release Remote Start Button)
Ignition Lock will lock the doors if the foot brake is pressed after the key is put into
key cylinder and turned to the ON position and the engine is running. The doors
will relock if a door is opened except for 302S with automatic transmission.
Ignition lock ON
Ignition lock OFF
Vehicle 1 parking light flash & 1
siren chirp
Remote
Control
1 BLUE LED flash & 1
beep
Vehicle 2 parking light flash & 2
siren chirps Remote Control 2 BLUE LED flashes & 2
beeps
Vehicle 1 parking light flash & 1
siren chirp Remote Control 1 BLUE LED flash & 1
beep
Vehicle 2 parking light flash & 2
siren chirps Remote Control 2 BLUE LED flashes & 2
beeps
2.1 Door Lock (Arm—101 A/AS) Press and release
Depending on installation method, vehicle, and programming of features, these
indications may or may not occur.
If Zone Bypass has been programmed to be ON, an open door, hood, or trunk will
be bypassed.
If Zone Bypass has been programmed to be OFF, an open door, hood, or trunk
will trigger the system. An open hood or trunk will trigger the system immediately.
An open door will trigger the system depending upon the Door Trigger Sensing
programming. Either a delay of 45 seconds or no delay will occur before an open
door will trigger the system.
If Zone Bypass has been programmed to No Arm, an open door, hood, or trunk
will prevent the system from locking the doors and arming the system.
Successful Door Lock (Arm):
Vehicle 1 parking light flash & 1
siren chirp Remote Control 1 BLUE LED flash & 1
beep
Failed due to open door:
Vehicle 3 parking light flash & 3
siren chirp Remote Control 3 RED LED flashes & 3
beeps
Failed due to open trunk:
Vehicle 4 parking light flashes &
4 siren chirp Remote Control 4 RED LED flashes & 4
beeps
Failed due to open hood:
Vehicle 5 parking light flashes &
5 siren chirp Remote Control 5 RED LED flashes & 5
beeps
Failed due to KEY being on ON position:
Vehicle 6 parking light flashes &
6 siren chirp Remote Control Alternating RED/BLUE
LED flashes and 6 beeps
Vehicle 7 parking light flashes &
7 siren chirp Remote Control Alternating RED/BLUE
LED flashes and 7 beeps
Failed due to Remote Start already being on:
2.2 Door Unlock (Disarm—101A/AS) Press and release
2.3 Arm / Disarm Status (101 A/AS)
When the alarm is triggered…
→The LOCK button will stop the siren temporarily. Fast LED flashes on the
antenna module will confirm triggering of the system.
→The first UNLOCK button press will stop the siren from sounding - 1 parking
light / BLUE LED flash and 1 siren chirp / remote control beep will occur.
Pressing the UNLOCK button again will disarm the system with either 3 or
4 parking light flashes and siren chirps depending on the type of trigger.
Corresponding RED LED flashes and remote control beeps will occur. The
LED on the antenna module will flash quickly.
Once the system is triggered and disarmed, the LED on the antenna module will
stop flashing quickly.
The siren duration can be programmed through the User Programmable Options.
Successful door unlock (disarm)
Vehicle 2 parking light flashes &
2 siren chirps Remote Control 2 BLUE LED flashes &
2 beeps
Unlock with warning trigger
Vehicle 3 parking light flashes &
3 siren chirps Remote Control 3 RED LED flashes & 3
beeps
Vehicle 4 parking light flashes &
4 siren chirps Remote Control 4 RED LED flashes & 4
beeps
Unlock with full trigger
Status Antenna Module LED
Armed Mode Normal Flash
Disarmed Mode No Flash
Triggered Alarm Fast Flash
Remote control beep mute ON - Beeper OFF
All features of the system still function with remote control beep mute ON.
Remote control beep mute OFF - Beeper ON
3.7 Siren Mute (302 A/AS)
(Press and hold Function Button for 2 seconds and then press and release Lock
Button)
Siren mute ON - Siren OFF
All features of the system still function with siren mute ON.
Siren mute OFF - Siren ON
3.8 Passive Lock (Arm—302 A/AS)
(Hold down brake pedal. Press and release Function Button 3 times and then
press and release Lock Button)
Once a door is opened and closed and the system is not armed via the remote
control, the system will automatically arm and lock the doors. The system will arm
and lock the doors after 25 seconds of the last door, hood, or trunk closing.
Every 5 seconds, 1 parking light flash and 1 siren chirp will occur. On the 5th
occurrence, the system will arm and the doors will lock.
Passive lock (arm) ON
Passive lock (arm) OFF
CAUTION: If passive lock (arm) is ON, always carry the remote control and keys
as there may be cases of getting the keys locked inside the car accidently.
Remote Control 1 BLUE LED flash & 1 beep
Remote Control 2 BLUE LED flashes & 2 beeps
Vehicle 1 parking light flash & 1
siren chirp
Remote
Control
1 BLUE LED flash & 1
beep
Vehicle 2 parking light flash & 2
siren chirps Remote Control 2 BLUE LED flashes & 2
beeps
Vehicle 1 parking light flash & 1
siren chirp Remote Control 1 BLUE LED flash & 1
beep
Vehicle 2 parking light flash & 2
siren chirps Remote Control 2 BLUE LED flashes &
2 beeps
NOTE: Remote start reservation type can be changed through the User
Programmable Options.
3.4 Temperature Status Press and hold for 2 sec
The interior temperature of the vehicle will be displayed as a series of LED
flashes and beeps on the remote control.
3.5 Paging (302 A/AS)
(Press and hold Function Button for 2 seconds and then press and release Trunk
Button)
Paging will alert the user when the alarm has been triggered. If the Remote Beep
Mute is ON, the LED’s on the 2-way remote control will blink alternatively. If the
Remote Beep Mute is OFF, the remote control will beep rapidly. Pressing , ,
or will stop the alert on the remote control. Wait for 5 seconds and press
to find out the status of the vehicle.
Paging ON
Paging OFF
NOTE: If Paging is OFF, battery life will be extended.
3.6 Remote Control Beep Mute
(Press and hold Function Button for 2 seconds and then press and release
Unlock Button)
Temperature Remote Control LED
Less than or equal to -10°C (14°F) 2 BLUE LED flash & 2 beep
-9°C (16°F) to 0°C (32°F) 1 BLUE LED flashes & 1 beeps
1°C (34°F) to 10°C (50°F) 3 RED & BLUE LED flashes & 3 beeps
11°C (52°F) to 20°C (68°F) 1 RED LED flashes & 4 beeps
Greater than 20°C (68°F) 2 RED LED flashes & 5 beeps
Remote Control 1 BLUE LED flash & 1 beep
Remote Control 2 BLUE LED flashes & 2 beeps
2.4 Vehicle Status Press and release
The status of the vehicle will be displayed on the 2-way remote control. The
following table describes the different situations. Please note the priority (top to
bottom). If a status condition is met, any other conditions below it will not be
checked. For example, if the remote start condition is displayed, door lock
condition will not be shown.
2.5 Panic (101 A/AS) Press and hold for 2 sec
If there is a potential threat, you can alert those around you by using this feature.
The siren will sound for 2 minutes and the parking lights will flash. Press either
or to turn off panic mode. Alternatively, you can use the Z-PASS (if installed)
to turn off the panic mode by entering your PIN code.
2.6 Remote Start Press and hold for 2 sec
Successful remote start:
Status Remote Control
Large shock Alternating BLUE and RED LED flashes 8
times & beeps 8 times
Warning shock Alternating BLUE and RED LED flashes 7
times & beeps 7 times
Hood open Alternating BLUE and RED LED flashes 6
times & beeps 6 times
Trunk open Alternating BLUE and RED LED flashes 5
times & beeps 5 times
Trunk unlocked BLUE LED flashes normally two times &
beeps 2 times
Door unlocked RED LED flashes fast 4 times & beeps 4 times
Door locked RED LED flashes fast 3 times & beeps 3 times
Remote Start (with Key) Alternating BLUE and RED LED flashes
normally 3 times & beeps 3 times
Remote Start (with
Remote Control)
Alternating BLUE and RED LED flashes fast &
beeps 3 times
Vehicle 3 parking light flashes &
3 siren chirps Remote Control 3 BLUE LED flashes &
3 beeps
Failed remote start:
• If is pressed for 2 seconds while remote start is on, remote start will turn
off. You will see 2 BLUE LED blinks and 2 beeps for confirmation.
• After the system is disarmed and the door(s) is (are) opened after remote
start, the key must be put into the key cylinder and turned to the ON position
within 2 minutes or the engine will shut off.
• The default remote start engine running time is 15 minutes. The time can be
changed through the User Programmable Options.
CAUTION: Do not use the remote start feature if the vehicle is in an enclosed
area. Do not use the remote start feature where laws prohibit its
usage. Do not turn the key to the Start position or else damage may
be done to the starter motor. Ensure that the parking brake
(emergency brake) is always engaged.
2.7 Trunk Release Press and hold for 2 sec
Trunk release will unlock the door(s) and disarm (302A / 302AS) the system.
NOTE: On manual transmission vehicles, trunk release will turn off remote start
reservation.
2.8 Valet Mode
Press and hold Function button for 2 seconds and then press and release
Remote Start button
• Valet mode ON will turn off the alarm feature on 101A and 302AS models.
The siren will not sound.
• Valet mode ON will turn off the remote start feature on 101S and 101AS
models.
Reason for Failure Vehicle Remote Control
Key in key cylinder at ON
position
5 parking light flash & 5
siren chirp
5 RED LED flashes & 5
x beeps
Open door 6 parking light flashes & 6
siren chirps
6 RED LED flashes & 6
beeps
Open hood and/or trunk 7 parking light flashes & 7
siren chirps
7 RED LED flashes & 7
beeps
Failed remote start
reservation
8 parking light flashes & 8
siren chirps
8 RED LED flashes & 8
beeps
Vehicle 2 parking light flashes &
2 siren chirps Remote Control 2 BLUE LED flashes & 2
beeps
3.2 Remote Control Registration
1. Insert the key into the key cylinder and turn to the ON position (engine is
OFF).
2. Press brake pedal 4 times. On the 4th time, hold down the brake pedal.
3. 3 parking light flashes and 3 siren chirps will confirm remote control
programming mode. The LED on the antenna module will also be flashing
quickly.
4. Press and release on the remote control to register.
5. After each remote control is added, there will be a confirmation of 2 parking
light flashes and hear 2 siren chirps. On the remote, you will see 2 BLUE
LED flashes and hear 2 beeps. You can add up to 3 2-way remote controls
and 2 1-way remote controls per system.
6. Once the key is turned to the OFF position or 10 seconds have passed
without adding a remote control, the system will exit remote control
registration mode. The LED on the antenna module will cease to flash
quickly.
NOTE: Each time a remote control is added, all remote controls must be re-
registered to the system. Adding a remote control erases previously
stored remote controls from the system.
3.3 Remote Start Reservation
Manual transmission vehicles require remote start reservation in order to ensure
that the vehicle is properly prepared for remote start. There are 2 remote start
reservation modes: automatic and manual. Please note that automatic and
manual do not refer to the transmission type. Rather, automatic and manual refer
to the type of remote start reservation.
A) Automatic Remote Start Reservation (Default)
1) Before turning off the engine, put the transmission into Neutral. Ensure that
the parking brake (emergency brake) is engaged. Take foot off the brake
pedal.
2) Turn the key to the OFF position. The engine should still be running.
3) Exit the vehicle within 2 minutes.
4) Once the last door is closed, the engine will turn off.
5) Lock (arm) the system. Remote start is ready to be used.
B) Manual Remote Start Reservation
1) Before turning off the engine, put the transmission into Neutral. Ensure that
the parking brake (emergency brake) is engaged. Take foot off the brake
pedal.
2) Press for 2 seconds.
3) Turn the key to the OFF position. The engine should still be running.
4) Exit the vehicle within 2 minutes.
5) Once the last door is closed, the engine will turn off.
6) Lock (arm) the system. Remote start is ready to be used.
For example, if siren sound time needs to be changed to 100 seconds, the
following procedure would be used.
1. Press and release 3 times.
2. Press and release .
3. You will see 1 parking light and 1 remote control BLUE LED flash. You will
also hear 1 siren chirp and 1 remote control beep. You are now in User
Programming Mode. The remote control BLUE LED will flash quickly to
signify that you are in programming mode.
4. In order to access siren sound time, press and release . 1 remote
control beep will occur.
5. Press and release . 2 remote control beeps will occur.
6. The siren sound time of 100 seconds is under . So, press and
release . 3 beeps from the remote control will occur.
7. Since is pressed as the last button and programming is successful, 3
parking light and remote control BLUE LED flashes will occur. Also, 3 siren
chirps and remote control beeps will occur.
8. The siren sound time is now changed to 100 seconds.
Feature Button
Combination
Options
Diesel warm
up time → 30 sec 15 sec 7.5 sec
Siren sound
time → 30 sec 70 sec 100 sec
Turbo timer
run time → 1 min 2 min 5 min
Remote start
reservation → Automatic Manual
Remote start
run time →
15 min 5 min 25 min
Default values.
Valet mode ON
Valet mode OFF
Valet mode without remote control (Emergency shut off)
1. Insert the key into the key cylinder and turn to the ON position.
2. Within 3 seconds, press the brake pedal brake 6 times. On the 6th press,
hold down the brake pedal.
3. 1 parking light flash and 1 siren chirp will confirm operation.
NOTE: This feature can be used to turn off the alarm with the key if the system
has been triggered.
NOTE: Valet mode can only be turned off via the remote control.
2.9 Remote Control Hold Button 0.5 sec x 3 Times
Press and release 3 times to engage the remote control ‘Hold’ mode.
You will see one RED LED flash and hear 1 BEEP on the remote as
confirmation. Any button presses will be ignored.
Press and release 3 times to exit remote control “Hold’ mode. You
will see 2 RED LED flashes and hear 2 BEEPS on the remote as
confirmation.
Vehicle 1 parking light flash & 1
siren chirp Remote Control 1 BLUE LED flash & 1
beep
Vehicle 2 parking light flash & 2
siren chirps Remote Control 2 BLUE LED flashes & 2
beeps
3.SECONDARY FEATURES
3.1 User Programmable Options
3.2 Remote Control Registration
3.3 Remote Start Reservation
3.4 Temperature Status
3.5 Paging (101 A/AS)
3.6 Remote Control Beep Mute
3.7 Siren Mute (101 A/AS)
3.8 Passive Lock (Arm—101 A/AS)
3.9 Safety Relock (Rearm—101 A/AS)
3.10 Ignition Lock
3.11 Cold Start Timer
3.12 Turbo Timer
3.13 Convenience Run
3.14 Aux Outputs
3.15 Shock Sensor (101 A/AS)
3.16 Shock Sensor Sensitivity (101 A/AS)
3.17 Shock Sensor ON/OFF (101 A/AS)
3.18 Z-PASS TOUCH
3.1 User Programmable Options
1. Press and release 3 times.
2. Press and release .
3. You will see 1 parking light and 1 remote control BLUE LED flash. You will
also hear 1 siren chirp and 1 remote control beep. You are now in User
Programming Mode. The remote control BLUE LED will flash quickly to
signify that you are in programming mode. Follow the chart below for
programming options.
4. Press and release each button in the Button Sequence to enter the
programming mode for the desired feature.
5. You will also hear 1 remote control beep to signify the first button in the
sequence.
6. You will hear 2 remote control beeps to signify the second button in the
sequence.
7. Press the appropriate button according to the option for the feature.
8. You will hear 3 remote control beeps to signify the third button press.
9. If programming for the feature is successful, you will see parking light flash
(es) and remote control BLUE LED flash(es) according to the last button
being pressed. You will also hear corresponding siren chirp(s) and remote
control beeps. Refer to table below.
10. You can program more features if desired.
11. If you are finished programming, wait until you exit programming mode.
The remote control BLUE LED will stop flashing quickly.
Button Parking Light & LED
Flash(es) / Chirp(s) /
Beep(s)
1
2
3
4
5
