Bibliotheca RFID Library Systems Q10600 TAG reader system User Manual BA Z hlke Bibl 0604 1En
Bibliotheca RFID Library Systems AG TAG reader system BA Z hlke Bibl 0604 1En
Users manual
12V , 800 mA
BiblioWand
TM
Read carefully before use!
User Manual

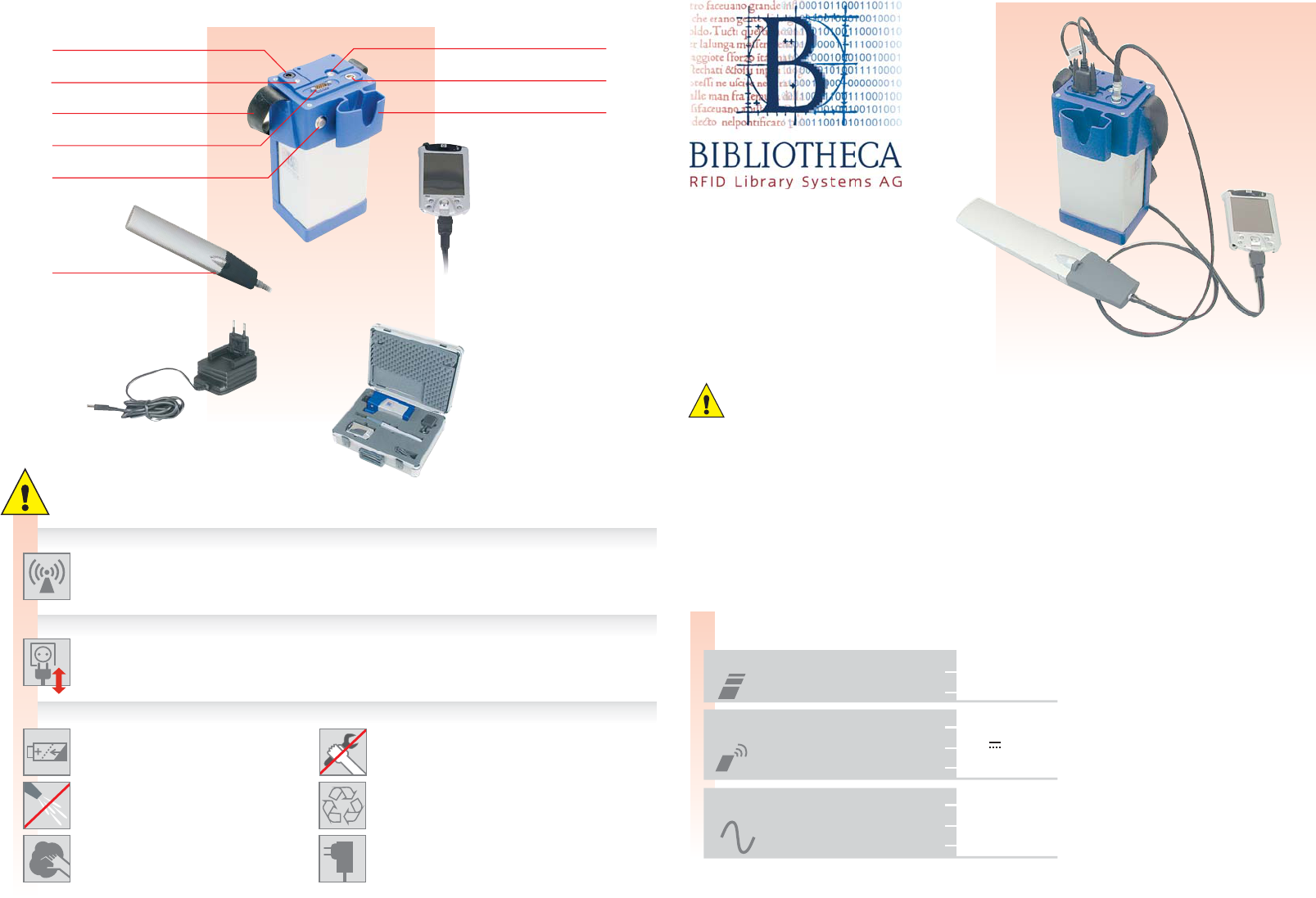

Overview
Carrying caseNetwork
adapter
Security precautions
Connector for
network adapter (charging)
Power Display
Attachment for PDA
Attachments for wand holder
Power status display
Wand holder
Adjustable shoulder strap
RFID-Reader
Wand
Handheld-PC:
IPAQ Pocket PC
with data cable
RF-Button
ON / OFF
Warning: electromagnetic field
Used outlets must be installed in conformity to standards, and be easy to reach.
Unplugging can cause disconnection from the net. (charging adapter)
When not in use, disconnect from the net. (charging adapter)
Only use specific betteries.
(type 11151202)
Use without regard for instructions or security precautions can
be dangerous.
Hand Scanner
Network part
General
Disconnect scanner from net prior to cleaning.
Do not clean scanner with fluids.
Do not use cleaning agents.
Use only indoors. Protect scanner from
contact with water.
Do not open scanner.
All repairs only through dealers/customer service.
Remove battery prior to disposal. Dispose of battery and
scanner in accordance with environmental standards
either at a location designated for disposal or at location
where scanner was purchased.
Battery
Running Time
Type
RFID Reader
Max. Temperature
Rating
Network Adapter
Input Voltage
Capacity
Output Voltage
Technical Data
40 °C
13,56 MHz
100 - 240 VAC
24 W
15 VDC
2 Stunden
NiMHd
Carrier Frequency
Only use adapter included in delivery
(Egston N2UFSW3)
ergonomic communication® 1103_2
1 2 3 4
5
7
12
9
10 11
8
6

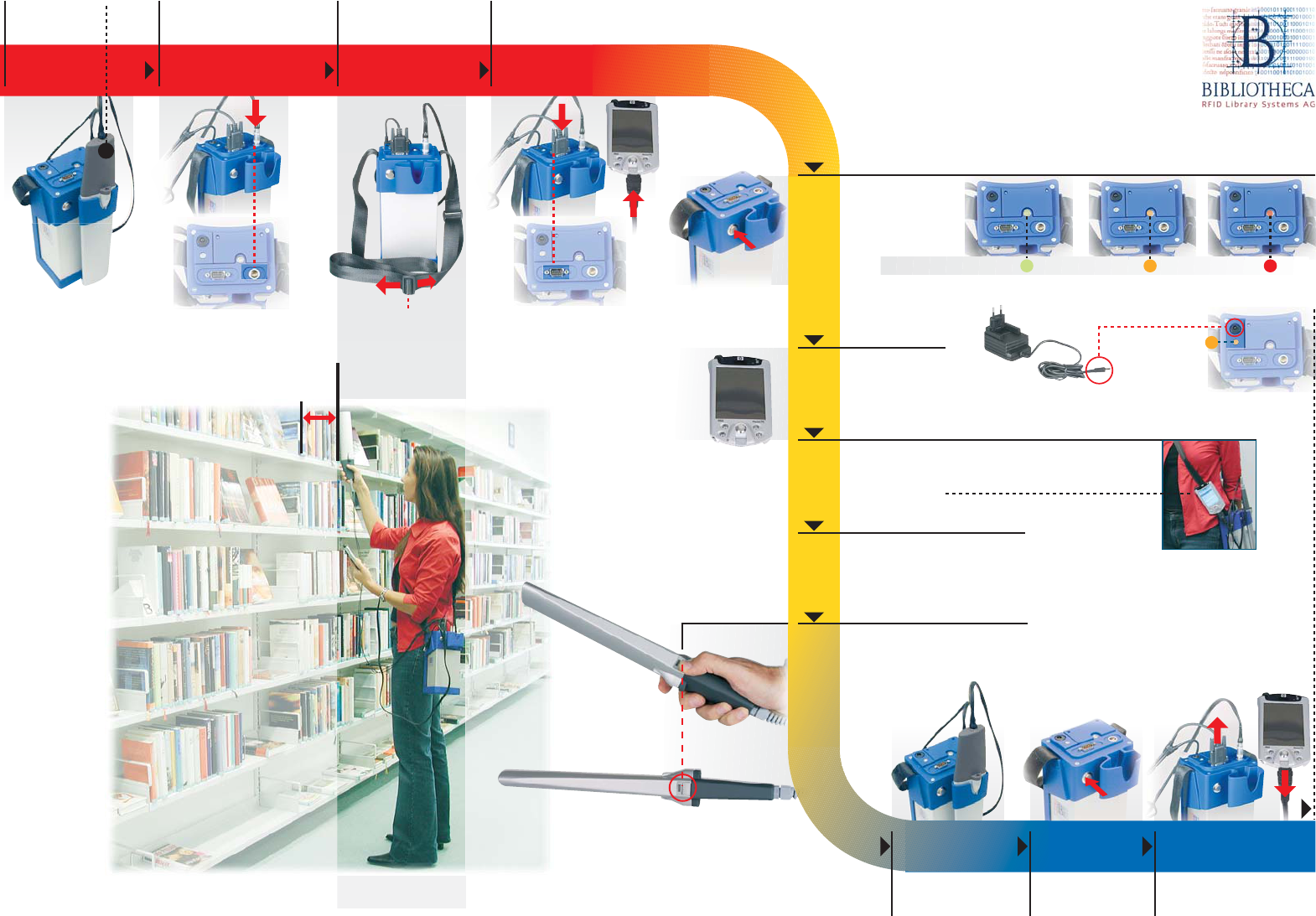

Wand goes
in holder
Connect wand with
RIFD-Reader
RFID-Reader
shoulder strap
Connect it
handheld PC
Activate
RFID-Reader
Take wand in hand
Activate wand
Place wand
in holder
Turn off
RFID Reader
Disconnect handheld PC
from RFID Reader
Battery:
full half full empty
adjustable To load battery:
max. time: 4h
RFID use not
possible
Staying as parallel as possible with spine of book
Hold as close to book as possible
Take handheld PC in other hand or fasten
onto carrying belt
Press RF button during search
Position scanner in front
of book case
Activating the
handheld PC
