Billion Electric Co., Ltd. Wireless Broadband Firewall Gateway Manual
Manual
Wireless Broadband
Firewall Gateway
Quick Start Guide
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded
interface cables when connecting to computer or peripheral devices) any
changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Quick Start Guide
1
About the Product
This Wireless Broadband Firewall Gateway provides SOHO and
residential users the ideal solution for sharing a high-speed broadband
Internet connection among a 11Mbps wireless network and a
10/100Mbps Fast Ethernet backbone. It integrates robust firewall and
routing functions with advanced 802.11b wireless technology,
maximizing your network security and efficiency while minimizing the
network complexity and maintenance costs.
The product provides the following features:
Wireless Ethernet 802.11b Access Point: Provides a wireless
Ethernet 802.11b access point for extending the communication media to
WLAN.
Fast Ethernet Switch: A 4-port 10/100Mbps fast Ethernet switch is
supported in the LAN site and automatic switching between MDI and
MDIX for 10Base-T and 100Base-TX ports is supported. An Ethernet
straight or cross-over cable can be used directly, this fast Ethernet switch
will detect it automatically.
Network Address Translation (NAT): Allows multi-users to access
outside resource such as Internet simultaneously with one IP address/one
Internet access account. Besides, many application layer gateway (ALG)
are supported such as web browser, ICQ, FTP, Telnet, E-mail, News,
Net2phone, Ping, NetMeeting, MS Messenger, QUAKE and others.
Firewall: Supports SOHO firewall with NAT technology.
Automatically detects and blocks the Denial of Service (DoS) attack. The
hacker’s attack will be recorded associated with timestamp in security
logging area. An URL blocking feature is also provided. More firewall
function will be always implemented, visit our web site for more
information. A real time altering email will be sent to your account for
your future action.
Wireless Broadband Firewall Gateway
2
Domain Name System (DNS) relay: Provides an easy way to map
the domain name (a friendly name for user such as www.yahoo.com) and
IP address. When local machine sets its DNS server with this router’s IP
address. Then every DNS conversion request packet from the PC to this
router will be forwarded to the real DNS in outside network. After the
router gets the reply, then forwards it back to the PC.
Dynamic Domain Name System (DDNS): The Dynamic DNS
service allows you to alias a dynamic IP address to a static hostname.
This dynamic IP address is the WAN IP address. To use the service, you
must first apply an account from this free Web server
http://www.dyndns.org/.
Virtual Private Network (VPN): Allows user to make a tunnel with
remote site directly to secure the data transmission among the connection.
User can use embedded PPTP client supported by this router to make a
VPN connection. Or user can run the PPTP client in PC and the router
already provides IPSec and PPTP pass through function to establish a
VPN connection if user likes to run the PPTP client in his local computer.
PPP over Ethernet (PPPoE): Provides embedded PPPoE client
function to establish a connection. Users can get greater access speed
without changing the operation concept, sharing the same ISP account
and paying for one access account. No PPPoE client software is required
for local computer. The “Dial-on-Demand” and Idle timer are
implemented for better connection usage management.
Virtual Server: User can specify some services to be visible from
outside users. The router can detect incoming service request and forward
it to the specific local computer to handle it. For example, user can assign
a PC in LAN acting as WEB server inside and expose it to the outside
network. Outside user can browse inside web server directly while it is
protected by NAT. A DMZ host setting is also provided to a local
computer exposed to the outside network, Internet.
Quick Start Guide
3
Rich Packet Filtering: Not only filter the packet based on IP address,
but also based on Port numbers. It will increase the performance in LAN
and WAN, also provide a higher-level security control.
Static and RIP1/2 Routing: Supports an easy static routing table or
RIP1/2 routing protocol to support routing capability.
Dynamic Host Control Protocol (DHCP) Client and Server: In
the WAN site, the DHCP client can get an IP address from the Internet
Server Provider (ISP) automatically. In the LAN site, the DHCP server
can allocate up to 253 client IP addresses and distribute them including
IP address, subnet mask as well as DNS IP address to local computers. It
provides an easy way to manage the local IP network.
SNTP: An easy way to get the network real time information from
SNTP server.
Web based GUI and Remote Management: Supports web based
GUI for configuration and management. It is a user-friendly with on-line
help, providing necessary information and assist user timing. It also
supports remote management capability for remote user to configure and
manage this product.
Firmware Upgradeable: The device can be upgraded to be the latest
firmware through the WEB based GUI.
The radio range per cell is approximately 35 meters
indoors and up to 100 meters outdoors. Any object
blocked between the Gateway and the client PC will
decrease the efficiency of data transmission.
Wireless Broadband Firewall Gateway
4
Package Contents
1. Wireless Broadband Firewall Gateway
2. One CD containing the on-line manual
3. One straight-through CAT5 Ethernet cable
4. One power adapter
5. This Quick Start Guide
For more detailed instructions on configuring and
using the Wireless Broadband Firewall Gateway,
please refer to the on-line manual.
Quick Start Guide
5
The Front Panel LEDs
LED Meaning
1 PWR Lit green when power adapter is connected.
2 LAN 1
3 LAN 2
4 LAN 3
5 LAN 4
Lit green when connected at 100 Mbps.
Lit orange when connected at 10 Mbps.
Flashes when sending/receiving data.
6 WAN Lit when connected to a WAN device.
Flashes when sending/receiving data.
7 PPP/SYS
Lit orange when system ready.
Lit green when the PPPoE or PPTP connection
is established.
Flashes orange when upgrading firmware.
8 WLAN
Lit green when wireless connection is
established.
Flashes when sending/receiving data.
Wireless Broadband Firewall Gateway
6

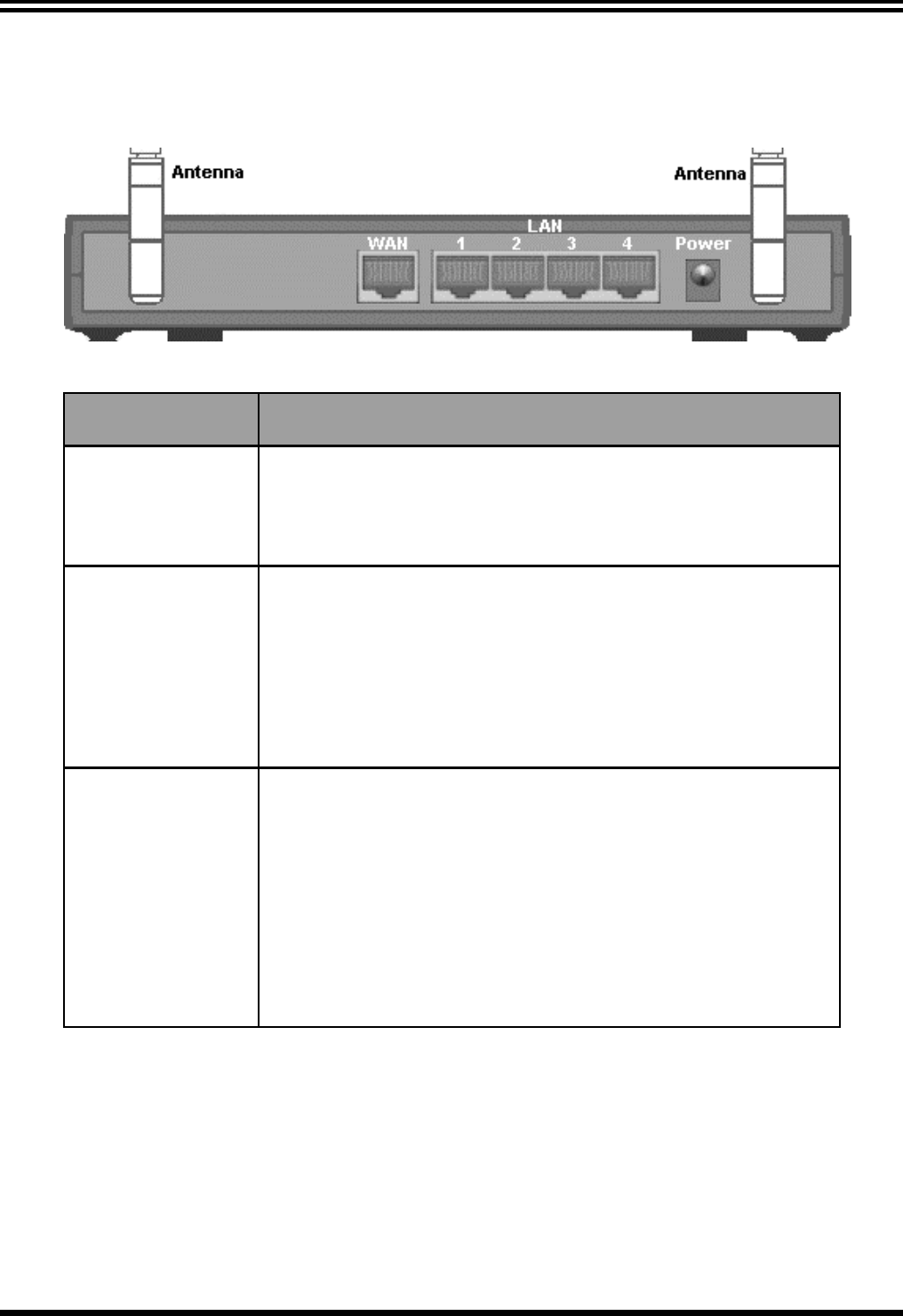

The Rear Ports
Port Connecting Instruction
Power
(jack) Connect the supplied power adapter to this jack.
LAN 1-4
(RJ-45
connector)
Connect a straight-through or crossover Ethernet
cable to these four ports when connecting to a
LAN of 10Mbps or 100Mbps such as an office
or home network.
WAN
(RJ-45
connector)
Connect a straight-through Ethernet cable to
this port when connecting to a hub.
Connect a crossover cable to this port when
connecting to a DSL/Cable bridge or modem for
establishing WAN connections.
Quick Start Guide
7

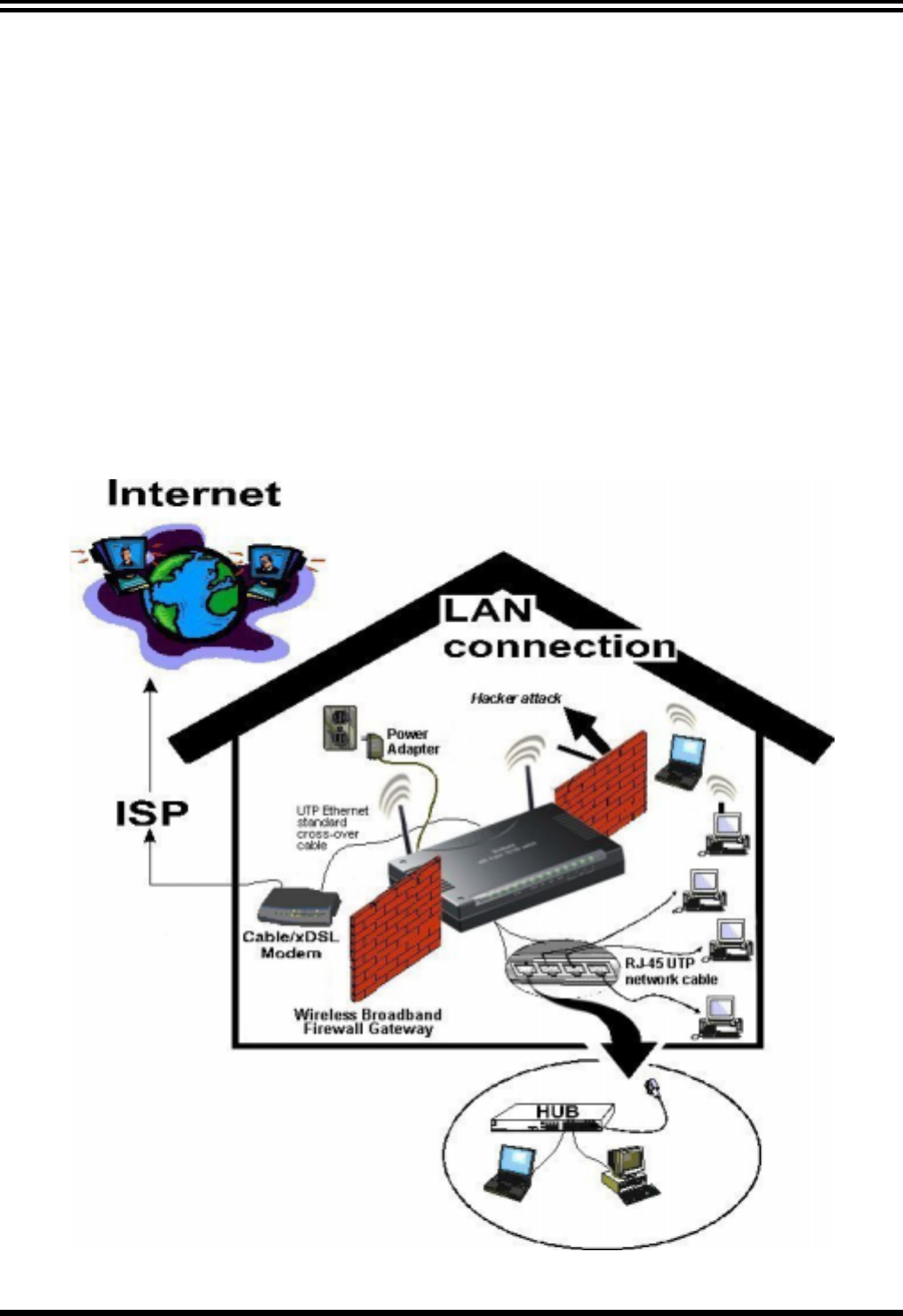

Connecting the Product
Refer to the following steps to connect the Wireless Broadband
Firewall Gateway to a WAN (Wide Area Network) and a LAN (Local
Area Network):
1. Connect the Wireless Broadband Firewall Gateway as shown below.
2. Power on the device.
3. Ensure the Power, LAN, and WAN LEDs are lit.
Wireless Broadband Firewall Gateway
8

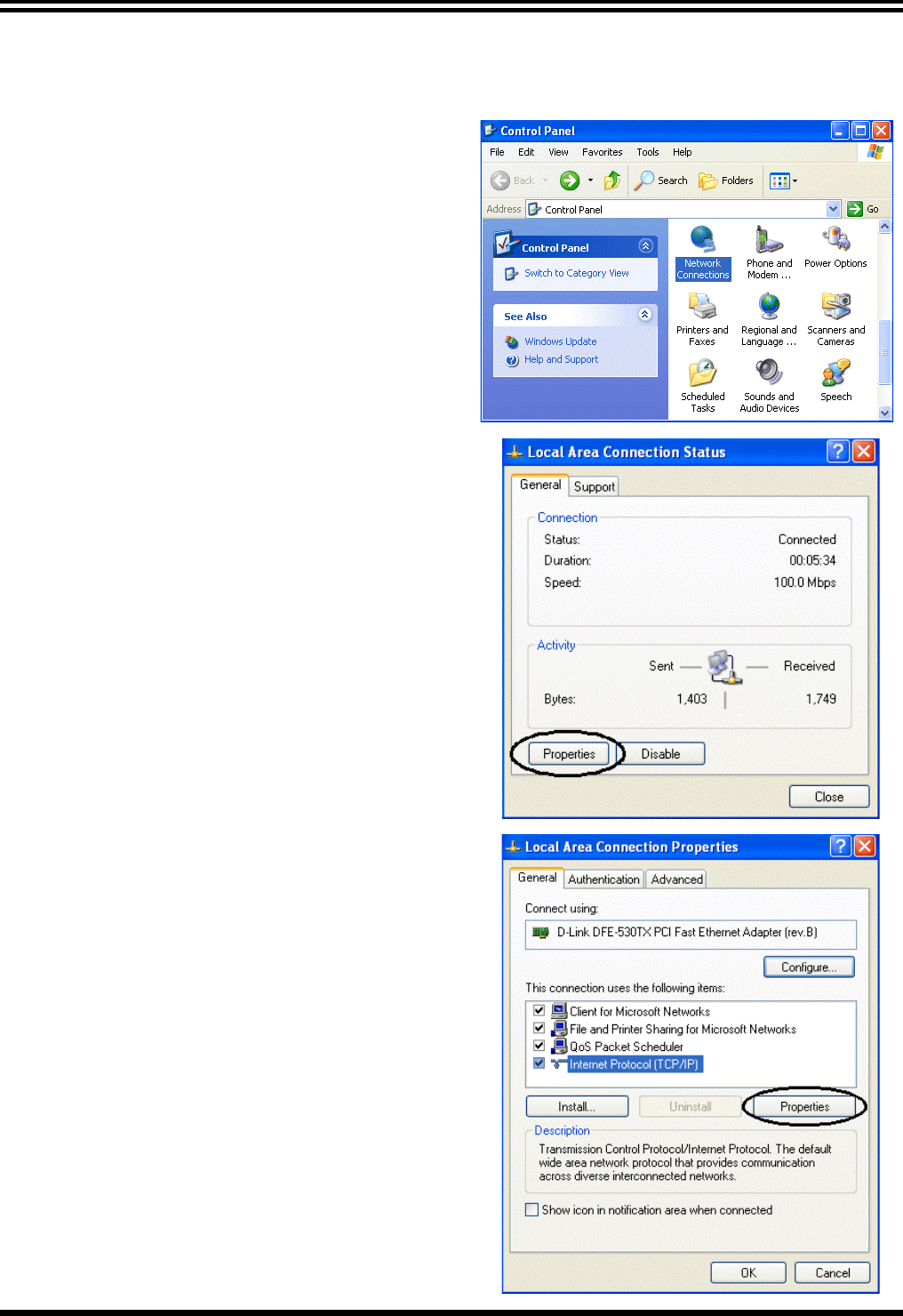

Configuring PC in Windows XP
1. Go to Start / Control Panel
(in Classic View). In the
Control Panel, double-click on
Network Connections.
2. Double-click Local Area
Connection.
3. In the Local Area Connection
Status window, click
Properties.
4. Select Internet Protocol
(TCP/IP) and click
Properties.
Quick Start Guide
9

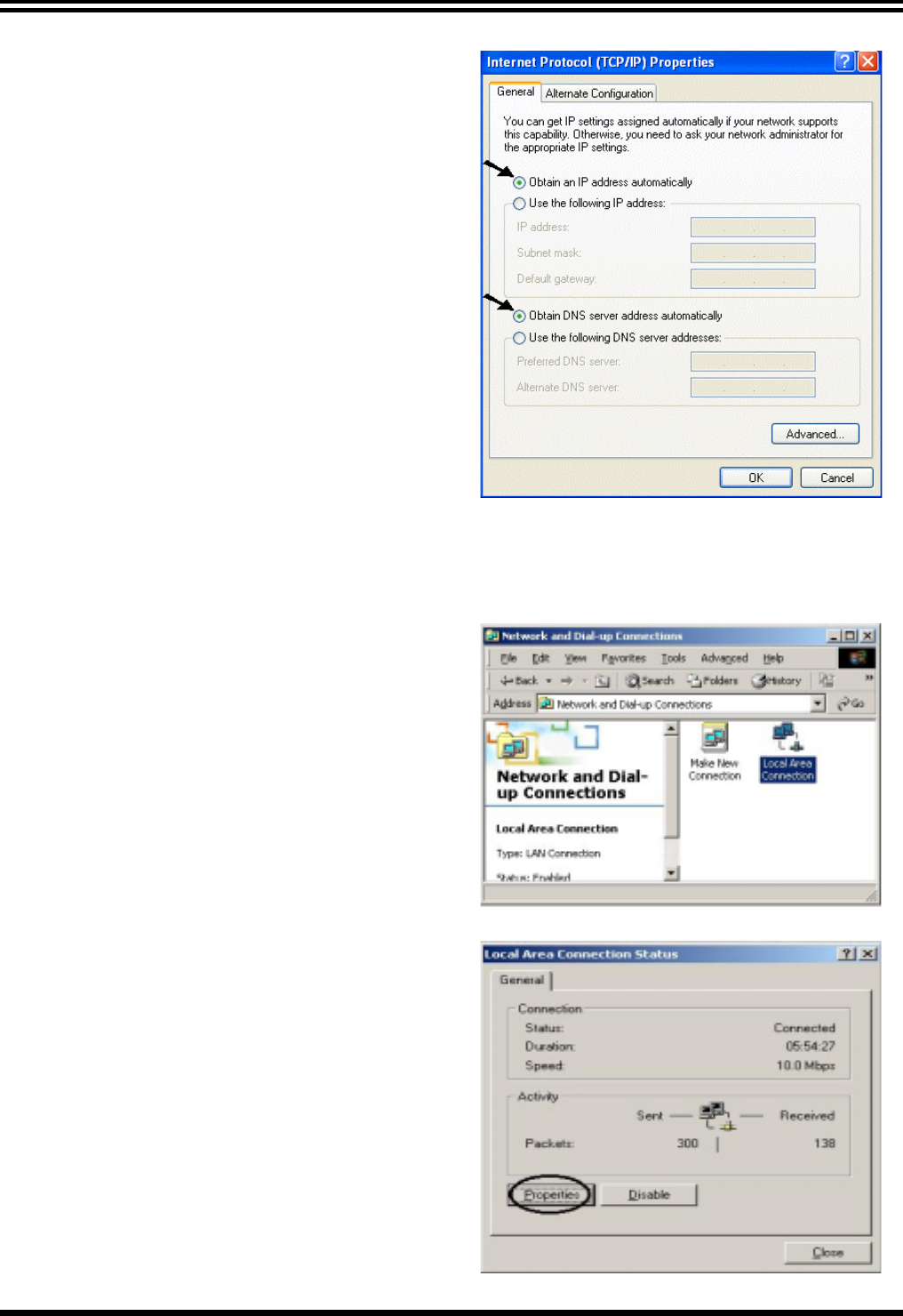

5. Select the Obtain an IP
address automatically and the
Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the
configuration.
Configuring PC in Windows 2000
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
Dial-up Connections.
2. Double-click Local Area
Connection.
3. In the Local Area Connection
Status window, click
Properties.
Wireless Broadband Firewall Gateway
10

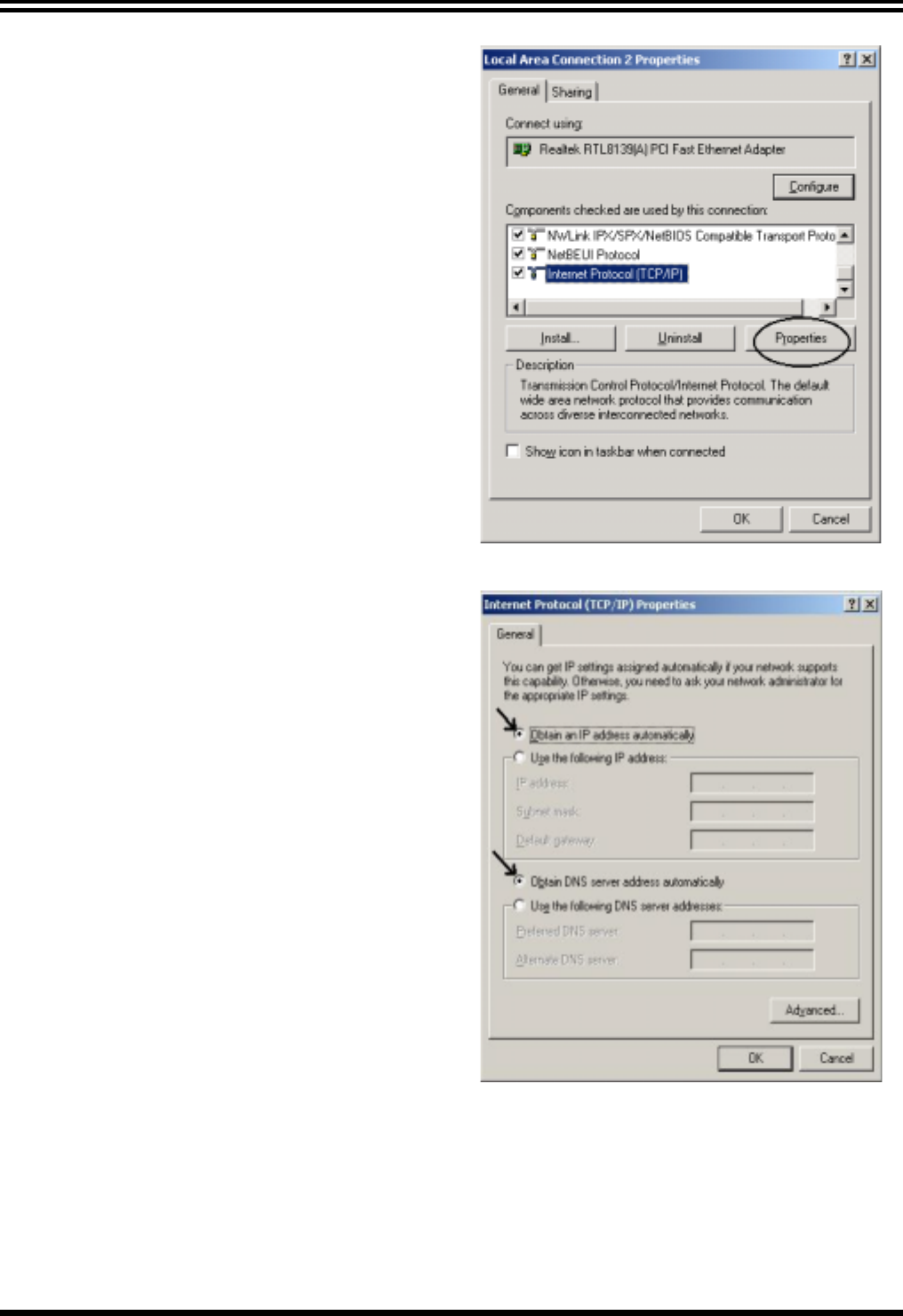

4. Select Internet Protocol
(TCP/IP) and click Properties.
5. Select the Obtain an IP
address automatically and the
Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the
configuration.
Quick Start Guide
11

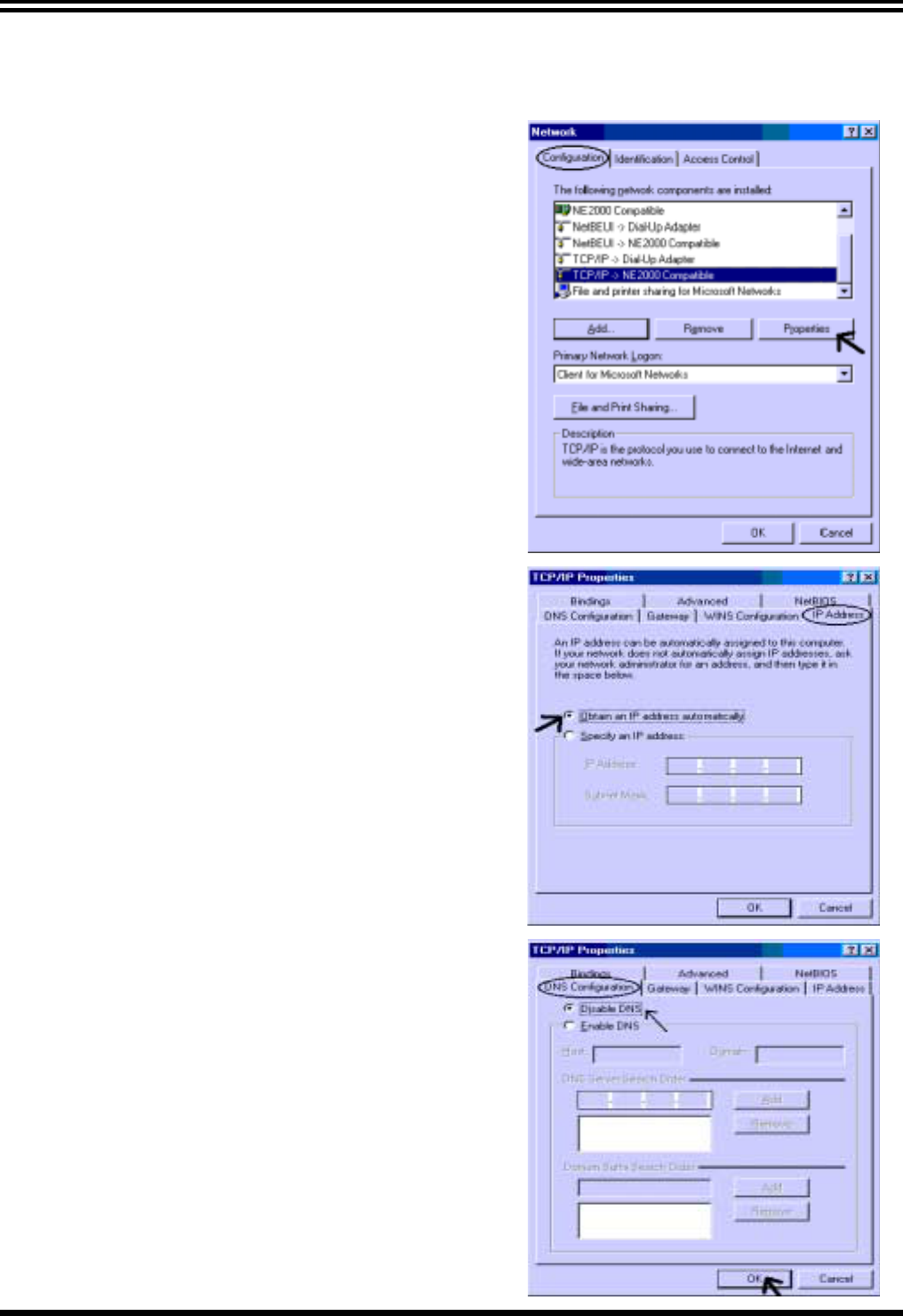

Configuring PC in Windows 95/98/Me
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
choose the Configuration tab.
2. Select TCP/IP ->
NE2000 Compatible, or any
Network Interface Card (NIC) in
your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS
Configuration tab.
5. Select the Disable DNS radio
button and click OK to finish the
configuration.
Wireless Broadband Firewall Gateway
12

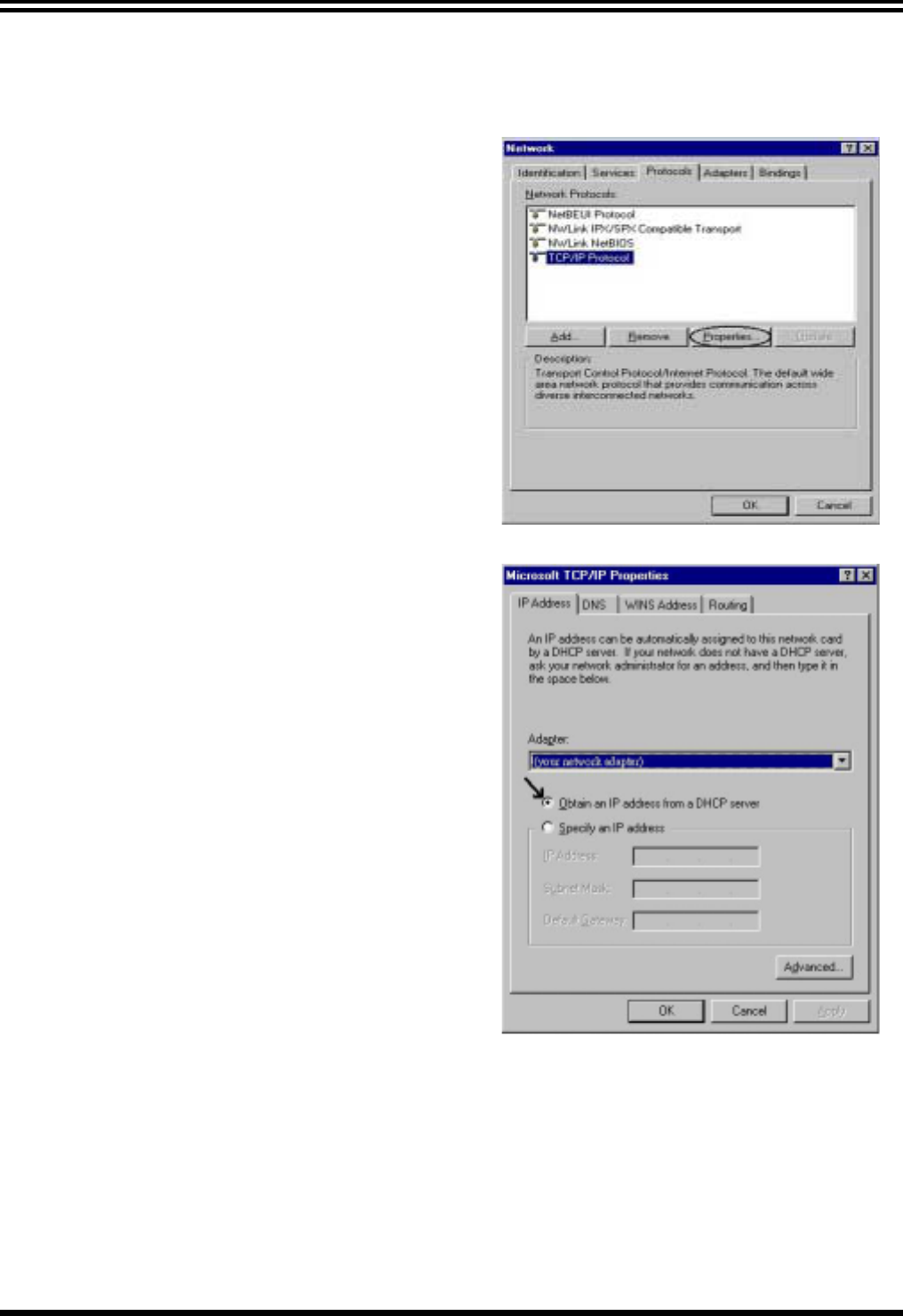

Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
choose the Protocols tab.
2. Select TCP/IP Protocol and
click Properties.
3. Select the Obtain an IP
address from a DHCP server
radio button and click OK.
Quick Start Guide
13

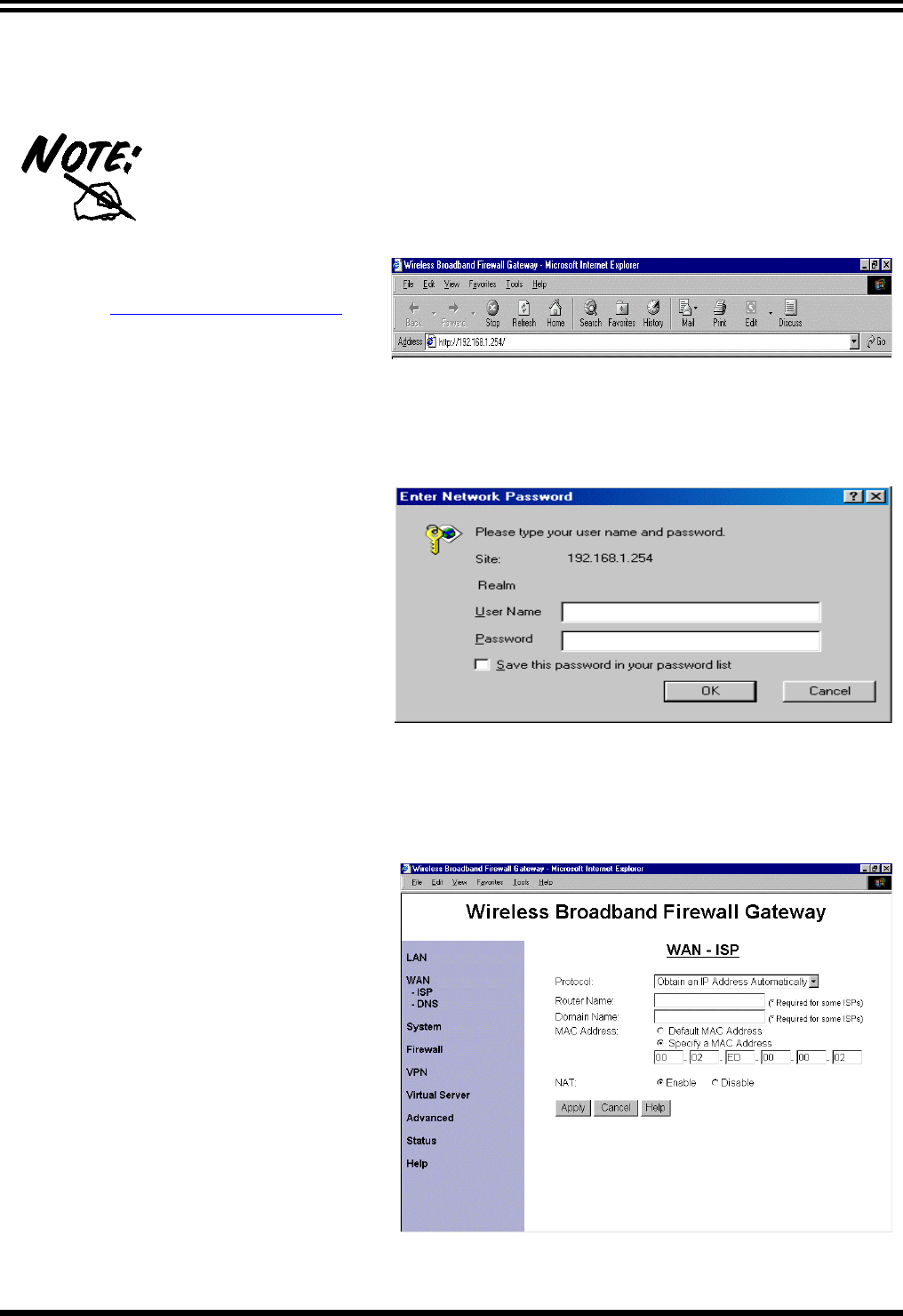

Configuring the Product
To configure this device, you must have IE 5.0 or
above installed in PC.
1. Open web browser and
type http://192.168.1.254 in
the browser’s address box.
This number is the default
IP address for this device.
Press Enter.
2. A user name and password
prompt will appear. Just
click OK. There is no
password protection in
default.

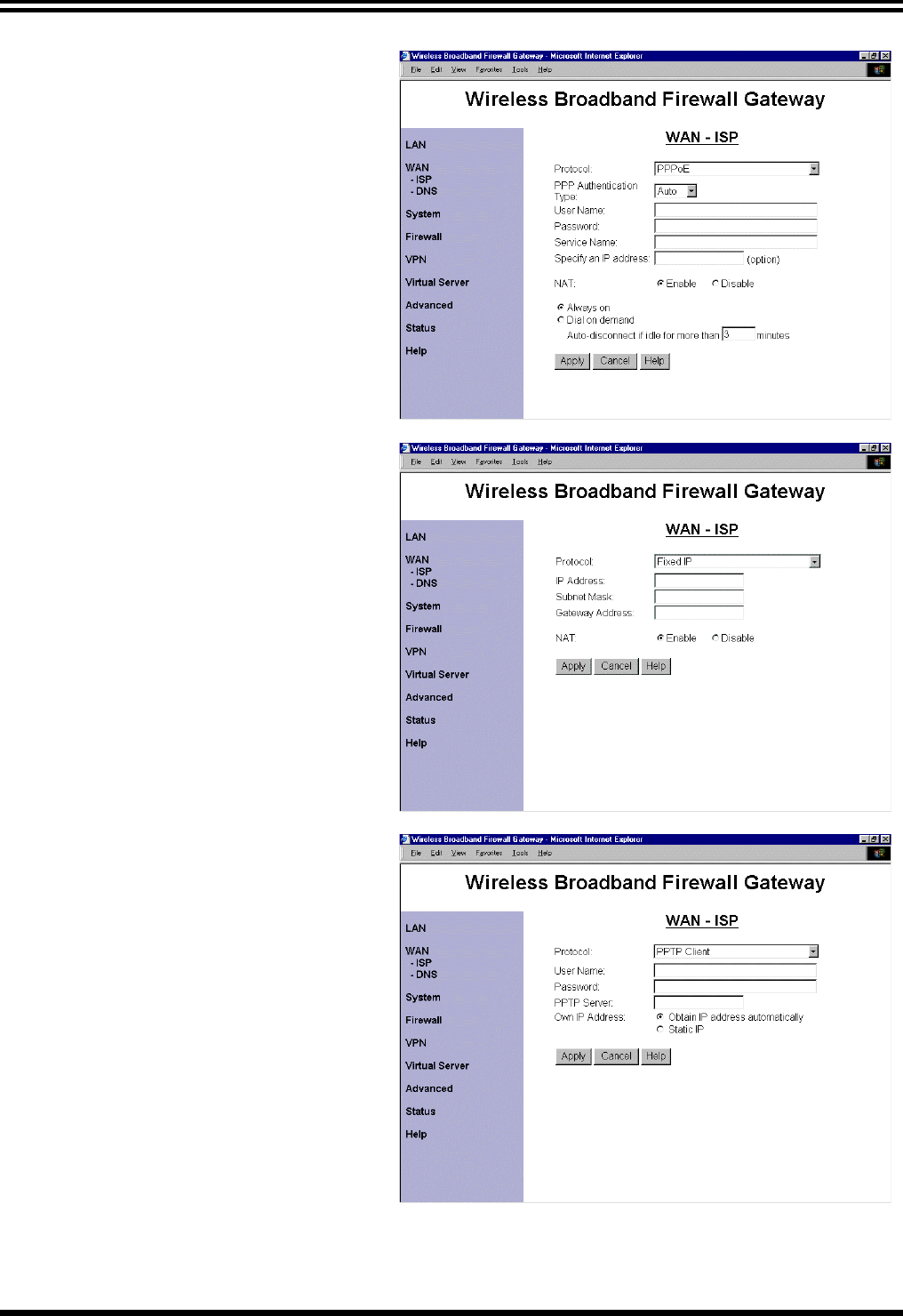

3. Click WAN -> ISP in left pane and select one of the protocols for
connecting with remote site such as ISP from the following:
.
. .
. Obtain an IP Address
Automatically
Wireless Broadband Firewall Gateway
14
.
. .
. PPPoE
.
. .
. Fixed IP
.
..
. PPTP Client
4. Click Apply to store all configurations. The Wireless Broadband
Firewall Gateway will reboot automatically.
Quick Start Guide
15
Connecting to the Internet

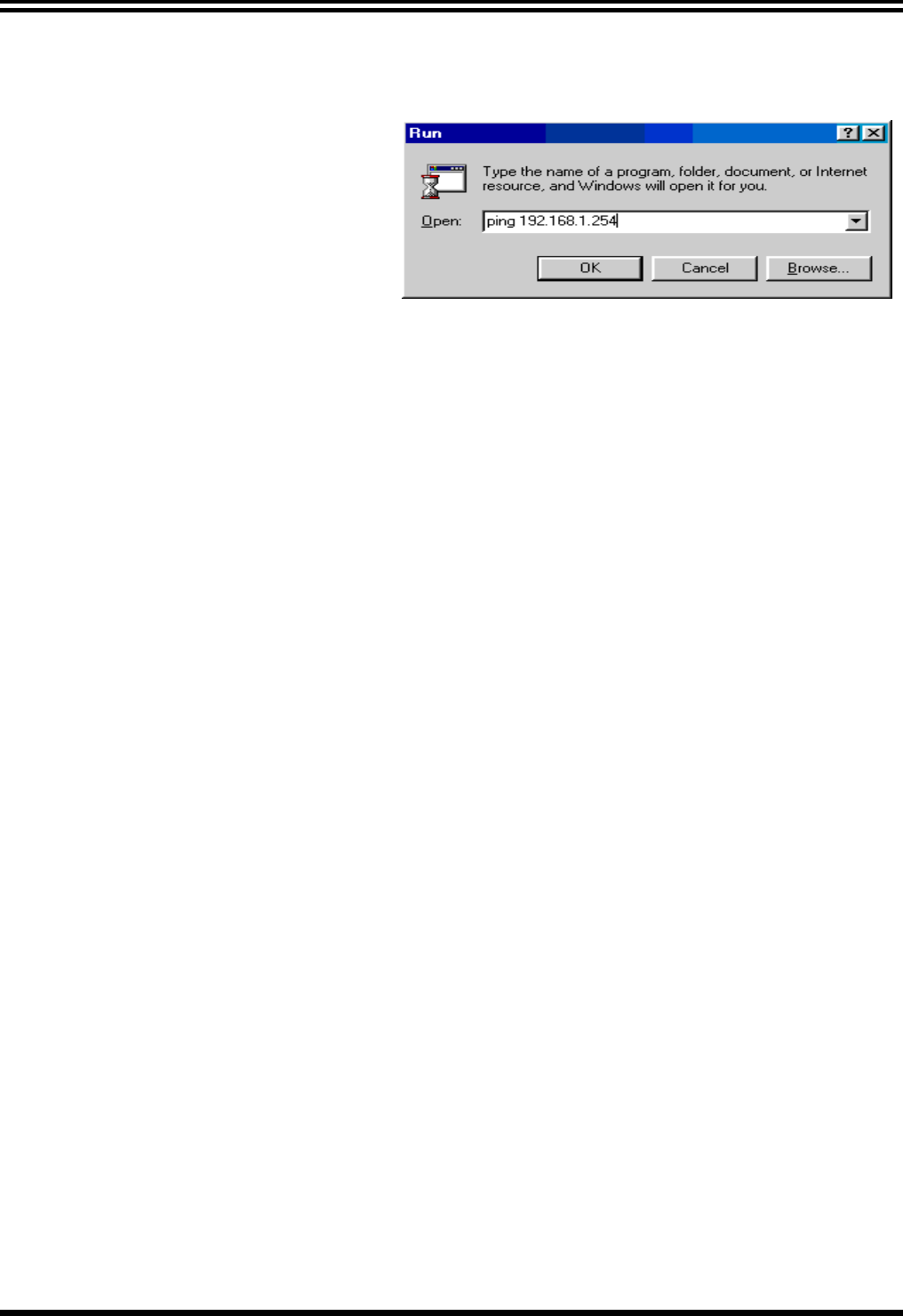

To see if this Wireless
Broadband Firewall
Gateway is visible on the
local network, go to Start /
Run. In the Run dialog box,
type “Ping 192.168.1.254”
and press OK.
Open your Web browser to begin surfing the Internet.
