Users manual-1
Last revised:July 4, 2014
BiPAC 6300VNP(O)Z
4G/LTE VoIP Wireless-N (VPN)
Broadband Router
User Manual
Version release: v1.00
Last revised:July 4, 2014
Table of Contents
Chapter1:Introduction ........................................................................................................................................ 1
IntroductiontoyourRouter ............................................................................................................................. 1
Features&Specifications ................................................................................................................................. 3
HardwareSpecifications................................................................................................................................... 6

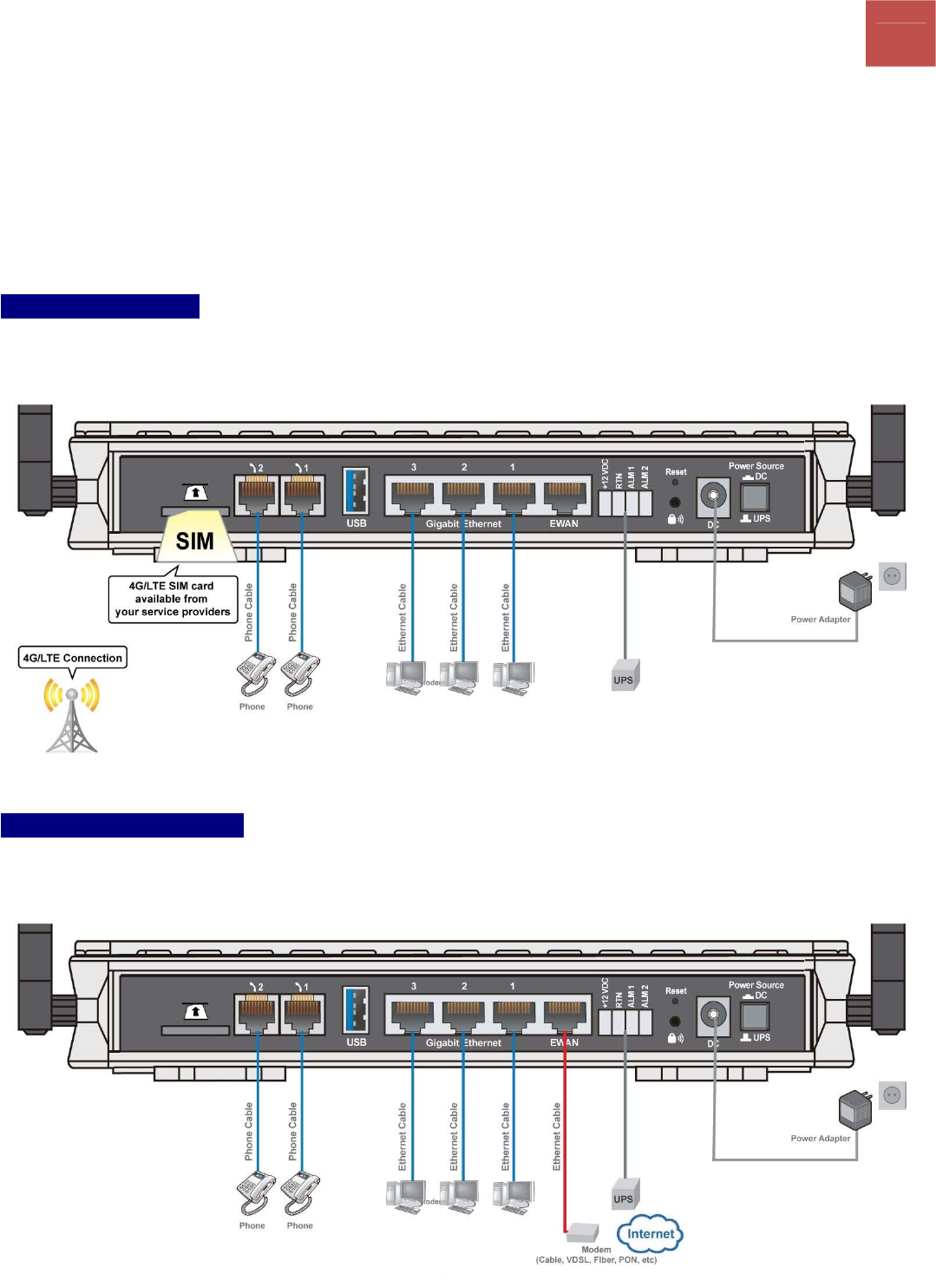

ApplicationDiagram ......................................................................................................................................... 7
Chapter2:ProductOverview................................................................................................................................ 8
ImportantNoteforUsingThisRouter.............................................................................................................. 8
DeviceDescription............................................................................................................................................ 9

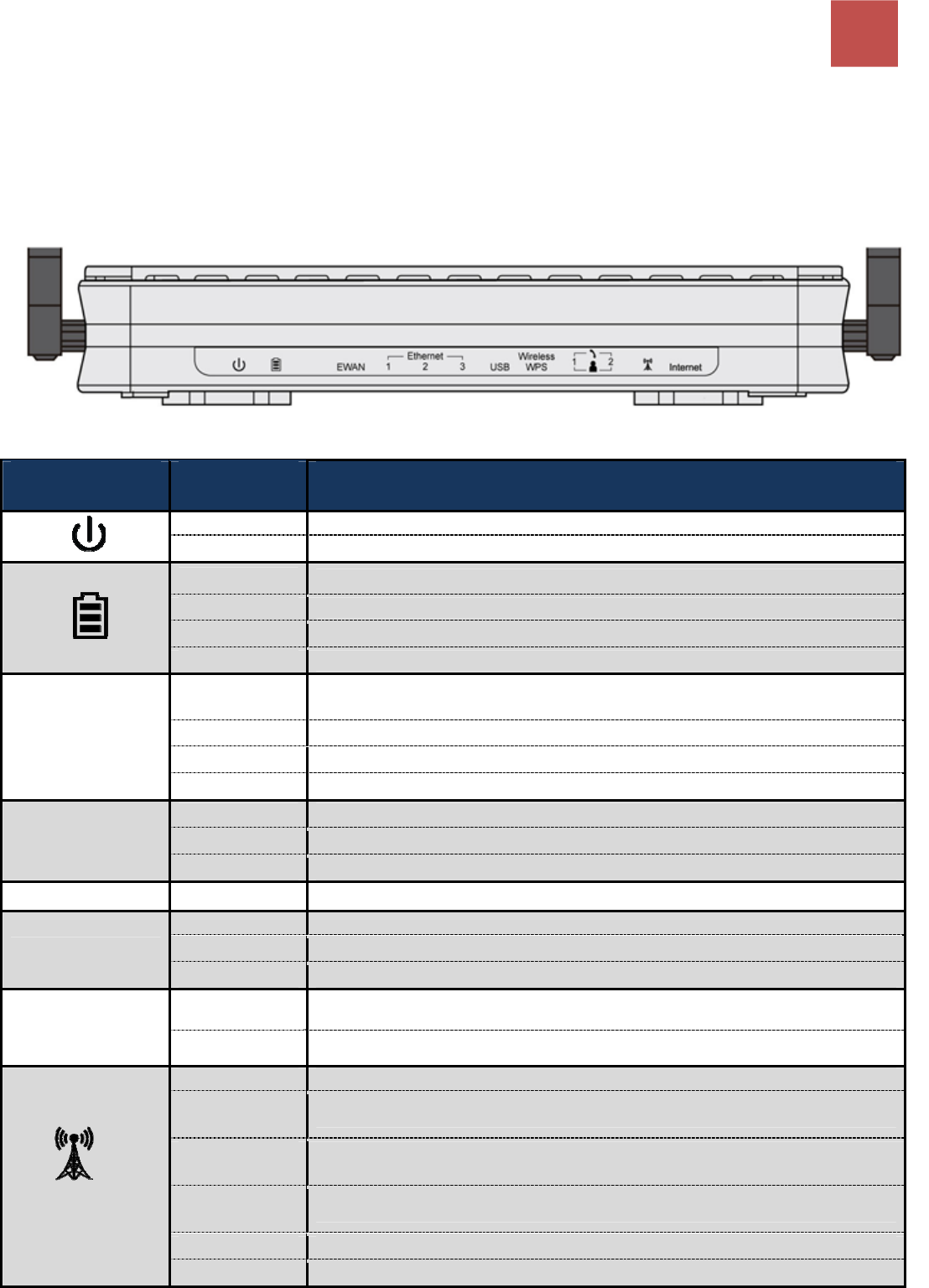

FrontPanelLEDs ........................................................................................................................................... 9

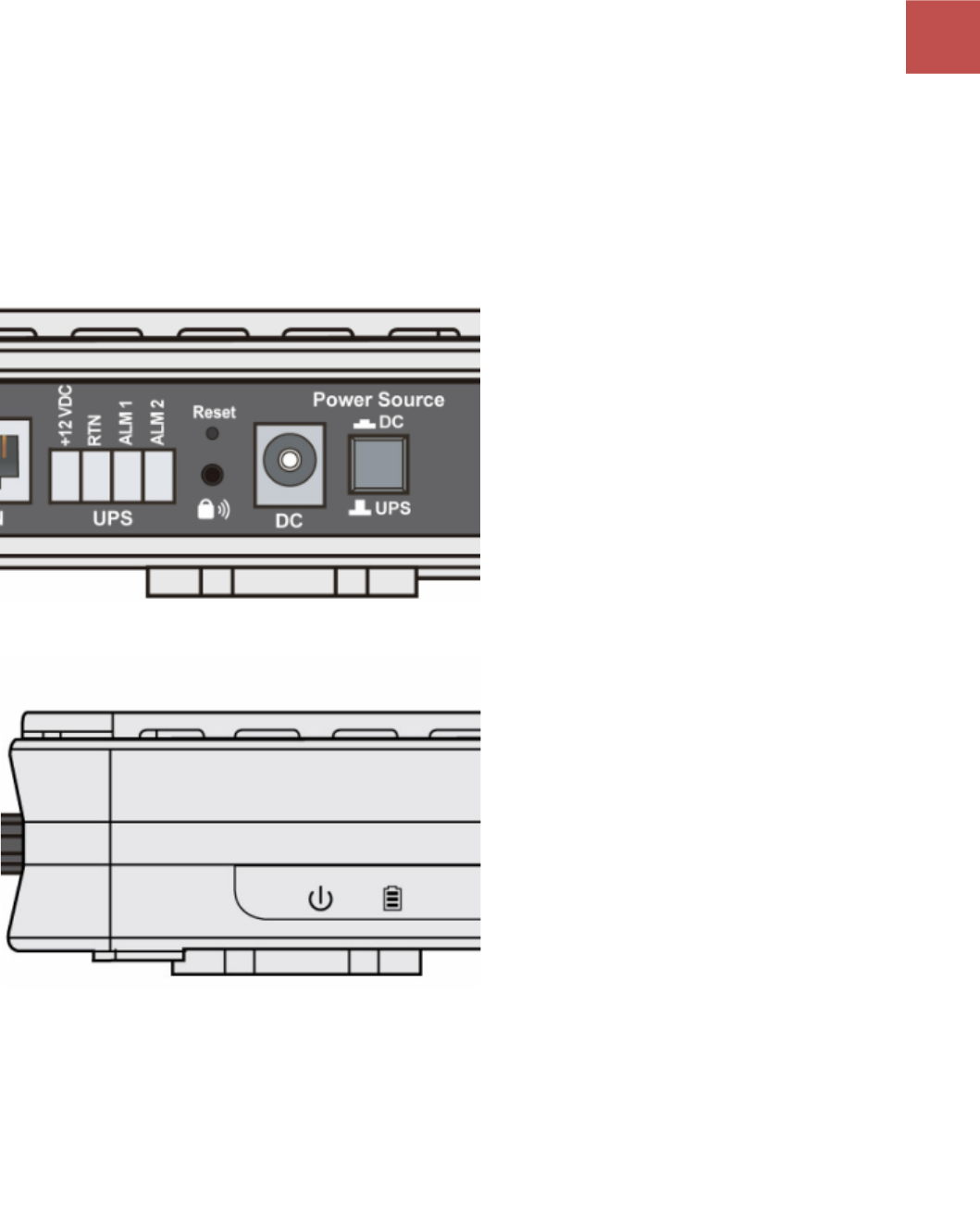

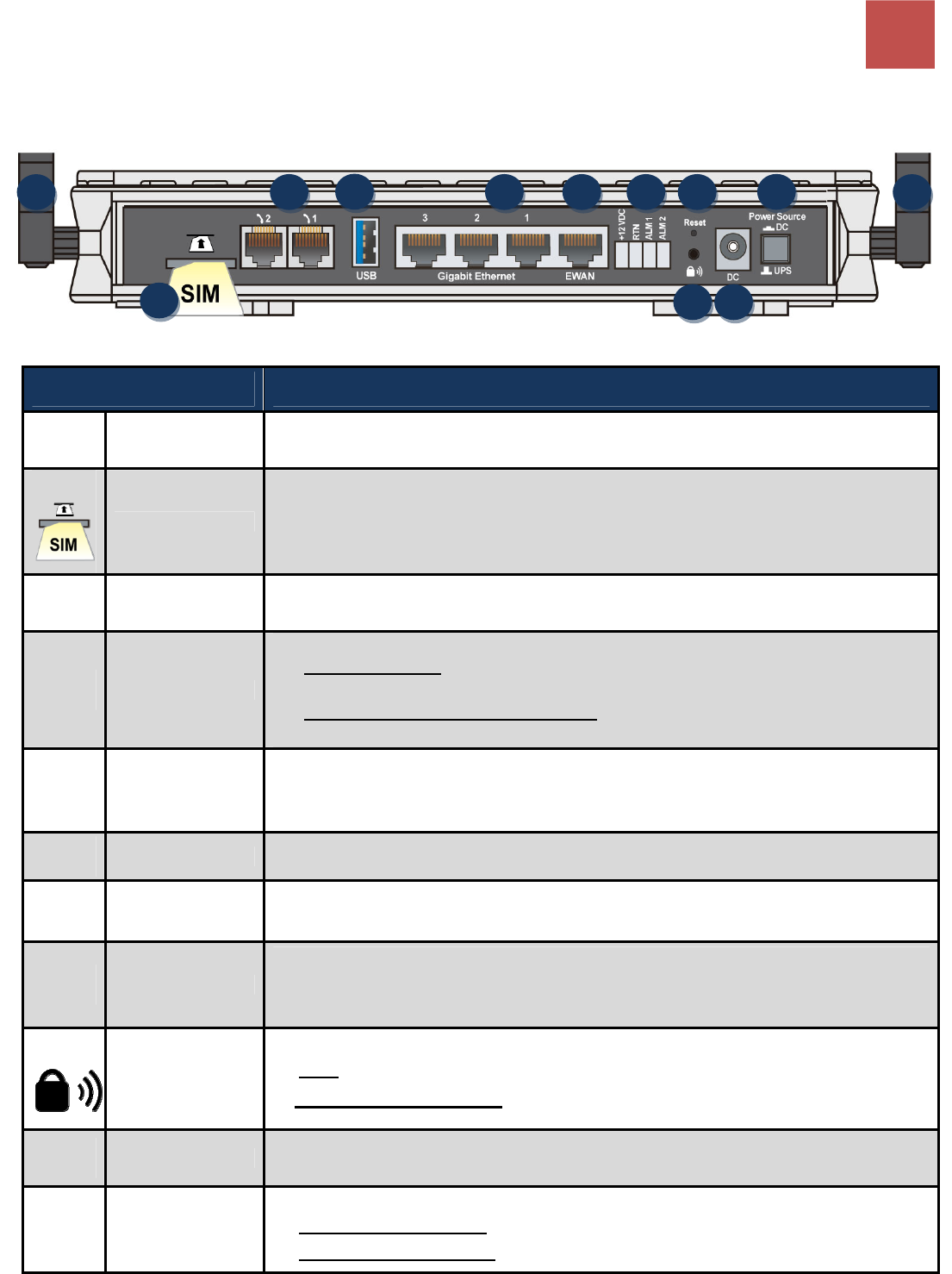

RearPanelConnectors ............................................................................................................................... 11
PowerSource.................................................................................................................................................. 12
Cabling ............................................................................................................................................................ 13
Chapter3:BasicInstallation............................................................................................................................... 14
NetworkConfiguration–IPv4 ........................................................................................................................ 15

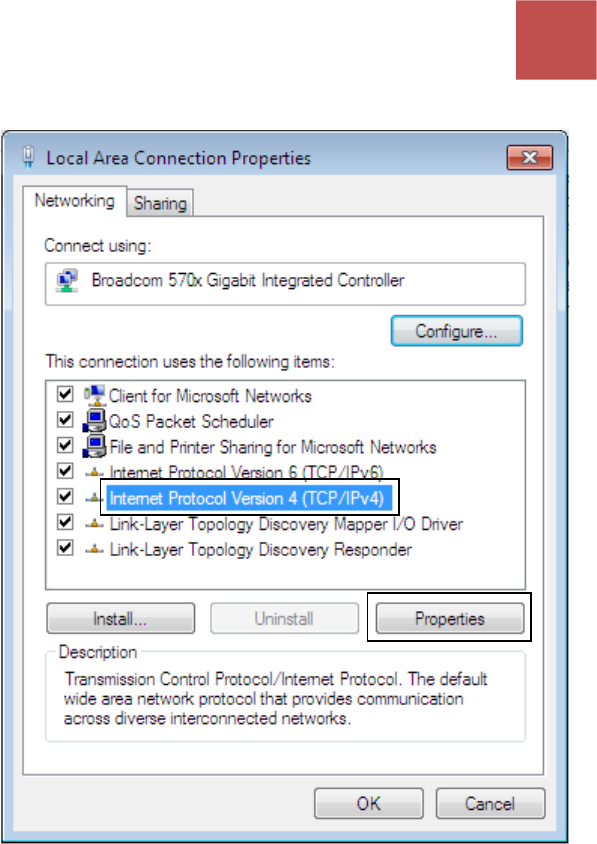

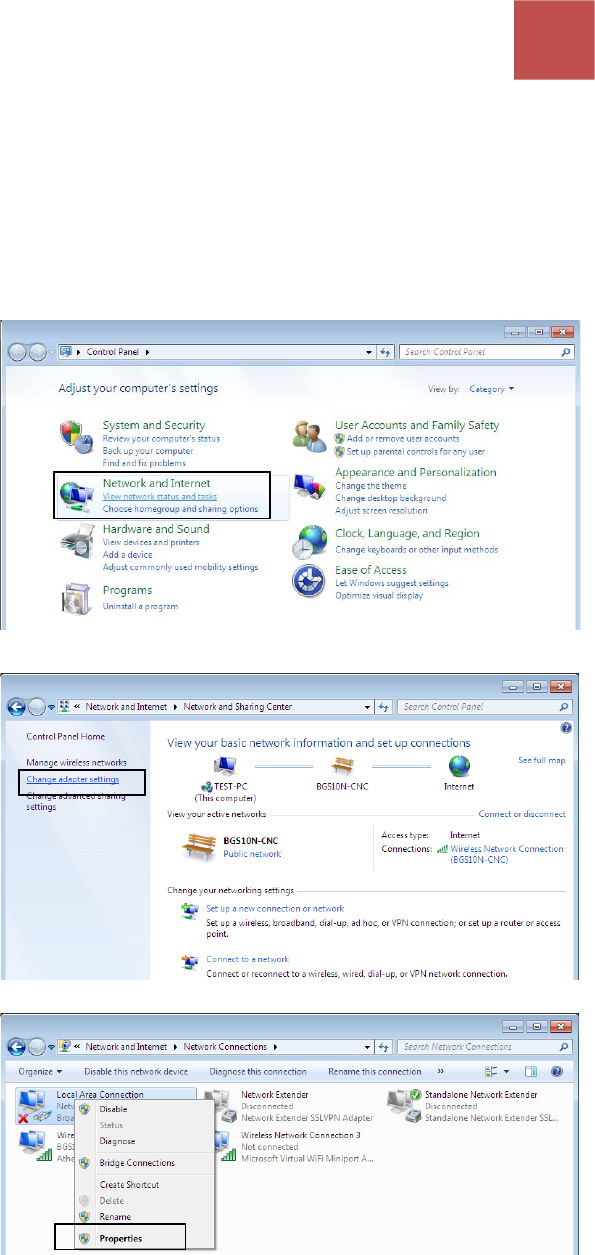

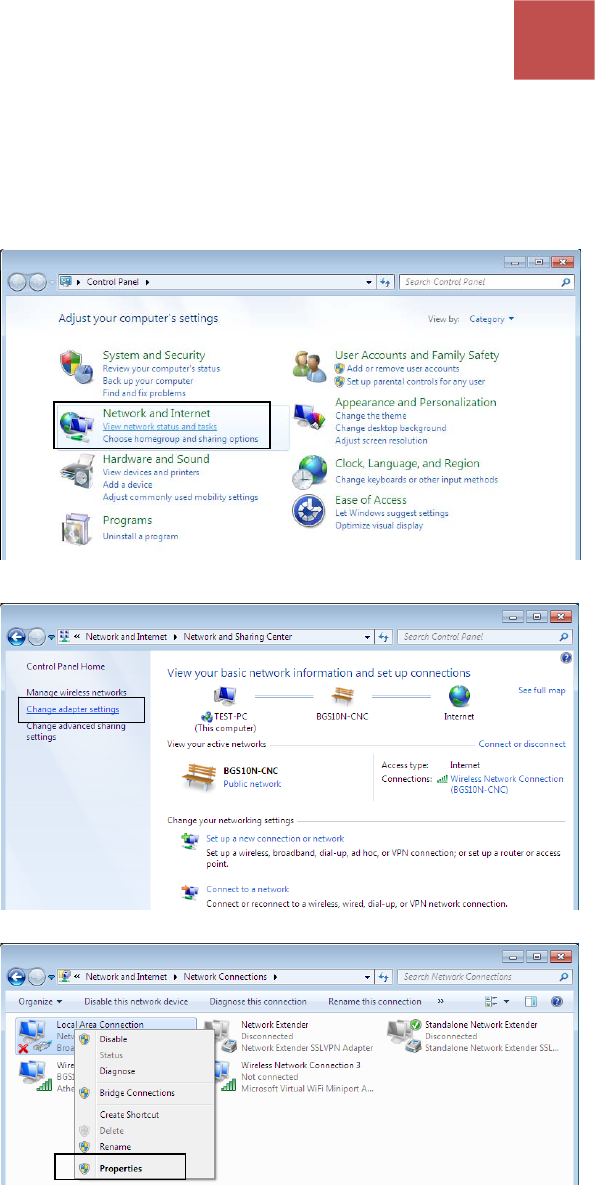

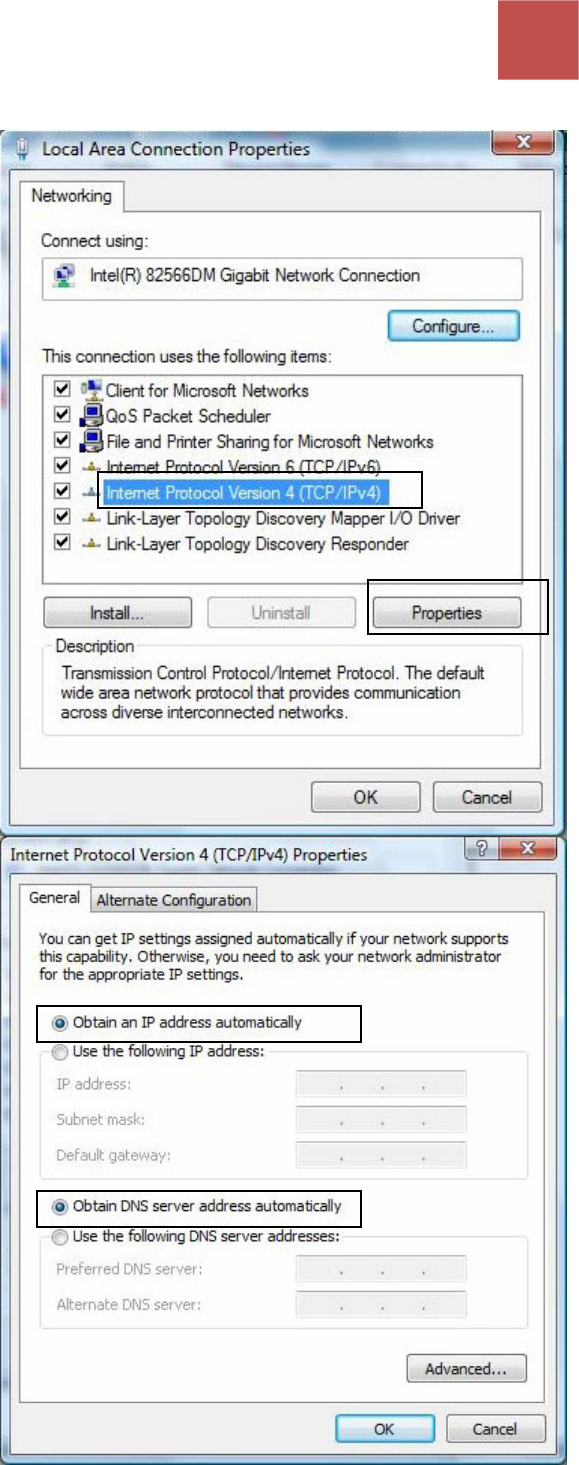

ConfiguringPCinWindows7/8(IPv4)........................................................................................................ 15

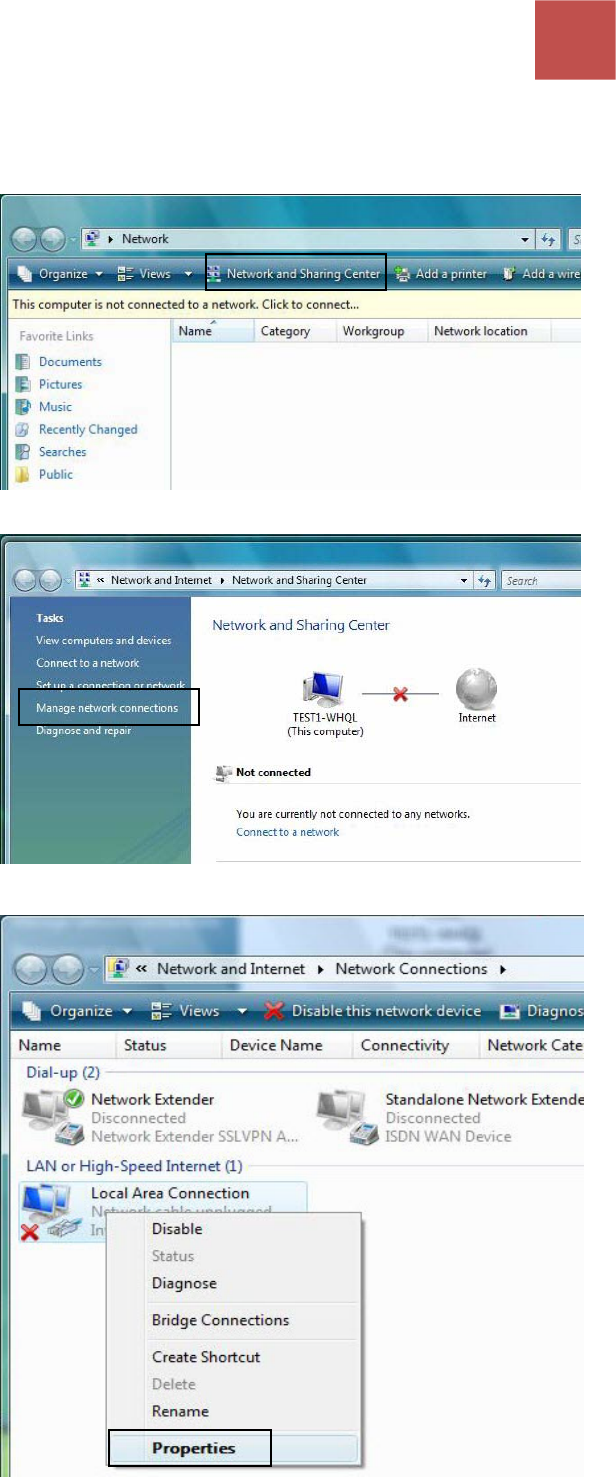

ConfiguringPCinWindowsVista(IPv4) ..................................................................................................... 18

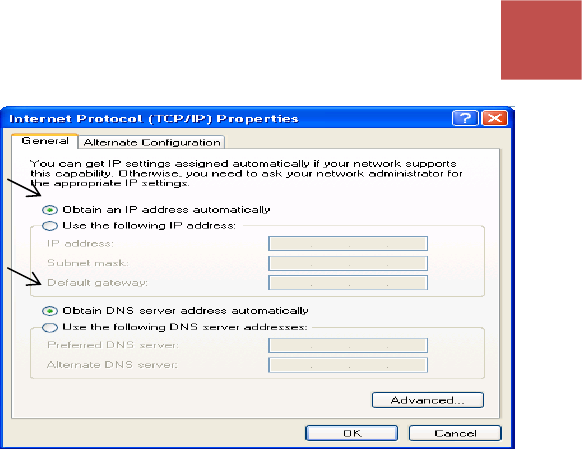

ConfiguringPCinWindowsXP(IPv4) ......................................................................................................... 20

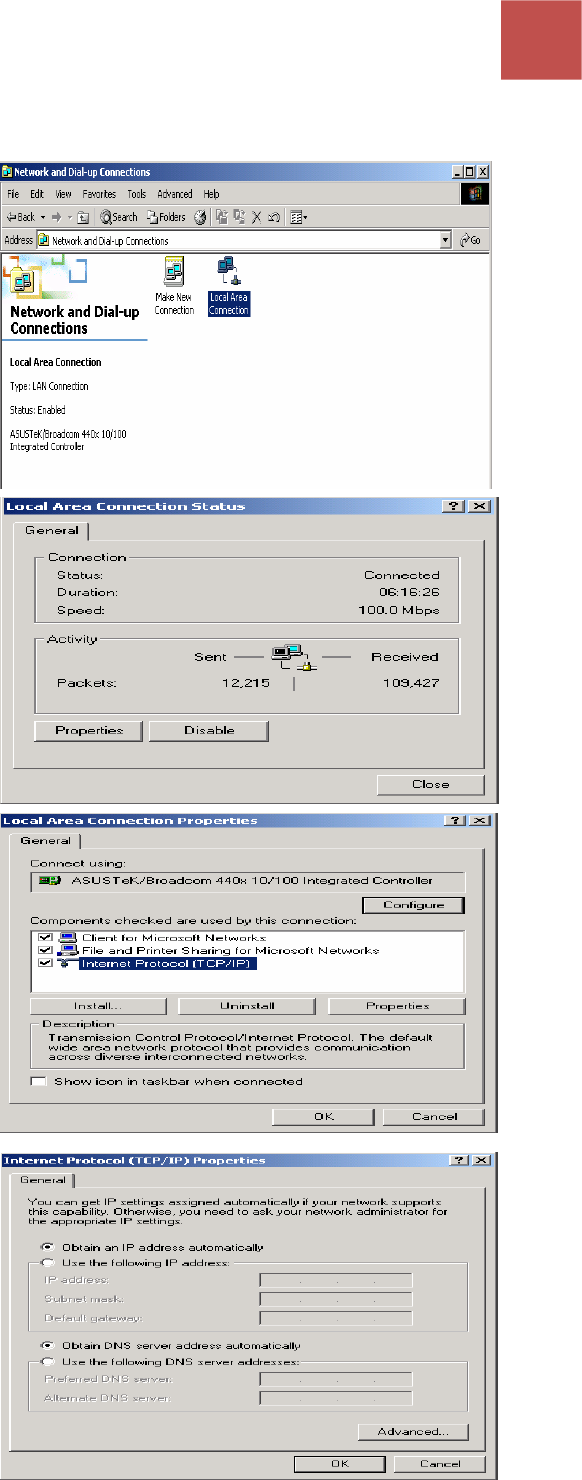

ConfiguringPCinWindows2000(IPv4) ..................................................................................................... 22

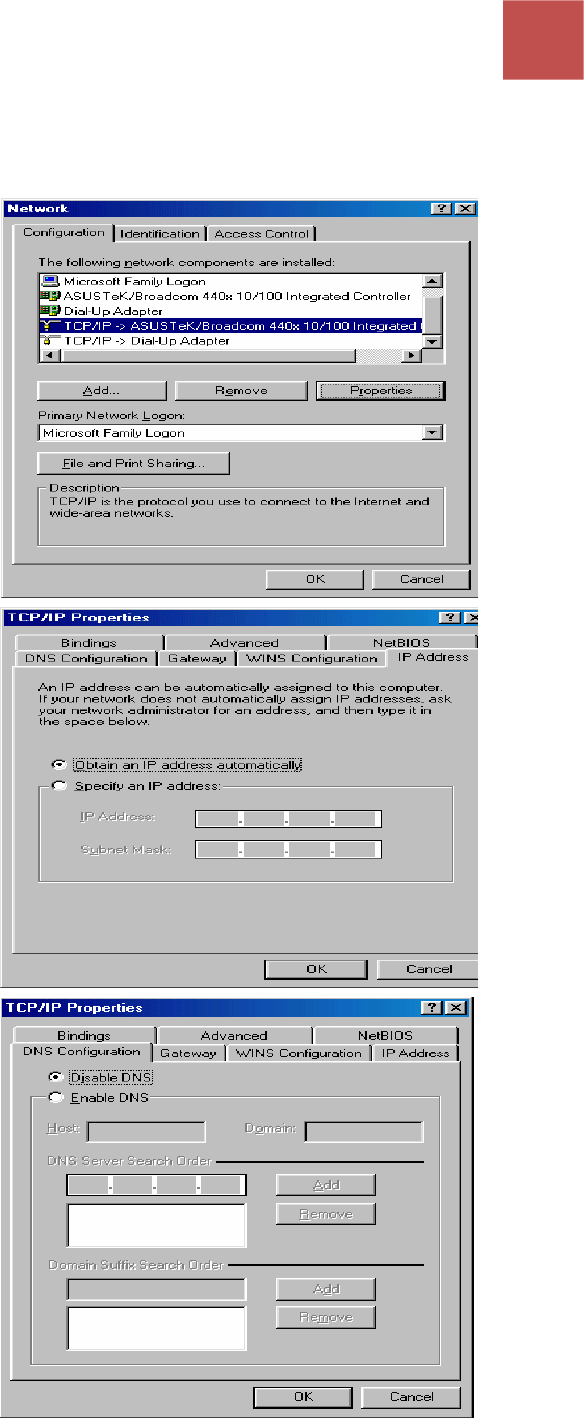

ConfiguringPCinWindows98/ME ............................................................................................................ 23

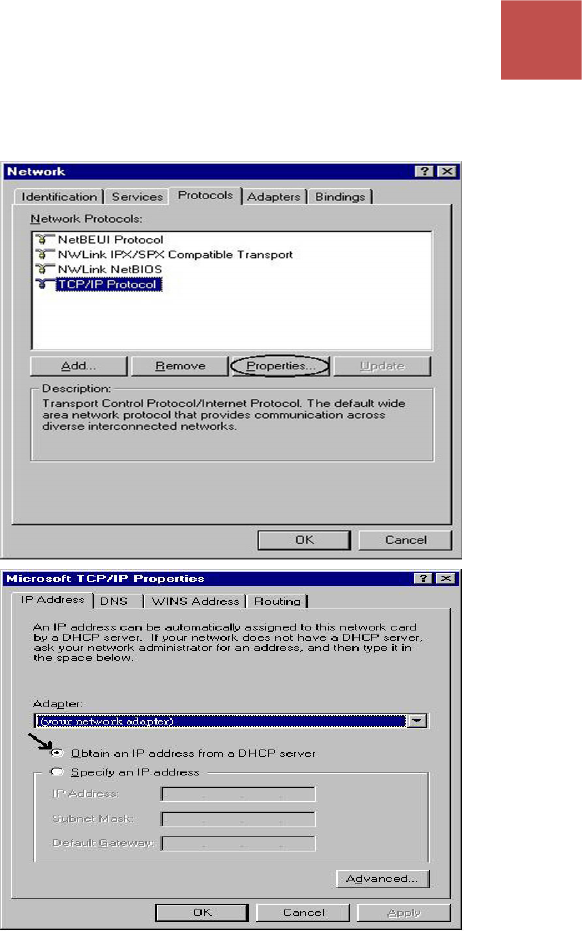

ConfiguringPCinWindowsNT4.0.............................................................................................................. 24
NetworkConfiguration–IPv6 ........................................................................................................................ 25
ConfiguringPCinWindows7/8(IPv6)........................................................................................................ 25

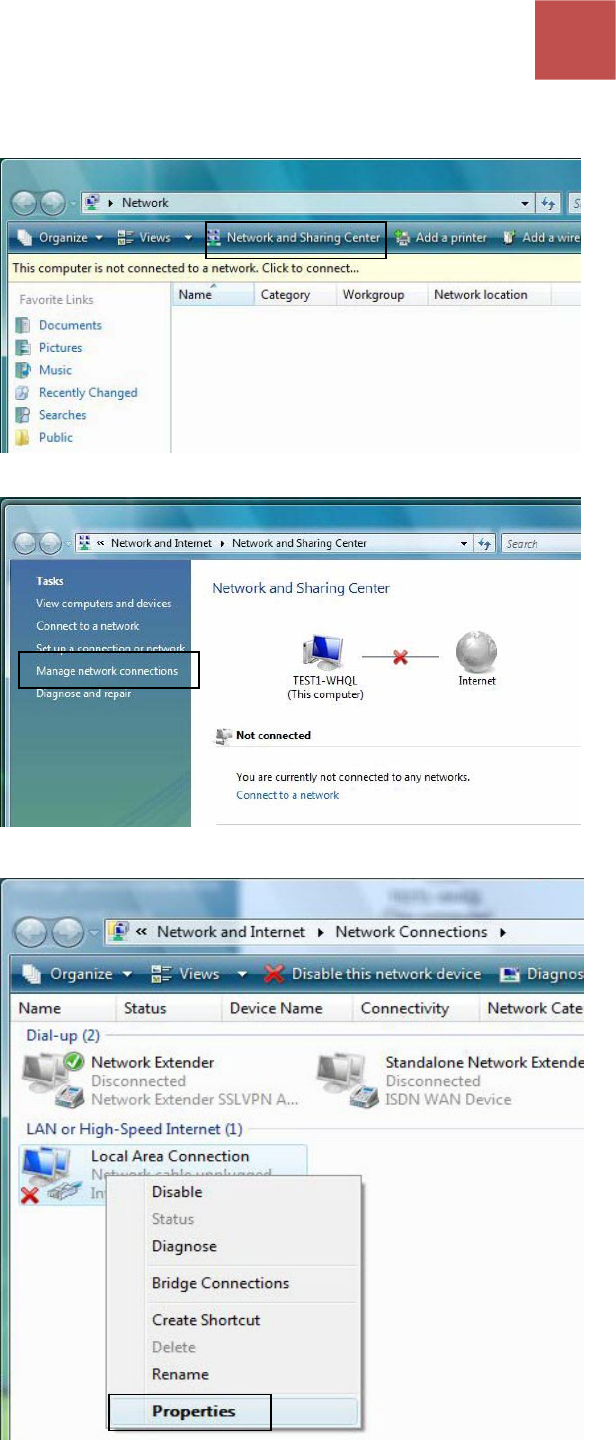

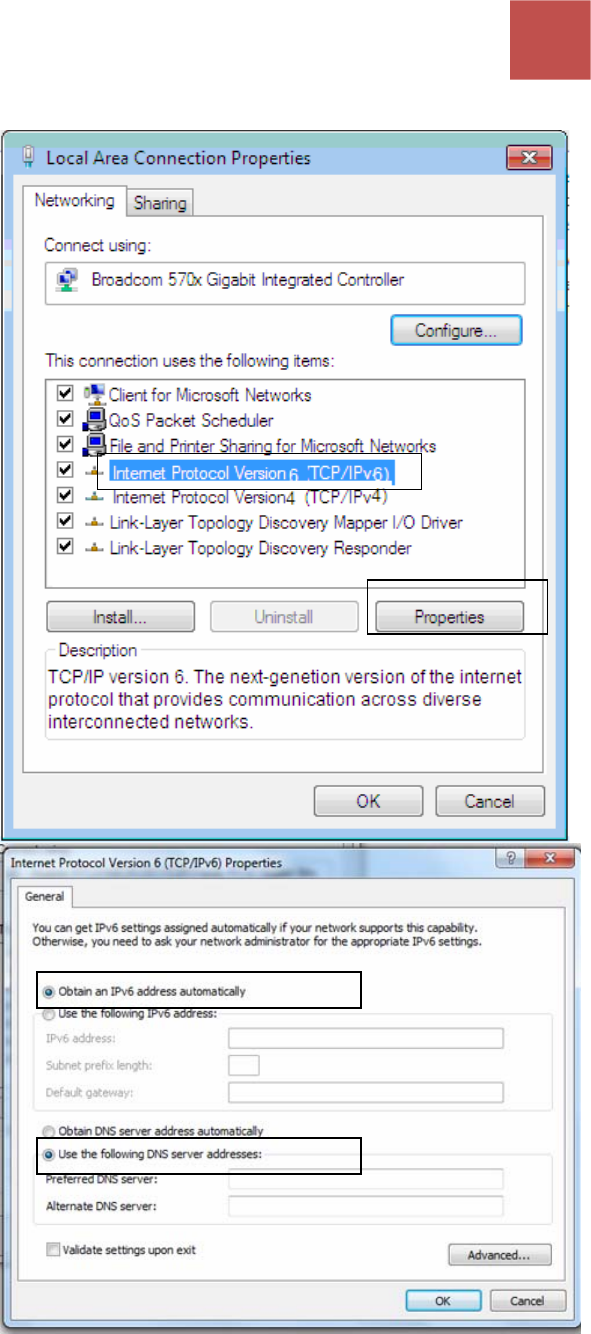

ConfiguringPCinWindowsVista(IPv6) ..................................................................................................... 27
ConfiguringPCinWindowsXP(IPv6) ......................................................................................................... 29
DefaultSettings .............................................................................................................................................. 30
InformationfromYourISP.............................................................................................................................. 31
Chapter4:DeviceConfiguration......................................................................................................................... 32

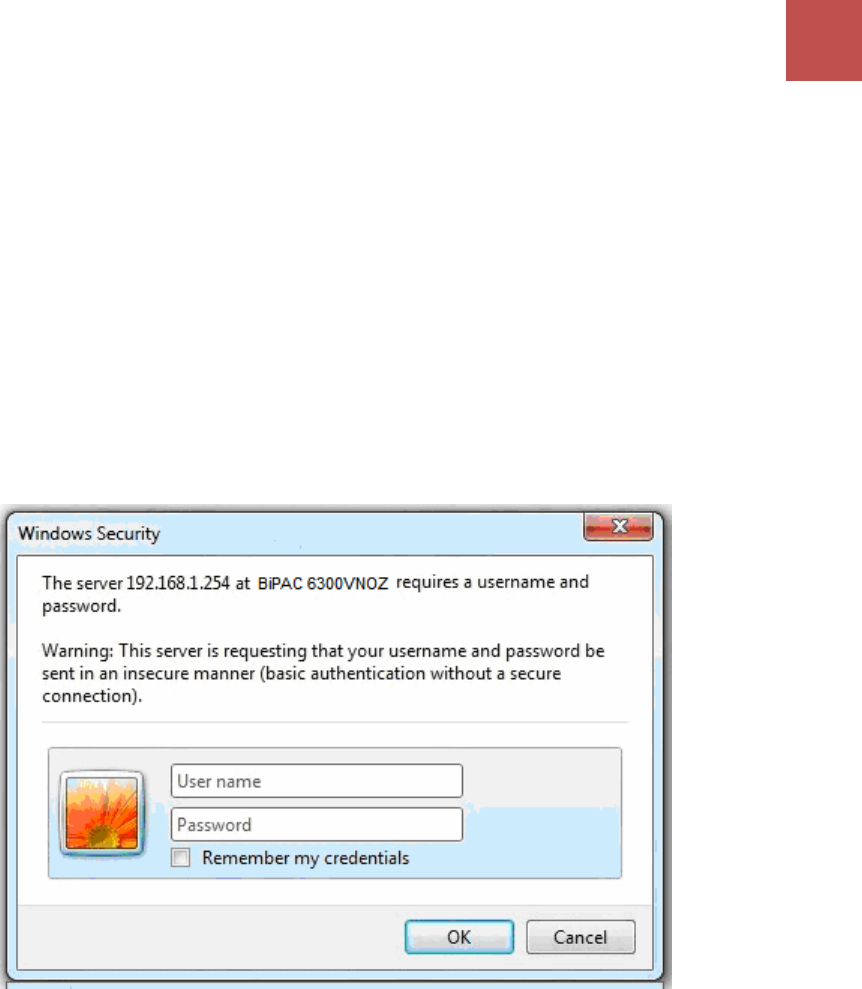

LogintoyourDevice ....................................................................................................................................... 32

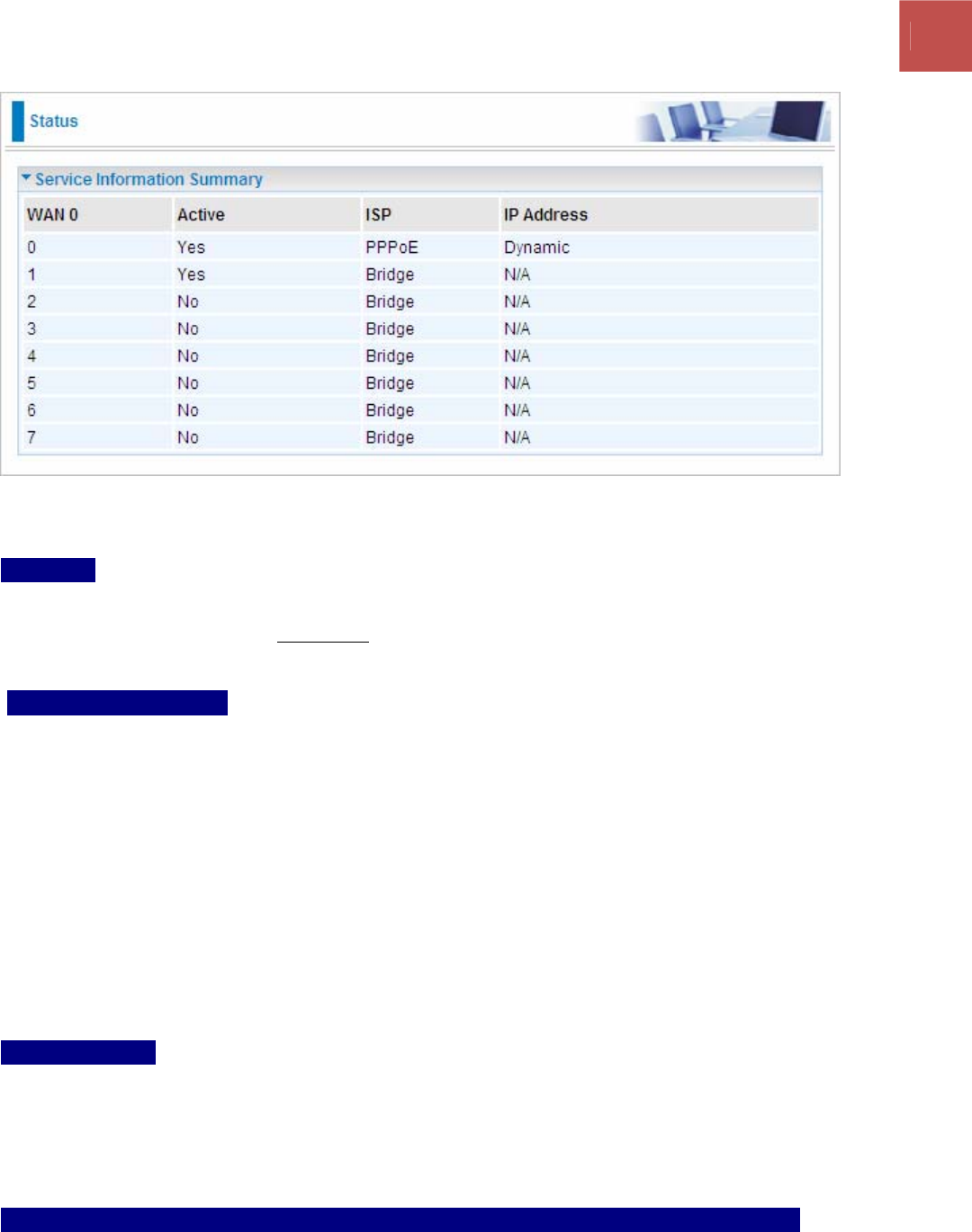

Status .............................................................................................................................................................. 34

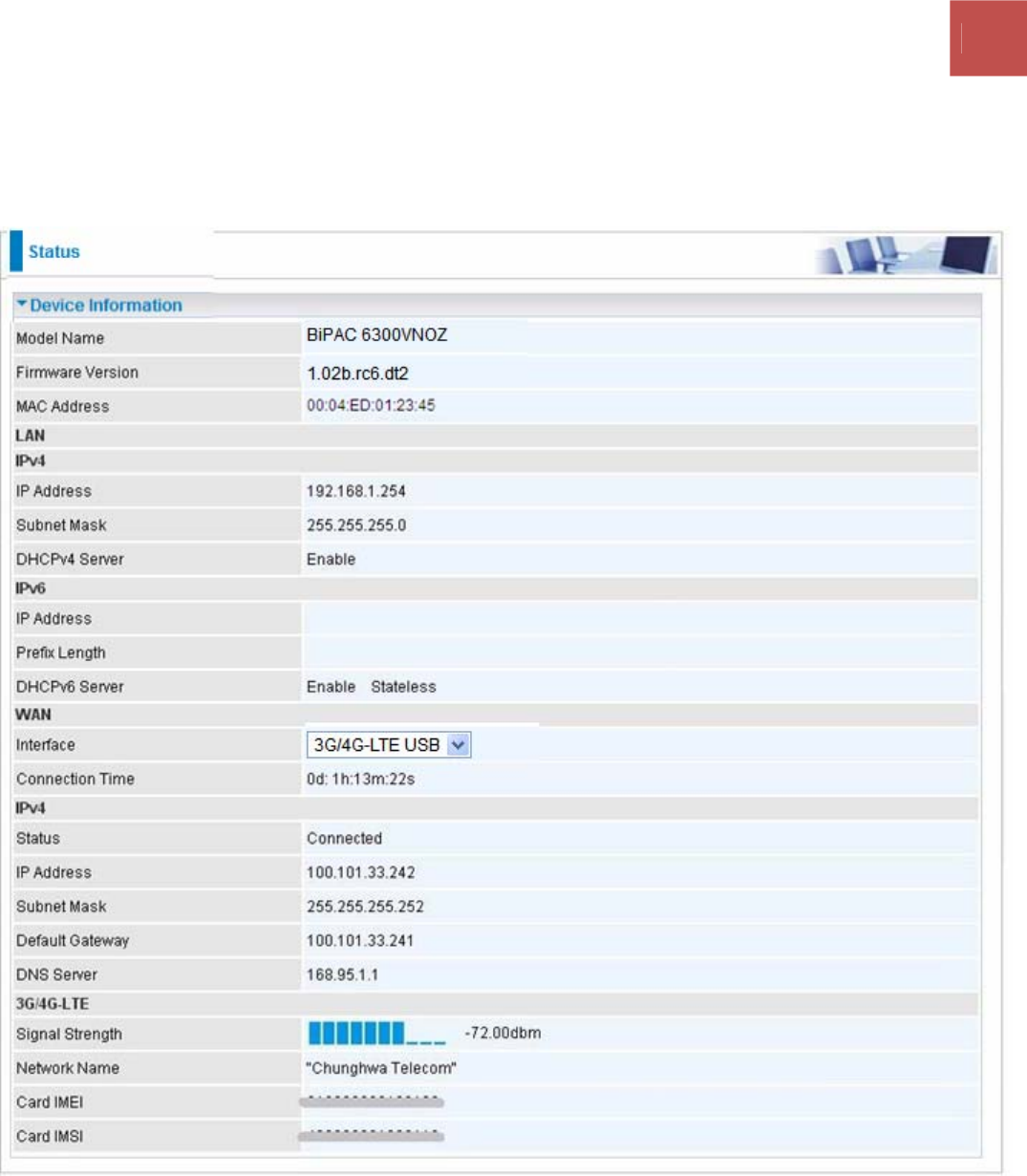

DeviceInfo .................................................................................................................................................. 35
SystemLog.................................................................................................................................................. 37

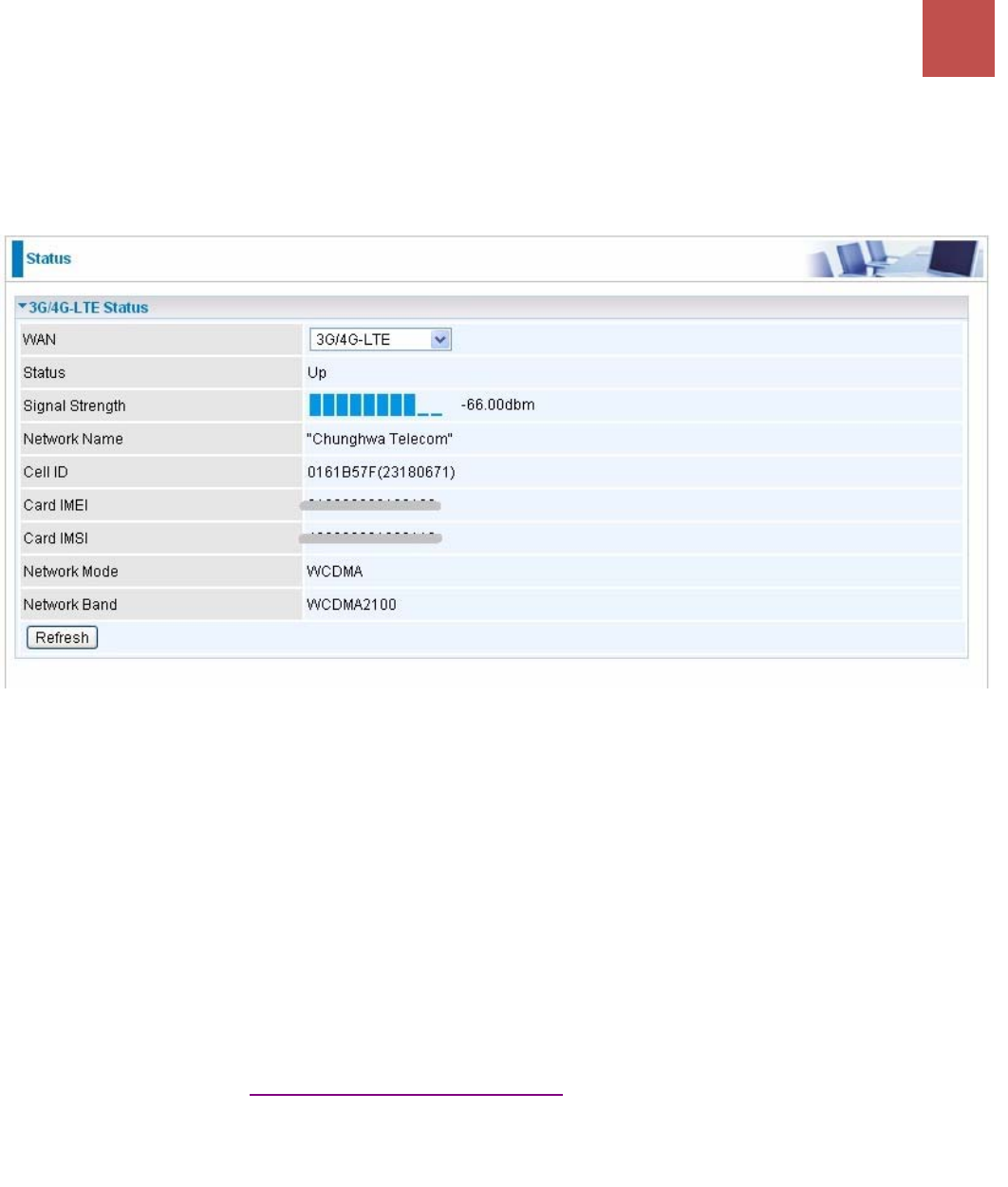

3G/4G‐LTEStatus........................................................................................................................................ 38

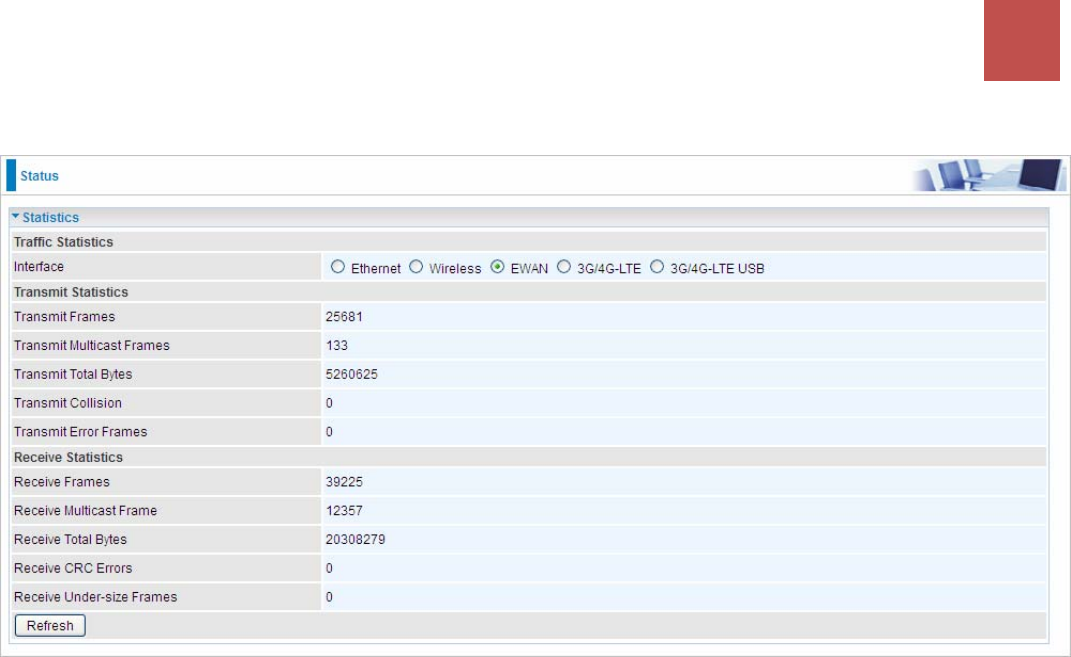

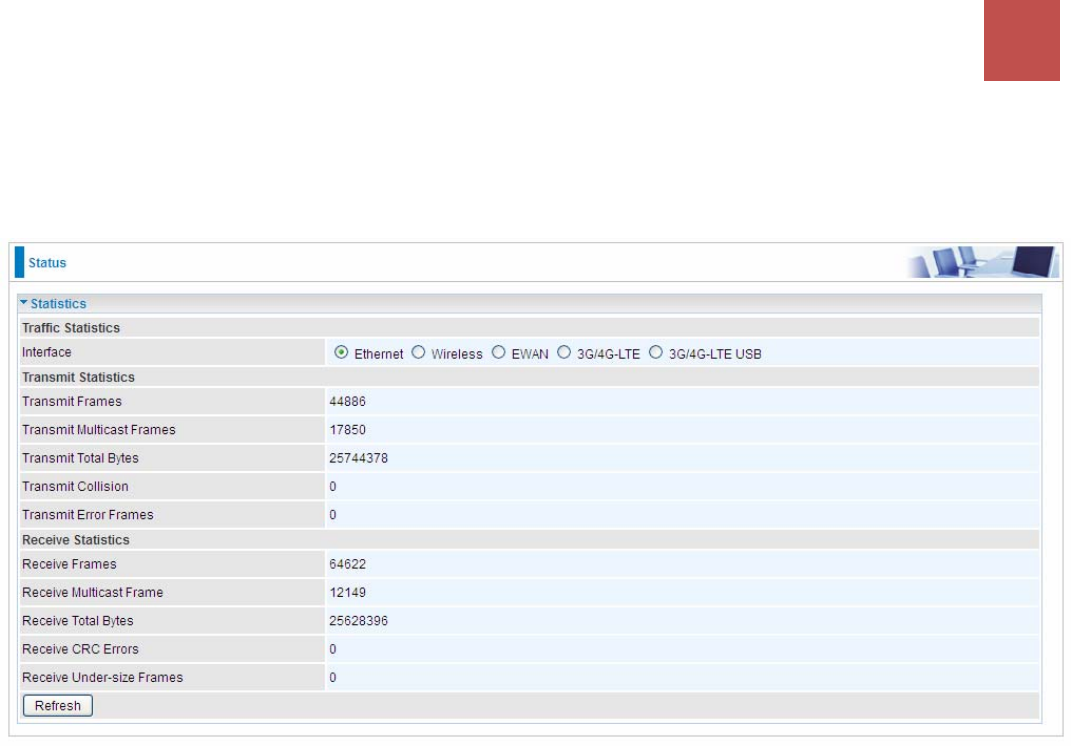

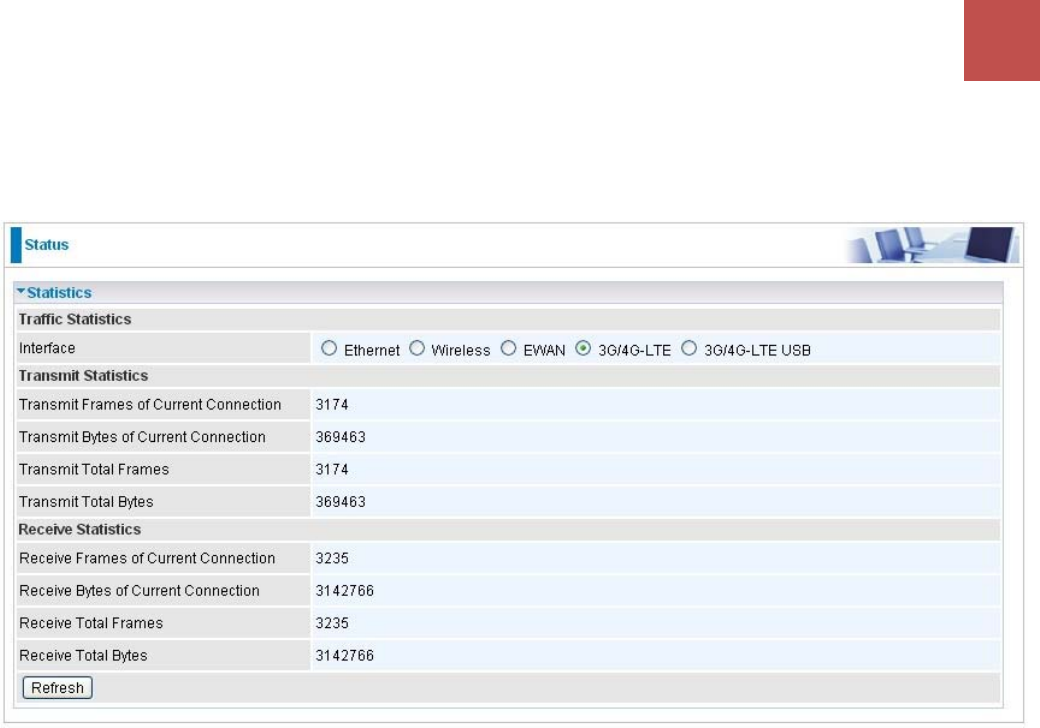

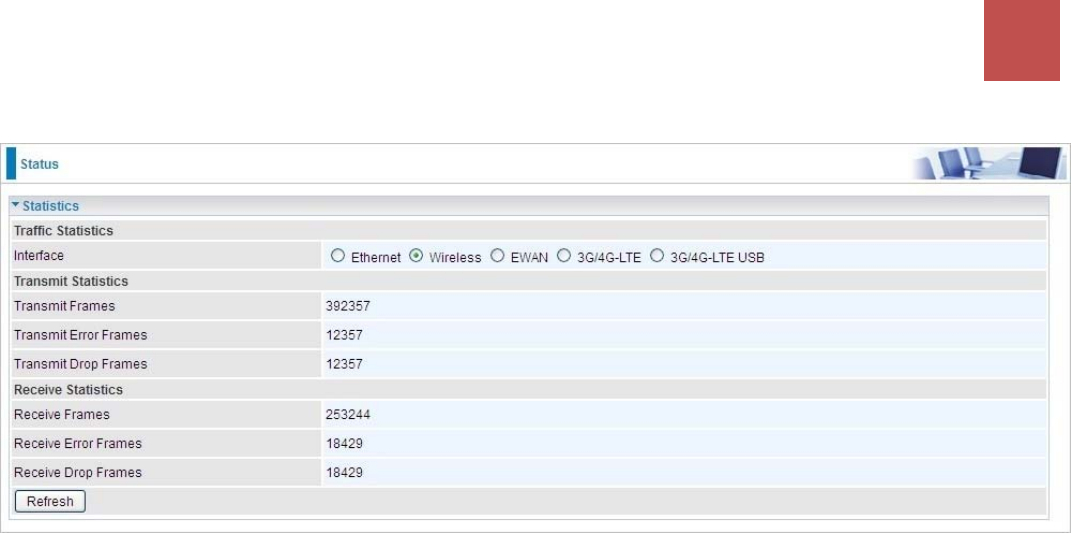

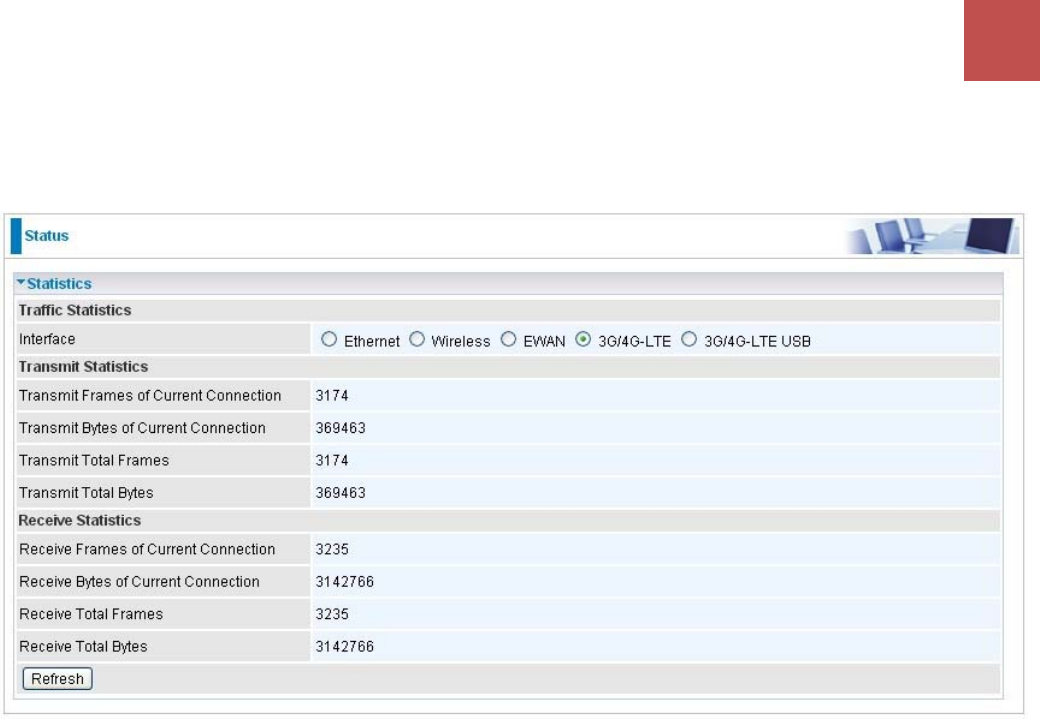

Statistics...................................................................................................................................................... 40
DHCPTable ................................................................................................................................................. 45

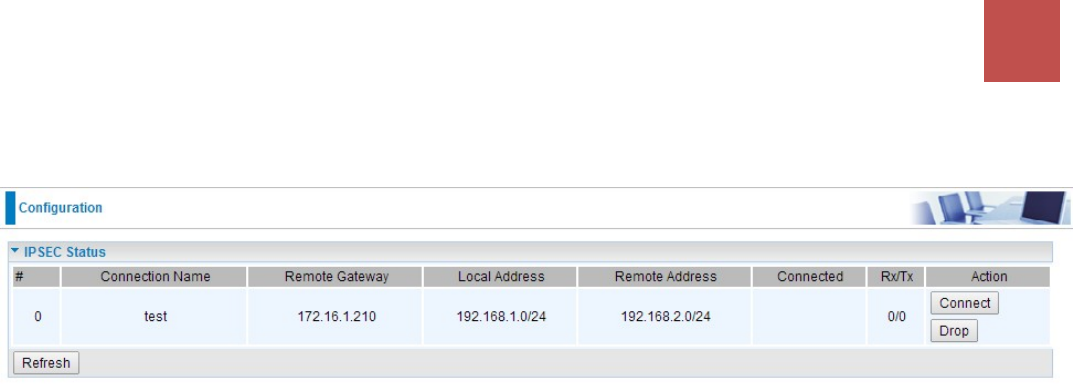

IPSECStatus(6300VNOZonly).................................................................................................................... 46
PPTPStatus(6300VNOZonly) .................................................................................................................... 47

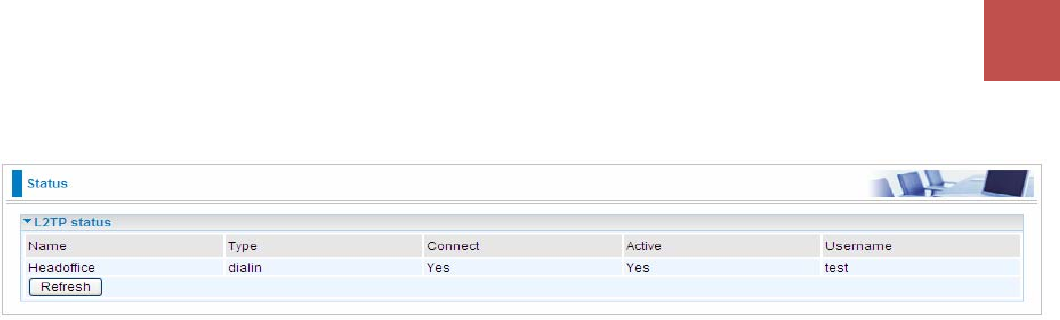

L2TPStatus(6300VNOZonly)...................................................................................................................... 48
DiskStatus .................................................................................................................................................. 49
VoIPStatus.................................................................................................................................................. 49

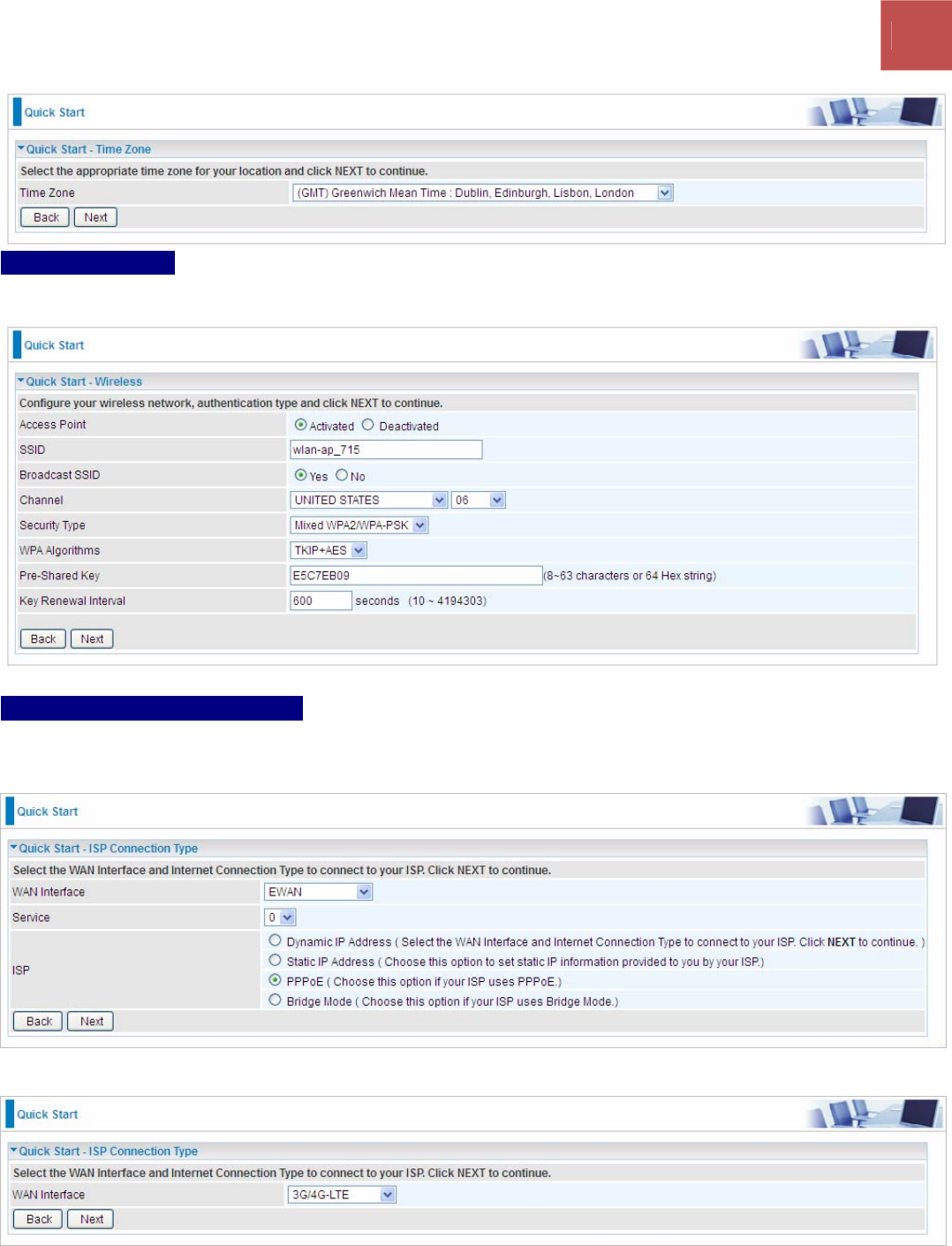

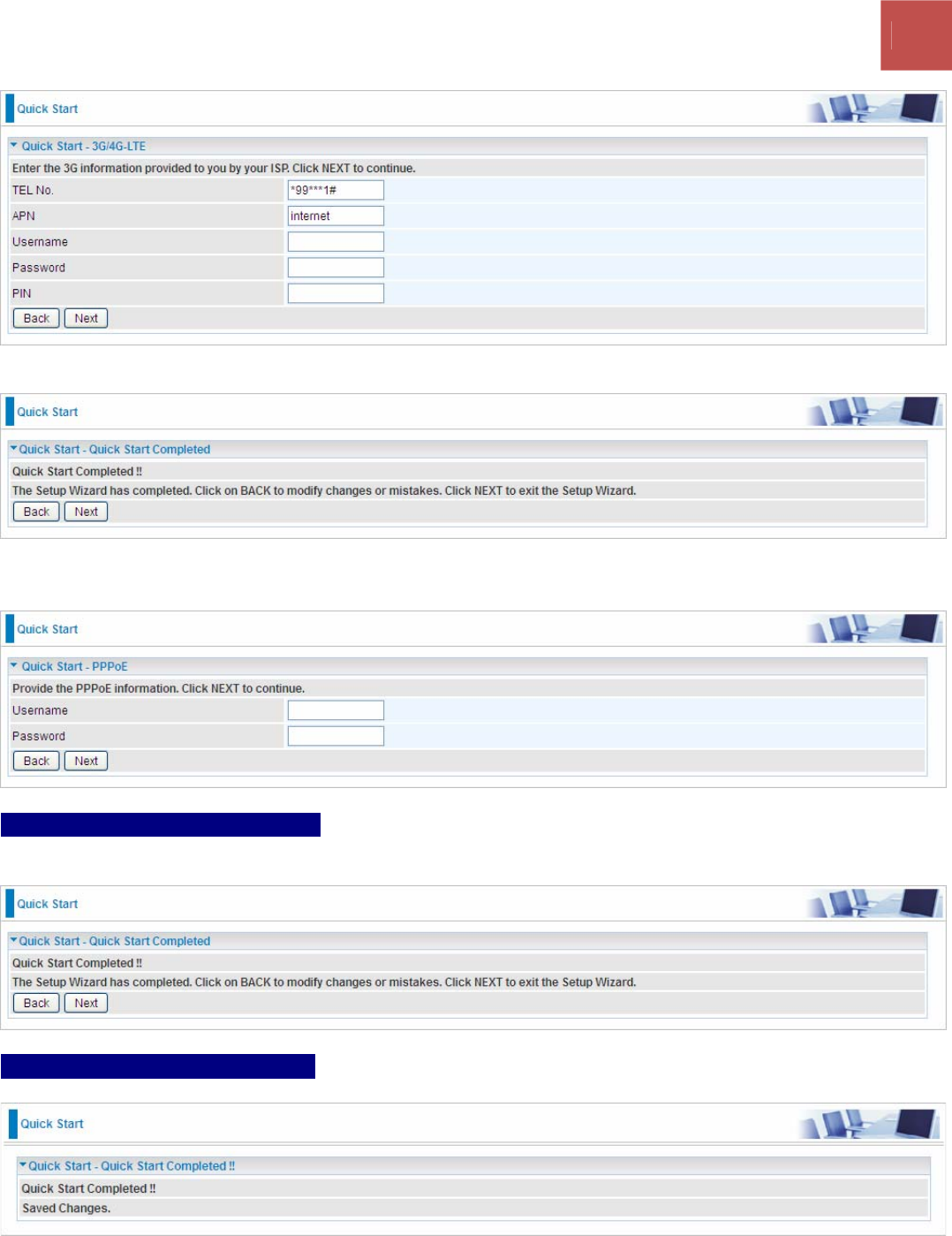

QuickStart ...................................................................................................................................................... 50
Configuration .................................................................................................................................................. 54
InterfaceSetup ........................................................................................................................................... 54

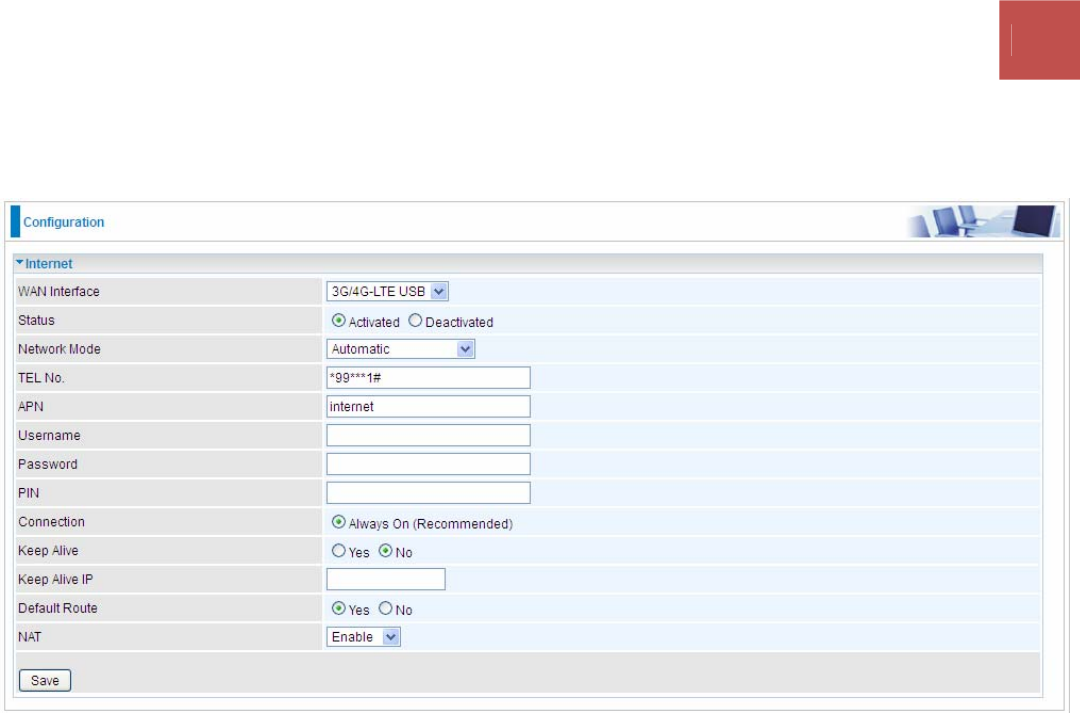

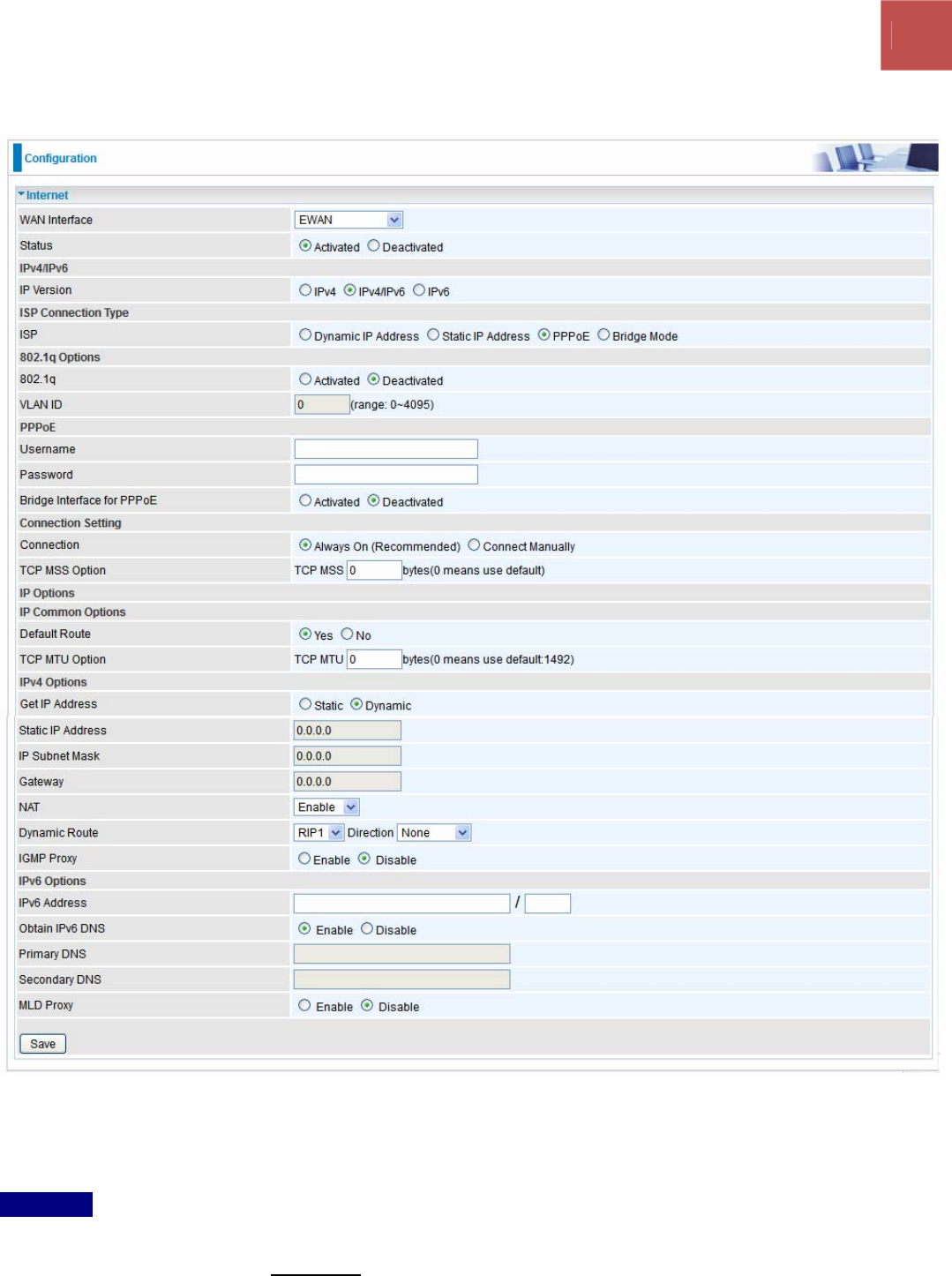

Internet................................................................................................................................................... 55
LAN.......................................................................................................................................................... 64

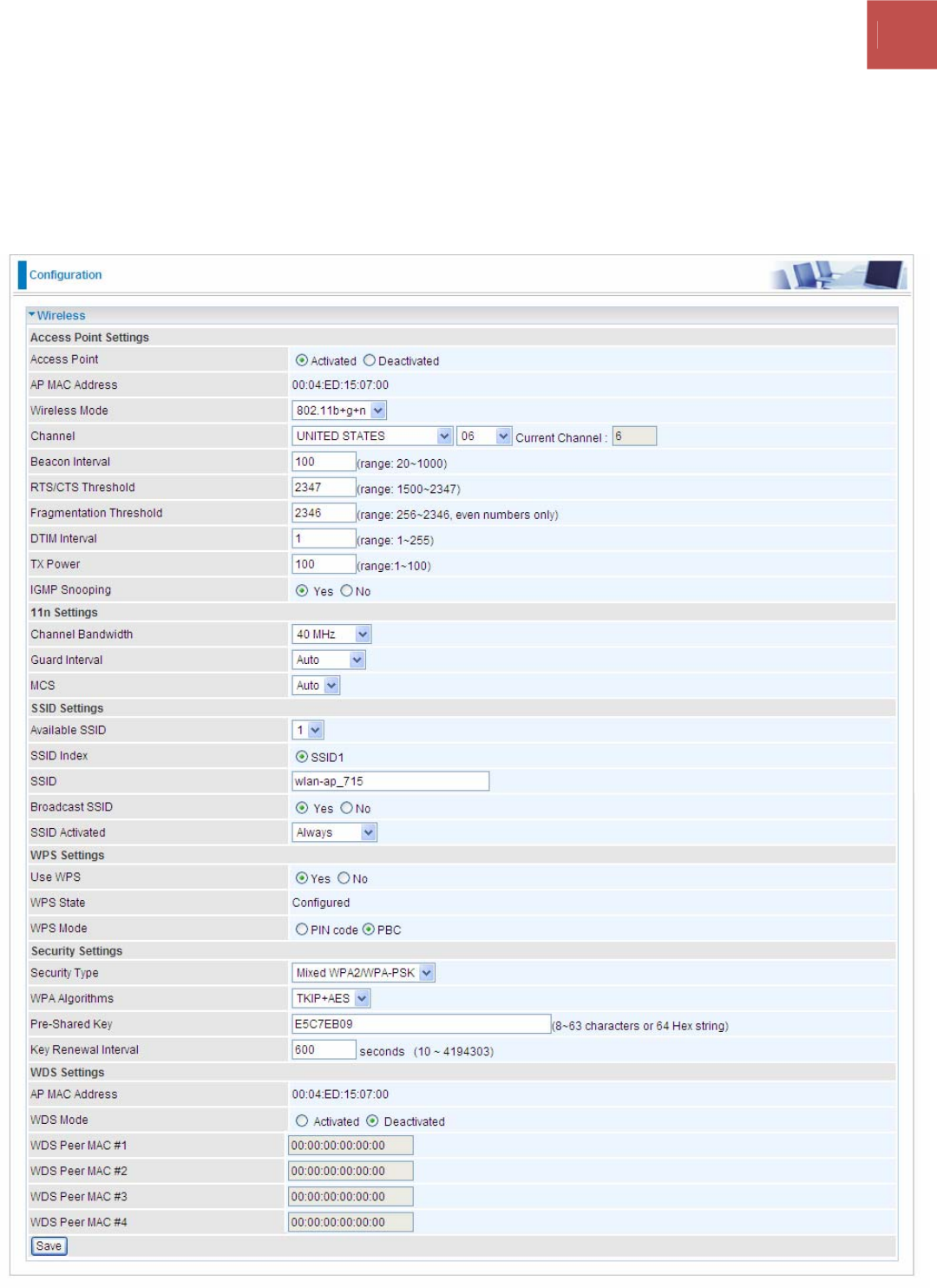

Wireless .................................................................................................................................................. 68
WirelessMACFilter ................................................................................................................................ 78
AdvancedSetup.......................................................................................................................................... 79
Firewall................................................................................................................................................... 80
Routing.................................................................................................................................................... 81
NAT ......................................................................................................................................................... 82
StaticDNS ............................................................................................................................................... 87
QoS.......................................................................................................................................................... 88
IPSECSetting(6300VNOZonly) .............................................................................................................. 89
PPTPServer(6300VNOZonly) .............................................................................................................. 100
PPTPClient(6300VNOZonly) ............................................................................................................... 102
L2TP(6300VNOZonly).......................................................................................................................... 114
InterfaceGrouping(6300VNPZonly) ................................................................................................... 124
PortIsolation ........................................................................................................................................ 127
TimeSchedule....................................................................................................................................... 128
VoIP........................................................................................................................................................... 129
Basic...................................................................................................................................................... 129
Media.................................................................................................................................................... 131
Advanced .............................................................................................................................................. 132
SpeedDial ............................................................................................................................................. 133
CallFeatures ......................................................................................................................................... 135
AccessManagement................................................................................................................................. 138
DeviceManagement............................................................................................................................. 138
SNMP .................................................................................................................................................... 139
UniversalPlug&Play............................................................................................................................140
DynamicDNS ........................................................................................................................................ 141
AccessControl ...................................................................................................................................... 143
PacketFilter .......................................................................................................................................... 145
CWMP(TR‐069) .................................................................................................................................... 149
ParentalControl.................................................................................................................................... 151
SAMBA&FTPServer ............................................................................................................................ 152
Maintenance............................................................................................................................................. 156
UserManagement................................................................................................................................ 156
TimeZone ............................................................................................................................................. 160
Firmware&Configuration.................................................................................................................... 161
SystemRestart...................................................................................................................................... 163
DiagnosticsTool.................................................................................................................................... 164
Chapter5:Troubleshooting .............................................................................................................................. 167
ProblemswiththeRouter ........................................................................................................................ 167
ProblemwithLANInterface ..................................................................................................................... 167
RecoveryProcedures................................................................................................................................ 168
Appendix:ProductSupport&Contact.............................................................................................................. 169
Introduction 1
BiPAC 6300VNP(O)Z User Manual
Chapter 1: Introduction
Introduction to your Router
Congratulations on your purchase of the BiPAC 6300VNP(O)Z (4G/LTE VoIP Wireless (VPN)
Broadband Router). This router is a compact and advanced broadband router that offers flexible and
multiple Internet connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and
office users to enjoy high-speed, high-level security Internet connection via cellular wireless and/or
Ethernet WAN. With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this
router enables faster wireless speed of up to 300Mbps and LAN connection 10 times faster than
regular 10/100Mbps Ethernet LAN. BiPAC 6300VNP(O)Z provides a unique Management Center
enabling users to monitor 4G/LTE signal strength, bandwidth, download speed, and many more.
Users can choose the most economical rate of VoIP calls provided by different providers. The device
integrates two FXS ports which allows for simultaneous VoIP calls.
Cost Saving
Making VoIP calls is extremely simple; just connect the router with your existing analog telephones.
BiPAC 6300VNP(O)Z complies with the most popularly adopted VoIP standard and SIP protocol to
ensure interoperability with SIP devices and major VoIP Gateways. This router also supports a wider
range of telephony features, such as Call Waiting, Conference, Speed Dial, Return Call, Redial, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a
cross-country trip.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless
coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house

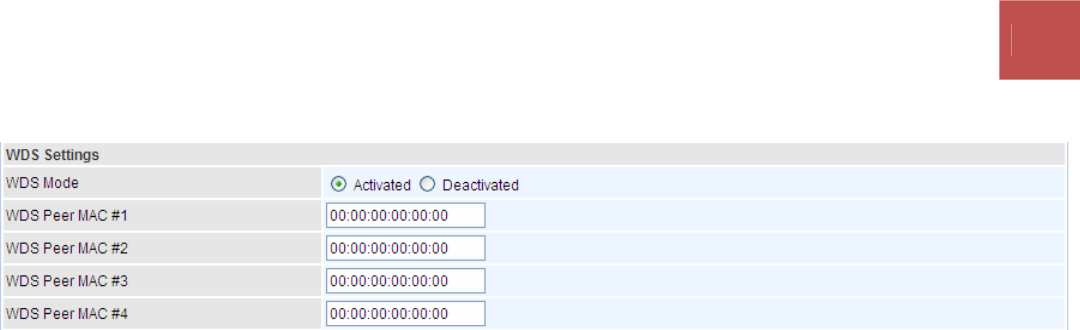

or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS)
allows you to expand your wireless network without additional wires or cables. BiPAC 6300VNP(O)Z

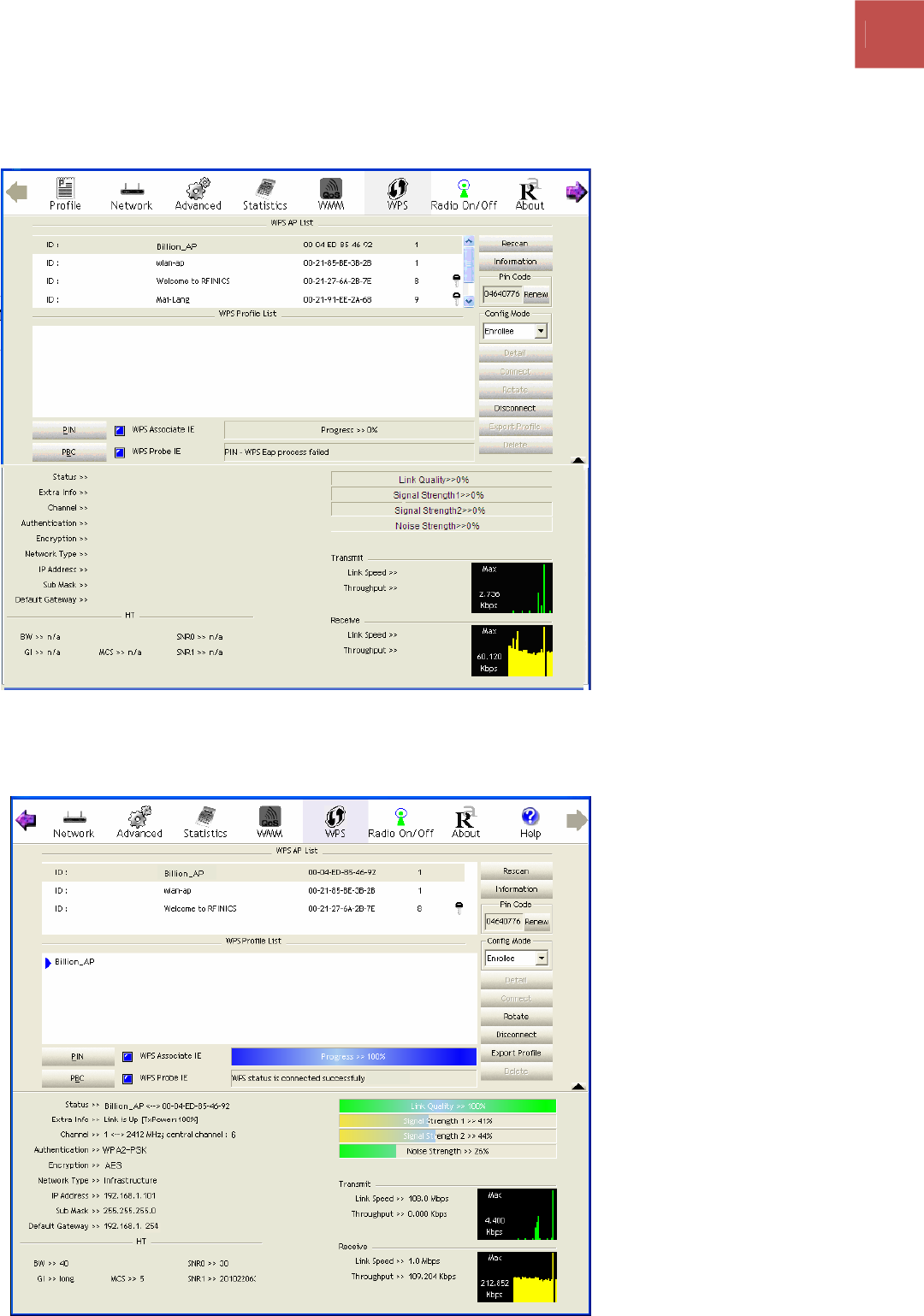

also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure
wireless network just by pressing a button. Multiple SSIDs allow users to access different networks
through a single access point. Network managers can assign different policies and functions for each
SSID, increasing the flexibility and efficiency of the network infrastructure.
4G/LTE Management Center
BiPAC 6300VNP(O)Z Mobile Management Center visually displays its current 4G/LTE signal status
also calculates the total amount of hours or data traffic used per month, allowing you to manage your
4G/LTE monthly subscriptions.
Introduction 2
BiPAC 6300VNP(O)Z User Manual
Secure VPN Connections (BiPAC 6300VNOZ only)
The BiPAC 6300VNOZ supports comprehensive and robust IPSec VPN (Virtual Private Network)
protocols for business users to establish private encrypted tunnels over the public Internet to secure
data transmission between headquarters and branch offices. It also supports VPN dial in from smart
phones for secure remote Internet connection via your home broadband. With a built-in DES/3DES
VPN accelerator, the router enhances IPSec VPN performance significantly.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
Introduction 3
BiPAC 6300VNP(O)Z User Manual
Features & Specifications
• 4G/LTE for high speed mobile broadband connectivity
• Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
• Secured IPSec VPN with powerful DES/ 3DES/ AES (BiPAC 6300VNOZ only)
• PPTP VPN with Pap/ Chap/ MPPE authentication (BiPAC 6300VNOZ only)
• L2TP VPN with Pap/Chap authentication (BiPAC 6300VNOZ only)
• 24 VPN tunnels (BiPAC 6300VNOZ only)
• SOHO Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
• Voice over IP compliant with SIP standard
• Two FXS ports for connecting to regular analog telephones
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One USB port for NAS (FTP/ SAMBA server)
• Ideal for SOHO, office, and home users
Network Protocols and Features
• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
• NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS proxy
• IGMP snooping and IGMP proxy
Introduction 4
BiPAC 6300VNP(O)Z User Manual
• MLD snooping and MLD proxy
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
IPTV Applications*2
• IGMP proxy and IGMP snooping
• MLD proxy and MLD snooping
• Interface Grouping (VLAN)
• Quality of Service (QoS)
Wireless LAN
• Compliant with IEEE 802.11 b/ g/ n standards
• 2.4 GHz - 2.484GHz radio band for wireless
• Up to 300 Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
USB Application Server
• Storage/NAS: SAMBA Server, FTP Server
• 3G/4G LTE Mobile Internet Connection
Introduction 5
BiPAC 6300VNP(O)Z User Manual
VoIP
• Compliant with SIP standard (RFC3261)
• Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
• DTMF Method: Inband, RFC 2833, SIP Info
• Caller ID Generation: DTMF, FSK
• Silence Suppression (VAD), Echo Cancellation
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don't Disturb
• FAX Relay: T.38
• Call Detailed Records (CDR)
Virtual Private Network (VPN) (BiPAC 6300VNOZ only)
• 8 IPSec VPN Tunnels
• 8 PPTP VPN Tunnels (Dial-in:4, Dial-out:4)
• 8 L2TP VPN Tunnels (Dial-in:4, Dial-out:4)
Management
• Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP v1, v2, v3, MIB-I and MIB-II
• TR-069*1 supports remote management
1. On request for Telco / ISP projects
2. IPTV application may require subscription to IPTV services from a Telco / ISP.
3. Specifications on this datasheet are subject to change without prior notice.
Introduction 6
BiPAC 6300VNP(O)Z User Manual
Hardware Specifications
Physical interface
• 4G LTE antenna: 2 external antennas
• WLAN: 2 internal PIFA antennas
• SIM card slot: SIM card slot (for the SIM card from Telco / ISP) for mobile broadband connectivity
• VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
• USB: USB 2.0 port for storage service and 3G/4G LTE USB dongle
• Ethernet: 4-port 10 / 100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
• EWAN: RJ-45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband
connectivity.
• Factory default reset button
• Wireless on/off and WPS push button
• DC Power jack
• UPS (BBU) socket for UPS power supply
• Power switch to switch between DC power and UPS power.
Physical Specifications
• Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm)
Introduction 7
BiPAC 6300VNP(O)Z User Manual
Application Diagram
BiPAC 6300VNP(O)Z is an all-in-one router, supporting 2 connection options (4/LTE and EWAN) to
connect to the Internet.
4G/LTE router mode
With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed
wireless connection.
Broadband Router Mode
This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL
modem.
Product Overview 8
BiPAC 6300VNP(O)Z User Manual
Chapter 2: Product Overview
Important Note for Using This Router
Place the router on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention
Do not use the router in high humidity or high temperature.
Do not use the same power source for the BiPAC
6300VNP(O)Z on other equipment.
Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
Avoid using this product and all accessories outdoors.
Warning
Product Overview 9
BiPAC 6300VNP(O)Z User Manual
Device Description
Front Panel LEDs
LED STATUS DESCRIPTION
Green System is up and ready
Power Red Boot failure
Green UPS is functional properly
Orange UPS battery failure. Need to recharge or replace a new battery
Orange blinking UPS AC power failure and battery functional properly
Battery
Off Device powered by the DC power adaptor
Lit up BiPAC 6300VNP(O)Z is successfully connected with a broadband connection
device.
Green Transmission speed is at Gigabit speed (1000Mbps)
Orange Transmission speed is at 10/100Mbps
EWAN
Blinking Data being transmitted/received
Green Transmission speed is at Gigabit speed (1000Mbps)
Orange Transmission speed is at 10/100Mbps
Ethernet Port
LAN 1 ~ 3
Blinking Data being transmitted/received
USB Green Connecting to a USB dongle or a hard drive.
Green Wireless connection established
Green blinking Data being transmitted / received
Wireless/WPS
Orange WPS configuration is in progress
Green Successfully registered and ready to be used.
Phone
Orange Phone is off-hook, in-use
Green RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly RSSI less than -99 dBm. Poor signal condition.
Orange No signal and the 4G_LTE module is in service
LTE
(Received Signal
Strength Indicator)
Off No LTE module or LTE module fails
Product Overview 10
BiPAC 6300VNP(O)Z User Manual
Green IP connected and traffic is passing through the device.
Red IP request failed.
Internet
Off BiPAC 6300VNP(O)Z is either in bridged mode or WAN connection not present.
Product Overview 11
BiPAC 6300VNP(O)Z User Manual
Rear Panel Connectors
* Note: 1. For WPS configuration, please refer to the WPS section in the User Manual.
PORT MEANING
1 Antenna Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides.
2
SIM Card Slot Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
3 Phone (1X-2X)
Connect your analog phone to this port with a RJ-11 cable.
4 USB
The USB can either setup for 3G/4G LTE internet access or storage/file sharing.
(1) For File Sharing: Connect an external USB dongle / hard drive for storage,
network sharing, etc
(2) For 3G/4G LTE Internet Connection: Connect with an external USB 3G/4G LTE
modem or dongle with an activate data plan (internet access).
5 Gigabit
LAN Ethernet
(1~3)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
6 Gigabit EWAN Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7 UPS Jack The 4-pin connectors are used to power the device with an external UPS battery
backup.
8 Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
9
WPS &
Wireless On/Off
By controlling the pressing time, users can achieve two different effects:
(1) WPS*1: Press &hold the button for less than 6 seconds to trigger WPS function.
(2) Wireless ON/OFF button: Press & hold the button for more than 6 seconds to
On/Off the wireless.
10 Power Jack (DC) Connect the supplied Power Adapter to this jack.
11 Power Source
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adaptor
(2) with Power Switch OFF: power up by the UPS battery unit
1
2
8
9
1
11
10
3 5 7
4 6
Product Overview 12
BiPAC 6300VNP(O)Z User Manual
Power Source
BIPAC 6300VNP(O)Z offers two kinds of power input, namely, DC power Adapter and DC UPS (or
BBU).
BIPAC 6300VNP(O)Z can take the advantage of UPS (Uninterruptible Power Supply) to keep working
even if the power outage hit your router when the router in working in DC UPS mode.
(A picture of the rear focusing on the power source)
(A shot from the front panel, with second icon being identified as the Battery LED)
How to switch between the two (2) power sources, DC power adaptor and external UPS battery
Pressed "Power Source" button, the button is visually being pressed down. The power source is from
the DC power adapter supplied in the package.
"Power Source" button in the un-pressed state, the power source is from the UPS. The router can
continue to operate for a period of time after AC power failure, due to uninterrupted power system
features of UPS.
UPS LED:
A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power
adapter this LED will be off.
Product Overview 13
BiPAC 6300VNP(O)Z User Manual
Battery LED Definition:
Green LED: UPS AC power is working; UPS battery is also working well
Orange LED Only UPS AC power is working. Battery failure- need to change or recharge
battery
Orange LED: UPS AC power failure; UPS battery is working
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices are
turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are
lit. If they are not, verify that you are using the proper cables.
Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the
same telephone line as your router have a line filter connected between them and the wall socket
(unless you are using a Central Splitter or Central Filter installed by a qualified and licensed
electrician), and that all line filters are correctly installed in a right way. If the line filter is not correctly
installed and connected, it may cause problems to your connection or may result in frequent
disconnections.
Basic Installation 14
BiPAC 6300VNP(O)Z User Manual
Chapter 3: Basic Installation
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows 98 / NT /2000 / XP / ME / 7 / Vista, Linux, Mac
OS, etc. The product provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either directly
or through an external repeater hub, and have TCP/IP installed and configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interface it
may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause
problems accessing the 192.168.1.254 IP address of the router. Users should make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the BiPAC 6300VNP(O)Z. To configure other types of
workstations, please consult the manufacturer’s documentation.
Basic Installation 15
BiPAC 6300VNP(O)Z User Manual
Network Configuration – IPv4
Configuring PC in Windows 7/8 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation 16
BiPAC 6300VNP(O)Z User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
Basic Installation 17
BiPAC 6300VNP(O)Z User Manual

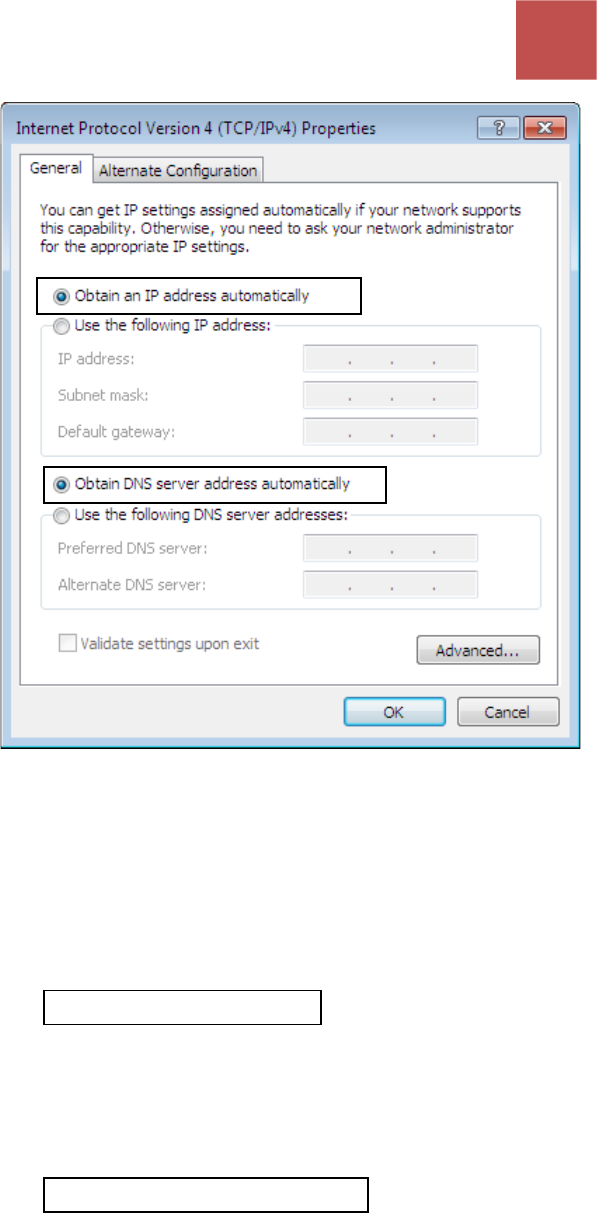

6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation 18
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows Vista (IPv4)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation 19
BiPAC 6300VNP(O)Z User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to apply
the new configuration.
Basic Installation 20
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows XP (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and
click Properties.
Basic Installation 21
BiPAC 6300VNP(O)Z User Manual
5. Select the Obtain an IP address
automatically and the Obtain DNS
server address automatically radio
buttons.
6. Click OK to finish the configuration.
Basic Installation 22
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows 2000 (IPv4)
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window click Properties.
4. Select Internet Protocol (TCP/IP) and
click Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
Basic Installation 23
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows 98/ME
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP ->NE2000 Compatible, or
the name of your Network Interface Card
(NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and
click OK to finish the configuration.
Basic Installation 24
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
Basic Installation 25
BiPAC 6300VNP(O)Z User Manual
Network Configuration – IPv6
Configuring PC in Windows 7/8 (IPv6)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation 26
BiPAC 6300VNP(O)Z User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IPv6 address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation 27
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows Vista (IPv6)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Basic Installation 28
BiPAC 6300VNP(O)Z User Manual
5. Select Internet Protocol Version 6
(TCP/IPv6) then click Properties.
6. In the TCP/IPv6 properties window,
select the Obtain an IP address
automatically and Obtain DNS Server
address automatically radio buttons.
Then click OK to exit the setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
Basic Installation 29
BiPAC 6300VNP(O)Z User Manual
Configuring PC in Windows XP (IPv6)
IPv6 is supported by Windows XP, but you need to install it first.
Please follow the steps to install IPv6:
1. On the Desktop, Click Start > Run, type cmd, then press Enter key in the keyboard, the following
screen appears.
2. Key in command ipv6 install
Installation of IPv6 is now completed. Please test it to see if it works or not. .
Basic Installation 30
BiPAC 6300VNP(O)Z User Manual
Default Settings
Before configuring the router, you need to know the following default settings.
Web Interface: (Username and Password)
Username: admin
Password: admin
The default username and password are “admin” and “admin” respectively.
Device LAN IP Settings
IP Address: 192.168.1.254
Subnet Mask: 255.255.255.0
DHCP Server:
DHCP server is enabled.
Start IP Address: 192.168.1.100
IP pool counts: 100
Attention
If you ever forget the username/password to login to the router, you may
press the RESET button up to 6 seconds then release it to restore the factory
default settings.
Caution: After pressing the RESET button for more than 6 seconds then
release it, to be sure you power cycle the device again.
Basic Installation 31
BiPAC 6300VNP(O)Z User Manual
Information from Your ISP
Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind
of service is provided such as EWAN ((Dynamic IP address, Static IP address, PPPoE, Bridge Mode).
Gather the information as illustrated in the following table and keep it for reference.
PPPoE
Username, Password, Service Name, and Domain Name
System (DNS) IP address (it can be automatically assigned by
your ISP when you connect or be set manually).
Dynamic IP Address
DHCP Client (it can be automatically assigned by your ISP when
you connect or be set manually).
Static IP Address
IP address, Subnet mask, Gateway address, and Domain Name
System (DNS) IP address (it is fixed IP address).
Bridge Mode Pure Bridge
Device Configuration /
Status 32
BiPAC 6300VNP(O)Z User Manual
Chapter 4: Device Configuration
Login to your Device
Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and
click “Go”, a user name and password window prompt appears.
The default username and password is “admin” and “admin” respectively for the Administrator.
NOTE: This username / password may vary by different Internet Service Providers.
Congratulations! You have successfully logged on to your BIPAC 6300VNP(O)Z !
Device Configuration /
Status 33
BiPAC 6300VNP(O)Z User Manual
Once you have logged on to your BIPAC 6300VNP(O)Z via your web browser, you can begin to set it
up according to your requirements. On the configuration homepage, the left navigation pane links you
directly to the setup pages, which includes:
Section Status Quick Start
(Wizard Setup) Configuration Language
Device
Info
Interface Setup
- Internet
- LAN
- Wireless
- Wireless MAC Filter
System
Log
Advanced Setup
- Firewall
- Routing
- NAT
- Static DNS
- QoS
- Interface Grouping
- Time Schedule
3G/4G-LTE
Status
VoIP
- Basic
- Media
- Advanced
- Speed Dial
- Call Features
Statistics
Access Management
- Device Management
- SNMP
- Universal Plug & Play (UPnP)
- Dynamic DNS
- Access Control
- Packet Filter
- CWMP (TR-069)
- Parental Control
- SAMBA & FTP Server
DHCP
Table
Maintenance
- User Management
- Time Zone
- Firmware & Configuration
- System Restart
- Diagnostic Tool
Disk
Status
Sub-Items
VoIP
Status
Please see the relevant sections of this manual for detailed instructions on how to configure your
gateway.
Device Configuration /
Status 34
BiPAC 6300VNP(O)Z User Manual
Status
In this section, you can check the router working status, including Device Info, System Log, 3G
Status, Statistics, DHCP Table, IPSEC Status, PPTP Status, L2TP Status, Disk Status, and VoIP
Status.
Device Configuration /
Status 35
BiPAC 6300VNP(O)Z User Manual
Device Info
It contains basic information of the device.
Device Information
Model Name: Name of the router for identification purpose.
Firmware Version: Software version currently loaded in the router
MAC Address: A unique number that identifies the router
Device Configuration /
Status 36
BiPAC 6300VNP(O)Z User Manual
LAN
IPv4:
IP Address: LAN port IPv4 address.
Subnet Mask: LAN port IP subnet mask.
DHCPv4 Server: LAN port DHCP role - Enabled, Relay or Disabled.
IPv6:
IP Address: LAN port IPv6 address.
Prefix Length: The prefix length
DHCPv6 Server: The DHCP status.
WAN
Interface: WAN connection options, "EWAN" or "3G/4G-LTE".
Service: The WAN interface service index.
PPP Connection Time: the uptime of the PPP connection.
IPv4:
Status: The connection status, either being connected or not in connected.
IP Address: WAN port IP address.
Subnet Mask: WAN port IP subnet mask.
Default Gateway: The IP address of the default gateway.
DNS Server: DNS information.
IPv6:
Status: The IPv6 connection status.
IP Address: WAN port IPv6 address.
Prefix Length: The prefix length of IPv6 address.
Default Gateway: The IP address of the default gateway.
DNS Server: DNS information.
Device Configuration /
Status 37
BiPAC 6300VNP(O)Z User Manual

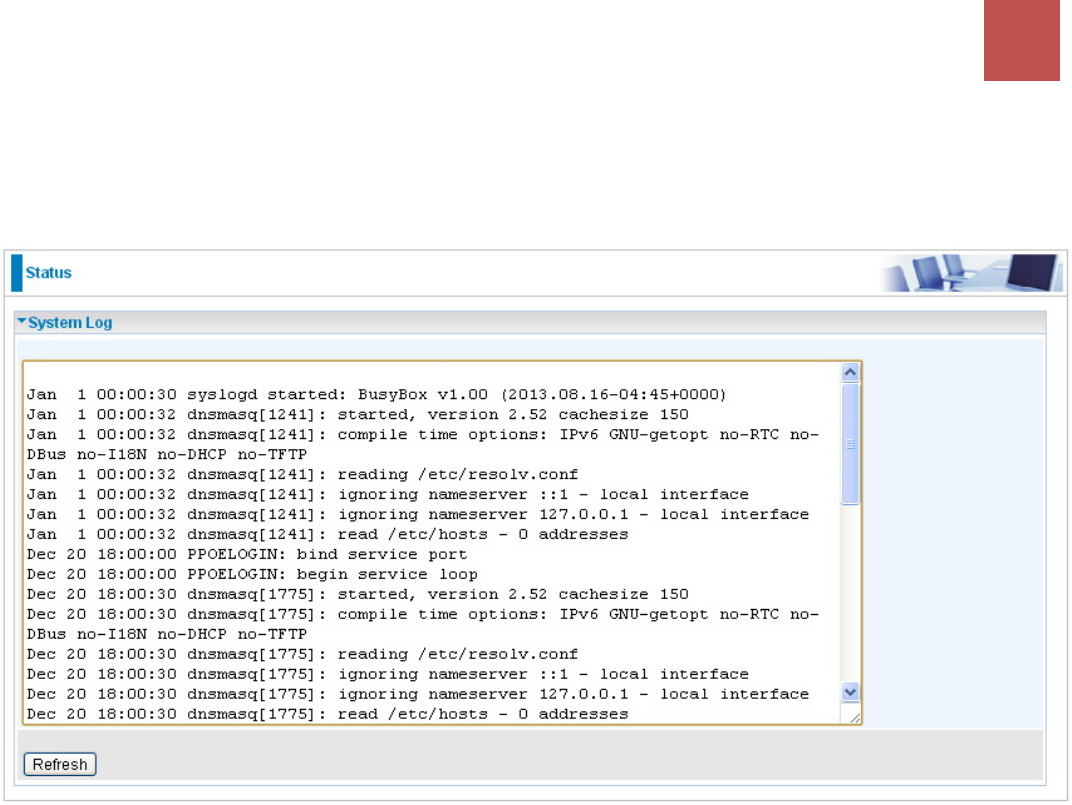

System Log
In system log, you can check the operations status and any glitches to the router.
Refresh: Press this button to refresh the statistics.
Device Configuration /
Status 38
BiPAC 6300VNP(O)Z User Manual
3G/4G-LTE Status
This page contains 3G/4G-LTE connection information.
Status: The current status of the 3G/4G-LTE connection.
Signal Strength: The signal strength bar and dBm value indicates the current 3G/4G-LTE signal
strength. The front panel 3G/4G-LTE Signal Strength LED indicates the signal strength as well.
Signal Information: Shows important LTE signal parameters such as RSRP (Reference Signal
Receiving Power), RSRQ (Reference Signal Receiving Quality), SINR (Signal to Interference plus
Noise Ratio).
RSRP (Reference Signal Receiving Power): is the average power of all resource elements which
carry cell-specified reference signals over the entire bandwidth.
RSRQ (Reference Signal Receiving Quality): measures the signal strength and is calculated
based on both RSRP and RSSI.
RSSI (Received Signal Strength Indicator): parameter which provides information about total
received wide-band power (measure in all symbols) including all interference and thermal noise.
Please refer to the Hardware/Front LED Indicators for details.
SINR (Signal to Interference plus Noise Ratio): is also a measure of signal quality as well. It is
widely used by the operators as it provides a clear relationship between RF conditions and
throughput. NOTE: Some LTE modules do not provide this information.
Network Name: The name of the LTE network the router is connecting to.
Cell ID: The ID of base station that the device is connected to.
Card IMEI: The unique identification number that is used to identify the 3G/4G-LTE module.
Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE
module.
Network Mode: Show the using network mode.
Network Band: Show the using network band.
Device Configuration /
Status 39
BiPAC 6300VNP(O)Z User Manual
Refresh: Press this button to refresh the statistics.
Device Configuration /
Status 40
BiPAC 6300VNP(O)Z User Manual
Statistics
Ethernet
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the Ethernet port.
Transmit Frames: This field displays the number of frames transmitted until the latest second.
Transmit Multicast Frames: This field displays the number of multicast frames transmitted until the
latest second.
Transmit Total Bytes: This field displays the number of bytes transmitted until the latest second.
Transmit Collision: This is the number of collisions on this port.
Transmit Error Frames: This field displays the number of error packets on this port.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Multicast Frames: This field displays the number of multicast frames received until the
latest second.
Receive Total Bytes: This field displays the number of bytes received until the latest second.
Receive CRC Errors: This field displays the number of error packets on this port.
Receive Under-size Frames: This field displays the number of under-size frames received until the
latest second.
Refresh: Press this button to refresh the statistics.
Device Configuration /
Status 41
BiPAC 6300VNP(O)Z User Manual
Wireless
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the Wireless.
Transmit Frames: This field displays the number of frames transmitted until the latest second.
Transmit Error Frames: This field displays the number of error frames transmitted until the latest
second.
Transmit Drop Frames: This field displays the number of drop frames transmitted until the latest
second.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Error Frames: This field displays the number of error frames received until the latest
second.
Receive Drop Frames: This field displays the number of drop frames received until the latest second.
Refresh: Press this button to refresh the statistics.
Device Configuration /
Status 42
BiPAC 6300VNP(O)Z User Manual
EWAN
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of the EWAN port.
Transmit Frames: This field displays the total number of frames transmitted until the latest second.
Transmit Multicast Frames: This field displays the total number of multicast frames transmitted till
the latest second.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second.
Transmit Collision: This is the number of collisions on this port.
Transmit Error Frames: This field displays the number of error packets on this port.
Receive Frames: This field displays the number of frames received until the latest second.
Receive Multicast Frames: This field displays the number of multicast frames received until the
latest second.
Receive Total Bytes: This field displays the number of bytes received until the latest second.
Receive CRC Errors: This field displays the number of error packets on this port.
Receive Under-size Frames: This field displays the number of under-size frames received until the
latest second.
Refresh: Press this button to refresh the statistics.
Device Configuration /
Status 43
BiPAC 6300VNP(O)Z User Manual
3G/4G-LTE
Take 3G/4G-LTE as an example to describe the following connection transmission information.
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of 3G/4G-LTE interface.
Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames
transmitted until the latest second for the current connection.
Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest
second for the current connection for the current connection.
Transmit Total Frames: The field displays the total number of frames transmitted till the latest second
since system is up.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second
since system is up.
Receive Frames of Current Connection: This field displays the number of frames received until the
latest second for the current connection.
Receive Bytes of Current Connection: This field shows the total bytes received till the latest second
for the current connection.
Receive Total Frames: This field displays the total number of frames received until the latest second
since system is up.
Receive Total Bytes: This field displays the total frames received till the latest second since system is
up.
Device Configuration /
Status 44
BiPAC 6300VNP(O)Z User Manual
3G/4G_LTE via USB port
Take 3G/4G-LTE USB as an example to describe the following connection transmission information.
Interface: List all available network interfaces in the router. You are currently checking on the physical
status of 3G/4G-LTE interface.
Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames
transmitted until the latest second for the current connection.
Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest
second for the current connection for the current connection.
Transmit Total Frames: The field displays the total number of frames transmitted till the latest second
since system is up.
Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second
since system is up.
Receive Frames of Current Connection: This field displays the number of frames received until the
latest second for the current connection.
Receive Bytes of Current Connection: This field shows the total bytes received till the latest second
for the current connection.
Receive Total Frames: This field displays the total number of frames received until the latest second
since system is up.
Receive Total Bytes: This field displays the total frames received till the latest second since system is
up.
Device Configuration /
Status 45
BiPAC 6300VNP(O)Z User Manual

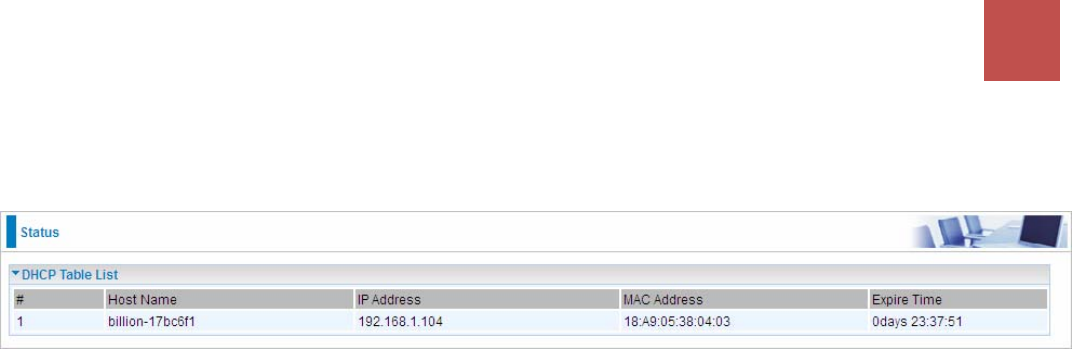

DHCP Table
DHCP table displays the devices connected to the router with clear information.
#: The index identifying the connected devices.
Host Name: Show the hostname of the PC.
IP Address: The IP allocated to the device.
MAC Address: The MAC of the connected device.
Expire Time: The total remaining interval since the IP assignment to the PC.
Device Configuration /
Status 46
BiPAC 6300VNP(O)Z User Manual
IPSEC Status (6300VNOZ only)
#: The IPSec entry index number.
Connection Name: User-defined IPSEC VPN connection name.
Remote Gateway: The IP of the remote gateway.
Local Address: The IP and netmask of local access range.
Remote address: The IP and netmask of remote access range.
Connected: Show the connecting status.
Rx/Tx: Display the upstream/downstream traffic per session in KB. The value clears when session
disconnects.
Action: Connect or Drop the connection.
Device Configuration /
Status 47
BiPAC 6300VNP(O)Z User Manual
PPTP Status (6300VNOZ only)
PPTP Client
User: Four users(sessions) for client sessions. Here shows the using user.
Connection Name: Show user-defined PPTP VPN connection name.
Active: Show if the tunnel is active for connection.
Connection Type: Remote Access or LAN to LAN.
Server IP: Show the IP of VPN Server.
Peer Network IP: Display the remote network(server side) and subnet mask in LAN to LAN PPTP
connection.
NetmasK: Show the netmask of peer network.
Connected: Show the connecting status.
PPTP Server
User: Four users(sessions) for server sessions. Here shows the using user.
Connection Name: Show user-defined PPTP VPN connection name.
Active: Show if the tunnel is active for connection.
Connection Type: Remote Access or LAN to LAN.
Assigned IP: Show the IP assigned to the client by PPTP Server.
Peer Network IP: Display the remote(client side) network and subnet mask in LAN to LAN PPTP
connection.
NetmasK: Show the netmask of peer network.
Connected: Show the connecting status.
Refresh: Click this button to refresh the connection status.
Device Configuration /
Status 48
BiPAC 6300VNP(O)Z User Manual
L2TP Status(6300VNOZ only)
Name: Display the user-defined L2TP connection name.
Type: The VPN mode: dialin or dialout.
Connect: The connecting status.
Active: Show if the L2TP tunnel is active for connection.
Username: The user assigned to client (dialout use) or the user set for client to connect in (dialin use).
Device Configuration /
Status 49
BiPAC 6300VNP(O)Z User Manual
Disk Status
Partition: Display the USB storage partition.
Disk Space (KB): Display the total storage space of the NAS in Kbytes unit.
Free Space (KB): Display the available space in Kbytes unit.
VoIP Status
VoIP status gives you a directive picture on the registered VoIP accounts.
Phone Number: The number you use to register in the Basic page of VoIP.
Host: Show the IP address and port number of SIP Registrar.
Status: The status of the registered SIP account.
Registered Time: The duration the account has been successfully registered to the SIP registrar.
Device Configuration /
Quick Start 50
BiPAC 6300VNP(O)Z User Manual
Quick Start
This is a useful and easy utility to help you to setup the router quickly and to connect to your ISP
(Internet Service Provider) with only a few steps. It will guide you step by step to setup time zone and
WAN settings of your device. The Quick Start Wizard is a helpful guide for the first-time users to the
device.
For detailed instructions on configuring WAN settings, see refer to the Interface Setup section.
Click NEXT to move on to Step 1.
Step 1 – Password
Set new password of the “admin” account to access for router management. The default is “admin”.
Once changed, please use this new password next time when accessing to the router. Click NEXT to
continue.
Step 2 – Time Zone
Choose your time zone. Click NEXT to continue.
Device Configuration /
Quick Start 51
BiPAC 6300VNP(O)Z User Manual
Step 3 – Wireless
Set up your wireless connection if you want to connect to the Internet wirelessly on your PCs. Click
NEXT to continue.
Step 4 – ISP Connection Type
Set up your Internet connection.
4.1 Select an appropriate WAN connection protocol then click NEXT to continue.

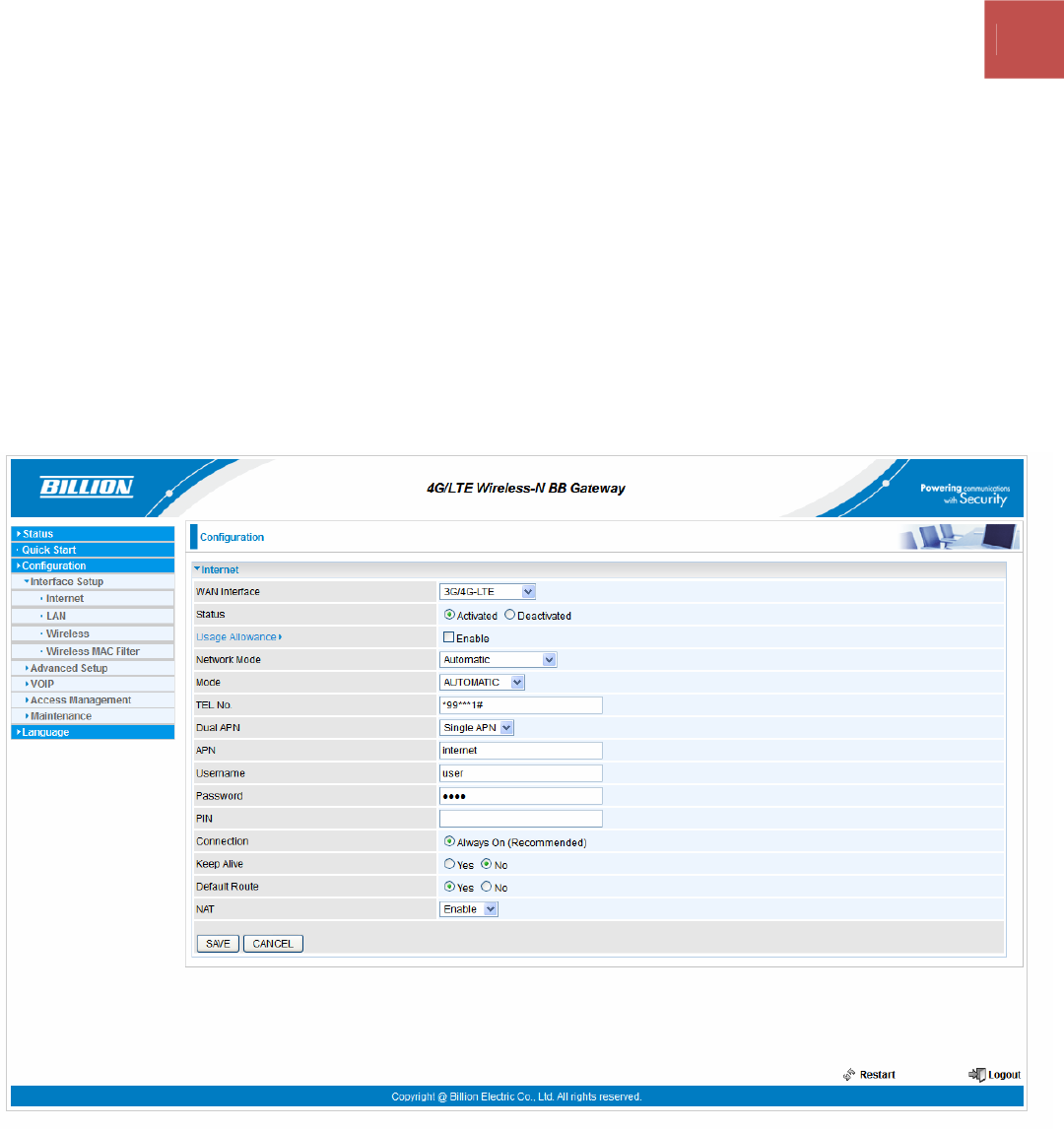

4.2 If selected 3G/4G-LTE or 3G/4G-LTE USB (for example).
Input all relevant 3G/4G-LTE parameters from your ISP.
Device Configuration /
Quick Start 52
BiPAC 6300VNP(O)Z User Manual
Click Next to save changes.
4.2 If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click
NEXT to continue.
Step 5 – Quick Start Completed
The Setup Wizard has completed. Click on BACK to modify changes or mistakes. Click NEXT to save
the current settings.
Step 6 – Quick Start Completed
Device Configuration /
Quick Start 53
BiPAC 6300VNP(O)Z User Manual
Switch to Status > Device Info to view the status.
Device Configuration /
Interface Setup 54
BiPAC 6300VNP(O)Z User Manual
Configuration
Click to access and configure the available features in the following: Interface Setup, Advanced
Setup, VoIP, Access Management, and Maintenance.
These functions are described in the following sections.
Interface Setup
Here are the features under Interface Setup: Internet, LAN, Wireless and Wireless MAC Filter.
Device Configuration /
Interface Setup 55
BiPAC 6300VNP(O)Z User Manual
Internet
EWAN(6300VNPZ only)
Multi Service
Service Index: The index marks the EWAN interface of different ISP type, ranging from 0-7.
Service Summary: The overall service information.
Device Configuration /
Interface Setup 56
BiPAC 6300VNP(O)Z User Manual
Status: Select whether to enable the service.
IPv4/IPv6
IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to
choose from, please choose IPv4/IPv6 instead.
ISP Connection Type:
ISP: Select the encapsulation type your ISP uses.
Dynamic IP: Select this option if your ISP provides you an IP address automatically.
Static IP: Select this option to set static IP information. You will need to enter in the Connection
type, IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP
address entered in the fields must be in the appropriate IP form. IP address from by four IP
octets separated by a dot (xx.xx.xx.xx). The Router will not accept the IP address if it is not in
this format.
PPPoE: Select this option if your ISP requires you to use a PPPoE connection.
Bridge: Select this mode if you want to use this device as an OSI Layer 2 device like a switch.
802.1q Options
802.1q: When activated, please enter a VLAN ID.
VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID
identification, tagged: 0-4095.
PPPoE (If selected PPPoE as WAN Connection Type; otherwise, skip this part)
Username: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Bridge Interface for PPPoE: When “Activated”, the device will gain WAN IP from your ISP with the
PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the
Device Configuration /
Interface Setup 57
BiPAC 6300VNP(O)Z User Manual
device acts as a NAT router; while if you dial up with the account within your PC, the device will then
work as a bridge forwarding the PPPoE information to the PPPoE server and send the response to
your PC, thus your PC gets a WAN IP working in the internet.
Connection Setting
Connection:
Always On: Click on Always On to establish a PPPoE session during start up and to
automatically re-establish the PPPoE session when disconnected by the ISP.
Connect Manually: Select Connect Manually when you don't want the connection up all the
time.
TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum
Segment Size (MSS).
IP Options
Default Route: Select Yes to use this interface as default route interface.
TCP MTU Option: Enter the maximum packet that can be transmitted. Default MTU is set to 1492.
IPv4 Options
Get IP Address: Choose Static or Dynamic
Static IP Address: If Static is selected in the above field, please enter the specific IP address you get
from ISP and the following IP subnet mask and gateway address.
IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0.Type the
subnet mask assigned to you by your ISP (if given).
Gateway: Enter the specific gateway IP address you get from ISP.
NAT: Select Enable if you use this router to hold a group of PCs to get access to the internet.
Dynamic Route:
RIP Version: (Routing Information protocol) Select this option to specify the RIP version,
including RIP-1, RIP-2.
RIP Direction: Select this option to specify the RIP direction.
- None is for disabling the RIP function.
- Both means the router will periodically send routing information and accept routing
information then incorporate into routing table.
- IN only means the router will only accept but will not send RIP packet.
- OUT only means the router will only send but will not accept RIP packet.
TCP MTU Option: Maximum Transmission Unit, the maximum is 1500.
IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group. Choose whether enable IGMP proxy.
Device Configuration /
Interface Setup 58
BiPAC 6300VNP(O)Z User Manual
IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above):
IPv6 Address: Type the WAN IPv6 address from your ISP.
Obtain IPv6 DNS: Choose if you want to obtain DNS automatically.
Primary/Secondary: if you choose Disable in the Obtain IPv6 DNS field, please type the exactly
primary and secondary DNS.
MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a
Multicast Management protocol for IPv6 multicast packets.
When router’s Internet configuration is finished successfully, you can go to status to get the connection
information.
Device Configuration /
Interface Setup 59
BiPAC 6300VNP(O)Z User Manual
EWAN(6300VNOZ only)
Status: Select whether to enable the service.
IPv4/IPv6
IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to
choose from, please choose IPv4/IPv6 instead.
Device Configuration /
Interface Setup 60
BiPAC 6300VNP(O)Z User Manual
ISP Connection Type:
ISP: Select the encapsulation type your ISP uses.
Dynamic IP: Select this option if your ISP provides you an IP address automatically.
Static IP: Select this option to set static IP information. You will need to enter in the Connection
type, IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP
address entered in the fields must be in the appropriate IP form. IP address from by four IP
octets separated by a dot (xx.xx.xx.xx). The Router will not accept the IP address if it is not in
this format.
PPPoE: Select this option if your ISP requires you to use a PPPoE connection.
Bridge: Select this mode if you want to use this device as an OSI Layer 2 device like a switch.
802.1q Options
802.1q: When activated, please enter a VLAN ID.
VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID
identification, tagged: 0-4095.
PPPoE (If selected PPPoE as WAN Connection Type; otherwise, skip this part)
Username: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Bridge Interface for PPPoE: When “Activated”, the device will gain WAN IP from your ISP with the
PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the
device acts as a NAT router; while if you dial up with the account within your PC, the device will then
work as a bridge forwarding the PPPoE information to the PPPoE server and send the response to
your PC, thus your PC gets a WAN IP working in the internet.
Connection Setting
Connection:
Always On: Click on Always On to establish a PPPoE session during start up and to
automatically re-establish the PPPoE session when disconnected by the ISP.
Connect Manually: Select Connect Manually when you don't want the connection up all the
time.
TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum
Segment Size (MSS).
IP Options
Default Route: Select Yes to use this interface as default route interface.
TCP MTU Option: Enter the maximum packet that can be transmitted. Default MTU is set to 1492.
Device Configuration /
Interface Setup 61
BiPAC 6300VNP(O)Z User Manual
IPv4 Options
Get IP Address: Choose Static or Dynamic
Static IP Address: If Static is selected in the above field, please enter the specific IP address you get
from ISP and the following IP subnet mask and gateway address.
IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0.Type the
subnet mask assigned to you by your ISP (if given).
Gateway: Enter the specific gateway IP address you get from ISP.
NAT: Select Enable if you use this router to hold a group of PCs to get access to the internet.
Dynamic Route:
RIP Version: (Routing Information protocol) Select this option to specify the RIP version,
including RIP-1, RIP-2.
RIP Direction: Select this option to specify the RIP direction.
- None is for disabling the RIP function.
- Both means the router will periodically send routing information and accept routing
information then incorporate into routing table.
- IN only means the router will only accept but will not send RIP packet.
- OUT only means the router will only send but will not accept RIP packet.
TCP MTU Option: Maximum Transmission Unit, the maximum is 1500.
IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group. Choose whether enable IGMP proxy.
IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above):
IPv6 Address: Type the WAN IPv6 address from your ISP.
Obtain IPv6 DNS: Choose if you want to obtain DNS automatically.
Primary/Secondary: if you choose Disable in the Obtain IPv6 DNS field, please type the exactly
primary and secondary DNS.
MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a
Multicast Management protocol for IPv6 multicast packets.
When router’s Internet configuration is finished successfully, you can go to status to get the connection
information.
Device Configuration /
Interface Setup 62
BiPAC 6300VNP(O)Z User Manual
3G/4G-LTE or 3G/4G-LTE via USB
Status: Choose Activated to enable the 3G/4G-LTE connection.
Network Mode: There are 8 options of service standards: “Automatic”, “UMTS 3G only”, “GSM 2G
Only”, “UMTS 3G Preferred”, “GSM 2G Preferred”, “GSM and UMTS Only”, “LTE Only”, “GSM, UMTS,
LTE”. If you are not sure which mode to use, you may select Automatic to auto detect the best mode
for you.
TEL No.: The dial string to make a GPRS / 3G/4G-LTE user internetworking call. It may provide by
your mobile service provider.
Dual APN: BiPAC 6 can support up to two(2) APNs. Select Single or Dual.
APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The
service provider is able to attach anything to an APN to create a data connection, requirements for
APNs varies between different service providers. Most service providers have an internet portal which
they use to connect to a DHCP Server, thus giving you access to the internet i.e. some 3G operators
use the APN ‘internet’ for their portal. The default value is “internet”.
Username/Password: Enter the username and password provided by your service provider. The
username and password are case sensitive.
PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain
systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM
card until you enter the correct code. If you enter the PIN code incorrectly into the phone 3 times in a
row, then the SIM card will be blocked and you will require a PUK code from your network/service
provider.
Connection: Default set to Always on to keep an always-on 3G/4G-LTE connection.
Keep Alive: Select Yes to keep the 3G/4G-LTE connection always on.
Keep Alive IP: Enter the IP address whic is used for “ping”, and router will ping the IP to find whether
the connection is on or not, if not, router will recover the connection.
Default Route: Select Yes to use this interface as default route interface.
Device Configuration /
Interface Setup 63
BiPAC 6300VNP(O)Z User Manual
NAT: Select this option to Disabled/Enable the NAT (Network Address Translation) function. Enable
NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP.
When router’s Internet configuration is finished successfully, you can go to the Status to check
connection information.
Device Configuration /
Interface Setup 64
BiPAC 6300VNP(O)Z User Manual
LAN
A Local Area Network (LAN) is a shared communication system to which many computers are
attached and is limited to the immediate area, usually the same building or floor of a building.
IPv4 Parameters
IP Address: Enter the IP address of Router in dotted decimal notation, for example, 192.168.1.254
(factory default).
IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as 255.255.255.128.
Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual
interface.
Device Configuration /
Interface Setup 65
BiPAC 6300VNP(O)Z User Manual
Alias IP Subnet Mask: Specify a subnet mask on this virtual interface.
IGMP Snooping: Select Activated to enable IGMP Snooping function, Without IGMP snooping,
multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports.
With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that
group.
Dynamic Route: Select the RIP version from RIP1 or RIP2.
DHCPv4 Server
DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration
at start-up from a server.
DHCPv4 Server: If set to Enabled, your BiPAC 6300VNP(O)Z can assign IP addresses, default
gateway and DNS servers to the DHCP client.
If set to Disabled, the DHCP server will be disabled.
If set to Relay, the BiPAC 6300VNP(O)Z acts as a surrogate DHCP server and relays DHCP
requests and responses between the remote server and the clients. Enter the IP address of the
actual, remote DHCP server in the Remote DHCP Server field in this case.
When DHCP is used, the following items need to be set.
Start IP: This field specifies the first of the contiguous addresses in the IP address pool.
IP Pool Count: This field specifies the count of the IP address pool.
Lease Time: The current lease time of client.
Physical Ports: Select to determine if the DHCPv4 server is applicable to the specific port or ports. By
default, all ports can obtain local IP from DHCPv4 server.
DNS Relay Select Automatically obtained or Manually set (if selected. Please set the exactly
information). If you set Static IP in the ISP Connection Type field, then select Manually here and set
the specific DNS information.
Primary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the
DHCP clients along with the IP address and the subnet mask.
Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to
the DHCP clients along with the IP address and the subnet mask.
Fixed Host
In this field, users can map the specific IP (must in the DHCP IP pool) for some specific MAC, and this
information can be listed in the following table.
Device Configuration /
Interface Setup 66
BiPAC 6300VNP(O)Z User Manual
IP Address: Enter the specific IP. For example: 192.168.1.110.
MAC Address: Enter the responding MAC. For example: 00:0A:F7:45:6D:ED
When added, you can see the ones listed as showed below:
IPv6 parameters
The IPv6 address composes of two parts, thus, the prefix and the interface ID.
Interface Address / Prefix Length: Enter a static LAN IPv6 address. If you are not sure what to do
with this field, please leave it empty as if contains false information it could result in LAN devices not
being able to access other IPv6 device. Router will take the same WAN’s prefix to LAN side if the field
is empty.
MLD Snooping: Similar to IGMP Snooping, but applicable for IPv6.
DHCPv6 Server
There are two methods to dynamically configure IPv6 address on hosts, Stateless and Stateful.
Stateless auto-configuration requires no manual configuration of hosts, minimal (if any)
configuration of routers, and no additional servers. The stateless mechanism allows a host to generate
its own addresses using a combination of locally available information (MAC address) and information
(prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a
link, while hosts generate an "interface identifier" that uniquely identifies an interface on a subnet. An
address is formed by combining the two. When using stateless configuration, you needn’t configure
anything on the client.
Stateful configuration, for example using DHCPv6 (which resembles its counterpart DHCP in IPv4.)
In the stateful auto configuration model, hosts obtain interface addresses and/or configuration
information and parameters from a DHCPv6 server. The Server maintains a database that keeps track
of which addresses have been assigned to which hosts.
DHCPv6 Server: Check whether to enable DHCPv6 server.
Device Configuration /
Interface Setup 67
BiPAC 6300VNP(O)Z User Manual
DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is
available.
Stateless: If selected, the PCs in LAN are configured through RA mode, thus, the PCs in LAN
are configured through RA mode, to obtain the prefix message and generate an address using
a combination of locally available information (MAC address) and information (prefix)
advertised by routers, but they can obtain such information like DNS from DHCPv6 Server.
Stateful: If selected, the PCs in LAN will be configured like in IPv4 mode, thus obtain addresses
and DNS information from DHCPv6 server.
Start interface ID: enter the start interface ID. The IPv6 address composed of two parts, thus, the
prefix and the interface ID. Interface is like the Host ID compared to IPv4.
End interface ID: enter the end interface ID.
Leased Time (hour): the leased time, similar to leased time in DHCPv4, is a time limit assigned to
clients, when expires, the assigned ID will be recycled and reassigned.
Router Advertisement: Check to Enable or Disable the Issue Router Advertisement feature. This
feature is to send Router Advertisement messages periodically which would multicast the IPv6 Prefix
information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We
suggest enabling this field.
Device Configuration /
Interface Setup 68
BiPAC 6300VNP(O)Z User Manual
Wireless
This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as
complex as a number of computers with wireless LAN cards communicating through access points
which bridge network traffic to the wired LAN.
Device Configuration /
Interface Setup 69
BiPAC 6300VNP(O)Z User Manual
Access Point Settings
Access Point: Default setting is set to Activated. If you want to close the wireless interface, select
Deactivated.
AP MAC Address: The MAC address of wireless AP.
Wireless Mode: The default setting is 802.11b+g+n (Mixed mode). If you do not know or have both
11g and 11b devices in your network, then keep the default in mixed mode. From the drop-down
manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select
802.11b and if you only have 802.11n then select 802.11n.
Channel: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a
channel. There are Regulation Domains and Channel ID in this field. The Channel ID will be different
based on Regulation Domains. Select a channel from the drop-down list box.
Beacon interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a
value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless
network.
RTS/CTS Threshold: The RTS (Request To Send) threshold (number of bytes) for enabling RTS/CTS
handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Enter
a value between 1500 and 2347.
Fragmentation Threshold: The threshold (number of bytes) for the fragmentation boundary for
directed messages. It is the maximum data fragment size that can be sent. Enter a value between 256
and 2346, even number only.
DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication
Message (DTIM).
TX Power: The transmission power of the antennas, ranging from 1-100, the higher the more powerful
of the transmission performance.
IGMP Snooping: Enable or disable the IGMP Snooping function for wireless. Without IGMP snooping,
multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports.
With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that
group.”
11n Settings
Channel Bandwidth: Select either 20 MHz or 20/40 MHz for the channel bandwidth. The wider the
Channel bandwidth the better the performance will be.
Guard Interval: Select either 400nsec or 800nsec for the guard interval. The guard interval is here to
ensure that data transmission do not interfere with each other. It also prevents propagation delays,
echoing and reflections. The shorter the Guard Interval, the better the performance will be. We
recommend users to select Auto.
MCS: There are options 0~15 and AUTO to select for the Modulation and Coding Scheme. We
recommend users selecting AUTO.
SSID Settings
Available SSID: User can determine how many virtual SSIDs to be used. Default is 1, maximum is 4.
SSID Index: Select the number of SSIDs you want to use; up to 4 SSIDs are available in the list.
Device Configuration /
Interface Setup 70
BiPAC 6300VNP(O)Z User Manual
SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another.
For security propose, change the default wlan-ap to a unique ID name to the AP which is already
built-in to the router’s wireless interface. Make sure your wireless clients have exactly the SSID as the
device, in order to get connected to your network.
Broadcast SSID: Select Yes to make the SSID visible so a station can obtain the SSID through
passive scanning. Select No to hide the SSID in so a station cannot obtain the SSID through passive
scanning.
SSID Activated: Select the time period during which the SSID is active. Default is always which
means the SSID will be active all the time without time control. See Time Schedule to set the timeslot
to flexibly control when the SSID functions.
WPS Settings
WPS (Wi-Fi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature
greatly simplifies the steps needed to create a Wi-Fi network for a residential or an office setting. WPS
supports 2 types of configuration methods which are commonly known among consumers: PIN
Method & PBC Method.
Use WPS: Enable this feature by choosing the ”YES” radiobutton.
WPS State: Display whether the WPS is configured or unconfigured.
WPS Mode: Select the mode which to start WPS, choose between PIN Code and PBC (Push Button).
Selecting Pin Code mode will require you to know the enrollee PIN code.
To future understand the two modes of configuration; please refer to the example of the Wi-Fi
Protected Setup.
Security Settings
Security Type: You can disable or enable wireless security for protecting wireless network. The
default type of wireless security is OPEN and to allow all wireless stations to communicate with the
access points without any data encryption.
To prevent unauthorized wireless stations from accessing data transmitted over the network, the
router offers secure data encryption, known as WEP and WPA.
There are five alternatives to select from: WEP 64-bit, WEP 128-bit, WPA-PSK, WPA2-PSK, and
Mixed WPA/WPA2-PSK. If you require high security for transmissions, please select WPA-PSK,
WPA2-PSK or WPA/WPA2-PSK.

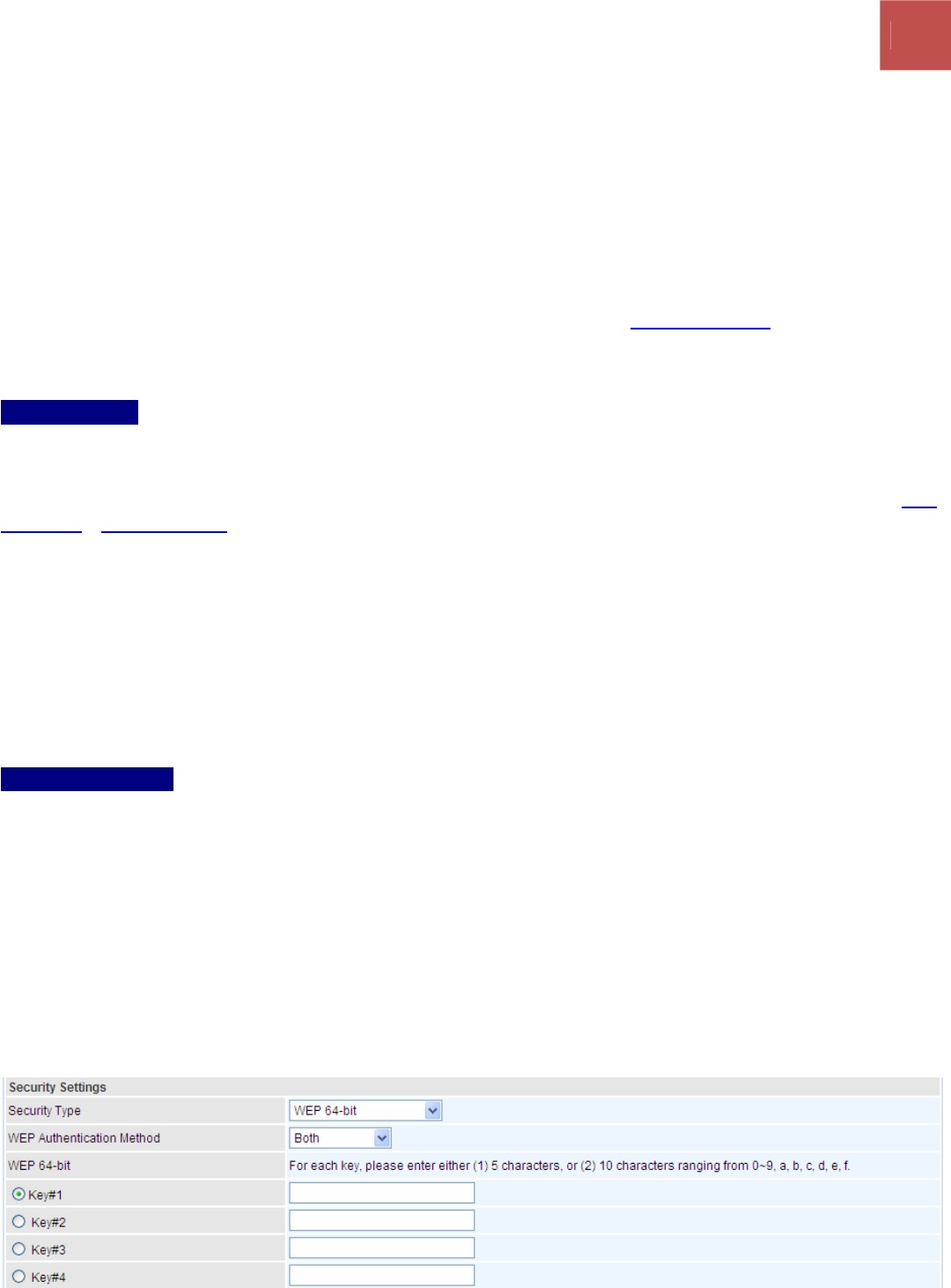

WEP
WEP Authentication Method: WEP authentication method, there are two methods of authentication
used, Open System authentication (OPENWEB) and Share Key authentication (SHAREDWEB). We
Device Configuration /
Interface Setup 71
BiPAC 6300VNP(O)Z User Manual
suggest you select OPENWEB.
Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data transmission, the
WEP Encryption Key values on all wireless stations must be the same as the router. There are four
keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for
64-bitWEP and 128-bitWEP respectively.
If you chose WEP 64-bit, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9",
"A-F").
If you chose WEP 128-bit, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9",
"A-F").
You must configure all four keys, but only one key can be activated at any one time. The default key is
key 1.

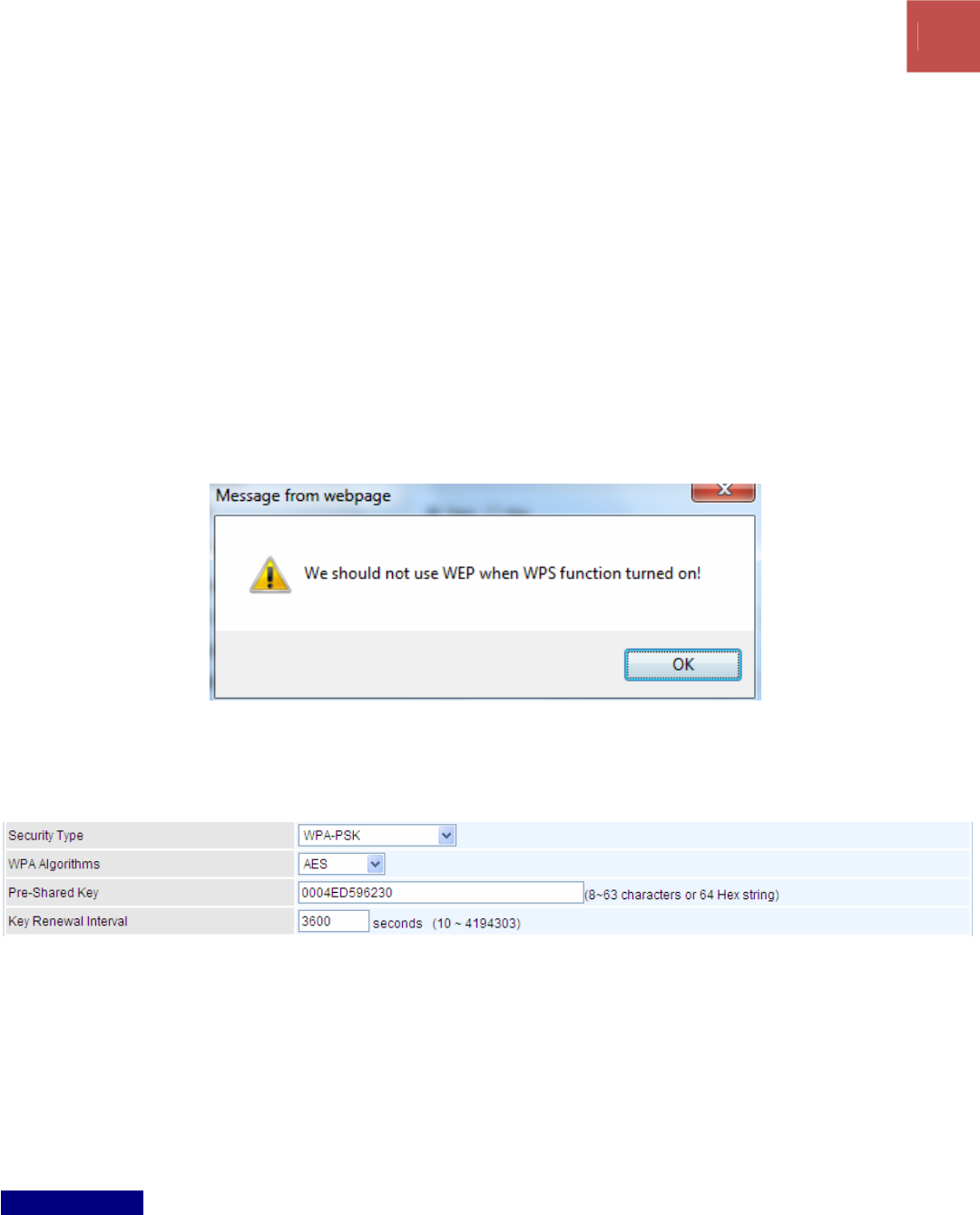

Note: When you enable WPS function, this WEP function will be invalid. And if you select one of
WEP-64Bits/ WEP-128Bits, the following prompt box will appear to notice you.
WPA-PSK & WPA2-PSK
WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System)
utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide
protection against hackers.
Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII
characters or 64 hexadecimal characters
Key Renewal Interval: The time interval for changing the security key automatically between wireless
client and AP.
WDS Settings
WDS (Wireless distributed system) is a wireless access point mode that enables wireless link and
communication with other access point. It is easy to be installed, just define the peer’s MAC of the
connected AP.
WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature.
MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX:XX format) of the peer connected
Device Configuration /
Interface Setup 72
BiPAC 6300VNP(O)Z User Manual
AP.
Device Configuration /
Interface Setup 73
BiPAC 6300VNP(O)Z User Manual
Wi-Fi Protected Setup (WPS) Example I:
PIN Method: Configure AP as Registrar

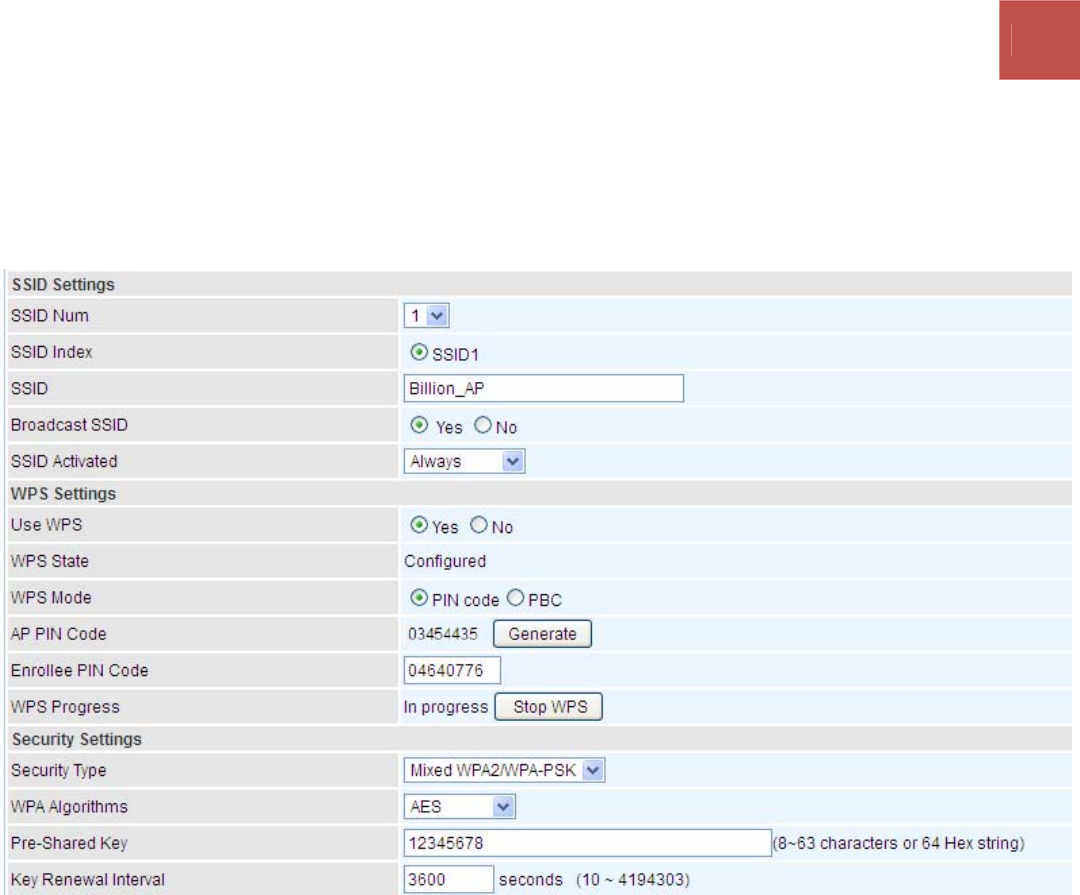

1. Jot down the client’s Pin (e.g. 04640776).
2. Enter the Enrollee (Client) PIN code and then press Start WPS.
Device Configuration /
Interface Setup 74
BiPAC 6300VNP(O)Z User Manual
3. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Enrollee, press
the WPS button on the top bar, select the AP (e.g. Billion_AP) from the WPS AP List column. Then
press the PIN button located on the middle left of the page to run the scan.
4. The client’s SSID and security setting will now be configured to match the SSID and security setting
of the registrar (router).
Device Configuration /
Interface Setup 75
BiPAC 6300VNP(O)Z User Manual
Wi-Fi Protected Setup (WPS) Example II:
PIN Method: Configure AP as Enrollee

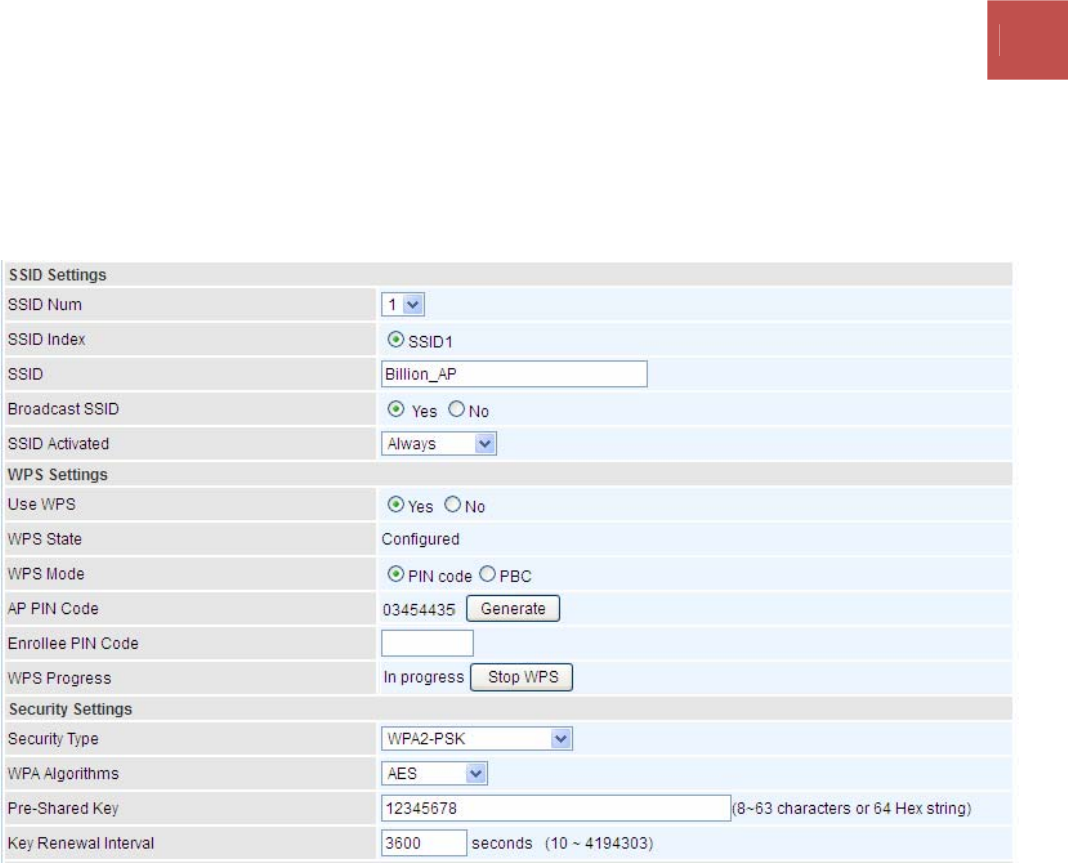

1. Jot down the WPS PIN (e.g. 03454435). Press Start WPS.

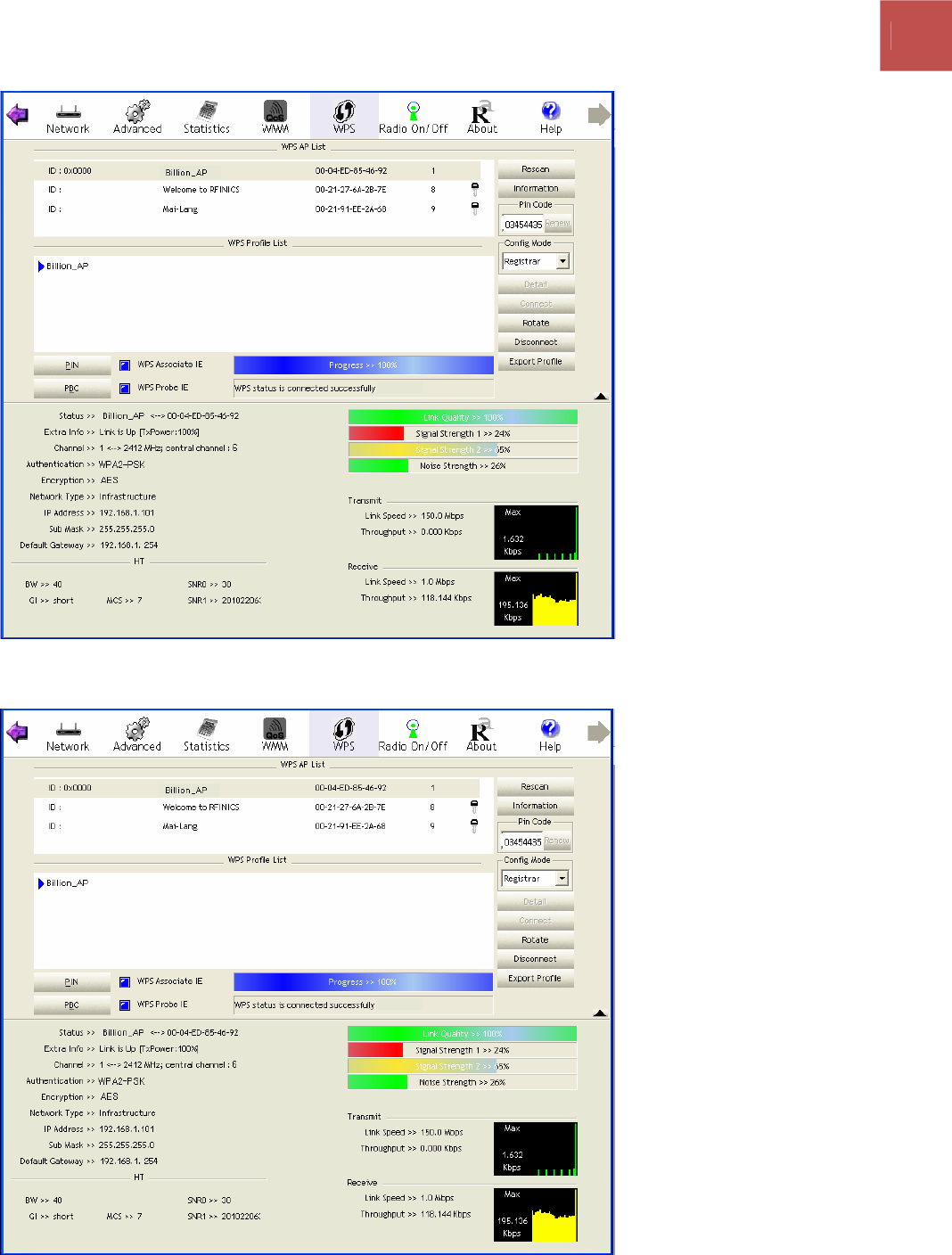

2. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter
the PIN number in the PIN Code column then choose the correct AP (e.g. Billion_AP) from the WPS
AP List before pressing the PIN button to run the scan.
Device Configuration /
Interface Setup 76
BiPAC 6300VNP(O)Z User Manual
3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security
setting of the registrar (client).
4. Now to make sure that the setup is correctly done, cross check to see if the SSID and the security
setting of the registrar setting match with the parameters found on both Wireless Configuration and
Wireless Security Configuration page.
Device Configuration /
Interface Setup 77
BiPAC 6300VNP(O)Z User Manual
Wi-Fi Protected Setup (WPS) Example III:
PBC Method:

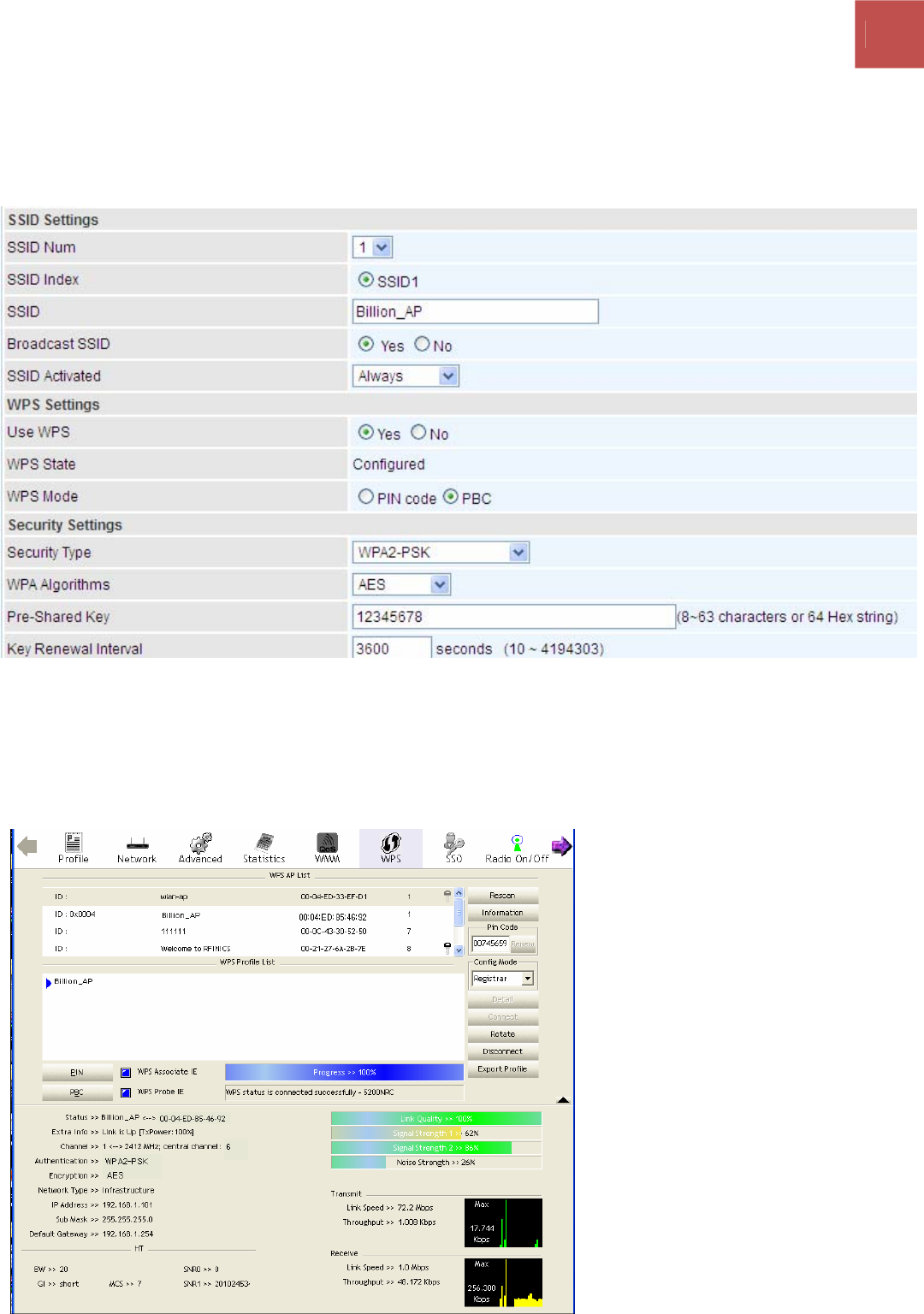

1. Press the PBC radio button, Then Start WPS.
2. Launch the wireless client’s WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then
press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section
before pressing the PBC button to run the scan.
3. When the PBC button is pushed, a wireless communication will be established between your router
and the PC. The client’s SSID and security setting will now be configured to match the SSID and
security setting of the router.
