Billion Electric Co., Ltd. LTE Module
User manual
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 1 -
WW-ML067 (Band 41 only)
LTE Module
Specification
Version 0.3
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 2 -
Revision History
Document
Release
Date Modification Initials Approved
Version 0.1 2014/03/28 1. First release Shengyen. Fan Ivan. Chen
Version 0.2 2014/09/18 1. Recommended design
PCIE LTE connect
maximum power
Vic. Lee Ivan. Chen
Version 0.3 2014/12/01 1. Band 41 only Vic. Lee Ivan. Chen
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 3 -
1. General Description
1-1. Product Overview and Functional Description
Billion Electric Co., Ltd. WW-ML067 is a (4G) LTE mini-PCIE module. It implements 3GPP release 9
modem on a mini-PCI Express card. It supports next-generation LTE standards with Category 4 150Mbps
for DL and 50 Mbps for UL (megabits-per-second) throughput. User can surf internet by WW-ML067 in
anywhere and anytime where 4G TD-LTE (Band 41) networks covered. WW-ML067 is designed to
provide fast, reliable and easy user experience.
WW-ML067 uses Marvell PXA1802 communications processor. The PXA1802 is an advanced, highly
integrated Long-Term Evolution (LTE) modem for multimedia-centric handsets. The PXA1802 solution
incorporates mature and proves LTE technology to provide Mobile handset platform.
<FCC Part 15.21 statement>
‧Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
‧This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
<FCC Part 15.105 statement>
Note: This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipments does cause harmful interference or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
A simplified block diagram of the WW-ML067 module is depicted in the figure below.
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 4 -
RF exposure statements:
Information to OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user manual of the end product.
The user manual which is provided by OEM integrators for end users must include the following
information in a prominent location.
1. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter, except in accordance with FCC
multi-transmitter product procedures.
2. Only those antennas with same type and lesser gain filed under this FCC ID number can be used with
this device.
3. The regulatory label on the final system must include the statement: “Contains FCC ID: xxxx or using
electronic labeling method as documented in KDB 784748.
4. The final system integrator must ensure there is no instruction provided in the user manual or customer
documentation indicating how to install or remove the transmitter module except such device has
implemented two ways authentication between module and the host system.
This module can't be used on radio system and operation individually. Using others antenna must be
re-testing and certification.
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 5 -

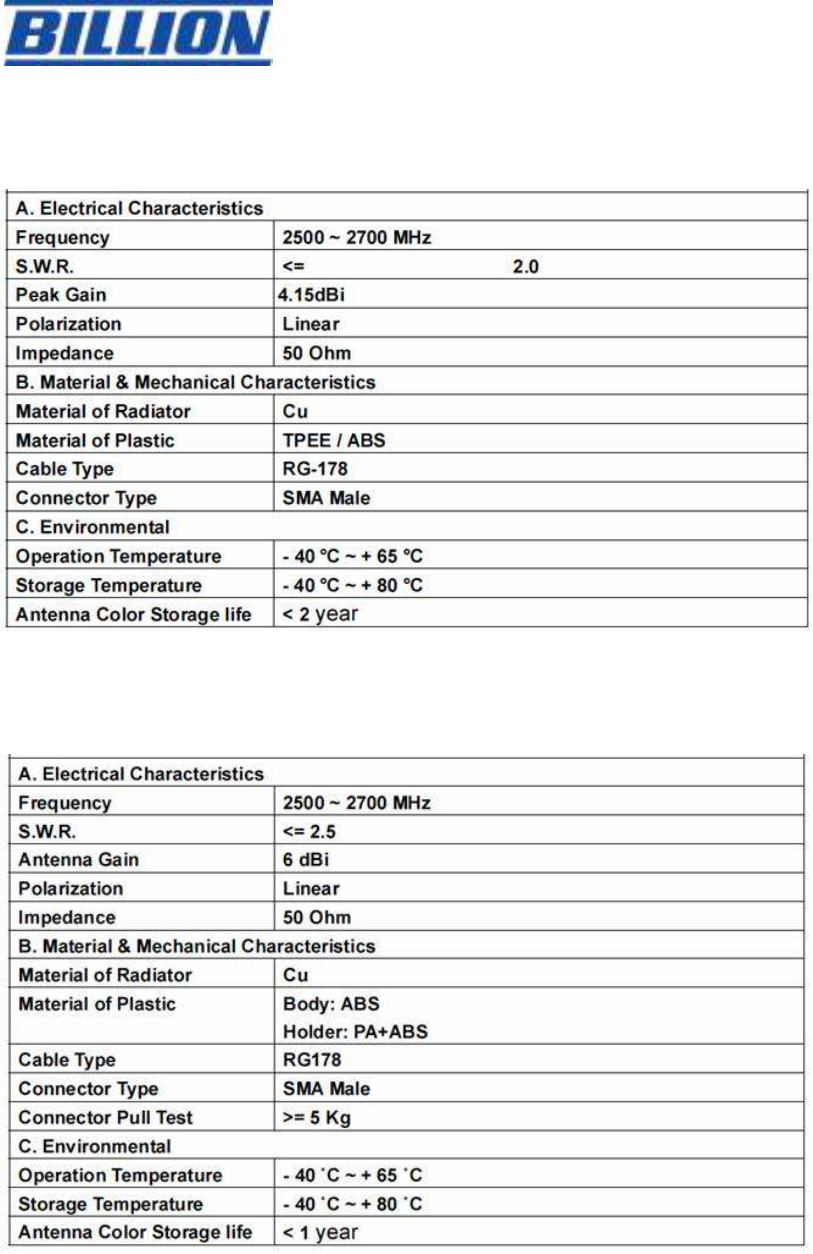

1-2. Antenna Description
1.) Type #1 Dipole:
2.) Type #2 Dipole:
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 6 -

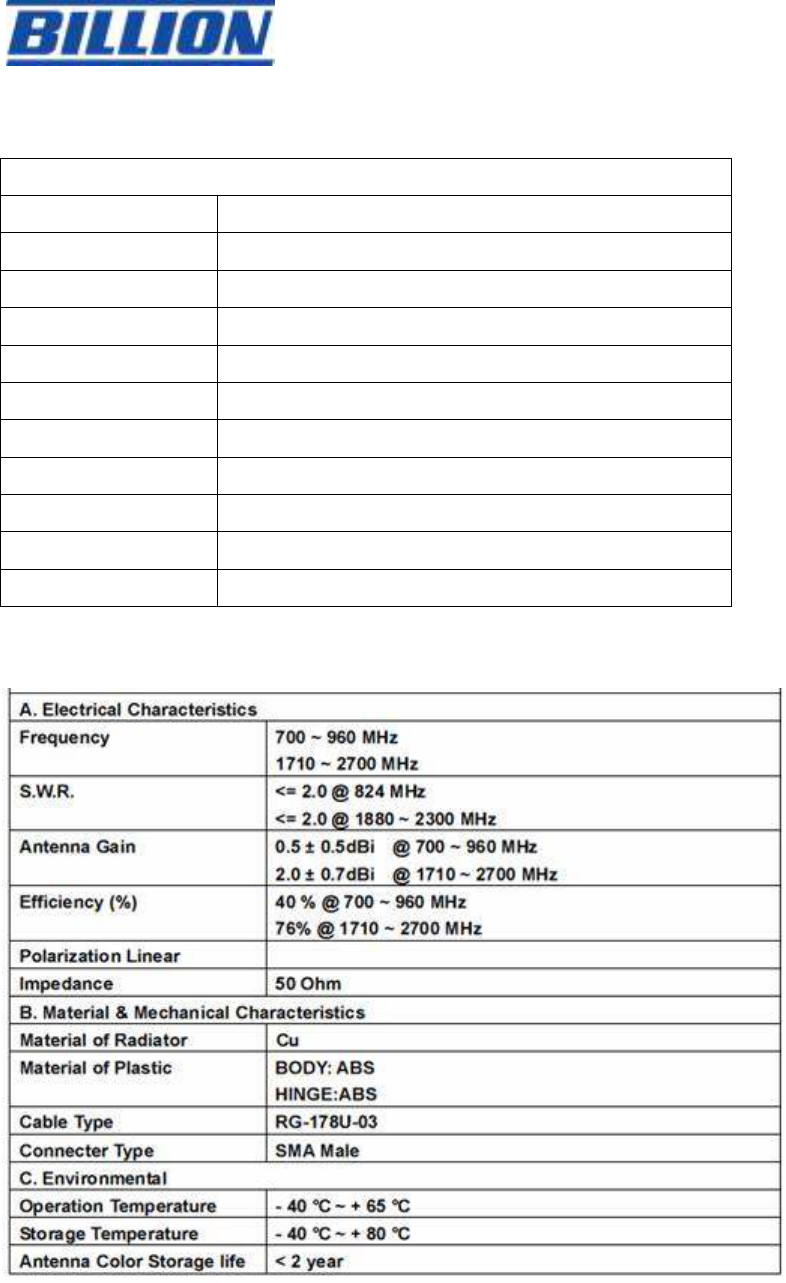

3.) Type #3 Patch antenna:
RF Specification
Frequency range 2500-2700 MHz
Polarization Linear, Vertical / Horizontal
HPBW/Horizontal Port 1:22∘
∘∘
∘/ Port 2:21∘
∘∘
∘
HPBW/Vertical Port 1:23∘
∘∘
∘/ Port 2:22∘
∘∘
∘
Peak Gain 11.5 dBi (Cable Loss Included)
VSWR 2.0 max:1
Isolation 20 dB typ.
Power handing 2W (cw)
Impedance 50 Ohms
Cable Ф1.37, 250mm (Port1: Gray; Port2: White)
Connector U.FL x2
4.) Type #4 Dipole (全頻
全頻全頻
全頻)
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 7 -
Figure 1. WW-ML067 Mini-PCIE Module Block Diagram
1-2. Key Features
Supported Frequency Bands
TDD-LTE Band 41
Supported Network Modes
Time Division Long Term Evolution (TDD-LTE)
Provided Services
High-speed LTE packet data service of up to 150 Mbit/s
*Maximum data rate is subject to 4G services provided by network operators
1-3. Main Features
Supported Features
Downlink LTE packet data service of up to 150 Mbit/s
Uplink LTE packet data service of up to 50 Mbit/s
Packet switched (PS) domain data service based on LTE
Linux 2.6.29 and later
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 8 -
2. Technical Specifications Table
2-1Hardware
Model Name WW-ML067
Product Description Specifications
Major Chipset Marvell PXA1802
Standards
Compliance
LTE 3GPP Release 9 compliant
WAN: LTE Band 41
External Interfaces
Supporting USB 2.0 high speed
Standard 6-pin SIM card interface
Operating Conditions
Voltage 3.3 V
Current(peak) 1.6±
±±
±0.2 A
Ambient Temperature
Operating: Operating：
：：
：-10 to +55℃
℃℃
℃ ℃
℃℃
℃
Storage: -20℃
℃℃
℃ to +70℃
℃℃
℃
Dimension Dimensions (L × W × H)：
：：
：50.95mm x 30mm x 4.82mm
Weight About 12g
Electrical Specifications
Operating Frequency
TDD-LTE：
：：
：
Band 41 (2496 MHz ~ 2690 MHz)
Maximum transmit power TDD-LTE: 23 ±
±±
±2 dBm (Power Class 3)
Antenna
Embedded
TDD -LTE: Main antenna connector.
TDD -LTE: Receive diversity antenna connector.
Receiver Sensitivity
TDD-LTE: compliant with Category 4
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 9 -
2-2 Software
Others
Network connection:
Automatic network selection and registration
Manual network selection and registration
Optional network connection types, for example:
4G only
PIN management:
Edit
Enable/Disable
Verify
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 10 -
3. Electrical Characteristics
3-1. Recommended DC power supply for Micro USB
Power Tolerance Units
3.3V
±5% V
3-2. Recommended design PCIE LTE connect peak current
Band Current Units
LTE
1.6±0.2 A
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 11 -

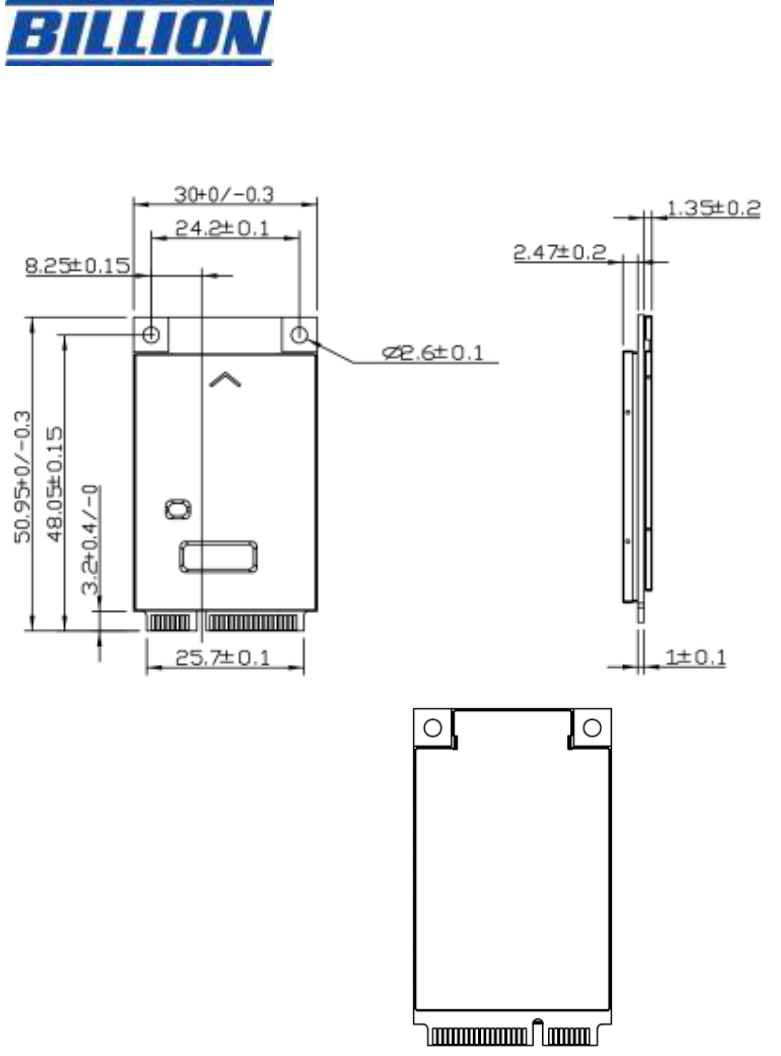

4. Mechanical drawing
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 12 -
5. Pin Definition
Pin Assignment
Pin No
Definition Basic Description Type
1 NC NC
2 VCC3P3 +3.3V power supply I Power
3 JTAG TRST_N JTAG TRST_N
4 GND-4 GND
5 JTAG TDI JTAG TDI
6 JTAG TDO JTAG TDO
7 NC NC
8 USIM_PWR VCC USIM
9 GND-9 GND
10 USIM_DATA USIM DATA
11 JTAG TMS JTAG TMS
12 USIM_CLK USIM CLK
13 JTAG_TCK JTAG TCK
14 USIM_RESET USIM_ RESET
15 GND-15 GND
16 NC NC
17 UART_RXD UART_RXD
18 GND-18 GND
19 UART_TXD UART_TXD
20 W_Disable WWAN DISABLE
21 GND-21 GND
22 PERSTn WWAN RESET
23 NC NC
24 VCC3P3 +3.3V power supply
25 NC NC
26 GND-26 GND
27 GND-27 GND
28 NC NC
29 GND-29 GND
30 I2C_SCL I2C_SCL
31 NC NC *
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 13 -
Pin No
Definition Basic Description Type
32 I2C_SDA I2C_SDA
33 Module Enable Module Enable I
34 GND-34 GND
35 GND-35 GND
36 USB_D- USB_DMNS I/O
37 GND-37 GND
38 USB_D+ USB_DPLS I/O
39 VCC3P3 +3.3V power supply I Power
40 GND-40 GND
41 VCC3P3 +3.3V power supply I Power
42 WWAN_LED WWAN_LED
43 GND-43 GND
44 NC NC
45 NC NC
46 NC NC
47 NC NC
48 NC NC
49 NC NC
50 GND-50 GND
51 NC NC
52 VCC3P3 +3.3V power supply I Power
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 14 -
6. Power Delivery Requirements
Requirement Description
Supply Voltage 3.3V within 5% tolerance on the motherboard.
Peak Current
The host board shall provide 2.5 A peak current.
Max in-rush Current
The Module boots maximum in-rush current of 6 A will be supported.
Power Stability Use tantalum value more than 1000uF for power input (3.3V).
7. Minimum Rx Sensitivity – LTE
LTE Band Duplex Modulation Bandwidth(MHz) Rx Sensitivity(dBm)
41 TDD QPSK 20 -95
±
±±
±1
