The Billion SG6200NXL is an all-in-one router designed for users to enjoy real-time power management and
secured wireless Internet access. Integrated with ZigBee technology, the Billion SG6200NXL can communicate
with ZigBee-based HAN (Home Area Network) devices such as smart meters, IHD (In-home display) devices,
load-control devices, and PCT (Programmable Communicating Thermostat) devices. By Internet access, the
users can remotely monitor energy consumption and manage event control on appliances that connect to Billion
SG3010 ZigBee meter.
In addition, this device is a compact broadband router offering rich functions. Supported with 802.11n Wireless
AP delivering a data rate up to 300Mbps, this router allows users to enjoy blistering Wireless LAN connection
speed. Dual WAN design - Internet Access via broadband/DSL and/or back up through 3G network - keeps you
always-on-line. With the Billion SG6200NXL, you can easily download photos, stream High Definition (HD) video
files, run media-intensive applications, watch Internet movies or share files with your clients, team members,
friends or family. The Billion SG6200NXL can even function as a printer server, Webcam or FTP server for
network device sharing*6.
Instant and Real-time Remote Management
The Billion SG6200NXL provides full featured connectivity and allows a greater diversity of devices and
applications in a ZigBee HAN configuration. The ZigBee-based SG6200NXL can serve as data concentrator
capable of collecting power data, managing, and controlling appliances that are connected to ZigBee-based
meters and other ZigBee HAN devices. Its Graphic User Interface enables a monitoring configuration that
delivers real-time power usage and instant switching on/off for specific home appliances that are connect to a
ZigBee meter, ie. Billion’s SG3010. Remote in-home energy management like switching on your air conditioner
when you are on the way home can be easy using your 3G phone over the Internet.
Always-on Connectivity
With the built-in USB port, users can connect a 3G / HSDPA USB modem, enabling access to the Internet over
a 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, UMTS, EDGE, GPRS, or GSM networks, making downstream rates
of up to 14.4 Mbps*1 possible! The built-in auto fail-over ensures maximum connectivity and minimum
interruption by quickly and smoothly connecting to a 3G network in the event that your existing wire connection
fails. It will also automatically reconnect to the wire connection when it's restored, reducing minimizing connection
costs. These features are perfect for office situations where constant connection is paramount.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, the router delivers up to 3 times the wireless coverage of a
802.11b / g network device and supports a data rate of up to 300Mbps, so that wireless access is available
everywhere in the house or office. The Billion SG6200NXL also supports the Wi-Fi Protected Setup (WPS)
standard and allows users to establish a secure wireless network by simply pushing a button. If your network
requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand
your wireless network without the need for any additional wires or cables. Multiple SSIDs allow users to access
different networks through a single access point. Network managers can assign different policies and functions
for each SSID, increasing the flexibility and efficiency of the network infrastructure.
3G Management Center
With the Billion SG6200NXL, monitoring your 3G connection status is a breeze. Billion’s unique 3G Management
Center is a utility tool visually displaying its current 3G-signal status for users to maximize their connection. You
can monitor the bandwidth with current upload and download speed. This tool also calculates the total amount of
hours or data traffic used per month, allowing you to manage your 3G monthly subscriptions.
• ZigBee for reliable and flexible RF
network
• Remote power monitoring and
management with ZigBee meter
• Dual WAN interfaces for EWAN and
3.5G / 3.75G connections
• 802.11n Wireless AP
• High-speed wireless connection up to
300 Mbps data rate
• Wireless security supports
WPA/WPA2 and WPS
• 2 x USB 2.0 ports to support 3G
network and multiple functions
• Supports multiple SSIDs for flexibility
of network infrastructure
• Quality of Service for traffic
prioritization and bandwidth
management
• Auto fail-over for always-on
connection
• SOHO firewall security with DoS
prevention and SPI
• Parental control with URL content
filtering and packet filtering
• Dynamic Domain Name System
(DDNS)
• Easy to Use with quick installation
wizard
• 3G Management Center tool
• Ideal for:
- Residential and office users
- Utility companies
• Works as part of ZigBee-based
Energy Management solution for
business partners:
- Systems integrators
- Power utilities: solar power, wind
power…etc.
- Green house developers/engineers
- Suppliers of Smart Energy devices
in IHD, Load Control, and PCT
Compact ZigBee Wireless-N 3.75G / Broadband Router
Billion SG6200NXL
Ideal for
Residential,
office users,
and Utility

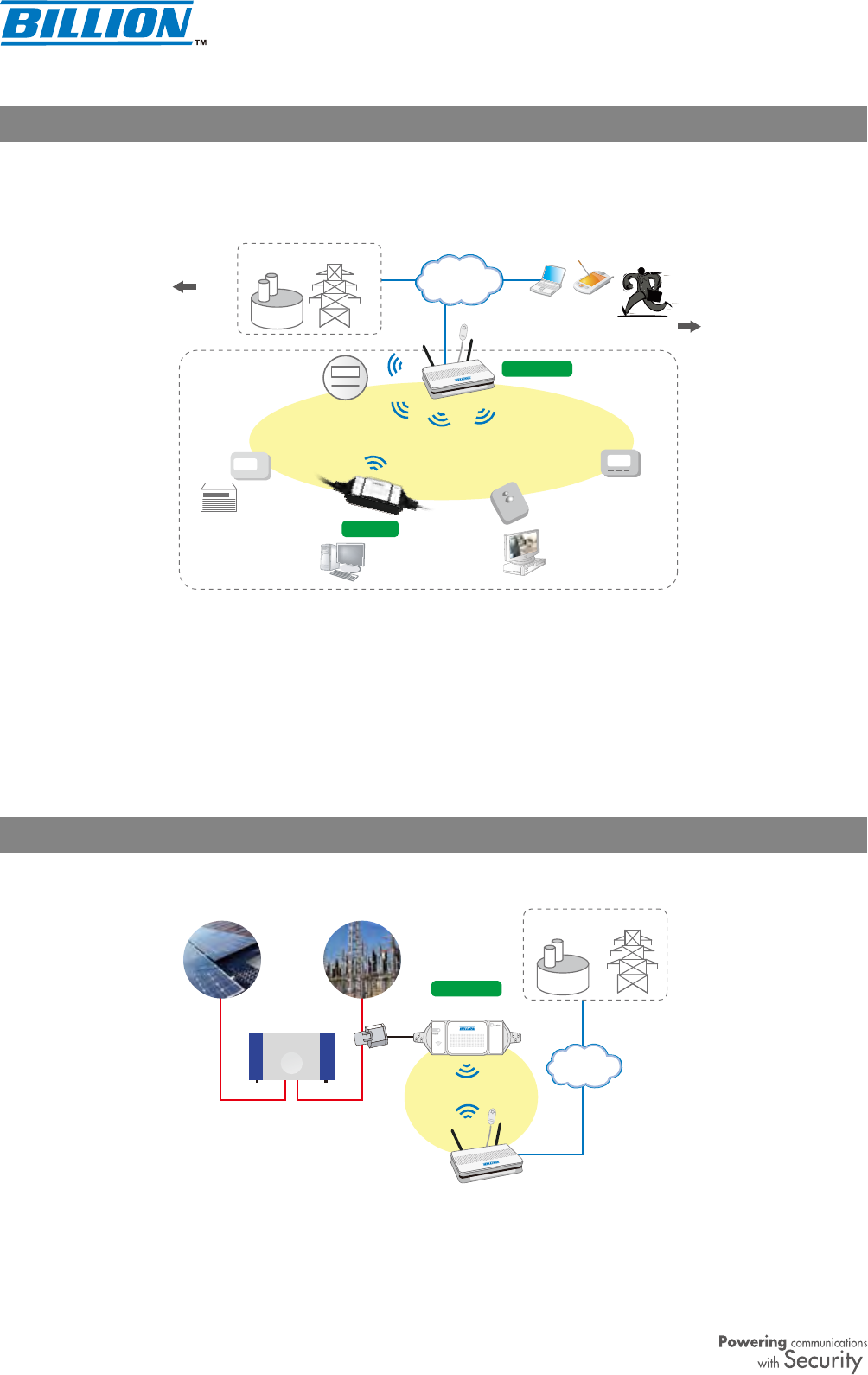

Application Scenario for Energy Management
Energy Management for Home Users
Via Billion SG6200NXL customers can remotely control electrical devices that are connected with a Billion SG3010 ZigBee Meter in an in-home area network. Users can obtain
power utilization information via ZigBee gateway automatically for downstream analysis and profiling.
Energy Management for Utilities
Utility companies can collect power usage data from a smart ZigBee meter via a ZigBee gateway located on the ground floor of a home/office building.
Single-phase 3-wire (e.g. USA and Taiwan) Single-phase 2-wire (e.g. Europe)
Billion SG6200NXL
Users
on-the-go to
remotely
control
in-home
appliances
Home Area
Network
Internet
Utility Control Center
ZigBee Mesh Network
Smart Meter
with
ZigBee Module
Termination Cabinet
ZigBee Gateway
ON
T20
110V
ON
T20
110V
ON
T20
110V
ON
T20
110V
T20
220V
OFF
ON
Black
White
L2 L1
ON
T20
110V
ON
T20
110V
1 wh/p
Status
1 wh/p
Status
1 wh/p
Status
N
1 wh/p
Status
SG6200NXL
SG3010-T2
SG3010-T1
SG3010-T4
SG6200NXL
SG6200NXL
SG3010-T2
SG3010-T1
T20
220V
OFF
ON
Black
White
N L
1 wh/p
Status
1 wh/p
Status
1 wh/p
Status
1 wh/p
Status
T20
220V
T20
220V
T20
220V
SG3010-T3

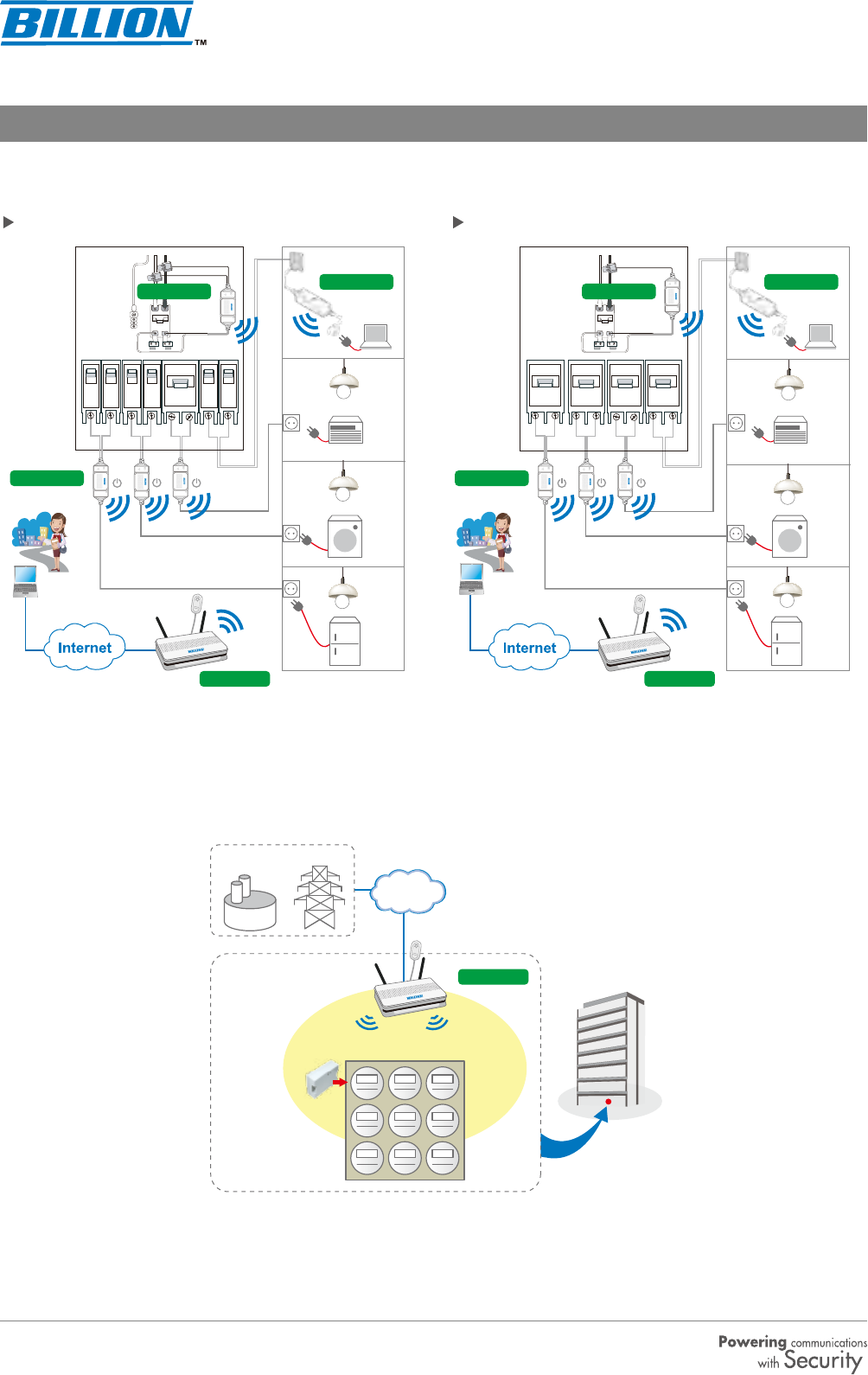

Application Scenario for Energy Management
Solar Power Management Application
Smart Energy (SE) for Utilities and Home Users
• For Solar (or Wind) Utility, a ZigBee meter can measure voltage output before power is sent to the power grid
• Power data measured by a ZigBee meter can be collected by a ZigBee Gateway
Billion SG6200NXL
Utility energy
efficiency program
- Utility collects home
power data available in
ZigBee Smart Meter using
a ZigBee gateway over
the Internet.
- Through a ZigBee
gateway over the Internet,
utility forwards power
usage data and pricing
info to ZigBee HAN
devices that are Smart
Energy certified.
What a PCT device does?
Provides capability to control heating and
cooling systems
What a Load Control device
does?
- Receives demand response events sent
from Utility via Gateway / Utility meter
- Controls home appliances based on
real-time pricing
What an IHD device does?
- Receives pricing message from Utility via
Gateway / Utility meter
- Displays pricing and energy usage
information
Remote control
- Via a ZigBee gateway,
home users on-the-go can
remotely access in-home
power consumption and
respond by controlling
appliances that are
connected with ZigBee
HAN devices.
Utility Control Center
ZigBee HAN
SG3010
ZigBee
Smart Meter
ZigBee
Meter
20 457
Programmable
Communicating
Thermostat device(PCT)
Load Control
device
In-home
Display device(IHD)
ZigBee
Gateway
IPTV
Out of Home
Internet
Air Conditioner
SG6200NXL
Solar PV Array Solar Power AC to Grid
DC Voltage
Input AC Voltage
Output
PV Inverter
ZigBee Mesh Network
ZigBee Meter
SG3010-T3
Internet
Utility Control Center
Copyright © Billion Electric Co., Ltd. All rights reserved.
Billion Electric Co., Ltd.
8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien City, Taipei County, 23146 Taiwan
www.billion.com
www.smartgrid.com.tw
TEL : +886-2-2914-5665
FAX : +866-2-2918-6731, +886-2-2918-2895
E-mail : sales@billion.com
Availability and Resilience
• Dual-WAN ports (3G & Ethernet WAN)
• Load balancing - Maximizing bandwidth of
outbound traffic*6
• Auto fail-over/fail-back
3.5G / 3.75G Broadband Sharing
• Supports 3.5G / HSDPA, 3.75G / HSUPA,
HSPA+, EVDO and TD-SCDMA
• True mobile broadband sharing (3.5G / 3.75G)
• Common 3.5G / 3.75G USB modem support
• 3.5G / 3.75G signal strength display
• 3.5G / 3.75G APN and PIN code support
• 3G time state monitor (Current connection time,
Monthly total connection time & Monthly total
traffic )
Network Protocols and Features
• NAT, static routing and RIP-1 / 2
• NAT supports PAT and multimedia applications
• Transparent bridging
• Virtual server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy
• File sharing with SMB (Samba) / CIFS
Firewall Management
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping
of Death, etc.
• Remote access control for web base access
• Packet and URL filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization based-on IP protocol, port
number and address
Wireless LAN
• Compliant with IEEE 802.11n, 802.11g and
802.11b standards
• 2.4GHz - 2.484GHz frequency range
• Up to 300Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK
support
• WDS repeater function support
• Multiple SSID
USB Applications Server
• 3.5G / 3.75G network sharing
• Printer server
• Storage: FTP server, Samba server, FTP client*6,
BT client*6
• Webcam server
Management
• 3G Management Center
• Quick Installation Wizard
• Web-based for remote and local management
• Firmware upgrades and configuration data
upload / download via web-based interface
• Embedded Telnet server for local management
• SNMP v1 / v2 / v3, MIB-I and MIB-II support
• Supports DHCP server / client / relay
• Mail Alert
• TR-069*5 supports remote management
• Multiple language support

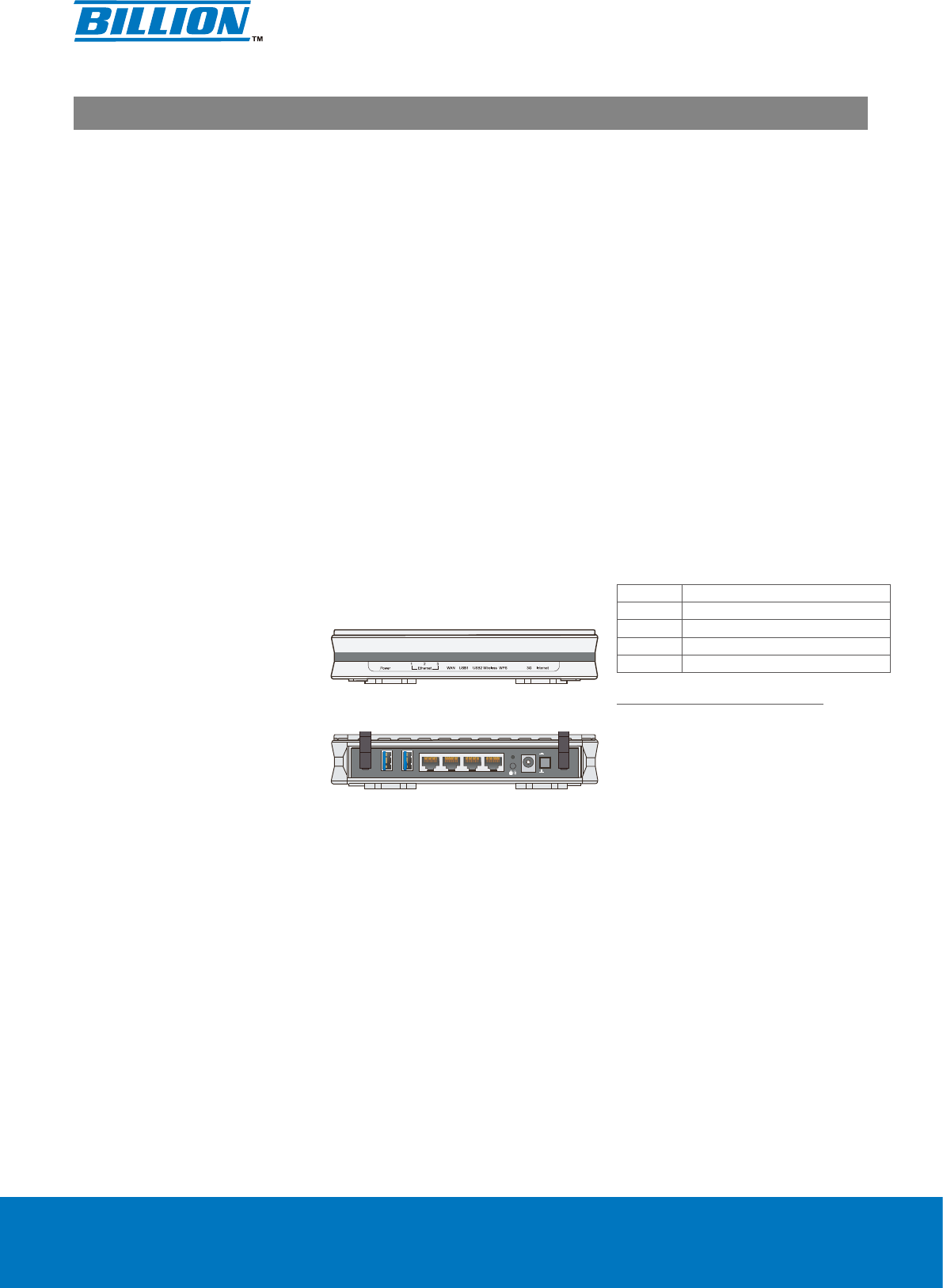

Front Panel
Rear Panel
Hardware Specifications
Physical Interface
• USB: 2 x USB 2.0 ports
• WLAN: 2T2R antennas
• Ethernet: 3 x 10 / 100Mbps Auto-MDI / MDI-X
RJ-45 Ethernet ports
• WAN: 1 x 10 / 100Mbps Auto-MDI / MDI-X RJ-45
Ethernet port
• Reset button
• WPS/ZigBee push button
• Power jack
• Power switch
Physical Specifications
• Dimensions: 7.28" x 4.86" x 1.38"
(185mm x 123.5mm x 35mm)
Power Requirements
• Input: 12V DC, 1.2A
RF Specifications
• Fully IEEE 802.15.4 / ZigBee PRO compliant
• Operating Band: 2.400 - 2.483 GHz
• 16 channels in the 2.4GHz ISM band
• AES-128 hardware supported encryption
Operating Environment
• Operating temperature: 0 – 40°C
• Storage temperature: -20 – 70°C
• Humidity: 20 – 95% non-condensing
Compatible with 3G USB modems
This list is continuously updated at
http://www.billion.com/compatible-3G.html
Features & Specifications
USB2 USB1 WAN Ethernet
3 1 Reset Power ON
OFF
2
ZigBee
Brand Model
Huawei E169, E172, E220, E270, E272
ZTE MF622, MF626, MF636, MF638
NOVATEL NOVATEL MC950D, MC 930D, MC950D
Sierra Aircard 880U, 875U, 885U
* Notes:
1. The 3G / HSDPA data rate is dependent on your local service provider and your 3G / HSDPA modem.
2. A car power cable can be made available as an optional accessory upon request.
3. IPTV applications may require subscribing to IPTV services from a Telco / ISP.
4. Specifications in this datasheet are subject to change without prior notice.
5. By request of the Telco/ISP projects
6. Future release
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
RF Radiation Exposure and Hazard Statement:
To ensure compliance with FCC RF exposure requirements, this device must be installed in a location
such that the antenna of the device will be greater than 20 cm (8 in.) away from all persons. Using highe
r
gain antennas and types of antennas not covered under the FCC certification of this product is not
allowed. Installers of the radio and end users of the product must adhere to the installation instructions
provided in this manual. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Non-modification Statement:
Use only the integral antenna supplied by the manufacturer when operating this device. Unauthorized
antennas, modifications, or attachments could damage the TI Navigator access point and violate FCC
regulations. Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Deployment Statement:
This product is certified for indoor deployment only. Do not install or use this product outdoors.
