Billionton Systems CARMP3O CAR MP3 User Manual CARMP3 QSG 20041014
Billionton Systems, Inc. CAR MP3 CARMP3 QSG 20041014
USERS MANUAL
Caution and Notes before using
• Due to using FM frequency, there may be some additional noise.
• This product does not include any onboard storage
• You need a USB storage device to play mp3 music

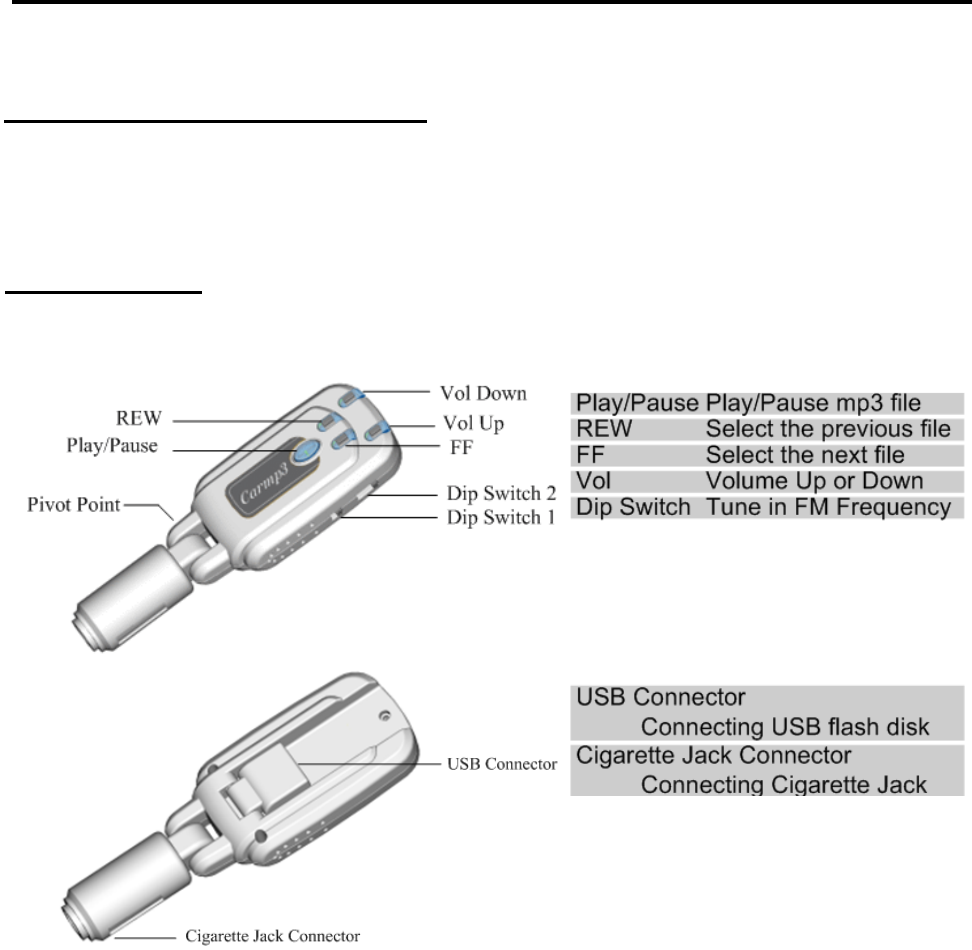

Product Shape
CARMP3
Quick Guide
2
How to play mp3 File with removable USB flash disk device
1. Plug the Carmp3 into the car cigarette jack, the Play/Pause Button of the Carmp3 will
illuminate blue and the other buttons will illuminate orange to indicate that the power is
on.
2. Plug your USB flash disk into the USB connector of the Carmp3 and the Carmp3 will
launch the mp3 music in the USB flash disk automatically with orange blinking.
3. Set your desired FM frequency by switching Dip Switch 1 and 2.
＊Caution : The method of switching Dip Switch refers to “How to tune in FM
frequency of the Carmp3
4. Set the FM channel of the FM radio to the same as the Carmp3.
5. Adjust the volume control of the FM radio or the Carmp3 to the desired listening level.

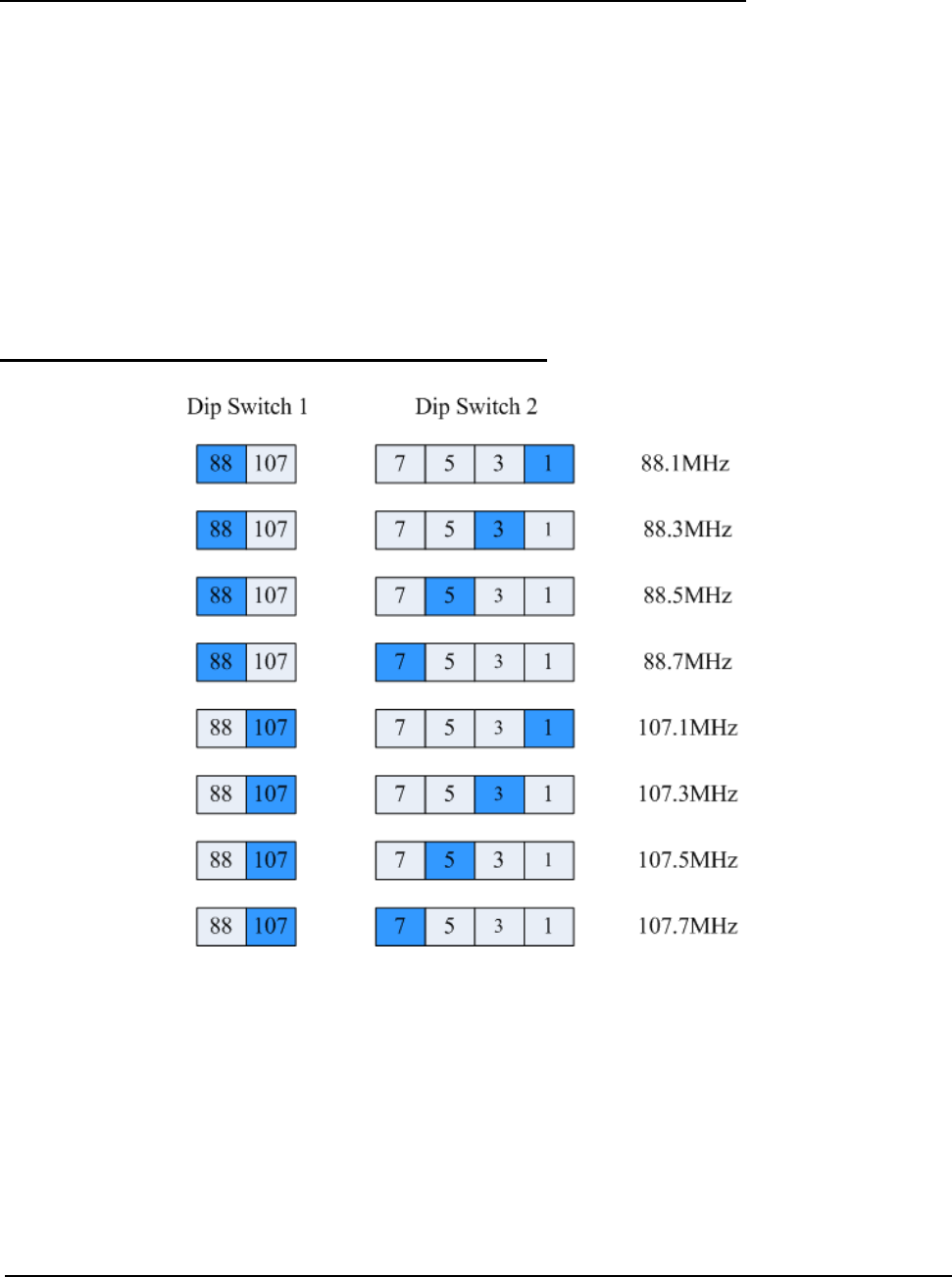

How to tune in FM frequency of the Carmp3
3
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
