Part No. 890034 Form No. F101000A
Page 1 of 12

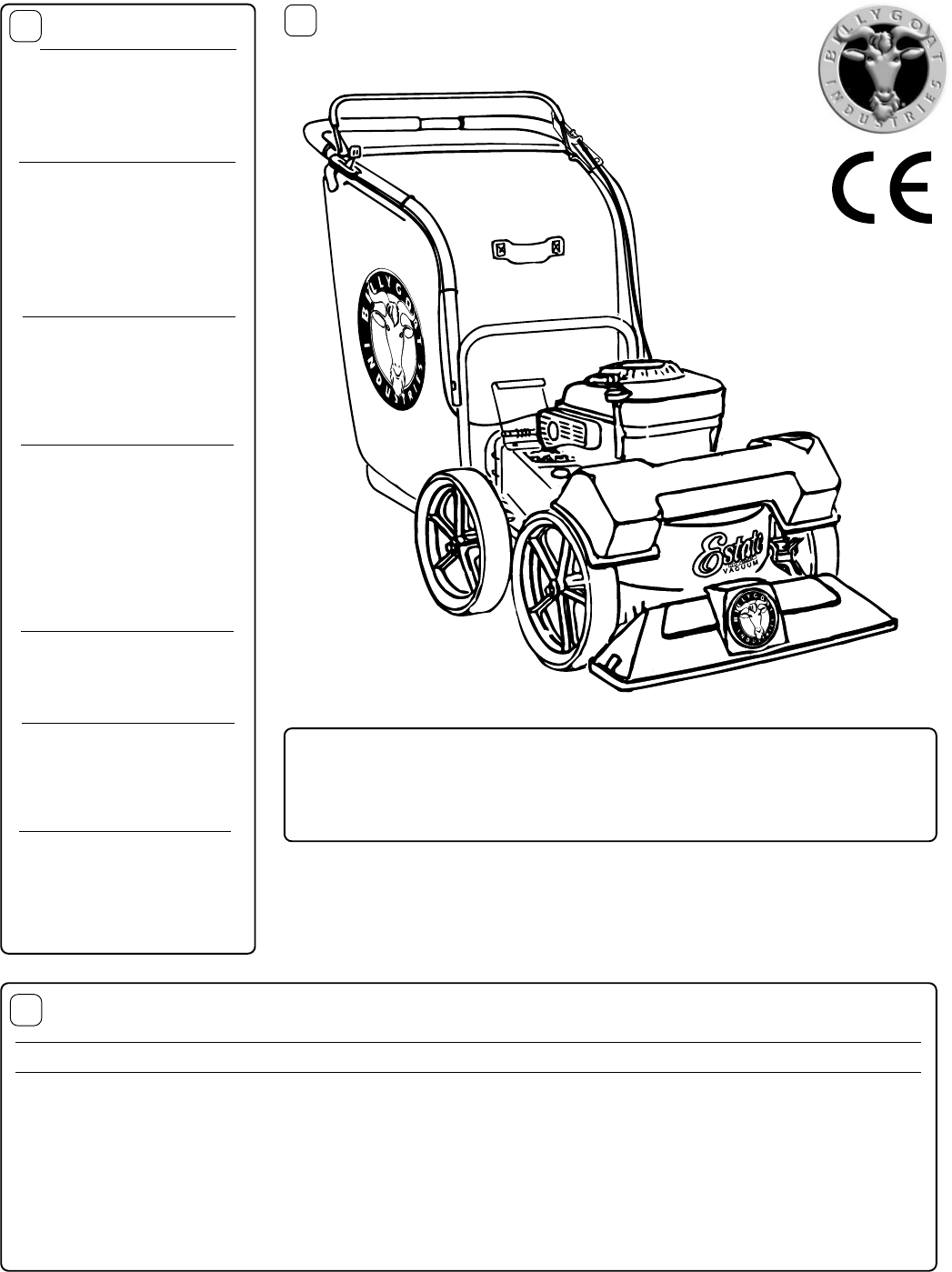

Thank You for Selecting
Operator Owner's Manual
The Powerful
KD or TKD TERMITE
®
SELF PROPELLED VACUUM CHIPPER
UNIT SIZE:
OVERALL LENGTH: 62"(1.57m) OVERALL WIDTH 26.75" (0.68m) OVERALL HEIGHT 42" (1.07m)
1
3
OPTIONAL ACCESSORIES
2
Specifications
PRO FELT BAG
P/N 890023
For use in dusty conditions.
FELT BAG COVER
P/N 900801
Directs dust downward away from
operator.
OPTIONAL DEBRIS BAGS
STANDARD TURF PRO
DEBRIS BAG
P/N 890028.
Standard on TKD models. For
use in leaves and grass in non-
dusty conditions.
NOZZLE WEAR PLATES
P/N 890413.
Extends nozzle life when
used along curbs and hard
surfaces.
HEAVY DUTY VACUUM
HOSE KIT
P/N 900998.
4"(102mm) x 7' (2.13m)
For vacuuming in hard to
reach areas.
SHREDDER KIT
P/N 890209.
Shreds leaves, dramatically
reducing total volume, 12:1.
ZIPPERLESS PRO BAG
P/N 890309
For non dusty conditions that
are damaging to zippers. KD511SP, TKD511SP
KD511SP TKD511SP
ENGINE:H.P. 5.5 (4.1kW) 5.5 (4.1kW)
ENGINE:TYPE B&S DIAMOND I/C B&S DIAMOND I/C
ENGINE:FUEL CAP. 1.5qt. (1.4L) 1.5qt. (1.4L)
ENGINE:OIL CAP. 0.63qt. (0.6L) 0.63qt. (0.6L)
WEIGHT:UNIT 117# (53.1 kg) 133# (60.3 kg)
WEIGHT:SHIPPING 140# (63.5 kg) 156# (70.8 kg)
ENGINE WEIGHT: 26# (11.8 kg) 26# (11.8 kg)
Part No. 890034 Form No. F101000A
Page 2 of 12
IN THE INTEREST OF SAFETY
THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY
DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY.
BEFORE STARTING ENGINE, READ AND UNDERSTAND THE ENTIRE OPERATOR'S MANUAL &
ENGINE MANUAL.
WARNING: DO NOT
1. DO NOT run engine in an enclosed area.
Exhaust gases contain carbon monoxide, an
odorless and deadly poison.
2. DO NOT place hands or feet near moving
or rotating parts.
3. DO NOT store, spill or use gasoline near
an open flame, or devices such as a stove,
furnace, or water heater which use a pilot
light or devices which can create a spark.
4. DO NOT refuel indoors where area is not
well ventilated. Outdoor refueling is recom-
mended.
5. DO NOT fill fuel tank while engine is
running. Allow engine to cool for 2 minutes
before refueling. Store fuel in approved
safety containers.
6. DO NOT remove fuel tank cap while
engine is running.
7. DO NOT operate engine when smell of
gasoline is present or other explosive
conditions exist.
8. DO NOT operate engine if gasoline is
spilled. Move machine away from the spill
and avoid creating any ignition until the
gasoline has evaporated.
9. DO NOT transport unit with fuel in tank.
10. DO NOT smoke when filling fuel tank.
11. DO NOT choke carburetor to stop
engine. Whenever possible, gradually
reduce engine speed before stopping.
12. DO NOT run engine at excessive
speeds. This may result in injury & /or
damage to unit.
13. DO NOT tamper with governor springs,
governor links or other parts which may
change the governed engine speed.
14. DO NOT tamper with the engine speed
selected by the engine manufacturer.
15. DO NOT check for spark with spark plug
or spark plug wire removed. Use an
approved tester.
16. DO NOT crank engine with spark plug
removed. If engine is flooded, place throttle
in “FAST” position and crank until engine
starts.
17. DO NOT strike flywheel with a hard
object or metal tool as this may cause
flywheel to shatter in operation. Use proper
tools to service engine.
18. DO NOT operate engine without a
muffler. Inspect periodically and replace, if
necessary. If engine is equipped with
muffler deflector, inspect periodically and
replace, if necessary, with correct deflector.
19. DO NOT operate engine with an
accumulation of grass, leaves, dirt or other
combustible material in the muffler area.
20. DO NOT use this engine on any forest
covered, brush covered, or grass covered
unimproved land unless a spark arrester is
installed on the muffler. The arrester must
be maintained in effective working order by
the operator. In the State of California the
above is required by law (Section 4442 of
the California Public Resources Code).
Other states may have similar laws. Federal
laws apply on federal lands.
OPERATOR
21. DO NOT touch hot muffler, cylinder, or
fins because contact may cause burns.
22. DO NOT run engine without air cleaner
or air cleaner cover.
23. DO NOT operate during excessive
vibration!
24. DO NOT leave machine unattended
while in operation.
25. DO NOT park machine on a steep grade
or slope.
WARNING: DO
1. ALWAYS DO remove the wire from the
spark plug when servicing the engine or
equipment TO PREVENT ACCIDENTAL
STARTING.
2. DO keep cylinder fins and governor
parts free of grass and other debris
which can affect engine speed.
3. DO pull starter cord slowly until resis-
tance is felt. Then pull cord rapidly to avoid
kickback and prevent hand or arm injury.
4. DO examine muffler periodically to be
sure it is functioning effectively. A worn or
leaking muffler should be repaired or
replaced as necessary.
5. DO use fresh gasoline. Stale fuel can
gum carburetor and cause leakage.
6. DO check fuel lines and fittings frequently
for cracks or leaks. Replace if necessary
7. Follow engine manufacturer operating
and maintenance instructions.
8. Inspect machine and work area before
starting unit.
VIBRATION
SOUND TESTS VIBRATION LEVELS 2.2g
Vibration levels at the operators handles on model
TKD510SP were measured in the vertical, lateral, and
longitudinal directions using calibrated vibration test
equipment. Tests were performed on 05/19/95 under
the conditions listed:
WIND SPEED:
WIND DIRECTION:
HUMIDITY:
TEMPERATURE:
BAROMETRIC PRESSURE:
GENERAL CONDITION:
SOUND
Sound tests conducted were on model
TKD510SP in accordance with 79/113/EEC
and were performed on 05/19/95 under the
conditions listed:
GENERAL CONDITION:
WIND SPEED:
WIND DIRECTION:
HUMIDITY:
TEMPERATURE:
BAROMETRIC PRESSURE:
30.06" Hg (763mm Hg)
67 %
South
5 MPH (8.0 kmh)
62 F (16.7 C)
Sunny
30.06" Hg (764mm Hg)
67 %
South
5 MPH (8.0 kmh)
62 F (16.7 C)
Sunny
5
6
8
7
SAFETY INSTRUCTIONS
GENERAL SAFETY
ASSEMBLY
PARTS BAG & CONTROLS
LABELS

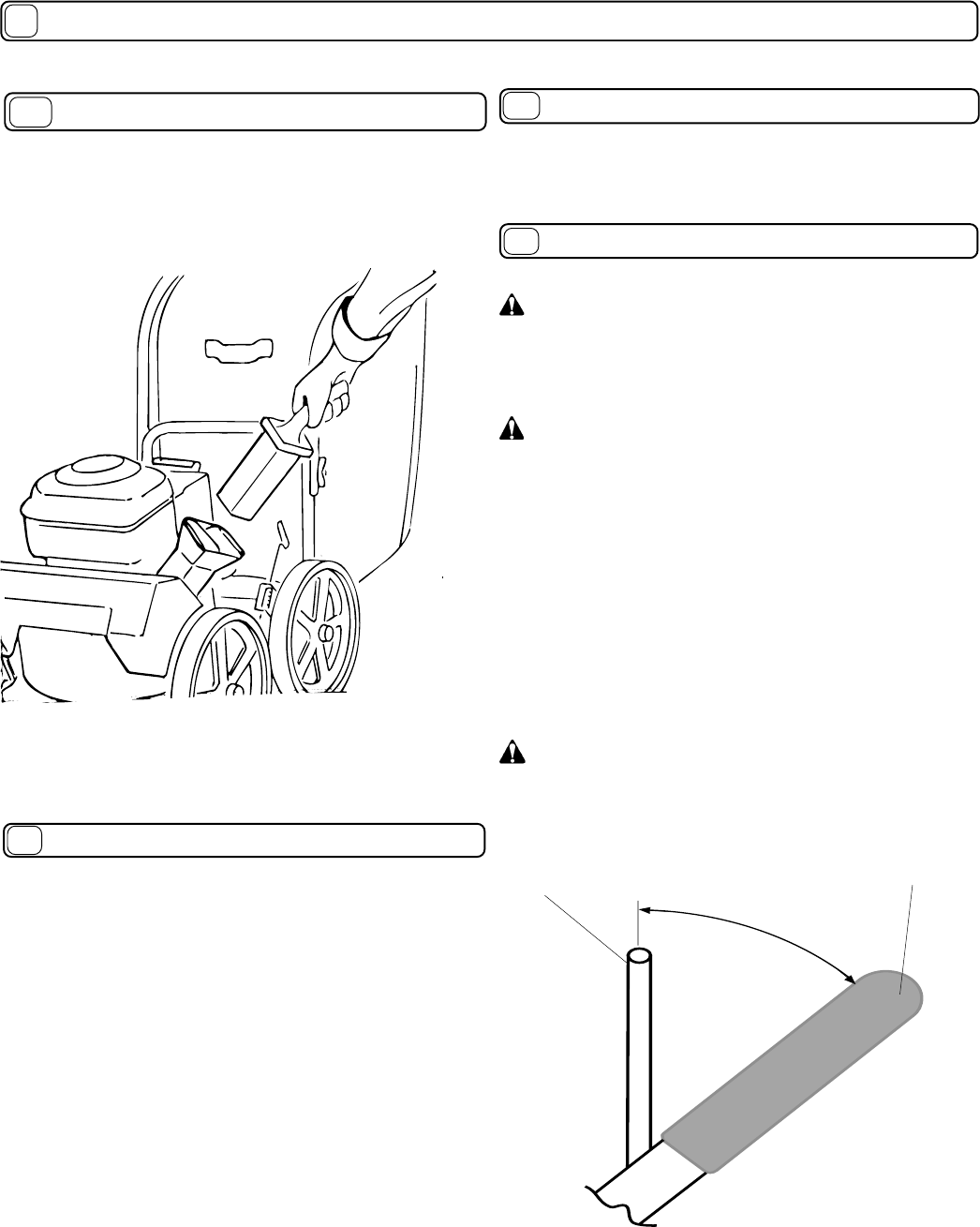

OPERATION

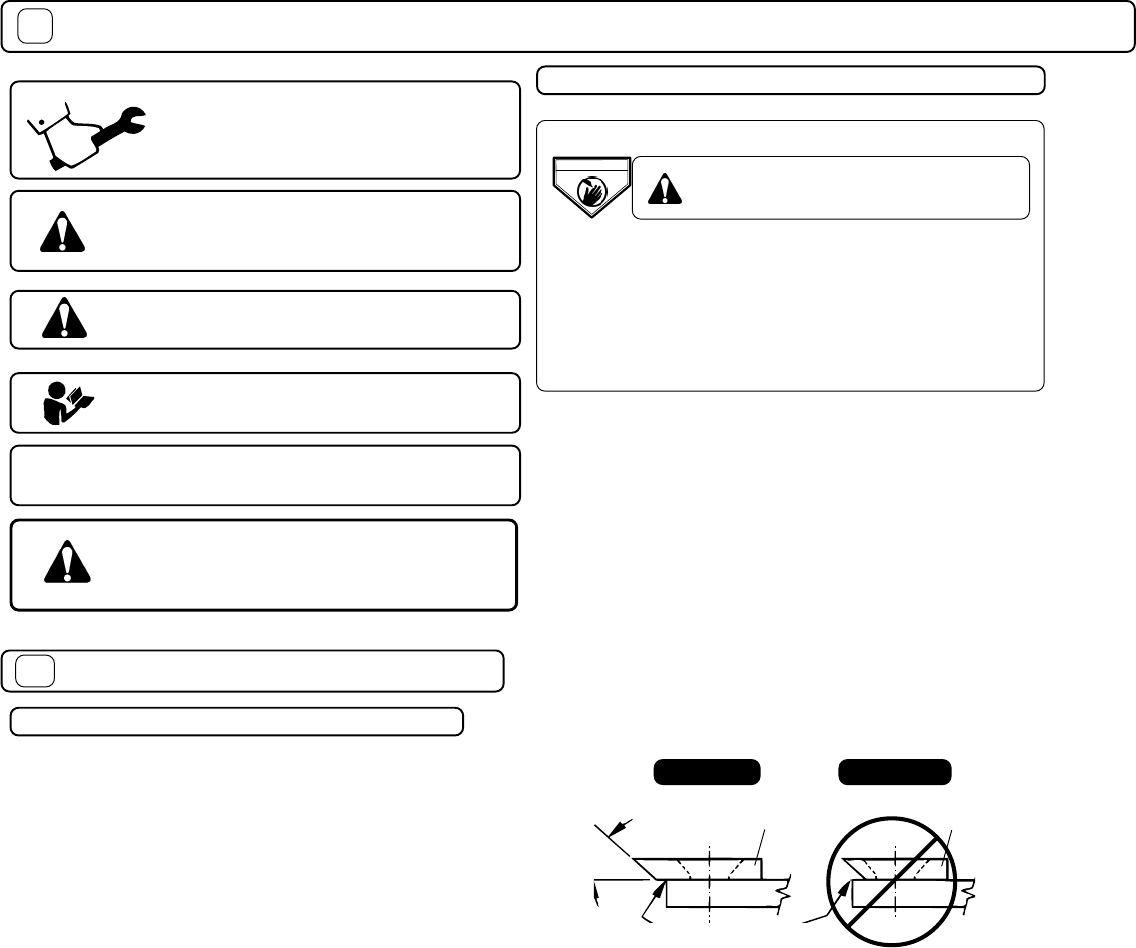

MAINTENANCE

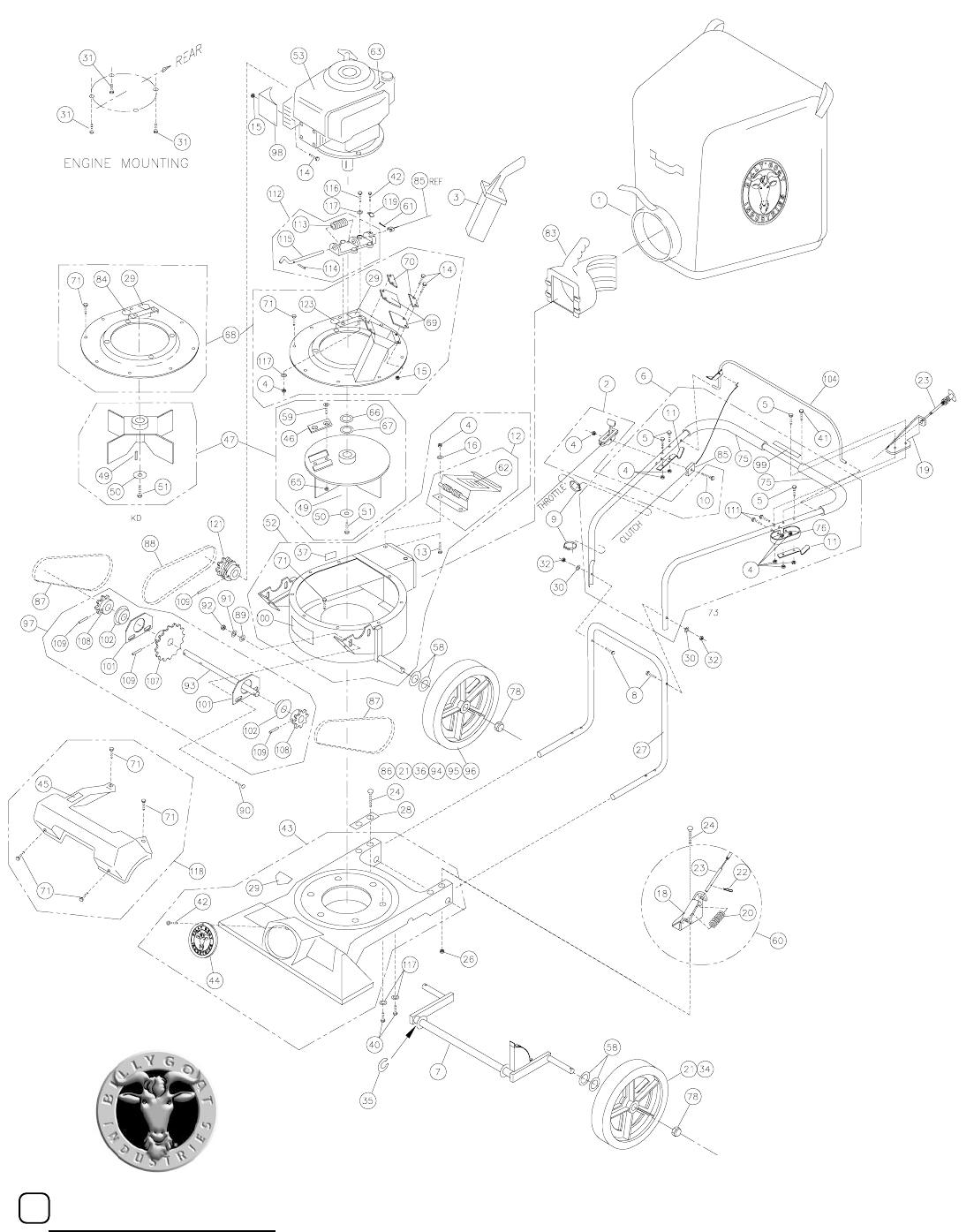

PARTS DRAWING & LIST
TROUBLESHOOTING
WARRANTY PROCEDURE
8 - 9
12
12
5 - 7
4
4
3
3
2
TABLE OF CONTENTS
10 - 12
WARNING: The Engine Exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects or other reproductive harm.
95
L
A
L
A
p
109
The Briggs and Stratton engine on this equipment cannot be sold in the state of California
Part No. 890034 Form No. F101000A
Page 3 of 12
PUT OIL IN ENGINE BEFORE STARTING
Read all safety and operating instructions
before assembling or starting this unit.
Debris Bag
890022 KD
890028 TKD
Check
These items should be included in your carton. If any
of these parts are missing, contact your dealer.

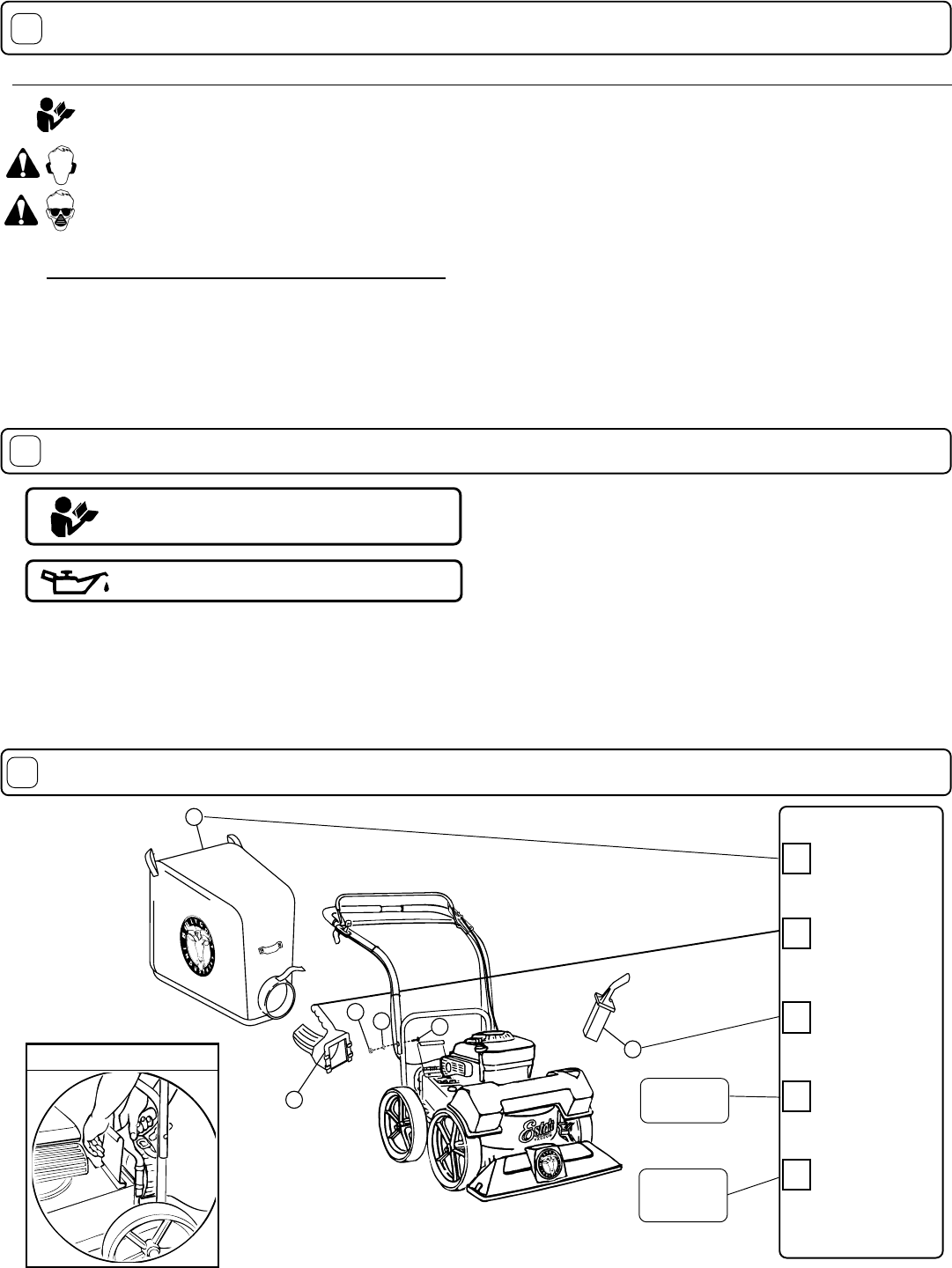

ASSEMBLY
PACKING CHECKLIST
Fig. 2
GENERAL SAFETY
For your safety and the safety of others, these directions should be followed:
Use of Ear Protection is recommended while
operating this machine.
Use of Eye and Breathing protection is recom-
mended when using this machine, especially in dry
and dusty conditions. Optional bag cover directs dust
toward ground, away from the operator.
·DO NOT place hands or feet inside nozzle intake opening,
near debris outlet or near any moving parts.
·DO NOT start engine without debris bag and quick discon-
nect connected firmly in place to exhaust outlet.
·DO NOT start or operate machine with debris bag zipper
open.
Check
Tamper
(TKD MODELS ONLY)
890229
QUICK DISCONNECT
·DO NOT operate during excessive vibration.
·DO NOT remove bag until engine has been turned off and has
come to a complete stop.
·DO NOT remove hose kit cap on nozzle until engine has been
turned off and has come to a complete stop.
·DO NOT operate machine with hose cap, bag or hose removed.
·DO NOT use this machine for vacuuming exclusively sand,
dust, fine dirt, rock, glass, string like material, grain, rags,
cans, metal, bark or water.
·DO NOT operate this machine on slopes greater than 20%.
·DO NOT pick up any hot or burning debris, or any toxic or
explosive material.
·DO NOT allow children to operate this equipment.
9
10
11
Do not operate this machine without first reading
owner's manual and engine manufacturer's manual.
Your Billy Goat is shipped from the factory in one carton,
completely assembled except for the upper handle, debris
bag, and bag quick disconnect.
1. ASSEMBLE Lift upper handle (item 6), remove items 8, 73, 74, & 30
from lower handle (item 27). Attach upper and lower handle as shown,
and securely tighten folding handle knobs(item 73),while holding head of
screw(item 8) firmly against upper handle.
2. UNFOLD the debris bag (item 1) and fasten bag neck to bag quick
disconnect (item 83). Attach firmly to housing exhaust (item 52) see fig. 2.
3. ATTACH bag hanger strap to bag supports (item 11), preassembled to
upper handle.

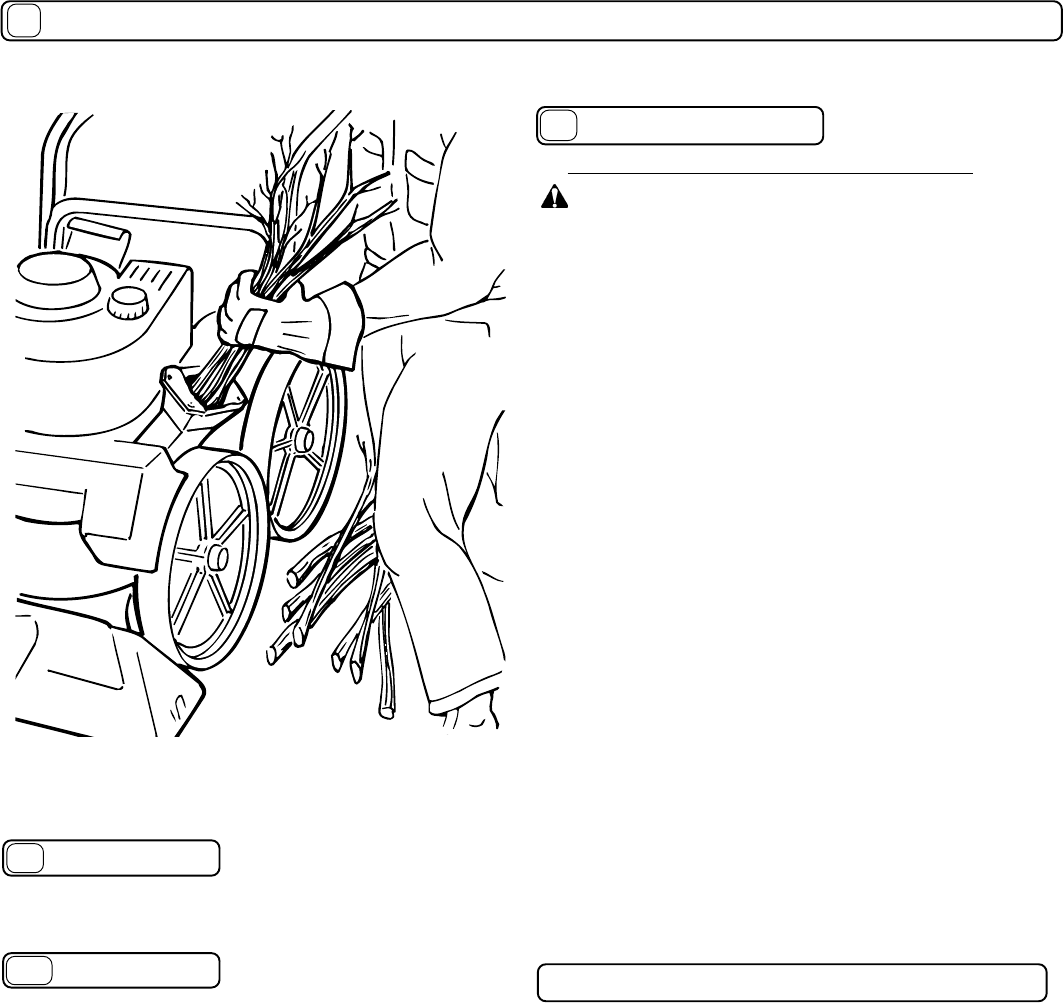

4. INSTALL tamper (item 3) in chipper hopper (see page 7)(TKD ONLY).
5. CONNECT spark plug wire.
Literature
Assembly
Literature Assy
890423
Check
Check
Connector
Quick Disconnect
890176
Check
Briggs & Stratton
Engine
Manual
MS0986 Multi-Language
and 273125 English
1
32 30
64
8
3
Part No. 890034 Form No. F101000A
Page 4 of 12
Owner's
Manual
Literature
KD / TKD
Accesso-
ries
Check
Owner's
Manual
890034
Literature
KD / TKD
Accesso-
ries 890409
Check
Literature Checklist
Check
EU Declaration of
Conformity & EU
Distributor List
890393
EU Declaration
of Conformity
& EU
Distributor List
CONTROLS

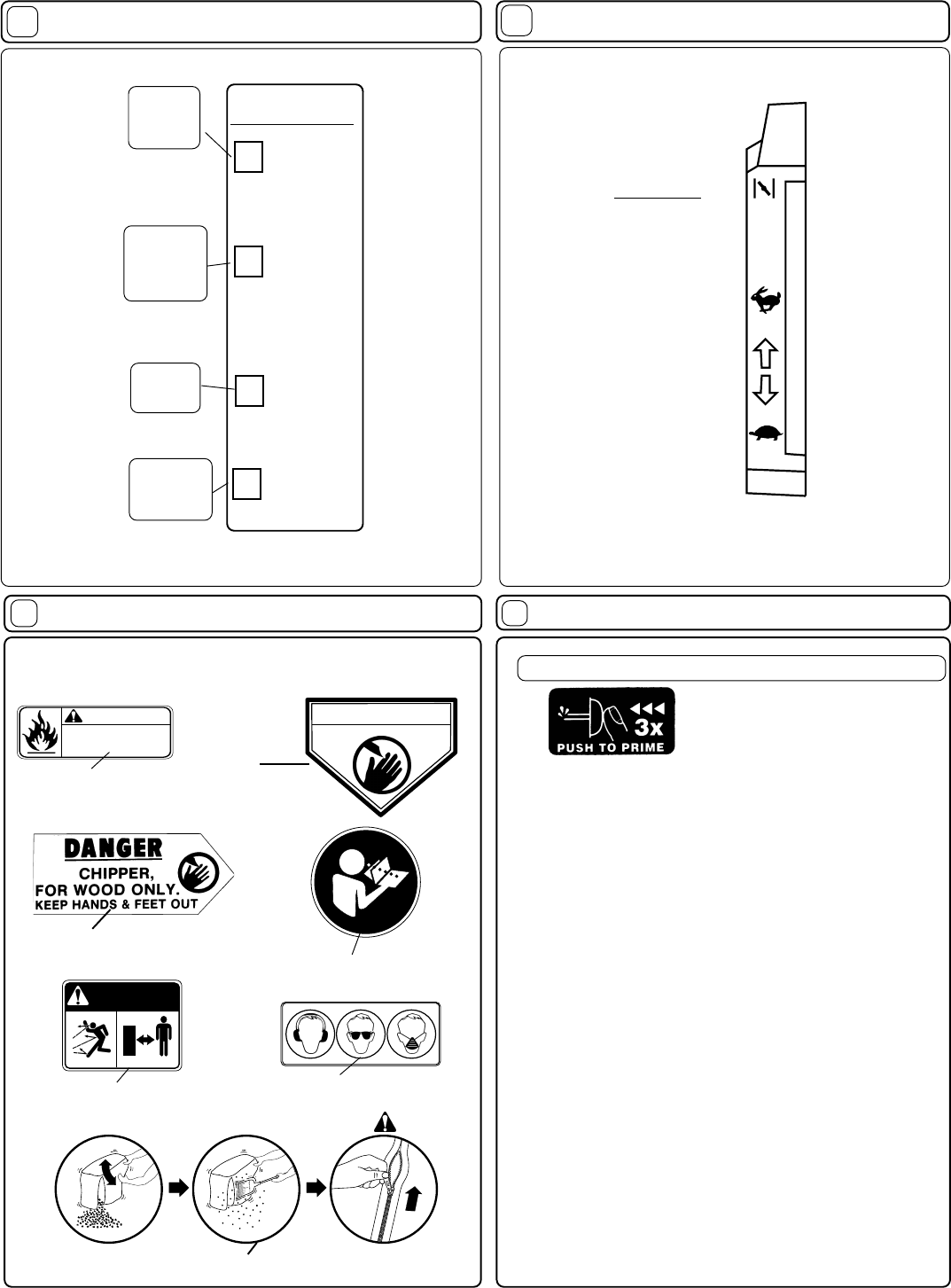

These labels should be included on your Vacuum. If any of these
labels are damaged, replace them before putting this equipment
into operation. Item and part numbers are given to help in ordering
replacement labels..
Label Danger Chipper For Wood
Only Item 48 Part No. 890152
(TKD MODELS ONLY)
Label Danger
Keep Hands
and Feet
Away
Item 29 Part
No.400424
Label Do Not Fill While
Engine Is Hot
Item 63 Part No.400268
12
14 15
1313
1313
13
LITERATURE ASSY P/N 890423
INSTRUCTION LABELS ENGINE LABELS
Briggs & Stratton
Label Danger Flying Material
Item 62 Part No.810736
Label Read Owner's
Manual Item 84
Part No.890301
Label Ear Eye Breathing
Item No. 86 Part No.
890254
Debris Bag
Label item 1
Warranty
Card
Check
Warranty
Card 400972
Throttle
Control
Start
position
Briggs
engines have
a primer
button
carburetor
with no choke.
Stop
position
EXPLOSIVE FUEL
STOP ENGINE AND ALLOW T O
COOL BEFORE REFUELING.
400268
WARNING
DANGER
DANGER
KEEP HAN DS and FEET AW AY
KEEP HANDS and FEET AWAY
890254
DANGER
810736
C
H
O
K
E
FAST
SLOW
STOP
Part No. 890034 Form No. F101000A
Page 5 of 12
VACUUM NOZZLE HEIGHT ADJUSTMENT: is
raised and lowered by pulling slightly upward on handle and
pulling height adjust rod (item 23) up at left rear of machine.
FOR MAXIMUM PICKUP: Adjust nozzle close to
debris, but without blocking airflow into the nozzle.
NOTE
: Never
bury nozzle into debris.
CLEARING A CLOGGED NOZZLE
& EXHAUST: Turn engine off and wait for impeller to
stop completely and disconnect spark plug wire.
Wearing durable gloves, remove clog.
Danger, the clog may contain sharp materials. Reconnect
spark plug wire.
ENGINE: See engine manufacturers instructions
for type and amount of oil and gasoline used.
Engine must be level when checking and filling oil and
gasoline.
ENGINE SPEED: Controlled by throttle lever on the handle.
Under normal conditions, operate at minimum throttle to
accomplish your current cleaning task.
FUEL VALVE: Move fuel valve to "ON" position (when
provided on engine).
CHOKE: Operated with throttle control (Honda only).
PRIMER: Push primer per engine instructions ( B&S only).
THROTTLE: Move remote throttle control to fast position.
Pull starting rope to start engine.
IF YOUR UNIT FAILS TO START:
See Troubleshooting on page 12.
INTENDED USE: This machine is designed for vacuuming
leaves, grass clippings and other types of organic litter and
for chipping brush, limbs, corn and sunflower stalks and
palm fronds.
Debris mixed with cans, bottles and small amounts of sand
can be vacuumed; however, it is not this machine's primary
purpose. Vacuuming cans, bottles and sand will affect the
longevity of your machine.
PUT OIL IN ENGINE BEFORE STARTING.
Inspect machine work area and machine before operat-
ing. Make sure that all operators of this equipment are
trained in general machine use and safety.
Do not operate if excessive vibration occurs. If excessive
vibration occurs, shut engine off immediately and check for
damaged or worn impeller, loose impeller bolt, loose impeller
key, loose engine or lodged foreign objects. Note: See parts list
for proper impeller bolt torque specifications. (See trouble
shooting section on page 12).

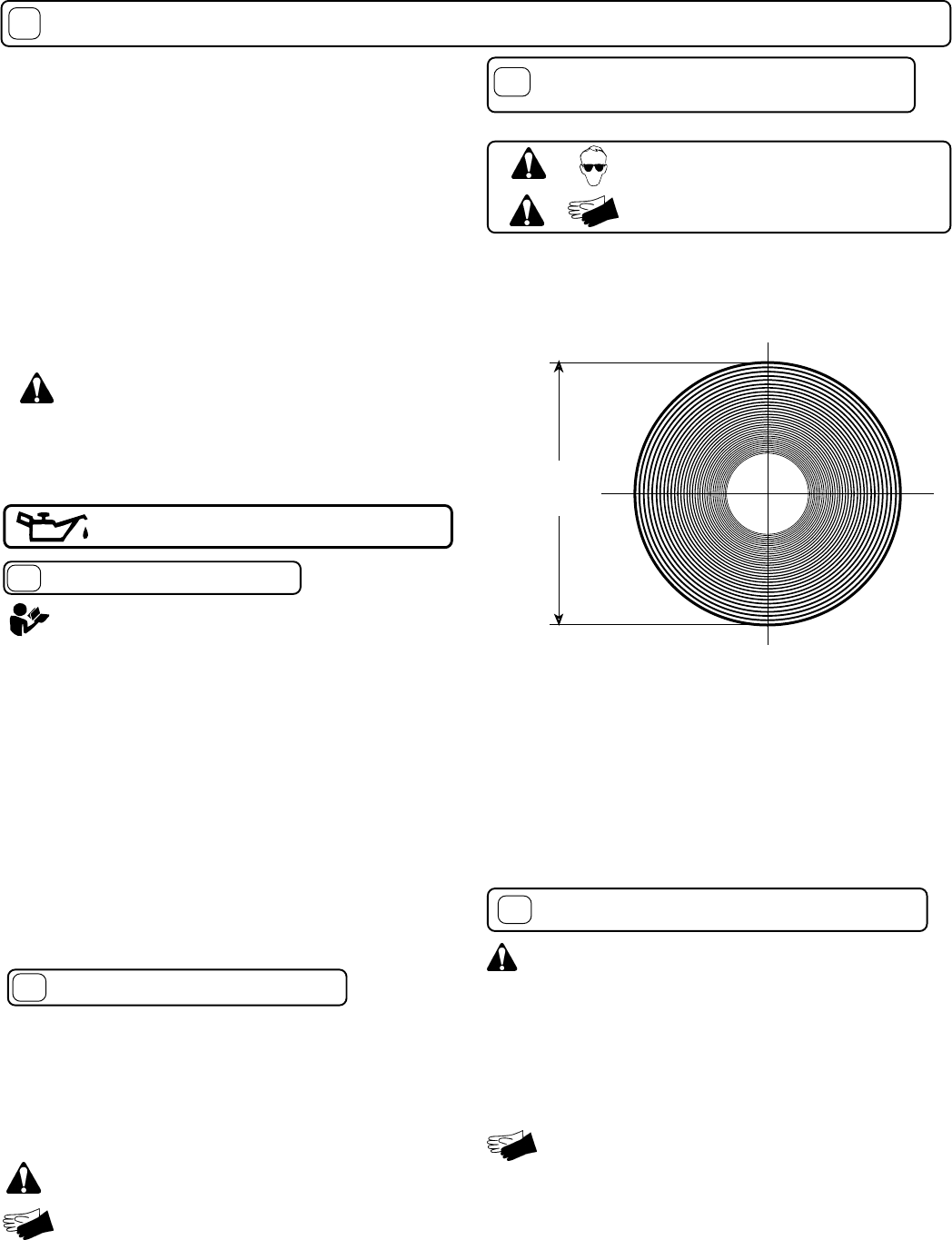

16 OPERATION
STARTING16.1
VACUUMING OPERATION
16.2
Like all mechanical tools, reasonable care must
be used when operating machine.
Wearing Eye Protection and Durable
Gloves is recommended while operating
chipper.
Use caution when using chipper
Your
TERMITE
® chipper is designed to process tree branches
and limbs up to 2" (50.8mm) diameter.
Several small branches can be grouped together and fed
together into the chipper (see fig 2.).
When feeding forked branches, squeeze forks together and feed
into chipper entrance (DO NOT overload). If forks are too large,
use a pair of loppers to trim forks down to size. A lopper
storage bracket is provided on every unit (loppers are not
included)
CLEARING A CLOGGED CHIPPER HOPPER-TKD ONLY
16.4
Under normal circumstances, allow time for machine
to clear all wood from chipper hopper before stopping
engine. Otherwise, remaining pieces of wood will jam
inside of chipper when engine stops. (See Tamper page 7).
Disconnect spark plug wire.
Remove debris bag quick disconnect from debris outlet on
machine.
Wearing durable gloves, access impeller through
debris outlet on fan housing and rotate impeller
counter clock wise to dislodge and remove jam and
remove debris from hopper with tongs or equivalent.
Reconnect debris bag quick disconnect to machine.
Reconnect spark plug wire.
16.3 CHIPPING OPERATION
(TKD MODLES ONLY)
2 " (
50.8 mm
)
Maximum
Diameter
Part No. 890034 Form No. F101000APage 6 of 12
OPERATION continued
16
Note: Frequently empty debris to prevent bag overloading with
more weight than you can lift.
An optional bag and dust cover is available for use where debris will be
vacuumed in dusty conditions (see Optional Accessories shown on
page 1).
DO NOT place bag on or near hot surface, such as engine. Run
engine at 1/2 throttle for first 1/2 hour to condition new bag. Your
new bag requires a break-in period to condition the pores of the
material against premature blockage. The entire bag surface
serves as a filter, and must be able to breath to have good vacuum
performance.
Be sure engine has come to a complete stop before removing
or emptying bag.
This vacuum is designed for picking up trash, organic
material and other similar debris (see Safety Warnings page 2-3).
However, many vacuums are used where dust is mixed with
trash. Your unit can intermittently vacuum in dusty areas. Dust
is the greatest cause of lost vacuum performance. However,
following these rules will help maintain your machine's ability to
vacuum in dusty conditions:
Run machine at idle to quarter throttle.
The debris bag must be cleaned more frequently. A vacuum
with a clean, pillow soft bag will have good pickup performance.
One with a dirty, tight bag will have poor pickup performance. If
dirty, empty debris and vigorously shake bag free of dust.
Pressure-wash debris bag if normal cleaning does not fully
clean bag. Bag should be thoroughly dry before use.
Having one or more spare debris bags is a good way to reduce down time
while dirty bags are being cleaned.
DO NOT leave debris in bag while in storage.
Debris bags are normal replaceable wear items.
DEBRIS BAG
16.7
Wood chips made from branches in your own yard make excel-
lent mulch. A thick blanket of wood chips around plants and
flowers to keeps weeds out and moisture in.
Vacuumed leaves, grass and other organic material from your own
yard can be emptied into a pile or composter to provide enriched
soil for later use as fertilizer in gardens and flower beds.
Note: Allow green chips to dry before spreading around living
plants.
MULCH
COMPOST
16.5
16.6
(fig. 2) Note: Dry wood is
harder to chip than
green wood.
ENGINE
When servicing engine refer to specific manufacturers engine
owner's manual. All engine warranty is covered by the specific
engine manufacturer. If your engine requires warranty or other
repair work contact your local servicing engine dealer. When
contacting a dealer for service it is a good idea to have your
engine model number available for reference(See table page 11).
If you can not locate a servicing dealer in your area you can
contact the manufacturers national service organization.
To reach:
Briggs & Stratton: 800-233-3723 Fax: 414-259-5249
Part No. 890034 Form No. F101000A
Page 7 of 12
Before turning machine off, use the Tamper to slowly push
remaining pieces of wood through the chipper. This can
prevent any remaining wood from jamming in the chipper when
machine is turned off.
Do not leave tamper on the ground, store tamper in the chipper
hopper.
Using two people to lift machine is recommended. Lift holding the
handle and front of nozzle. Secure in place during transport.
Never store engine indoors or in enclosed poorly ventilated
areas with fuel in tank, where fuel fumes may reach an open
flame, spark or pilot light, as on a furnace, water heater, clothes
dryer or other gas appliance.
If engine is to be unused for 30 days or more, prepare as
follows:
Be sure engine is cool. Do not smoke. Remove all
gasoline from carburetor and fuel tank to prevent gum deposits
from forming on these parts and causing possible malfunction of
engine. Drain fuel outdoors, into an approved container, away
from open flame. Run engine until fuel tank is empty and
engine runs out of gasoline.
NOTE: Fuel stabilizer (such as Sta-Bil) is an acceptable
alternative in minimizing the formation of fuel gum deposits
during storage. Add stabilizer to gasoline in fuel tank or storage
container. Always follow mix ratio found on stabilizer container.
Run engine at least 10 min. after adding stabilizer to allow it to
reach the carburetor.
Do not store with debris in bag.
16.11
OPERATION continued
TAMPER-TKD ONLY
16.8
16
HANDLING & TRANSPORTING:
STORAGE
16.4
Tamper Storage Position
GROUND SPEED can be varied by applying slight downward
pressure to handle during operation (to allow drive wheels
partial slippage) or by changing the engine rpm.
For improved control in confined areas, this machine can be
freewheel pushed forward or backward by releasing the
operator's bail and pushing machine.
This vacuum is self-propelled. To engage the drive, pull
operator's bail against operator's handle. The drive is disen-
gaged by releasing the operator's bail.(See figure at right)
PROPULSION
16.9
Handle
Bail
Bail
Down
Engages
Drive
Bail Up
Disengages
Drive
Part No. 890034 Form No. F101000A
Page 8 of 12

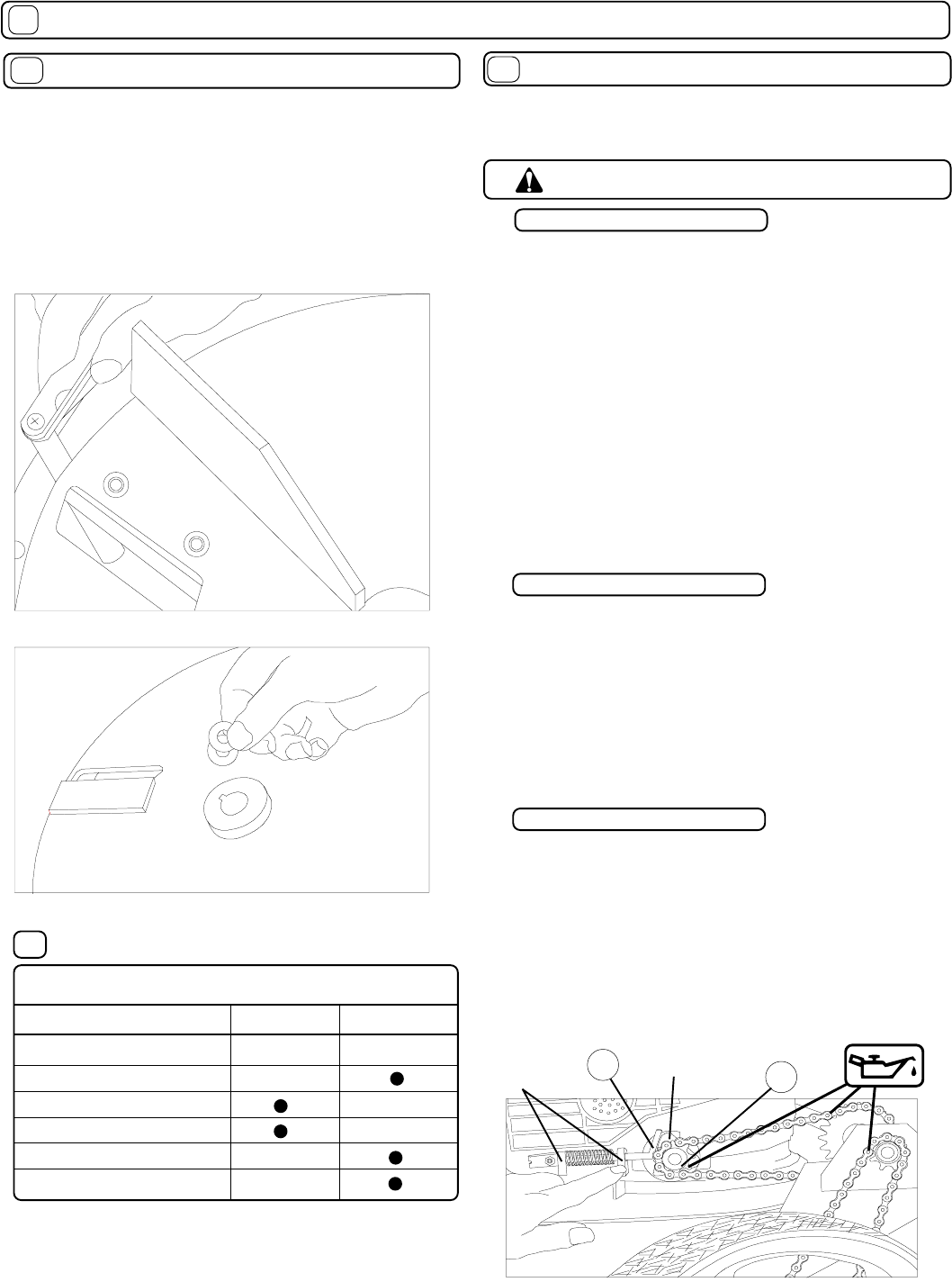

MAINTENANCE
CHIPPER BLADE REMOVAL AND SHARPENING-TKD ONLY
Depending on the type and amount of wood being chipped, the
chipper blade will eventually get dull, losing its cutting ability.
Evidence of a dull blade is a noticeably reduced chipping ability or a
rough cut on end of branch.
Note: The chipper blade gap is factory set and should be checked
each time impeller is removed from engine crankshaft and reset if
required. If reassembly requires a different quantity of shim washers,
Billy Goat® shim washer must be used.
Chipper blades are normal replaceable wear items.
DANGER Chipper blade is sharp.
Replace any damaged blade.
10. Using a 3/16" Allen wrench and 1/2" open end wrench, remove
chipper blade from impeller.
11. Sharpen blade by lightly grinding the cutting edge of the blade
at 40 degrees (see fig. 5). It is not necessary to remove all nicks
from the cutting edge.
CAUTION:
Be careful to avoid heat buildup
in the blade during sharpening. This will reduce its heat- treated
hardness properties and will reduce blade life. Evidence of too
much heat build-up is a change of color along sharpened edge.
12. The same chipper blade can be sharpened several times.
However, blade replacement is required when blade no longer
overhangs the chip relief hole in impeller back plate or if increased
vibration occurs (see fig. 5).
13. Chipper blade installation is in reverse order of removal.
40o
Blade Blade
INCORRECTCORRECT
14. To reinstall impeller, use a new impeller bolt and lockwasher
and use exactly the same crankshaft impeller shim washers as
were removed during disassembly (unless they were damaged).
Note:
your unit may or may not have required the use of shim
washers
.
15. Tighten impeller bolt. Torque impeller bolt to 50 Ft. Lbs. (68 N.m)
(see item 51 on page 11).
16. Slowly rotate impeller to insure proper chipper blade clearance.
Check to see that gap between chipper blade and anvil surface (on
lower side of housing top plate) measures between
0.040"(1.02mm) and 0.080"(2.03mm).
17. If gap is less than 0.040"(0.51mm), add shim washer 890130
(0.060"{1.52mm} thick) and/or 890131 (0.020"{1.02mm} thick),
whichever is required. If gap is more than 0.080"(2.03mm), remove
one or more shim washers as needed to obtain correct gap (see fig.
6 & fig. 7). The chipper will function at up to a maximum of
0.125"(3.18mm) gap.
EDGE OF CHIP
RELIEF HOLE
Fig. 5
IMPELLER REMOVAL and CHIPPER ADJUSTMENT
1. Wait for engine to cool and disconnect spark plug.
2. Drain fuel and oil from the engine.
3. Remove bag, quick release, and upper handle. Do not kink,
stretch, or break control cables, control housings, or end fittings while
removing handles.
4. Remove housing top plate by removing bolts around outside of
housing.
5. Leaving engine fastened to top plate, remove impeller bolt and
lock washer and slide impeller off crankshaft ( A puller may be
required).
6. Retain shim washers used at end of crankshaft for use at impeller
reinstallation (see fig. 7). However, your unit may or may not have
required the use of shim washers.
7. If impeller slides off freely, proceed to (step 11 or step 15).
(Do not drop impeller).
8. If impeller does not slide off crankshaft, place two crowbars
between impeller and housing on opposite sides. Pry impeller away
from engine until it loosens.
Using a penetrating oil can help loosen a
stuck impeller.
9. If the impeller cannot be loosened, obtain a 1 (25.4mm) longer
bolt of the same diameter and thread type as the impeller bolt. Invert
engine and impeller and support engine above ground to prevent
recoil damage. Thread longer bolt by hand into the crankshaft until
bolt bottoms. Using a suitable gear or wheel puller against the bolt
head and the impeller back-plate (near the blades), remove impeller
from shaft.
IMPELLER REMOVAL
Use only a qualified mechanic for
any adjustments, disassembly or
any kind of repair .
DISCONNECT SPARK PLUG WIRE
BEFORE SERVICING UNIT.
WARNING: TO AVOID PERSONAL INJURY, ALWAYS
TURN MACHINE OFF, MAKE SURE ALL MOVING
PARTS COME TO A COMPLETE STOP.
RECONNECT SPARK PLUG WIRE,
GUARDS, BAG, CAPS AND / OR
HOSE BEFORE STARTING ENGINE.
ENGINE: See engine manufacturer
operator's instructions.
DEBRIS BAG: See page 6.
17.1
17
DANGER
DANGER
KE EP HA N DS and FE E T AW AY
KEEP HANDS and FEET AWAY
Part No. 890034 Form No. F101000A
Page 9 of 12
MAINTENANCE continued
IMPELLER REMOVAL continued
18. If chipper blade properly clears anvil surface, proceed to step .
If not, return to (step 14) and add or subtract shim washers as
needed to obtain a correct gap.
19. Reinstall engine and impeller onto housing in reverse order
of removal.
20. Before connecting spark plug wire, slowly pull engine
starting rope to insure that impeller rotates freely.
21. Reinstall spark plug wire.
fig. 7
17
Engine (See Engine Manual)
Check for excessive vibration
Clean Debris Bag
Check bag strap tightness
Inspect for loose parts
Maintenance Operation
Follow these hourly
maintenance intervals.
Maintenance Schedule
Inspect for worn or damaged parts
Every 5 hrs
or (Daily)
Every
Use
17.2
fig. 8
Rod
Control
Bracket Clutch 121
Triangular
Plate
The clutch control cable is pre-adjusted at the factory, so when
the bail is released, rod (item 115), engages clutch assembly
(item 121), to stop forward drive motion and allow forward and
backward free-wheeling. When the bail is held against handle,
the clutch rod moves away from clutch assembly to allow drive
engagement.
If drive will not disengage, adjust and align control bracket so that
rod (item 115) fully contacts triangular plate on clutch assembly
when bail is released (see fig. 8).
See lubrication intervals on Maintenance Schedule.
1. Remove chainguard (item 118) and 3 screws (item 81 & 71).
2. Inspect chains (items 87 & 88), for wear, (see chain replace-
ment), lubrication and correct adjustment.
3. If adjustments are required, loosen 4 carriage bolts (item 90),
that hold bearing brackets for jackshaft assembly.
4. Adjusting all (3) chains at same time is necessary and can be
done by pulling jackshaft (item 93), up and forward.
5. Tension chains - similar to bicycle chain tightness with
about 1/8 (3.2mm) deflection with light hand pressure mid-
way between sprockets. A slightly loose chain is better than an
over tightened chain. DO NOT over tighten.
6. With chains aligned and tensioned, and jackshaft (item 93),
square and level, tighten carriage bolts (item 90).
7. Completely rotate drive wheels around several times to
insure there are no excessively tight areas in the chain.
8. Repeat steps 4 thru 7 if chains need readjustment.
9. Reinstall chainguard (item 118).
1. With chain guard removed, loosen carriage bolts (item 90),
that hold jackshaft (item 93), and bearing plates (item 101).
2. To replace inner chain (item 88), remove jackshaft
assembly and install replacement chain.
3. To replace wheel chains (item 87), slide bearing plates
(item 101), toward engine to loosen chains. Remove front wheels.
Reinstall replacement chains with wheels and onto
jackshaft sprockets.
4. See steps 4 thru 7 for chain alignment and adjustment.
5. Reinstall chainguard (item 118).
CLUTCH ADJUSTMENT
CHAIN ADJUSTMENTS
CHAIN REPLACEMENT
DRIVE
Chains are normal replaceable wear items. A new chain
should not be used on worn sprockets. Sprockets should be
replaced when replacing chains.
Stop engine and disconnect spark plug
wire before making adjustments.
17.3
115
17.1
fig. 6
Part No. 890034 Form No. F101000A
Page 10 of 12
18
PARTS DRAWING
KD511SP, TKD511SP
Part No. 890034 Form No. F101000A
Page 11 of 12
19
* Denotes
standard
hardware
item that
may be
purchased
locally.
ITEM
NO. Description
KD511SP
Part No. Qty.
TKD511SP
Part No. Qty.
1 Debris Bag Turf (service) 890023 1 890028 1
2 Throttle Assembly (INCL. 1 ea. 4,10) 900514-04 1 900514-04 1
3 Tamper - - 890229 1
4 Nut Lock (1/4 - 20) *8160001 10 *8160001 12
5 Screw Cap (1/4 - 20 x 1- 1/2 HEX) *8041008 4 *8041008 4
6 Handle Assy' (incl. items 4(6), 5(4), 11(2), 75(2), 76 & 99) 900057 1 900059 1
7 Axle Rear - Frame W.A. 890389 1 890389 1
8 Screw Handle 5/16 - 18 x 1-3/4 *8041031 2 *8041031 2
9 Clamp Cable Plastic 1" 900813 2 900813 2
10 Screw Cap (1/4 - 20 x 2- 1/4) *8041011 1 *8041011 1
11 Bar Support Bag 900039 2 900039 2
12 Door Exhaust Assy' (incl. item 62) 890148 1 890148 1
13 Bolt - Carriage 1/4 x 3/4 8024021 2 8024021 2
14 Screw Cap #10 - 24 x 5/8 *8059135 4
15 Nut Lock #10 NC *8164005 4
16 Washer 1/4 FC ZP *8171002 2 *8171002 2
17
18 Bracket - Height Adjustment 890021 1 890021 1
19 Plate Upper height Adjustment 890005 1 890005 1
20 Spring 900136 1 900136 1
21 Tire - Only (per assy') Treaded 900659 1 900659 1
22 Pin - Hair Cotter 900471 1 900471 1
23 Cable Height Adjustment 890019 1 890019 1
24 Bolt - Carriage 5/16 - 18 x 4-1/2 *8024054 4 *8024054 4
25
26 Nut Lock 5/16 - 18 HEX *8160002 4 *8160002 4
27 Handle Lower 890346 1 890346 1
28 Plate Handle Support 900933 1 900933 1
29 Label Danger Cut Finger - - 400424 2
30 Washer Flat Cut 5/16 *8171003 2 *8171003 2
31 Screw Cap 3/8 - 16 x 2-1/2 Washer Face 900564 2 900564 2
32
33
34 Wheel Ass'y Cast (incl. items 21) treaded 900760 2 900760 2
35 Washer 0.75 "C" 900997 0-1 900997 0-1
36
37 Label Ear Eye Breathing 890254 1 890254 1
38
39
40 Screw Cap 1/4 - 20 x 1-1/4 *8041007 4 *8041007 4
41 Screw Cap 1/4 - 20 x 1-3/4 *8041009 1 *8041009 1
42 Screw Self Tapping 10 - 24 x 1/2 *8123086 2 *8123086 2
43 Nozzle Frame (incl. one of items 29,44,42,55,64) 890391 1 890391 1
44 Plug 900146 1 900146 1
45 Label Oil Chain 830502 1 830502 1
46 Blade Chipper - - 890101 1
47 Impeller Ass'y (incl items 46, 49, 50, 51, 59, 65, 66, 67) - - 890208-S 1
Impeller Ass'y (incl items 49, 50, 51) 900342 1 - -
48 Label Chipper - - 890152 1
49 Key 3/16 Sq. x 1.25 9201080 1 9201080 1
50 Washer Lock 3/8 Twisted Tooth 400502 1 400502 1
51 Screw Cap 3/8 - 24 x 2" (Torque 50 ft.lbs (68 Nm)) - - 810962 1
Screw Cap 3/8-24 x 1 1/2" (Torque 50 ft.lbs.(68 Nm)) 900344 1 - -
52 Housing Ass'y (incl. items 12, 14, 15, 16, 37, 100) 890419-S 1 890419-S 1
53 Engine 5.5 H.P. Briggs & Stratton Diamond I/C 900784 1 900784 1
54
55
56
57 Washer 1/2 flat KD Wheel 900230 2 900230 2
58 Washer Flat 1/2 SAE *8172011 8 *8172011 8
59 Screw Socket HD. 5/16 - 18 x 3/4 GR. 8 - - 890103 2
60 Height Adjustment Ass'y (incl 18, 20, 22, 23) 890013 1 890013 1
61
62 Label Danger Flying Material 810736 1 810736 1
63 Label Hot Engine 400268 1 400268 1
64
65 Nut Keps 5/16 - 18 - - 890104 2
66 Washer Shim 0.060" (1.52mm) - - 890130 0-1
67 Washer Shim 0.020" (0.51mm) - - 890131 0-2
68 Plate Top Ass'y (incl. items 14, 15, 29, 69, 70, 71, 84) - - 890425 1
Plate Top Ass'y (incl. items 29, 71, 84) 890422 1 - 1
69 Guard Flapper - - 890119 2
70 Plate Flapper Entrance - - 890127 2
71 Screw Cap 1/4-20 x 1/2 HWH 890359 17 890359 17
72
73 Knob Wing 5/16-18 890108 2 890108 2
74 Nut Lock5/16 - 18 Thin Ht. *8161041 2 *8161041 2
75 Grip Handle 400570 2 400570 2
76 Bracket Lopper Loop 890167 1
77
78 1/2-13 CAP NUT NP W/PATCH 890530 4 890530 4
79
80
81
82
83 Connector Quick 890176 1 890176 1
84
85
C
able Ass'y
C
lutch 900207 1 900207 1
PART S
LIST
Part No. 890034 Form No. F101000A
Page 12 of 12
Engine Service and Warranty
Contact your nearest engine manufacturer's authorized
servicing dealer.
22.1 22
BILLY GOAT INDUSTRIES INC.
1803 S.W. Jefferson Street Lee's Summit, MO 64082 / USA
PHONE: 816-524-9666 FAX: 816-524-6983 WEBSITE: www.billygoat.com
WARRANTY PROCEDURE
Please fill in the WARRANTY CARD and send the upper part to Billy Goat.
The WARRANTY terms are stated on the lower part which remains with the
user. Whenever a Billy Goat Machine is faulty due to a defect in material
and / or workmanship, the owner should make a warranty claim as follows:
The Machine should be taken to the dealer from whom it was
purchased or to an authorized Billy Goat dealer.
The owner should present the remaining half of the Warranty
Registration Card, or, if this is not available, the invoice or receipt.
The Warranty Claim will be filled in by the authorized Billy Goat Dealer,
who will send it with the faulty part to Billy Goat headquarters.
The Quality / Service department at Billy Goat headquarters will study
the claim and parts and will notify their conclusions.
The decision by the Quality / Service department at Billy Goat
headquarters to approve or reject a Warranty claim is final and
binding.
Note:
To process a Warranty Claim, it is necessary to quote the Model
& Serial number that are printed on the Billy Goat Serial Plate.
Purchased
from
Purchase
Date
21
Serial Plate Record your machine model, serial number and
date-of-purchase and where purchased
min-1
Operator
1803 S. Jefferson
P.O. Box 308
Lee's Summit,
MO 64063 / USA
Tel (816) 524-9666
Fax (816) 524-6983
Model Serial No.
Unit(Weight) Engine Power
lbs. kg kW rpm
Engine stalls or labors when
chipping.
Feeding branches into chipper too rapidly. Engine service may be
required.
Feed branches at a slower rate. Service engine.
Poor chipping performance. Extremely hard wood. Dull or damaged chipper blade. Avoid extremely hard wood. Sharpen or replace chipper blade (see
page 8).
Will not vacuum or has poor
vacuum performance.
Clean debris bag. Shake bag clean or wash. Adjust nozzle height.
Check for hose kit cap. Unclog nozzle or exhaust (see page 5).
Allow air to feed with debris.
Solution
Problem Possible Cause
TROUBLESHOOTING
Before Requesting Service Review These Suggestions
Engine will not start. Check stop switches, throttle, and gasoline. Connect spark plug wire.
Clean or replace air cleaner. Or contact a qualified service person.
Self propelled drive will not
release.
Clutch cable out of adjustment. Clutch not lubricated and is locked-
up.
Adjust clutch cable. See page 9 Clutch Adjustment. Oil clutch.
No self propelling. Operator's bail not releasing clutch. Broken or out of adjustment
clutch cable. Worn or broken clutch assembly. Bracket control
assembly (item 112) out of adjustment.
Adjust clutch cable. Adjust bracket control assembly. Replace any
worn or damaged or malfunctioning parts.
Throttle in off position. Out of gasoline. Bad or old gasoline.
Spark Plug wire disconnected. Dirty air cleaner.
Abnormal vibration. Loose or out of balance impeller or loose engine. Check impeller and replace if required. Check Engine.
Engine is locked, will not
pull over.
Debris locked in chipper blade, hopper or inside impeller. Engine
problem.
See page 5, Clearing a clogged chipper hopper. Contact an engine
servicing dealer for engine problems.
Dirty debris bag. Nozzle height set too high or too low. Hose kit cap
missing. Clogged nozzle or exhaust. Excessive quantity of debris.
20
19
( Continued from
page 11 )
PARTS LIST * Denotes
standard
hardware
item that
may be
purchased
locally.
95
L
A
L
A
p
109
Item
No. Description KD511SP
Par t No. Qty. TKD511SP
Par t No. Qty.
86 Wheel With
S
procket Ass'y
C
ast
(
21, 94, 95, 96
)
890242 2 890242 2
87 Chain 52 Pitch 890239 2 890239 2
88 Chain 40 Pitch 900323 1 900323 1
89 Washer Flat 5/16 (3/8 ID x 7/8 x 1 1/6) *8171003 4 *8171003 4
90 Bolt
C
arria
g
e 5
/
16 - 18 x 3
/
4 *8024039 4 *8024039 4
91 Washer Sprin
g
Lock 5/16 *8177011 4 *8177011 4
92 Nut Re
g
ular 5/16 - 18 *8142002 4 *8142002 4
93 Jackshaft 900320 1 900320 1
94
S
procket
(
per Assemby
)
(
size # 65A26
)
26 Teeth 890238 1 890238 1
95 Screw Self Tap 1/4-14 x 3/4 (Per Assembly) 800505 5 800505 5
96 Washer Lock External Tooth (Per Assembly) *8181007 5 *8181007 5
97 Jackshaft Ass'y (incl. 93, 101, 102, 107, 108, 109) 890197 1 890197 1
98
S
hield Mu
ff
ler TKD
S
P 890190 1 890190 1
99 Label Clutch 830503 1 830503 1
100 Label - Warnin
g
Guards 900327 1 900327 1
101 Bearin
g
Plate 900317 2 900317 2
102 Bearin
g
Ball
(
with
S
nap Rin
g)
900321 2 900321 2
103
104 Rod Bail Clutch 900970 1 900970 1
105
106
107 Sprocket - 17 Tooth 900303 1 900303 1
108 Sprocket - 8 Tooth 900302 2 900302 2
109 Roll Pin 3/16 Dia. x 1 1/4 L
g
. *8195166 4 *8195166 4
110 Locknut 5
/
16 - 18 Flan
g
e 850164 5 850164 5
111 Screw Cap 1/4-20 x 1-1/2 Hex 8041008 2
112 Bracket Control Ass'y (incl. 113, 114, 115) 900221 1 900221 1
113 Sprin
g
900136 1 900136 1
114 Roll Pin 1
/
8" Dia. x 1 1
/
4 L
g
. *9195106 1 *9195106 1
115 Rod Clutch 900208 1 900208 1
116 Screw Cap 1/4-20 x 1" L
g
. *8041006 2 *8041006 2
117 Washer 1/4" Flat (5/16 ID x 3/4 Od x 1/16) *8171002 4 *8171002 4
118
G
uard
C
hain Ass'y TKD
S
P 890231 1 890195 1
119 Clip - Clutch Cable 900999 1 900999 1
120
121 Clutch Double Release 900307 1 900307 1
122
123 L
a
b
e
l
R
ea
d
O
w ner
'
s
M
anua
l
890301
1
890301
1
R

Navigation menu
