User’s Guide
L511BT / L512BT / L513BT / L514BT / L515BT
DECT 6.0 Digital Cordless Phone with
Bluetooth® and Answering System
Warning
Use only the adapter and telephone line cord provided
in the box.
• 30 name and number phonebook.
• Answering machine with 15 minutes digital recording time.*
• Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.**
• Register up to 5 handsets to a single base.
• Make internal calls, transfer external home calls, hold 3-way conversation between two internal callers and
an external caller, including home call or cellular call.
*The recording time includes the pre-recorded voice menu and outgoing announcements.
**You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work.
Please note that this equipment is not designed for making emergency telephone calls when the power fails.
Alternative arrangements should be made if emergency telephone call is necessary.
Welcome...
to your new Motorola Phone!
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product,
you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required
for warranty coverage.
For product related questions, please call:
US and Canada: 1-888-331-3383
On the Web: www.motorola.com
This ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of
products that save energy and help protect our environment. We are proud to mark this product
with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines.
IMPORTANT
Only use the telephone line cord supplied.
This equipment is not designed to make emergency telephone calls during power failures. Alternative
arrangements should be made for access to emergency services.
Got everything?
• Handset
• Base
• NiMH rechargeable battery pack
• Battery door
• Power adapter
• Telephone line cord
• User’s Guide
• Quick Start Guide
In multihandset packs, you will find one or more additional handsets, chargers with power adapter units,
additional rechargeable battery packs and battery doors.
This User’s Guide provides you with all the information you need to get
the most from your phone.
Before you make your first call you will need to set up your phone.
Follow the simple instructions in 'Getting Started', on the next few
pages.
4
1. Getting started ................................................6
1.1 Connect the base ............................................... 7
1.2 Install and charge the handset battery pack ........ 7
1.3 Set the display language .................................... 8
1.4 Set date and time ............................................... 8
1.5 Your phone is now ready for use........................ 8
2. Getting to know your phone ..........................9
3. Using the phone............................................13
3.1 Introducing Bluetooth........................................ 13
3.2 Bluetooth Setup ................................................ 14
3.2.1 Setup Cellular ....................................... 14
3.2.2 Replace a paired device ....................... 14
3.2.3 Paired Devices ...................................... 15
3.3 Making a home call using your landline............ 15
3.4 Making a cellular call using your cordless
DECT handset.................................................. 16
3.5 Speed dial calling ............................................. 16
3.6 Answering a home call ..................................... 16
3.7 Answering a cellular call ................................... 16
3.8 Receiving a cellular call while on a home call....... 17
3.9 Receiving a home call while on a cellular call...... 17
3.10 Ending a call ..................................................... 17
3.11 Adjusting volume .............................................. 18
3.12 Muting a call ..................................................... 18
3.13 Dialing from the redial list ..................................18
3.14 Dialing from the calls list....................................18
3.15 Adding an entry to the phonebook ....................18
3.16 Storing a phonebook entry as a
one touch number .............................................19
3.17 Dialing from the phonebook ..............................19
3.18 Caller ID ............................................................19
3.18.1 Calls List ................................................20
3.18.2 View the calls list ...................................20
3.18.3 Save a number from the calls list to
the phonebook .......................................20
3.18.4 Delete a calls list entry ...........................21
3.18.5 Delete entire calls list .............................21
3.19 Personal Settings ..............................................22
3.20 Intercom ............................................................23
3.20.1 Call another handset ..............................23
3.20.2 Transfer an external home call to
another handset .....................................23
3.20.3 Three-party conference call ...................24
3.21 Set the dial mode ..............................................24
3.22 Set the Flash Time ............................................24
3.23 Set the Area Code.............................................25
3.24 Registration .......................................................25
3.25 To reset all settings ...........................................25
5
3.26 Paging/Find handset .........................................26
3.27 Using your answering machine .........................26
3.27.1 Play messages ......................................26
3.27.2 Turn on or off the answer machine .........27
3.27.3 Set the announcement mode ................27
3.27.4 Set the number of rings .........................27
3.27.5 Announcement ......................................27
3.27.6 Record a memo .....................................28
3.27.7 Call screening on/off ..............................29
3.27.8 Delete all old messages ........................29
3.27.9 Remote access ......................................29
3.27.10Set the security code .............................30
4. Help................................................................ 31
5. General information ..................................... 33
6Getting started
1. Getting started
WARNING
Do not place your phone in the bathroom or other humid
areas.
Location
When choosing a location for your new phone, here are
some important guidelines you should consider:
• Avoid sources of noise and heat, such as motors,
fluorescent lighting, microwave ovens, heating
appliances and direct sunlight.
• Avoid areas of excessive dust, moisture, and low
temperature.
• Avoid other cordless telephones or personal computers.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the
jack is specifically designed for wet locations.
• Never touch non-insulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
• Use caution when installing or modifying telephone lines.
HANDSET RANGE
Optimal range is reached when there are no other electrical
appliances working within the range area. Any obstruction
between the base and handset will also reduce the range
significantly.
SIGNAL STRENGTH
When out of range of the base, the screen shows
SEARCHING....
If you are on a call, the line will disconnect.
Move back within in range of the base. The handset will
automatically re-connect to the base.
Setting up
IMPORTANT
The base must be plugged into an electrical outlet at all
times. Do not connect the telephone line cord into a power
outlet until the handset is fully charged. Only use adapter
and telephone line cord supplied with the product.
WHICH POWER ADAPTER
The power adapter with the smaller pin is for the base unit
and the power adapter with the larger pin is for the charger
unit (only for multi-handset packs).
Getting started 7
1.1 Connect the base

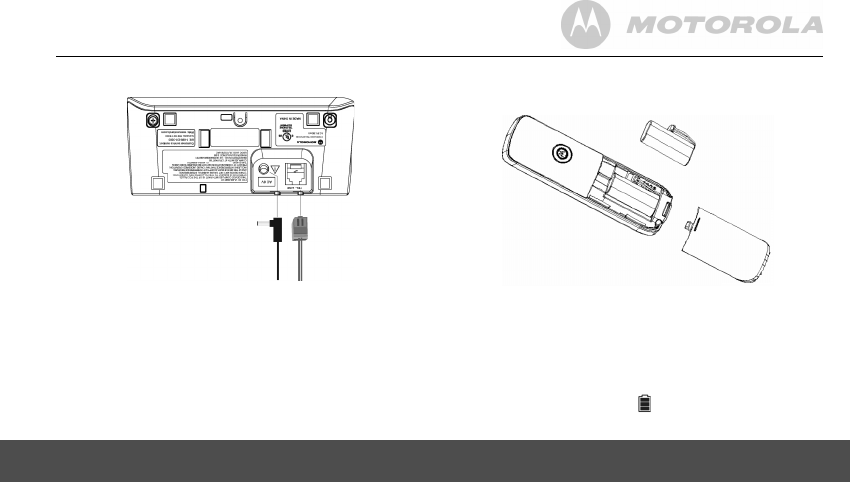

1.
Plug the power adapter with the smaller round pin plug
and telephone line cord into the base. The power
adapter with the larger round pin is for the charger (only
in multi-handset packs).
2.
Plug the other end of the power adapter and telephone
line cord into a power outlet.
3.
Use only the provided power adapter.
1.2 Install and charge the handset
battery pack
1.
Slide off the battery compartment cover to remove it.
Place the supplied rechargeable battery pack in the
battery compartment, with the battery connector
plugged in, as shown.
2.
Slide the battery compartment cover back on.
3.
Put the handset on the base to charge for at least 24
hours. Once charged, the (battery icon) will indicate
that the handset is fully charged.
8Getting started
IMPORTANT
Use only the rechargeable battery pack provided with the
product.
1.3 Set the display language
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP HS
.
2.
Repeat to select
LANGUAGE
.
3.
Repeat to select language.
4.
Press MENU to save.
1.4 Set date and time
1.
Press MENU to select
DATE & TIME
.
2.
Repeat to edit the year and date.
3.
Press VOL+ or REDIAL/VOL- to move between the
input fields
YEAR
and
DATE
.
4.
Press MENU and then edit the time in 12hr format.
Press VOL+ or REDIAL/VOL- to toggle
AM
/
PM
settings.
5.
Press MENU to save the settings.
NOTE
If you have subscribed to your network's Caller ID service,
the date and time is set automatically for the handset when
a call is received.
1.5 Your phone is now ready for use.
Getting to know your phone 9
2. Getting to know your phone

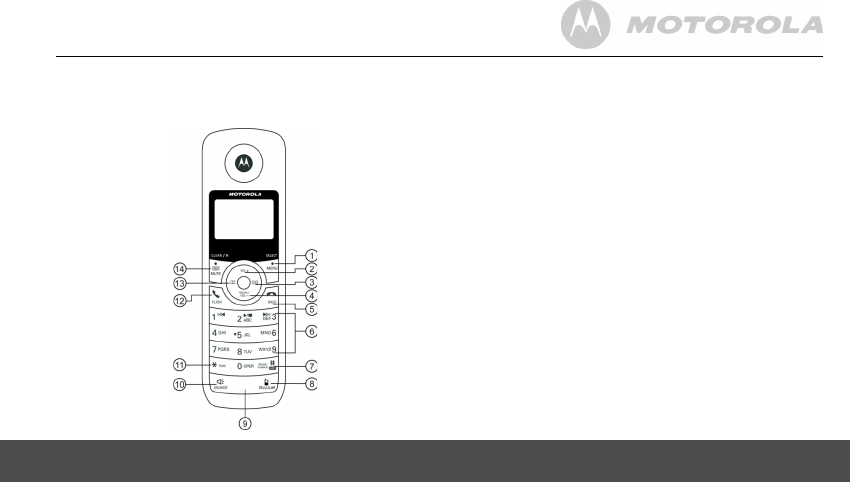

Overview of your handset
Get acquainted with the following 14 buttons on your
handset and their multi-function tasks.
1 Menu / Select
a) In idle mode: Press to access menu list.
b) In menu/editing mode: Press to confirm and save the
settings.
c) During a home call: Press to transfer a call to a second
handset.
d) In calls list entry: Press to save the entry to the
phonebook.
e) In phonebook entry: Press to go to phonebook editing
mode.
2 Scroll up / Volume up
a) In menu mode: Press to scroll up.
b) In editing mode: Press to move cursor to the left.
c) During a call: Press to increase volume.
d) Calls list/phonebook/redial list entry: Press to scroll up
the list.
e) In answering machine mode: Press to increase volume.
3 Right / Calls list
a) In idle mode/during a call: Press to access calls list.
b) In editing mode: Press to move the cursor to the right.
4 Scroll down / Volume down / Redial list
a) In idle/pre-dial mode: Press to access redial list.
b) In menu mode: Press to scroll down.
10 Getting to know your phone
c) In editing mode: Press to move cursor to the right.
d) During a call: Press to decrease volume.
e) Calls list/phonebook/redial list entry: Press to scroll
down the list.
f) In answering machine mode: Press to decrease
volume.
5 Talk off / Back
a) In menu/editing mode/phonebook entry: Press to exit
to previous level.
b) In pre-dial mode/calls list/redial list entry/answering
machine mode: Press to exit to idle.
c) During ringing: Press to silent the incoming ringer
temporarily.
d) During a call: Press to end a call, either home call or
cellular call.
6 Alphanumeric keypad
a) In idle/pre-dial/editing mode/during a call: Press to
enter characters/numbers. Press and hold to activate
speed dial.
7 # / Pause / ABC / Format
a) In idle/pre-dial/number editing mode/during a call:
Press to insert a #, press and hold to insert a space.
b) In name editing mode: Toggle ABC/abc.
c) In calls list entry: Press to toggle between 7, 10 and 11
digit formats when returning calls from Caller ID list.
d) In phonebook list entry: If the number is more than 15
digits, press to view the next page of remaining digits.
8Cellular
a) In idle mode: Press to make a cellular call.
b) During an incoming cellular call: Press to answer the
cellular call.
9 Microphone
10 Speaker
a) In idle/menu/pre-dial mode/during a call: Press to turn
on/off the speakerphone.
b) Call List/phonebook/redial list entry: Press to make a
call with speakerphone.
c) During ringing: Press to answer a call with the
speakerphone.
d) In answering machine mode: Press to toggle the
message playback via the earpiece or speakerphone.
11 * / Tone
a) In idle/pre-dial/editing mode: Press to insert a *.
b) During a call: Press to switch from pulse to tone dialing
temporarily if pulse mode was selected before. After the
call has ended, the dial mode will change back to pulse.
c) In phonbook list entry: If the number is more than 15
digits, press to view the previous page of remaining digits.
Getting to know your phone 11
12 Talk on/ Flash
a) In idle/menu/pre-dial mode: Press to make a call.
b) Call List/phonebook/redial list entry: Press to make a
call to the selected entry.
c) During an incoming call: Press to answer the call.
d) During a home call: Press flash to switch to another call.
13 Left/ Phonebook
a) In idle mode/during a call: Press to access the
phonebook.
b) In editing mode: Press to move the cursor to the left.
14 Answering Machine/ Mute/ Clear/ X
a) In idle mode: Press to play the message in answering
machine.
b) In pre-dial/editing mode: Press to delete one character/
digit. Long press to delete all characters/digits.
c) During a call: Press to mute/unmute the call.
d) In calls list/phonebook entry: Press to delete the entry.
e) In answering machine mode: Press to delete the
current message playback.

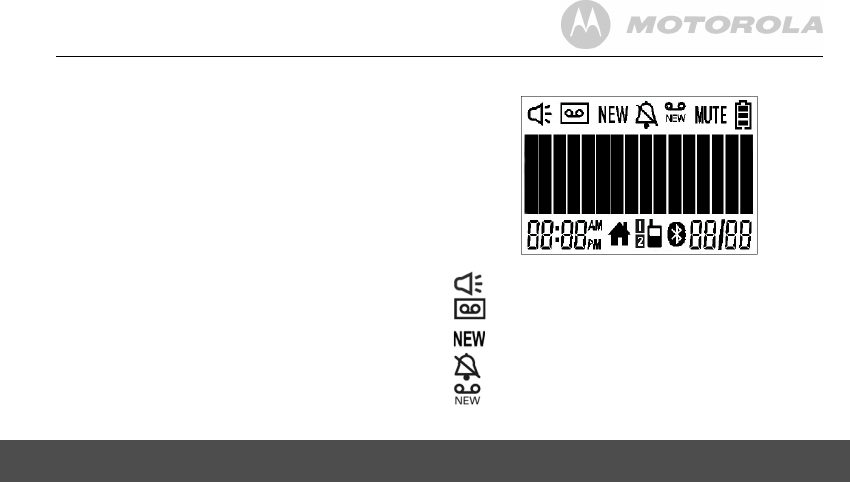

Handset LCD display

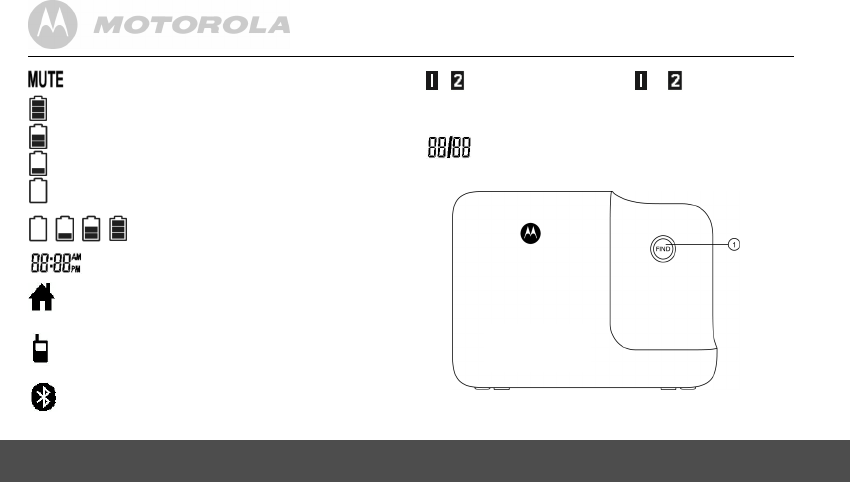

Display icons
On when speakerphone is turned on.
On when the answering machine is turned on.
Flashes when a new message is received.
Indicates that a new call has been received.
Off after all new calls have been reviewed.
Indicates that the ringer volume is off.
If a voice mail service is being used, this icon indicates
that there is a new voice mail message. The icon is off
after all new voice mails have been reviewed. (For
home line only)
12 Getting to know your phone
On when a call is muted.
Full battery power level.
2/3 battery power level.
1/3 battery power level.
Flashes when low battery level is detected, needs
charging.
Animation in motion. Battery is charging.
In idle mode, the current time is displayed.
In Caller ID mode, the time of call is displayed.
On when the Home line is in use.
Flashes when the Home line is put on hold.
Off when the Home line is idle.
On when the Cellular line is in use.
Flashes when the Cellular line is put on hold.
Off when the Cellular line is idle.
On when a Bluetooth device is connected.
Off when Bluetooth feature is disabled.
/ On when Bluetooth device or is connected with
the telephone base.
Off When Bluetooth device(s) is (are) disconnected
from the telephone base.
In idle mode the current date is displayed.
In Caller ID mode, the date of the call is displayed.
Overview of the base
1FIND
Press to find/page all registered handsets. Press the button
again, or any key on the handset, to turn off page signal.
Using the phone 13
3. Using the phone
3.1 Introducing Bluetooth
Your new telephone system with Bluetooth wireless
technology has the following features:
• Pairing a Bluetooth enabled mobile phone with the
telephone base. Two Bluetooth devices can be paired up
and connected.
• Connecting a Bluetooth enabled mobile phone to make
and receive
CELLULAR
calls. Two mobile phones can be
connected but only one of them can be used at a time.
• Making and receiving calls using your Bluetooth enabled
mobile phone plan while benefiting from the ease and
comfort of your home telephone system.
Glossary of terms
Below are some terms used in this User's Guide to help you
become familiar with using your Bluetooth devices and your
new telephone system.
Bluetooth mobile phone
- Refers to a Bluetooth enabled
mobile telephone.
CELLULAR
line - The communications service provided
through your Bluetooth enabled mobile telephone.
HOME
line - Your conventional telephone land line.
Pairing
- This refers to the process of two Bluetooth devices
registering device information with each other. The
telephone base must be paired with a Bluetooth enabled
mobile phone before the Bluetooth device can be used.
IMPORTANT INFORMATION
• Refer to your mobile phone user's guide for more
information about its Bluetooth function.
• Make sure that your Bluetooth enabled mobile phone is
between one to twelve feet away from the telephone
base in order to maintain a clear and consistent
connection between your Bluetooth mobile phone,
telephone base and cell tower.
• Make sure that your Bluetooth enabled mobile phone has
sufficient signal strength. You may need to move the
Bluetooth enabled mobile phone and telephone base to a
location where the cellular signal may be stronger.
• Charge your Bluetooth mobile phone while it is
connected to the telephone base because your mobile
phone's battery will discharge faster while it is connected
wirelessly to the telephone base.
14 Using the phone
• Monitor your mobile phone's usage because airtime is
deducted from your cellular plan for the duration of the
CELLULAR
calls.
3.2 Bluetooth Setup
3.2.1 Setup Cellular
To pair and connect a Bluetooth enabled mobile phone:
• Place your cell phone near the handset and base unit.
• Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP CELLULAR
.
• Press MENU and display will show
CELLULAR READY?
.
• Press MENU and display will show
DISCOVERABLE MODE
.
The Bluetooth feature will be activated.
• Using your Bluetooth enabled mobile phone, turn on the
Bluetooth feature and search for a new device.
• Once your Bluetooth enabled mobile phone has found
the
Motorola L511BT/L512BT/L513BT/L514BT/L515BT
telephone, select it.
• Using your Bluetooth enabled mobile phone, enter the
PIN code of the telephone (the default PIN code is 0000)
to continue the pairing process.
• Pairing will be confirmed when you hear a tone and the
Bluetooth icon appears on the handset.
Refer to the user's manual of your Bluetooth enabled mobile
phone to learn how to search for or add new Bluetooth devices.
NOTE
• Paired device(s) will be connected automatically and
stored into the Paired Devices list.
• When a device is successfully connected, corresponding
device or will be displayed.
• If you would like to pair up another Bluetooth device,
please repeat the steps as above.
3.2.2 Replace a paired device
If you have already paired up two Bluetooth devices, you will
need to replace one of them if your would like to pair up
another device. Follow the below steps to replace and pair
up a new device.
• Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP CELLULAR
.
• Display will show the two Cellular names of the paired
devices.
• Press MENU and then VOL+ or REDIAL/VOL- to select
the cellular device you would like to replace.
• Press MENU to confirm. Display will show
REPLACE THE
CELLULAR?
Using the phone 15
• Press MENU to confirm. Display will show
CELLULAR READY?
.
• Refer to section 3.2.1 to proceed with the next steps.
NOTE
When pairing a new cellular, the connected cellular will be
disabled temporarily.
3.2.3 Paired Devices
The cellular(s) paired up will be displayed in the paired
devices list, no matter it(they) is(are) connected or not. You
can choose to connect, or remove the cellular from this menu.
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
PAIRED DEVICES
.
2.
Display will show the Cellular name of paired device(s) .
NOTE
Display will show
NO PAIRED DEVICE
if there is no device
paired up.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
the desired cellular device.
For the connected cellular device:
4.
Press MENU to remove the cellular device.
5.
Press MENU to confirm.
For the cellular phone that is not connected:
4.
Press MENU and then VOL+ or REDIAL/VOL- to select
CONNECT
or
REMOVE CELLULAR
.
5.
Press MENU to confirm. If you select
REMOVE CELLULAR
,
press MENU again to confirm.
NOTE
• When the connected cellular is removed, corresponding
device or will be off.
• When the disconnected cellular is connected,
corresponding device or will be on.
• When the cellular is removed, the device name will be
removed and
EMPTY
will be displayed instead in the
paired device list.
3.3 Making a home call using your
landline
1.
Enter the phone number and press /FLASH or /
SPEAKER to dial the phone number.
16 Using the phone
3.4 Making a cellular call using your
cordless DECT handset
If there is only one Bluetooth enabled mobile phone paired
and connected,
1.
Enter the phone number, and then press /
CELLULAR to dial out.
OR
1.
Press /CELLULAR, and then enter the phone
number.
2.
Press /CELLULAR again to dial out.
If there are two Bluetooth enabled mobile phones paired up
and connected,
1.
Enter the phone number, and then press /
CELLULAR and then VOL+ or REDIAL/VOL- to select
the desired cellular device.
2.
Press MENU or /CELLULAR to dial out.
OR
1.
Press /CELLULAR and then VOL+ or REDIAL/VOL-
to select the desired cellular.
2.
Press MENU or /CELLULAR, and then enter the
number.
3.
Press /CELLULAR to dial out.
NOTE
If the cellular device is paired up but not connected, you
should connect the cellular device before making an external
Bluetooth call.
3.5 Speed dial calling
1.
Press and hold a key from /1 to WXYZ/9 until the
number is displayed and dialed.
3.6 Answering a home call
1.
Press /FLASH or /SPEAKER to answer the
incoming home call.
3.7 Answering a cellular call
1.
Press /CELLULAR or /SPEAKER to answer the
incoming cellular call.
Using the phone 17
3.8 Receiving a cellular call while on a
home call
A short beep during a HOME call indicates that there is an
incoming CELLULAR call and the screen will display the
caller ID.
To answer the incoming cellular call:
• Press /CELLULAR on the handset. The home call will
automatically be placed on hold and will start
flashing.
To swap the line to a home call:
• While talking on a cellular call, press /FLASH on the
handset to swap to the home call. The cellular call will
automatically be placed on hold and will start flashing.
To end the cellular call:
• Press /BACK on the handset. The home call will be
resumed automatically.
3.9 Receiving a home call while on a
cellular call
A short beep during a CELLULAR call indicates that there
is an incoming HOME call and the screen will display the
caller ID.
To answer the incoming home call:
• Press /FLASH on the handset. The cellular line call
will automatically be placed on hold and will start
flashing.
To swap the line to a cellular call:
• While talking on a home call, press /CELLULAR on the
handset to swap to the cellular call. The home call will
automatically be placed on hold and will start flashing.
To end the home call:
• Press /BACK on the handset. The cellular call will
be resumed automatically.
3.10 Ending a call
1.
During either a home or cellular call, press /BACK
or put the handset on the base.
18 Using the phone
3.11 Adjusting volume
1.
During a call, press VOL+ or REDIAL/VOL- to adjust
the volume.
3.12 Muting a call
1.
During a call, press /MUTE to mute the microphone,
so that you can talk to someone else in the room without
your caller hearing you.
2.
Press /MUTE again to unmute.
3.13 Dialing from the redial list
1.
Press REDIAL/VOL- and then scroll VOL+ or REDIAL/
VOL- to the entry you want to redial.
2.
Press /FLASH or /SPEAKER to dial the number
from home line.
OR
3.
Press /CELLULAR to dial the number from cellular
line.
3.14 Dialing from the calls list
1.
Press CID and then scroll VOL+ or REDIAL/VOL- to the
entry you want to dial.
2.
Toggle the #/ /PAUSE/FORMAT key to format the
dialing number.
3.
Press /FLASH or /SPEAKER to dial the number
from the home line.
OR
4.
Press /CELLULAR to dial the number from the
cellular line.
3.15 Adding an entry to the phonebook
1.
Press and then press MENU to select
ADD
.
2.
Press MENU and then enter the name.
3.
Press MENU and then enter the number.
4.
Press MENU to save.
Using the phone 19
NOTE
Numbers can be up to 24 digits long and names up to 16
characters long. Entries are stored in alphabetical order.
3.16 Storing a phonebook entry as a one
touch number
1.
Press .
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
SPEED DIAL
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
the speed dial key from /1 to WXYZ/9.
4.
Press MENU and then VOL+ or REDIAL/VOL- to scroll
to the entry to want.
5.
Press MENU to save.
3.17 Dialing from the phonebook
1.
Press and then scroll VOL+ or REDIAL/VOL- to
select the entry you want to dial.
2.
Press /FLASH or /SPEAKER to dial the number
from the home line.
OR
3.
Press /CELLULAR to dial the number from the
cellular line.
TIPS
Instead of scrolling to browse the phonebook entries, press
the numeric key corresponding to the first letter of the entry
you wish to locate. For example, pressing 2 will show the
entries starting with A. Pressing 2 again will show the entries
starting with B, etc.
3.18 Caller ID
If you have subscribed to Caller ID, and provided the identity
of the caller is not withheld, the number of the caller will be
displayed together with the date and time of the call (if
provided by the network).
NOTE
• If the telephone number is not available for incoming
calls, the handset will display
UNAVAILABLE
.
• If the incoming call is from a withheld telephone number,
the handset will display
PRIVATE
.
• Information about incoming calls will vary by country and
network operator. Some operators may charge a
subscription for their Caller ID service.
20 Using the phone
3.18.1 Calls List
The calls list contains details of missed and received calls.
Details include the date and time of the call. Entries are
displayed in chronological order with the most recent call at
the top of the list.
NOTE
• When the calls list is full, a new call replaces the oldest
one in the list.
• The received and missed calls log holds details of up to
30 calls.
• If you receive more than one call from the same number,
only the most recent call is kept in the calls list. When
you have missed calls (incoming calls that you haven't
answered) the icon will be displayed in the display
on all handsets registered to the base. If one handset is
used to view the calls log, the icon on the other handsets
remains on (For multi-pack use only).
3.18.2 View the calls list
1.
Press CID to enter the calls list.
2.
Scroll VOL+ or REDIAL/VOL- through the calls list.
NOTE
• When reviewing an entry from the calls list, press #/ /
PAUSE/FORMAT repeatedly to display the number in a
different format.
For example, if a caller number is displayed as
888-331-3383, the various formats will be:
331-3383
1-331-3383
888-331-3383
1-888-331-3383
User can choose the desired number format for local and
long distance numbers before dialing or saving it into the
phonebook.
• The icon is removed once the new call has been
viewed.
3.18.3 Save a number from the calls list to the
phonebook
1.
Press CID to enter the calls list.
2.
Press VOL+ or REDIAL/VOL- to the entry you want.
3.
Press MENU and then enter the name.
4.
Press MENU and then edit the number.
5.
Press MENU to save.
Using the phone 21
3.18.4 Delete a calls list entry
1.
Press CID to enter the calls list.
2.
Press VOL+ or REDIAL/VOL- to scroll to the entry you
want.
3.
Press /MUTE to delete the entry.
3.18.5 Delete entire calls list
1.
Press CID to enter the calls list.
2.
Press and hold /MUTE.
DELETE ALL CALL LOG ENTRIES?
is displayed.
3.
Press MENU to confirm. All entries will be deleted.
NOTE
You need to review the particular call before you delete the
record from the call list.
22 Using the phone
3.19 Personal Settings
Menu map
MAIN
MENU
DATE &
TIME
PHONEBOOK INTERCOM SETUP HS SETUP BS SETUP
CELLULAR
PAIRED
DEVICES
ANSWER MACHINE RESET
SETTINGS
SUB
MENU DATE
TIME
VIEW
ADD
EDIT
DELETE
DELETE ALL
PB CAPACITY
SPEED DIAL
RINGER TONE
RINGER
VOLUME
KEY TONE
LOW BATT
TONE
OUT RANGE
TONE
HANDSET
NAME
LANGUAGE
LCD
CONTRAST
REGISTRATION
DIAL MODE
FLASH TIME
AREA CODE
ANSWERER ON (If
answer machine is off)
or
ANSWERER OFF (If
answer machine is on)
ANSWERER MODE
RINGS TO ANSWER
ANNOUNCEMENT
RECORD MEMO
CALL SCREENING
DEL ALL OLD MSG
REMOTE ACCESS
SECURITY CODE
CLR VOICE
MAIL
ALL SETTINGS
Using the phone 23
1.
Press MENU.
2.
Press VOL+ or REDIAL/VOL- to scroll through the
menu.
3.
Press MENU to open a sub-menu or validate an option.
Press /BACK to go back to the previous menu level or
cancel an action.
If you do not press any button on the handset for 30 seconds,
the display will automatically return to standby. It will also return
to standby when the handset is placed on the base or charger.
3.20 Intercom
This feature is only available when there are at least two
registered handsets. It allows you to make internal calls,
transfer external home calls from one handset to another
and use the conference option.
NOTE
Cellular call cannot be transferred.
3.20.1 Call another handset
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
INTERCOM
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
the handset you want to call.
3.
Press MENU to call the handset.
4.
Press /BACK to hang up.
NOTE
If the handset is not within the valid operation range, this
function may not be available.
During intercom call, you will hear an alert tone if there is an
incoming external call. You need to press /BACK to
hang up the intercom call before answering the incoming
external call.
3.20.2 Transfer an external home call to another
handset
1.
During an external home call, press MENU.
- Your caller is put on hold.
2.
Press VOL+ or REDIAL/VOL- to select the handset you
want to call.
3.
Press MENU to call the handset.
4.
When the other handset answers by pressing /
FLASH or /SPEAKER, press /BACK to
transfer the call. If the other handset does not answer,
press MENU to talk to your caller again.
24 Using the phone
3.20.3 Three-party conference call
1.
During an external home call, press MENU.
- Your caller is put on hold.
2.
Press VOL+ or REDIAL/VOL- to select the handset you
want to call.
3.
Press MENU to call the handset.
4.
When the other handset answers the intercom call,
press MENU on the calling handset to set up the
conference call.
5.
Press /BACK on any handset to hang up three-
party conference and leave the other handset in
external line with the caller.
3.21 Set the dial mode
The default dialing mode is suitable for your country and
network operator. It is unlikely that you should need to
change this setting unless advised to do so.
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP BS
.
2.
Press MENU to select
DIAL MODE
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
TONE
or
PULSE
.
4.
Press MENU to save.
NOTE
If pulse mode is selected, press TONE/* to switch from pulse
to tone dialing temporarily when dialing out. After the call is
ended, the dial mode will change back to pulse.
3.22 Set the Flash Time
The default flash time is
600MS
. It is unlikely that you should
need to change this setting unless advised to do so.
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP BS
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
FLASH TIME
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to the
flash time you want. (8 options are available:
90
,
100
,
110
,
250
,
300
,
400
,
600
and
700MS
)
4.
Press MENU to save.
Using the phone 25
3.23 Set the Area Code
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP BS
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
AREA CODE
.
3.
Press MENU and enter the area code.
4.
Press MENU to save.
3.24 Registration
Up to 5 handsets can be registered to one base. The original
handset is pre-registered to use. Additional handsets must
be registered to the base before you can use them.
To register an additional handset,
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
SETUP HS
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
REGISTRATION
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
YES
or
NO
.
4.
Select
YES
and press MENU to enter the registration
procedure as below:
1.
Press and hold FIND for 4 seconds on base, and then
release.
2.
Place the unregistered cordless handset on the
charger.
3.
A confirmation tone is generated if registration is
successful.
HANDSET X
is displayed where
X
denotes the
number of handsets and the phone goes back to idle.
To register an originally unregistered handset, follow steps 1
through 3 above.
3.25 To reset all settings
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
RESET SETTINGS
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
ALL SETTINGS
.
3.
Press MENU to select
YES
. Then all the personalized
settings will be reset to default.
26 Using the phone
NOTE
All of your phonebook entries, calls list and redial list will
remain unchanged.
3.26 Paging/Find handset
Press FIND on the base. All handsets registered to the base
will ring.
To stop the paging, press FIND again, or press any key on
the handset, or place the handset on the base.
3.27 Using your answering machine
The answering machine records unanswered calls when it is
activated.
3.27.1 Play messages
Through the handset:
1.
Press /MUTE from idle mode. New messages will be
played followed by any older messages.
2.
During message playback, press the keys below to
perform the following functions:
NOTE
For multiple handset models when you are on either a
cellular call or a home call, the answering system will not
answer the second incoming call.
/1
Repeats the current message.
Press twice to playback the
previous message.
/ABC/2 Stop message playback.
/DEF/3 Skip to play the next message.
VOL+ Increase the volume.
REDIAL/VOL- Decrease the volume.
/MUTE Delete the current message and
the next message will be played.
/SPEAKER Toggle the message playback via
earpiece/speakerphone.
/BACK Exit to idle.
Using the phone 27
3.27.2 Turn on or off the answer machine
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWERER ON
or
ANSWERER OFF
. If the answer machine is
turned on originally,
ANSWERER OFF
will be displayed. If
the answer machine is turned off originally,
ANSWERER ON
will be displayed.
3.
Press MENU to confirm.
3.27.3 Set the announcement mode
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWERER MODE
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
the announcement modes:
•
ANNC & RECORD
invites your callers to leave a message.
•
ANNOUNCE ONLY
lets callers hear your announcement
but they cannot leave a message.
4.
Press MENU to save.
3.27.4 Set the number of rings
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
RINGS TO ANSWER
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
the rings to answer. (4 options are available:
TOLL SAVER
,
3
,
4
, or
5 RINGS
).
NOTE
If Toll Saver setting is selected, the answering machine will
pick up after two rings if there are new messages, and after
four rings if there are no messages.
4.
Press MENU to save.
3.27.5 Announcement
This is the message your callers hear on the answering
machine. There are two pre-recorded outgoing messages,
or you can record your own.
28 Using the phone
3.27.5.1 Record the announcement
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANNOUNCEMENT
.
3.
Press MENU to select
RECORD
.
4.
Press MENU and then VOL+ or REDIAL/VOL- to select
the answer mode
ANNC & RECORD
or
ANNOUNCE ONLY
.
5.
Press MENU to start recording after a "beep" sound is
heard.
6.
Press MENU again to stop recording and save the
message. The just saved message is played
automatically.
NOTE
When playing the message, pressing /MUTE will delete
it and the pre-recorded message will be played
automatically.
3.27.5.2 Play the announcement
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANNOUNCEMENT
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
PLAY
.
4.
Press MENU and then VOL+ or REDIAL/VOL- to select
the answer mode
ANNC & RECORD
or
ANNOUNCE ONLY
.
5.
Press MENU and the message is played.
3.27.6 Record a memo
You can record a memo which is stored on your answering
machine and played back like a normal message.
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
RECORD MEMO
.
3.
Press MENU to start recording.
4.
Press MENU again to stop recording and save the
message. The just saved message is played
automatically.
Using the phone 29
NOTE
When playing the message, pressing /MUTE will delete
it permanently.
3.27.7 Call screening on/off
You are able to hear a caller leaving a message. You can
then choose to ignore the caller or pick up the call.
1.
When the answering machine is recording, the cordless
handset displays
SCREENING?
.
2.
Press MENU to listen to the caller through the handset
earpiece, the handset displays
CALL SCREENING
.
3.
Press /SPEAKER to listen via the handset loudspeaker.
4.
Press /MUTE to stop screening and leave the
answering machine to record the message.
5.
Press /FLASH to talk to the caller and stop recording.
3.27.8 Delete all old messages
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
DEL ALL OLD MSG
.
3.
Press MENU to confirm.
NOTE
When the answering machine is full, will flash if there
are new messages.
ERASE SOME ANSWERER MSG
will toggle
within 2 seconds with
MEMORY FULL
in idle to alert user to
delete some answering machine messages to free up the
memory.
3.27.9 Remote access
Remote access allows you to operate your answering
machine and listen to your messages by calling your phone
from another phone.
Turn the remote access on/off
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
REMOTE ACCESS
.
3.
Press MENU and then VOL+ or REDIAL/VOL- to select
ON
or
OFF
.
4.
Press MENU to confirm.
To enter the remote access mode, dial your phone number
from another phone, when you hear the announcement,
press TONE/* and then enter the 4-digit remote security
code (default code is 0000).
30 Using the phone
The correct sequence of the 4 security PIN digits needs to
be detected before entering remote access mode. Random
digits detected prior to the correct 4 digits sequence are
ignored, and answering machine recording continues until
the complete PIN is detected. There is no system prompt to
enter the remote access code.
Press the following keys on your handset to perform the
following functions, after entering your remote access mode.
3.27.10 Set the security code
This is used to change the remote access PIN if necessary.
1.
Press MENU and then VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and then VOL+ or REDIAL/VOL- to select
SECURITY CODE
.
3.
Press MENU and then enter the 4-digit security code.
4.
Press MENU to save.
Press... To...
1 Repeat message
2 Play/Stop message
3 Skip forward to the next message
4 Toggle Answer Off/Announce Only/Announce
and Record modes
7 Listen to the Main Menu (for Full Voice
prompts only)
0 Delete message
Help 31
4. Help
I cannot pair my mobile phone to the telephone base
• Make sure the Bluetooth function of your Bluetooth
enabled mobile phone is turned on. See your mobile
phone user's manual for more information.
• Make sure the handset, base unit and cell phone are
located near each other.
• Remove the Motorola L511BT/L512BT/L513BT/L514BT/
L515BT from your mobile phone's Bluetooth device history
list (see your mobile phone user's manual for more
information).
• Carefully follow the pairing instructions in the User's
Guide, making sure that your mobile phone is not
connected to any other Bluetooth device(s).
• Turn off your mobile phone, and then turn it on again.
• Reset the telephone base. Unplug the unit's electrical
power. Wait for approximately 15 seconds, and then plug
it back in. Repeat the above suggestions.
The icon is not scrolling when the handset is
placed on the base
• Incomplete battery contact - adjust the handset on the
base unit.
• Dirty contact - clean the battery contact by wiping with an
alcohol moistened cloth.
• Battery is full - charging is not necessary at this time.
No dial tone
• If there is no base power, check the connections. Reset
the phone by unplugging then plugging it back into an
electrical outlet.
• If the handset batteries are empty, recharge the battery
pack for at least 24 hours.
• Move the handset closer to the base if it is too far away.
• Be sure to use the provided telephone cords.
Poor audio quality
• If the base is too close to electrical appliances, reinforced
concrete walls, or metal door frames, move the base
from these areas.
No ring tone
• The ring tone may be deactivated.
• The volume may need to be increased.
32 Help
Caller ID does not work
• Check your subscription with your network operator.
• If you subscribe to high-speed internet service (Digital
Subscriber Line - DSL) through your telephone lines, you
must install a DSL filter between the telephone base and
the telephone wall jack. The filter will prevent noise and
caller ID problems caused by DSL interference. Please
contact your DSL service provider for more information
about DSL filters.
A phonebook entry cannot be stored
• The phonebook is full. Delete an entry to free memory.
No display
• Try recharging or replacing the rechargeable battery pack.
• Reset the base. Unplug the unit's electrical, then plug it
back in.
• If the LED is not lit up, then try to unplug the unit's
electrical power, and then plug it back in.
If the handset disconnects from the base during a
phone call
• Check that the power cord is connected properly into the
base.
• Check that the power adapter is connected properly into
the electrical outlet.
• Move the handset closer to the base. It may be out of range.
• Reset the base by unplugging the unit's electrical power.
Wait for around 15 seconds and re-plug the power again.
Allow up to one minute for the handset to synchronize
with the registered base again.
Noise interference on your radio or television
• Your base or charger may be too close. Move it as far
away as possible.
General information 33
5. General information
If your product is not working properly...
1.
Read this User's Guide.
2.
Visit our website: www.motorola.com
3.
Contact Customer Service in the US and Canada at
1-888-331-3383.
To order a replacement battery pack contact customer
service or visit our website.
Important safety instructions
Follow these safety precautions when using your phone to
reduce the risk of fire, electric shock, and injury to persons
or property:
1.
Keep all vents and openings of the phone unblocked.
Do not set the phone on a heating register or over a
radiator. Ensure that proper ventilation is provided at the
installation site.
2.
Do not use while wet or while standing in water.
3.
Do not use this product near water (for example, near a
bath tub, kitchen sink, or swimming pool).
4.
Do not allow anything to rest on the power cord. Place
the power cord so that it will not be walked on.
5.
Never insert objects of any kind into the product vents
as that may result in fire or electric shock.
6.
Unplug this product from the electrical outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
7.
Do not disassemble this product. If service or repair
work is required, contact the customer service helpline
found in this User's Guide.
8.
Do not overload wall outlets and extension cords.
9.
Avoid using during an electrical storm. Use a surge
protector to protect the equipment.
10.
Do not use this phone to report a gas leak, especially if
you are in the vicinity of the gas line.
CAUTION
To reduce the risk of fire, use only No. 26 AWG or larger UL
Listed or CSA Certified Telecommunication Line Cord.
34 General information
Unplug this cordless phone immediately
from an outlet if:
• The power cord or plug is damaged or frayed.
• Liquid has been spilled on the product.
• The product has been exposed to rain or water. Do not
retrieve the handset or base until after you have
unplugged the power and phone from the wall. Then
retrieve the unit by the unplugged cords.
• The product has been dropped or the cabinet has been
damaged.
• The product exhibits a distinct change in performance.
Installation Guidelines
1.
Read all instructions and save them for future reference.
2.
Follow all warnings and instructions marked on the product.
3.
Do not install this product near a bath tub, sink, or shower.
4.
Operate this phone using only the power source that is
indicated on the marking label. If you are unsure of the
power supply to your home, consult with your dealer or
local power company.
5.
Do not place this product on an unstable cart, stand, or
table. This product may fall, causing serious damage to
the product.
6.
Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other
controls may result in damage and will often require
extensive work to restore the product to normal operation.
7.
Clean this product with a soft, damp cloth. Do not use
chemicals or cleaning agents to clean this phone.
8.
Use only the power supply that came with this unit.
Using other power supplies may damage the unit.
9.
Because this phone operates on electricity, you should
have at least one phone in your home that operates
without electricity in case of a power outage.
10.
To avoid interference to nearby appliances, do not place
the base of the phone on or near a TV, microwave oven,
or VCR.
CAUTION
To maintain compliance with the FCC's RF exposure
guidelines, place the base unit at least 20 cm from nearby
persons.
General information 35
Battery Safety Instructions
• Do not burn, disassemble, mutilate, or puncture the
battery. The battery contains toxic materials that could be
released, resulting in injury.
CAUTION
There is a risk of explosion if you replace the battery with an
incorrect battery type. Use only the battery pack that came
with your phone or an authorized replacement
recommended by the manufacturer.
• Keep battery packs out of the reach of children.
• Remove battery packs if storing over 30 days.
• Do not dispose of battery packs in fire, which could result
in explosion.
• The rechargeable battery packs that power this product
must be disposed of properly and may need to be recycled.
Refer to the battery label for battery type. Contact your local
recycling center for proper disposal methods.
SAVE THESE INSTRUCTIONS
Consumer Products and Accessories
purchased in the United States or Canada
What Does this Warranty Cover?
Subject to the exclusions and limitations contained below,
Binatone Electronics International LTD. warrants the
Motorola branded consumer products that it manufactures
("Products") and the Motorola branded or certified
accessories sold for use with these Products that it
manufactures ("Accessories") to be free from defects in
materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and only applies as follows to
new Motorola branded Products and Accessories
manufactured by Binatone Electronics International LTD.,
and purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
Who is covered?
This warranty covers only the first consumer purchaser, and
is not transferable.
36 General information
What will BINATONE ELECTRONICS
INTERNATIONAL LTD. do?
BINATONE ELECTRONICS INTERNATIONAL LTD., at its
sole option, will at no charge repair, replace or refund the
purchase price of any Products or Accessories that does not
conform to this warranty. Binatone Electronics International
LTD. may use functionally equivalent reconditioned/
refurbished/ pre-owned or new Products, Accessories or
parts in such repair or replacement and any Products,
Accessories or parts removed or being replaced under this
warranty become the property of Binatone Electronics
International LTD.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES OR CONDITIONS
IRRESPECTIVE OF WHETHER THEY ARE IMPOSED BY
LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED UNDER
THIS EXPRESS LIMITED WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL WARRANTIES AND
MOTOROLA AND BINATONE ELECTRONICS
INTERNATIONAL LTD. MAKES NO OTHER
WARRANTIES OR CONDITIONS, EXPRESS OF IMPLIED.
IN NO EVENT SHALL MOTOROLA OR BINATONE
ELECTRONICS INTERNATIONAL LTD. BE LIABLE,
WHETHER UNDER THIS LIMITED WARRANTY OR IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE OR
STRICT PRODUCT LIABILITY) OR OTHERWISE FOR
DAMAGES OR CLAIMS IN EXCESS OF THE PURCHASE
PRICE OF THE PRODUCT OR ACCESSORY, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS
OF REVENUE, SAVINGS OR PROFITS, LOSS OF
BUSINESS, LOSS OF PROGRAMS DATA INFORMATION
(WHETHER CONFIDENTIAL PROPRIETARY OR
PERSONAL IN NATURE OR OTHERWISE) OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE
General information 37
PRODUCTS OR ACCESSORIES AND BINATONE
ELECTRONICS INTERNATIONAL LTD. SHALL UNDER
NO CIRCUMSTANCES BE LIABLE FOR ANY CLAIMS OR
DEMANDS MADE BY ANY THIRD PARTY OR MADE BY
YOU ON BEHALF OF ANY THIRD PARTY TO THE FULL
EXTENT THESE DAMAGES OR CLAIMS MAY BE
DISCLAIMED BY LAW.
Some states, countries or jurisdictions do not allow the
limitation or exclusion of incidental or consequential
damages, or limitation on the length of an implied warranty,
so the above limitations or exclusions may not apply to you
in such states, countries or jurisdictions. This warranty gives
you specific legal rights, and you may also have other rights
that vary from state to state or from one country/jurisdiction
to another. Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Products or
Accessories Covered
Length of Coverage
Consumer Products One (1) year from the date of
purchase by the first consumer
purchaser of the product.
Consumer
Accessories
Ninety (90) days from the date
of purchase by the first consumer
purchaser of the accessory.
Consumer Products
and Accessories
that are Repaired
or Replaced
The balance of the original
warranty or for ninety (90)
days from the date returned to
the consumer, whichever is
longer.
38 General information
Batteries.
Only batteries whose fully charged capacity falls
below 80% of their rated capacity and batteries that leak are
covered by this limited warranty. Battery life and the changes
in battery capacity with time or use are excluded from this
warranty.
Abuse & Misuse.
Defects or damage that result from: (a)
improper or unreasonable use, operation, storage, misuse or
abuse, accident or neglect or other external cause, such as
physical damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) your failure to follow or
operation outside the usage parameters stated in the user
instructions that came with the Products or Accessories; (c)
contact with liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or food; (d)
use of the Products or Accessories for commercial purposes
or subjecting the Product or Accessory to abnormal usage or
conditions; or (e) other acts or omissions which are not the
fault or neglect of Motorola or Binatone Electronics
International LTD., are excluded from coverage.
Use of Non-Motorola branded Products and Accessories.
Defects or damage that result from the use of Non-Motorola
branded or certified Products or Accessories or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by
someone other than Motorola, Binatone Electronics
International LTD. or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or parts,
are excluded from coverage.
Communication Services.
Defects, damages, or the failure of
Products or Accessories due to any communication service
or signal you may subscribe to or use with the Products or
Accessories is excluded from coverage.
General information 39
How to Obtain Warranty Service or Other
Information?
To obtain service or information, please call:
US and Canada: 1-888-331-3383
You will receive instructions on how to ship the Products or
Accessories, the shipment of which shall be at your own risk
and expense, to a BINATONE ELECTRONICS
INTERNATIONAL LTD. Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt, bill of
sale or other comparable proof of purchase of the Products
or Accessories showing the date of purchase; (b) a written
description of the problem; and, most importantly; (c) your
address and telephone number.
These terms and conditions constitute the complete
warranty agreement between you and BINATONE
ELECTRONICS INTERNATIONAL LTD. regarding the
Products or Accessories purchased by you, and supersede
any prior agreement or representations, including
representations made in any literature publications or
promotional materials issued by BINATONE
ELECTRONICS INTERNATIONAL LTD. or representations
made by any agent employee or staff of BINATONE
ELECTRONICS INTERNATIONAL LTD., that may have
been made in connection with the said purchase.
FCC, ACTA and IC regulations
FCC Part 15
This equipment has been tested and found to comply with
the requirements for a Class B digital device under Part 15
of the Federal Communications Commission (FCC) rules.
These requirements are intended to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
40 General information
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Changes or modifications to this equipment not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation. Privacy of
communications may not be ensured when using this
telephone.
To ensure safety of users, the FCC has established criteria
for the amount of radio frequency energy that can be safely
absorbed by a user or bystander according to the intended
usage of the product. This product has been tested and
found to comply with the FCC criteria. The handset may be
safely held against the ear of the user. The telephone base
shall be installed and used such that parts of the user's body
other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and
with technical requirements adopted by the Administrative
Council for Terminal Attachments (ACTA). The label on the
back or bottom of this equipment contains, among other
things, a product identifier in the format US:
AAAEQ##TXXXX. This identifier must be provided to your
local telephone company upon request.
The plug and jack used to connect this equipment to
premises wiring and the telephone network must comply
with applicable Part 68 rules and technical requirements
adopted by ACTA. A compliant telephone cord and modular
plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also
General information 41
compliant. An RJ11 jack should normally be used for
connecting to a single line and an RJ14 jack for two lines.
See Installation Instructions in the User's Guide.
The Ringer Equivalence Number (REN) is used to determine
how many devices you may connect to your telephone line
and still have them ring when you are called. The REN for
this product is encoded as the 6th and 7th characters
following the US: in the product identifier (e.g., if ## is 03, the
REN is 0.3). In most, but not all areas, the sum of all RENs
should be five (5.0) or less. For more information, please
contact your local telephone company.
This equipment may not be used with Party Lines. If you
have specially wired alarm dialing equipment connected to
your telephone line, ensure the connection of this equipment
does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult
your telephone company or a qualified installer.
If this equipment is malfunctioning, it must be unplugged
from the modular jack until the problem has been corrected.
Repairs to this telephone equipment can only be made by
the manufacturer or its authorized agents. For repair
procedures, follow the instructions outlined under the
Limited Warranty.
If this equipment is causing harm to the telephone network,
the telephone company may temporarily discontinue your
telephone service. The telephone company is required to
notify you before interrupting service. If advance notice is not
practical, you will be notified as soon as possible. You will be
given the opportunity to correct the problem and the
telephone company is required to inform you of your right to
file a complaint with the FCC. Your telephone company may
make changes in its facilities, equipment, operation, or
procedures that could affect the proper functioning of this
product. The telephone company is required to notify you if
such changes are planned.
If this product is equipped with a corded or cordless handset,
it is hearing aid compatible.
42 General information
If this product has memory dialing locations, you may
choose to store emergency telephone numbers (e.g., police,
fire, medical) in these locations. If you do store or test
emergency numbers, please:
• Remain on the line and briefly explain the reason for the
call before hanging up.
• Perform such activities in off-peak hours, such as early
morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference, including interference
that may cause undesired operation.
The term "IC: " before the certification/registration number
only signifies that the Industry Canada technical
specifications were met.
The Ringer Equivalence Number (REN) for this terminal
equipment is 0.0. The REN is an indication of the maximum
number of devices allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that
the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical
specifications.
Technical Specifications
RF frequency band 1921.536 MHz — 1928.448 MHz
Channels 5
Operating temperature 5ºC to 45ºC
Telephone base voltage
(AV voltage, 60Hz)
96 — 130 Vms
Telephone base voltage
(Adapter output)
6V DC, 400mA
Handset voltage 2.4V 550mAh Ni-MH battery pack
Charge voltage
(Adapter output)
6V AC, 300mA
Manufactured, distributed or sold by Binatone
Electronics International LTD., official licensee for
this product. MOTOROLA and the Stylized M
Logo, and other Motorola trademarks and trade
dress are owned by Motorola, Inc. and are used
under license from Motorola, Inc. MOTOROLA and
the Stylized M Logo are registered in the US Patent
& Trademark Office. The Bluetooth trademarks are
owned by their proprietor and used by Binatone
Electronics International LTD. under license. All
other product or service names are the property of
their respective owners.
© Motorola, Inc. 2009. All rights reserved.
Version 1.0
Printed in China
