Binatone Electronics 80-7638-01 1.9GHz CORDLESS PHONE User Manual L51xCBT IFU EN

Binatone Electronics International Ltd. 1.9GHz CORDLESS PHONE L51xCBT IFU EN

Users Manual

User’s Guide
For L512C/L513C/L514C/L515C
DECT 6.0 Cordless / Corded
Phones with Bluetooth® and
Answering System
Warning
Use only the power adapters and
telephone line cords provided in the box.
30 name and number phonebook for cordless handset and corded base respectively.
Answering machine with 15 minutes digital recording time.*
Caller ID shows you who's calling and you can see details of the last 30 callers in a calls list.**
Call log Capacity is 30, the same for cordless handset and corded base.
Register up to 5 cordless handsets to the corded base.
Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an
external caller.
*The recording time includes the pre-recorded voice menu and outgoing announcements.
**You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work.
Please note that only the Corded phone operates during power outage (with limited functions).
Welcome...
to your new Motorola Phone!
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product,
you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required
for warranty coverage.
For product-related questions, please call:
US and Canada: 1-888-331-3383
On the Web: www.motorola.com
This ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of
products that save energy and help protect our environment. We are proud to mark this product
with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines.
IMPORTANT
Only use the telephone line cords supplied.
Got everything?
• Cordless handset
• Cordless charger
NiMH rechargeable battery pack
Power adapter for the cordless charger
• Corded base
• Corded handset
Telephone line cords (one for connecting the corded base and handset)
Power adapter for the corded base
• Quick start guide
• User’s guide
In multihandset packs, you will find one or more additional cordless handsets, cordless chargers with
power adapter units, additional rechargeable battery packs and battery doors.
This User’s Guide provides you with all the information you need to
get the most from your phone.
Before you make your first call you will need to set up your phone.
Follow the simple instructions in 'Getting Started', on the next few
pages.
4
1. Getting started ......................................... 7
1.1 Install and charge the cordless handset
battery pack .................................................. 8
1.2 Install the cordless charger........................... 8
1.3 Connect the corded base ............................. 9
1.4 Wall mounting on corded base ..................... 9
1.5 Set the display language ............................ 10
1.6 Set date and time ....................................... 10
1.7 Your phone is now ready for use................ 10
2. Getting to know your phone ................. 11
Enjoy your corded base phone.............. 19
3. Using the phone..................................... 19
3.1 Introducing Bluetooth.................................. 19
3.2 Bluetooth Setup .......................................... 20
3.2.1 Setup Cellular ................................ 20
3.2.2 Replace a paired device ................ 20
3.2.3 Paired Devices ............................... 21
3.3 Making a home call using your landline...... 21
3.4 Making a cellular call using your
corded base phone.....................................21
3.5 Speed dial calling ....................................... 22
3.6 Answering a home call ............................... 22
3.7 Answering a cellular call ............................. 22
3.8 Receiving a cellular call while on a
home call ....................................................22
3.9 Receiving a home call while on a
cellular call ..................................................23
3.10Ending a call ...............................................23
3.11Adjusting volume ........................................23
3.12Dialing from the redial list ........................... 24
3.13Dialing from the calls list ............................. 24
3.14Muting a call................................................ 24
3.15Adding an entry to the phonebook..............24
3.16Storing a phonebook entry as a
one touch number.......................................24
3.17Dialing from the phonebook........................25
3.18Caller ID......................................................25
3.18.1 Calls List ......................................... 25
3.18.2 View the calls list ............................ 26
3.18.3 Save a number from the calls list
to the phonebook ........................... 26
3.18.4 Delete a calls list entry ................... 26
3.18.5 Delete entire calls list ..................... 26
3.19Personal Settings........................................27
3.20To reset all settings..................................... 28
3.21Using your answering machine................... 28
3.21.1 Play messages ............................... 28
3.21.2 Turn on or off the answer machine .... 29
3.21.3 Set the announcement mode ......... 29
5
3.21.4 Set voicemail only ...........................29
3.21.5 Set the number of rings ..................30
3.21.6 Announcement ...............................30
3.21.7 Record a memo ..............................31
3.21.8 Call screening on/off .......................31
3.21.9 Delete all old messages .................31
3.21.10Remote access ...............................32
3.21.11Set the security code ......................32
Enjoy your cordless handset ................. 33
4. Using the phone .....................................33
4.1 Introducing Bluetooth ................................. 33
4.2 Bluetooth Setup.......................................... 34
4.2.1 Setup Cellular .................................34
4.2.2 Replace a paired device .................34
4.2.3 Paired Devices ...............................35
4.3 Making a home call using your landline ..... 35
4.4 Making a cellular call using your cordless
DECT handset............................................ 35
4.5 Speed dial calling ....................................... 36
4.6 Answering a home call ............................... 36
4.7 Answering a cellular call............................. 36
4.8 Receiving a cellular call while on a
home call .................................................... 36
4.9 Receiving a home call while on a
cellular call.................................................. 37
4.10Ending a call............................................... 37
4.11Adjusting volume ........................................ 37
4.12Muting a call ............................................... 37
4.13Dialing from the redial list ........................... 37
4.14Dialing from the calls list............................. 38
4.15Adding an entry to the phonebook ............. 38
4.16Storing a phonebook entry as a
one touch number ...................................... 38
4.17Dialing from the phonebook ....................... 38
4.18Caller ID ..................................................... 39
4.18.1 Calls List ........................................ 39
4.18.2 View the calls list ........................... 39
4.18.3 Save a number from the calls list
to the phonebook ........................... 40
4.18.4 Delete a calls list entry ................... 40
4.18.5 Delete entire calls list ..................... 40
4.19Personal Settings ....................................... 41
4.20Registration ................................................ 42
4.21To reset all settings .................................... 42
4.22Paging/Finding cordless handset ............... 43
4.23Using your answering machine .................. 43
4.23.1 Play messages .............................. 43
4.23.2 Turn on or off the
answer machine ............................. 44
6
4.23.3 Set the announcement mode ......... 44
4.23.4 Set voicemail only .......................... 44
4.23.5 Set the number of rings .................. 44
4.23.6 Announcement ............................... 45
4.23.7 Record a memo ............................. 45
4.23.8 Call screening on/off ...................... 46
4.23.9 Delete all old messages ................. 46
4.23.10Remote access .............................. 46
4.23.11Set the security code ..................... 47
5. Help......................................................... 48
6. General information............................... 50
Getting started 7
1. Getting started
WARNING
Do not place your phone in the bathroom or other
humid areas.
Location
When choosing a location for your new phone, here are
some important guidelines you should consider:
Avoid sources of noise and heat, such as motors,
fluorescent lighting, microwave ovens, heating
appliances and direct sunlight.
Avoid areas of excessive dust, moisture and low
temperature.
Avoid other cordless telephones or personal
computers.
Never install telephone wiring during a lightning
storm.
Never install telephone jacks in wet locations unless
the jack is specifically designed for wet locations.
Never touch non-insulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone
lines.
HANDSET RANGE
Optimal range is reached when there are no other
electrical appliances working within the range area. Any
obstruction between the corded base and cordless
handset will also reduce the range significantly.
SIGNAL STRENGTH
When out of range of the corded base, the screen shows
SEARCHING...
. If you are on a call, the line will hang up. Move
back within in range. The cordless handset will
automatically re-connect to the corded base.
Setting up
IMPORTANT
The corded base must be plugged into the electrical
outlet at all times. Do not connect the telephone line
cord into the wall jack until the cordless handset is fully
charged. Only use the power adapter and telephone
line cord supplied with the product.
WHICH POWER ADAPTER
The power adapter with the smaller pin plug is for the
corded base unit and the power adapter with the bigger
pin plug is for the cordless charger unit.
8Getting started
1.1 Install and charge the cordless
handset battery pack

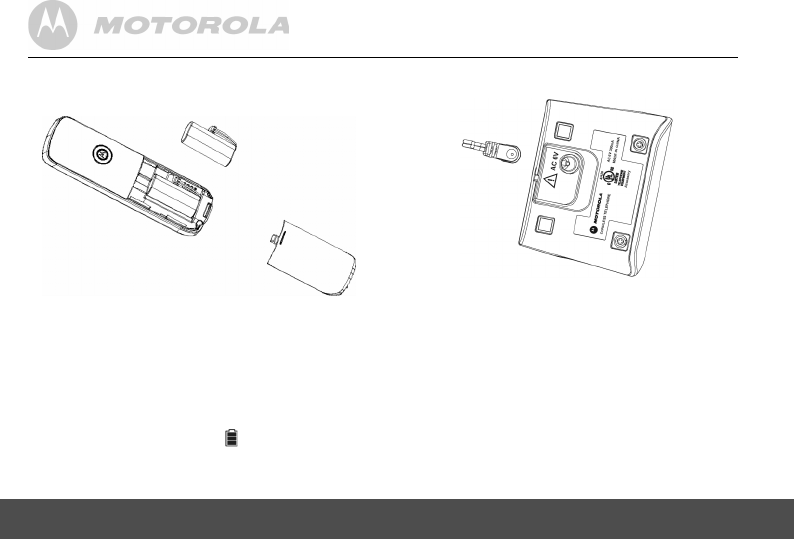

1.
Slide out the battery compartment cover.
2.
Place the supplied rechargeable battery pack in the
battery compartment, with the battery connector
plugged in, as shown.
3.
Slide the battery compartment cover back.
4.
Put the cordless handset on the cordless charger to
charge for at least 24 hours. When the cordless
handset is fully charged the will indicate that it is
fully charged.
5.
Use only the rechargeable battery pack provided.
1.2 Install the cordless charger
1.
Plug the power adapter with bigger pin plug into the
cordless charger.
2.
Plug the other end of the power adapter into the
wall jack.
3.
Use only the provided power adapter.
Getting started 9

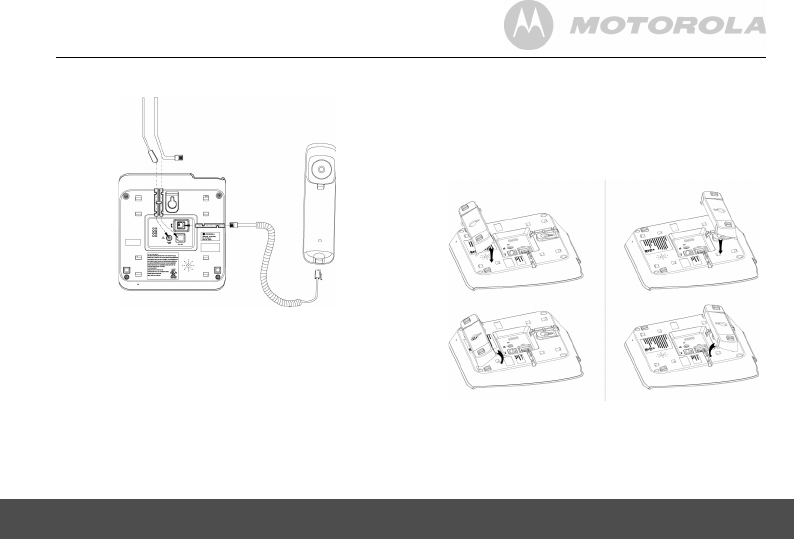

1.3 Connect the corded base
1.
Connect the corded handset to the corded base
with the provided coiled line cord.
2.
Plug the power adapter with smaller pin plug &
telephone line cord into the corded base.
3.
Plug the other end of the power adapter &
telephone line cord into the wall jack.
4.
Always use the telephone line cord provided in the
box.
5.
Use only the provided adapter.
1.4 Wall mounting on corded base
This phone can be mounted on any standard wall plate.
1.
Plug the power adapter with smaller pin plug &
telephone line cord into the corded base.
2.
Snap the wall mount adapter into the notches on
the corded base’s back.
3.
Plug the other end of the power adapter &
telephone line cord into the wall jack.
4.
Align the mounting slots on the corded base with
the mounting posts on the wall. Then push in and
down until the phone is firmly seated.
10 Getting started
1.5 Set the display language
On corded base:
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Settings
.
2.
Repeat to select Language.
3.
Repeat to select language.
4.
Press P to save.
On cordless handset:
1.
Press MENU and VOL+ or REDIAL/VOL- to select
SETUP HS
.
2.
Repeat to select Language.
3.
Repeat to select language.
4.
Press MENU to save.
1.6 Set date and time
On corded base:
1.
Press P to select
Date & Time
.
2.
Press P and edit the time in 12 hour format.
3.
Press /VOL+ or /REDIAL/VOL- to toggle
AM/
PM
settings.
4.
Press P to continue entering the date.
5.
Press P to save the settings.
On cordless handset:
1.
Press MENU to select
DATE & TIME
.
2.
Repeat to edit the year and date.
3.
Press VOL+ or REDIAL/VOL- to move between the
input fields
YEAR
and
DATE
.
4.
Press MENU and edit the time in 12 hour format.
Press VOL+ or REDIAL/VOL- to toggle
AM/PM
settings.
5.
Press MENU to save the settings.
NOTE
If you have subscribed to your network's Caller ID
service, the date and time is set automatically when a
call is received.
1.7 Your phone is now ready for use.
Getting to know your phone 11
2. Getting to know your phone

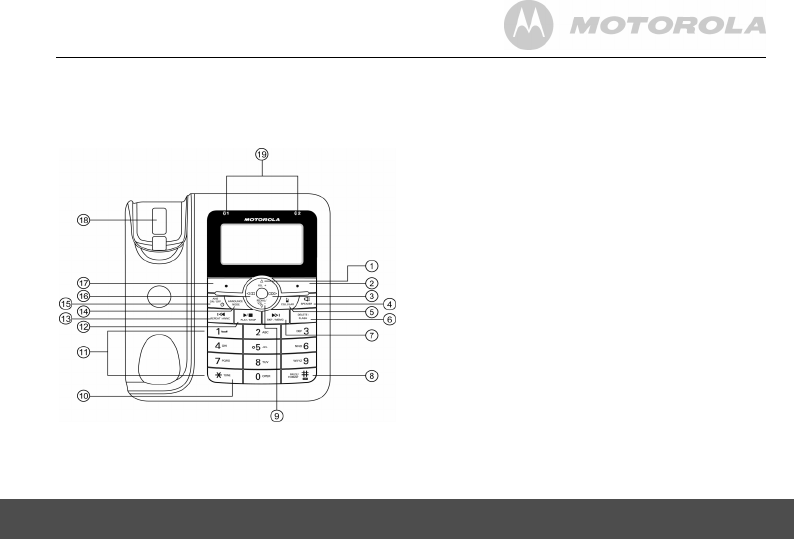

Overview of the corded base
1 SCROLL UP/ VOLUME UP
a) In menu mode: press to scroll up.
b) During a call: press to increase volume.
c) Calls list/phonebook/redial list entry: press to
scroll up the list.
d) In answering machine mode: press to increase
message playback volume.
2 RIGHT SOFT KEY
a) In idle mode: press to access menu list.
b) In menu/editing mode: press to confirm and save
the settings.
c) During a call: press to hold or make intercom call.
d) In calls list entry: press to save the entry to the
phonebook.
e) In phonebook entry: press to go to phonebook
editing mode.
3 RIGHT/ CALLS LIST
a) In idle mode/during a call: press to access calls
list.
b) In editing mode: press to move the cursor to the
right.
4 SPEAKER
a) In idle/menu/pre-dial mode/during a call: press to
turn on/off the speakerphone.
12 Getting to know your phone
b) Calls list/phonebook/redial list entry: press to
make a call with speakerphone.
c) During ringing: press to answer a call with
speakerphone.
d) In answering machine mode: press to make a call
with speaker
5 CELLULAR
a) In idle mode: press to make a cellular call.
b) During an incoming cellular call: press to answer
the cellular call.
6 DELETE/ FLASH
a) During message playback: delete the current
message.
b) In idle: press and hold to erase all read messages
(applicable only when all answering machine
messages are read, new message(s) will not be
deleted).
c) During a call: press to insert a flash.
7 SKIP/ MEMO
a) During message playback: press to skip to play the
next message.
b) In idle: press and hold to hear a voice prompt for
recording a memo and then start to record a memo.
Press
SAVE
key to stop memo recording.
8 SCROLL DOWN/ VOLUME DOWN/ REDIAL LIST
a) In idle: press to access redial list.
b) In menu mode: press to scroll down.
c) During a call: press to decrease volume.
d) Calls list/phonebook/redial list entry: press to
scroll down the list.
e) In answering machine mode: press to decrease
volume.
9 #/ PAUSE/ ABC/ FORMAT
a) In idle/pre-dial/number editing mode/during a
call: press to insert a "#", press and hold to insert a
pause.
b) In name editing mode: toggle ABC/Abc/abc.
c) In calls list entry: press to toggle the Caller ID
display format between 7, 8, 10 and 11 digits.
10 */ TONE
a) In idle/pre-dial/editing mode: press to insert a "*".
b) During a call: press to switch from pulse to tone
dialing temporarily if pulse mode was selected
before. After the call is ended, the dial mode will
change back to pulse.
11 ALPHANUMERIC KEYPAD
a) In idle/pre-dial/editing mode/during a call: press
to enter characters/numbers. Press and hold to
activate speed dial.
Getting to know your phone 13
12 PLAY/ STOP
a) In idle: press to playback answering machine
messages.
b) In message playback mode: press to stop playing
messages. Press again to resume message
playback.
13 REPEAT/ ANNC
a) In idle: short press to play the current
announcement or the current announcement mode.
b) In idle: press and hold to hear a voice prompt of how
to record the personalized announcement of the
current answer mode, press
SAVE
key to stop
recording.
c) During message playback mode: press to replay
current message from the beginning.
14 ANNOUNCE MODE
a) In idle: press to toggle between
Announce & Record
/
Announce Only
/
Answer Off
mode.
15 ANS ON / OFF
a) In idle mode: Press to turn on or off the answer
machine.
16 LEFT/ PHONEBOOK
a) In idle mode/during a call: press to access the
phonebook.
b) In editing mode: press to move the cursor to the left.
17 LEFT SOFT KEY
a) In idle mode: press to access intercom, press and
hold to enter registration mode.
b) In pre-dial/editing mode: press to delete one
character/digit. Long press to delete all characters/
digits.
c) During a call: press to mute/unmute the call.
d) In calls list/phonebook entry: press to back to the
previous level.
e) In answering machine mode: press to delete the
current message playback.
18 Base Cradle
19 BLUETHOOTH LED 1 and BLUETOOTH LED 2
a) On when Bluetooth device 1 or 2 is connected with
the telephone base.
b) Off when Bluetooth device(s) is (are) disconnected
with the telephone base.
14 Getting to know your phone

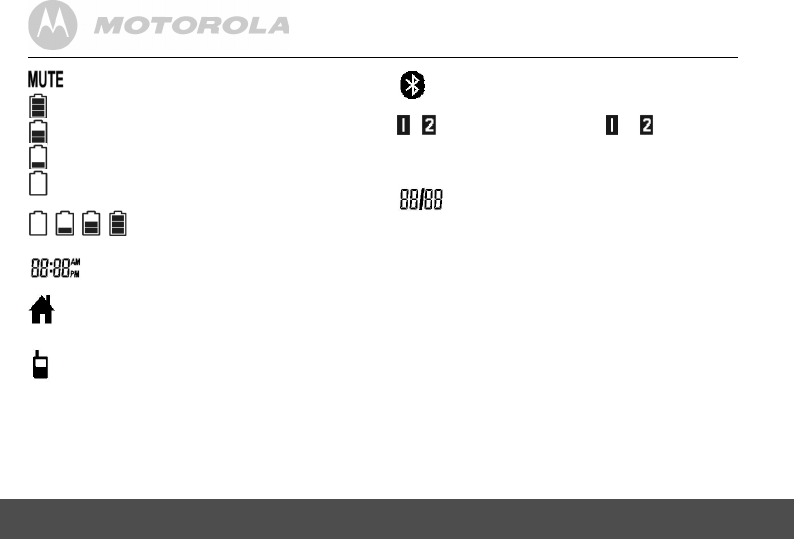

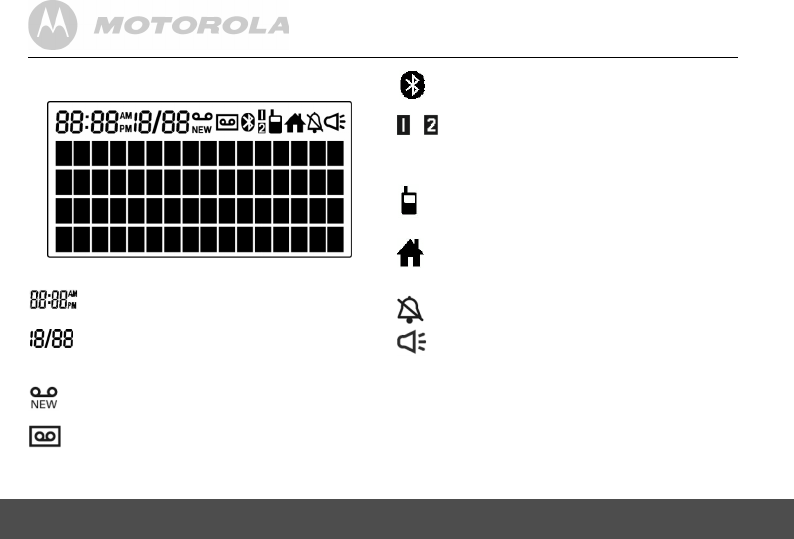

Corded base LCD display
Display icons
In idle mode, the current time is displayed.
In Caller ID mode, the time of call is displayed.
In idle mode the current date is displayed.
In Caller ID mode, the date of the call is
displayed.
On when there is new voice mail not yet listened
to. Off when new voice mail has been listened to.
On when answering machine is turned on.
Flashes when new answering machine
message is received.
On when a Bluetooth device is connected.
Off when Bluetooth feature is disabled.
/ On when Bluetooth device 1 or 2 is connected
with the telephone base.
Off When Bluetooth device(s) is (are)
disconnected with the telephone base.
On when the Cellular line is in use.
Flashes when the Cellular line is put on hold.
Off when the Cellular line is idle.
On when the Home line is in use.
Flashes when the Home line is put on hold.
Off when the Home line is idle.
On when ringer volume is turned off.
On when speakerphone is turned on.
Getting to know your phone 15

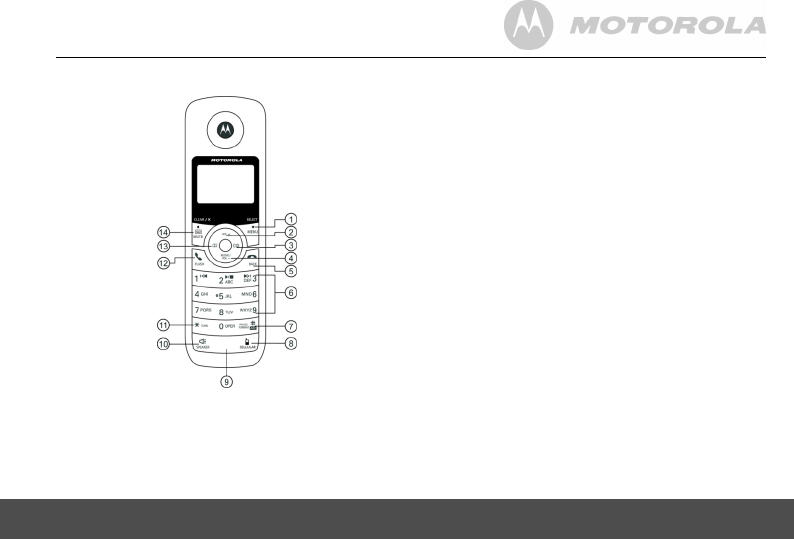

Overview of your cordless handset
Get acquainted with the following 14 buttons on your
handset and their multi-function tasks.
1 Menu / Select
a) In idle mode: press to access menu list.
b) In menu/editing mode: press to confirm and save
the settings.
c) During a home call: press to transfer a call to a
second handset.
d) In calls list entry: press to save the entry to the
phonebook.
e) In phonebook entry: press to go to phonebook
editing mode.
2 Scroll up / Volume up
a) In menu mode: press to scroll up.
b) In editing mode: press to move cursor to the left.
c) During a call: press to increase volume.
d) Calls list/phonebook/redial list entry: press to
scroll up the list.
e) In answering machine mode: press to increase
volume.
3 Right / Calls list
a) In idle mode/during a call: press to access calls
list.
b) In editing mode: press to move the cursor to the
right.
4 Scroll down / Volume down / Redial list
a) In idle/pre-dial mode: press to access redial list.
b) In menu mode: press to scroll down.
c) In editing mode: press to move cursor to the right.
d) During a call: press to decrease volume.
16 Getting to know your phone
e) Calls list/phonebook/redial list entry: press to scroll
down the list.
f) In answering machine mode: press to decrease
volume.
5 Talk off / Back
a) In menu/editing mode/phonebook entry: press to
exit to previous level.
b) In pre-dial mode/calls list/redial list entry/
answering machine mode: press to exit to idle.
c) During ringing: press to silent the incoming ringer
temporarily.
d) During a call: press to end a call, either home call
or cellular call.
6 Alphanumeric keypad
a) In idle/pre-dial/editing mode/during a call: press to
enter characters/numbers. Press and hold to activate
speed dial.
7 # / Pause / ABC / Format
a) In idle/pre-dial/number editing mode/during a
call: press to insert a #, press and hold to insert a
space.
b) In name editing mode: toggle ABC/abc.
c) In calls list entry: press to toggle between 7, 10 and
11 digit formats when returning calls from Caller ID
list.
d) In phonebook list entry: if the number is more than
15 digits, press to view the next page of remaining
digits.
8Cellular
a) In idle mode: press to make a cellular call.
b) During an incoming cellular call: press to answer
the cellular call.
9 Microphone
10 Speaker
a) In idle/menu/pre-dial mode/during a call: press to
turn on/off the speakerphone.
b) Call List/phonebook/redial list entry: press to
make a call with speakerphone.
c) During ringing: press to answer a call with the
speakerphone.
d) In answering machine mode: press to toggle the
message playback via the earpiece or
speakerphone.
11 * / Tone
a) In idle/pre-dial/editing mode: press to insert a *.
b) During a call: press to switch from pulse to tone
dialing temporarily if pulse mode was selected
before. After the call has ended, the dial mode will
change back to pulse.
Getting to know your phone 17
c) In phonbook list entry: if the number is more than
15 digits, press to view the previous page of
remaining digits.
12 Talk on/ Flash
a) In idle/menu/pre-dial mode: press to make a call.
b) Call List/phonebook/redial list entry: press to
make a call to the selected entry.
c) During an incoming call: press to answer the call.
d) During a home call: press flash to switch to another
call.
13 Left/ Phonebook
a) In idle mode/during a call: press to access the
phonebook.
b) In editing mode: press to move the cursor to the
left.
14 Answering Machine/ Mute/ Clear/ X
a) In idle mode: press to play the message in answering
machine.
b) In pre-dial/editing mode: press to delete one
character/digit. Long press to delete all characters/
digits.
c) During a call: press to mute/unmute the call.
d) In calls list/phonebook entry: press to delete the
entry.
e) In answering machine mode: press to delete the
current message playback.
Cordless handset LCD display
Display icons
On when speakerphone is turned on.
On when answering machine is turned on.
Flashes when a new message is received.
Indicates that a new call has been received.
Off after all new call been reviewed.
Indicates that the ringer volume is off.
If a voice mail service is being used, on for new
voice mail message. Off after all new voice mails
have been reviewed. (For home line only)
18 Getting to know your phone
On when a call is muted.
Full battery power level.
2/3 battery power level.
1/3 battery power level.
Flashes when low battery level is detected,
needs charging.
Animation in motion. Battery is
charging.
In idle mode, the current time is displayed.
In Caller ID mode, the time of call is displayed.
On when the Home line is in use.
Flashes when the Home line is put on hold.
Off when the Home line is idle.
On when the Cellular line is in use.
Flashes when the Cellular line is put on hold.
Off when the Cellular line is idle.
On when a Bluetooth device is connected.
Off when Bluetooth feature is disabled.
/ On when Bluetooth device or is connected
with the telephone base.
Off When Bluetooth device(s) is (are)
disconnected with the telephone base.
In idle mode the current date is displayed.
In Caller ID mode, the date of the call is
displayed.
Using the phone 19
Enjoy your corded base phone
3. Using the phone
3.1 Introducing Bluetooth
Your new telephone system with Bluetooth wireless
technology has the following features:
Pairing Bluetooth enabled mobile phone with the
telephone base. Two Bluetooth devices can be
paired up and connected in maximum.
Connecting Bluetooth enabled mobile phone to
make and receive
CELLULAR
calls. Two mobile
phones can be connected but only one of them can
be used at a time.
Making and receiving calls using your Bluetooth
enabled mobile phone plan while benefiting from the
ease and comfort of your home telephone system.
Glossary of terms
Below are some terms used in this user's guide to help
you become familiar with using your Bluetooth devices
and your new telephone system.
Bluetooth mobile phone
- Refers to a Bluetooth enabled
mobile telephone.
CELLULAR
line - The communications service provided
through your Bluetooth enabled mobile telephone.
HOME
line - Your conventional telephone land line.
Pairing
- This refers to the process of two Bluetooth
devices registering device information with each other.
The telephone base must be paired with a Bluetooth
enabled mobile phone before the Bluetooth device can
be used.
IMPORTANT INFORMATION
Refer to your mobile phone user's guide for more
information about its Bluetooth function.
Make sure that your Bluetooth enabled mobile
phone is between one to twelve feet away from the
telephone base in order to maintain a clear and
consistent connection between your Bluetooth
mobile phone, telephone base and cell tower.
Make sure that your Bluetooth enabled mobile
phone has sufficient signal strength. You may need
to move the Bluetooth enabled mobile phone and
telephone base to a location where the cellular
signal may be stronger.
Charge your Bluetooth mobile phone while it is
connected to the telephone base because your
mobile phone's battery will discharge faster while it
is connected wirelessly to the telephone base.
20 Using the phone
Monitor your mobile phone's usage because airtime
is deducted from your cellular plan for the duration of
the
CELLULAR
calls.
3.2 Bluetooth Setup
3.2.1 Setup Cellular
To pair and connect a Bluetooth enabled mobile phone:
Place your cell phone near the corded base phone.
• Press
P and /VOL+ or /REDIAL/VOL- to
select
Setup Cellular
.
• Press
P and display will show
Cellular Ready?
• Press P and display will show
Discoverable Mode
.
The Bluetooth feature will be activated.
Using your Bluetooth enabled mobile phone, turn on
the Bluetooth feature and search for a new device.
Once your Bluetooth enabled mobile phone has
found the Motorola L512CBT/L513CBT/L514CBT/
L515CBT telephone, select it.
Using your Bluetooth enabled mobile phone, enter
the PIN code of the telephone (the default PIN code
is 0000) to continue the pairing process.
Pairing will be confirmed when you hear a tone and
the Bluetooth icon appears on the handset. Refer to
the user’s manual of your Bluetooth enabled mobile
phone to learn how to search for or add new
Bluetooth devices.
NOTE
Paired device(s) will be connected automatically and
stored into the Paired Devices list.
When a device is successfully connected,
corresponding device or will be displayed.
If you would like to pair up another Bluetooth device,
please repeat the steps as above.
3.2.2 Replace a paired device
If you have already paired up two Bluetooth devices,
you will need to replace one of them if you would like to
pair up another device. Follow the below steps to
replace and pair up a new device.
• Press
P and /VOL+ or /REDIAL/VOL- to
select
Setup Cellular
.
Display will show the two Cellular names of the
paired devices.
• Press
P and /VOL+ or /REDIAL/VOL- to
select the cellular device you would like to replace.
• Press
P to confirm. Display will show
Replace the
Cellular?
• Press P to confirm. Display will show
Cellular
Ready?
.
Refer to section 3.2.1 to proceed with the next steps.
Using the phone 21
NOTE
During pairing up new cellular, the connected cellular
will be disabled temporarily.
3.2.3 Paired Devices
The cellular(s) paired up will be displayed in the paired
devices list, no matter it (they) is (are) connected or not.
You can choose to connect, or remove the cellular from
this menu.
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Paired Devices
.
2.
Display will show the Cellular name of paired
device(s).
NOTE
Display will show
No Paired Device
if there is no device
paired up.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select the desired cellular device.
For the connected cellular device:
4.
Press P to remove the cellular device.
5.
Press P to confirm.
For the not connected cellular device:
4.
Press P and /VOL+ or /REDIAL/VOL- to
select
Connect
or
Remove Cellular
.
5.
Press P to confirm. If you select
Remove Cellular
,
press P again to confirm.
NOTE
When the connected cellular is removed,
corresponding device or will be off.
When the disconnected cellular is connected,
corresponding device or will be on.
When the cellular is removed, the device name will
be removed and display
Empty
instead in the paired
device list.
3.3 Making a home call using your
landline
1.
Enter the number and pick up the corded handset
or press /SPEAKER (Base) to dial the phone
number.
3.4 Making a cellular call using your
corded base phone
If there is only one Bluetooth enabled mobile phone
paired up and connected,
1.
Enter the phone number, and then press /
CELLULAR (Base) to dial out.
OR
22 Using the phone
1.
Press /CELLULAR (Base), and then enter the
phone number.
2.
Press /CELLULAR (Base) again to dial out.
If there are two Bluetooth enabled mobile phones paired
up and connected,
1.
Enter the phone number, and then press /
CELLULAR (Base) and /VOL+ or /REDIAL/
VOL- to select the desired cellular device.
2.
Press P or /CELLULAR (Base) to dial out.
OR
1.
Press /CELLULAR (Base) and /VOL+ or /
REDIAL/VOL- to select the desired cellular.
2.
Press P or /CELLULAR (Base), and then
enter the number.
3.
Press /CELLULAR (Base) to dial out.
NOTE
If the cellular device just be paired up but not connected,
you should connect the cellular device before make an
external Bluetooth call.
3.5 Speed dial calling
1.
Press and hold a key from /1 to WXYZ/9 until
the number is displayed and dialed.
3.6 Answering a home call
1.
Pick up the corded handset or press /
SPEAKER (Base) to answer the incoming home
call.
3.7 Answering a cellular call
1.
Pick up the corded handset to answer the incoming
cellular call.
OR
Press /CELLULAR (Base) or /SPEAKER
(Base) on corded base to answer the incoming cellular
call.
3.8 Receiving a cellular call while on
a home call
A short beep during a HOME call indicates that there is
an incoming CELLULAR call and the screen will display
the caller ID.
To answer the incoming cellular call:
• Press /CELLULAR (Base) on the corded base.
OR
If you are in speakerphone mode, pick up the corded
handset.
Using the phone 23
The home call will automatically be placed on hold
and will start flashing.
To swap the cellular line to a home call:
While talking on a cellular call, press DELETE/
FLASH on the corded base to swap to the home
call. The cellular call will automatically be placed on
hold and will start flashing.
To end the cellular call:
Put the corded handset on the corded base cradle.
OR
If you are in speakerphone mode, press /
SPEAKER (Base) on corded base. The home call
will be resumed automatically.
3.9 Receiving a home call while on a
cellular call
A short beep during a CELLULAR call indicates that
there is an incoming HOME call and the screen will
display the caller ID.
To answer the incoming home call:
• Press DELETE/FLASH to answer the home call.
The cellular line call will automatically be placed on
hold and will start flashing.
To swap the line to a cellular call:
While talking on a home call, press /CELLULAR
(Base) on the corded base to swap to the cellular
call. The home call will automatically be placed on
hold and will start flashing.
To end the home call:
Put the corded handset on the corded base cradle.
OR
If you are in speakerphone mode, press /
SPEAKER (Base) on corded base. The cellular call
will be resumed automatically.
3.10 Ending a call
1.
During either a home or cellular call, put the corded
handset on the corded base cradle or press /
SPEAKER (Base) if you are in speakerphone
mode.
3.11 Adjusting volume
1.
During a call, press /VOL+ or /REDIAL/VOL-
to adjust the volume.
24 Using the phone
3.12 Dialing from the redial list
1.
Press /REDIAL/VOL- and then scroll /VOL+
or /REDIAL/VOL- to the entry you want to redial.
2.
Pick up the corded handset or press /
SPEAKER (Base) to dial the number from home
line.
OR
3.
Press /CELLULAR (Base) to dial the number
from cellular line.
3.13 Dialing from the calls list
1.
Press CID/ and then scroll /VOL+ or /
REDIAL/VOL- to the entry you want to dial.
2.
Toggle #/ /PAUSE/FORMAT key to format the
dialing number.
3.
Pick up the corded handset or /SPEAKER
(Base) to dial the number from the home line.
OR
4.
Press /CELLULAR (Base) to dial the number
from the cellular line.
3.14 Muting a call
1.
During a call, press P to mute the
microphone, so that you can talk to someone else
in the room without your caller hearing you.
2.
Press P again to unmute.
3.15 Adding an entry to the
phonebook
1.
Press / and press P to select
Add
.
2.
Press P and enter the name.
3.
Press P and enter the number.
4.
Press P to save.
NOTE
Numbers can be up to 24 digits long and names up to
16 characters long. Entries are stored in alphabetical
order.
3.16 Storing a phonebook entry as a
one touch number
1.
Press /.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Speed Dial
.
Using the phone 25
3.
Press P and /VOL+ or /REDIAL/VOL-
to select the speed dial key from /1 to WXYZ/9.
4.
Press P and /VOL+ or /REDIAL/VOL- to
scroll to the entry to want.
5.
Press P to save.
3.17 Dialing from the phonebook
1.
Press / and then scroll /VOL+ or /
REDIAL/VOL- to select the entry you want to dial.
2.
Pick up the corded handset or press /
SPEAKER (Base) to dial the number from the
home line.
OR
3.
Press /CELLULAR (Base) to dial the number
from the cellular line.
TIPS
Instead of scrolling to browse the phonebook entries,
press the numeric key corresponding to the first letter of
the entry you wish to locate. For example, pressing 2
will show the entries starting with A. Pressing 2 again
will show the entries starting with B, etc.
3.18 Caller ID
If you have subscribed to Caller ID, and provided the
identity of the caller is not withheld, the number of the
caller will be displayed together with the date and time
of the call (if provided by the network).
NOTE
If the telephone number is not available for incoming
calls, the handset will display
Unavailable
.
If the incoming call is from a withheld telephone
number, the handset will display
Private
.
Information about incoming calls will vary by country
and network operator. Some operators may charge
a subscription for their Caller ID service.
3.18.1 Calls List
The calls list contains details of missed and received
calls. Details include the date and time of the call.
Entries are displayed in chronological order with the
most recent call at the top of the list.
NOTE
When the calls list is full, a new call replaces the
oldest in the list.
The received and missed calls log holds details of
up to 30 calls.
If you receive more than one call from the same
number, only the most recent call is kept in the calls
list. When you have missed calls (incoming calls that
you haven't answered) the icon will be
displayed in the display on all handsets registered to
the base. If one handset is used to view the calls log,
26 Using the phone
the icon on the other handsets remains on (For
multi-pack use only).
3.18.2 View the calls list
1.
Press CID/ to enter the calls list.
2.
Scroll /VOL+ or /REDIAL/VOL- through the
calls list.
NOTE
When reviewing an entry from the calls list, press #/
/PAUSE/FORMAT repeatedly to display the
number in a different format.
For example, if a caller number is displayed as
888-331-3383, the various formats will be:
331-3383
1-331-3383
888-331-3383
1-888-331-3383
User can choose the desired number format for local
and long distance numbers before dialing or saving
it into the phonebook.
The icon is removed once the new call has
been viewed.
3.18.3 Save a number from the calls list to the
phonebook
1.
Press CID/ to enter the calls list.
2.
Press /VOL+ or /REDIAL/VOL- to the entry
you want.
3.
Press P and enter the name.
4.
Press P and edit the number.
5.
Press P to save.
3.18.4 Delete a calls list entry
1.
Press CID/ to enter the calls list.
2.
Press /VOL+ or /REDIAL/VOL- to scroll to the
entry you want.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select
Delete
.
4.
Press P to confirm and the entry is deleted.
3.18.5 Delete entire calls list
1.
Press CID/ to enter the calls list.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Delete ALL
.
3.
Press P and then
Delete All?
is displayed.
4.
Press P to confirm and all entries are deleted.
NOTE
You need to review the particular call before you delete
the record from the call list.
Using the phone 27
3.19 Personal Settings
Menu map
Main
Menu Date &
Time Phonebook Ringer Setup Settings Setup
Cellular Paired
Devices Answer
Machine Reset
Settings
Sub
menu Set Date &
Time Add
View
Edit
Delete
Delete All
PB Capacity
Speed Dial
Ringer Tone
Ringer Volume
Key Tone
Dial Mode
Flash Time
Area Code
Base Name
Language
Answerer On (if
answer machine
is off).
Answerer Off (if
answer machine
is on).
Answerer mode
Voicemail Only
Rings to Answer
Announcement
Record Memo
Call Screening
Del All Old Msg
Remote Access
Security Code
Clr Voice Mail
All Settings
28 Using the phone
1.
Press P.
2.
Press /VOL+ or /REDIAL/VOL- to scroll
through the menu.
3.
Press P to open a sub-menu or validate an
option. Press M to go back to previous menu
level or cancel an action.
If you do not press any button on the handset for 30
seconds, the display will automatically return to standby. It
will also return to standby when the handset is placed on
the base or charger.
3.20 To reset all settings
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Reset Settings
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
All Settings
.
3.
Press P to select
Yes
. Then all the
personalized settings will be reset to default.
NOTE
All of your phonebook entries, calls list and redial list will
remain unchanged.
3.21 Using your answering machine
The answering machine records unanswered calls
when it is activated.
3.21.1 Play messages
1.
Press /PLAY/STOP from idle mode. New
messages will be played followed by any older
messages.
2.
During message playback, press the keys below to
perform the following functions:
/REPEAT/
ANNC
Repeats the current message.
Press twice to playback the
previous message.
/PLAY/
STOP Stop message playback.
/SKIP/
MEMO Skip to play the next message.
/VOL+ Increase the volume.
/REDIAL/
VOL- Decrease the volume.
DELETE/
FLASH
Delete the current message and
the next message will be played.
Using the phone 29
NOTE
For multiple handset models when you are on either a
cellular call or a home call, the answering system will
not answer the second incoming call.
3.21.2 Turn on or off the answer machine
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answering Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answerer On
or
Answerer Off
. If the answer
machine is turned on originally,
Answerer Off
will be
displayed. If the answer machine is turned off
originally,
Answerer On
will be displayed.
3.
Press P to confirm.
OR
4.
Press ANS ON/OFF/ to toggle between
answering machine on and answering machine off.
3.21.3 Set the announcement mode
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answerer Mode
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select the announcement modes:
Annc & Record
invites your callers to leave a
message.
Announce Only
lets callers hear your announcement
but they cannot leave a message.
4.
Press P to save.
3.21.4 Set voicemail only
This function will be useful when you have subscribed
the voicemail service from your local service provider.
If
Voicemail Only
is set
On
, your answer machine will be
disabled. Your call will only be answered by the
voicemail service.
If
Voicemail Only
is set
Off
, your answer machine will
function normally as your personalized settings.
Turn on/ off
Voicemail Only
:
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Voicemail Only
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select
On
or
Off
.
4.
Press P to confirm.
30 Using the phone
3.21.5 Set the number of rings
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Rings To Answer
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select the rings to answer. (4 options are available:
Toll Saver
,
3 Rings
,
4 Rings
, and
5 RINGS
).
NOTE
If Toll Saver setting is selected, the answering machine
will pick up after two rings if there are new messages,
and after four rings if there are no messages.
4.
Press P to save.
3.21.6 Announcement
This is the message your callers hear on the answering
machine. There are two pre-recorded outgoing
messages, or you can record your own.
3.21.6.1 Record the announcement
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Announcement
.
3.
Press P to select
Record
.
4.
Press P and /VOL+ or /REDIAL/VOL- to
select the answer mode
Annc & Record
or
Announce
Only
.
5.
Press P to start recording after a "beep"
sound is heard.
6.
Press P again to stop recording and save the
message. The just saved message is played
automatically.
You can also record the announcement by pressing and
holding /REPEAT/ANNC to start recording after a
"beep" sound is heard. Press P to stop recording
and save the message.
NOTE
When playing the message, pressing M or
DELETE/FLASH will delete it and the pre-recorded
message will be played automatically.
3.21.6.2 Play the announcement
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Announcement
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select
Play
.
Using the phone 31
4.
Press P and /VOL+ or /REDIAL/VOL- to
select the answer mode
Annc & Record
or
Announce
Only
.
5.
Press P and the message is played.
3.21.7 Record a memo
You can record a memo which is stored on your
answering machine and played back like a normal
message.
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Record Memo
.
3.
Press P to start recording.
4.
Press P again to stop recording and save the
message. The just saved message is played
automatically.
You can also record memo by pressing and holding
/SKIP/MEMO to start recording after a "beep"
sound is heard. Press P to stop recording and
save the message.
NOTE
When playing the message, pressing DELETE/FLASH
will delete it.
3.21.8 Call screening on/off
You are able to hear a caller leaving a message. You
can then choose to ignore the caller or pick up the call.
The caller is automatically heard through the corded
base speaker at the volume set, and the screen displays
Screening
.
This can be turned off if you want, as follows:
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Call Screening
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
turn on/off call screening.
4.
Press P to save.
3.21.9 Delete all old messages
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL-
select
Del All Old Msg
.
3.
Press P and display will show
Delete All Old
Messages?
.
4.
Press P to confirm.
32 Using the phone
3.21.10 Remote access
Remote access allows you to operate your answering
machine and listen to your messages by calling your
phone from another phone.
Turn the remote access on/off
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Remote Access
.
3.
Press P and /VOL+ or /REDIAL/VOL- to
select
On
or
Off
.
4.
Press P to confirm.
To enter the remote access mode, dial your phone
number from another phone, when you hear the
announcement, press TONE/* and then enter the 4-digit
remote security code (default code is 0000).
The correct sequence of the 4 security PIN digits needs
to be detected before entering remote access mode.
Random digits detected prior to the correct 4 digits
sequence are ignored, and answering machine
recording continues until the complete PIN is detected.
There is no system prompt to enter the remote access
code.
Press the following keys on your corded base to perform
the following functions, after entering your remote
access mode.
3.21.11 Set the security code
This is used to change the remote access PIN if
necessary.
1.
Press P and /VOL+ or /REDIAL/VOL- to
select
Answer Machine
.
2.
Press P and /VOL+ or /REDIAL/VOL- to
select
Security Code
.
3.
Press P and enter the 4-digit security code.
4.
Press P to save.
Press... To...
1 Repeat message
2 Play/Stop message
3 Skip forward to the next message
4 Toggle Answer Off/Announce Only/
Announce and Record modes
7 Listen to the Main Menu (for Full Voice
prompts only)
0 Delete message
Using the phone 33
Enjoy your cordless handset
4. Using the phone
4.1 Introducing Bluetooth
Your new telephone system with Bluetooth wireless
technology has the following features:
Pairing Bluetooth enabled mobile phone with the
telephone base. Two Bluetooth devices can be
paired up and connected in maximum.
Connecting Bluetooth enabled mobile phone to
make and receive
CELLULAR
calls. Two mobile
phones can be connected but only one of them can
be used at a time.
Making and receiving calls using your Bluetooth
enabled mobile phone plan while benefiting from the
ease and comfort of your home telephone system.
Glossary of terms
Below are some terms used in this user's guide to help
you become familiar with using your Bluetooth devices
and your new telephone system.
Bluetooth mobile phone
- Refers to a Bluetooth enabled
mobile telephone.
CELLULAR
line - The communications service provided
through your Bluetooth enabled mobile telephone.
HOME
line - Your conventional telephone land line.
Pairing
- This refers to the process of two Bluetooth
devices registering device information with each other.
The telephone base must be paired with a Bluetooth
enabled mobile phone before the Bluetooth device can
be used.
IMPORTANT INFORMATION
Refer to your mobile phone user's guide for more
information about its Bluetooth function.
Make sure that your Bluetooth enabled mobile
phone is between one to twelve feet away from the
telephone base in order to maintain a clear and
consistent connection between your Bluetooth
mobile phone, telephone base and cell tower.
Make sure that your Bluetooth enabled mobile
phone has sufficient signal strength. You may need
to move the Bluetooth enabled mobile phone and
telephone base to a location where the cellular
signal may be stronger.
Charge your Bluetooth mobile phone while it is
connected to the telephone base because your
mobile phone's battery will discharge faster while it
is connected wirelessly to the telephone base.
34 Using the phone
Monitor your mobile phone's usage because airtime
is deducted from your cellular plan for the duration of
the
CELLULAR
calls.
4.2 Bluetooth Setup
4.2.1 Setup Cellular
To pair and connect a Bluetooth enabled mobile phone:
Place your cell phone near the handset and base
unit.
• Press MENU and VOL+ or REDIAL/VOL- to select
SETUP CELLULAR
.
• Press MENU and display will show
CELLULAR READY?
.
• Press MENU and display will show
DISCOVERABLE
MODE
.
The Bluetooth feature will be activated.
Using your Bluetooth enabled mobile phone, turn on
the Bluetooth feature and search for a new device.
Once your Bluetooth enabled mobile phone has
found the
Motorola L511BT/L512BT/L513BT/L514BT/
L515BT
telephone, select it.
Using your Bluetooth enabled mobile phone, enter
the PIN code of the telephone (the default PIN code
is 0000) to continue the pairing process.
Pairing will be confirmed when you hear a tone and
the Bluetooth icon appears on the handset.
Refer to the user's manual of your Bluetooth enabled
mobile phone to learn how to search for or add new
Bluetooth devices.
NOTE
Paired device(s) will be connected automatically and
stored into the Paired Devices list.
When a device is successfully connected,
corresponding device or will be displayed.
If you would like to pair up another Bluetooth device,
please repeat the steps as above.
4.2.2 Replace a paired device
If you have already paired up two Bluetooth devices,
you will need to replace one of them if your would like to
pair up another device. Follow the below steps to
replace and pair up a new device.
• Press MENU and VOL+ or REDIAL/VOL- to select
SETUP CELLULAR
.
Display will show the two Cellular names of the
paired devices.
• Press MENU and VOL+ or REDIAL/VOL- to select
the cellular device you would like to replace.
• Press MENU to confirm. Display will show
REPLACE
THE CELLULAR?
• Press MENU to confirm. Display will show
CELLULAR
READY?
.
Refer to section 3.2.1 to proceed with the next steps.
Using the phone 35
NOTE
During pairing up new cellular, the connected cellular
will be disabled temporarily.
4.2.3 Paired Devices
The cellular(s) paired up will be displayed in the paired
devices list, no matter it(they) is(are) connected or not.
You can choose to connect, or remove the cellular from
this menu.
1.
Press MENU and VOL+ or REDIAL/VOL- to select
PAIRED DEVICES
.
2.
Display will show the Cellular name of paired
device(s).
NOTE
Display will show
NO PAIRED DEVICE
if there is no device
paired up.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
the desired cellular device.
For the connected cellular device:
4.
Press MENU to remove the cellular device.
5.
Press MENU to confirm.
For the not connected cellular device:
4.
Press MENU and VOL+ or REDIAL/VOL- to select
CONNECT
or
REMOVE CELLULAR
.
5.
Press MENU to confirm. If you select
REMOVE
CELLULAR
, press MENU again to confirm.
NOTE
When the connected cellular is removed,
corresponding device or will be off.
When the disconnected cellular is connected,
corresponding device or will be on.
When the cellular is removed, the device name will
be removed and display
EMPTY
instead in the paired
device list.
4.3 Making a home call using your
landline
1.
Enter the phone number and press /FLASH or
/SPEAKER to dial the phone number.
4.4 Making a cellular call using your
cordless DECT handset
If there is only one Bluetooth enabled mobile phone
paired up and connected,
1.
Enter the phone number, and then press /
CELLULAR to dial out.
OR
36 Using the phone
1.
Press /CELLULAR, and then enter the phone
number.
2.
Press /CELLULAR again to dial out.
If there are two Bluetooth enabled mobile phones paired
up and connected,
1.
Enter the phone number, and then press /
CELLULAR and VOL+ or REDIAL/VOL- to select
the desired cellular device.
2.
Press MENU or /CELLULAR to dial out.
OR
1.
Press /CELLULAR and VOL+ or REDIAL/VOL-
to select the desired cellular.
2.
Press MENU or /CELLULAR, and then enter the
number.
3.
Press /CELLULAR to dial out.
NOTE
If the cellular device just be paired up but not connected,
you should connect the cellular device before make an
external Bluetooth call.
4.5 Speed dial calling
1.
Press and hold a key from //1 to WXYZ/9
until the number is displayed and dialed.
4.6 Answering a home call
1.
Press /FLASH or /SPEAKER to answer the
incoming home call.
4.7 Answering a cellular call
1.
Press /CELLULAR or /SPEAKER to answer
the incoming cellular call.
4.8 Receiving a cellular call while on
a home call
A short beep during a HOME call indicates that there is
an incoming CELLULAR call and the screen will display
the caller ID.
To answer the incoming cellular call:
• Press /CELLULAR on the handset. The home
call will automatically be placed on hold and will
start flashing.
To swap the line to a home call:
While talking on a cellular call, press /FLASH on
the handset to swap to the home call. The cellular
call will automatically be placed on hold and will
start flashing.
Using the phone 37
To end the cellular call:
• Press /BACK on the handset. The home call
will be resumed automatically.
4.9 Receiving a home call while on a
cellular call
A short beep during a CELLULAR call indicates that
there is an incoming HOME call and the screen will
display the caller ID.
To answer the incoming home call:
• Press /FLASH on the handset. The cellular line
call will automatically be placed on hold and will
start flashing.
To swap the line to a cellular call:
While talking on a home call, press /CELLULAR
on the handset to swap to the cellular call. The home
call will automatically be placed on hold and will
start flashing.
To end the home call:
• Press /BACK on the handset. The cellular call
will be resumed automatically.
4.10 Ending a call
1.
During either a home or cellular call, press /
BACK or put the handset on the base.
4.11 Adjusting volume
1.
During a call, press VOL+ or REDIAL/VOL- to
adjust the volume.
4.12 Muting a call
1.
During a call, press /MUTE to mute the
microphone, so that you can talk to someone else
in the room without your caller hearing you.
2.
Press /MUTE again to unmute.
4.13 Dialing from the redial list
1.
Press REDIAL/VOL- and then scroll VOL+ or
REDIAL/VOL- to the entry you want to redial.
2.
Press /FLASH or /SPEAKER to dial the
number from home line.
OR
3.
Press /CELLULAR to dial the number from
cellular line.
38 Using the phone
4.14 Dialing from the calls list
1.
Press CID and then scroll VOL+ or REDIAL/VOL-
to the entry you want to dial.
2.
Toggle #/ /PAUSE/FORMAT key to format the
dialing number.
3.
Press /FLASH or /SPEAKER to dial the
number from the home line.
OR
4.
Press /CELLULAR to dial the number from the
cellular line.
4.15 Adding an entry to the
phonebook
1.
Press and press MENU to select
ADD
.
2.
Press MENU and enter the name.
3.
Press MENU and enter the number.
4.
Press MENU to save.
NOTE
Numbers can be up to 24 digits long and names up to
16 characters long. Entries are stored in alphabetical
order.
4.16 Storing a phonebook entry as a
one touch number
1.
Press .
2.
Press MENU and VOL+ or REDIAL/VOL- to select
SPEED DIAL
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
the speed dial key from //1 to WXYZ/9.
4.
Press MENU and VOL+ or REDIAL/VOL- to scroll
to the entry to want.
5.
Press MENU to save.
4.17 Dialing from the phonebook
1.
Press and then scroll VOL+ or REDIAL/VOL-
to select the entry you want to dial.
2.
Press /FLASH or /SPEAKER to dial the
number from the home line.
OR
3.
Press /CELLULAR to dial the number from the
cellular line.
TIPS
Instead of scrolling to browse the phonebook entries,
press the numeric key corresponding to the first letter of
the entry you wish to locate. For example, pressing 2
will show the entries starting with A. Pressing 2 again
will show the entries starting with B, etc.
Using the phone 39
4.18 Caller ID
If you have subscribed to Caller ID, and provided the
identity of the caller is not withheld, the number of the
caller will be displayed together with the date and time
of the call (if provided by the network).
NOTE
If the telephone number is not available for incoming
calls, the handset will display
UNAVAILABLE
.
If the incoming call is from a withheld telephone
number, the handset will display
PRIVATE
.
Information about incoming calls will vary by country
and network operator. Some operators may charge
a subscription for their Caller ID service.
4.18.1 Calls List
The calls list contains details of missed and received
calls. Details include the date and time of the call.
Entries are displayed in chronological order with the
most recent call at the top of the list.
NOTE
When the calls list is full, a new call replaces the
oldest in the list.
The received and missed calls log holds details of
up to 30 calls.
If you receive more than one call from the same
number, only the most recent call is kept in the calls
list. When you have missed calls (incoming calls that
you haven't answered) the icon will be
displayed in the display on all handsets registered to
the base. If one handset is used to view the calls log,
the icon on the other handsets remains on (For
multi-pack use only).
4.18.2 View the calls list
1.
Press CID to enter the calls list.
2.
Scroll VOL+ or REDIAL/VOL- through the calls list.
NOTE
When reviewing an entry from the calls list, press #/
/PAUSE/FORMAT repeatedly to display the
number in a different format.
For example, if a caller number is displayed as
888-331-3383, the various formats will be:
331-3383
1-331-3383
888-331-3383
1-888-331-3383
User can choose the desired number format for local
and long distance numbers before dialing or saving
it into the phonebook.
The icon is removed once the new call has
been viewed.
40 Using the phone
4.18.3 Save a number from the calls list to the
phonebook
1.
Press CID to enter the calls list.
2.
Press VOL+ or REDIAL/VOL- to the entry you
want.
3.
Press MENU and enter the name.
4.
Press MENU and edit the number.
5.
Press MENU to save.
4.18.4 Delete a calls list entry
1.
Press CID to enter the calls list.
2.
Press VOL+ or REDIAL/VOL- to scroll to the entry
you want.
3.
Press /MUTE to delete the entry.
4.18.5 Delete entire calls list
1.
Press CID to enter the calls list.
2.
Press and hold /MUTE.
DELETE ALL CALL LOG
ENTRIES?
is displayed.
3.
Press MENU to confirm and all entries are deleted.
NOTE
You need to review the particular call before you delete
the record from the call list.
Using the phone 41
4.19 Personal Settings
Menu map
MAIN
MENU DATE &
TIME PHONEBOOK INTERCOM SETUP HS SETUP BS SETUP
CELLULAR PAIRED
DEVICES ANSWER
MACHINE RESET
SETTINGS
SUB
MENU DATE
TIME
VIEW
ADD
EDIT
DELETE
DELETE ALL
PB CAPACITY
SPEED DIAL
RINGER TONE
RINGER
VOLUME
KEY TONE
LOW BATT
TONE
OUT RANGE
TONE
HANDSET
NAME
LANGUAGE
LCD
CONTRAST
REGISTRATION
DIAL
MODE
FLASH
TIME
AREA
CODE
ANSWERER ON
(If answer machine
is off)
or
ANSWERER OFF
(If answer machine
is on)
ANSWERER
MODE
VOICEMAIL ONLY
RINGS TO
ANSWER
ANNOUNCEMENT
RECORD MEMO
CALL
SCREENING
DEL ALL OLD
MSG
REMOTE
ACCESS
SECURITY CODE
CLR VOICE
MAIL
ALL
SETTINGS
42 Using the phone
1.
Press MENU.
2.
Press VOL+ or REDIAL/VOL- to scroll through the
menu.
3.
Press MENU to open a sub-menu or validate an
option.
Press /BACK to go back to previous menu level or
cancel an action.
If you do not press any button on the handset for 30
seconds, the display will automatically return to standby. It
will also return to standby when the handset is placed on
the base or charger.
4.20 Registration
Up to 5 handsets can be registered to one corded base.
The original cordless handset is pre-registered to use.
Additional cordless handsets must be registered to the
corded base before you can use them.
To register an additional cordless handset,
1.
Press MENU and VOL+ or REDIAL/VOL- to select
SETUP HS
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
REGISTRATION
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
YES
or
NO
.
4.
Select
YES
and press MENU to enter the
registration procedure as below:
1.
Press and hold /MUTE for 4 seconds on
corded base, and then release.
2.
Place the unregistered cordless handset on the
charger.
3.
A confirmation tone is generated if registration is
successful.
HANDSET X
is displayed where
X
denotes the number of handsets and the phone
goes back to idle.
To register an originally unregistered cordless handset,
follow steps 1 through 3 above.
4.21 To reset all settings
1.
Press MENU and VOL+ or REDIAL/VOL- to select
RESET SETTINGS
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ALL SETTINGS
.
3.
Press MENU to select
YES
. Then all the
personalized settings will be reset to default.
NOTE
All of your phonebook entries, calls list and redial list will
remain unchanged.
Using the phone 43
4.22 Paging/Finding cordless handset
1.
Press /MUTE on the corded base.
2.
Press VOL+ or REDIAL/VOL- to select the
destination cordless handset from
HANDSET 1
to
HANDSET 5
, and
ALL HANDSETS
.
3.
Selecting
ALL HANDSETS
will page all the registered
cordless handsets.
• Destination cordless handset or all cordless
handsets ring.
4.
Press /MUTE again, place the cordless handset
on the cradle or press /FLASH//BACK/
/SPEAKER on the cordless handset to stop the
paging call.
4.23 Using your answering machine
The answering machine records unanswered calls
when it is activated.
4.23.1 Play messages
Through the handset:
1.
Press /MUTE from idle mode. New messages
will be played followed by any older messages.
2.
During message playback, press the keys below to
perform the following functions:
NOTE
For multiple handset models when you are on either a
cellular call or a home call, the answering system will
not answer the second incoming call.
//1
Repeats the current message.
Press twice to playback the
previous message.
/ABC/2 Stop message playback.
/DEF/3 Skip to play the next message.
VOL+ Increase the volume.
REDIAL/VOL- Decrease the volume.
/MUTE Delete the current message and
the next message will be played.
/SPEAKER Toggle the message playback via
earpiece/speakerphone.
/BACK Exit to idle.
44 Using the phone
4.23.2 Turn on or off the answer machine
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWERER ON
or
ANSWERER OFF
. If the answer
machine is turned on originally,
ANSWERER OFF
will
be displayed. If the answer machine is turned off
originally,
ANSWERER ON
will be displayed.
3.
Press MENU to confirm.
4.23.3 Set the announcement mode
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWERER MODE
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
the announcement modes:
ANNC & RECORD
invites your callers to leave a
message.
ANNOUNCE ONLY
lets callers hear your
announcement but they cannot leave a message.
4.
Press MENU to save.
4.23.4 Set voicemail only
This function will be useful when you have subscribed
the voicemail service from your local service provider.
If
VOICEMAIL ONLY
is set
ON
, your answer machine will be
disabled. Your call will only be answered by the
voicemail service.
If
VOICEMAIL ONLY
is set
OFF
, your answer machine will
function normally as your personalized settings.
Turn on/ off
VOICEMAIL ONLY
:
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
VOICEMAIL ONLY
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
ON
or
OFF
.
4.
Press MENU to confirm.
4.23.5 Set the number of rings
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
RINGS TO ANSWER
.
Using the phone 45
3.
Press MENU and VOL+ or REDIAL/VOL- to select
the rings to answer. (4 options are available:
TOLL
SAVER
,
3
,
4
, or
5 RINGS
).
NOTE
If Toll Saver setting is selected, the answering machine
will pick up after two rings if there are new messages,
and after four rings if there are no messages.
4.
Press MENU to save.
4.23.6 Announcement
This is the message your callers hear on the answering
machine. There are two pre-recorded outgoing
messages, or you can record your own.
4.23.6.1 Record the announcement
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ANNOUNCEMENT
.
3.
Press MENU to select
RECORD
.
4.
Press MENU and VOL+ or REDIAL/VOL- to select
the answer mode
ANNC & RECORD
or
ANNOUNCE ONLY
.
5.
Press MENU to start recording after a "beep" sound
is heard.
6.
Press MENU again to stop recording and save the
message. The just saved message is played
automatically.
NOTE
When playing the message, pressing /MUTE will
delete it and the pre-recorded message will be played
automatically.
4.23.6.2 Play the announcement
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
ANNOUNCEMENT
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
PLAY
.
4.
Press MENU and VOL+ or REDIAL/VOL- to select
the answer mode
ANNC & RECORD
or
ANNOUNCE ONLY
.
5.
Press MENU and the message is played.
4.23.7 Record a memo
You can record a memo which is stored on your
answering machine and played back like a normal
message.
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
46 Using the phone
2.
Press MENU and VOL+ or REDIAL/VOL- to select
RECORD MEMO
.
3.
Press MENU to start recording.
4.
Press MENU again to stop recording and save the
message. The just saved message is played
automatically.
NOTE
When playing the message, pressing /MUTE will
delete it permanently.
4.23.8 Call screening on/off
You are able to hear a caller leaving a message. You
can then choose to ignore the caller or pick up the call.
1.
When the answering machine is recording, the
cordless handset displays
SCREENING?
.
2.
Press MENU to listen to the caller through the
handset earpiece, the handset displays
CALL
SCREENING
.
3.
Press /SPEAKER to listen via the handset
loudspeaker.
4.
Press /MUTE to stop screening and leave the
answering machine to record the message.
5.
Press /FLASH to talk to the caller and stop
recording.
4.23.9 Delete all old messages
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL-select
DEL
ALL OLD MSG
.
3.
Press MENU to confirm.
NOTE
When answering machine is full, will flash if there
are new messages.
ERASE SOME ANSWERER MSG
will
toggle within 2 seconds with
MEMORY FULL
in idle to alert
user to delete some answering machine messages to
free up the memory.
4.23.10 Remote access
Remote access allows you to operate your answering
machine and listen to your messages by calling your
phone from another phone.
Turn the remote access on/off
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
REMOTE ACCESS
.
3.
Press MENU and VOL+ or REDIAL/VOL- to select
ON
or
OFF
.
4.
Press MENU to confirm.
Using the phone 47
To enter the remote access mode, dial your phone
number from another phone, when you hear the
announcement, press TONE/* and then enter the 4-digit
remote security code (default code is 0000).
The correct sequence of the 4 security PIN digits needs
to be detected before entering remote access mode.
Random digits detected prior to the correct 4 digits
sequence are ignored, and answering machine
recording continues until the complete PIN is detected.
There is no system prompt to enter the remote access
code.
Press the following keys on your handset to perform the
following functions, after entering your remote access
mode.
4.23.11 Set the security code
This is used to change the remote access PIN if
necessary.
1.
Press MENU and VOL+ or REDIAL/VOL- to select
ANSWER MACHINE
.
2.
Press MENU and VOL+ or REDIAL/VOL- to select
SECURITY CODE
.
3.
Press MENU and enter the 4-digit security code.
4.
Press MENU to save.
Press... To...
1 Repeat message
2 Play/Stop message
3 Skip forward to the next message
4 Toggle Answer Off/Announce Only/
Announce and Record modes
7 Listen to the Main Menu (for Full Voice
prompts only)
0 Delete message
48 Help
5. Help
I cannot pair my mobile phone to the telephone
base
Make sure the Bluetooth function of your Bluetooth
enabled mobile phone is turned on. See your mobile
phone user's manual for more information.
Make sure the cordless handset, corded base and
cell phone are located near each other.
• Remove the Motorola L512CBT/L513CBT/L514CBT/
L515CBT from your mobile phone's Bluetooth device
history list (see your mobile phone user's manual for
more information).
Carefully follow the pairing instructions in the user's
guide, making sure that your mobile phone is not
connected to any other Bluetooth device(s).
Turn off your mobile phone, and then turn it on
again.
Reset the telephone base. Unplug the unit's
electrical power. Wait for approximately 15 seconds,
and then plug it back in. Repeat the above
suggestions.
The icon is not scrolling when the cordless
handset is placed on the charger
Incomplete battery contact - adjust the cordless
handset on the charger.
Dirty contact - clean the battery contact by wiping
with an alcohol moistened cloth.
Battery is full - charging is not necessary at this time.
No dial tone
If there is no base power, check the connections.
Reset the phone by unplugging then plugging it back
into an electrical outlet.
If the cordless handset batteries are empty,
recharge the battery pack for at least 24 hours.
Move the cordless handset closer to the corded
base if it is too far away.
Be sure to use the provided telephone cords.
Poor audio quality
If the corded base is too close to electrical
appliances, reinforced concrete walls, or metal door
frames, move the corded base from these areas.
No ring tone
The ring tone may be deactivated.
The volume may need to be increased.
Help 49
Caller ID does not work
Check your subscription with your network operator.
If you subscribe to high-speed internet service
(Digital Subscriber Line - DSL) through your
telephone lines, you must install a DSL filter
between the telephone base and the telephone wall
jack. The filter will prevent noise and caller ID
problems caused by DSL interference. Please
contact your DSL service provider for more
information about DSL filters.
A phonebook entry cannot be stored
The phonebook is full. Delete an entry to free
memory.
No display
Try recharging or replacing the rechargeable battery
pack.
Reset the corded base. Unplug the unit's electrical,
then plug it back in.
If LED is not lit up, then try to unplug the unit's
electrical power, and then plug it back in.
If the cordless handset disconnects from the
corded base during a phone call
Check that the power cord is connected properly
into the corded base.
Check that the power adapter is connected properly
into the electrical outlet.
Move the cordless handset closer to the corded
base. It may be out of range.
Reset the corded base by unplugging the unit's
electrical power. Wait for around 15 seconds and re-
plug the power again. Allow up to one minute for the
cordless handset to synchronize with the registered
corded base again.
Noise interference on your radio or television
Your corded base or cordless charger may be too
close. Move it as far away as possible.
50 General information
6. General information
If your product is not working properly...
1.
Read this User's Guide.
2.
Visit our website: www.motorola.com
3.
Contact Customer Service in the US and Canada at
1-888-331-3383.
To order a replacement battery pack contact customer
service or visit our website.
Important safety instructions
Follow these safety precautions when using your phone
to reduce the risk of fire, electric shock, and injury to
persons or property:
1.
Keep all vents and openings of the phone
unblocked. Do not set the phone on a heating
register or over a radiator. Ensure that proper
ventilation is provided at the installation site.
2.
Do not use while wet or while standing in water.
3.
Do not use this product near water (for example,
near a bath tub, kitchen sink, or swimming pool).
4.
Do not allow anything to rest on the power cord.
Place the power cord so that it will not be walked
on.
5.
Never insert objects of any kind into the product
vents as that may result in fire or electric shock.
6.
Unplug this product from the electrical outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7.
Do not disassemble this product. If service or repair
work is required, contact the customer service
helpline found in this user's guide.
8.
Do not overload wall outlets and extension cords.
9.
Avoid using during an electrical storm. Use a surge
protector to protect the equipment.
10.
Do not use this phone to report a gas leak,
especially if you are in the vicinity of the gas line.
CAUTION
To reduce the risk of fire, use only No. 26 AWG or larger
UL Listed or CSA Certified Telecommunication Line
Cord.
Unplug this cordless phone
immediately from an outlet if:
The power cord or plug is damaged or frayed.
Liquid has been spilled on the product.
The product has been exposed to rain or water. Do
not retrieve the handset or base until after you have
unplugged the power and phone from the wall. Then
retrieve the unit by the unplugged cords.
General information 51
The product has been dropped or the cabinet has
been damaged.
The product exhibits a distinct change in performance.
Installation Guidelines
1.
Read all instructions and save them for future
reference.
2.
Follow all warnings and instructions marked on the
product.
3.
Do not install this product near a bath tub, sink, or
shower.
4.
Operate this phone using only the power source
that is indicated on the marking label. If you are
unsure of the power supply to your home, consult
with your dealer or local power company.
5.
Do not place this product on an unstable cart,
stand, or table. This product may fall, causing
serious damage to the product.
6.
Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other
controls may result in damage and will often require
extensive work to restore the product to normal
operation.
7.
Clean this product with a soft, damp cloth. Do not
use chemicals or cleaning agents to clean this
phone.
8.
Use only the power supply that came with this unit.
Using other power supplies may damage the unit.
9.
Because this phone operates on electricity, you
should have at least one phone in your home that
operates without electricity in case the power in your
home goes out.
10.
To avoid interference to nearby appliances, do not
place the base of the phone on or near a TV,
microwave oven, or VCR.
CAUTION
To maintain compliance with the FCC's RF exposure
guidelines, place the base unit at least 20 cm from
nearby persons.
Battery Safety Instructions
Do not burn, disassemble, mutilate, or puncture the
battery. The battery contains toxic materials that
could be released, resulting in injury.
CAUTION
There is a risk of explosion if you replace the battery
with an incorrect battery type. Use only the battery pack
that came with your phone or an authorized
replacement recommended by the manufacturer.
Keep battery packs out of the reach of children.
Remove battery packs if storing over 30 days.
52 General information
Do not dispose of battery packs in fire, which could
result in explosion.
• The rechargeable battery packs that power this
product must be disposed of properly and may need to
be recycled. Refer to the battery label for battery type.
Contact your local recycling center for proper disposal
methods.
SAVE THESE INSTRUCTIONS
Consumer Products and Accessories
purchased in the United States or
Canada
What Does this Warranty Cover?
Subject to the exclusions and limitations contained
below, Binatone Electronics International LTD. warrants
the Motorola branded consumer products that it
manufactures ("Products") and the Motorola branded or
certified accessories sold for use with these Products
that it manufactures ("Accessories") to be free from
defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This
limited warranty is a consumer's exclusive remedy, and
only applies as follows to new Motorola branded
Products and Accessories manufactured by Binatone
Electronics International LTD., and purchased by
consumers in the United States or Canada, which are
accompanied by this written warranty:
Who is covered?
This warranty covers only the first consumer purchaser,
and is not transferable.
What will BINATONE ELECTRONICS
INTERNATIONAL LTD. do?
BINATONE ELECTRONICS INTERNATIONAL LTD.,
at its sole option, will at no charge repair, replace or
refund the purchase price of any Products or
Accessories that does not conform to this warranty.
Binatone Electronics International LTD. may use
functionally equivalent reconditioned/ refurbished/ pre-
owned or new Products, Accessories or parts in such
repair or replacement and any Products, Accessories or
parts removed or being replaced under this warranty
become the property of Binatone Electronics
International LTD.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES OR CONDITIONS
IRRESPECTIVE OF WHETHER THEY ARE IMPOSED
BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY,
OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS
General information 53
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY
OF THE CONSUMER, AND IS PROVIDED IN LIEU OF
ALL WARRANTIES AND MOTOROLA AND
BINATONE ELECTRONICS INTERNATIONAL LTD.
MAKES NO OTHER WARRANTIES OR CONDITIONS,
EXPRESS OF IMPLIED. IN NO EVENT SHALL
MOTOROLA OR BINATONE ELECTRONICS
INTERNATIONAL LTD. BE LIABLE, WHETHER
UNDER THIS LIMITED WARRANTY OR IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE
OR STRICT PRODUCT LIABILITY) OR OTHERWISE
FOR DAMAGES OR CLAIMS IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT OR
ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE, SAVINGS OR
PROFITS, LOSS OF BUSINESS, LOSS OF
PROGRAMS DATA INFORMATION (WHETHER
CONFIDENTIAL PROPRIETARY OR PERSONAL IN
NATURE OR OTHERWISE) OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH
THE ABILITY OR INABILITY TO USE THE PRODUCTS
OR ACCESSORIES AND BINATONE ELECTRONICS
INTERNATIONAL LTD. SHALL UNDER NO
CIRCUMSTANCES BE LIABLE FOR ANY CLAIMS OR
DEMANDS MADE BY ANY THIRD PARTY OR MADE
BY YOU ON BEHALF OF ANY THIRD PARTY TO THE
FULL EXTENT THESE DAMAGES OR CLAIMS MAY
BE DISCLAIMED BY LAW.
Some states, countries or jurisdictions do not allow the
limitation or exclusion of incidental or consequential
damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not
apply to you in such states, countries or jurisdictions.
This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state
or from one country/jurisdiction to another.
Products or
Accessories
Covered
Length of Coverage
Consumer Products One (1) year from the date of
purchase by the first consumer
purchaser of the product.
Consumer
Accessories Ninety (90) days from the date
of purchase by the first
consumer purchaser of the
accessory.
Consumer Products
and Accessories
that are Repaired
or Replaced
The balance of the original
warranty or for ninety (90)
days from the date returned to
the consumer, whichever is
longer.
54 General information
Exclusions
Normal Wear and Tear.
Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Batteries.
Only batteries whose fully charged capacity
falls below 80% of their rated capacity and batteries that
leak are covered by this limited warranty. Battery life
and the changes in battery capacity with time or use are
excluded from this warranty.
Abuse & Misuse.
Defects or damage that result from: (a)
improper or unreasonable use, operation, storage,
misuse or abuse, accident or neglect or other external
cause, such as physical damage (cracks, scratches,
etc.) to the surface of the product resulting from misuse;
(b) your failure to follow or operation outside the usage
parameters stated in the user instructions that came
with the Products or Accessories; (c) contact with liquid,
water, rain, extreme humidity or heavy perspiration,
sand, dirt or the like, extreme heat, or food; (d) use of
the Products or Accessories for commercial purposes
or subjecting the Product or Accessory to abnormal
usage or conditions; or (e) other acts or omissions
which are not the fault or neglect of Motorola or
Binatone Electronics International LTD., are excluded
from coverage.
Use of Non-Motorola branded Products and Accessories.
Defects or damage that result from the use of Non-
Motorola branded or certified Products or Accessories
or other peripheral equipment are excluded from
coverage.
Unauthorized Service or Modification.
Defects or
damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in
any way by someone other than Motorola, Binatone
Electronics International LTD. or its authorized service
centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial
numbers or date tags that have been removed, altered
or obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or
parts, are excluded from coverage.
Communication Services.
Defects, damages, or the
failure of Products or Accessories due to any
communication service or signal you may subscribe to
or use with the Products or Accessories is excluded
from coverage.
General information 55
How to Obtain Warranty Service or Other
Information?
To obtain service or information, please call:
US and Canada: 1-888-331-3383
You will receive instructions on how to ship the Products
or Accessories, the shipment of which shall be at your
own risk and expense, to a BINATONE ELECTRONICS
INTERNATIONAL LTD. Authorized Repair Center. To
obtain service, you must include: (a) a copy of your
receipt, bill of sale or other comparable proof of
purchase of the Products or Accessories showing the
date of purchase; (b) a written description of the
problem; and, most importantly; (c) your address and
telephone number.
These terms and conditions constitute the complete
warranty agreement between you and BINATONE
ELECTRONICS INTERNATIONAL LTD. regarding the
Products or Accessories purchased by you, and supersede
any prior agreement or representations, including
representations made in any literature publications or
promotional materials issued by BINATONE
ELECTRONICS INTERNATIONAL LTD. or
representations made by any agent employee or staff of
BINATONE ELECTRONICS INTERNATIONAL LTD., that
may have been made in connection with the said purchase.
FCC, ACTA and IC regulations
FCC Part 15
This equipment has been tested and found to comply
with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
56 General information
Changes or modifications to this equipment not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation. Privacy of communications may not be
ensured when using this telephone.
To ensure safety of users, the FCC has established
criteria for the amount of radio frequency energy that
can be safely absorbed by a user or bystander
according to the intended usage of the product. This
product has been tested and found to comply with the
FCC criteria. The handset may be safely held against
the ear of the user. The telephone base shall be
installed and used such that parts of the user's body
other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian
ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules
and with technical requirements adopted by the
Administrative Council for Terminal Attachments
(ACTA). The label on the back or bottom of this
equipment contains, among other things, a product
identifier in the format US: AAAEQ##TXXXX. This
identifier must be provided to your local telephone
company upon request.
The plug and jack used to connect this equipment to
premises wiring and the telephone network must
comply with applicable Part 68 rules and technical
requirements adopted by ACTA. A compliant telephone
cord and modular plug is provided with this product. It is
designed to be connected to a compatible modular jack
that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for
two lines. See Installation Instructions in the user's
manual.
The Ringer Equivalence Number (REN) is used to
determine how many devices you may connect to your
telephone line and still have them ring when you are
called. The REN for this product is encoded as the 6th
and 7th characters following the US: in the product
identifier (e.g., if ## is 03, the REN is 0.3). In most, but
General information 57
not all areas, the sum of all RENs should be five (5.0) or
less. For more information, please contact your local
telephone company.
This equipment may not be used with Party Lines. If you
have specially wired alarm dialing equipment connected
to your telephone line, ensure the connection of this
equipment does not disable your alarm equipment. If
you have questions about what will disable alarm
equipment, consult your telephone company or a
qualified installer.
If this equipment is malfunctioning, it must be
unplugged from the modular jack until the problem has
been corrected. Repairs to this telephone equipment
can only be made by the manufacturer or its authorized
agents. For repair procedures, follow the instructions
outlined under the Limited Warranty.
If this equipment is causing harm to the telephone
network, the telephone company may temporarily
discontinue your telephone service. The telephone
company is required to notify you before interrupting
service. If advance notice is not practical, you will be
notified as soon as possible. You will be given the
opportunity to correct the problem and the telephone
company is required to inform you of your right to file a
complaint with the FCC. Your telephone company may
make changes in its facilities, equipment, operation, or
procedures that could affect the proper functioning of
this product. The telephone company is required to
notify you if such changes are planned.
If this product is equipped with a corded or cordless
handset, it is hearing aid compatible.
If this product has memory dialing locations, you may
choose to store emergency telephone numbers (e.g.,
police, fire, medical) in these locations. If you do store
or test emergency numbers, please:
Remain on the line and briefly explain the reason for
the call before hanging up.
Perform such activities in off-peak hours, such as
early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation.
The term "IC: " before the certification/registration
number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal
equipment is 0.5. The REN is an indication of the
58 General information
maximum number of devices allowed to be connected
to a telephone interface. The termination on an interface
may consist of any combination of devices subject only
to the requirement that the sum of the RENs of all the
devices does not exceed five.
This product meets the applicable Industry Canada
technical specifications.
RENSEIGNEMENTS RELATIFS AUX
RÈGLEMENTS DE LA COMMISSION
FÉDÉRALE DES COMMUNICATIONS
'FCC', DU CONSEIL ADMINISTRATIF
DES UNITÉS DE CONNEXION 'ACTA' ET
D'INDUSTRIE Canada 'IC'
Article 15 des règlements du FCC
Cet appareil a été testé et s'avère conforme aux
restrictions relatives aux équipements numériques de
classe B, d'après l'article 15 des règlements de la FCC.
Ces restrictions ont été instaurées pour offrir une
protection raisonnable contre les interférences nuisibles
au sein d'une installation résidentielle. Cet appareil
génère, utilise et peut émettre des fréquences radio et
s'il n'est pas installé selon les instructions, peut nuire
aux radiocommunications. Toutefois, rien ne garantit
que des parasites ne surviendront pas dans une
installation particulière. Si cet appareil cause des
interférences nuisibles à la réception du téléviseur ou
de la radio, ce que vous pouvez déterminer en mettant
votre appareil en et hors fonction, nous vous invitons à
essayer l'une des mesures correctives suivantes :
• Réorientez l'antenne de réception.
Éloignez l'appareil du composant qui reçoit les ondes.
Branchez l'appareil dans une prise de courant CA
différente de celle du composant qui reçoit les ondes.
Au besoin, consultez votre marchand électronique ou
un technicien spécialisé dans le service des radios/
téléviseurs pour des suggestions supplémentaires.
Toute modification ou changement effectué à cet
appareil sans l'accord des parties responsables de
l'homologation peut retirer à l'utilisateur son droit
d'utiliser l'appareil.
Cet appareil est conforme à l'article 15 de la FCC. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interférences
nuisibles et; (2) Il doit pouvoir supporter les parasites qu'il
reçoit, incluant les parasites pouvant nuire à son
fonctionnement. La confidentialité des communications
peut ne pas être assurée avec ce téléphone.
Afin de garantir la sécurité des utilisateurs, la FCC a
établi les critères relatifs à l'énergie générée par les
General information 59
fréquences radio pouvant être absorbée en toute
sécurité par un utilisateur ou par quelqu'un se trouvant
à proximité, dépendamment de l'utilisation prévue du
produit. Ce produit a été testé et s'avère conforme aux
normes de la FCC. Le combiné produit si peu de
puissance qu'il n'a pas besoin d'être testé. Il peut être
déposé contre l'oreille de l'utilisateur en toute sécurité.
Il peut être appuyé en toute sécurité sur l'oreille de
l'utilisateur. Le socle doit être installé et utilisé de façon
à ce qu'une distance d'environ 20 cm (8 po.) ou plus soit
conservée entre celui-ci et les parties du corps de
l'utilisateur, à l'exception des mains.
Cet appareil numérique de classe B est conforme aux
normes canadiennes ICES-003.
Article 68 de la FCC et exigences de l'ACTA
Cet appareil est conforme à l'article 68 de la réglementation
de la Commission fédérale des communications 'FCC' aux
États-Unis et aux exigences adoptées par le Conseil
d'administration du matériel terminal 'ACTA'. Vous
trouverez, sous l'appareil, une étiquette qui contient, entre
autres renseignements, une plaque signalétique dans le
format 'US: AAAEQ##TXXXX'. Si on vous le demande,
vous devez fournir ce numéro à la compagnie de
téléphone. Cette homologation doit vous être fournie par
votre compagnie de téléphone locale, sur demande.
La fiche et la prise utilisées pour brancher cet appareil
au filage du bâtiment et au réseau téléphonique doivent
être conformes avec les règlements de l'article 68 et les
exigences techniques adoptées par l'ACTA. Un cordon
téléphonique et une fiche modulaire conformes sont
fournis avec cet appareil. Celui-ci a été conçu pour être
raccordé à une prise modulaire compatible qui est
également conforme. Une prise RJ11 doit être utilisée
pour le raccord à une ligne simple et une prise RJ14,
pour le raccord à deux lignes. Consultez les instructions
d'installation du guide d'utilisation.
Le numéro 'REN' sert à déterminer combien de
dispositifs téléphoniques peuvent être raccordés à votre
ligne téléphonique sans perdre leur capacité de sonner
lorsqu'on vous appelle. Le numéro 'REN' de cet appareil
est encodé entre le 6e et le 7e caractère après "US:"
dans l'identification de l'appareil (par exemple, si les
numéros sont 03, le REN sera 3.0). Dans la plupart, mais
pas toutes les régions, la somme de tous les numéros
'REN' devrait être de cinq (5.0) ou moins. Pour plus de
détails à ce sujet, nous vous suggérons de communiquer
avec votre compagnie de téléphone locale.
Cet appareil ne peut pas être utilisé conjointement avec
des lignes partagées. Si vous avez des composants de
systèmes d'alarme connectés sur votre ligne
60 General information
téléphonique, assurez-vous que le raccord de cet
appareil ne désactive pas votre système d'alarme. Si
vous avez des questions se rapportant à ce qui peut
désactiver votre système d'alarme, consultez votre
compagnie de téléphone ou un installateur qualifié.
Si l'appareil s'avérait défectueux, il doit être
immédiatement débranché de la prise modulaire
jusqu'à ce que le problème soit corrigé. Cet appareil ne
doit être réparé que par son fabricant ou l'un des
centres de service autorisés par celui-ci. Pour plus de
détails sur les procédures de service, suivez les
instructions décrites dans la Garantie limitée.
Si cet appareil nuit au réseau téléphonique, la
compagnie de téléphone peut décider d'arrêter
temporairement votre service téléphonique. Elle est
tenue de vous avertir avant d'interrompre le service; si
elle ne peut pas vous avertir d'avance, elle le fera dès
qu'elle le pourra. On vous donnera l'opportunité de
rectifier le problème et la compagnie doit vous informer
de votre droit de porter plainte à la FCC. Votre
compagnie de téléphone peut apporter des
modifications à ses installations, ses équipements et
ses procédures pouvant altérer le fonctionnement
normal de votre appareil. Par contre, elle est tenue de
vous avertir lorsque de tels changements sont prévus.
Si cet appareil est doté d'un combiné avec ou sans
cordon, celui-ci est compatible avec les appareils
auditifs pour malentendants.
Si cet appareil possède des adresses mémoire, vous
pouvez y entrer les numéros de téléphone des services
d'urgence de votre municipalité (police, incendie et
services médicaux). Si vous entrez et testez des
numéros d'urgence, veuillez procéder comme suit:
Demeurez en ligne et expliquez brièvement la raison
de votre appel avant de raccrocher.
Procédez à ceci hors des heures de pointe, tel que
tôt le matin ou tard en soirée.
Industrie Canada
Le fonctionnement est soumis aux deux conditions
suivantes : (1) Cet appareil ne doit pas causer
d'interférences nuisibles et; (2) Il doit pouvoir supporter
les parasites qu'il reçoit, incluant les parasites pouvant
nuire à son fonctionnement.
L'abréviation 'IC' se trouvant avant cette homologation
signifie que la certification fut effectuée selon une
déclaration de conformité spécifiant que les normes
d'Industrie Canada ont été rencontrées.
Le numéro d'équivalence de sonnerie 'REN' assigné à cet
appareil est 0.5. Ce numéro attribué à chaque appareil
détermine le nombre de dispositifs téléphoniques que l'on
General information 61
peut brancher dans le circuit téléphonique de la maison
sans surcharger le système. Le circuit téléphonique peut
comporter n'importe quelle combinaison de dispositifs
téléphoniques, à la seule condition que la somme du
numéro 'REN' n'excède pas cinq.
Cet appareil est conforme aux spécifications techniques
d'Industrie Canada.
Technical Specifications
RF frequency band 1921.536 MHz —
1928.448 MHz
Channels 5
Operating temperature 5ºC to 45ºC
Corded base voltage
(AV voltage, 60Hz)
96 — 130 Vms
Corded base voltage
(Adapter output)
6V DC, 600mA
Cordless handset voltage 2.4V 550mAh Ni-MH
battery pack
Charge voltage
(Adapter output)
6V AC, 300mA
Manufactured, distributed or sold by Binatone
Electronics International LTD., official licensee for
this product. MOTOROLA and the Stylized M
Logo, and other Motorola trademarks and trade
dress are owned by Motorola, Inc. and are used
under license from Motorola, Inc. MOTOROLA and
the Stylized M Logo are registered in the US Patent
& Trademark Office. The Bluetooth trademarks are
owned by their proprietor and used by Binatone
Electronics International LTD. under license. All
other product or service names are the property of
their respective owners.
© Motorola, Inc. 2009. All rights reserved.
Version 1.0
Printed in China

Navigation menu
