Binatone Electronics LS1000WB DPF User Manual
Binatone Electronics International Ltd. DPF
user manual
User’s Guide
For LS1000W
10.4” (26.4 cm) Digital Photo Frame
Wi-Fi® Enabled
Warning
Use only the power adapter supplied with your product.
Welcome...
to your new Motorola Digital Photo Frame!
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will
need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For product-related questions, please call:
1-888-331-3383 in US and Canada
0845 218 0890 in UK
(65) 68412668 in Singapore
On the Web: www.motorola.com
This User’s Guide provides you with all the information you need to get the most from your digital photo frame.
Before you start using, you will need to set up your digital photo frame. Follow the simple instructions in
“Getting started”, on the next few pages.
IMPORTANT
z Only use the supplied power adapter.
Got everything?
z 1 x Digital Photo Frame
z 1 x Stand
z 1 x Power adapter
z 1 x Remote control
z 1 x Quick Start Guide
z 1 x User’s Guide
Key features
z 3 view modes: Clock/Calendar mode, slideshow mode and
thumbnail mode
z 5 slideshow transition effects
z Date and Time settings
z Programmable On/Off Time
z Supports flash drive, SD, SDHC and MMC memory cards.
Getting started 3

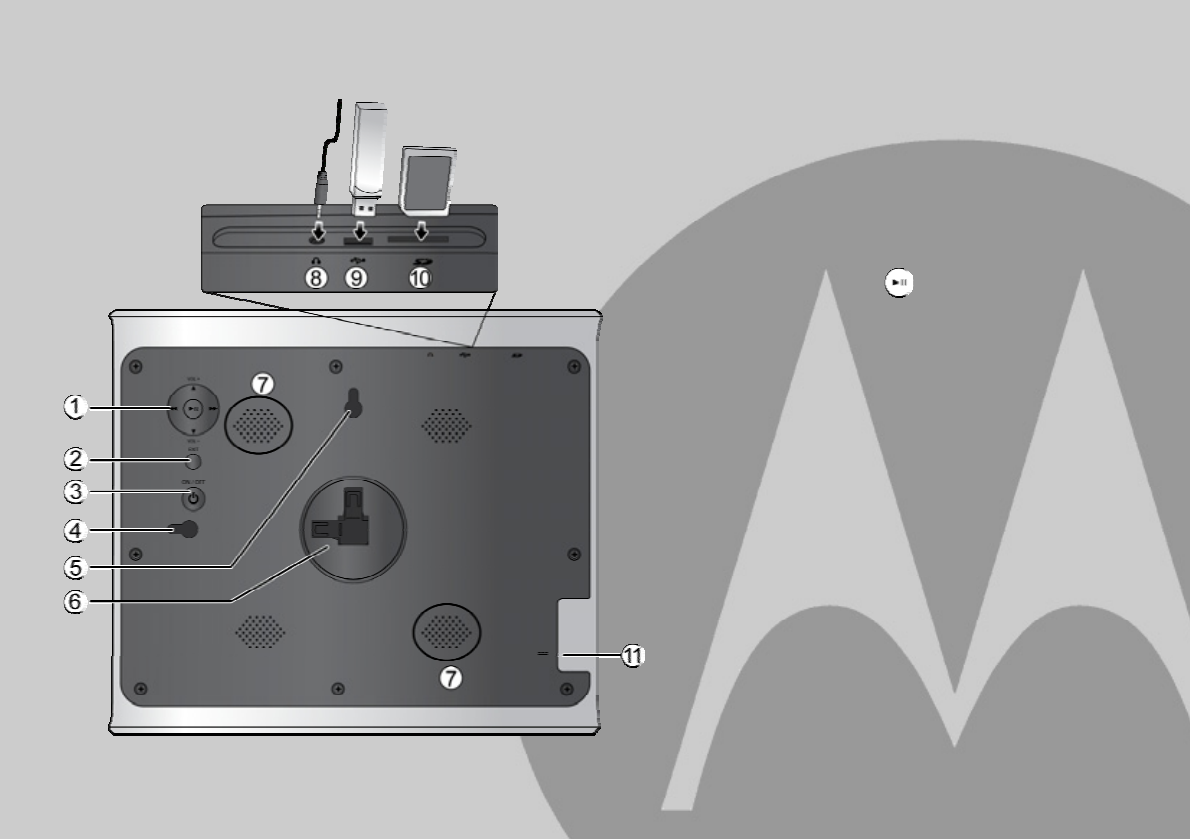

Frame Overview
1. Navigation and buttons
2. EXIT button
3. ON/OFF button
4. Hanging slot (Portrait position)
5. Hanging slot (Landscape position)
6. Stand locking slot
7. Loudspeakers
8. Earphone jack
for connecting to an earphone/headset or
external speaker to play the audio.
9. USB port
for inserting a USB flash drive that contains the
photos or music you want to play.
10. Memory card slot
for inserting an SD, SDHC, MMC memory card
that contains the photos or music you want to
play.
11. Power jack
Getting started
4
Table of Contents
1. Getting started................................................................................5
1.1 Installing the stand ..........................................................6
1.1.1 Landscape position ..............................................6
1.1.2 Portrait position ....................................................7
1.2 Connecting to power .......................................................8
1.3 Inserting a memory card or a USB flash drive .................8
1.4 Replacing the remote control battery...............................9
2. Using the photo frame..................................................................10
2.1 Using the control buttons ..............................................10
2.2 Using the remote control ...............................................13
3. Using the menus...........................................................................15
3.1 Using the Main Menu ....................................................15

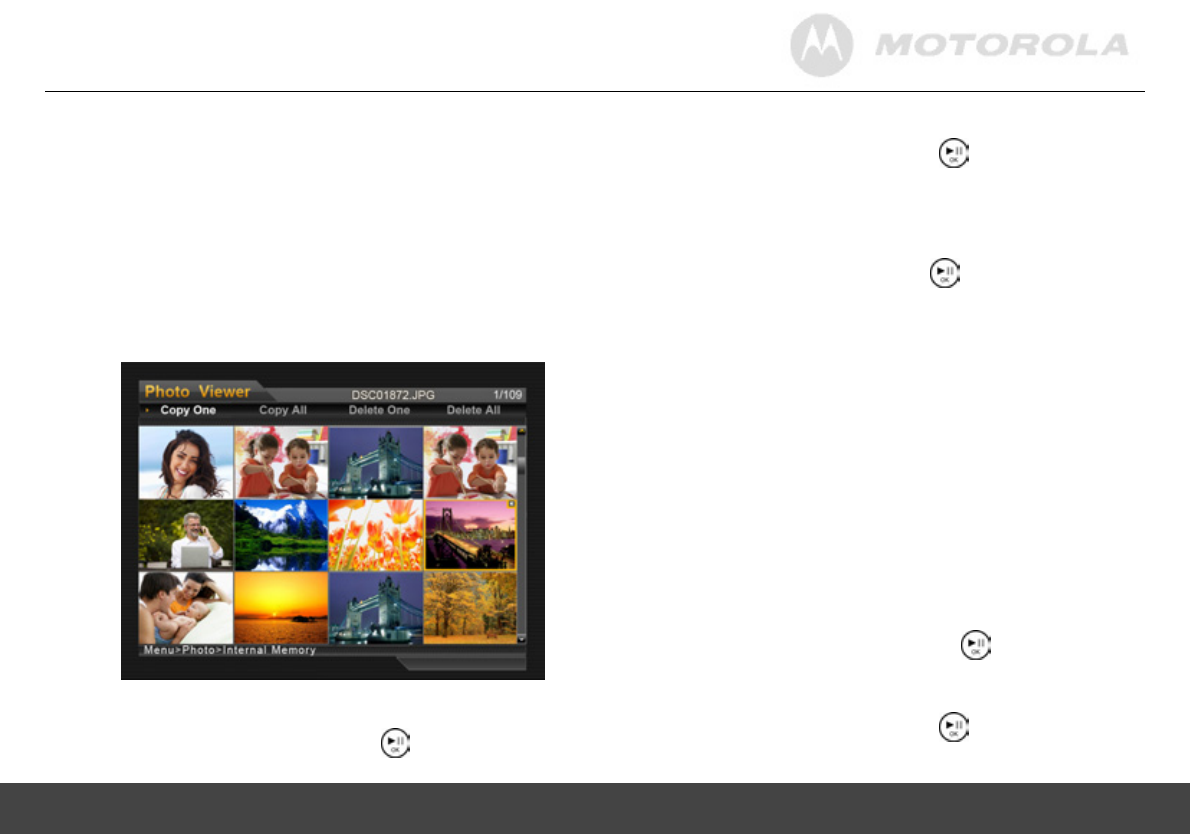

3.2 Using the Photo menu...................................................16
3.2.1 Copying one or all photos...................................17
3.2.2 Deleting one or all photos ...................................17
3.2.3 Auto rotation.......................................................18

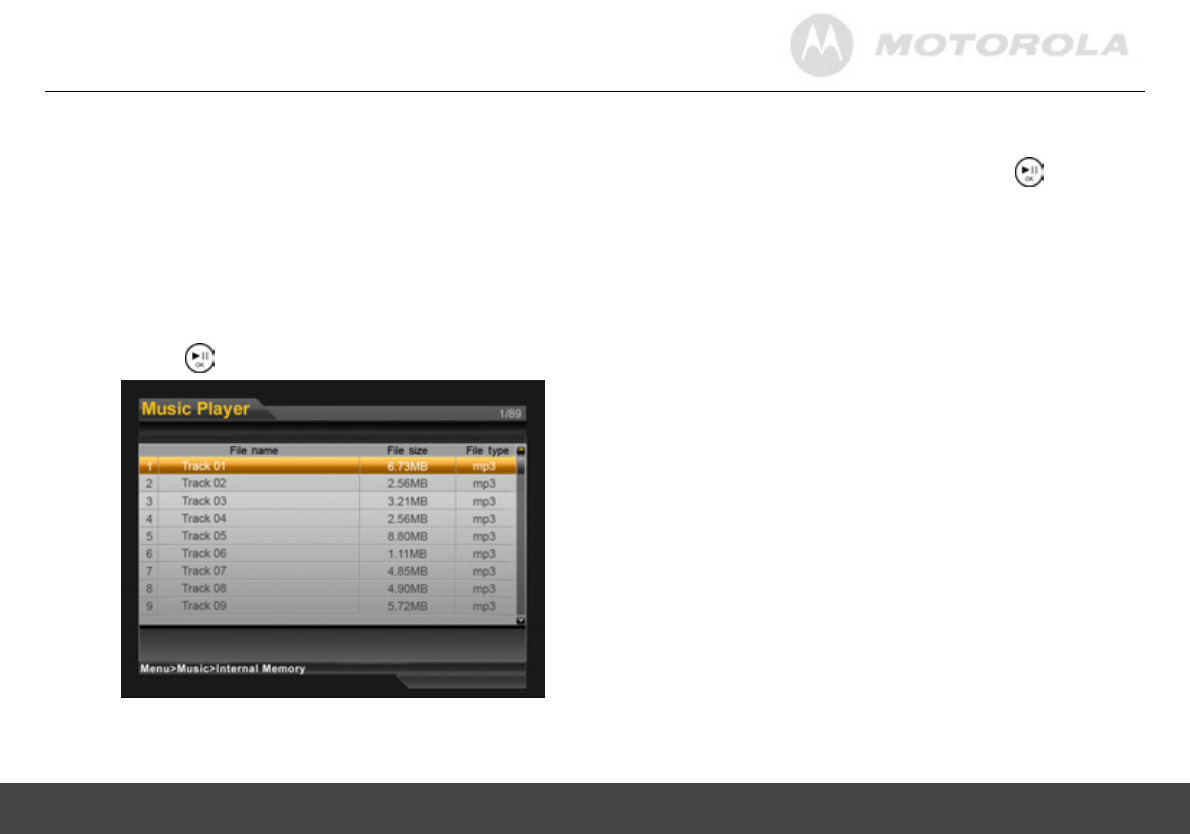

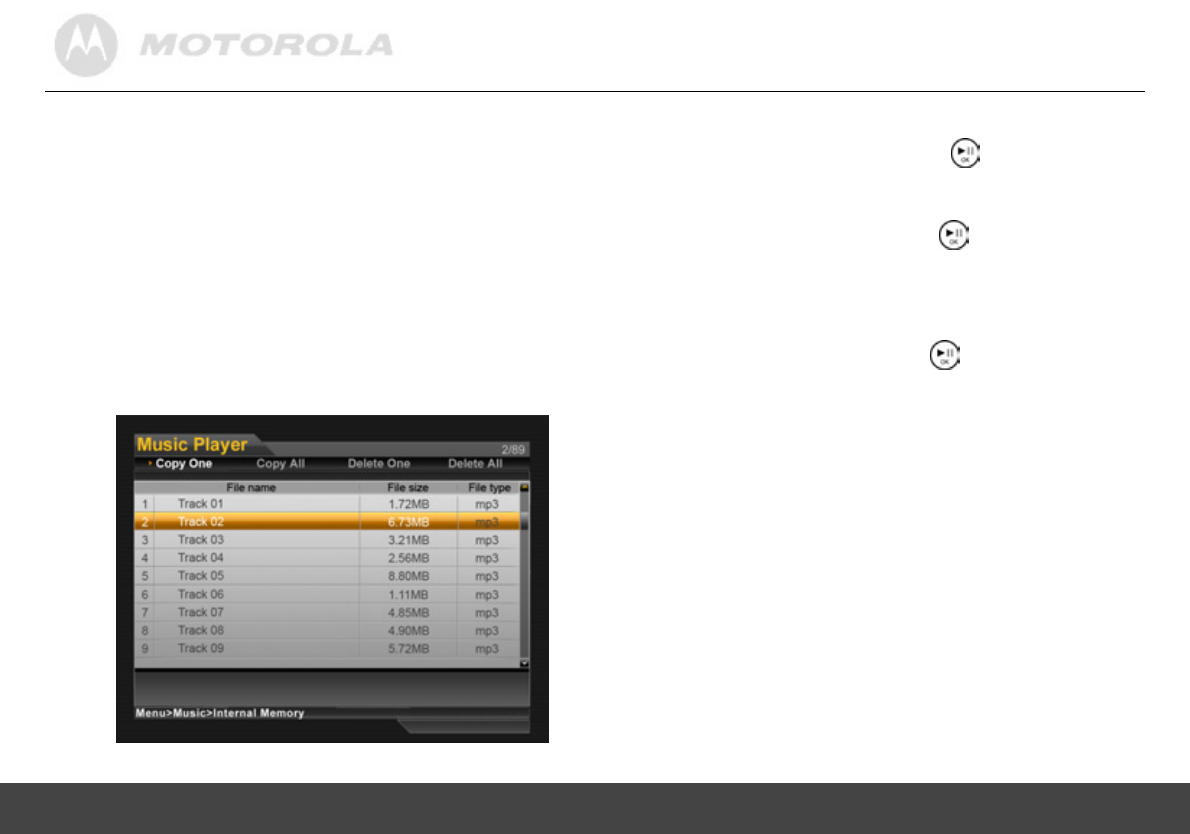

3.3 Using the Music menu...................................................19
3.3.1 Copying one or all music files .............................20
3.3.2 Deleting one or all music files .............................21

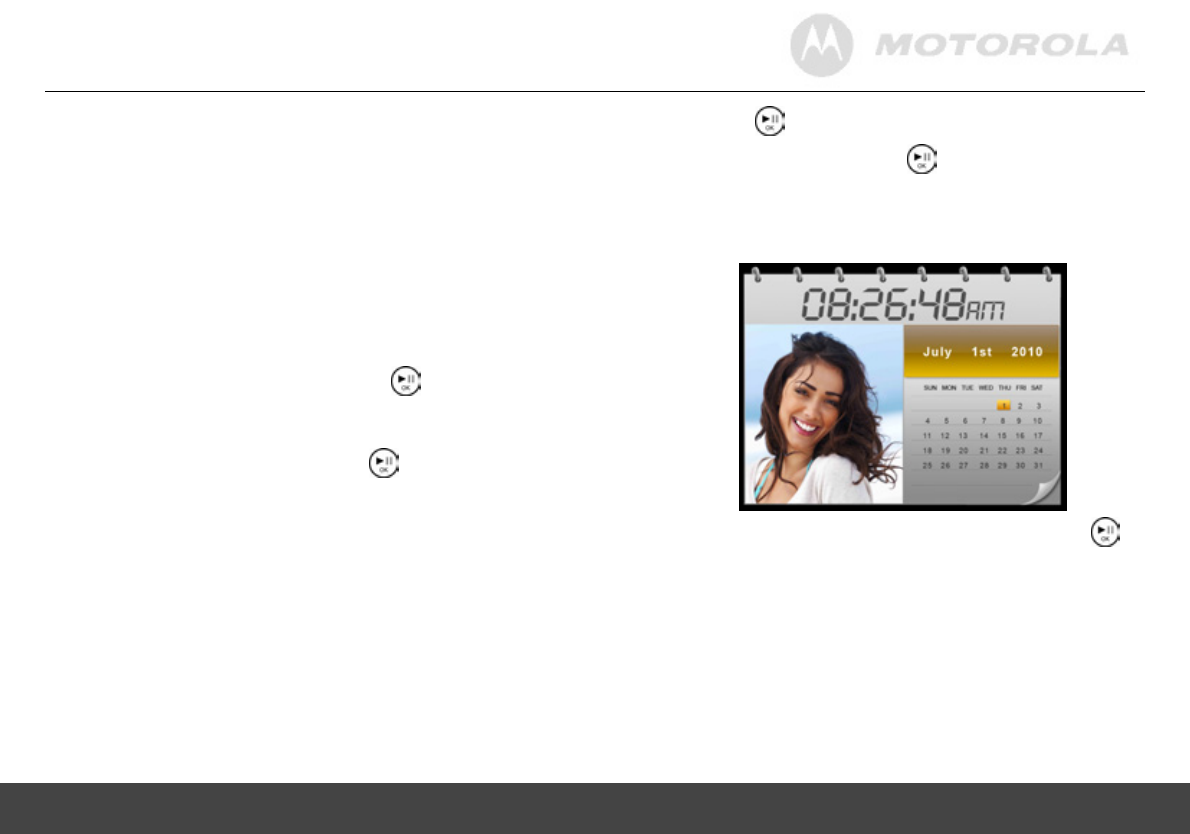

3.4 Using the Calendar menu .............................................21

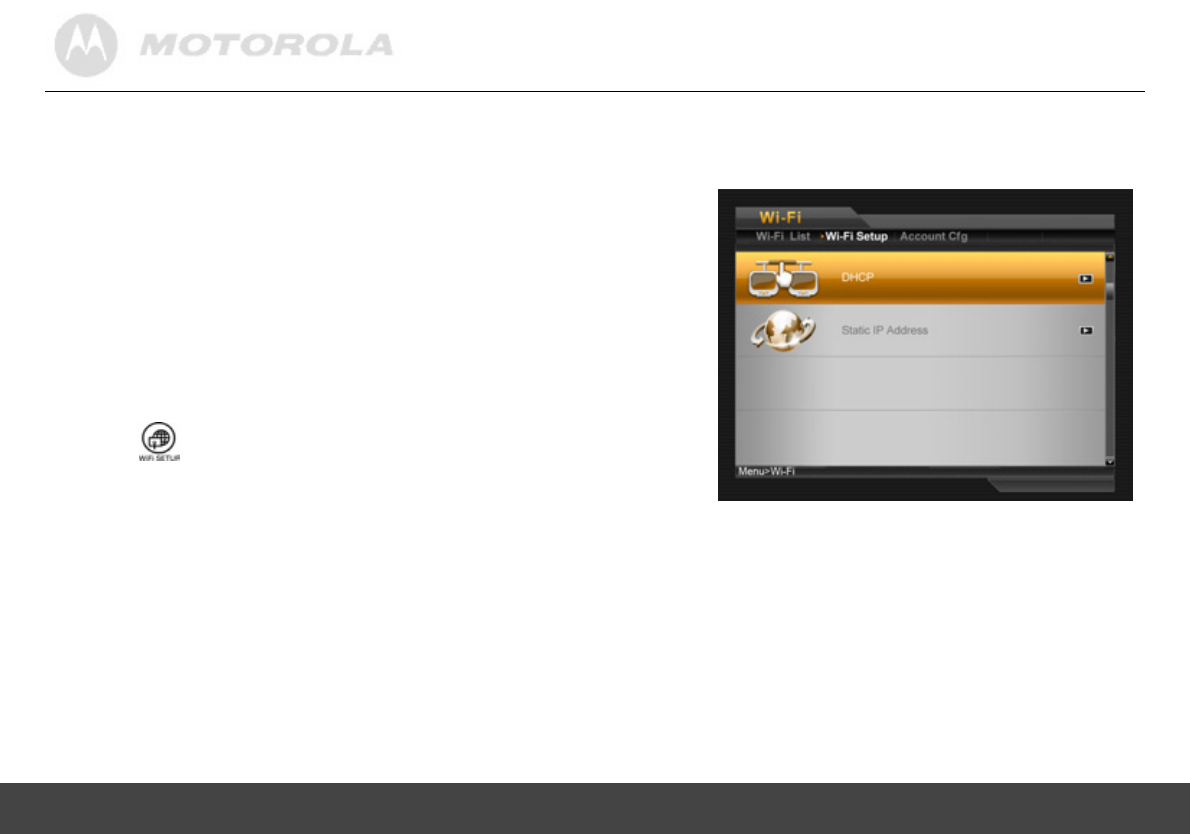

3.5 Using the Wi-Fi menu....................................................22

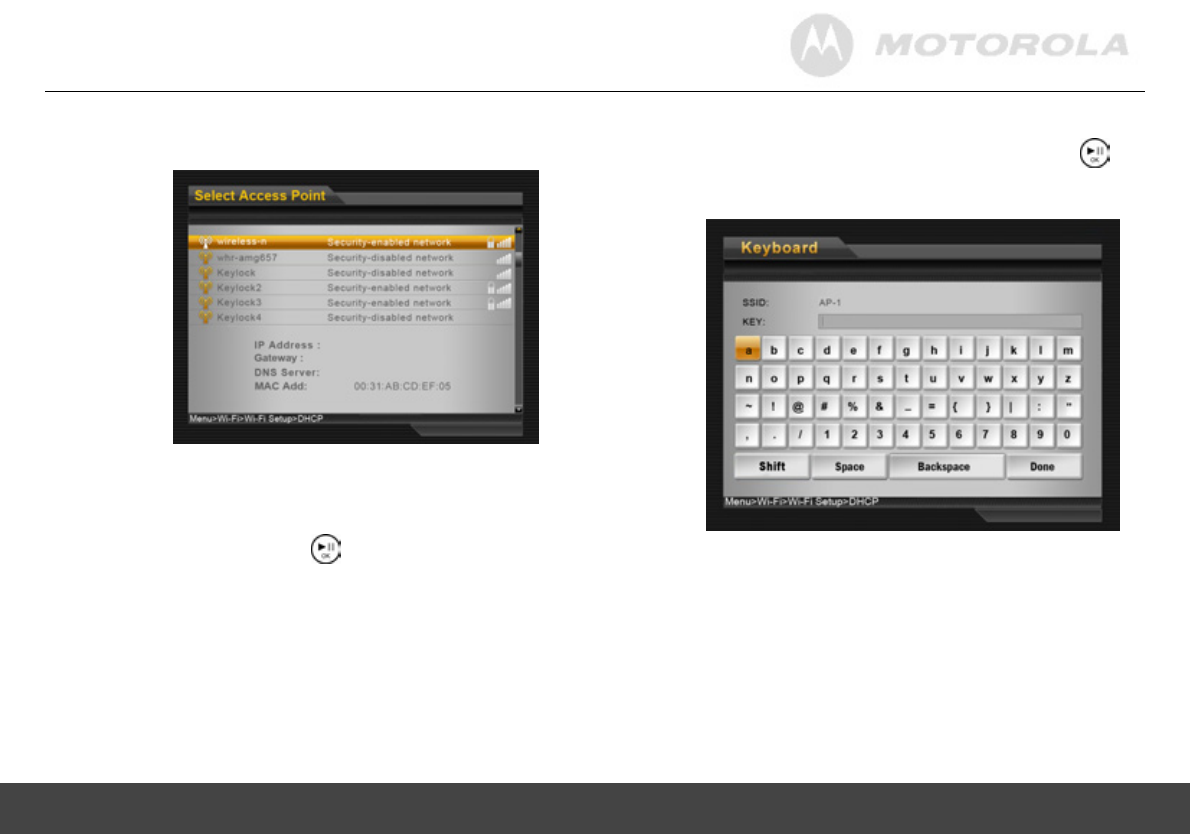

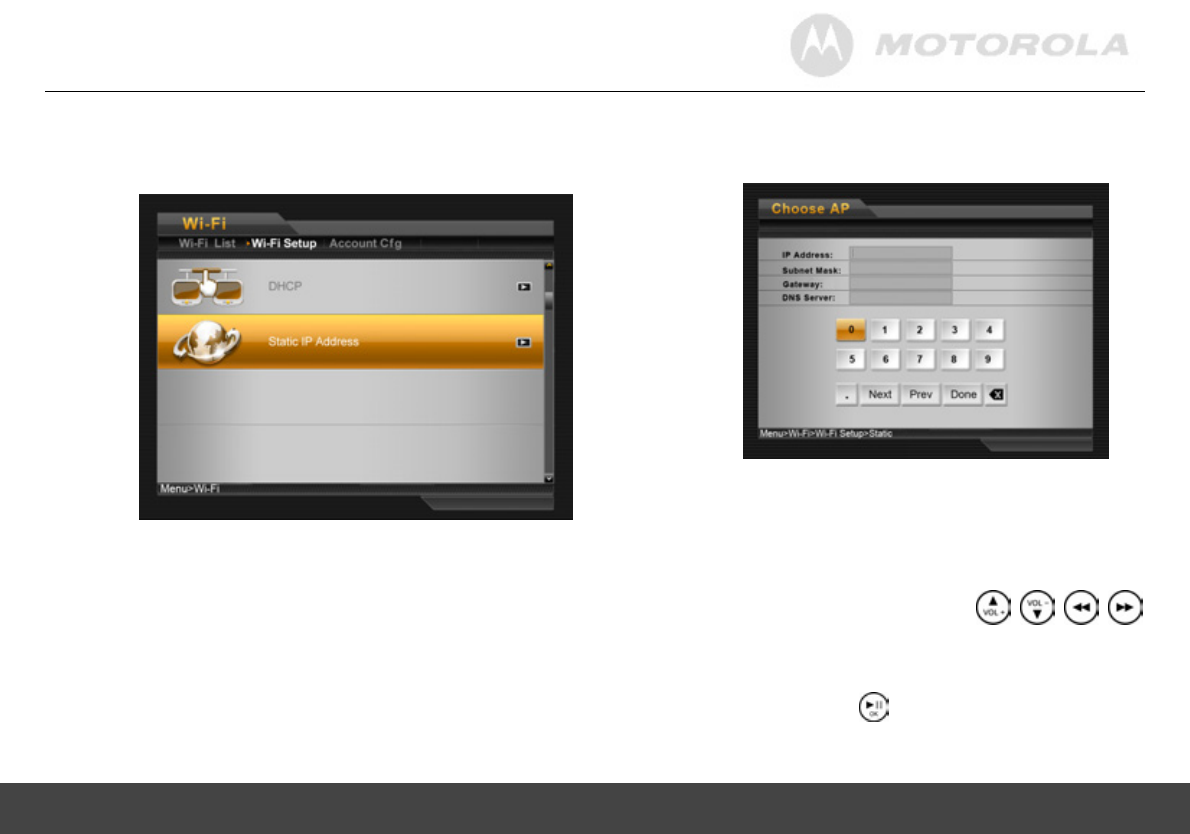

3.5.1 Step 1: Setting up Wi-Fi connection....................22
3.5.2 Step 2: Configuring your accounts ......................26

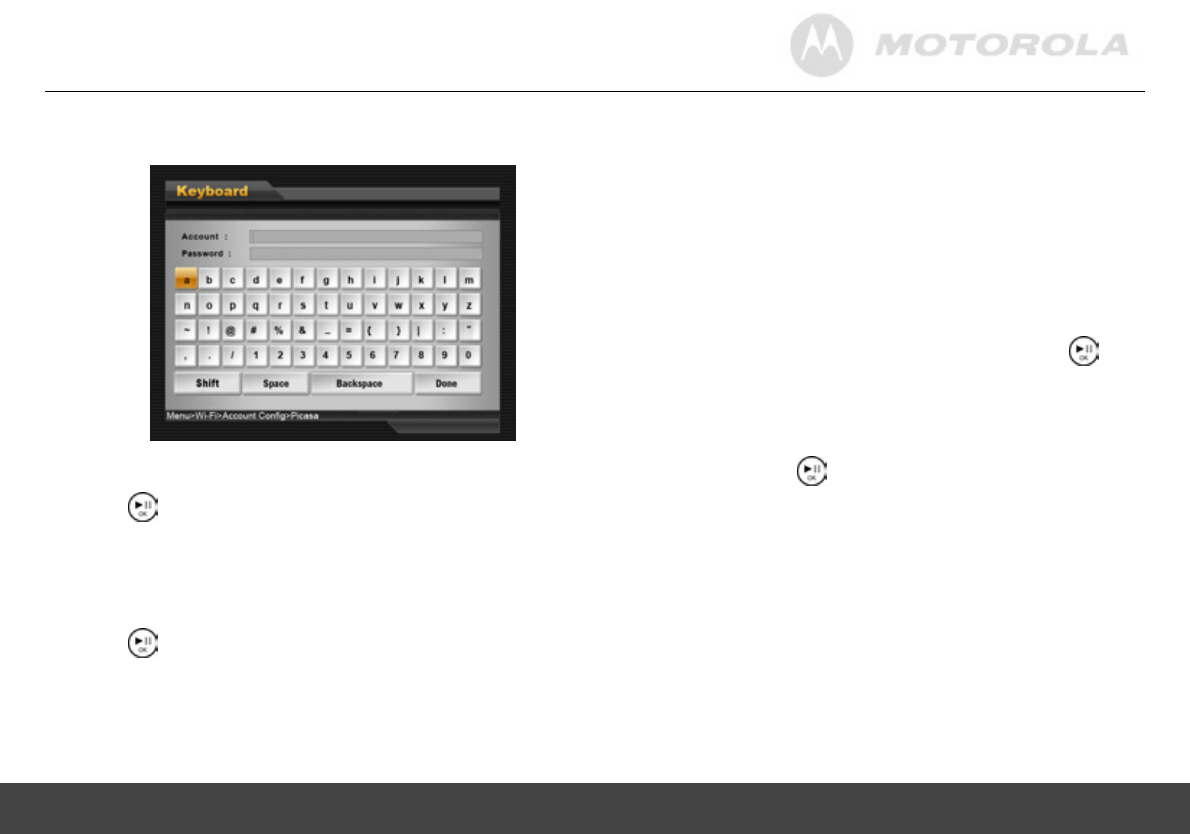

3.5.2.1 Configuring your Picasa™ account.........26
3.5.2.2 Configuring your Flickr® account ...........27
3.5.2.3 Configuring RSS ...................................28

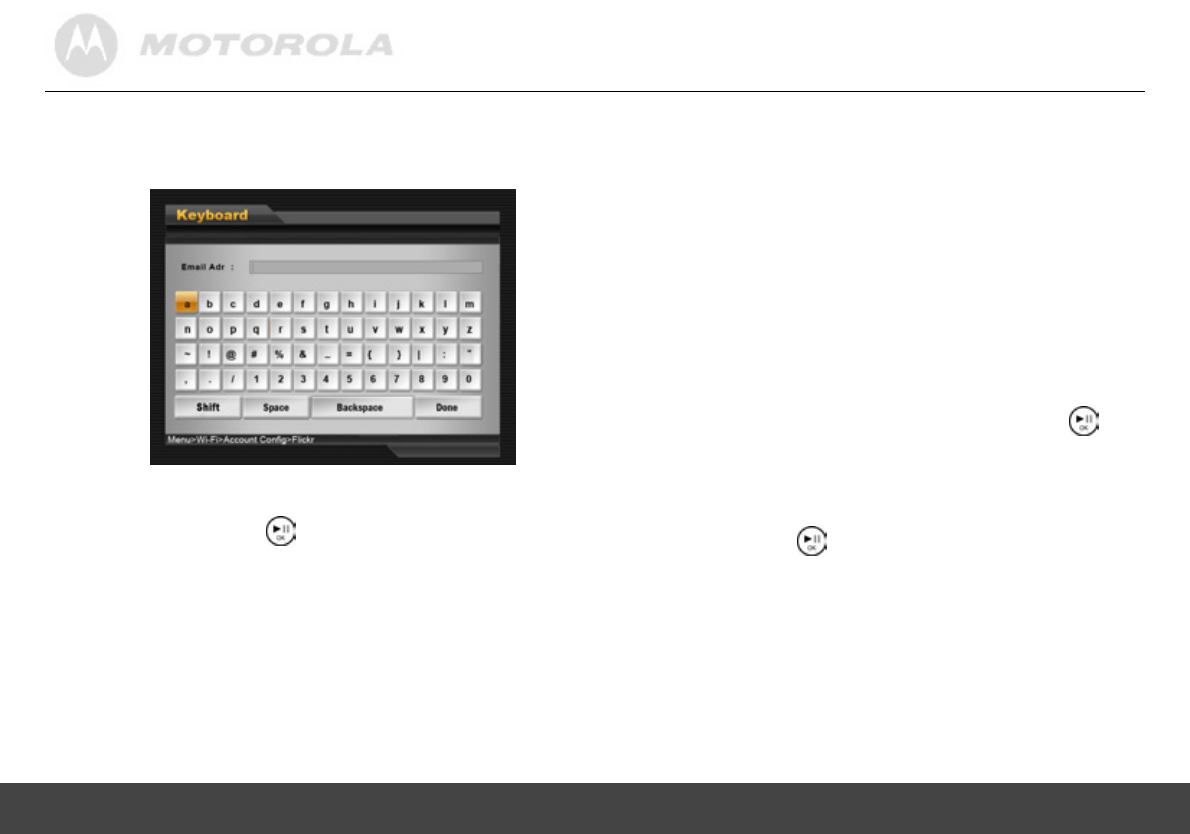

3.5.2.4 Configuring your email account.............29

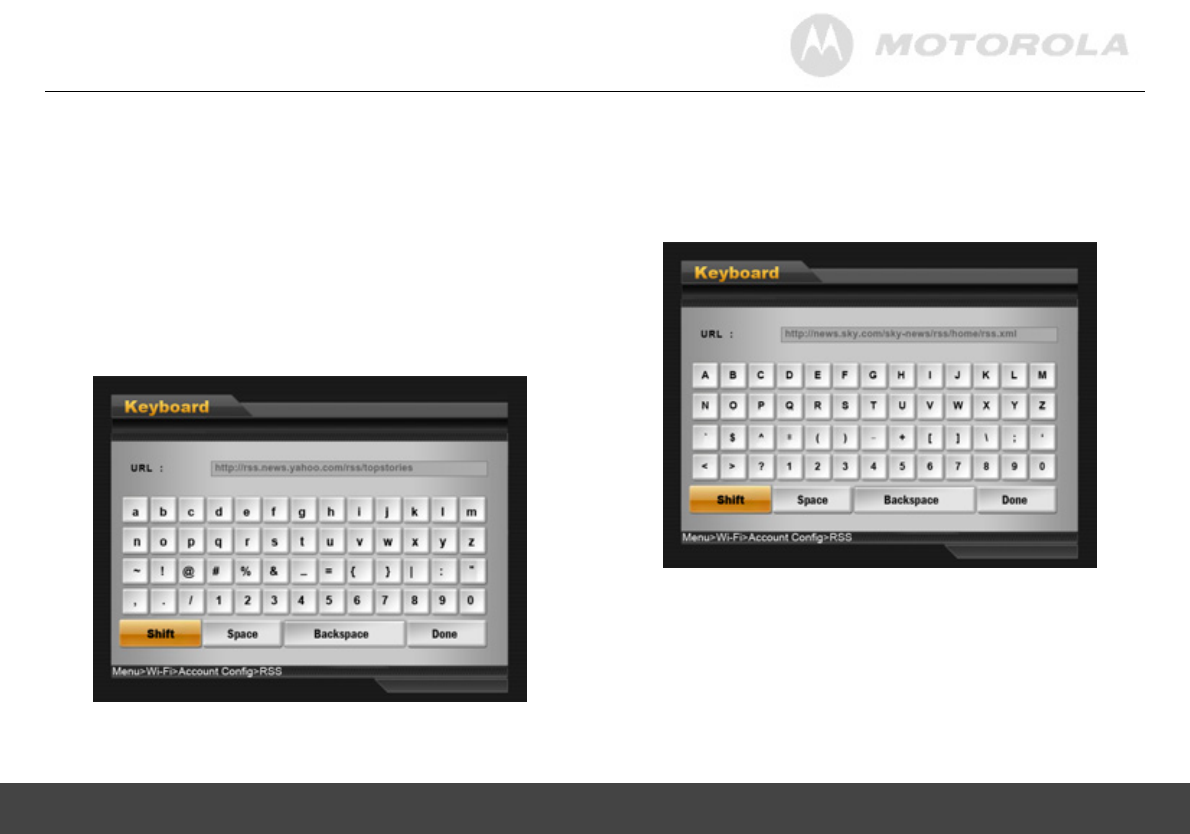

3.5.2.5 More information about on-screen
keyboard use ........................................31
3.5.3 Step 3: Using web services.................................32
3.5.3.1 Using Picasa™.......................................32
3.5.3.2 Using Flickr®.........................................33

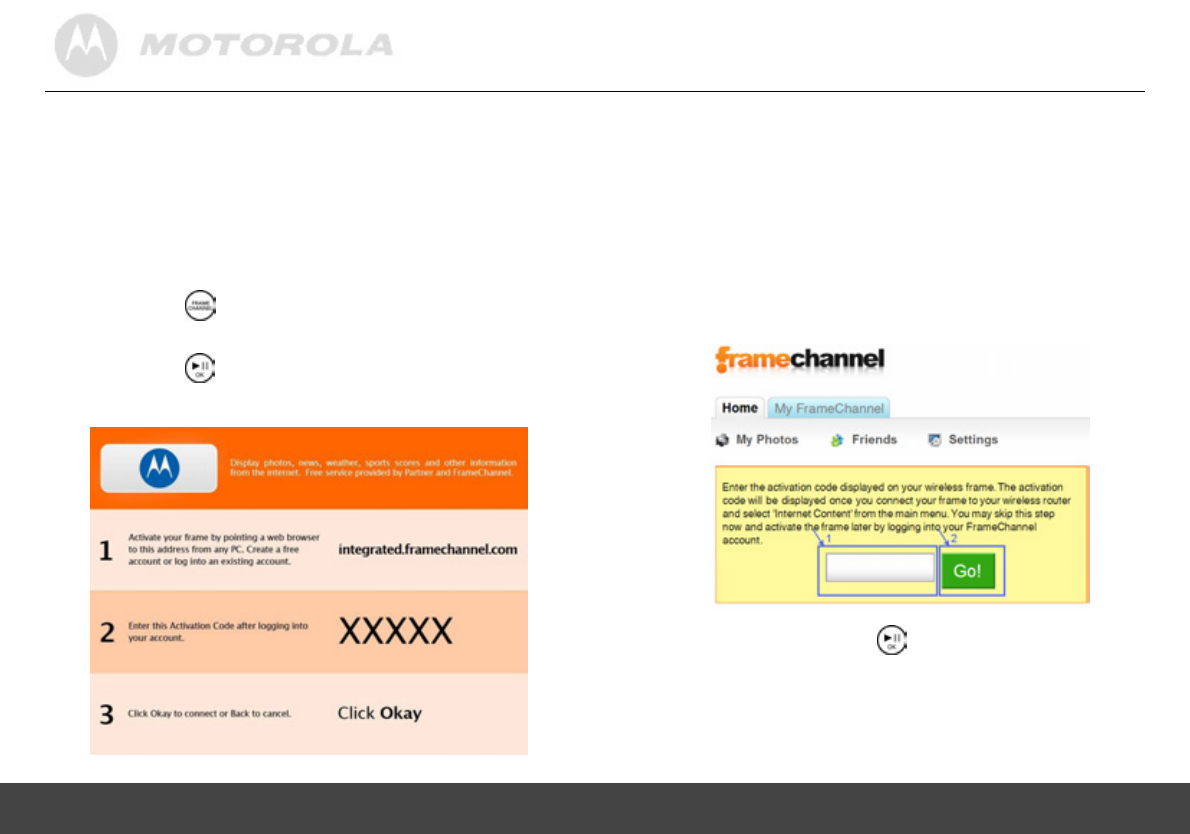

3.5.3.3 Using FrameChannel™..........................34

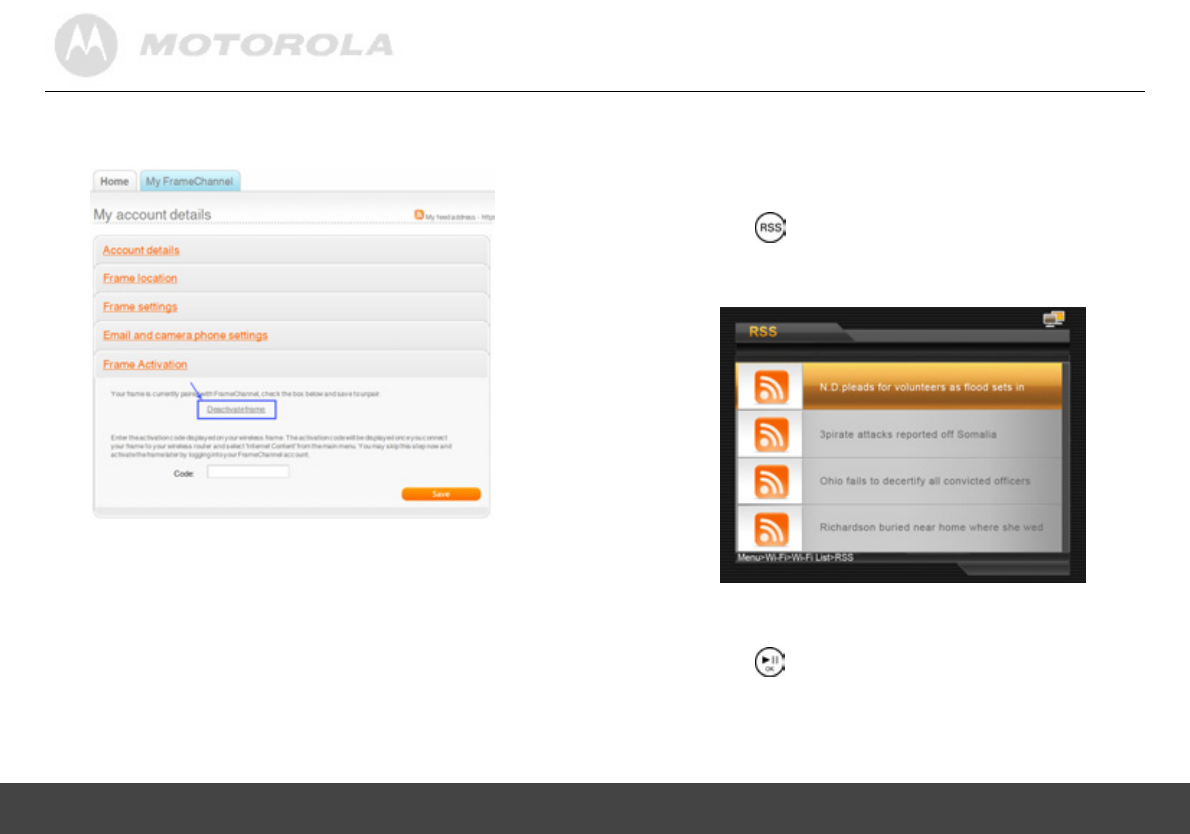

3.5.3.3.1 Setting up FrameChannel to
work with LS1000W ................34
3.5.3.3.2 Deactivating the active
FrameChannel account...........35
3.5.3.4 Using RSS ............................................36

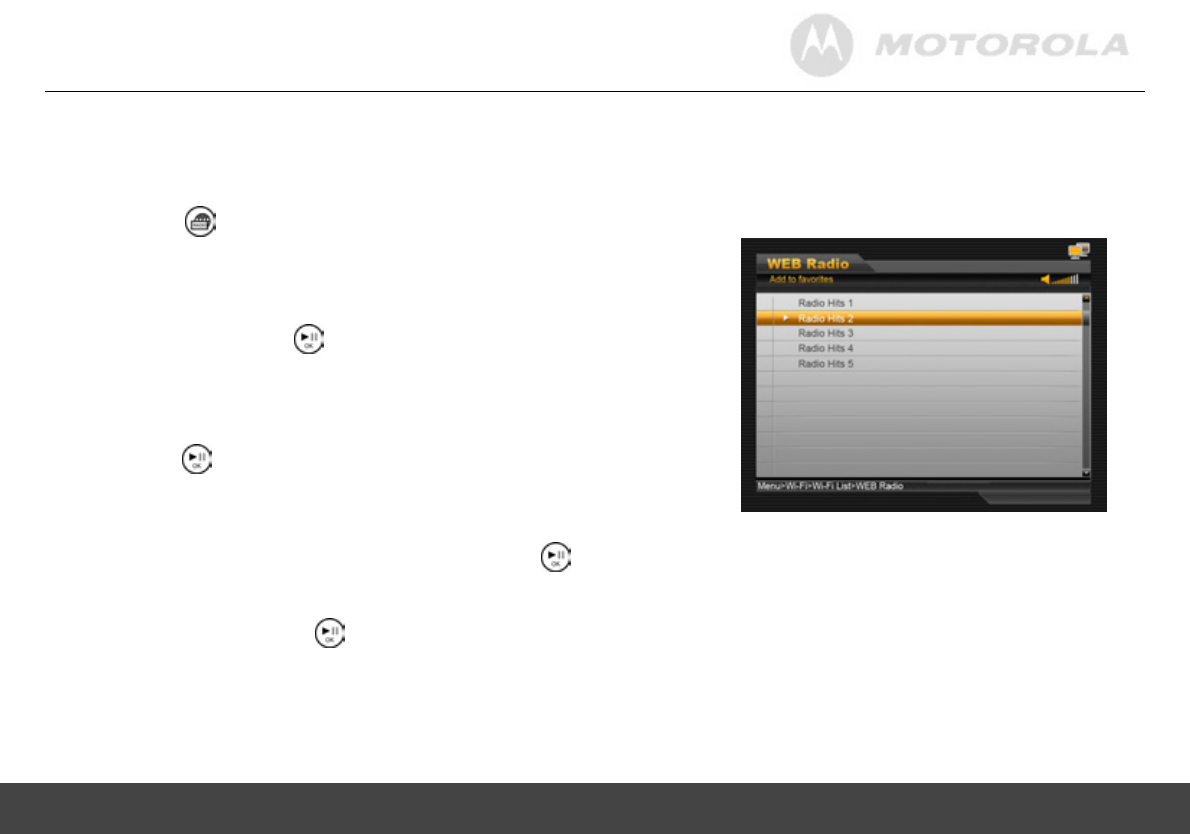

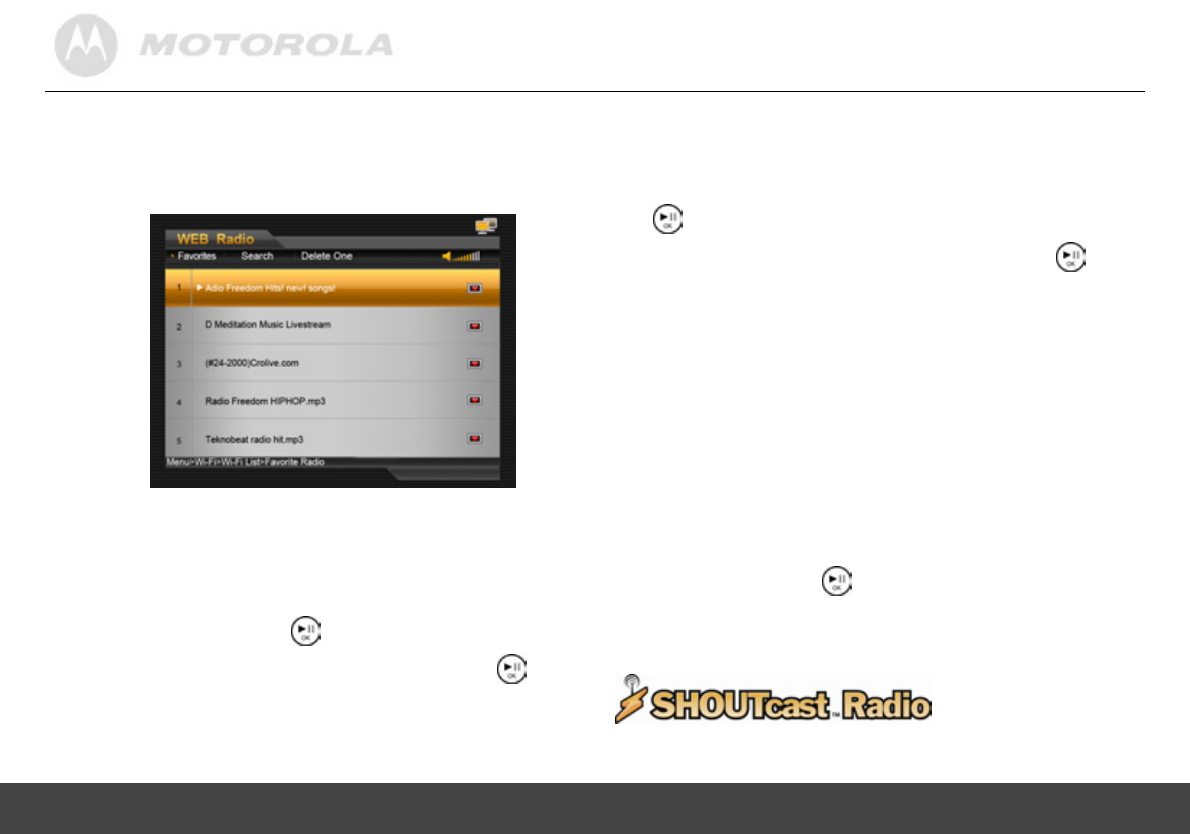

3.5.3.5 Using WEB Radio .................................37
3.5.3.6 Using Email...........................................39

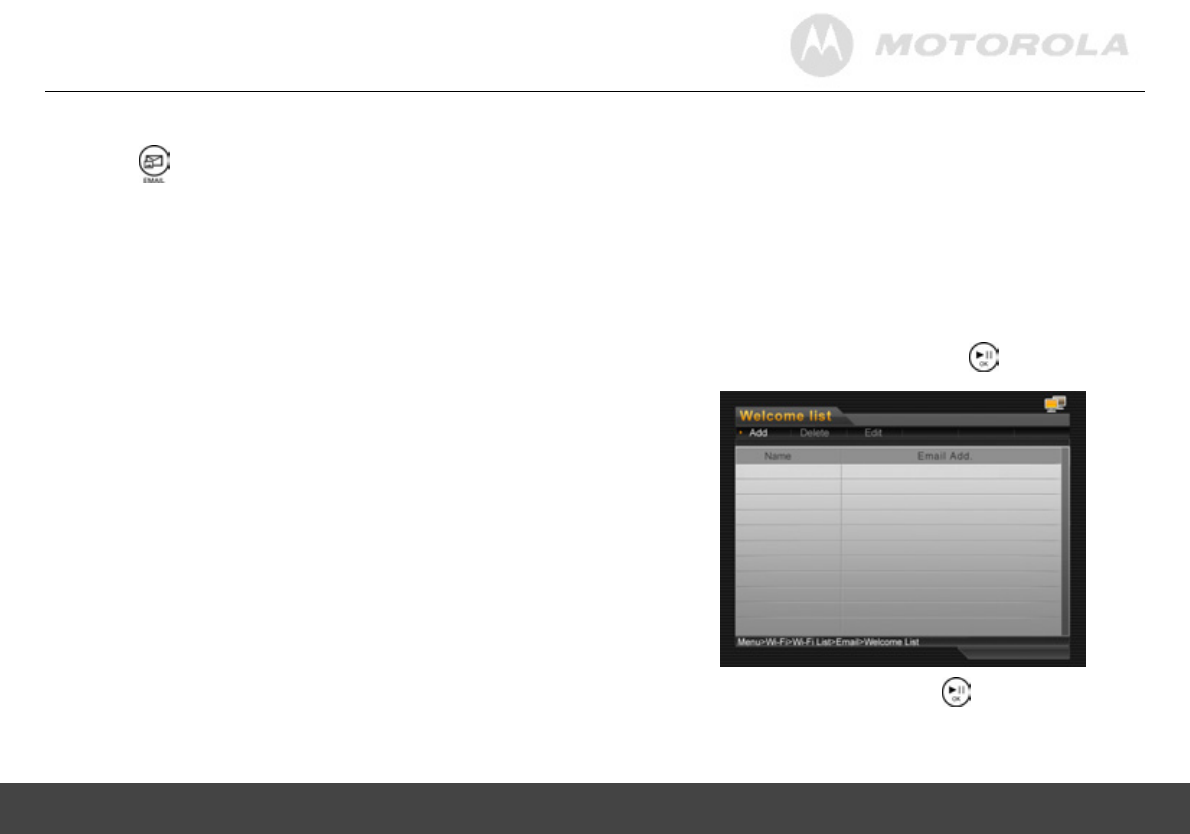

3.5.3.6.1 Adding your contacts to the
Welcome list ...........................39

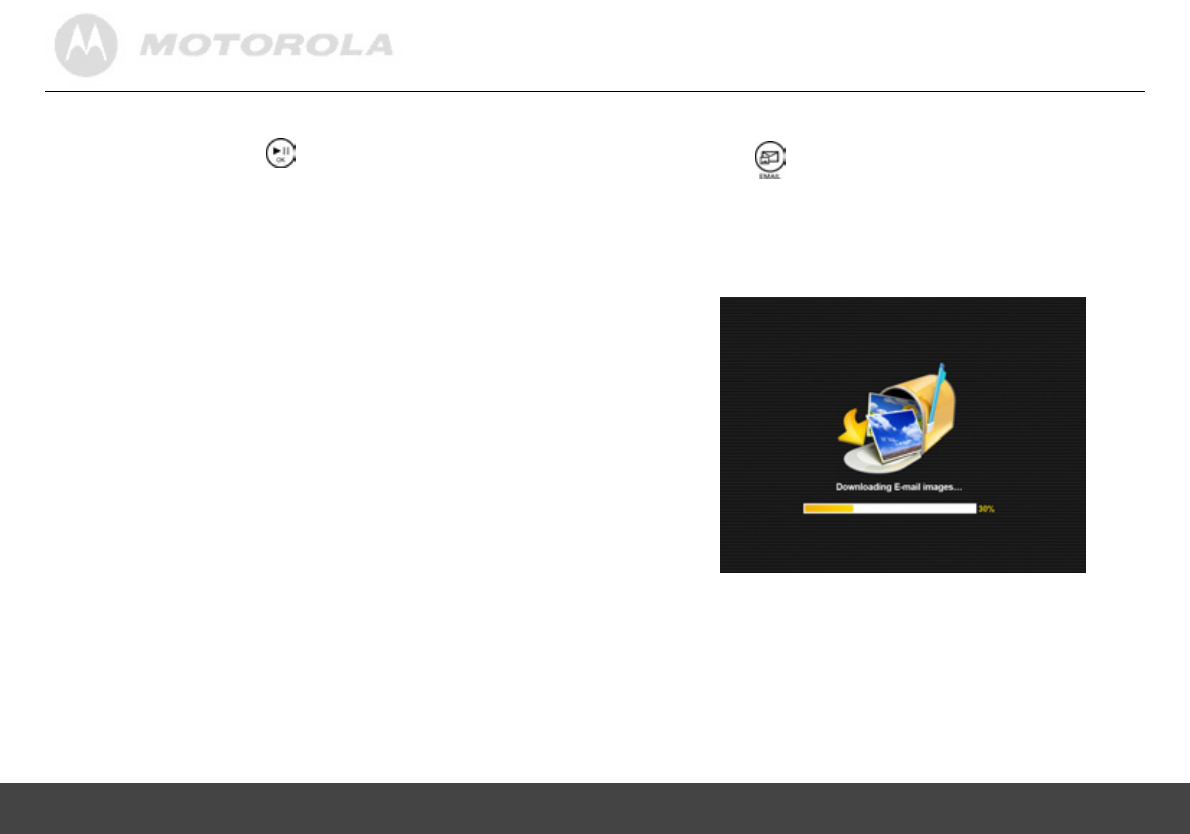

3.5.3.6.2 Receiving photo emails...........40

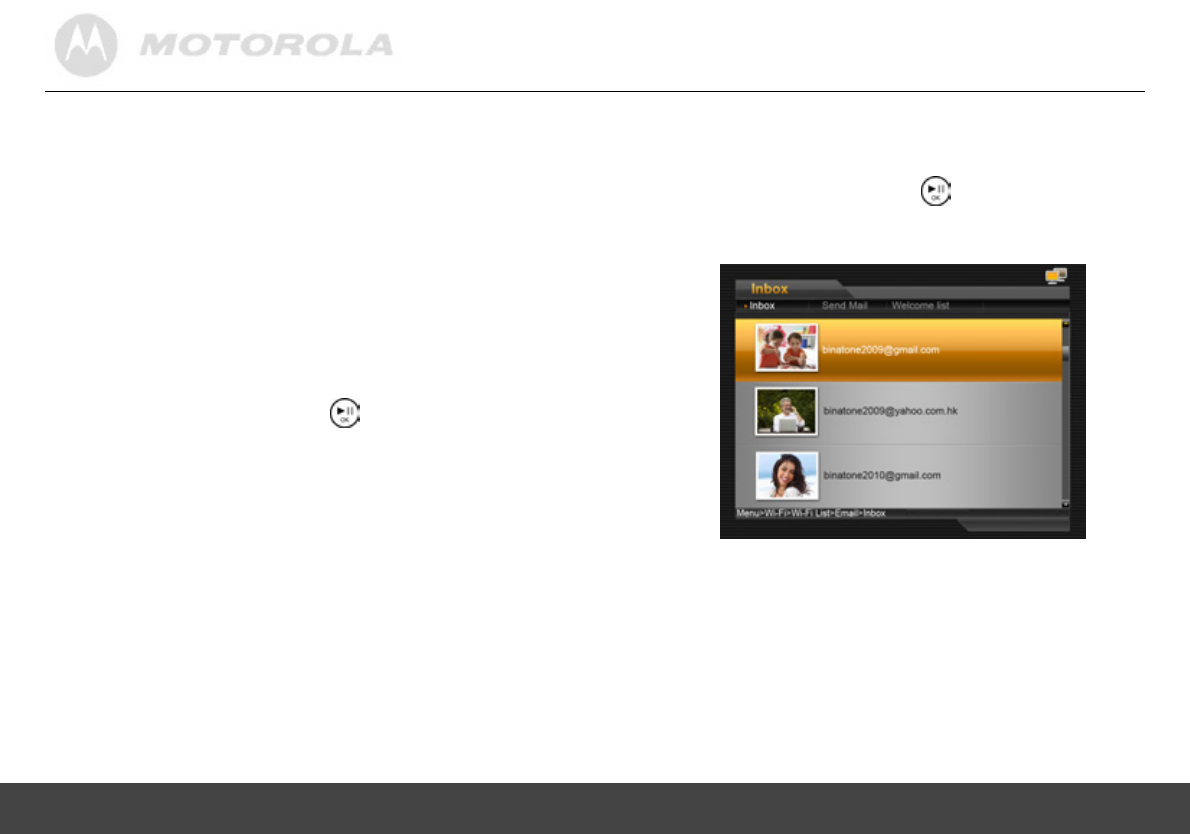

3.5.3.6.3 Viewing received photo emails
on inbox..................................42

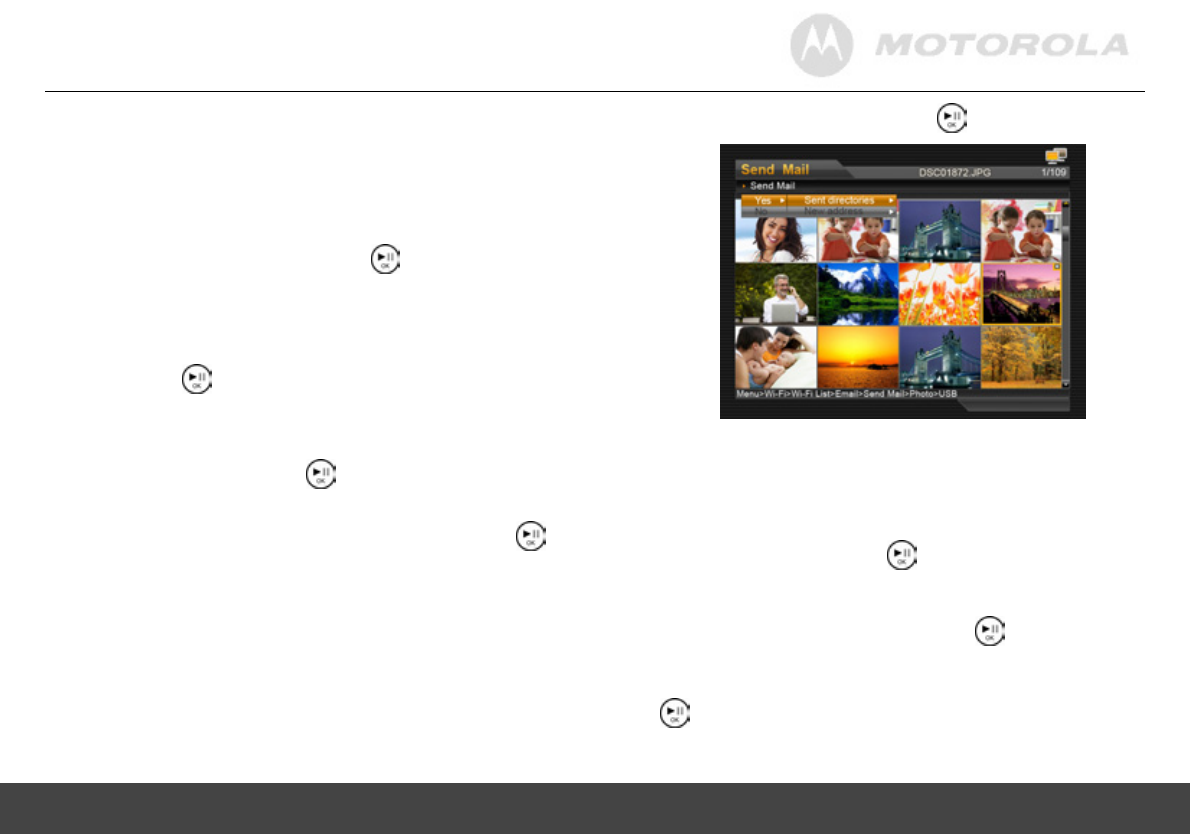

3.5.3.6.4 Sending a photo by email........43
3.5.3.6.5 Editing or deleting the contacts
in the Welcome list..................44
3.5.4 FAQ and troubleshooting....................................45

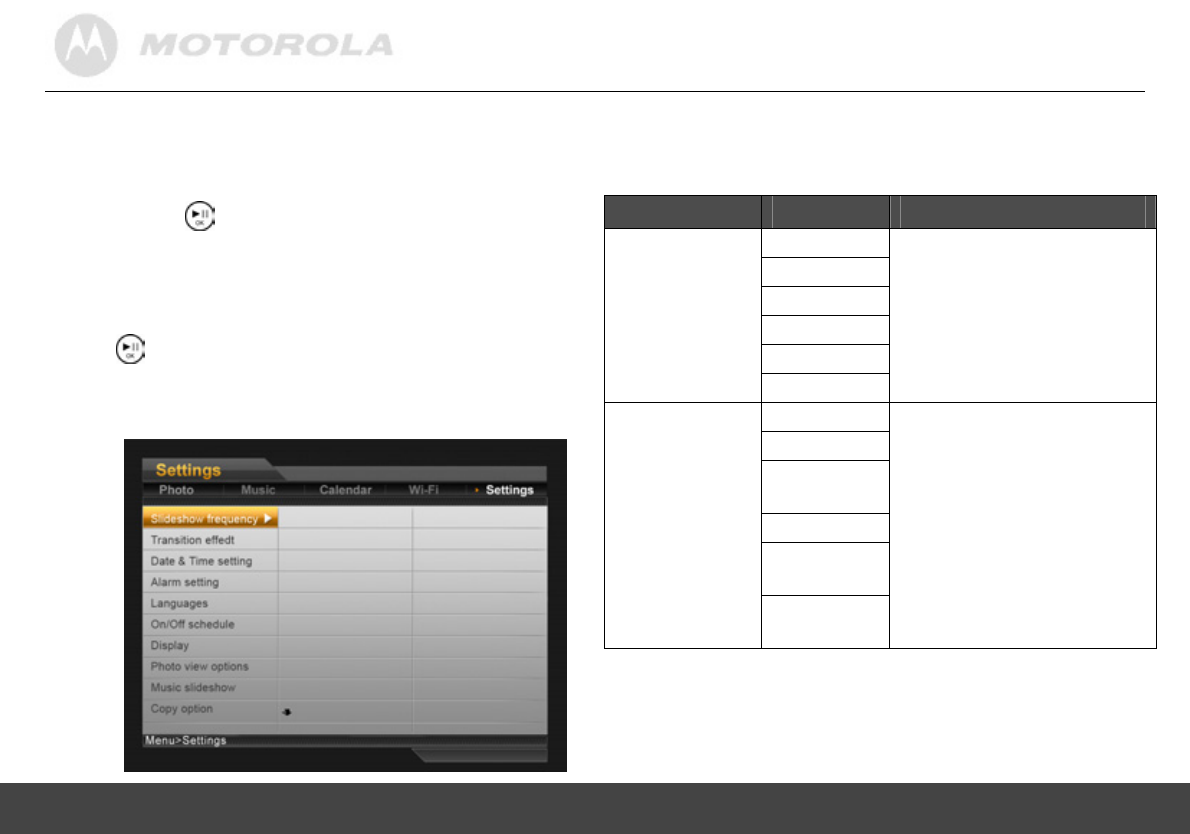

3.6 Using the Settings menu...............................................48
3.6.1 Setting an alarm....................................51
3.6.2 Enabling auto on/off ..............................52
4. General information .....................................................................53
5. Technical specifications ..............................................................60

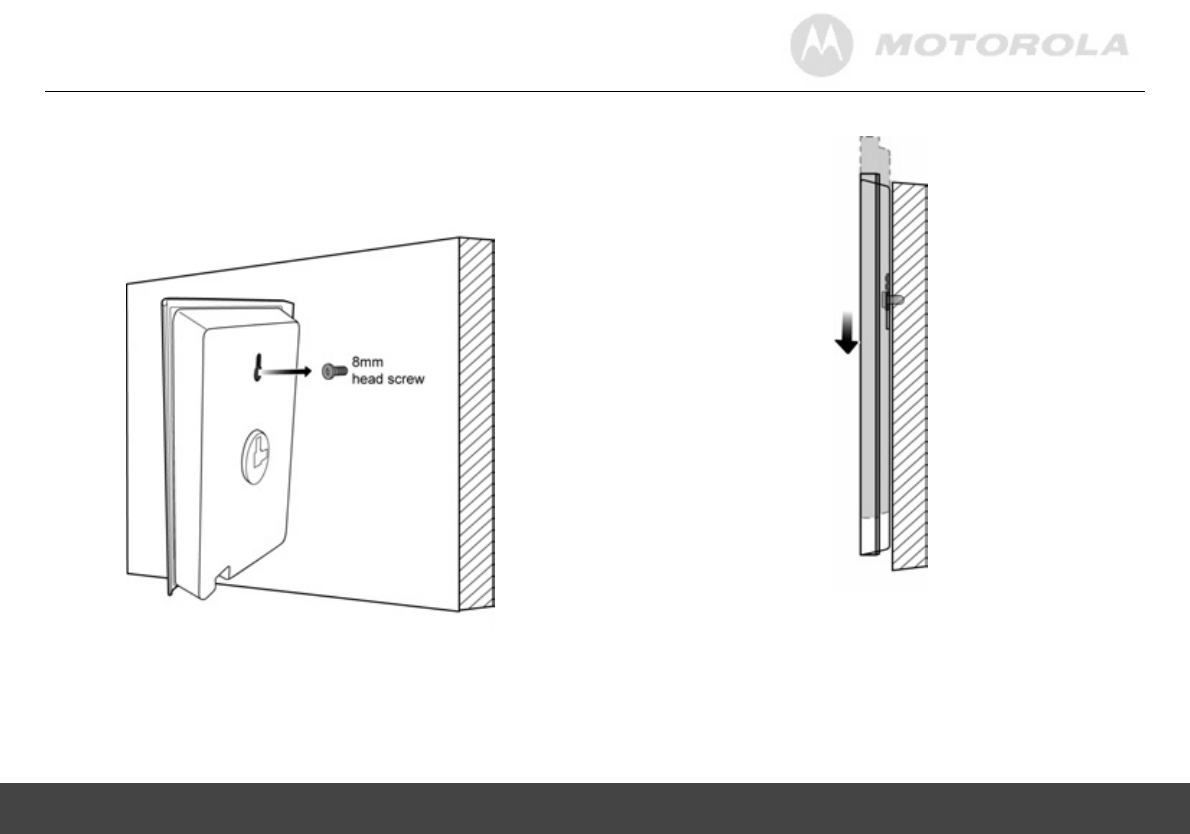

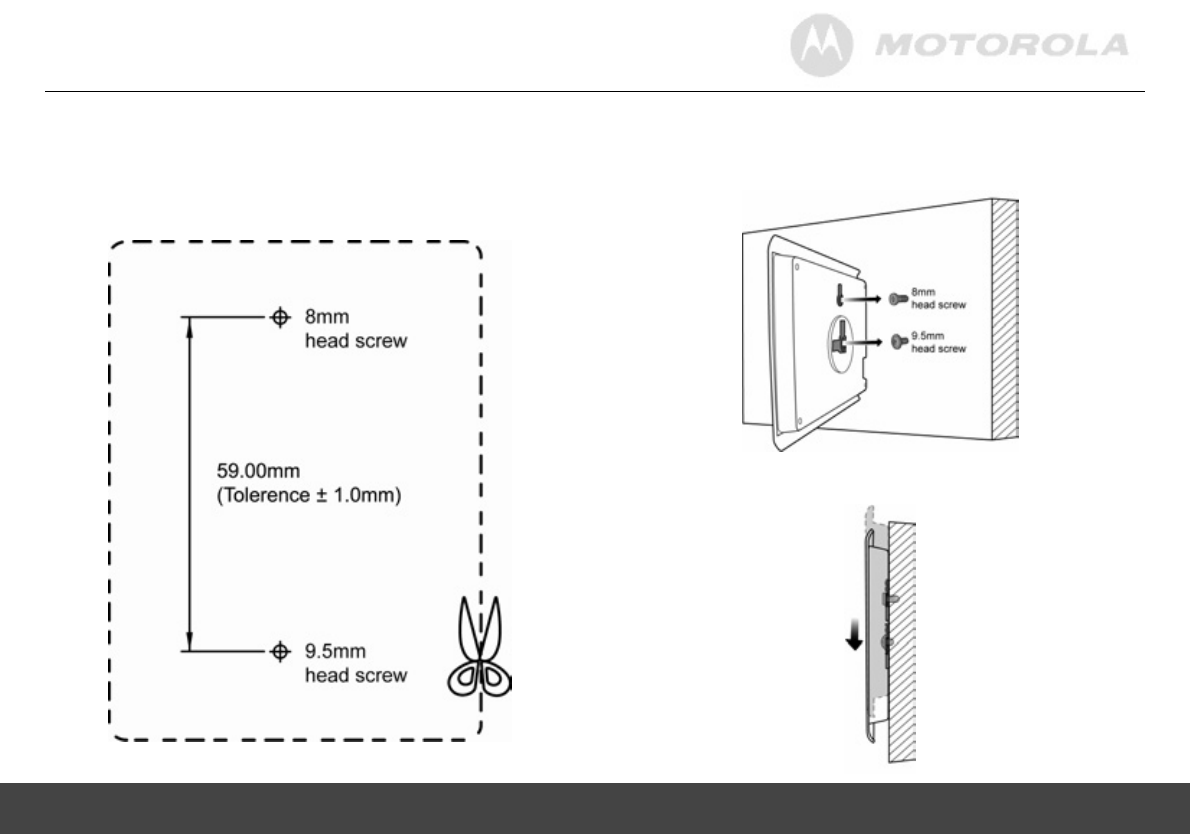

6. Wall mounting instructions..........................................................61
Getting started 5
1. Getting started
WARNING
z Do not place your digital photo frame in the bathroom or
other humid areas.
z Do not place your digital photo frame near sources of
heat and extreme temperatures, such as fluorescent
lighting, microwave ovens, heating appliances and direct
sunlight.
z Do not disassemble your digital photo frame; there are no
user-serviceable parts inside.
z If the LCD screen breaks, do not touch the glass or liquid.
Contact Motorola customer support for assistance.
z Use only the power adapter supplied with your digital
photo frame.
Compatible photo format
Your digital photo frame can only display photos that are in
JPEG format. Other photo formats may not be detected or
displayed correctly.
Care and maintenance
Wipe the frame and the LCD screen gently with a soft, clean,
dry cloth.
To remove fingerprints on the LCD screen, wipe gently with
a soft, lint-free cloth. Do not use cleaning solutions unless
they are designed specifically for LCD screens.
IMPORTANT
Always switch off and disconnect the power adapter before
cleaning the digital photo frame.
Getting started
6

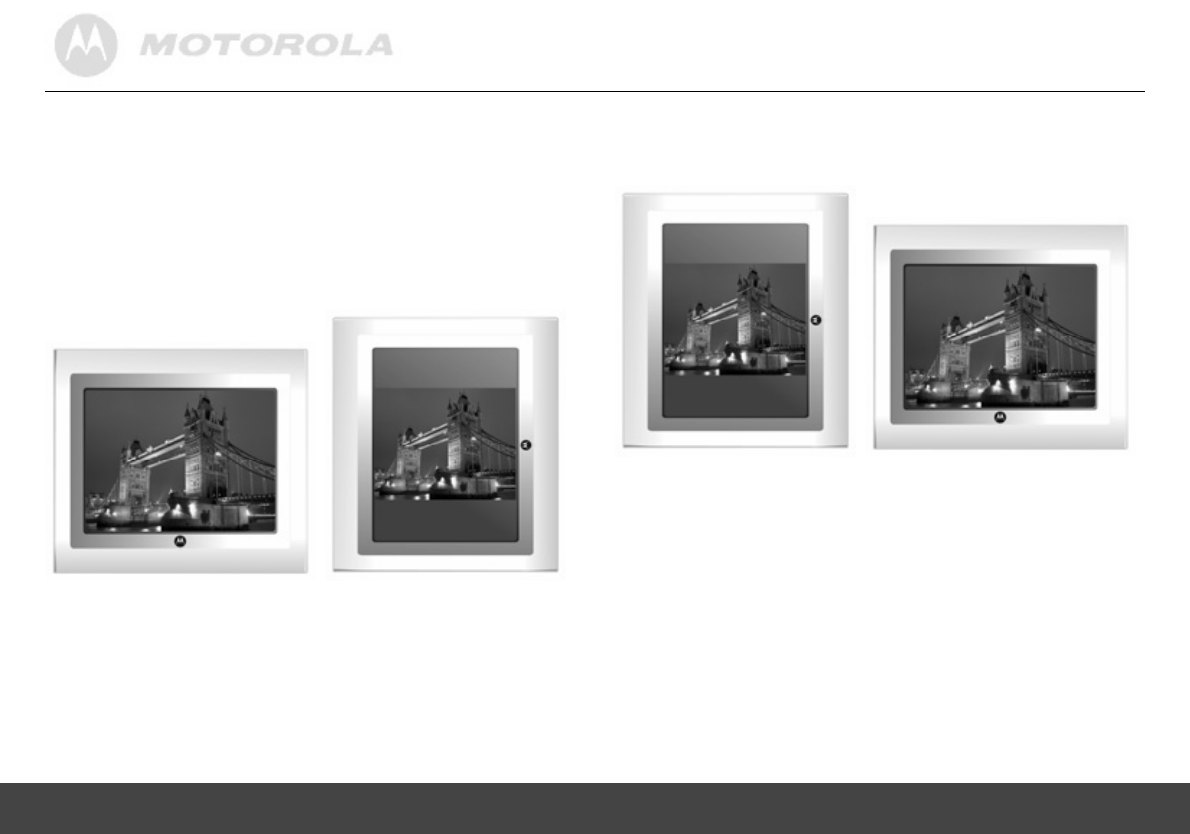

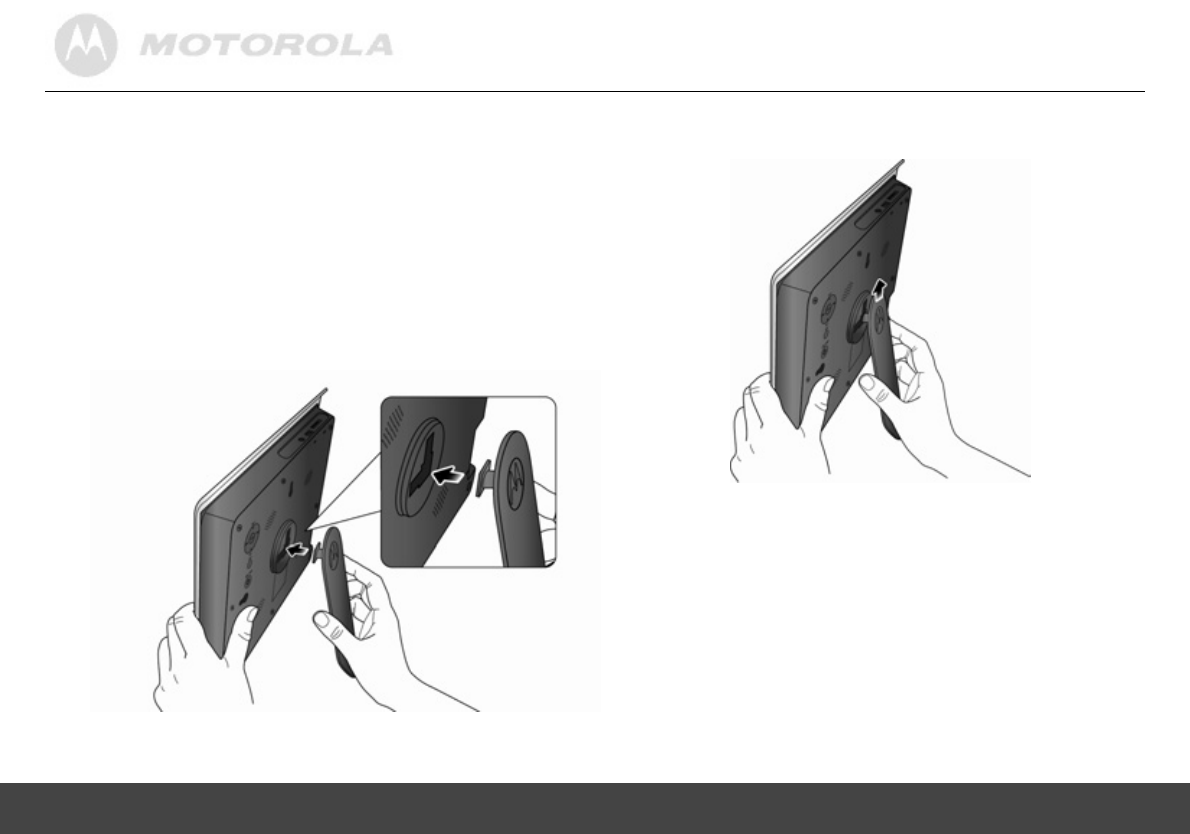

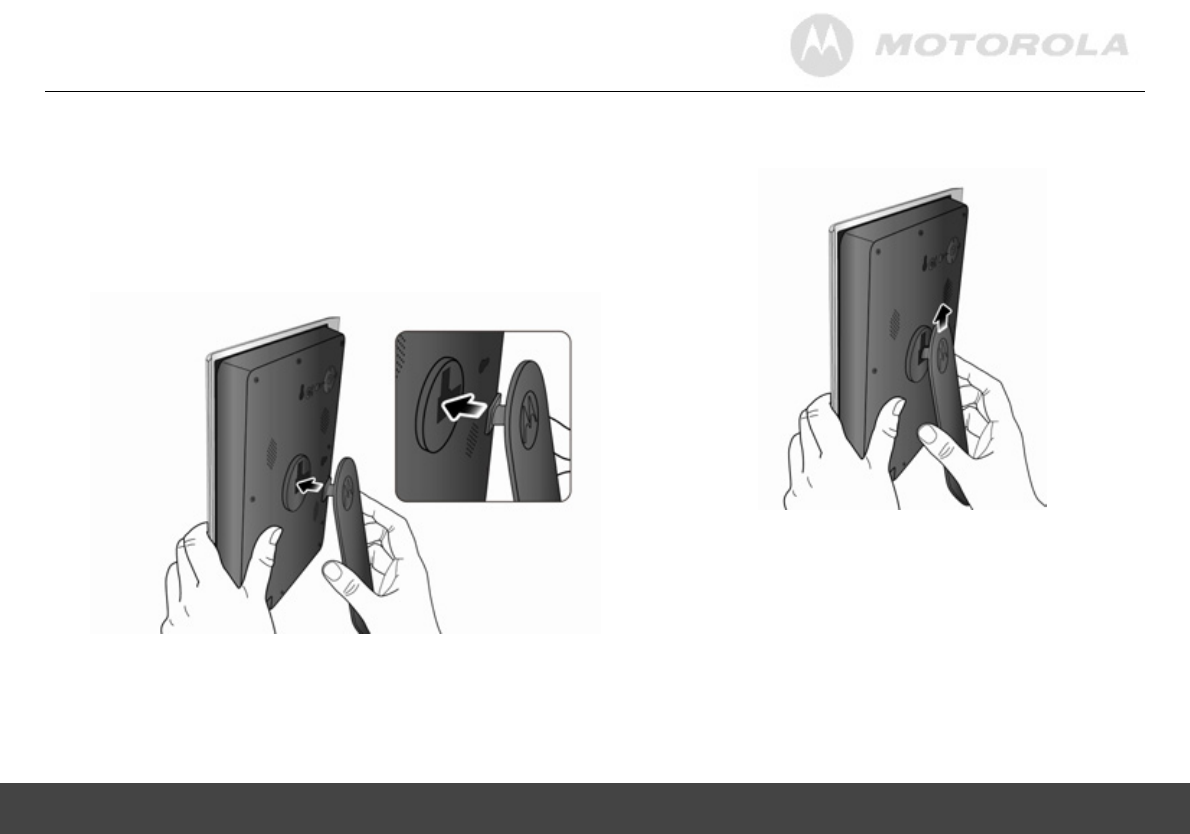

1.1 Installing the stand
1.1.1 Landscape position
To place the photo frame in landscape position, follow the
steps below to install the stand.
1. Hold the photo frame in landscape position.
2. Attach the stand to the stand locking slot on the back of
the photo frame.
3. Insert the stand into the stand locking slot as illustrated,
until the stand is secured to the photo frame.
WARNING
z Do not rotate the stand during the installation. Otherwise,
the photo frame will be damaged.
z Once the installation is complete, place the photo frame
on a stable surface to avoid any possible movement.
Getting started 7
1.1.2 Portrait position
To place the photo frame in portrait position, follow the steps
below to install the stand.
1. Hold the photo frame in portrait position.
2. Attach the stand to the stand locking slot on the back of
the photo frame.
3. Insert the stand into the stand locking slot as illustrated,
until the stand is secured to the photo frame.
WARNING
z Do not rotate the stand during the installation. Otherwise,
the photo frame will be damaged.
z Once the installation is complete, place the photo frame
on a stable surface to avoid any possible movement.
Getting started
8

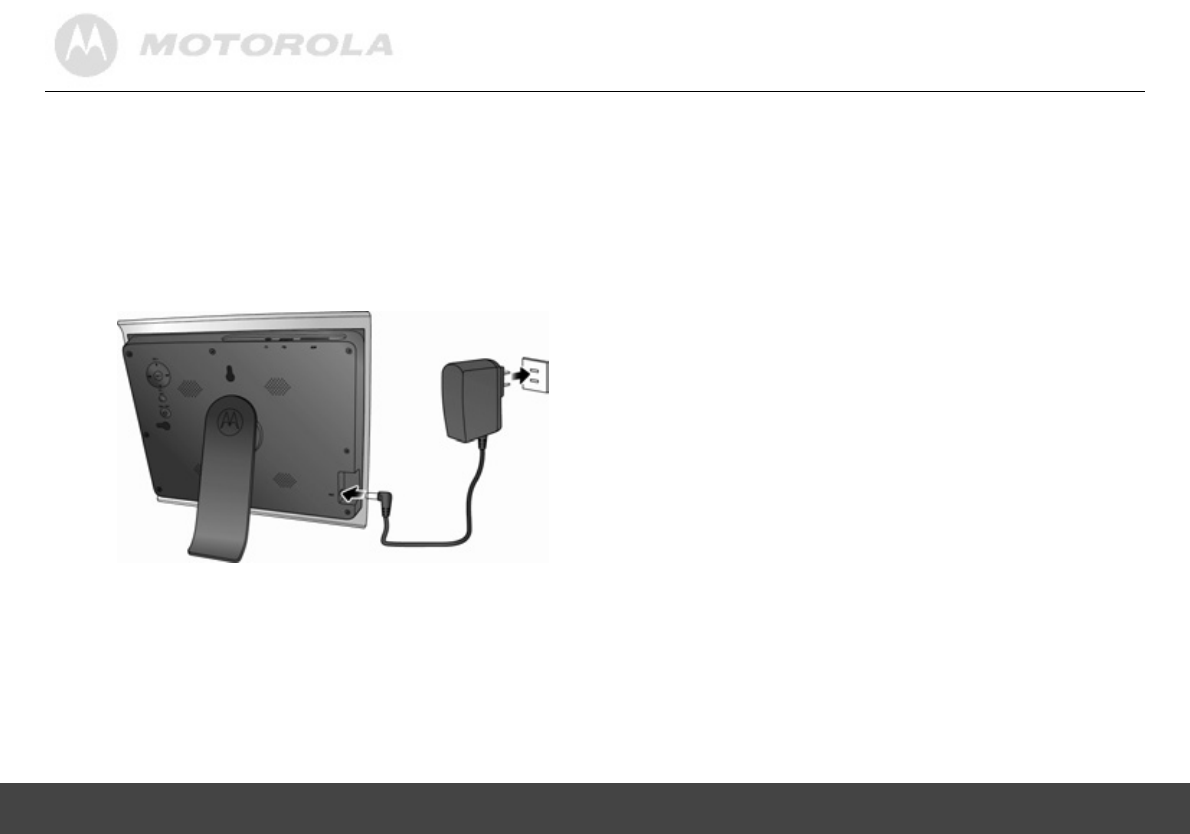

1.2 Connecting to power
Follow the steps below to connect the photo frame to a
power outlet to turn on the power.
1. Plug one end of the AC power adapter to the power
jack on the back of the photo frame.
2. Plug the other end into a power outlet. The power of
the photo frame will be turned on.
3. Place the photo frame in landscape or portrait position
on a stable surface.
NOTE
Available plug types may vary depending on where you
purchased this photo frame.
1.3 Inserting a memory card
or a USB flash drive
The photo frame is preloaded with some photos in the
internal memory. On the top of the photo frame, you can
also insert a memory card or a USB flash drive containing
the content you want to show on this unit.
NOTE
z After you insert a photo-loaded memory card or USB
flash drive and connect the photo frame to power, the
photo frame will automatically start to display photos in
slideshow mode.
z The memory card slot and USB port both support
hot-swap function.
z The memory card slot accepts these types of memory
cards: SD, SDHC, MMC.
z You can play audio and image files on the photo frame.
The supported audio file format is MP3 (*.mp3). The
supported image file format is JPEG (*.jpg).
z Video files are not supported on this photo frame.
Getting started 9
1.4 Replacing the remote
control battery
The supplied remote control comes installed with a CR2025
lithium battery. When you need to replace the battery, follow
the steps below.
1. Slide the locking tab to the right.
2. Pull out the battery holder.
3. Insert the new battery into the battery holder. The
battery must be placed with the positive pole facing
upwards in the illustrated position.
4. Slide the battery holder into the remote control.
WARNING
z Protect the battery from overheating or excessive
moisture.
z Failure to replace the battery in the correct manner may
result in damage to the battery.
z Use only the approved specified batteries.
z Properly recycle or dispose of used batteries according to
local guidelines and regulations.
z Do not throw batteries into fire. This may result in an
explosion.
z If the battery is completely drained or the remote control
is not in use for a long time, remove the battery to prevent
leakage.
Using the photo frame
10
2. Using the photo frame
To operate the photo frame, you can:
z Use the control buttons on the back of the photo frame
Or
z Use the supplied remote control

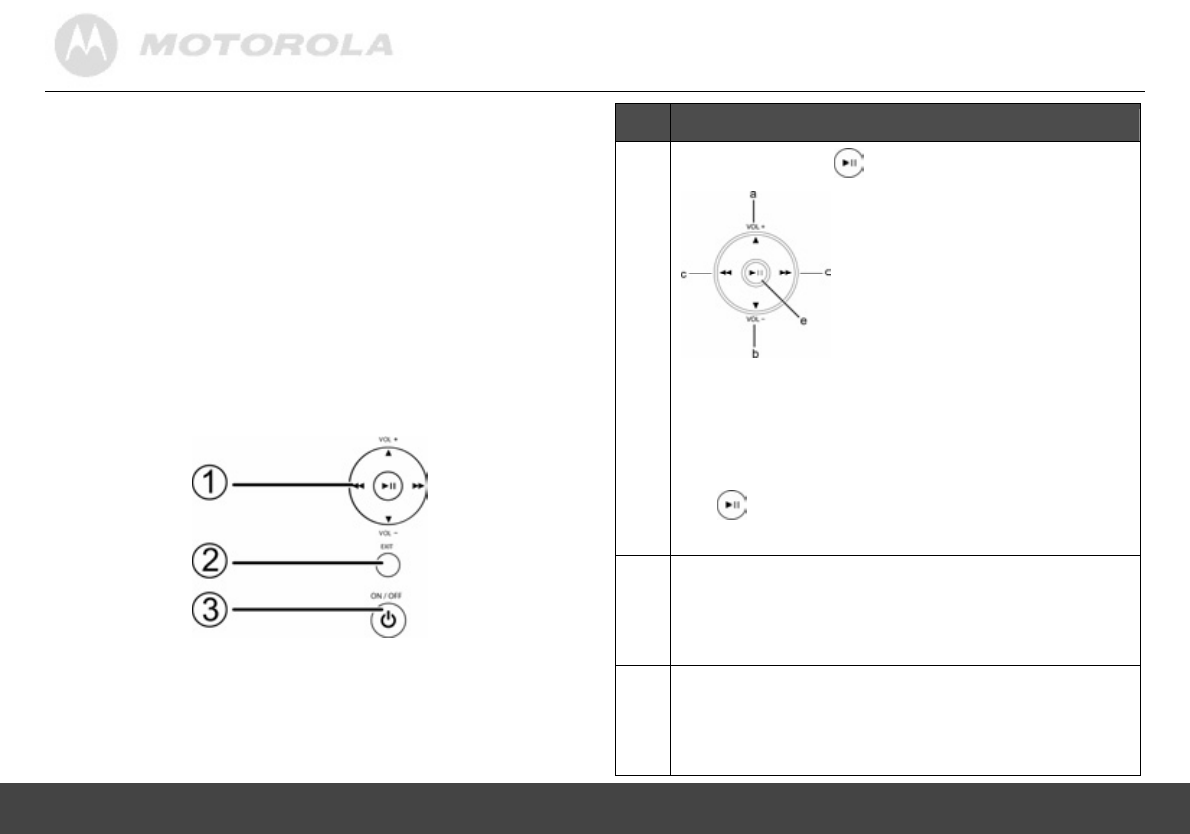

2.1 Using the control
buttons
No. Description
1 Navigation and buttons
a. UP/VOL＋: moves up/increases the volume.
b. DOWN/VOL－: moves down/decreases the
volume.
c. RIGHT: moves right.
d. LEFT: moves left.
e. : Enters/confirms the selection, or
starts/pauses the playback.
2 EXIT button
z Returns to the Main Menu.
z Goes back to the previous page.
z Stops the playback.
3 ON/OFF button
z Turns on the screen backlight.
z Turns off the screen backlight to enter Standby
mode.
Using the photo frame 11
When using the Main Menu
Button Function
UP/VOL＋ Selects Internal Memory, USB or
Memory Card.
DOWN/VOL－ Selects Internal Memory, USB or
Memory Card.
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
Enters sub-pages of Photo, Music,
Calendar, Wi-Fi or Settings menu.
When browsing photos in thumbnail view
Button Function
UP/VOL＋ Moves up.
DOWN/VOL－ Moves down.
LEFT Moves left.
RIGHT Moves right.
Displays the currently selected
photo in Single Photo view.
EXIT Goes back to the previous page.
When playing a slideshow
Button Function
Starts/pauses the playback.
EXIT Goes back to the previous page.
When using the Music menu
Before playing music / When music is paused
Button Function
UP/VOL＋ Selects the previous track.
DOWN/VOL－ Selects the next track.
LEFT Selects the previous track.
RIGHT Selects the next track.
When playing music
Button Function
UP/VOL＋ Increases the volume.
DOWN/VOL－ Decreases the volume.
LEFT Selects the previous track.
RIGHT Selects the next track.
Using the photo frame
12
When using the Calendar menu
Button Function
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
Enters Calendar full screen mode
when the Calendar menu is
selected.
EXIT Goes back to the previous page.
When using the Wi-Fi menu
Button Function
UP/VOL＋ Moves up to select an item.
DOWN/VOL－ Moves down to select an item.
LEFT Selects Wi-Fi List, Wi-Fi Setup or
Account Cfg.
RIGHT Selects Wi-Fi List, Wi-Fi Setup or
Account Cfg.
Enters the sub-page of Wi-Fi List,
Wi-Fi Setup or Account Cfg.
EXIT Goes back to the previous page.
When using the Settings menu
Button Function
UP/VOL＋ Moves up to the previous sub-menu
in Settings.
DOWN/VOL－ Moves down to the next sub-menu
in Settings.
LEFT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
RIGHT Selects Photo, Music, Calendar,
Wi-Fi or Settings menu.
z Enters sub-menus in Settings.
z Enters/confirms the selection.
EXIT z Quits sub-menus in Settings.
z Goes back to the previous page.
Using the photo frame 13
2.2 Using the remote control
The following table describes the buttons and their functions
that are available on the supplied remote control.
No. Description
1 ON/OFF
z Turns on the screen backlight.
z Turns off the screen backlight to enter Standby
mode.
2 MENU
z You can press this button to activate or deactivate
Copy One, Copy All, Delete One or Delete All
options in Photo Viewer and Music Player.
z Displays the Add to favorites option when using
the WEB Radio menu in Wi-Fi List.
z Displays the Send Mail option when using the
Email menu in Wi-Fi List.
3 UP/VOL＋
Moves up or increases the volume.
4 LEFT/PREVIOUS
Moves left or selects the previous item.
5 ROTATE
You can press this button repeatedly to rotate the
selected photo counterclockwise each time by 90
degrees.
6 DOWN/VOL－
Moves down or decreases the volume.
(Continued on next page)
Using the photo frame
14
No. Description
7 WEB Radio
You can press this shortcut key to access WEB
Radio in Wi-Fi List to listen to radio stations on the
web, when a Wi-Fi® connection has been set up.
8 EMAIL
You can press this shortcut key to access Email in
Wi-Fi List to operate photo emails, when a Wi-Fi
connection has been set up.
9 Wi-Fi SETUP
You can press this button to set up a Wi-Fi
connection.
10 SETUP
You can press this button to access the Settings
menu.
11 EXIT
Goes back to the previous page.
12 RIGHT/NEXT
Moves right or selects the next item.
13 (OK/PLAY/PAUSE)
Enters and confirms the selection, or starts/pauses
the playback.
14 ZOOM
Zooms in the photo by a factor of 2x, 4x, 8x and 16x.
15 RSS
You can press this shortcut key to access RSS
reader, when a Wi-Fi connection has been set up.
16 PICASA
You can press this shortcut key to access Picasa™
web album service, when a Wi-Fi connection has
been set up and your account has been configured.
17 FRAME CHANNEL
You can press this shortcut key to access
FrameChannel™ service, when a Wi-Fi connection
has been set up and your account has been
configured.
Using the menus 15
3. Using the menus
3.1 Using the Main Menu
After turning on the power of the photo frame, photos will
play in slideshow mode automatically.
z If a memory card has been inserted, photos in the card
will play in slideshow mode automatically.
z If no memory card is inserted, photos in the built-in
memory will play in slideshow mode automatically.
To exit slideshow mode and return to the Main Menu, press
the EXIT button on the back of the photo frame.
NOTE
To check the available space in Internal Memory, USB or
Memory Card, select Internal Memory, USB or Memory
Card and check the amount of free space shown on the
bottom right corner.
In the Main Menu, you can:
z Press the LEFT or RIGHT button to select the Photo,
Music, Calendar, Wi-Fi or Settings menu.
z Press the UP/VOL＋ or DOWN/VOL－ button to select a
device, including Internal Memory, USB or Memory
Card.
Using the menus
16
3.2 Using the Photo menu
NOTE
The photo frame only supports JPEG (*.jpg) image file
format.
1. In the Main Menu, press the LEFT or RIGHT button to
select the Photo menu.
2. Press the UP/VOL＋ or DOWN/VOL－ button to
select a device.
3. Press the button to enter Photo Viewer, which
displays your photos in thumbnail view. In Photo
Viewer, both photos and folders may display,
depending on the content stored in your device.
z To browse or select a photo, use the UP/VOL＋,
DOWN/VOL－, LEFT and RIGHT buttons.
z To play photos in full screen single photo mode,
press the button. Press the button again
to start running slideshow.
z To make photos play with background music in
slideshow mode, go to the Settings menu to set
Music slideshow to On. (This function is only
available when you have music files in the internal
memory or inserted memory card/USB flash drive.)
z To switch to the previous or next photo in slideshow
mode, press the LEFT or RIGHT button.
z To control the slideshow music volume, press the
UP/VOL＋ or DOWN/VOL－ button.
z To rotate a photo, press the ROTATE button on your
remote control.
z To zoom in a photo, press the ZOOM button on your
remote control.
Using the menus 17
3.2.1 Copying one or all photos
NOTE
z To copy photos from your memory card or USB to the
internal memory, please insert your memory card or USB
flash drive first.
z Use the supplied remote control for this operation.
1. In Photo Viewer, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Copy One
or Copy All, and then press the button.
3. Press the UP/VOL＋ or DOWN/VOL－ button to
select Yes, and then press the button.
4. Press the UP/VOL＋ or DOWN/VOL－ button to
select the destination (USB, Memory Card or Internal
Memory), and then press the button to confirm.
Once the copy process starts, do not remove your USB
or memory card from the photo frame before the
“Complete” message appears.
3.2.2 Deleting one or all photos
NOTE
Use the supplied remote control for this operation.
1. In Photo Viewer, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Delete One
or Delete All, and then press the button.
3. Press the UP/VOL＋ or DOWN/VOL－ button to
select Yes, and then press the button to confirm.
Using the menus
18
3.2.3 Auto rotation
The photo frame has a built-in tilt sensor that allows auto
rotation of photos. Follow the instructions below to enable
auto rotation.
• When the photo frame is placed in landscape position,
rotate the photo frame 90 degrees counterclockwise to
enable auto rotation.
• When the photo frame is placed in portrait position,
rotate the photo frame 90 degrees clockwise to enable
auto rotation.
Using the menus 19
3.3 Using the Music menu
NOTE
The photo frame only supports MP3 (*.mp3) audio file
format.
1. In the Main Menu, press the LEFT or RIGHT button to
select the Music menu.
2. Press the UP/VOL＋ or DOWN/VOL－ button to
select a device.
3. Press the button to enter Music Player.
z To select the previous track, press the UP/VOL＋
or LEFT button.
z To select the next track, press the DOWN/VOL－ or
RIGHT button.
z To play the selected track, press the button.
z During music playing, volume bar shows on top right
corner. To increase or decrease the volume, press
the UP/VOL＋ or DOWN/VOL－ button.
Using the menus
20
3.3.1 Copying one or all music
files
NOTE
z To copy music files from your memory card or USB to the
internal memory, please insert your memory card or USB
flash drive first.
z Use the supplied remote control for this operation.
1. In Music Player, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Copy One
or Copy All, and then press the button.
3. Press the UP/VOL＋ or DOWN/VOL－ button to
select Yes, and then press the button.
4. Press the UP/VOL＋ or DOWN/VOL－ button to
select the destination (USB, Memory Card or Internal
Memory), and then press the button to confirm.
Once the copy process starts, do not remove your USB
or memory card from the photo frame before the
“Complete” message appears.
Using the menus 21
3.3.2 Deleting one or all music
files
NOTE
Use the supplied remote control for this operation.
1. In Music Player, press the MENU button on the
remote control. Copy One, Copy All, Delete One and
Delete All options will appear on the screen.
2. Press the LEFT or RIGHT button to select Delete One
or Delete All, and then press the button.
3. Press the UP/VOL＋ or DOWN/VOL－ button to
select Yes, and then press the button to confirm.
3.4 Using the Calendar menu
1. In the Main Menu, press the LEFT or RIGHT button to
select the Calendar menu.
2. Press the button to enter the Calendar preview
screen, and then press the button again to enter
full screen mode in the Calendar menu. The slideshow
automatically starts.
3. In full screen calendar mode, you can press the
button to display one specific still photo or enter
slideshow mode. To switch to next or previous photo,
press the RIGHT or LEFT button.
NOTE
If you have set the alarm, an alarm icon will show on the
Calendar screen. For details about alarm settings, refer to
“3.6.1 Setting an alarm”.
Using the menus
22
3.5 Using the Wi-Fi menu
To enjoy the provided web services, such as Picasa™,
Flickr® and FrameChannel™ from the photo frame, you need
to sign up for a new account for the web service you want to
use on the Internet. Then, follow the steps below to set up
Wi-Fi® connection and make required account
configurations, so that you can use the available web
services in Wi-Fi List.
3.5.1 Step 1: Setting up Wi-Fi
connection
Press the button on the remote control to go to Wi-Fi
Setup in the Wi-Fi menu.
If you are using automatic IP network:
a. Select DHCP for automatic connection in the
Wi-Fi Setup menu.
Using the menus 23
b. The Select Access Point screen appears and
shows access points that are available nearby.
c. Use the UP/VOL＋ or DOWN/VOL－ button to
select an access point you want to connect to,
and then press the button.
d. To connect to a security-enabled access point,
you will be prompted to enter the password in the
Keyboard screen that appears. (To connect to a
security-disabled network, Step d and e are not
required.)
e. Enter the password in the KEY field. When
finished, select Done, and then press the
button.
For details about how to use the keyboard, see
the tips on the next page.
WARNING
Make sure the settings of your access point (AP) have been
enabled to broadcast the SSID.
Using the menus
24
TIPS
On-screen keyboard use:
z To select an item, press the
buttons on the remote control.
z To enter/confirm your selection, press the
button.
z To switch between uppercase and lowercase
letters or switch to other symbols, select Shift,
and then press the button.
z To cancel your last input, select Backspace,
and then press the button.
z To enter a space, select Space, and then press
the button.
z To go to the next field or move among fields,
select Done, and then press the button.
f. Once the connection is established, the screen
shows the “Your connection was successful”
message in the middle and the icon on the
top right corner. Press the EXIT button to return to
the Wi-Fi menu.
NOTE
z When you have set up Wi-Fi® connection using DHCP,
the photo frame will connect to the Wi-Fi network
automatically every time it is powered on.
z To manually disconnect from the currently active Wi-Fi
network, go to the Settings menu, select Default
settings and press the button, and then select OK
and press the button. Note that this option will also
clear all the settings in Account Cfg.
Using the menus 25
If you are using static IP connection:
a. Select Static IP Address in the Wi-Fi Setup
menu.
b. The Choose AP screen appears. Use the
keyboard to enter your IP address, subnet mask,
gateway and DNS server settings.
For details about how to use the keyboard, see
the tips below.
TIPS
On-screen keyboard use:
z To select an item, press the
buttons on the remote control.
z To move the cursor forwards, select Next, and
then press the button.
Using the menus
26
z To move the cursor backwards, select Prev,
and then press the button.
z To go to the next field or move among fields,
select Done, and then press the button.
z To cancel your last input, select , and then
press the button.
c. When finished, select Done, and then press the
button.
d. Once the connection is established, the screen
shows the “Your connection was successful”
message in the middle and the icon on the
top right corner. Press the EXIT button to return to
the Wi-Fi menu.
NOTE
When you have set up Wi-Fi® connection using Static IP
Address, the photo frame will save the settings you have
entered in the Choose AP page. However, every time the
photo frame is powered on, you need to select Done in the
Choose AP page and press the button repeatedly to
manually connect to the Wi-Fi network.
3.5.2 Step 2: Configuring your
accounts
3.5.2.1 Configuring your Picasa™
account
NOTE
Before making the following configurations, you need to sign
up for a Picasa account on the Internet first if you don’t have
an existing account. Go to www.picasa.google.com
1. Press the LEFT or RIGHT button to select Account
Cfg from the Wi-Fi menu, and then press the
button.
2. Press the button to select Picasa.
Using the menus 27
3. In the Keyboard screen that appears, enter your
account in the Account field.
4. Use the control buttons to select Done, and then press
the button to move to the next field.
5. Continue to enter your password in the Password
field.
6. Use the control buttons to select Done, and then press
the button to complete.
7. Now you will be able to use Picasa in the Wi-Fi List.
3.5.2.2 Configuring your Flickr®
account
NOTE
Before making the following configurations, you need to sign
up for a Flickr account on the Internet first if you don’t have
an existing account. Go to www.flickr.com
1. Press the LEFT or RIGHT button to select Account
Cfg from the Wi-Fi menu, and then press the
button.
2. Press the DOWN/VOL－ button to move to Flickr, and
then press the button.
Using the menus
28
3. In the Keyboard screen that appears, enter your
Flickr® account (full email address) in the Email Adr:
field.
4. When finished, use the control buttons to select Done,
and then press the button to complete.
5. Now you will be able to use Flickr in the Wi-Fi List.
TIPS
The photo frame is limited to access public photos from
Flickr account owners over the age of 18. For details, review
the terms and conditions of use on Flickr's web site.
3.5.2.3 Configuring RSS
RSS (Really Simple Syndication) is a method used to
publish frequently updated web site content, such as news
headlines, blog entries or podcasts. An RSS document
(called a “feed”) contains a summary of content from an
associated web site or the full text. When you subscribe to
an RSS feed, you will receive an update once the publisher
releases new content. You can view RSS feeds that you
have subscribed to with the provided RSS Feed Viewer in
the Wi-Fi List.
1. Press the LEFT or RIGHT button to select Account
Cfg from the Wi-Fi menu, and then press the
button.
2. Press the DOWN/VOL－ button to move to RSS, and
then press the button.
Using the menus 29
3. The Keyboard screen appears and shows the web
address of the default RSS channel. You can clear the
web address by using the Backspace key, and then
enter the web address of another RSS channel you
want to subscribe to.
4. Use the control buttons to select Done, and then press
the button to complete.
3.5.2.4 Configuring your email account
1. Sign up for a new Gmail™ (referred to as Google Mail
in some countries/regions) email account.
2. Select Mail Config from Account Cfg in the Wi-Fi
menu.
3. Select Done, and then press repeatedly to move
to the Account field.
4. Enter your account in the Account field.
5. Select Done, and then press .
6. Enter your password in the Password field.
7. Select Done, and then press .
Using the menus
30
8. Confirm the Authentication option, and then press
to complete the settings.
For details about email server settings, refer to the table
below.
Gmail™ (Referred to as Google
Mail in some countries/regions)
Yahoo!® MAIL (UK only)
POP Serv: pop.gmail.com
POP Port: 995
SSL: y
SMTP Serv: smtp.gmail.com
SMTP Port: 465
SSL: y
Account: (No need to enter
@gmail.com)
Password: Your password
Authentication: y
POP Serv: pop.mail.yahoo.co.uk
POP Port: 995
SSL: y
SMTP Serv: smtp.mail.yahoo.co.uk
SMTP Port: 465
SSL: y
Account: (Enter full email address.)
Password: Your password
Authentication: y
NOTE
z IMPORTANT: Depending on server settings, emails may
be deleted from server after received by the photo frame.
DO NOT use email account currently using for email
communication. Create a new Gmail or Yahoo! Mail
account.
z If you use a Gmail email account, you only need to enter
your email account and password in the Account and
Password fields. The Gmail server settings have been
preset on the photo frame.
z For additional information about email server settings or
mail server accessibility, contact your network
administrator or network service provider.
To avoid the risk of losing important email data in your
email account, DO NOT use your existing personal email
account to receive photo emails on this photo frame.
Create a new Gmail email account and use it for best
compatibility with this photo frame.
Using the menus 31
3.5.2.5 More information about
on-screen keyboard use
Note that when entering information using the LS1000W
on-screen keyboard there are two pages of keys available,
and there may be times when you will need to use
characters from both keyboard pages to enter the
information you require.
The default page has the lower case characters plus other
characters and symbols you may need.
The second page contains the UPPER CASE keys plus
other additional characters some of which are commonly
used in email or URL addresses. This page is accessed by
selecting the Shift key on the bottom left of the screen. This
key acts as a toggle between the two pages.
Using the menus
32
3.5.3 Step 3: Using web services
3.5.3.1 Using Picasa™
NOTE
Use the supplied remote control for this operation.
1. Press the button to go to Picasa. The screen will
display web albums that you have created on your
Picasa account.
2. Press the UP/VOL＋, DOWN/VOL－, LEFT and
RIGHT buttons to select an album if you have multiple
ones.
3. Press the button to enter the selected album.
z To play photos in full screen single photo mode,
press the button.
z To start running slideshow, press the
button again.
4. To quit, press the EXIT button.
NOTE
To copy a photo, select the photo in thumbnail mode and
press the MENU button on the remote control. When the
Copy One option appears, press the button to select
YES, use the UP/VOL＋ or DOWN/VOL－ button to select
the destination (Internal Memory, USB or Memory Card),
and then press the button to proceed.
Using the menus 33
3.5.3.2 Using Flickr®
NOTE
z The photo frame is limited to access public photos from
Flickr account owners over the age of 18. For details,
review the terms and conditions of use on Flickr's web
site.
z Use the supplied remote control for this operation.
1. Press the LEFT or RIGHT button to select Wi-Fi List
from the Wi-Fi menu, and then press the button.
2. Press the DOWN/VOL－ button to select Flickr, and
then press the button. The screen will display
public web albums that have been created on your
Flickr account.
3. Press the UP/VOL＋, DOWN/VOL－, LEFT and
RIGHT buttons to select an album if you have multiple
ones.
4. Press the button to enter the selected album.
z To play photos in full screen single photo mode,
press the button.
z To start running slideshow, press the
button again.
5. To quit, press the EXIT button.
NOTE
To copy a photo, select the photo in thumbnail mode and
press the MENU button on the remote control. When the
Copy One option appears, press the button to select
YES, use the UP/VOL＋ or DOWN/VOL－ button to select
the destination (Internal Memory, USB or Memory Card),
and then press the button to proceed.
Using the menus
34
3.5.3.3 Using FrameChannel™
NOTE
Use the supplied remote control for this operation.
3.5.3.3.1 Setting up FrameChannel to work
with LS1000W
1. Press the button on the remote control to access
FrameChannel on your LS1000W.
2. Press the button to display the on-screen
instructions for FrameChannel setup in full screen.
3. Follow the step-by-step instructions to complete the
setup for your FrameChannel account. (If you don’t
have a FrameChannel account, sign up for a new
account on www.framechannel.com)
Step 1: Go to integrated.framechannel.com, and
log into your FrameChannel account.
Step 2: Enter the Activation Code displayed on
your LS1000W in the field below, and then click
Go!.
Step 3: Press the button on the remote
control and you will see a “FrameChannel
Activation successful.” message on your
LS1000W. Please wait while your frame updates.
A slideshow of your FrameChannel photos will
start once the update is done.
Using the menus 35
4. You can press the EXIT button to stop the slideshow,
and display photos in full screen single photo mode.
5. To quit, press the EXIT button again.
NOTE
• To copy a photo, select the photo in thumbnail mode
and press the MENU button on the remote control.
When the Copy One option appears, press the
button to select YES, use the UP/VOL＋ or
DOWN/VOL－ button to select the destination (Internal
Memory, USB or Memory Card), and then press the
button to proceed.
• If the photos displayed are not the photos of your own,
check your FrameChannel™ account configuration in
Account Cfg. You might have input the wrong account
name and 4-digit PIN code. Please verify your account
name/PIN code and try again.
3.5.3.3.2 Deactivating the active
FrameChannel account
You can deactivate the currently active FrameChannel
account and set up another FrameChannel account to work
with your LS1000W.
1. Go to integrated.framechannel.com, and log into your
FrameChannel account.
2. Go to My Account.
Using the menus
36
3. Click Frame Activation, and then click Deactivate
frame.
4. When the “Are you sure you wish to deactivate your
frame?” message appears, click OK to proceed.
5. Click Save.
The new settings will take effect the next time you access
FrameChannel on this photo frame.
3.5.3.4 Using RSS
NOTE
Use the supplied remote control for this operation.
1. Press the button to go to RSS. The screen will
display the most recently updated RSS feeds from the
subscribed channel set in Account Cfg.
2. Press the UP/VOL＋ or DOWN/VOL－ button to
select a RSS feed.
3. Press the button to view the selected RSS feed.
4. To quit, press the EXIT button.
Using the menus 37
3.5.3.5 Using WEB Radio
NOTE
Use the supplied remote control for this operation.
1. Press the button to go to WEB Radio.
2. Press the UP/VOL＋ or DOWN/VOL－ button to
select the category of radio channels you want to listen
to, and then press the button.
3. Press the UP/VOL＋ or DOWN/VOL－ button to
select a radio program you want to listen to, and then
press the button.
4. In the list that appears, press the UP/VOL＋ or
DOWN/VOL－ button to select a program entry.
z To play the selected program entry, press the
button to proceed with streaming. To stop the
playback, press the button again.
z When the program entry plays, you can press the
UP/VOL＋ or DOWN/VOL－ button to adjust the
volume.
z To add the selected program entry to the
Favorites list, press the MENU button on the
remote control. When Add to favorites appears,
the selected program entry has been added to the
Favorites list.
5. To quit, press the EXIT button.
Using the menus
38
6. If you have added radio program entries to the
Favorites list, the WEB Radio screen will show
Favorites, Search and Delete One options when you
access WEB Radio next time.
z Favorites:
In this option, you can press the UP/VOL＋ or
DOWN/VOL－ button to select a program entry,
and then press the button to start streaming
and playback. To stop playback, press the
button again.
NOTE
To play another program entry in the Favorites list, you
need to stop the current program playback first by pressing
the button. Use UP/VOL＋ or DOWN/VOL－ button to
select another program entry, and then press the
button to start streaming and playback.
z Search:
In this option, you can press the UP/VOL＋ or
DOWN/VOL－ button to search for all radio
programs that are available for playback.
z Delete One:
In this option, you can press the UP/VOL＋ or
DOWN/VOL－ button to select the radio program
entry to be removed from the Favorites list, and
then press the button to delete it.
WEB Radio powered by SHOUTcast
Using the menus 39
3.5.3.6 Using Email
Press the button to go to Email. To receive photo
emails, you must add your contacts to the Welcome list first.
Follow the instructions in “3.5.3.6.1 Adding your contacts to
the Welcome list”.
3.5.3.6.1 Adding your contacts to the
Welcome list
The photo frame is designed to avoid junk mails, which only
displays photo emails received from the contacts in the
Welcome list. Therefore, you need to add your contacts to
the Welcome list first, before you can successfully receive
photo emails from them.
1. In Email, press the LEFT or RIGHT button to select
Welcome list, and then press the button.
2. Select Add and then press the button.
3. In the Add screen that appears, enter the name and
email address of the contact to be added.
Using the menus
40
4. When finished, use the control buttons to select Done,
and then press the button to complete.
5. Once you have added your contacts to the Welcome
list, you will be able to receive photo emails from these
contacts.
WARNING
When receiving a photo email from a contact that is not in
the Welcome list, the photo frame only shows the mail
receiving progress, but will not download and save the
photos sent by the contact. The screen shows the “Not
match to welcome list” message.
3.5.3.6.2 Receiving photo emails
1. Press the button on the remote control to access
Email in Wi-Fi List.
The “Checking email” message appears.
2. When you have incoming photo email(s), the
“Downloading E-mail images …” message appears.
Using the menus 41
3. Once the download completes, downloaded photo(s)
will be saved into the internal memory of the photo
frame.
WARNING
z Do not disconnect the power of the photo frame during
email receiving. Otherwise, internally memory may crash,
causing all data lost in memory.
z If there is insufficient free space in the internal memory,
photo(s) downloaded from the email(s) may not be saved.
z When the “Downloading E-mail images…” message
appears, all the current activities on the photo frame,
such as copying music and photos, will be interrupted
and stopped. Manually resume the unfinished activities
after email downloading is complete.
4. Once the photo(s) have been downloaded and saved
to the internal memory, the following screen appears,
asking whether you want to play photo(s) received in
email(s) in slideshow mode.
• If you select Yes and press , the new photo(s)
received in email(s) will start running slideshow
with all the existing photo(s) stored in the internal
memory.
• If you select No and press , it will go to Inbox.
• If you do not make any selection and the photo
frame is idle for over 30 seconds, slideshow begins
automatically.
Using the menus
42
5. Photo(s) received from email(s) are saved in the
internal memory.
NOTE
To delete the received photo(s), go to the Photo menu and
select Internal Memory. For details about how to delete
photos, refer to “3.2.2 Deleting one or all photos”.
3.5.3.6.3 Viewing received photo emails on
inbox
1. In Email, press the LEFT or RIGHT button to select
Inbox, and then press the button.
2. You can press the UP/VOL＋ or DOWN/VOL－
button to browse photo emails received from different
contacts, and then press the button to view photo
emails received from the selected contact.
3. To quit, press the EXIT button.
NOTE
The photo frame only receives the emails that contain
photos in JPEG (*.jpg) file format. Other file formats are not
supported.
Using the menus 43
3.5.3.6.4 Sending a photo by email
NOTE
Use the supplied remote control for this operation.
1. In Email, press the LEFT or RIGHT button to select
Send Mail, and then press the button.
2. Select the source of the photo you want to send
(Internal Memory, USB or Memory Card), and then
press the button.
3. Press the UP/VOL＋, DOWN/VOL－, LEFT and
RIGHT buttons to select a photo you want to send.
4. Press the MENU or the button on the remote
control.
5. When the Send Mail option appears, press the
button.
6. Select Yes and then press the button to continue.
z To look for history of email addresses sent before,
select Sent directories, use the UP/VOL＋ or
DOWN/VOL－ button to select an email address,
and then press the button.
z To enter the email address directly, select New
address, and then press the button.
7. Once you have entered an email address, press the
button to proceed. The “Sending photo mail…”
message appears.
Using the menus
44
8. When the photo has been sent successfully, the “Send
success” message appears.
NOTE
If the photo is not sent successfully, the “Send fail” message
appears on the screen. Please verify the email address you
entered.
3.5.3.6.5 Editing or deleting the contacts in
the Welcome list
1. In Email, press the LEFT or RIGHT button to select
Welcome list, and then press the button.
Deleting a contact:
a. Press the LEFT or RIGHT button to select Delete.
b. Press the UP/VOL＋ or DOWN/VOL－ button to
select the contact you want to remove from the
list.
c. Press the button to delete the selected
contact.
Editing a contact:
a. Press the LEFT or RIGHT button to select Edit.
b. Press the UP/VOL＋ or DOWN/VOL－ button to
select the contact you want to edit.
c. Use the keyboard to edit the selected contact.
d. Use the control buttons to select Done, and then
press the button to complete.
2. To quit, press the EXIT button.
Using the menus 45
3.5.4 FAQ and troubleshooting
System
There is no response from the photo frame and the
system cannot restart automatically.
• Press the button on the remote control to
power off and press it again to restart the
system.
• Unplug the power cable and then reconnect the
power.
Wi-Fi® connection
The photo frame cannot connect to Wi-Fi network.
• Verify the access point you are connecting to is
active and working properly.
• The photo frame only supports 802.11b/g
wireless network.
• For technical support, contact your network
administrator or network service provider.
Account configurations
I have configured my Picasa™ account in Account
Cfg in the Wi-Fi menu, but still cannot access my
Picasa account in Wi-Fi List.
• Make sure you have entered the account and
password correctly. For the “Account” field, you
only need to enter the account name. (A full
email address is not required.)
• Make sure there is no extra space in the fields.
I have configured my Flickr® account in Account
Cfg in the Wi-Fi menu, but still cannot access my
Flickr account in Wi-Fi List.
• Make sure you have entered the correct email
address in the “Email Adr:” field. A full email
address is required, including @yahoo.com or
others.
• Make sure there is no extra space in the field.
Using the menus
46
Account configurations (Continued)
I have configured Mail Config settings in Account
Cfg in the Wi-Fi menu, but the photo frame still
cannot receive photo emails.
• The photo frame only fully supports Gmail™
(referred to as Google Mail in some
countries/regions) and Yahoo!® Mail.
• Make sure you have entered the account and
password correctly.
• For the “Account” field, some email service
providers require the full email address, while
some require user name only. Refer to the email
server settings in “3.5.2.4 Configuring your
email account” or check with your email service
provider.
Picasa™, Flickr®, FrameChannel™, RSS, WEB
Radio and Email web services
When accessing web services in Wi-Fi List, a “No
Wifi connection” message appears on the screen.
Make sure you have connected to a wireless
network. The icon will be displayed on the top
right corner, when Wi-Fi connection is set up and
running.
When accessing web services in Wi-Fi List, a “Login
Fail. Please check your account” message appears
on the screen.
Make sure you have entered correct account
configurations in Account Cfg in the Wi-Fi menu.
When accessing Picasa, Flickr, FrameChannel,
RSS, WEB Radio or Email in Wi-Fi List, the screen
keeps showing the progress icon for a long
period of time, and I cannot use these services.
Check your network status in terms of its stability
and speed with your network service provider. Press
the EXIT button to quit and try again later.
Using the menus 47
Picasa™, Flickr®, FrameChannel™, RSS, WEB
Radio and Email web services (Continued)
I cannot access the Flickr account that has been
configured in Account Cfg.
Make sure the Flickr account you are accessing
meets the age requirements. The photo frame is
limited to access public photos from Flickr account
owners over the age of 18. For details, review the
terms and conditions of use on Flickr's web site.
I received a photo email, but the screen shows
“Slideshow these 0 Picture(s)” after downloading.
Photos in the received email are not in compatible
file format. The photo frame only supports JPEG
(*.jpg) file format. Other image file formats may not
be detected or displayed correctly.
Using the menus
48
3.6 Using the Settings menu
1. In the Main Menu, press the LEFT or RIGHT button to
select the Settings menu.
2. Press the button to enter the Settings menu.
z To move among sub-menus under Settings, press
the UP/VOL＋ or DOWN/VOL－ button.
z To apply the settings you have selected, press the
button.
z To go back to the previous page, press the EXIT
button.
You can control all function settings of the photo frame from
the Settings menu. Refer to the table below for more
information.
Sub-menu Option Description/Function
5 seconds
10 seconds
30 seconds
1 minute
1 hour
Slideshow
frequency
1 day
Selects the speed of
slideshow.
No effect
Random
Fade out
Fade in
Left to Right
Horizontal
open
Transition
effect
Horizontal
close
Selects the transition effect
to be applied in slideshow.
(Continued on next page)
Using the menus 49
Sub-menu Option Description/Function
Year
Month
Day
Hour
Minute
Date & Time
setting
Time
Format
Allows you to set up the
date and time.
Alarm
on/off
Activates/deactivates the
alarm clock function.
Alarm hour Sets the alarm hour.
Alarm
minute
Sets the alarm minute.
Volume Sets the alarm volume
level.
Tone Selects the type of alarm
tones: Beep or MP3.
Alarm setting
Day Allows you to set the alarm
recurring everyday or on
weekdays.
English
Français
Deutsch
Italiano
Español
Português
Nederlands
Pусский
Svenska
Dansk
Suomi
Norsk
Polski
Magyar
תירבע
Türkçe
Languages
Ελληνικά
Selects an OSD
(On-screen display)
language.
(Continued on next page)
Using the menus
50
Sub-menu Option Description/Function
Auto On/Off Enables/disables the Auto
power on/power off options.
Auto on
hour
Auto on
minute
Powers on the photo frame
automatically according to
the time length you set.
Auto off
hour
On/Off
schedule
Auto off
minute
Powers off the photo frame
automatically according to
the time length you set.
Brightness Sets the level of brightness.Display
Contrast Sets the level of contrast.
Original Displays photos in their
original aspect ratio.
Photo view
options
Fit to
screen
Optimizes photos to fit the
whole screen.
On Turns on background music
in slideshow mode.
Music
slideshow
Off Turns off background music
in slideshow mode.
Original
size
Use the original file size
when copying photos.
Copy option
Reduce
size
Use the reduced file size
when copying photos.
EXIT Cancels the task. Default
settings OK Resets to system default
settings.
EXIT Cancels the task. Clear internal
memory OK Formats the internal
memory.
WARNING:
This option will delete all
the photo and music files
stored on the internal
memory.
(Continued on next page)
Using the menus 51
Sub-menu Option Description/Function
Slideshow Enters Slideshow mode
upon system startup, when
photos in Internal Memory,
USB or Memory Card are
available.
Calendar Enters Calendar mode
upon system startup.
Startup mode
Frame
Channel
Runs a FrameChannel
photo slideshow, when
Wi-Fi® connection has
been set up and your
FrameChannel account has
been configured.
3.6.1 Setting an alarm
1. In the Main Menu, press the LEFT or RIGHT button to
select the Settings menu.
2. Press the button to enter the Settings menu.
3. Press the DOWN/VOL－ button to select Alarm
setting, and then press the button.
4. Press the LEFT or RIGHT button to set the alarm to
On.
5. Continue to adjust the alarm hour, minute, volume,
tone and Day.
In the Day option, you can select Everyday or
Weekday. When Everyday is selected, alarm repeats
everyday, including Saturday and Sunday. When
Weekday is selected, alarm repeats from Monday to
Friday.
6. Press the EXIT button when finished.
NOTE
z When the alarm goes on, you can press the EXIT button
to stop the alarm or press the button to activate the
snooze function.
z If you select MP3 in the Tone option, music stored in the
built-in memory will be used as the alarm tone.
z If no music file is available in the memory, Beep tone will
be used as the alarm tone.
Using the menus
52
3.6.2 Enabling auto on/off
The photo frame comes with the Programmable On/Off
Time feature, making it possible to power on and off
automatically according to the time you set.
1. In the Main Menu, press the LEFT or RIGHT button to
select the Settings menu.
2. Press the button to enter the Settings menu.
3. Press the DOWN/VOL－ button to select On/Off
schedule, and then press the button.
4. Press the LEFT or RIGHT button to select On for the
Auto On/Off option.
5. Continue to set the Auto On/Off time.
z To move among entries, press the UP/VOL＋ or
DOWN/VOL－ button.
z To adjust the time, press the LEFT or RIGHT button.
6. Press the EXIT button when finished.
NOTE
When the photo frame has been powered off automatically,
you can press any control buttons or any buttons on the
remote control to resume the system at any time. Once it
reaches the scheduled Off time, the photo frame will power
off automatically still.
General information 53
4. General information
If your product is not working properly...
1. Read this User’s Guide or the Quick Start Guide.
2. Visit our website:
www.motorola.com
3. Contact Customer Service:
• 1-888-331-3383 in US and Canada
• 0845 218 0890 in UK
• (65) 68412668 in Singapore
Consumer Products and Accessories
purchased in the United States, Canada, UK
and Singapore.
What Does this Warranty Cover?
Subject to the exclusions and limitations contained below,
Binatone Electronics International LTD. warrants the
Motorola branded consumer products that it manufactures
(“Products”) and the Motorola branded or certified
accessories sold for use with these Products that it
manufactures (“Accessories”) to be free from defects in
materials and workmanship under normal consumer usage
for the period(s) outlined below. This limited warranty is a
consumer’s exclusive remedy, and only applies as follows to
new Motorola branded Products and Accessories
manufactured by Binatone Electronics International LTD.,
and purchased by consumers in the United States, Canada,
UK or Singapore, which are accompanied by this written
warranty:
Who is covered?
This warranty covers only the first consumer purchaser, and
is not transferable.
General information
54
What will BINATONE ELECTRONICS INTERNATIONAL
LTD. do?
BINATONE ELECTRONICS INTERNATIONAL LTD., at its
sole option, will at no charge repair, replace or refund the
purchase price of any Products or Accessories that does not
conform to this warranty. Binatone Electronics International
LTD. may use functionally equivalent reconditioned/
refurbished/ pre-owned or new Products, Accessories or
parts in such repair or replacement and any Products,
Accessories or parts removed or being replaced under this
warranty become the property of Binatone Electronics
International LTD.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES OR CONDITIONS
IRRESPECTIVE OF WHETHER THEY ARE IMPOSED BY
LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED UNDER
THIS EXPRESS LIMITED WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CONSUMER, AND IS
PROVIDED IN LIEU OF ALL WARRANTIES AND
MOTOROLA AND BINATONE ELECTRONICS
INTERNATIONAL LTD. MAKES NO OTHER WARRANTIES
OR CONDITIONS, EXPRESS OF IMPLIED. IN NO EVENT
SHALL MOTOROLA OR BINATONE ELECTRONICS
INTERNATIONAL LTD. BE LIABLE, WHETHER UNDER
THIS LIMITED WARRANTY OR IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE OR STRICT PRODUCT
LIABILITY) OR OTHERWISE FOR DAMAGES OR CLAIMS
IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND, OR LOSS OF REVENUE, SAVINGS OR
PROFITS, LOSS OF BUSINESS, LOSS OF PROGRAMS
DATA INFORMATION (WHETHER CONFIDENTIAL
PROPRIETARY OR PERSONAL IN NATURE OR
OTHERWISE) OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS OR ACCESSORIES
AND BINATONE ELECTRONICS INTERNATIONAL LTD.
SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR
ANY CLAIMS OR DEMANDS MADE BY ANY THIRD
PARTY OR MADE BY YOU ON BEHALF OF ANY THIRD
PARTY TO THE FULL EXTENT THESE DAMAGES OR
CLAIMS MAY BE DISCLAIMED BY LAW.
Some states, countries or jurisdictions do not allow the
limitation or exclusion of incidental or consequential
damages, or limitation on the length of an implied warranty,
so the above limitations or exclusions may not apply to you
in such states, countries or jurisdictions. This warranty gives
you specific legal rights, and you may also have other rights
that vary from state to state or from one country/jurisdiction
to another.
General information 55
Products or Accessories
Covered
Length of Coverage
Consumer Products One (1) year from the date
of purchase by the first
consumer purchaser of the
product.
Consumer Accessories Ninety (90) days from the
date of purchase by the first
consumer purchaser of the
accessory.
Consumer Products and
Accessories that are
Repaired or Replaced
The balance of the
original warranty or for
ninety (90) days from the
date returned to the
consumer, whichever is
longer.
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and
replacement of parts due to normal wear and tear are
excluded from coverage.
Abuse & Misuse. Defects or damage that result from: (a)
improper or unreasonable use, operation, storage, misuse
or abuse, accident or neglect or other external cause, such
as physical damage (cracks, scratches, etc.) to the surface
of the product resulting from misuse; (b) your failure to
follow or operation outside the usage parameters stated in
the user instructions that came with the Products or
Accessories; (c) contact with liquid, water, rain, extreme
humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (d) use of the Products or
Accessories for commercial purposes or subjecting the
Product or Accessory to abnormal usage or conditions; or (e)
other acts or omissions which are not the fault or neglect of
Motorola or Binatone Electronics International LTD., are
excluded from coverage.
Use of Non-Motorola branded Products and
Accessories. Defects or damage that result from the use of
Non-Motorola branded or certified Products or Accessories
or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or
damages resulting from service, testing, adjustment,
installation, maintenance, alteration, or modification in any
way by someone other than Motorola, Binatone Electronics
International LTD. or its authorized service centers, are
excluded from coverage.
General information
56
Altered Products. Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or parts,
are excluded from coverage.
Communication Services. Defects, damages, or the
failure of Products or Accessories due to any
communication service or signal you may subscribe to or
use with the Products or Accessories is excluded from
coverage.
How to Obtain Warranty Service or Other Information?
To obtain service or information, please call:
• 1-888-331-3383 in US and Canada
• 0845 218 0890 in UK
• (65) 68412668 in Singapore
You will receive instructions on how to ship the Products or
Accessories, the shipment of which shall be at your own risk
and expense, to a BINATONE ELECTRONICS
INTERNATIONAL LTD. Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt, bill of
sale or other comparable proof of purchase of the Products
or Accessories showing the date of purchase; (b) a written
description of the problem; and, most importantly; (c) your
address and telephone number.
These terms and conditions constitute the complete
warranty agreement between you and BINATONE
ELECTRONICS INTERNATIONAL LTD. regarding the
Products or Accessories purchased by you, and supersede
any prior agreement or representations, including
representations made in any literature publications or
promotional materials issued by BINATONE
ELECTRONICS INTERNATIONAL LTD. or representations
made by any agent employee or staff of BINATONE
ELECTRONICS INTERNATIONAL LTD., that may have
been made in connection with the said purchase.
General information 57
Compliance Information
Declaration of Conformity
General information
58
FCC Statement
This device complies with Part 15 Subpart B of the FCC
Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
Subpart B of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician
for help.
WARNING
You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with FCC RF
exposure compliance requirements, please follow operation
instruction as documented in this manual. This equipment
complies with FCC / IC RSS-210 radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance
20cm between the radiator & your body.
FCC and Industry Canada
This device complies with Industry Canada and FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
General information 59
Canadian DOC statement
z This Class B digital apparatus complies with Canadian
ICES-003.
z Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
WEEE Directive
Produced after 13 August 2005. Waste electrical
should not be disposed of with household waste.
Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Technical specifications
60
5. Technical specifications
Screen size 10.4” (26.4cm) diagonal
TFT LCD
Aspect ratio 4:3
Panel resolution 800 (H) x 600 (V) pixels
Internal memory size 512MB (Around 100MB
allocated for firmware and
program running)
Brightness 300 cd/m2
Contrast ratio 500:1
Viewing angle in landscape
and portrait positions
(Top/Bottom/Left/Right)
50° / 60° / 75° / 75°
Supported memory card
types
SD, SDHC, MMC
USB Host Supported
Loudspeakers 0.5W x 2
Power adapter z AC input: 100-240V;
50/60 Hz; 0.6A
z DC output: 9.0V, 2A
Supported image file
format
JPEG (*.jpg)
Supported audio file
format
MP3 (*.mp3)
Auto rotation Built-in tilt sensor
Wi-Fi® module 802.11b/g 2.4GHz WLAN
Supported web services Picasa™, Flickr®,
FrameChannel™, RSS,
WEB Radio, Email
NOTE
Specifications are subject to change without prior notice.
Wall mounting instructions 61
6. Wall mounting instructions
Landscape wall mounting
1. Cut the illustration below and drill holes in the wall exactly as
illustrated.
2. Insert 8mm and 9.5mm head screws (to be purchased
separately) into the holes and tighten the screws. Then, align
your photo frame with the screws.
3. Mount your photo frame in landscape position on the wall.
Wall mounting instructions
62
Wall mounting instructions 63
Portrait wall mounting
1. Drill a hole in the wall and insert an 8mm head screw (to be
purchased separately) into the hole.
2. Align your photo frame with the screw.
3. Mount your photo frame in portrait position on the wall.
Wall mounting instructions
64
Manufactured, distributed or sold by Binatone Electronics International
LTD., official licensee for this product. MOTOROLA and the Stylized M
Logo, and other Motorola trademarks and trade dress are owned by
Motorola, Inc. and are used under license from Motorola, Inc.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Flickr and Yahoo! MAIL are trademarks of Yahoo, Inc., registered in the
U.S. and other countries. Picasa and Gmail are trademarks of Google,
Inc., registered in the U.S. and other countries. FrameChannel is a
trademark of Frame Media, Inc., registered in the U.S. and other
countries. SHOUTcast is a trademark of Nullsoft, INC. registered in the
U.S. and other countries. All other product or service names are the
property of their respective owners.
© Motorola, Inc. 2009. All rights reserved.
Version 1.0
Printed in China
P/N: 4J.0TL04.003
